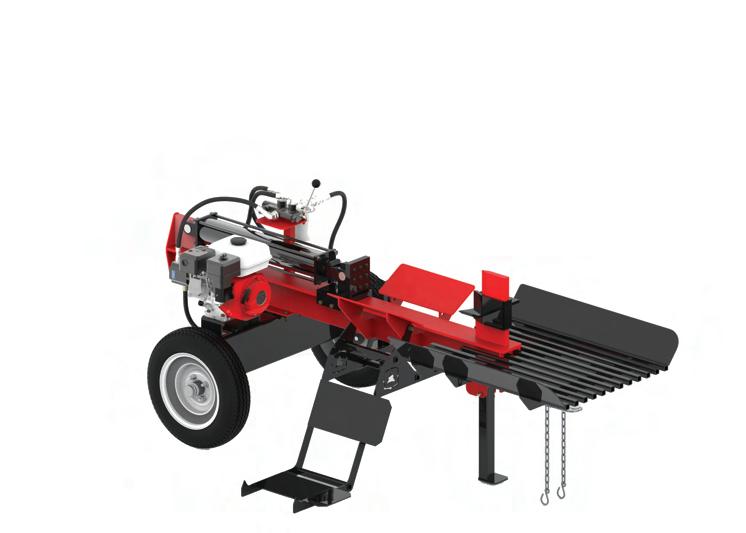

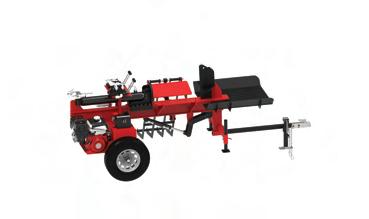

TW-2
•The TW-2 log splitter is made to be a simple and reliable entry-level log splitter that operates at the level of a top-of-the-line commerical wood splitter.
• Powered by an efficient 8.5HP engine, this splitter is an affordable option capable of producing up to 1 cord of quality firewood per hour.
• Standard with a hydraulic log lift, table grate, and 4-Way wedge, the TW-2 enables a single-person operation to split large blocks quickly and easily to increase production and profit.
•Standard with 8.5HP Honda GX270 engine
•High power output, low emissions Power
• Fuel-efficient and quiet
SPECIFICATIONS
Engine Power (HP) 8.5
Pump Flow (GPM) 16
Cylinder Bore (in) 4
Stroke (in) 26
Splitting Force (lbs) 37700
Cycle Time (sec) 9
Avg Output (cord/hr) 1
Weight (lbs) 1000
• Equipped with hydraulic log lift
• Oversized hydraulic tank for all day splitting
• Heavy duty hoses Hydraulics
•Self-entering splitting chamber for easy oneperson operation Features
•Table grate (32” x 34”)
• 4” hydraulic cylinder, 26” stroke
• 4-Way wedge Components
The TW-2 allows operators to increase firewood production and profitability without a large investment.
TW LS
• A compact, economical option suitable for homeowners and hobbyists to commercial firewood producers, the TW-LS is built to withstand daily firewood production without skipping a beat.
• The splitter comes standard with hydraulic wedge/log lift, table grate, and center mounted controls for ease of use.
• This fuel-efficient splitter is equipped with an 11HP engine and 4” hydraulic cylinder.
• The TW-LS Series produces excellent firewood without the hefty start-up price tag; and standard Autocycle brings your firewood production to the next level.
• Standard with 11.7HP Honda GX390 engine
•Features high power output, low oil consumption, and excellent exhaust emissions performance Power
Features
• Equipped with hydraulic wedge/log lift
• Oversized hydraulic tank for all day splitting
• Heavy duty hoses Hydraulics
•Table grate (32” x 34”)
•Self-entering splitting chamber for easy oneperson operation
• Adjustable 4-Way wedge
•4” hydraulic cylinder, 26” stroke
• Autocycle •37,700 pounds of splitting force Components
Standard Autocycle increases production speed and efficiency, making the TW-LS a great choice for any firewood operation.
SPECIFICATIONS
Engine Power (HP) 11.7
Pump Flow (GPM) 22
Cylinder Bore (in) 4
Stroke (in) 26
Splitting Force (lbs) 37700
Cycle Time (sec) 8
Avg Output (cord/hr) 1
Weight (lbs) 1390

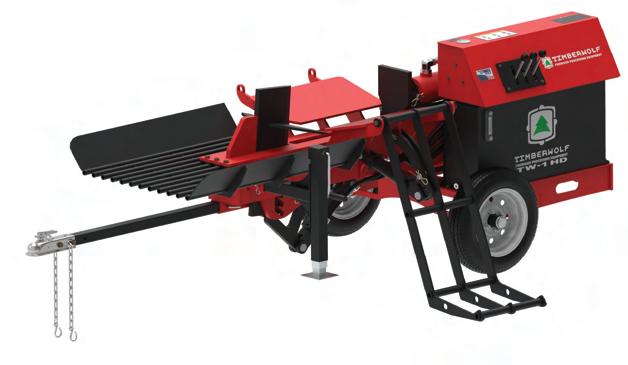

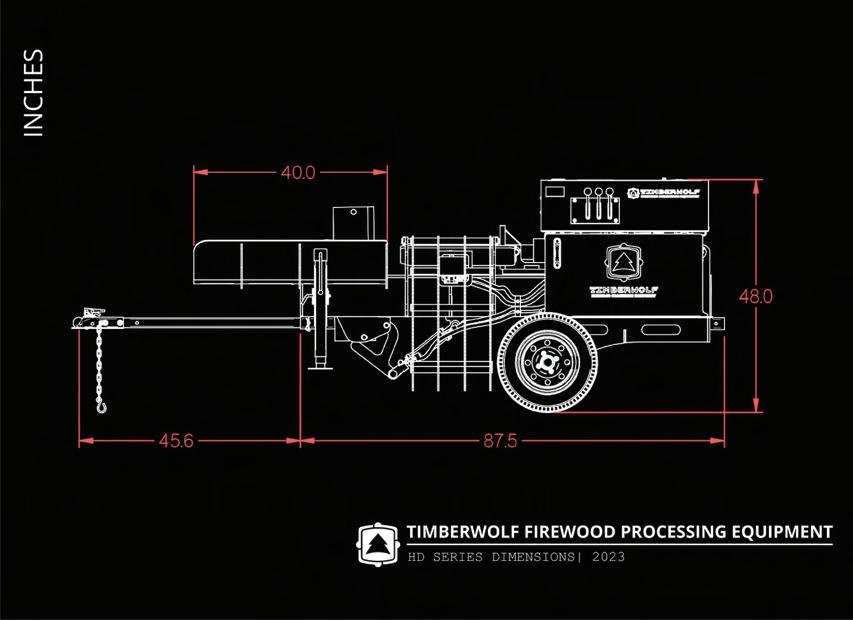

TW HD
•The HD Series mid-sized log splitters feature a hydraulic wedge and log lift, engine and cylinder options for maxmium splitting force and quick cycle times, and the ability to output up to 1.5 cords per hour.
These splitters are built tough to work as hard as you do, and are capable of withstanding the elements for years of rigorous use.
Equipped with integrated valve cover, table grate, and new spring suspension, TW-HD log splitters are portable, ergonomic machines capable of high production and efficiency.
Additional wedges allow for custom firewood production.
Power Hydraulics
• TW-2 HD: fuel-efficient 8.5 HP Honda GX270
• TW-5 HD: 11HP Honda GX390 gas engine
•High power output, low oil consumption
• 25 gallon hydraulic tank, oversized to maintain cool, filtered fluid
• Log lift with 500 pound loading capacity
•Wedge lift for seamless splitting adjustments
Features
•Table grate (32” x 34”)
•Self-entering splitting chamber for easy oneperson operation
• Adjustable 4-Way wedge
•37,700/58,905 pounds of splitting force
•Choose 4” or 5” hydraulic cylinder, 26” stroke
• 2-Way and 6-Way wedge options Options
The TW-HD’s ergonomic operator platform is 36” off the ground, ensuring a comfortable position for all-day splitting.
SPECIFICATIONS
Engine Power (HP) 8.5/11
Pump Flow (GPM) 16
Cylinder Bore (in) 4/5
Stroke (in) 26
Splitting Force (lbs) 37700/ 58905
Cycle Time (sec) 8/10
Avg Output (cord/hr) 1.5
Weight (lbs) 1750

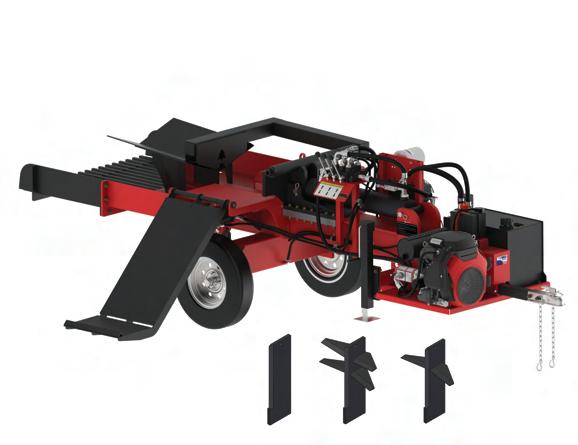

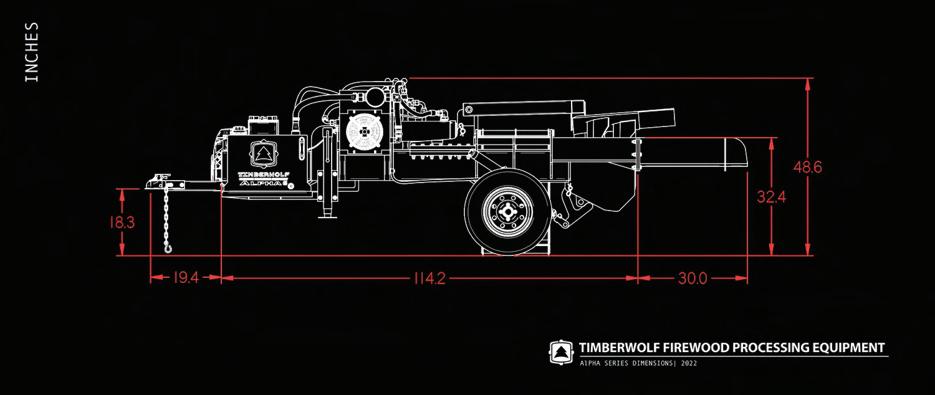

AlPHA 6
• Timberwolf’s top-of-the-line commercial box wedge splitter, the Alpha 6 is capable of outputting up to 2 cords of uniform-sized wood per hour.
• Powered by a 22.1HP engine, the Alpha offers 58,905 pounds of splitting force along with a 7 second cycle time.
• The Alpha 6 is equipped with hydraulic log and wedge lift, table grate, dual jacks for increased stability during operation, and regeneration manifold for faster splitting.
• The splitter comes standard with 4-Way wedge, add a box wedge with floating auto-retract arm to create uniform splits with no need for manual resplitting.
Power
• 22.1HP Honda GX700
• 28 GPM pump flow to power through the toughest logs
•Standard with 5” hydraulic cylinder
Hydraulics
• Log lift with 500 pound loading capacity, install on either side of machine
•Wedge lift with 8” travel
•Regeneration manifold allows rod to extend more rapidly, for faster splits
Features
•40” x 36” table grate
• Floating auto-retract arm eliminates need for manual resplitting
• Adjustable 4-Way wedge
•58,905 pounds of splitting force
Options
• 2-Way and 6-Way wedges
•4.5” box wedge for cord wood
•3.5” box wedge for packaged firewood
•2.5” box wedge for cooking wood
The Alpha’s box wedge option with auto-retract arm pulls the unsplit portion of the log back into the splitting chamber, allowing operators to burn through the largest blocks without rehandling.
SPECIFICATIONS
Engine Power (HP) 22.1
Pump Flow (GPM) 28
Cylinder Bore (in) 5
Stroke (in) 26
Splitting Force (lbs) 58905
Cycle Time (sec) 7
Avg Output (cord/hr) 2
Weight (lbs) 2550

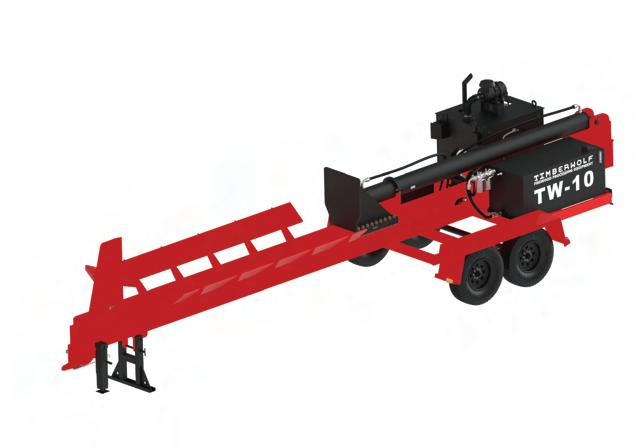

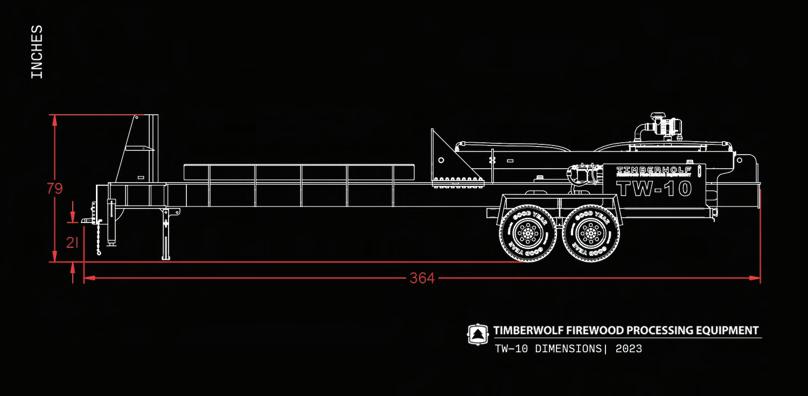

TW-10
• The TW-10 is an extra-large log splitter capable of splitting logs as long as 12’ and up to 5’ in diameter, into quarters, so they can be fed into a firewood processor or wood chipper.
• This heavy-duty built splitter has a 30’ long frame made of 3” thick American steel, and is powered by a 74HP diesel engine.
• The TW-10’s impressive power comes from the huge 8” hydraulic cylinder that offers 150,000 pounds of splitting force.
•Timberwolf’s biggest log splitter is operated via remote control, so operators can split the largest logs from the comfort and safety of their truck.
•74HP Hatz diesel engine
•Designed for maximum power and efficiency with little fuel consumption Power
Hydraulics
• Massive 8” hydraulic cylinder built in the USA
Features
•Dual 7000 pound axles
• Autocycle
• Drives the push block with 150,000 pounds of splitting force
• 110 gallon hydraulic tank
• Huge 4-Way wedge
• 54 second cycle time
• Remote control operated
•Bring the splitter to the worksite!
• Equipped with ball coupler and full braking system
• Removable jack
• Highway tires

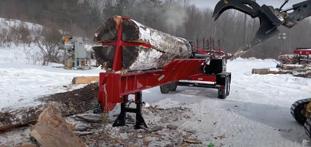

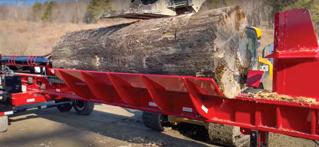

The TW-10 is built for maximum power: good luck finding a log this machine cannot split!
SPECIFICATIONS
Engine Power (HP) 74
Pump Flow (GPM) 33
Cylinder Bore (in) 8
Stroke (in) 12
Splitting Force (lbs) 150000
Cycle Time (sec) 54
Weight (lbs) 13640

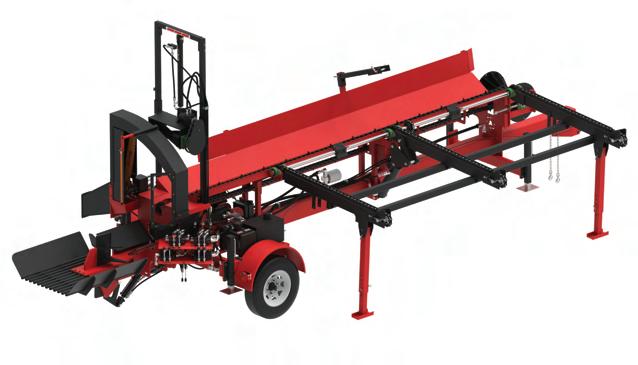

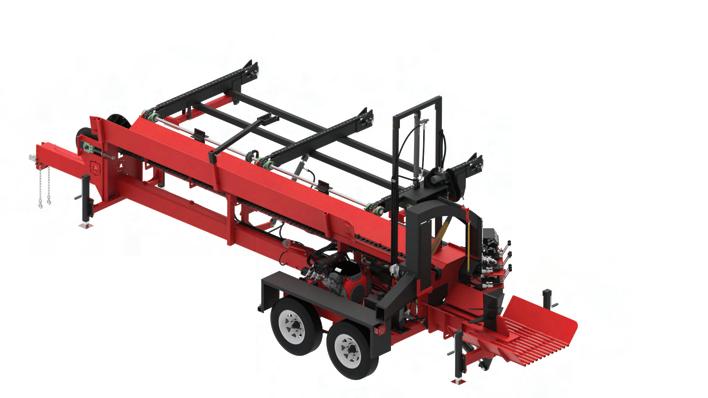

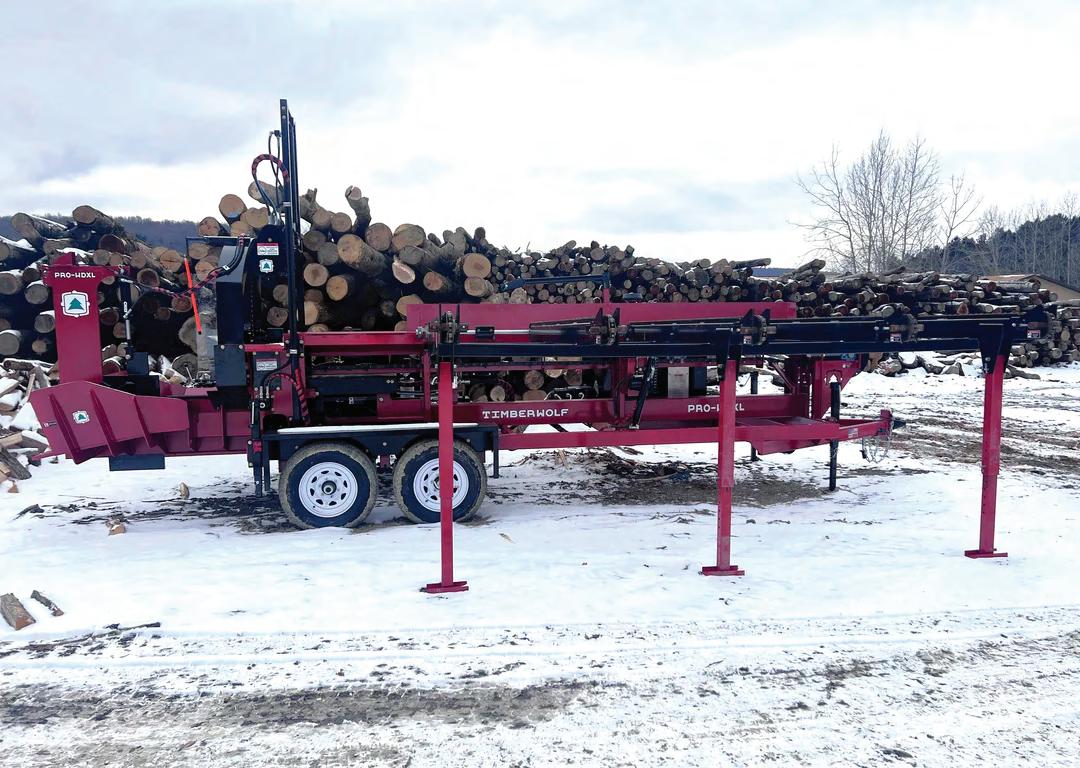

PRO-MP XL
• A mid-sized processor capable of outputting up to 2 cords per hour, the Pro-MP XL offers commercial-grade power and speed at an affordable price.
• Standard with driven top roll clamp and back roller that enables the processor to handle logs long as 32’ and wide as 24” in diameter.
• Highly accessible and ergonomic frame for easy feed trough adjustments and resplits, standard wedge lift, and equipped with 6’x12’ 3-strand live deck.
• 12’ integrated conveyor option to easily load cut firewood into a truck of trailer.
Power
• 38HP fuel-injected Kohler gas engine with integrated oil cooler •3-Stage pump: 22-19-9 GPM
Hydraulics
• Hydraulic wedge lift
• Heavy duty hoses
• Dual 30 gallon hydraulic tanks, ensuring consistently cool and filtered fluid
• Manual autocycle
Features
• Top roll clamping system
• Hourglass-shaped back roller to handle longer logs
• Saw: 25” cut/.404 chain
• Extremely portable
• 4” or 5” American-made hydraulic cylinder
• 12’ integrated conveyor
• 4-Way wedge
• 6-Way wedge Options
With cylinder and wedge options, Pro-MP XL firewood processors will output up to 2 cords of firewood per hour and are the best commercial processors for the money.
SPECIFICATIONS
Engine Power (HP)
Pump Flow (GPM)
Cylinder Bore (in) 4/5
Trough Length (ft) 16
Max Log Length (ft) 32
Cycle Time (sec) 5/7
Avg Output (cord/hr) 2
Weight (lbs) 7500
PRO-MP DIESEl
• The Pro-MP Diesel is a portable firewood processor with the ability to output up to 3 cords per hour, while handling logs wide as 24” and in excess of 32’ in length.
•Combines the frame of the popular Pro-MP with a 56HP diesel engine to boost productivity and efficiency.
•Standard with Timberwolf patented driven top roll clamping system and back roller to secure and stabilize long logs, hydraulic wedge lift, and 6’x12’ 3-strand live deck.
• 12’ integrated conveyor option to easily load cut firewood into a truck of trailer.
•56HP Hatz diesel engine
• 22-16-14 GPM pump flow Power
Hydraulics
• Dual 30 gallon hydraulic tanks
• 22GPM Anfield gear pump
•Wedge lift for seamless
•splitting adjustments
• 3-strand hydraulic live deck
• Manual autocycle
• Heavy duty hoses
Features
• Top roll clamping system
• Hourglass-shaped back roller to handle longer logs
• Saw: 25” cut/.404 chain
• Highly adjustable for safe and simple operation
• 4” or 5” American-made hydraulic cylinder
• 12’ integrated conveyor
• 4-Way wedge
• 6-Way wedge Options
The Pro-MP Diesel is the ultimate mobile firewood processor, this machine is easily portable while remaining capable of commercial-grade output levels.
SPECIFICATIONS
Engine Power (HP)
Pump Flow (GPM)
Cylinder Bore (in) 4/5
Trough Length (ft) 16
Max Log Length (ft) 32
Cycle Time (sec) 5/7
Avg Output (cord/hr) 3
Weight (lbs) 8000

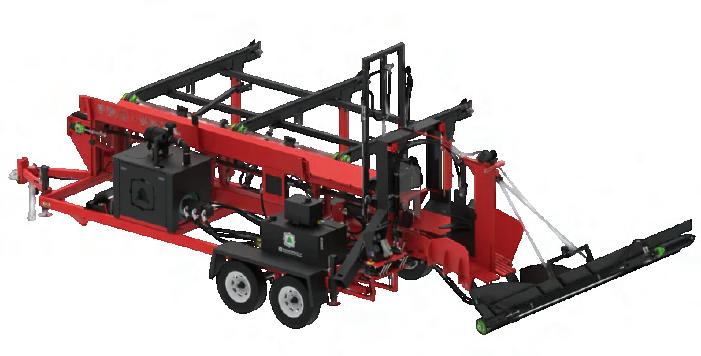

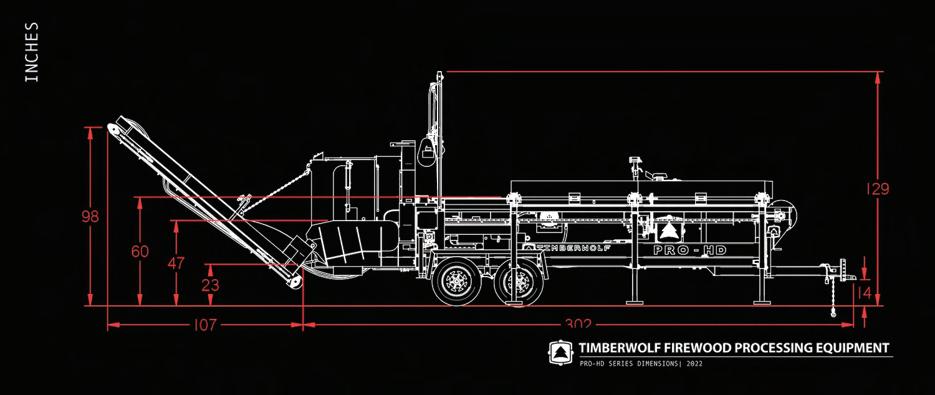

PRO-HD Xl
• The Pro-HD XL is a heavy-duty, dual axle commercial firewood processor powered by a 74HP engine and 3-stage gear pump, capable of outputting up to 5 cords of firewood per hour.
• Standard with driven top roll clamp and back roller that enables the processor to handle logs long as 32’ and wide as 24” in diameter.
• Equipped with regeneration manifold and new Bent Axis Piston Saw Motor to dramatically improve splitting performance, the 2025 Pro-HD XL cuts up to 3x faster than older models.
• Optional integrated conveyor available to move cut firewood onto a waiting truck or trailer.
Power
•74HP Hatz diesel engine
• Unrivaled power, efficiency, and performance
•33GPM splitting pump provides 3000 PSI of splitting pressure
Hydraulics
• 3-stage Permco gear pump
•Splitter: 33 GPM
•Saw: 22 GPM
• Auxiliary functions: 14 GPM
• 70 gallon hydraulic tank with internal baffles
Features
• Electric autocycle
•Regeneration manifold
• Top roll clamping system
• Hourglass-shaped back roller to handle longer logs
• Saw: 25” cut/.404 chain
Options
• 4” or 5” American-made hydraulic cylinder
• 12’ integrated conveyor (10’10” max height)
• 5-strand live deck
• 4, 6, 8, and/or 12-Way wedges available
The Pro-HD XL is designed to be the ultimate firewood processor: heavy-duty built with incredible power, unsurpassed speed, and tough enough to handle even the gnarliest logs.
SPECIFICATIONS
Engine Power (HP)
Pump Flow (GPM)
33-22-14
Cylinder Bore (in) 4/5
Trough Length (ft) 16
Max Log Length (ft) 32
Cycle Time (sec) 3/4.5
Avg Output (cord/hr) 5
Weight (lbs) 9900

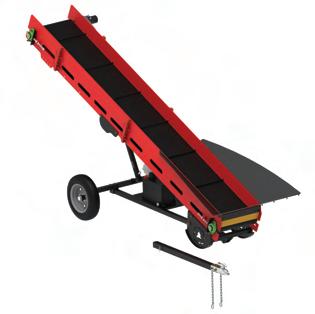

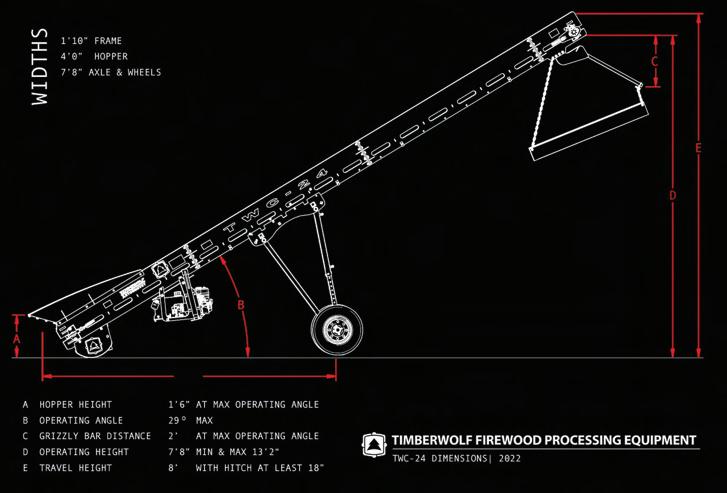

TWC CONVEYORS
• Timberwolf customers often recommend investing in a conveyor prior to upgrading their log splitter as they have an incredible ability to boost production and profit.
• Available in sizes ranging from 12’ to 32‘ in length, all TWC conveyors can be transported in tow and have at least 3’ of vertical range.
• Standard with hydraulic lift cylinders, telescoping axle arms, tapered rollers for self-adjusting belt tracking and 4.9HP engine to power hardy paddle belt.
• Easily manuverable with manual and driven osciallating axle options.
• Fuel-efficient, quiet, and extremely reliable 4.9HP Honda engine Power
Features
• Hydraulic lift cylinder controlled by 2-spool valve
• Ground skid, maintains contact with the ground during operation for maximum stability •20” wide paddle belt
• Rubber belt fines deflector located below modular hopper
• Reduces debris build-up
• Add bolt-on Grizzly Bars to your TWC-16, TWC-24, or TWC-32
Axle
Options
• Easily move your TWC-24 or TWC-32 with a driven or manual osciallating axle option •Axle allows for lateral movement, streamlining biomass processing
With a TWC Conveyor, stability issues, belt misalignment, and manuverability problems are a thing of the past.
SPECIFICATIONS
Fines Deflector

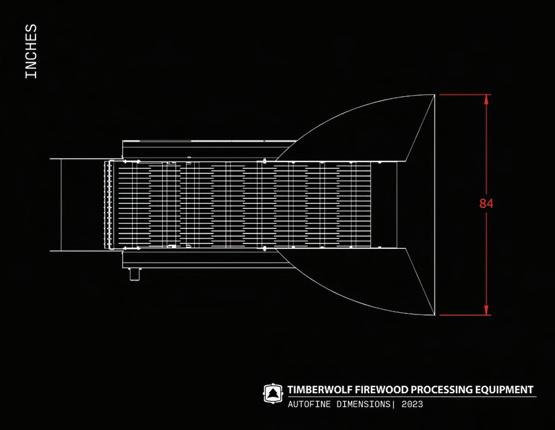

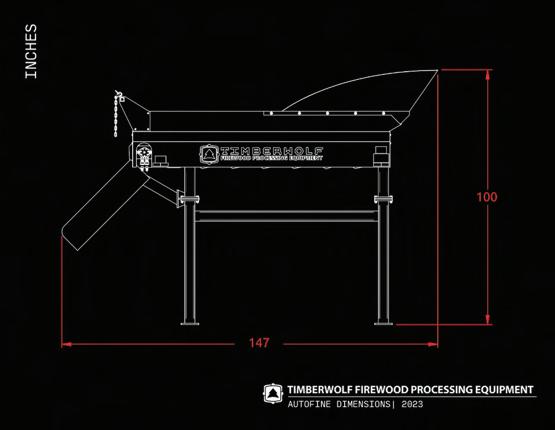

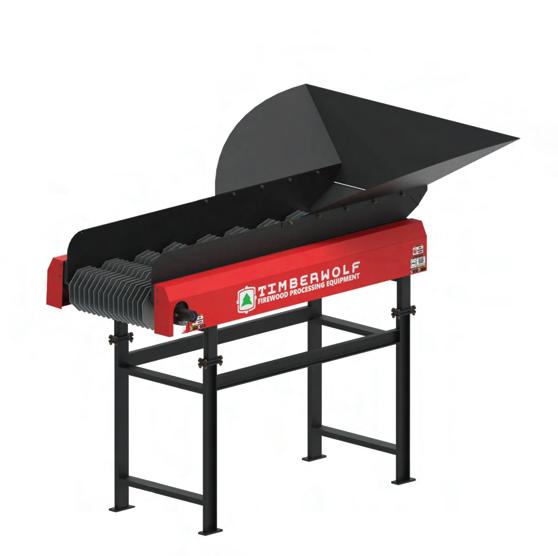

AUTOFINE
• Affordable and heavy-duty disc screener that can be powered by power pack or connected to any firewood processor via integrated auxiliary port.
• Integral hex discs constructed from 3/16” steel and intentionally spaced to allow debris and fines to fall through.
• Optional bolt-on hopper can be installed for easier loading of materials onto deck, also serves as a funnel.
• Optional chute can be added to create a smooth transition for clean wood being loaded and offloaded, streamlining your firewood operation.
Power
• Power pack with economical 4.9HP Honda engine
• Optional power pack can be moved separately from machine for safety
• Processor power auxiliary port
• 4’ by 10’ frame
•Stable and designed for stationary use Features
• Power pack
• Sturdy spinning hex discs
•Hopper (bolt-on)
•Chute (bolt-on) Options
•Vital for serious businesses, the AutoFine allows you to deliver a superior product without sawdust, dirt, or other fines
Bring your firewood business to the next level with the AutoFine, add a hopper and chute for even more efficiency.
Clean Wood, Larger Profit
