Bansbach
Quick ship
Technical information:
• Shipment in general within 5-10 working days upon receipt of your order (up to 25 pieces)
• The extension force must be indicated on the order
• Connecting parts, if chosen, will be enclosed
• Material: Piston rod: CeramPro®-coated Cylinder: powder-coated black
• Normal speed and end damping
• You will find general information and technical details in our main catalogue
• You will find customized gas springs in Bansbachs main catalogue

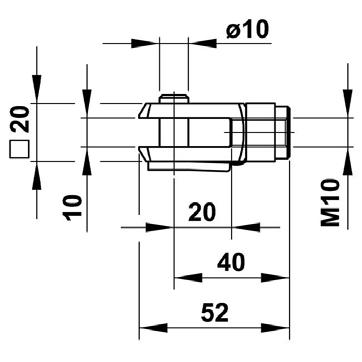

Clevis
Size 4/12
Extension force: 10 - 180N
Technical information:
• If we receive the order by 12 am, shipment will be in general on the next working day (up to 25 pieces)
• The extension force must be indicated on the order
• The Bansbach 4/12 Quick Ship gas springs include a valve
• Connecting parts, if chosen, will be enclosed
• Material: Piston rod: CeramPro®-coated Cylinder: powder-coated black
• Normal speed and end damping
• You will find general information and technical details in our main catalogue
• You will find customized gas springs in Bansbachs main catalogue
QS-10-020 10 - 180 N
QS-10-030 In case of an order, it is essential to mention
Optional connecting parts
Technical information:
• If we receive the order by 12 am, shipment will be in general on the next working day (up to 25 pieces)
• The extension force must be indicated on the order
• The Bansbach 6/15 Quick Ship gas springs include a valve
• Connecting parts, if chosen, will be enclosed
• Material: Piston rod: CeramPro®-coated Cylinder: powder-coated black
• Normal speed and end damping
• You will find general information and technical details in our main catalogue
• You will find customized gas springs in Bansbachs main catalogue
Artiklar på gråtonade fält finns på lager.
Size 8/19
Extension force: 50 - 700N
Technical information:
• If we receive the order by 12 am, shipment will be in general on the next working day (up to 25 pieces)
• The extension force must be indicated on the order
• The Bansbach 8/19 Quick Ship gas springs include a valve
• Connecting parts, if chosen, will be enclosed
• Material: Piston rod: CeramPro®-coated Cylinder: powder-coated black
• Slow speed, strong end damping
• You will find general information and technical details in our main catalogue
• You will find customized gas springs in Bansbachs main catalogue
In case of an order, it is essential to mention

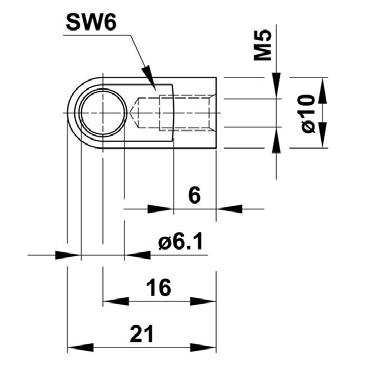

Hinge eye
Elbow joint
Clevis
Ball socket p3
Ball joint b6
Hinge heads
Artiklar på gråtonade fält finns på lager.
quick ship 10/22
Technical information:
• If we receive the order by 12 am, shipment will be in general on the next working day (up to 25 pieces)
• The extension force must be indicated on the order
• The Bansbach 10/22 Quick Ship gas springs include a valve
• Connecting parts, if chosen, will be enclosed
• Material: Piston rod: CeramPro®-coated Cylinder: powder-coated black
• Slow speed, strong end damping
• You will find general information and technical details in our main catalogue
• You will find customized gas springs in our main catalogue
Optional connecting parts
Artiklar på gråtonade fält finns på lager.
Size 14/28
Technical information:
• If we receive the order by 12 am, shipment will be in general on the next working day (up to 25 pieces)
• The extension force must be indicated on
• the order
• The Bansbach 14/28 Quick Ship gas springs include a valve
• Connecting parts, if chosen, will be enclosed
• Material: Piston rod: CeramPro®-coated Cylinder: powder-coated black
• Slow speed, strong end damping
• You will find general information and technical details in our main catalogue
• You will find customized gas springs in Bansbachs main catalogue
750 1562
QS-28-700
QS-28-750
N
In case of an order, it is essential to mention
Hinge eye
Elbow joint
Clevis
Hinge head
Artiklar på gråtonade fält finns på lager.
quick ship 20/40
Technical information:
• If we receive the order by 12 am, shipment will be in general on the next working day (up to 25 pieces)
• The extension force must be indicated on the order
• The Bansbach 10/22 Quick Ship gas springs include a valve
• Connecting parts, if chosen, will be enclosed
• Material: Piston rod: CeramPro®-coated Cylinder: powder-coated black
• Slow speed, strong end damping
• You will find general information and technical details in our main catalogue
• You will find customized gas springs in Bansbachs main catalogue our main catalogue
Optional connecting parts
Hinge eye s5
Elbow joint B4
Clevis L5
Hinge head C8
Size 30/70
Technical information:
• Shipment in general within 5 working days upon receipt of your order (up to 25 pieces)
• The extension force must be indicated on the order
• The Bansbach 30/70 Quick Ship gas springs include a valve
• Connecting parts, if chosen, will be enclosed
• Material: Piston rod: hardchromed Cylinder: powder-coated black
• Normal speed and end damping
• You will find general information and technical details in our main catalogue
• You will find customized gas springs in our main catalogue
Optional connecting parts
In case of an order, it is essential to mention
quick ship stainless steel
• If the order is received by 12am, the shipment will generally be within 48 hours
• The extension force must be indicated on the order
• The Bansbach Quick Ship gas springs include a valve
• Connecting parts, if chosen, will be enclosed
QSN-15-040
QSN-15-080
QSN-15-100
QSN-15-150
QSN-19-050
QSN-19-100
QSN-19-150
QSN-19-200
QSN-19-250
QSN-22-100
QSN-22-150
QSN-22-200
QSN-22-300
QSN-22-500
QSN-28-100
QSN-28-150
QSN-28-200
QSN-28-400
Connecting Parts
QSN-15: D1
QSN-19: A1
QSN-22: A1
QSN-28: B1
QSN-15:QSN-19: A5
QSN-22: A5
QSN-28: B9
QSN-15:QSN-19: A3
QSN-22: A3
QSN-28: A4
QSN-15:QSN-19: A7
QSN-22: A7
QSN-28: A8
Beslag på cylindersidan …….......
(t.ex. gänga, fästöra, vinkelkullänk, se sid 50-52 i Bansbachkatalogen)
Beslag på kolvstång …….....… (-”-)
Diameter cylinder ….....……
Diameter kolvstång ….....……
Slaglängd ….....….. mm
Inbyggnadsmått ….....…..
Längd utskjuten. Vid gängor i båda ändar, mått mellan gängorna. Vid andra beslag C/c-mått)
Kraft ….....….. N
önskemål
