Selected Works Architecture Portfolio
Residential Building G+5
DIP
Professional work
General traffic department
extention al barsha
Professional work
Professional work
Professional work
Professional work
Manish residence interior
Freelance work
Up scale villa
Professional work
Re-Community
Under graduate Final project Thesis

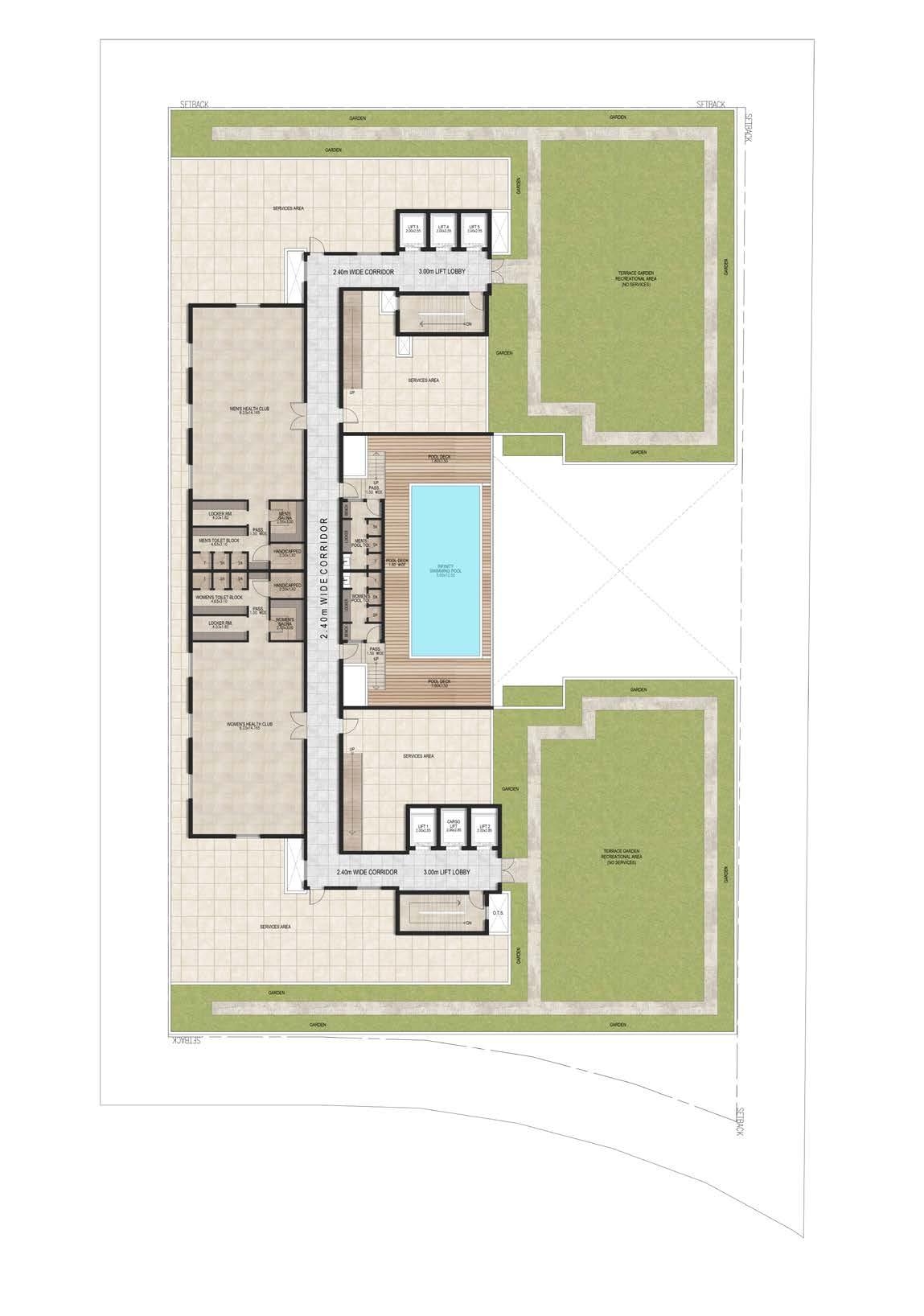

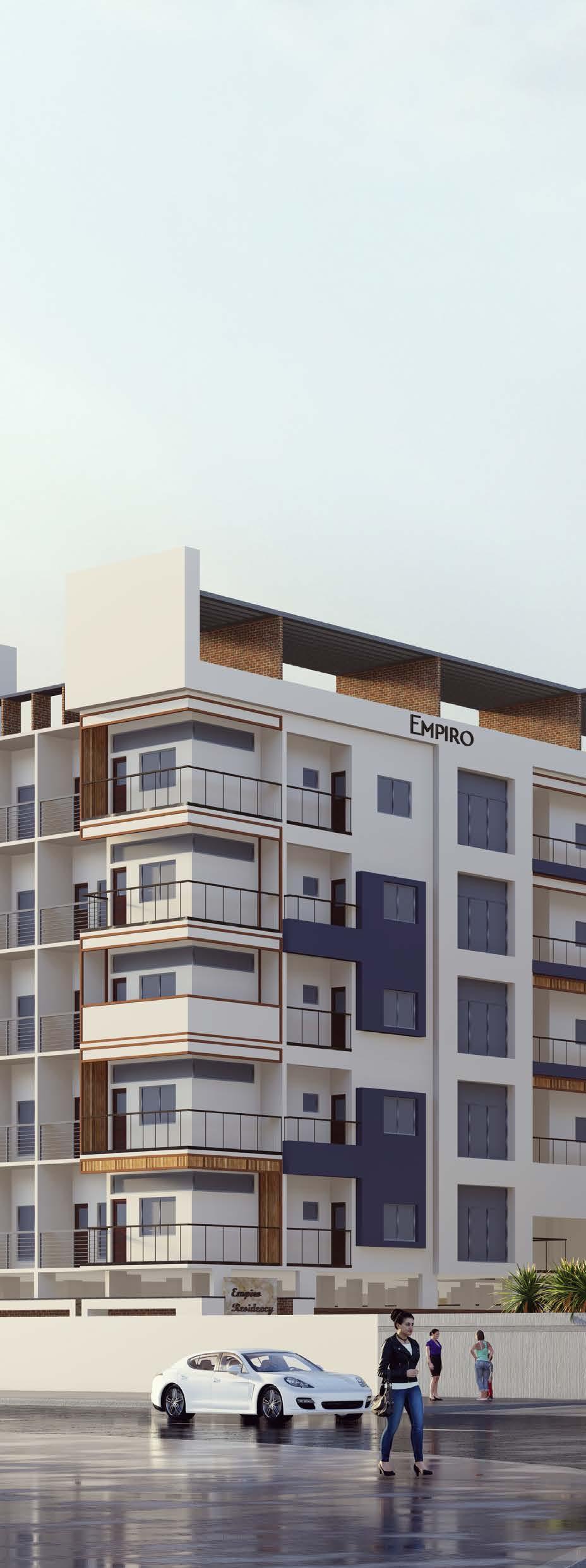

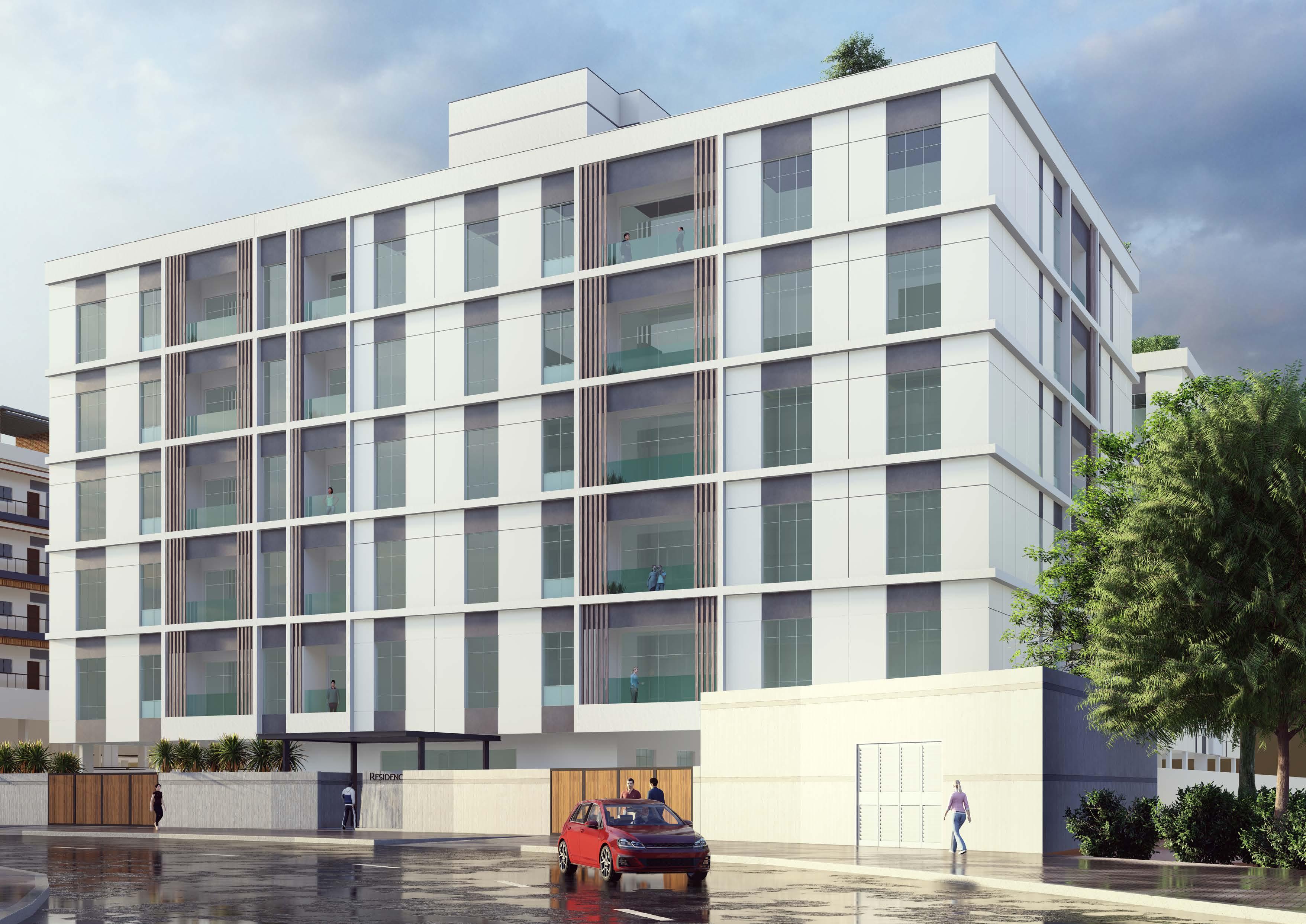

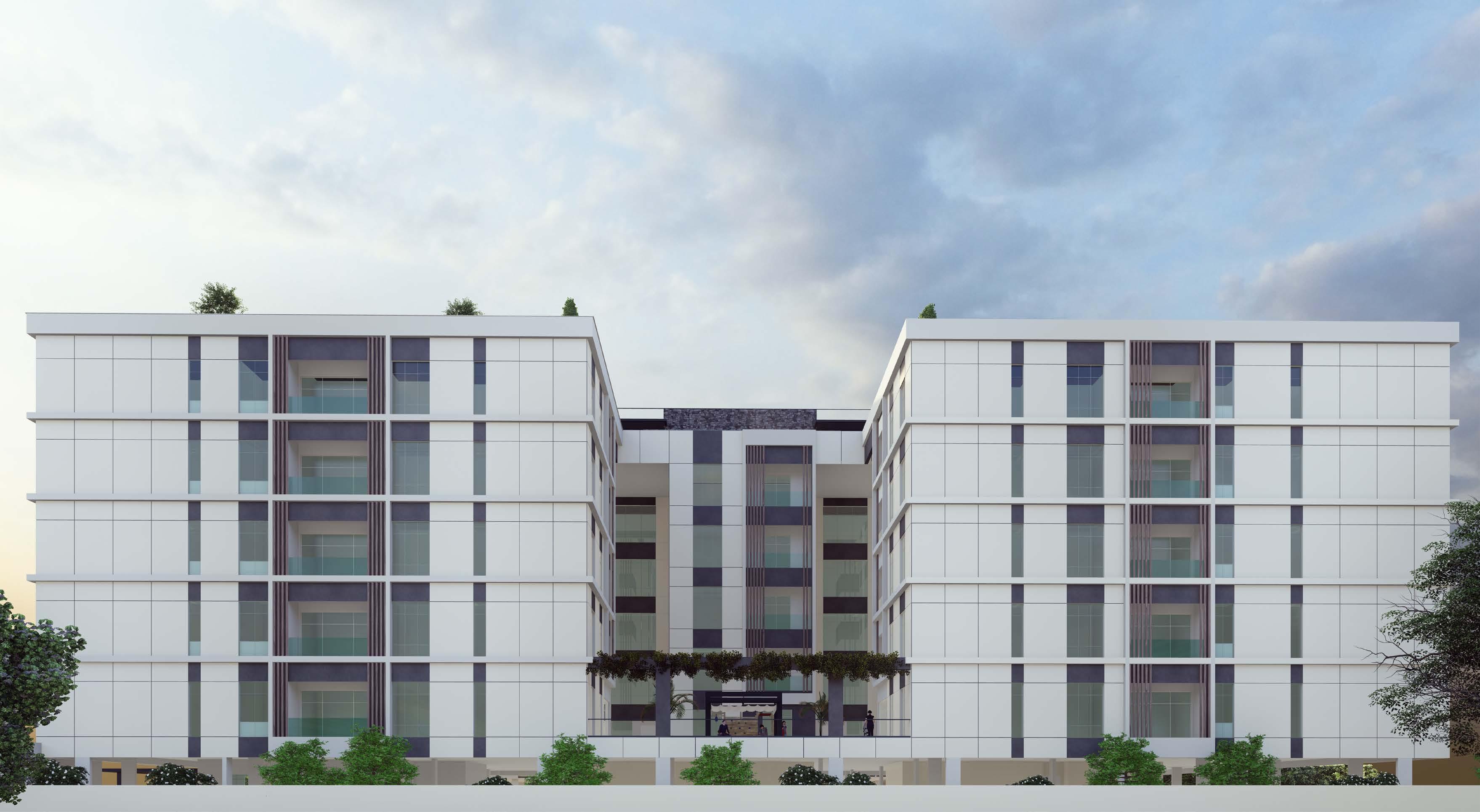

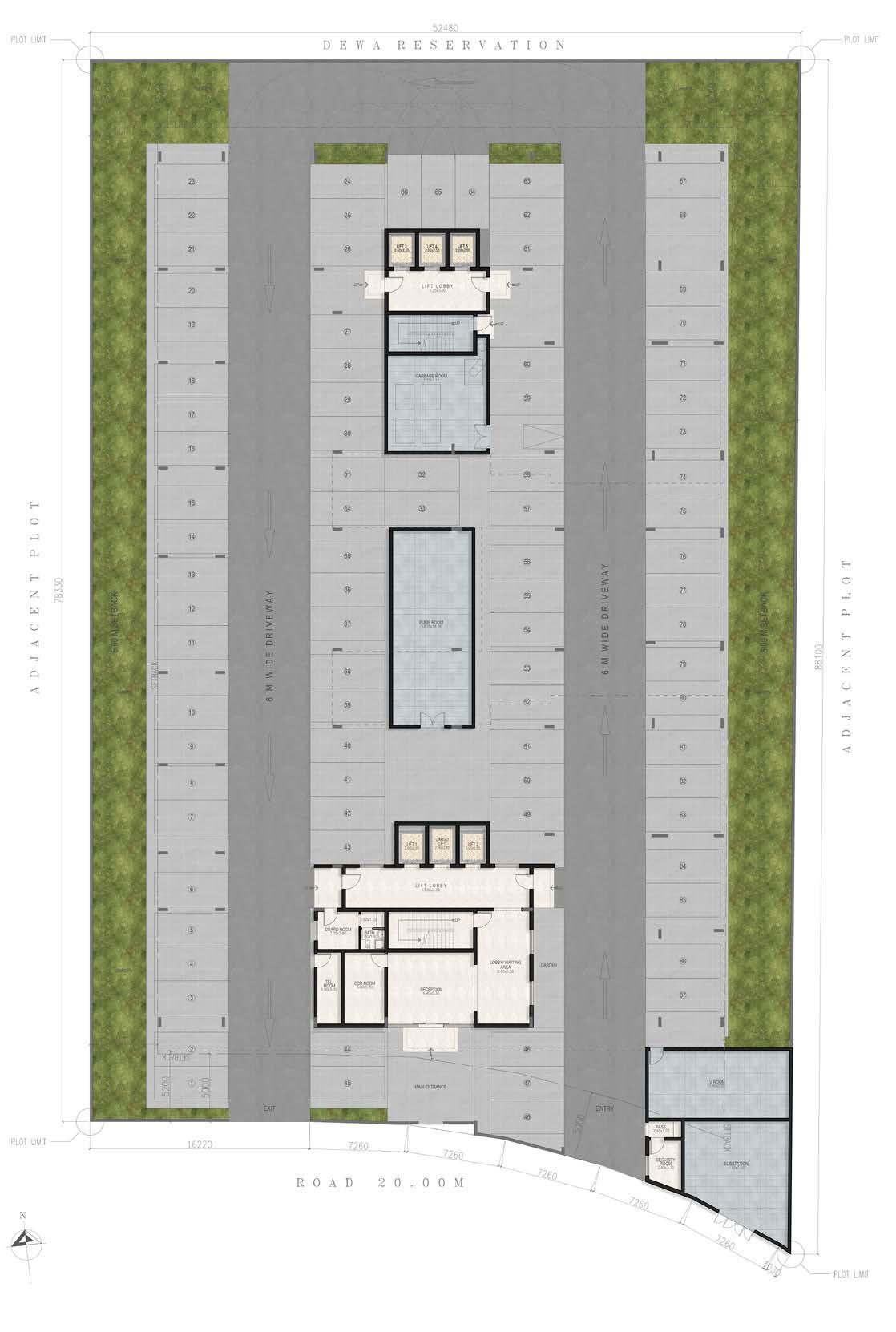

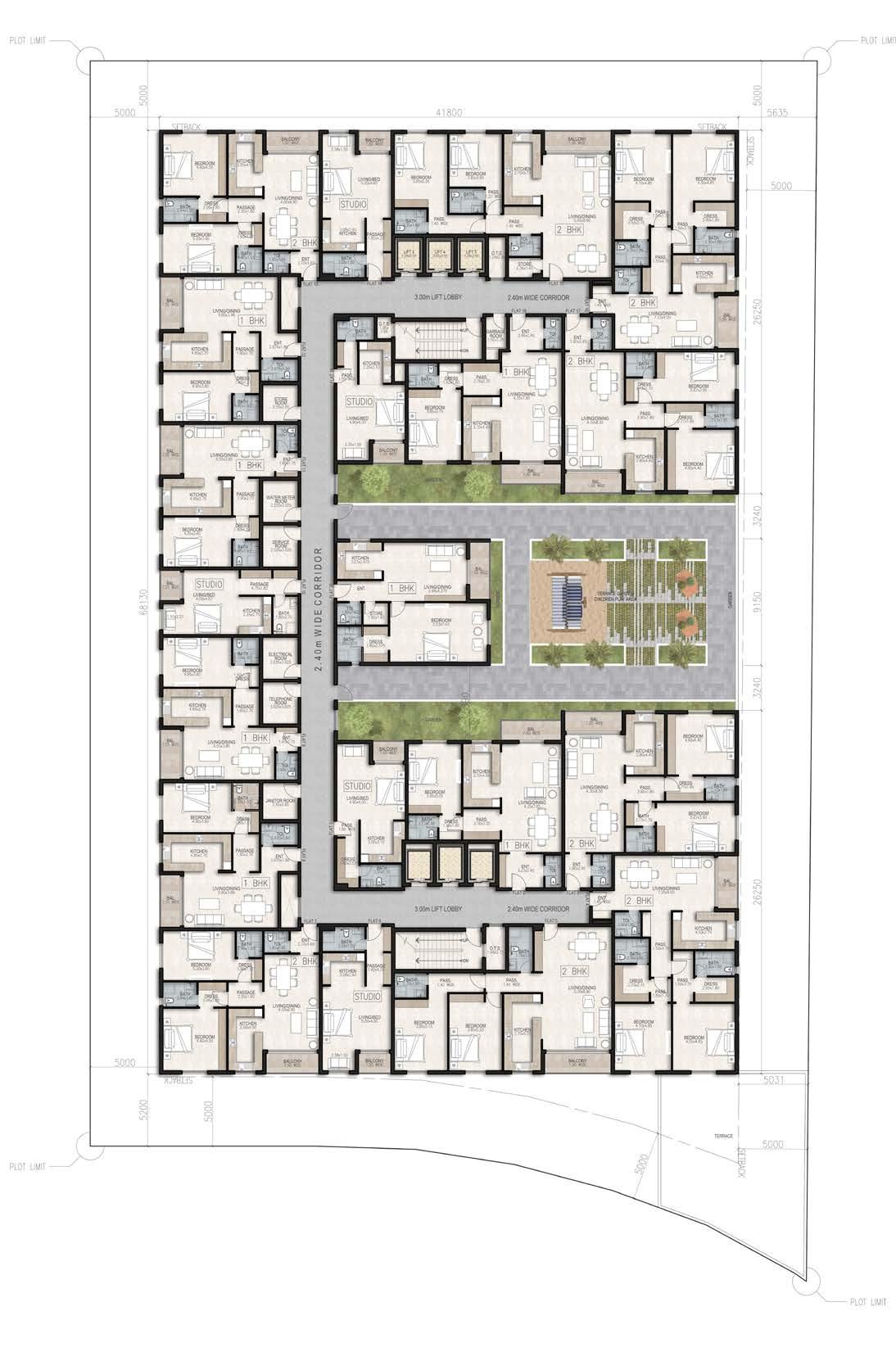

Project : Residential Building
Location : DIP, Dubai.
Firm : Concept Craft Architectural Design Consultant

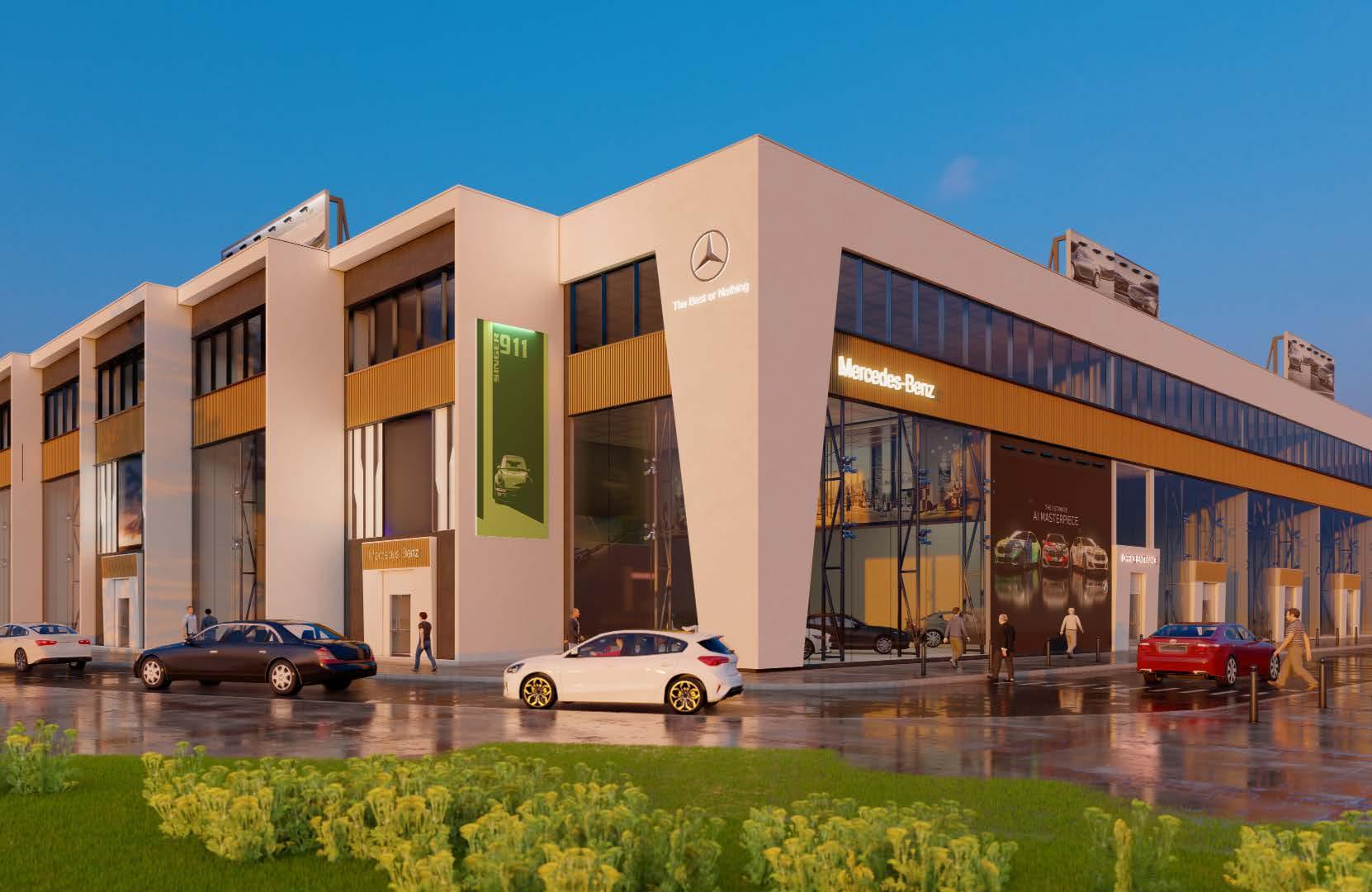

Project : Commercial Showroom and office Spaces Extension
Location : Al Quoz Ind.Third, Dubai.
Firm : Concept Craft Architectural Design Consultant
The project involves the construction of an extension to the existing Traffic police department complex located within the Al Barsha Traffic Police Building in the Al Quoz Industrial Area. The expansion aims to provide additional showroom and office spaces to meet the growing demands of the local business community. The project scope includes the design, construction, and completion of the three phases, encompassing: Showroom spaces, Office spaces ,Associated amenities and facilities. link for project walkthrough
Proposed building
Neighbour building

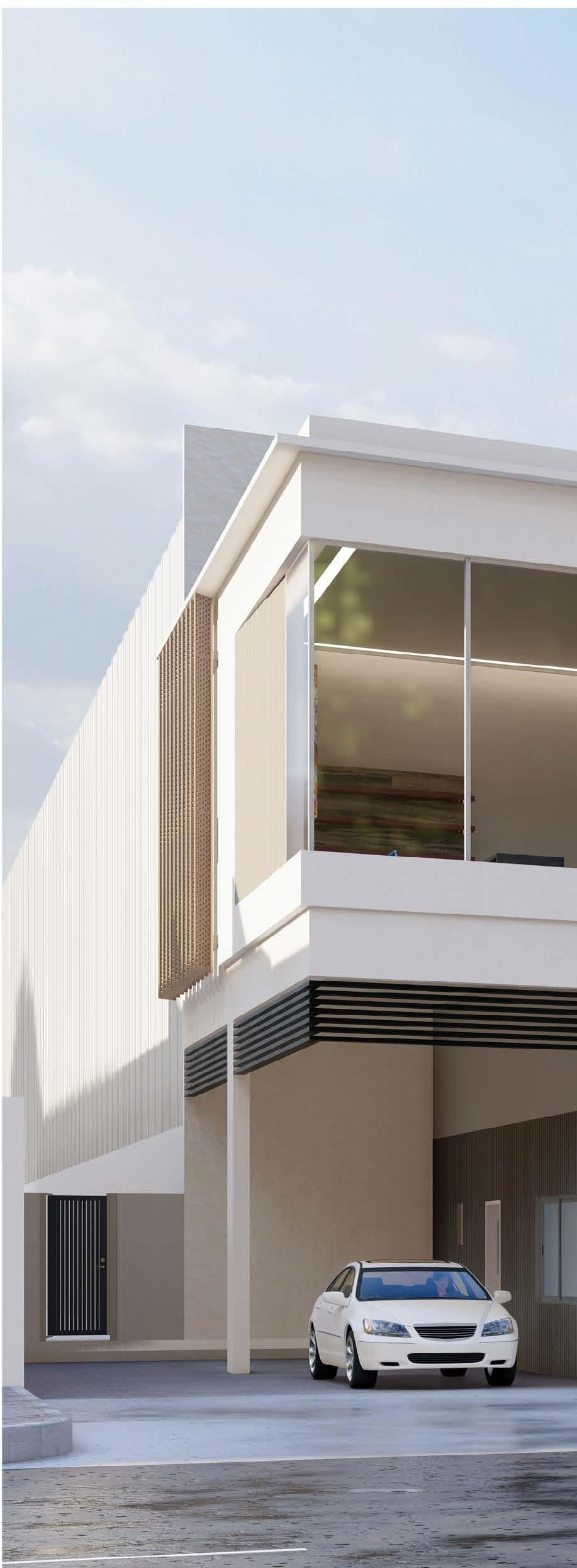

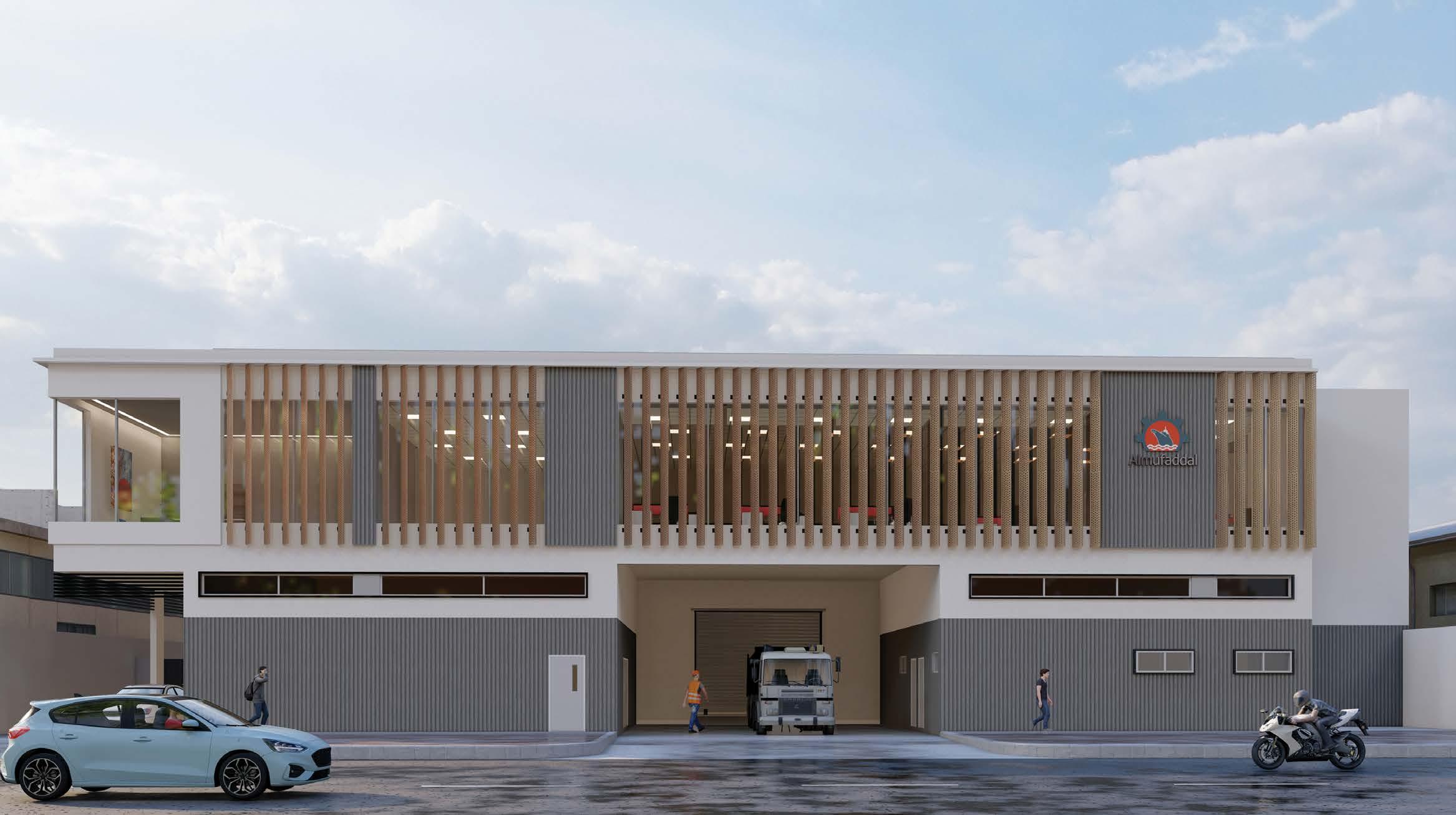

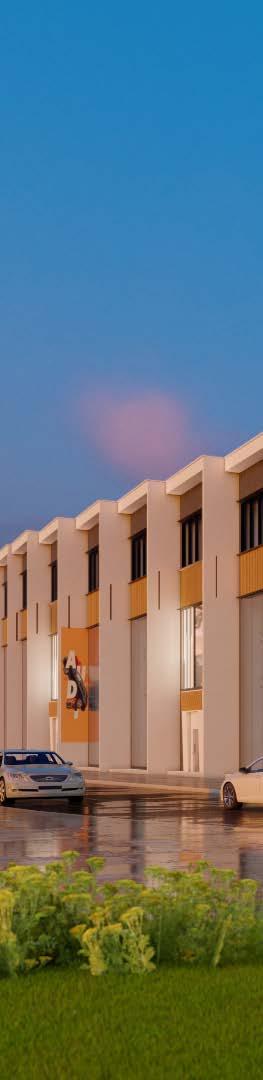

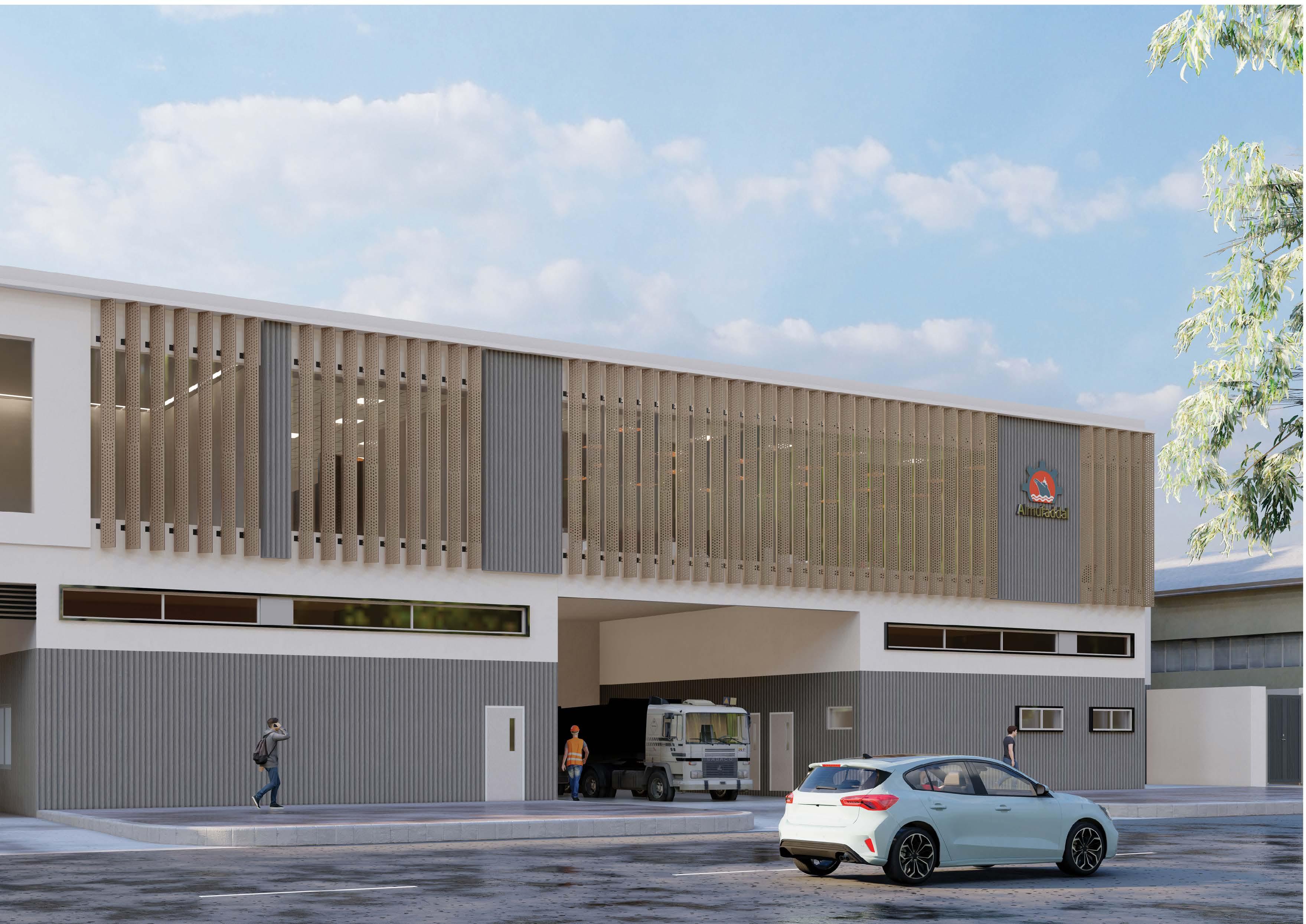

Project : Industrial Ware House
Location : Al Quoz Ind.Fourth, Dubai.
Firm : Concept Craft Architectural Design Consultant

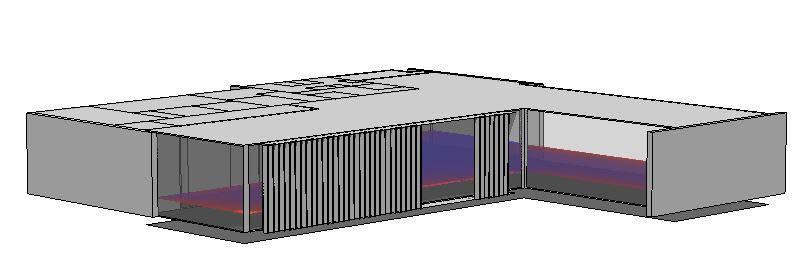

The mezzanine office incorporates glass partitions and natural lighting for a modern, comfortable work environment. To enhance energy performance, the glass facade features a sustainable design with vertical fins, strategically placed to aaoptimize solar radiation control and reduce heat gain.

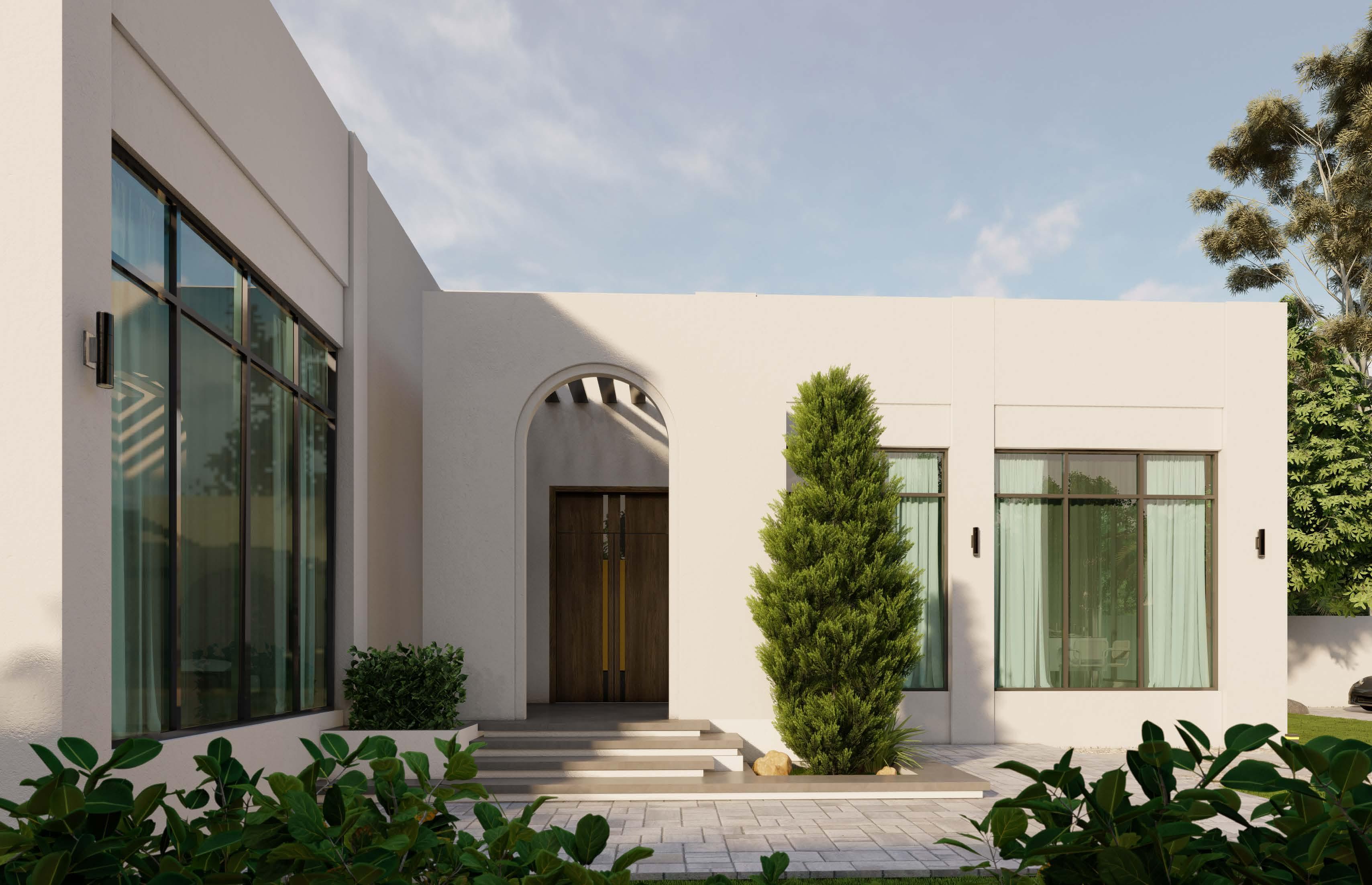

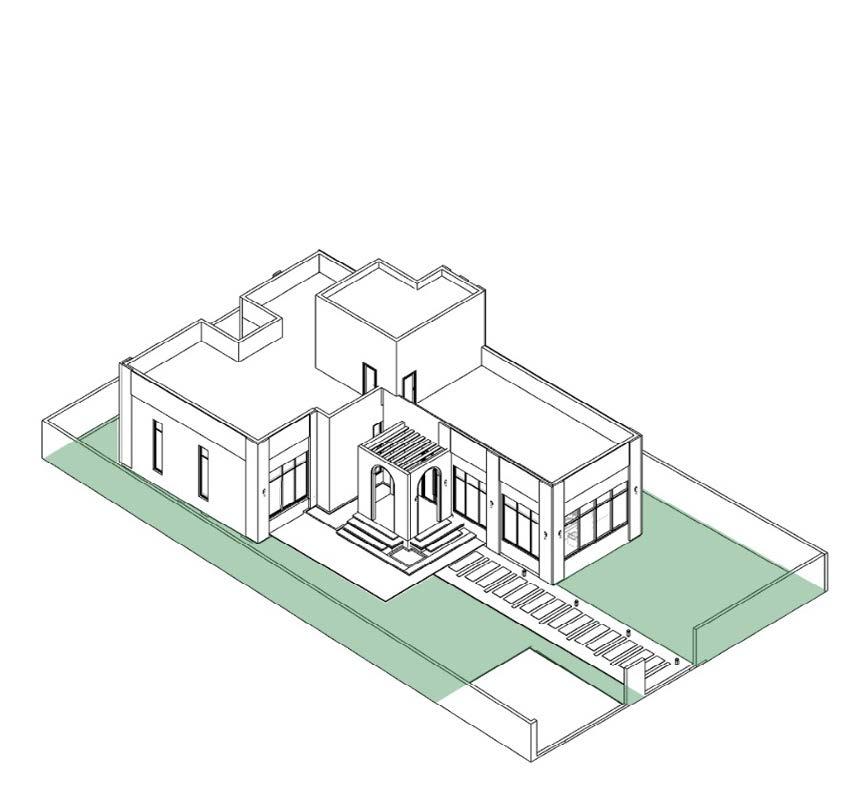

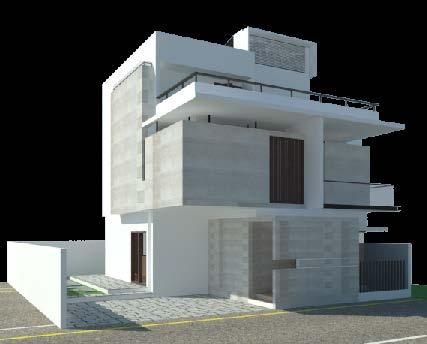

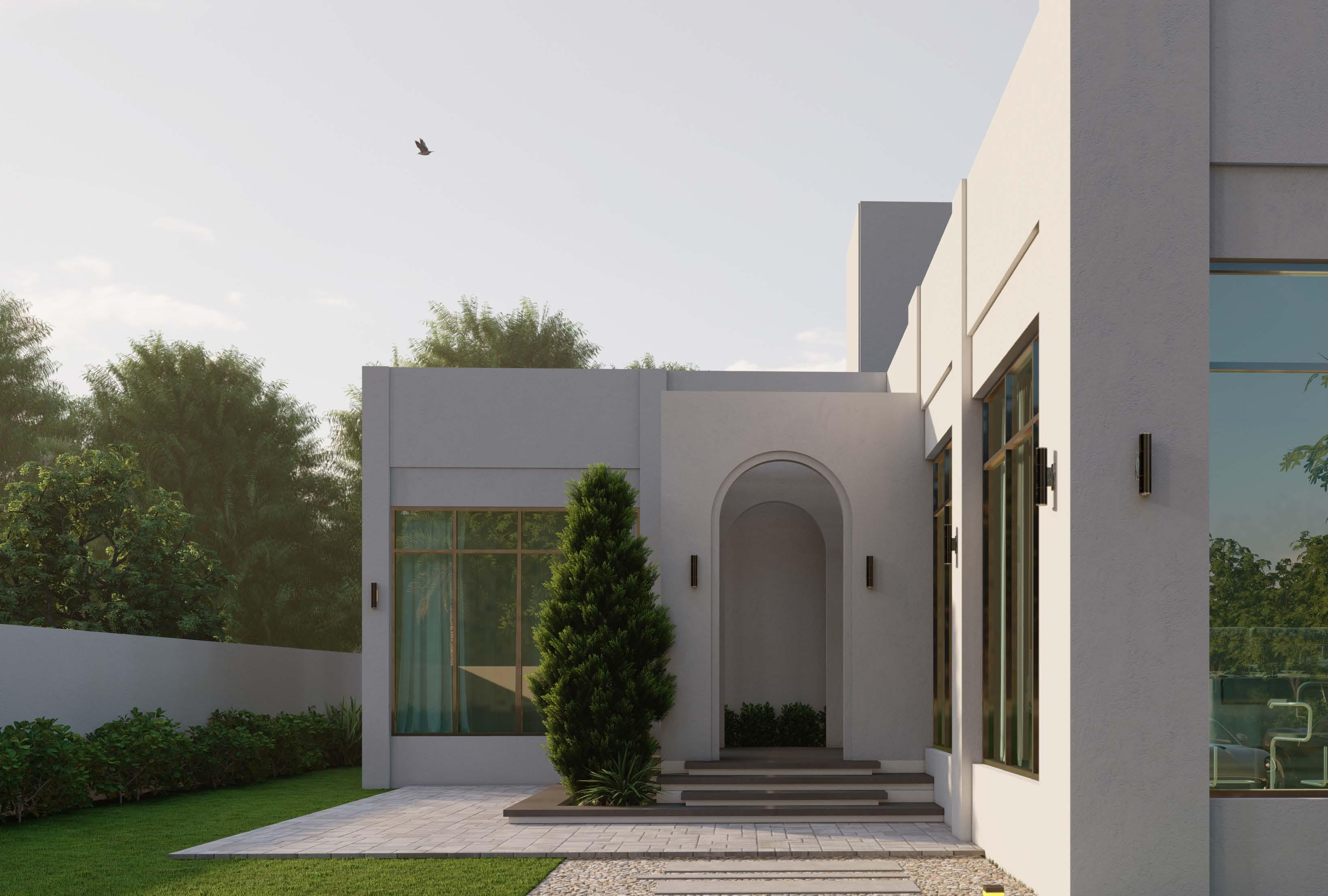

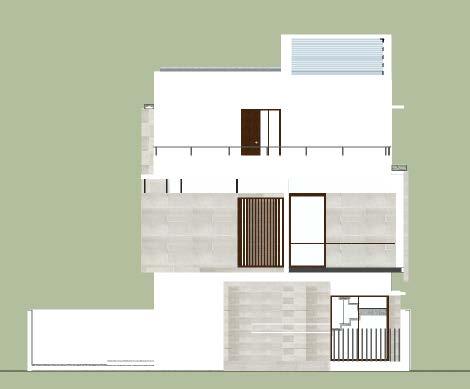

Project : Residence
Location : Al Awir First
Firm : Concept Craft Architectural Design Consultant

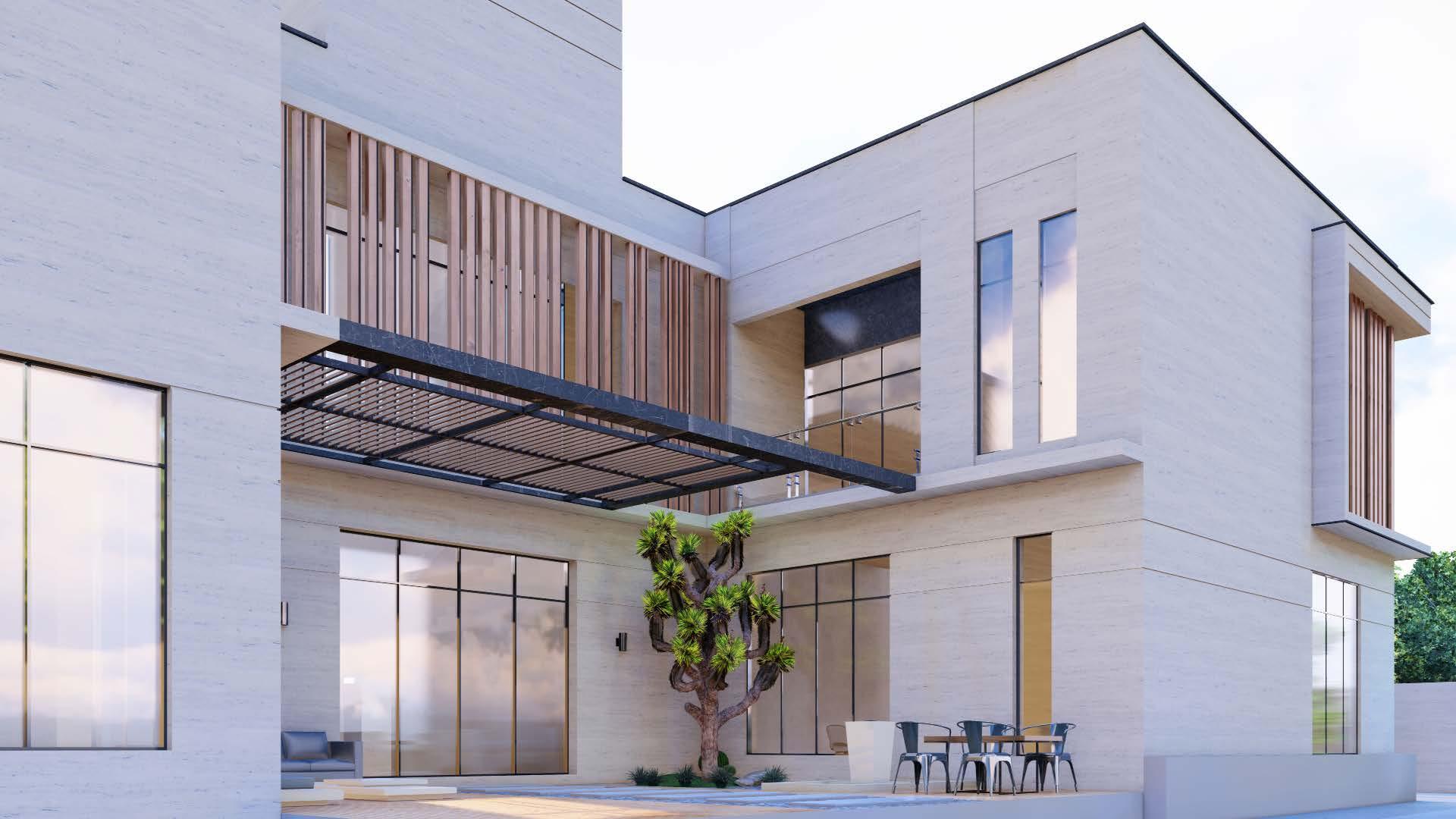

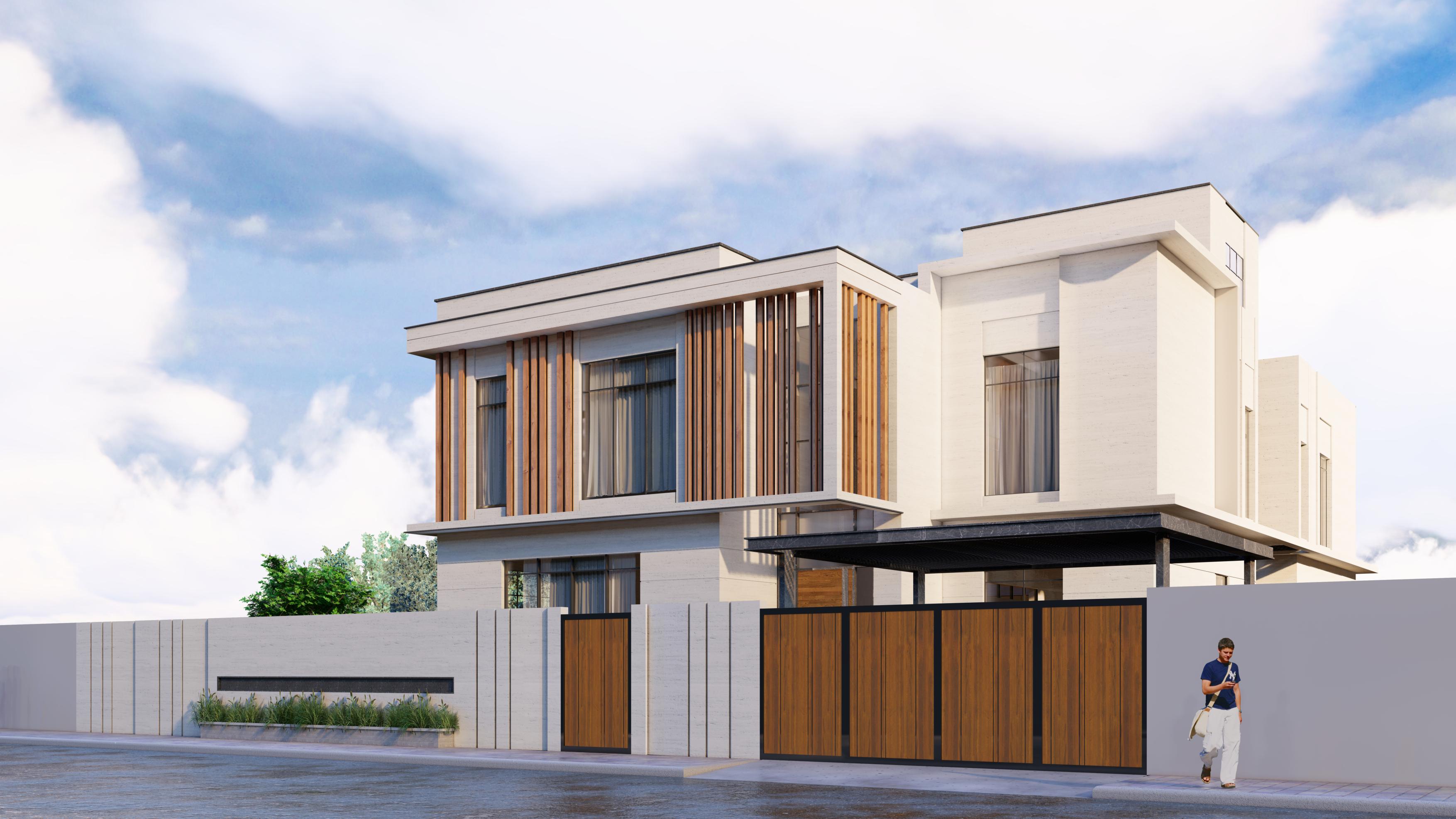

Project : Residence
Location : Dubai
Firm : Concept Craft Architectural Design Consultant

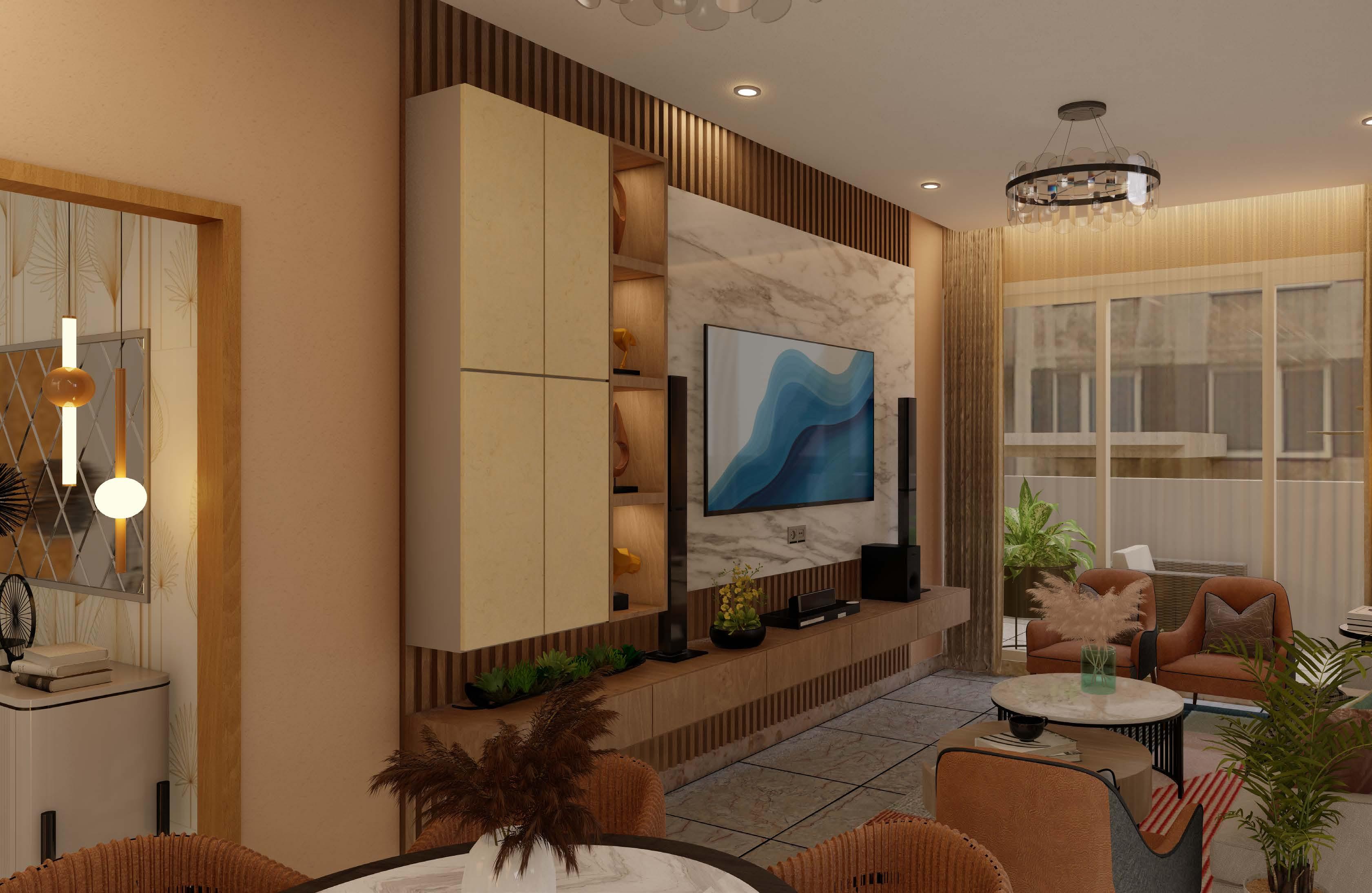

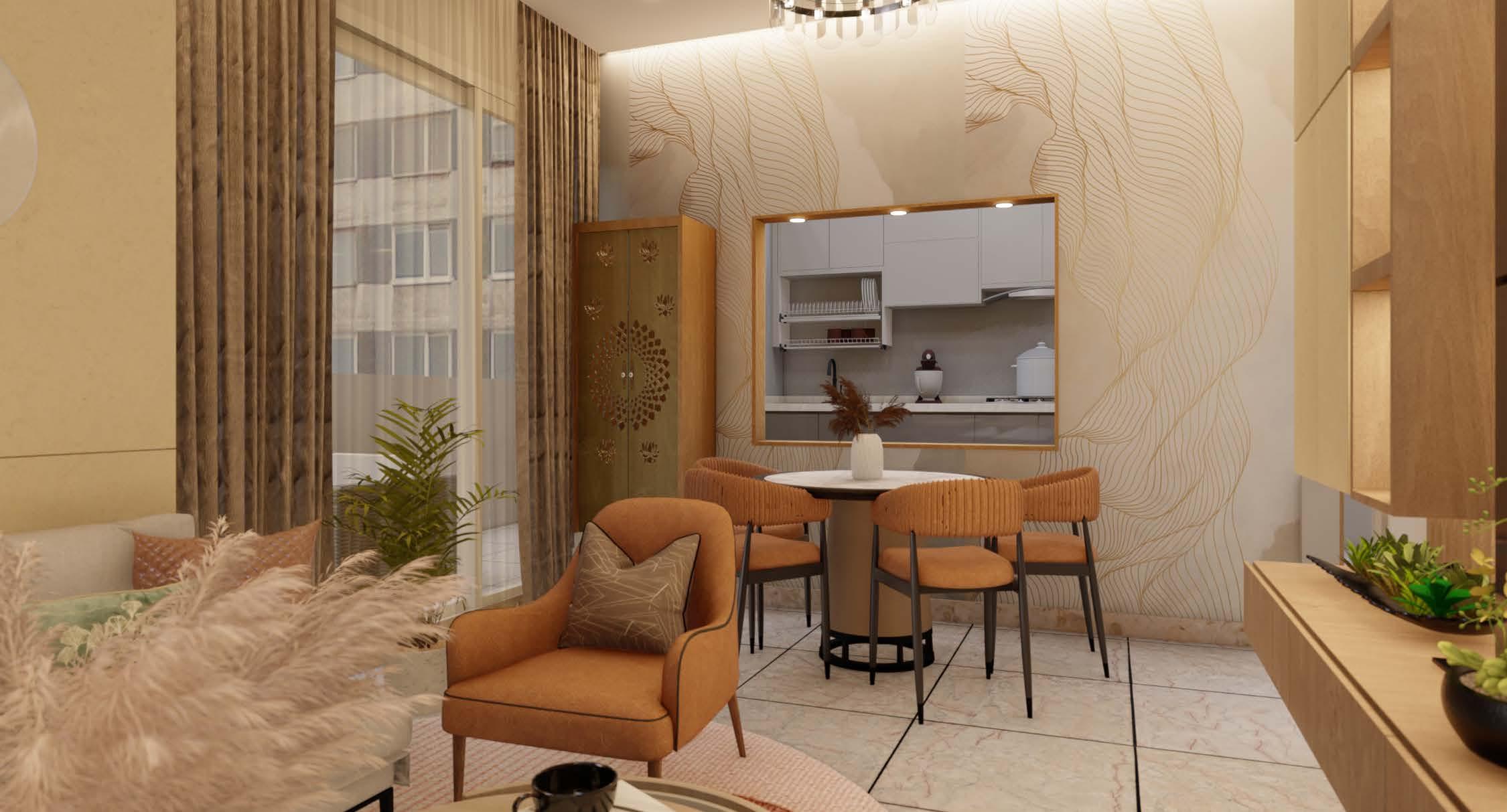

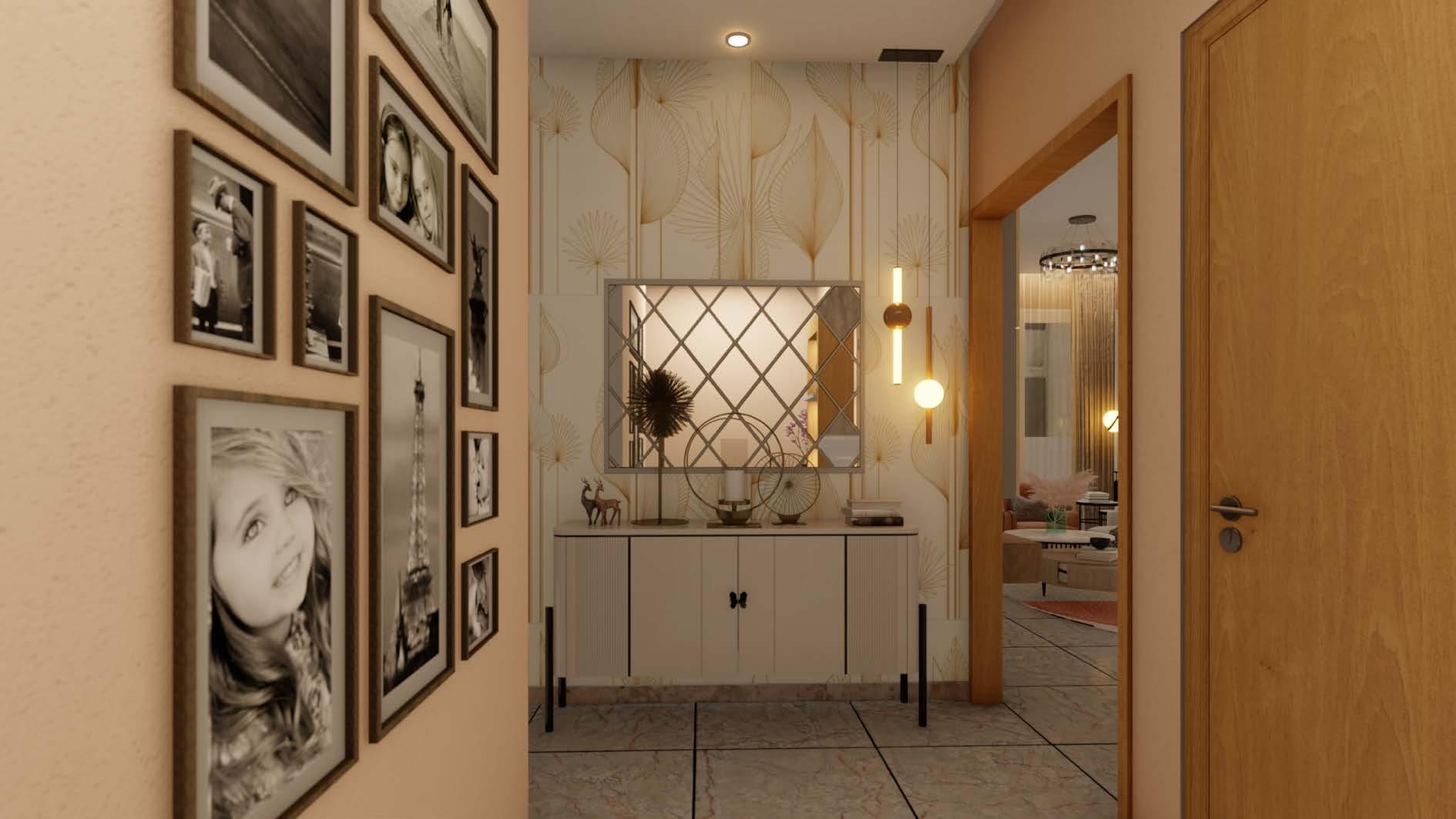

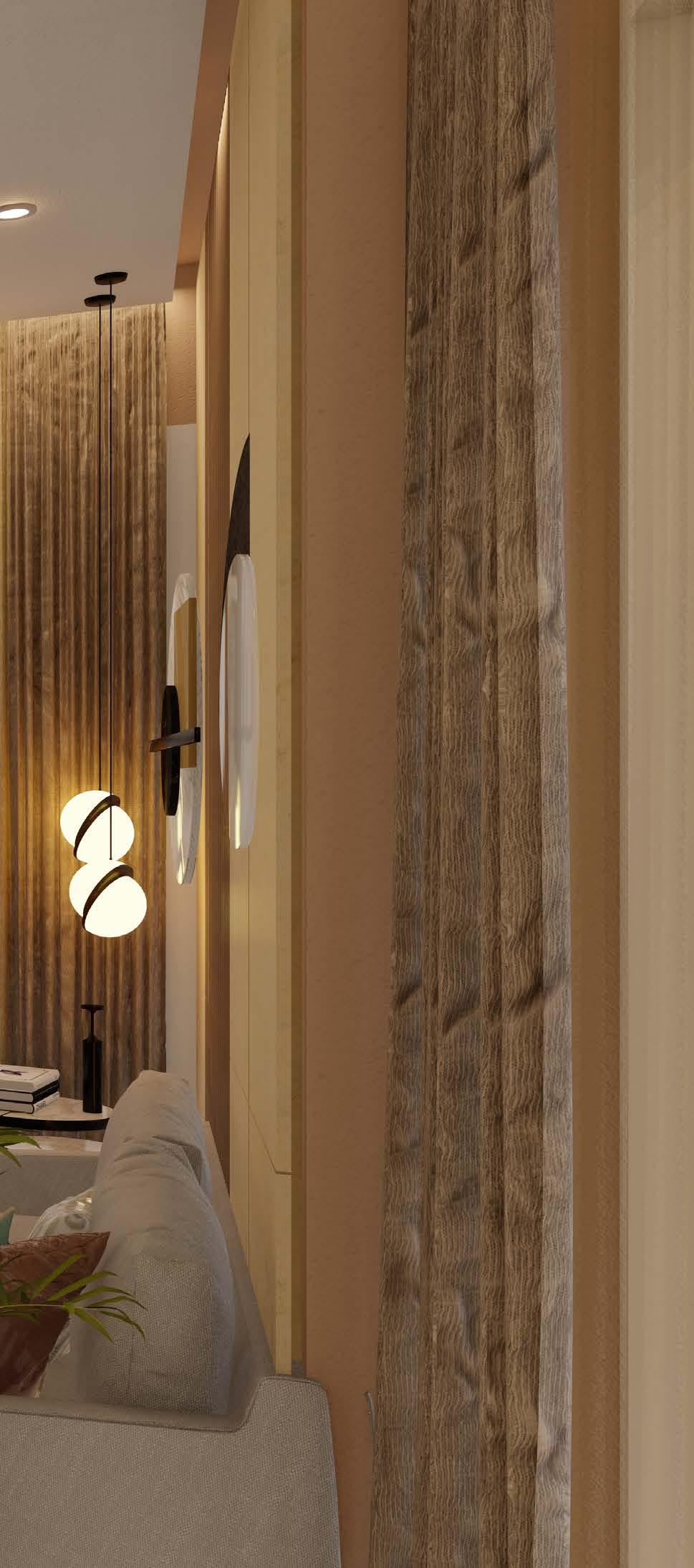

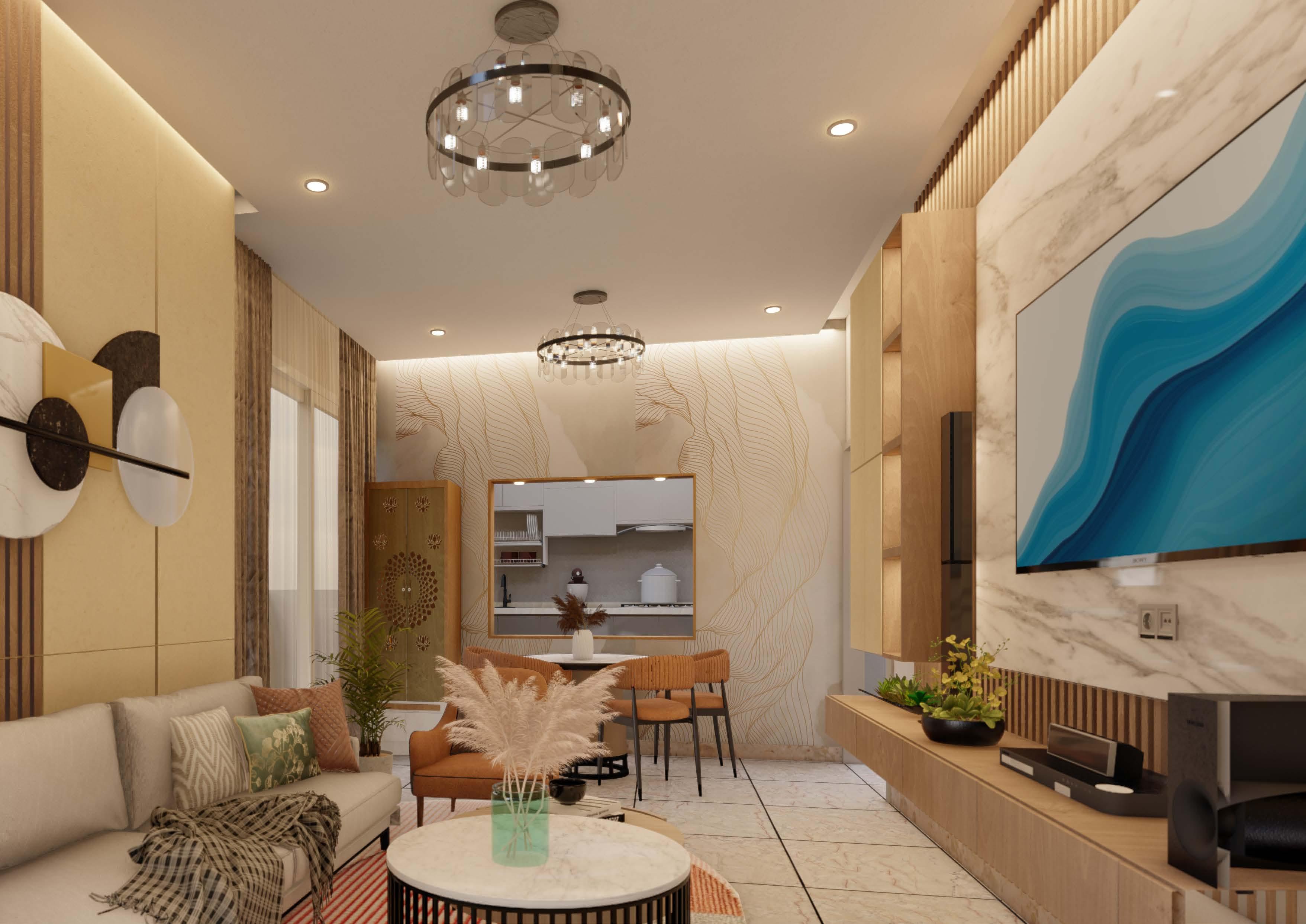

Project : Residential Interior
Location : Dubai.
Firm : Freelance
Project : Residential Interior
Location : Banglore , india
Firm : Mindwagon Sustainable design

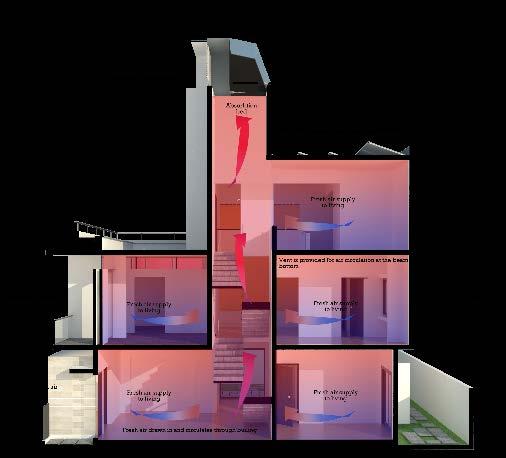

The passive design technique is the approach to achieve the final design solution of the villa. The usage of stack effect in the chimnes give the comfortable habitable spaces to the user. The user can experience the adquate comfortable lighting and ventilation throughout the houses.

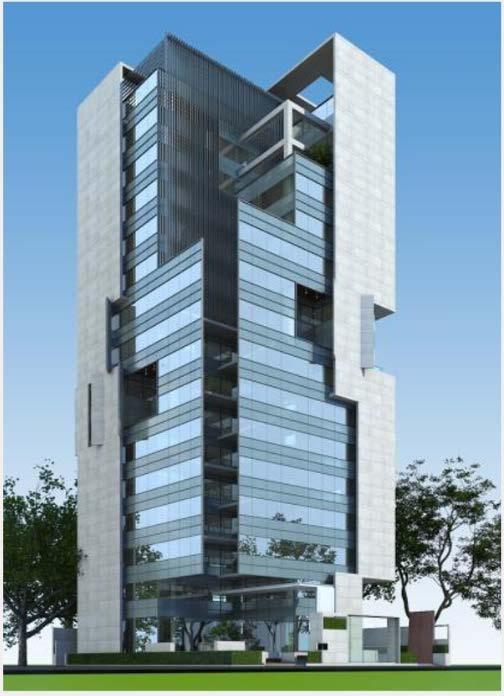

Project : Office building
Location : Dhaka,Bangladesh
Firm : Green tree Global

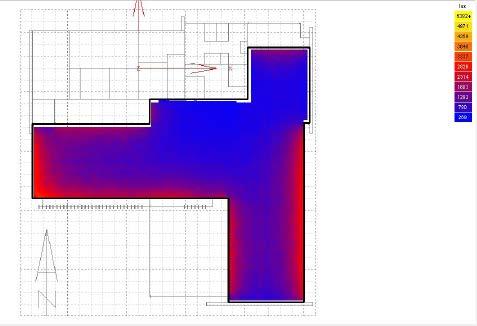

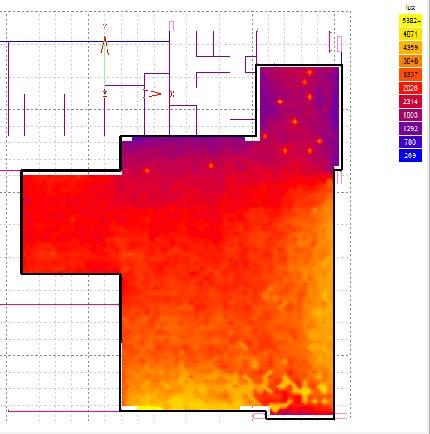

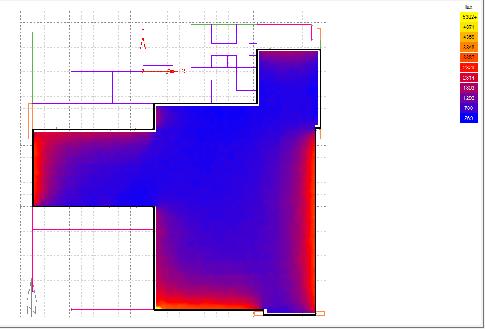

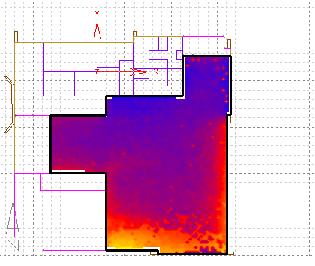

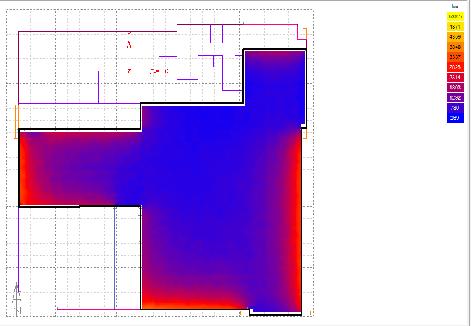

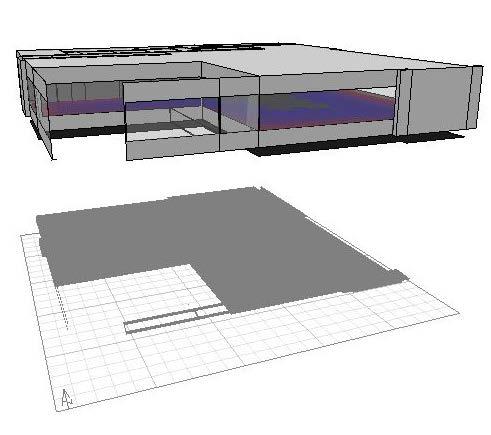

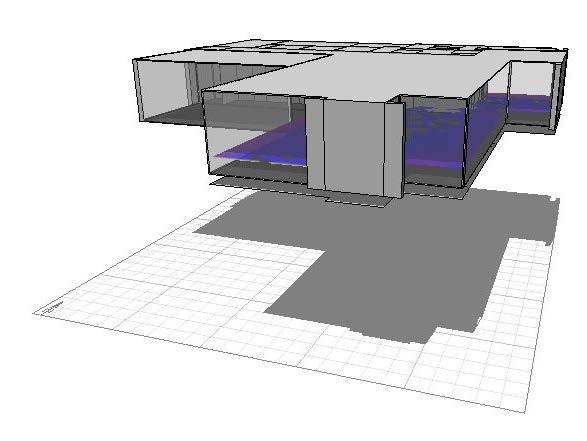

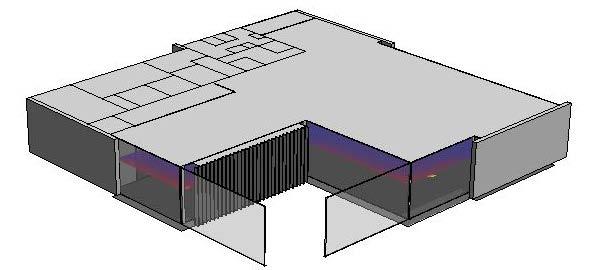

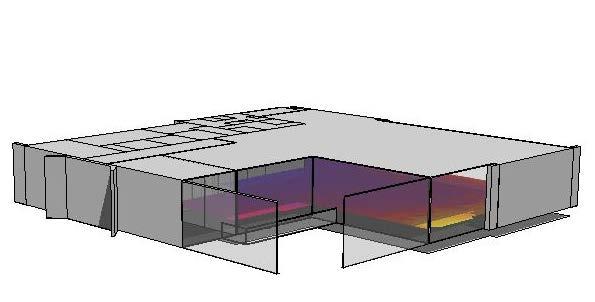

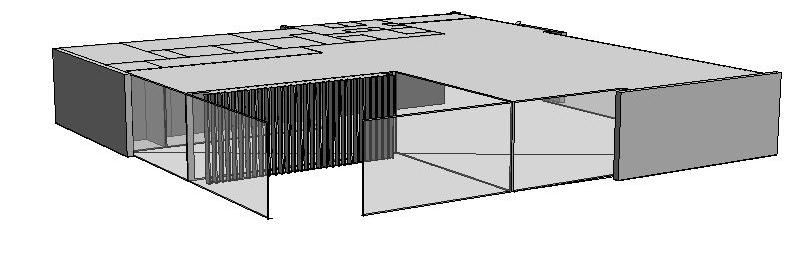

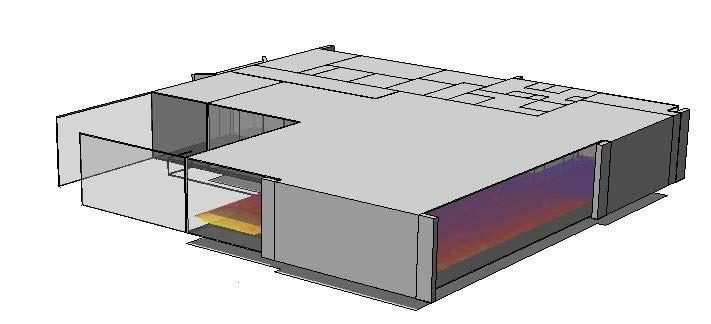

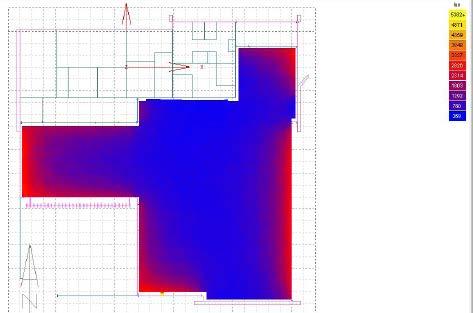

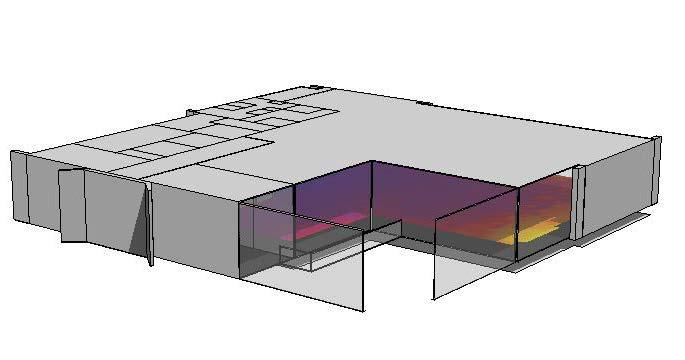

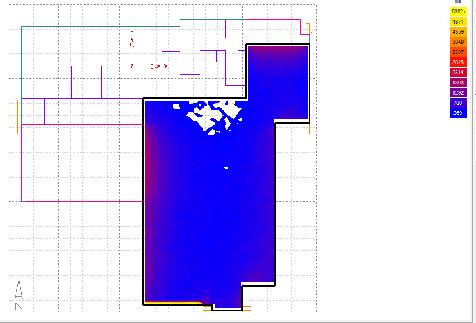

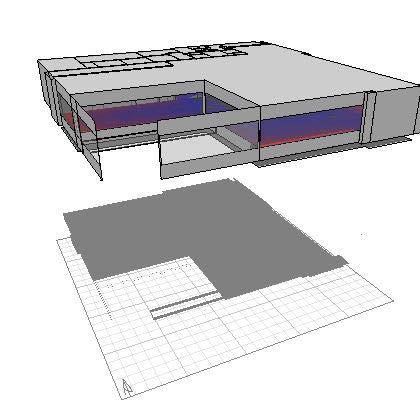

The aim of the project is concentrating on the sustainable design approach to the commercial building .This includes the day light simulation for all the typical floors.

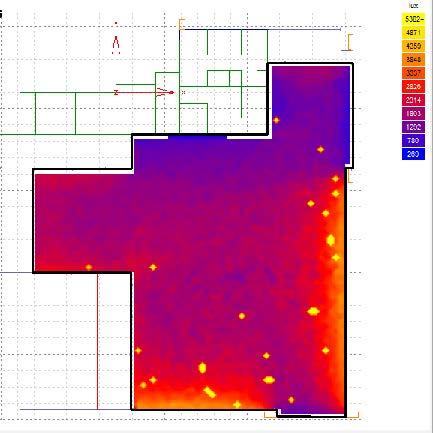

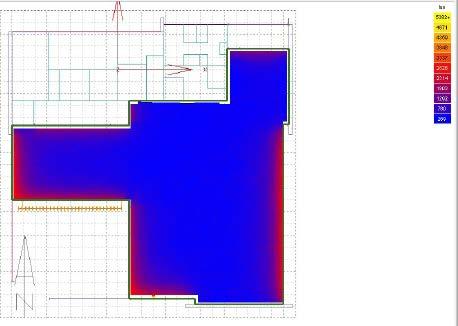

on the basis of the above observations, it is deduced that 99.82% of the regularly occupied areas are achieving daylight illuminance levels of minimum 269 lux& maximum of 5382 lux at the working plane. Project is aiming 1 point under EQ Cr 8.1 as Daylight Area is 99.9% which is > 75% as per credit requirement and therefore project can also achieve 1 additional point under Innovation (Daylight Area > 95%).
Project Name
Simple tree light house
Project Type Commercial
Location Dhaka, Bangladesh
Climate Type Tropical wet and dry climate
Certification

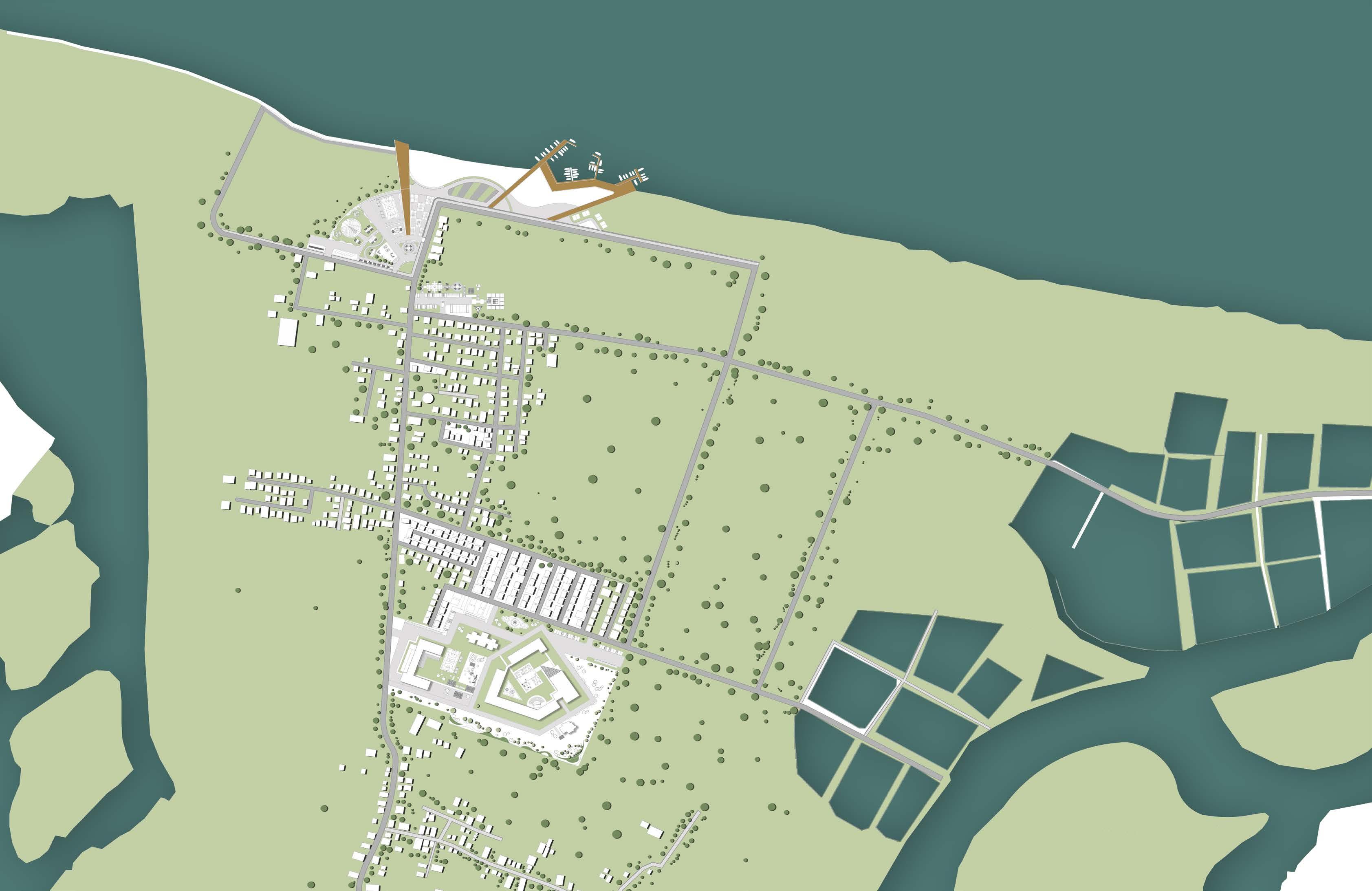

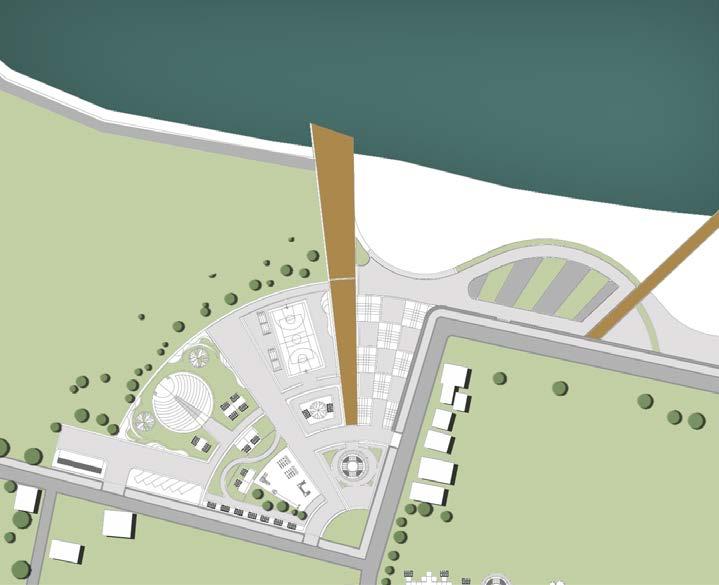

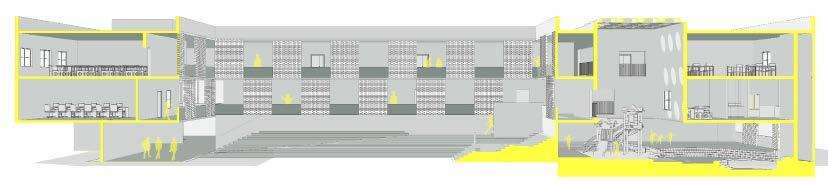

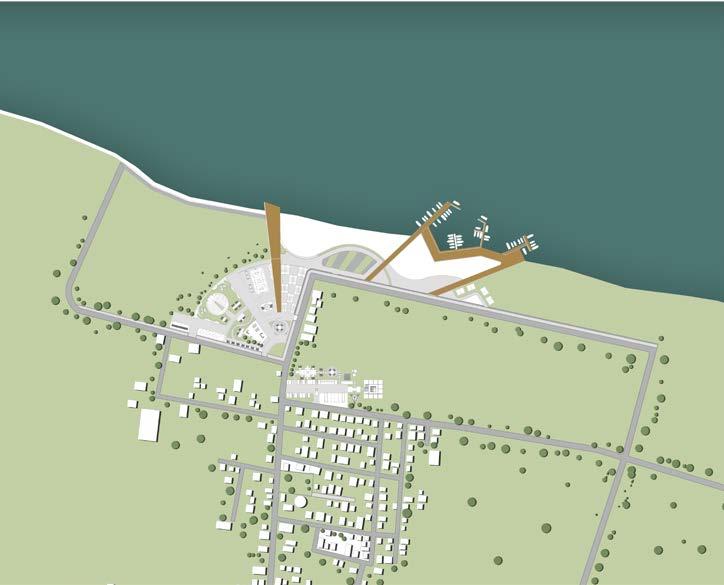

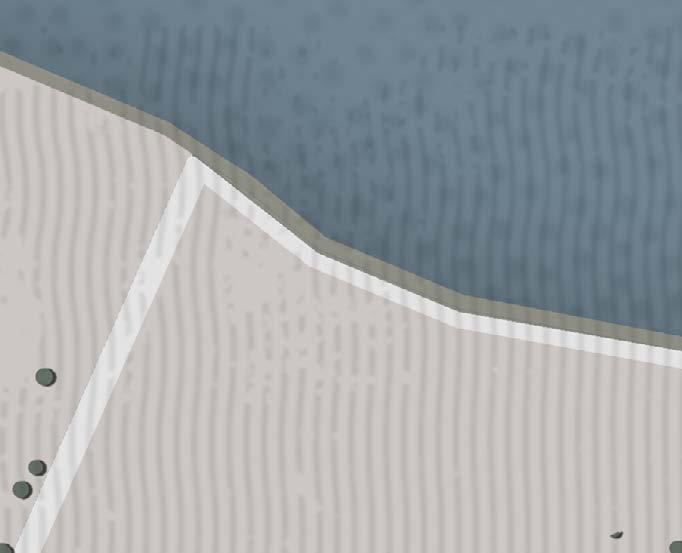

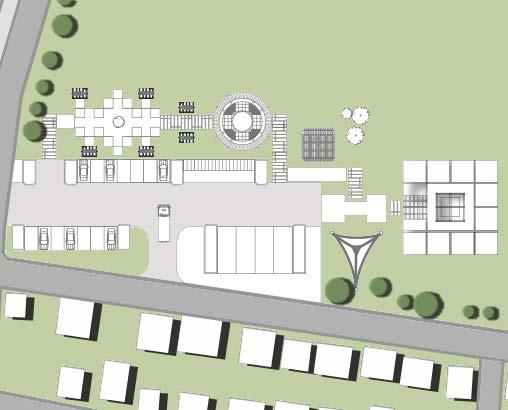

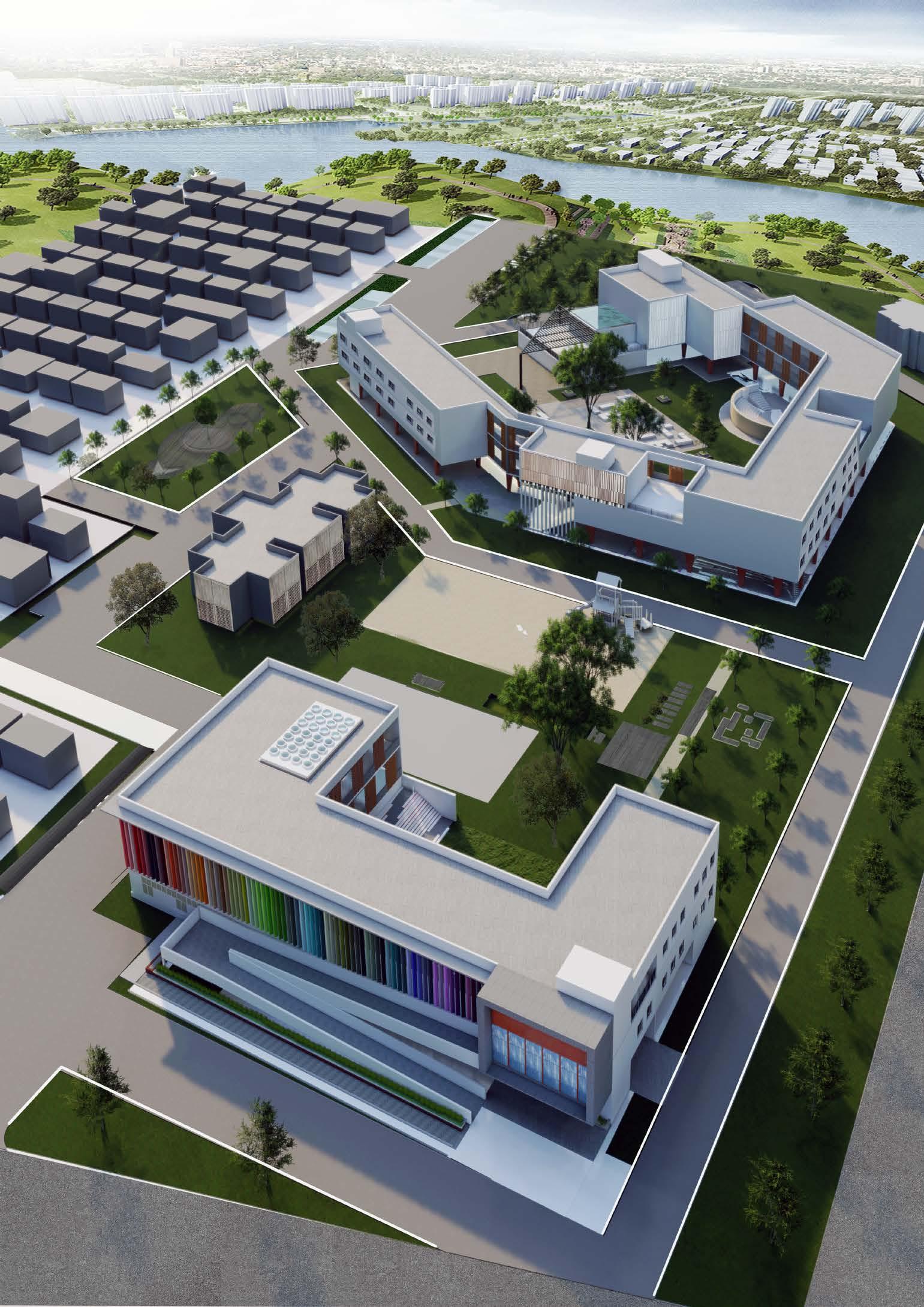

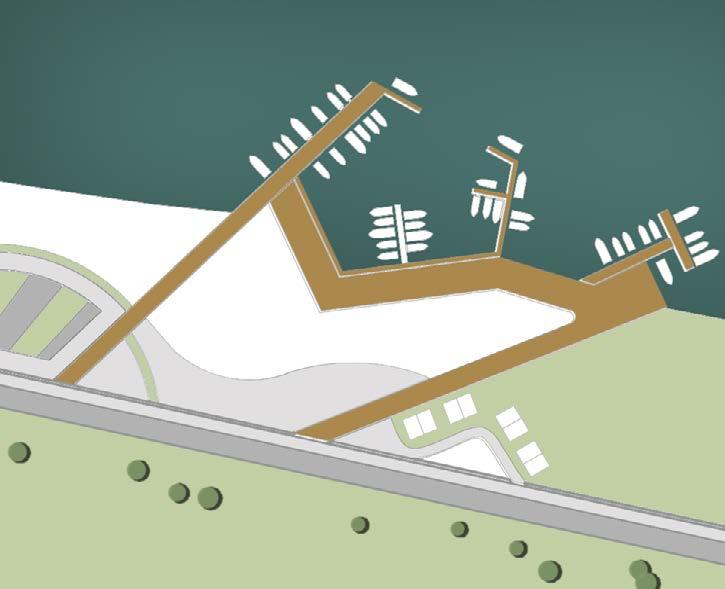

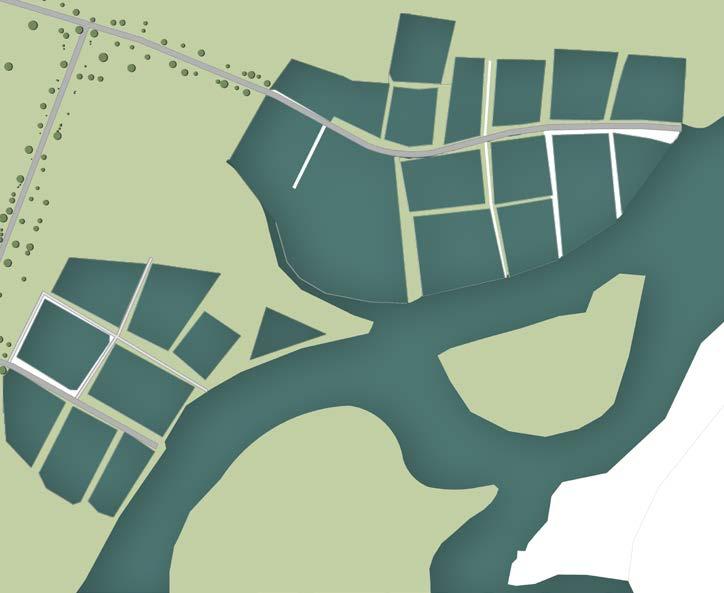

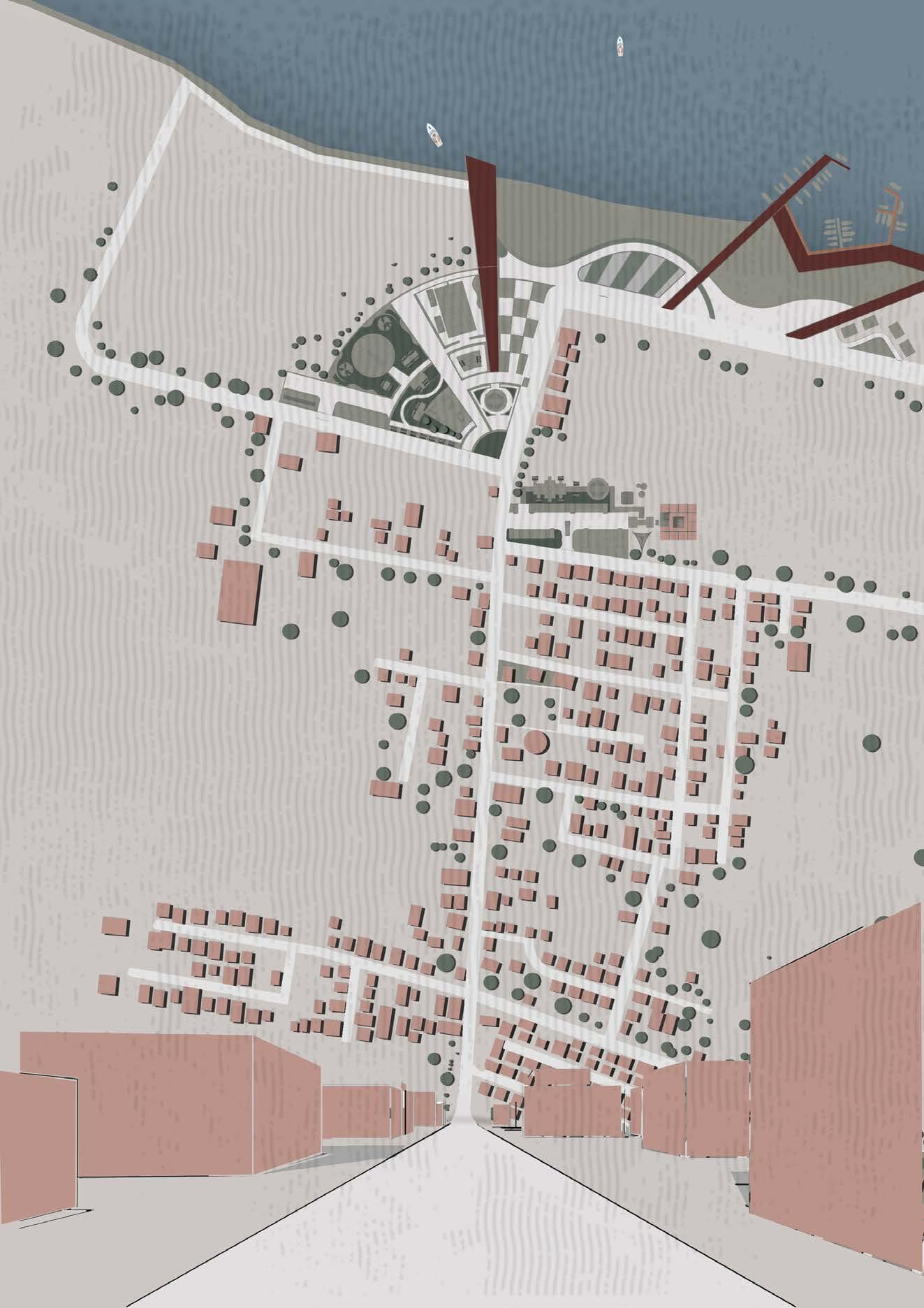

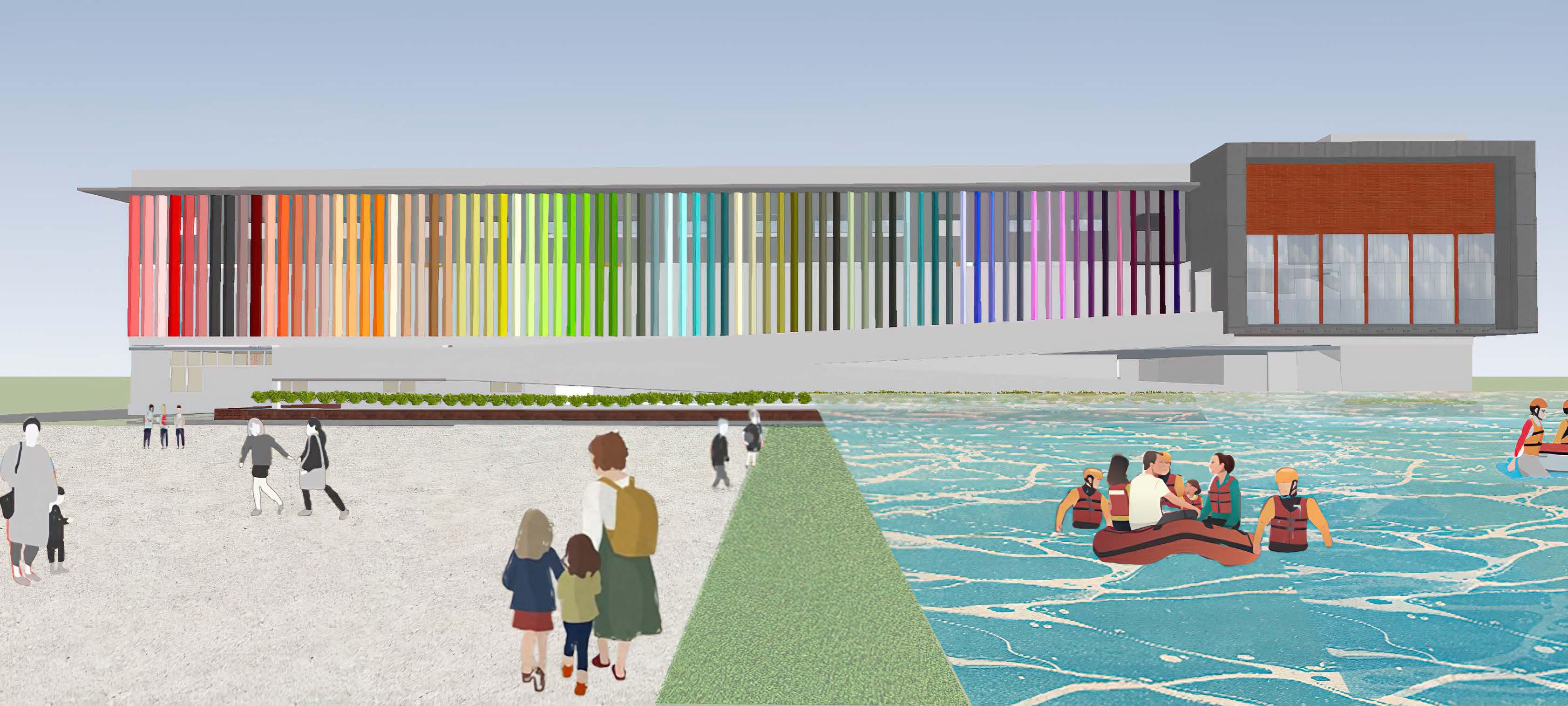

Project : Uplifting coastal community by Resilient design solution
Location : Cuddalore , India.
Program : Undergraduate Thesis
The proposal not just address the rebuilding of a broken community but also measures to empower the communities to withstand and sustain any future disasters.
development.
