Force Landscape Catalog 2024

ENGINEERED FOR LANDSCAPE | FORCEBYABI.COM | 877-788-7253

VERSATILITY. AGILITY. PRECISION. When it comes to installing, renovating, and maintaining the ground, nothing works better, harder, and longer than Force equipment.

TABLE OF CONTENTS

FORCE Z-23: A LANDSCAPER’S BEST FRIEND .................4 EVERYTHING YOU NEED FOR SEEDBED PREP ............6 EXPAND YOUR TURF CARE VERSATILITY....................8 MULTI-TASK MASTER ..............................................10 Z-23 TECH IN ACTION .......................................................12 ENGINEERED WITH RVF.......................................... 14 EASY-SWAP ATTACHMENTS .................................. 16 ACTIVE ATTACHMENTS ...........................................18 INTRODUCING THE Z-23 SABER ......................................22

The Z-23 is the revolutionary ground care machine made by landscapers, for landscapers. The stand-on zero-turn platform combined with fingertip control over hydraulically operated attachments delivers expansive visibility, lightning speed, and complete command over the work. This powerhouse soil prep machine enables a level of precision and nimbleness like you’ve never experienced before.

4

“

The Z-23 has been a game changer for our landscape company. We do many large construction housing developments and new landscaping projects. The Force cuts the time needed to finish grade topsoil for seed preparation almost in half. We look forward to seeing how we can implement this machine into other areas of our business.

-Taylor Raisanen Raisanen Landscaping

”

The Force Z-23 is shown with optional attachments throughout this catalog.

5

EVERYTHING YOU NEED FOR SEEDBED PREP The Z-23’s landscape configuration lets operators dig more aggressively, break up compaction, and dislodge rocks from the soil. With its incredible zero-turn functionality, the Z-23 gets the grunt work done while empowering maximum precision along contours, around obstacles, and in tight areas.

Z-23 CONFIGURED FOR LANDSCAPE CONTRACTORS

6

SEED & FERTILIZER SPREADER

VERSIBLADE MINI-BOX

REAR SOIL FINISHER

The Z-23 Spreader holds 120 lbs. of material and features adjustable flow, an adjustable spread pattern from 4 to 25 feet, and a side deflector. This commercialgrade electric spreader is ideal for broadcasting whatever seed or fertilizer your ground requires.

Easily sift through dirt using the Z-23’s Versiblade Mini-Box. Using the Versiblade Mini-Box, operators can dig aggressively, decompact the soil, and dislodge rocks—all in one pass. With fingertip control over powerful hydraulic and spring-loaded arms, carry material, remove loose debris, or grade and level ground with great visibility and finesse.

The swivel hookup and patented H-frame allows the whole system to follow the Z-23 on even the tightest turns. Adjust the dual Versiblades to float over the top to gather leftover rock or debris while still letting soil flow. This unique setup creates a fluffy, conditioned finish free of unwanted materials. A twisted basket roller featured on the back helps reduce bounce, smoothen dirt, and press in seeds.

A LANDSCAPER’S BEST FRIEND 7

EXPAND YOUR TURF CARE VERSATILITY

The Z-23 offers you and your crew greater versatility to manage wide variety of different turf care tasks with just one machine. Depending on the needs of your soil, choose from our Plug Aerator, Slit Aerator, or powered AERA-Vator mid-mount attachments.

The stand-on platform allows for maximum visibility as you precisely follow contours of the land when aerating. The all-new powered AERA-Vator, available for the Z-23H, allows you to make in-ground turns while the implement is engaged. No matter the turf, Force equipment offers unparalleled aeration control.

KEY FORCE ADVANTAGES SIZE MATTERS — Small aerators can take ages to finish aerating an entire sports field. Offering the

largest and widest aerators on the market, the Z-23 lets you thoroughly aerate and cover nearly 3.5 acres of ground per hour.

START TO FINISH — The Z-23’s wide assortment of available attachments empowers you and your

crew to tackle any size or type of turfcare job—from rough grade, through installation, and on to regular maintenance—using only one machine.

FOLLOW THE CURVES — Whether you’re edging or aerating, the Z-23 ensures you stay engaged

with the ground at all times. Make in-ground turns and follow the contours and curves of the different landscapes you work on.

8

A LANDSCAPER’S BEST FRIEND

Attachment compatibility varies. AERA-Vator is a registered trademark of and is made in partnership with 1st Products, Inc.

9

SINGLE-PURPOSE PRECISION MEETS MULTI-TASK MASTER NO MATTER THE JOB, THESE ATTACHMENTS GET IT DONE. LAWN SEED & SOD PREP Easily loosen, level, and seed tight areas and hard to access job sites. Carry in and spread material with the scoop attachment and fill holes fast.

PLUG, SLIT, OR HYDRAULIC AERATING Allow water, oxygen, and nutrients to reach the roots by relieving compacted soil using either a plug, slit, or hydraulic aerator. When paired with our XD Flexible Drag Mat, break up the cores while you aerate. Using our slit aerator or AERA-Vator, aerate and overseed the landscape in ready-to-use condition the same day.

FERTILIZING The 120 lb capacity hopper allows accurate application of a variety of nutrients quickly. The visibility, maneuverability, and control of the Z-23 allow the job to get done faster than other methods.

10

SEEDING Prepare perfect seed beds quickly. Loosen and condition, broadcast seed, gather debris, finish, smoothen, and press seeds into the soil to create new seedbeds around the tight spaces, edges, and contours of the entire landscape.

OVERSEEDING Using a combination of options the Z-23 can quickly overseed existing turf. Aerate and broadcast seed fast in tight areas with one truck, one machine, and one operator.

EDGING Easily and quickly edge infields, cart paths, sidewalks and even landscape beds with total control. Create straight cuts or free-form organic shapes to outline new beds quickly and cleanly in existing sod.

SWEEPING Easily clear materials and debris from your property with our hydraulic power broom. Using this powerful brush, quickly sweep away grass clippings, dirt, sand, and gravel out of the way of footpaths. Keep parking lots, concrete sidewalks, and pavement cleaner and safer using the Z-23.

The RVF system enables the scarifiers to easily rip out potholes and compacted gravel on driveways and parking lots. Paired with Mini-Box attachments, the machine can fill lows and cut down highs to fix drainage issues on paths, trails, and stone walkways as well.

HORSE ARENA GRADING The Z-23 is ideal for decompacting, grading, and dragging round pens and circular horse walkers up to a depth of three inches. Precise depth control keeps footing consistent while enabling quick work around jumps and other obstacles.

INFIELD GROOMING Nothing grooms tighter or faster with better visibility and control. Remove cleat marks, spread conditioner, and clean edges quickly. Attachments are available for any natural infield material and finish desired. Even nail drag 1/4” deep with laser precision with our patented VibraFlex drag.

Prevent snow, dirt, or other materials from piling up on the ground using our snow plow attachment or power broom. With the machine’s zero-turn functionality, operators can clear snow close to buildings or edges with ease, ensuring clean and safer walkways.

TEE BOX LASER GRADING Get perfect water runoff with a machine the size of a mower! New construction or renovations can happen quickly with laser precision down to 1/8”.

Reduces manpower and equipment needs.

FLATWORK LASER GRADING Prepare very accurate sub-grades for concrete flatwork anywhere with a 6’ doorway. Work inside tight areas with zero-turn maneuverability setting sand base layers. Makes quick work of clay tennis courts as well.

A LANDSCAPER’S BEST FRIEND

GRAVEL MAINTENANCE

SNOW CLEARING

INFIELD LASER GRADING Allow perfect drainage to the outfield with the machine automatically following conical or dual plane grades. Fix high or low areas the human eye has trouble sensing to make the field playable faster after a rain event. After grading, the same machine can finish the field to game ready condition.

11

Z-23 TECH IN ACTION Featuring patented Responsive Variable Force (RVF) technology, revolutionary rear swivel hitch, and a full family of custom, innovative attachments, the Z-23 stand-on zero-turn machine gives you and your landscaping crew more power to finish all kinds of jobs—from commercial properties to residential lawns—in record time.

ENGINEERED WITH TM

12

The Force Z-23 is shown with optional attachments throughout this catalog.

13

ENGINEERED WITH RVF

RESPONSIVE VARIABLE FORCE TECHNOLOGY Located at the Z-23’s underbelly, our patented Responsive Variable Force Technology enables operators to hydraulically control our mid-mounted ground-engaging attachments with lift, variable down pressure, and pitch adjustments.

REAR LIFT SYSTEM TM

RVF Technology is an immersive experience that gives your crew more freedom of movement, eye-opening visibility, and dynamic command to do as much as larger and heavier machines at a fraction of the required tractive effort. Achieve a new level of versatility, agility, and precision in your work with a Z-23 zero-turn machine.

SCAN CODE TO WATCH A VIDEO ON THE RVF SYSTEM OR VISIT FORCEBYABI.COM/RVF

14

• Powerful Hydraulic Cylinder • Adjustable Lifting Bar • Articulating Tool Carrier

LIFT, GRADE, & DEPTH CONTROL • Variable Down Pressure to Ground-Engaging Components • Control Attachment Grading Position and Working Depth • Automated Grading with Available Laser Technology

PITCH CONTROL • Fine Tune Angle of Ground Engagement • Adjust Ground Engagement Relationship Between Two Mid-Mounted Attachments

INDUSTRY-LEADING TECHNOLOGIES

The Z-23 was specifically engineered to include technologies that reduce the need for frequent repair and avoid common sources of breakdowns. The commercial-grade systems, backed by a hefty warranty, mean the Z-23 is designed to work hard all day, every day.

BELTLESS HYDROSTATIC DRIVE SYSTEM

2–STAGE AIR FILTER

Each Z-23 comes equipped with a 25 HP electronic fuel injection engine standard. The EFI system pairs advanced computer controls with a high-pressure fuel delivery system to provide peak power and fuel efficiency. It now starts like a car with no carburetor issues and better fuel efficiency that starts easily in the cold!

Most machinery of this size runs on a Hydraulic Drive System geared to a belt and pulley drive shaft. However, the longevity of belts can be unpredictable or brief due to frequent breaks. To avoid using belts, each Z-23 is plumbed standard with Dual Stacked HydroGear Variable Displacement Pumps and Fixed Displacement Wheel Motors, offering significantly more benefits than beltdriven systems.

Every Z-23 comes standard with a Heavy Duty 2-Stage Cyclonic Canister Air Filtration System. The Canister Air Filter has been moved away from the engine to ensure ease of access. A 2-stage filtration system makes sure that your engine pulls clean air, acting as your engine’s shield in dusty conditions.

Keep the filter clean to see improved engine performance, fuel efficiency, and extended life.

U.S. PATENTS HELD: 10,914,051 | 10,501,912 | 10,487,475 | 10,492,354 | 10,287,745 | 10,287,744 | 9,883,621 | 9,332,687

Z-23 TECH IN ACTION

ELECTRONIC FUEL INJECTED (EFI) ENGINE

15

EASY-SWAP SYSTEMS

KITS & ADD ONS • Weight Kit • Mobile Workstation • Speedometer

• LED Work Light • Strobe Kit • Snow Plow

MID-MOUNT ATTACHMENTS MINI-B0X BLADE 60” Wide, 80 lbs

The Mini-Box Blade attachment gives the Z-23 extra earth-moving muscle and unmatched versatility. The MiniBox Blade easily mounts to the Z-23’s unique mid-mount attachment system with drive-over capability.

SCARIFIERS

47” Wide, 7 Shanks The scarifier ripping teeth make easy work of extreme hardpan and vegetation. The rippers enable the Z-23 to be used to renovate infields, maintain gravel roads or parking lots, and even complete seedbed preparation jobs.

STEALTH BLADES 49” Wide, 7 Shanks

Stealth Blades offer the perfect subsurface compaction relief. The middle ground between the Profile Blades and Scarifiers, Stealth Blades offer less resistance to cut through thicker-rooted vegetation with ease. Great for de-weeding an infield skin, or vegetation removal off the skin.

16

Attachments sold separately.

VERSIBLADE MINI-BOX

60” Wide, Serrated Blade, 80 lbs The VersiBlade Mini-Box easily sifts through dirt, so operators can do a pass to dig aggressively, decompact the soil, and dislodge rocks. Then, they can come back through as needed to gather roots and rocks into a spoil pile without bringing excess dirt since the VersiBlade allows soil to flow through.

MULTI-FUNCTION RAKE

60” Wide, ½” Thick Steel, Laser Cut Can be pitched vertically to back blade material from high areas and fill into low areas, it can pull off loose vegetation and debris into piles, and it creates an ideal finish on gravel parking lots and for other heavy dirt work. Included on the base configuration.

PLUG, SLIT, & HYDRAULIC AERATORS Hydraulic lift system | Suitcase Weights Choose from our available plug, slit, or hydraulic aerator attachments. Our 48” plug aerator runs 115,000 sq. ft. per hour, using 400 lb weights to core depths up to 3 - 1/2”.

Built with vibrating steel tines, our hydraulic AERA-Vator is mounted on a front swinging hitch, allowing in-ground turns up to 15°. For less intrusive aerating, the Slit Aerator cuts slits up to 2” deep in the surface.

FIELD & GROUND EXPERTS WEIGH IN Want more insight on Force equipment? Hear from industry professionals on how they are using our variety of tools to care for their ground. Listen in through our podcast series: Ground, Etc.

REAR-MOUNT ATTACHMENTS

SCAN TO LISTEN

FRONT & SIDE ATTACHMENTS

REAR SCOOP

SEED & FERTILIZER SPREADER

300 lb Capacity, 60” Wide

120lbs Capacity, 4–16’ Spread, 12V DC

No need for a wheelbarrow if you have a Z-23 with Rear Scoop on your trailer. With its hydraulic lift system and electric actuated dump and retraction ability, the Scoop can carry up to 300 pounds of mulch or soil and place it right where you want it.

Holds 120 lbs of material and has an adjustable spread pattern from 4 to 25 feet, adjustable flow, and side deflector. This commercial-grade and independently controlled electric spreader is ideal for precisely broadcasting nearly any type of seed, fertilizer and even some infield surface conditioners.

PRO EDGER SYSTEM

REAR SOIL FINISHER

18’ Disc, Subsurface blade

66” Wide, 340 lbs

Clearly define infield edges, cart paths, and landscaping beds with this patented edger system. The edger mounts to the hydraulic RVF mid-mount system for complete finger-tip control. The reversible 18” disk pushes or pulls materials depending on the mounting orientation of the disk to create a clean turf edge.

The Rear Soil Finisher gives you complete control over your seed-to-soil contact. With a swivel hookup and our patented H-frame, the system floats over the ground on even tight turns. Adjust the dual VersiBlades to break compaction while gathering unwanted debris.

A twisted basket roller follows the finisher to reduce bounce, smoothen dirt, and press in seeds.

PULL-BEHIND CULTIPACKER

POWER BROOM

Available in 48” & 72” Widths

46” Wide, 350 RPM full throttle

A good cultipacker is indispensable in achieving quick germination and growth with your broadcast seeding projects. Ensuring proper seed-to-soil contact, moisture absorption, and germination, the cultipacker is a critical part of the seeding process. Cultipack again after seeding to press the seed in and create moisture-holding pockets.

The Power Broom* features 24” diameter heavy-duty polypropylene bristles to easily clear concrete, asphalt, or pavement surfaces. Mounted on a center-point hitch, you can pivot the brush left or right up to 52” working width at a max angle of 23°. Sweep away dirt, turfgrass, snow, or concrete chunks from tight corners or angles around your property with your Z-23H. *Attachment compatability varies.

17

NOW WITH ACTIVE ATTACHMENTS For years, Force has provided professional landscaping contractors like you with new tools to expand your landscaping and turf care. Now, we have new Force attachments to give you an advantage unlike ever before. Outfit your Z-23H with our newest hydraulic mid-mount attachments and see what benefits these powerhouse tools can deliver to your landscaping projects.

HYDRAULICALLY POWERED ATTACHMENTS

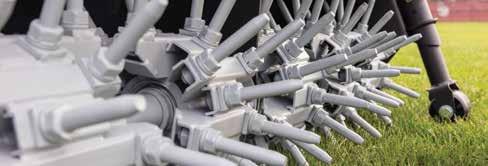

FORCE AERA-Vator Powered by a hydraulic motor, our AERA-Vator attachment empowers you to more thoroughly condition your sports turf in minimal time.

Once active, steel tines fixed on an eccentric shaft allow the AERA-Vator to penetrate the soil, causing the tines to rapidly vibrate and further break up compaction. Mounted on a front swinging hitch, operators can pivot the attachment left or right to make in-ground turns, which paired with a rear roller prevents the pulling of soil plugs. Finish sports turf aeration in one pass and enable same-day play using our new midmount hydraulic AERA-Vator attachment.

18

FORCE POWER BROOM If you’re looking to keep parking lots clear, count on our new hydraulic Power Broom to get the job done. The Power Broom comes with heavy-duty polypropylene bristles to help you easily clear concrete, asphalt, or pavement surfaces. Mounted on a center-point hitch, operators can pivot the broom at a max angle of 23° either left or right without having to lift the attachment. With a working width of 52”, sweep away dirt, grass, or snow from tight corners or angles with the precision operation of a Z-23H.

HYDRAULIC CONTROLS

CHAINS FOR IN-GROUND TURNS

Z-23 TECH IN ACTION

HYDRAULIC PORTS

POWERED FRONT-MOUNT

SWAPPABLE MID-MOUNT

Attachment compatability varies. The Z-23H can transport two, but run only one hydraulic attachment at a time.

19

LASER GRADING

LASER RECEIVER LASER TRANSMITTER

CONFIGURATION

OPERATOR’S CONTROLS LASER CONTROL PANEL

ARTICULATING HYDRAULIC REAR LIFT SYSTEM

TWEEL® HI-TRACTION TIRES

MID-MOUNT ATTACHMENT SYSTEM

20

Optional laser grading equipment shown. Requires laser-ready Z-23 model.

ENGINE Engine Type Fuel Type/Tank Capacity Air Filter

KOHLER® Command Pro 25 HP EFI V-Twin OHV (17.2KW) | 747CC | 4-cycle air cooled | Gasoline | Model ECH740 6 Gallon / 22.7125 Liter capacity with fuel gauge | Unleaded gasoline Heavy duty 2-stage cyclonic canister air filtration system

DRIVE SYSTEM Transmission Forward/Reverse Speeds

Hydrostatic zero-turn | HydroGear variable displacement pumps & fixed displacement wheel motors Forward 0-10 mph | Reverse 0-4 mph

CHASSIS Frame construction Dimensions

Rugged structural tube steel construction 93” L x 56” W x 57” H | 72”-84” With optional rear attachments

Base Unit Weight

1,300 lbs

Mid-Mount System

Independent hydraulic lift & pitch controls with adjustable & lockable spring-loaded down force with Responsible Variable Force (RVF) Technology

Rear-Mount System

Hydraulic lift control with articulation

Tires & Wheels

Front (Air): 13 x 6.50-6, Rear: 24 x 12.00-12 (Air or Optional Tweel® tires)

Towing Capacity

2” Receiver - 2,000 lbs towing capacity at slow speed on flat and open ground ONLY! Never tow anything on an incline!

Electrical

20 AMP regulated alternator | 350 CCA AT 0 Degrees - Battery

OPERATOR EXPERIENCE Steering

Cushioned zero-turn steering levers

Comfort

Cushioned knee pad | Cushioned lumbar support bar | Spring cushioned standing platform | Cup holder

Dashboard

Dash indicator lights | USB power port

Braking

Dynamic braking via hydrostatic transmission | Integrated parking brake

ENVIRONMENTAL Compliance

EPA & CARB compliant

WARRANTY* Limited Warranty

36 month machine and accessories/3-year unlimited hour commercial warranty. *Refer to manual.

Specifications and features are subject to change without notice. Tweel® is a registered trademark of Michelin North America In. Kohler® is a registered trademark of Kohler Co. All rights reserved.

U.S. PATENTS HELD: 10,765,053 | 10,492,354 | 10,287,745 | 10,287,744 | 10,149,440 | 9,883,621 | 9,332,687 | 8,944,176 | 7,540,331 | 7,478,682 | 12,024,852

21

THE Z-23 FAMILY IS GROWING...

22

INTRODUCING THE Z-23

THE SPECIALIST MACHINE FOR TURF CARE AND SNOW REMOVAL The Z-23 line is synonymous with precision. Just what you need, right when you need it. The new Z-23 SABER is precisely what you need for aerating and clearing—all year long. Hydraulically powered, this stand-on machine combines specialty landscaping tools into one advanced, multi-purpose ground care machine. Featuring variable speed and zero-turn capabilities, the SABER easily moves around obstacles or tight turns to aerate the entire property faster than before. Mounted on a swivel hitch, pivot the mid-mount attachment with ease right or left to make in-ground turns.

AVAILABLE ATTACHMENTS:

BROADCAST SPREADER

FORCE AERA-Vator

DIRT & SNOW POWER BROOM

23

520 S. BYRKIT AVE. MISHAWAKA, INDIANA 46544

EMPOWERING YOUR WORK FORCE BY ABI HAS TRANSFORMED THE WORLD OF DIRT AND TURF WORK SINCE 2012. Force is trusted by local landscape contractors, metropolitan

municipalities, and major league ballparks across the continent. Our decadeslong focus on pushing the limits of innovation and providing outdoor workers with a remarkable customer experience has inspired us to do business differently.

Force machines and attachments can be purchased through local dealers who can provide unparalleled support for the life of the product. Where a local dealer is not available, our on-site Product Specialist Team is here to help you get the equipment you need. Our signature tools are engineered and manufactured in the USA and shipped directly to you. We are confident your Force equipment will make your toughest ground and turf easier and more efficient than ever for years and years to come!

INTERESTED IN BECOMING A FORCE DEALER? SCAN THE QR CODE TO LEARN MORE.

FORCEBYABI.COM Although every reasonable effort is made to ensure accuracy in this catalog, ABI Attachments, Inc., is not responsible for typographical or illustrative errors. Actual products may differ slightly and may be shown with optional equipment.

Images may not reflect dealer’s inventory and/or unit specifications.

Units may be shown with additional features. Ask dealer for details. © 2024 ABI ATTACHMENTS, INC, All rights reserved. | LC–09–24
