AbilityTECH Product Catalogue

Contents Contour technology

3

The contour technology process

4

Contour technology products

5

Insert components Back and base

7

Cushions

8

Postural positioning supports

11

Lateral supports

15

Foot supports

16

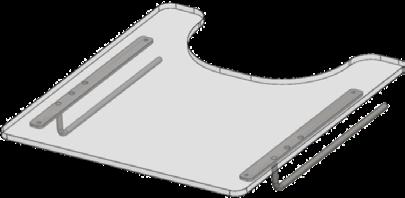

Trays

17

Head supports

18

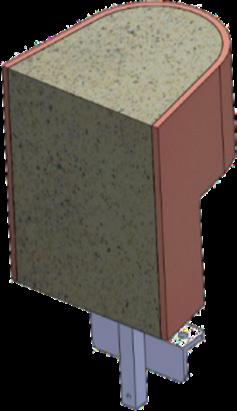

Pommels

19

Product codes

21

Contact us

24

AbilityTECH Product Catalogue

2

Contour technology Contour Technology or CT is a world-first process that uses state-of-the-art technology to develop equipment that is tailor-made to fit a person’s body shape. Using this technology, a range of products are able to be custom made. Specific products that are currently available include: • Contour Technology Insert – a custom contoured postural support system that is moulded to the person’s body shape.

• Sleep System – custom moulded foam supports that mould around the persons body.

• Customised commode – a shower commode that is custom moulded to suit the person’s body shape.

The advantages of CT • An accurate, customised, contoured system is made for each individual • Provides optimal postural control • Able to accommodate postural deformity • Contoured shape maximises pressure distribution • Enhanced comfort • Increased function • Lightweight • Strong • Unobtrusive

AbilityTECH Product Catalogue

3

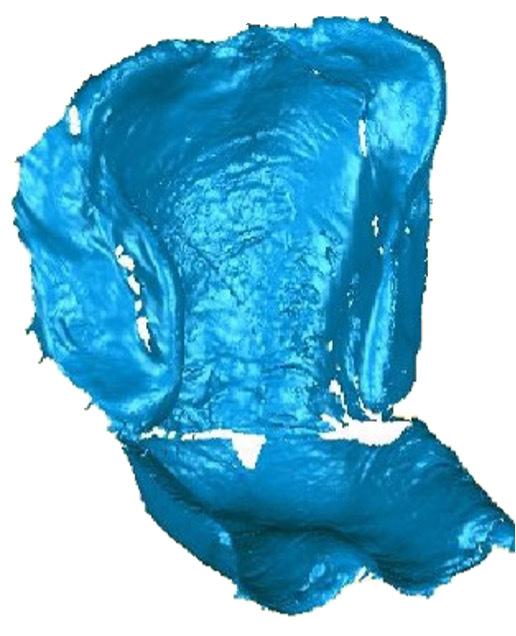

The contour technology process 1. Assessment

3. Robot Carve (Foam only)

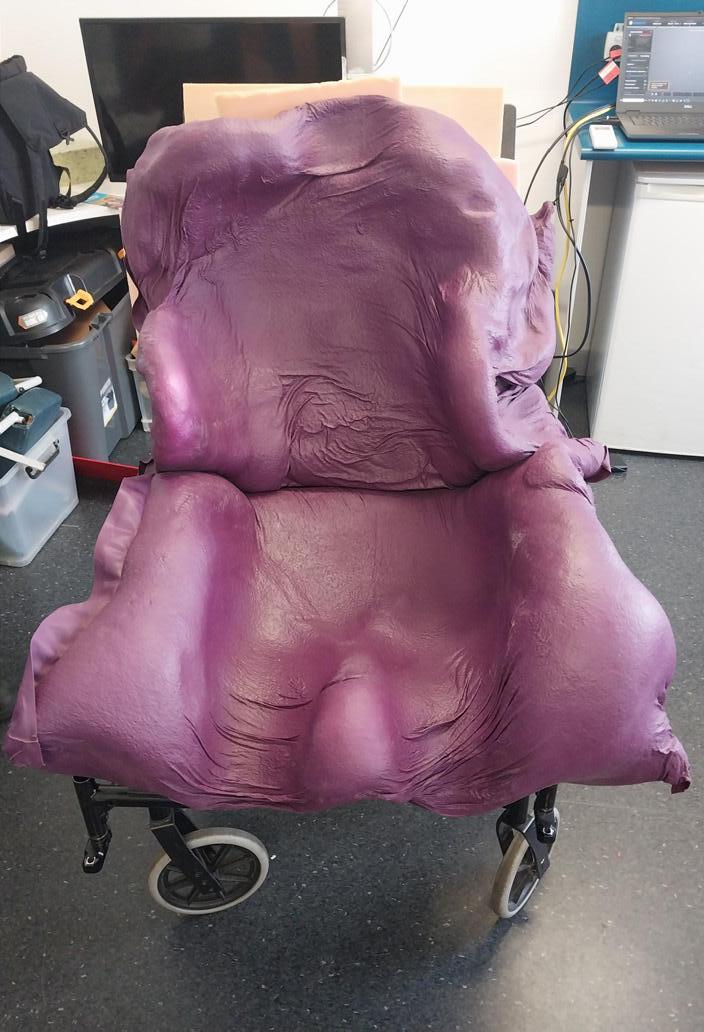

The client is positioned in our fitting chair. A mould is made with bean bags of the clients shape. The mould is scanned by our 3D scanner.

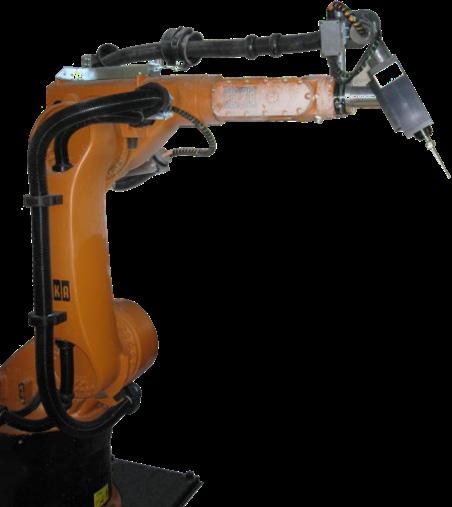

The edited image is sent to our Kuka robot which machines the desired shape out of a foam block.

4. Finished product The machined CT insert is covered and mounted onto a wheelchair.

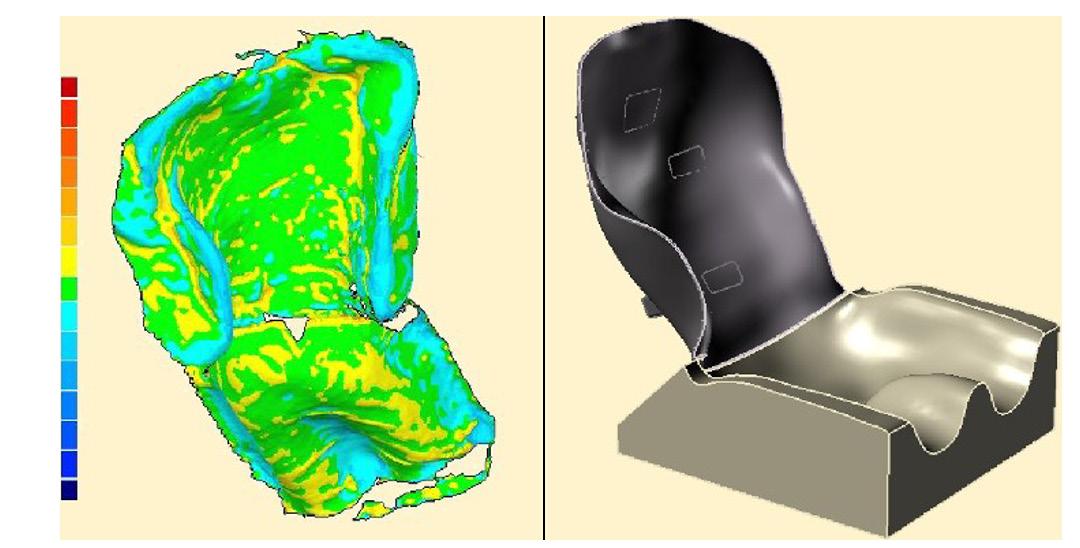

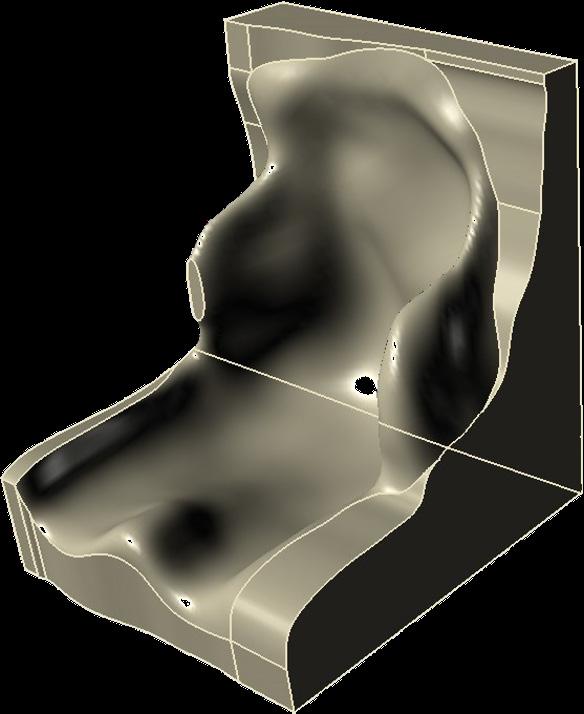

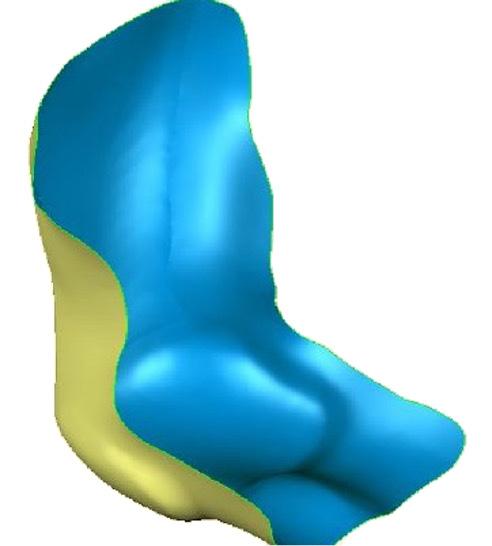

2. Editing The digital image capture by the 3D scanner is edited in our specialised software packages.

3D Printing is available to use for customised accessories.

AbilityTECH Product Catalogue

4

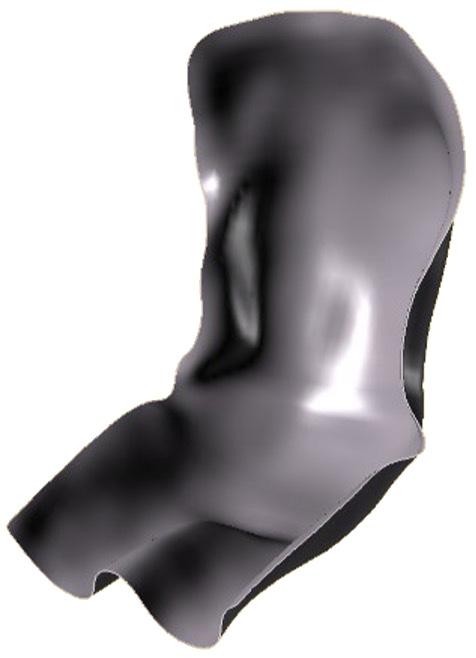

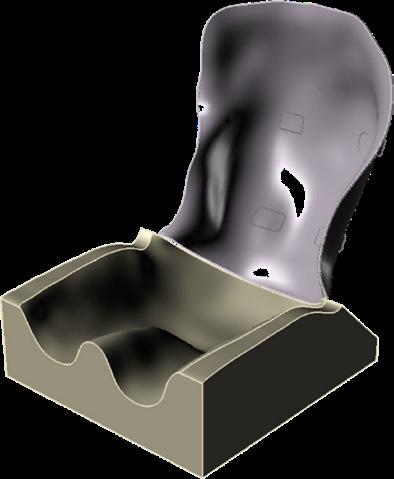

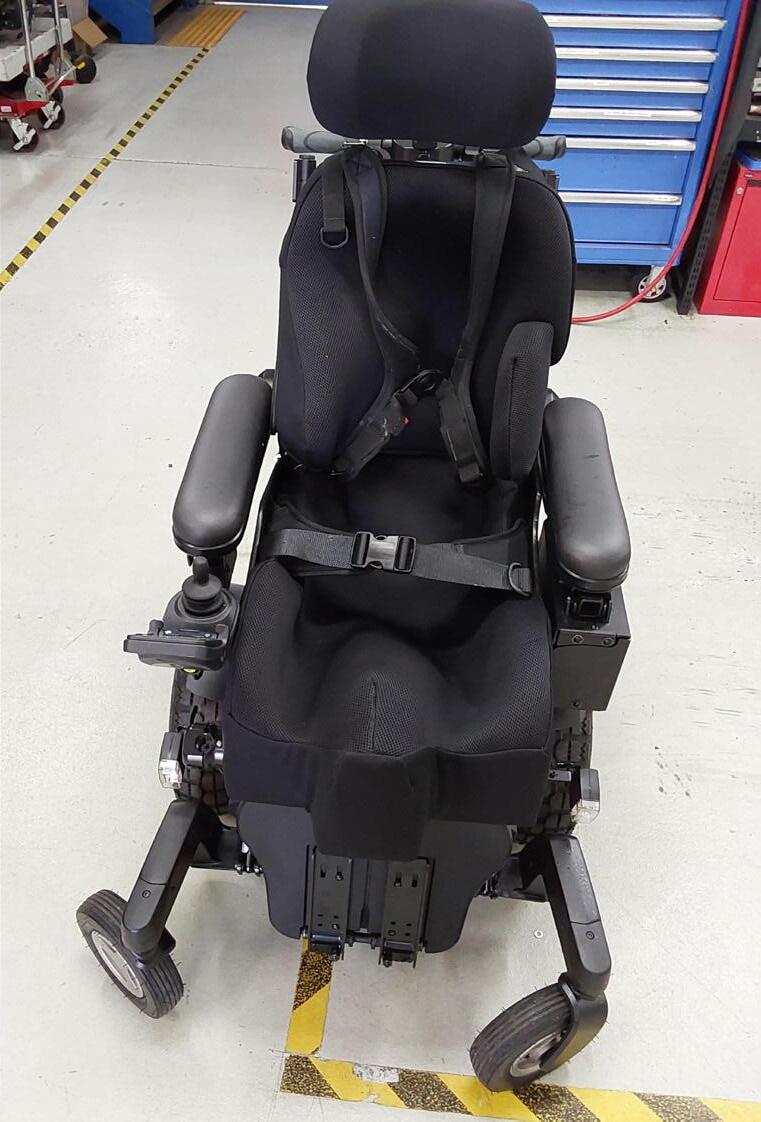

Contour technology products CT Shell Application: Fully customised shell to provide optimal support for clients with decreased centralised tone/postural control or requiring more rigid limiting of scoliosis.

CT Shell

CT Shell back with CT carved foam base

Options for CT Shell Evolight lining

For temperature control.

Supracor lining

Temperature control Pressure relief.

Foam lining

Required for postural support and additional comfort.

Covers - Supersheen

Standard fabric used on cushions.

Two-way stretch.

Aesthetic triangle pattern.

Available in various colours (provided with black base and sides)— black, purple, red, burnt orange (pictured left on a flat base cushion) and royal blue.

Covers - Newcare

Standard fabric used on cushions.

Two way stretch.

Available in black.

Covers - Dartex

Fluid repellent properties.

Available in black.

Moisture Proofing - Platilon

Flexible PU film heat sealed around foam cushion for protection.

Moisture Proofing - Silicone

Silicone coating over foam cushion.

AbilityTECH Product Catalogue

5

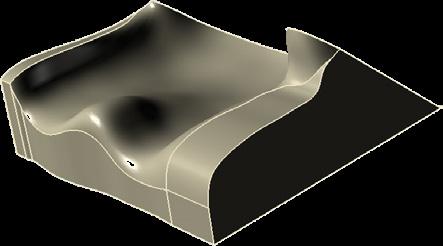

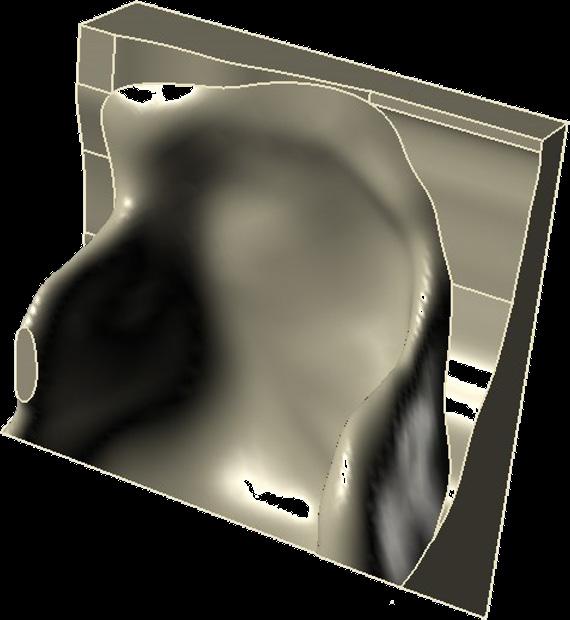

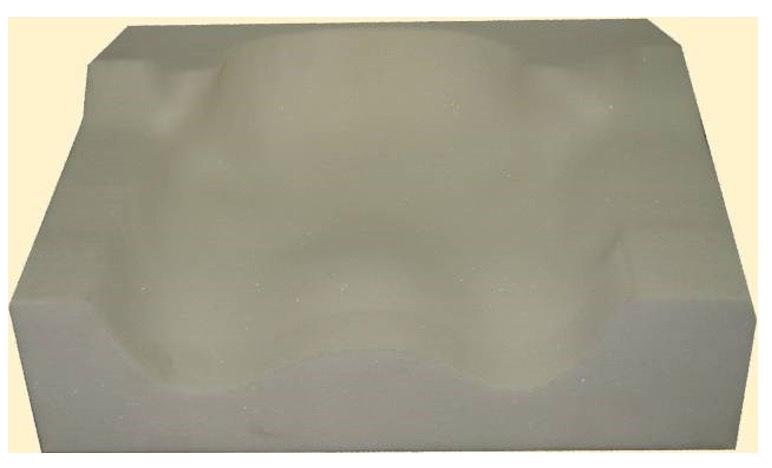

Contour technology products CT Carved Foam Cushion Application: Fully customised foam cushion to provide optimal support for clients with complex needs.

CT Carved Foam Base Cushion 901001

CT Carved Foam Back Cushion 901003

CT Carved Foam Set (Back and base cushion) 901005

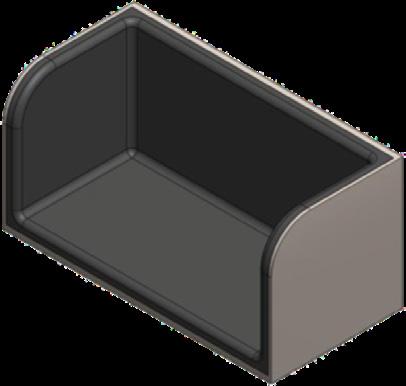

Options for CT Carved Foam Cushion Back box with sides

PVC or Wood.

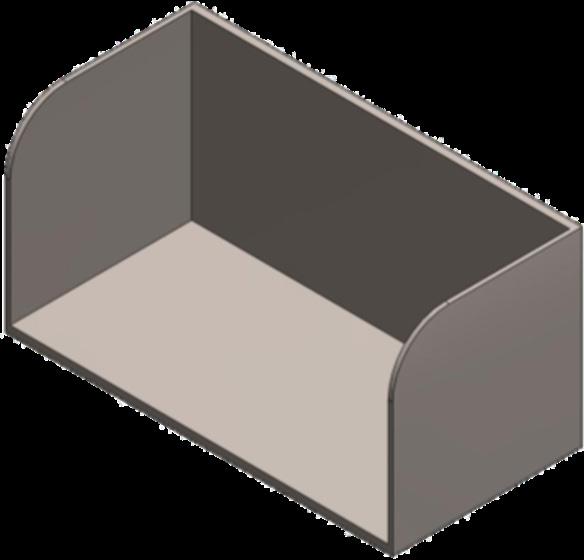

Base Box with Sides, Wood 904001.

Back Box with Sides, Wood 904002.

Base Box with Sides, PVC 904003.

Back Box with Sides, PVC 904004.

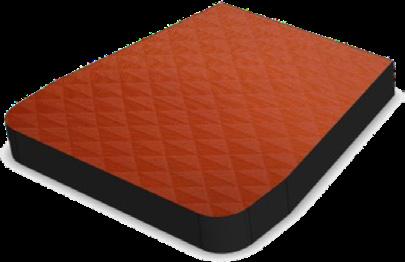

Covers - Supersheen

903401 CT Base cover.

903501 CT Back cover.

Colour panels fabric used on cushions.

Two way stretch.

Aesthetic triangle pattern.

Available in various colours (provided with black base and sides) black, purple, red, burnt orange (pictured left on a flat base cushion), and royal blue.

Covers - Newcare

903001 CT Base cover.

903101 CT Back cover.

Standard fabric used on cushions.

Two way stretch.

Available colour - Black.

Covers - Dartex

903201 CT Base cover.

903301 CT Back cover.

Fluid repellent properties.

Available in black.

Moisture Proofing - Platilon

Moisture Proofing - Silicone

AbilityTECH Product Catalogue

905101 Platilon CT Cushion .

Flexible PU film heat sealed around foam cushion for protection.

905001 Silicone.

Silicone coating over foam cushion.

6

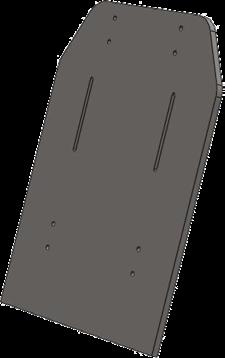

Back and Base - Insert components Flat Back Board (PVC) 950401

Material: PVC Can be moulded/bent Available in grey Easy to clean

Dimensions: Custom

Options: Adjustable slots for lateral supports.

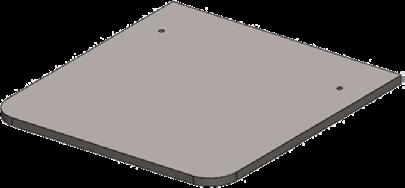

Flat Base Board (PVC) 950301

Material: PVC Can be moulded/bent Available in grey Easy to clean

Dimensions: Custom

Options: N/A

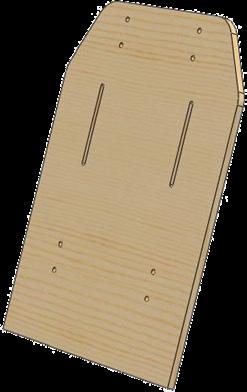

Flat Black Board (Plywood) 950101

Material: 12mm plywood Strong, light weight material Painted black

Dimensions: Custom

Options: Adjustable slots for lateral supports.

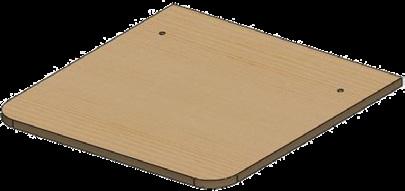

Flat Base Board (Plywood) 950001

Material: 12mm plywood Strong, light weight material Painted black

Dimensions: Custom

Options: N/A

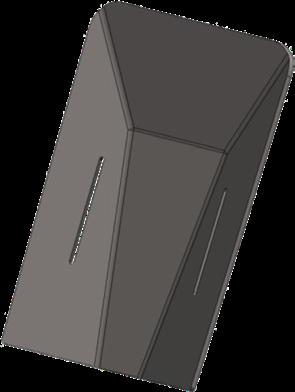

Moulded Back (PVC) 950501

Material: PVC Can be moulded/bent Available in grey Easy to clean

Dimensions: Custom width and height Moulded section.

Options: Adjustable slots for later supports.

AbilityTECH Product Catalogue

Application: Simple linear insert. Used where seated position is correctable and/or requires support to maintain functional position with appropriate postural supports and straps.

Can be used in combination with CT foam cushions for clients requiring more support/ pressure relief.

Application: Simple linear insert. Used where seated position is correctable and/or requires support to maintain functional position with appropriate postural supports and straps.

Can be used in combination with CT foam cushions for clients requiring more support/ pressure relief.

Application: Simple linear insert – designed to provide greater support kyphotic postures.

7

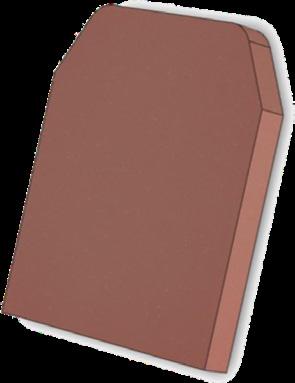

Cushions - Insert components Flat Back Cushion 922001

Material: Enduro Foam 50:250

Dimensions: Custom width and height Foam depth 25mm, 50mm or 75mm

Options: T- back I - back

Application: Simple linear postural support system where support and/or minimal correction are required.

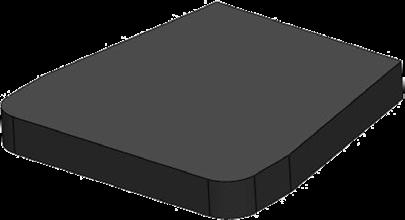

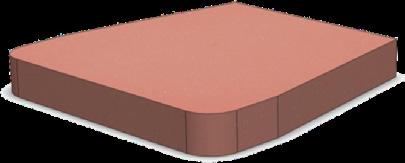

Flat Base Cushion 921001

Material: Enduro Foam 50:250

Dimensions: Custom width and height Foam depth 25mm, 50mm or 75mm

Options: N/A

Application: Simple linear postural support system, designed to accommodate minimal correction.

Moulded Back (for Moulded PVC Back) 922501

Material: Enduro Foam 50:250

Dimensions: Width and Height – As per Moulded PVC Back Foam Depth 50mm

Options: N/A

Application: Designed to provide minor postural changes and improve shoulder protraction.

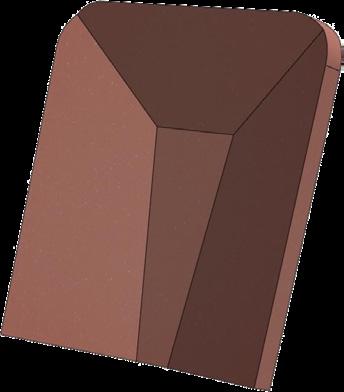

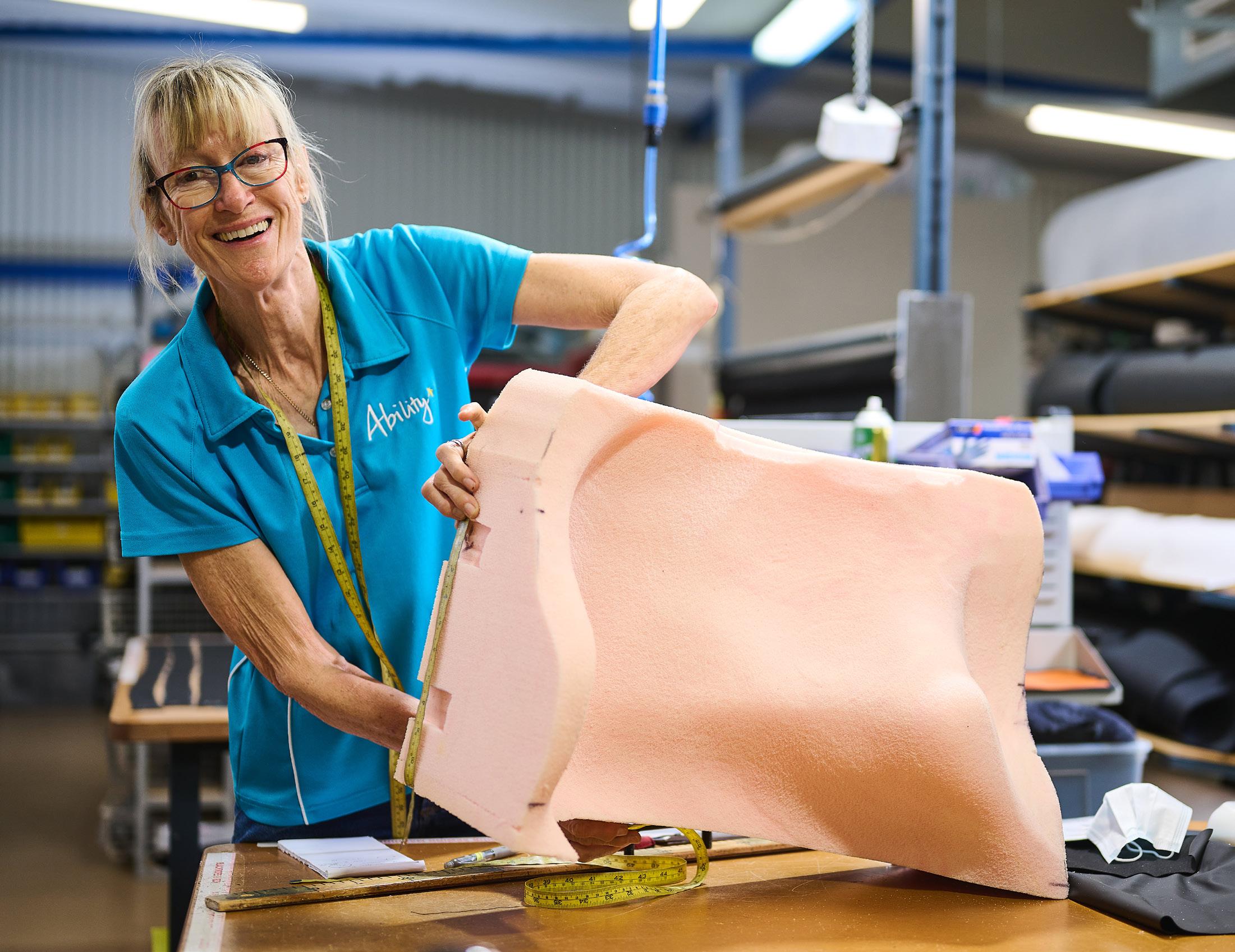

Contoured (hand carved)

Material: Enduro Foam 50:250

Dimensions: Custom width and height

Options: N/A

Application: Complex postural support system to provide additional support and accommodate fixed postural positions.

Also used for pressure relief.

Back 922601 Base 921801

AbilityTECH Product Catalogue

8

Cushions - Insert components cont.

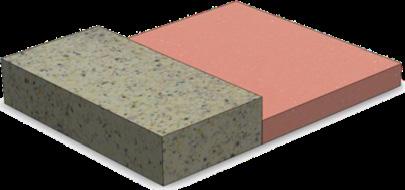

Antithrust Base 921401

Material: Front – Rebond foam with 8mm 50:250 Enduro foam comfort overlay Back - Enduro Foam 50:250

Dimensions: Custom width and depth Antithrust height 50, 75 or 100mm Back of cushion 25–50mm lower than antithrust.

Options: N/A

Application: Used to address extensor thrust and posterior pelvic tilt.

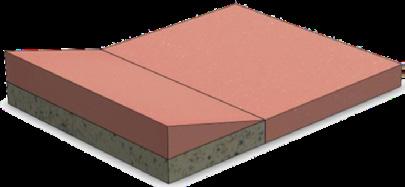

Ramped Cushion 921101

Material: Enduro Foam 50:250 Rebond Foam

Dimensions: Custom width and depth Height 25mm, 50mm or 75mm

Options: Rebond foam for additional stability

Application: Used to address extensor thrust and posterior pelvic tilt (less aggressive than antithrust).

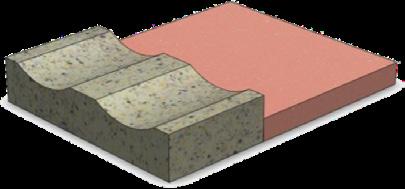

Leg Channels (pictured with antithrust cushion) 921201

Material: Enduro Foam 50:250 or Rebond Foam with comfort overlay

Dimensions: Custom

Options: N/A

Application: Promotes optimal hip positioning for excessive adduction.

Also used for excessive abduction.

Rebond foam provides firm support.

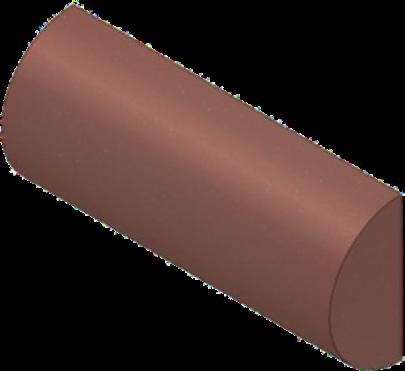

Lumbar Roll 922401 or Back Cushion with Lumbar Roll 922201

Material: Enduro Foam 50:250

Dimensions: Custom

Options: N/A

Application: To accommodate a hyperlordotic spine or to promote a natural lumbar curve.

AbilityTECH Product Catalogue

9

Cushions - Insert components cont.

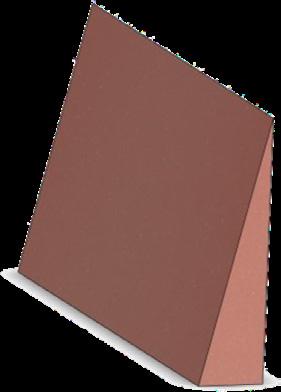

Sacral Wedge 922301

Material: Enduro Foam 50:250

Dimensions: Custom

Options: N/A

Application: To promote a more neutral or anterior pelvic position.

Requires a mobile pelvis.

Hillock 921701

Material: Enduro Foam 50:250 or Rebond Foam

Dimensions: Custom width and depth Height 25mm, 50mm or 75mm

Options: Rebond foam for additional stability.

Application: Promotes hips in abduction in presence of mild adductor tone.

Rebound foam provides firm support.

Options for cushions

Covers - Supersheen

Standard fabric used on cushions.

Two way stretch.

Aesthetic triangle pattern.

Available in various colours (provided with black base and sides)— black, purple, red, burnt orange (pictured left on a flat base cushion)and royal blue.

Covers - Newcare

Standard fabric used on cushions.

Two way stretch.

Available in black.

Covers - Dartex

Fluid repellent properties.

Available in black.

Moisture Proofing - Platilon

Flexible PU film heat sealed around foam cushion for protection.

Moisture Proofing - Silicone

Silicone coating over foam cushion.

AbilityTECH Product Catalogue

10

Postural positioning supports - Insert components Please note:

AbilityTECH straps are used for the purposes of positioning.

They are not to be used as a restraint or for transport.

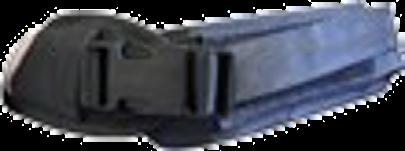

Calf Strap anterior or posterior

Material: 50mm webbing

Dimensions: Custom

Options: Neoprene padding Sheepskin padding Fastex buckle to open strap for transfer.

Application: To maintain feet on the footplates (to stop feet falling off the back of the footplates).

Material: Custom

Dimensions: Custom

Options:

Application: To promote neutral foot position.

Neoprene 50mm 963020 Neoprene 100mm 963021 Sheepskin 50mm 963022 Sheepskin 100m 963023

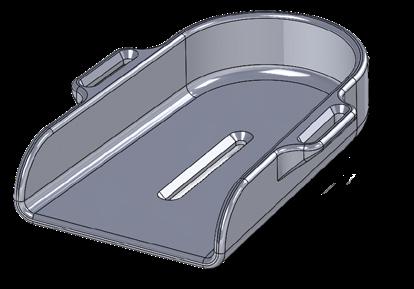

3D printed footcups custom made

AbilityTECH Product Catalogue

11

Postural positioning supports - Insert components Groin strap - pair

Dimensions: Custom

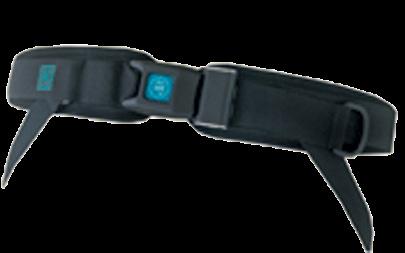

Pelvic strap Bodypoint 2 point

Material: BodyPoint Pelvic Strap

Dimensions (hip width): XSmall 13cm–23cm Small 18cm–28cm Medium 23cm–38cm Large 33cm–48cm

Application: To control extensor thrust and maintain pelvic position.

Pelvic strap Bodypoint 4 point

Material: BodyPoint Pelvic Strap

Dimensions (hip width): Medium - 23cm - 38cm Large - 33cm– 48cm

Application: To provide additional support for extensor thrust and sliding under the strap.

Pelvic strap neoprene adjustable

Material: 25mm or 50mm webbing Fastex buckle Neoprene

Dimensions: Custom

Application: To control extensor thrust and maintain pelvic position.

Image coming soon

Options: D-ring and velcro.

Application: To control pelvic rotation.

Material: 25mm or 50mm webbing Fastex buckle

Options: N/A

Straps - Insert components AbilityTECH custom:

AbilityTECH can custom design to customers’ requirements.

AbilityTECH custom manufactured straps are used for the purposes of positioning. They are NOT to be used as a restraint or for transport.

Other stocked options include:

AbilityTECH Product Catalogue

Spex Bodypoint

Common examples include: Upper limb position support Pelvic positioning supports Lower limb positioning supports

Enquire for details.

12

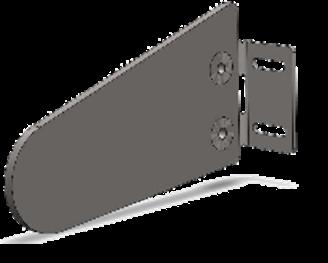

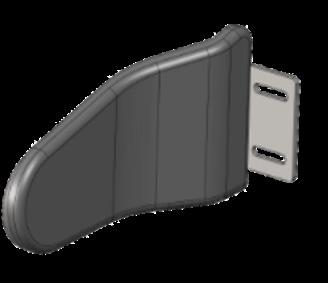

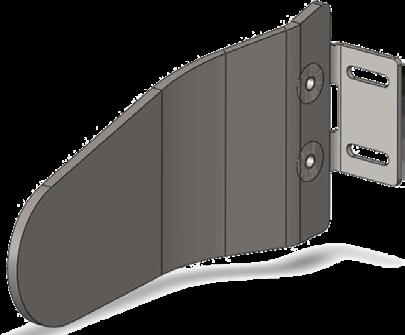

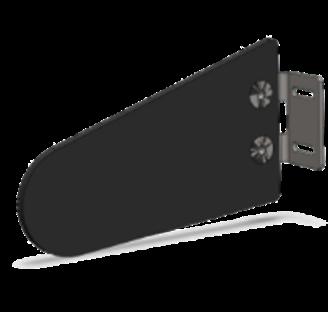

Postural positioning supports - Insert components Thoracic

Material: Stainless Steel Bracket (fixed or swing away) PVC 6mm thoracic

Dimensions: As per specifications below

Flat

Length: Small 155mm Medium 180mm Large 210mm

Depth: Small 85mm Medium 100mm Large 120mm

Anterior curved

Length: Small 180mm Medium 215mm Large 250mm

Depth: Small 80mm Medium 100mm Large 120mm

Posterior curved

Length: Small 145mm Medium 170mm Large 200mm

Depth: Small 85mm Medium 100mm Large 120mm

Pelvic/hip block

Material: Fixed Stainless Steel Bracket 6mm PVC pelvic/ hip block

Dimensions: Length - Depth Small 155 - 85 Medium 180 - 100 Large 210 - 120 XLarge 230 - 125

AbilityTECH Product Catalogue

Options: Fixed Swing Away EVA Lined Gel padding.

Options: EVA Lined Gel padding.

Application: To provide trunk support and promote a symmetrical position.

Application: To promote a symmetric pelvic position.

13

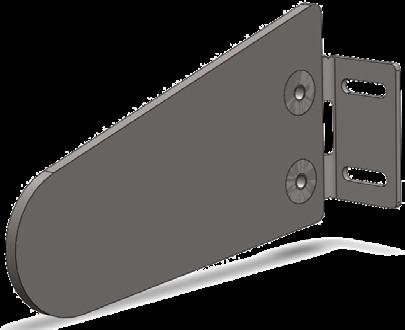

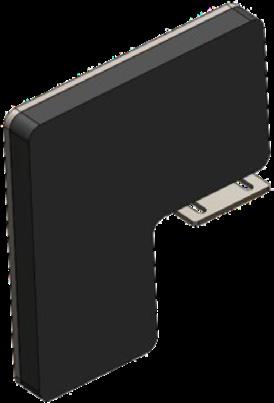

Postural positioning supports - Insert components Lateral Thigh Block Material: Fixed Stainless Steel 952006

Dimensions: Custom

Options: Rebond padding Gel padding EVA foam padding Custom

Application: To limit excessive hip abduction.

Medial Thigh Block Material:

Dimensions: Custom

Options: Rebond padding Gel padding EVA foam padding Custom

Application: Maintain hip in abducted position.

Bilateral blocks can be used as a pommel alternative.

Bracket 6-8mm PVC thigh block Lined EVA foam

Fixed Stainless Steel Bracket 6-8mm PVC thigh block

AbilityTECH Product Catalogue

14

Options for lateral supports Fixed bracket 952001

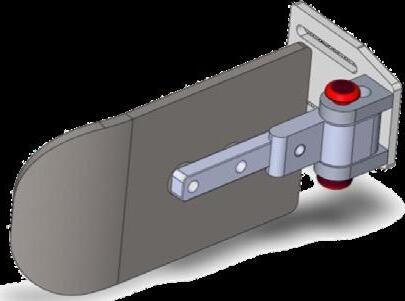

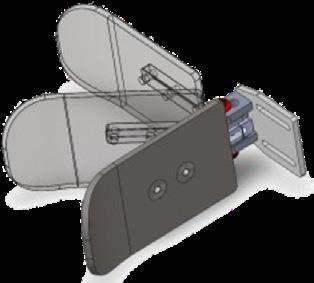

Swing Away Brackets 952002

This is the standard bracket.

A fixed bracket will come with EVA lining.

Improve ability to add and remove a sling for transfers.

Cover—Neoprene 954101

Elastic/stretchable, wet suit like material.

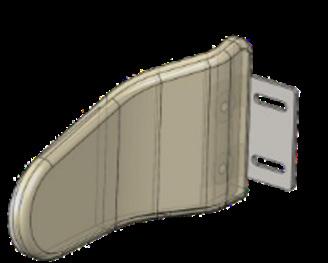

EVA Lining 953101

This is the standard bracket. A fixed bracket will come with EVA lining.

Gel Padding 953102

Chosen to support with increasing comfort and provides cushioning to the body.

Gel padding will be added to EVA lining.

AbilityTECH Product Catalogue

15

Foot supports - Insert components Footbox - Plain 962601

Material: PVC

Dimensions: Custom

Options: Side supports

Application: To provide foot support.

Footbox - Padded EVA 962701

Material: PVC EVA Padding Supracor Padding

Dimensions: Custom

Options: Side supports Supracor padding

Application: To provide foot support.

Custom 3D printed shoes cups or off-the-shelf options including AEL shoe holders or Jay foot positioners available.

AbilityTECH Product Catalogue

16

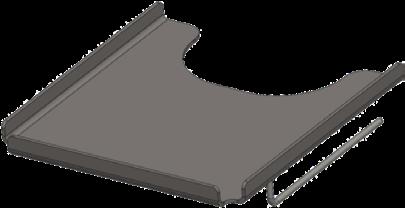

Trays - Insert components Tray - PVC 965001 Grey 965004 Clear

Material: Clear PVC or Grey PVC (pictured) Stainless steel brackets

Dimensions: (mm) Small W460 x D500 Large W560 x D600 Custom

Options: 25mm foam Padding with Vinyl Cover 965201 25mm foam padding with Reverse Dartex cover 965301 Neoprene padding Upstands Custom

Application: For use during activities of daily living. May also promote an upright trunk and head position.

Tray - Poly Carbonate 965005

Material: Clear poly carbonate Stainless steel brackets

Dimensions: (mm) Small W460 x D500 Large W560 x D600 Custom

Options: Enduro foam and vinyl padding Neoprene padding

Application: For use during activities of daily living. May also promote an upright trunk and head position. Provides additional strength for heavy users.

AbilityTECH Product Catalogue

17

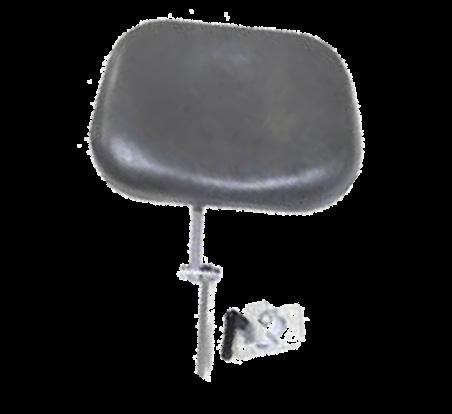

Head supports - Insert components AbilityTECH custom:

AbilityTECH can provide customised headrest pads and bracketry to meet customer requirements.

Other stocked options include:

Glide headrest (Bracket and pad) Whitmyer Dreamline Spex

AbilityTECH Product Catalogue

Enquire for details.

18

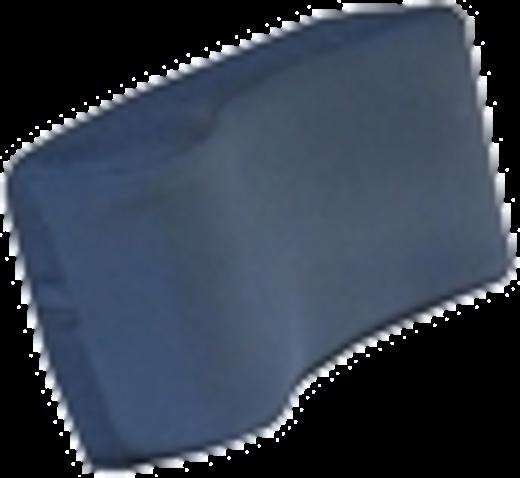

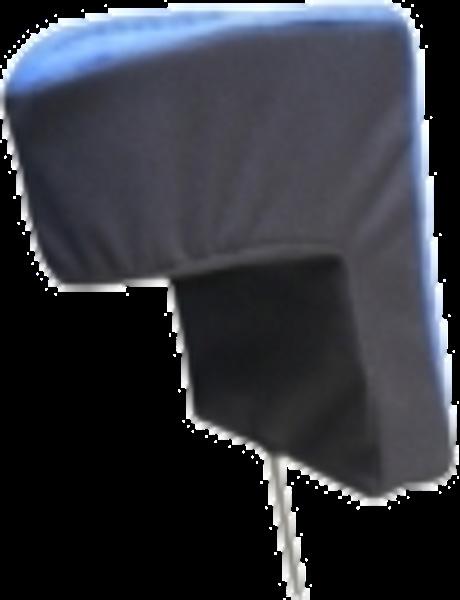

Pommels - Insert components Removable Pommel 957101

Material: Stainless Steel Bracket with push pin button Pommel – Rebond foam lined with 8mm 50:250 Enduro foam comfort overlay Custom

Dimensions: Custom

Application: To assist with transfers.

Freedom Flip Down Bracket 957501

Material: Pommel - Rebond foam pommel lined with 8mm 50:250 Enduro foam comfort overlay Custom

Dimensions: Custom

Application: Alternative to assist with transfers.

Pommel swings down under insert base.

Material: Stainless Steel Bracket Pommel – Rebond foam with 8mm 50:250 Enduro foam comfort overlay

Dimensions: Custom

Application: To maintain position of hip abduction.

Options Spex, Dreamtime and Freedom Flip Down Bracket

Fixed Pommel

AbilityTECH Product Catalogue

19

Covering options for pommels

Covers - Supersheen

903401 CT Base cover.

903501 CT Back cover.

Colour panels fabric used on cushions.

Two way stretch.

Aesthetic triangle pattern.

Available in various colours (provided with black base and sides) black, purple, red, burnt orange.

Covers - Newcare

903001 CT Base cover.

903101 CT Back cover.

Standard fabric used on cushions.

Two way stretch.

Available colour - Black.

Covers - Dartex

903201 CT Base cover.

903301 CT Back cover.

Fluid repellent properties.

Available in black.

Moisture Proofing - Platilon

Moisture Proofing - Silicone

905101 Platilon CT Cushion .

Flexible PU film heat sealed around foam cushion for protection.

905001 Silicone per CT Foam Cushion.

Silicone coating over foam cushion.

AbilityTECH, supported by CommunicATe (www.communicateat.com.au), are the Perth based distributors of quality custom or off shelf AAC mounting, with technician support for accurate, safe, and quality fitting.

DAESSY mounts are the original mounting system, first established in 1986. They are built to last from quality components and come complete with general usage guidelines. Clinically proven and robust, they are a go-to choice for a variety of static or mobile AAC mounting options for customers of varying complexity.

Ability TECH have a number of trial and demonstration components available - please enquire if you would like to know more.

AbilityTECH Product Catalogue

20

Please see below additional product codes, if completing our quoting template please add.

Base cushion covers Code

Description

Material

924001

Flat Base Cushion Cover

Newcare

924101

Base with Ramp Cover

Newcare

924201

Base with Legchannels Cover

Newcare

924301

Base with hillock Cover

Newcare

921401

Base with antithrust Cover

Newcare

924801

Contoured Base Cover (Not CT)

Newcare

903001

CT Foam Base Cover

Newcare

912001

CT Shell Base Cover

Newcare

926001

Flat Base Cushion Cover

Dartex

926101

Base with Ramp Cover

Dartex

926201

Base with Legchannels Cover

Dartex

926301

Base with hillock Cover

Dartex

926401

Base with antithrust Cover

Dartex

926801

Contoured Base Cover (Not CT)

Dartex

903201

CT Foam Base Cover

Dartex

912201

CT Shell Base Cover

Dartex

928001

Flat Base Cushion Cover

Newcare with Supresheen (Colour Panels)

928101

Base with Ramp Cover

Newcare with Supresheen (Colour Panels)

928201

Base with Legchannels Cover

Newcare with Supresheen (Colour Panels)

928301

Base with hillock Cover

Newcare with Supresheen (Colour Panels)

928401

Base with antithrust Cover

Newcare with Supresheen (Colour Panels)

928801

Contoured Base Cover (Not CT)

Newcare with Supresheen (Colour Panels)

903401

CT Foam Base Cover

Newcare with Supresheen (Colour Panels)

912401

CT Shell Base Cover

Newcare with Supresheen (Colour Panels)

926002

Flat Base Cushion Cover

Newcare/Outlast and 2mm Aeromesh

903701

CT Foam Base Cover

Newcare/Outlast and 2mm Aeromesh

903701

CT Shell Base Cover

Newcare/Outlast and 2mm Aeromesh

AbilityTECH Product Catalogue

21

Back cushion covers Code

Description

Material

925001

Flat Back Cover

Newcare

925101

Back with Lumbar roll

Newcare

925201

Back with sacral wedge

Newcare

925501

Moulded Back Cover

Newcare

925601

Contoured Back Cover (Not CT)

Newcare

903101

CT Foam Back Cover

Newcare

912107

CT Shell Back Cover

Newcare

927001

Flat Back Cover

Dartex

927101

Back with Lumbar roll

Dartex

927201

Back with sacral wedge

Dartex

927501

Moulded Back Cover

Dartex

927601

Contoured Back Cover (Not CT)

Dartex

903301

CT Foam Back Cover

Dartex

912301

CT Shell Back Cover

Dartex

929001

Flat Back Cover

Newcare with Supresheen (Colour Panels)

929101

Back with Lumbar roll

Newcare with Supresheen (Colour Panels)

929201

Back with sacral wedge

Newcare with Supresheen (Colour Panels)

929501

Moulded Back Cover

Newcare with Supresheen (Colour Panels)

929601

Contoured Back Cover (Not CT)

Newcare with Supresheen (Colour Panels)

903501

CT Foam Back Cover

Newcare with Supresheen (Colour Panels)

912501

CT Shell Back Cover

Newcare with Supresheen (Colour Panels)

927002

Flat Back Cover

Newcare/Outlast and 2mm Aeromesh

903701

CT Foam Back Cover

Newcare/Outlast and 2mm Aeromesh

903701

CT Shell Back Cover

Newcare/Outlast and 2mm Aeromesh

AbilityTECH Product Catalogue

22

AbilityTECH stock a wide range of chest harnesses and pelvic straps from several manufacturers, if the requested strap is not in stock we can ordered it in for you.

AbilityTECH Code

Product Code

Description

899192

1409-6660-017

Spex Centrepoint Harness XS

899134

1409-6661-017

Spex Centrepoint Harness Small

899141

1409-6662-017

Spex Centrepoint Harness Medium

899146

1409-6663-017

Spex Centrepoint Harness Large

899135

1409-6664-017

Spex Centrepoint Harness XL

963004

Pelvic Strap - Bodypoint 2PT Small

963005

Pelvic Strap - Bodypoint 2PT Medium

963006

Pelvic Strap - Bodypoint 2PT Large

963008

Pelvic Strap - Bodypoint 4PT Small

963009

Pelvic Strap - Bodypoint 4PT Medium

963010

Pelvic Strap - Bodypoint 4PT Large

963015

AbilityTECH Custom H-Harness Peg Feed

963016

AbilityTECH Custom H-Harness

963017

AbilityTECH Chest Strap Custom

963018

AbilityTECH Knee Strap Custom (each)

963019

AbilityTECH Knee Strap Custom (Pair)

AbilityTECH Product Catalogue

23

Contact us abilitywa.com.au/our-services/abilitytech/ abilitytech@abilitywa.com.au 08 9267 8455 337 Victoria Rd, Malaga WA 6090 Ability WA , PO Box 61 , Mount Lawley WA 6929

Individualised solutions for your customers’ unique needs Access AbilityTECH’s expertise in complex equipment modifications, refurbishment and repairs to meet your customers’ goals and empower them to realise their abilities.

To request support for your customers, email abilitytech@abilitywa.com.au or call 08 9267 8455.
