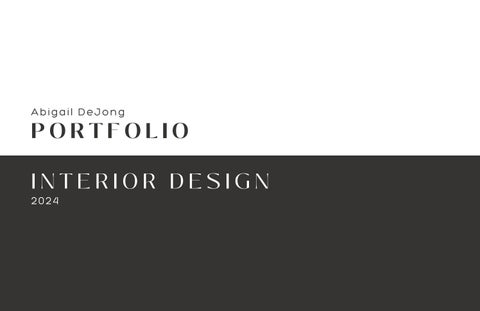

PORTFOLIO INTERIOR DESIGN 2024

Hi! I’m Abigail!

Interior Design Student

She/Her Hi! My name is Abigail or Abby! I am 22 years old and currently in my 3rd year of the Bachelor of Interior Design program at Humber College!

I am a positive, creative and self-motivated person, who pays attention to details and thoroughly enjoys learning about the interior design world and all that it has to offer! As an interior design student, I aspire to create spaces that emphasize human-centred design, sustainability, accessibility and equity.

Before starting my degree, I received an Ontario College Certificate in Design Foundations at Humber College, where I learned an array of design skills such as; Graphic and package design, Web Design and advanced drawing skills.

Throughout my 3 years at Humber College, I have developed a strong foundation for many design principles, theories and concepts, as well as space planning, material selection and building systems. My coursework has equipped and taught me with industry-standard software such as AutoCAD, Revit, Enscape and many Adobe Creative Suite programs, allowing me to bring creative concepts to life through detailed renderings and presentations.

During my free time, I enjoy spending time with my dogs, nieces and family! I also love to cook, read and work on puzzles! I’ve always been a creative person so I also try to do artistic activities outside of my school work!

Resume

Abigail DeJong (De - Young) She/Her

Contact (289) 776-7002 Abigailhannah19@gmail.com 359 Cochrane Rd. Hamilton, ON. L8K 6C2 linkedin.com/in/abigail-dejong

Experience Small Business Owner Be Good Be Kind Studios

2020 - Current

4-figure small business Promoting an online business presence, plan, create & market all products Process and distribute all orders Has enhanced customer service skills greatly by promptly responding to all customer queries &

Education Bachelor of Interior Design Humber College - Etobicoke, ON 2021 - 2025

OCC in Design Foundations Humber College - Etobicoke, ON 2019 - 2020; Graduated

Ontario Secondary School Diploma Sir Winston Churchill SS - Hamilton, ON 2015 - 2019; Graduated

Software Skills AutoCAD Revit Enscape Photoshop Illustrator Sketch Up Twinmotion

interacting with many customers & observers at all in-person markets participated in.

Guest Services Representative

2022 - 2023

Hamilton Conservation Authority @ Wild Waterworks Directly responsible for ensuring the satisfaction & enjoyment of visitors were met as well as being responsible for resolving individual patron concerns & ensuring customer satisfaction Coordination & delivery of services, processing season passes, event planning, employee rewards program & administration duties Planned & coordinated all park/patron events that took place over two summers

Sales Associate

TJX - Homesense @ Eastgate Square - Hamilton, ON

2020 - 2021

Anticipated customer needs & provided them with high-quality service regarding home decor & furniture Regularly ensuring all shelves & displays were properly stocked in a neat & orderly fashion.

Other main responsibilities were unloading trucks, labelling & processing merchandise as well as operating a cash register while handing cash, gift cards, exchanges/returns & refunds.

Georgian Bay Cottage

Lisa Says Gah Boutique

CONTENT

Justine Restaurant

1

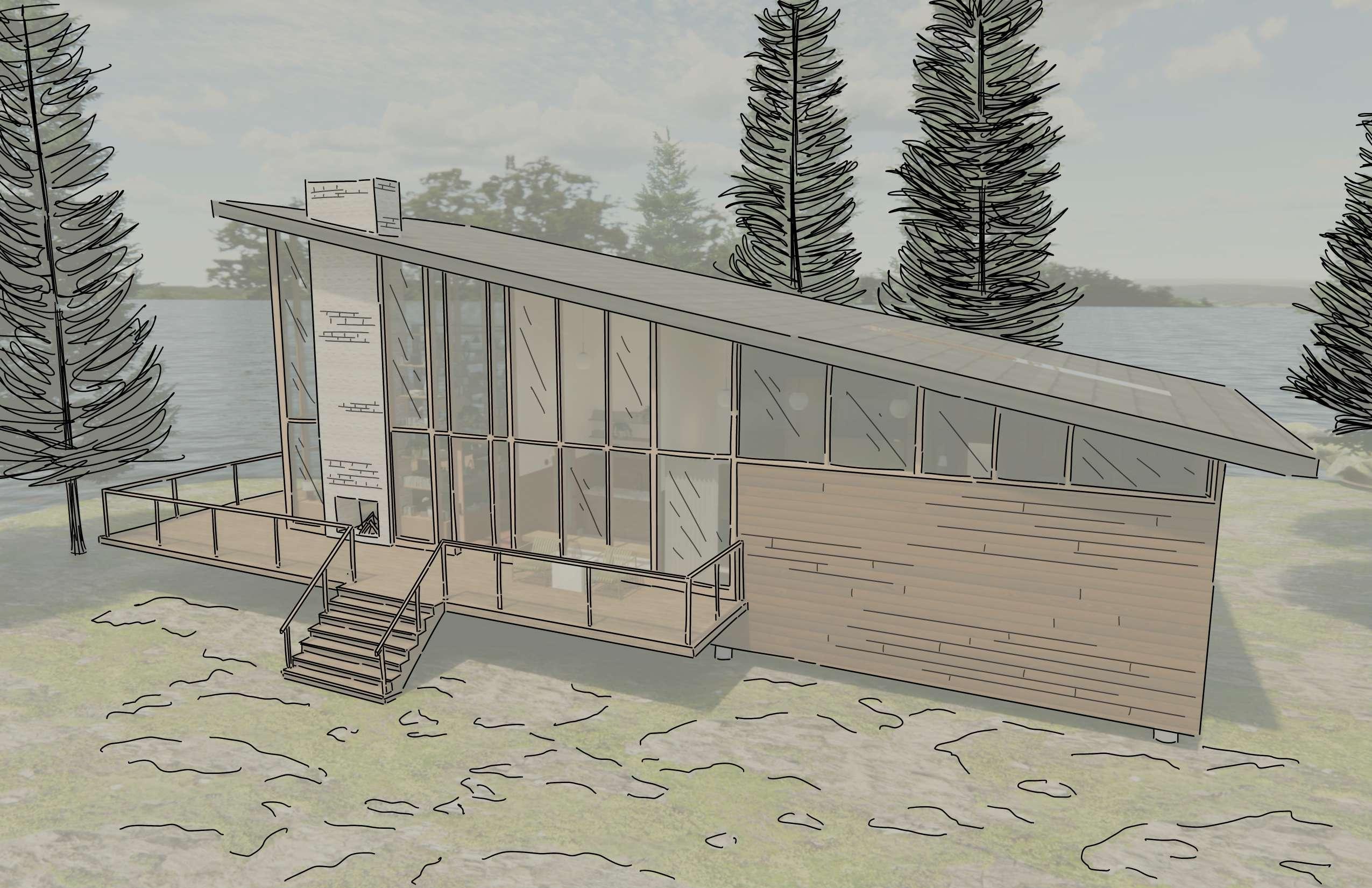

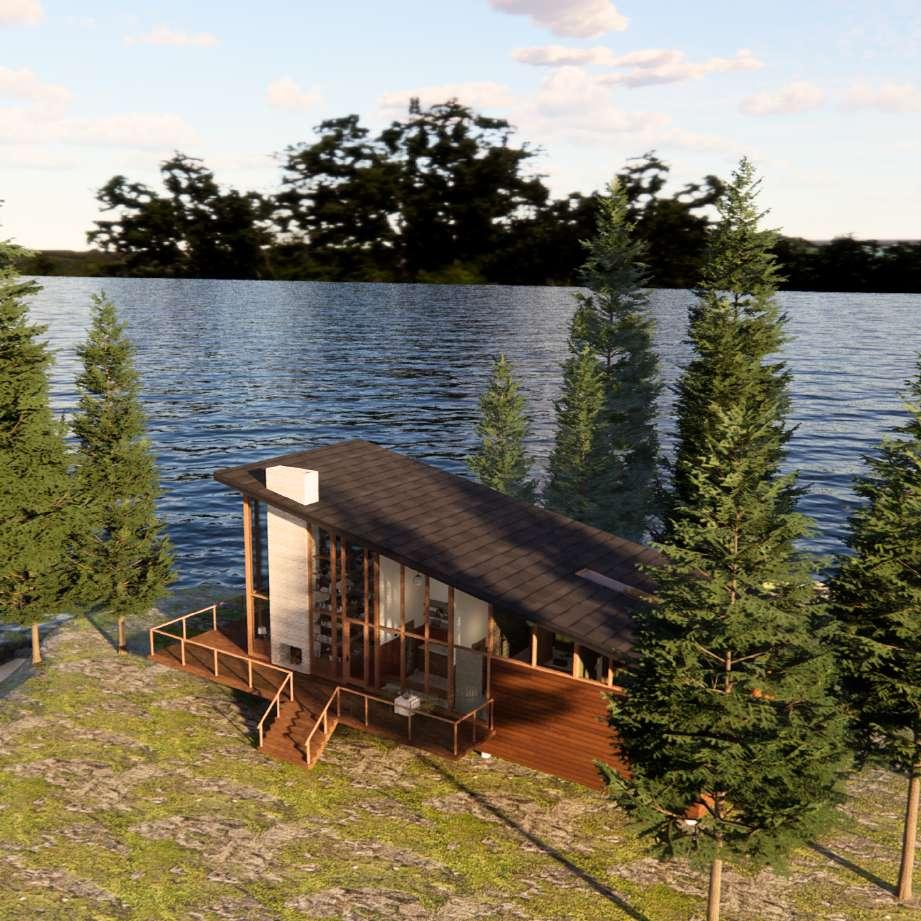

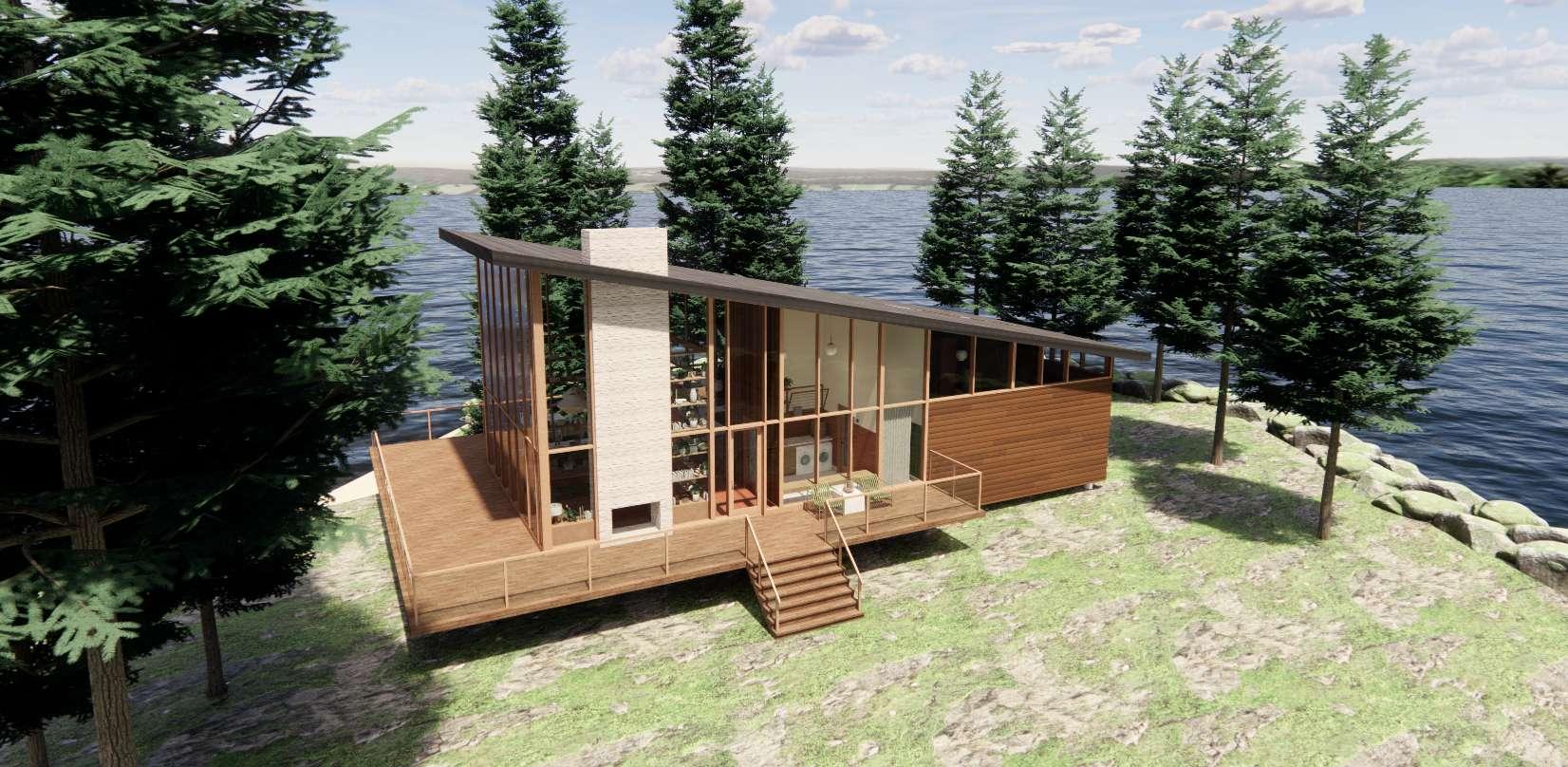

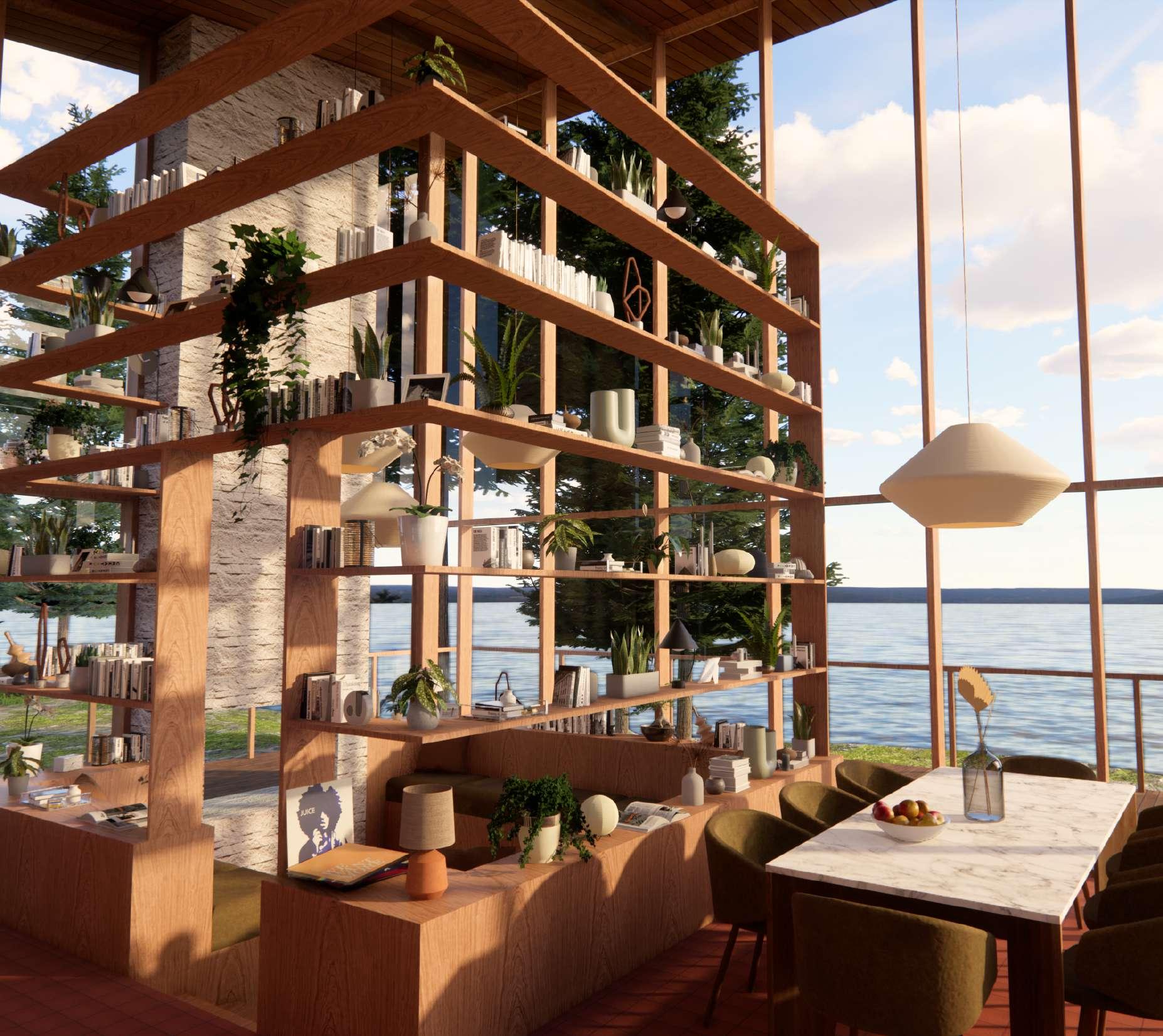

GEORGIAN BAY COTTAGE This Georgian Bay cottage was a project that focused on architecture and landscaping by using the site's organic topography and views to articulate the client's needs. The clients of the Georgian Bay cottage consist of a family of three; 2 parents and their son, who spends most weekends at the cottage for work. The conceptual approach for the cottages’ design was to create a floor plan that optimized the site’s location, topography, views and lighting. Using the site’s different topography as inspiration, I wanted to translate the natural levels into the layout while still having the cottage be generally on one floor. Throughout the entire cottage, there are large, floor-to-ceiling, strategically placed windows that allow for optimal views and lighting. Upon walking into the cottage, through the main entrance, you’re presented with two views; An east-side view through the living room and a south-side view through the dining room.

2

11

7

8

9

10

1 2

2 4

6 1

4 5

3

4

TN

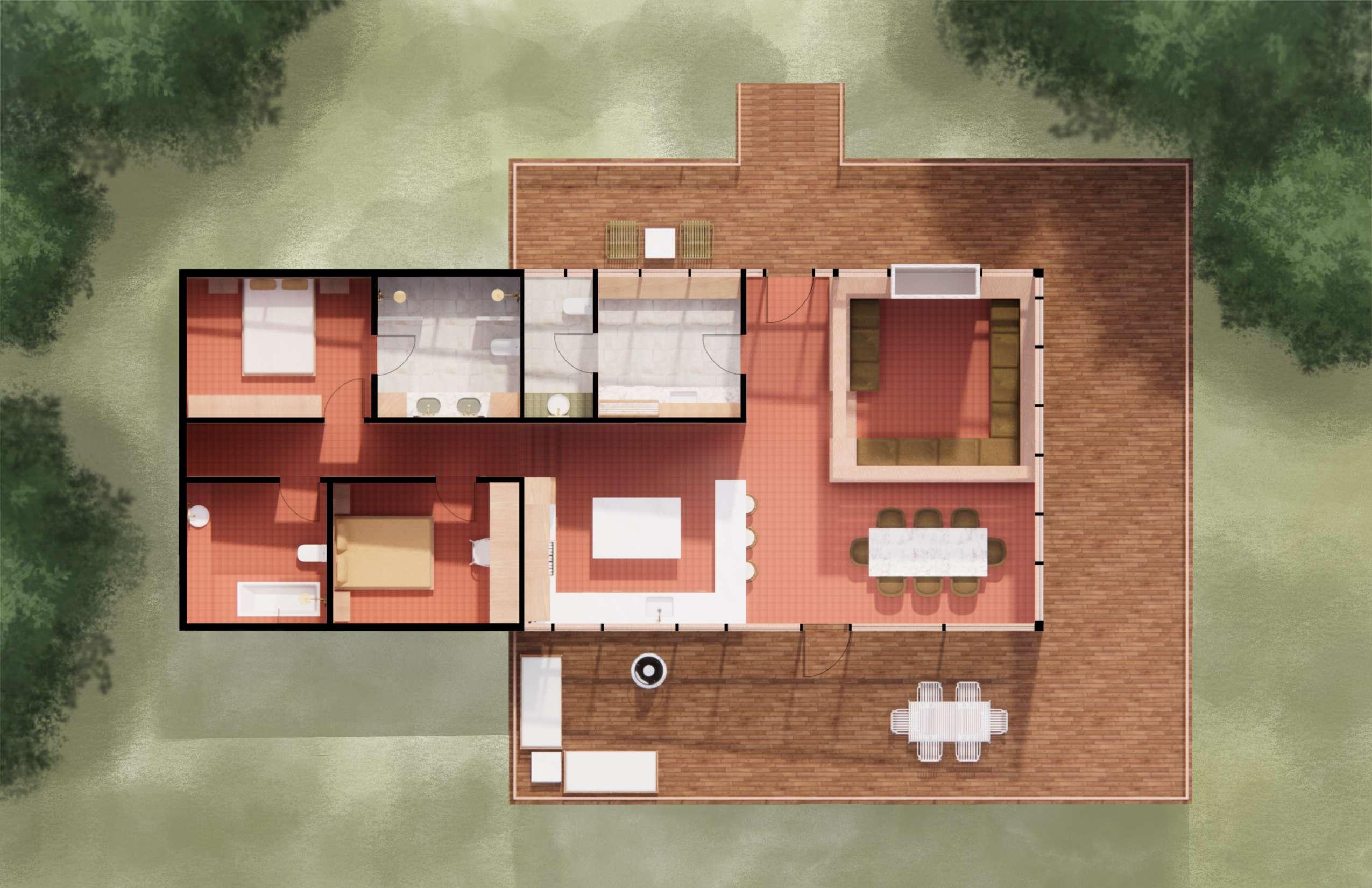

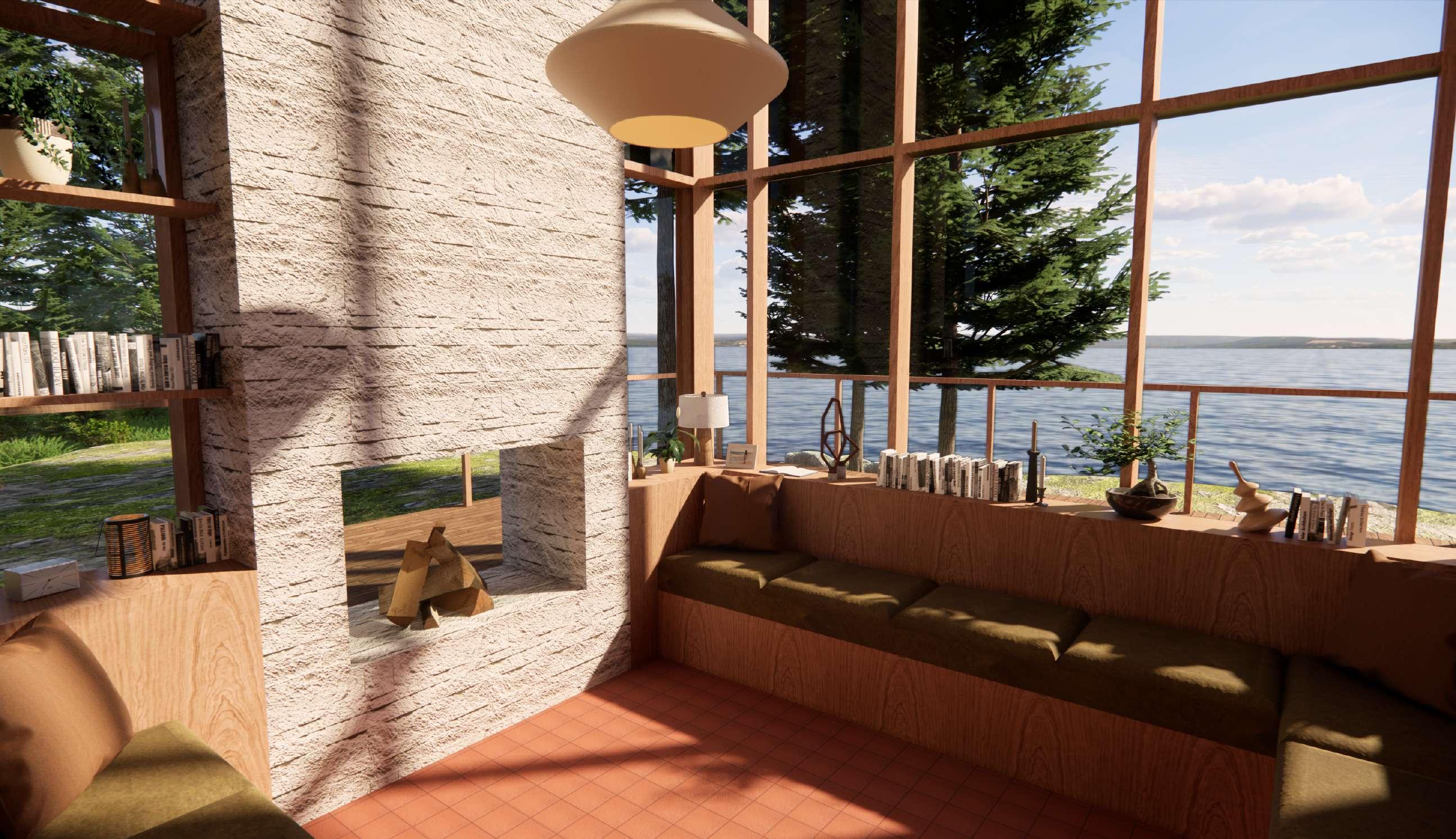

Although the cottage is arranged as one floor, I created different levels throughout the cottage by having a sunken living room (-1’ - 6”) and lifting the main sleeping quarters (2’ - 0”) to create separation while still having an open concept.

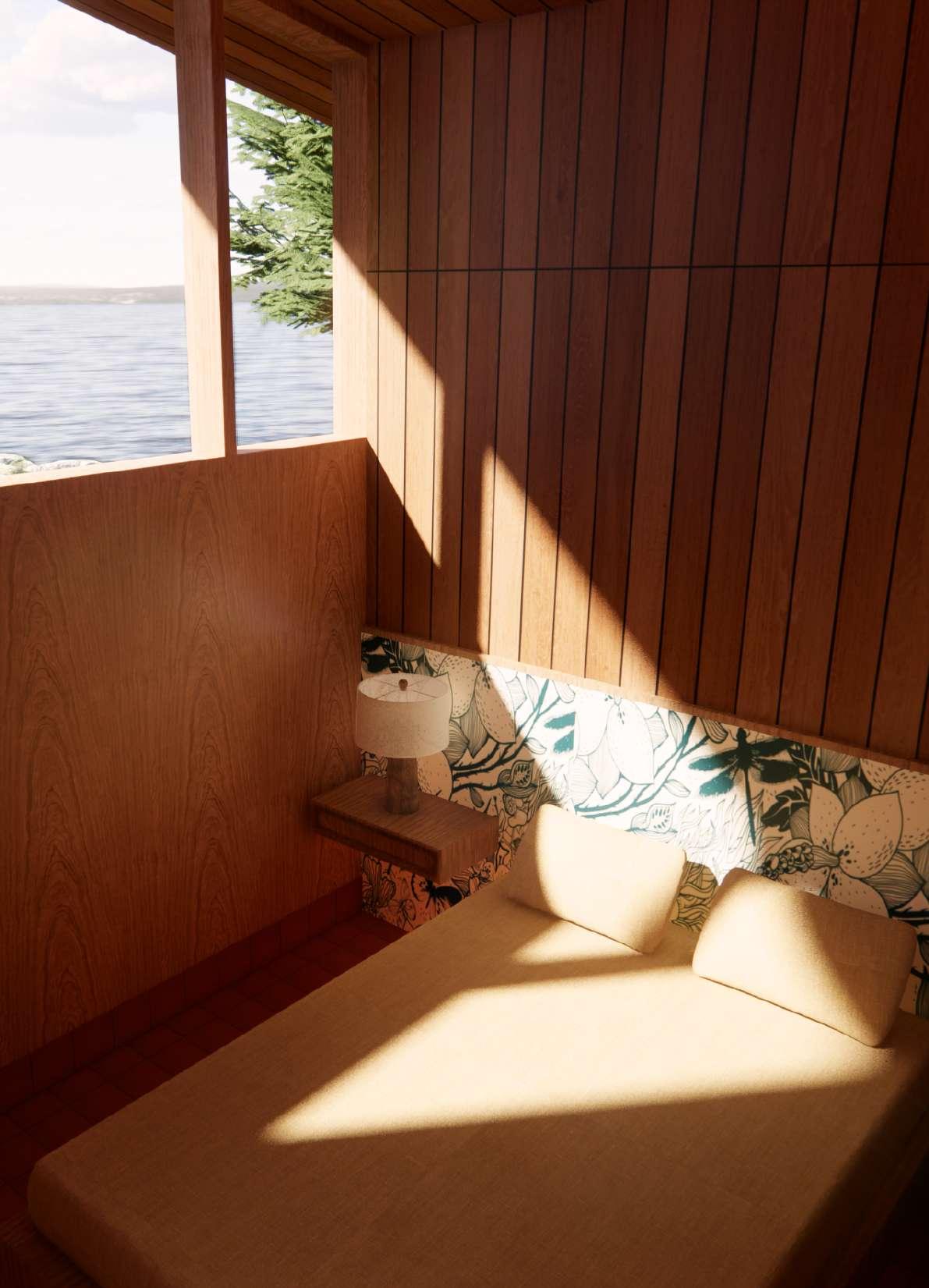

Considering the client's needs and the site orientation, the primary bedroom is located facing East so the parents can benefit from sunrises, whereas the guest, or son's bedroom is located facing West so they can benefit from sunsets. The overall aesthetic and material palette goals for this project were to reflect where the cottage is located and what surrounds it; I found keeping the materials earthy and natural reflects but contrasts with the topography of rock and rough plant life.

3

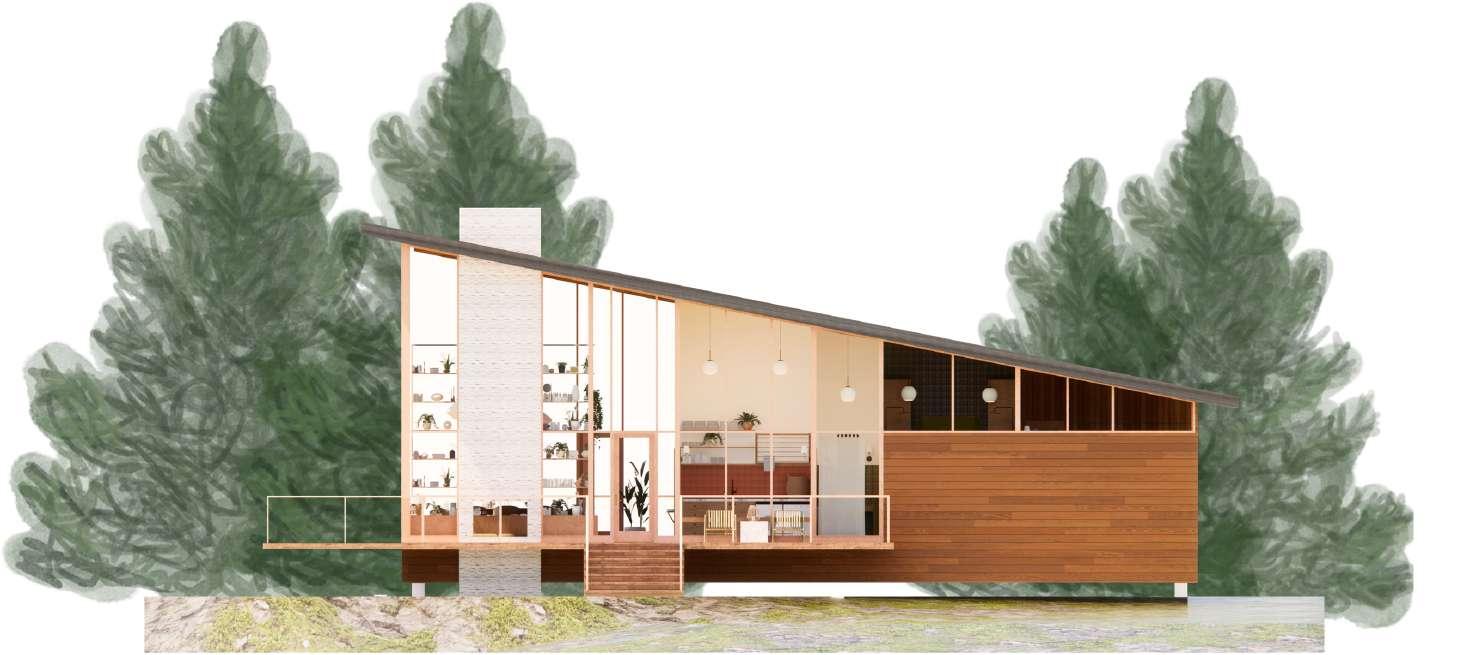

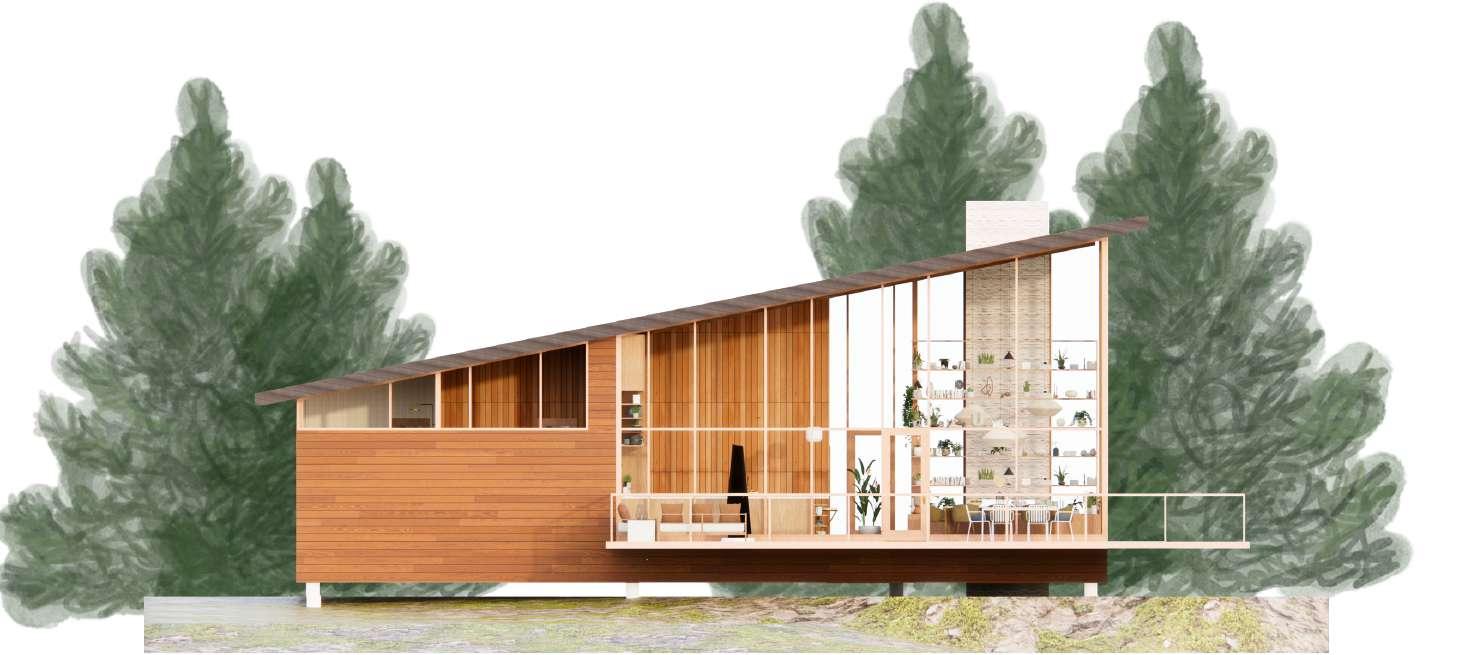

South Exterior Elevation

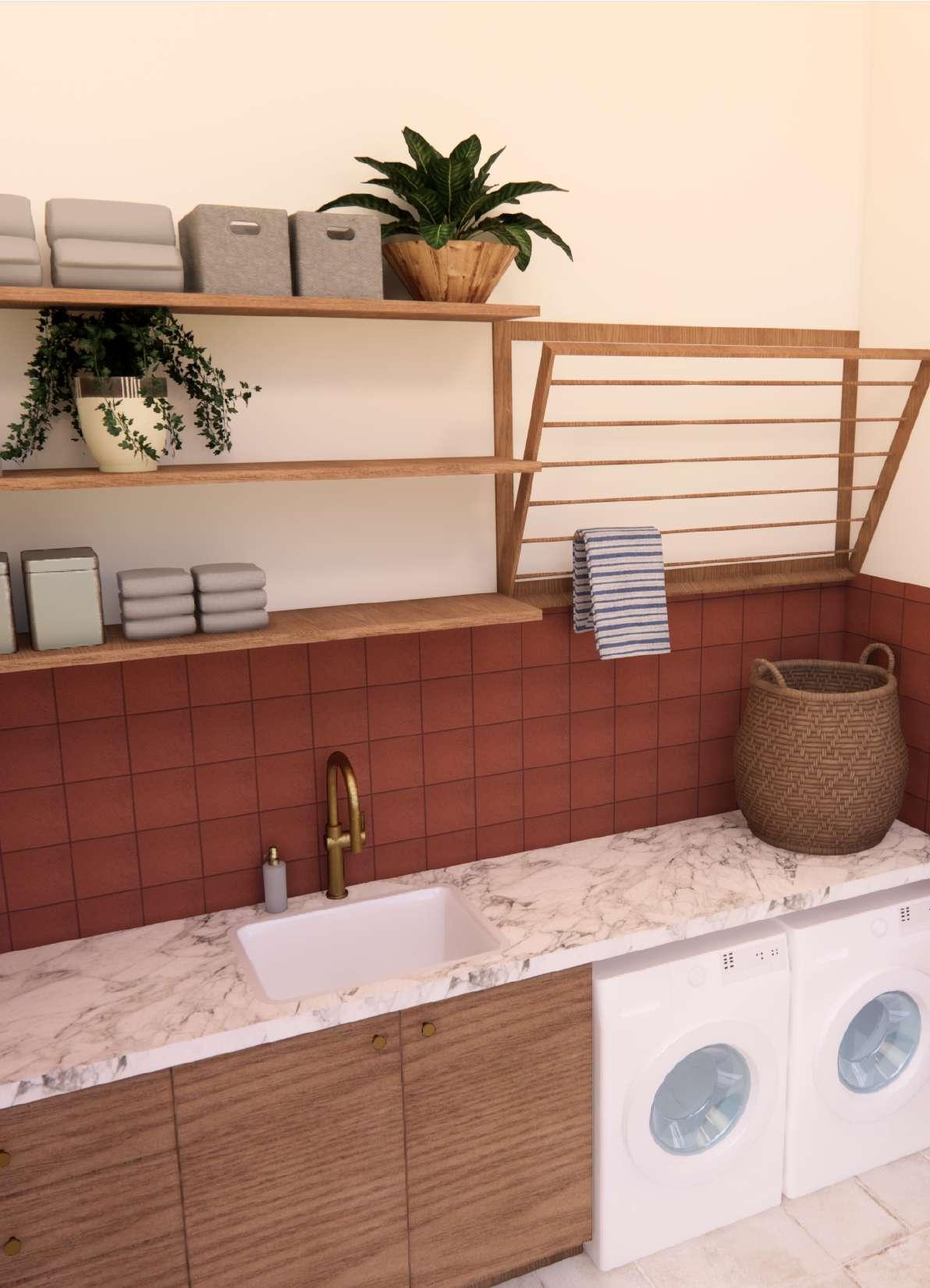

Legend 1. Entry 2. Living Room 3. Dining Room 4. Kitchen 5. Guest Bed 6. Guest Bath 7. Primary Bed 8. Ensuite 9. Powder Room 10. Mud Room 11. Patio

North Exterior Elevation

4

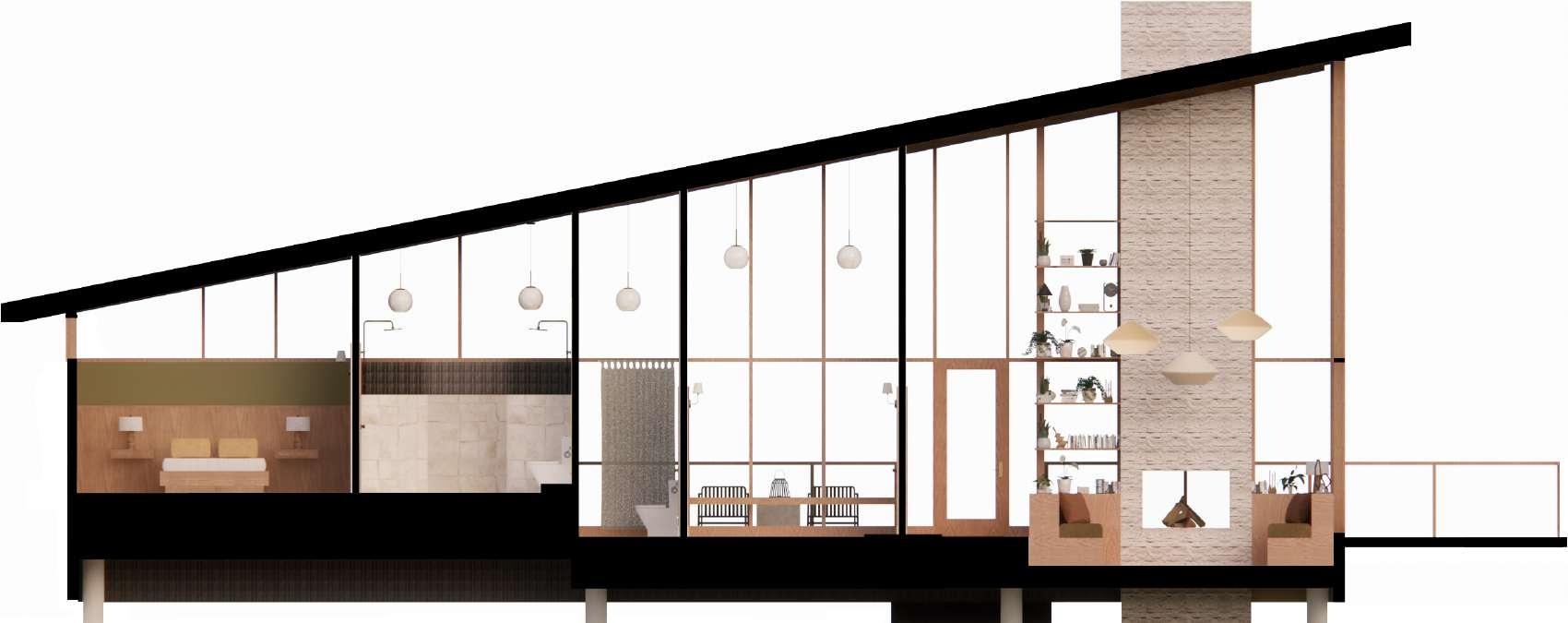

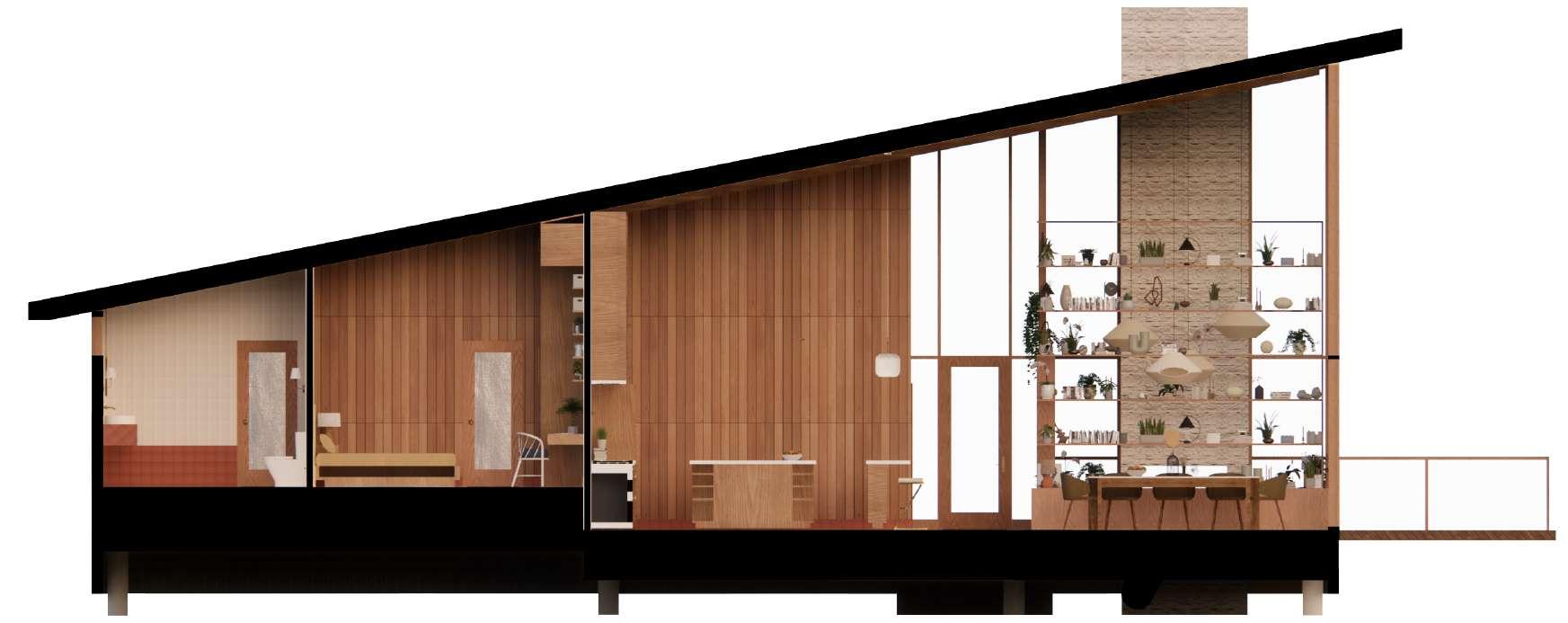

Section 1

Section 2

5

6

7

8

9

10

11

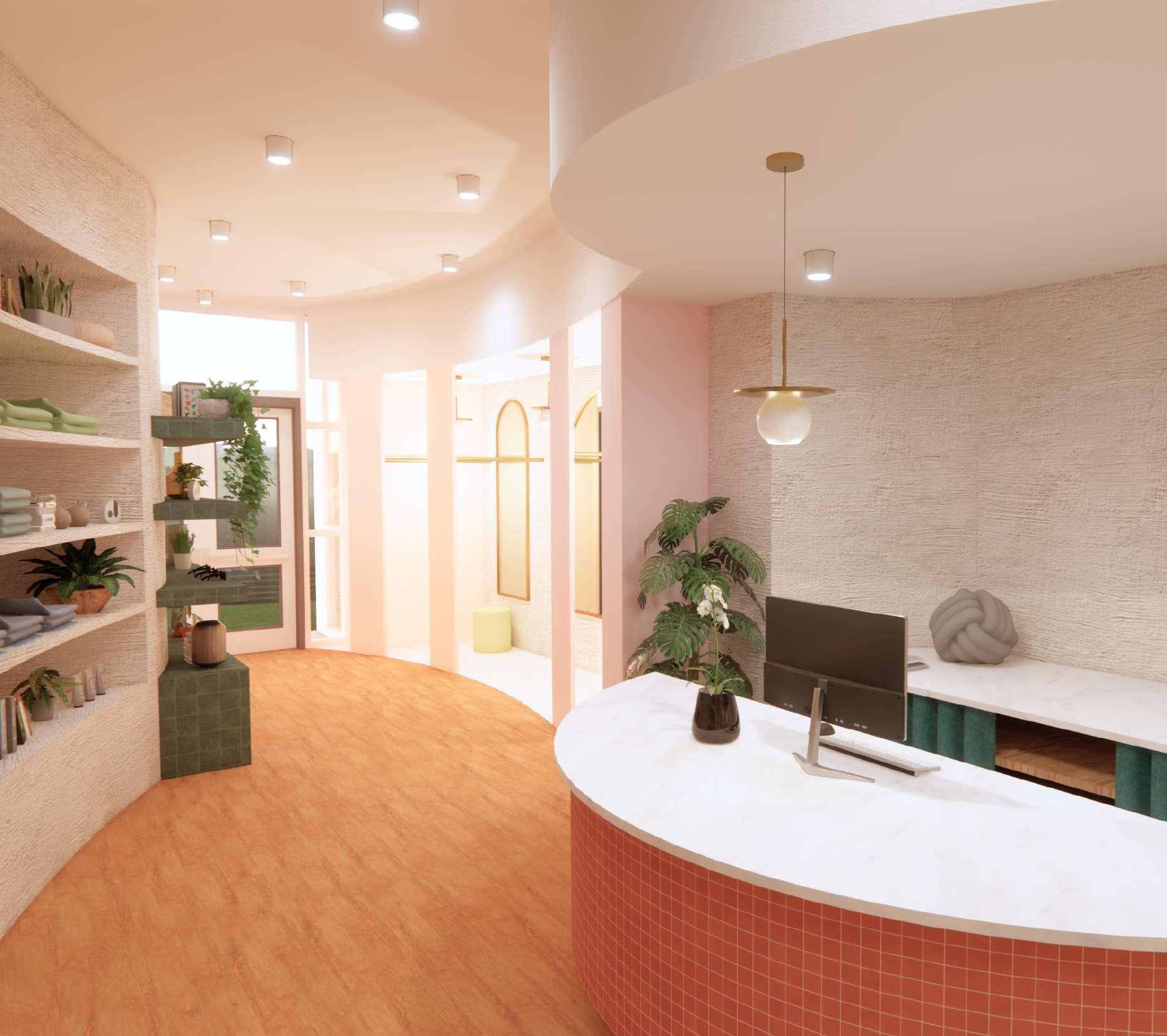

LISA SAYS GAH BOUTIQUE This retail project was centred around developing a specialty boutique within the historic site of Toronto’s Distillery District, with the overall design solution being to incorporate a wellresearched concept and aesthetic to provide an innovative customer experience. The chosen brand and client for this project was Lisa Says Gah; An independent sustainable clothing boutique focused on connecting their customers with exceptional fashion pieces while creating a space where independent design and community can thrive.

12

GR

IST

MIL

L L

AN

E

2

4 1 14

3 1

2 14

13

12

DIS L A NT I L L E RY E

11

TRINITY STREET

MILL STREET

6

TANK HOUSE LANE

7

5

9 10

8

DISTILLERY LAN

E TN

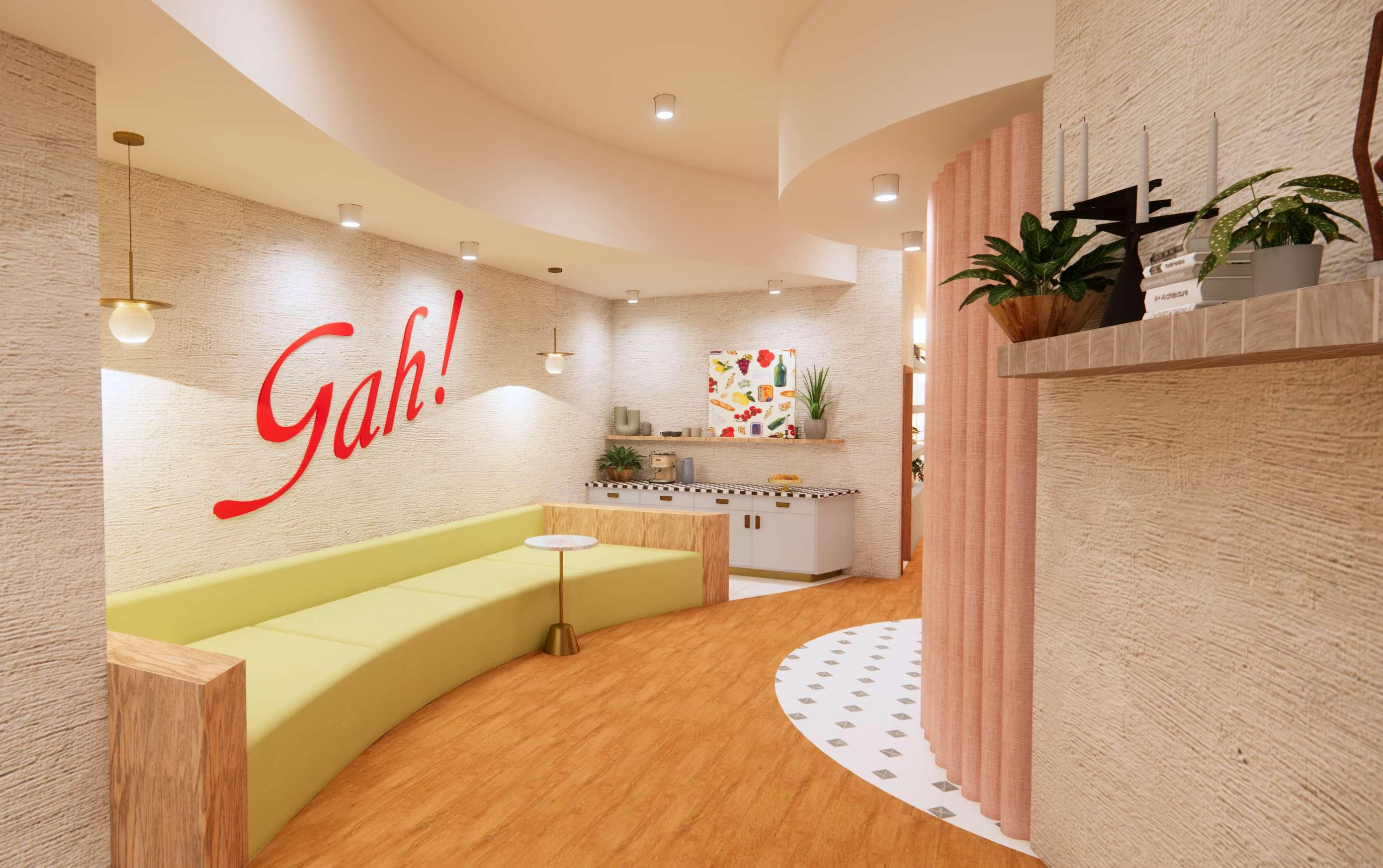

Taking great inspiration from Lisa Says Gah’s values and designs, I created a space that is harmonious and unified yet bold and abstract. A space that is trying to define ‘Gah!’; An unbridled outburst-ing of surprise and delight - “We like to think it can’t be bottled or contained”.

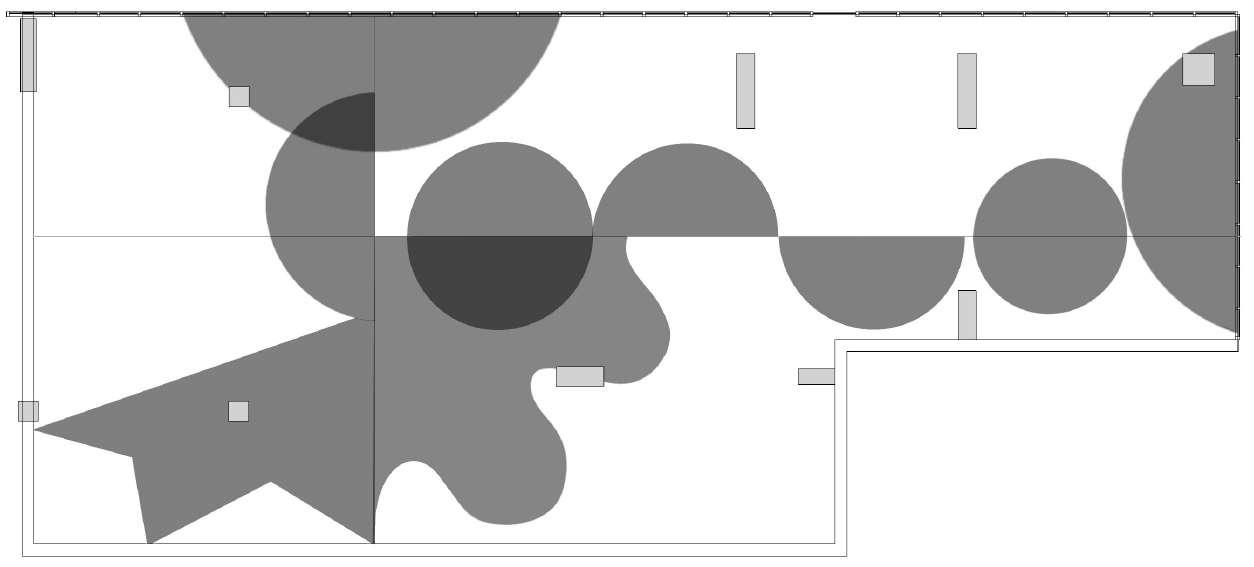

The parti diagram that was developed was based solely on the definition of ‘Connection’; The state of being connected: joined or linked together.

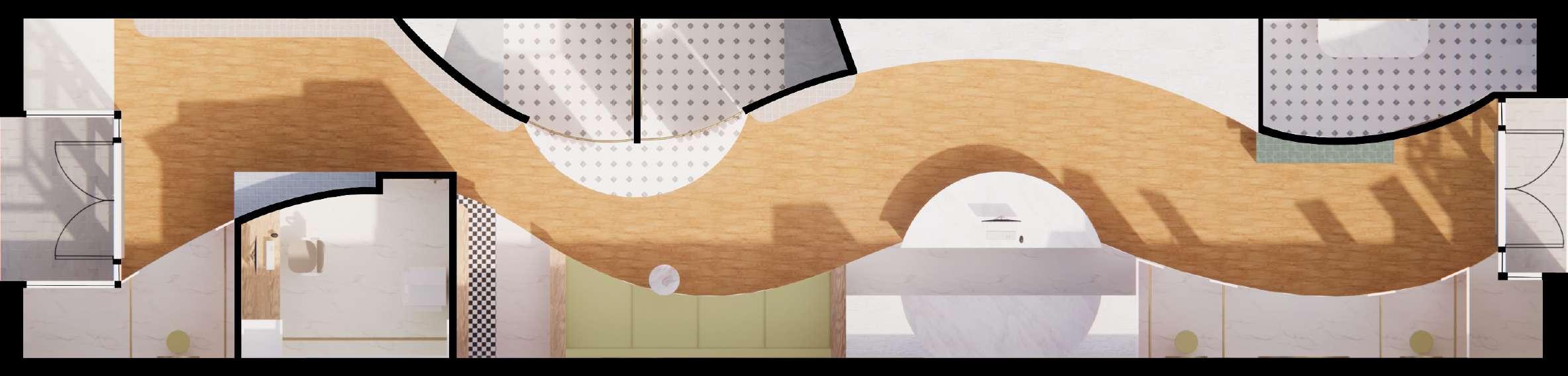

I used geometric shapes that intertwine with a flowing path throughout the space to allow for separation yet integration.

Concept Development

First Stage Sketches

First Stages Diagrams

Legend 1. Main Entry 2. Display Area 1 3. Fitting Rooms 4. Display Area 2 5. Display Area 3 6. Universal Washroom 7. Secondary Entry 8. Display Area 4 9. Cash & Wrap 10. Seating Area 11. Refreshement Area 12. Office 13. Display Area 5

Final Parti Diagram

13

14

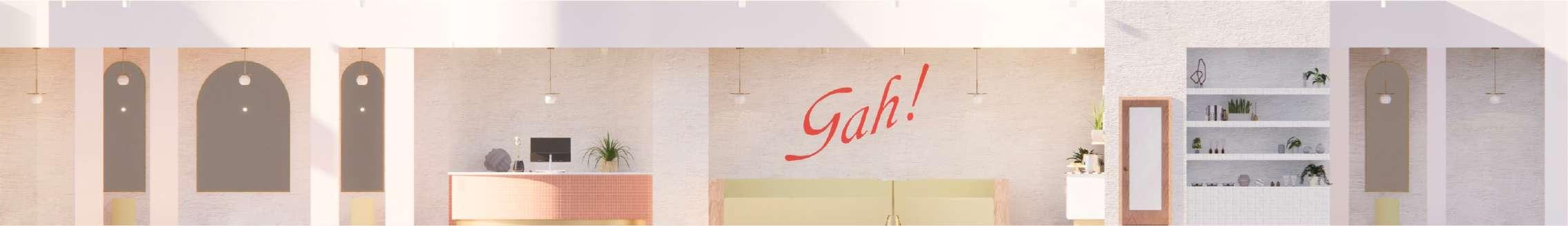

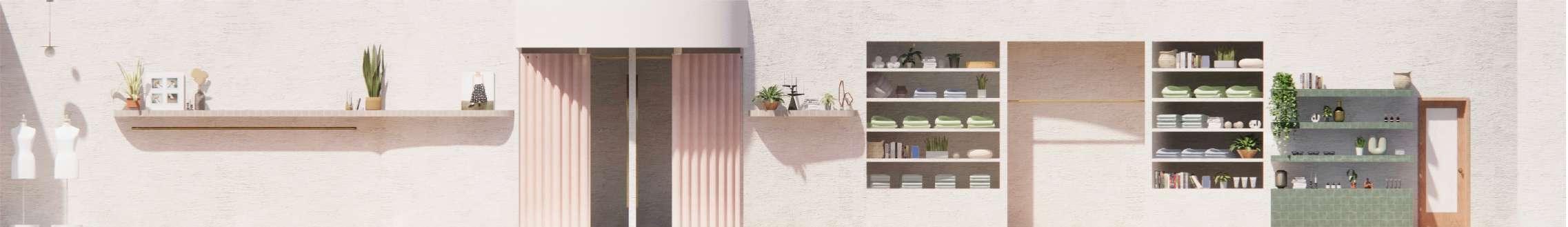

1 - North Interior Elevation

2 - South Interior Elevation

15

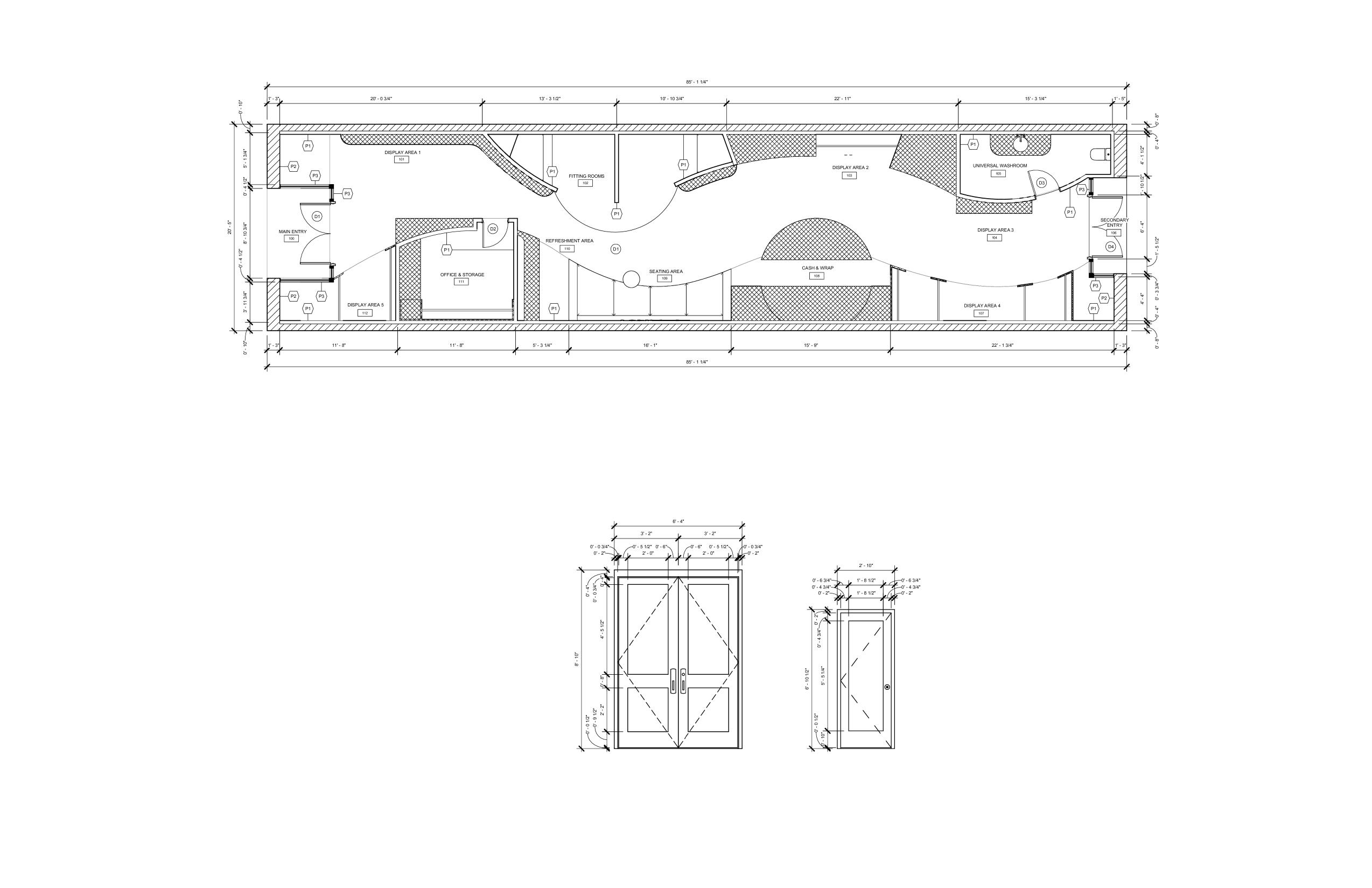

WORKING DRAWINGS

16

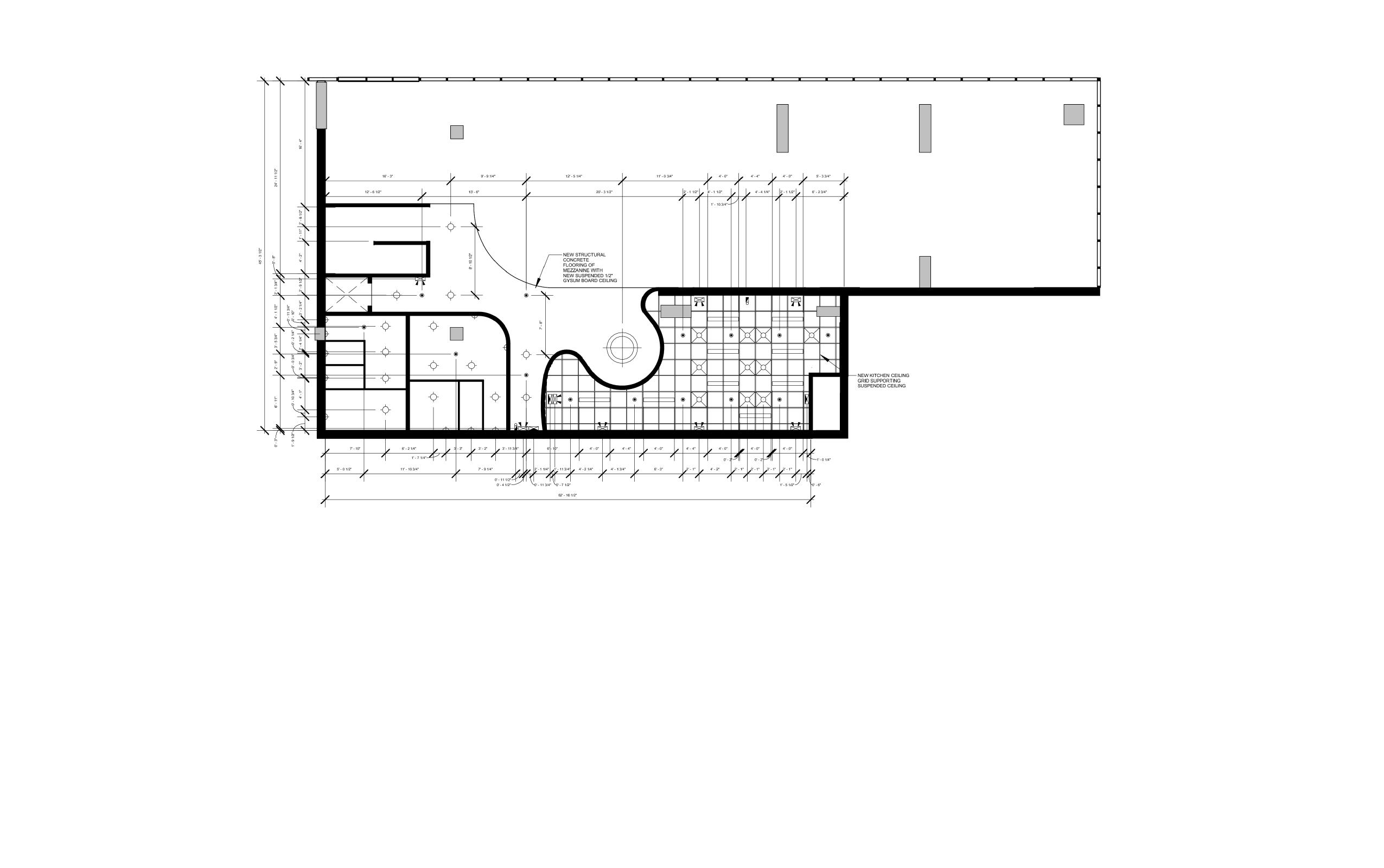

PARTITIONS PLAN 1/8" = 1' - 0"

DOOR SCHEDULE NO.

FUNCTION

TYPE

D1

EXTERIOR

D2

DOOR TYPES DOOR

THKN

FRAME

HEIGHT

MAT

FIN

MAT

FIN

A

0' - 1 3/4" 6' - 5 1/2"

8' - 10 3/4"

WD

PT

WD

PT

INTERIOR

B

0' - 1 3/4"

2' - 10"

6' - 10 1/2"

WD

WDST

WD WDST

LCK/KPL

D3

INTERIOR

B

0' - 1 3/4"

2' - 10"

6' - 10 1/2"

WD

WDST

WD WDST

LCK/KPL

D4

EXTERIOR

A

0' - 1 3/4" 6' - 5 1/2"

8' - 10 3/4"

WD

PT

PT

1. GENERAL CONTRACTOR TO SITE VERIFY ALL DIMENSIONS PRIOR TO CONSTRUCTION AND REPORT ANY DISCREPANCIES OR OMISSIONS TO DESIGNER 2. ALL SURFACES TO BE PATCHED, REPAIRED AND MAKE GOOD TO ACCEPT NEW CONSTRUCTION AND FINISHES 3. REFER TO FINISHES PLAN FOR WALL FINISHES AND BASEBOARD CONDITIONS 4. REFER TO ELEVATION DRAWINGS FOR MILLWORK CONSTRUCTION DETAILS 5. NO CORE DRILLING TO BE ALLOWED WITHOUT PRIOR PERMISSION FROM THE ENGINEER 6. ALL PLUMBING FIXTURES ARE MEASURED TO CENTERLINE OF FIXTURE UNLESS NOTED OTHERWISE 7. ALL DOORS TO BE SERVICED TO ENSURE THAT THEY CLOSE AND LATCH PROPERLY

HARDWARE

WIDTH

WD

PARTITION PLAN NOTES

ALM/LCK/KPL

ALM/LCK/KPL

CONSTRUCTION LEGEND & WALL TYPE P1

NEW INTERIOR PARTITION NON LOAD BEARING 2 HOUR FIRE RATED CONSTRUCTION 3 5/8" STEEL STUDS @ 12" 2 LAYERS 5/8" GWB & ACOUSTIC BATT INSULATION

P2

DEMISING WALL NON LOAD BEARING 2 HOUR FIRE RATED CONSTRUCTION TYPE ‘X’ GWB x 2 @ 5/8" 8: SOLID MASONRY WALL W/ 5 1/2" METAL STUDS

P3

EXISTING GLASS ENTRANCE NON LOAD BEARING 2 HOUR FIRE RATED CONSTRUCTION 10" GLASS WALL

ABBREVIATIONS

DOOR TYPE A DOUBLE SWING DOOR

DOOR TYPE B INTERIOR SLAB DOOR

ALUM PIN GWB KPL LCK MAT NO THKN WD WDST

ALUMINUM FINISH GYSPUM WALL BOARD KICK PLATE LOCK MATERIAL NUMBER THICKNESS WOOD WOOD STAIN

WORKING DRAWINGS

17

MILLWORK PLAN 1/8" = 1' - 0"

MILLWORK SCHEDULE DIMENSIONS

TAG

DESCRIPTION

M1

CUSTOM FIXED PRODUCT DISPLAY

23' - 0" x 1' - 0" x 0' - 4" (5' - 10 1/2" A.F.F.)

M2

CUSTOM FIXED PRODUCT DISPLAY

6' - 1 1/2" x 1' - 0" x 0' - 4" (5' - 10 1/2" A.F.F.)

M3

CUSTOM FIXED PRODUCT DISPLAY

M4

MILLWORK NOTES FINISHES

DIMENSIONS

HARDWARE

TAG

DESCRIPTION

CERAMIC TILE - CIOT 4X4 SAHN TAUPE MATT

CLOTHING ROD - CB2 BRUSHED BRASS ADJUSTABLE ROD

M13

CUSTOM REFRESHMENT AREA COUNTER

8' - 11 1/4" x 2' - 2" x 2' - 10"

PORCELAIN TILE - MEROLA METRO QUAD CHECKERBOARD INTERIOR WALL PAINT - BENJAMIN MOORE ECO SPEC EGGSHELL - LAKE PLACID 827

CANADIAN BUILDERS HARDWARE - DRAWER PULL CBH 261 IN SATIN BRASS - C4

CERAMIC TILE - CIOT 4X4 SAHN TAUPE MATT

N/A

M14

CUSTOM REFRESHMENT AREA SHELVING

INTERIOR WOOD STAIN - VARATHANE CLASSIC WOOD STAIN - GOLDEN OAK

N/A

INTERIOR PLASTER - VASARI PLASTER LIME PAINT NATURAL WHITE 1

8' - 4" x 0' - 8 1/16" x 0' - 1 1/2" (4' - 4" A.F.F.)

8' - 10 1/4" x 2' - 3" x 9' - 10"

PHILIPS HUE - LIGHTSTRIP PLUS BASE V4 CUSTOM OFFICE DESK

INTERIOR WOOD STAIN - VARATHANE CLASSIC WOOD STAIN - GOLDEN OAK

PHILIPS HUE - LIGHTSTRIP PLUS BASE V4

6' - 0" x 2' - 1" x 0' - 2" (2' - 4" A.F.F)

N/A

5' - 5" x 4' - 7" x 9' - 10"

INTERIOR PLASTER - VASARI PLASTER LIME PAINT NATURAL WHITE 1

M15

CUSTOM FIXED PRODUCT DISPLAY

M5

CUSTOM FIXED PRODUCT DISPLAY

7' - 6" x 1' - 8 1/4" x 7' - 4"

CERAMIC TILE - CIOT 4X4 SAHN GREEN MATT

PHILIPS HUE - LIGHTSTRIP PLUS BASE V4

M16

CUSTOM OFFICE STORAGE

11' - 3 1/2" x 2' - 0" x 7' - 4"

INTERIOR WALL PAINT - BENJAMIN MOORE ECO SPEC EGGSHELL - VINTAGE TAUPE 2110-70

CANADIAN BUILDERS HARDWARE CLOSET BRACKET CBH 751/752/753 IN SATIN BRASS - C4 CLOSET ROD CBH 761/762 IN SATIN BRASS - C4

M6

CUSTOM UNIVERSAL WASHROOM COUNTER

6' - 0" x 2' - 1" x 2' - 8“

CERAMIC FAUX MARBLE TILE - CIOT LENCI BLANCO PORCELAIN TILE - TILE BAR CLAY GRACE RED 2X2

BATHROOM SINK - CONCRETTI MINI MIAMI IN WHITE AGUA CANADA ROYALE-GD 2-HANDLE WALL MOUNTED FAUCET IN BRUSHED GOLD

M17

CUSTOM FIXED PRODUCT DISPLAY

7' - 8" x 2' - 6 3/4" x 7' - 4"

CERAMIC TILE - CIOT 4X4 SAHN AQUA MATT

PHILIPS HUE - LIGHTSTRIP PLUS BASE V4

M7

CUSTOM FIXED PRODUCT DISPLAY

1' - 7" x 4' - 7" x 9' - 6"

INTERIOR WALL PAINT - BENJAMIN MOORE ECO SPEC EGGSHELL - PUMPKIN MOUSSE 058

CANADIAN BUILDERS HARDWARE - CLOSET BRACKET CBH 751/752/753 IN SATIN BRASS - C4 CLOSET ROD CBH 761/762 IN SATIN BRASS - C4

M18

CUSTOM FIXED PRODUCT DISPLAY

1' - 1" x 7' - 3" x 9' - 6"

INTERIOR WALL PAINT - BENJAMIN MOORE ECO SPEC EGGSHELL - PUMPKIN MOUSSE 058

CANADIAN BUILDERS HARDWARE CLOSET BRACKET CBH 751/752/753 IN SATIN BRASS - C4 CLOSET ROD CBH 761/762 IN SATIN BRASS - C4

M8

CUSTOM FIXED PRODUCT DISPLAY

1' - 6" x 3' - 6" x 9' - 6"

INTERIOR WALL PAINT - BENJAMIN MOORE ECO SPEC EGGSHELL - PUMPKIN MOUSSE 058

CANADIAN BUILDERS HARDWARE CLOSET BRACKET CBH 751/752/753 IN SATIN BRASS - C4 CLOSET ROD CBH 761/762 IN SATIN BRASS - C4

M19

CUSTOM FIXED PRODUCT DISPLAY

1' - 1" x 4' - 4" x 9' - 6"

INTERIOR WALL PAINT - BENJAMIN MOORE ECO SPEC EGGSHELL - PEPPERMINT 1359

CANADIAN BUILDERS HARDWARE CLOSET BRACKET CBH 751/752/753 IN SATIN BRASS - C4 CLOSET ROD CBH 761/762 IN SATIN BRASS - C4

M9

CUSTOM FIXED PRODUCT DISPLAY

1' - 6" x 4' - 1" x 9' - 6"

INTERIOR WALL PAINT - BENJAMIN MOORE ECO SPEC EGGSHELL - PEPPERMINT 1359

CANADIAN BUILDERS HARDWARE CLOSET BRACKET CBH 751/752/753 IN SATIN BRASS - C4 CLOSET ROD CBH 761/762 IN SATIN BRASS - C4

M10

CUSTOM FIXED PRODUCT DISPLAY

1' - 7" x 5' - 3" x 9' - 6"

INTERIOR WALL PAINT - BENJAMIN MOORE ECO SPEC EGGSHELL - PEPPERMINT 1359

CANADIAN BUILDERS HARDWARE CLOSET BRACKET CBH 751/752/753 IN SATIN BRASS - C4 CLOSET ROD CBH 761/762 IN SATIN BRASS - C4

M11

CUSTOM CASH & WRAP BACK COUNTER

10' - 10 7/8" x 3' - 4" x 2' - 10"

CERAMIC FAUX MARBLE TILE - CIOT LENCI BLANCO PORCELAIN TILE - TILE BAR CLAY GRACE RED 2X2 INTERIOR WOOD STAIN - VARATHANE CLASSIC WOOD STAIN - GOLDEN OAK

CANADIAN BUILDERS HARDWARE CLOSET BRACKET CBH 751/752/753 IN SATIN BRASS - C4 CLOSET ROD CBH 761/762 IN SATIN BRASS - C4

M12

CUSTOM CASH & WRAP FRONT COUNTER

10' - 11" x 4' - 1 1/2" x 2' - 10"

CERAMIC FAUX MARBLE TILE - CIOT LENCI BLANCO PORCELAIN TILE - TILE BAR CLAY GRACE RED 2X2

N/A

(LENGTH X WIDTH X HEIGHT)

(LENGTH X WIDTH X HEIGHT)

FINISHES

HARDWARE

1. GENERAL CONTRACTOR TO SITE VERIFY ALL DIMENSIONS PRIOR TO CONSTRUCTION AND REPORT ANY DISCREPANCIES OR OMISSIONS TO DESIGNER 2. ALL SURFACES TO BE PATCHED, REPAIRED AND MAKE GOOD TO ACCEPT NEW CONSTRUCTION AND FINISHES 3. REFER TO FINISHES PLAN FOR MILLWORK FINISH CONDITIONS 4. REFER TO ELEVATION DRAWING(S) FOR MILLWORK CONSTRUCTION DETAILS 5. NO CORE DRILLING TO BE ALLOWED WITHOUT PRIOR PERMISSION FROM THE ENGINEER 6. ALL PLUMBING FIXTURES ARE MEASURED TO CENTERLINE OF FIXTURE UNLESS NOTED OTHERWISE

WORKING DRAWINGS

18

FINISHES PLAN 1/8" = 1' - 0"

AREA FINISHES SCHEDULE AREA NAME & NUMBER NO.

AREA NAME

100

MAIN ENTRY

101

DISPLAY AREA 1

102 103 104

FITTING ROOMS DISPLAY AREA 2 DISPLAY AREA 3

105

UNIVERSAL W/C

106

SECOND ENTRY

107

DISPLAY AREA 4

108

CASH & WRAP

109

SEATING AREA

110

REFRESH. AREA

111

OFFICE & STORAGE

112

DISPLAY AREA 5

TYPE

FLOOR FLR

MTL FIN MTL

CT-1

BBS

FINISHES PLAN NOTES

FINISHES SPECIFICATIONS

WALLS NORTH

EAST

SOUTH

WEST

GL

GL

GL

N/A

N/A

N/A

N/A

N/A

GWB

GWB

N/A

GWB

CEILING

CEILING HEIGHTS 12' - 0" A.F.F.

GCB

FIN

MT

PLT

PLT

N/A

PLT

PT-1

MTL

CT-2

GWB

GWB

N/A

GWB

GCB

FIN

NAT

PLT

PLT

N/A

PLT

PT-1

MTL

CT-1

GWB

N/A

N/A

N/A

GCB

FIN

MT

PLT

N/A

N/A

N/A

PT-1

MTL

CT-1

GWB

N/A

N/A

N/A

GCB

FIN

MT

PLT

N/A

N/A

N/A

PT-1

MTL

CT-2

GWB

GWB

GWB

GWB

GCB

FIN

NAT

WC

WC

WC

WC

PT-1

MTL MTL

CT-3

N/A

GWB

GWB

GWB

GCB

FIN

GLOS

N/A

PLT

PLT

PLT

PT-1

MTL

CT-3

N/A

GWB

GWB

GWB

GCB

FIN

GLOS

N/A

PLT

PLT

PLT

PT-1

MTL

CT-3

N/A

N/A

GWB

N/A

GCB

FIN

GLOS

N/A

N/A

PLT

N/A

PT-1

MTL

CT-3

N/A

N/A

GWB

GWB

GCB

FIN

GLOS

N/A

N/A

PLT

PLT

PT-1

MTL

CT-3

GWB

GWB

GWB

GWB

GCB

FIN

GLOS

PT-1

PT-1

PT-1

PT-1

PT-1

MTL

CT-3

N/A

GWB

GWB

GWB

GCB

FIN

GLOS

N/A

PLT

PLT

PLT

PT-1

MATERIAL

PRODUCT NAME

SUPPLIER

DIMENSIONS

PT-1

INTERIOR PAINT - EGGSHELL FIN

VINTAGE TAUPE 2110-70; ECO SPEC

BENJAMIN MOORE

3.78L = 400 ft2

PT-2

INTERIOR PAINT - EGGSHELL FIN

PEPPERMINT 1359; ECO SPEC

BENJAMIN MOORE

3.78L = 400 ft2

12' - 0" A.F.F.

PT-3

INTERIOR PAINT - EGGSHELL FIN

PUMPKIN MOOSE 058; ECO SPEC

BENJAMIN MOORE

3.78L = 400 ft2

9' - 6" A.F.F.

PLT

INTERIOR PLASTER

LIME PAINT IN NATURAL WHITE 1

VASARI PLASTER

3.78L = 200 - 400 ft2

12' - 0" A.F.F.

WC

INTERIOR WALL COVERING

JIVE

HOVIA

17 1/4" W

12' - 0" A.F.F.

CT-1

CERAMIC FLOOR TILE

ROOTS COLD FAPRO084802P

CIOT

48" L x 8" W

12' - 0" A.F.F.

CT-2

CERAMIC FLOOR TILE

TANGO CRESPO APATG24X01PC

CIOT

23" L x 23" W

CT-3

CERAMIC FLOOR TILE

LENCI BLANCO PAMLE48X01PL

CIOT

48" L x 48" W

PRC-1

PORCELAIN TILE

CLAY GRACE MOSAIC RED

TILE BAR

2" L x 2" W

QTZ

QUARTZ COUNTERTOP

QUARTZITE EVEREST SSLQEVELF20

CIOT

3/4'' THKN

CT-4

CERAMIC WALL TILE

SAHN GREEN HARSA040405K

CIOT

4" L x 4" W

CT-5

CERAMIC WALL TILE

SAHN AQUA HARSA040404K

CIOT

4" L x 4" W

CT-6

CERAMIC WALL TILE

SAHN TAUPE HARSA040403K

CIOT

4" L x 4" W

PRC-1

PORCELAIN COUNTER TILE

METRO QUAD CHECKERBOARD

MEROLA

11 3/4" L x 11 3/4" W

WDST

INTERIOR WOOD STAIN

CLASSIC WOOD STAIN

VARATHANE

3.78L = 400 ft2

12' - 0" A.F.F.

FIN

TAG

9' - 6" A.F.F. 9' - 6" A.F.F. 9' - 6" A.F.F. 9' - 6" A.F.F. 12' - 0" A.F.F. 9' - 6" A.F.F.


1. GENERAL CONTRACTOR TO SITE VERIFY ALL DIMENSIONS PRIOR TO CONSTRUCTION AND REPORT ANY DISCREPANCIES OR OMISSIONS TO DESIGNER 2. ALL SURFACES TO BE PATCHED, REPAIRED AND MAKE GOOD TO ACCEPT NEW CONSTRUCTION AND FINISHES 3. FLOOR FINISH TO BE PFT UNLESS NOTED OTHERWISE 4. CONTACTOR TO PROTECT ALL NEW FLOOR FINISHES UPON COMPLETION OF INSTALLATION WITH PLASTIC SHEETS WHERE CONSTRUCTION WORK IS NOT COMPLETE 5. UNLESS NOTED OTHERWISE, FLOOR FINISHES TO BE INSTALLED PRIOR TO MILLWORK INSTALLATION 6. CONTRACTOR IS TO REVIEW AND FOLLOW ALL MANUFACTURER PREPARATION AND INSTALLATION GUIDELINES 7. REFER TO MILLWORK PLAN FOR FURTHER MILLWORK FINISHES 8. EXISTING WINDOW FRAMES MAY NOT BE ALTERED IN STRUCTURE, MATERIALS OR FINISHES

ABBREVIATIONS BBS CFT CWF FLR FIN GCB GLOS GWB MTL MT NAT NO PLT PRC PT GTZ THKN WC WD WDST

BASE BOARDS CERAMIC FLOOR TILE CERAMIC WALL TILE FLOOR FINISH GYPSUM CEILING BOARD GLOSSY GYPSUM WALL BOARD MATERIAL MATTE NATURAL NUMBER PLASTER PORCELAIN PAINT QUARTZ THICKNESS WALL COVERING WOOD WOOD STAIN

WORKING DRAWINGS

19

REFLECTED CEILING PLAN 1/8" = 1' - 0"

LIGHTING SCHEDULE

REFLECTED CEILING PLAN LEGEND

MANUFACTURER & PRODUCT NAME

SIZE

FLUSH MOUNT

LIGHTHOUSE CO FALCO FLUSH MOUNT

5-1/8" D x 4-1/2" H

LED

15W

PENDANT LIGHT

LIGHTHOUSE CO MODERN RUFF PENDANT

13 7/8" D x 9" H

120V LED

60W

WALL SCOUNCE

LIGHTHOUSE CO TINSLEY WALL SCONCE

11 3/8" D x 5 1/2" H

LED

60W

FLUSH MOUNT

CB2 - LENON FLUSH MOUNT

10 1/2" D x 6 3/4" H

LED

PHILIPS HUE - LIGHT STRIP PLUS BASE V4

1/2" W

LED

SYMBOL DESCRIPTION

STRIP LIGHTING

LAMP WATTAGE IMAGE TYPE

FLUSH MOUNT 1 PENDANT LIGHT WALL SCONCE FLUSH MOUNT 2 SPEAKER

S 60W

E 11.5W

EMERGENCY LIGHTING SPRINKLER EXIT SIGN/LIGHT

REFLECTED CEILING PLAN NOTES 1. GENERAL CONTRACTOR TO SITE VERIFY ALL DIMENSIONS PRIOR TO CONSTRUCTION AND REPORT ANY DISCREPANCIES OR OMISSIONS TO DESIGNER 2. ALL SURFACES TO BE PATCHED, REPAIRED AND MAKE GOOD TO ACCEPT NEW CONSTRUCTION AND FINISHES 3. GENERAL CONTRACTOR TO ENSURE THAT ALL MECHANICAL AND ELECTRICAL INSTALLATIONS ARE IN COMPLIANCE WITH ALL AUTHORITIES HAVING JURISDICTION 4. CEILIGHT HEIGHT @ 12' - 0" A.F.F. UNLESS OTHERWISE NOTED 5. CLEAN ALL CEILING SURFACES AND FIXTURES BEFORE AND AFTER INSTALLATION 6. ENTIRE FINISHED CEILING TO BE FINISHED WITH PT-1 PAINT (REFER TO ID3.0) UNLESS OTHERWISE NOTED 7. NO SUBSTITUTIONS OF ANY FIXTURES SPECIFIED IN THESE DRAWINGS WILL BE ACCEPTED UNLESS APPROVED IN WRITING

BY PRODUCT DESIGNER

20

21

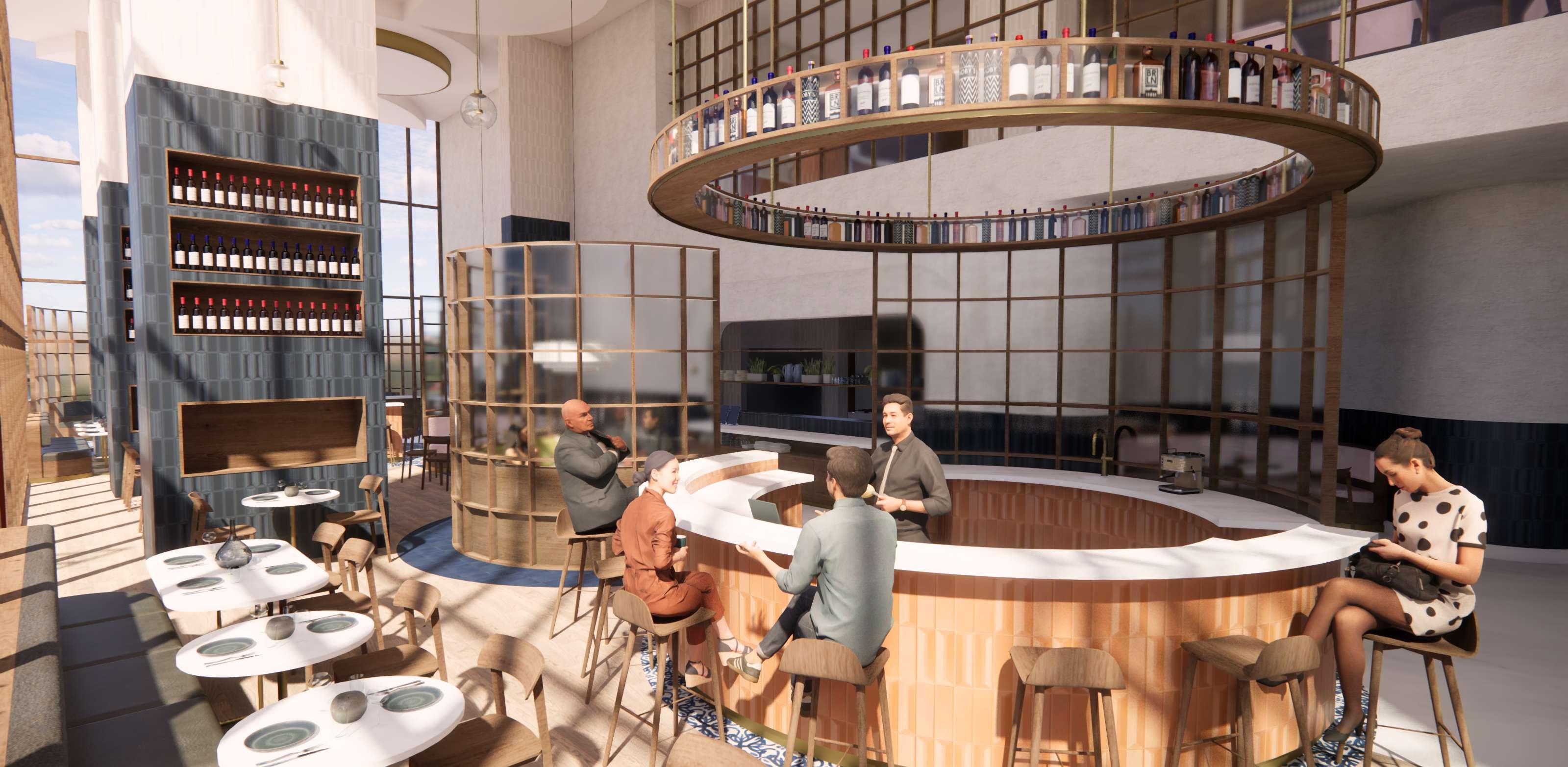

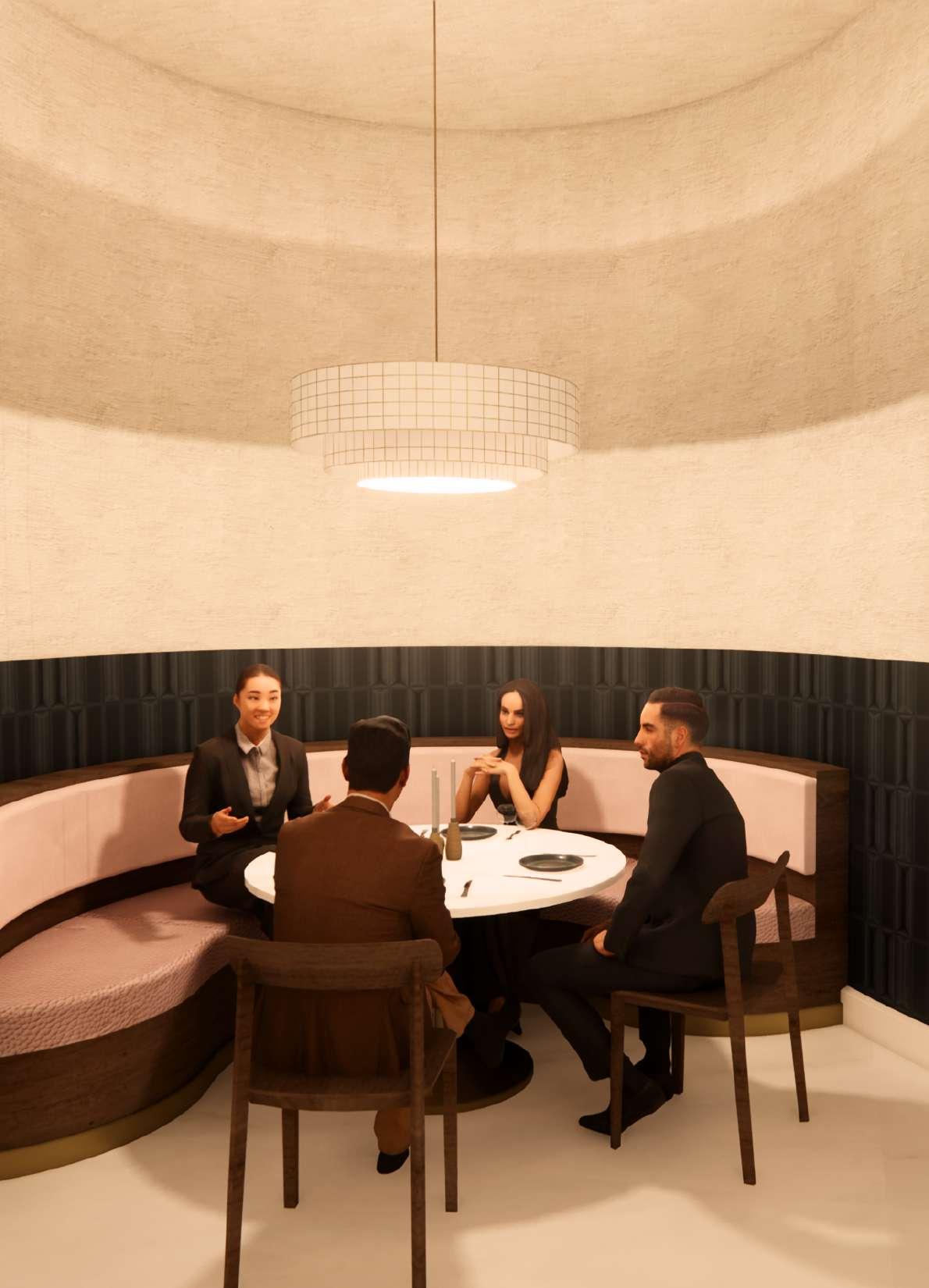

JUSTINE RESTAURANT This hospitality project was centred around the New Orleans, French-Creole restaurant, Justine. Justine is a Parisianinspired restaurant in the heart of New Orleans’ historic French Quarter that combines the sophistication of Parisian brasseries with the playfulness of the South’s most lively district. The concept I developed for Justine was Indulgence, inspired by the overall vision that the owners, Justin and Mia Devillier, wanted to evoke for the new space. They wanted to capture the shared celebratory approach that Parisians and New Orleanians reveal in, in regard to their culinary culture, while painting a picture of the interconnected histories that France and New Orleans have. To revel is to take great or intense pleasure or satisfaction in something, which led me to indulgence; Unrestrained gratification of one’s own appetite, desires or whims.

22

5

2

1

24

9

5 2

4 3

7 6

20

1

2

8

24

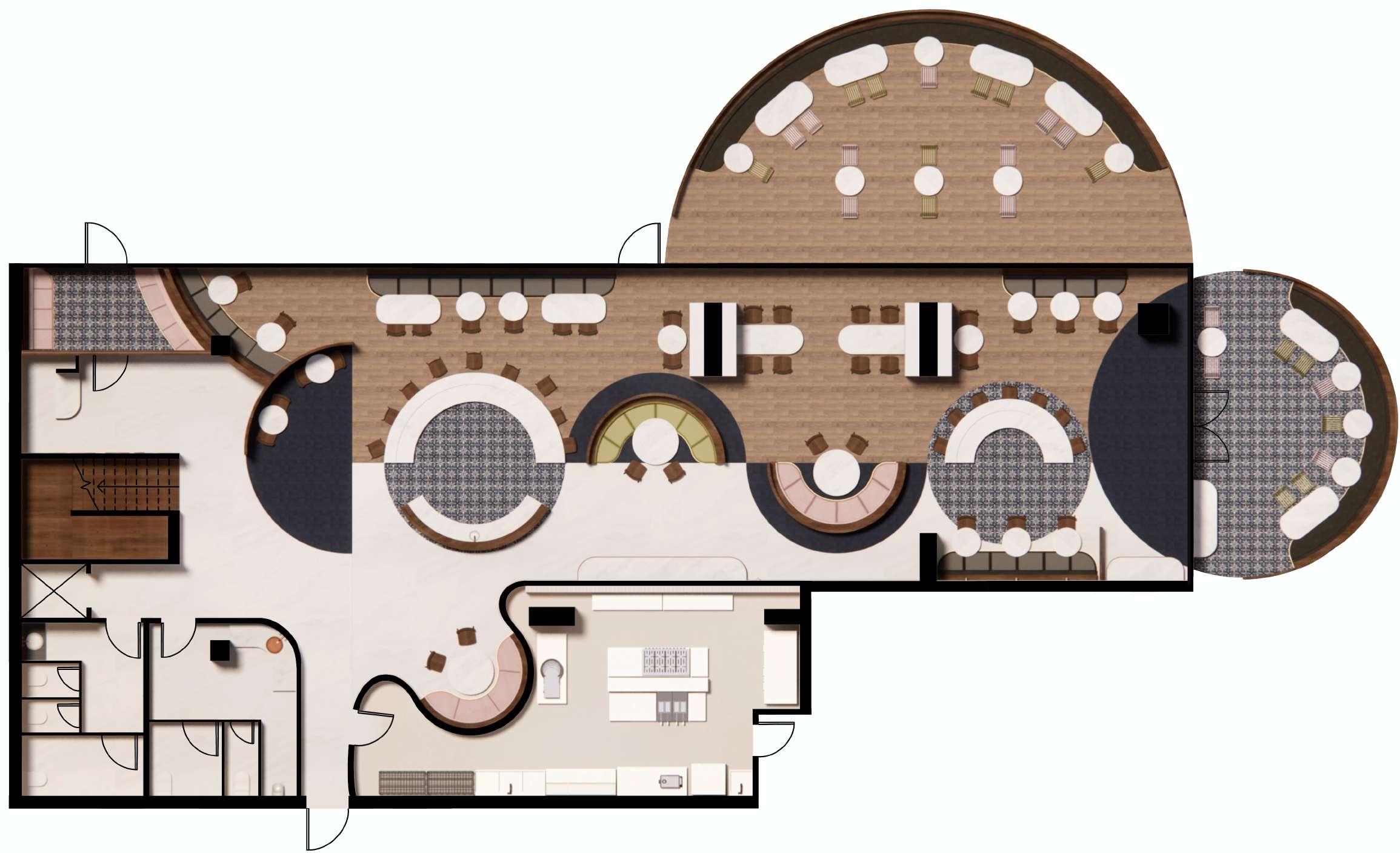

Main Level Floor Plan

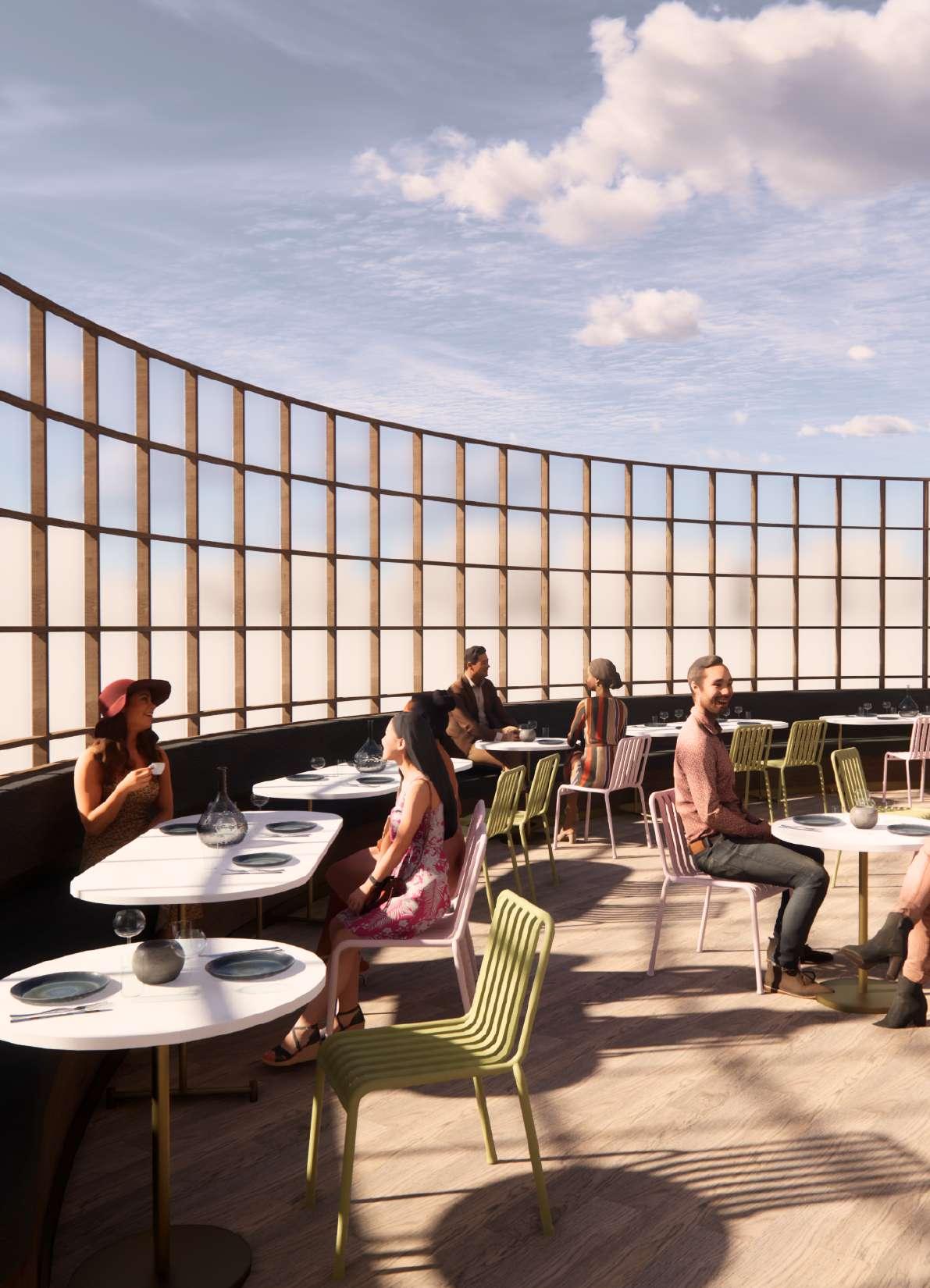

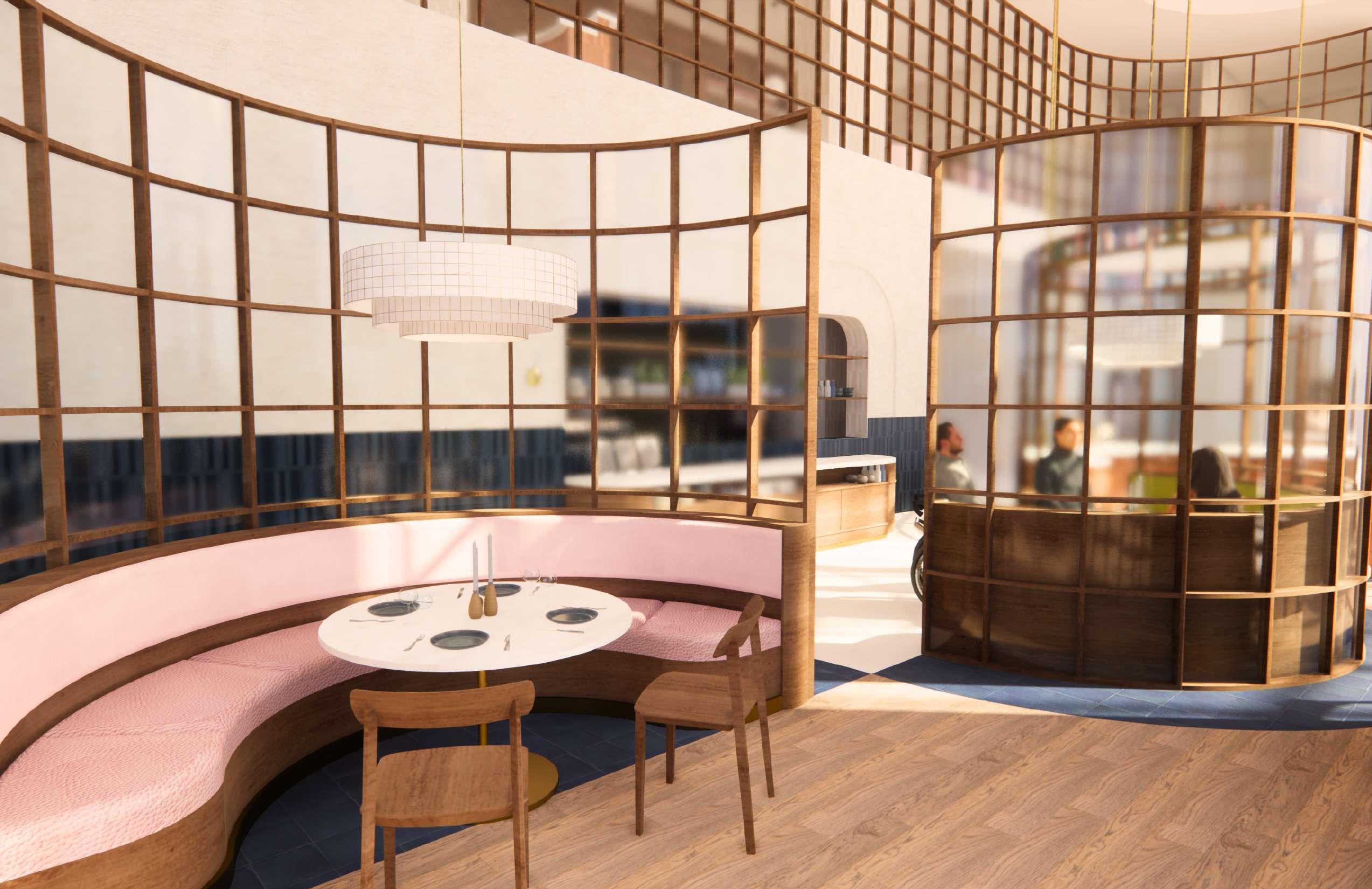

In order to evoke an atmosphere of indulgence, I opted to use interesting shapes and lines to entice guests to move further into the restaurant and be immersed in the cuisine and music. In order to allow guests to still have privacy but not be completely blocked off from other spaces, decorative glass partitions are used around barquettes and at the restaurant's entrance. To keep the original ambience of Justine. The conceptual drawings and final parti diagram were inspired by the overall feeling of eating delicious, gourmet food while enjoying time with loved ones. Having an array of interlocking spaces that allow guests to feel connected and comfortable. I also took great inspiration from Francis D. K. Ching’s (1979) Spatial Relationships and Interlocking Spaces; “An interlocking spatial relationship results from the overlapping of two spatial fields and the emergence of a zone of shared space. When two spaces interlock their volumes in this manner, each retains its identity and definition of space. But the resulting configuration of the two interlocking spaces is subject to a number of interpretations.”

Concept Development

+ First Stage Sketches

First Stages Diagrams

Legend 1. Vestibule 2. Main Bar 3. Dining Area 4. Oyster Bar 5. Patio 6. Kitchen 7. Men’s Washroom 8. Women’s Washroom 9. Reception / Host Station Final Parti Diagram

23

24

Section 1

Section 2

25

2 20

OPEN TO BELOW

10 11

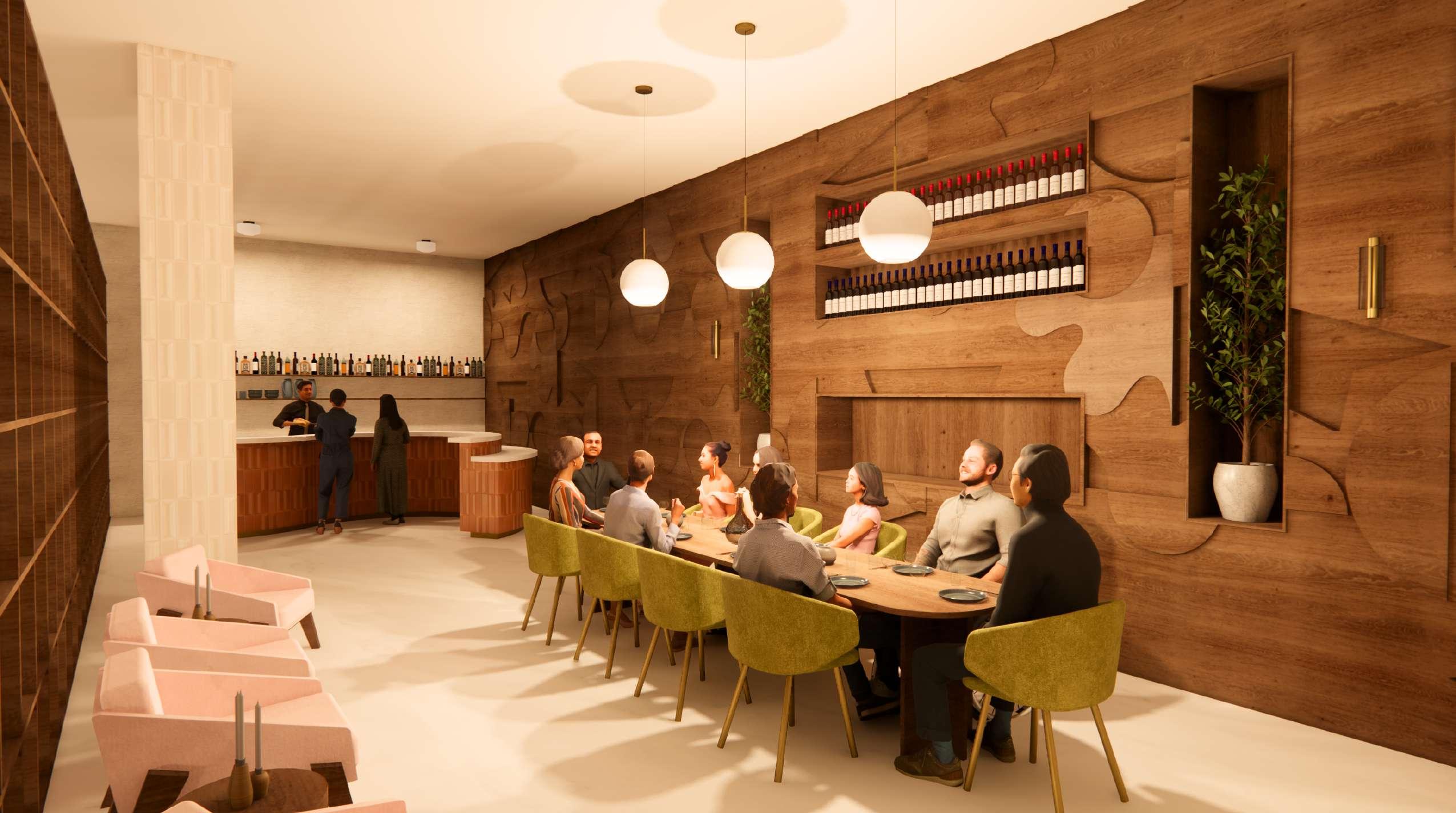

Legend 10. Private Dining Area 11. Administration Office 12. Universal Washroom 2

1

20

12

20

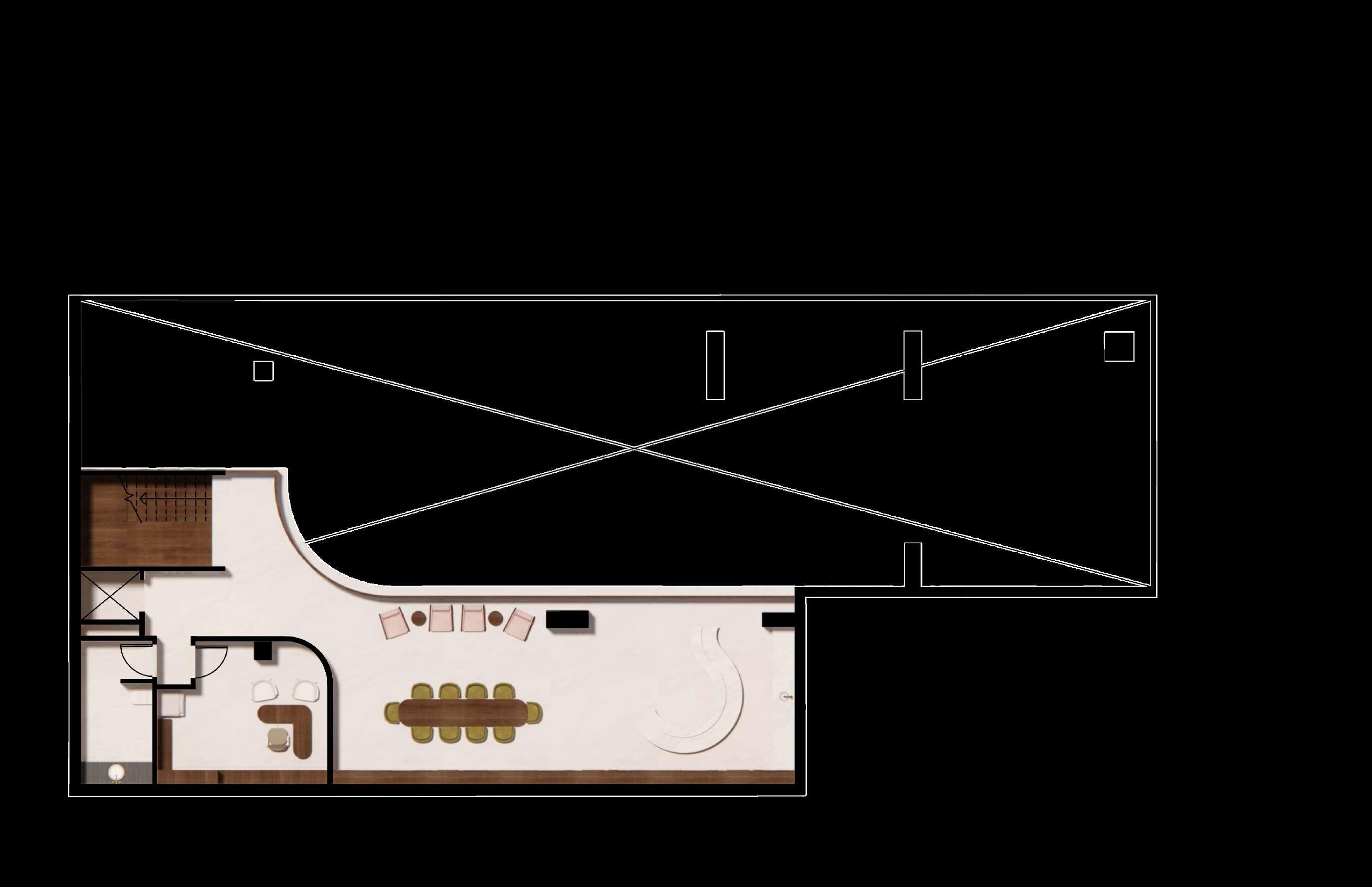

Mezzanine Floor Plan

26

27

WORKING DRAWINGS

28

MAIN FLOOR REFLECTED CEILING PLAN 3/32" = 1' - 0" LIGHTING SCHEDULE SYMBOL

DESCRIPTION

MANUFACTURER & PRODUCT NAME

REFLECTED CEILING PLAN LEGEND SIZE

LAMP TYPE

WATTAGE

COMMENTS

PENDANT LIGHT

WEST ELM - EDIE PRISMATIC PENDANT

13" D x 13" H

LED

60W

SUSPENDED @ 8' - 0" A.F.F.

CHANDELIER

WEST ELM - CAPIZ TIERED CHANDELIER

48" D x 12" H

CFL

60W

SUSPENDED @ 8' - 0" A.F.F.

FLUSH MOUNT 1

CB2 - LENON FLUSH MOUNT

10 1/2" D x 6 3/4" H

LED

60W

ATTACHED TO CEILING

WALL SCONCE

WEST ELM - FLUTED GLASS SCONCE - ANTIQUE BRASS

6" W x 4" D x 16" H

LED

60W

ATTACHED TO WALL, 5' - 0" A.F.F.

LINEAR SUSPENSION LIGHT

ALCON LIGHTING - HALF OVAL LED LINEAR SUSPENSION LIGHT

48" l X 9" W x 2 1/2" H

LED

40W

SUSPENDED @

FLUSH MOUNT 2

KARICE LIGHTING - CUSTOM LIGHTING PIECE

10' D x 1" H

LED

60W

ATTACHED TO CEILING BULKHEAD


FLUSH MOUNT 1

PENDANT LIGHT

CHANDELIER

WALL SCONCE LINEAR SUSPENSION LIGHT SPRINKLER EMERGENCY LIGHT EXIT SIGN/LIGHT FIRE ALARM BELL SUPPLY AIR DIFFUSER

WORKING DRAWINGS

29

BELOW MEZZANINE REFLECTED CEILING PLAN 3/32" = 1' - 0" LIGHTING SCHEDULE SYMBOL

DESCRIPTION

CHANDELIER

MANUFACTURER & PRODUCT NAME

WEST ELM - CAPIZ TIERED CHANDELIER

REFLECTED CEILING PLAN LEGEND SIZE

LAMP TYPE

WATTAGE

COMMENTS

48" D x 12" H

CFL

60W

SUSPENDED @ 8' - 0" A.F.F.


FLUSH MOUNT 1

CHANDELIER

WALL SCONCE

FLUSH MOUNT 1

CB2 - LENON FLUSH MOUNT

10 1/2" D x 6 3/4" H

LED

60W

ATTACHED TO CEILING

WALL SCONCE

WEST ELM - FLUTED GLASS SCONCE - ANTIQUE BRASS

6" W x 4" D x 16" H

LED

60W

ATTACHED TO WALL, 5' 0" A.F.F.

LINEAR SUSPENSION LIGHT

ALCON LIGHTING - HALF OVAL LED LINEAR SUSPENSION LIGHT

48" l X 9" W x 2 1/2" H

LED

40W

SUSPENDED @

LINEAR SUSPENSION LIGHT SPRINKLER EMERGENCY LIGHT EXIT SIGN/LIGHT FIRE ALARM BELL SUPPLY AIR DIFFUSER

30

31

E

AD

SI

GN

I NT

OR DE I R
