DOCUMENTATION : SRI AUROBINDO NIVAS , VADODARA , GUJARAT
Sri Aurobindo Nivas is a National Memorial and functions as a spiritual retreat.
The structure was adapted to carry forward Aurobindo’s Ideologies by spreading the idea of exploring oneself through Internal yoga.
‘Here and there stood old trees in a deep meditative peace’
The structure extends towards public through various spaces like Meditation halls, lawns for yoga, libraries.These activities are civic which support the sacred core by following Aurobindo’s ideologies and beliefs, thus supporting the sacred core and acting as interface between the civic and the sacred .
In this process architecture of The Nivas played an important role by setting up an atmosphere where the mind could be at peace and one can cut himself off from the physical world.
LOUIS I KAHN TROPHY -NASA
GROUND FLOOR PLAN
FIRST FLOOR PLAN

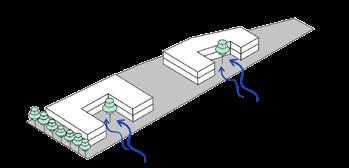

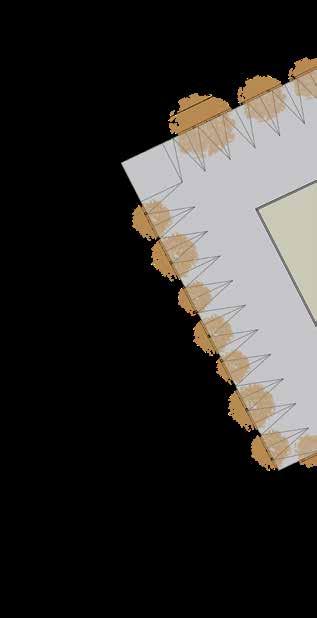

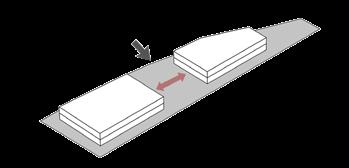

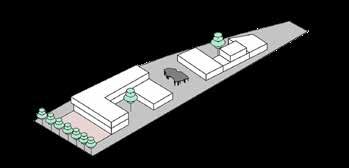

The ‘l’ form of structure creates pressure difference, by acting as an partial obstruct for south- west winds. Thus, creating pressure zones and wind movement. The courtyard has been placed on the eastern side, to receive morning sunlight.
STRIP SECTION
MEDITATION HALL MEDITATION HALL MEDITATION HALL PASSAGE MEDITATION HALL MEDITATION HALL MEDITATION HALL MEDITATION HALL BACKYARD COURTYARD BALCONY FOYER 2700X9700 4900X9700 4650X7300 3800X5150 5350X4800 4300X4800 3000X2000 4850X7150 FLOWER ROOM 1600X 4250 STORE ROOM STORE ROOM 2700X4550 2550X1900 TOILET 2080X4750 INACCESSIBLE INACCESSIBLE INACCESSIBLE 8510x4925 5440x4335 MEMORIAL PASSAGE 6160X1310 +3.95M +3.95M +4.00M +3.95M +3.95M +3.90M +3.9M +2.25M 3.0M STORE ROOM UP SOFTSCAPE HARDSCAPE D2 D21 D21 D21 D2 D2 D2 D2 D22 D23 D2 D2 D2 D2 D2 D2 D2 D2 D23 D23 W16 W15 W15 W15 W14 W14 W13 W14 W14 W14 W14 W15 W16 W16 W16 W15 W16 W15 W14 W14 W14 W14 D24 D24 D24 D24 D24 D24 8460 8830 D2 D2 W14 W14 +2.15M +2.15M 6m N 420 4900 420 SCISSOR TRUSS BIRD'S MOUTH SCISSOR JOINT 150X350MM RIDGE 400MM THICK BRICK WALL 25X40MM BATTENS 230X250MM MANGALORE TILES 100X165MM TW RAFTERS 40MM THICK TW BOARDING 160X160MM COMMON RAFTER BOTTOM CHORDS 95 540 BASE SHAFT CAPITAL BASE SHAFT CAPITAL 395 115 415 95 540 BASE SHAFT CAPITAL BASE SHAFT CAPITAL 395 115 415
0 6m N ADMIN OFFICE ADMIN OFFICE MULTI-PURPOSE ROOM TOILET EMPORIUM ADMIN OFFICE ADMIN OFFICE ADMIN OFFICE PHOTO GALLERY BACKYARD STORAGE LIBRARY COURTYARD OFFICE CONFERENCE HALL VERANDA LIBRARY PORCH 2970X2920 4550X4670 5700X5450 2000X4670 4000X9800 2400X9650 4800X9650 4550X7200 5400X4250 5300X4850 2600X4450 9700X6700 19200X4650 10900X18900 4600X4600 4600X4700 4600X4000 5300X5400 3850X4700 STORAGE 5400X1550 TOILET TOILET HALLWAY UP UP UP DOWN UP UP UP +0.65M +0.30M +0.45M +0.30M +0.45M +0.50M +0.65M UP UP UP 0.65M 0.65M +0.15M MEMORIAL +0.65M PASSAGE DOWN +0.65M 4950 2860 2900 2920 5195 5040 D1+S D1+S D1+S D2 D1 D1 D1 D1 D4 D2 D2 D2 D6 D1 D7 D10 D2 D2 D12 D13 D14 D16 W1 W2 W11 W11 W3 W4 W5 W6 W7 W7 W7 W7 W7 W7 W7 W7 W7 W7 W8 W8 W8 W8 W8 W9 W9 W10 W11 W11 W11 W11 W11 W12 W4 W9 34580 W6 W6 +0.64M INACCESSINACCESSIBLE
MS BRACKET 400 MM THICK BRICK WALL 20MM THICK KOTA STONE 150MM THICK PCC BED RAMMED EARTH 150MM THICK PCC BED 230MM RANDOM RUBBLE 230X250MM MANGALORE TILES 25X40MM BATTENS 75X100MM BATTENS MS CHAJJA TW LATTICE WORK BALCONY 25MM THICK TIMBER PLANKS 80X180MM TW JOIST 10MM THICK TW BOARDING 25x40MM BATTENS 75x100MM BATTENS TW LATTICE WORK BAL 25MM THICK PLANKS 10 MM THICK TW BOARDING 80x180MM TW JOIST MS BRACKET 400 MM THICK WALL 20MM THICK KOTA STONE 150MM THICK PCC BED 150MM THICK PCC BED 230MM RANDOM RUBBLE RAMMED EARTH 230x250MM MANGALORE TILES MS CHAJJA
ROOF DETAIL 1 POST DETAIL
0 1 3 6m +0.64M +4.04M +7.74M +6.61M +9.13M +12.4M +0.00M MEDITATION HALL1 PASSAGE MEDITATION HALL R.C.C. EXTENSION COURTYARD STORE ROOM LIBRARY CONFERENCE PORCH SCISSOR TRUSS BIRD'S MOUTH SCISSOR JOINT 150X350MM RIDGE 100X165MM TW RAFTERS 160X160MM COMMON RAFTER BOTTOM CHORDS SCISSOR TRUSS BIRD'S MOUTH SCISSOR JOINT 150X350MM RIDGE 100X165MM TW RAFTERS 160X160MM COMMON RAFTER BOTTOM CHORDS joinery 1 joinery 2 joinery 3 joinery 4 joinery 1 joinery 2 joinery 3 joinery 4 joinery joinery 3 joinery 4 joinery 1 joinery 3 joinery 4 0 1 3 6m +9.13M +4.70M +0.00M +16.50M +12.4M +4.20M +7.12M LEFT ELEVATION ROOF DETAIL 2 ROOF DETAIL 2 JOINERIES SECTION AA’ B A C D A B C D
DOCUMENTATION : JETAVAN , KOPARGAON , MAHARASHTRA

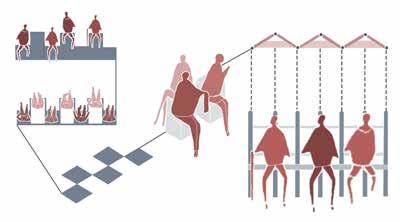

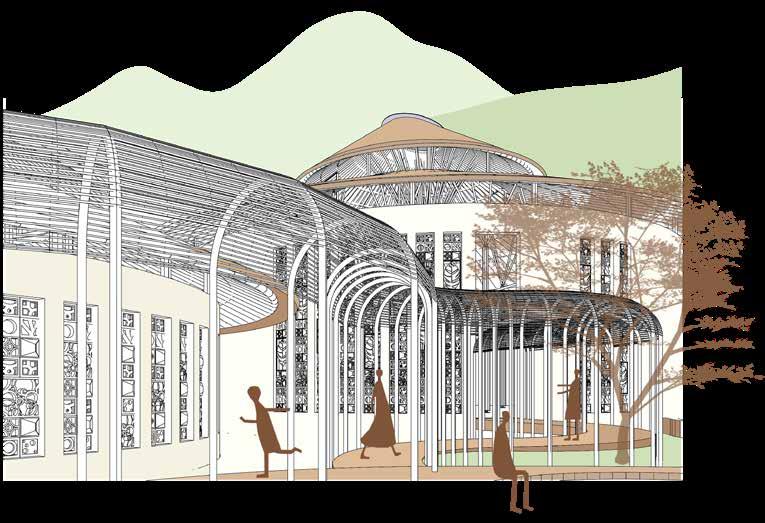

Jetavan is a spiritual and skill development centre, built by KJ Somaiya Centre for Buddhist Studies, for native Baudh Ambedkar Community.
The site, in the complex of Godavari Biorefineries, is also owned by the Somaiya group. The structure comprises of functional spaces and an adjoining library of 1070 sqm that functions efficiently with the centre. The design was undertaken by Ar.Sameep Padora and associates,with the assistance of Hunnarshala foundation Bhuj.
LOUIS I KAHN TROPHY -NASA

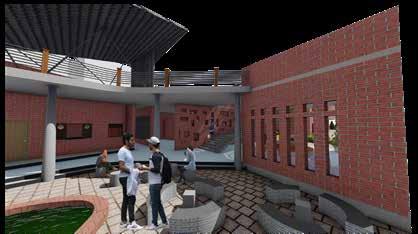

The perforations in the wall channels the breeze throughout the structure and helps to reduce the interior temperature.
Warm air moves up
The ordinary roof system blocks the foliage view and does not facilitate cross ventilation.

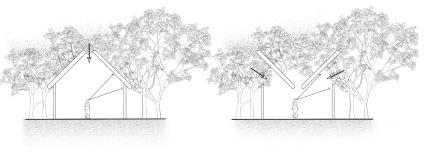

The inverted roof profile frame the foliage and allow filtered light to permeatinng within the space.
+600MM +600MM 00 MM +600MM +600MM +600MM 00MM 00 MM 00MM 00MM 450MM 600MM 450MM 00MM 4 14 9 2 11 10 12 13 +600MM +600MM +600MM +600MM +600MM 100MM 100MM 100MM D5 D2 D1 D1 D2 D2 D1 D1 D1 D1 D1 D2 D2 D2 D2 D4 D3 D3 W4 W4 W1 W2 W3 O1 O1 O1 O1 O2 D6 D1 D6 00MM W5 W6 W6 W6 W6 PRODUCED BY AN AUTODESK STUDENT VERSION A A’ FLOOR PLAN N 0m 1m 3m 6m 10m SECTION AA’ 0m 1m 3m 6m 10m PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED
MANGALORE TILE RCC GUTTER 50X75MM TW RAFTER 100 MM DIA MUD ROLLS 38X38MM TW PURLIN
BY AN AUTODESK STUDENT VERSION
RCC GUTTER

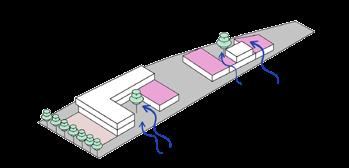

Courtyard acts as micro-climate modifier. Fresh air Fresh air
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION
RCC GUTTER
PRODUCED BY AN AUTODESK STUDENT VERSION
@ SCALE 1:25
PRODUCED BY AN AUTODESK STUDENT VERSION
SOLING UCR MASONRY FOUNDATION R.C.C PLINTH BAND 350 MM THK RAMMED EARTH FLY ASH WALL 150 MM THK RCC LINTEL T.W RAFTER 38MM X 127MM SIZE @830MM C/C 2 NOs OF T.W MEMBER: 38 X 100 MM SIZE @830MM C/C 2 NOs T.W MEMBERS 38 X 100 MM SIZE @830MM C/C T.W MEMBER 50 X 75MM SIZE @ 830C/C G L G.I FLASHING B.O . FOUNDATION -750 MM GROUND LVL +00 MM PLINTH LVL +600 MM T.O. RAMMED FLY ASH WALL +3000 MM T.O .ROOF +6400 MM T.O .RCC LINTEL +3150 MM PRODUCED BY AN AUTODESK STUDENT VERSION STRIP SECTION @ 1:25
PRODUCED BY AN AUTODESK STUDENT VERSION
PRODUCED BY AN AUTODESK STUDENT VERSION MANGALORE TILE RCC GUTTER 50X75MM TW RAFTER 100 MM DIA MUD ROLLS 38X38MM TW PURLIN
MANGALORE TILE ALUMINIUM GUTTER 50X75MM TW RAFTER 100 MM DIA MUD ROLLS 38X38MM TW PURLIN
PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION
GUTTER
ALUMINIUM
PRODUCED
AUTODESK STUDENT VERSION
BY AN
350 MM THK RAMMED FLY ASH WALL 150 MM THK LINTEL 50X75 MM THK TW RAFTER 38X38 MM TW PURLIN MANGALORE TILES 100 MM DIA MUD ROLLS 50X75 MM TW MEMBER 2 NO.s 38X75 MM TW MEMBER
DETAIL

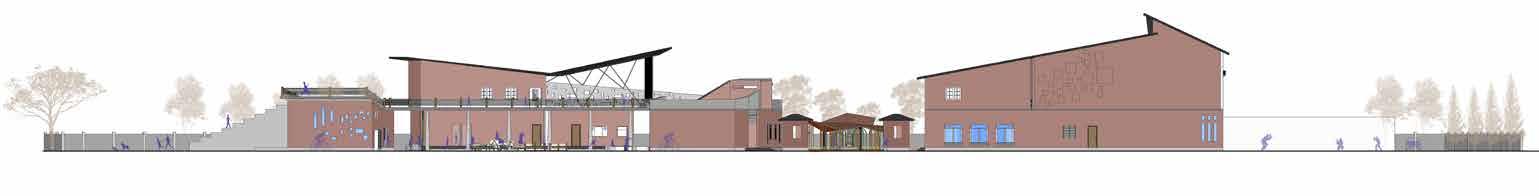

SOUTH ELEVATION 0m 1m 3m 6m 10m
TRUSS

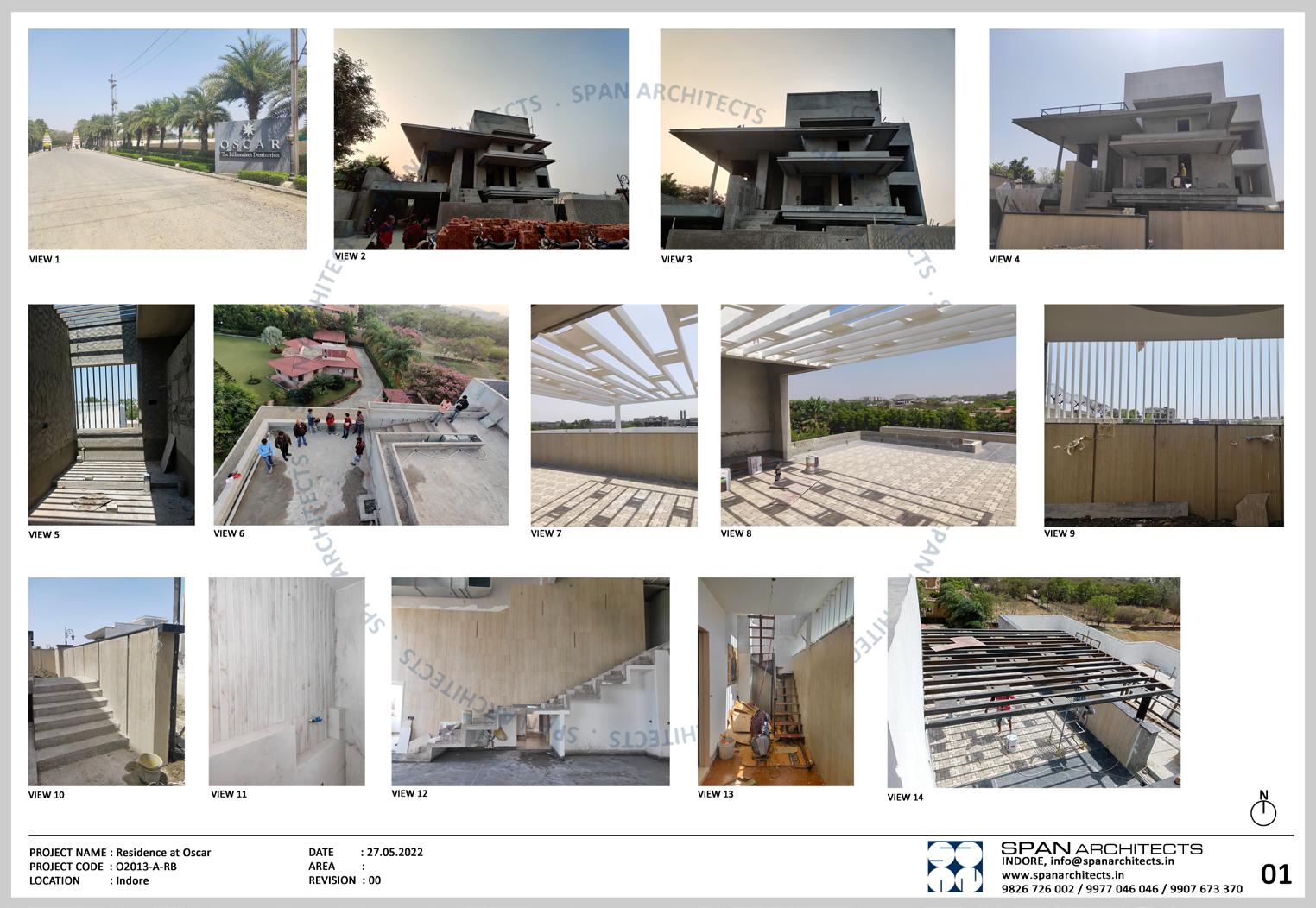

WORK : INTERNSHIP at SPAN ARCHITECT’S, INDORE

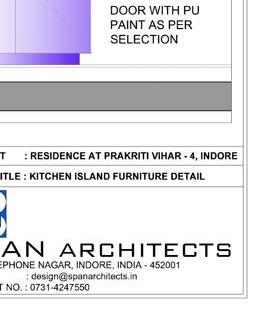

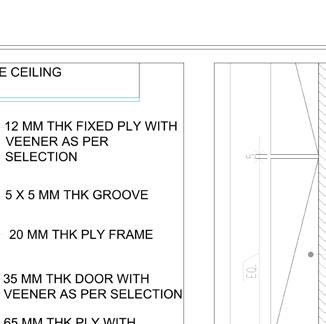

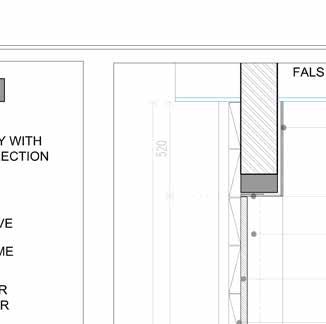

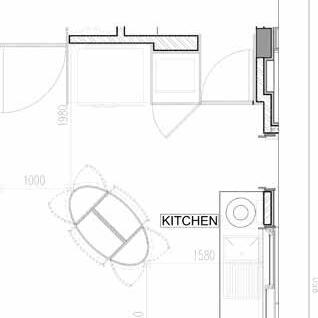

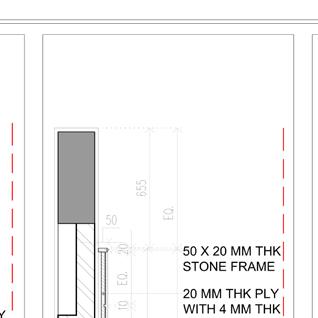

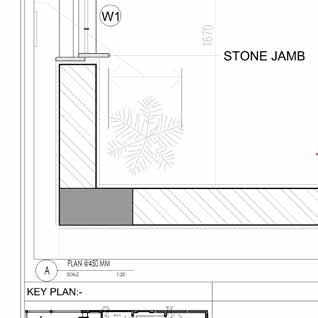

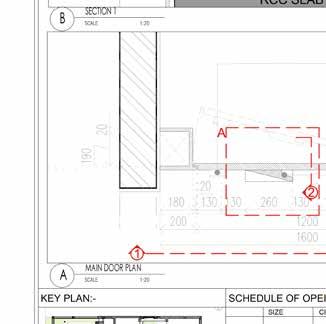

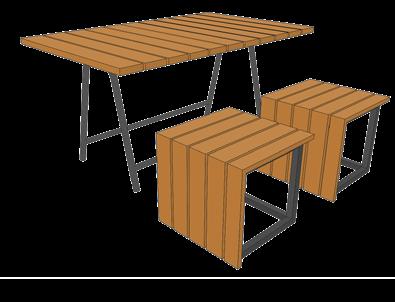

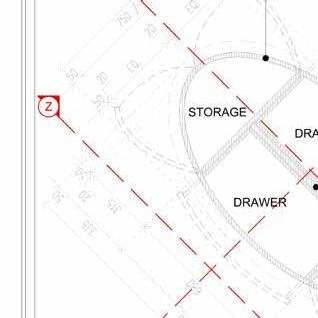

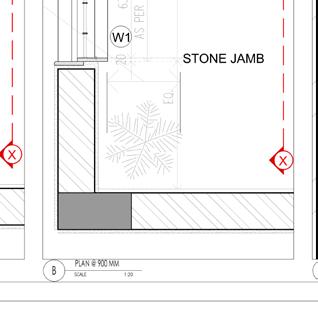

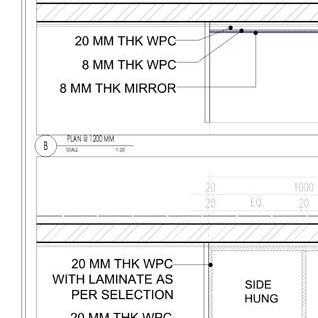

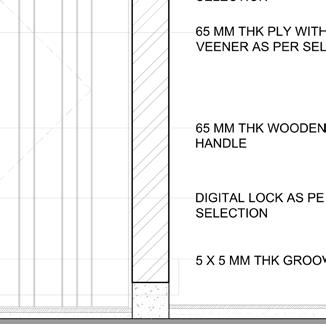

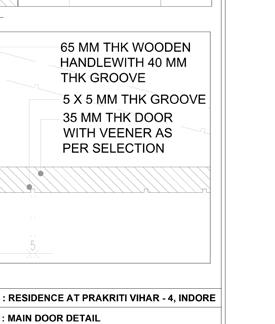

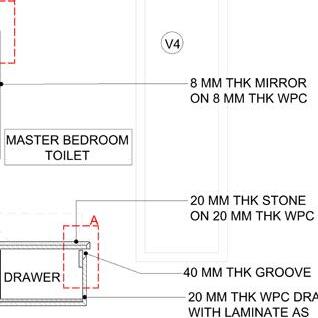

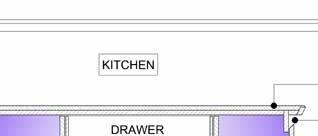

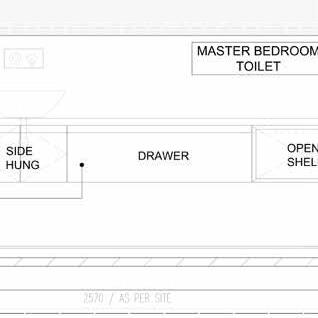

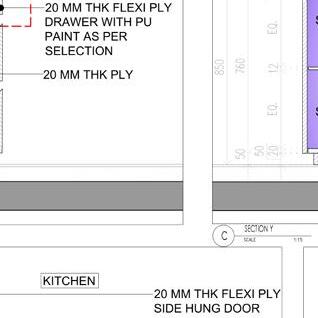

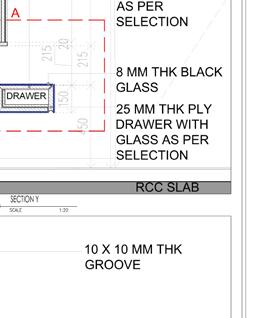

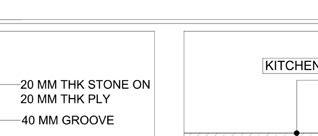

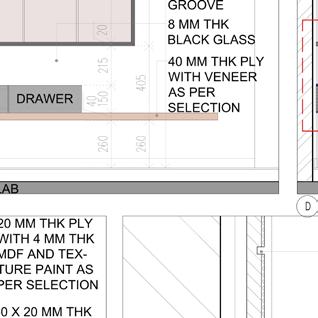

SPAN ARCHITECT’S INDORE , worked as an intern for 6 months and the area of scope of learning was Furniture drawings, Fabrication, Plumbing, False ceiling, Sanitary Fixtures marking, Flooring, Tiling, Jambing, 3d renders.
Span helped me in understanding and making of drawing and how to communicate with contractor , workers on site . Also very important things for an architect is meeting of deadlines, Tried to work on time and provide with GFC drawings.

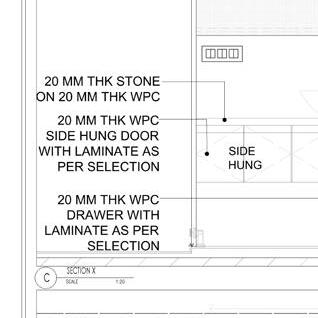

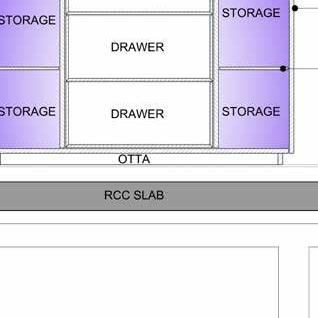

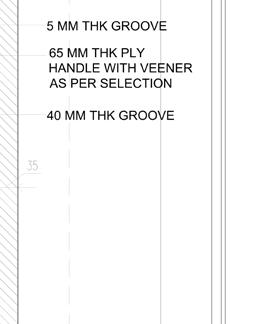

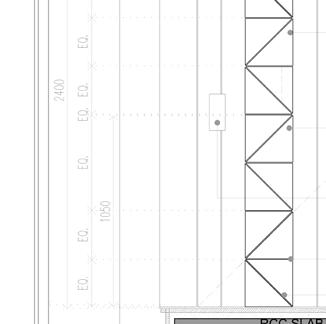

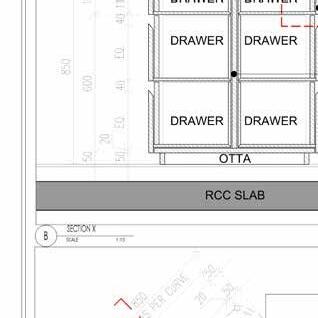

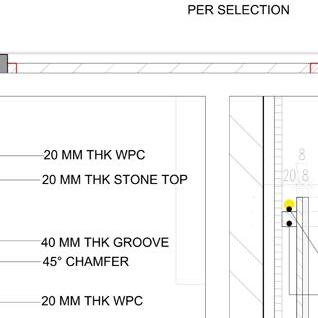

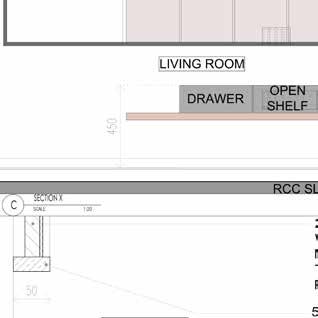

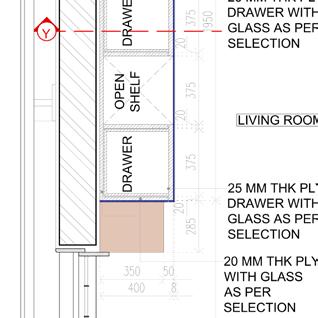

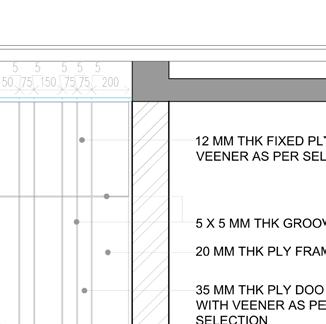

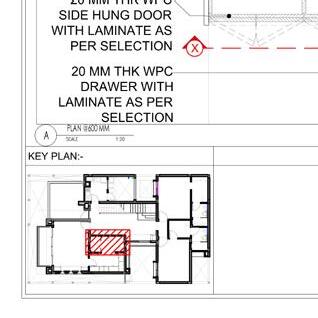

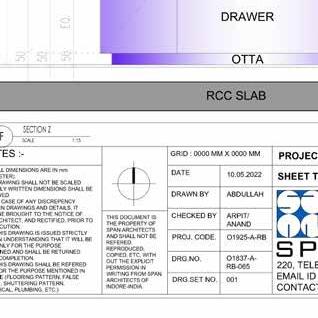

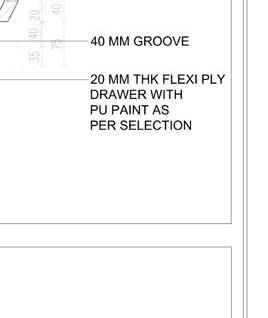

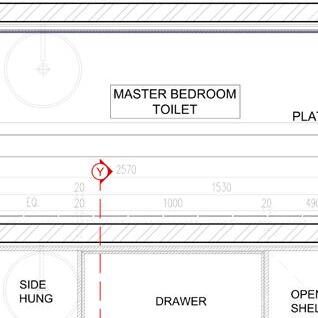

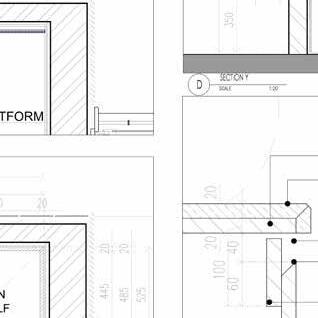

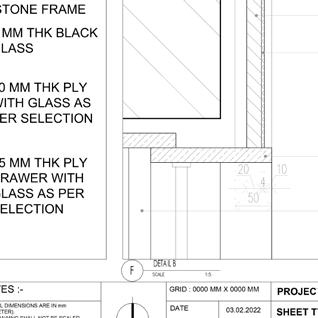

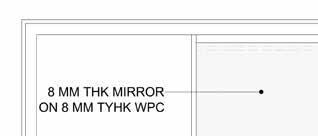

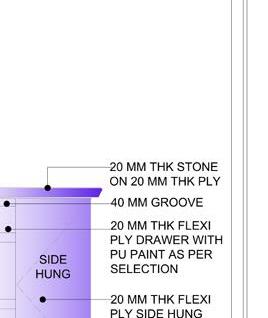

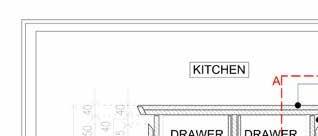

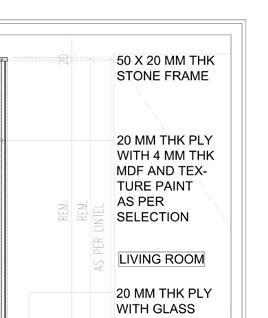

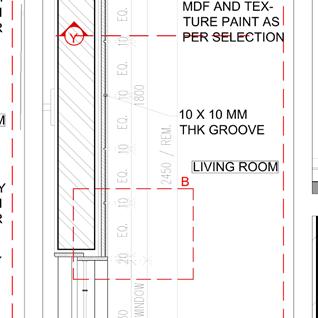

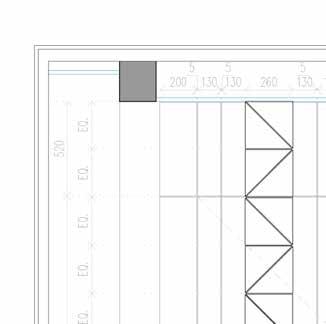

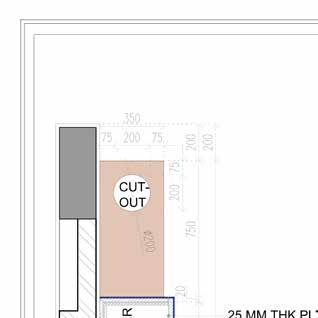

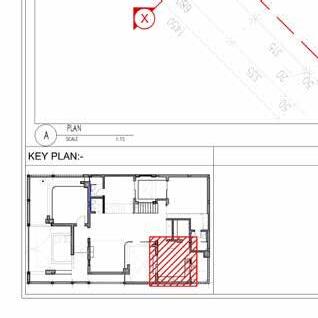

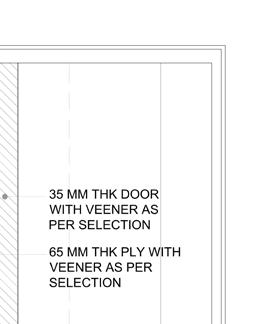

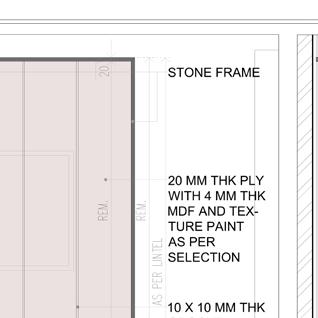

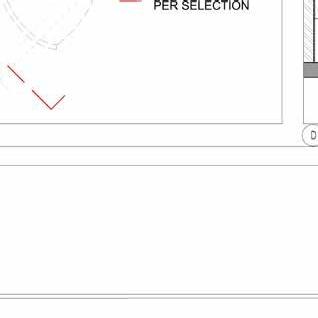

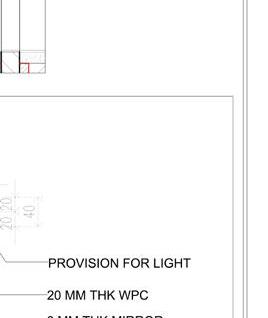

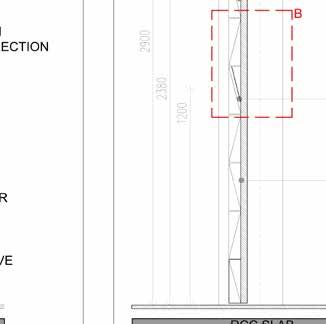

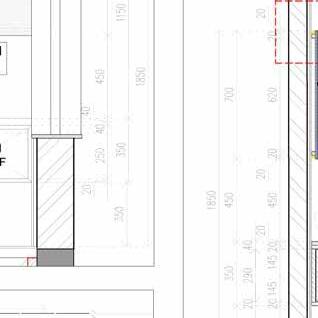

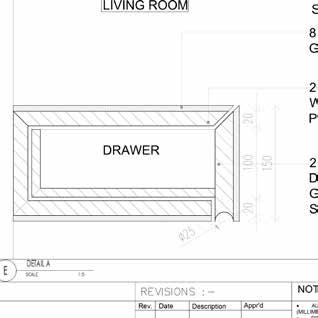

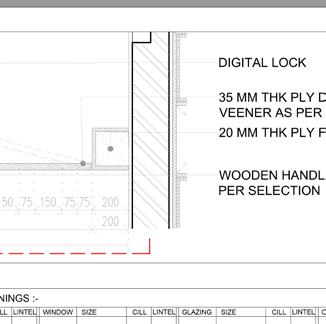

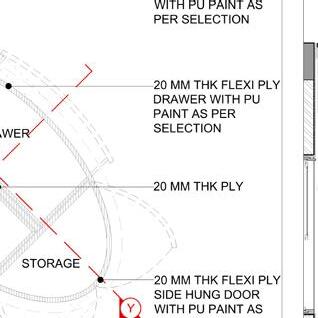

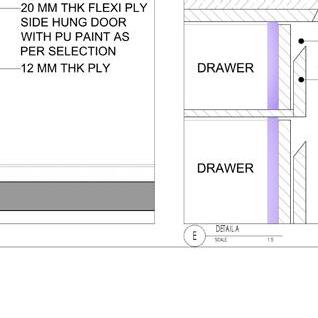

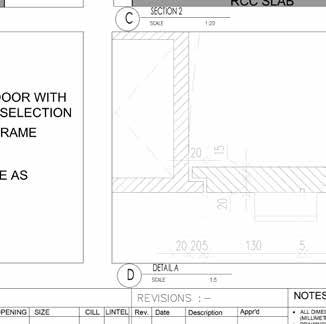

LIVING ROOM TERRACE SUNK RCC SLAB SUNK GATE DRAWING ROOM PLANTER D9 ALDROP 10 MM THK TILE AS PER SELECTION 40X40 MM THK BOX SECTION 150X5 MM THK MS PLATE RCC SLAB 40X40 MM MS BOX SECTION 10 MM THKTILE AS PER SELECTION ALDROP 01 ENTRANCE LIVING ROOM TERRACE B A 6MM THK CEMENT SHEET 5MM THK MS PLATE 10 MM THK TILE AS PER SELECTION ALDROP 150X6 MM THK MS PLATE 02 03 10 MM THK TILE AS PER SELECTION 6 MM THK CEMENT SHEET RCC SLAB SUNK SUNK ALDROP 40X40 MM MS BOX SECTION 20 MM THK STONE COPING 150X6 MM MS PLATE ENTRANCE LIVING ROOM TERRACE RCC SLAB 5MM THK MS PLATE 40X40 MM THK MS BOX SECTION 6 MM THK CEMENT SHEET ALDROP 10 MM THK TILE AS PER SELECTION LIVING ROOM TERRACE ENTRANCE 40X40MM HOLLOW SECTION 6 MM THK CEMENT SHEET 10 MM THK TILE AS PER SELECTION 20MM THK STONE COPING 5 MM THK MS PLATE 10MM THK TILE PROJECT : RESIDENCE AT OSCAR, INDORE SHEET TITLE : LIVING ROOM TERRACE GATE FABRICATION DETAIL ARPIT/ ANAND ABDULLAH GRID 0000 MM X 0000 MM SCALE-1:750 O2013_A_RB O2013-AWD-387 004 NOTES :ALL DIMENSIONS ARE IN mm (MILLIMETER). DRAWING SHALL NOT BE SCALED AND ONLY WRITTEN DIMENSIONS SHALL BE FOLLOWED. IN CASE OF ANY DISCREPENCY FOUND IN DRAWINGS AND DETAILS, IT SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT, AND RECTIFIED, PRIOR TO ITS EXECUTION. THIS DRAWING IS ISSUED STRICTLY WITH AN UNDERSTANDING THAT IT WILL BE USED ONLY FOR THE PURPOSE MENTIONED AND SHALL BE RETURNED AFTER COMPLETION. THIS DRAWING SHALL BE REFERED ONLY FOR THE PURPOSE MENTIONED IN ITS TITLE (FLOORING PATTERN, FALSE CEILING, SHUTTERING PATTERN, ELECTRICAL, PLUMBING, ETC.) DATE PROJ. CODE. DRG.NO. DRG.SET NO. DRAWN BY CHECKED BY THIS DOCUMENT IS THE PROPERTY OF SPAN ARCHITECTS AND SHALL NOT BE REFERED, REPRODUCED, COPIED, ETC, WITH OUT THE EXPLICIT PERMISSION IN WRITING FROM SPAN ARCHITECTS OF INDORE-INDIA. KEY PLAN:Description Date Rev. Appr'd SPAN ARCHITECTS 220, TELEPHONE NAGAR, INDORE, INDIA - 452001 EMAIL ID design@spanarchitects.in CONTACT NO. : 0731 4247550 LEGENDS 03.02.22
75X40X5MM THK MS HOLLOW SECTION 100 X 100 X 8 MM THK GUSSET PLATE PARTY TERRACE

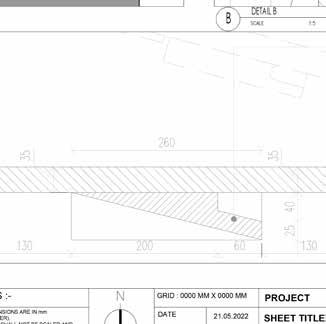

RCC SLAB PLANTER RCC SLAB BRICK COBA 40X75X5 MM MS HOLLOW SECTION BRICK COBA PARTY TERRACE TERRACE 1 SEATING P 6 MM THK CEMENT SHEET 20MM THK GRANITE RCC SLAB HOLLOW SPACE B A B +10350 MM UFL +8850 MM UFL PARTY TERRACE TERRACE-1 PLANTER PLANTER SEAT SEAT SEAT PLANTER 75X40X5MM THK MS HOLLOW SECTION 8 MM THK 200 WIDE MS PLATE WITH ANCHOR FASTENER @300C/C TOP AND BOTTOM STEPS IN RCC PLANTER RCC SLAB BRICK COBA 20MM THK GRANITE Q PARTY TERRACE 40X75X5MM THK MS HOLLOW SECTION 20MM THK GRANITE COPING 100 X 100 X 8 MM THK GUSSET PLATE SEATING 20MM THK GRANITE 75X40X5MM THK MS HOLLOW SECTION LIGHT FIXTURE SEATING BRICK COBA 20MM THK GRANITE COPING 100 X 100 X 8 MM THK GUSSET PLATE 8 MM THK 200 WIDE MS PLATE WITH ANCHOR FASTENER @ 300C/C TOP AND BOTTOM PARTY TERRACE PLANTER 20MM THK GRANITE COPING 75MM THK RCC SLAB 20MM THK GRANITE STONE BRICK COBA
HOLLOW SPACE

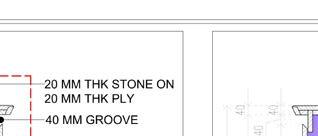

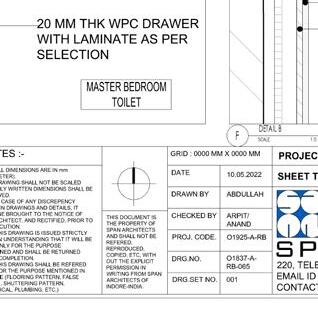

PROJECT : RESIDENCE AT OSCAR, INDORE SHEET TITLE : PARTY TERRACE SEATING FABRICATION DETAIL _ R1 ARPIT/ ANAND ABDULLAH GRID 0000 MM X 0000 MM SCALE-1:750 O2013_A_RB O2013-AWD-390 004 NOTES :ALL DIMENSIONS ARE IN mm (MILLIMETER). DRAWING SHALL NOT BE SCALED AND ONLY WRITTEN DIMENSIONS SHALL BE FOLLOWED. IN CASE OF ANY DISCREPENCY FOUND IN DRAWINGS AND DETAILS, IT SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT, AND RECTIFIED, PRIOR TO ITS EXECUTION. THIS DRAWING IS ISSUED STRICTLY WITH AN UNDERSTANDING THAT IT WILL BE USED ONLY FOR THE PURPOSE MENTIONED AND SHALL BE RETURNED AFTER COMPLETION. THIS DRAWING SHALL BE REFERED ONLY FOR THE PURPOSE MENTIONED IN ITS TITLE (FLOORING PATTERN, FALSE CEILING, SHUTTERING PATTERN, ELECTRICAL, PLUMBING, ETC.) DATE PROJ. CODE. DRG.NO. DRG.SET NO. DRAWN BY CHECKED BY THIS DOCUMENT IS THE PROPERTY OF SPAN ARCHITECTS AND SHALL NOT BE REFERED, REPRODUCED, COPIED, ETC, WITH OUT THE EXPLICIT PERMISSION IN WRITING FROM SPAN ARCHITECTS OF INDORE-INDIA. KEY PLAN:Description Date Rev. Appr'd SPAN ARCHITECTS 220, TELEPHONE NAGAR, INDORE, INDIA - 452001 EMAIL ID : design@spanarchitects.in CONTACT NO. : 0731 4247550 LEGENDS 15.04.22 R0 28-02-22 ARPIT ARPIT 15-04-22 R1 AS MENTIONED

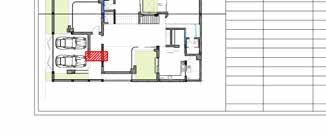

±00 MM FFL -50 MM FFL -50 MM FFL +150 MM FFL +225 MM FFL SEEN BELOW GARDEN PANTRY 2700 X 2350 SEEN BELOW GARDEN LIFT 1600 X 1650 PARTY TERRACE 680 SQF. LIFT LOBBY 4500 X 1500 TERRACE-1 5000X 6450 MM PARKING SEEN BELOW SEEN BELOW GARDEN UTILITY SEEN BELOW SERVICE TERRACE 1265 SQF. DN MEDITATION ROOM SEEN BELOW -50 MM FFL -168 MM FFL ±00 MM FFL -6 MM FFL 300X300X10MM THK TILE 20MM THK GRANITE AS PER SELECTION START TILE START TILE UNDER COUNTER FRIDE MICRO WAVE FT SLOPE SLOPE KHURRA 450 X 450 MM KHURRA 450 X 450 MM PLANTER PLANTER SEAT OTTA SEAT SEAT PLANTER DN UP OTTA -56 MM FFL -56 MM FFL START TILE START TILE +200 MM FFL PROJECT : RESIDENCE AT OSCAR, INDORE SHEET TITLE : TERRACE FLOOR FLOORING LAYOUT ARPIT/ ANAND ABDULLAH GRID 0000 MM X 0000 MM SCALE-1:750 O2013_A_RB O2013-AWD-466 001 NOTES : ALL DIMENSIONS ARE IN mm (MILLIMETER). DRAWING SHALL NOT BE SCALED AND ONLY WRITTEN DIMENSIONS SHALL BE FOLLOWED. IN CASE OF ANY DISCREPENCY FOUND IN DRAWINGS AND DETAILS, IT SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT, AND RECTIFIED, PRIOR TO ITS EXECUTION. THIS DRAWING IS ISSUED STRICTLY WITH AN UNDERSTANDING THAT IT WILL BE USED ONLY FOR THE PURPOSE MENTIONED AND SHALL BE RETURNED AFTER COMPLETION. THIS DRAWING SHALL BE REFERED ONLY FOR THE PURPOSE MENTIONED IN ITS TITLE (FLOORING PATTERN, FALSE CEILING, SHUTTERING PATTERN, ELECTRICAL, PLUMBING, ETC.) DATE PROJ. CODE. DRG.NO. DRG.SET NO. DRAWN BY CHECKED BY THIS DOCUMENT IS THE PROPERTY OF SPAN ARCHITECTS AND SHALL NOT BE REFERED, REPRODUCED, COPIED, ETC, WITH OUT THE EXPLICIT PERMISSION IN WRITING FROM SPAN ARCHITECTS OF INDORE-INDIA. KEY PLAN:Description Date Rev. Appr'd SPAN ARCHITECTS 220, TELEPHONE NAGAR, INDORE, INDIA 452001 EMAIL ID : design@spanarchitects.in CONTACT NO. 0731 4247550 LEGENDS 25.02.22
T W SERVICE PASSAGE GARDEN EARTH RCC SLAB START TILE SUNK SUNK Q Q PLATFORM B P F BRICK WALL 10MM THK TILE 20MM THK PLASTER 20MM THK MORTAR LIGHT FIXTURE IN COPING 200MM THK BRICK WALL 20MM THK MORTAR 10MM THK TILE AS PER SELECTION LIGHT FIXTURE IN COPING 20MM THK GRANITE COPING OUTSIDE INSIDE 4 WHEELER PARKING AREA DRAWING ROOM VERANDAH ENTRY FOYER PASSAGE EARTH RAMP EARTH SLIDING PLANTER PLANTER SERVICE PASSAGE PEDESTRIAN ENTRY START TILE PROVISION FOR LIGHT FIXTURE IN WALL 20MM THK GRANITE COPING START TILE START TILE START TILE 10MM THK TILE AS PER SELECTION A A START TILE START TILE RCC SLAB STEPS IN RCC RCC SLAB VERANDAH GARDEN 20MM THK GRANITE COPING FABRICATION AS PER DETAIL PROVISION FOR LIGHT FIXTURE IN WALL START TILE START TILE RCC SLAB STEPS IN RCC VERANDAH GARDEN 20MM THK GRANITE COPING PARKING SUNK WATER BODY PROVISION FOR LIGHT FIXTURE IN WALL RCC SLAB PROJECT : RESIDENCE AT OSCAR, INDORE SHEET TITLE : ELEVATION TILING LAYOUT SHEET 6_ R1 ARPIT/ ANAND 03.03.22 ABDULLAH GRID 0000 MM X 0000 MM SCALE-1:750 O2013_A_RB O2013-AWD-476 001 NOTES :ALL DIMENSIONS ARE IN mm (MILLIMETER). DRAWING SHALL NOT BE SCALED AND ONLY WRITTEN DIMENSIONS SHALL BE FOLLOWED. IN CASE OF ANY DISCREPENCY FOUND IN DRAWINGS AND DETAILS, IT SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT, AND RECTIFIED, PRIOR TO ITS EXECUTION. THIS DRAWING IS ISSUED STRICTLY WITH AN UNDERSTANDING THAT IT WILL BE USED ONLY FOR THE PURPOSE MENTIONED AND SHALL BE RETURNED AFTER COMPLETION. THIS DRAWING SHALL BE REFERED ONLY FOR THE PURPOSE MENTIONED IN ITS TITLE (FLOORING PATTERN, FALSE CEILING, SHUTTERING PATTERN, ELECTRICAL, PLUMBING, ETC.) DATE PROJ. CODE. DRG.NO. DRG.SET NO. DRAWN BY CHECKED BY THIS DOCUMENT IS THE PROPERTY OF SPAN ARCHITECTS AND SHALL NOT BE REFERED, REPRODUCED, COPIED, ETC, WITH OUT THE EXPLICIT PERMISSION IN WRITING FROM SPAN ARCHITECTS OF INDORE-INDIA. KEY PLAN:SPAN ARCHITECTS 220, TELEPHONE NAGAR, INDORE, INDIA 452001 EMAIL ID : design@spanarchitects.in CONTACT NO. : 0751 4247550 Description Date Rev. Appr'd AS PER SITE APS REM. REMAINING TILE WALL TILE- 1200 X 1200 S.B. - SLAB BOTTOM, B.B. BEAM BOTTOM START TILE A SECTION 02 B DETAIL P D SECTION A GRANITE COPING LOCAL TILE C SECTION 05 E SECTION 06 F SECTION 08 R1 03.03.22 AS MENTIONED ARPIT
GREEN AREA 2450 X 5475 AREA17.40 SQ.MT. PARKING 4700 X 5000 ENTRANCE FOYER 1750 X 3050 SERVICE PASSAGE 4200 X 900 COURTYARD 3475 X 2800 GUEST ROOM 1 3300 X 3600 DRAWING ROOM 3900 X 4100 LIVING AREA 3800 X 6625 VERANDAH 1650 X 3250 PARENTS ROOM 4400 X 4700 POOJA 650 X 2275 STORE ROOM 1800 X 2275 WALK-INWARDROBE 2050 X 1850 TOILET 1850 X 2200 UTILITY AREA 1850 X 3375 DINING AREA 4875 X 3125 TOILET 1500 X 2375 UP PLANTER 4700 X 900 RAMP STAIRCASE 2625 X 1050 UP PLANTER 900 X 5475 POWD. TOILET 1500 X 1575 COURTYARD 3375 X 4400 KITCHEN 3650 X 4500 METER BOX SB-G02 SB-G03 SB-G04 SB-G06 SB-G17 SB-G18 SB-G21 SB-G10 SB-G11 SB-G15 SB-G12 SB-G13 SB-G24 SB-G34 SB-G35 SB-G38 SB-G39 SB-G44 SB-G43 DB VDP TV SB-G05 SB-G42 SB-G01 SB-G19 SB-G20 SB-G22 SB-G23 SB-G16 SB-G07 SB-G14 SB-G40 SB-G41 SB-G37 SB-G36 SB-G39-A SB-G26 SB-G31 SB-G25 SB-G27 SB-G29 SB-G30 SB-G32 SB-G26-A SB-G28 SB-G33 SB-G32-A Legends of electrical symbol BLACK CONCELED COB LIGHT WHITE CONCEALED COB LIGHT WATER PROOF COB LIGHT BLACK SURFACE COB LIGHT BLACK SURFACE COB CHANDELIER CEILING FAN ( 48" / 56" EXHAUST FAN WALL LIGHT SPIKE LIGHT FOOT LAMP LED AT CEILING LEVEL LED AT SKIRTING LEVEL CEILING FAN 24" ) HANGING LIGHT SWITCH BOARD WATER PROOF SURFACE COB LIGHT WHITE SURFACE COB PANEL LIGHT PROJECT : RESIDENCE AT PRAKRATI VIHAR 4, INDORE SHEET TITLE : GROUND FLOOR FALSE CEILING LAYOUT 15.12.21 AKSHAY GRID 0000 MM X 0000 MM O1925-A-RB O1925-AWD-501 001 SCHEDULE OF OPENINGS :- NOTES :ALL DIMENSIONS ARE IN mm (MILLIMETER). DRAWING SHALL NOT BE SCALED AND ONLY WRITTEN DIMENSIONS SHALL BE FOLLOWED. IN CASE OF ANY DISCREPENCY FOUND IN DRAWINGS AND DETAILS, IT SHALL BE BROUGHT TO THE NOTICE OF THE ARCHITECT, AND RECTIFIED, PRIOR TO ITS EXECUTION. THIS DRAWING IS ISSUED STRICTLY WITH AN UNDERSTANDING THAT IT WILL BE USED ONLY FOR THE PURPOSE MENTIONED AND SHALL BE RETURNED AFTER COMPLETION. THIS DRAWING SHALL BE REFERED ONLY FOR THE PURPOSE MENTIONED IN ITS TITLE (FLOORING PATTERN, FALSE CEILING, SHUTTERING PATTERN, ELECTRICAL, PLUMBING, ETC.) DATE PROJ. CODE. DRG.NO. DRG.SET NO. DRAWN BY CHECKED BY THIS DOCUMENT IS THE PROPERTY OF SPAN ARCHITECTS AND SHALL NOT BE REFERED, REPRODUCED, COPIED, ETC, WITH OUT THE EXPLICIT PERMISSION IN WRITING FROM SPAN ARCHITECTS OF INDORE-INDIA. KEY PLAN:DOOR Description Date Rev. Appr'd SIZE LINTEL CILL SPAN ARCHITECTS 220, TELEPHONE NAGAR, INDORE, INDIA - 452001 EMAIL ID : design@spanarchitects.in CONTACT NO. 0731 4247550 WINDOW SIZE LINTEL CILL GLAZING SIZE LINTEL CILL OPENING SIZE LINTEL CILL A GROUND FLOOR FALSE CEILING LAYOUT ANAND ARPIT R2 R1

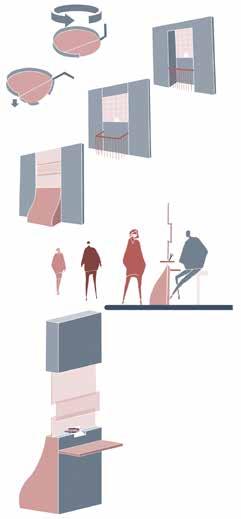

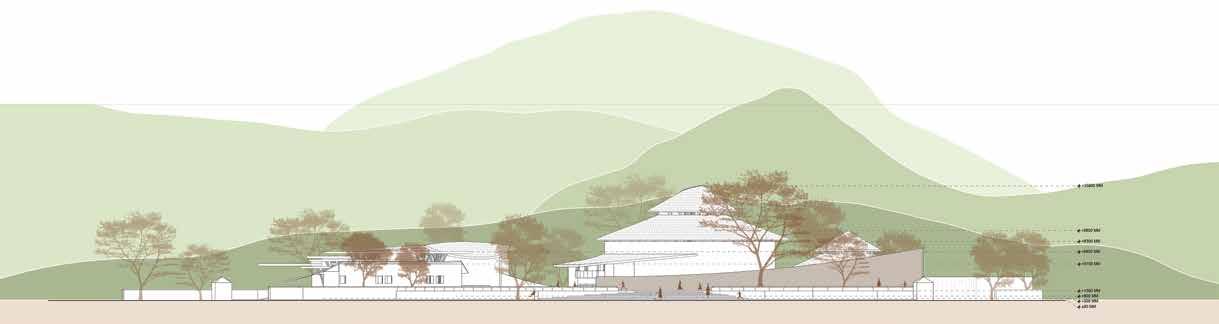

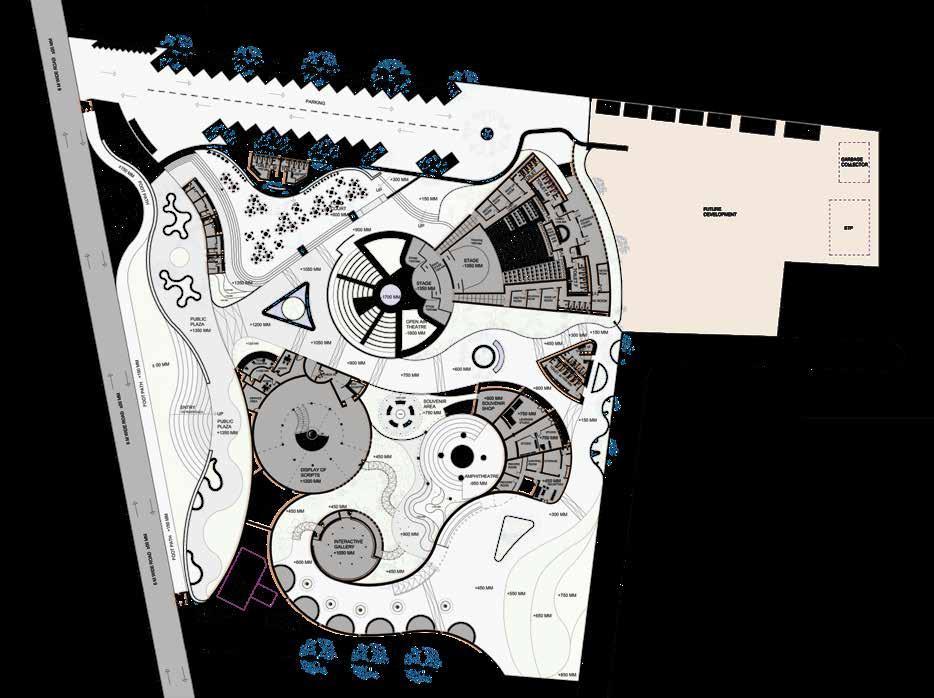

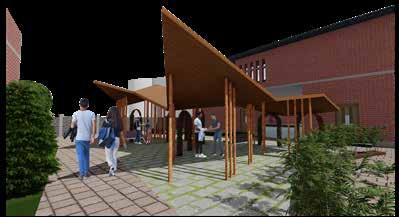

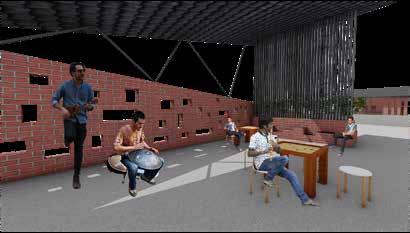

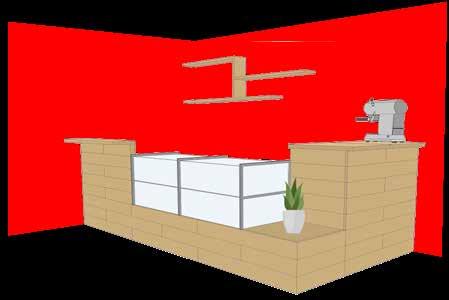

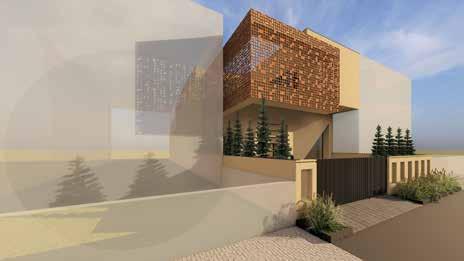

Renders

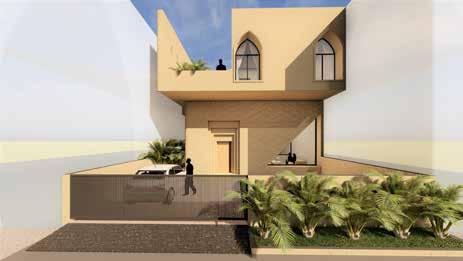

WORKING DRAWING: BUNGLOW
Guide : Ar.Sohan Sawant , Ar.Sheela Bhole
Brief was to design a bunglow/villa of 5 bedroom with ground+2 storey height with part/full terrace having formal and informal functions in it.
While designing the structure, enough amount of light and ventilation to be provided is taken care of. The material used is RCC.
The idea of ornamentation on the building is explored.

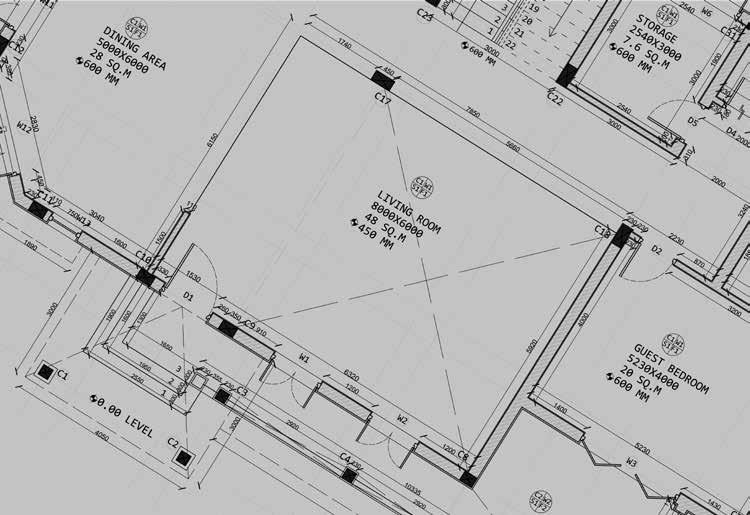

GROUND FLOOR PLAN
SECTION AA
GUEST BEDROOM 5230X4000 20 SQ.M 600 MM DINING AREA 5000X6000 28 SQ.M 600 MM KITCHEN 5000X4150 20 SQ.M 600 MM W.WARDROBE 3000X1850 5.5 SQ.M 600 MM TOILET 3000X2000 6 SQ.M 330 MM STORAGE 2540X3000 7.6 SQ.M 600 MM STAIRCASE 3000X4500 13.5 SQ.M 2250 MM POWDER ROOM 2000X3000 6 SQ.M 330 MM LIVING ROOM 8000X6000 48 SQ.M 450 MM TOILET 3000X2000 6 SQ.M 330 MM SERVANT 4400X5000 15 SQ.M 600 MM PARKING 3000X6000 18 SQ.M 00 MM 0.00 LEVEL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 D1 D2 D3 D4 D5 D6 D7 D8 W1 W2 W3 W4 W5 W6 W7 W8 W9 W10 W11 W12 W13 A B C D E F G H J K L M N O P 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 310 MM 310 MM 1200 1400 2150 3000 1100 1150 1020 230 2810 880 460 2000 1110 2000 230 380 450 230 750 1600 110 110 330 260 350 910 1200 1200 230 230 870 2100 1000 1250 1430 1400 1250 1000 2000 1050 1200 1000 2000 1020 230 3000 1020 230 3240 1020 230 310 3000 1110 230 1900 200 2540 3000 230 230 1500 3000 1500 300 EQ EQ EQ EQ EQ EQ EQ EQ EQ 2900 100350 1700 900 3110 340 1020 7850 6150 1740 450 5660 2000 C1 C2 C3 C4 C5 C6 C7 C8 C9 C10 C11 C12 C15 C16 C17 C18 C19 C20 C21 C22 C23 C24 C27 C28 C29 C30 C31 C32 230 600 MM 5000 4190 3000 2540 2000 2000 3000 3000 5230 2230 6320 1530 3040 2830 4400 2110 2920 2920 230 230 2920 230 355 230 1650 1900 1950 2550 300 300 300 10335 2390 8530 3300 1570 15790 3230 2460 2540 3460 5000 4860 21550 420 3460 D9 22 W1 C1 F1 S1 W1 C1 F1 S1 W1 C1 F1 S1 W3 C1 F1 S1 W1 C1 F1 S1 W1 C1 F1 S1 W1 C1 F1 S1 W4 C3 F3 S3 W4 C3 F3 S3 W4 C3 F3 S3 W2 C2 F2 S1 W1 C1 F1 S2 450 3200 230 450 1050 1050 1550 2860 450 1050 1380 450 450 1350 450 3390 1890 4050 3000 9650 0m 1m 3m 5m 0m 1m 3m 5m KID BEDROOM 5230X6000 25 SQ.M 3900 MM W.WARDROBE 2900X2850 8.3 SQ.M 3900 MM W.WARDROBE 3000X1850 5.5 SQ.M 3900 MM GRAND PARENT BEDROOM 5000X4000 20 SQ.M 3900 MM GYM 5000X4000 16 SQ.M 3900 MM GAME ROOM 4770X4350 17 SQ.M 3900 MM BALCONY 5000X2000 7 SQ.M 3850 MM TOILET 3000X2000 6 SQ.M 3650 MM TOILET 3000X2000 6 SQ.M 3650 MM STAIRCASE 3000X4500 13.5 SQ.M 2550 MM D1 D2 D3 D4 D5 D6 W1 W2 W3 W4 W5 W6 W7 3630 MM 3630 MM C7 C8 C9 C10 C12 C15 C16 C17 C18 C19 C20 C21 C22 C23 C24 C27 C28 C29 C30 C31 C32 3900 MM 2100 900 1000 750 1250 5960 1430 1400 1250 750 1000 1050 1200 1000 3000 5230 2000 2330 1960 2000 230 6830 230 1410 900 230230 3640 1130 3000 1110 460 1390 2000 4390 2770 230 230 1500 3000 1500 300 EQ EQ EQ EQ EQ EQ EQ EQ EQ 3000 2000 1100 1150 1020 750 230 1810 5660 400 230 5920 6060 1830 3000 2120 60 7960 2960 400 230 510 5000 2040 1400 1200 5000 3960 2960 2000 2850 130 2870 2850 3000 9650 2970 4050 1000 1600 4040 1760 2695 2385 90 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 D7 D8 22 W1 C1 F1 S1 W1 C1 F1 S1 W1 C1 F1 S1 W1 C1 F1 S1 W1 C1 F1 S1 W1 C1 F1 S1 W4 C3 F3 S3 W4 C3 F3 S3 W1 C1 F1 S2 W1 C1 F1 S1 W2 C2 F3 S3 2460 3230 2540 3460 5000 3460 2390 8530 960 3020 3015 1050 1550 2860 1050 2700 W8 W8 W8 W8 W8 W8 W8 W8 355 500 500 500 500 500 500 500 435 5770
FIRST FLOOR PLAN A A A N N 230x450 THK RCC BEAM 230x600 THK RCC BEAM 38 MM THK SAND SCREEDING 20 MM THK MARBLE 100 MM THK SILL 150 MM THK RCC ROOF 200X300X25 MM CLAY TILE 38X38X50 MM TW BATTEN 750 MM HT CEMENT BALUSTER 100 MM HT COPING 150 MM THK PCC 150 MM THK BBC 10 MM THK CHINA MOSAIC TILE 450 MM WIDE RCC CHAJJA 150 MM THK RCC OHT WATERTANK LID 450 MM HT CORBEL 200 MM THK LINTEL BOX WINDOW 100 MM TH MARBLE SKIRTING 120 MM HT MARBLE SKIRTING G.L -1.95M 0.0M 0.45M 0.6M 2.25M 5.55M 7.2M 8.85M 10.5M 12.9M 15.76M 3.9M SPLAYED FOOTING 150 MM THK PCC BED (1:3:6) O-12 J-12 F-15 C-15 B-13 O-12 J-12 F-15 C-15 B-13 1200 2200 750 150 600 600 3300 200 3300 300 70 300 200 850 1050 750 150 300 3160 300 6750 200 400 75 MM THK BBC PCC BED GROUND LEVEL PLINTH LEVEL PLINTH LEVEL MID LANDING FIRST FLOOR MID LANDING MID LANDING SECOND FLOOR TERRACE MUMTY LEVEL TERRACE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 4050 1890 1130 450 W1 C1 F1 S1 W1 C1 F1 S2 W1 C1 F1 S2 W1 C1 F1 S2 W1 C1 F1 S1 W1 C1 F1 S1 W1 C1 F1 S1 W2 F3 S3W7 W7 W7 D1 D1 W1 W8 450 750 100 1035 16.20M COPING 0m 1m 3m 5m
600 MM THK RCC BEAM COVERED WITH 20 MM EXTERNAL PLASTER AND 2 COAT IMPRESSION BY ASIANPAINTS CONVENTRY GREY
G.L 0.0M 0.6M 3.9M 7.2M 10.5M 8.5M 11.8M 15.76M 16.09M 2.8M
WHITE
2400X2100
FRENCH
ALUMINIUM
THK
200X300X20
THK CLAY TILE HOOKED
TIMBER BATTEN
COAT
PLASTER 2
COLOR GROUND LEVEL CAR SHED ROOF FIRST FLOOR SECOND FLOOR TERRACE LEVEL MUMTY LEVEL OHT 0.0M 2M 0.0M 6.15M 0.0M 2M 2M 6.15M 2M 6.15M 9.9M 0m 1m 3m 5m EAST ELEVATION 800 200 250 550 150 MM THK PCC SLAB 150 MM THK LIGHT WEIGHT BLOCKS 38 DIA WASTE PIPE 38 DIA DOMESTIC WATER SUPPLY BOTTLE TRAP 20 MM THK MARBLE 38 MM THK SAND SCREEDING 20 MM THK FLOOR MARBLE 30 MM THK WHITE CARARRA MARBLE 18 MM THK KADAPPA-one side polished SECTION EE' SCALE 1:10 0m 0.3m 0.6m SINK DETAIL 600 MM THK RCC BEAM 150 MM THK PCC BED 150 MM THK BBC 38 MM THK MORTAR PRECAST BALUSTER PRECAST RAILING TILE ADHESIVE DETAIL A SCALE 1:10 0m 0.3m 0.6m BALUSTER DETAIL 18X18X75 MM HOLE FILLED WITH CEMENT MORTAR 1:4 230 MM THK BRICK WALL 18X18X50 MM DEEP HOLE FILLED WITH CEMENT MORTAR 1:4 450 MM HT PRECAST CORBEL 15X15X1.5 MM ALUMINIUM SQUARE HOLLOW TUBE DETAIL D SCALE 1:10 0m 0.3m CORBEL DETAIL 600 MM THK PLINTH BEAM 150 MM THK PCC SLAB 150 MM THK BBC 120 MM HT SOFIA BIEGE MARBLE SKIRTING 38 MM THK TW PANEL 38X100 MM THK TW RAIL 75X100 MM TW DOOR FRAME SOFIA BIEGE MARBLE FLOORING 300X300 TERACOTTA FLOOR TILE DETAIL A SCALE 1:10 0m 0.3m 0.6m
CREAM COLOR COATED PRECAST BALUSTER WOODEN RAIL
CEMENT PATTI AROUND BALCONY DOOR
MM BI FOLD
DOOR WITH WHITE OAK FINISH 2400X1500 MM CASEMENT FRENCH WINDOW WITH WHITE OAK FINISH 100x250x150 MM PLASTER CORBEL 120x450x200 MM PLASTER CORBEL COATED WITH CREAM COLOR
SLIDING WINDOW OF 3SHUTTER WITH 5 MM
GLASS
MM
BY
LADDER OHT COVERED WITH 2
OF
COAT OF
DOOR FIXING DETAIL

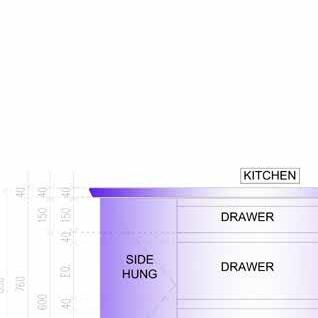

W8 2000 750 600 600 600 600 600 600 600 MM DEPTH 30 MM THK CARARRA MARBLE 250 450 350 250 1830 1840 620 650 1040 5000 2450 600 MM DEPTH 30 MM THK CARARRA MARBLE 20 MM THK INT.PLASTER 30 MM THK WALL MOUNTED SHELVE 25 MM THK EXT.PLASTER PLAN @1200 MM SCALE1:25 0m 0.5m 1m 3m KITCHEN PLAN @1200 150 MM THK PCC SLAB 38 MM THK SCREEDING 450 MM THK RCC BEAM 30 MM THK CARARRA MARBLE 18 MM THK KADAPPA -ONE SIDE SMOOTH 500 MM HT UPPER CABINETS 230 MM THK BRICK WALL 20 MM THK MARBLE 20 MM THK WALL MOUNTED MARBLE SHELVE OVEN 800 205 1025 110 565 535 3300 5000 300 300 300 370 390 195 175 615 0m 0.5m 1m 3m SECTION AA A A 230 MM THK BRICK WALL 12 MM THK INTERNAL BACKING 20 MM THK CEMENT MORTAR 10 MM THK TILE 18 MM THK KADAPPA 18 MM MORTAR 75 50 DETAIL D 40 50 230 MM THK BRICK WALL 12 MM THK INTERNAL BACKING 20 MM THK CEMENT MORTAR PLYWOOD PACKING PIECE STEEL SECTION 18 MM THK KADAPPA 10 MM THK TILE DETAIL B ARALDITE ADDHESIVE 70 50 230 MM THK BRICK WALL 12 MM THK INTERNAL BACKING 20 MM THK CEMENT MORTAR 18 MM THK KADAPPA 10 MM THK TILE ARALDITE ADDHESIVE DETAIL C DETAIL A DETAIL B DETAIL C
1:25 LAMP CORNICE 20 MM THK CEMENT PATTI R6.25MM
EPOXY COPING 25 MM THK CEMENT ORNAMENTATION 200X100X60 MM PAVER BLOCK 300X300 MM PRE CAST STORMWATER DRAIN R40 200MM THK RCC FOUNDATION 150 MM THK PCC 75 MM THK DPC 1:3:6 150X300X450 PRECAST KERB 400 75 300 300 R40 COMPOUND WALL SECTION 0m 0.5m 1m
SECTION DD' SCALE
MS GRILL GATE WITH FINISH
