FURNITURE CISTERN
• Easi-Plan is an ultra flexible range of concealed sanitaryware installation frames that allow the bathroom designer to design with flair and imagination with no need to compromise on installation quality.
• The hidden frames cover all aspects of sanitaryware and brassware installation including WCs, basins and bidets. They create a pre-wall fixing system eliminating the need for unsightly pipe boxing and exposed pipes.
• Easi-Plan has been designed specifically for the UK market and its innovative design and installation features make this the future of bathroom design.

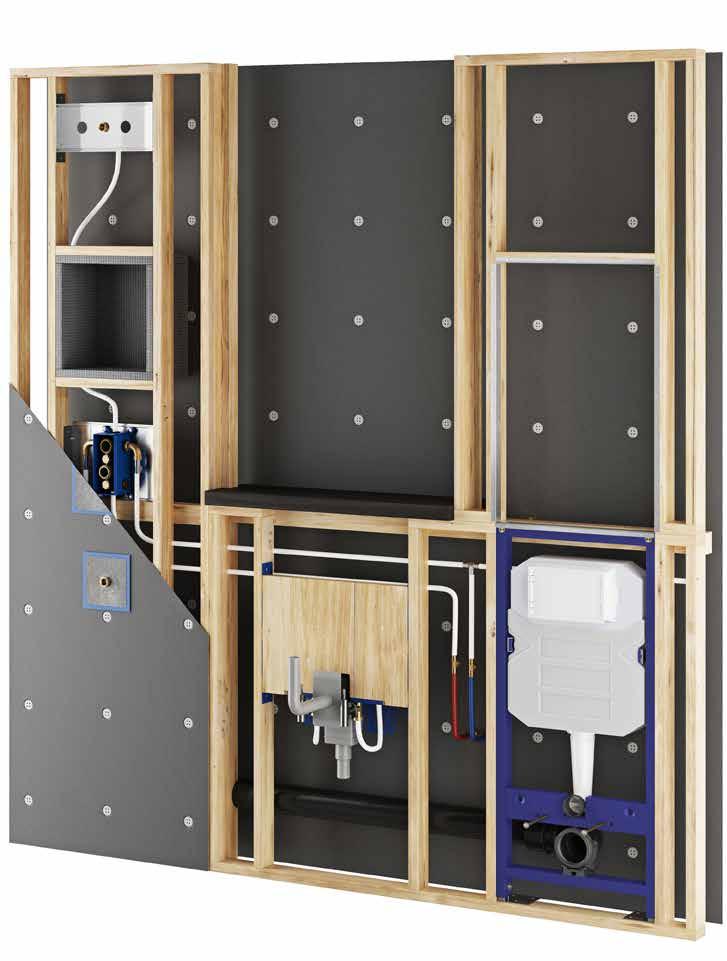

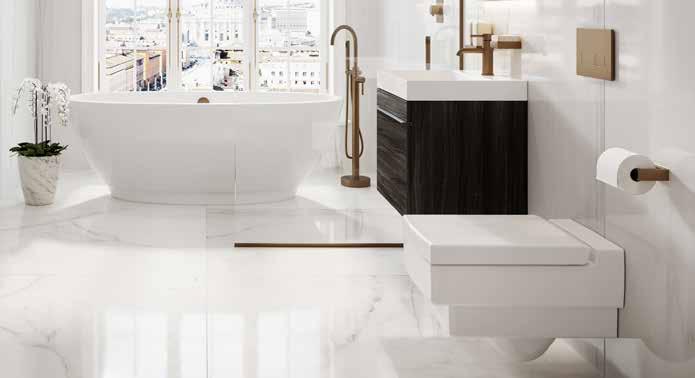

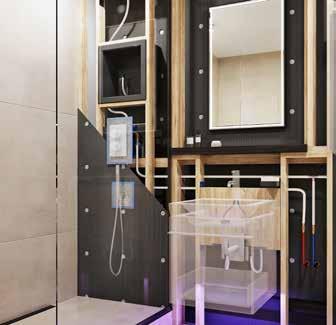

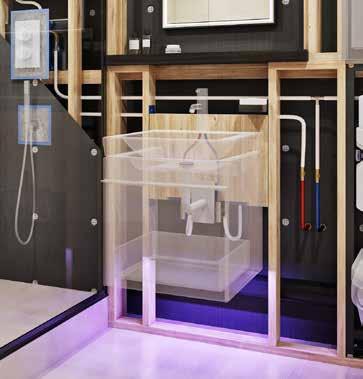

The key to any stylish bathroom is in the planning. With Easi-Plan any bathroom structure is possible and space can be used more efficiently. Some examples of innovative use of pre-wall design are shown opposite.
The Easi-Plan range is not just restricted to sanitaryware fixing frames. Using the voids created by the Easi-Plan frame offers the option of having stylish recessed natural timber cabinets to make maximum use of space within the bathroom. These offer vital storage space, an area often overlooked in bathrooms, whilst giving the room the ultimate designer look.
Frames supplied complete with extension bolt set and quick fix nuts
Easy install wall brackets for vertical or horizontal fixing
A P PROVED P RODUCT
WRAS approved dual flush cistern adjustable from 6/3 litre to 4.5/3 litre
0-280mm adjustable legs with rubber sound deadening pads. Large feet for easy rear fixing (specially designed for UK timber floors)
Wall bracket and top of frame designed for easy shelf installation
Frame fully tested to support 400kg in weight
All cisterns supplied with easy use water isolation valve
Straight and angled adaptors included
LOW HEIGHT PAN FIXING FRAME
Key Features:
• Wall-hung support frame only
• Requires separate concealed cistern
• Supplied with full pre-wall installation bolt kit
EPWC-20-0005
£215.00
Additional Suggested Items - visit www.abacus-bathrooms.co.uk
Extension Bolt Set
Key Features:
• For extending the distance between the frame and wall mount brackets if installed in deep recesses
EPAC-15-0005 17.50

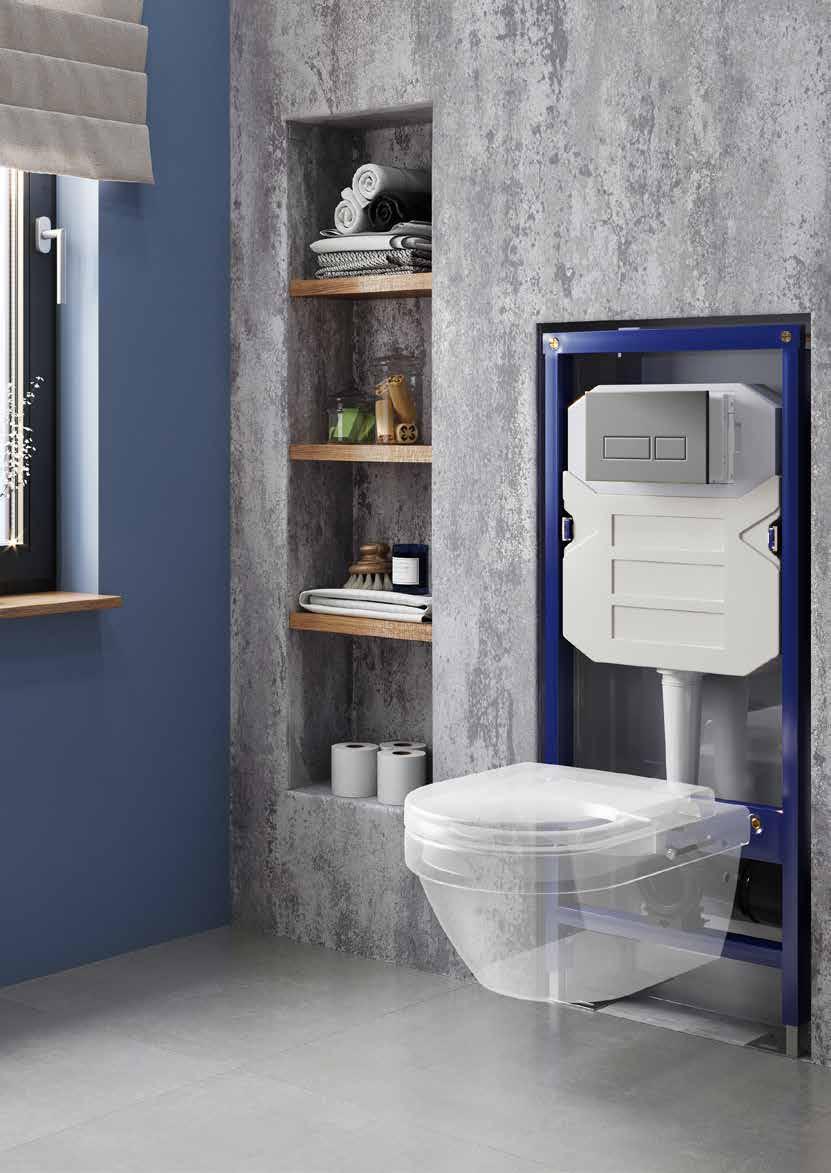

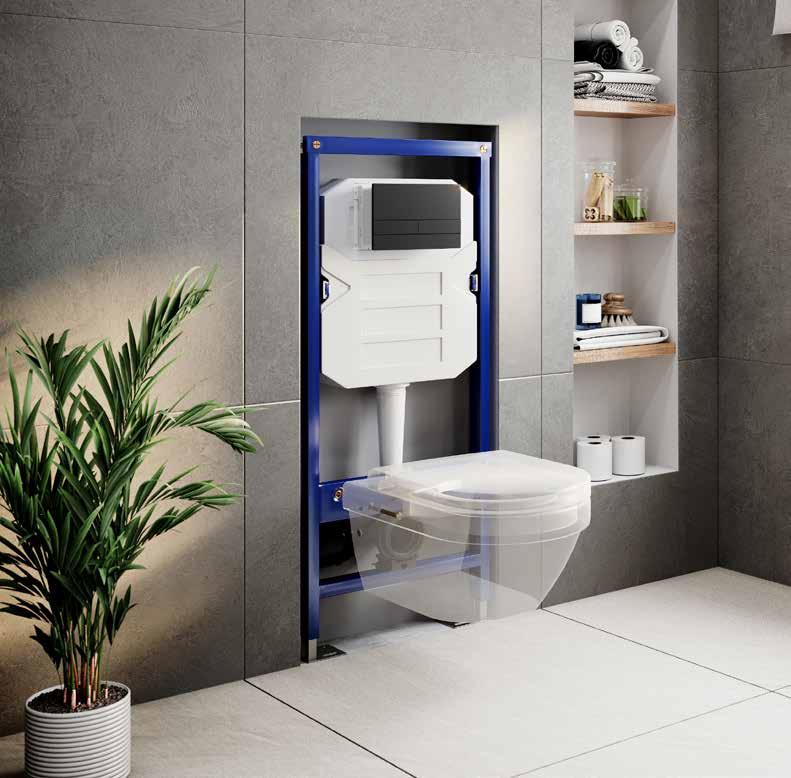

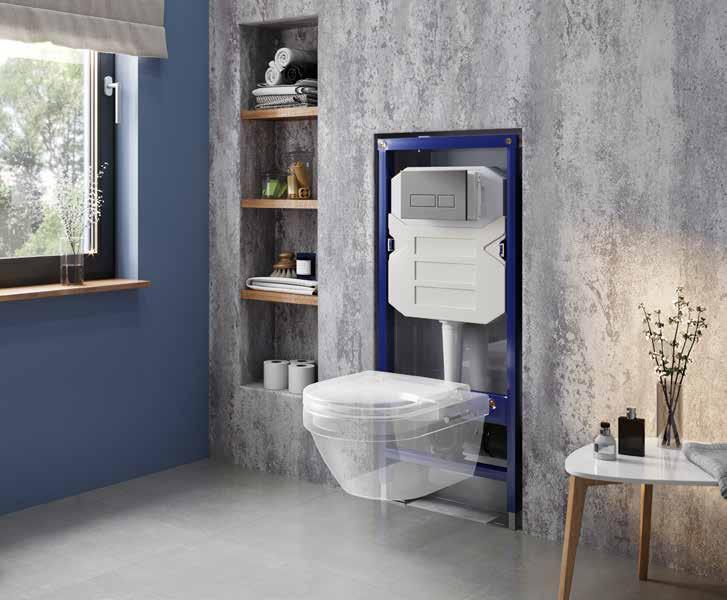

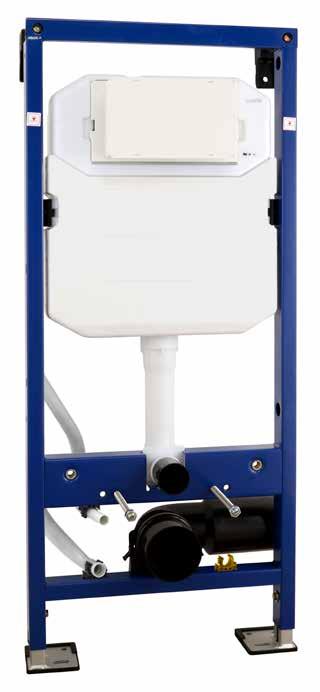

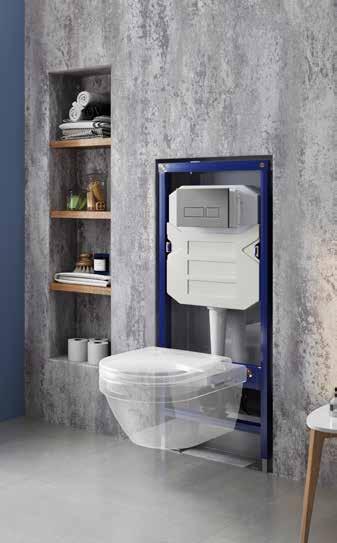

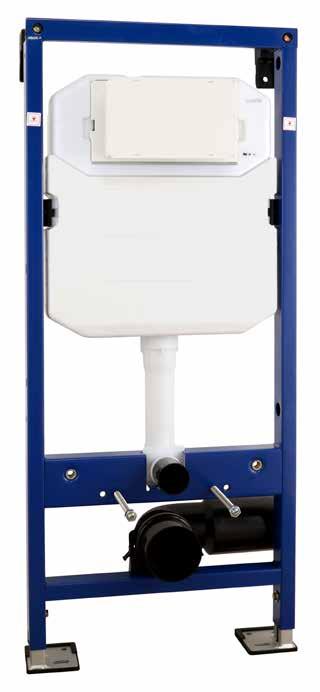

0.82m WALL-MOUNTED WC FRAME
Key Features:
• 820mm WC frame with dual flush cistern
• Top or front access
• Suitable for all press panels
• Supplied with full pre-wall installation kit (standard and extended wall mount bolts included)
• The siphon can be modified to provide a full flush of either 6L/3L (standard) or 4.5L/3L
• Supplied with both straight and angled soil pipe
EPWC-05-1005
£389.00
0.98m WALL-MOUNTED WC FRAME
Key Features:
• 980mm WC frame with dual flush cistern
• Top or front access
• Suitable for all press panels
• Supplied with full pre-wall installation kit (standard and extended wall mount bolts included)
• The siphon can be modified to provide a full flush of either 6L/3L (standard) or 4.5L/3L
• Supplied with both straight and angled soil pipe
EPWC-05-1505
£389.00
1.18m WALL-MOUNTED WC FRAME
Key Features:
• 1180mm WC frame with dual flush cistern
• Front access only
• Suitable for all press panels
• Supplied with full pre-wall installation kit (standard and extended wall mount bolts included)
• The siphon can be modified to provide a full flush of either 6L/3L
• Supplied with both straight and angled soil pipe
EPWC-05-2005
£389.00
9cm frame depth
WRAS approved dual flush cistern
0-120mm adjustable feet

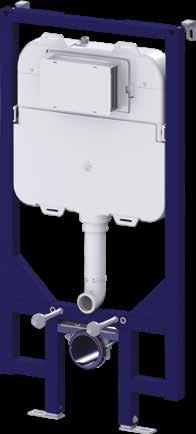

9cm SLIMLINE WC FRAME
Key Features:
• 80mm depth cistern
• Front access only
• Supplied with both straight and angled soil pipe
• Suitable for all press panels
• Supplied with full pre-wall installation bolt kit adjustable from 90mm - 110mm depth
• The siphon can be modified to provide a full flush of either 6L / 3L (standard) or 4.5L / 3L
EPWC-30-2005
£399.00
FRAME TILEABLE BOX
Key Features:
• Tiles, frame, press panel and WC not included.
EPAC-25-0005
£235.00
Wall bracket and top of frame designed for easy shelf installation
A large selection of designer press panels
Frame fully tested to support 400kg in weight
Frames supplied complete with extension bolt set and quick fix nuts
Easy install wall brackets for vertical or horizontal fixing
Wall bracket and top of frame designed for easy shelf installation
All cisterns supplied with easy use water isolation valve
A P PROVED P RODUCT
WRAS approved dual flush cistern adjustable from 6/3 litre to 4.5/3 litre

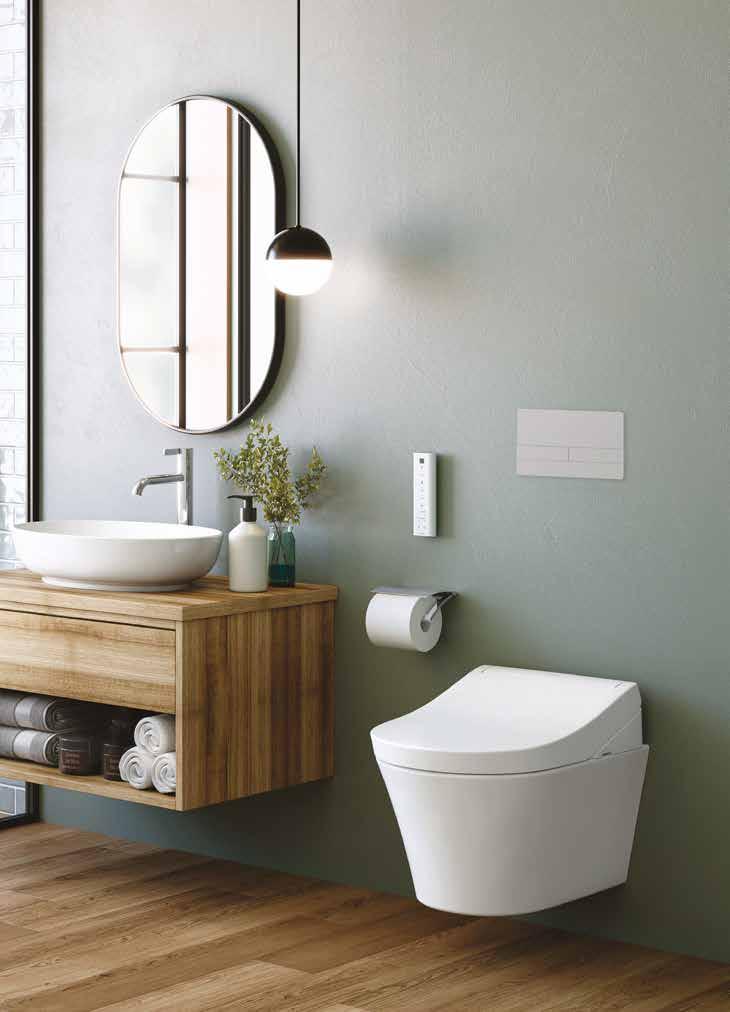

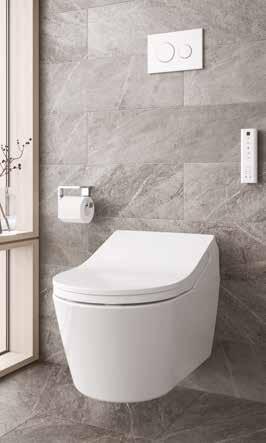

Shower Toilet frame extra features:
• Conduit for easy connection of water supply
• Pre-installed clip
Pre-installed clip for electrical supply
A large selection of designer press panels available Edge
Frame fully tested to support 400kg in weight
Straight and angled adaptors included
0-280mm adjustable legs with rubber sound deadening pads. Large feet for easy rear fixing (specially designed for UK timber floors)
Key Features:
• 180mm WC frame with dual flush cistern
• Front access only
• Suitable for all press panels
• Supplied with full pre-wall installation kit (standard and extended wall mount bolts included)
• Extra features for shower toilets;
• Conduit for easy connection of water supply pre-installed clip for electrical supply
• The siphon can be modified to provide a full flush of either 6L/3L
• Supplied with both straight and angled soil pipe
EPWC-05-2205
£498.00
Connection set Includes:
• Metal hose – 1400mm
• Y- Connector
• Stop-Valve 3/8”
EPAC-35-0005
£177.60
CONCEALED CISTERN WITH MECHANICAL DUAL FLUSH AND CHROME BUTTON
Key Features:
• Concealed cistern with mechanical dual flush and chrome button
EPWC-25-0005
£79.00
0.82m EASI-PLAN DUAL FLUSH CISTERN ONLY
Key Features:
• 820mm concealed dual flush cistern
• Suitable for all press panels
• Top or front access
• The siphon can be modified to provide a full flush of either 6L / 3L (standard) or 4.5L / 3L
• Supplied as cistern only with mounting brackets. Does not include soil pipe.
EPWC-25-1005
£169.00
0.98m EASI-PLAN DUAL FLUSH CISTERN ONLY
Key Features:
• 980mm concealed dual flush cistern
• Suitable for all press panels
• Top or front access
• The siphon can be modified to provide a full flush of either 6L / 3L (standard) or 4.5L / 3L
• Supplied as cistern only with mounting brackets. Does not include soil pipe.
EPWC-25-1505
£169.00
1.18m EASI-PLAN DUAL FLUSH CISTERN ONLY
Key Features:
• 1180mm concealed dual flush cistern
• Suitable for all press panels
• Front access only
• The siphon can be modified to provide a full flush of either 6L / 3L (standard) or 4.5L / 3L
• Supplied as cistern only with mounting brackets. Does not include soil pipe.
EPWC-25-2005
£169.00
TREND 2S BRUSHED
Key Features:
• Iso 2S press panels are suitable for all WC frames and 820, 980, 1180 Cisterns
Key Features:
• Edge press panels are suitable for all WC frames and 820, 980, 1180 Cisterns
DESCRIPTION PRODUCT CODE PRICE

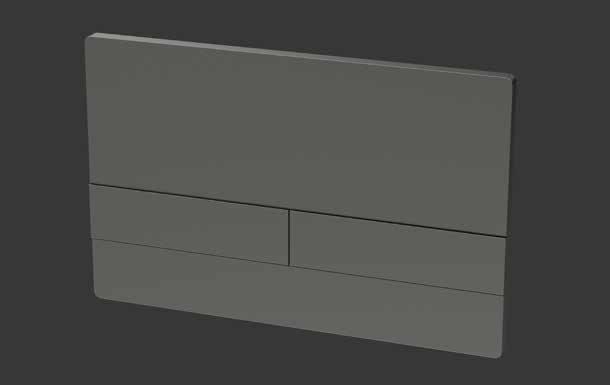

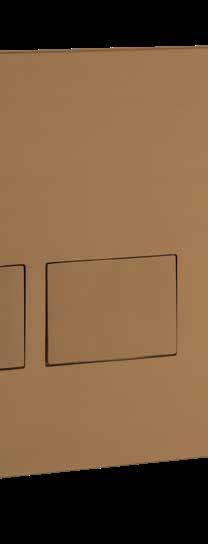

EDGE FLUSH PLATE CHROME
EDGE FLUSH PLATE SATIN
EDGE FLUSH PLATE WHITE
EDGE FLUSH PLATE BLACK

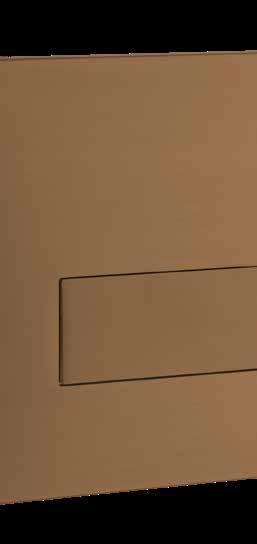

EDGE FLUSH PLATE BRONZE
EDGE FLUSH PLATE MATT ANTHRACITE
EDGE FLUSH PLATE BRASS
Key Features:
EPPR-48-05CP £69.00
EPPR-48-05SA £69.00
EPPR-48-05WH £69.00
EPPR-48-05BK £69.00
EPPR-48-05MB £139.00
EPPR-48-05AN £79.00
EPPR-48-05BR £139.00
K5230
• Trend 2 press panels are suitable for all WC frames and 820, 980, 1180 Cisterns
TREND 2 PRESS PANEL - CHROME
TREND 2 PRESS PANEL - SATIN
TREND 2 PRESS PANEL - BLACK
TREND 2 PRESS PANEL - WHITE
Key Features:
• Iso 2 press panels are suitable for all WC frames and 820, 980, 1180 Cisterns
EPPR-30-05CP £65.00
EPPR-30-05SA £65.00
EPPR-30-05BK £65.00
EPPR-30-05WH £49.00
ISO 2 PRESS PANEL - SATIN
ISO 2 PRESS PANEL - BLACK
ISO 2 PRESS PANEL - WHITE
EPPR-35-05SA £65.00
EPPR-35-05BK £65.00
EPPR-35-05WH £49.00
Key Features:
• Zone press panels are suitable for all WC frames and 820, 980, 1180 Cisterns

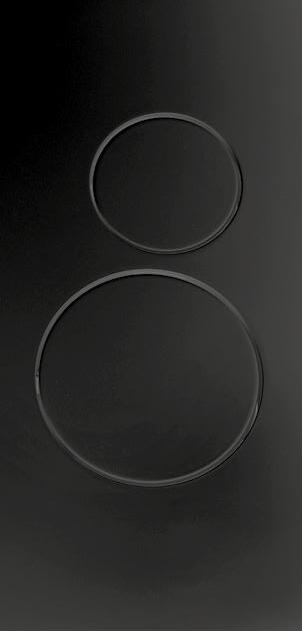

• Zone press panels have been designed with surface indentations making them accessible for individuals with visual impairments
DESCRIPTION
ZONE PRESS PANEL - CHROME EPPR-10-05CP £40.00
Key Features:
• Mode press panels are suitable for all WC frames and 820, 980, 1180 Cisterns
MODE PRESS PANEL - CHROME EPPR-15-05CP £40.00
MODE PRESS PANEL - SATIN CHROME
MODE PRESS PANEL - WHITE
Key Features:
• Gliss auto press panels are suitable for all 1180mm Cisterns and WC frames
• Mains operated
• Touchless full or half flush control
EPPR-60-05BK
£699.00

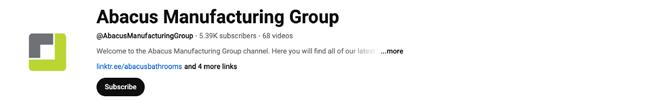

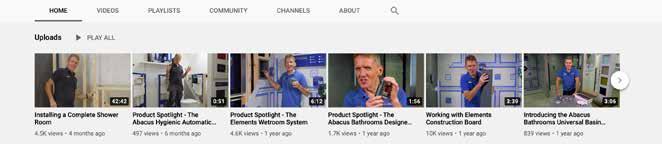

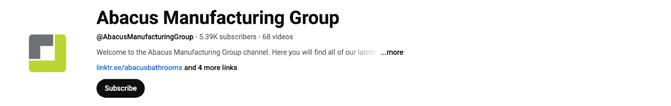

For more information and installation videos check out our YouTube channel or visit www.abacus-bathrooms.co.uk

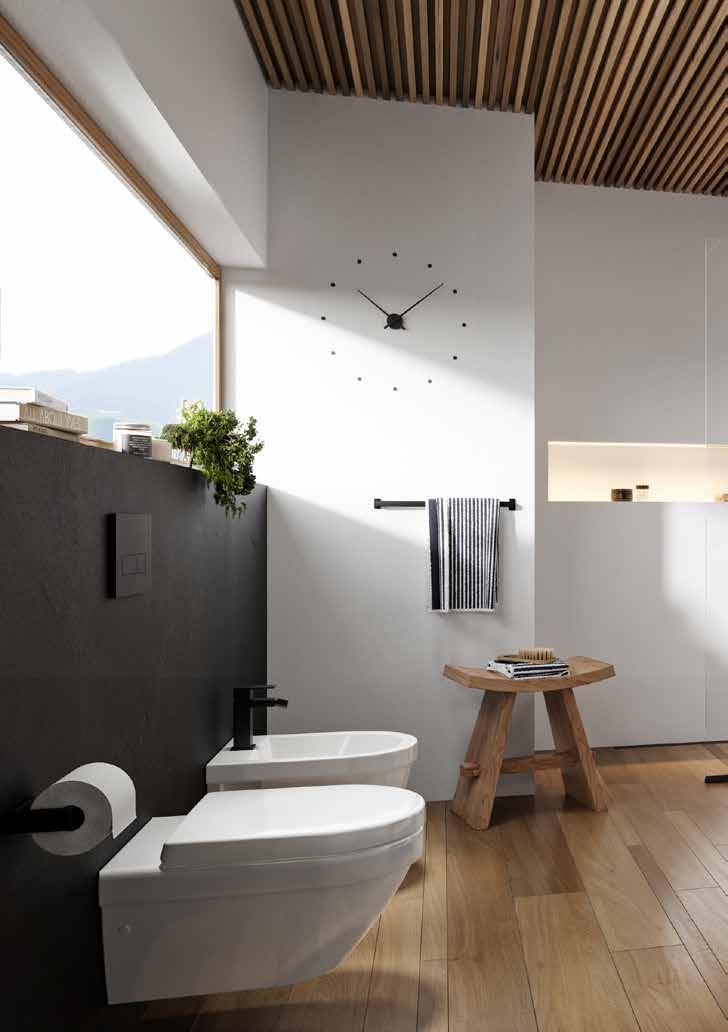

0.82m WALL-MOUNTED BIDET FRAME
Key Features:
• 820mm Bidet Frame
• Supplied with full pre-wall installation bolt kit adjustable depth from 120mm - 265mm
EPBI-05-1005
£289.00
0.98m WALL-MOUNTED BIDET FRAME
Key Features:
• 980mm Bidet Frame
• Supplied with full pre-wall installation bolt kit adjustable depth from 120mm - 265mm
EPBI-05-1505
£289.00
1.18m WALL-MOUNTED BIDET FRAME
Key Features:
• 1180mm Bidet Frame
• Supplied with full pre-wall installation bolt kit adjustable depth from 120mm - 265mm
EPBI-05-2005
£289.00
Basin fixing bolts included
Supplied with chrome isolation valve for all common tap connections
Plugs supplied for pressure testing pre-installation
Straight waste pipe allows maximum drawer space (available in white or chrome finish)
Trap & housing easily adjustable for wall furniture
Adjustable odour trap, easily removable for cleaning
Supplied with either chrome or white pipe and cover plate
ply
Basin fixing bolts included
Supplied with chrome isolation valve for all common tap connections
Traps supplied separately

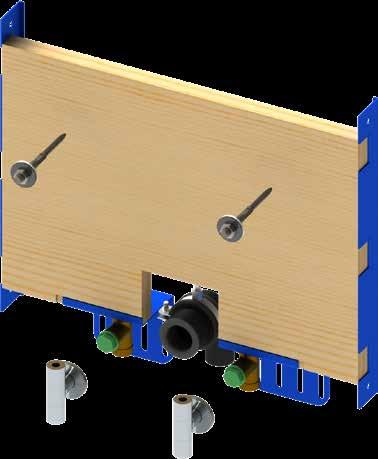

Marine ply board with basin fixing bolts
Plugs supplied for pressure testing pre-installation
Accessible chrome isolation valve
£189.00
£199.00

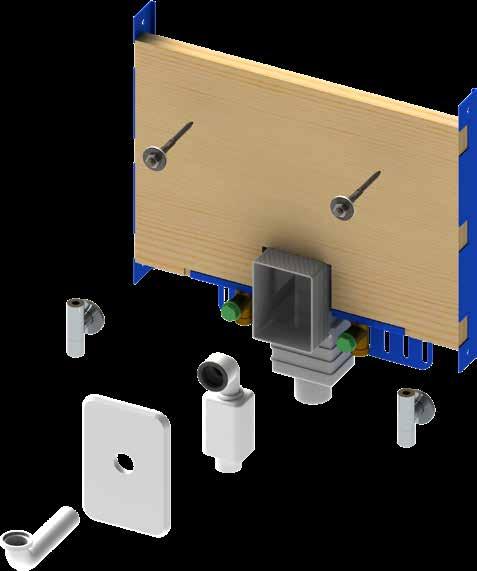

Key Features:
• Chrome or White trap cover and waste pipe
• Maximises storage space with no space wasting P-traps
• Neat and tidy plumbing
• Supplied with two chrome isolation valves for all common tap connections
• Trap and housing easily adjustable for all wall furniture
• Marine ply board allows secure basin fitting with bolts included
• Supplied with secure fixing points for furniture brackets
Key Features:
• Neat and tidy plumbing
• Supplied with two chrome isolation valves for all common tap connections
• Marine ply board allows secure basin fitting with bolts included
• Supplied with secure fixing points for furniture brackets
0.82m/ 0.98m WALL-MOUNTED BASIN FRAME
Key Features:
• Easi-Plan basin frame 820 - 980mm height
• Can be height adjusted from 820mm to 980mm by extending the feet and adjusting fixing and connection points
• Supplied with full pre-wall installation bolt kit adjustable depth from 120mm - 265mm
EPBA-05-0005 £229.00
1.18m WALL-MOUNTED BASIN FRAME
Key Features:
• Easi-Plan basin frame 1180mm height
• Supplied with full pre-wall installation bolt kit adjustable depth from 120mm - 265mm
EPBA-05-2005 £229.00
for use with:

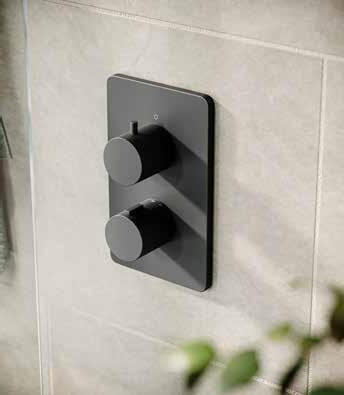

• recessed shower valves
• thermostatic bar valves
• shower heads
• bath spouts
• water outlets
Perfect for creating the ultimate build quality for your bathroom.
1/2” SINGLE FITTING PLATE
Key Features:
• Fixed shower heads
• Shower wall outlets
• Body jets
EPFP-05-0505
£29.40
1/2” DOUBLE FITTING PLATE
Key Features:
• Wall-mounted bath taps
• Surface bar type shower valves
EPFP-05-1005
£36.00
3/4” RECESSED FITTING PLATE
Key Features:
• Wall-mounted bath spouts
EPFP-05-1505
£33.00
Key Features:
• Concealed shower valves
EPFP-05-2005
£36.00
Key Features:

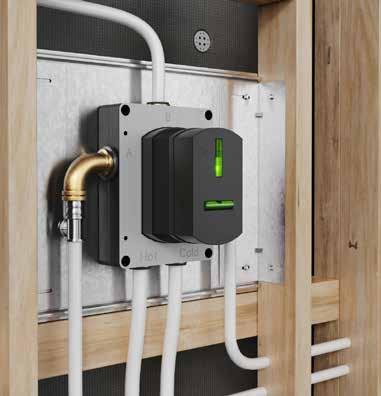

Compatible with the following in-wall shower valve boxes and many more: EZ2 Box*, Swissbox, iBox • Unit dimensions 337 (w) x 230(h) x 64 (d)mm
Adjustable between 340 and 400mm uprights
EPFP-05-3005
£39.00
Universal Super Slim Fitting Plate is compatible with:
Key Features:

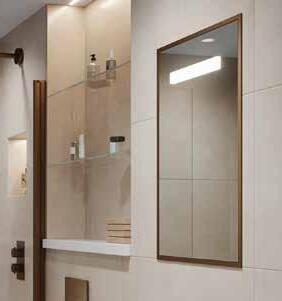

Suitable for Trio Cabinets
Recommended for easy installation of Trio Recessed Cabinet
Steel installation frame provides tile guide
• Unit dimensions 498 (w) x 761 (h) mm
EPCA-05-1505
£69.00
FIND THE SPARE PARTS YOU NEED ON OUR WEBSITE
Can’t find the part you need? Please check our website for a vast selection of spare parts.
Visit our spares page on our website to explore a vast selection of high-quality replacement parts to ensure your system runs smoothly and efficiently. Whether you’re looking for valves, hoses, connection sets, or other essential components, we’ve got you covered. www.abacus-bathrooms.co.uk

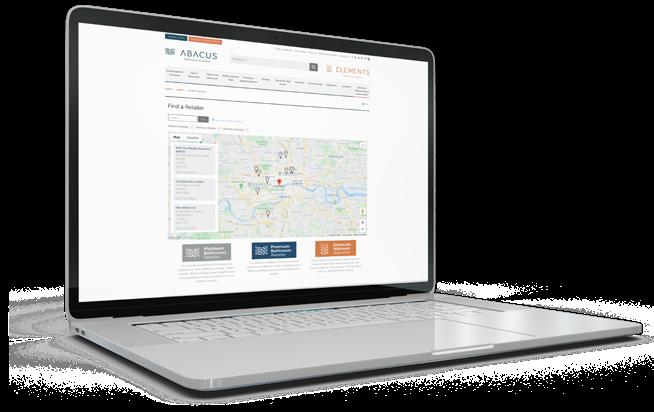

Visit our website www.abacus-bathrooms.co.uk and go to the store locator tab. Find our retailers by inputting your postcode. To make things easy for you we have divided these into 3 categories:
You can be assured of a first-class user experience with a platinum retailer. Expect multiple Abacus display areas together with trained bathroom experts proficient in our product ranges.
Our premium retailers offer an enhanced showroom experience with a varied range of Abacus display areas and trained bathroom experts.
These retailers have been installer trained in Elements Wet Room technology and have proven expertise. Get up close to the products with our ‘Behind the tiles’ display.
Find out more about Abacus Bathrooms Products via www.abacus-bathrooms.co.uk
Bathroom Concepts.
Developed alongside some of the world’s most prestigious bathroom brands, our comprehensive product range offers stunning contemporary designs, twinned with market-leading guarantees, which will suit all bathroom needs.
Our approach to completing a bathroom through both product and design innovations makes us one of the only companies to supply every product required in a bathroom from conception to completion.
Elements Wetrooms.
Our design-led approach manufacturing means that our Abacus Elements Wetroom products combine the ultimate strength with the utmost peace of mind.

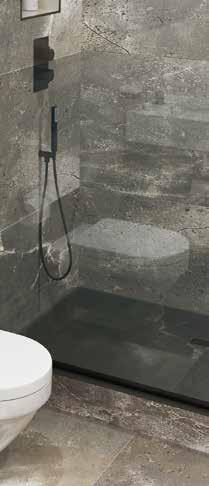

Elements range offers the most comprehensive range of wetroom and waterproofing products currently available. Comprising a large collection of wetroom trays with multiple choices of size and drain styles,
Elements also offers the complete solution from waterproofing bathroom walls and floors to wellness products and steam rooms, all backed with a 15-year guarantee.
An extended range of towel warmers and radiators which will enhance the appearance of any room. Available in various finishes including Stainless Steel along with Matt White, Matt Black, Terra Matt and Anthracite.
Abacus Towel Warmers come in a variety of shapes and sizes offering something for everyone.
Colour Your Bathroom.

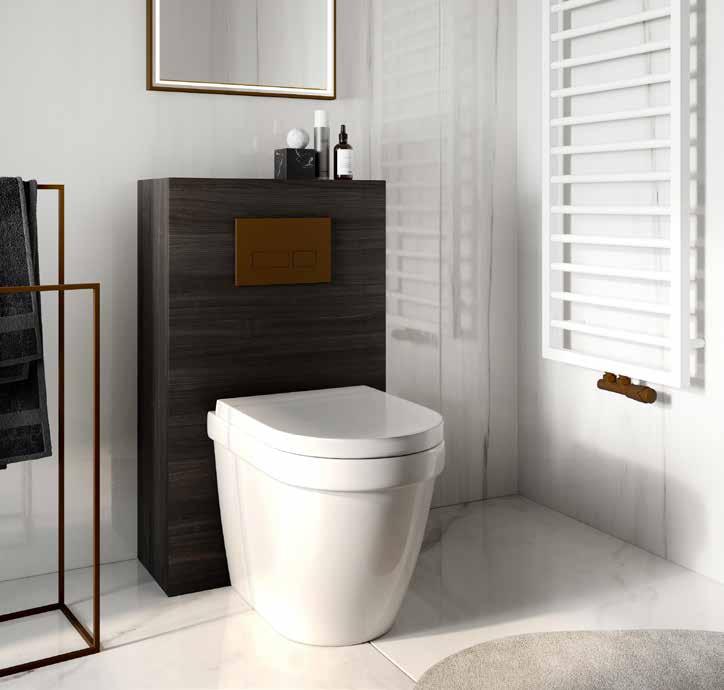

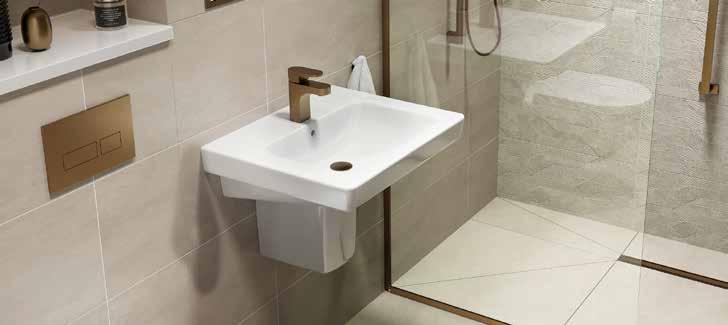

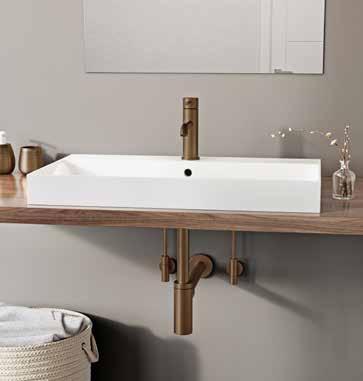

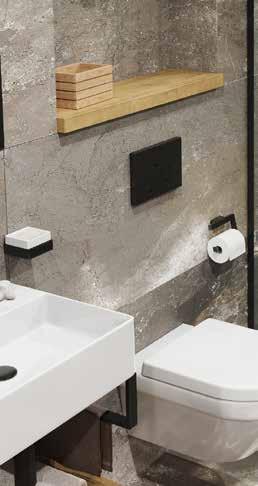

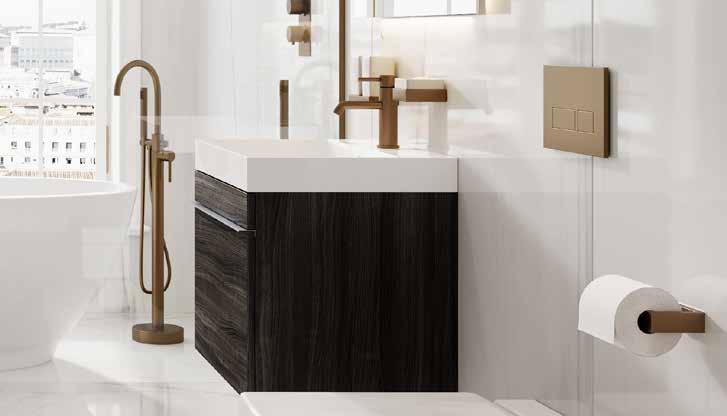

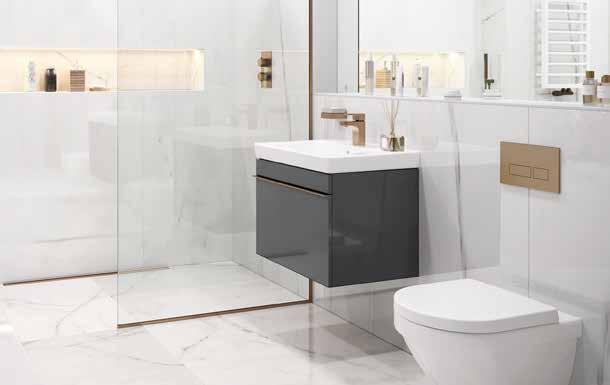

Make a contemporary designer statement in your bathroom with matching coloured brassware and accessories throughout. Bold, confident and chic styling makes for an ultra-coordinated look for the modern bathroom.
Available in matt black, brushed bronze, brushed nickel and chrome.
Perfectly colour matched components across all of the Ki, Plan and Iso ranges, including accessories and wetroom components.
The prices displayed throughout this catalogue supersede all other previous publicised price lists. All prices include VAT and are subject to change without prior notice.
Abacus products are manufactured to exacting standards and following the care and cleaning guidelines below will ensure that your bathroom will give you years of effective use.

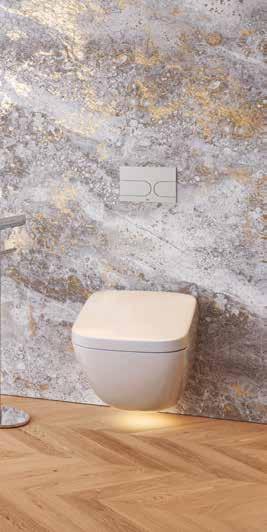

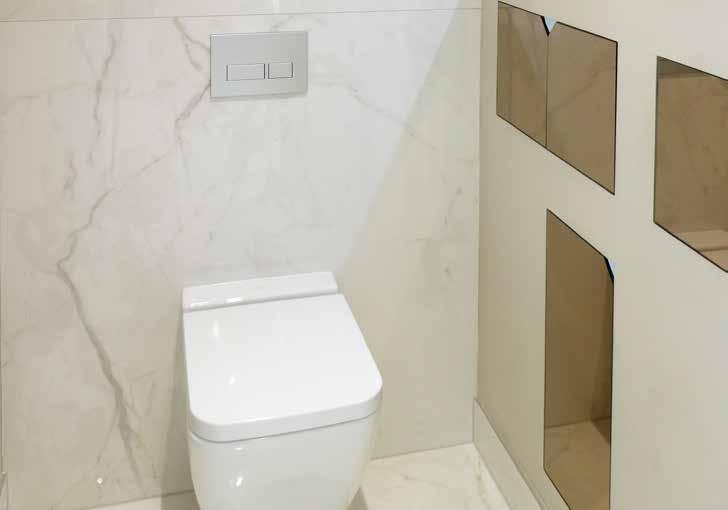

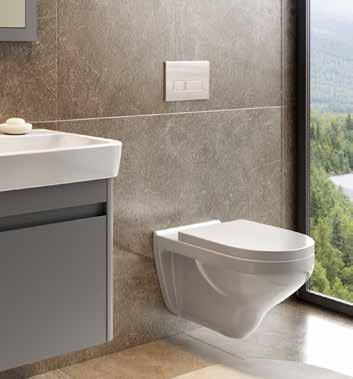

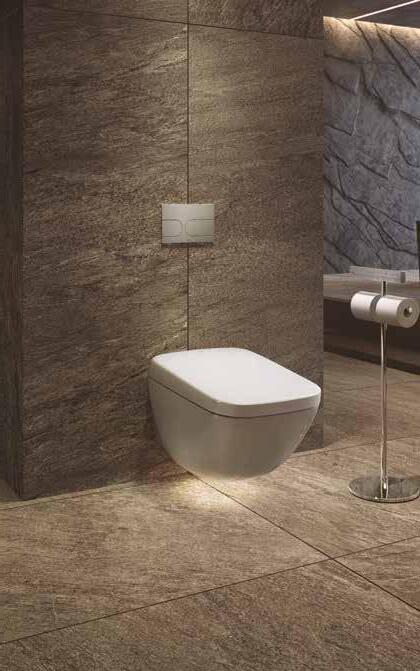

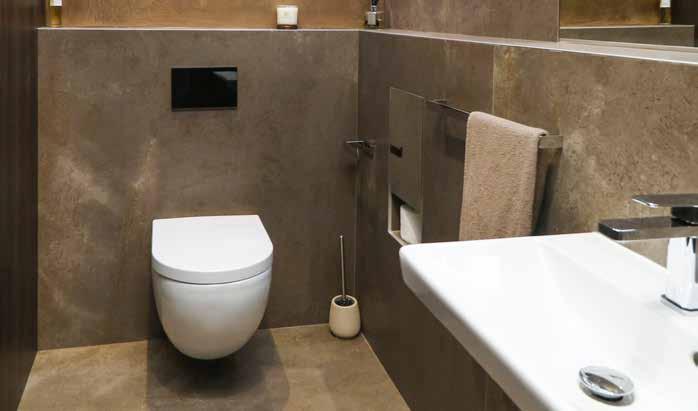

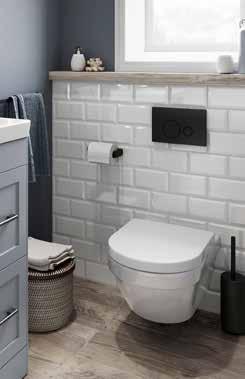

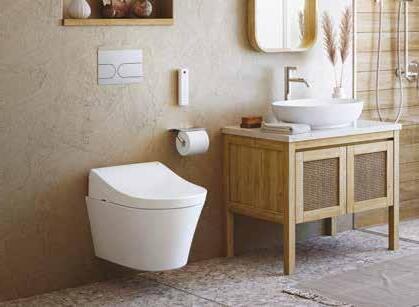

WC Flush Plates
WC Flush Plates should be cleaned with a diluted mild detergent such as washing up liquid applied with a soft sponge or cloth, and then buffed dry with a microfibre cloth.
Avoid using acids, rough sponges or steel wool and do not leave detergent on the products for long periods of time.
NEVER use products containing bleach on bathroom products or any cleaners or cloths of an abrasive nature.
Abacus products are covered by a comprehensive guarantee for peace of mind. All Abacus guarantees are subject to online registration. To register your product and activate your guarantee please visit www.abacus-bathrooms.co.uk
All information correct at time of going to print. E&OE. Prices subject to change without prior notice. Colours printed in this catalogue are as accurate as the printing process allows and are for guidance only.
