Abacus Lighting Products and Services Brochure

Products & Services Overview Brochure

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

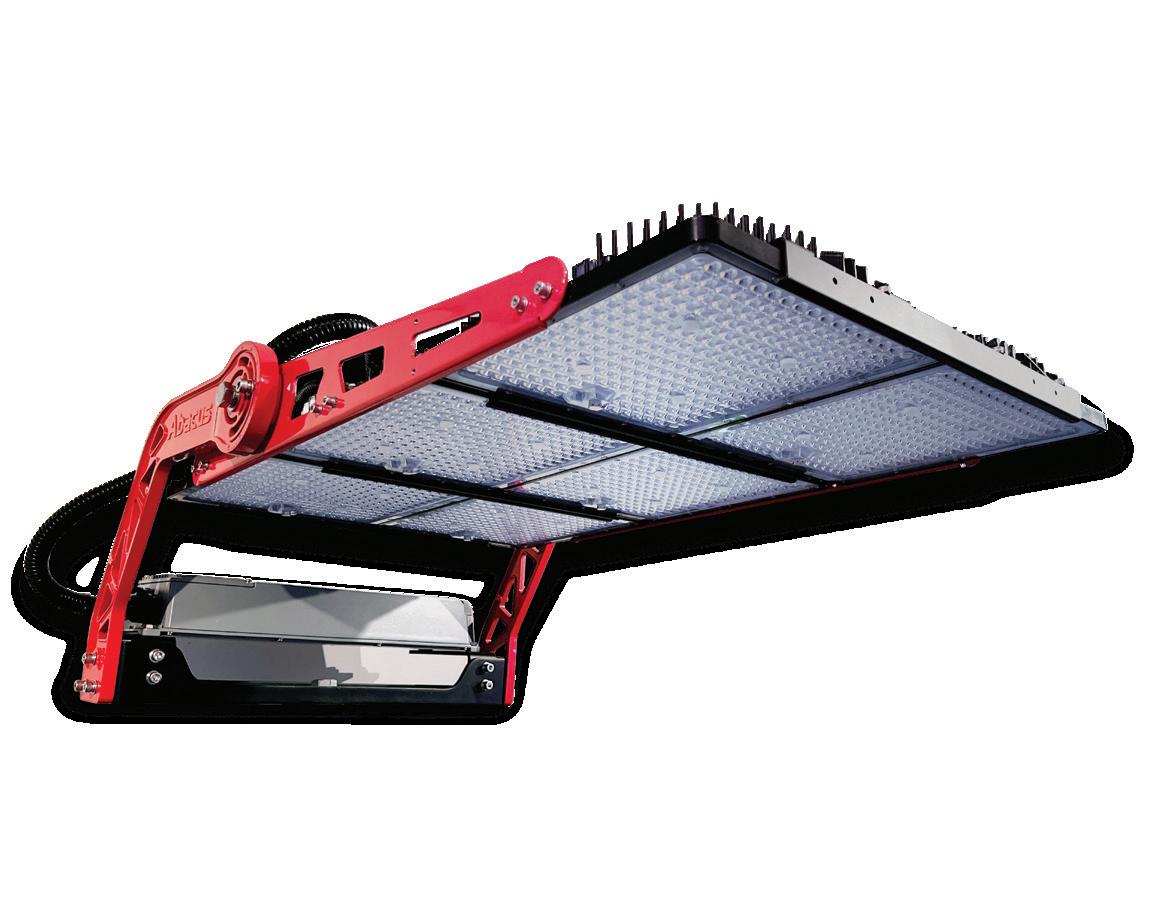

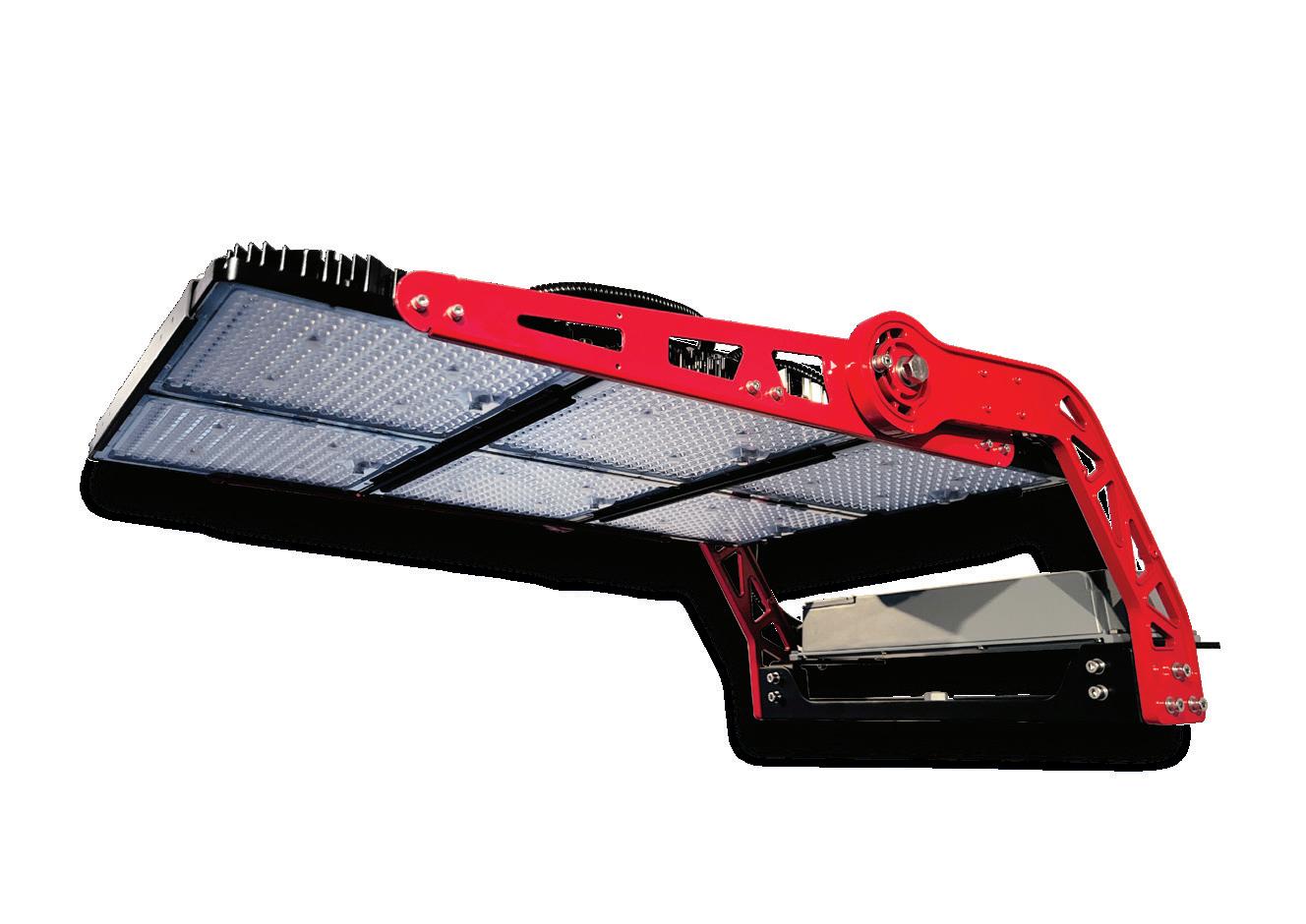

Challenger 1 LED AL6100 - AL6300 Series Specifications & Key Features: Housing: Die-cast/profiled aluminium and steel are used to produce an elegant and unobtrusive low profile design.

Certifications:

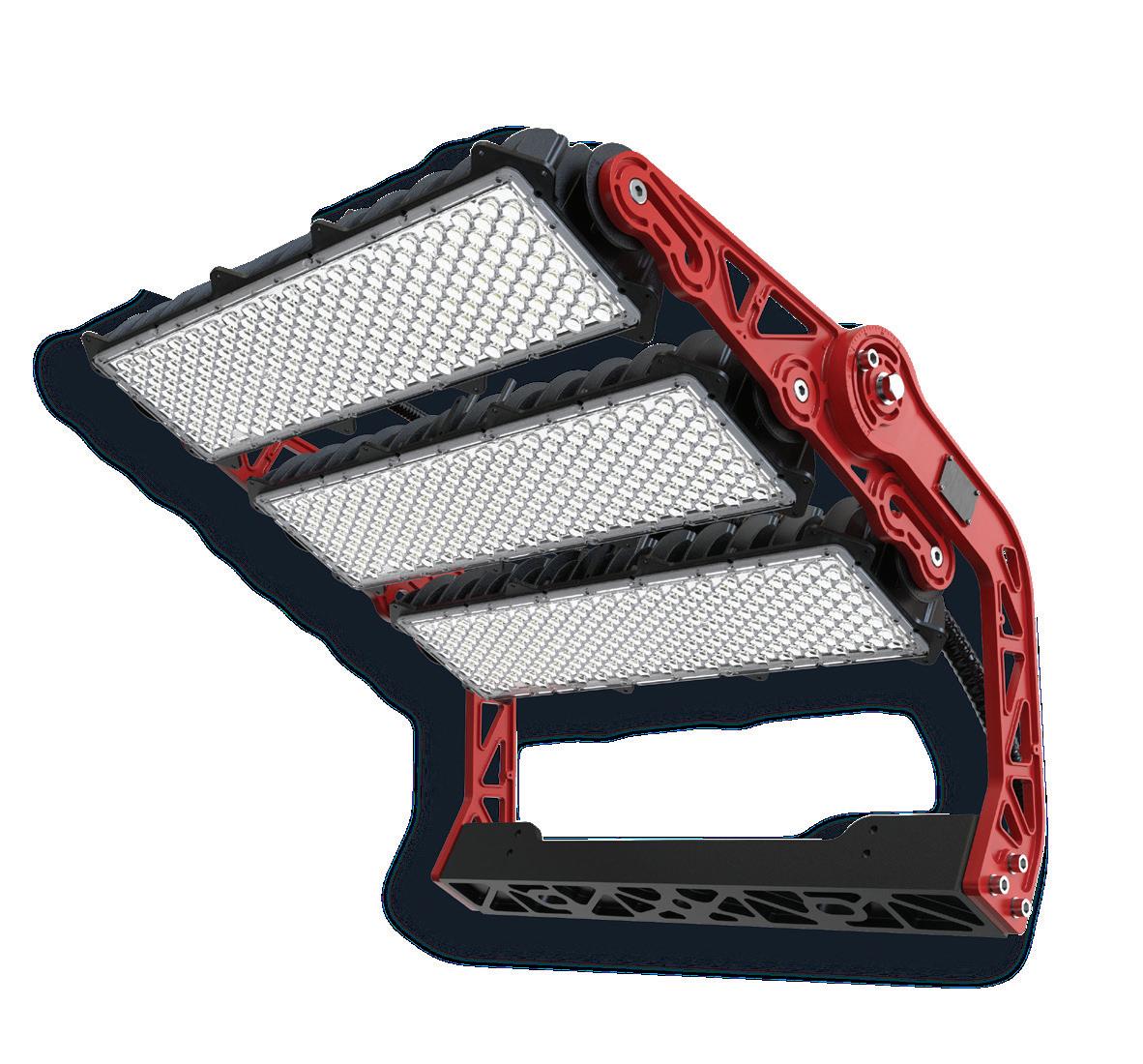

Challenger 1: 1500W 6 Module Version

UKCA, CE, CB, SAA Finish: Powder coated Black/Red Driver: • 400 to 1500W 3ch. DALI2/DMX driver • Integral or remote operation • IP66 rated Warranty & Lifetime: 5 years standard warranty 60,000 hours L80B10 25°C Wind Area (0° elevation): 6 module: 0.149m2 4 module: 0.130m2 2 module: 0.107m2

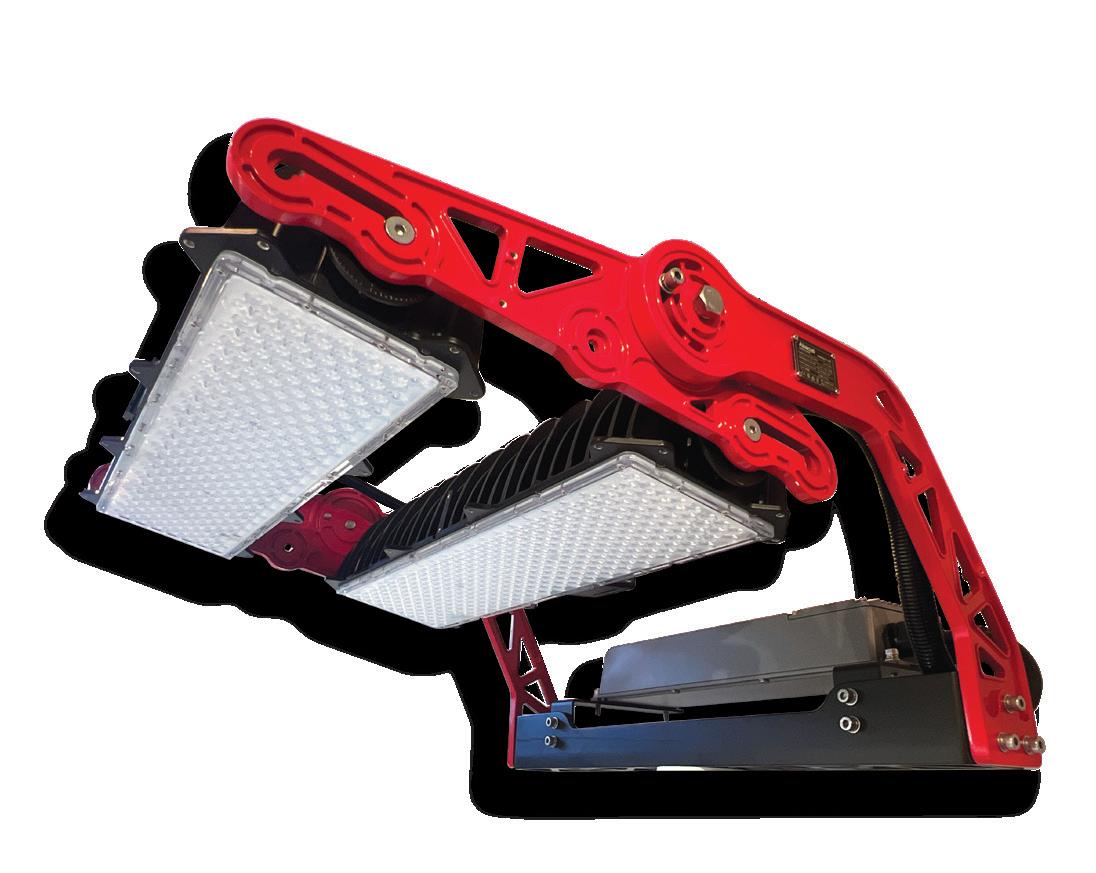

Challenger 1 500W 2 Module Version

Challenger 1 1000W 4 Module Version

Product Applications: • • •

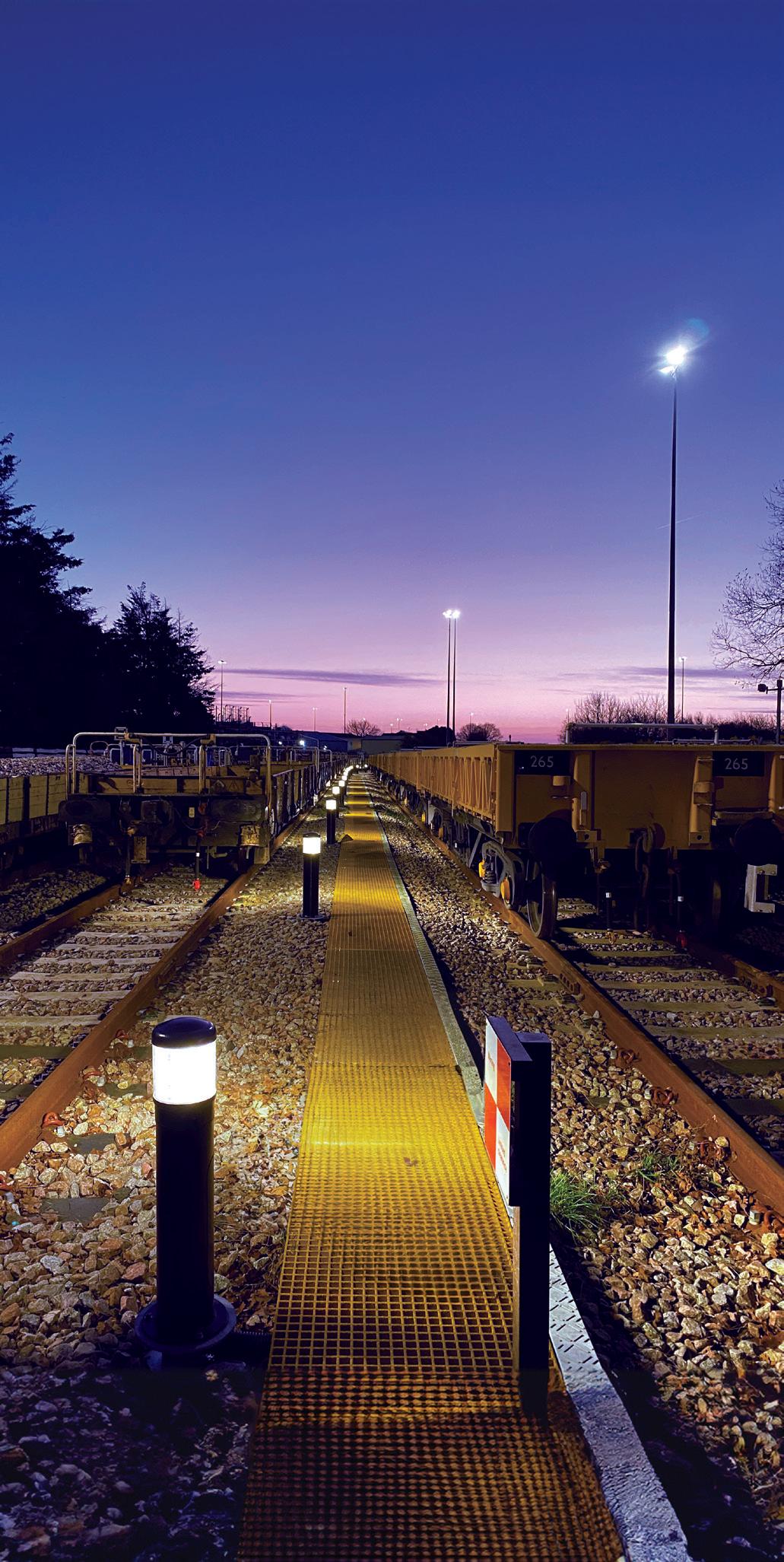

Sports Grounds Rail Depots Sea Ports

• • •

Amenity Distribution Centres Airports

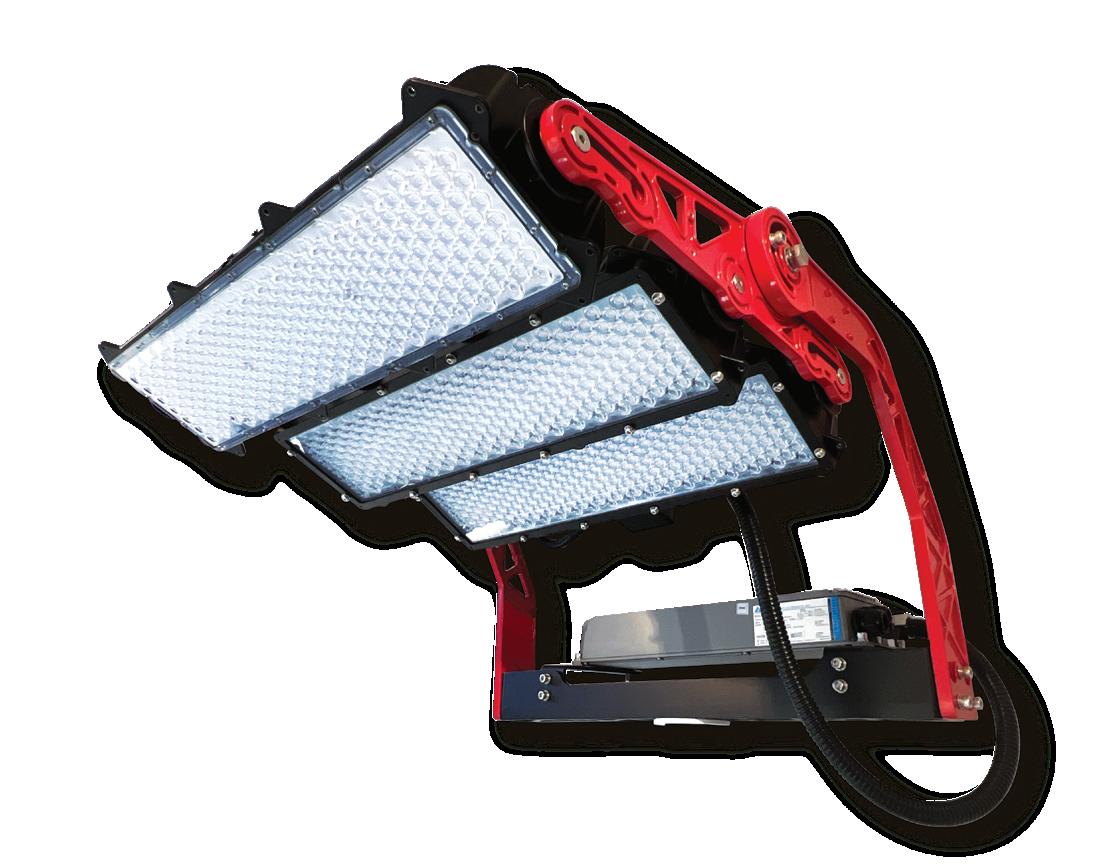

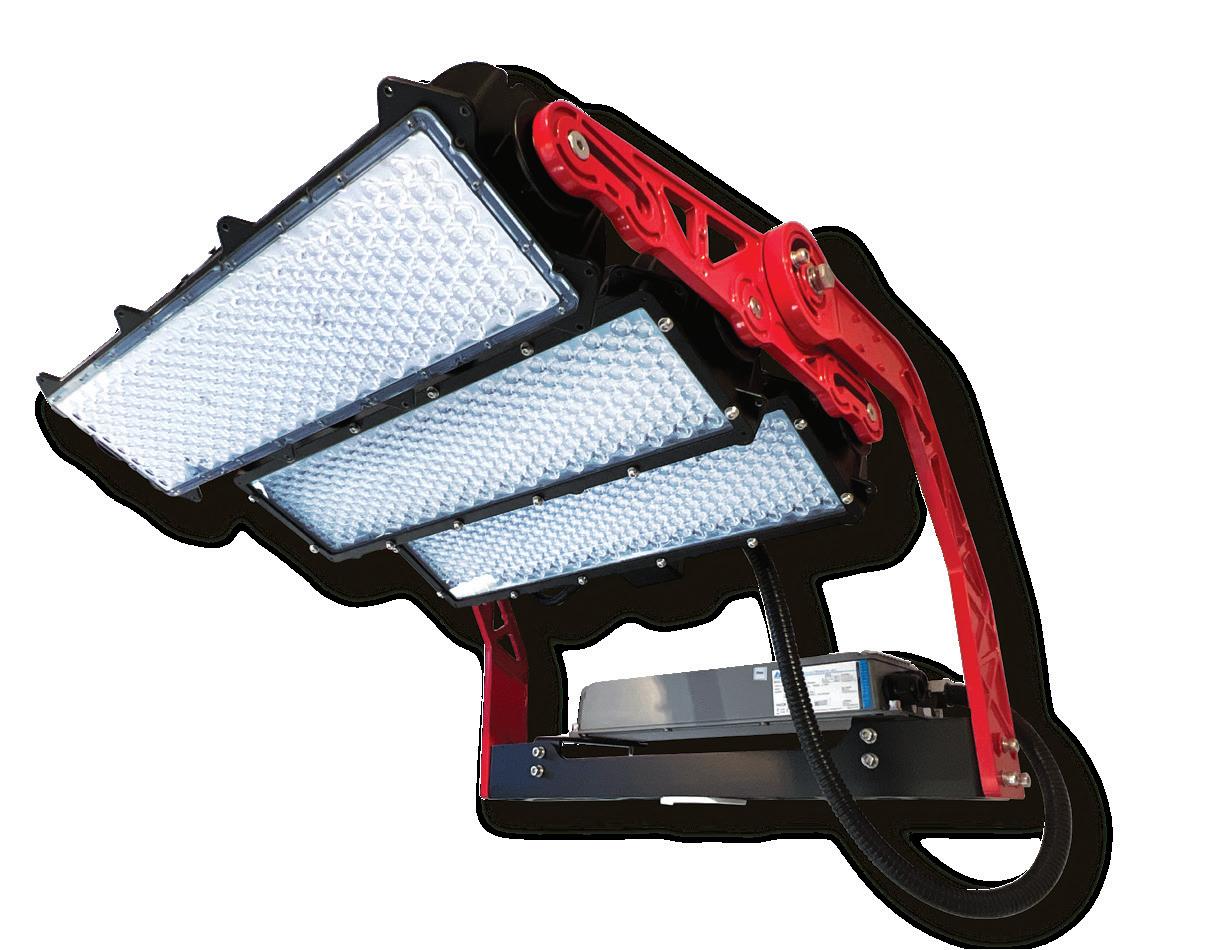

Challenger 1 Product Overview: The Challenger 1 LED by Abacus Lighting is a cutting-edge floodlight that combines exceptional performance with a sleek, modern design and low cost of ownership. Featuring a flat glass, double asymmetric design, it provides precise and efficient illumination while minimising light spill. Available in 2, 4, and 6 module variants ranging from 400W to 1500W, the Challenger 1 LED is a versatile solution suitable for a wide range of applications. Whether used for sports facilities, industrial sites, large open spaces, or area lighting, it delivers powerful and reliable illumination tailored to specific project needs.

Built for durability, the Challenger 1 LED is IP66 rated, ensuring protection against dust and water ingress, making it a robust choice for even the harshest environments. With Abacus-designed medium and narrow beam optics, it provides excellent coverage and efficiency, enhancing visibility and safety.

The floodlight offers integral or remote driver options, allowing for flexible installation. Finished in a durable powder coating, it not only performs exceptionally but also maintains a professional modern aesthetic. Whether lighting up sports venues, industrial complexes or large public spaces, the Challenger 1 LED sets the standard for high-performance floodlighting.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger 1 LED AL6100 - AL6300 Series Technical Specifications: Challenger 1 LED Specification: Power (W)

400W

500W

800W

1000W

1200W

Input Voltage

AC 200-440V @50/60Hz (Single or 3 phase L1/L2/PE)

Power Factor

≥0.95

Luminous Flux (Net lm)

63,665lm

63,665lm

136,000lm

204,000lm

204,000lm

> 120,000

L90 B10 @ 25deg Efficiency (lm/W)

136,000lm

1500W

> 135lm/W

Electrical Class

Class I

Surge Protection

20kV

CCT (°K)

5000K (3000K to 5700K Available)

CRI (Ra)

Ra70 (80/90 optional)

Weight (kg)

17.2kg

17.2kg

19.5kg

19.5kg

25.8kg

25.8kg

Wind Area (m2)

0.107m2

0.107m2

0.130m2

0.130m2

0.149m2

0.149m2

IP Rating

IP66

Operating Temperature (°C)

-40ºc - +40ºc (50ºc available)

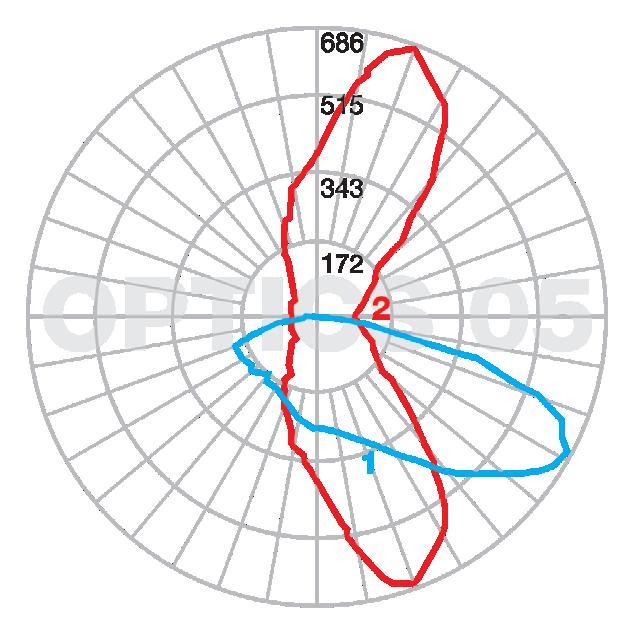

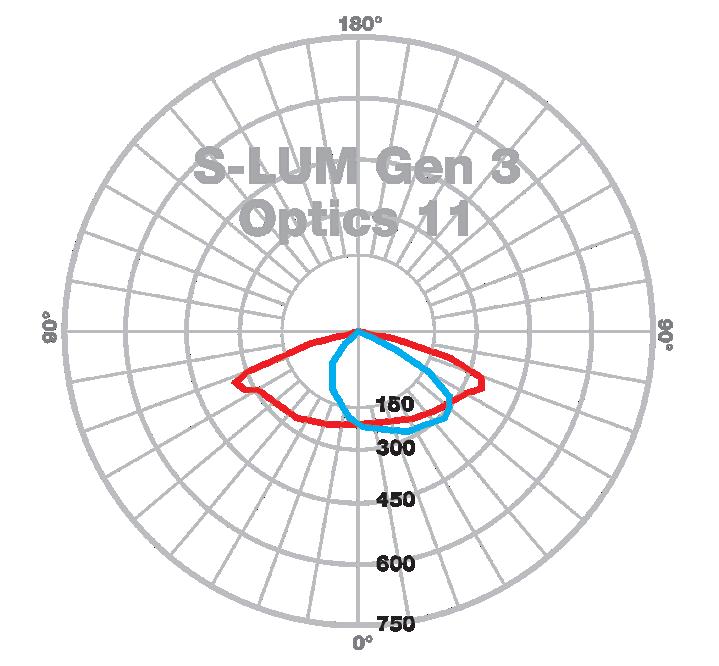

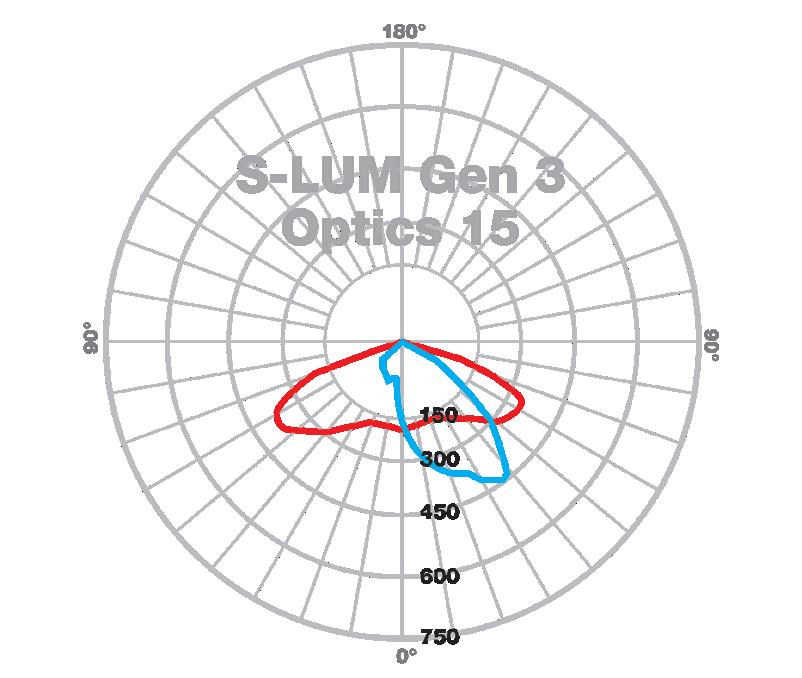

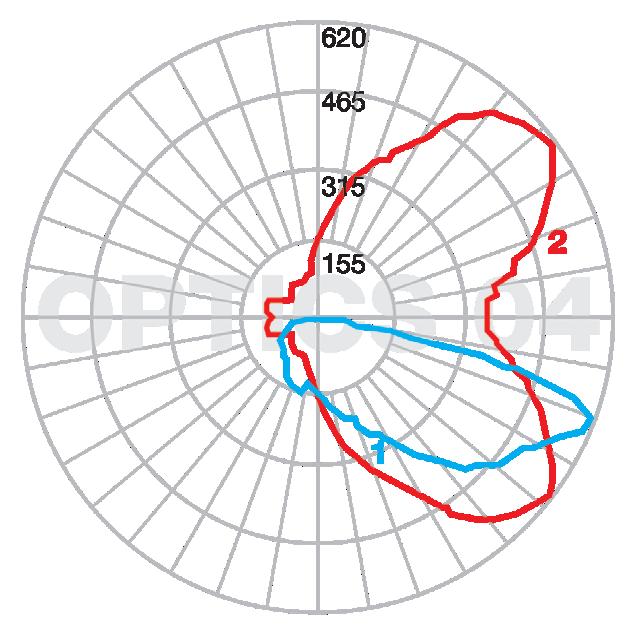

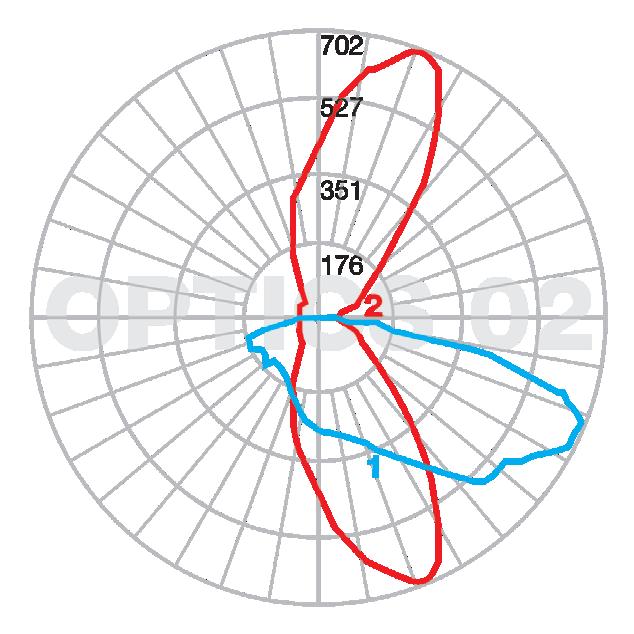

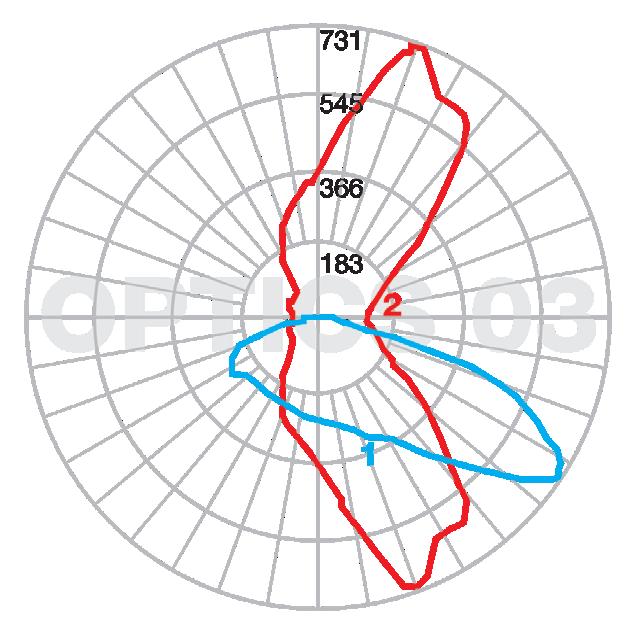

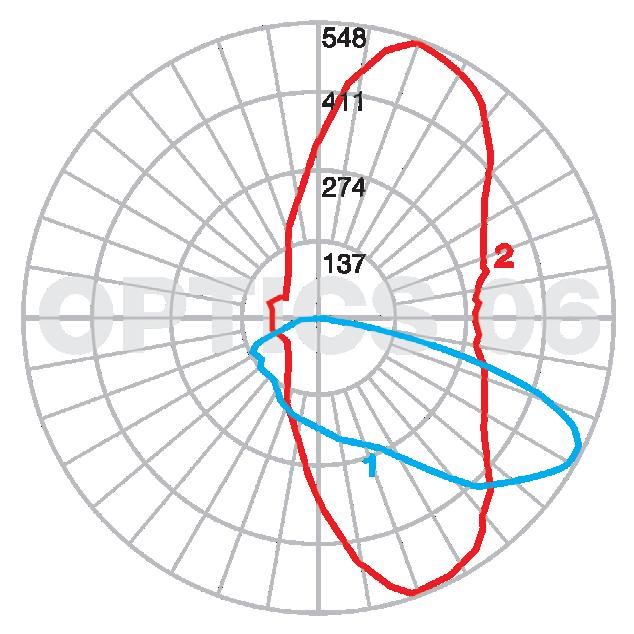

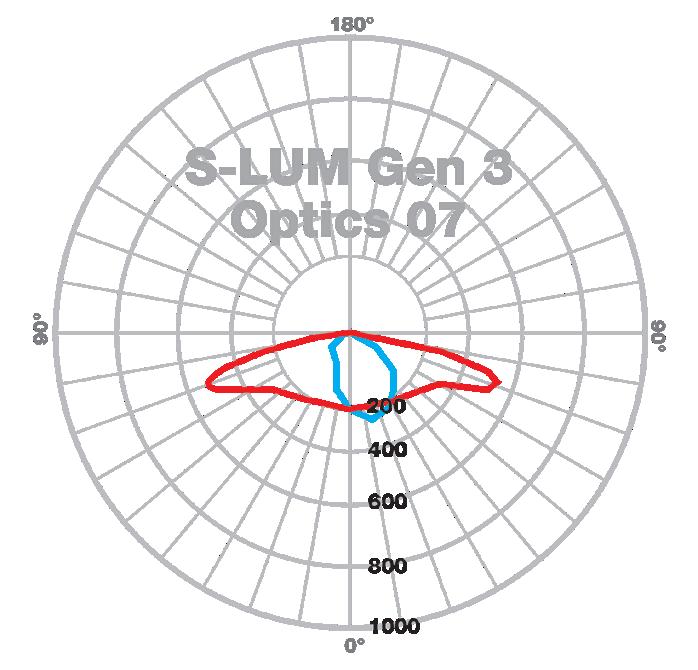

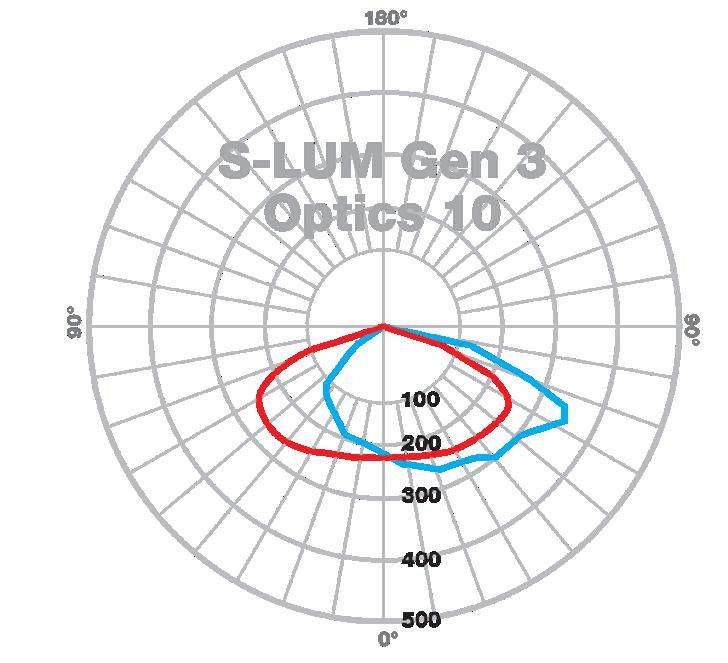

Photometry Output:

AL6101 Narrow Beam Distribution:

AL6102 Medium Beam Distribution:

Scan Or Click Here To Download The Challenger 1 Photometry Data:

Challenger 1 LED - Product Code Selector Body Size

Beam Type

Wattage

RA/CCT

Ambient Temp

Driver

AL61 = 6 modules

01 = Narrow

15 = 1500W (6 module)

752 = (Ra70/5200K)

S = Standard (40°C)

R = Remote

852 = (Ra80/5200K)

H = High (50°C with 08 800W Option)

I = Integral

AL62 = 4 modules

02 = Medium

12 = 1200W (6 module)

AL63 = 2 modules

04 = 10°

10 = 1000W (4 module)

05 = 20°

08 = 800W (4 module, 50°C)

06 = 30°

05 = 500W (2 module)

07 = 60°

04 = 400W (2 module) Product Selection Example:

*Non-standard options may be subject to MOQs or longer lead times.

RA/CCT Driver Beam Type

AL6102 Body Size

/ 15 752 S I Wattage Ambient Temperature

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

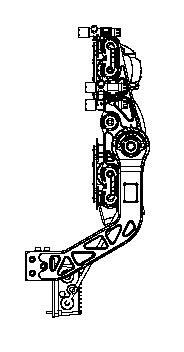

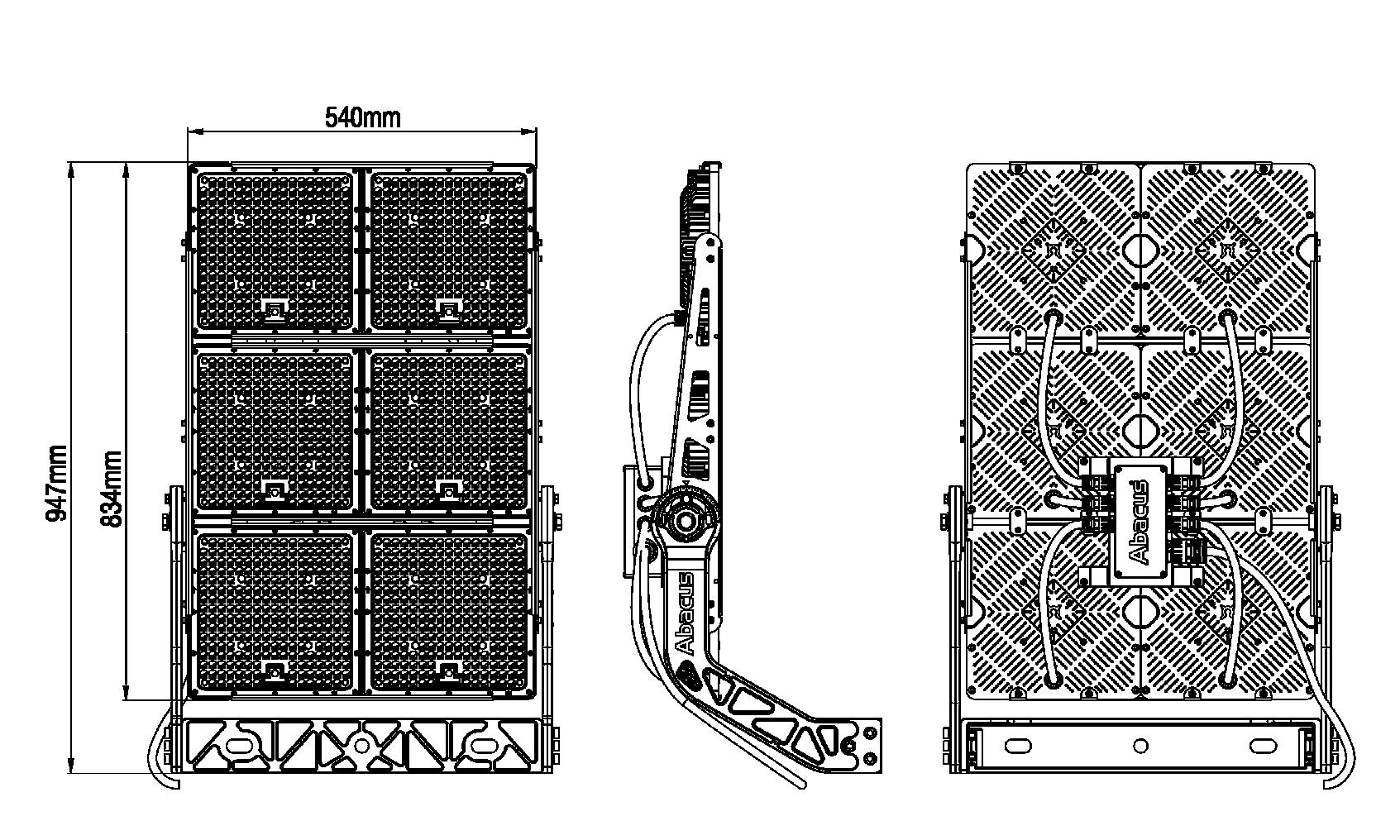

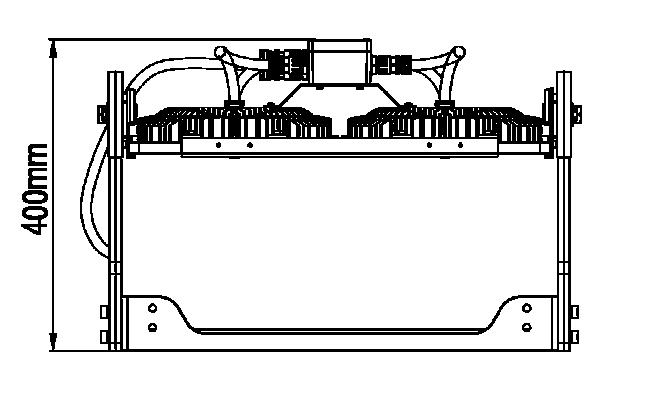

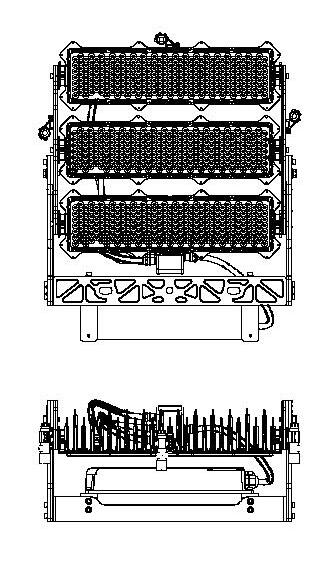

Challenger 1 LED AL6100 - AL6300 Series Challenger 1 Dimensions: Challenger 1: 6 Module Version 1500W

Challenger 1: 4 Module Version 1000W

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger 1 LED

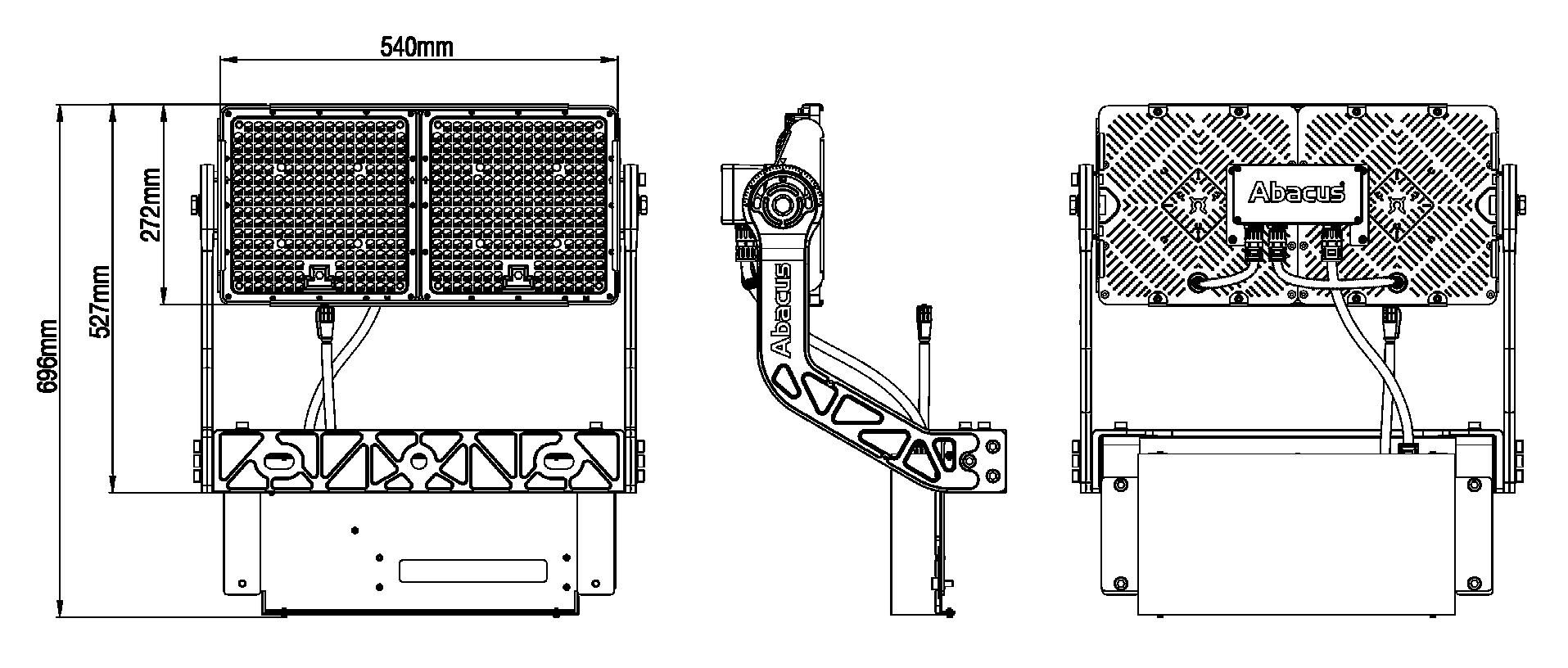

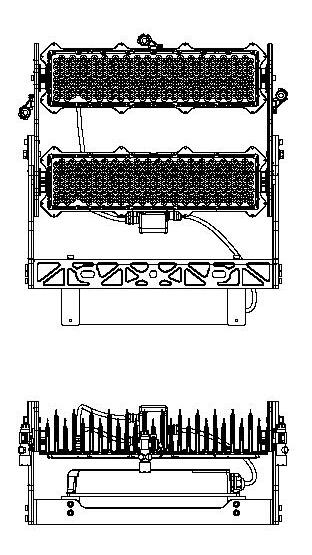

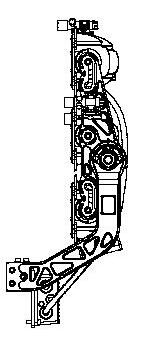

AL6100 - AL6300 Series Challenger 1 Dimensions: Challenger 1: 2 Module Version 500W

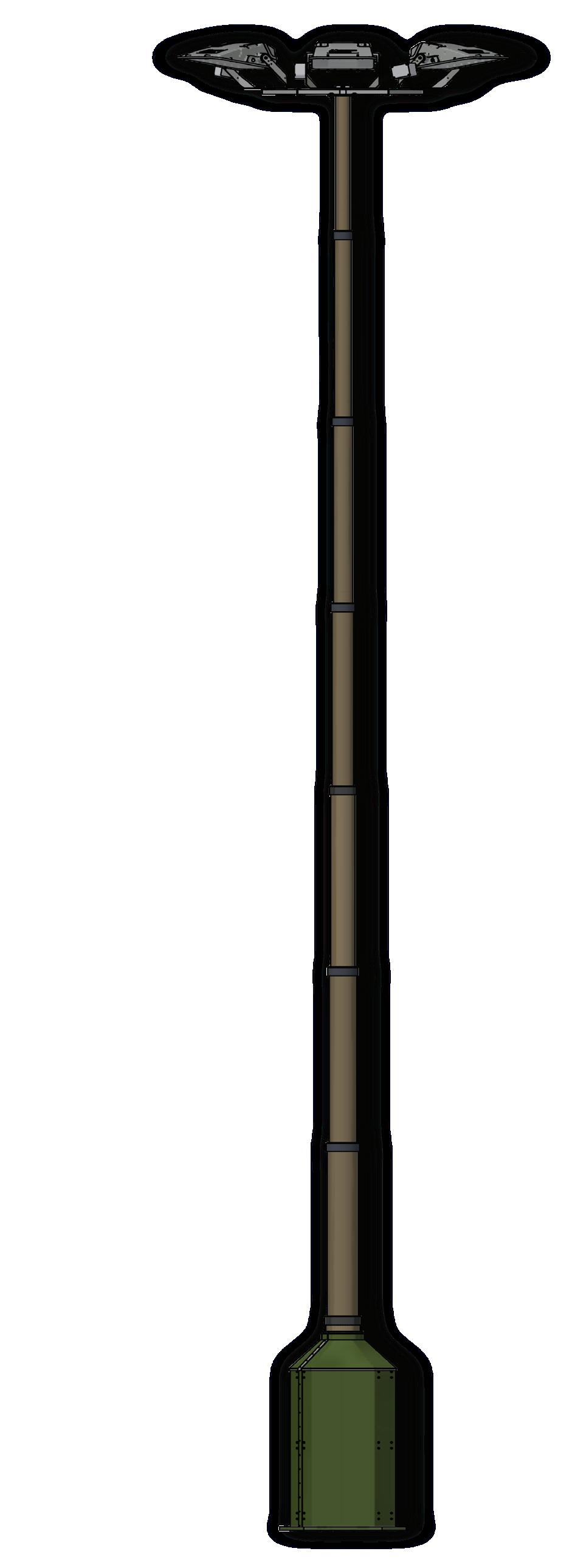

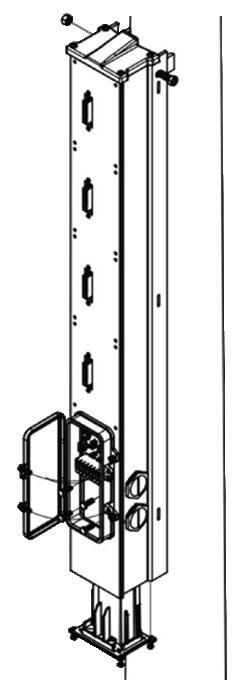

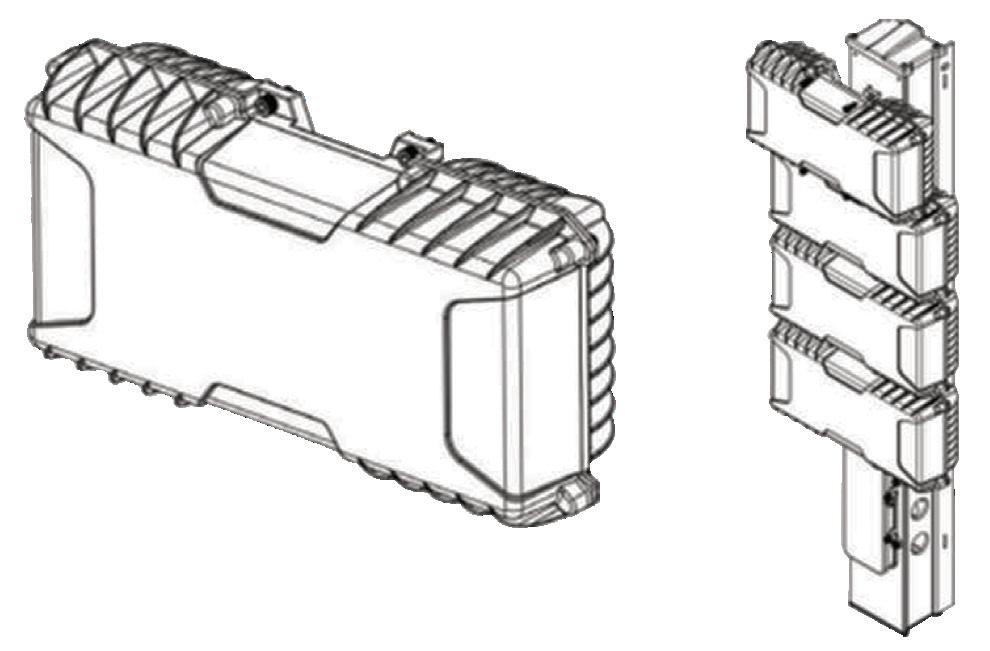

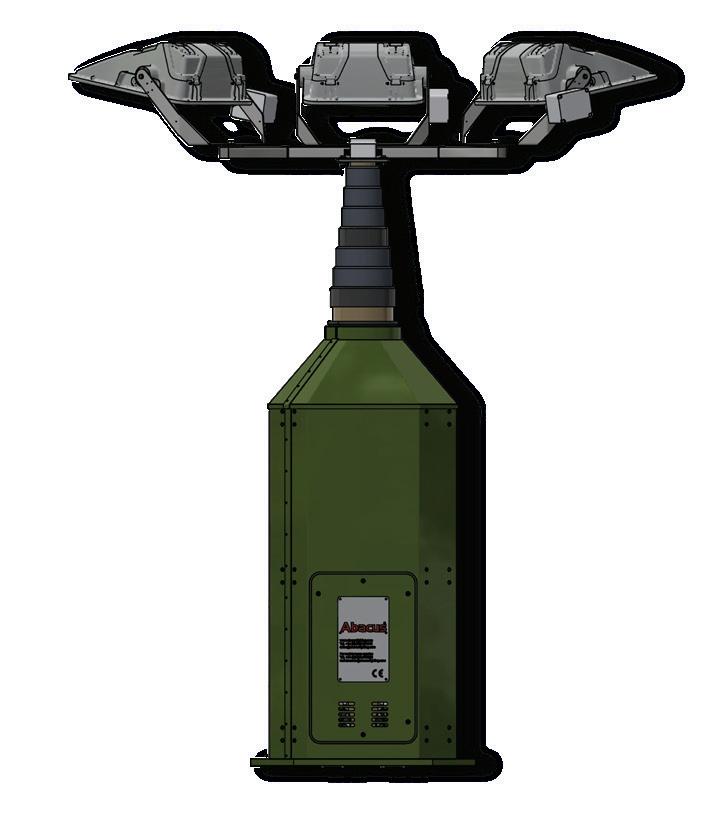

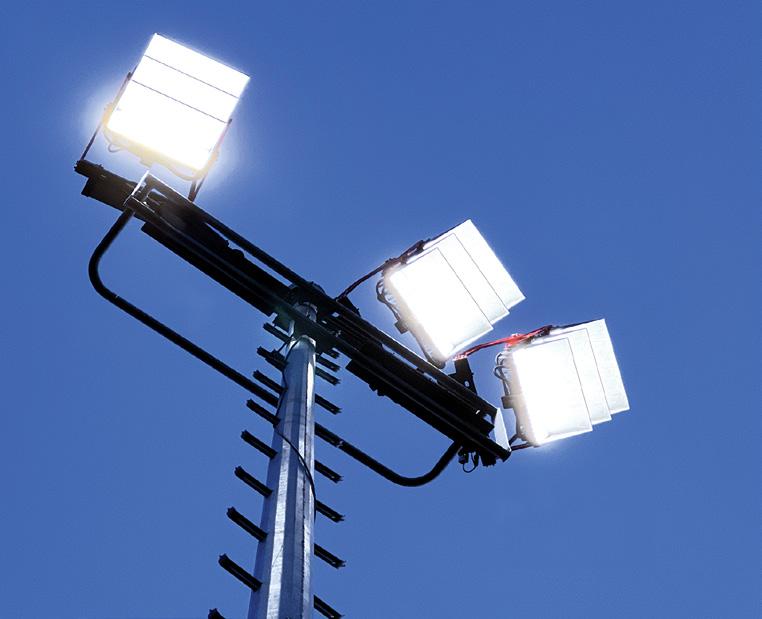

Challenger 1 - Typical Column Suitability

1.) Static Masts 2.) Base Hinge Masts 3.) Telescopic Hydraulic and Pneumatic Masts *The Abacus Lighting masts mentioned above serve as examples for typical installations, but we are not restricted to these options. Abacus Lighting provides a comprehensive range of columns and masts that can accommodate virtually any new or retrofit lighting project.

CLICK or SCAN

For More Information

**Raise and Lower

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

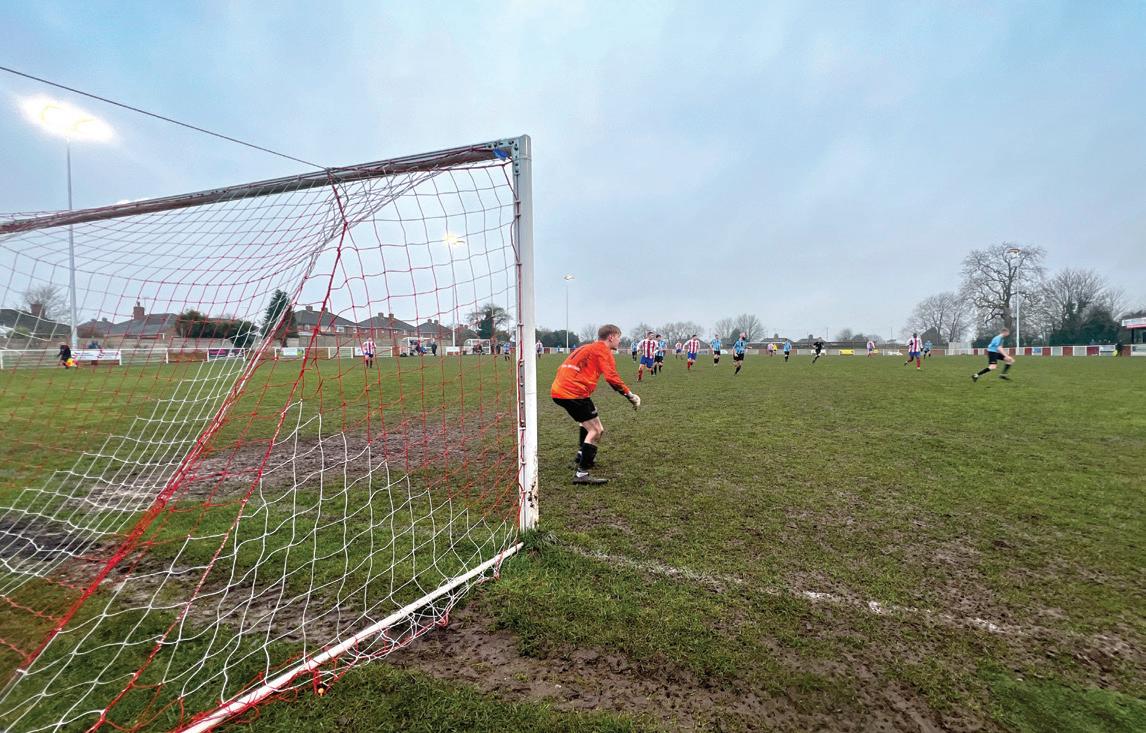

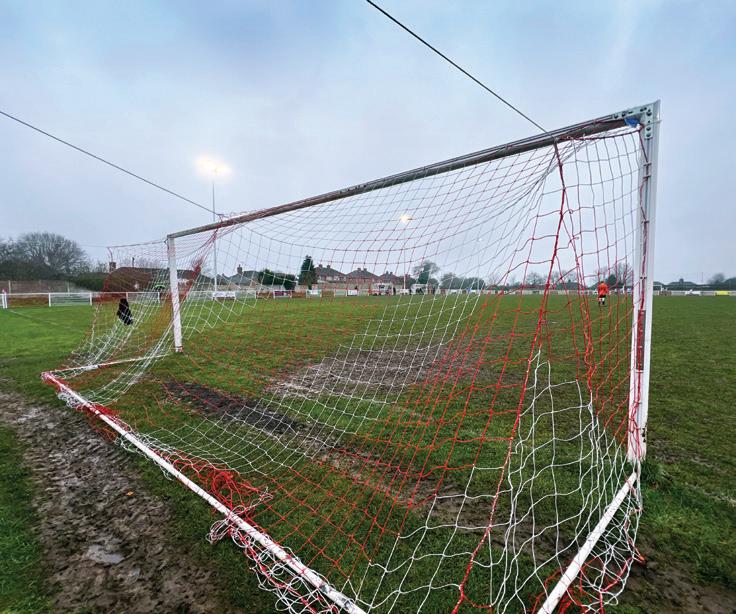

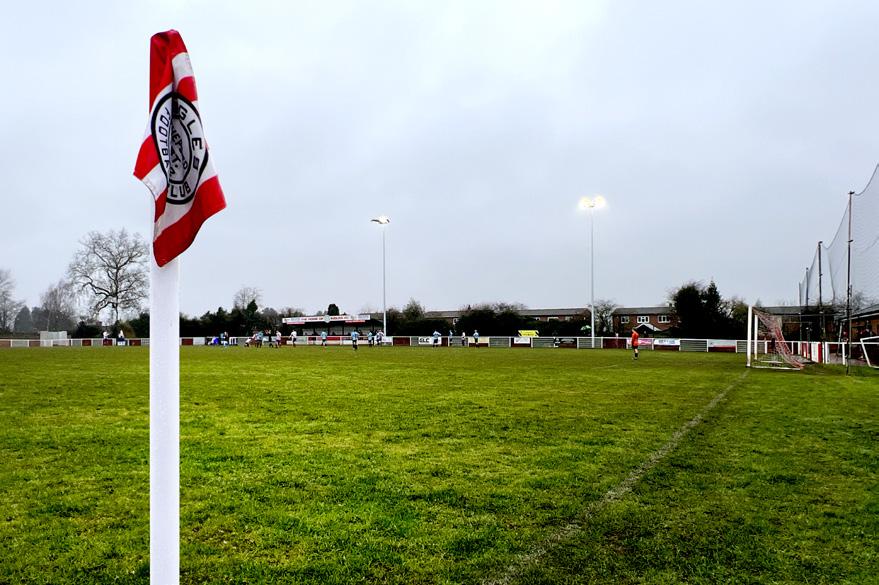

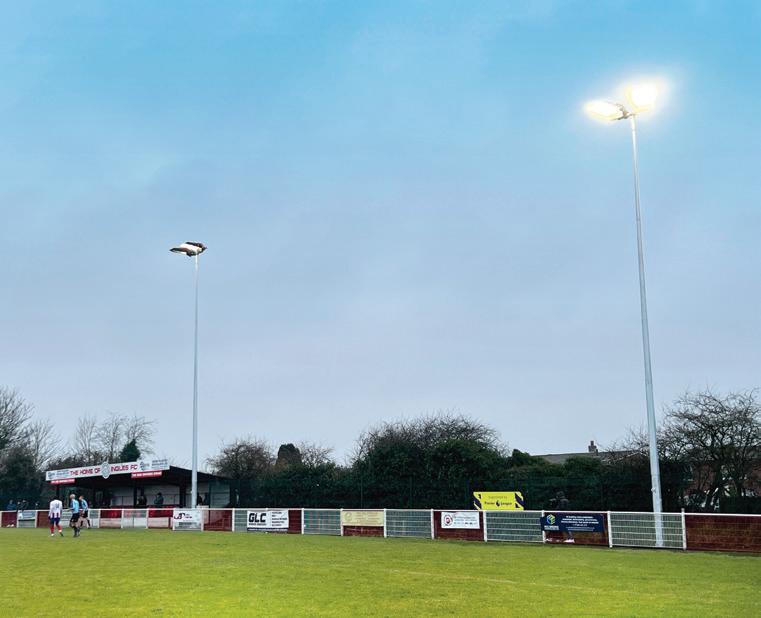

Ingles Football Club Case Study

About Our Client: Ingles FC is a Leicestershire-based football club founded in 1972. Competing in the Midland Football League, they are dedicated to developing local talent and promoting grassroots football.

Scan

Known for their focus on teamwork and sportsmanship, Ingles FC also runs youth development programs to support aspiring players. Beyond football, the club actively engages with local initiatives, strengthening its community ties.

Here

With a proud history and commitment to growth, Ingles FC continues to make a positive impact both on and off the pitch.

The Challenge: Ingles FC was looking for a solution to improve visibility for both players and spectators, reduce energy consumption, and minimise light pollution.

The existing fixed high masts located at the pitchside required protective padding to be applied before each match in order to prevent injury to players during collisions.

Additionally, the placement of these masts obstructed the view of the game. Since the masts were fixed, heavy lifting equipment was necessary to access the pitch for maintenance or repairs. This process was timeconsuming, and the equipment often caused damage to the pitch surface.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Ingles Football Club Case Study

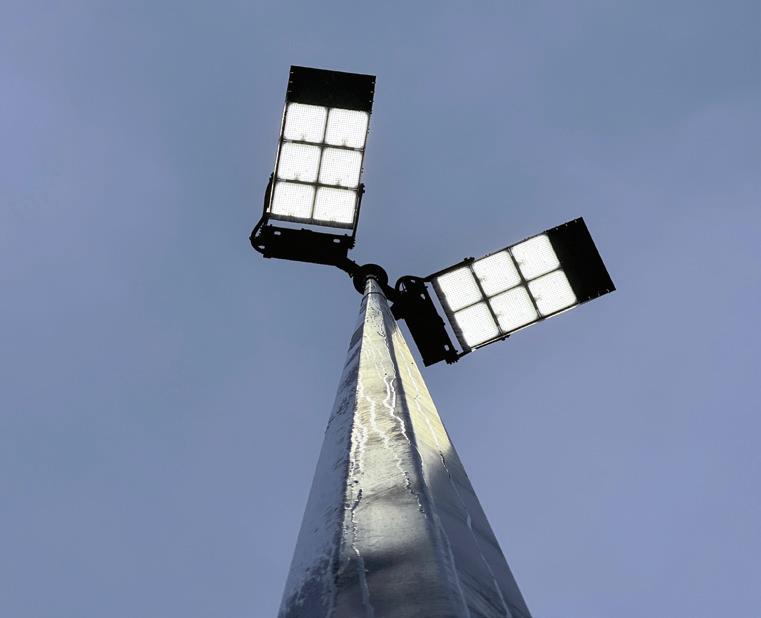

The Solution: Ingles FC selected Abacus Lighting to deliver a high-performance illumination project for their ground. Abacus installed 12 Challenger 1 floodlights (CH1), equipped with overspill cowls to reduce light pollution and minimise the impact on surrounding areas. To enhance spectator views and improve safety, six 15-meter masts were placed around the perimeter of the pitch, positioned behind the fencing and replacing the previous masts that were located at the pitch side. Abacus Lighting managed the entire process, including design, supply, and installation, ensuring a seamless and professional service. The project was completed within a 3-4 week timeframe, meeting all agreed deadlines.

Challenger 1 LED

The Challenger 1 floodlights provided Ingles FC with reliable, energy-efficient, and low-maintenance lighting, enhancing the experience for both players and spectators on match days.

By replacing the existing fixed masts with Abacus’s (HL250) base hinge masts, the need for heavy machinery to access the pitch for maintenance and repairs was eliminated, saving the club the cost of hiring expensive equipment and the risk of damage to the pitch.

Key Features: • Flat glass, double asymmetric floodlight • Elegant and unobtrusive low profile design • Available in 2, 4 and 6 module variants from 400W to 1500W • Abacus designed medium and narrow light distribution, specifically for sports lighting • Integral or remote driver options

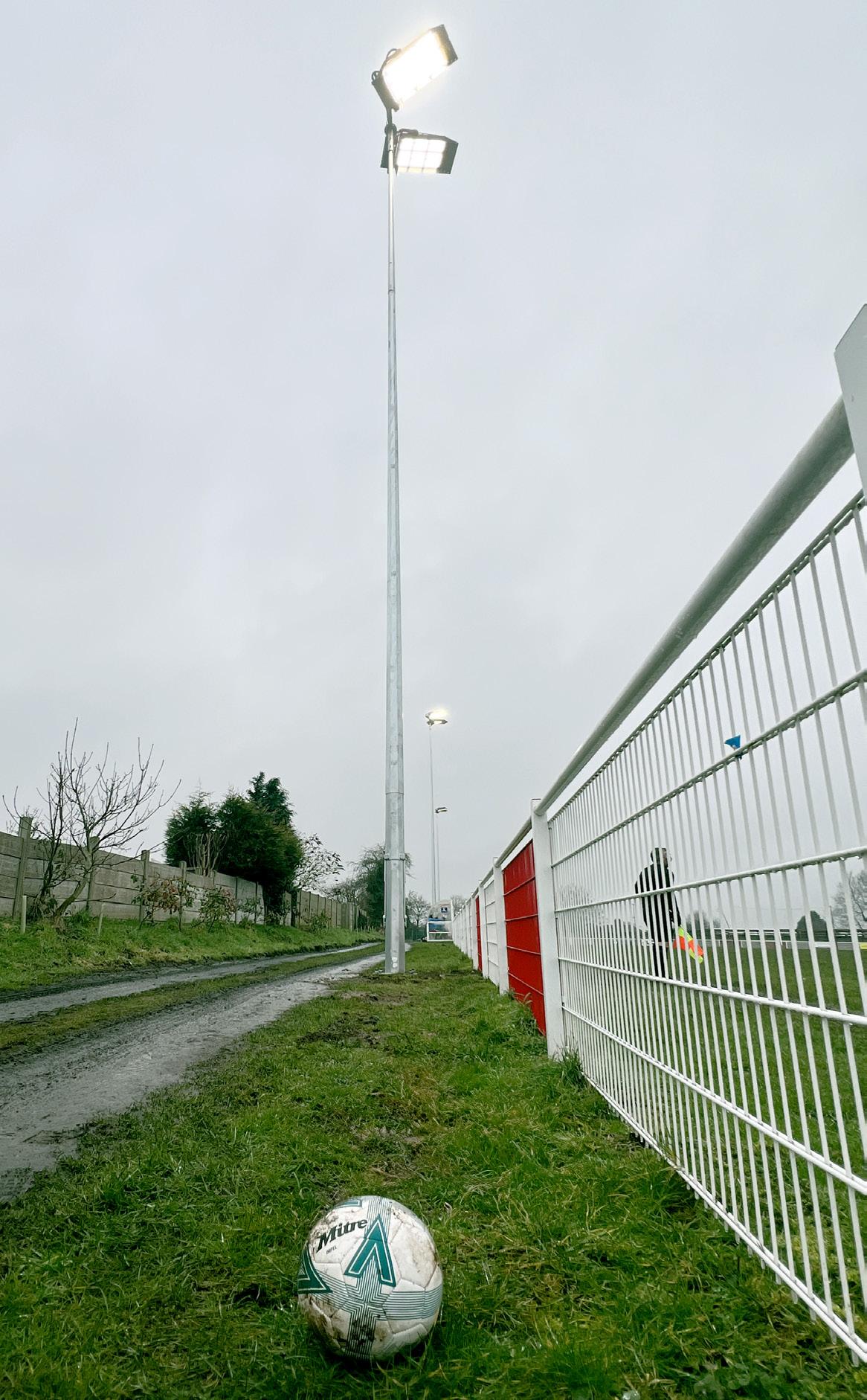

The new base hinge masts were installed behind the perimeter fence of the pitch, which saved the club time as protective covers are no longer required around the base of the masts on match days. This improvement has also enhanced the viewing experience by providing spectators with unobstructed views of the pitch during matches.

This successful project highlights Abacus Lighting’s expertise in delivering tailored solutions for sports facilities, ensuring optimal lighting performance for players, fans, and the wider community.

• IP66 and IK10 rating for harsh environments • High-grade powder coated finish

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

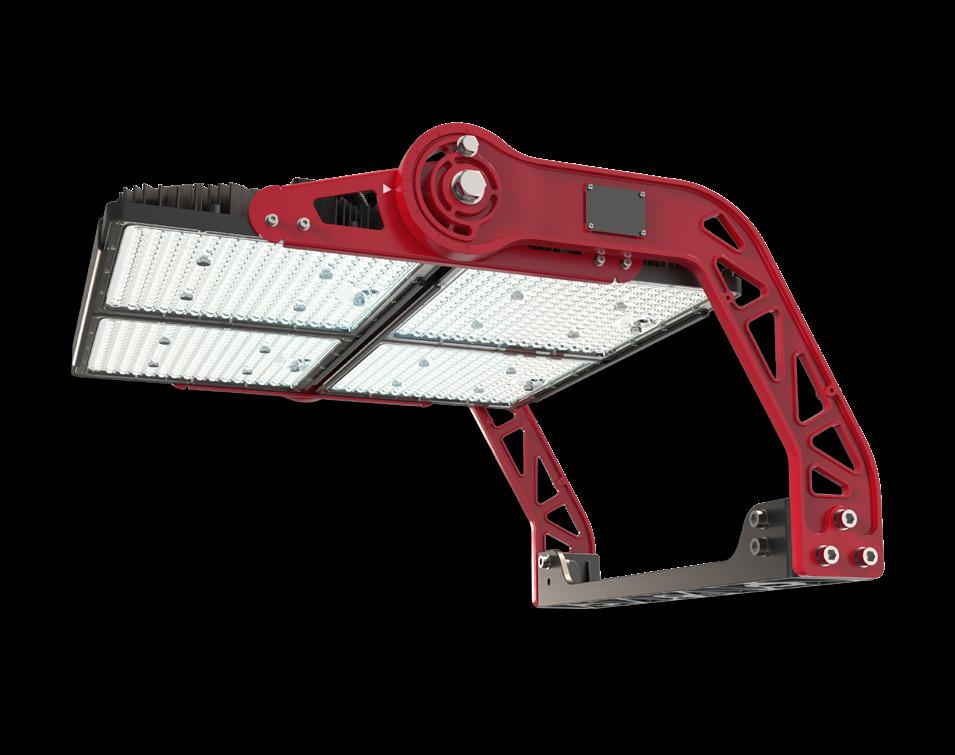

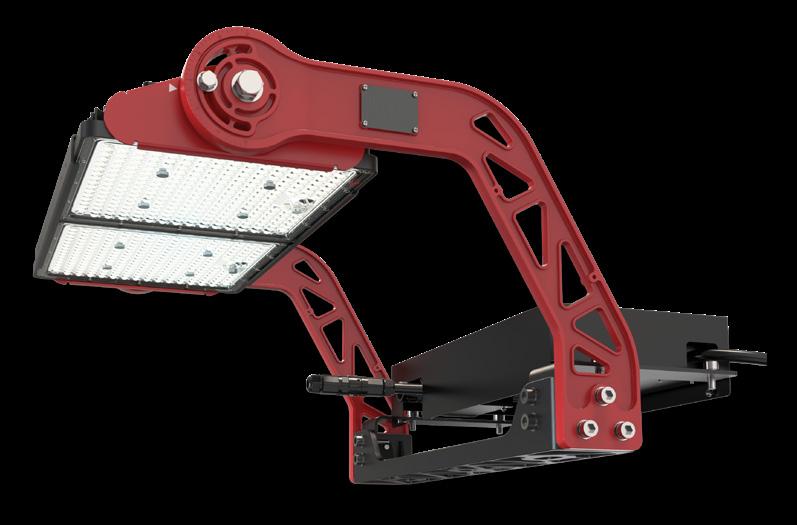

Challenger 3 LED AL7100 Series

Specifications & Key Features • Advanced design reduces light pollution and improves spectator viewing • Precise optical control designed specifically for sport • Robust for all environments with an IP66 and IK10 rating • Lens and lumen packages available in a versatile design for multiple applications • Dali and DMX options • Full cut off low spill design for control of light Product Applications • Sport

• Open Areas

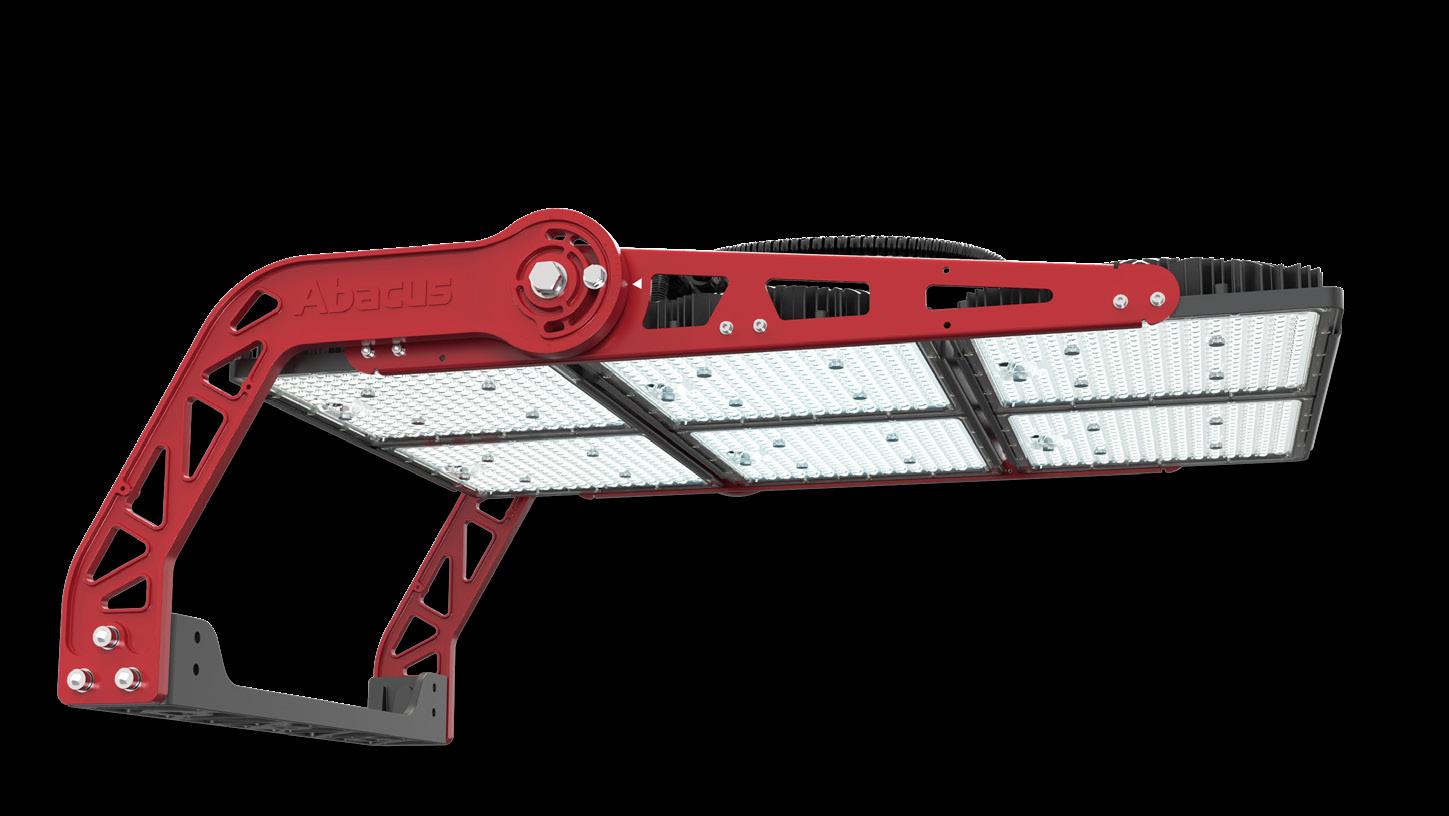

Product Overview The Challenger 3 LED by Abacus Lighting is a high-performance floodlight designed for sports fields, arenas, and large outdoor spaces. Engineered with advanced optics and LED technology, it delivers exceptional illumination while minimising light pollution, ensuring optimal viewing conditions for players and spectators. Its modular design not only allows for straightforward installation but also simplifies maintenance, making it a preferred choice for high mast lighting solutions and stadiums worldwide.

Built to withstand the harshest environments, the Challenger 3 LED boasts an IP66 and IK10 rating.

With precise optical control tailored specifically for sports applications, it offers full cut-off and low spill lighting, reducing glare and unwanted light spill. The floodlight’s versatile lens and lumen packages cater to various requirements, while DALI and DMX options provide advanced control capabilities. Whether illuminating a football pitch, a racetrack, or a multi-use sports facility, the Challenger 3 LED delivers powerful, efficient, and reliable lighting for any large-scale setting.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger 3 LED AL7100 Series

Technical Specifications

Challenger 3 LED - Product Code Selector

Power (W)

1000W

1500W

1800W

Weight (without driver)

25.7kg

33.8kg

33.8kg

Lumen output

up to 162,865

up to 244,298

up to 274,637

LED Chips numbers

224 pcs

120 pcs

288pcs

Light Efficiency

Up to 159lm/W

Beam Angle+

17°, 25°, 50°

Colour Temperature

4000 - 6000K (5700 standard)

Colour Rendering Index (CRI)

≥70 (≥90 optional)

Colour

Heat sink: RAL 9017, Bracket: RAL 9017 & Abacus red

IP Rating

IP66

IK Rating

IK10

Operating Temperature Range

-40° - +50° (module)

Optional accessories

Front glass, shields, aiming device

Input Voltage

AC 200-440V @50/60hz (Single or 3 phase L1/L2/PE)

Input Voltage - US Option

AC 208-480V @50/60hz (Single or 3 phase L1/L2/PE)

Beam Type

Module Qty

AL7101 AL7102 AL7103

2 3

Wattage

RA/CCT

10 = 1000W (2 modules) 757 = (Ra70/5700K) 12 = 1200W (2/3 modules) 15 = 1500W (3 modules) 18 = 1800W (3 modules)

Product Selection Example: 1500W Beam Type

AL7101 / 3 15 757 Body Size

Wattage RA/CCT

*Non-standard options may be subject to MOQs or longer lead times.

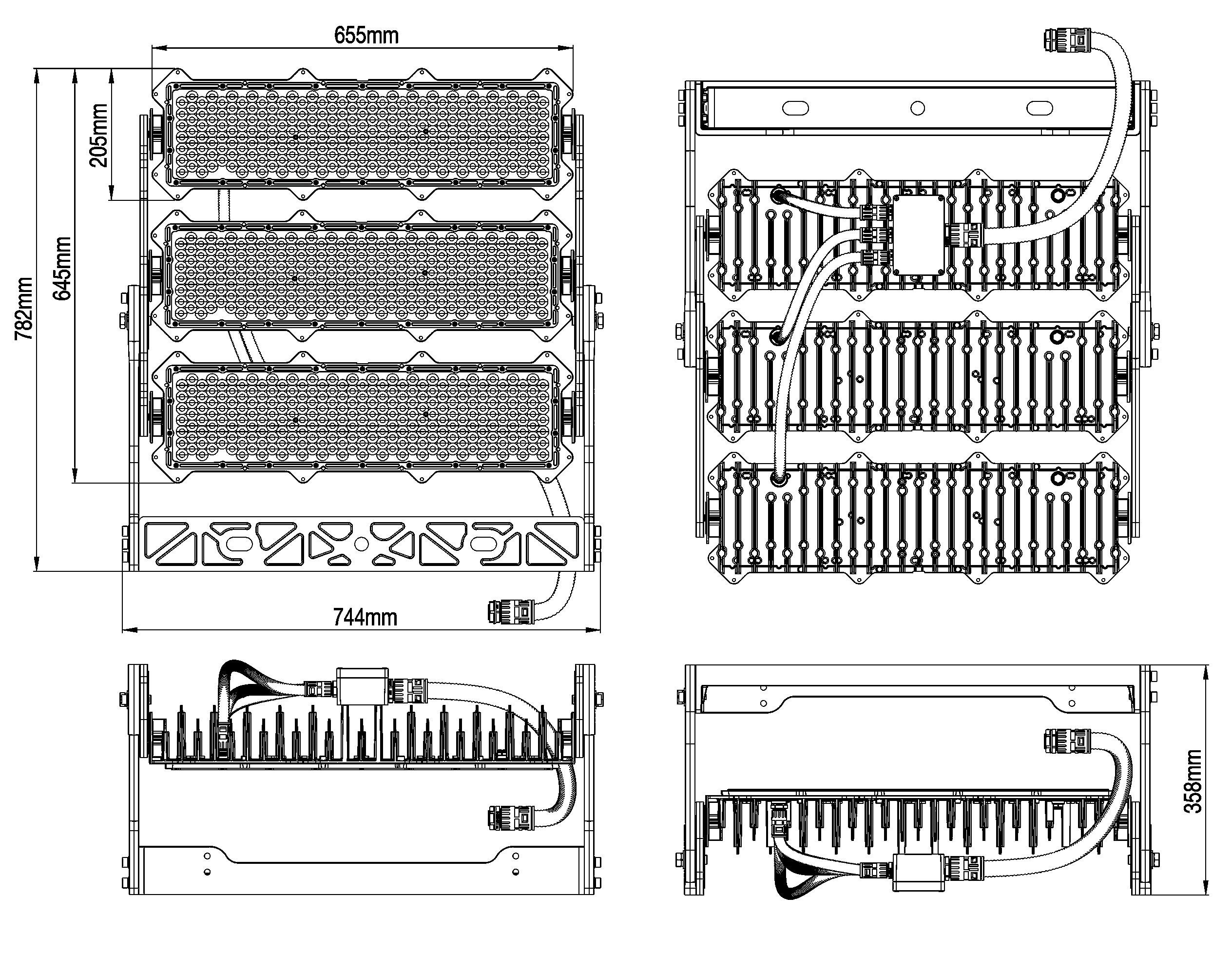

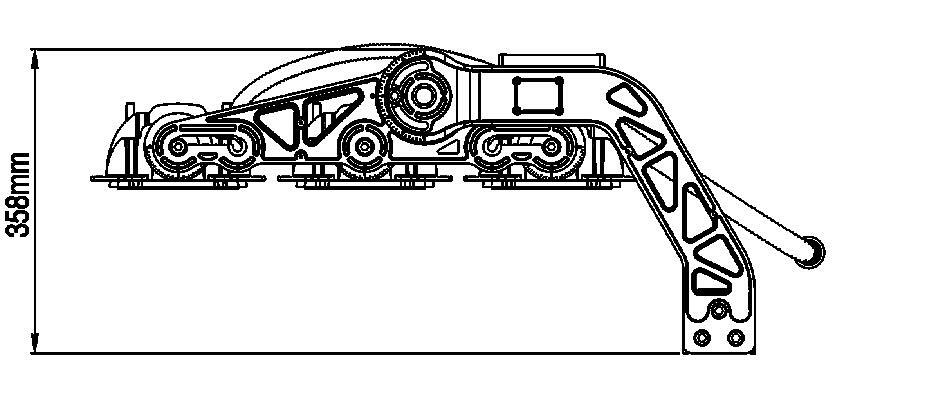

Dimensions 3 module:

2 module: 358

712

819

782

723

358

723

358

889

358

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger 3 S-Light AL7300 Series

Challenger 3 S-Light Product Specifications

Key Features: • Lightweight - Due to low profile modules • The advanced design minimises light pollution and enhances the viewing experience for players and spectators • Precise optical control specifically engineered for sports lighting • Robust, to withstand harsh environments, with an IP66 rating for water resistance and an IK10 rating for impact resistance • Versatile lens and lumen packages are available for a wide range of applications • Options for DALI and DMX control are included Product Applications

• The full cut-off, low spill design ensures accurate lighting control

• Sports Grounds & Stadia

• Large Open Areas

Product Overview The Challenger 3 S-Light is a high-performance LED floodlight specifically designed for sports fields, stadiums, racetracks, and large-scale outdoor environments. Featuring advanced optics and LED technology, it delivers powerful, uniform illumination while reducing glare, spill light, and sky glow ensuring optimal visibility for both players and spectators.

Compared to the standard Challenger 3 LED, the S-Light is lighter in weight, offering several key advantages: • Easier handling during installation, especially at height • Reduced structural loading on columns and mounting brackets • Improved safety and accessibility for ongoing maintenance With an IP66 and IK10 rating, the S-Light is built to withstand demanding weather conditions and impacts.

Its modular design allows for straightforward installation and simplified maintenance, making it a preferred solution for high mast and stadium applications worldwide.

Precision-engineered optics offer full cut-off and low spill, ensuring compliance with lighting regulations and minimising impact on surrounding areas. Available in a range of lens and lumen packages, with DALI and DMX control options, the Challenger 3 S-Light provides versatile, high-performance lighting tailored to each project.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger 3 S-Light AL7300 Series

Technical Specifications Power (W)

1000W

1500W

Weight (without driver)

21kg

25kg

Lumen output

up to 162,865

Light Efficiency

up to 244,298 Up to 163lm/W

Beam Angle+

17°, 25°, 50°

Colour Temperature

5000K standard (Optional 3000K, 4000K or 5700K)

Colour Rendering Index (CRI)

≥70 (≥90 optional)

Colour

Heat sink: RAL 9017, Bracket: RAL 9017 & Abacus red

IP Rating

IP66

IK Rating

IK10

Operating Temperature Range

-40° - +40°

Optional accessories

Front Glass, Shields

Input Voltage

AC 200-440V @50/60hz (Single or 3 phase L1/L2/PE)

Dimensions Challenger 3 S-Light

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

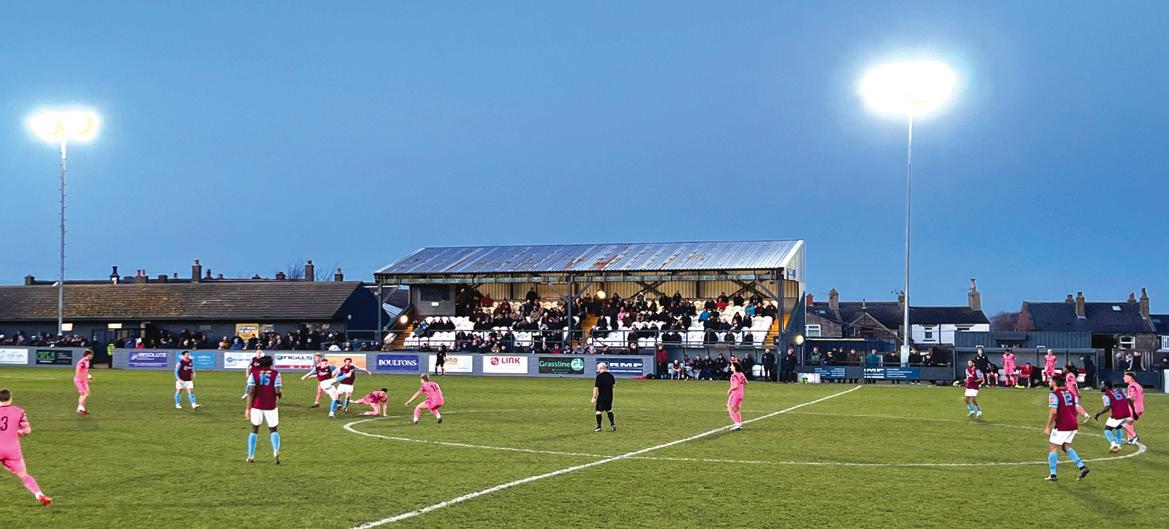

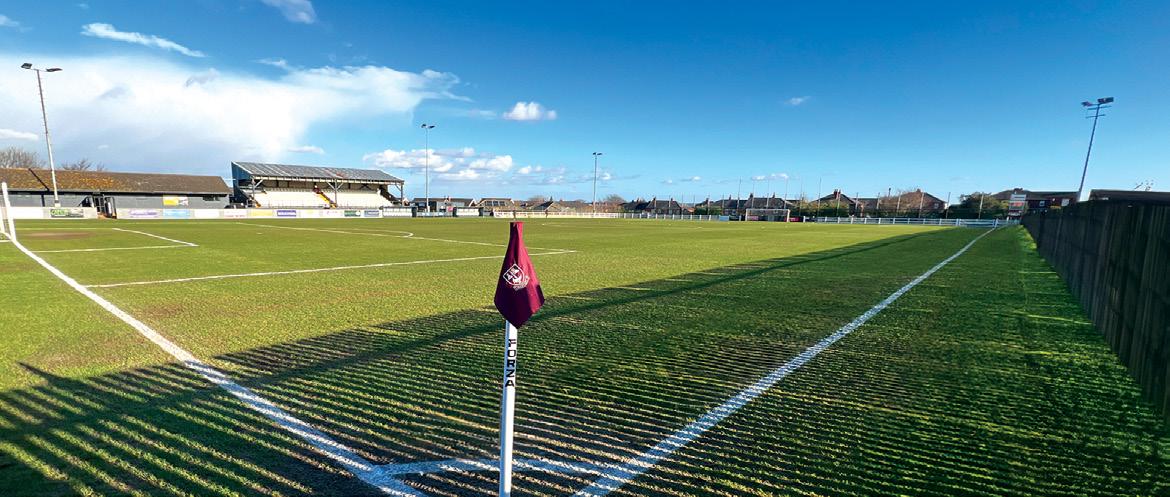

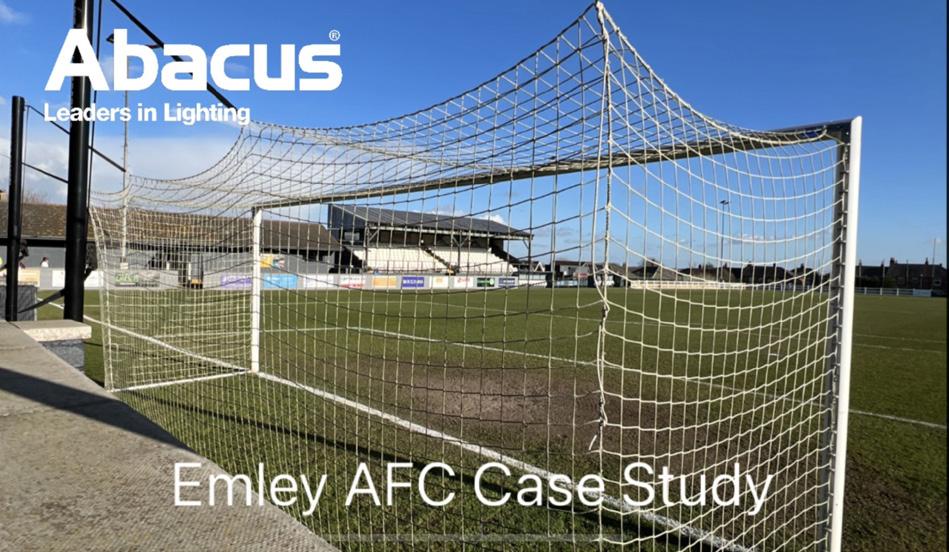

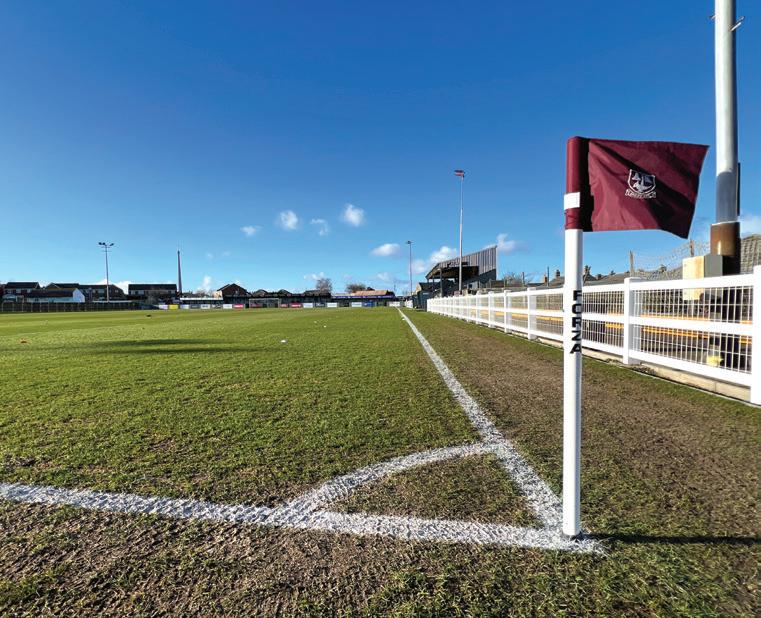

Emley Association Football Club Case Study About Our Client: Emley FC is a long-standing football club with a rich history and connection to its community. Over the years, the club has sought to improve its facilities to provide the best possible environment for players and fans.

Abacus Lighting has proudly supported Emley AFC for approximately 40 years, having originally installed their previous lighting system.

Emley FC is committed to maintaining a high standard of infrastructure to support its players and ensure a great matchday experience. Recognising the importance of efficient, high-quality lighting, the club has always prioritised modernising its facilities all around the ground.

This latest project aimed to enhance energy efficiency and light quality while ensuring long-term sustainability.

Scan

Here

Click Or Scan Here To View The Emley AFC Case Study Video!

The Challenge: Emley FC’s old lighting system had become outdated, with issues surfacing more frequently over time.

These challenges were escalating to the point where maintaining the system was no longer economically viable. With increased maintenance costs and declining performance, the club was struggling to meet the required lighting standards for competitive matches.

To continue providing a high-quality experience for both players and supporters, Emley AFC required a modern, efficient lighting solution that would not only enhance the quality of light on the pitch but also help reduce energy costs. The club also wanted a system that would be easy to control and maintain while reducing its environmental impact. Thanks to funding from the Premier League Stadium Fund, Emley AFC could move forward with upgrading their system.

The Solution: Abacus Lighting delivered a comprehensive turnkey solution, retrofitting six Challenger 3 LED floodlights and six Challenger 1 LED floodlights onto the club’s existing fixed masts. The installation was completed within the projected timeframe, with Abacus providing prompt responses to any issues that arose during the project. This modern lighting system was designed to deliver high-quality illumination while significantly reducing energy consumption. The new LED system offers superior brightness, uniform light distribution, and improved visibility for players, referees, and spectators alike.

One of the standout features of the new system is its advanced control capabilities, enabling Emley AFC to manage their lighting via a smartphone app. This functionality simplifies operations, allowing the club to easily set schedules, control brightness, and turn the lights on and off without needing to access the physical switch room. This not only enhances convenience but also contributes to further energy savings by ensuring the lights are only used when necessary.

By implementing the latest LED technology, Emley AFC now benefits from a more sustainable and cost-effective solution, reducing its carbon footprint while significantly lowering utility bills.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Emley Association Football Club Case Study

Testimonial: Andrew Painten, Chairman of Emley AFC, shared his thoughts on the project: “We’re delighted with the new system – it’s extremely reliable. The biggest impact as well as the quality of light is the cost saving; we already know we have saved around 25% on our utility bills. I personally love the fact we don’t have to run around going behind locked doors and finding switches. Now the switch room is right here on my smartphone, where we can set the lights on and off alongside controlling the brightness, which is a fantastic way of working.”

Challenger 3 LED

Challenger 1 LED

Key Features:

Key Features:

• Advanced design reduces light pollution and improves spectator viewing • Precise optical control designed specifically for sport • IP66 and IK10 rating for harsh environments • Lens and lumen packages available in a versatile design for multiple applications • Full cut off low spill design for control of light

• Flat glass, double asymmetric floodlight • Elegant and unobtrusive low profile design • Available in 2, 4 and 6 module variants from 400W to 1500W • Abacus designed medium and narrow light distribution, specifically for sports lighting • Integral or remote driver options • IP66 and IK10 rating for harsh environments • Powder coated Black/Red finish

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

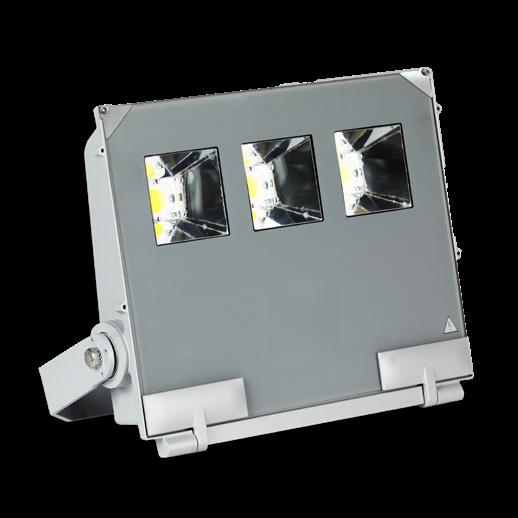

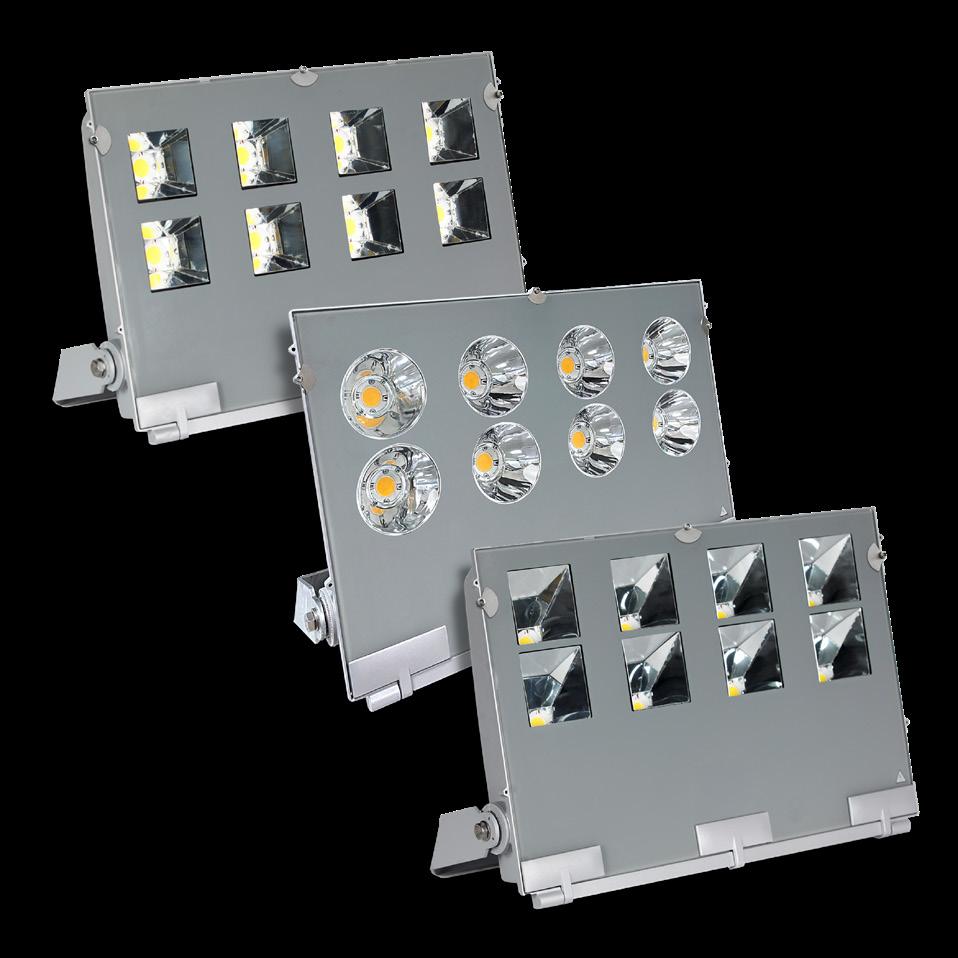

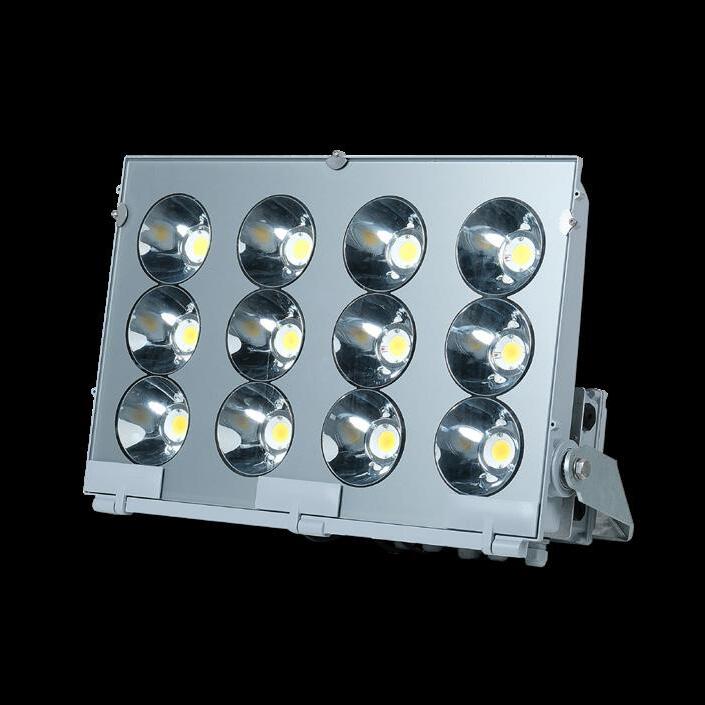

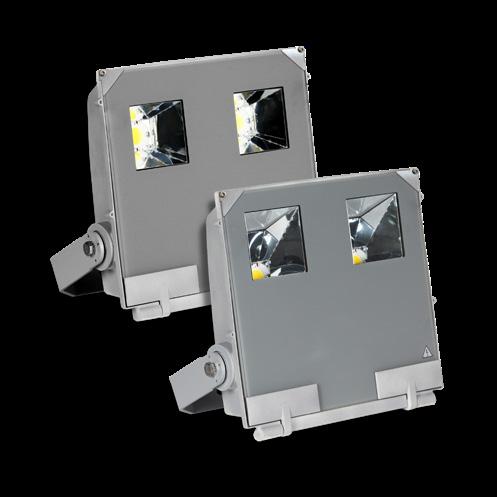

VAGO LED Floodlight AL61101 Series

VAGO 12

VAGO 2

In association with

VAGO 4

VAGO Key Features

VAGO 8

Product Applications

• Durable die cast aluminium housing

• Industrial Plants

• 160° rotation allows for a variety of mounting options

• Ports & Terminals

• CRI ≥70

• Substations

• Colour temperature 4,000K as standard • Surge protection up to 10kV • Symmetric, asymmetric distributions • Controls; DALI, 1-10V (optional) • Protection against overheating

• Distribution & Container Storage Yards • Sports Venues • Car Parks & Amenity Lighting • Public parks & Large Open Spaces

VAGO LED Floodlight Product Overview The VAGO series, encompassing models from VAGO 0 through to VAGO 12, is a versatile range of high-performance LED floodlights designed for outdoor lighting, as well as sports venues. These floodlights feature bodies and covers made of die-cast aluminium, ensuring high resistance to atmospheric agents, complemented by removable antiaging rubber gaskets for durability. The series includes options for symmetric, asymmetric, and circular optics, allowing tailored light distribution to meet diverse project requirements.

The VAGO range is well-suited for use in sectors requiring reliable, durable, and efficient lighting solutions, including outdoor general lighting, and sports venues where high-quality illumination is critical. With colour temperature options typically around 4000K (CRI 70), the series supports both warm and neutral white lighting needs.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

VAGO LED Floodlight AL61101 Series

Technical Specifications BODY TYPE

0

1

2

3

4

6

8

12

Power (W)

13-32W

38-50W

73-158W

130-168W

148-225W

174-330W

270-440W

438-608W

36,710 - 67,230 lm

60,830 - 93,500 lm

70,000 - 97,910 lm

Input Voltage

220 - 240 V / 50 - 60 Hz VAC

Power Factor

> 0.9

Luminous Flux (Net lm)

2,050 - 4,490 lm

6,640 - 9,090 lm

11,940 - 26,840 lm

26,300 - 32,850 lm

26,550 - 41,850 lm

L80 B10 @ 40°C

>70,000

Efficiency (lm/W)

Up to 200 lm/W

Electrical Class Surge Protection

Class I & Class II Options up to 4kV in common mode, 2kV in differential mode

up to 4kV in common mode, 10kV in differential mode

up to 10kV in common and differential mode

CCT (°K)

4000K (3000K available on request)

CRI (Ra)

CRI 70 for 4000K versions and CRI 80 for 3000K versions

Weight (kg)

1.70 kg

2.50 kg

5.70 kg

6.30 kg

7.80 kg

13.00 kg

13.20 kg

17.30 kg

Max Wind Area (m2) at 25°

0.016m²

0.026m²

0.058m²

0.069m²

0.082m²

0.166m²

0.166m²

0.166m²

Max Wind Area (m2) at 70°

0.037m²

0.053m²

0.094m²

0.112m²

0.132m²

0.230m²

0.230m²

0.230m²

IP Rating

IP66

IK Rating

IK08

Operating Temp (°C)

-40°c to +55°C

VAGO 1

VAGO 3

VAGO 6

Product Selector

Product Selection Example:

Body Type Ref

RA/CCT

AL61101 / 1 / 10 / 4K Product Family

Wattage

*Non-standard options may be subject to MOQs or longer lead times.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

VAGO LED Floodlight AL61101 Series

Asymmetric Product Variations Beam Type

Asymmetric Wide 0AW

Asymmetric Wide 1AW

Body Type

0

1

2

3 Asymmetric Wide AW

4

6

8

Asymmetric Medium AM

2

3

4 Asymmetric Medium AM 6

8

Insulation Class

Beam elevation when installed flat

Ref

Wattage

4000K output

3000K output

1

13

1540

1380

X

2

19

2150

1910

X

3

27

2920

3400

X

4

32

3380

2990

X

AL61101/4/32/4K

9

38

5040

4500

X

AL61101/9/38/4K

55

42

5990

5320

X

10

50

6950

6160

X

AL61101/10/50/4K

17

73

9120

8090

X

AL61101/17/73/4K

18

93

11460

10160

X

19

102

14960

13260

X

20

135

18800

16670

X

74

150

19440

-

X

31

130

19230

17050

X

32

158

23500

20840

X

75

168

24030

-

X

56

148

21900

19420

X

36

212

29910

26520

X

57

174

24710

21950

X

AL61101/57/174/4K

58

204

30980

27470

X

AL61101/58/204/4K

41

219

29700

26340

X

76

314

44970

-

X

42

328

46140

40920

X

59

270

44360

39480

X

47

342

54880

48850

X

13

73

9120

8090

X

AL61101/13/73/4K

14

93

15250

10160

X

AL61101/14/93/4K

15

102

14960

13260

X

16

135

18800

16670

X

71

150

19440

-

X

29

130

19230

17050

X

30

158

23500

20840

X

72

168

24030

-

X

51

148

21900

19420

X

35

212

29910

34960

X

52

174

24710

21950

X

53

204

30980

27470

X

39

219

29700

26340

X

73

314

44970

-

X

40

328

46140

40920

X

54

270

44360

54130

X

47

342

54880

48850

X

I

II

Beam correction

Product code AL61101/1/13/4K

35°

35°

-35°

-35°

AL61101/2/19/4K AL61101/3/27/4K

AL61101/55/42/4K

AL1101/18/93/4K 42.5°

-45°

AL61101/19/102/4K AL61101/20/135/4K

X

AL61101/74/150/4K AL61101/31/130/4K 42.5°

-45°

AL61101/32/158/4K AL61101/75/168/4K

X

42.5°

42.5°

-45°

-45°

AL61101/56/148/4K AL61101/36/212/4K

AL61101/41/219/4K AL61101/76/314/4K

X

AL61101/42/328/4K 42.5°

47.5°

-45°

-45°

AL61101/59/270/4K AL61101/47/342/4K

AL61101/15/102/4K AL61101/26/135/4K AL61101/71/150/4K

X

AL61101/29/130/4K 47.5°

-45°

AL61101/30/158/4K AL61101/72/168/4K

X 47.5°

-45°

AL61101/51/148/4K AL61101/35/212/4K AL61101/52/174/4K AL61101/53/204/4K

47.5°

-45°

AL61101/39/219/4K AL61101/73/314/4K

X

AL61101/40/328/4K 47.5°

-45°

AL61101/54/270/4K AL61101/47/342/4K

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

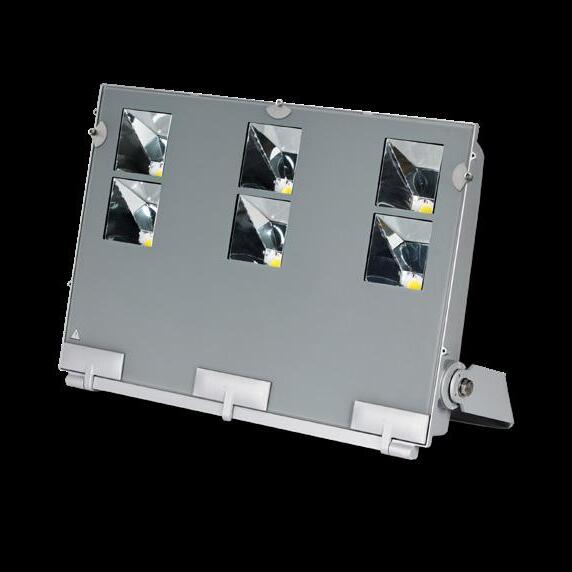

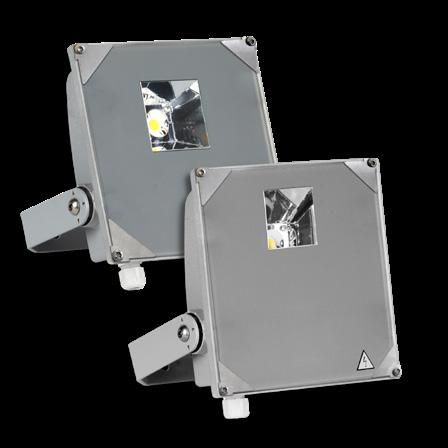

VAGO LED Floodlight AL61101 Series

Symmetric Product Variations Beam Type

Symmetric Medium SM

Body Type

2

3

4 Symmetric Medium SM 6

8

Symmetric Wide 0SW

Symmetric Wide 1SW

0

1

2

3 Symmetric Wide SW

4

6

8

3000K Output

Insulation Class

9550

8470

X

AL61101/21/73/4K

12200

10820

X

AL61101/22/93/4K

14960

13260

X

AL61101/23/102/4K

19980

-

X

AL61101/77/150/4K

158

21470

19240

X

AL61101/24/158/4K

130

19870

17620

X

AL61101/60/130/4K

33

168

24680

21880

X

AL61101/33/168/4K

78

168

24780

-

X

61

148

22540

20000

X

AL61101/61/148/4K

37

225

31620

28040

X

AL61101/37/225/4K

62

174

26090

23150

X

AL61101/62/174/4K

43

219

31290

27750

X

AL61101/43/219/4K

63

250

39730

35260

X

79

314

46360

-

X

44

330

50730

44990

X

AL61101/44/330/4K

64

312

53090

47250

X

AL61101/64/312/4K

49

440

70560

62800

X

AL61101/49/440/4K

5

13

1640

1450

X

AL61101/5/13/4K

6

19

2260

2000

X

AL61101/6/19/4K

7

27

3070

2720

X

AL61101/7/27/4K AL61101/8/32/4K

Ref

Wattage

21

73

22

93

23

102

77

150

24 60

4000K Output

I

II

X

Product code

AL61101/78/168/4K

AL61101/63/150/4K X

AL61101/79/314/4K

8

32

3590

3170

X

11

38

5310

4710

X

AL61101/11/38/4K

65

42

6310

5580

X

AL61101/65/42/4K

12

50

7270

6450

X

25

73

9550

8470

X

26

93

12200

10820

X

AL61101/26/93/4K

27

102

14960

13260

X

AL61101/27/102/4K

80

150

19980

-

X

28

158

21470

19040

X

66

130

19870

17620

X

AL61101/66/130/4K

34

168

24680

21880

X

AL61101/34/168/4K

81

168

24780

-

X

AL61101/81/168/4K

67

148

22540

20000

X

38

225

31620

28040

X

AL61101/38/225/4K

68

174

26090

23150

X

AL61101/68/174/4K

45

219

31290

27750

X

AL61101/45/219/4K

69

250

39730

35260

X

AL61101/69/250/4K

82

314

46360

-

X

AL61101/82/314/4K

46

330

50730

44990

X

AL61101/46/330/4K

70

312

53090

47250

X

AL61101/70/312/4K

50

440

70560

62800

X

AL61101/50/440/4K

X

AL61101/12/50/4K AL61101/25/73/4K

AL61101/80/150/4K X

X

AL61101/28/158/4K

AL61101/67/148/4K

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

VAGO LED Floodlight AL61101 Series

Circular Product Variations Beam Type

Body Type

3

Circular Wide CW

4

6

8

3

Circular Narrow CN

4

6

8

Insulation Class

Ref

Wattage

4000K output

3000K output

I

93

130

21040

18680

X

AL61101/93/130/4K

94

168

26150

23190

X

AL61101/94/168/4K

95

168

26280

-

X

AL61101/95/168/4K

96

148

23930

21260

X

97

225

33510

29710

X

II

Product code

AL61101/96/148/4K X

AL61101/97/225/4K

98

250

42190

37410

X

AL61101/98/250/4K

100

314

49130

-

X

AL61101/100/314/4K

99

330

53780

47690

X

101

312

56230

50040

X

AL61101/101/312/4K

102

440

74800

66570

X

AL61101/102/440/4K

83

130

21040

18680

X

AL61101/83/130/4K

84

168

26150

23190

X

AL61101/84/168/4K

85

168

26280

-

X

86

148

23930

21260

X

AL61101/86/148/4K

87

225

33510

29710

X

AL61101/87/225/4K

88

250

42190

37410

X

90

314

49130

-

X

89

330

53780

47690

X

AL61101/89/330/4K

91

312

56230

50040

X

AL61101/91/312/4K

92

440

74800

66570

X

AL61101/92/440/4K

X

X

AL61101/99/330/4K

AL61101/85/168/4K

AL61101/88/250/4K X

AL61101/90/314/4K

12 LED Body Type Product Variations Beam Type

Body Type

Symmetric Medium SM Symmetric Wide SW Aymmetric Medium AM 12 Aymmetric Medium AW Circular Narrow CN

Circular Wide CW

Ref

Wattage

4000K output

3000K output

Product code

121

608

92820

83330

AL61101/121/608/4K

122

670

100560

90208

AL61101/122/670/4K

123

746

109060

97910

AL61101/123/746/4K

124

608

92820

83330

AL61101/124/608/4K

125

670

100560

90208

AL61101/125/670/4K

126

746

109060

97910

AL61101/126/746/4K

127

438

70000

62850

AL61101/127/438/4K

128

480

76200

68410

AL61101/128/480/4K

129

540

84000

75420

AL61101/129/540/4K

130

438

70000

62850

AL61101/130/438/4K

131

480

76200

68410

AL61101/131/480/4K

132

540

84000

75420

AL61101/132/540/4K

133

608

98300

88250

AL61101/133/608/4K

134

670

106500

95610

AL61101/134/670/4K

135

746

115500

103690

AL61101/135/746/4K

136

608

98300

88250

AL61101/136/608/4K

137

670

106500

95610

AL61101/137/670/4K

138

746

115500

103690

AL61101/138/746/4K

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

VAGO LED Floodlight AL61101 Series

Optic Options By Body Type Optics Options Available For Body Type 0

Optics Options Available For Body Type 1

1500

1500

1500

1500

1250

1250

1250

1250

1000

1000

1000

1000

750

750

750

750

500

500

500

500

250

250

250

250

0

90º

60º

30º

0º

30º

60º

0

90º

90º

60º

0º

30º

30º

60º

0

90º

90º

Asymmetric Wide Max 35° 0AW

Symmetric Wide 0SW (WB)

60º

0º

30º

30º

60º

90º

0

90º

60º

30º

0º

30º

60º

90º

Asymmetric Wide Max 36° 1AW

Symmetric Wide 1SW (WB)

Optics Options Available For Body Types 2/3/4/6/8/12 1500

1500

1250

1250

1000

1000

750

750

500

500

250

250

0

90º

60º

30º

0º

30º

60º

90º

0

90º

60º

30º

0º

30º

60º

90º

Symmetric Wide SW (WB)

Symmetric Medium SM (MB) 2100

2100

2100

2100

1750

1750

1750

1750

1400

1400

1400

1400

1050

1050

1050

1050

700

700

700

700

350

350

350

350

0

90º

60º

30º

0º

30º

60º

90º

0

90º

60º

30º

0º

30º

60º

90º

0

90º

Asymmetric Medium AM (A1) Max 45°

Asymmetric Medium Max 57° With Shield*

60º

30º

0º

30º

60º

90º

Asymmetric Wide Max 55° With Shield*

0

90º

60º

30º

0º

30º

60º

Asymmetric Wide AW (A2) Max 43°

*Non-standard options may be subject to MOQs or longer lead times.

Optics Options Available For Body Types 3/4/6/8/12 5000

5000

4000

4000

3000

3000

2000

2000

1000

1000

0 -180º -120º -60º 0º

60º 120º 180º

Circular Narrow CN (C4)

0 -180º -120º -60º 0º

60º 120º 180º

Circular Wide CW (C3)

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

90º

VAGO LED Floodlight AL61101 Series

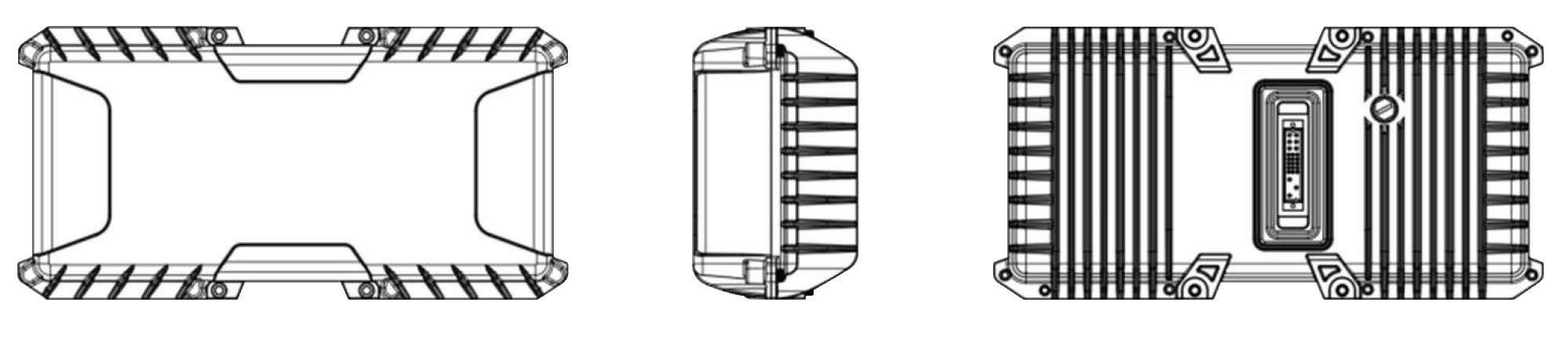

VAGO Dimensions Body Type 0: 160º 183

YES

NO 180

50

50

234

Sym**

3 x Ø10.5

160º

5º

YES

60

193

NO Asym**

Body Type 1: 160º

223

YES

NO

50

220

277

Sym**

50

3 x Ø10.5

160º

5º

YES

233

64

NO Asym**

Body Type 2: 160º

324

YES

75

75

300

NO 381

Sym**

Ø11

Ø15

Ø11

160º

5º

YES

348

92

NO Asym**

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

VAGO LED Floodlight AL61101 Series

VAGO Dimensions Body Type 3: 160º

384

YES

75

75

300

NO 381

Sym**

Ø15

Ø11

Ø11

160º

5º

YES

92

408

NO Asym**

Body Type 4: 160º

454

YES

75

300

NO

75

381

Sym**

Ø11

Ø15

Ø11

160º

5º

YES

478

92

NO Asym**

Body Types 6, 8 and 12: 606 160º YES

70

400

NO

70

481

Sym**

Ø13

Ø15

Ø13

160º

5º

YES

NO Asym**

633

92

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger MAKO AL7200 Series

Challenger MAKO Key Features: • Unmatched lumen to weight ratio • Optional RGB modules for interchangeable light shows • Customisable scene control system with Cloud connectivity from standard devices • Retrofit solution for upgrading sporting stadiums to LED • Highly corrosion-resistant alloy construction and coatings • Lightweight construction eliminates the need for bulky cross arms • IP66, NEMA 4x, ANSI C136.31 3G Certified

Challenger MAKO Technical Specification: Technical Data: Power (W)

White Lights

RGB Lights

Up to 1200W

Luminous Output

Up to 150,000 lm

Up to 96,000 lm

• Intelligent, energy-efficient driver with system failure detection

Colour Temperature

5000K - 5700K

N/A

70 ->90

N/A

• 5 year Warranty

IP Rating

Colour Rendering Index (CRI)

IP66

Operating Temperature Range

-40ºC to +45ºC

Wind Area (2 module assembly)

0.278m²

Driver Input Power

190-528VAC

Challenger MAKO Stadium Lighting Overview: The Challenger MAKO is a stadium luminaire specifically designed to illuminate international stadiums for both day and night matches with exceptional clarity and coverage. The incredibly high demands of today’s UHD TV sports programs have driven the design of the Challenger MAKO. Its unrivalled lumen output to weight ratio: up to 150,000 lumens and weighing just 11.6kg per module ensures stadiums around the world can offer reliable, UHD coverage efficiently and flexibly at every match.

The Challenger MAKO’s lightweight construction, simple installation, and flexible cloud-based control from standard devices deliver outstanding performance whatever the weather. Options that include additional RGB modules can be specified to create entertaining light shows on match days. High-quality automotive-grade alloy materials, corrosion protection coatings, and driver technology innovations enhance the product life-cycle while ensuring that the Challenger MAKO continuously works at peak performance.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger MAKO AL7200 Series

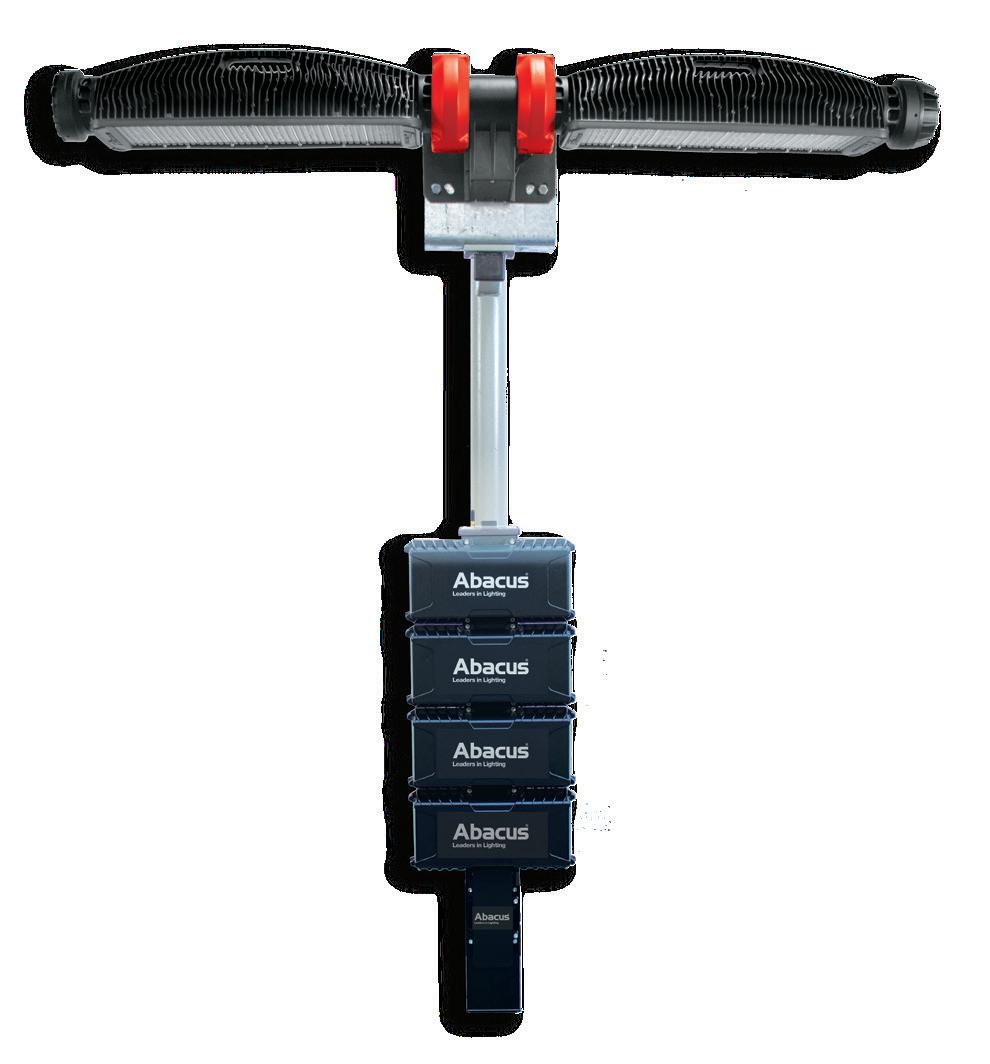

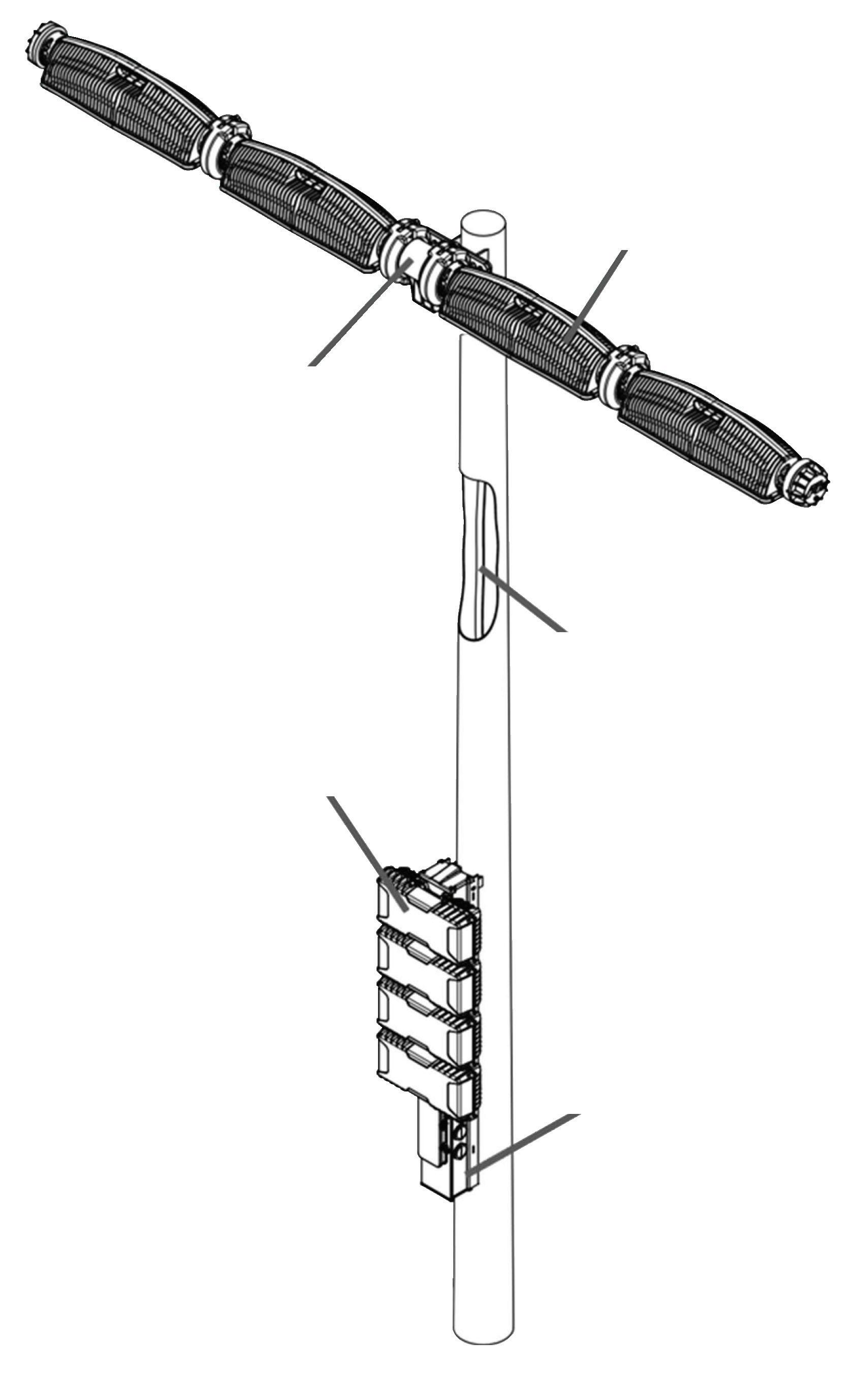

Challenger MAKO Module Key Features:

Key Features: • Unique optics, designed specifically for stadium lighting

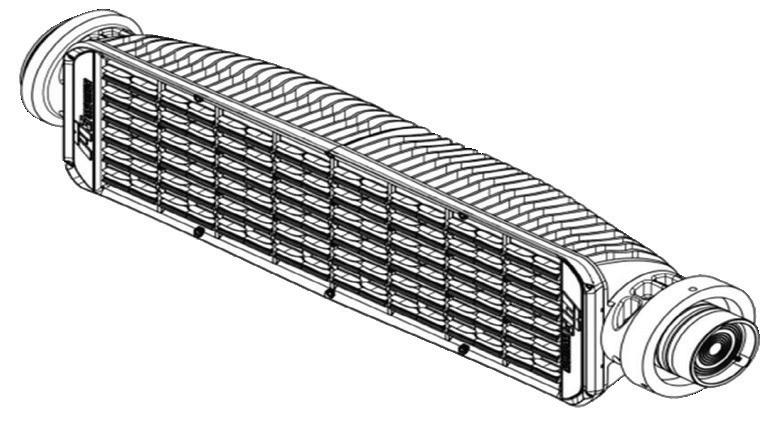

Challenger MAKO Module

• Sleek and robust structural design; Two modules make up a combined weight of 33kg - equivalant to two metal halide luminaires) • 96,000 lumens of modular and quickly interchangeable RGB Light

Challenger MAKO Mount

• Quick installation - All drivers connect directly to the driver spine • Extremely Low On-Field Glare Rating • Ultra-corrosion resistant alloy - less than 0.03% Cu with Electrophoresis Coating

Internal Cabling Module To Driver Challenger MAKO Drivers

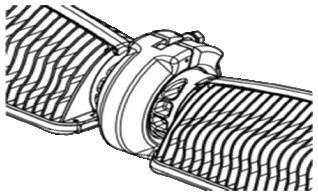

Challenger MAKO Module Clamp Assembly: The hinged clamp securely connects the two modules together, forming a weatherproof seal when the locking bolt is tightened.

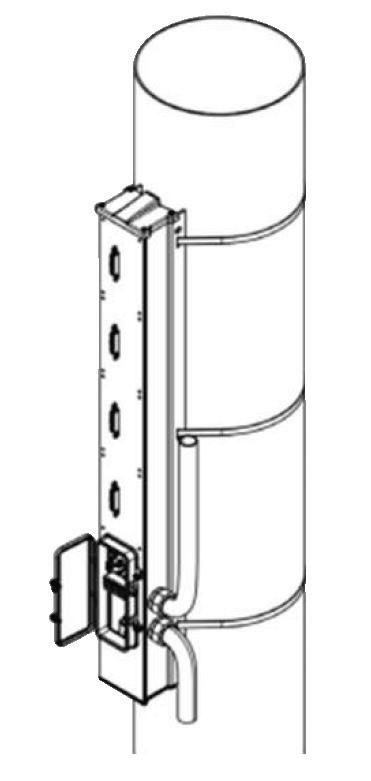

Challenger MAKO Driver Spine

Challenger MAKO Module Dimensions:

Dimensions: (L x W x H) 685 x 185 x 158mm

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger MAKO AL7200 Series

Challenger MAKO Driver Key Features: • Input voltage range: 190-528VAC • Built-in active PFC function • Three channel outputs independent control • Max Output Power 400W per channel Total 1200W(240-528Vac),1000W(190-240Vac) • Output Current, ranging from 180-1800mA • Output Voltage, ranging from 150-215Vdc • Dimming Control method: RS485 • High efficiency: 95% Typ • Output voltage, current and power sensing • Output short circuit and over-voltage protection • Surge level 4kV common mode and 6kV differential mode with external SPD • Non Isolated, Class I Challenger MAKO Driver Overview: The Challenger MAKO Driver is custom designed and optimised to be the most efficient and reliable driver in the Sports Lighting Industry. Built from the ground up using mission-critical military power supply design methodology, the Challenger MAKO Driver offers many technology innovations to enhance system lifetime.

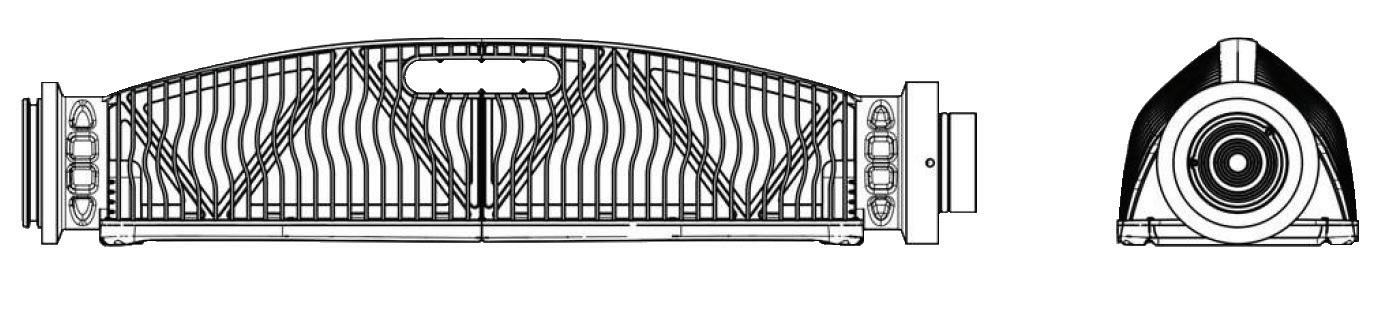

Challenger MAKO Driver Mast Connection Spine

Reliability, redundancy, system health monitoring, and ease of replacement ensure the Challenger MAKO sports lighting system remains at peak performance for the lifetime of your project.

Dimensions: (L x W x H) 343 x 170 x 170mm

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger MAKO AL7200 Series

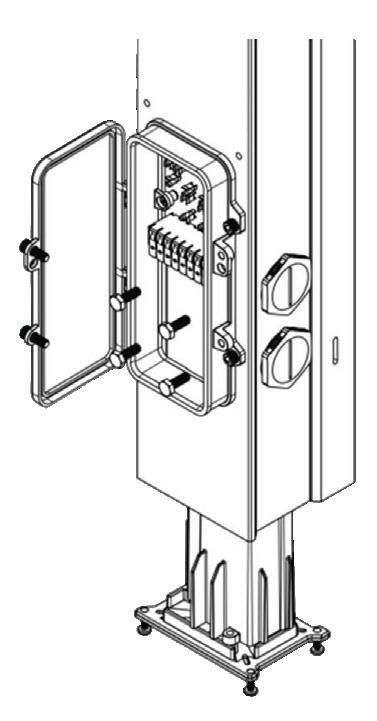

Challenger MAKO Spine Driver Connection: • Rugged solid-state mission critical defence system backplane for power and communication • Fast connect and disconnect of Challenger MAKO Driver without need of electrician • Integrated 100kA surge protection battery backup on board to support control use, egress lighting, and security cameras in loss of power events Integrated Junction Box: • Sealed and lockable access point for installation and maintenance • Eliminates cumbersome and costly external fuse enclosures • Patented MST Field-Adapt quickly converts from 1-phase to 3-phase in seconds • Universal input voltage of 208VAC to 480VAC • Easy Tool-Free connection to existing power at base of pole Challenger MAKO SES Control System: • Only All-encompassing exclusive Sports Lighting Control System on the market • Intuitive control of MAKO Sports Entertainment Solution and loT devices • Cellular connectivity included for 24/7 monitoring and system updates Expandable Sensor and Auxiliary Power • Low voltage quick access expansion port for loT sensors Simple, quick, and low-cost snap-in camera module for streaming video capability • 2-hour emergency lighting module with up to 2500 lumen output

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Challenger MAKO AL7200 Series

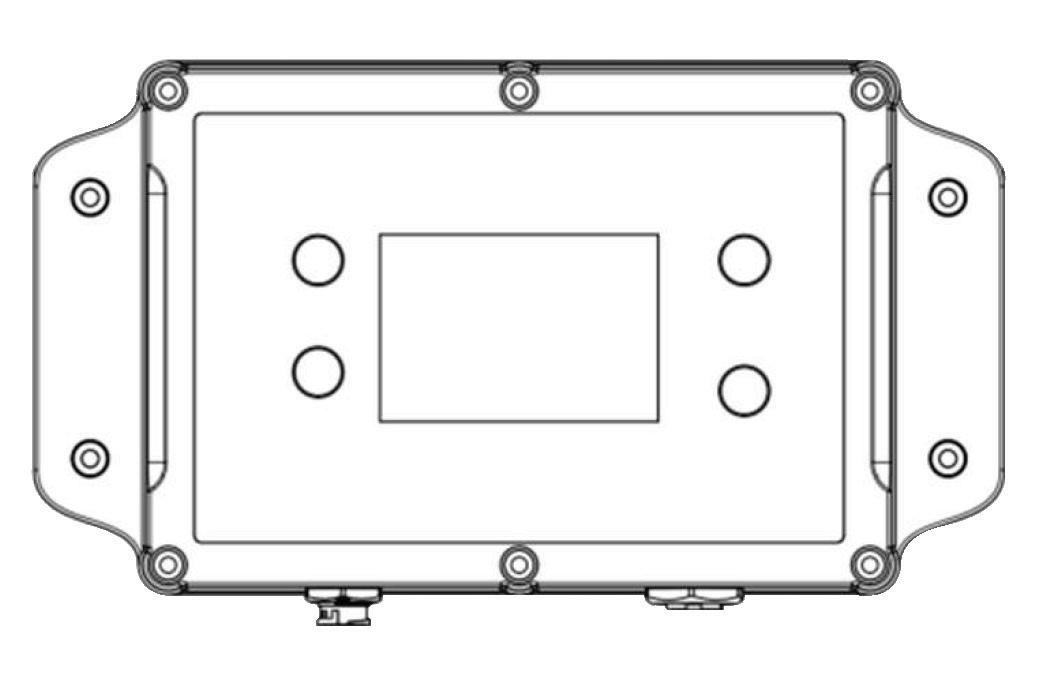

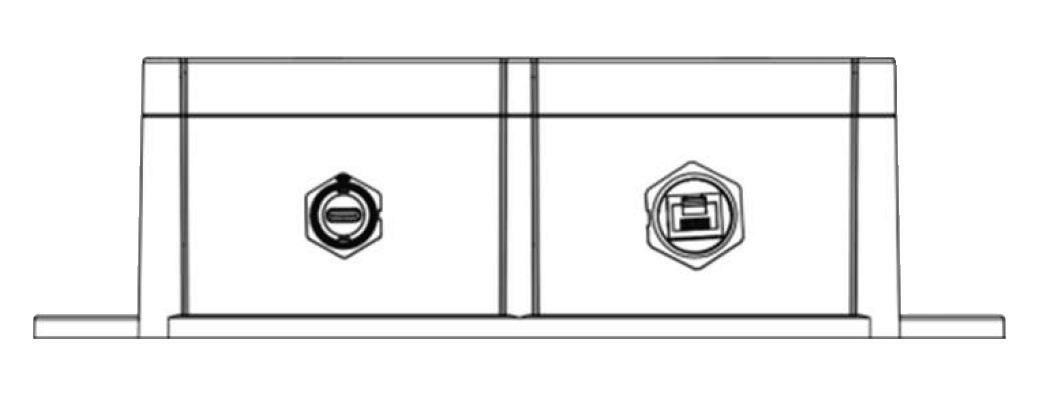

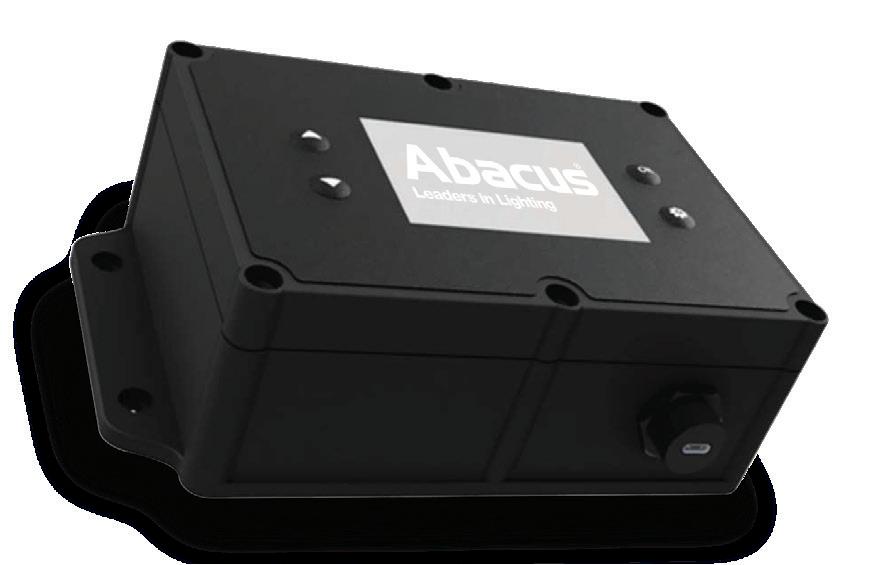

Challenger MAKO Gateway System Key Features: • Description: T30-4G Cellular connected gateway • Input Power: USB-C Universal Input • Operating Environment: Outdoor Rated at -40C to 55C, 1P65 (when latched) • Cellular: 4G CAT 1 cellular module • Wi-Fi: Built in Wireless Access • Radio: ESP32 Wi-Fi+SOC

Dimensions: (L x W x H) 260 x 143 x 75mm

• Certifications: FCC/IC, UL, CSA & ROHS • IP65 rated with built in surge protection • Programmable push buttons for manual control • Multiple zones, behaviours, events, and schedules • Built in Wi-Fi for local wireless access • Ethernet port and cellular for network connectivity • AES 128-bit encryption • BMS and other system integration options • Optional Cloud and Remote Access services available • Warranty: 5-year

Challenger MAKO Gateway Control System Overview: The Challenger MAKO SES Control System allows for dynamic wireless communication to form a local mesh network. The primary function of the Challenger MAKO SES Control System is to create multiple zones, dynamic behaviours, events, and schedules.

• The only All-encompassing exclusive Sports Lighting Control System on the market • Intuitive Control of Challenger MAKO Sports Entertainment Solution and loT devices • Cellular connectivity included for 24/7 monitoring and system updates

The Challenger MAKO SES Control System has built in Wi-Fi for local wireless communication. The system comes equipped with an LCD screen and simple push button for easy end user interface.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Prestigious Cricket Grounds Case Study:

Abacus Lighting Completes Three Major Projects at Kensington Oval, Lord’s and Arnos Vale Cricket Grounds Abacus Lighting, in partnership with M3 Innovations creators of the Challenger MAKO, has recently completed lighting projects at three of the world’s premier cricket grounds: Lord’s Cricket Ground in London, Kensington Oval in Barbados, and Arnos Vale Stadium in St. Vincent.

Over a span of just four months, these significant undertakings have reaffirmed Abacus Lighting’s status as the leader in sports lighting solutions.

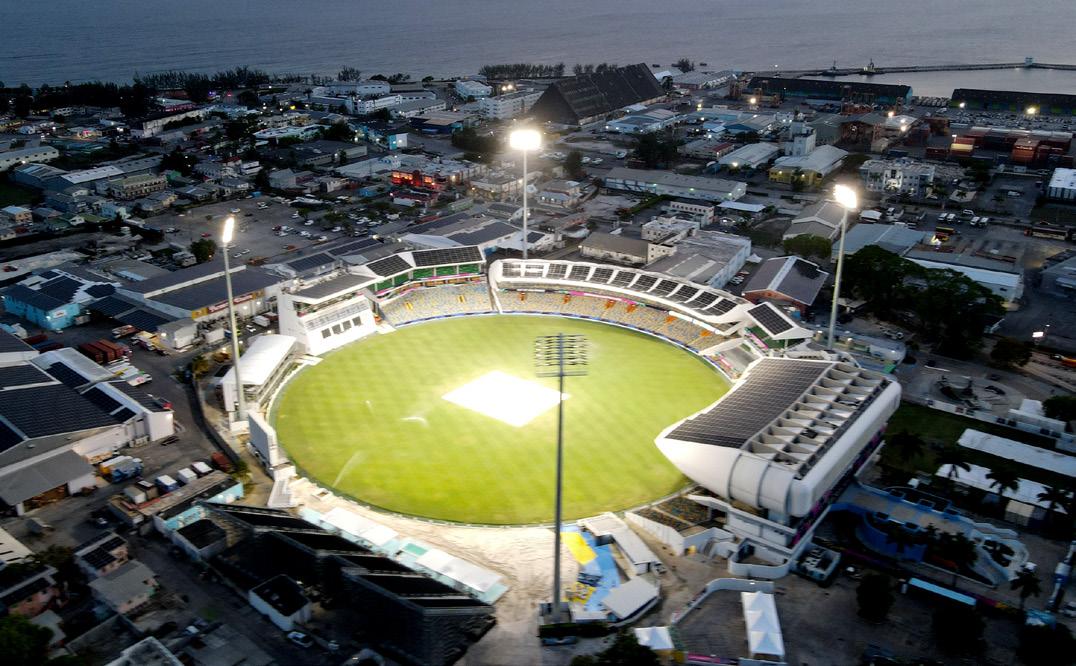

Kensington Oval - Barbados

These prestigious cricket venues have all transitioned to Abacus Lighting’s cutting-edge LED floodlight, the Challenger MAKO - the first LED fixture designed specifically for the unique needs of cricket grounds.

This marks a new era in sports lighting, showcasing the company’s continuous commitment to innovation and excellence. The Challenger MAKO floodlights boast an unrivalled lumen-to-weight ratio, delivering the highest power output from the lightest possible fixtures. Each installation has benefitted from the floodlight’s advanced technology, ensuring these grounds are primed for both day and night matches with exceptional clarity and coverage.

The T20 World Cup, which has been staged around the world this month (June 2024) was a significant factor in the decision to upgrade the lighting at both Kensington Oval and Arnos Vale. The new lighting ensures the grounds meet the highest standards required for such a prestigious tournament. The Challenger MAKO floodlights enhance visibility and broadcast quality, making the matches more enjoyable for both spectators and viewers around the world.

The installation of the Challenger MAKO at Lord’s and Kensington Oval marks a significant upgrade from their previous lighting systems. The lightweight and efficient design of these floodlights ensures that each ground can achieve optimal lighting conditions with minimal structural impact, a key consideration for these historic and iconic venues.

Prestigious Cricket Grounds Case Study Video

Scan

Here

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

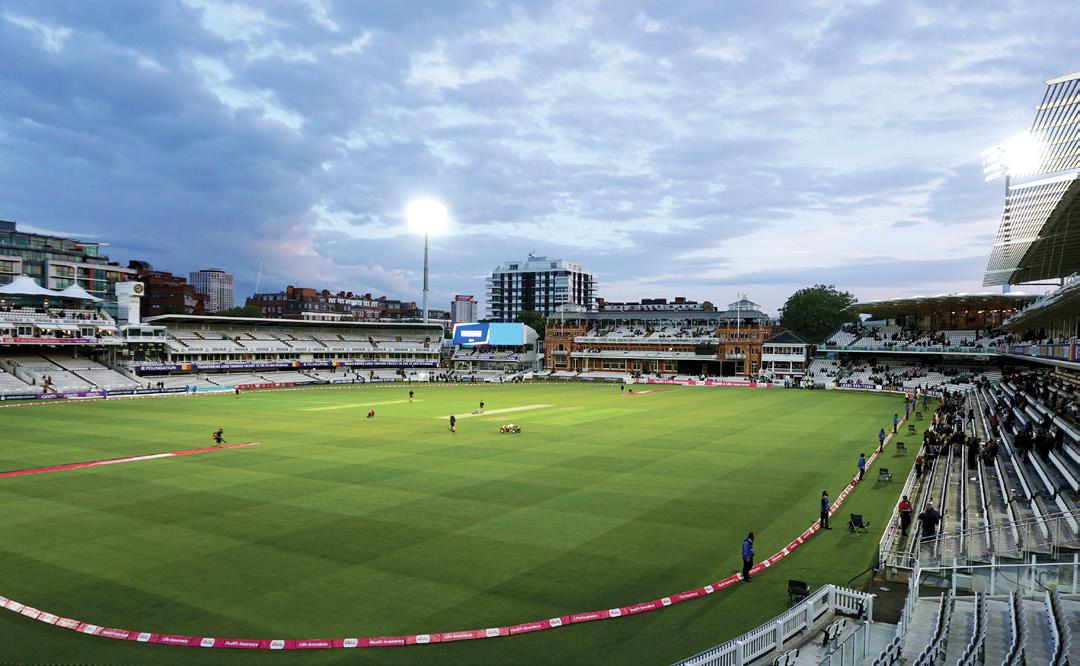

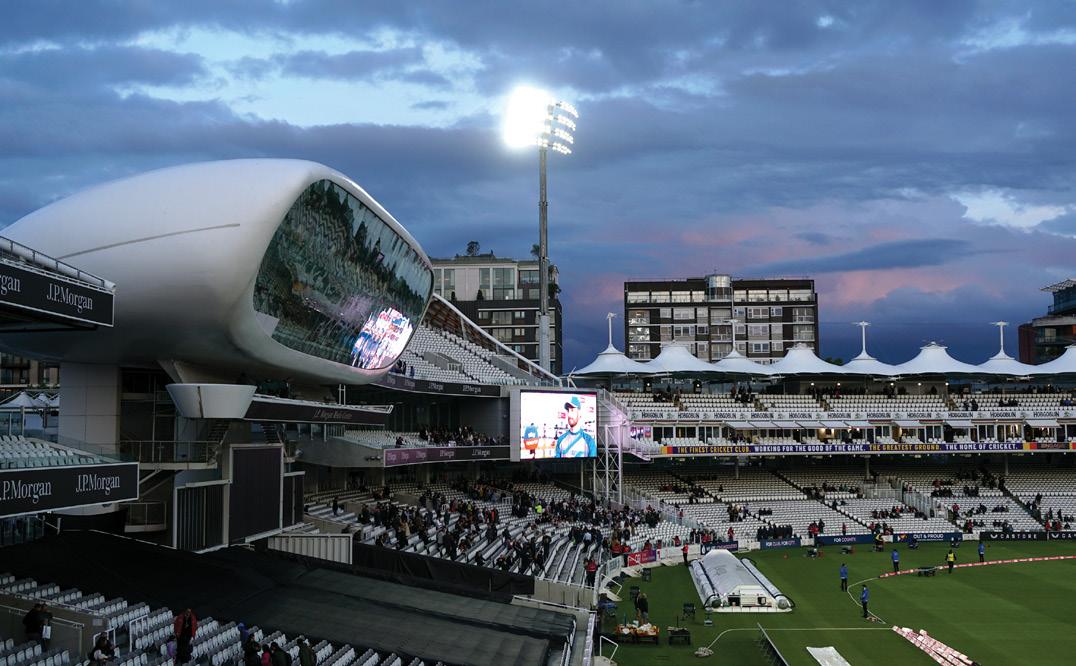

Prestigious Cricket Grounds Case Study: Lord’s - London, England

Lord’s Cricket Ground, known as the “Home of Cricket,” has a storied history and a reputation for excellence. The new lighting system enhances both day and night matches, providing a world-class experience for players and spectators.

Kensington Oval, situated in the heart of the Caribbean, is famous for its vibrant atmosphere and passionate fans. The improved lighting ensures every match is a spectacle, maintaining the Oval’s status as a premier cricketing venue. This year, the T20 Cricket World Cup final will be held at Kensington Oval, making it one of just three cricket grounds in the world to hold the prestigious honour of hosting the Cricket World Cup final more than twice; another able to boast this accolade is Lord’s in England.

Lord’s and Kensington Oval have a history of trusting Abacus Lighting as their lighting provider. The decision to upgrade to the Challenger MAKO floodlights signifies the trust and satisfaction these venues have in the company’s products and services. Abacus Lighting, working alongside M3 Innovations, takes great pride in continuing these valued partnerships, ensuring these cricketing landmarks remain at the pinnacle of the sport.

Did You Know?

The T20 Cricket World Cup final will be held at Kensington Oval this year, one of just three grounds to host the final more than twice, with Lord’s in England being another.

Arnos Vale Stadium, nestled in the picturesque island of St. Vincent, now enjoys state-of-the-art lighting with its brand-new installation. This modern installation supports Arnos Vale’s role in hosting international cricket and other sporting events, ensuring it meets the standards of top-tier venues worldwide. The new lights were installed in time for the grounds to host the Super Eight stages of the T20 World Cup on 22-June and 24June.

Abacus Lighting’s dedication to product development and innovation ensures the company stays at the forefront of the lighting industry. The successful completion of these high-profile projects within a short time-frame underscores our ability to deliver top-tier solutions on a global scale. As leaders in lighting, Abacus Lighting and M3 Innovations remain committed to setting new standards and illuminating the future of sports and entertainment.

Abacus Lighting’s Challenger MAKO - Unmatched weight-to-light output LED lighting solution designed specifically for cricket Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Prestigious Cricket Grounds Case Study: The Abacus Approach: Abacus Lighting’s brief was for the stadium lighting to meet current broadcasting standards, lower power consumption, and increase energy efficiency. The lighting upgrades at Lord’s, Arnos Vale, and the new installation at Kensington Oval cricket ground all aim to significantly contribute to the venues’ stated goal of becoming carbon neutral.

Abacus Lighting’s Challenger MAKO LED stadium luminaries were specifically chosen because they offer low power consumption, can be retrofitted to existing masts, reduce maintenance costs by lasting approximately three times longer than Metal Halide lamps, and hit the competition for six in terms of weight-to-light output ratio.

Challenger MAKO LED stadium floodlights have the additional option of RGB colour-changeable lighting modules, which can create impressive light shows to entertain the crowd on match days. The Challenger MAKO enables live lighting adjustment throughout the match, and light shows can be pre-programmed before a match using user-friendly software controlled from standard devices.

The Challenger MAKO offers fast, efficient installation and low maintenance. Each unit has two LED modules, a fixing bracket, a module clamp, and a driver. This ensures minimal downtime during servicing and eliminates needing specialist cranes or heavy lifting gear. Most maintenance and repairs can be done using a man-rider winch on fixed masts. Alternatively, as at Lord’s, telescopic masts can be specified at the design stage to lower the lights, eliminating the need to hire expensive maintenance/repair access equipment.

Arnos Vale Stadium - St Vincent

Another advantage is the Abacus Challenger MAKO’s superior weight-to-light output. Components are constructed from automotive-grade aluminium, ensuring they are not excessively heavy. This allows quick, efficient replacement or maintenance without compromising on light output.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Prestigious Cricket Grounds Case Study: The Abacus Approach: Abacus’s experienced, in-house lighting design engineers ensured that they not only met but exceeded the required broadcasting standards to light the wicket, creating optimum light levels for broadcasting and playing cricket during the day and night. Abacus Lighting’s design engineers worked with M3 Innovations to precisely calculate each project to meet the design brief and ensure optimum performance throughout the match.

The Challenger MAKO is the only digital sports lighting solution designed specifically for cricket grounds. Its patented optical lens meets both the new ICC T-24 standards and the more stringent ICC T20 World Cup standards, requiring illumination of greater than 3000 lux (300 lumen’s per square yard (0.9m) across the 22-yard-long (20m) by 10-foot-wide (3m) wicket.

The selection of the Challenger MAKO Sports Lighting System was driven by its ability to leverage existing Abacus Lighting masts while doubling the required light output. Its modular design and reduced weight enable seamless integration into existing infrastructure without exceeding weight limits or inflating project costs, eliminating the need for numerous fixtures, complex mounting configurations, and excessive wiring.

Abacus Lighting Limited Established In 1958 Abacus Lighting are “Leaders in Lighting,” we offer our clients solutions that utilise the latest energy-saving technology, bespoke manufacturing techniques, precisely calculated lighting designs, full turnkey projects, and reliable installation and maintenance packages internationally. We partnered with M3 Innovations MAKO on three prestigious cricket ground projects to provide an unmatched, full turnkey solution backed by outstanding technical support and unequalled experience in modern stadium lighting.

About M3 Innovation, LLC

Syracuse, NY-based M3 Innovation created the most reliable, high-performing, and high-output stadium experience solution. M3 Innovation in partnership with Abacus Lighting is now taking the sports lighting industry into a new age of possibility with innovative new technology that is modular, expandable, energy-efficient, and affordable.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

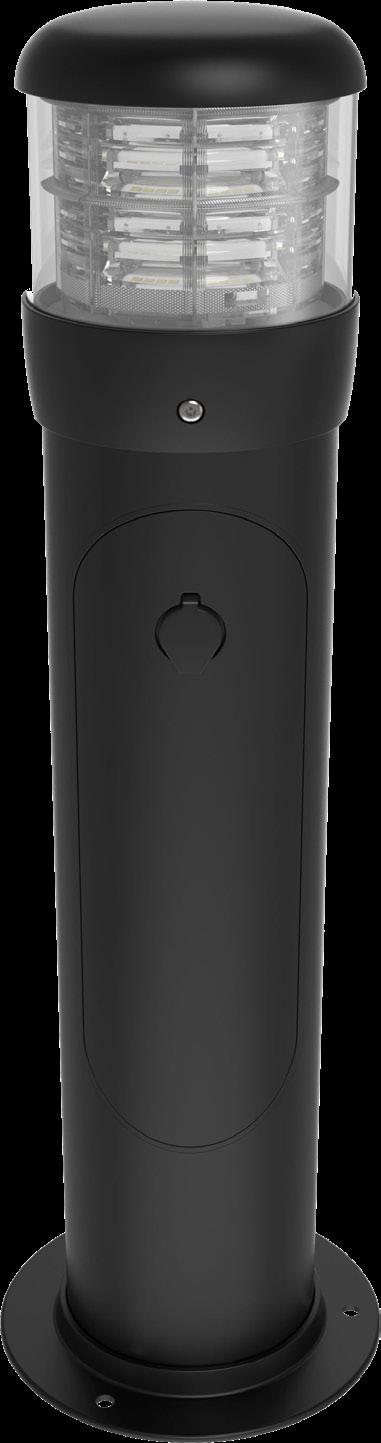

Quartz Evo Bollard

AL9100 (GRP) & AL9200 (alloy/steel) Series Quartz Evo Bollard Key Features • Greatest spacing in the industry between bollards • Less units required to meet lighting safety standards • Low glare optic design with unrivalled uniformity • Non-conductive GRP or alloy/steel materials • Symmetrical and asymmetrical options • Flange plate or root mounted • Vandal-resistant flush, extra-wide access door with quarter-turn locking mechanism - GRP version only • Retrofit head units on to existing bodies - Alloy/steel version only • IP66 Rated • 3 hour emergency battery backup option available

Product Applications • Railway Crossings • Railway Platforms • Railway Stations

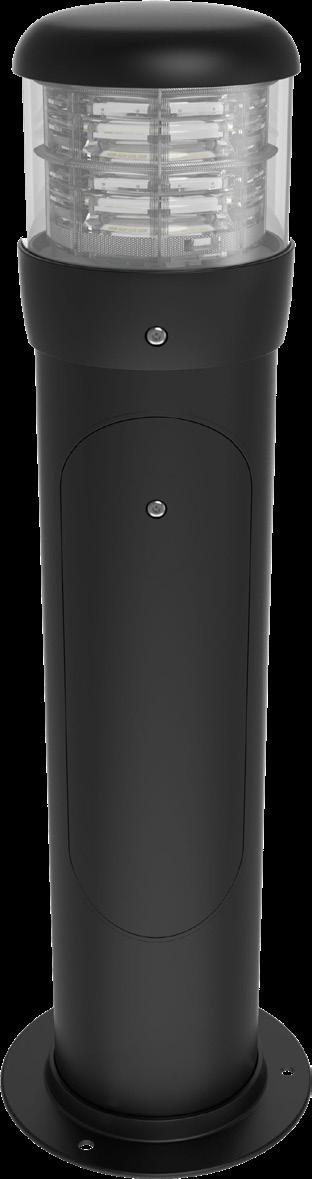

Quartz Evo Bollard (Alloy/steel)

• Car Parks • Retail Parks • Public Realm

Quartz Evo Bollard (GRP)

Quartz Evo GRP & Alloy/Steel LED Bollard Introducing the next generation of LED bollard, the Quartz Evo. This bollard incorporates the trusted design of the LED Quartz with the latest advancements in optical and Glass-fibre Reinforced Polyester (GRP) technologies.

Our GRP range offers a non-conductive and passively safe alternative to steel, making it ideal for rail schemes. The Quartz Evo bollard is also available in a steel/alloy version, providing durability and the option to retrofit alloy head units onto existing steel bases.

With a 50% reduction in power consumption compared to the original product, the Quartz Evo delivers significant performance gains. It also offers market-leading bollard spacings, surpassing any other product available. In summary, the Quartz Evo sets a new standard for modern bollard lighting.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Quartz Evo Bollard

AL9100 (GRP) & AL9200 (alloy/steel) Series Technical Specifications

Spacing & Example Levels

Technical Specification

Asymmetric

Symmetric

Power (Wattage):

12.8W

16.2W

Luminous Flux:

1590 lm

2050 lm

Colour Temperature:

4000K (Other option 3000K)

Colour Rendering Index (CRI):

Ra70

Body Colour:

Jet Black: RAL9005 as standard (Other options available)

Beam Type

L90B10 > 80,000hrs at 25°C Ambient temperature

Dimensions: (H x W)

1325 x 187mm Root base 950 x 187mm Flange base

Weight:

GRP Head: 3.6kg - Alloy Head: 4.5kg Root base: 5.6kg Flange Base: 6kg

IK Rating:

IK10

Minimum LUX

Uniformity

10

21.1

10.8

0.51

12

17.6

5.9

0.34

15

14.1

2.5

0.18

18

11.8

1.2

0.10

20

10.2

0.8

0.08

10

17.4

9.6

0.55

12

14.5

6

0.41

15

11.6

2.8

0.24

18

9.7

1.4

0.14

20

8.7

1.0

0.11

Symmetric

This information is based on a straight, 3m wide path with no obstructions and bollards 700mm back to centre

*Please contact Abacus for further details on non-standard options, MOQs may apply.

Working Temperature: -40°C ~ +45°C (50°C optional)

IP66

Average LUX

Asymmetric

Lifetime:

IP Rating:

Spacing (m)

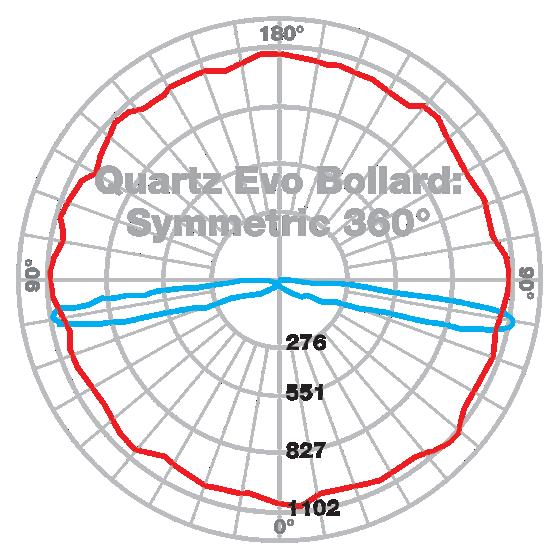

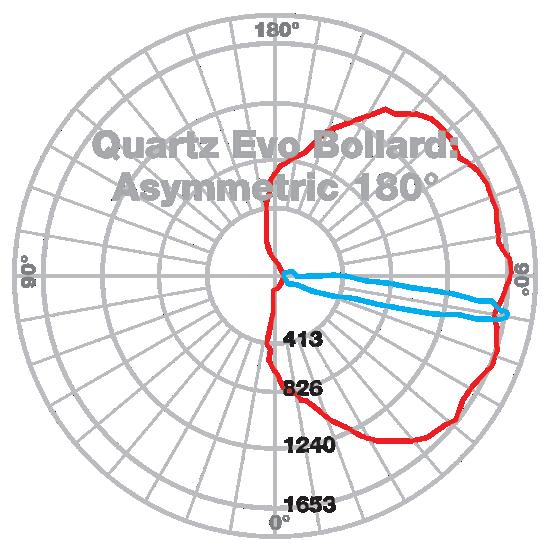

Quartz Evo Bollard Photometry

Quartz Evo Bollard vs Market Competition Run Length In Linear Metres:

Quantity Of Bollards Per Run Length Quartz Evo

Leading Competitor

200

14

17

300

20

25

500

34

42

Scan Or Click Here To Download The Quartz Evo Photometry Data:

Spacing & Example Levels

acing

Quartz Evo Bollard:

15m sp

30

00

m

m

acing

Closest Competitors Bollard:

12m sp

30

00

m

m

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Quartz Evo Bollard AL9100 (GRP) Series

GRP - Quartz Evo Product Code Selection Beam Type & Power

Colour Temperature

Mounting Method

Body Colour

Driver Options

Emergency Battery Back Up

Control

Symmetric (15W) = AL9101

4000K = 4

Flange Plate =F

RAL9005 (Jet Black) Standard = B

1-10 = A

Fitted = E

Not Fitted = X

Asymmetric (12W) = AL9102

3000K* = 3

Root Mounted* =R

RAL9006* (Silver) =S

DALI = B

Not Fitted = X

RAL7016* (Anthracite Grey) =G

Example Product Selection: Root/Flange Driver option Emergency Fitted

Beam type + wattage

AL910X / X X X X X X

Flange mounted Driver option Symmetric beam

Emergency Fitted

AL9101 / 4 F B A E X

Control Colour Temp Colour

No control fitted 4000K colour temp Jet Black

*Please contact Abacus for further details on non-standard options, MOQs may apply.

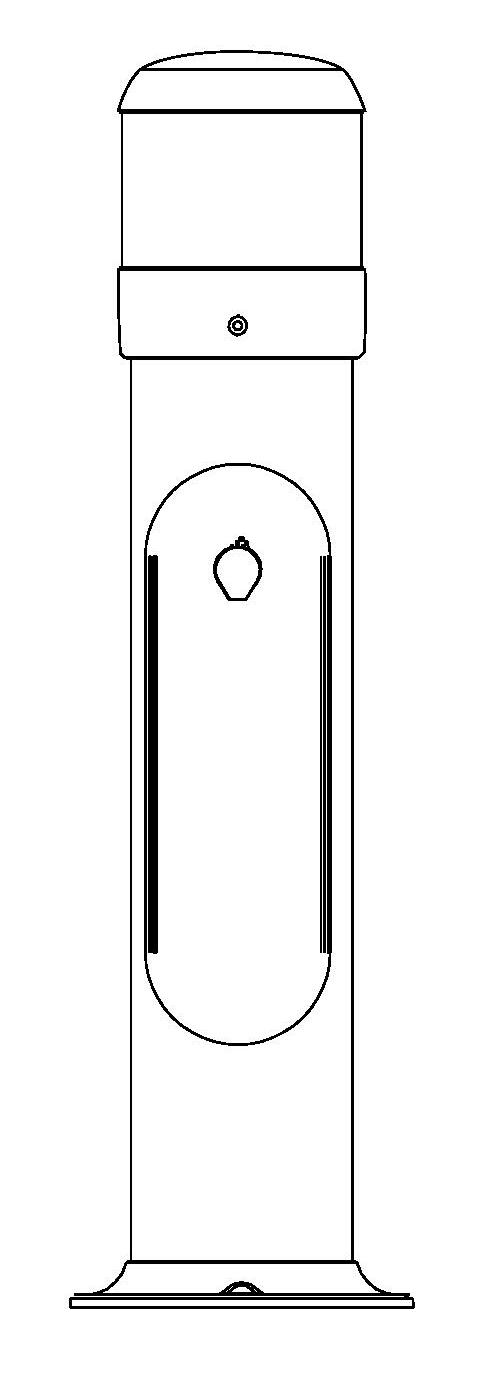

GRP - Root Mounted & Flange Plate Quartz Evo Dimensions 187

187

0

325 410 132

150

ø5

60

432

950

1325

410

432

325

230

GRP Flange plate:

230

GRP Root mounted:

Ø Ø2 12 20

110 Side view

60

Ø2

Side view

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Quartz Evo Bollard AL9200 (alloy/steel) Series

Alloy/steel Quartz Evo Product Code Selection Beam Type & Power

Colour Temperature

Mounting Method

Body Colour

Door Option

Driver Options

Emergency Battery Back Up

Control

Symmetric (15W) = AL9201

4000K = 4

Flange Plate =F

RAL9005 (Jet Black) Standard = B

Door = D

1-10 =A

Fitted = E

Not Fitted =X

Asymmetric (12W) = AL9202

3000K* = 3

Root Mounted* =R

RAL9006* (Silver) =S

No Door =X

DALI =B

Not Fitted = X

Example Product Selection: Driver option Root/Flange Emergency Fitted Beam type + wattage

AL920X / X X X X X X X

Driver option Flange mounted Emergency Fitted Symmetric beam

AL9201 / 4 F D B E E X

No control fitted Colour

Colour Temp

No control fitted 4000K colour temp

Door

Jet Black Door

*Please contact Abacus for further details on non-standard options, MOQs may apply.

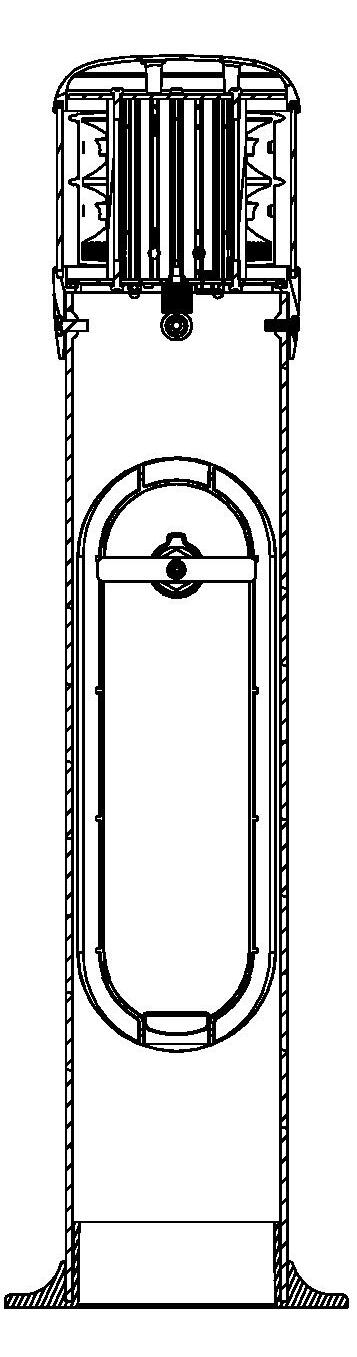

Alloy/steel - Root Mounted & Flange Plate Quartz Evo Dimensions Alloy/steel Root mounted:

Alloy/steel Flange plate: 187

354

239

380

1224

398

380

398

845

359

239

187

98 Front view

60

Ø2

55

150

Ø Ø2 12 20

80 Side view

50

98 Front view

Side view

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

GRP - Quartz Evo LED Bollard Rail Case Study An Introduction To GRP (Glass Reinforced Polyester) As infrastructure evolves, the demand for durable, low-maintenance, and sustainable lighting solutions is increasing. Glass Reinforced Polyester (GRP) lighting solutions offer a modern alternative to traditional materials. These products are non-conductive, provide market-leading distances between bollards, and exhibit exceptional resistance to corrosion, impact, and harsh environments. At Abacus Lighting, we are committed to delivering high-quality GRP solutions that cater to the needs of the rail, urban, and industrial sectors.

The Benefits of GRP in Rail and Infrastructure Projects GRP (Glass Reinforced Plastic) is an advanced composite material that combines lightweight construction with exceptional strength and durability. Unlike metal alternatives, GRP is resistant to corrosion, making it an ideal choice for installations in challenging environments such as coastal areas, industrial sites, and rail settings. Its non-conductive properties make it particularly suitable for electrified rail environments, as it reduces the risks associated with electrical hazards and lightning strikes.

In the rail sector, GRP solutions streamline installation and maintenance due to their lightweight design and resistance to environmental degradation. This durability ensures a long service life, minimising the frequency and costs of replacements and repairs. Additionally, GRP offers design flexibility, allowing for customisation to meet specific project aesthetics and functional requirements.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

GRP - Quartz Evo LED Bollard Rail Case Study GRP Case Study: Ruislip Rail Depot One of the latest success stories showcasing the effectiveness of the Quartz EVO GRP bollard is the Ruislip Rail Depot. Abacus Lighting supplied 80 Quartz EVO bollards to the depot, providing a high-quality lighting solution at market leading distances between bollards, that enhances safety by being non-conductive and visibility across the site.

The bollards were strategically placed along maintenance walkways and operational areas to ensure consistent, glare-free illumination for staff working in these critical zones. Due to the Quartz Evo’s unmatched distances between bollards reduced power consumption, installation time and future maintenance costs by requiring fewer bollards to meet lighting safety standards.

The Ruislip Rail Depot required a lighting solution that could withstand the demanding rail environment while offering low-maintenance operation. The Quartz EVO bollards, with their GRP construction, provided the perfect answer— resistant to corrosion, durable against impact, and requiring minimal upkeep. Their energy-efficient LED technology also helped the depot reduce its overall power consumption, supporting its sustainability goals.

This project highlights how Abacus Lighting’s Quartz EVO bollards can seamlessly integrate into rail infrastructure, delivering a blend of safety, durability, and energy efficiency.

Sustainable and Customisable Solutions The Quartz EVO bollard aligns with modern sustainability goals. The manufacturing process of GRP requires less energy than traditional materials, contributing to lower carbon emissions. With its extended lifespan and reduced maintenance needs, GRP solutions offer long-term environmental and financial benefits.

Customisation is a key advantage of GRP technology. Abacus Lighting provides the Quartz EVO bollard in various finishes and colours to blend seamlessly into any environment. Whether for a modern transport hub or a railway setting, our GRP solutions can be tailored to meet specific project requirements.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

GRP - Quartz Evo LED Bollard Rail Case Study The Quartz Evo Bollard: GRP Lighting Solution For Rail Abacus Lighting presents the Quartz EVO bollard, a stylish and durable lighting solution perfect for pedestrian pathways, station platforms, and urban landscapes. Made from Glass Reinforced Plastic (GRP), the Quartz EVO incorporates the advantages of composite technology, offering resistance to weathering, vandalism, and impact damage.

Its non-conductive design makes the Quartz EVO an excellent choice for railway environments, where electrical safety is crucial. Additionally, the energy-efficient LED technology provides high-performance illumination while significantly lowering energy consumption and operational costs.

Designed for minimal maintenance, the Quartz EVO ensures long-term reliability, making it an ideal lighting solution for high-traffic public areas.

Key Features: • Greatest spacing in the industry between bollards • Less units required to meet lighting safety standards • Low glare optic design with unrivalled uniformity • Non-conductive GRP • Symmetrical and asymmetrical options • Vandal-resistant flush, extra-wide access door with quarter-turn locking mechanism - GRP version only • IP66 Rated

Quartz Evo Bollard (GRP)

Abacus Lighting: Leading the Way in GRP Innovation With decades of experience, Abacus Lighting is at the forefront of lighting materials technology.

Our Quartz EVO bollards are engineered to the highest standards, ensuring reliability, safety, and performance in demanding environments. From consultation to installation and ongoing support, we work closely with clients to deliver solutions that enhance infrastructure resilience and sustainability.

Contact our expert team today to discover how Abacus Lighting can assist with your next project, providing high-quality, future-proof lighting solutions.

Click Or Scan Here To View The Quartz Evo Bollard Video:

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

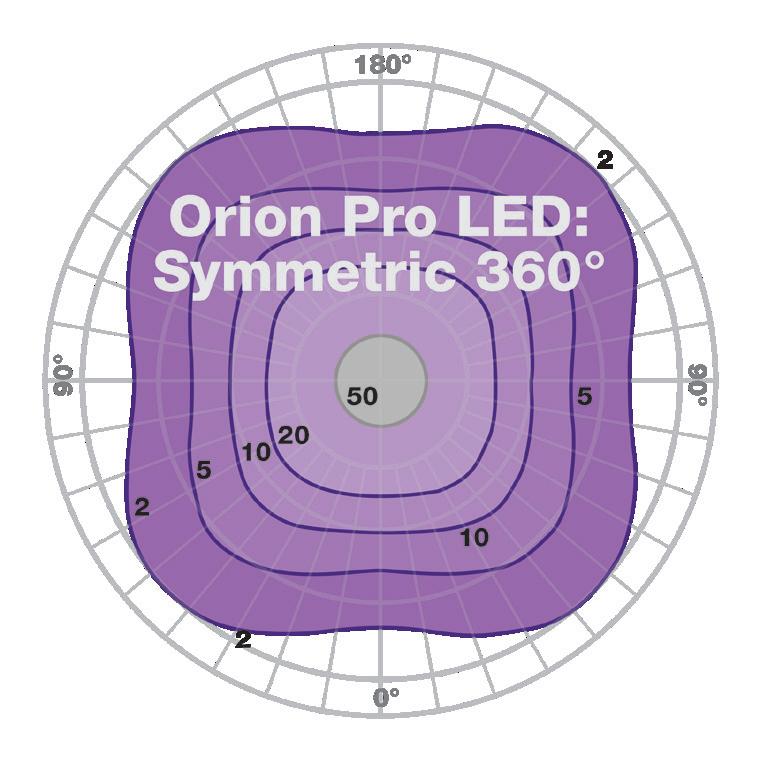

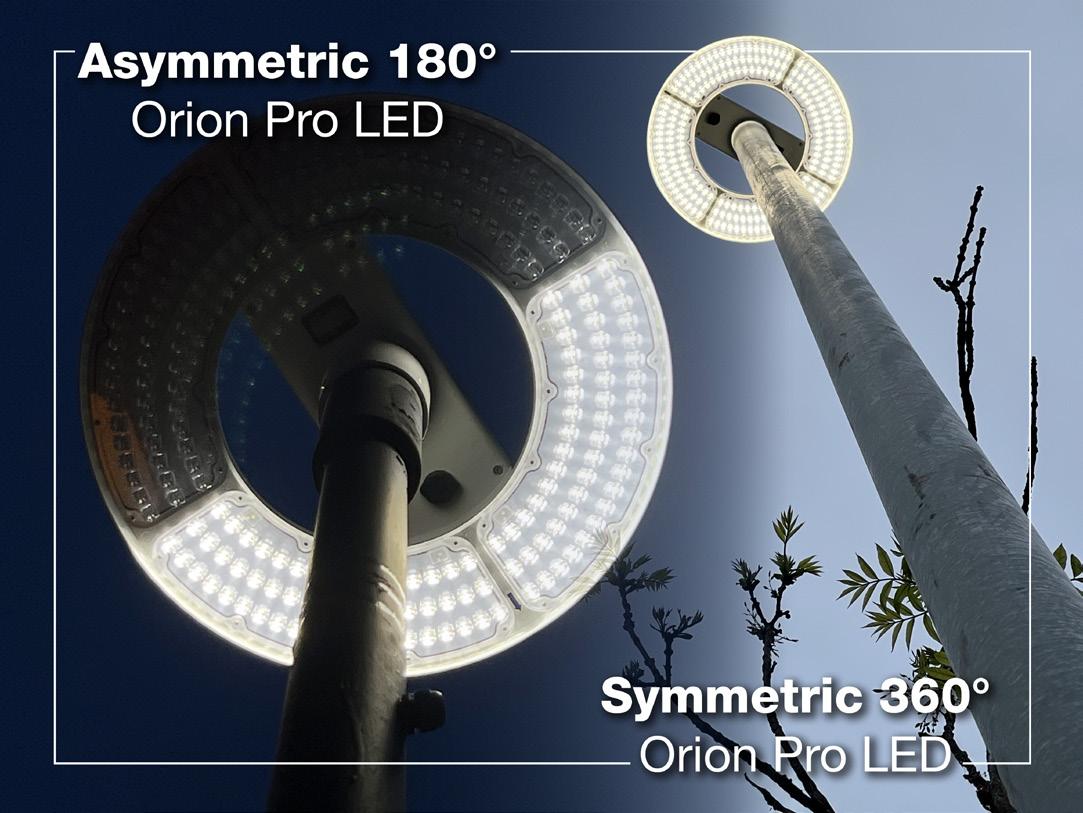

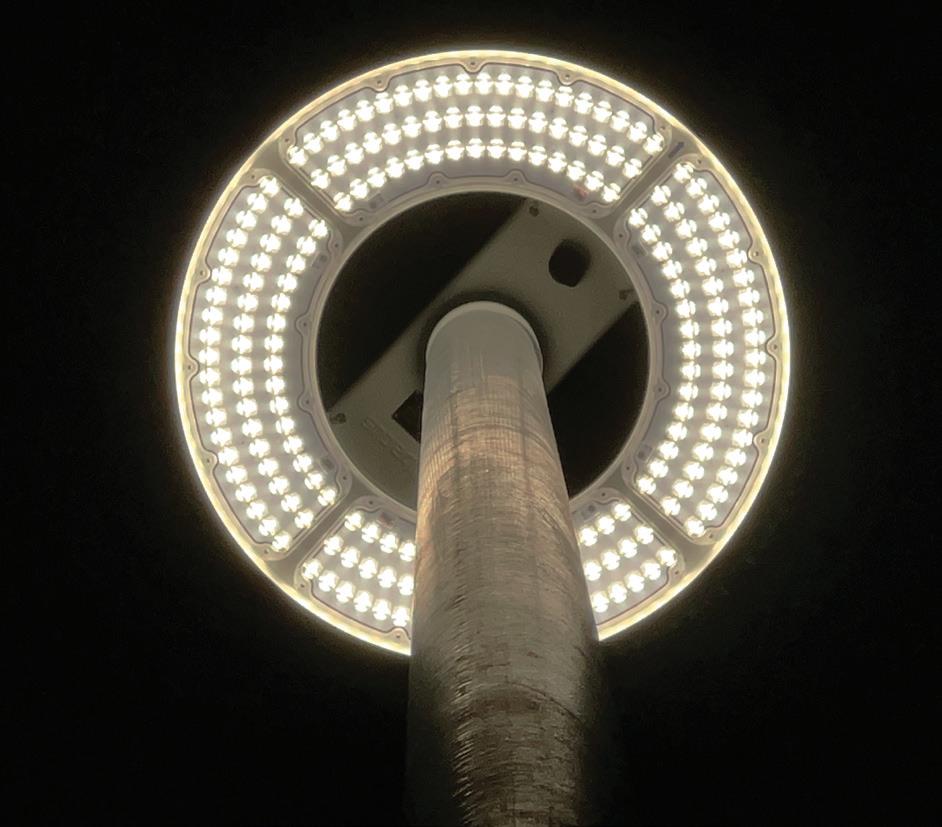

Orion Pro LED AL4700 Series Orion Pro LED - Key Features • Direct retrofit to Orion 1 twin lamp 400W • Available in 180° asymmetrical and 360° symmetrical beam distributions • 250W symmetrical as standard (Internal drivers) • 125W asymmetrical as standard (Internal drivers) • 500W symmetrical option available (Internal drivers) • Standard working ambient temp. upto 45°C • 50°C high working ambient temp. option available on request (External drivers) • Colour temperature 4000K as standard (3000K option available on request) • Less than 1% upward light • IP66 and IK10 rated • 2 Zhaga interfaces for flexibility • DALI 2 and D4i as standard

Product Applications

• Integrated spigot - 76mm or 89mm shaft compatible • White polyester powder coated canopy & spigot • Programmable lumen output to suit designs • Supplied in recyclable cardboard packaging

• Amenity Lighting • Car Parks • Airport Parking • Retail Parks • Railway Stations • Open Area Parks

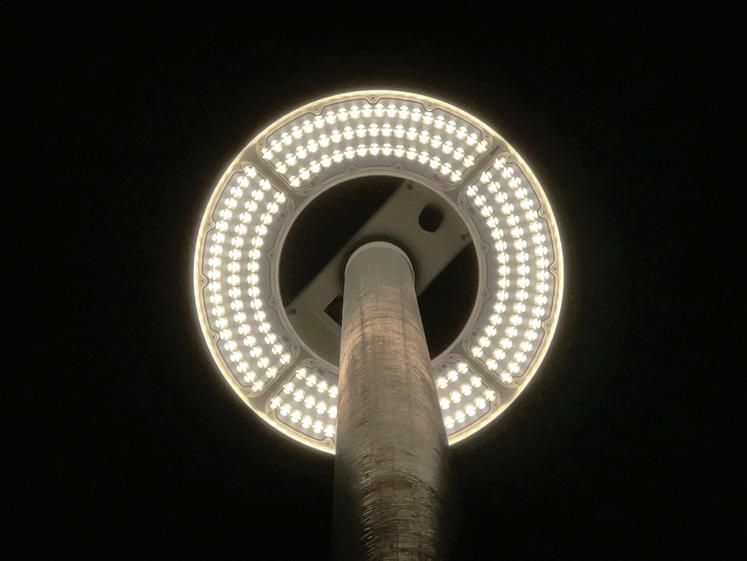

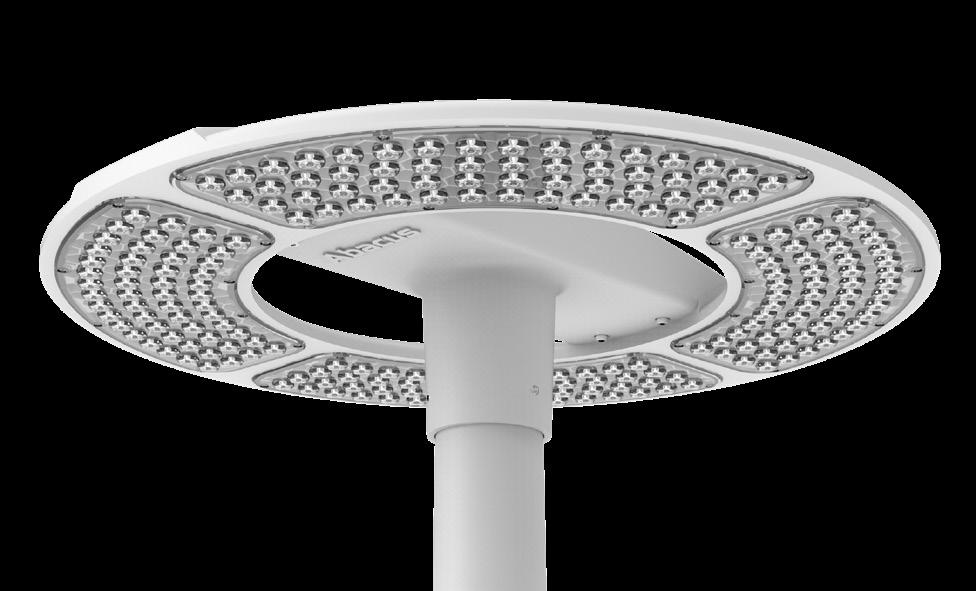

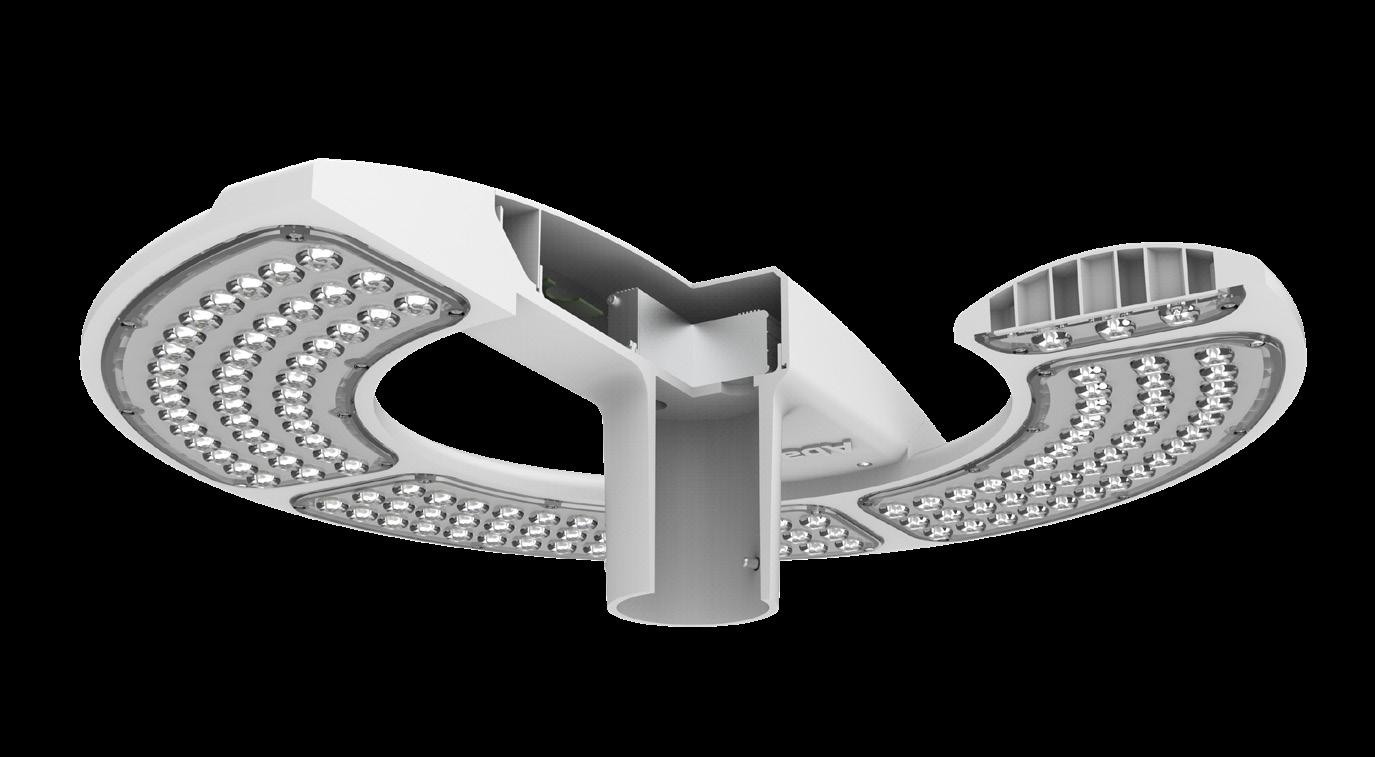

Orion Pro LED Retail & Amenities Light The Abacus Orion Pro LED luminaire stands out as a pioneering lighting solution, delivering efficient and high-quality illumination for a wide range of outdoor spaces. It excels in achieving British standard BS5489 and European standard BS EN12464-1, making it ideal for urban centres & public amenity areas. Thanks to its advanced LED technology, the Orion Pro not only provides superior brightness but also achieves significant energy savings, contributing to a reduced environmental footprint.

With its high-output 360-degree light distribution and precise optics, the Orion Pro ensures excellent beam control, offering pinpoint lighting precision while minimising light pollution. Overall, the Abacus Orion Pro represents a sustainable and dependable lighting solution that seamlessly integrates performance, durability, and energy efficiency.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

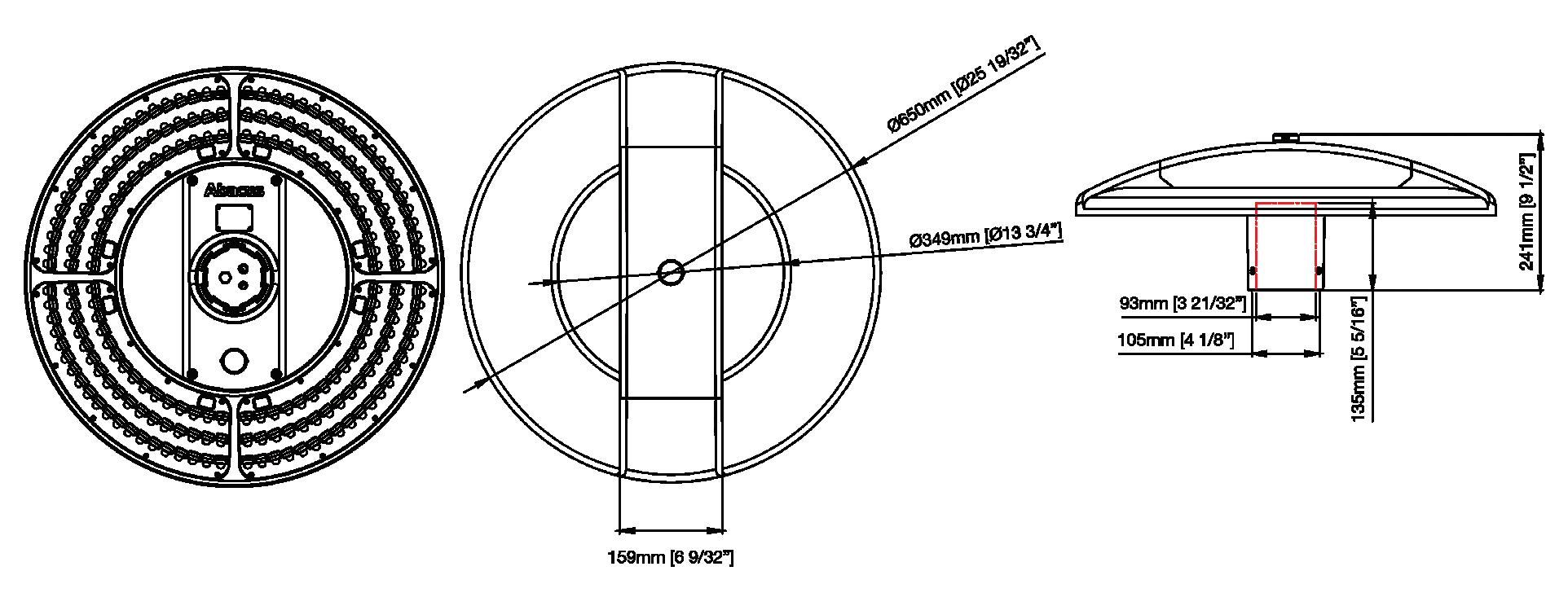

Orion Pro LED AL4700 Series Orion Pro LED Dimensions

Spacings & Sample Levels

Technical Specification Technical Specification Luminous Flux:

125W

250W

20,000 lm

40,000 lm

500W 72,000 lm

Colour Temperature:

4000K (Other options available on request)

Colour Rendering Index (CRI):

Ra70 (Ra80 optional)

Body Colour:

White: RAL9003 as standard (Other options available on request)

Lifetime:

L90B10 > 80,000hrs at 25°C Ambient temperature

Dimensions:

650mm x 203mm

Weight:

14.1kg ± 10%

Working Temperature:

-30°C ~ 45°C (50°C optional)

IP Rating:

IP66

IK Rating:

IK10

Max Spigot Length:

135mm

Spigot Diameter:

76mm/89mm

Wind Area:

0.0735m2

Height

6m 8m

Height

10m 12m

250W 40,000lm

Spacing (m)

Average

Minimum

Uniformity

40

22

7

0.32

55

11

1

0.09

40

21

11

0.52

55

11

3

0.27

500W 72,000lm

Spacing (M)

Average

Minimum

Uniformity

55

20

9

0.45

70

13

4

0.31

55

20

11

0.55

70

13

5

0.38

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Orion Pro LED AL4700 Series Light Distribution Photometry

Product Code Selection Beam Type & Power

Wattage

Colour Colour Rendering Temperature

Symmetric = AL4701

125W = 12 (Asymmetric Only)

Ra70 Standard = 7

3000K = 30

Asymmetric = AL4702

250W = 25 (Symmetric Only)

*Ra80 = 8

4000K = 40

Body Colour

Symmetrical Distribution AL4701

RAL9003 (White) = W

500W = 50 (Symmetric Only)

Example Product Selection: Colour Rendering Colour Beam Type Wattage

AL4701 / 25 7 40 W

Asymmetrical Distribution AL4702

Colour Temp *Please contact Abacus for further details on non-standard options, MOQs may apply.

Scan Or Click Here To Download The Orion Pro Photometry Data:

Orion Pro LED - Typical Column Suitability 1.) Static Column *3 - 12m in height

CLICK or SCAN

2.) Base Hinge Column *3 - 12m in height 3.) York Hinge Column *3 - 6m in height

For More Information

*The Abacus Lighting columns mentioned above serve as examples for typical installations, but we are not restricted to these options. Abacus Lighting provides a comprehensive range of columns and masts that can accommodate virtually any new or retrofit lighting project.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

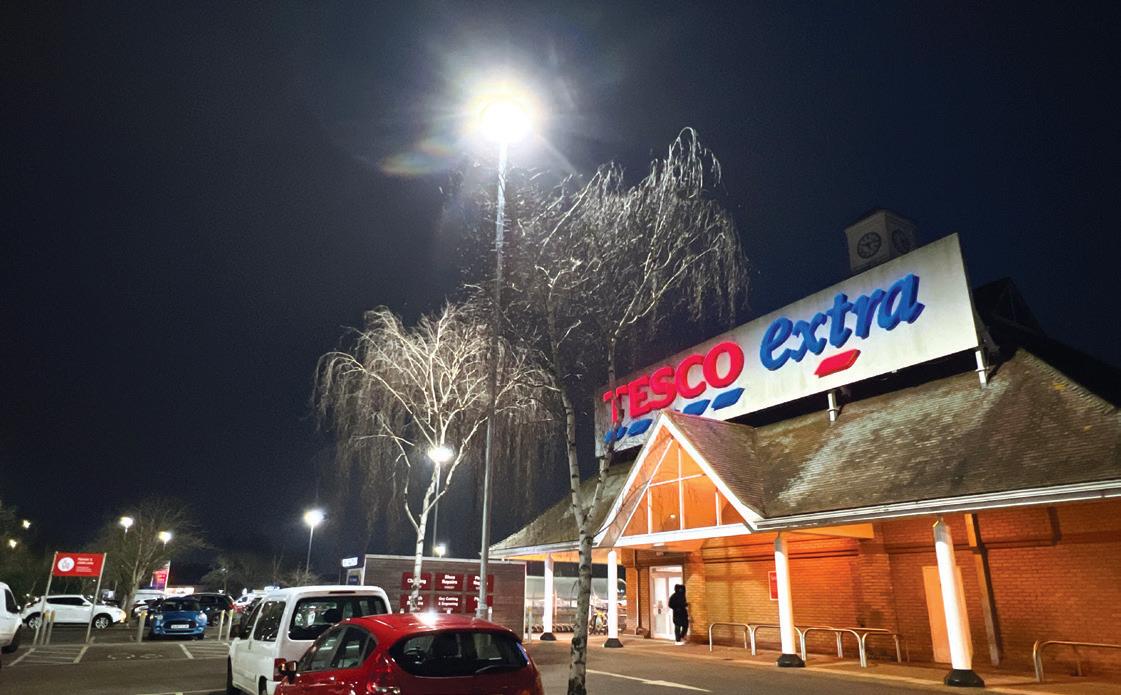

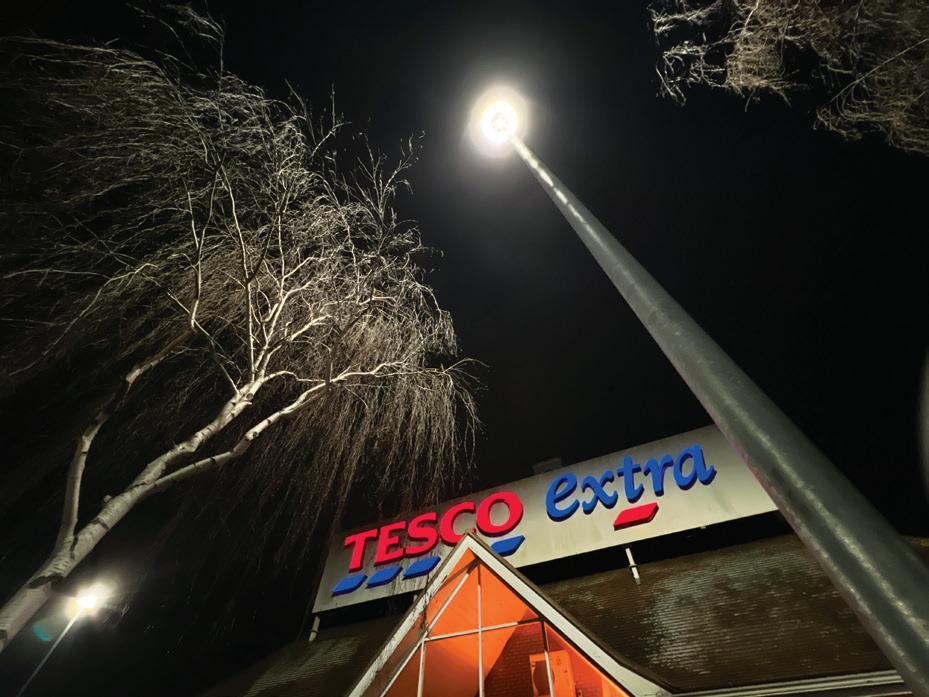

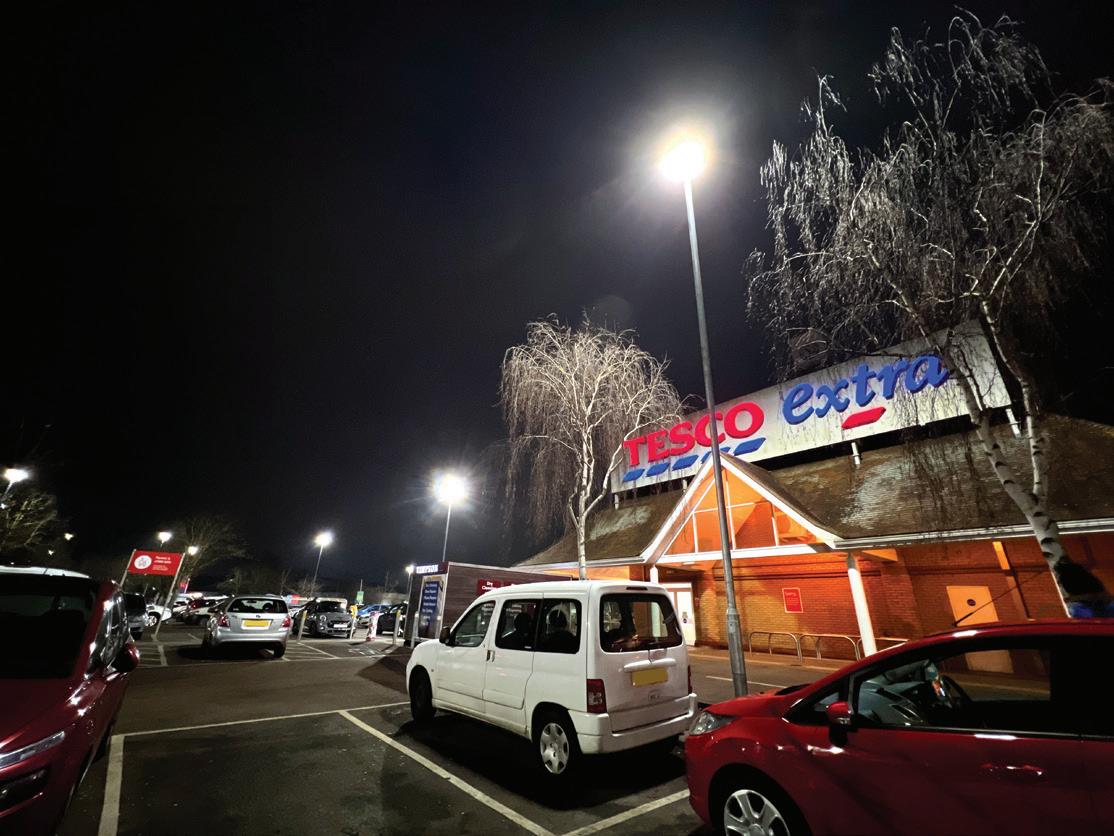

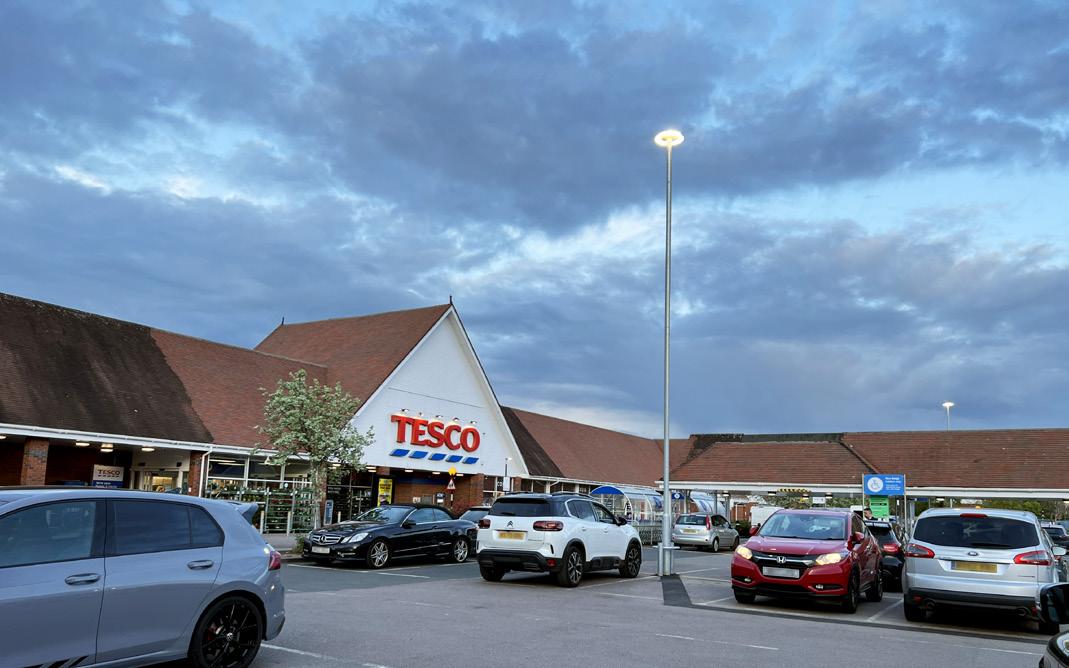

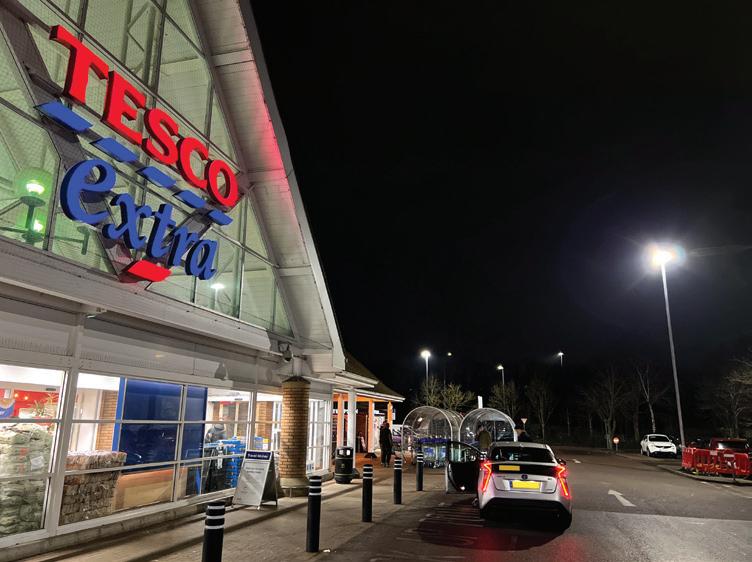

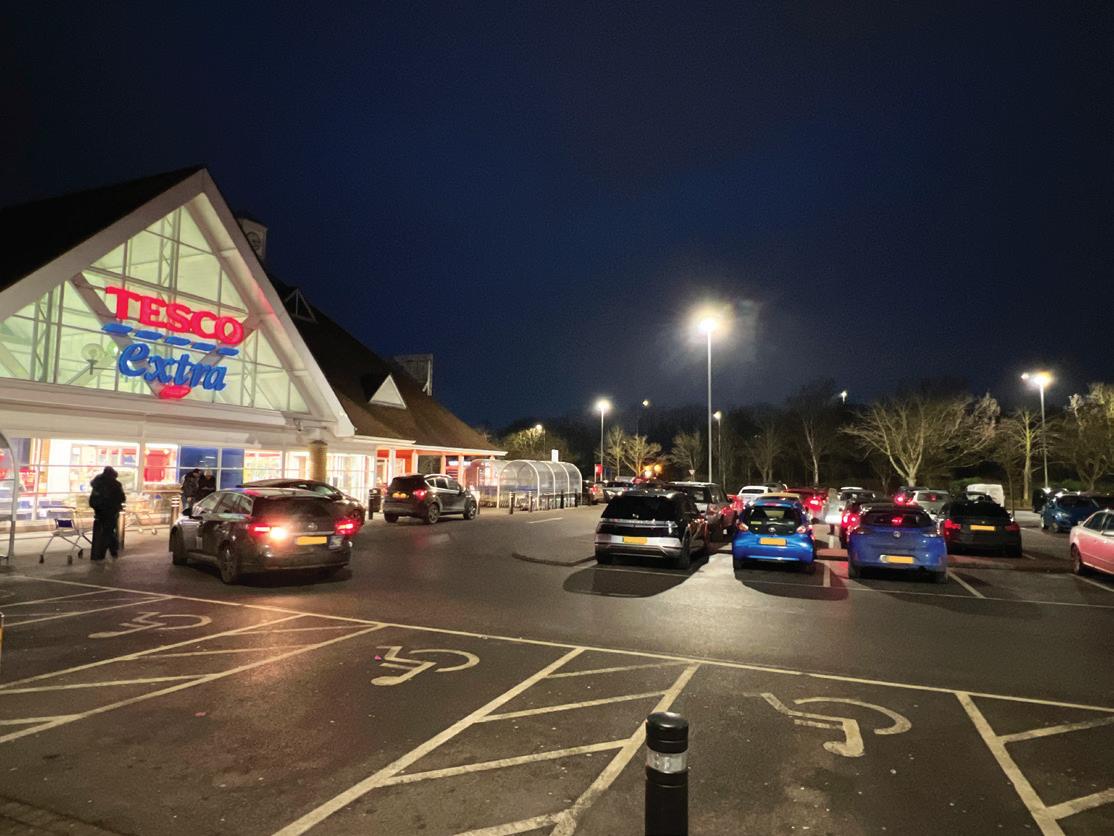

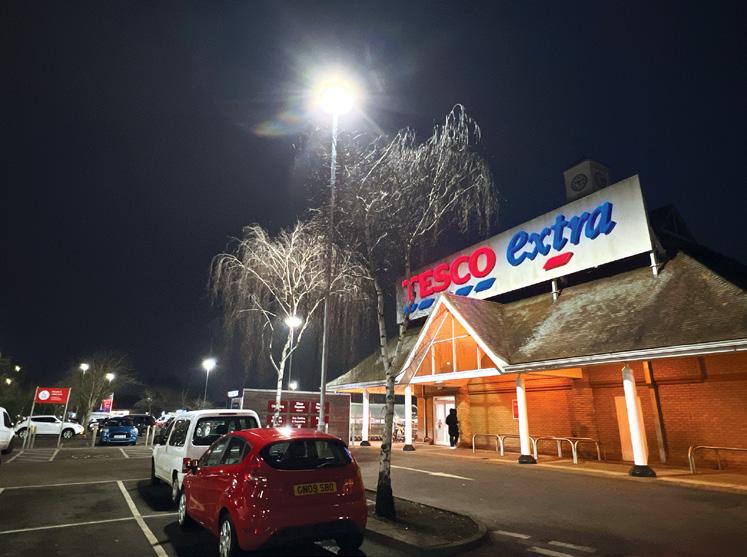

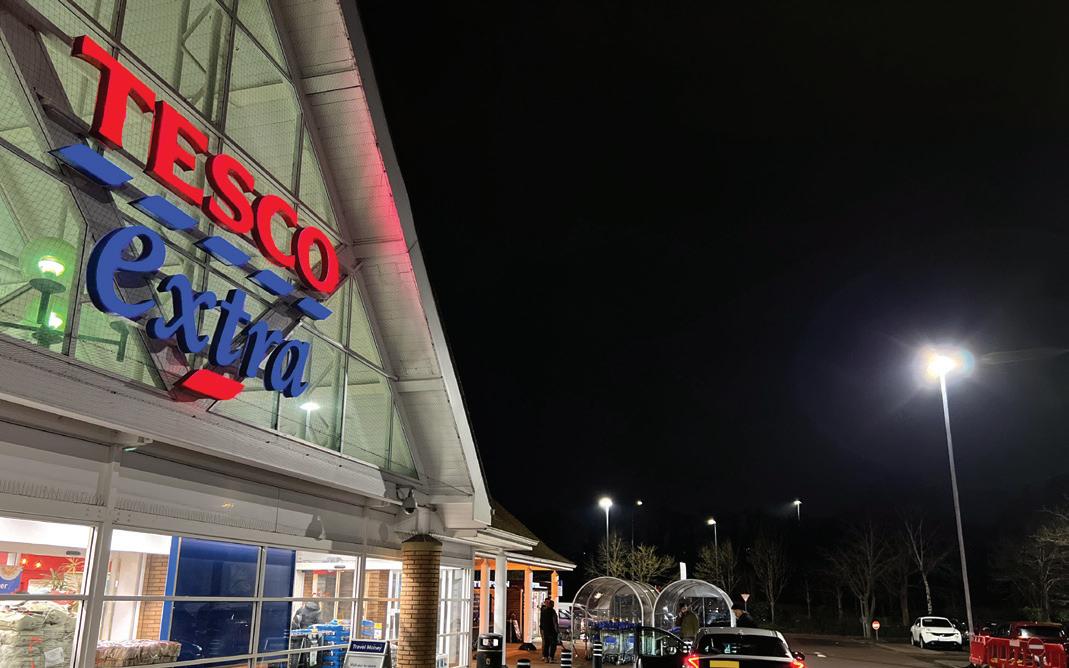

Tesco Extra Bletchley Park Case Study About Our Client Tesco is one of the UK’s leading retailers, recognised for its commitment to sustainability, safety, and providing inviting environments for shoppers and staff.

At the Bletchley Park Tesco site, ensuring high-quality, energy-efficient lighting was a priority to enhance both safety and customer experience while meeting Tesco’s rigorous specifications.

The Challenge The existing lighting system at Bletchley Park Tesco was not meeting Tesco’s strict standards for illumination, energy efficiency, and environmental impact. The outdated high masts and luminaires needed to be upgraded to the latest LED technology to enhance light levels, reduce energy consumption, and align with Tesco’s sustainability goals.

To address these issues, Tesco required a reliable supplier capable of providing high-performance lighting that met their specific criteria. Abacus Lighting was selected to deliver a solution that would achieve these objectives and ensure long-lasting, efficient performance.

The Solution Abacus Lighting supplied 17 columns, each measuring 10 meters, fitted with our innovative Orion Pro LED luminaires.

This product was specifically designed to meet Tesco’s rigorous standards and offers exceptional spacing between columns.

The Orion Pro LED was chosen for its superior energy efficiency, excellent light uniformity, and low-glare design. By incorporating these luminaires, the new lighting system not only meets Tesco’s specifications but also significantly reduces energy consumption and supports their environmental commitments.

Key Benefits: • Enhanced safety and visibility for both customers and employees • Energy savings through efficient, low-maintenance LED technology • A solution aligned with Tesco’s sustainability objectives Abacus Lighting is proud to have contributed to Tesco’s vision for a brighter, safer, and more sustainable store.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Tesco Extra Bletchley Park Case Study Orion Pro LED - The Benefits Energy Efficiency: The new LED lighting system reduces energy consumption by up to 50%, leading to substantial cost savings on electricity bills.

Orion Pro LED Market Leading Spacing Between Columns

Lower Maintenance Costs: With a longer operational lifespan, the Orion Pro requires less frequent replacements and repairs, further reducing maintenance expenses.

Enhanced Safety: Consistent and bright lighting improves visibility in the car park, enhancing safety for both customers and staff, and deterring potential security issues.

Environmental Impact: The reduced energy consumption translates to a smaller carbon footprint which contributes to Tesco’s’ sustainability targets and environmental stewardship.

Direct Retrofit: The Orion Pro LED serves as a direct retrofit to the twin lamp 400W Orion 1, simplifying the upgrade process without the need for significant modifications.

Versatile Beam Distribution: The Orion Pro LED is available in 180-degree asymmetrical and 360-degree symmetrical beam distribution options, unmatched spacings between luminaires and is for tailored lighting design solutions to meet specific needs of the car park.

Meeting The Standards: Abacus Lighting’s specialist lighting design team specified the Orion Pro LED to increase energy efficiency and because the Orion Pro meets the British Safety Standard BS5489 and European Safety Standard BS EN12464-1 for lighting car parks, urban centres and public amenity areas.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

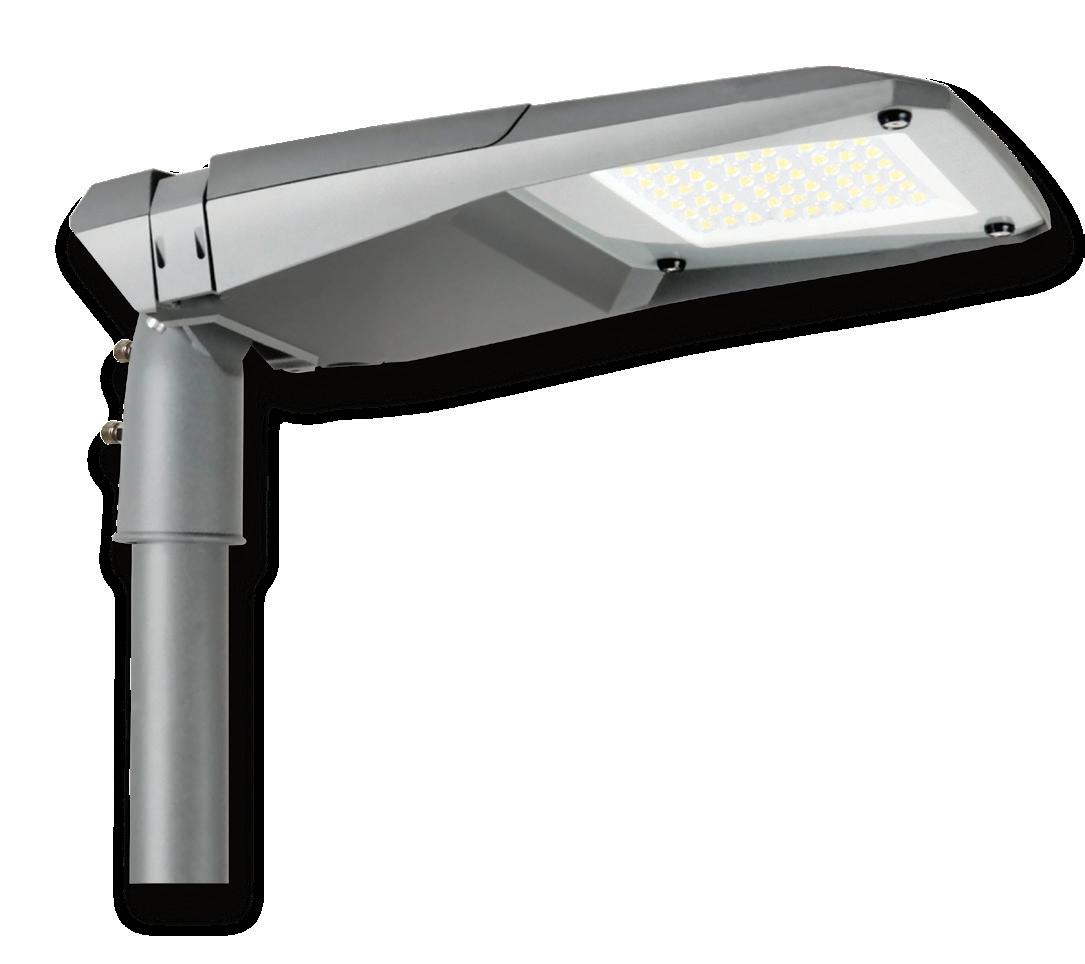

EOS Lantern Data Sheet AL20000 Series

EOS LED Lantern - Key Features • Three lantern body sizes • Wattage options ranging from 7 to 171W • Six optic range • Lumen range 1221lm - 25802lm (Net flux) • 4000K colour temperature as standard 3000K option available upon request • Electrical options: Class I & Class II • Single or double Zhaga control socket options

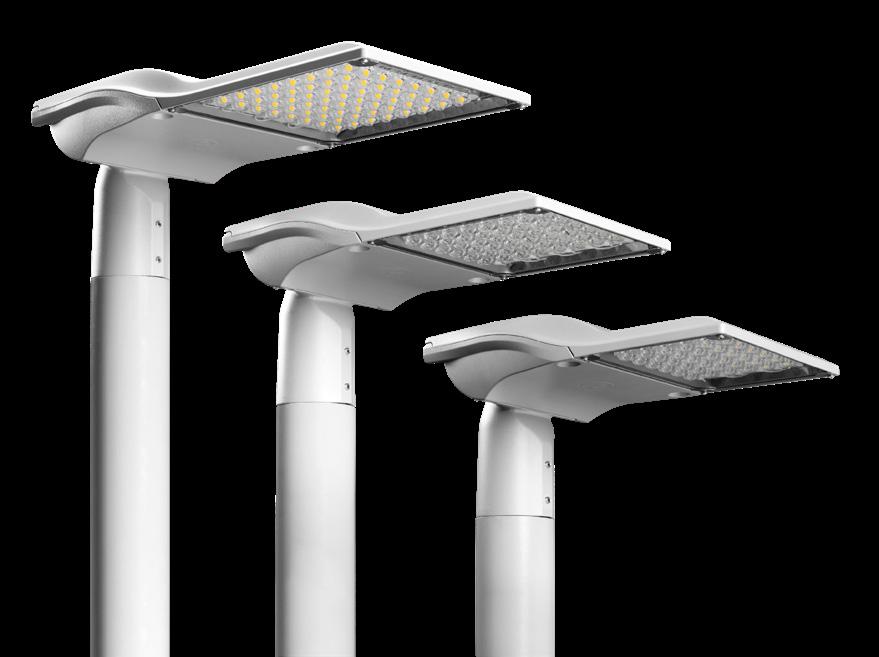

Three Lantern Body Sizes

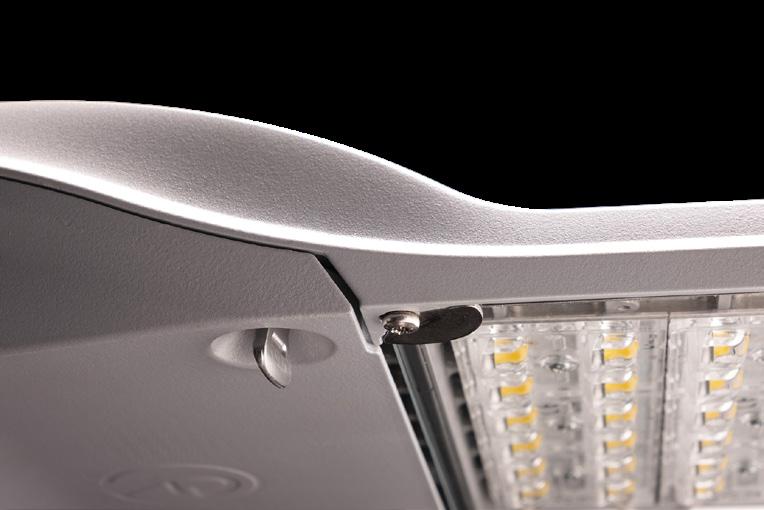

• Two independent compartments for optics and electrical components • Exceptional heat dissipation built into the sleek design • High-grade powder coated finish tested for use in harsh environments - 3000hrs ISO 9227:2017/ EN47100 Alloy • IP66 Ingress Protection • Column top or side entry installation • Ø60mm standard spigot size (Adaptable) • Suitable for retro-fitting • Optics protection from one complete 4mm tempered glass sealed unit • Latched release electrical compartment • Tool-less entry for quick & efficient maintenance

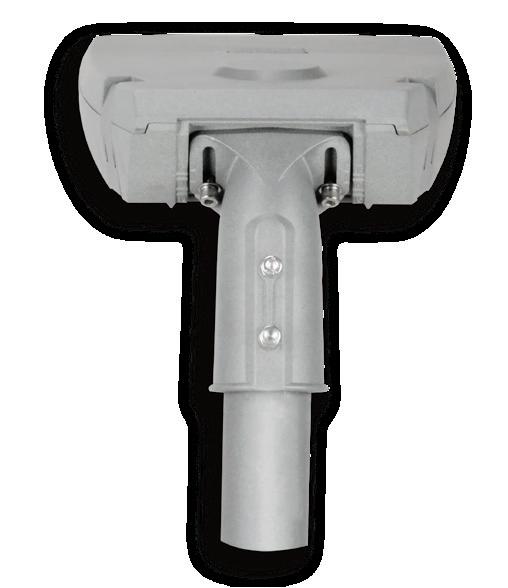

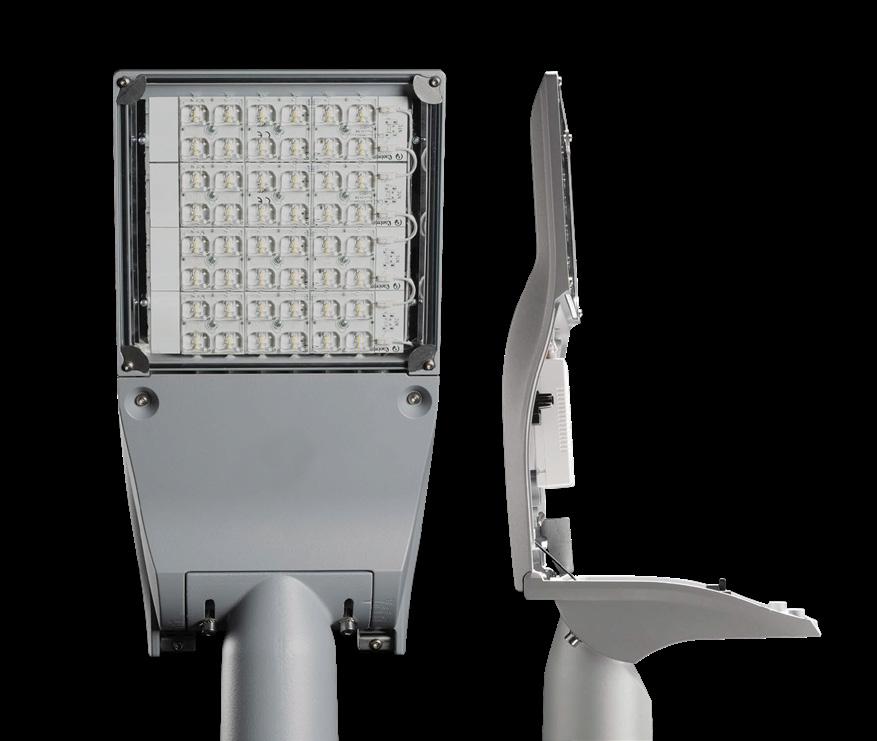

Latched Release Electrical Compartment

Product Applications • Railway Platforms • Railway Stations • Street Lights

• Car Parks • Retail Parks • Access Roads

EOS LED Lantern - Product Overview The EOS lantern offers an LED lighting solution suitable for both rail and road applications. It has a wide range of wattages, unit sizes, optics, and fitting options to choose from.

With a wide range of lumen outputs and three lantern body sizes, the EOS provides a lighting solution for virtually any road or rail scheme. The EOS is IP66 ingress protected with a durable outer coating tested for use in harsh environments commonly found in the rail and highways industry.

The optics are protected by a tempered glass covered, sealed unit, and are separate from the electrics to prolong the product life-cycle.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

EOS Lantern Data Sheet AL20000 Series

EOS LED Lantern - Product Code Selector Product Optic Family: Option:

AL200

01 02 03 04 05 06

Number of LEDs

Body Type:

12 24

1

36 36 2 48 60 64

3

Wattage Options By Body Type:

007 019 028 043 057 059 081 085

008 022 031 046 060 063 085 087

096 098

011 025 034 049 068 089 090

013 027 037 052 072 092

016 030 040 055 076 094

-

-

-

098 102 107 116 117 120 124 121 126 132 138 124 132 138 144 150 156 162 167 171

-

Colour Temperature:

Electric Class I or Class II:

Colour: (S = RAL9006 Standard & B = RAL9005)

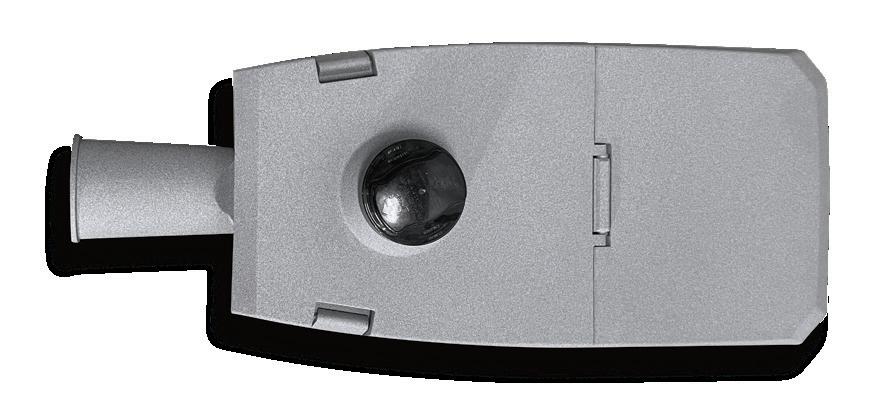

Zhaga Control Sockets:

4 = 4000K 1 = Class I A = Top 3 = *3000K 2 = *Class II B = *Bottom C = *Dual D = *None

S = Silver B = *Black

Product Selection Example: Wattage Options by Body Type & Number of LEDs Body Type

Electric Class Body Colour

Optic Option

AL20006 / 60 3 121 4 1 A S Product Family

Number of LEDs

by Body Type

Zhaga Sockets Colour Temperature

*Non-standard options may be subject to MOQs or longer lead times.

EOS LED Lantern - Optic Selection

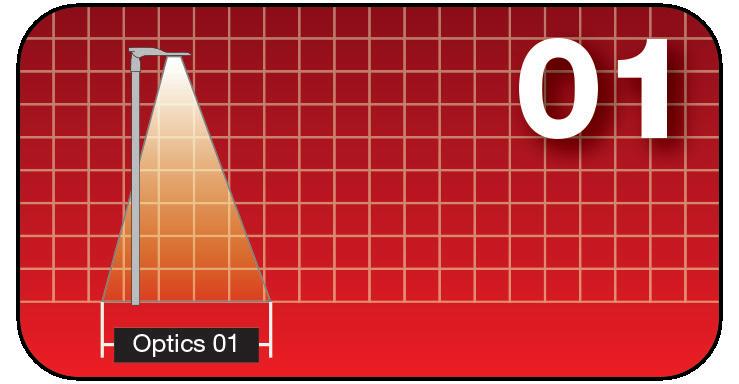

Optic 01

Optic 02

Optic 03

The 01 optic is for street lighting and is particularly suitable for situations where the installation height and the width of the carriageway ratio is less than 1

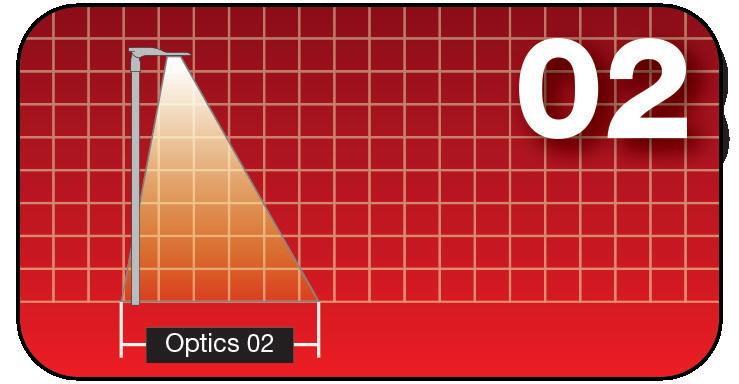

The 02 optic is suitable for street lighting situations where the installation height and the width of the carriageway ratio is less than 1.

It is also appropriate for roads with very high inter-distances and an inter-distance/installation height ratio greater than 5

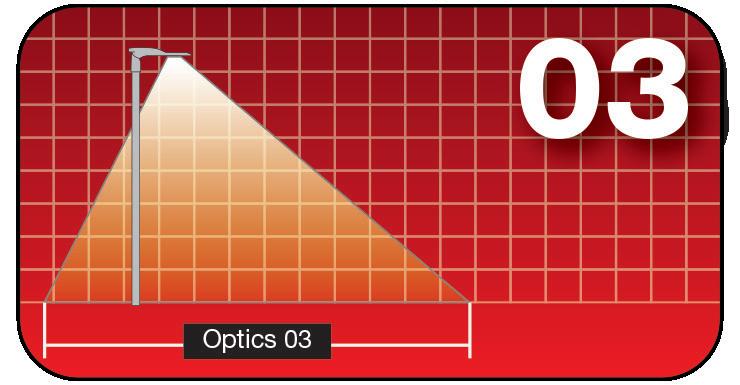

The 03 optic is used for street lighting when the height-to-width ratio is over 0.85. It has a back-flow feature that helps with installations involving outreaches

Optic 04

Optic 05

Optic 06

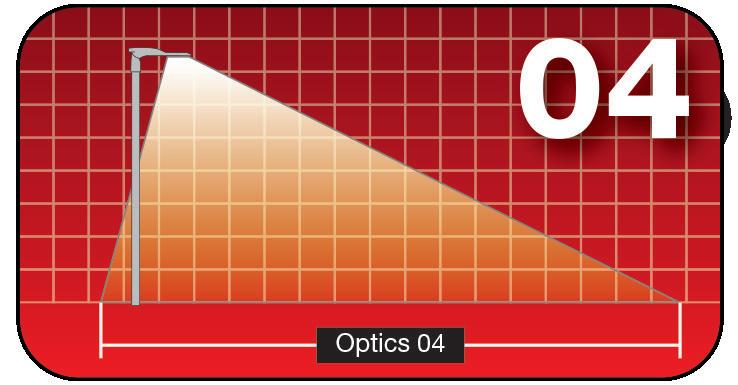

The 04 optic is typically used to provide light for yards, car parks, and urban areas. It is also used on the street when a significant amount of light is needed and the ratio between the depth of the area to be illuminated and the installation height of the light is considerably higher than 1. However, very high levels of lighting are not necessary

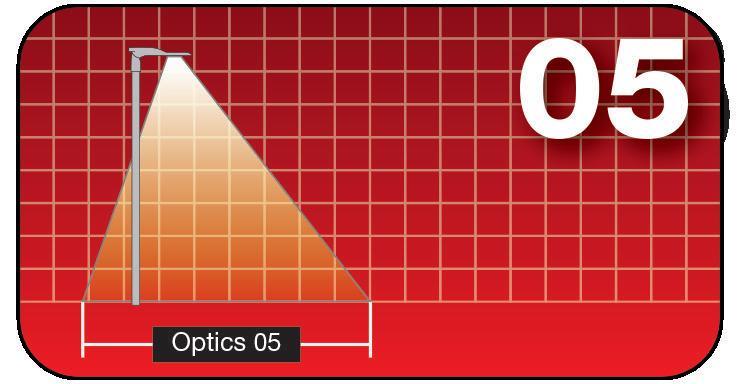

The 05 optic is for street lighting that can illuminate areas with varying distances and road widths equal to or less than the installation height

The 06 optic street lighting system is suitable for illuminating large areas with a ratio of installation height to track width equal to or greater than 1

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

EOS Lantern Data Sheet AL20000 Series

EOS LED Lantern - Photometry Polar Diagrams Polar curves are created using the candela values from the candela array. Plotting these values on a polar diagram illustrates the performance of the luminaire in two dimensions. The polar diagram is divided into four rings, with each ring representing a 25% increase in magnitude.

Blue Line - Vertical plane through horizontal angles (Through maximum Candela) Red Line - Horizontal cone through vertical angle (Through maximum Candela)

OPTIC 01

OPTIC 03

OPTIC 05

OPTIC 02

OPTIC 04

OPTIC 06

EOS LED Lantern - General Product Information EOS Body Type:

Max Dimensions With 60mm Pole Connection: (L x W x H)

Max Power (LED + Driver):

EOS 1

526 x 250 x 200.5mm

89.3W

4.5Kg

0.020 m2

0.020 m2

EOS 2

576.8 x 250 x 200.5mm

131W

5.2Kg

0.020 m2

0.022 m2

EOS 3

652 x 265 x 200.5mm

171W

6.0Kg

0.021 m2

0.025 m2

Frontal Surface Max Weight Of Lateral Surface Exposed To Wind Lantern: Exposed To Wind (0o Tilt)

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

EOS Lantern Data Sheet AL20000 Series

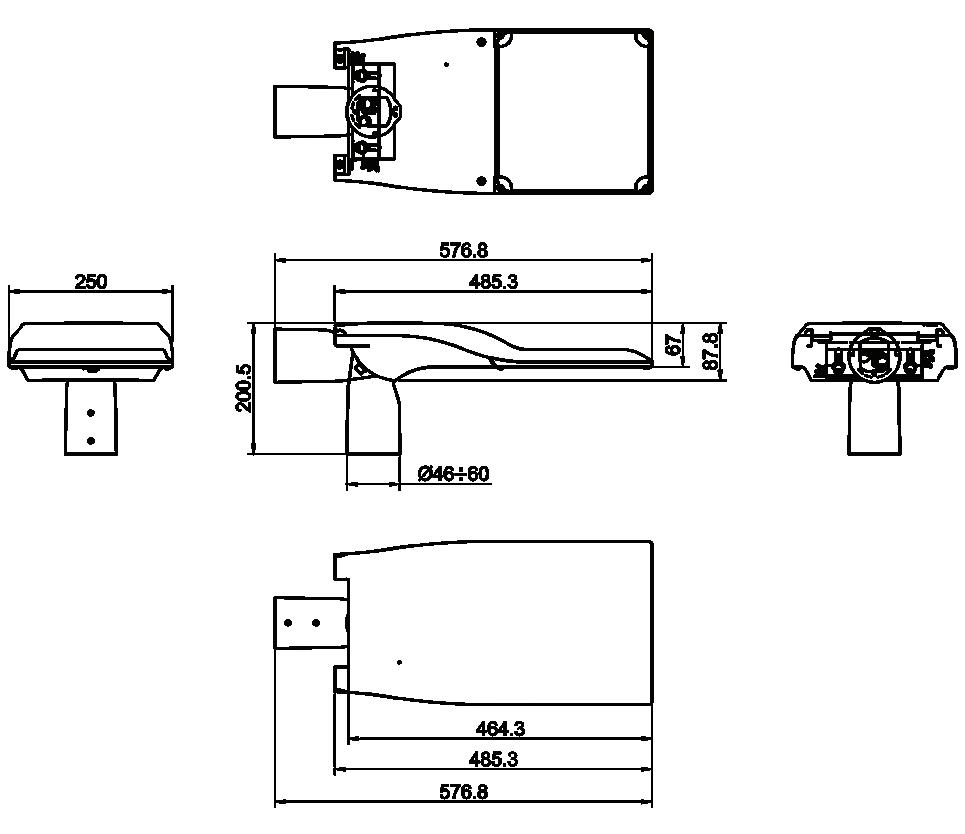

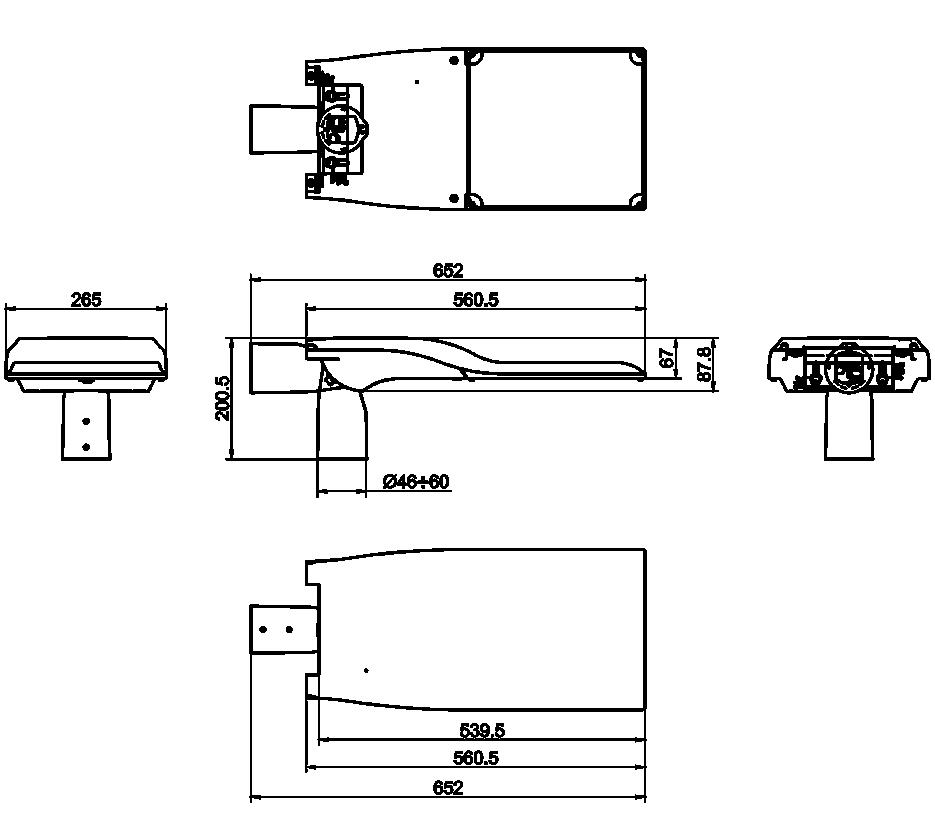

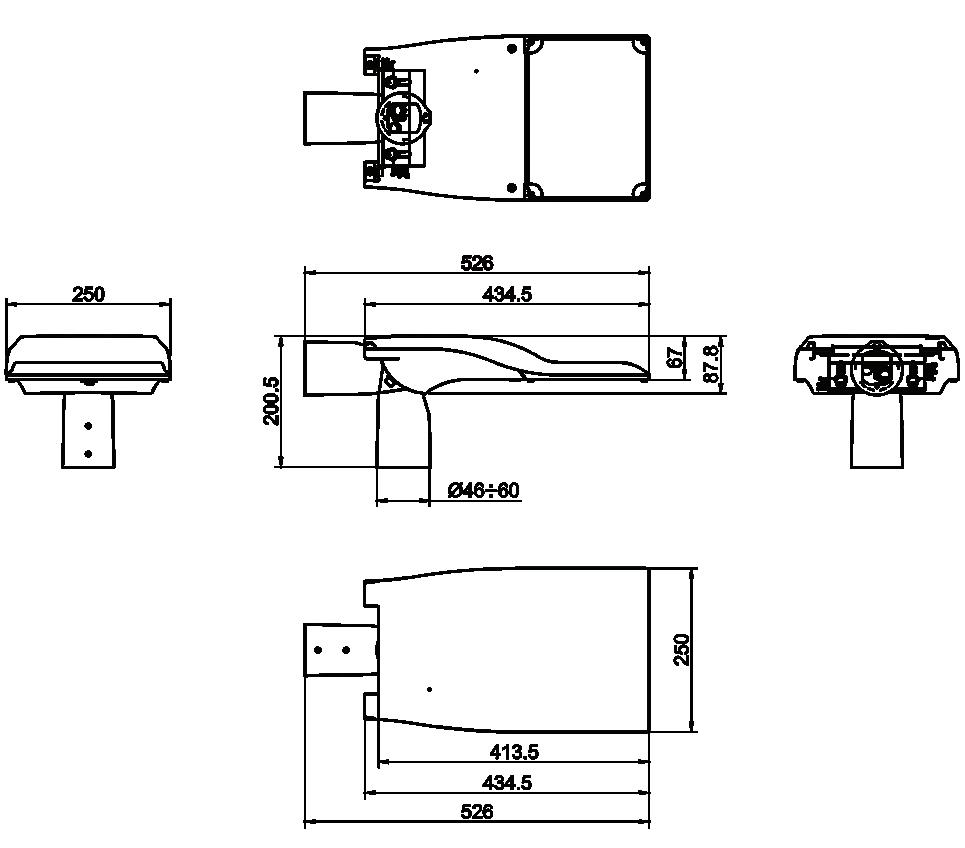

EOS LED Lantern - General Dimensions EOS Lantern Body Type 1:

EOS Lantern Body Type 2:

EOS Lantern Body Type 3: Accessible electrics compartment for quick and easy maintenance, no tools required

EOS LED Lantern - Typical Column Suitability

1.) Static Column *3 - 12m 2.) Base Hinge **R/L Column *3 - 12m 3.) York Hinge **R/L Column *3 - 6m *The Abacus Lighting columns mentioned above serve as examples for typical installations, but we are not restricted to these options. Abacus Lighting provides a comprehensive range of columns and masts that can accommodate virtually any new or retrofit lighting project.

CLICK or SCAN

For More Information

**Raise and Lower

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

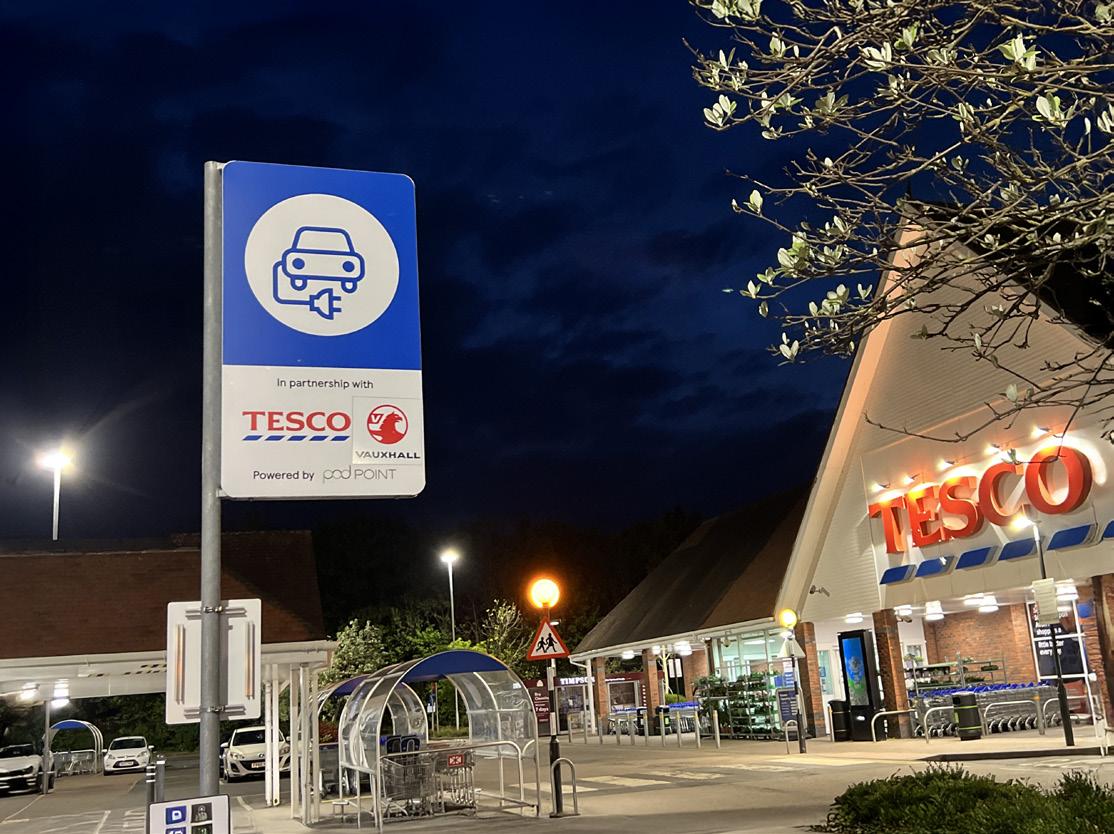

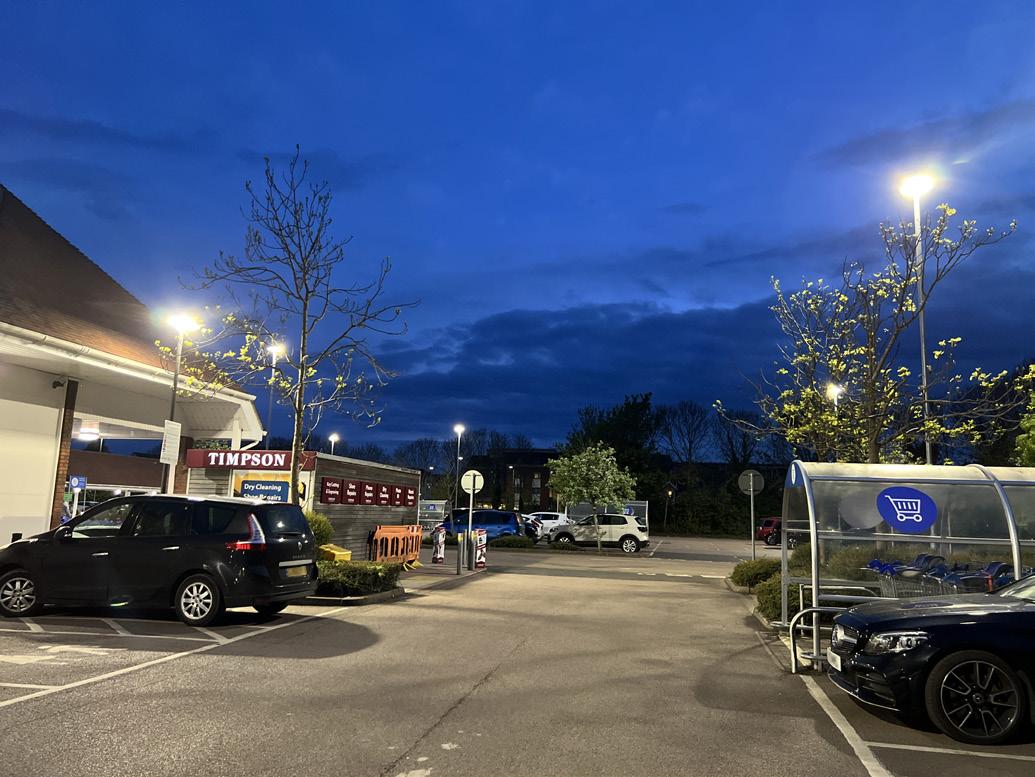

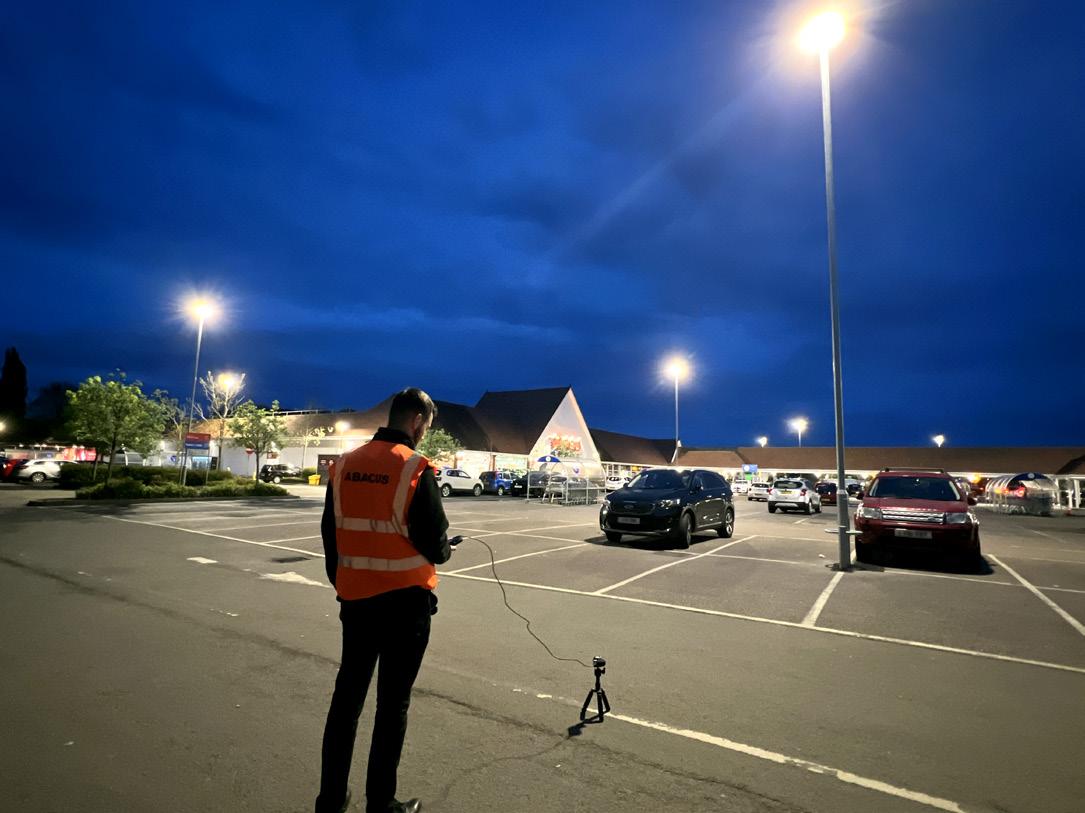

Tesco Stratford-Upon-Avon Case Study About Our Client: Tesco is one of the UK’s most prominent retail chains, widely recognised for its focus on customer service, site safety, and environmental responsibility. The Stratford-upon-Avon store operates long hours, so night safety and security are paramount.

In line with Tesco’s nationwide sustainability objectives, the company sought to modernise its metal halide outdoor lighting system by upgrading to LED lighting, enhancing safety, improving energy efficiency, and reducing long-term maintenance costs.

The Challenge: The lighting at Tesco Stratford was the original metal halide technology. Once a standard solution, but can often be associated with inconsistent light levels, high energy use and ongoing maintenance challenges. Tesco required a reliable, energy-efficient LED lighting upgrade that could deliver improved visibility across the customer car park, service yard, and canopy areas, while also supporting their broader environmental commitments.

Scan

Here

Click Or Scan Here To View The Tesco Stratford Case Study Video!

The Solution: Tesco selected IntoHeat to carry out the installation work and Abacus Lighting to design and implement a full upgrade of the Stratford site’s exterior lighting system. The installation consisted of a total of 13 new 10-metre root-mounted columns across the site. Twelve of these columns were fitted with our advanced 250W Orion Pro symmetrical LED luminaires - five in existing locations and seven in new positions to optimise coverage. The thirteenth 10 metre column, installed in an existing location, was equipped with an asymmetrical Orion Pro fitting to target specific lighting needs within the customer drop off area of the store.

Abacus provided additional lighting in pedestrian and transitional spaces, we installed two new 8 metre columns with post top fitted EOS 34W LED lanterns, in newly designated areas. Two existing columns were also re-headed with EOS fittings to maintain a consistent lighting standard across the site. Under the car park canopy, we installed fourteen round bulkhead lights in existing positions. These fittings provided crisp, uniform lighting in the covered walkways and entrance areas, significantly improving visibility and safety for shoppers during evening hours and poor weather conditions. Once the first phase of the installation was finished, Tesco commissioned further work to improve the lighting levels across the site. This involved adding eight additional 250W Orion Pro LED luminaires to the existing setup, ensuring consistent and complete illumination in both customer and operational areas. Abacus tested the lighting levels after completing each section of the project to confirm that all lighting standards were met.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Tesco Stratford-Upon-Avon Case Study Orion Pro & EOS LED Lantern The Benefits: Transitioning from metal halide to LED lighting has brought immediate advantages to the site. The new LED system significantly reduces energy consumption, thereby cutting operational costs and aligning with Tesco’s sustainability targets.

The Orion Pro LED is a market leader regarding the spacing between columns, which means that fewer lights and columns are required. This results in quicker installation and maintenance, and the key benefit is that having fewer lights leads to substantial reductions in power consumption costs from day one.

The quality of the lighting has improved dramatically, featuring enhanced colour rendering and instanton functionality that eliminates the warm-up times associated with older lamp systems. Additionally, the long lifespan of the Orion Pro and EOS luminaires means much less maintenance will be necessary in the future, reducing disruption to daily operations.

Orion Pro LED - Market Leading Spacing Between Columns

Tesco Stratford now enjoys a modern, energyefficient lighting system that enhances safety, reduces environmental impact, and supports long-term cost savings. The upgraded system has improved the customer experience, made the site safer for both pedestrians and drivers, and future-proofed the store’s external lighting with the latest high-quality, lowmaintenance LED technology.

By collaborating Abacus Lighting, Tesco has successfully transitioned to modern LED lighting, benefiting from the reliability and performance expected from a King’s Award-winning UK manufacturer.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

S-LUM Gen 3 - AL61300 Specifications & Key Features: Key Features: • Efficacy up to 165 lm/W • Screw-less access • Die cast aluminium • IoT compatible • Zhaga socket on top (Standard) • Separate LED and driver compartments • Integrated 5 level dimming module (optional) • Overheat protection • Constant light output (optional) • Time-dependant luminous flux control • Power reduction; flexible luminous flux • Colour temp. 4000K as standard (options available) • CRI ≥70 (80 optional) • Power supply 220VAC - 240VAC • Standard surge protection 6kV • Mounting Ø60mm • 5 year Warranty Finish: Silver (RAL9023)

Driver:

Product Applications:

• Dali D4i, 1-10V, RF or PLC • IP66 and IK10 rated • 10W - 200W data available on request

• Access Roads • Car Parks

• Open Area • Amenity

S-LUM Gen 3 Product Overview: An innovative road lighting luminaire of modular construction designed with ease of maintenance in mind. Tool-less upgrades of key components such as power supply and light engine along with fieldreplaceable LED modules ensure the luminaire takes full advantage of future improvements in LED technology.

Constructed from high pressure die-cast aluminium, the AL61300 series is available in four body sizes and offers six standard lumen packages, from 1,600 to 32,000 lumens, and comes with eleven different optics.

With a lifetime of 100,000 hours combined with an efficacy up to 165 lm/W, the AL61300 series keeps both operating and maintenance costs to an absolute minimum.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

S-LUM Gen 3 - AL61300 Technical Specifications: Lifetime:

L90B10 > 100,000 hours

Supply Voltage:

220VAC - 240VAC 50 - 60Hz

Power:

Small: 10 - 40W Medium: 40 - 80W Large: 80 -120W Extra Large: 120 - 200W

Luminous Flux:

1,600 - 32,000 lm

Power Factor:

> 0.96

Wind Area (EPA):

Small = 0.05m2, Medium = 0.07m2, Large = 0.09m2 and Extra Large = 0.11m2

CCT:

4000K as standard (other CCT available on request)

Colour Rendering (CRI):

≥ 70 (80 optional)

IP Rating & Mechanical Strength:

IP66 and IK10

Surge Protection:

6kV (SPD 10kV / 10kA optional)

Operating Temperature:

-40°C to +55°C

Electrical Class:

Class I

Weight:

Small: 3kg Medium: 3.9kg Large: 6.4kg Extra Large: 9.3kg

Mounting:

Ø60mm pole (Ø76mm Non-Standard)

Tilt:

-15° to +15° (horizontal and vertical installation)

Controls:

DALI D4i + Zhaga socket on top (standard); RF, PLC, Narrow band optional, see accessories for all Zhaga socket options

Certificates:

IEC 60598-2-3:2002 + A1:2011, IEC60598-1:2020 IEC 60598-2-3:2003 + A1:2011, EN IEC 60598-1:2021 + A11:2022 IEC 62031:2018, IEC/TR 62696:2011, IEC/TR 62778:2014; CE; ENEC; LM79

S LUM Gen 3 - Product Code Selector Beam Type:

Power (W):

Body Type:

RA/CCT:

Accessories:

740 = (Ra70/4000K)

A = ZHAGA Socket Top (Standard)

730 = (Ra70/3000K)

B = ZHAGA Socket Bottom

AL61302

010

030

AL61314

015

035

AL61307

020

040

AL61310

025

-

840 = (Ra80/4000K)

AL61311

040

065

830 = (Ra80/3000K)

AL61315

045

070

827 = (Ra80/2700K)

050

075

055

080

060

-

080

105

085

110

090

115

095

120

100

-

120

170

130

180

140

190

150

200

160

-

Small = S

727 = (Ra70/2700K) C = ZHAGA Socket Top and Bottom D = No ZHAGA Socket

Medium = M

Product Selection Example: RA/CCT

Large = L

Beam Type

AL61302 / 020 S

740

A

Power Body Type

Accessories

Extra Large = X *Non-standard options may be subject to MOQs or longer lead times.

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

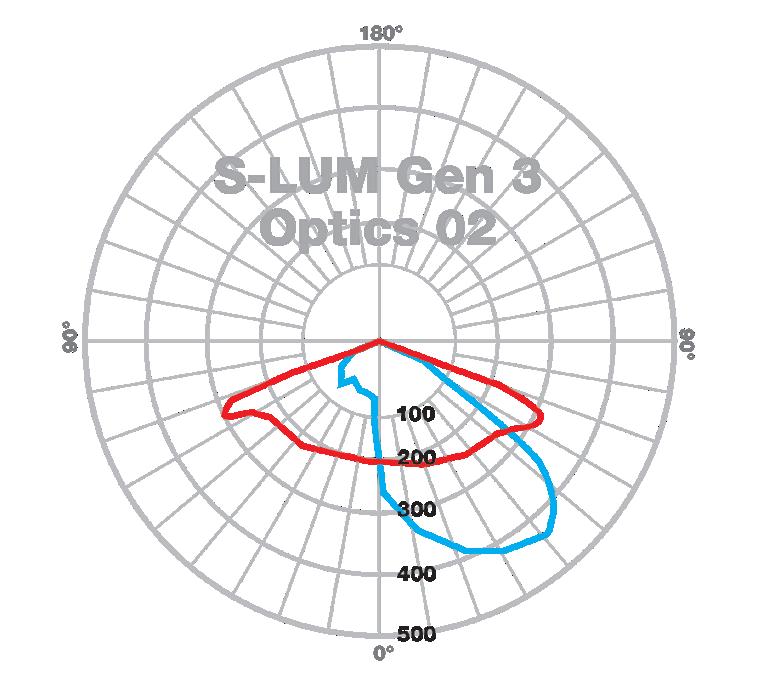

S-LUM Gen 3 - AL61300 Photometry

AL61302 (002): Suitable narrow roads, access roads, cycling and pedestrian areas

AL61314 (012): Suitable narrow roads, access roads, cycling and pedestrian areas

AL61307 (004): Suitable for larger distances between columns and has a high longitudinal uniformity factor

AL61310 (000): Suitable for high installations, wider roads and large area car parks

AL61311 (001): Suitable for wider roads smaller distances between columns and car parks

AL61315 (030): Suitable for larger distances between columns, high mounting installation and high uniformity factor

Scan or Click Here To Download The S-LUM Gen 3 Photometry Data:

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

S-LUM Gen 3 - AL61300 S LUM Gen 3 - Lumen and Power Chart Body Type

LED Current (mA)

2700K Output in Lumens at CRI70

3000K Output in Lumens at CRI70

4000K Output in Lumens at CRI70

10

90

1500

1550

1600

15

130

2250

2325

2400

170

3000

3100

3200

220

3750

3875

4000

260

4500

4650

4800

35

300

5250

5425

5600

40

340

6000

6200

6400

40

110

6000

6200

6400

45

130

6750

6975

7200

50

140

7500

7750

8000

160

8250

8525

8800

170

9000

9300

9600

Power (W)

20 Small

25 30

55 Medium

60 65

54 (3 Modules)

190

9750

10075

10400

200

10500

10850

11200

75

220

11250

11625

12000

80

230

12000

12400

12800

80

170

12400

12800

13200

85

180

13175

13600

14025

90

190

13950

14400

14850

200

14725

15200

15675

220

15500

16000

16500

100 105

72 (4 Modules)

230

16275

16800

17325

110

240

17050

17600

18150

115

250

17825

18400

18975

120

260

18600

19200

19800

120

170

18000

18600

19200

130

190

19500

20150

20800

140

200

21000

21700

22400

220

22500

23250

24000

230

24000

24800

25600

150 Extra Large

18 (1 Module)

70

95 Large

No. of LEDs

160 170

108 (6 Modules)

240

25500

26350

27200

180

260

27000

27900

28800

190

270

28500

29450

30400

200

290

30000

31000

32000

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

S-LUM Gen 3 - AL61300 Dimensions Small: 384

210

119

251

465

Ø 60mm

632

528

130

259

235

Medium:

Ø 60mm

711

606

245

140

311

Large:

Ø 60mm

Extra large: 747

268

140

360

863

Ø 60mm

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Telescopic Pneumatic Mast Data Sheet

Telescopic Pneumatic Masts - Product Overview The Telescopic Pneumatic Mast range is ideal for various lighting applications where full-height permanent masts are not practical or necessary. With innovative and user-friendly engineering solutions, our masts are both flexible and practical, allowing them to more than double in height from their retracted position.

These pneumatic masts are operated using compressed air and can be raised or lowered either remotely or manually from the base of each mast.

Designed for seamless operation, these systems feature automatic controls for precise performance. An external enclosure houses all the key components, ensuring easy access for maintenance and optimal protection of the internal mechanisms.

Extended Height (m)

Retracted Height (m)

Number of sections

Base Diameter (mm)

Top Shaft Diameter (mm)

Maximum Headload (kg)

12.7

2.5

7

284

130

280

14.1

2.7

7

284

130

280

14.8

2.8

7

284

130

280

15.5

2.9

7

284

130

280

16.2

3.0

7

284

130

280

16.9

3.1

7

284

130

280

17.6

3.2

7

284

130

280

18.3*

3.3

7

284

130

280

19.7*

3.2

8

284

110

200

20.5*

3.3

8

284

110

200

Telescopic Pneumatic Masts - Key Features • Ranging from 5m - 25m • Pneumatic Telescopic Masts are operated using compressed air • Anodised aluminium finish • Option for internal multi-core cable available on request • Anemometer controlled retraction if the design wind speed is exceeded • Lowers to more than half the operating height, minimising any visual intrusion • Designed to work in a tubular format • Accessible control features from base section

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com

Phone: 01623 511 111 - Email: info@abacuslighting.com - Website: abacuslighting.com
