PORTFOLIO AR
AAKANGSHA ROY | VIVEKANANDA GLOBAL UNIVERSITY, | JAIPUR
3
CONTENT
5 01 UJJAIN MUSEUM INDOOR SPORTS COMPLEX TECHNICAL DRAWINGS MULTI FAMILY HOUSING RENDERINGS SOLAR DECATHLON MISCELLENEOUS 02 03 04 07 06 05 CONTENTS

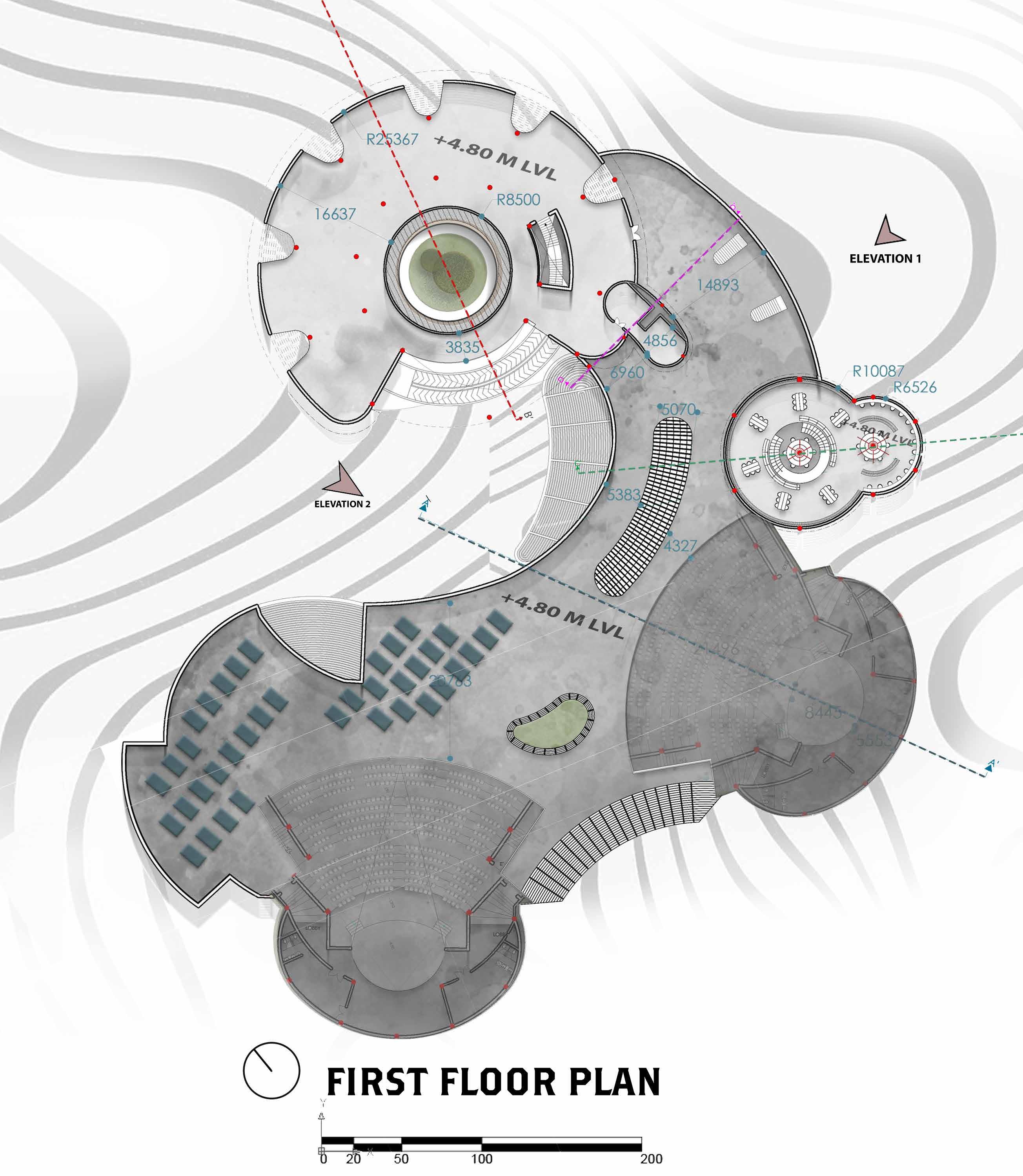

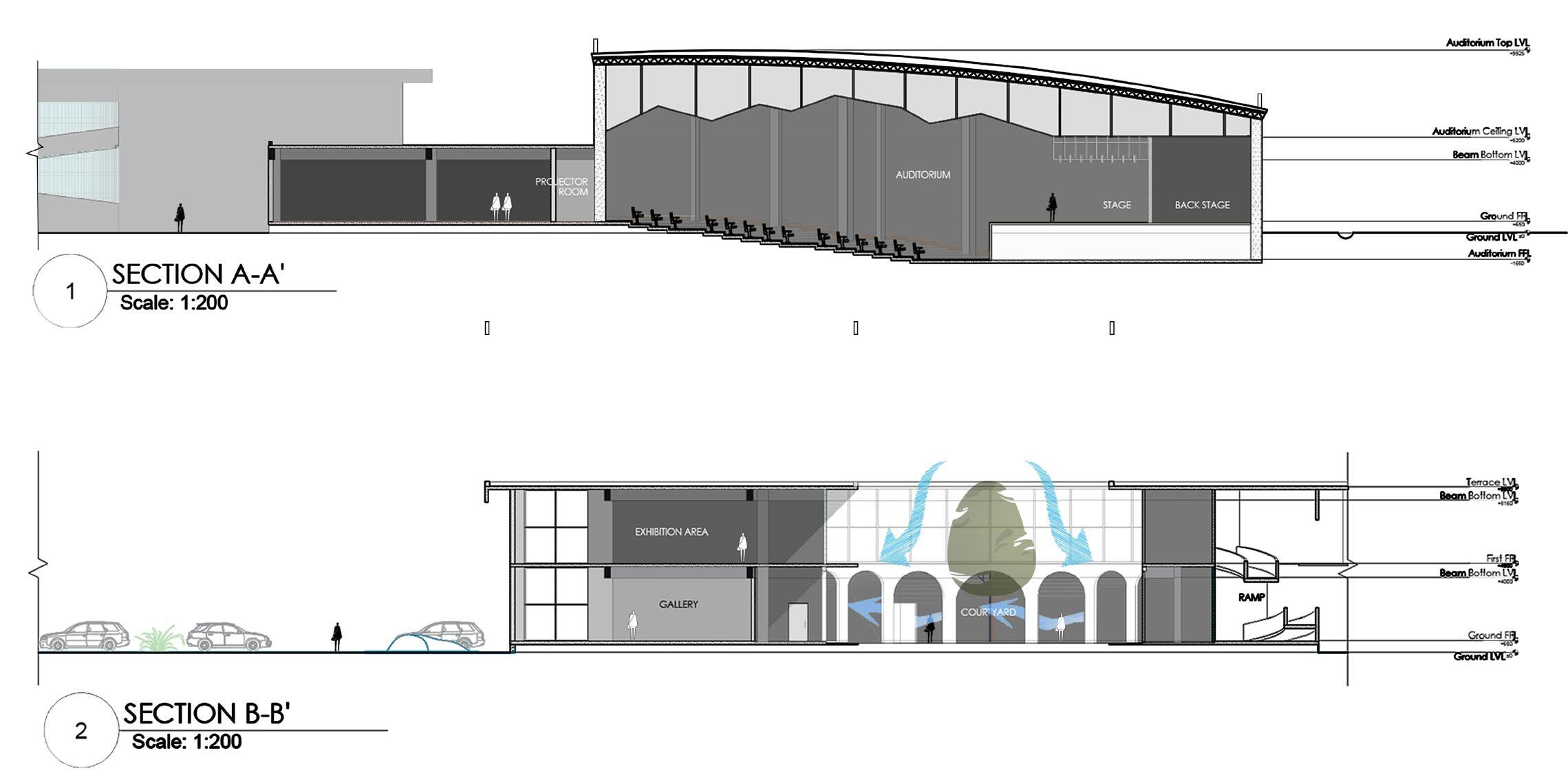

UJJAIN MUSEUM
01
CONCEPT
This project will bring many children as well as many more visitors who will learn about the struggles our brave scientists faced prior to independence. The museum represents a foetus on the site. The design is fluid and with clear path ,will help visitors explore more without any confusion .
The project consists of all the site water collected at a particular area as an ecological pond through channels throughout the periphery of the proposed site.

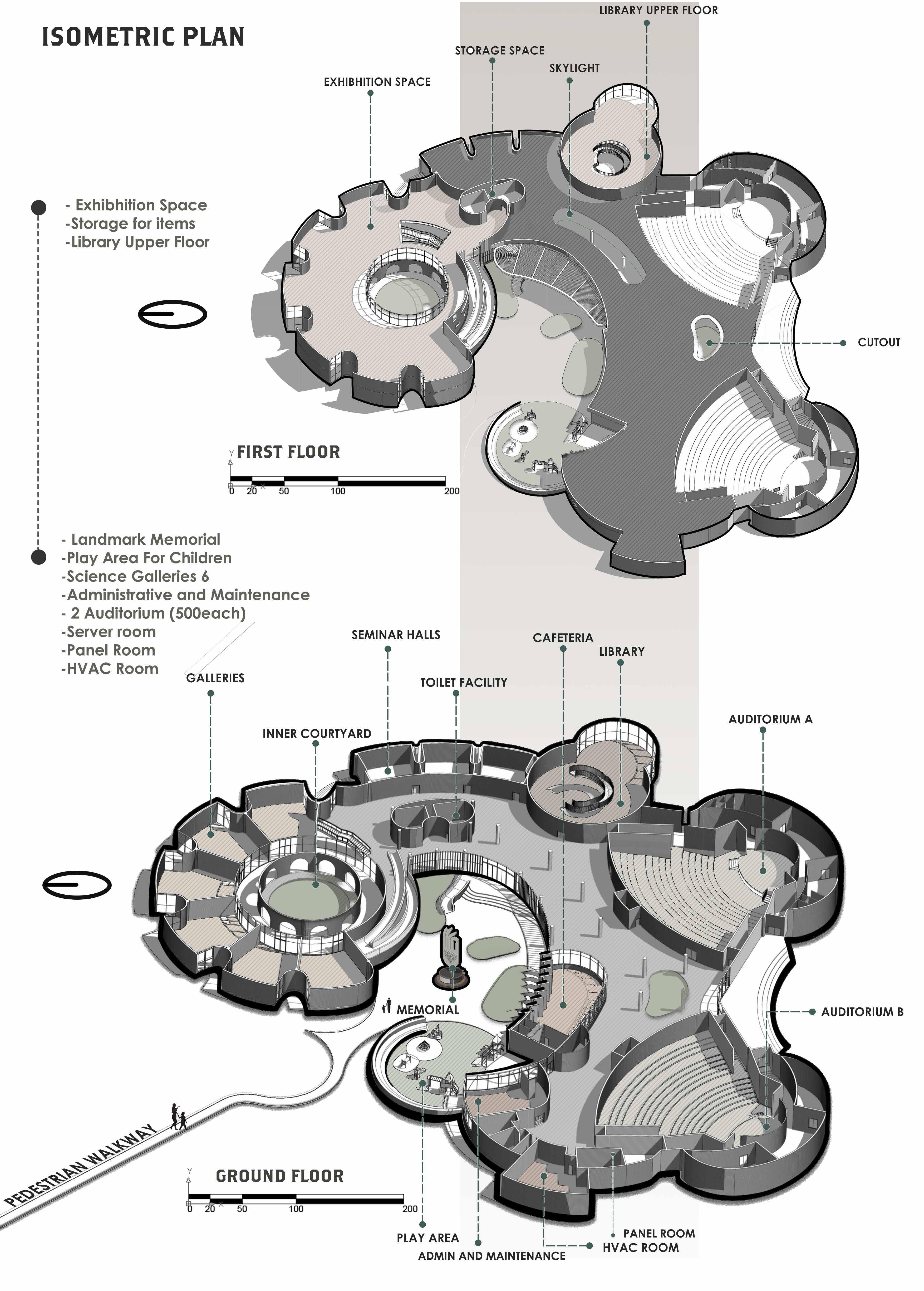

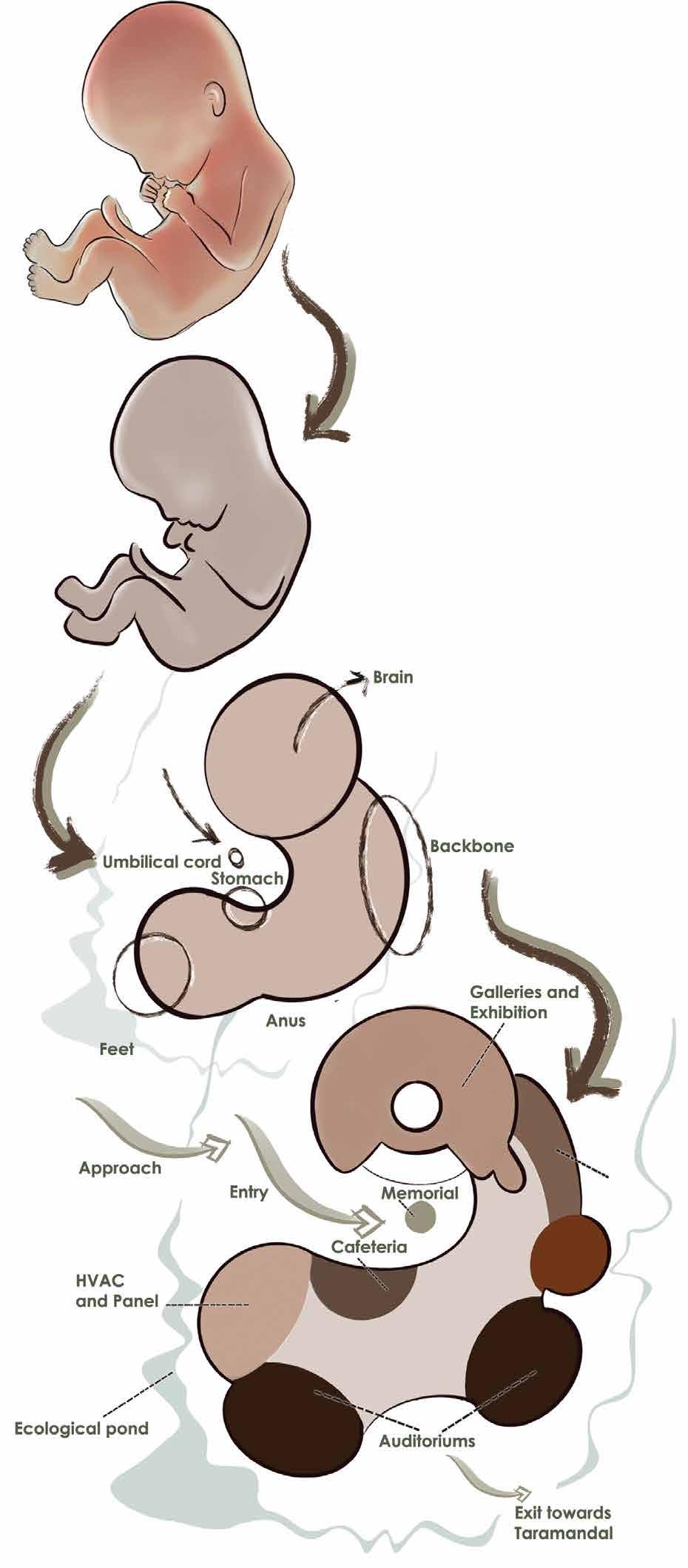

The brain - Art gallery and Exhibition
Umbilical cord - The main entrance
Backbone - Seminar Hall, Auditorium and Library
Stomach - Cafeteria
Anus - Exit towards the Taramandal
The feet releases energy so the HVAC and panel room are provided there.
Hand receives energy so the memorial is placed in there.
PROJECT DATA
Type Competition
Built Area 8392 Sqm
Plot Area 24500 Sqm
Team Mates Siddharth Sharma
Kamna Mishra
Location Ujjain, Madhya Pradesh
Competition Azadi ka Amrit Mahotsav Architecture competition, Indore
Semester 6th sem
The project is in an important location within the planetarium complex. Madhya Pradesh Science and Technology Minister Omprakash Sakhlecha launched a national level architectural creation competition on the theme “Contribution of Indian Scientists in India’s Freedom Movement”. It is a national level competition not only to honor and recognize the incomparable contribution of Indian scientists in India’s freedom struggle by presenting it in the form of a memorial and museum, but also to present it to the present generations of Indians. The Museum had requirements of atleast six galleries, three seminar halls, exhibition space, play area, a landscape memorial, auditorium(s) having capacity of 1000.
7

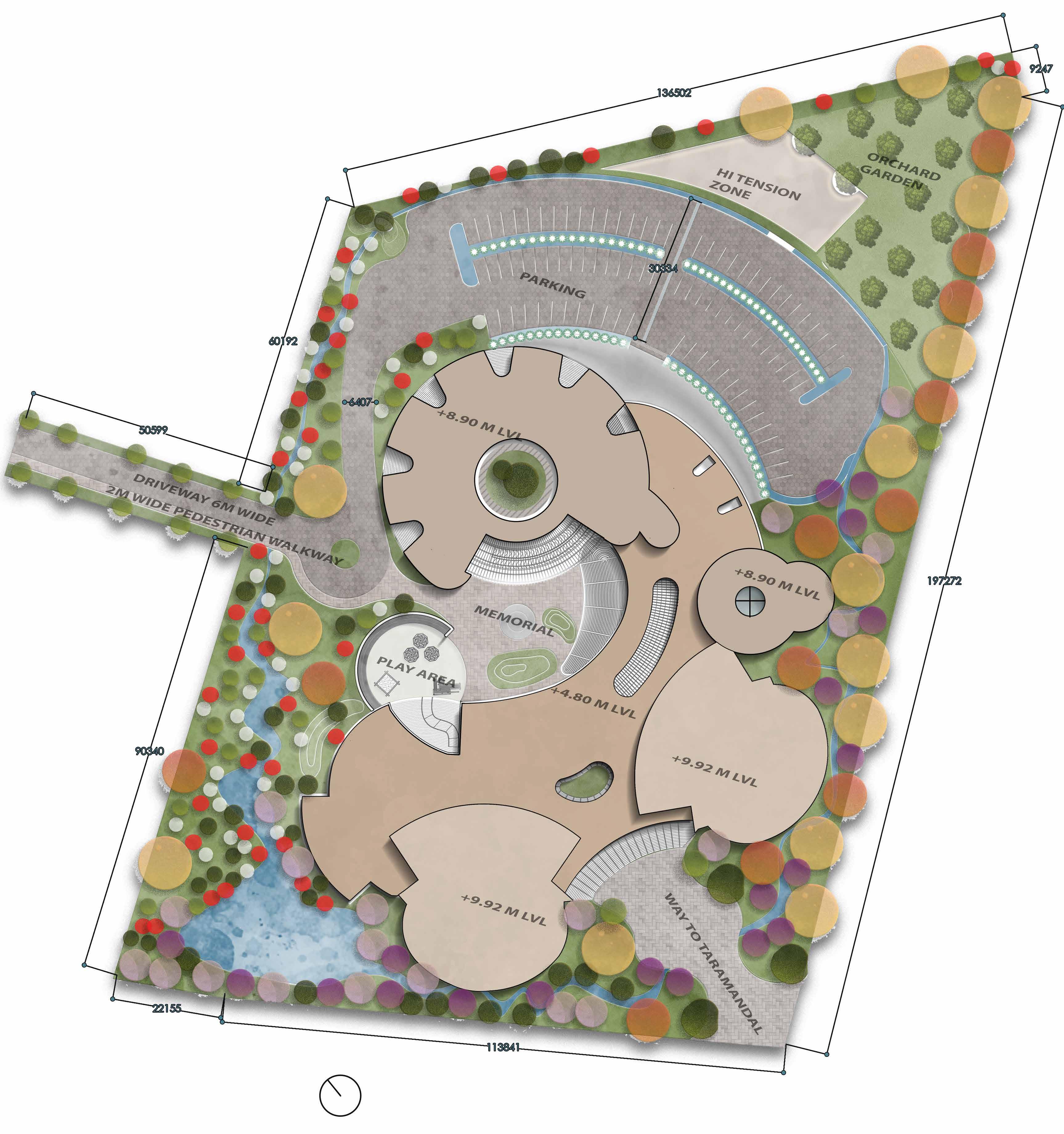

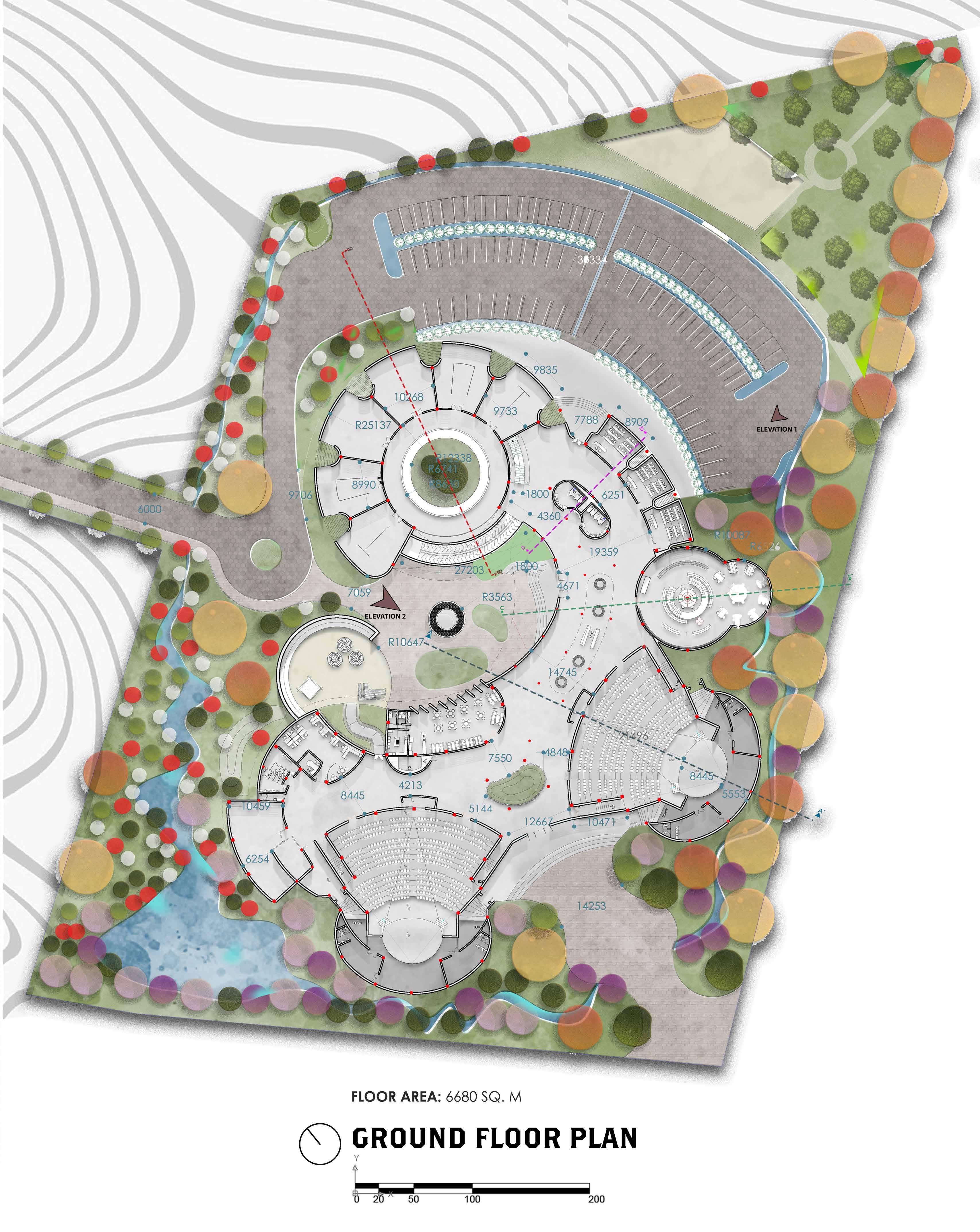

SITE PLAN

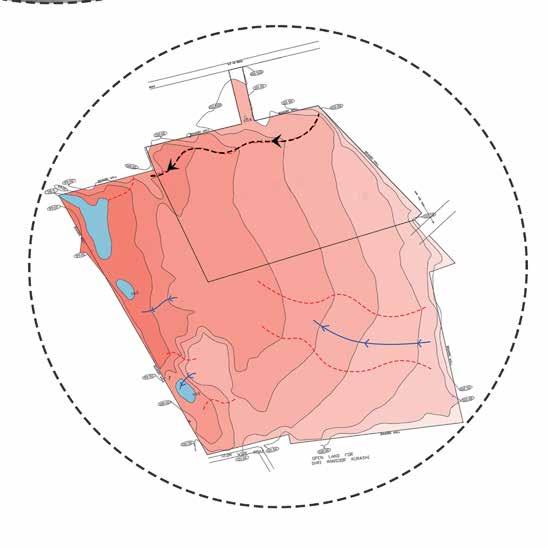

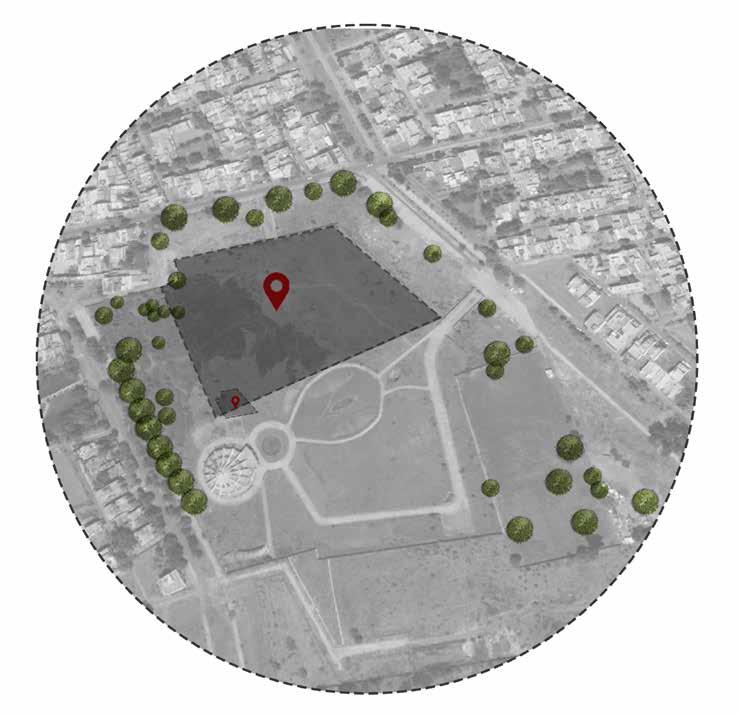

SITE LOCATION AND TOPOGRAPHY

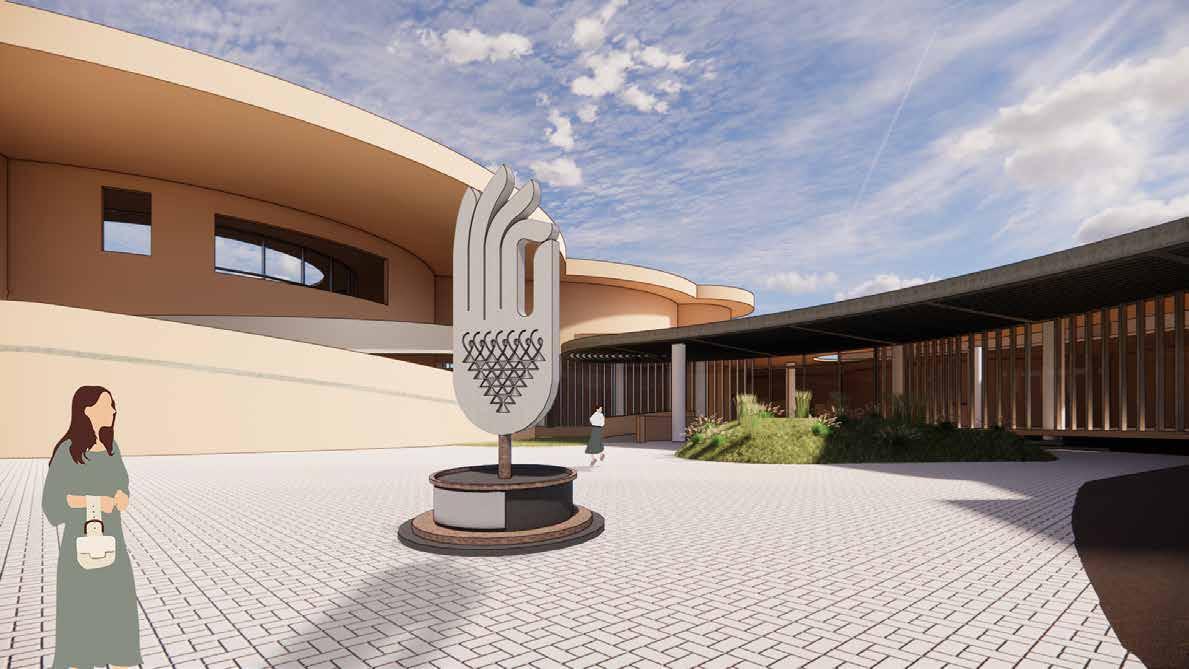

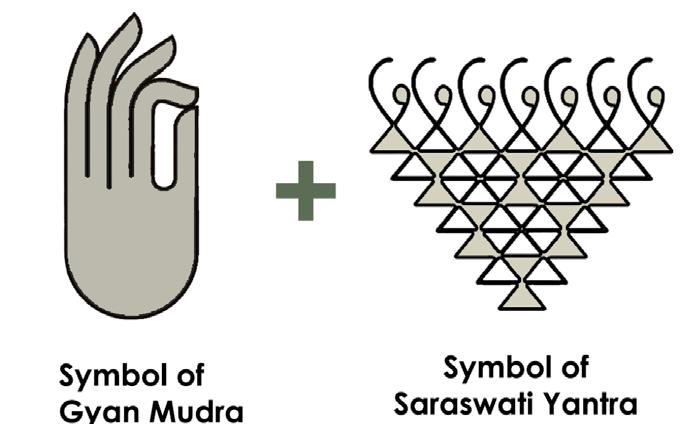

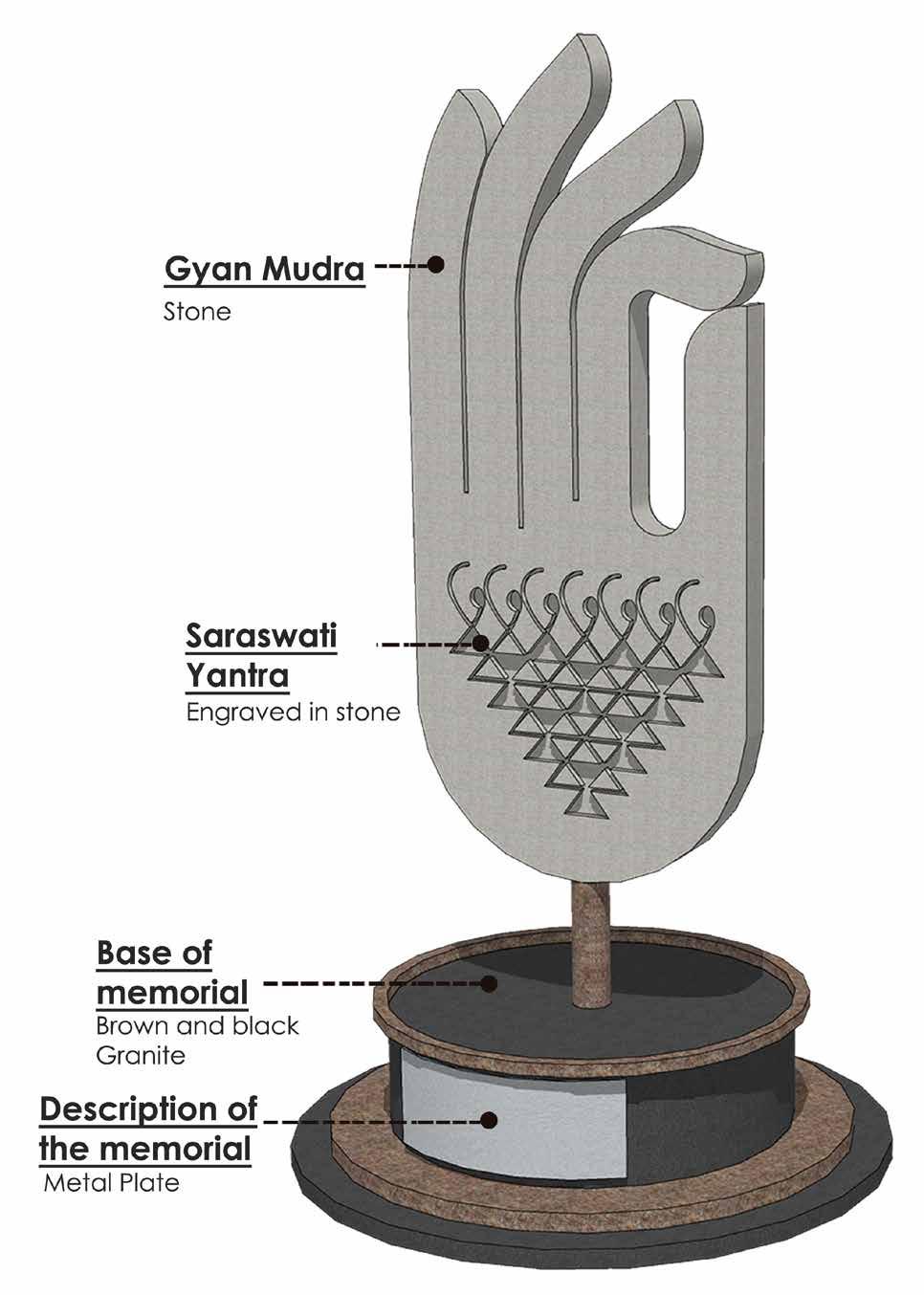

Gyan mudra, otherwise known as chin mudra, is a sacred hand gesture or ‘seal’ used to direct energy and maintain focus. This symbolises knowledge and expansion.
Goddess Saraswati is known for wisdom, education, intellect and speech.This Yantra enhances the knowledge, improves concentration and memory power.

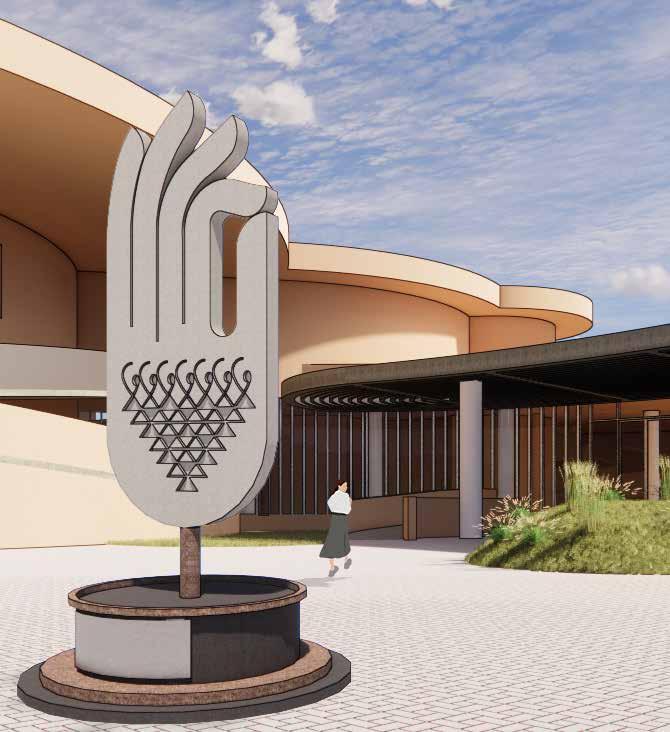

The project itself is a knowledge centre so the landmark memorial should symbolise the same. Yantras are Cosmic instruments or tools which are believed to draw positive frequencies from the Planets and other Cosmic bodies and transmit it in the place it is installed.
9

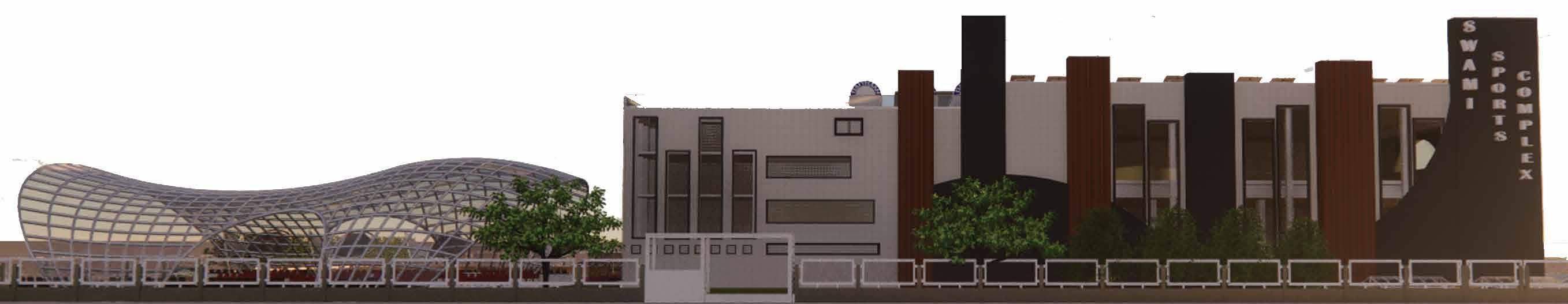

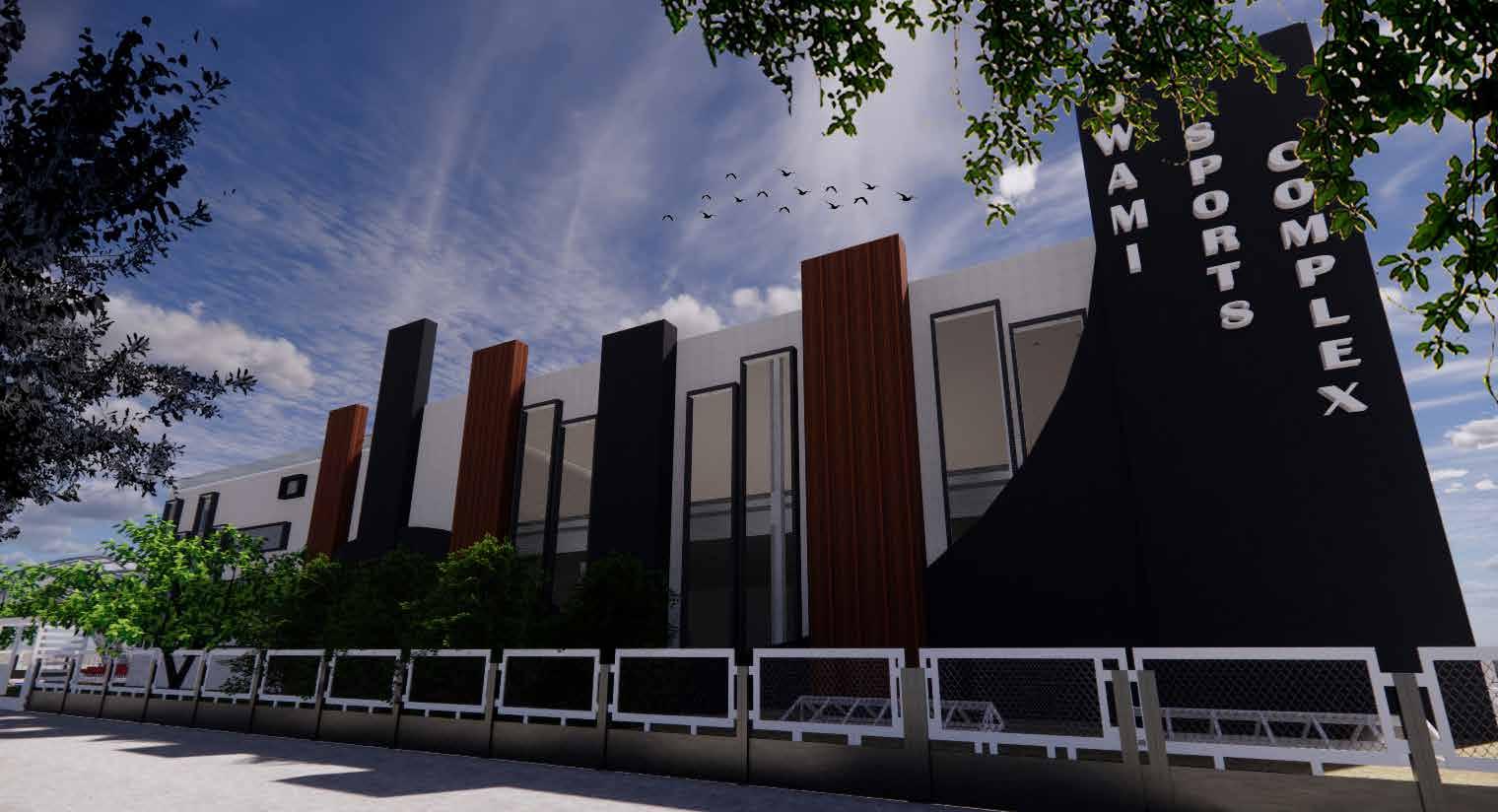

02 SWAMI INDOOR SPORTS COMPLEX
CONCEPT

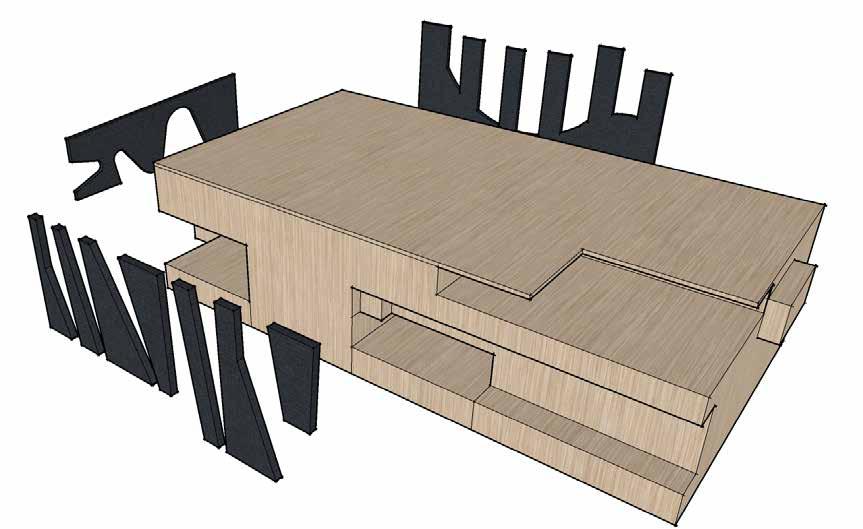

The concept is creacting the form out of a simple cube for increasing the usable space. Spaces to be easily accesible for all. Use of minimum corridors and maximumuse of space for the requirements, including free space and service at each floor. Use of false walls and louvers as shading devices as well as design elements.
PROJECT DATA
Type Academic Built Area 11280 Sqm
Plot Area 7200 Sqm
Location Behind Gargi Girls Hostel, Vivekananda Global University, Jaipur Semester 4th sem
The aim of the project was to create an indoor sports complex for the use of college students as well as sportspersons across Jaipur. It is not to be a complex only for the university.
The task was to design the project to accomodate all the provided list of sports and games within the limited BAR, with comfortable and appropriate circulation.
35% of ground coverage for built up area is allowed and minimum circulation of 30% required on ground.
The requirements for the sports complex included basketball court, skating rink, shooting range, kabaddi court, 2 lawn tennis courts, 4 badminton courts, 2 squash courts, meditation and yoga room, taekwondo, judo, karate, boxing room, TT room, chess and carrom room, cafe, swimming pool, guest houses and some other amenities.
11

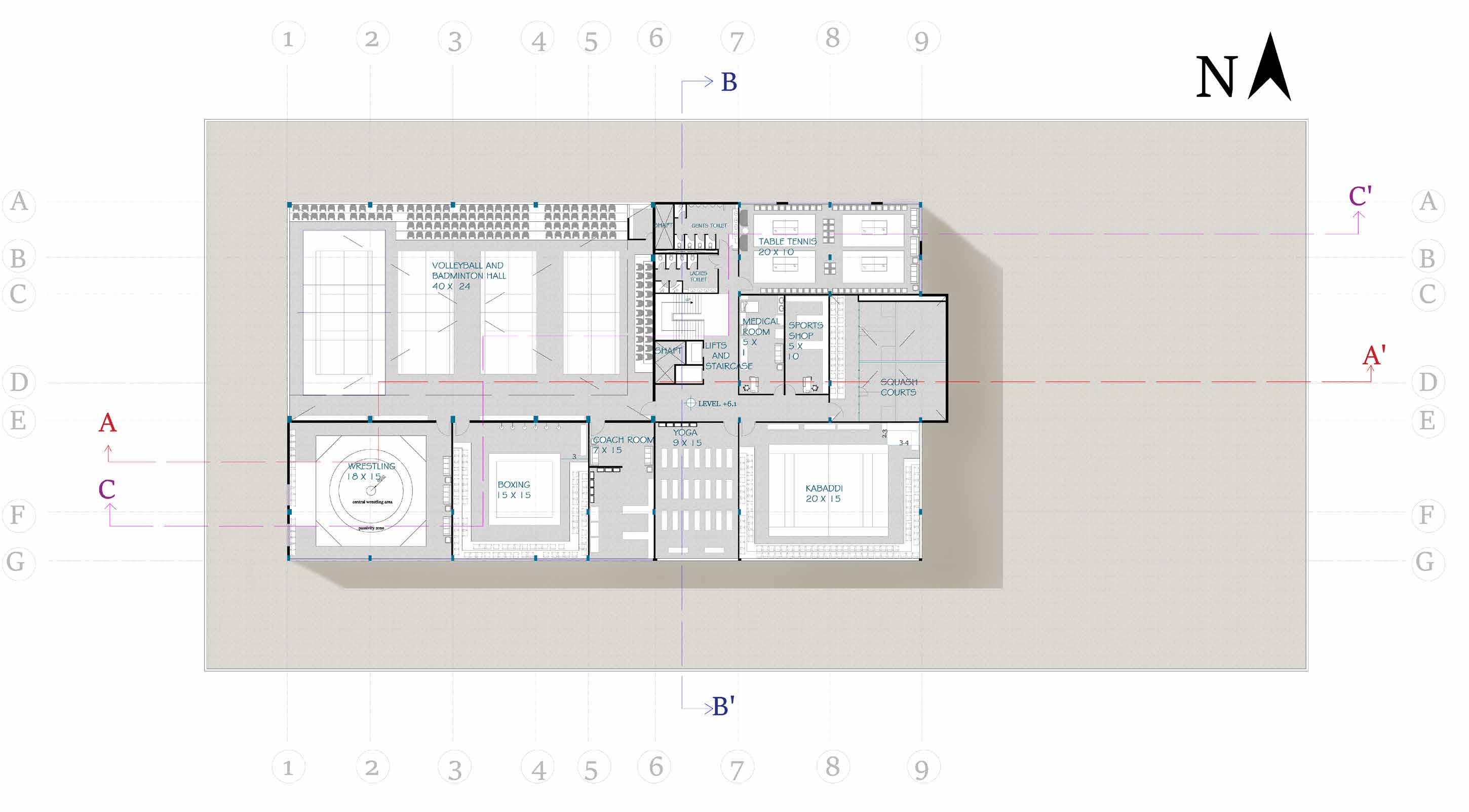

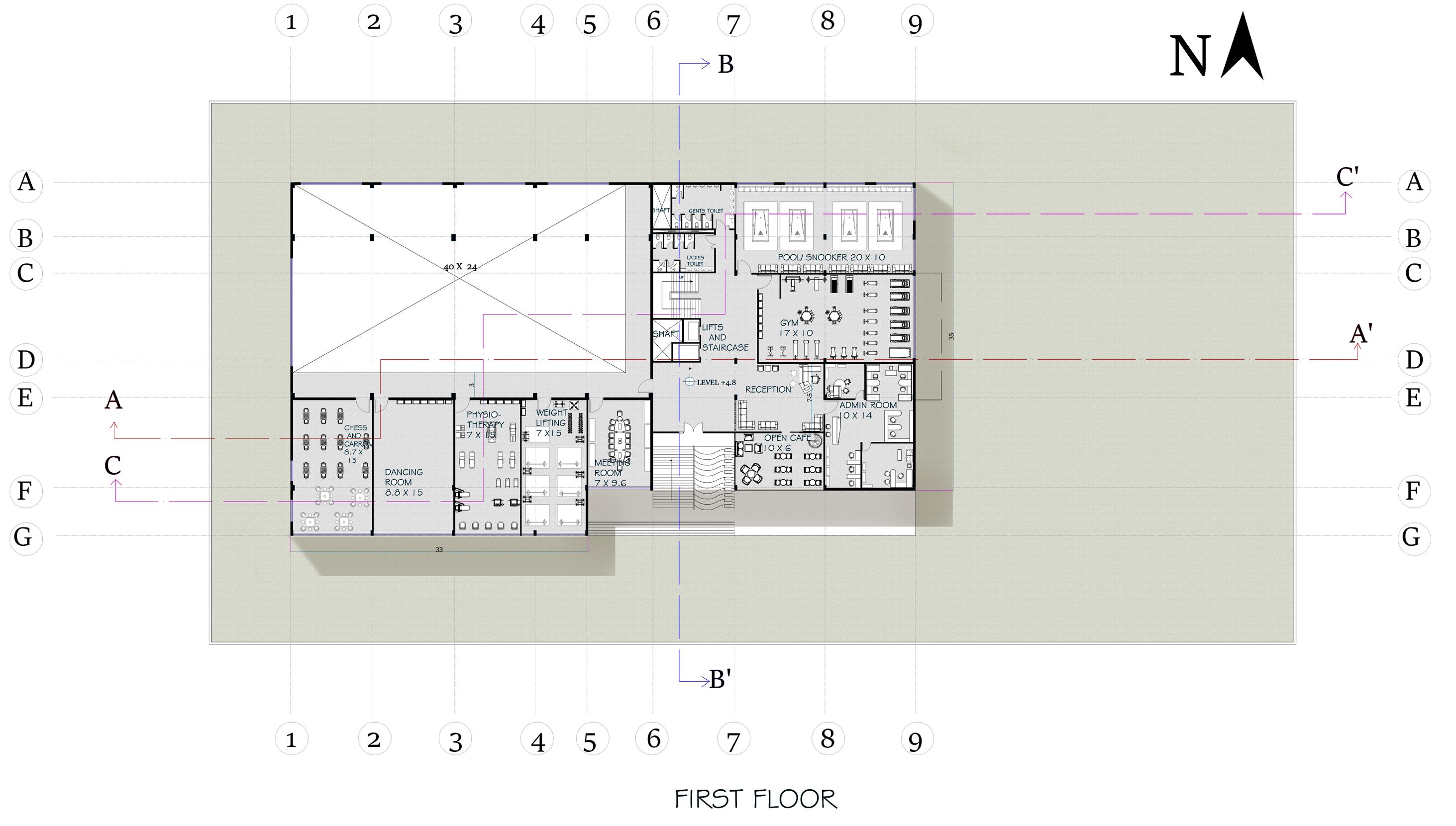

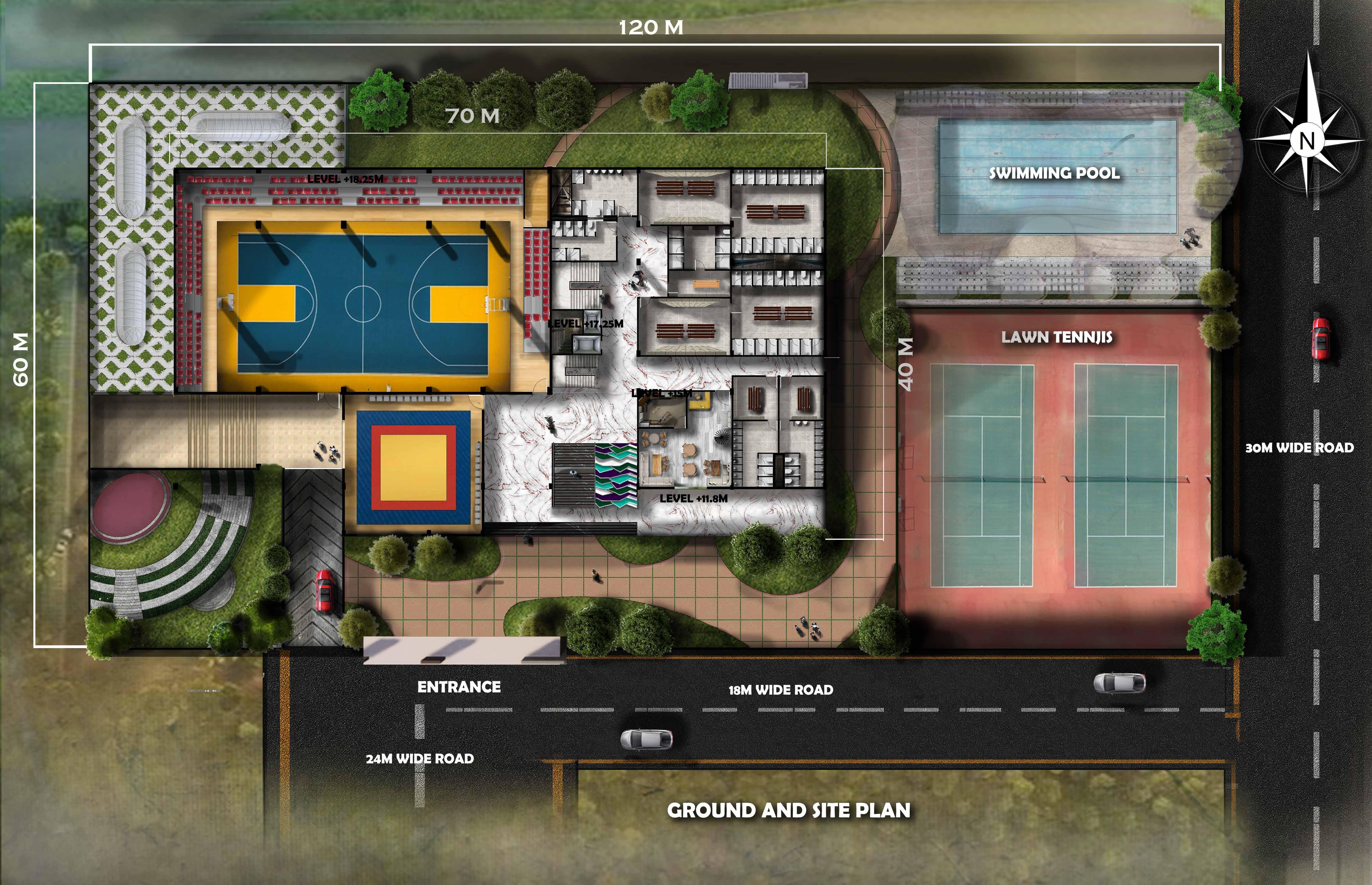

FLOOR PLANS

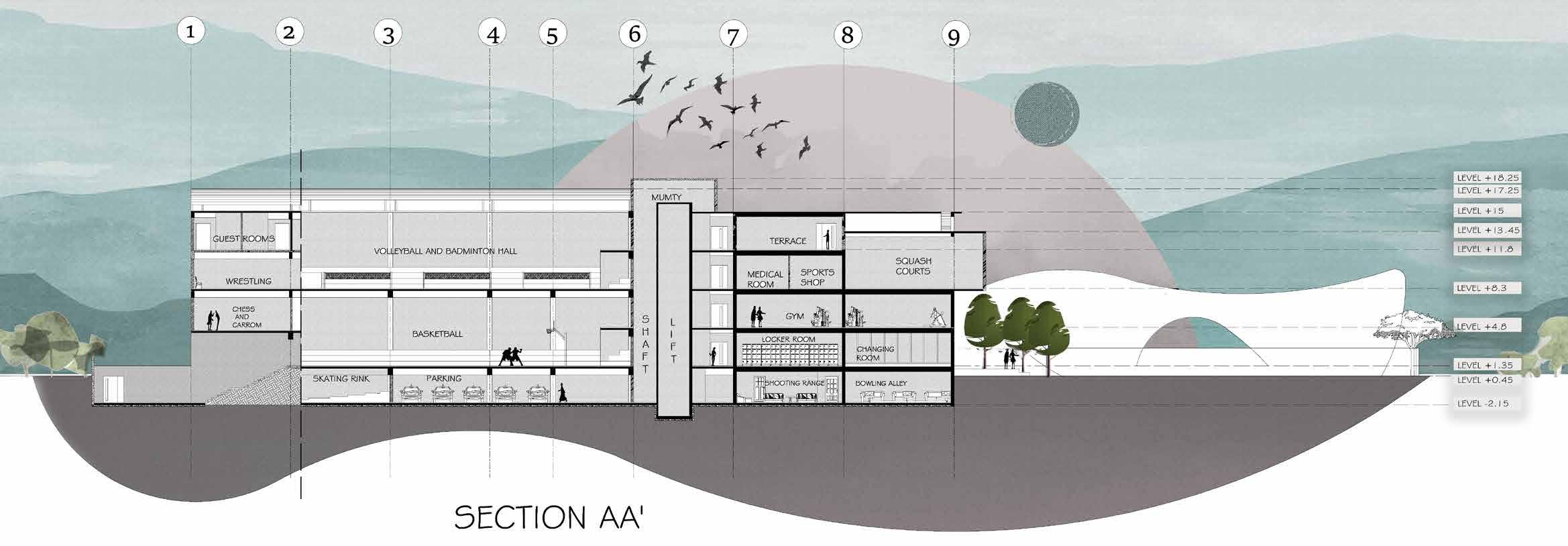

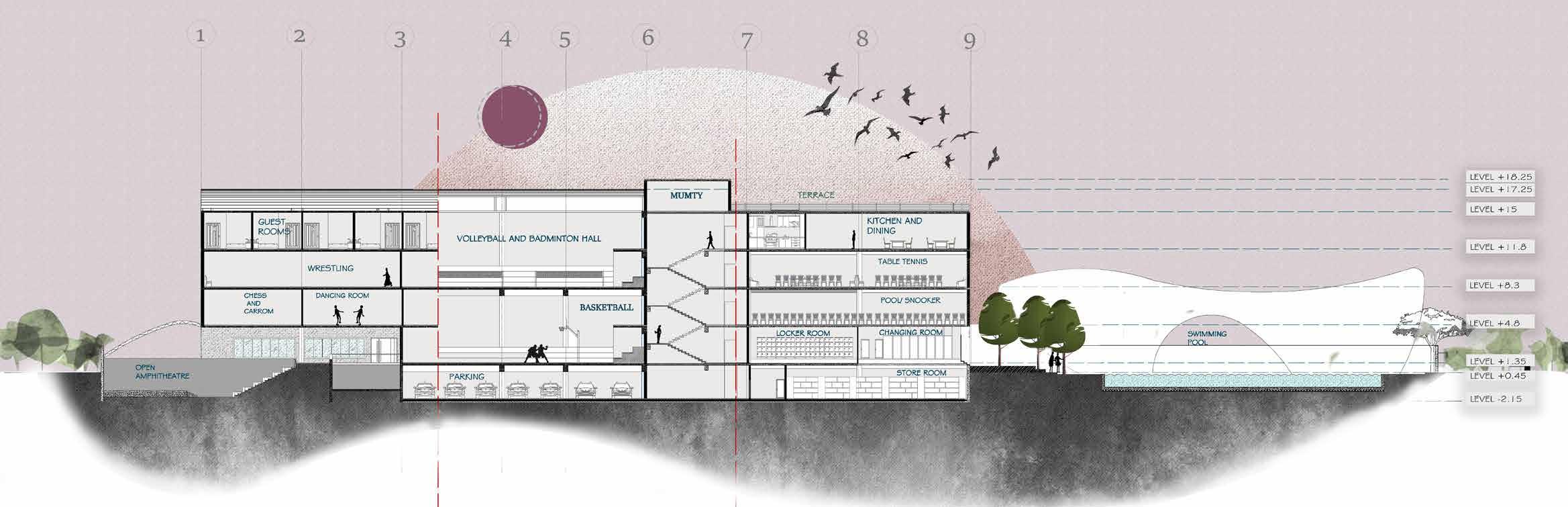

The double height badminton courts and basketball courts are planned one above other to save space. Heavy columns are used however to support such structure. All the common toilets are kept vertically stacked. Some sport rooms are merged on based on size and capacity of use. Easy access to every room assured.
MATERIALS

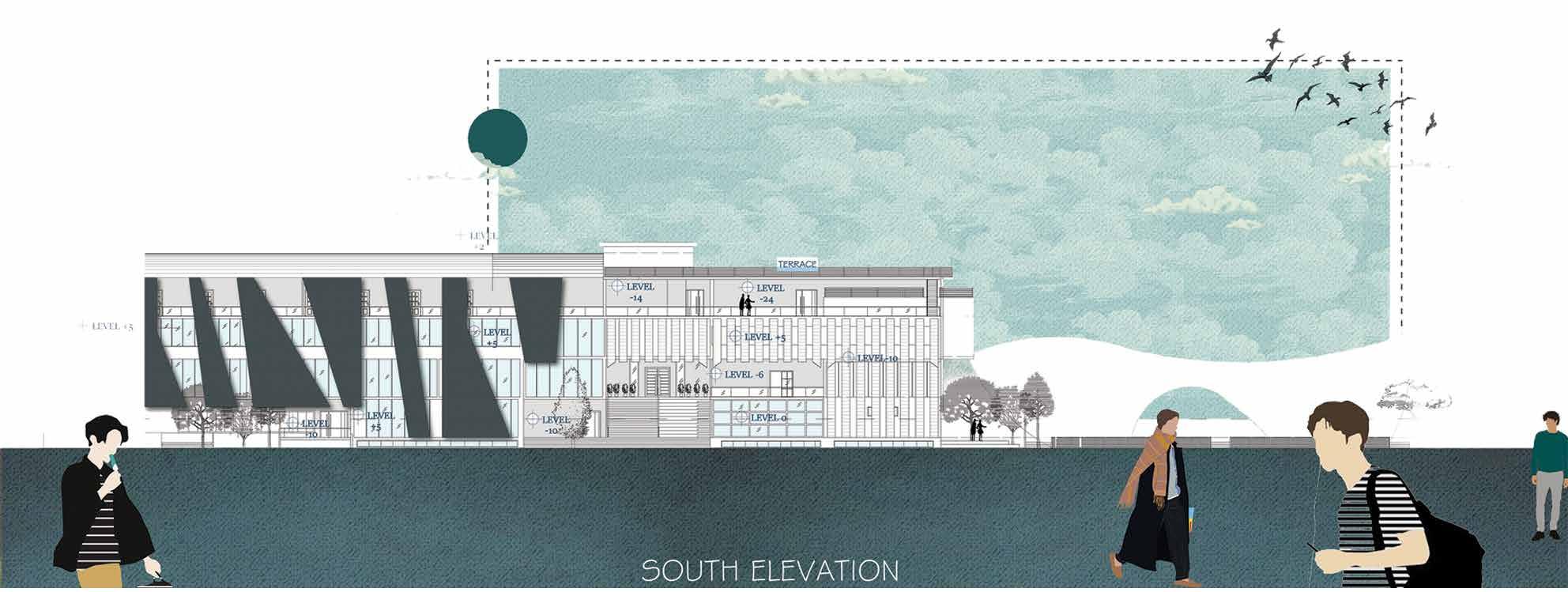

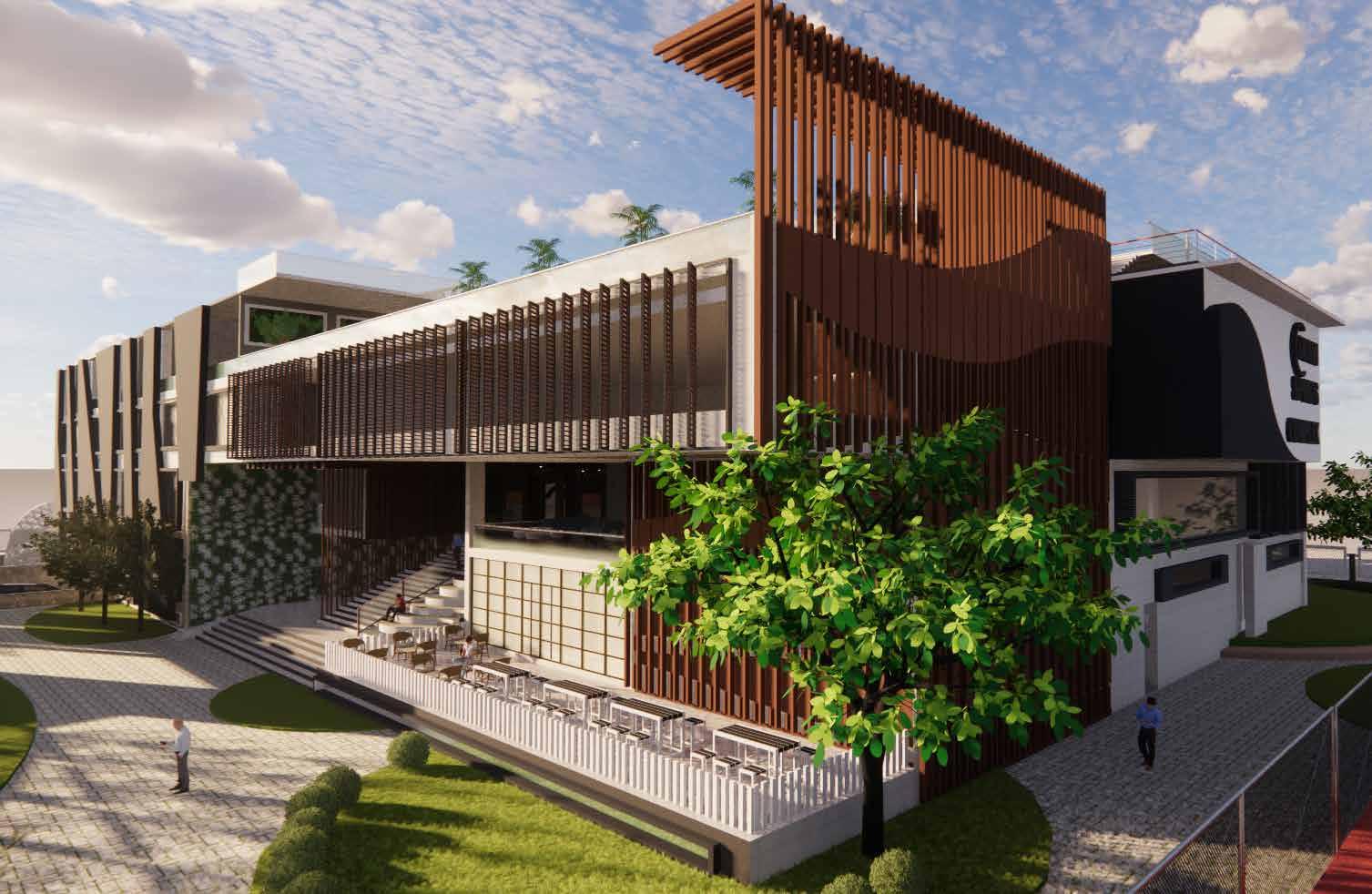

Adjustable louvers used on south facade for convenient allowance of light with changing sun position as required.

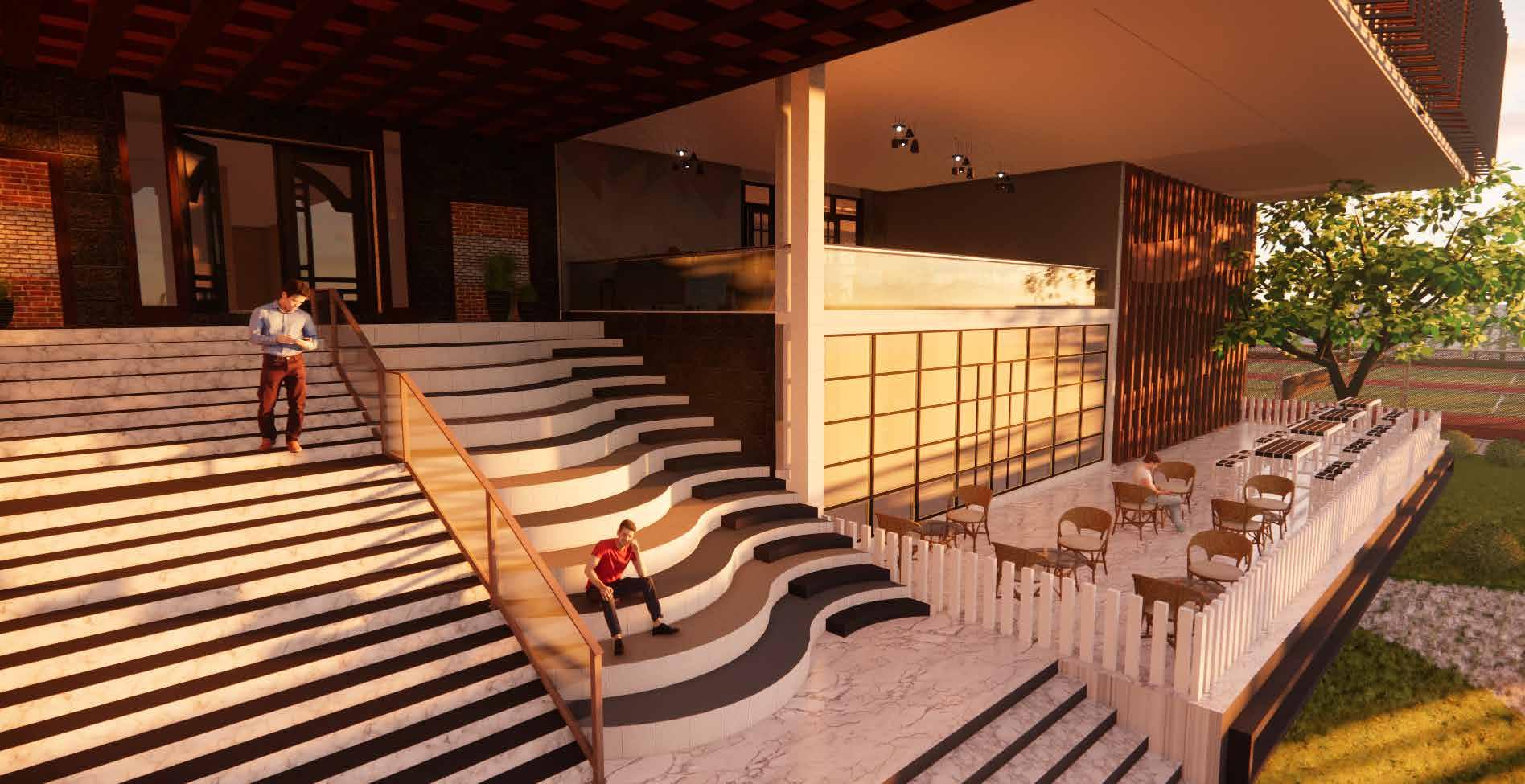

Fixed louvers on east facade majorly to shade terrace seating and aesthetics.

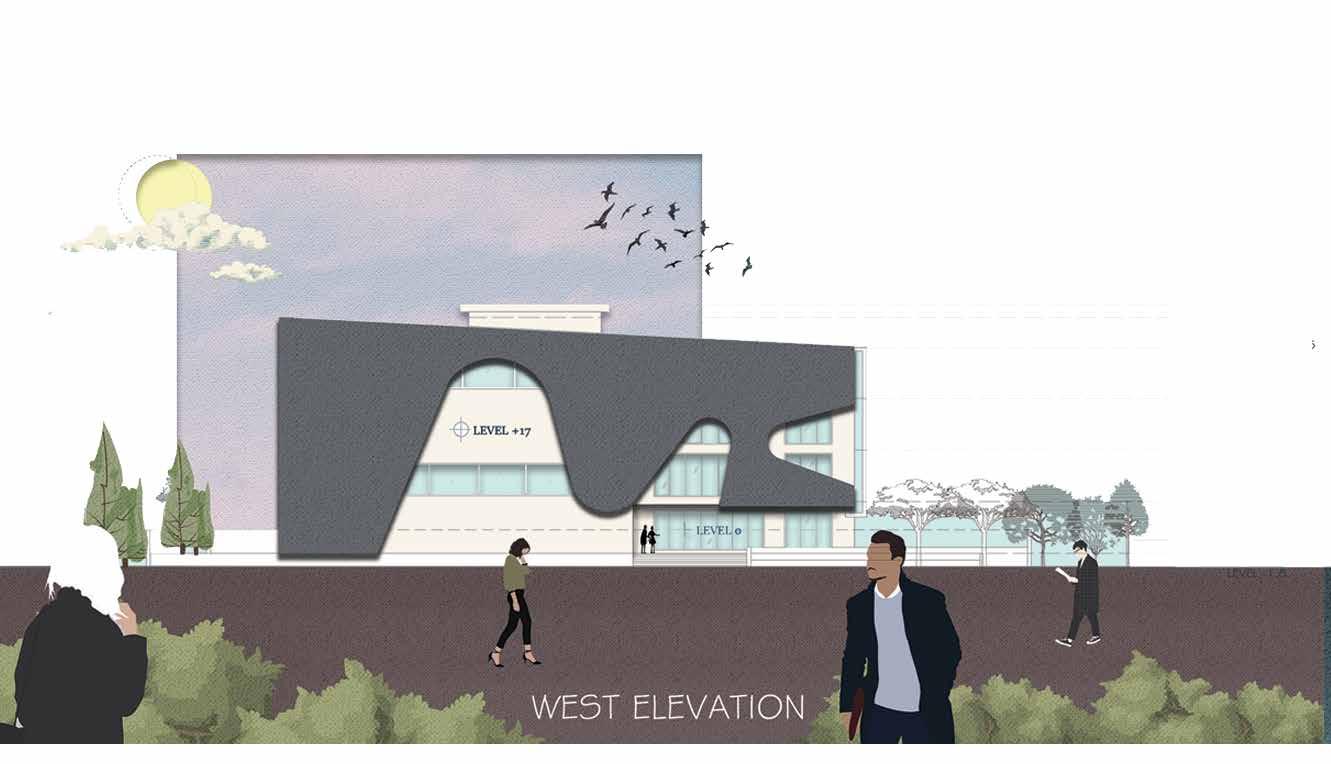

The polygons and facade of south and west are false facades of GRC i.e. Glass Fibre Reinforced Concrete.
Lawn tennis hardcourt is of decoturf. The sittings for the same are shaded with membrane structures.
The pool cover is a hyperbolic steel structure.

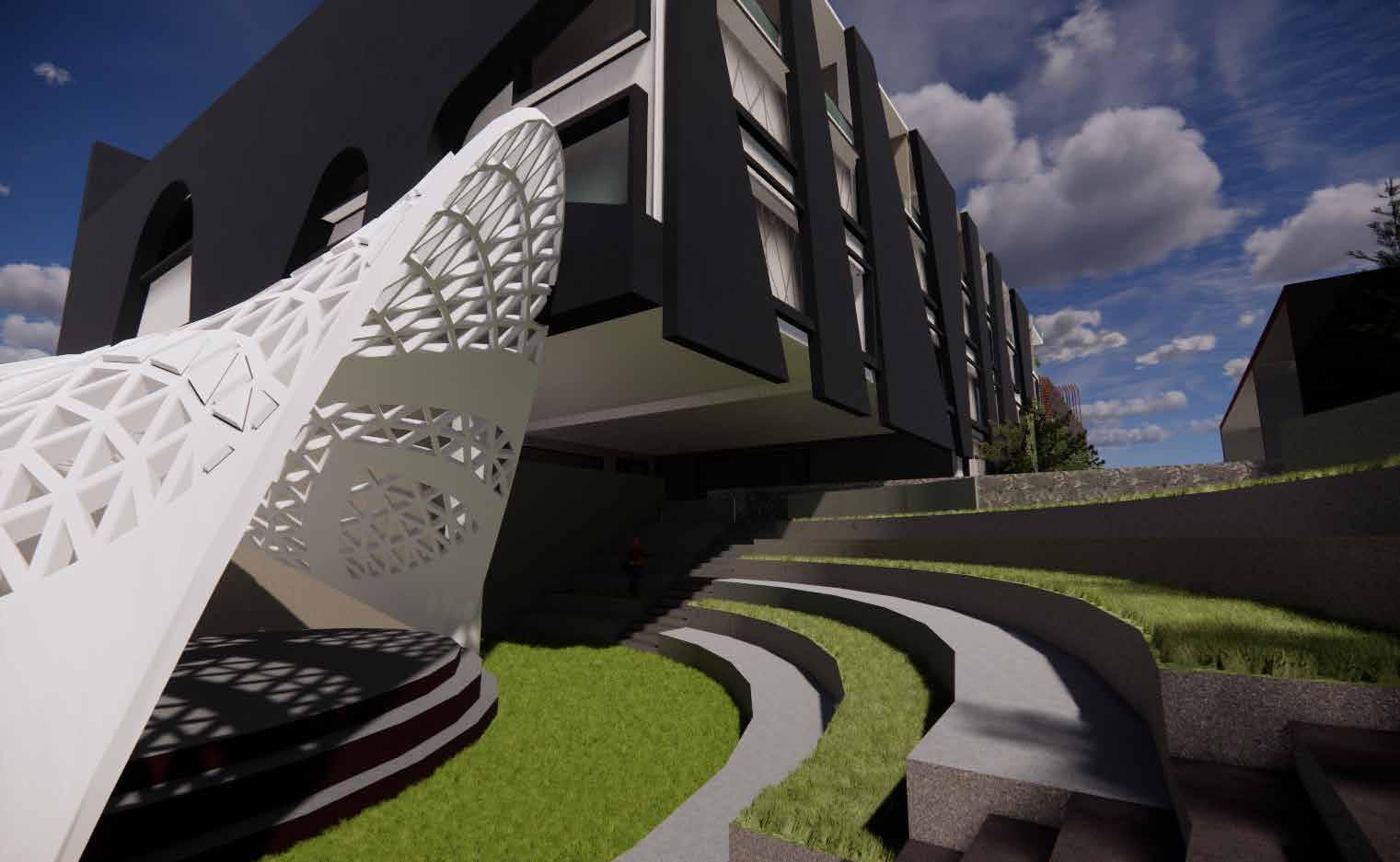

The stage shade of OAT is a shell structure.
13

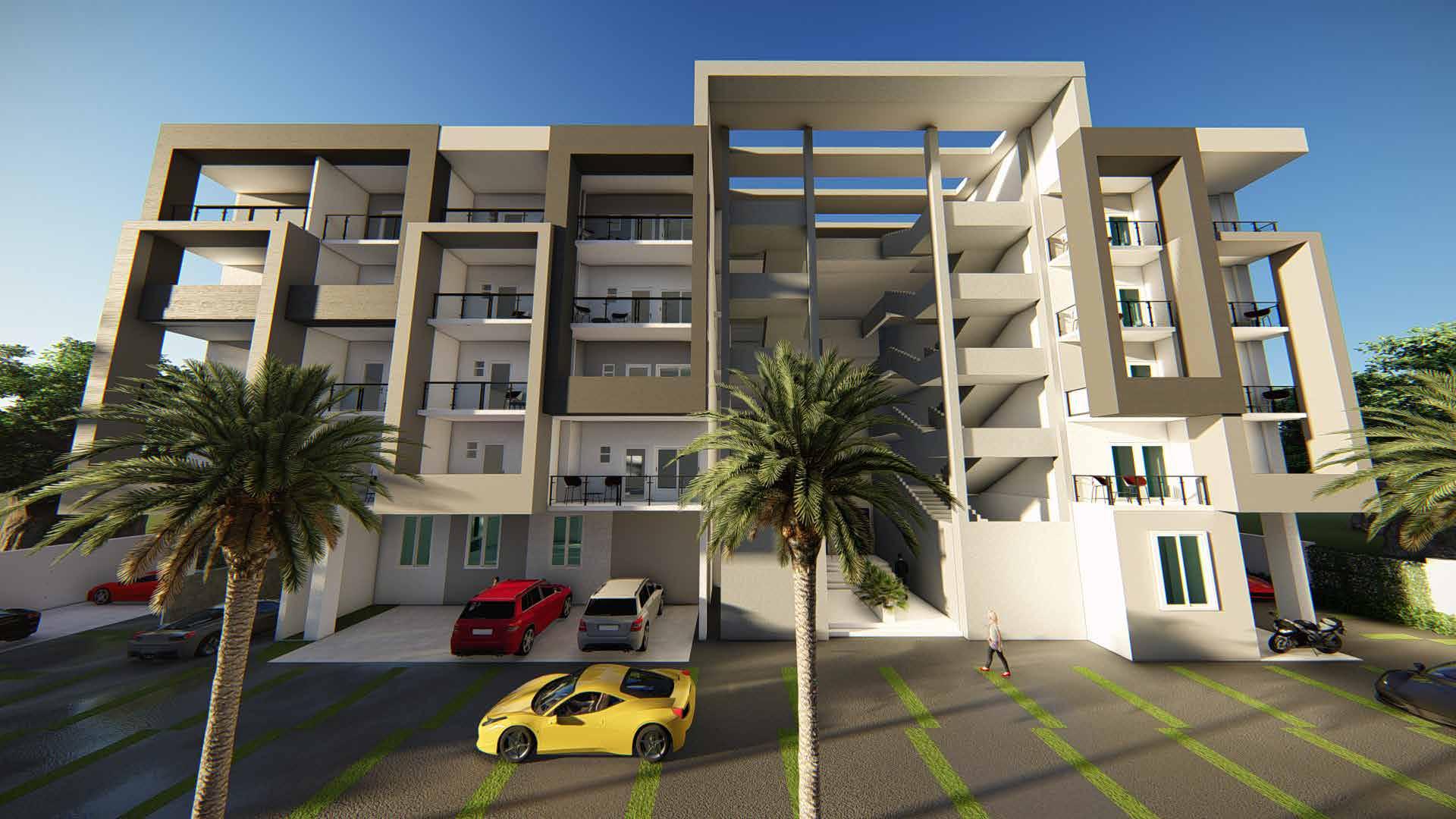

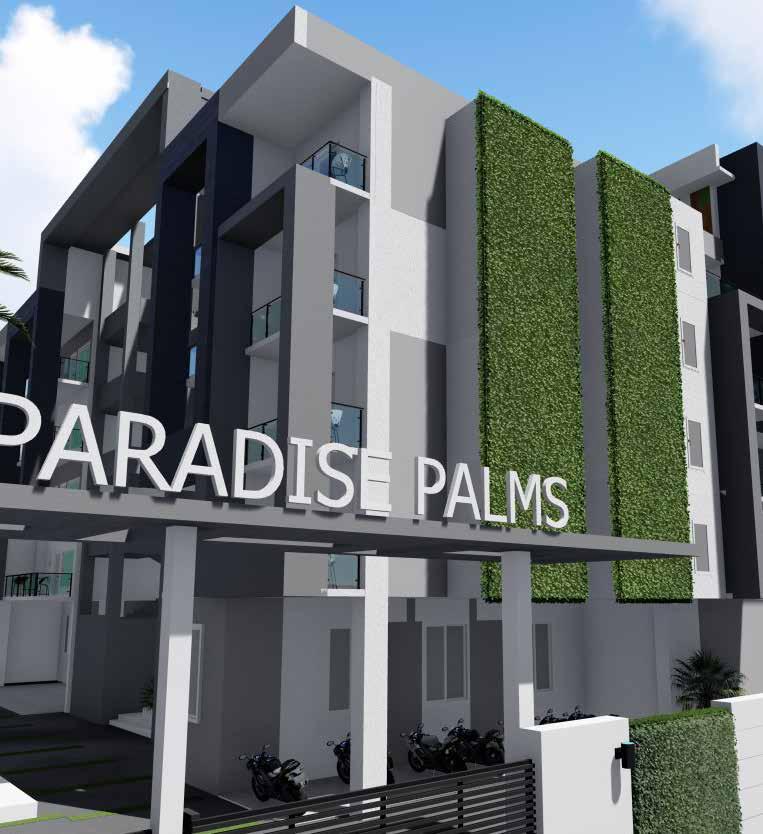

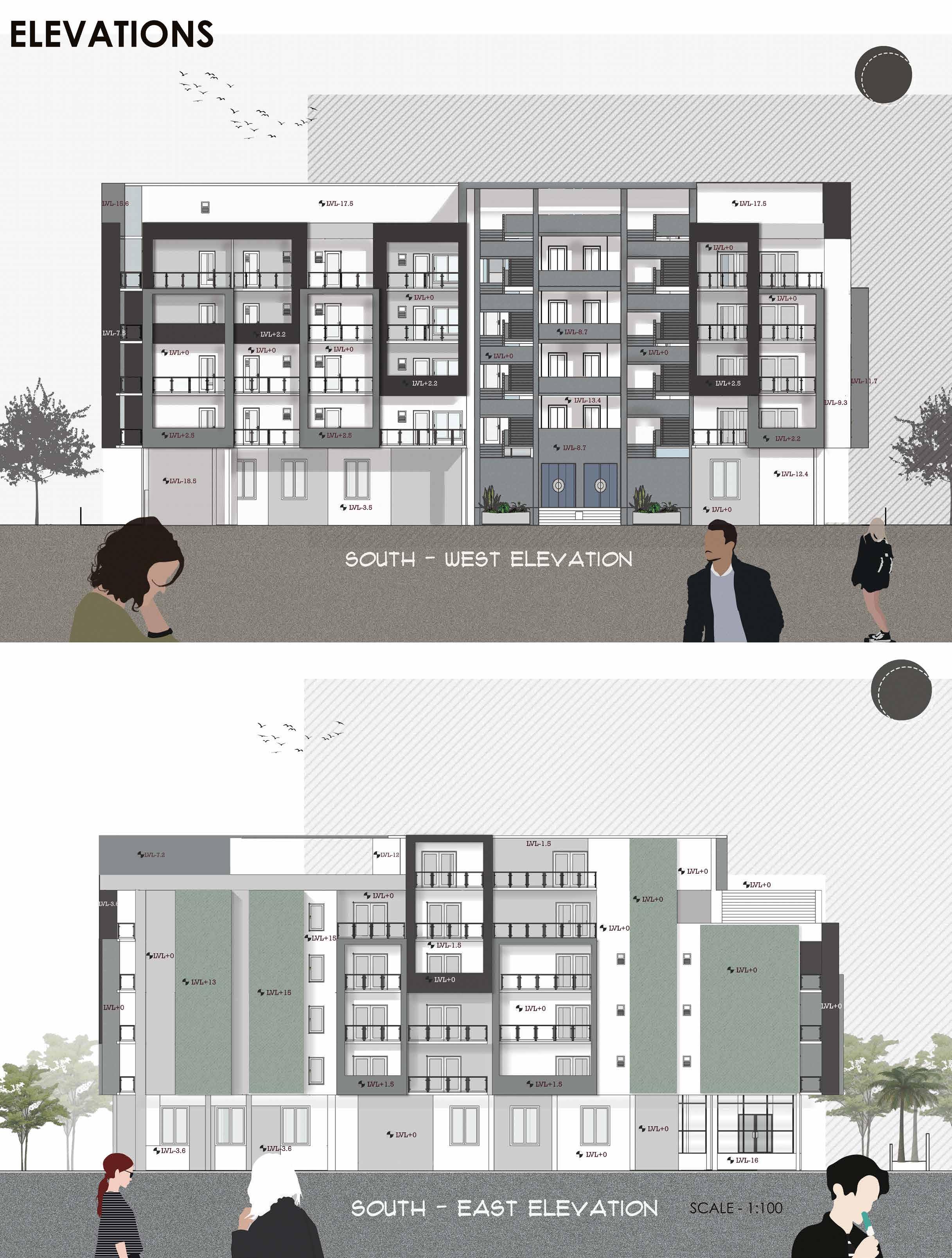

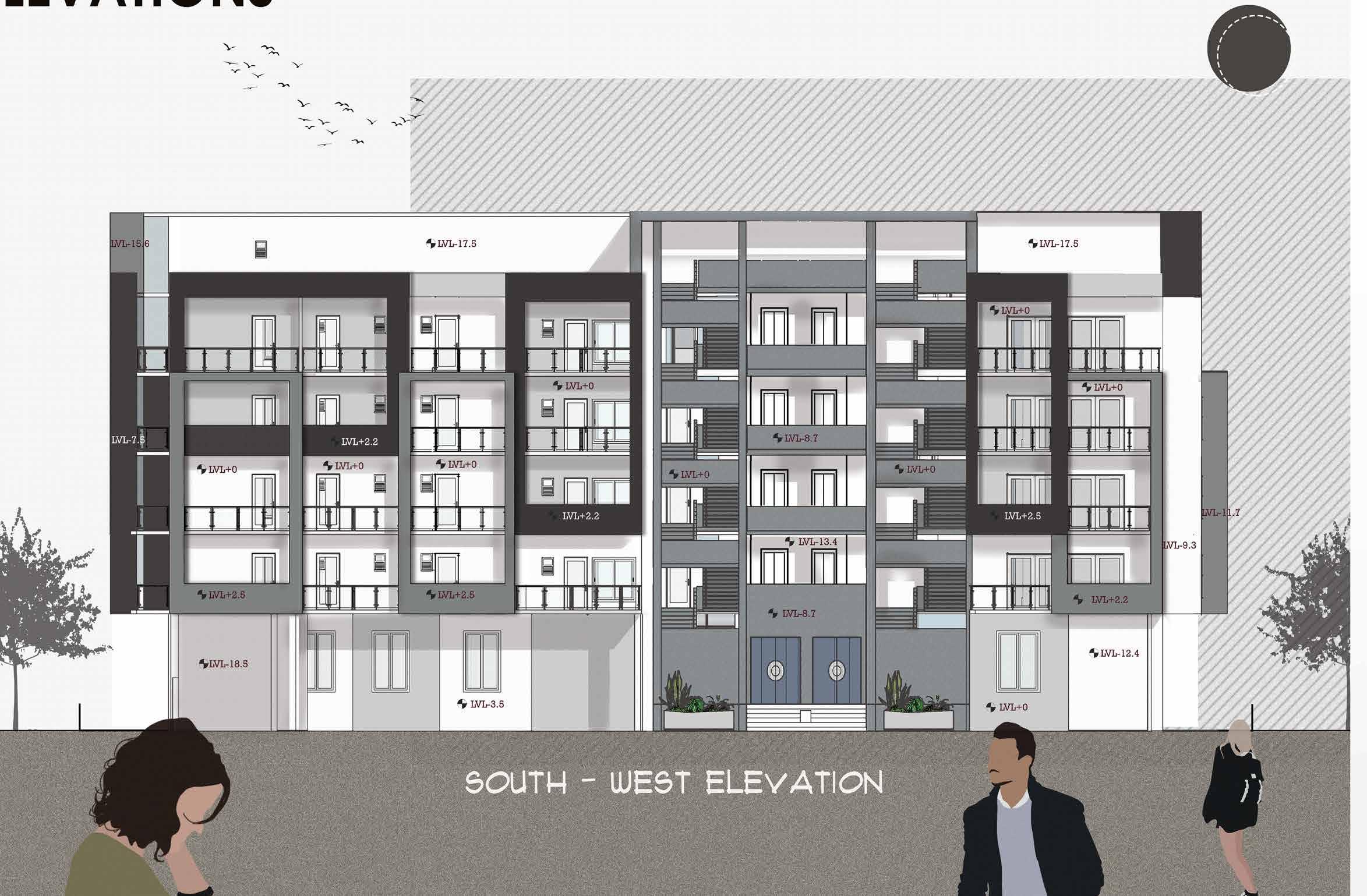

PARADISE PALMS
MULTI FAMILY HOUSING
03
CONCEPT

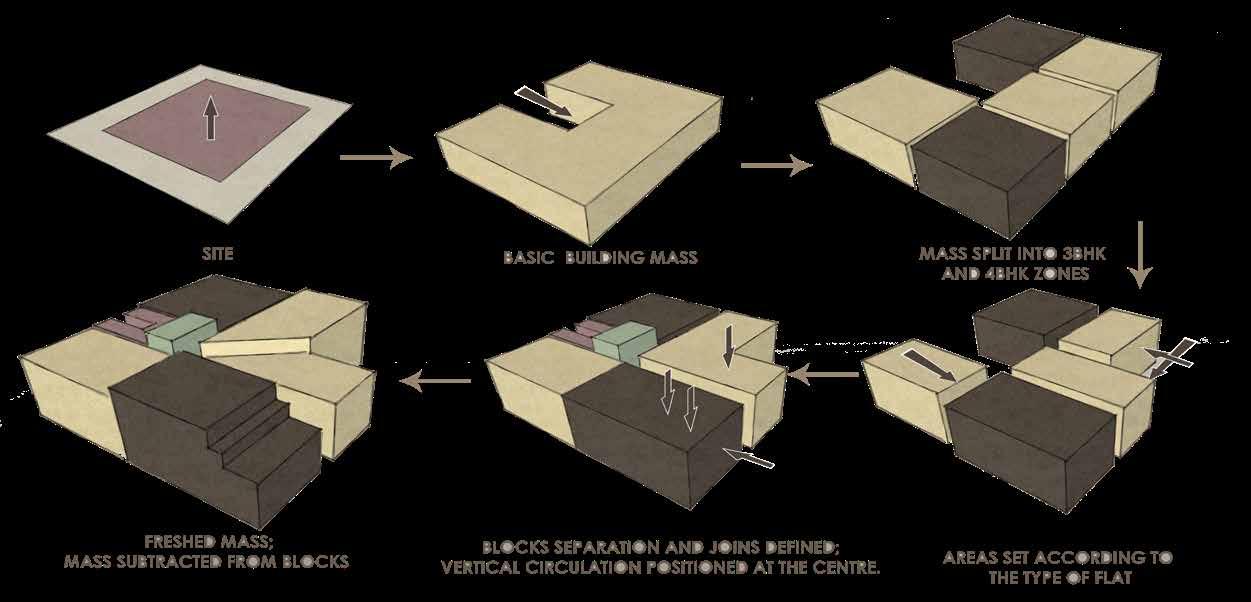

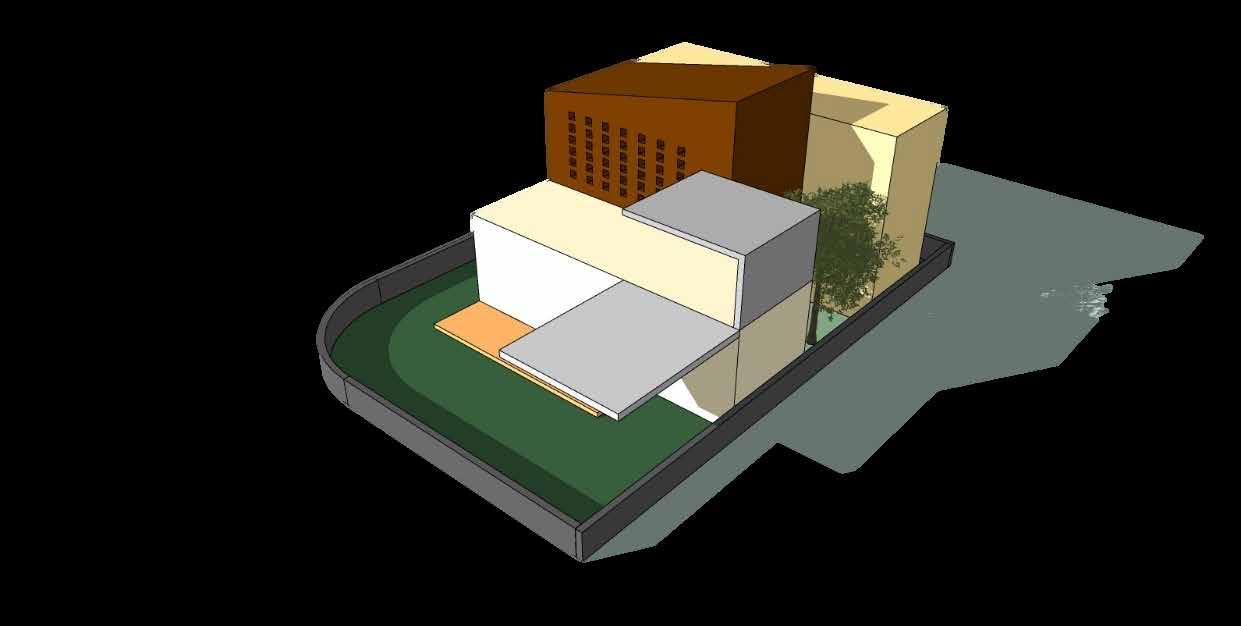

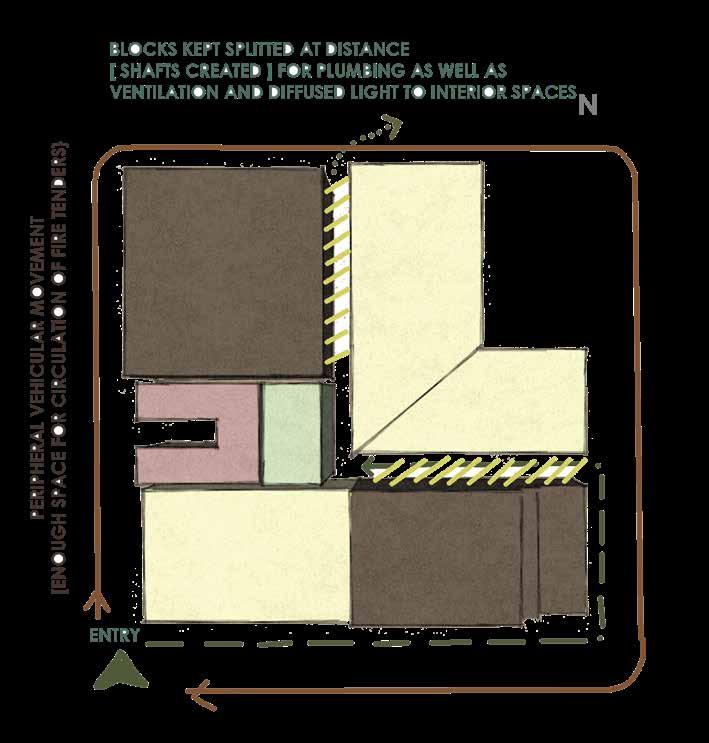

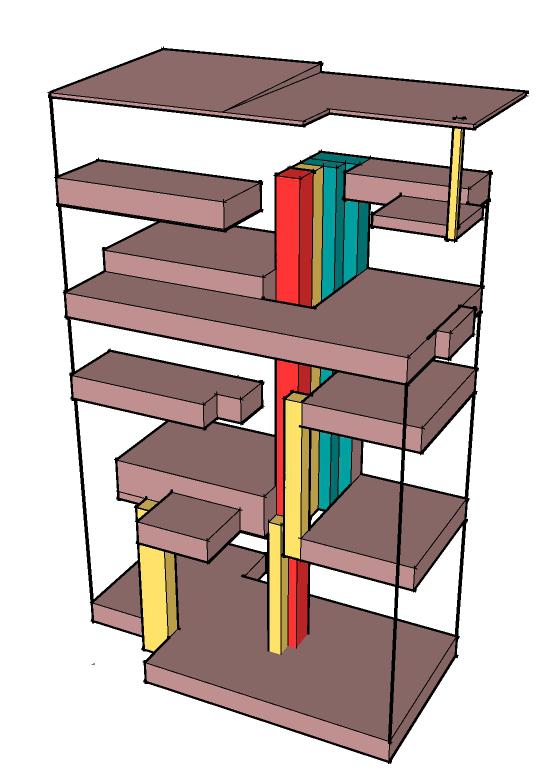

The concept is simple segregation of cuboidal zones of 3bhk, 4bhk nd 5bhk flats and easy access to all of them. Diffused light in inner spaces to be assured and site circulation to be throughout accessible. Shading tchniques and play with forms tried out considering the cardinal directions to allow wind as well as light inside most of the possible rooms.
PROJECT DATA
Type Academic Built Area 6190 Sqm
Plot Area 3100 Sqm
Team Mates Pratiksha Roy Tisha Garg
Location Opposite Royal Treasure, Airport Enclave, Ravindra Nagar, Jagatpura, Jaipur Semester 5th sem
• Segregation of spaces for good accessibility,
• Use of low transmittance glazing windows,
• Utilization of renewable energy: solar pv panels,
• Use of low flow water fixtures,
• Use of AAC blocks for reducing dead load and thermal insulation,
• Installation of green walls and terrace garden,
• Ceramic tiles on terrace for insulation,
• Albedo paint on roof for solar reflectance,
• High pressure laminates for elementation of facades.
The project located in Jagatpura, demands a luxury multi family housing with all basic amenities and some common activities.
The site is near airport, so there is height restriction for the particular zone. Permisible height for the project is 24m with a BAR of 2.
Maximum ground coverage alloted is 40% of the site area i.e 1240 sqm.
Site circulation of 35% and landscape area of 20% is permitted. The ground coverage achieved is 1142 sqm.
ECU : 50
15

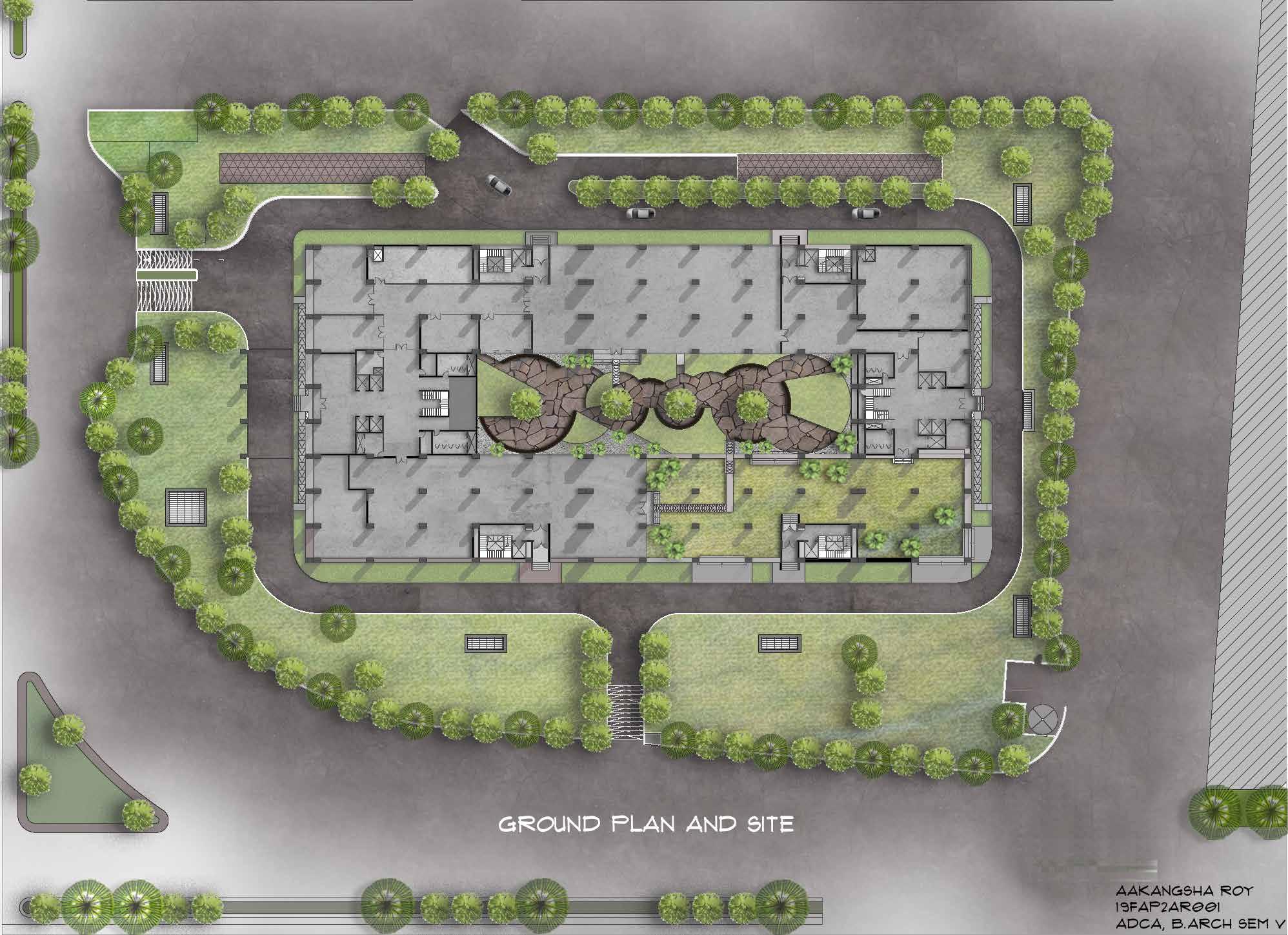

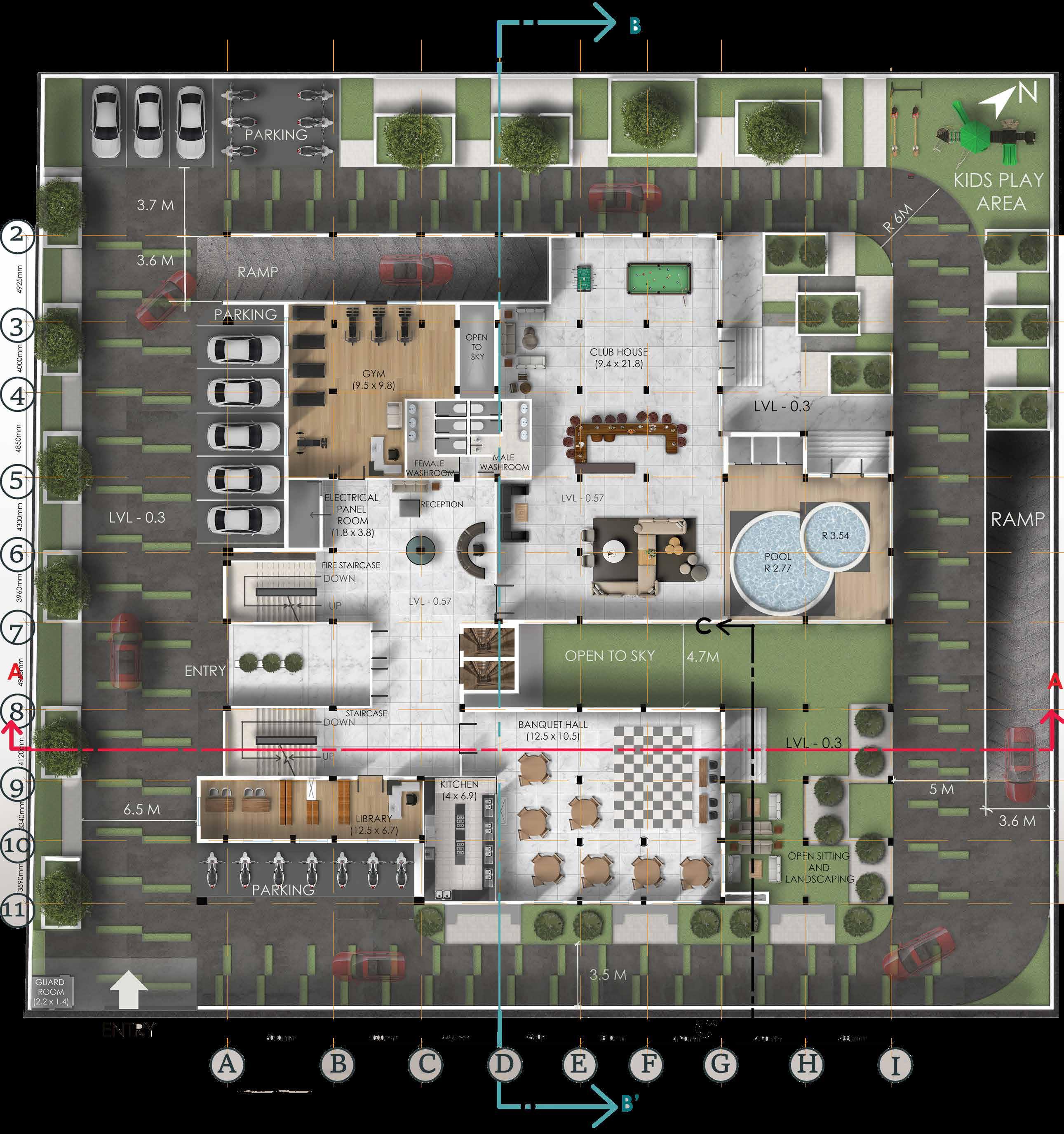

GROUND AND SITE PLAN

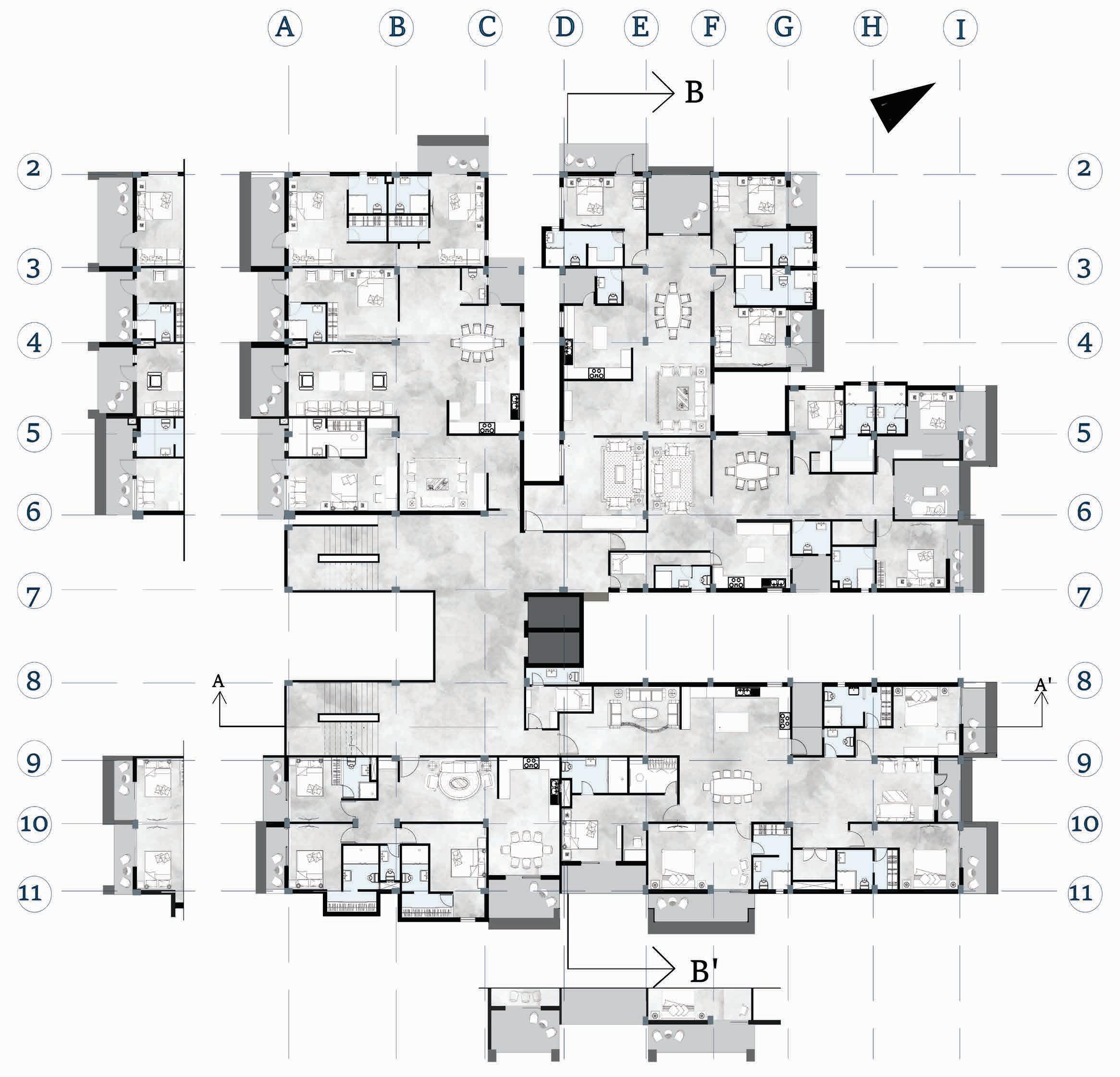

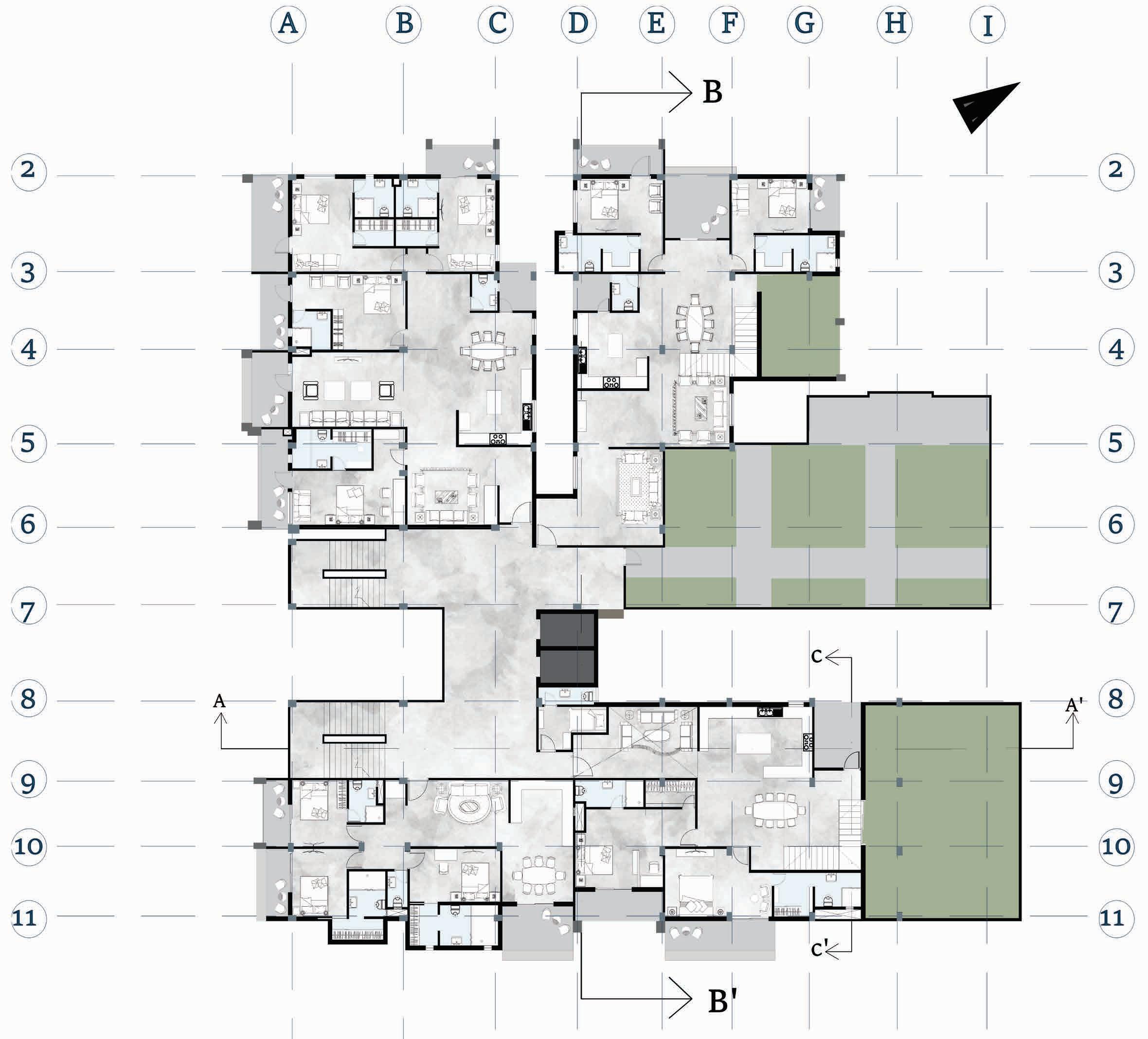

FIRST, SECOND, THIRD FLOOR PLAN
FOURTH FLOOR PLAN
17

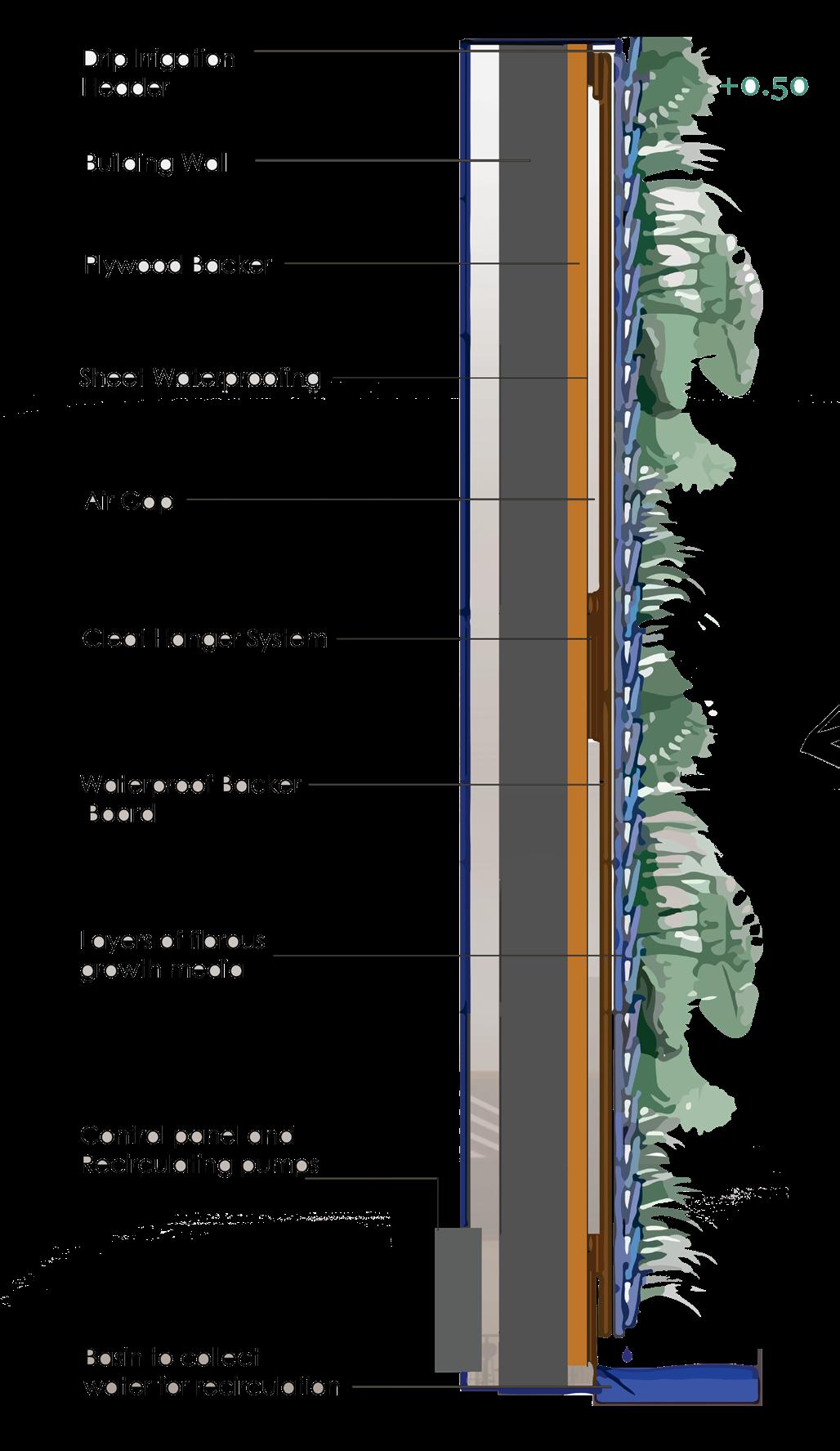

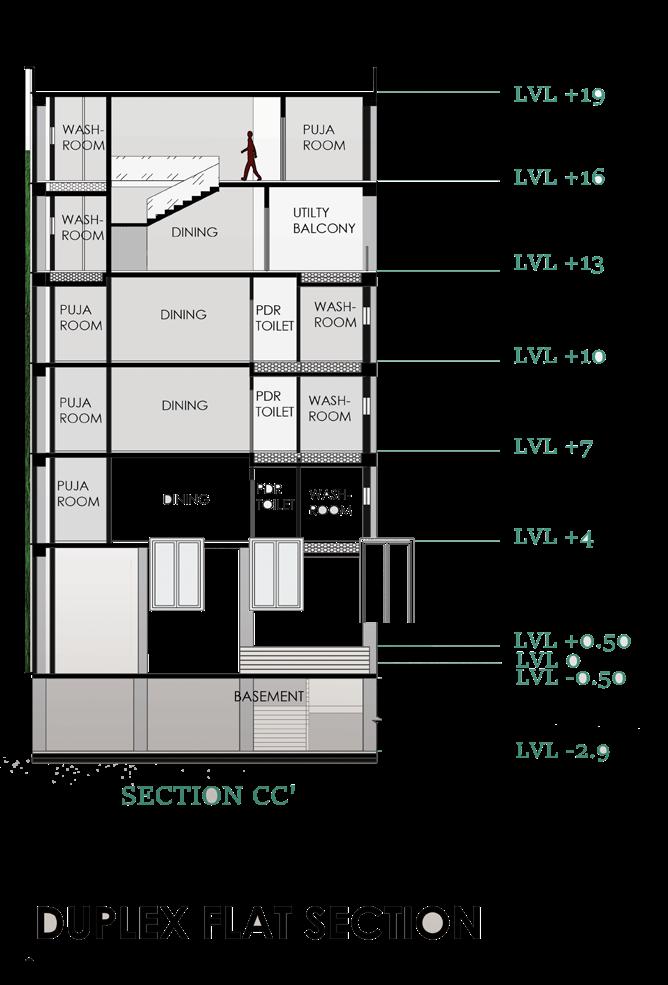

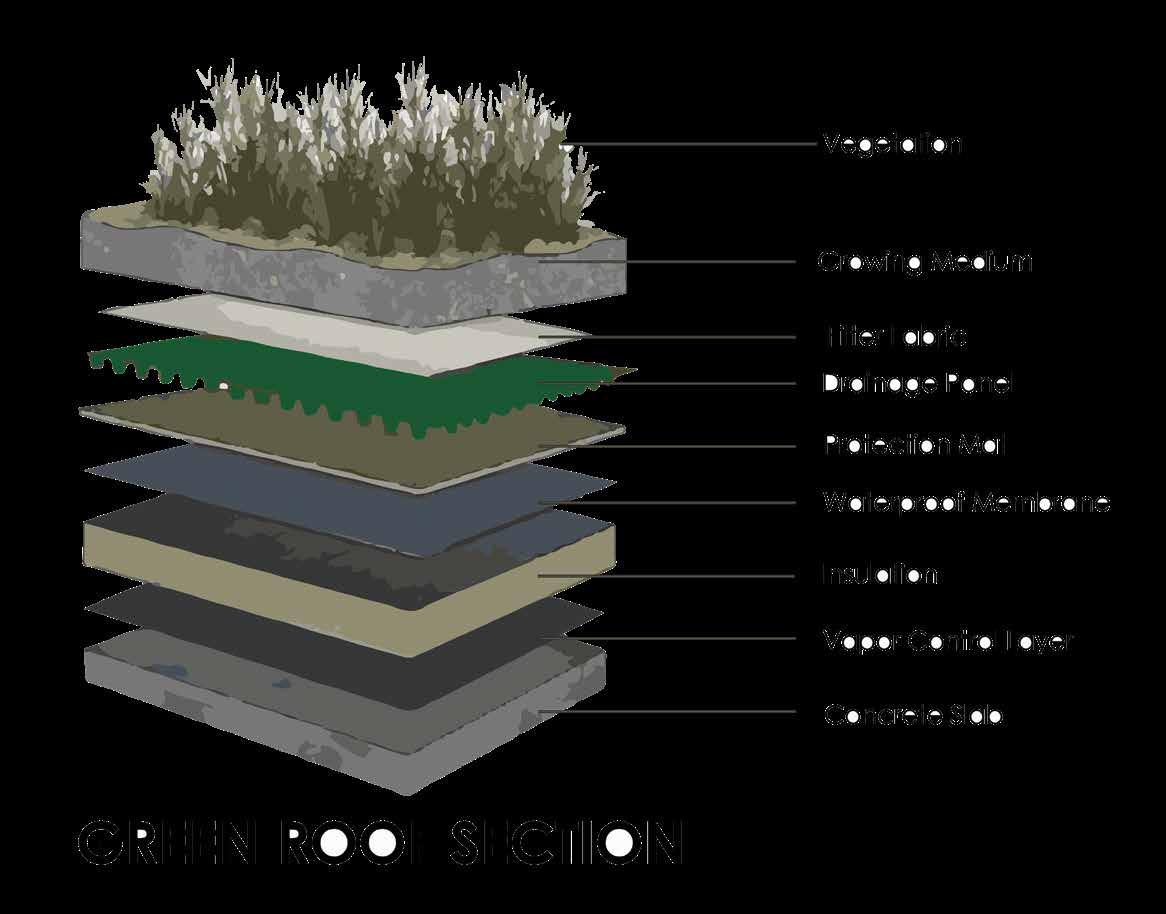

GREEN WALL SECTION

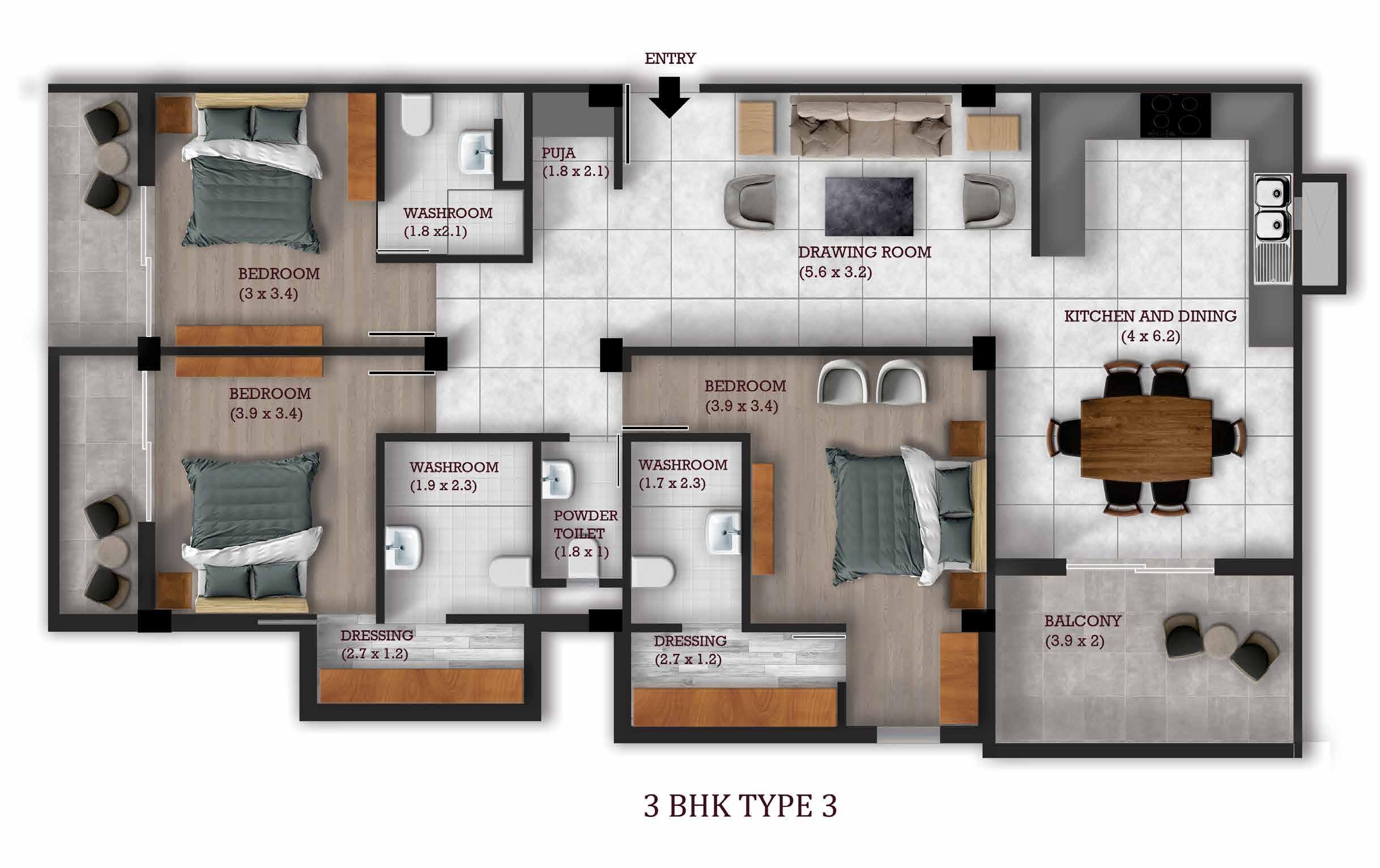

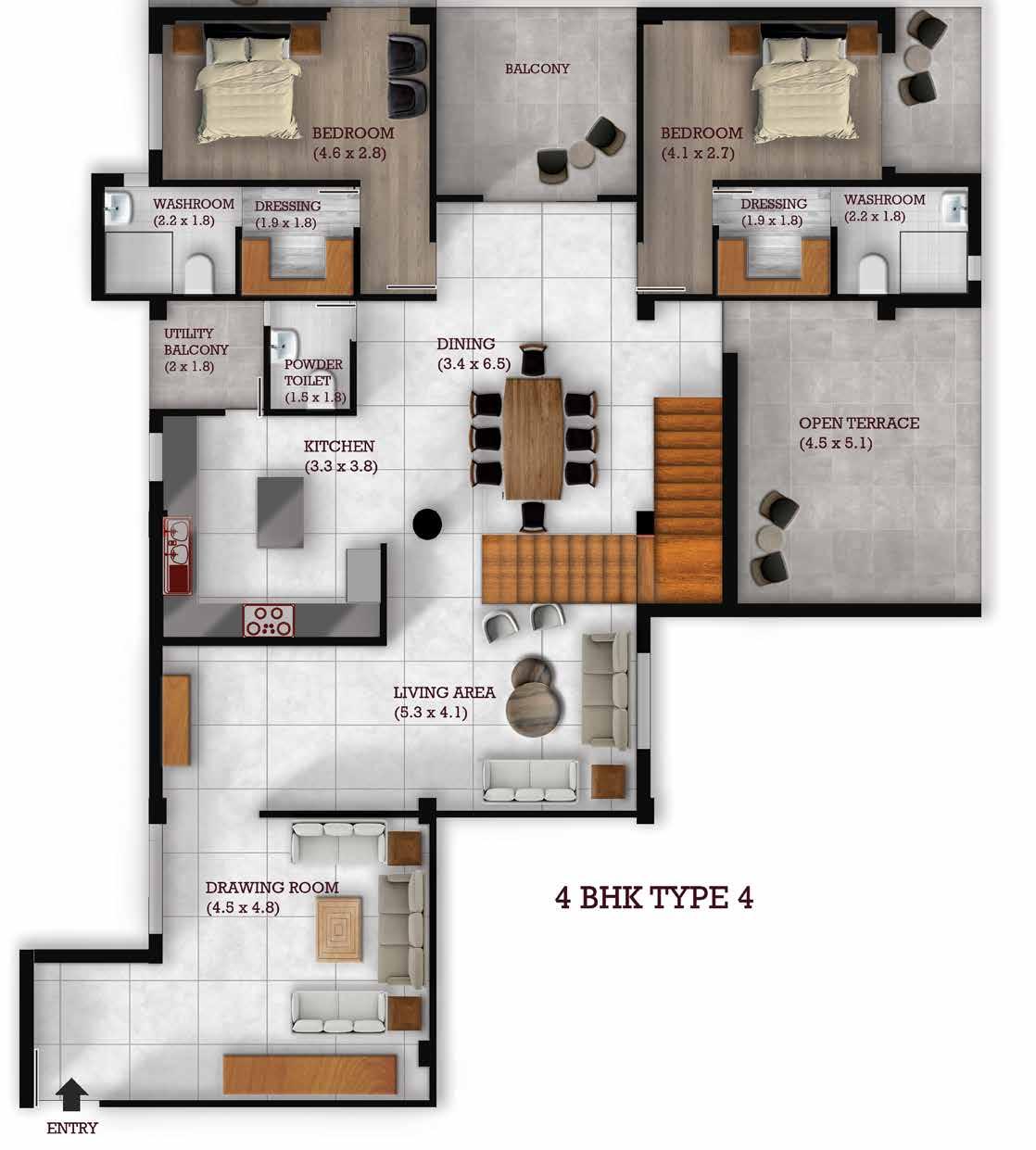

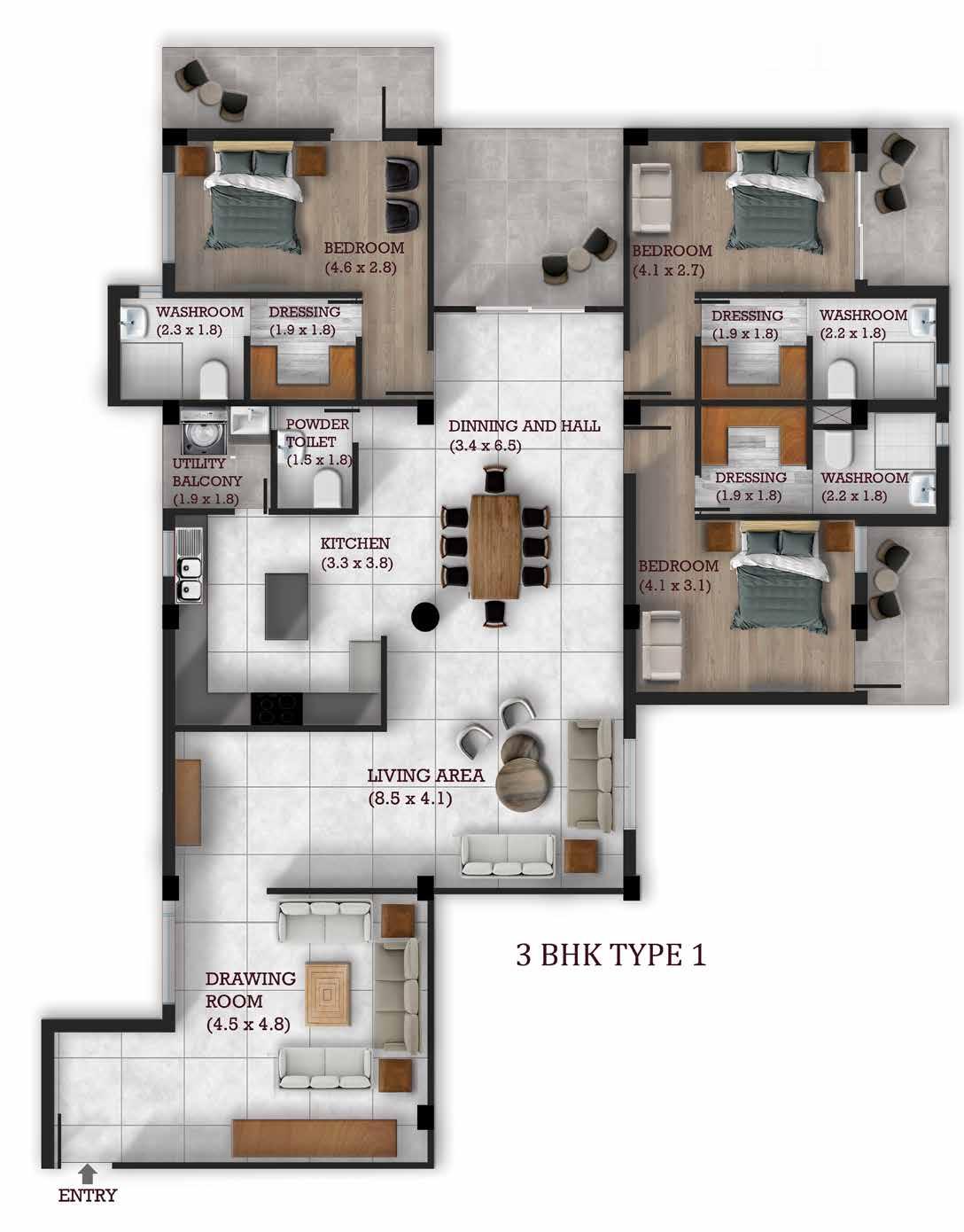

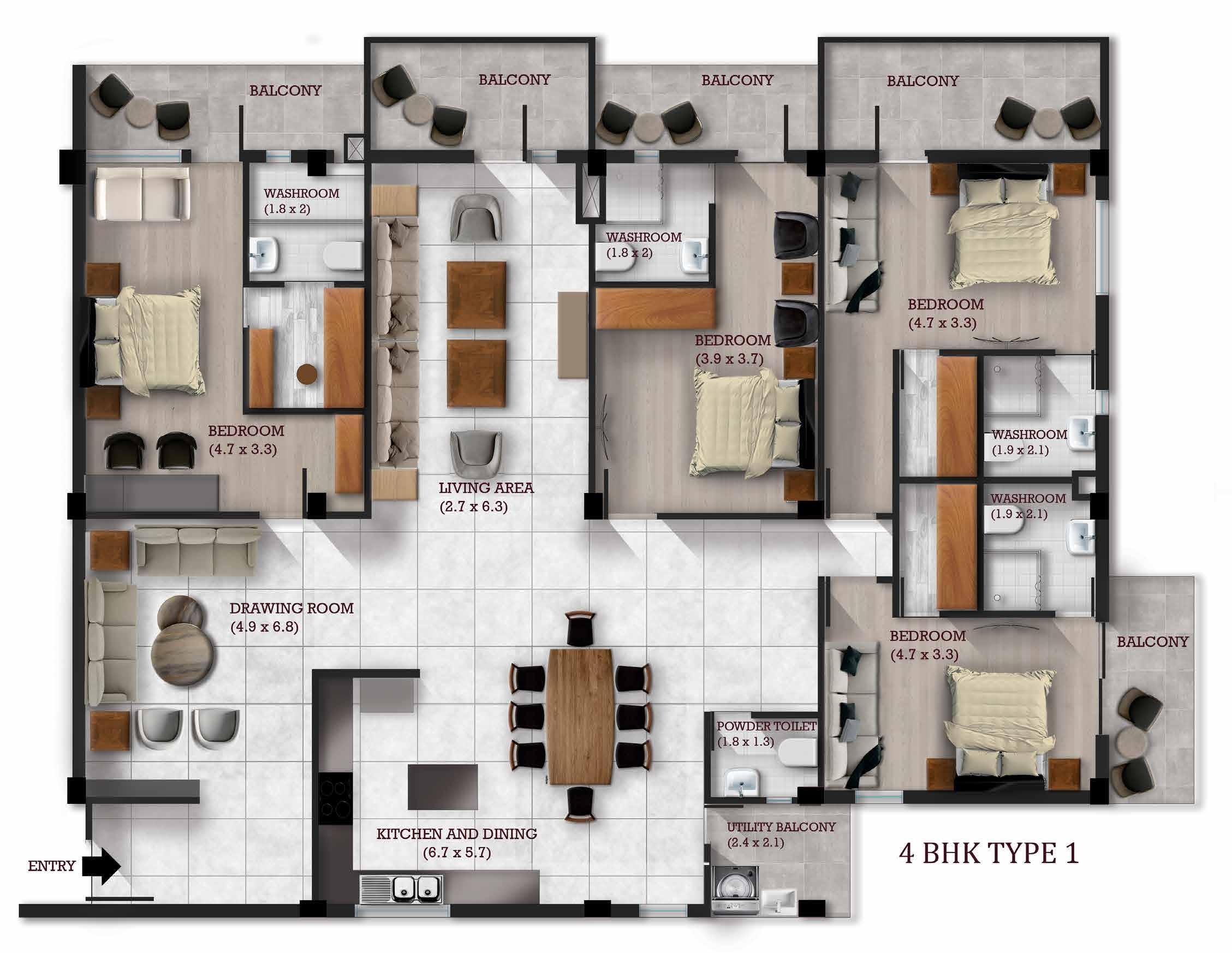

UNIT PLANS RENDERED
CHINTAMANI’S HOUSE SOLAR DECATHLON PROJECT
04
CONCEPT
In 50% of the site, we designed a net-zero single family housing prototype. Our net zero housing concept takes into account the economy, climate, and local regulations, that aims at achieving sustainable and net zero residence in Jaipur which provides comfort, consume less energy and do not compromise with the privacy user. The team decided to create a void and plan courtyard. This not only aided in tree conservation but also helped in increasing the daylight and maintaining the ambient temperature of space.
GOALS
1. Reducing load through passive design strategies.
2. Reducing mechanical cooling hours and achieving adaptive thermal comfort range.
3. Use of renewable energy sources.
4. Limit water consumption and returning it to the same watershed.
5. Reduction in transportation cost.
6. Make construction and operation functionally efficient.
7. Conserving and replanting existing trees on site.
8. Improve the ambient quality of indoor space.
Type Competition
Built Area 367 Sqm
Plot Area 306 Sqm
Team Mates Team AMIGOS (9members)
Location Akshat Kanota Estate, Jaipur
Competition Solar Decathlon India 2021-22
Project type Single Family House
Semester 5th and 6th sem
Project name Chintamani’s House Project Partner Arvind Chintamani
Industry Partner Design 2 Occupancy
The client is currently a resident at Pratap Nagar, Jaipur.
The site objective of the client was to purchase a plot of either east or south facing and to conserve the existing vegetation. Their vision is to build home that are ventilated all at the same time. comfortable, with proper daylighting and connected with nature .
The biggest challenge was to design a house for a client who is very old (~50+). The second challenge was to preserve the khejri tree which is existing on site . Material Selection because of the hot and dry climate of Jaipur, Rajasthan was a challenge as well.
The intent was to move towards net-zero.
19
PROJECT DATA
CLIENT REQUIREMENTS 1 7 2 6 3 5 4 8 Living room /dinning area Kitchen/kitchen garden Master bedroom Powder toilet Terrace garden Landscaping Element Courtyard Servant room

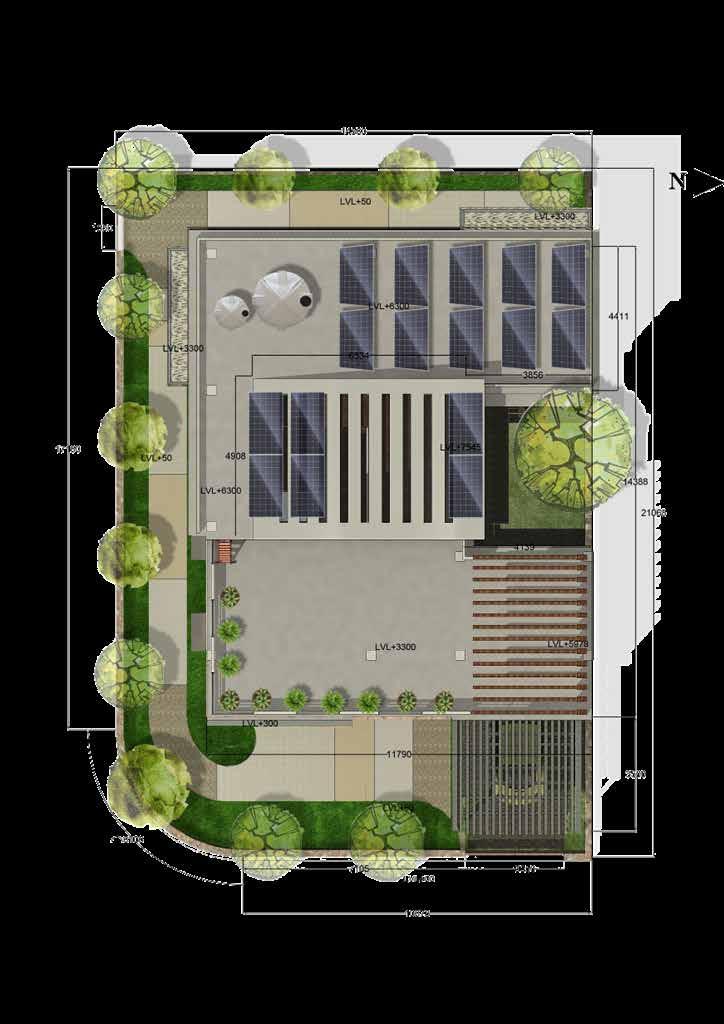

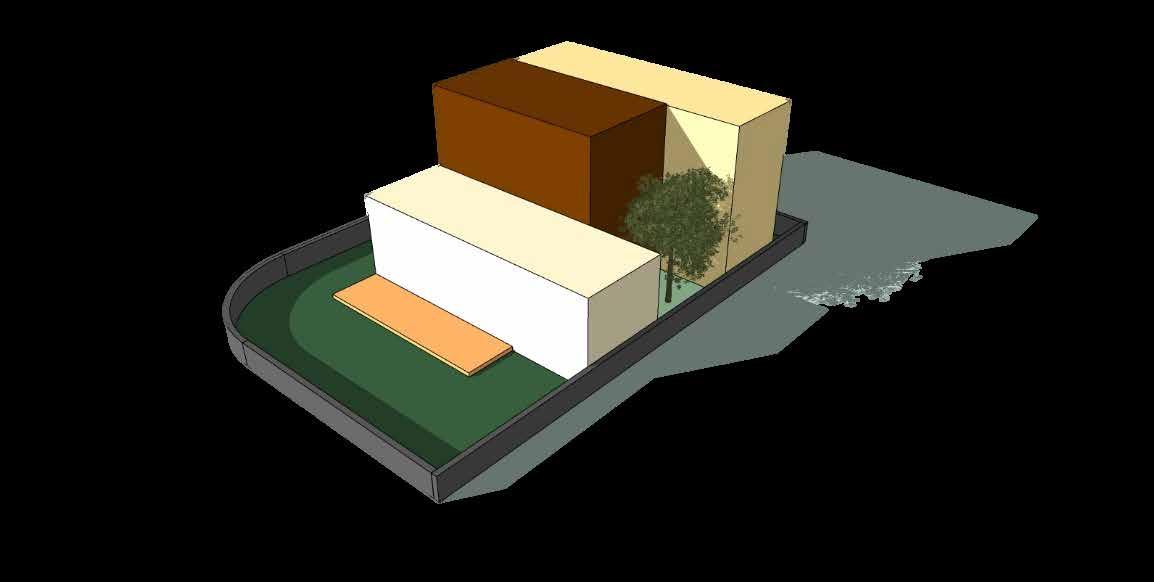

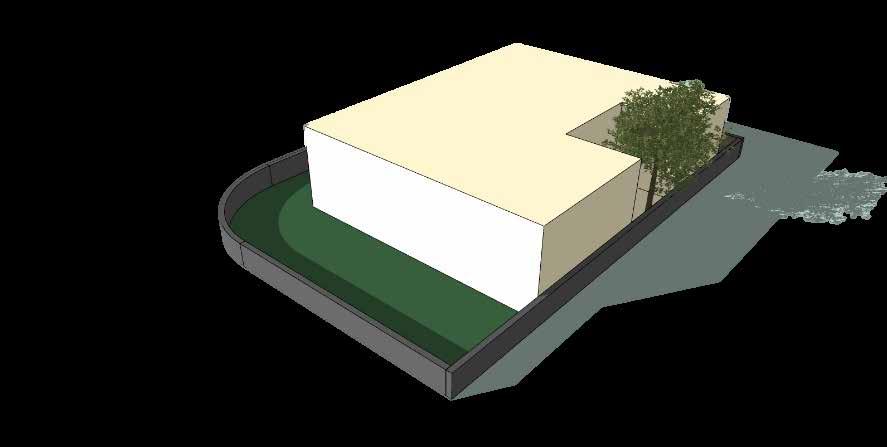

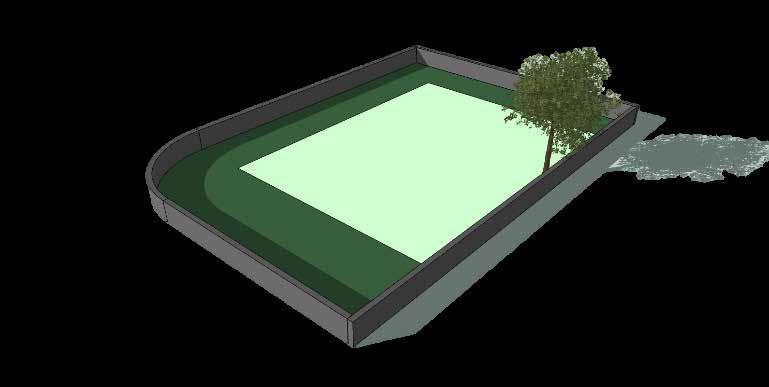

SITE PLAN SITE MASS CREATED , PRESERVING THE TREE ZONED OUT AT LEVELS DETAILS AND PASSIVE DESIGN APLLIED

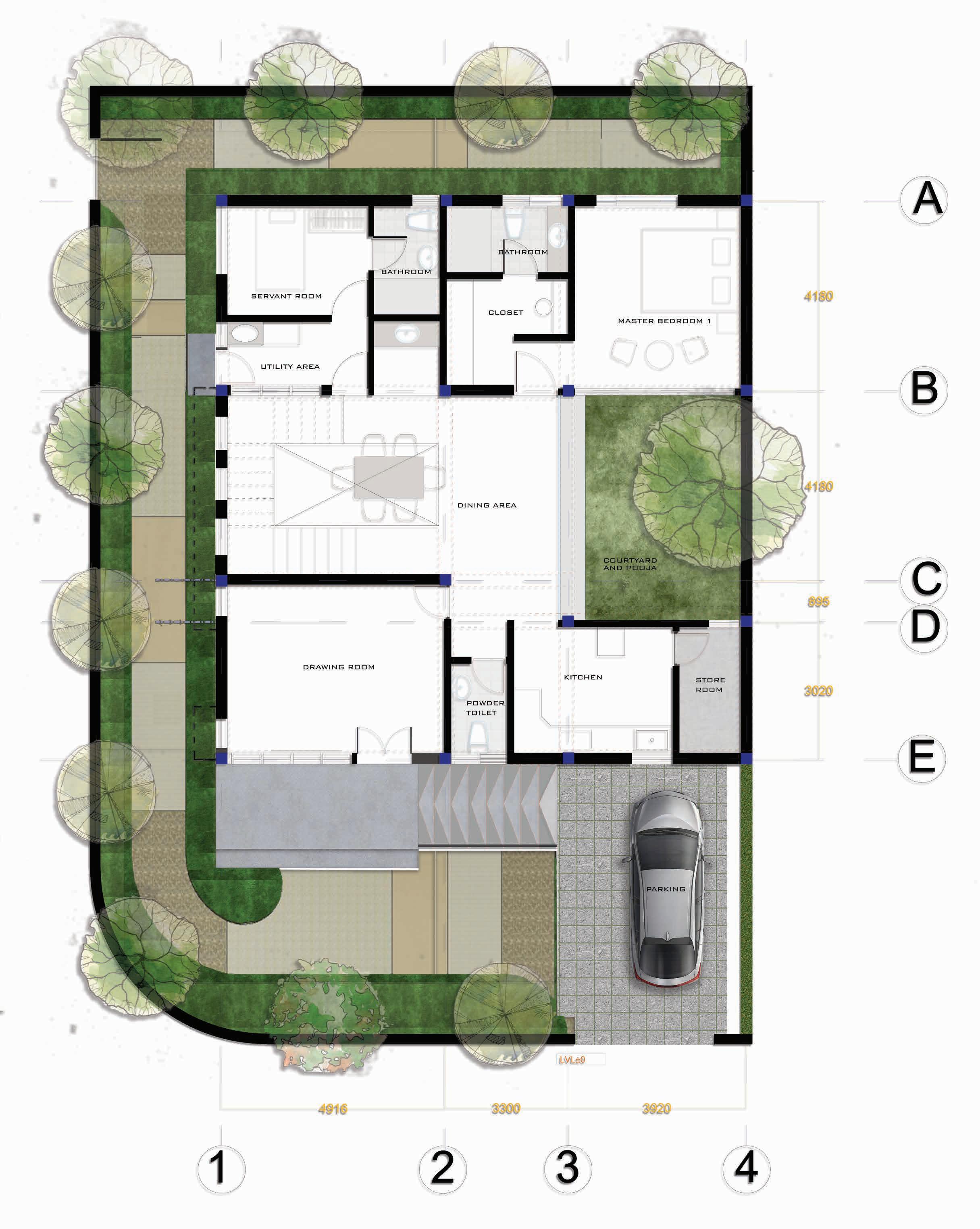

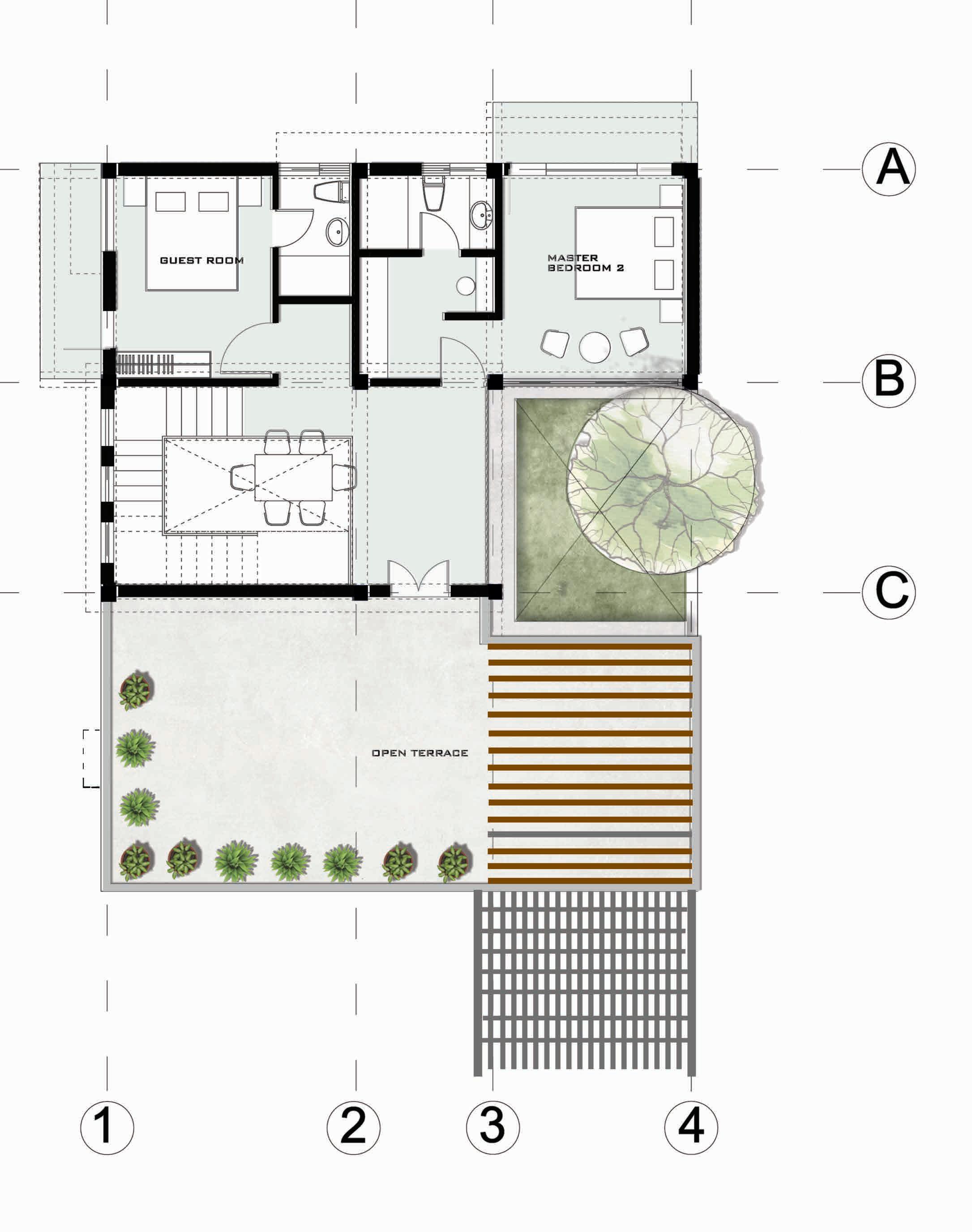

FLOOR PLANS
DESIGN AND INNOVATION
Challenge 1
Barrier free design consideration.
Challenge 2
Challenge 3
Challenge 4
Adequate fresh air provided because of centralized courtyard.
Cross ventilation increase indoor air quality. Courtyard is connecting indoor environment with nature.
Being around plants has a calming and comfortable effect on people.

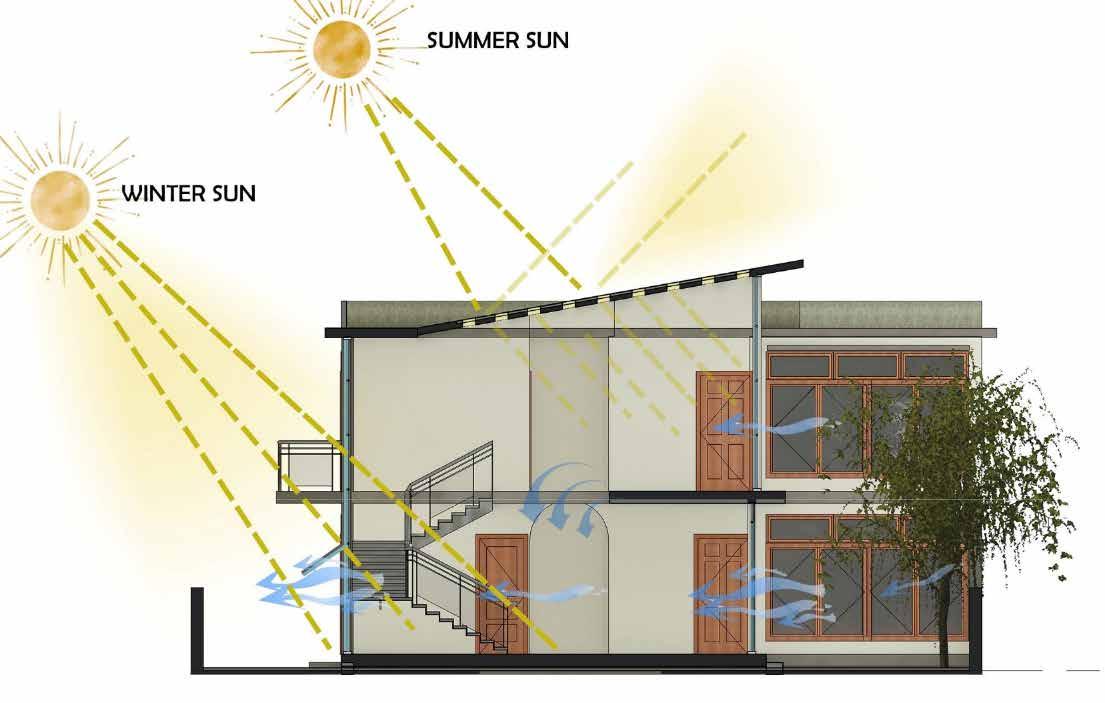

Used passive strategy to provide maximum Thermal comfort in inner spaces.
CHALLENGES OF PROJECT
21

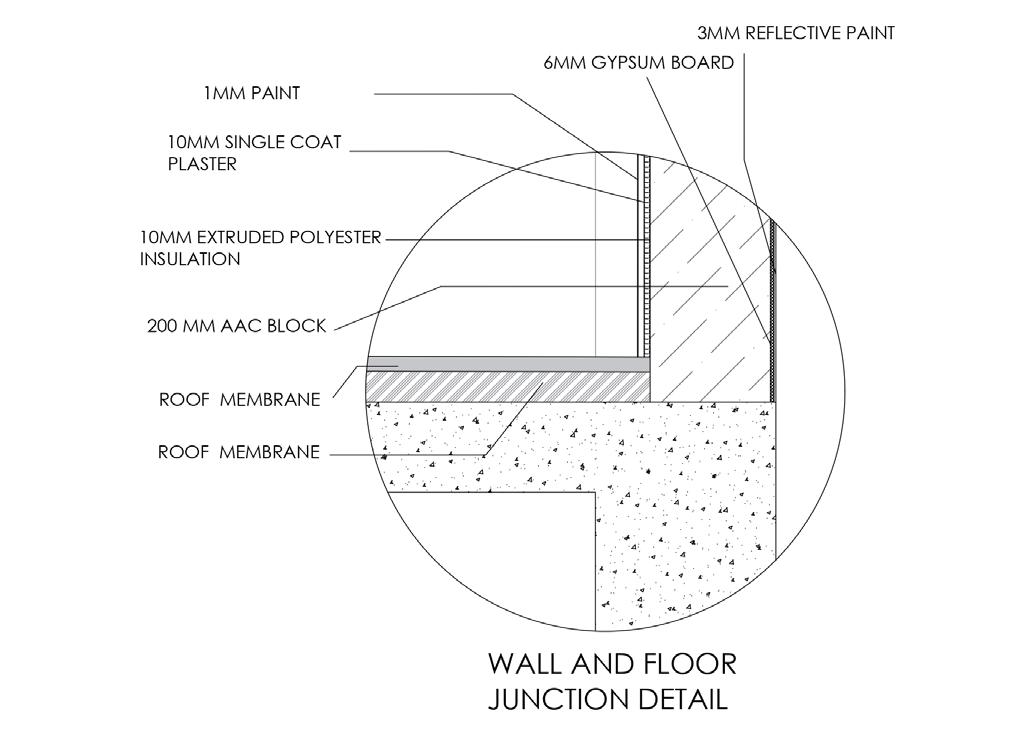

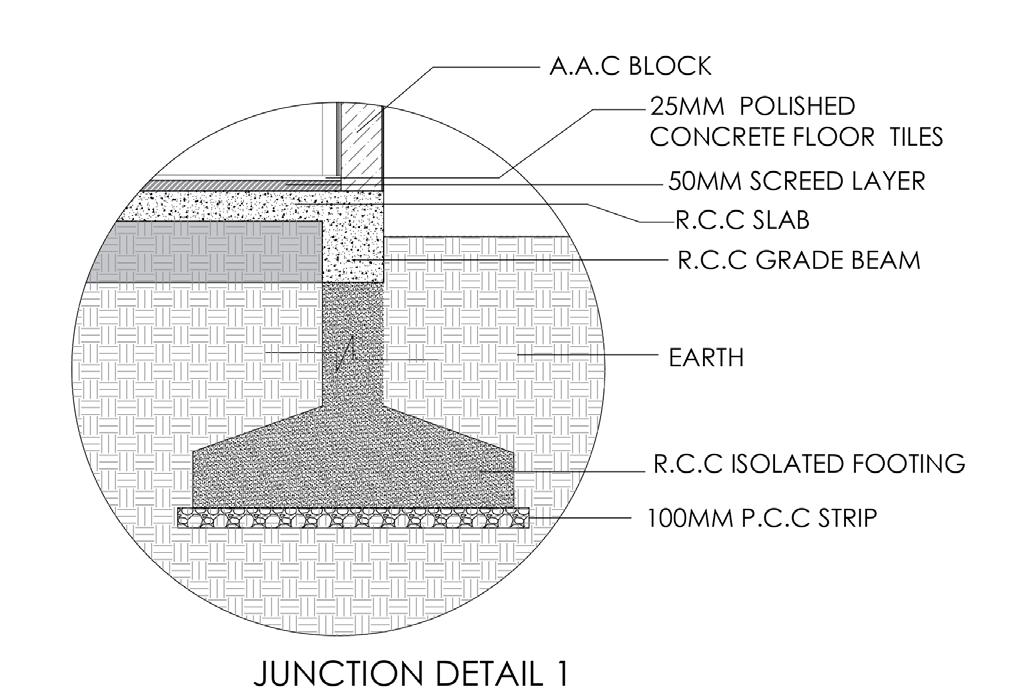

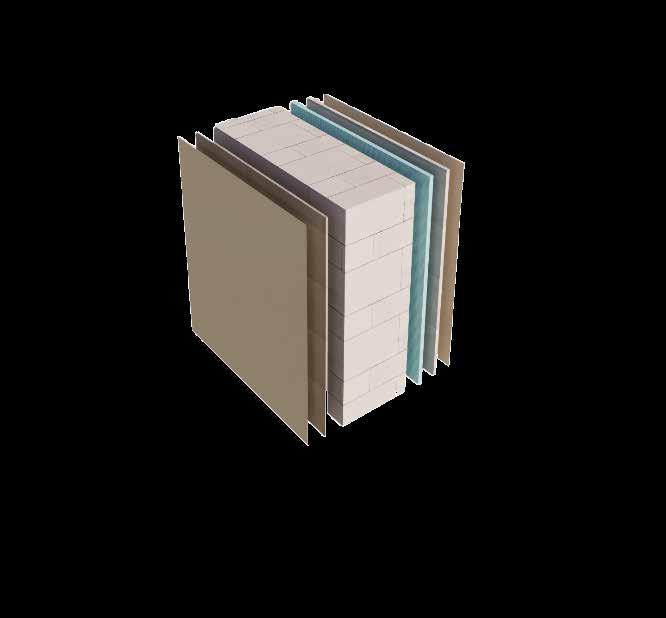

Gypsum Plaster Board (6mm) Reflective coating (1mm)
AAC Block (200mm)
XPS Insulation 12mm)
SRI Paint (1mm)

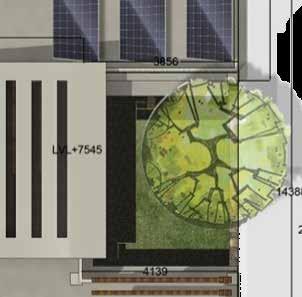

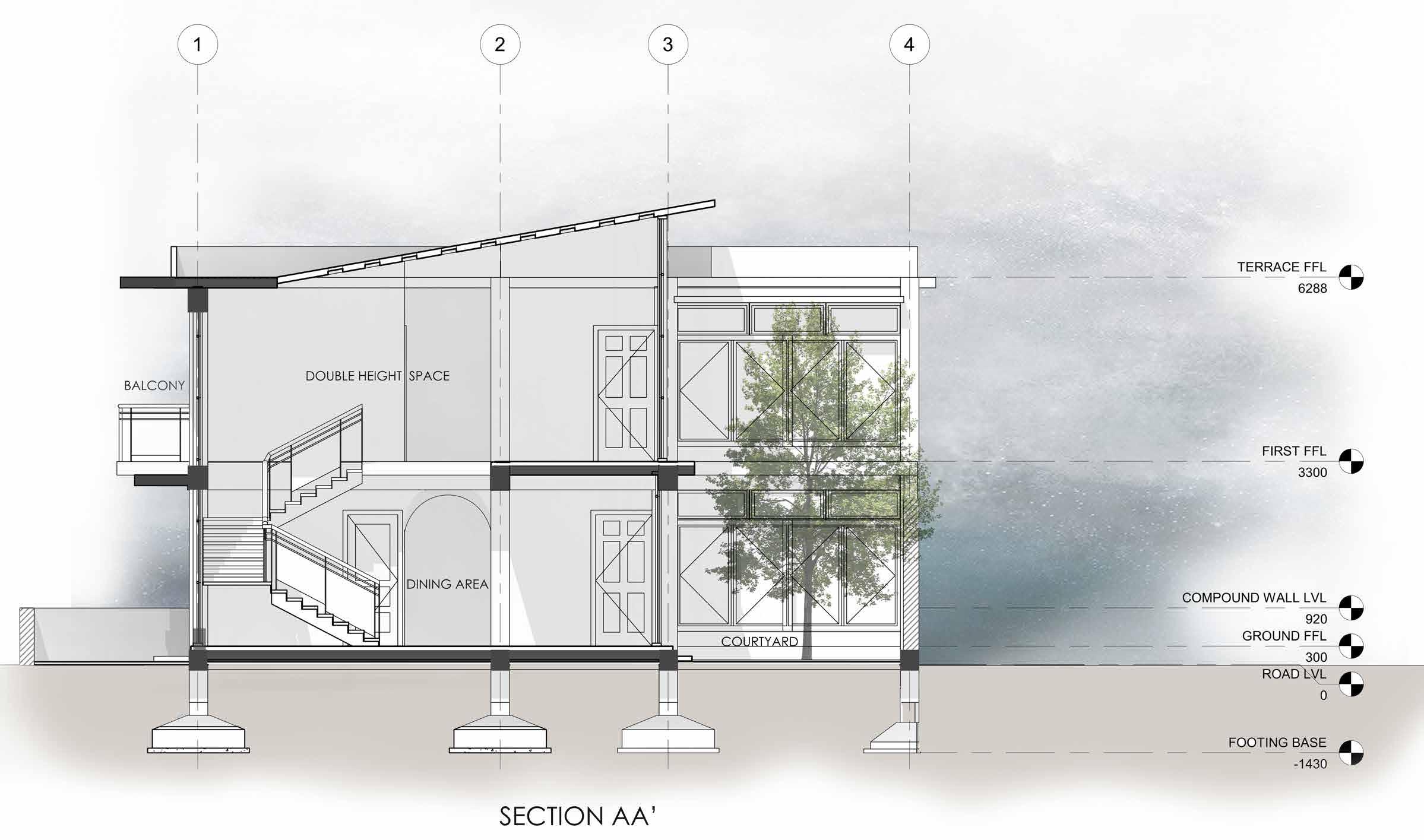

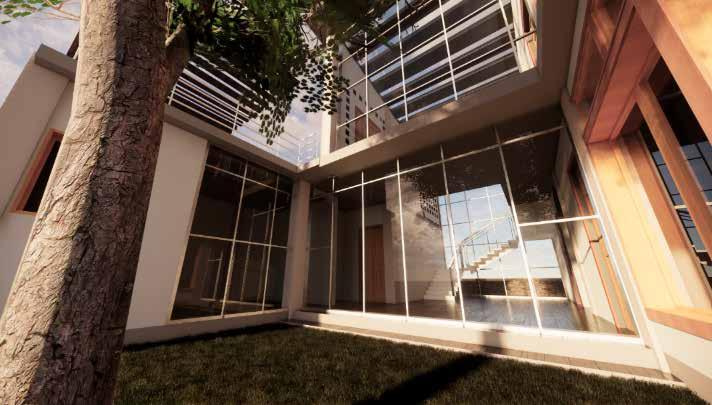

Created courtyard near dinning area to preserve the existing tree (Khejri).

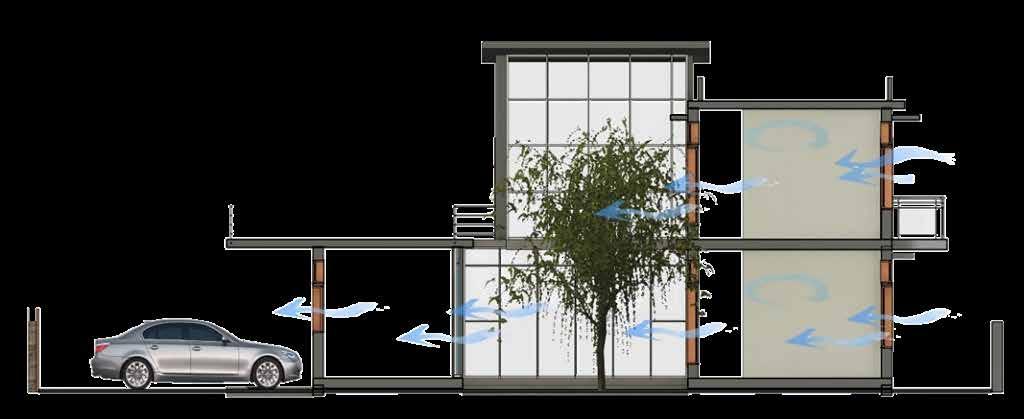

VENTILATION VENTILATION

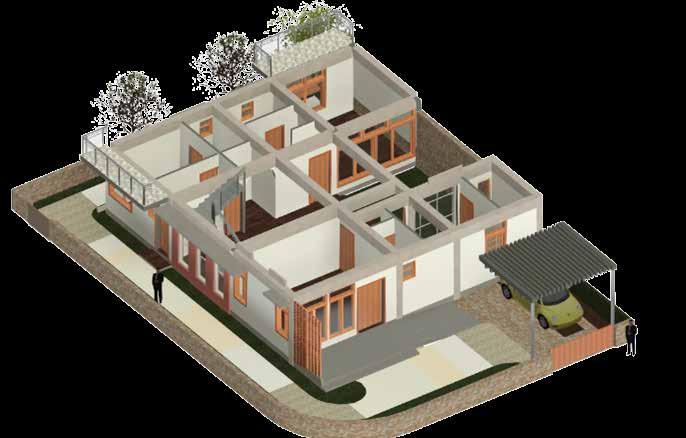

GROUND FLOOR ISOMETRIC
FIRST FLOOR ISOMETRIC ( EXPLODED)

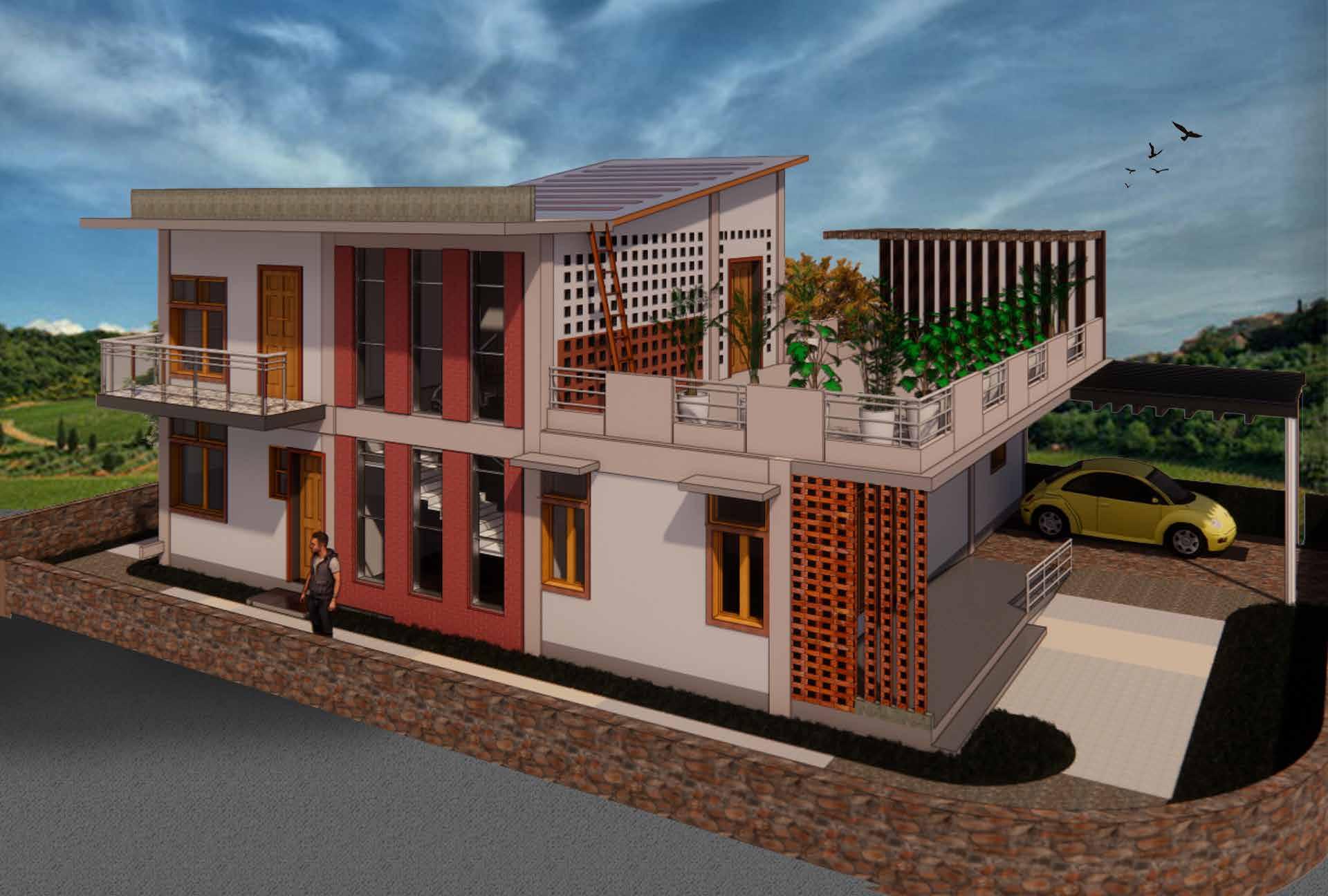

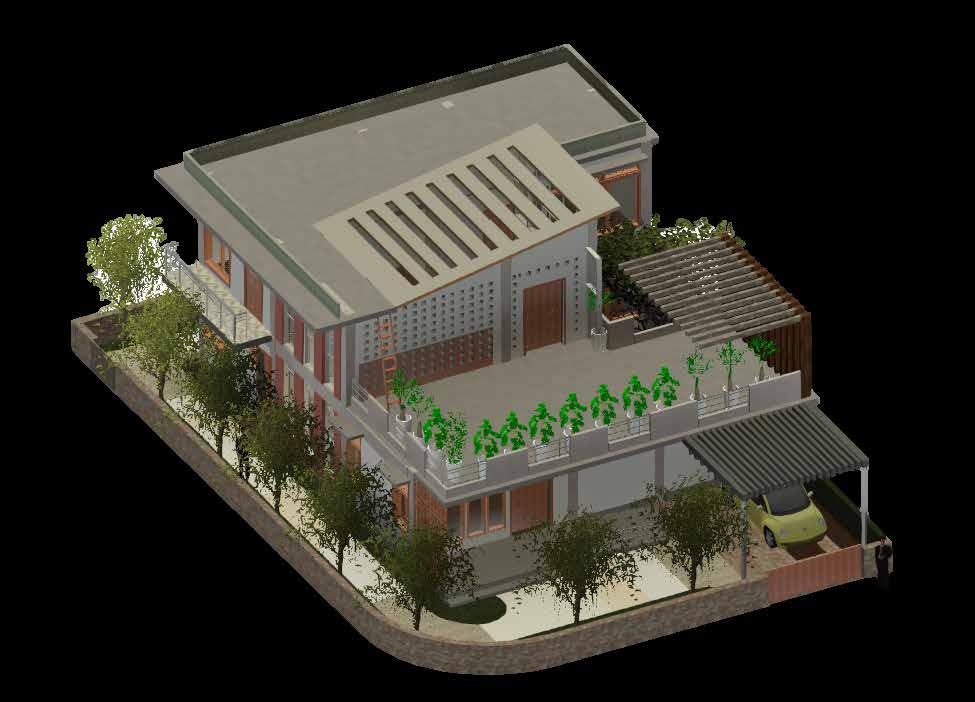

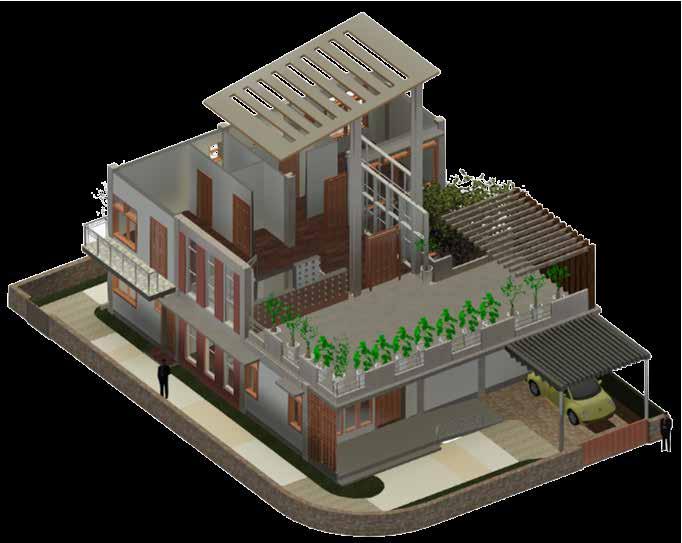

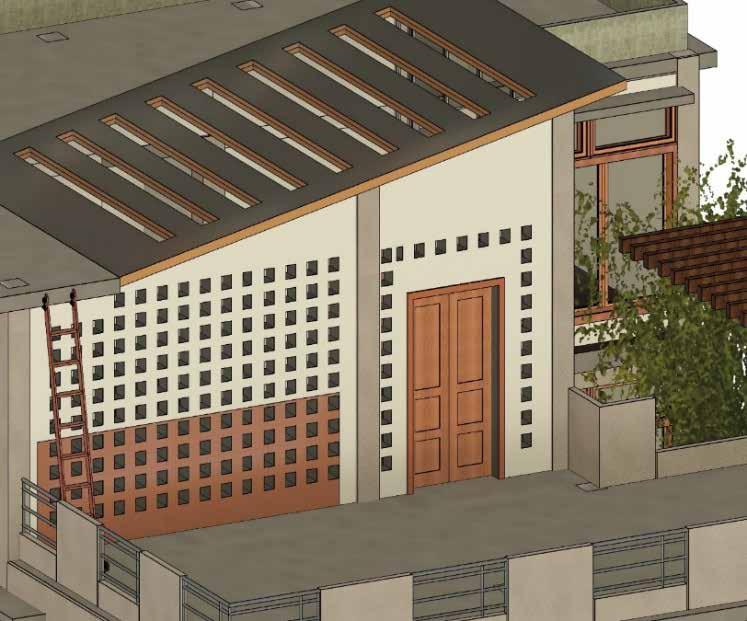

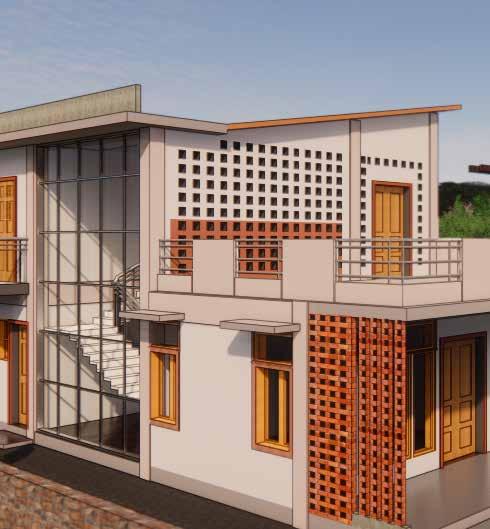

ISOMETRIC VIEW OF THE RESIDENCE

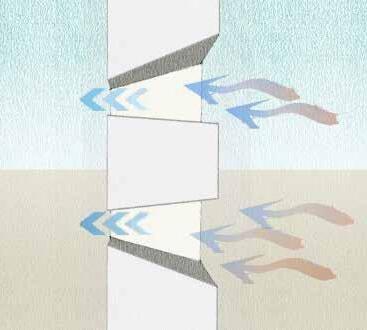

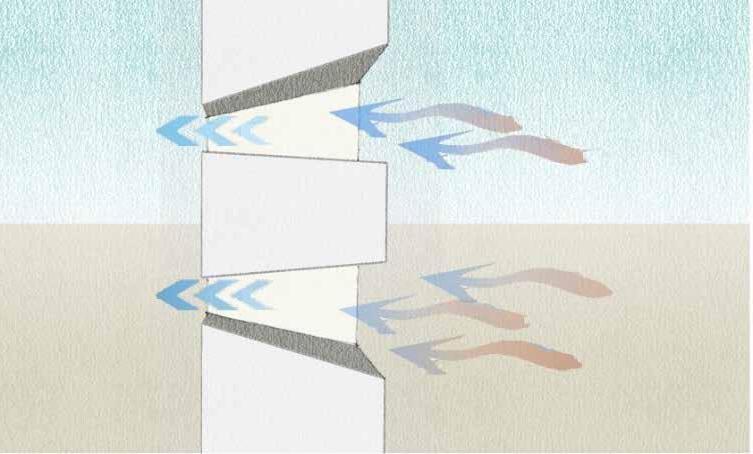

TRUNCATED PUNCTURES
Hot air flow in the building through the punctures.
Air expansion due to the pressure created by the constricted space.

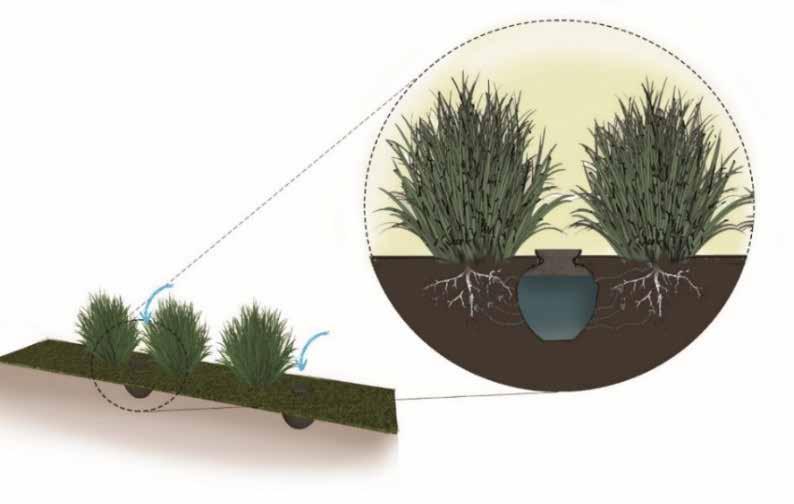

Pot irrigation is a self-watering irrigation system. Due to the porous nature of the surface of the pitcher the water inside the pitcher or mud pot will automatically transfer towards the nearest soil and plants takes up water only according to its need. Here we have used pitcher having a capacity of 4 liters which will last for 3-4 days.
Hot air cools down due to venturi effect.
CHANNELS

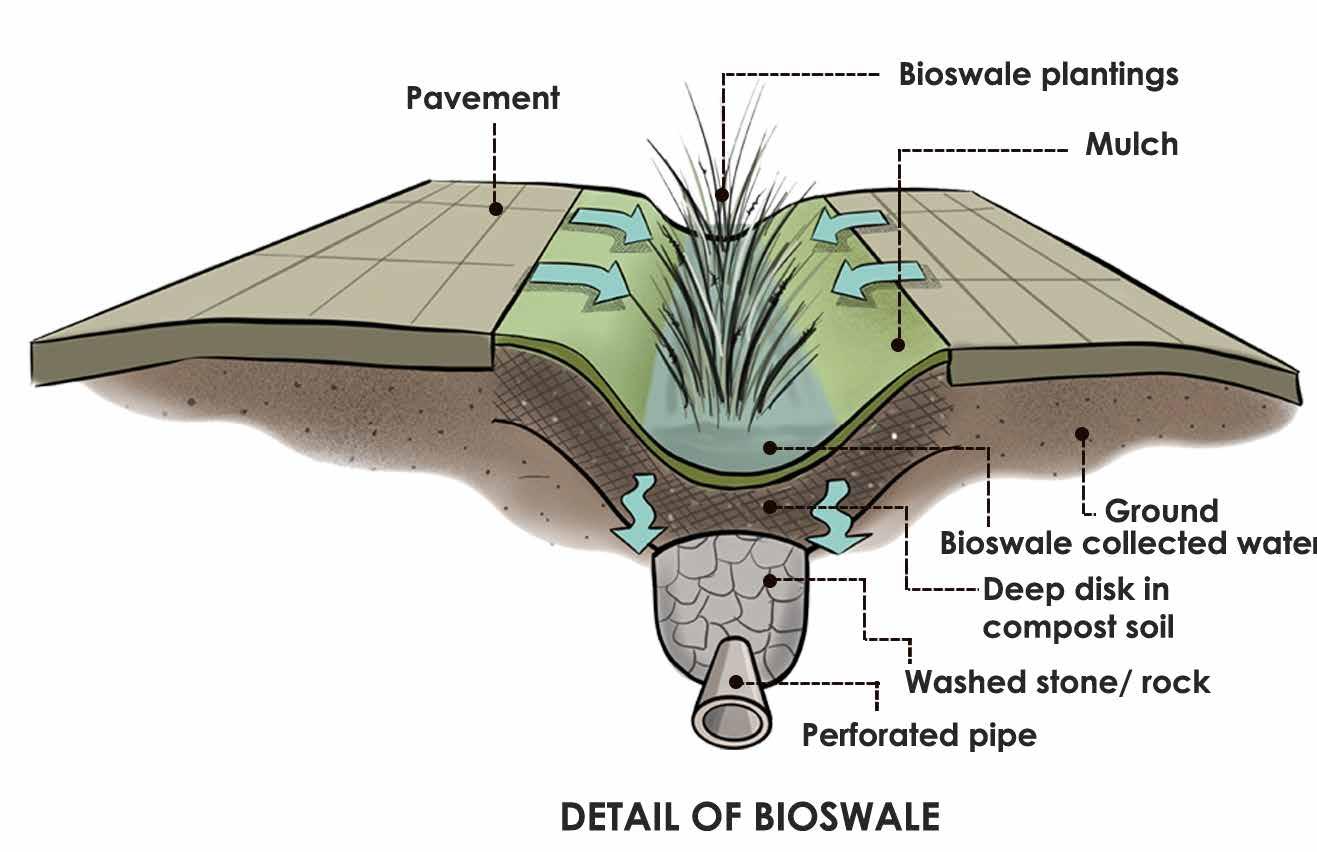

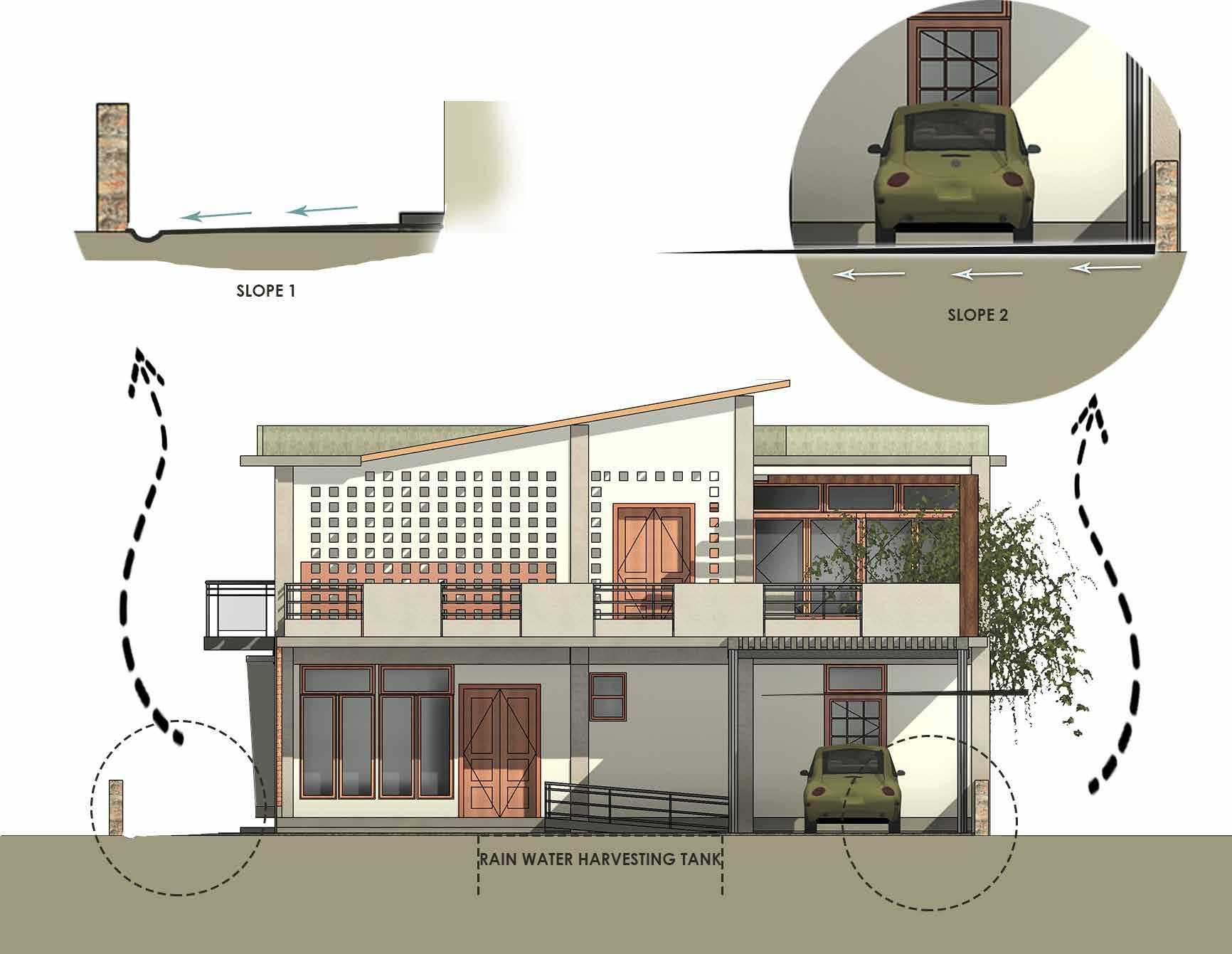

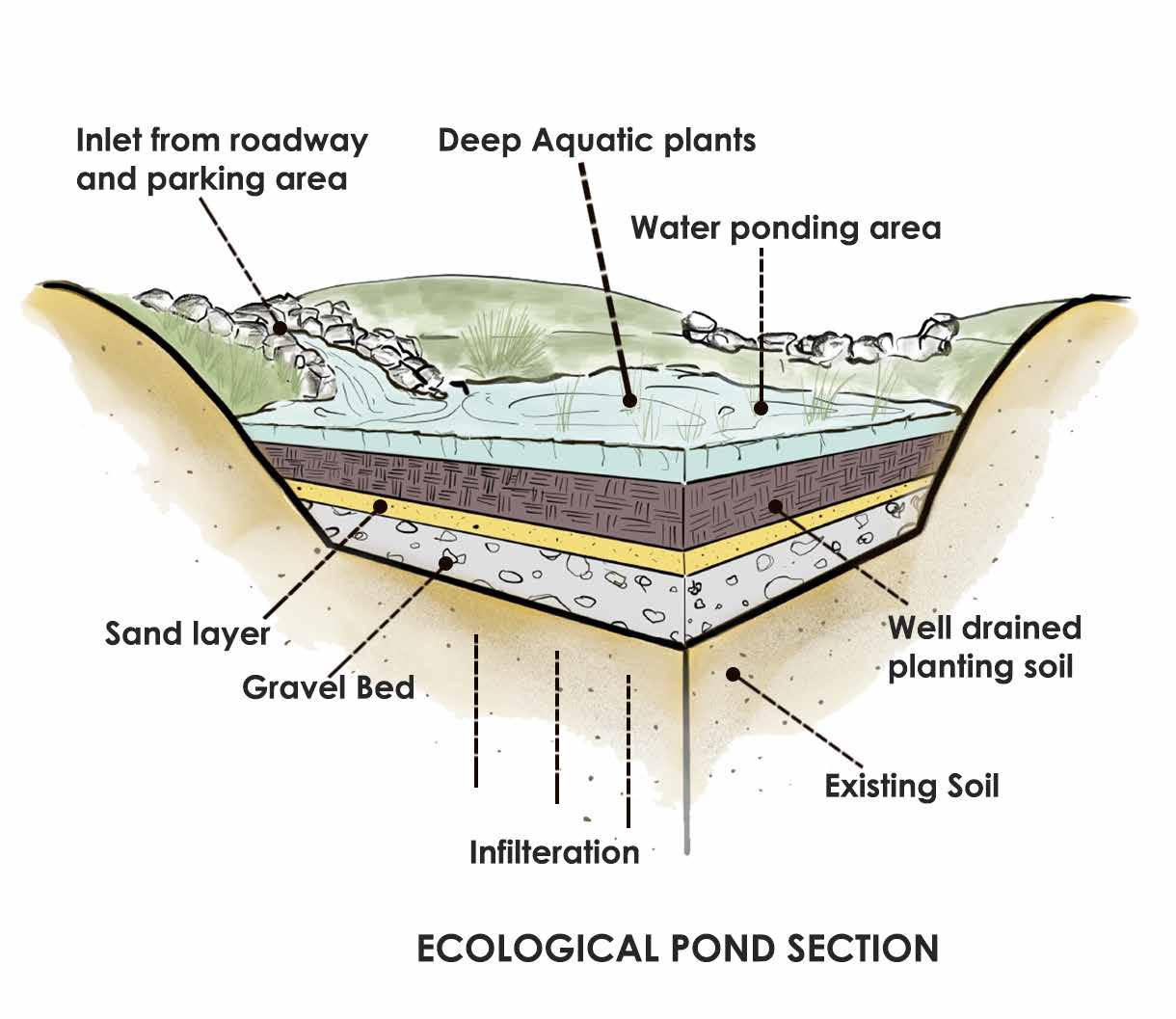

Channels are created in the periphery of the site which will collect the rain water and further store in the rain water harvesting tank.
AIR FILTRATION AND TEMPERATURE
GRADED PATHWAY
Sequence of graded pathway throughout pavement and track off before entrance used.
This promotes indoor environment quality by protecting the house from the dirt and moisture that can be carried by occupant footwear inside.

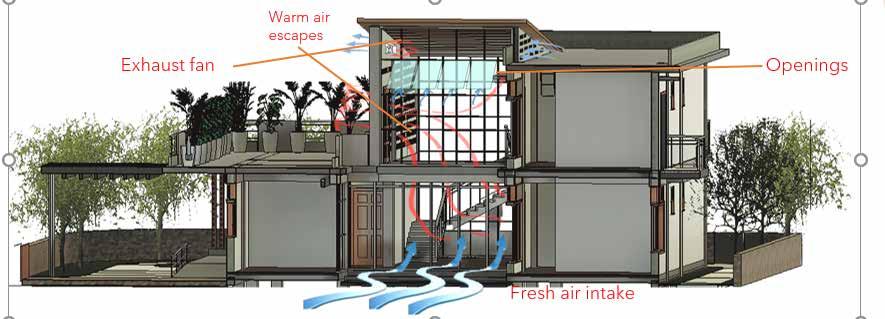

In kitchen, courtyard and north-west rooms the wind from west are helping in cross ventilation. The south façade allows winter sun rays in the house which provides proper heat and ventilation during winter. Through courtyard the temperature near it cools down and the circulation of fresh air inside the house is maintained.
Exhaust fan are fitted on the top as the warm and light air rises up from the space and escapes through the fan and cool and fresh air comes inside the space through the openings
POT IRRIGATION
ENERGY PERFORMANCE WATER PERFORMANCE
A series of iterations were performed with cost and U-value as parameters to obtain a building envelope with the desired U-value. Building envelopes were designed based on their use:
BASELINE WATER CONSUMPTION AS PER STANDARD BASELINE CONSUMPTION OF FIXTURES
BASELINE WATER CONSUMPTION AS PER STANDARD BASELINE CONSUMPTION OF FIXTURES
135 L PER CAPITA PER DAY
DRINKING COOKING
BATHING WASHING OF CLOTHES
WASHING OF UTENSILS
WC (Toilet) – 6lpf*

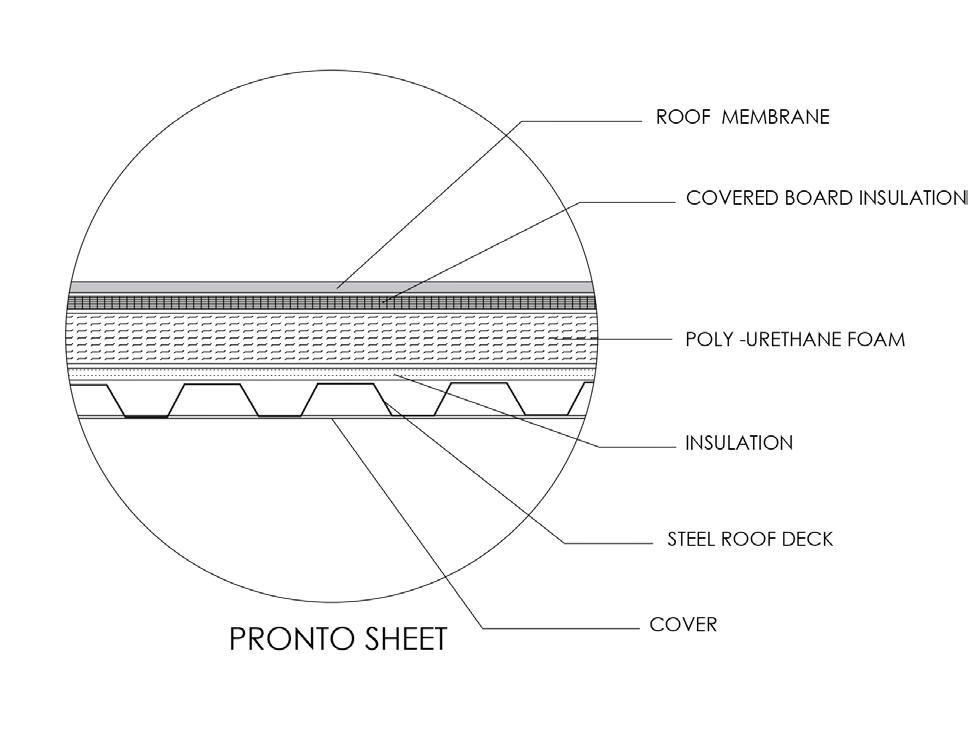

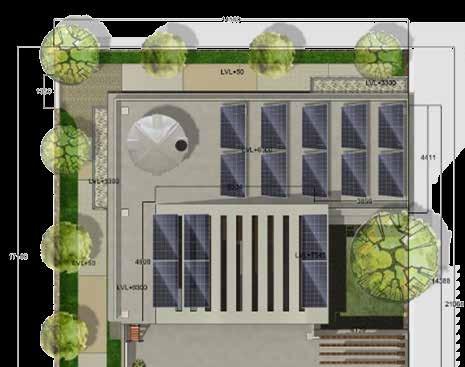

ROOF DETAIL
We are using 16 No. modules of 320 watt each plate which generates 7000 units per year and 19 unit per day.
For effective efficiency as we analysed from climate consultant’ solar radiation guides us solar radiation hour each month overall year so we got average 9.6 hr of efficiency
Generally, 1 kw solar grid generates electricity 4x of its capacity and it achieved with 10 hr of effective day lighting, so we quite near to 10 hr but our electricity consumption is 15 unit/ day and we are generating 4 unit/day more than our consumption.
MONTHLY WATER HARVESTING POTENTIAL CALCULATION
WATER CATCHMENT AREA FROM ROOF= 151
RUN-OFF COEFFICIENT OF CONCRETE= 0.95
Kitchen Faucet – 8.3 Lpm*
WC (Toilet) – 6lpf*
Kitchen Faucet – 8.3 Lpm*
9.5
Showerhead – 9.5 Lpm
*LPF- litres per flush LPM- litres per minute
WATER HARVESTING POTENTIAL = Area Of Catchment x Amount Of Rainfall x Runoff Coefficient
In January = 151m2 x 0.95 x 0.0055m = 0.788 m3 = 788 litres
In February = 151m2 x 0.95 x 0.0049m = 0.702 m3 = 702 litres
(Similar calculation will be followed for each month with varying avg. water rainfall)
WATER EFFICIENT FIXTURES

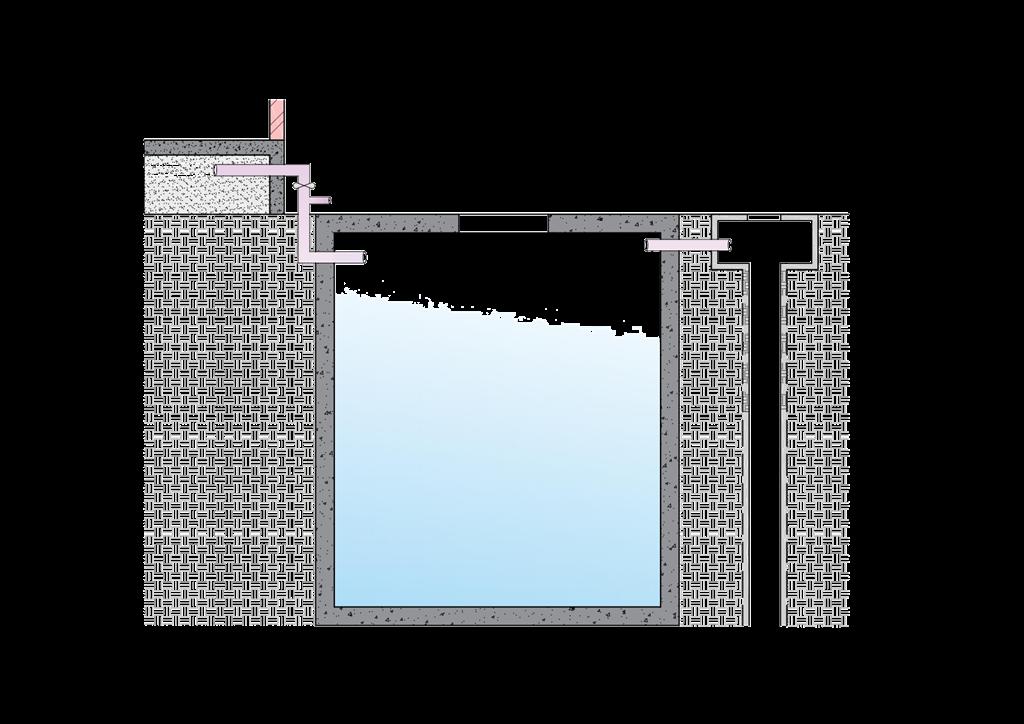

4m depth has been provided to settle down the silt and other particles by sedimentation and get fresh water above.
Low flow aerators –SAVES up to 50%
23
SOLAR PANELS ENVELOPE SELECTION Gypsum Plaster Board (6mm) Reflective coating (1mm) AAC Block (200mm) XPS Insulation 12mm) Plaster (12mm) SRI Paint (1mm) 0 0.5 1 1.5 WALL ROOF WINDOW U - VALUE 0 20 40 60 80 100 ENERGY CONSUMPTION Building Envelope Building Envelope (Using AAC)

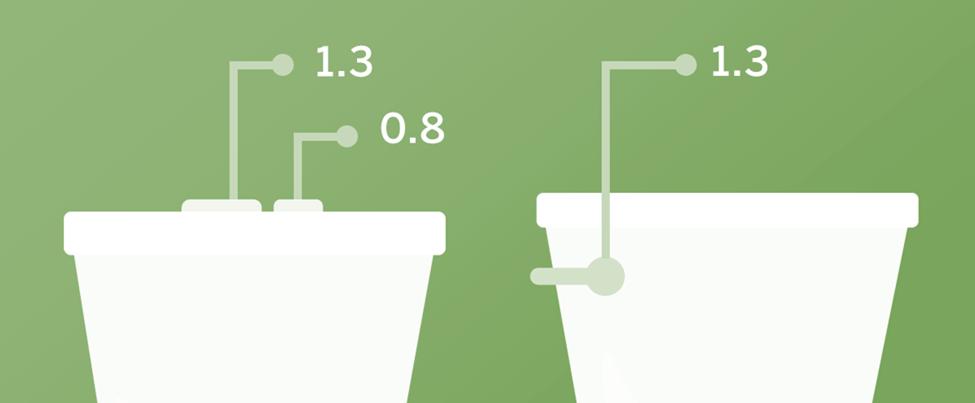

Ultra low flow WC Dual flush WC
3% 4% 41% 15% 15% 22%
FLUSHING - 4L - 55L - 20L - 30L - 20L - 6L
LPM-
(USE

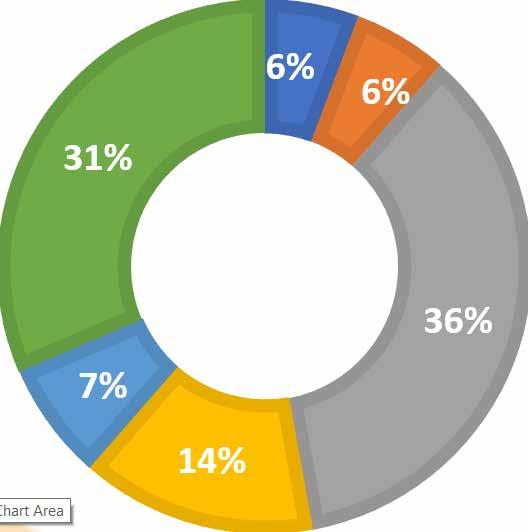

6% 6% 36% 14% 7% 31% 70L PER
DAY
COOKING BATHING WASHING OF CLOTHES WASHING OF UTENSILS FLUSHING - 4L - 25L - 5L - 22L (USAGE 5 TIMES A DAY - 10L - 4L
Showerhead –
Lpm *LPF- litres per flush
litres per minute REDUCED WATER CONSUMPTION
OF EFFICIENT FIXTURES)
CAPITA PER
DRINKING
PLUMBING DRAWINGS
ASSIGNMENT 2.3
SWIMMING
SUBJECT :
ARCHITECTURAL DRAWING AND COMPUTER APPLICATIONS
ASSIGNMENT 2.3
SUBJECT CODE:
BAR 405
SUBJECT :
NAME:
AAKANGSHA ROY
ARCHITECTURAL DRAWING AND COMPUTER APPLICATIONS
COURSE: B.ARCH
WATER INLET LAYOUT (SPORTS COMPLEX)
SUBJECT CODE:
BAR 405
SEM: V
NAME:
AAKANGSHA ROY
IC ICR GT
COURSE: B.ARCH
GROUND FLOOR PLAN- DRAINAGE
DRAINAGE LAYOUT (SPORTS COMPLEX)
SANITARY LAYOUT (RESIDENCE)
INSTITUTE:
CENTRE FOR DESIGN EXCELLENCE, VIVEKANANDA GLOBAL UNIVERSITY
SUBMITTED TO:
AR. KRISHN MATHUR

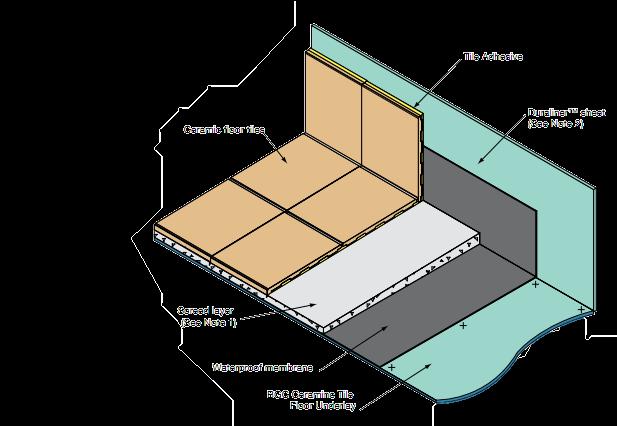

05 TECHNICAL DRAWINGS G 19mm TILE DROP FLOOR TRAP FLOOR TRAP BATHING AREA TILE DROP 200mmx 200mm TAP AT 600mm DIVERTER AT 1100mm SHOWER AT 2000mm HT. MIRROR AT THE HT. OF 1100mm WASH BASIN AT THE HEIGHT OF 800mm TAP CONCEALED AT THE HEIGHT OF 600mm TAP CONCEALED AT THE HEIGHT OF 600mm 10 mmTHICK WALL FINISH TISSUE ROLL @ 600mm HT. HEALTH FAUCET @ 450mm HT. CASCADE W.C SANITARY LAYOUT TOWEL RAIL @ 1320mm HT. GEYSER 10mm THICK TILE 430
75 mm w.w.p (p.v.c) pipe 100 mm s.w.p (c.p.v.c) pipe 75 mm r.w.p (c.p.v.c) pipe G.T GULLY TRAP 300MM X 300MM I.C INSPECTION CHAMBER 600MM X 600MM I.C.R INSPECTION CHAMBER (RAINWATER) 600MM X 600MM W.W.P WASTE WATER PIPE 75 MM DIAMETER S.W.P SOIL WATER PIPE 100 MM DIAMETER R.W.P RAIN WATER PIPE 75 MM DIAMETER A Concealed Stop Cock 1650 B Angle Valve 300 C Angle Valve D Angle Valve (2) 1650 E 550 F Shower 2400 Basin Diverter 1050 Diverter Hand Shower Faucet 1050 850 HEIGHT CENTRE (Health Faucet) (Center hole mixer) S.NO POINTS & FITTINGS ALL MEASUREMENTS ARE IN MILLIMETERES ALL PIPELINES ARE OF CHLORINATED POLYVINYL CHLORIDE A B C D E F A B C D 500/D 1200/D 430/B 900/B 1500/B 200/D SUBMITTED TO: AR. GAURAV AGRAWAL SUBMITTED BY: AAKANGSHA ROY B.ARCH III SEM CODE VGU SUBJECT: TILES IN FLOORING
CAFE 10 X10 LIFTS AND STAIRCASE STORE LADIES TOILET GENTS TOILET SHAFT SHAFT DISABLED FEMALE MALE MALE FEMALE UP DOWN CHANGING ROOM FOR SWIMMING POOL SWIMMING POOL 25X 12 GT GT GT GT GT IC IC IC IC IC IC M M IC IC IC IC LEGEND IC GT M TO MAIN SEWER
INSPECTION CHAMBER GULLY TRAP WASTE WATER PIPE 75MM DIA) SOLID WASTE WATER PIPE 100MM DIA) FLOW DIRECTION MAN HOLE FLOOR TRAP STACK PIPE
FEMALE MALE FEMALE
SWIMMING POOL 25X 12 GT GT GT GT IC IC IC M M IC IC LEGEND IC GT M INSPECTION CHAMBER GULLY TRAP WASTE WATER PIPE 75MM DIA) SOLID WASTE WATER PIPE 100MM DIA) FLOW DIRECTION MAN HOLE FLOOR TRAP STACK PIPE
N
SEM: V BASKETBALL 40 X 24 TAEKWONDO/JUDO 15 X 15 CAFE 10 X10 LIFTS AND STAIRCASE STORE LADIES TOILET GENTS TOILET SHAFT SHAFT DISABLED FEMALE MALE MALE FEMALE UP DOWN CHANGING ROOM FOR SWIMMING POOL
POOL 25X 12 LEGEND TAP CWP COLD WATER PIPE) SHOWER AND TAP ANGLE VALVE PILLAR COCK 20 MM DIA 15 MM DIA 20 MM DIA 15 MM DIA 20 MM DIA 15 MM DIA 20 MM DIA 15 MM DIA 20 MM DIA 15 MM DIA TAEKWONDO/JUDO 15 CAFE 10 X10 LIFTS AND STAIRCASE STORE LADIES TOILET GENTS TOILET SHAFT SHAFT DISABLED FEMALE MALE MALE FEMALE UP DOWN CHANGING ROOM FOR SWIMMING POOL
SWIMMING
LEGEND TAP CWP COLD WATER PIPE) SHOWER AND TAP ANGLE VALVE PILLAR COCK 20 MM DIA 15 MM DIA 20 MM DIA 15 MM DIA 20 MM DIA 15 MM DIA
POOL 25X 12
ELECTRICAL DRAWINGS
LEGENDS
BEDROOM
ELECTRICAL LAYOUT
ELECTRICAL LAYOUT
HVAC LAYOUT
25
LAYOUT G G 480 480 320 440 1820 1000 870 1460 560 560 410 1000 190 1720 550 1000 680 800 560 560 350 1300 540 1000 450 450 410 560 560 300 930 131 840 380 700 700 250 318 790 990 580 610 720 840 580 700 920 700 358 580 1970 700 1900 1200 855 1440 1700 1650 440 980 300 700 500 580 190 910 720 1870 1870 830 1720 2100 310 730 720 400 840 1080 240 1880 1870 160 250 340 850 1860 1120 850 850 1800 800 1950 1600 1000 1980 SB1 A SB1 B SB1 C SB1 D SB1 E SB1 SB1 G SB1 H SB2 B SB2 A SB2 C SB2 D SB2 E SB2 H SB2 G SB2 SB3 A SB3 B SB3 C SB3 D SB3 SB3 G SB3 E SB3 H SB4 A SB4B SB4 C SB4 E SB4 D SB5 A SB5 D SB5 B SB5 L1 L2 L6 L7 L5 L8 L14 L15 L3 L4 L9 L10 L11 L29 L28 L27 L26 L25 L24 L22 L23 L16 L17 L18 L19 L20 L21 L30 L31 L32 L33 L35 L34 L37 L36 L12 L13 WL1 WL2 WL3 WL8 WL4 WL5 WL6 WL7 WL13 WL12 WL14 WL11 WL10 WL15 WL9 PL1 PL2 PL3 PL4 PL5 F1 F2 F3 F4 F5 TL 1 TL 2 TL
HVAC
ELECTRICAL LEGEND SWITCH BOARD PICTURE LIGHT POINT WALL LIGHT POINT CEILING LIGHT POINT EXHAUST FAN POINT 1220 MM FAN POINT TELEPHONE POINT WITH INTERNET CABLE DISTRIBUTION BOARD GEYSER BOARD CALL BELL WARDROBE LIGHT POINT WL PL SB TL SWITCH BOARD LEGEND 5A SWITCH AND SOCKET 5/15A SWITCH AND SOCKET SWITCH TV CABLE CALL BELL SWITCH SUBMITTED TO: AR. KRISHN MATHUR ASSIGNMENT 1 ARCHITECTURAL DRAWING AND COMPUTER APPLICATIONS SUBMITTED BY: AAKANGSHA ROY B.ARCH SEM VI 19FAP2AR001 CODE, VGU SWITCH BOARD DETAILED LEGEND SL NO. SWITCH BOARD NO. HEIGHT FROM FFL (MM) DESCRIPTION SB1 A SB1 B SB1 C SB1 D SB1 SB1 SB1 G SB1 H SB2 A SB2 B SB2 C SB2 D SB2 SB2 SB2 G SB2 H SB3 A SB3 B SB3 C SB3 D SB3 SB3 SB3 G SB3 H SB4 A SB4 B SB4 C SB4 D SB4 SB5 A SB5 B SB5 C SB5 D 1 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 PL1 L6-L7 L5 L1-L2 L6-L7 L8 L9-L10 L3-L4 L9-L10 PL2 L12-L13 WL8 L11 L22-L23 L22- L23 L24-L25-L26 PL3 L27-L28 L29 L14 L15 WL9 L16-L17-L18 PL4-PL5 L19-L20-L25 L30-L31 2 L32-L33 L34-L35 L36-L37 600 600 1350 1350 1350 2400 2400 2400 2400 2400 2400 600 600 600 600 1350 1350 1350 1350 1350 1350 1350 1350 1350 1350 1350 1350 1350 1350 1350 1500 1350 1350 SB5 C SB5 34 1350 160 TL HARD DRIVE HW AC 1 HW AC 2 C. AC 1 C. AC 2 CN. AC 1 ODU 2 ODU 3 ODU 5 ODU 1 ODU 4 LEGEND C. AC ODU HW AC CN. AC 1000 1200 350 CASSETTE AC HIGH WALL AC CONCEALED AC OUT DOOR UNIT CONNECTION / SUPPLY LINE DRAIN LINE (18 MM DIA / 15 MM DIA) (15 MM DIA / 18 MM DIA)
ODU 1 @ 1050 MM ODU 2 @ 1800 MM 800 ODU 3 @ 1050 MM ODU 4 @ 1050 MM ODU 5 @ 1800 MM C. AC @ 2470 MM HW AC 1 @ 2100 MM HW AC 2 @ 2100 MM C. AC @ 2470 MM C. AC @ 2470 MM 400 400 1050 1220 2150 1530 1000 450 940 660 1700 3280 SUBMITTED TO: AR. GAURAV AGRAWAL ASSIGNMENT 1 BUILDING SERVICES III SUBMITTED BY: AAKANGSHA ROY B.ARCH SEM VI 19FAP2AR001 CODE, VGU RETURN LINE (18 MM DIA / 15 MM DIA) SUBMITTED TO: AR. GAURAV AGRAWAL. SUBMITTED BY: AAKANGSHA ROY BUILDING SERVICES II B.ARCH SEM V 19FAP2AR001 CODE, VGU STORE TOILET 3 2 1 4 5 6 7 SB SB 2 SB 3 SB 4 SB 5 SB 6 SB 7 SB 8 2W 2W 8 9 SB 9 10 11 SB 10 SB 11 MODULES DETAILS HEIGHT 2W FAN CEILING LIGHTS FOOT LIGHT ELECTRIC WIRE FALSE CEILING 2 WAY CONNECTION PICTURE LIGHT AC GEYSER WARDR0BE
F,3CL,2CL,1CL,FL,WR SS,1CL,PL,CO SS,3CL,1CL,F,R SS,1CL,1CL,CAL SS,TV,FE,SS CABLE TV SOCKET SS, CL WF, AC SS,PL G,CL,BL,F,R SS,PL,CL,EX NOTE SS SOCKET AND SWITCH CL CEILING LIGHT SWITCH FL FOOT LIGHT SWITCH WR WARDROBE LIGHT SWITCH PL PICTURE LIGHT SWITCH CO COVE LIGHT SWITCH FE FEATURE LIGHT SWITCH F FAN SWITCH R FAN REGULATOR CAL CABINET LIGHT SWITCH G GEYSER SWITCH BL BLANK EX EXHAUST SWITH ASSIGNMENT 2 1050 MM 1050 MM 1050 MM 1050 MM 1050 MM 525 MM 525 MM AS PER TV CABINET 525 MM
ELECTRIC PLAN N
(6) (8) (2) (4) (6) (6) (6) (8) (8) (8) (2) SUBMITTED TO: AR. GAURAV AGRAWAL. SUBMITTED BY: AAKANGSHA ROY BUILDING SERVICES II B.ARCH SEM V 19FAP2AR001 CODE, VGU 1 4 5 6 7 SB 1 SB 2 SB 3 SB 4 SB 5 SB 6 SB 7 SB 8 SB 9 SB 10 SB 11 MODULES DETAILS HEIGHT 2W FAN CEILING LIGHTS FOOT LIGHT ELECTRIC WIRE FALSE CEILING 2 WAY CONNECTION PICTURE LIGHT AC GEYSER WARDR0BE LEGENDS N F,3CL,2CL,1CL,FL,WR SS,1CL,PL,CO SS,3CL,1CL,F,R SS,1CL,1CL,CAL SS,TV,FE,SS CABLE TV SOCKET SS, CL WF, AC SS,PL G,CL,BL,F,R SS,PL,CL,EX NOTE SS SOCKET AND SWITCH CL CEILING LIGHT SWITCH FL FOOT LIGHT SWITCH WR WARDROBE LIGHT SWITCH PL PICTURE LIGHT SWITCH CO COVE LIGHT SWITCH FE FEATURE LIGHT SWITCH F FAN SWITCH R FAN REGULATOR CAL CABINET LIGHT SWITCH G GEYSER SWITCH BL BLANK EX EXHAUST SWITH ASSIGNMENT 2 1050 MM 1050 MM 1050 MM 1050 MM 1050 MM 525 MM 525 MM AS PER TV CABINET 525 MM (6) (8) (2) (4) (6) (6) (6) (8) (8) (8) (2)
FIRE FIGHTING SYSTEM AUTOMATION AND
LEGEND
SMOKE/ FIRE SENSOR
HOOTER/ CALL POINT
SPRINKLER
80 MM RISER PIPE
DOWN PIPE
FIRE EXTINGUISHER
25 MM DIA PIPE
40 MM DIA PIPE
50 MM DIA PIPE
65 MM DIA PIPE
25 MM DIA DRAIN PIPE
25 MM BALL VALVE
65 MM BALL VALVE
HOSE REEL
SLEEVE
ESCAPE ROUTE SUBMITTED TO: AR. GAURAV AGRAWAL ASSIGNMENT 3
BUILDING SERVICES SUBMITTED BY: AAKANGSHA ROY
B.ARCH SEM VI 19FAP2AR001 CODE, VGU
FIRST FLOOR FIRE FIGHTING SYSTEM LAYOUT
FIRE FIGHTING SYSTEM LAYOUT (RESIDENCE)
SECURITY
MM DIA DRAIN PIPE 25 MM DIA DRAIN PIPE MM DIA DRAIN PIPE 65 MM BALL VALVE 65 MM BALL VALVE 65 MM BALL VALVE E.P.A.B.X BIOMETRIC LPG SENSOR LEGEND SERVICE PLAN 1 FIRE ALARM smoke sensor LEGEND CCTV DSPLAY LEGEND MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM SERVER ROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ CONFERENCE ROOM CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE SERVICE PLAN 3 SERVICE PLAN 5 E.P.A.B.X BIOMETRIC LPG SENSOR LEGEND SERVICE PLAN 1 FIRE ALARM smoke sensor LEGEND CCTV DSPLAY LEGEND MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM SERVER ROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE SERVICE PLAN 3 SERVICE PLAN 5 BUILDING AUTOMATION assignment 3 building services ii SERVICE PLAN 1 FIRE ALARM smoke sensor LEGEND CCTV DSPLAY LEGEND CABIN CABIN SITTING MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE SERVICE PLAN 3 SERVICE PLAN 5
assignment 3 building services ii E.P.A.B.X BIOMETRIC LPG SENSOR LEGEND OCCUPATION SENSOR- AC OCCUPATION SENSOR LIGHT VDP GLASS BREAK SENSOR AC LEGEND SERVICE PLAN 1 CCTV DSPLAY LEGEND SPEAKERS LEGEND MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM SERVER ROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE SERVICE PLAN 3 SERVICE PLAN 4 SERVICE PLAN 2
BUILDING AUTOMATION
E.P.A.B.X BIOMETRIC LPG SENSOR LEGEND CONTROL:RECEPTION SERVICE PLAN 1 LEGEND CCTV DSPLAY LEGEND BIOMETRIC MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM SERVER ROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ ENTRY SERVICE PLAN 3 SERVICE PLAN 1 FIRE ALARM smoke sensor LEGEND CCTV DSPLAY LEGEND CONTROL:HEAD CABIN CABIN CABIN WORKSPACE CUBICLES SITTING PANTRY MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES MALE WASHROOM FEMALE WASHROOM CUBICLE SERVICE PLAN 3 FIRE ALARM smoke sensor LEGEND CCTV DSPLAY LEGEND MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE SERVICE PLAN 3 SERVICE PLAN 5 BUILDING AUTOMATION assignment 3 building services ii E.P.A.B.X BIOMETRIC LPG SENSOR LEGEND OCCUPATION SENSOR- AC OCCUPATION SENSOR LIGHT VDP GLASS BREAK SENSOR AC LEGEND SERVICE PLAN 1 CCTV DSPLAY LEGEND VDP BIOMETRIC SPEAKERS LEGEND MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM SERVER ROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE MEETING/ CONFERENCE ROOM HEAD CABIN CABIN CABIN RECEPTION AND WAITING ENTRY WORKSPACE CUBICLES SITTING PANTRY MALE WASHROOM FEMALE WASHROOM CUBICLE SERVICE PLAN 3 SERVICE PLAN 4 SERVICE PLAN 2

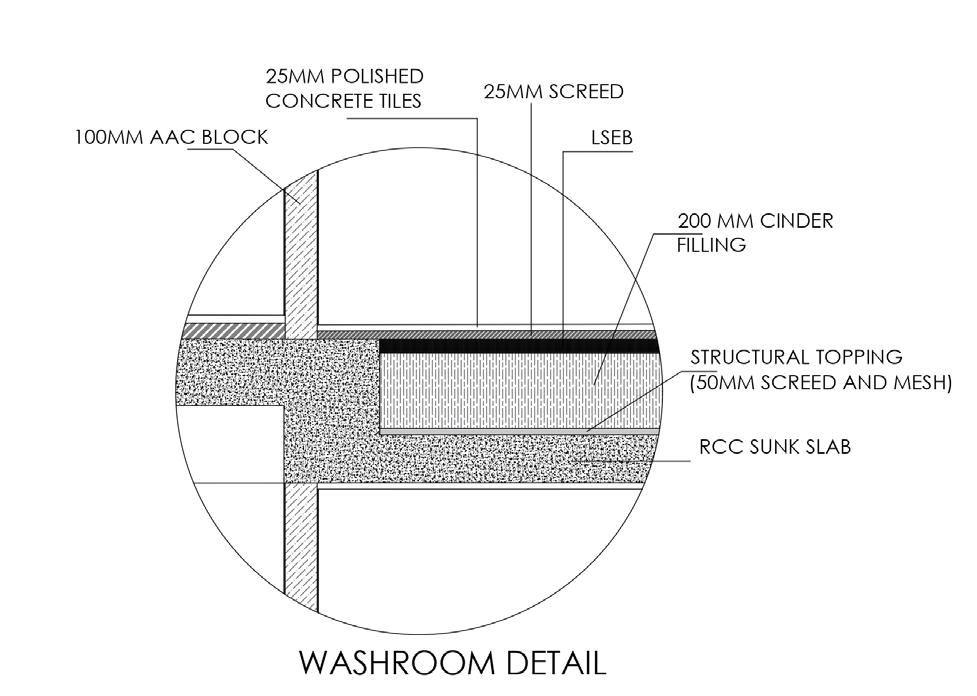

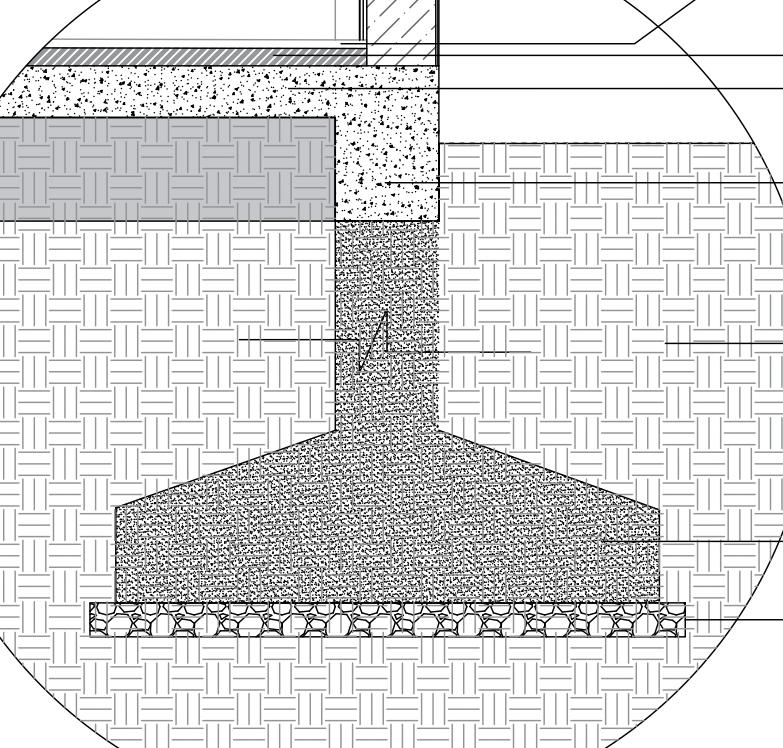

WORKING AND CONSTRUCTION DRAWINGS
LIFT DETAIL
EXCAVATION PLAN (SPORTS COMPLEX)
WORKING DRAWING (SPORTS COMPLEX)
ASSIGNMENT 1.2
SUBJECT : ARCHITECTURAL DRAWING AND COMPUTER APPLICATIONS
SUBJECT CODE: BAR 405
NAME: AAKANGSHA ROY
COURSE: B.ARCH
SEM: V INSTITUTE: CENTRE FOR DESIGN EXCELLENCE, VIVEKANANDA GLOBAL UNIVERSITY
PLINTH BEAM LAYOUT (SPORTS COMPLEX)
SUBMITTED TO: AR.
27
230 350 350 230 1100 BASEMENT GROUND FLOOR 1ST, 2ND, 3RD, 4TH FLOOR 5TH AND TERRACE LAST FLOOR 4200 PLAN SECTION LOAD LIFT SHAFT CAR INSIDE PERSON KGS WIDTH DEPTH WIDTH DEPTH 6 408 1600 1675 1100 1200 900 1500 4200 PLINTH CLEAR OPENING PIT OVERHEAD SUBMITTED TO: AR. GAURAV AGRAWAL ASSIGNMENT BUILDING SERVICES III SUBMITTED BY: AAKANGSHA ROY B.ARCH SEM VI 19FAP2AR001 CODE, VGU COUNTER WEIGHT 230 900 230 230 800 1570 1 2 3 4 5 6 7 8 9 A B C D E F G 8700 9000 9000 5800 7000 9400 9800 9850 5700 4000 9700 4000 10000 5000 2000 F1 F1 F1 F1 F1 F1 F1 F1 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F2 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 F3 4650 10574 4650 10574 4650 10574 10574 10574 10363 4650 4500 4500 4500 4500 4500 4500 14500 14500 14500 8800 8800 8800 4650 4650 4650 17425 4950 4950 4950 4860 4650 4802 4802 4500 9801 11561 4800 5001 5714 4800 10214 5001 7061 4500 4800 4500 4800 4500 4800 4118 4350 4350 2411 4807 5350 5223 4118 4350 4350 4807 5350 5350 4118 4425 4500 4875 5350 5350 12750 12750 12750 12750 12750 4900 4900 4900 5126 3146 5126 10127 5126 5200 5200 EXCAVATION PLAN 600 600 600 C1 C1 C1 C1 C1 C1 C1 C1 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 600 600 600 600 600 NO. COLUMN LENGTH WIDTH NO. FOOTING LENGTH WIDTH REGULAR FOOTING 1. 2. 3. C1 C2 C3 450 450 300 600 750 600 C1 C3 C2 810 1080 810 1350 540 1080 1. 2. 3. F1 F2 F3 F1 3450 3450 3300 3600 3750 3600 F2 F3 2070 DEPTH 3000 3000 3000 F2 C2 LVL -2500 LVL -3000
BASKETBALL TAEKWONDO/JUDO CHANGING ROOM WITH LOCKERS CAFE LIFTS AND STAIRCASE LADIES TOILET GENTS TOILET SHAFT DISABLED FEMALE MALE MALE FEMALE 6 N DOWN LEVEL +45 LEVEL +135 LEVEL +135 LEVEL +75 LEVEL -345 LEVEL -215 CHANGING ROOM FOR SWIMMING POOL OPEN AMPHETHEATRE SHAFT W1 W1 W1 W1 W2 W3 W4 W5 W6 W7 W8 W9 V1 V1 V1 D1 D1 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D2 D3 D4 D4 D5 D6 D6 D6 D6 1000 1362 D2 D2 1023 D2 5083 3292 GROUND FLOOR PLAN TREAD 300MM NO.S RISER 150MM NO.S 22 THREAD 300MM RISER 150MM INSTITUTE: CENTRE VIVEKANANDA TREAD 300MM NO.S RISER 150MM NO.S 22 N C C' 1 2 3 4 5 6 7 8 9 A B C D E F G 8700 9000 9000 5800 7000 9400 9800 9850 5700 4000 9700 4000 10000 5000 2000 PLINTH BEAM PLAN 8325 8550 8550 5250 6620 9000 9550 9550 8325 8550 8550 5250 6620 9000 9550 9550 8325 8550 8550 5250 6620 9000 9550 9550 9000 9550 9550 9550 9550 9550 9550 8550 5256 5100 16800 9400 5100 16800 9400 5100 5100 5100 3400 3400 3400 9100 9100 9100 3400 3400 3400 9400 9400 9400 4400 4400 4400 PB1 PB2 PB2 PB3 PB4 PB5 PB6 PB6 PB5 PB6 PB6 PB6 PB6 PB6 PB6 PB6 PB6 PB6 PB6 PB5 PB4 PB3 PB2 PB7 PB5 PB15 PB2 PB3 PB15 PB12 PB13 PB12 PB14 PB8 PB9 PB1 PB10 PB11 PB12 PB12 PB13 PB13 PB12 PB12 PB14 PB14 PB1 PB2 PB2 PB3 PB4 PB10 PB9 PB8 PB11 PB11 PB11 PB11 PB11 PB11 PB15 NO. BEAMS LENGTH WIDTH 1. 2. 3. PB1 PB2 PB3 8325 8550 5250 450 HEIGHT 4. 5. 6. 7. PB4 PB5 PB6 PB7 6620 9000 9550 17400 17400 450 450 450 450 450 450 600 600 600 600 450 450 450 C1 C1 C1 C1 C1 C1 C1 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 C3 300 450 450 450 450 600 NO. BEAMS LENGTH WIDTH HEIGHT 8. 9. 10. 11. 12. 13. 14. 15. PB8 PB9 PB10 PB11 PB12 PB13 PB14 PB15 5100 16800 9400 9400 3400 9100 5100 4400 450 450 450 300 300 300 300 300 600 600 600 450 450 450 450 450 ASSIGNMENT SUBJECT ARCHITECTURAL COMPUTER SUBJECT BAR NAME: AAKANGSHA COURSE: B.ARCH SEM: INSTITUTE: CENTRE VIVEKANANDA SUBMITTED AR. KRISHN
KRISHN MATHUR
06

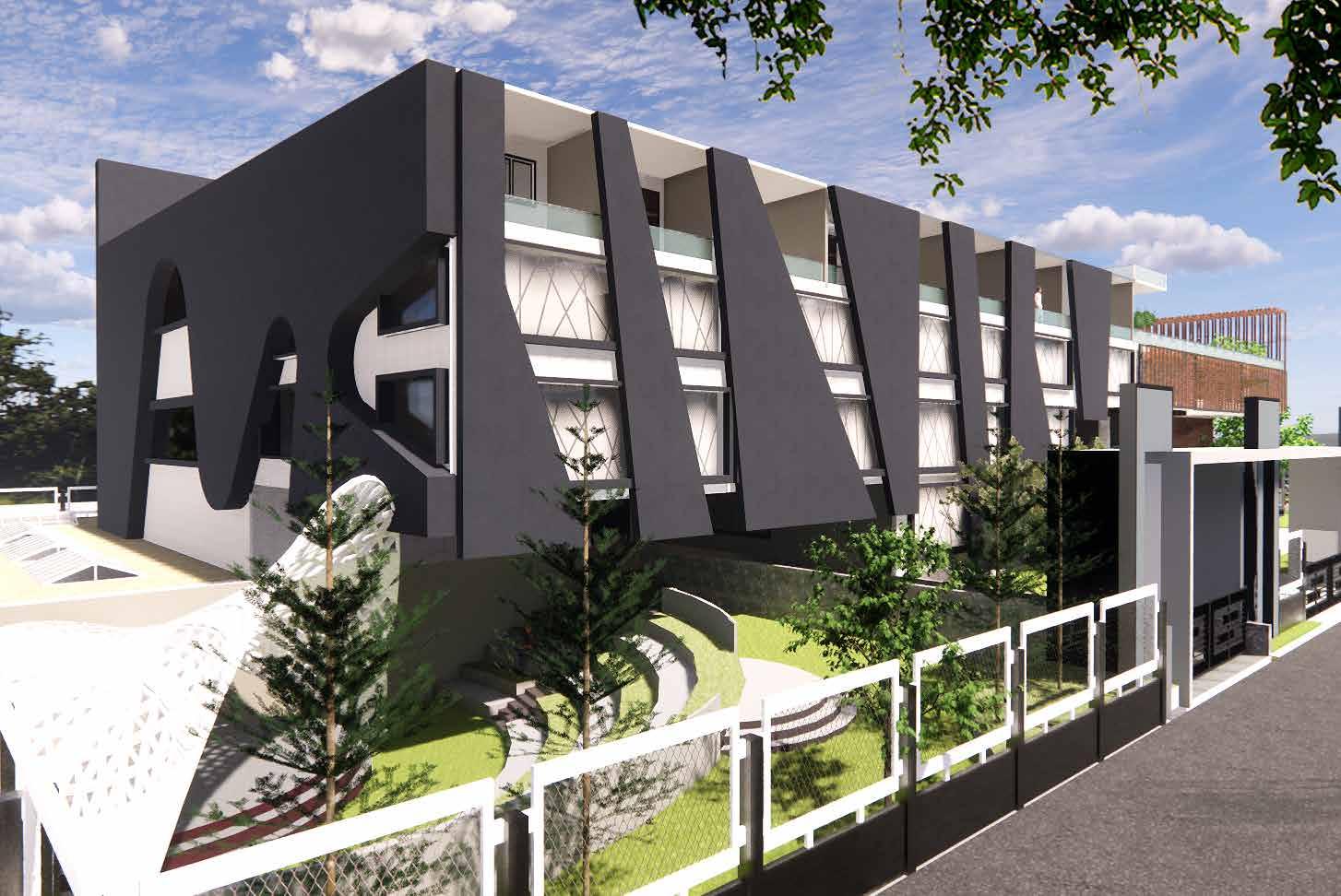

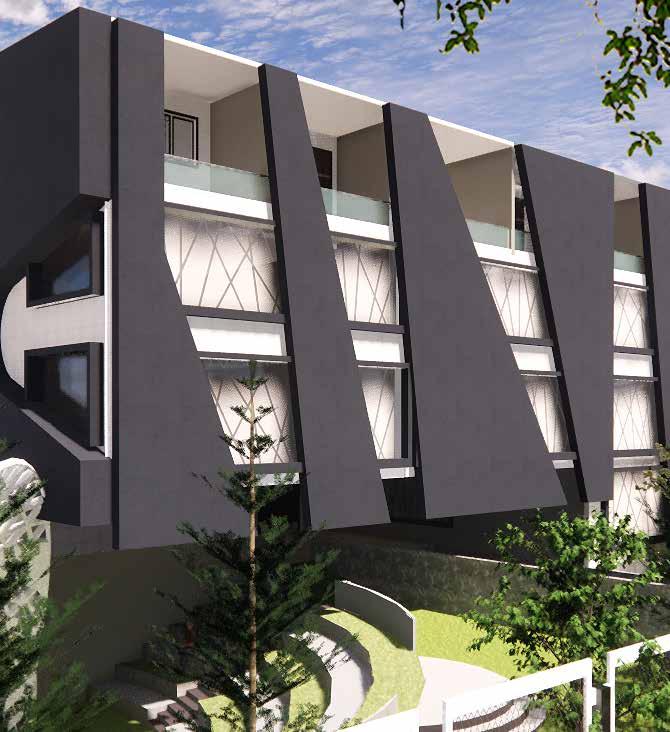

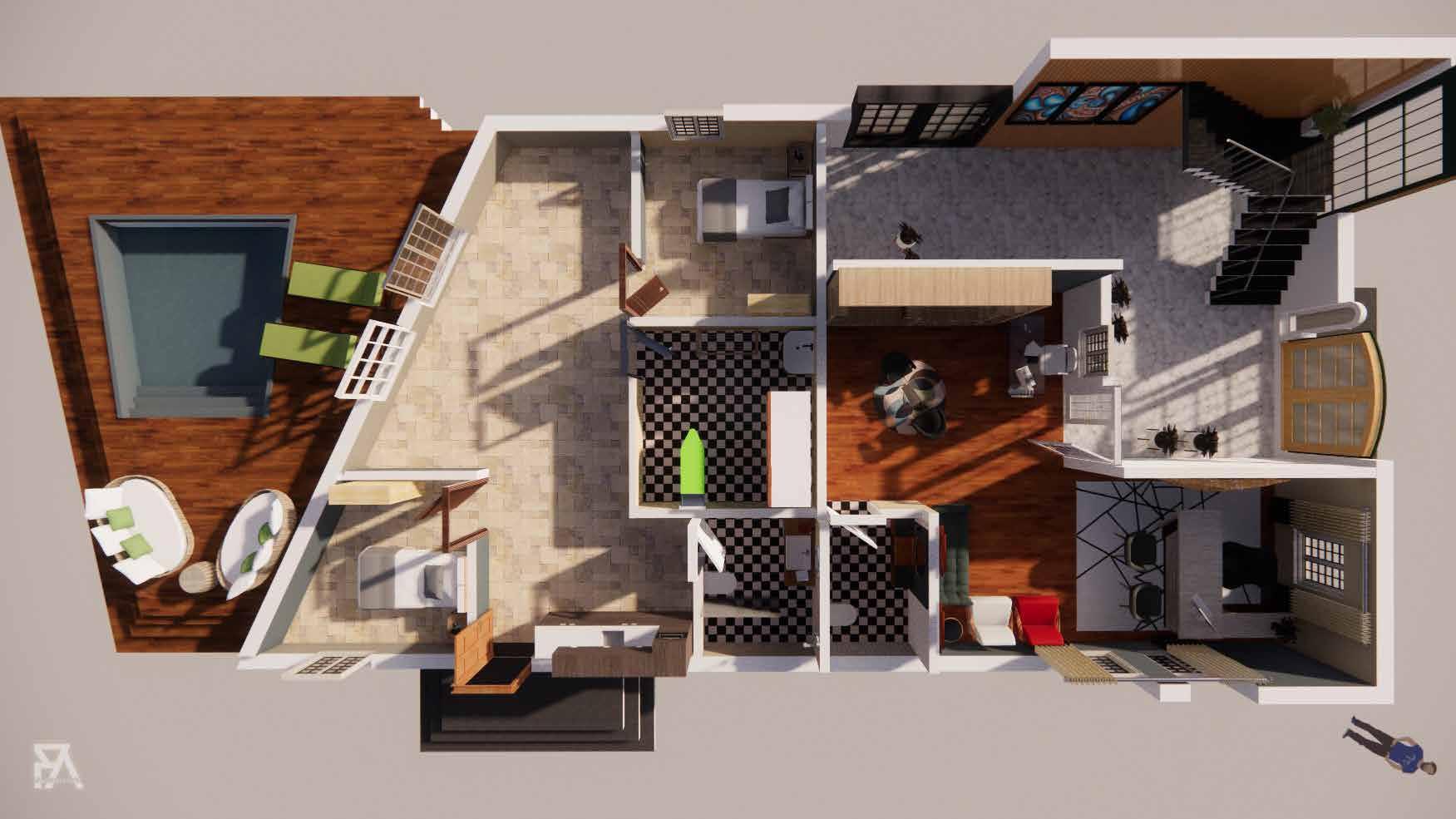

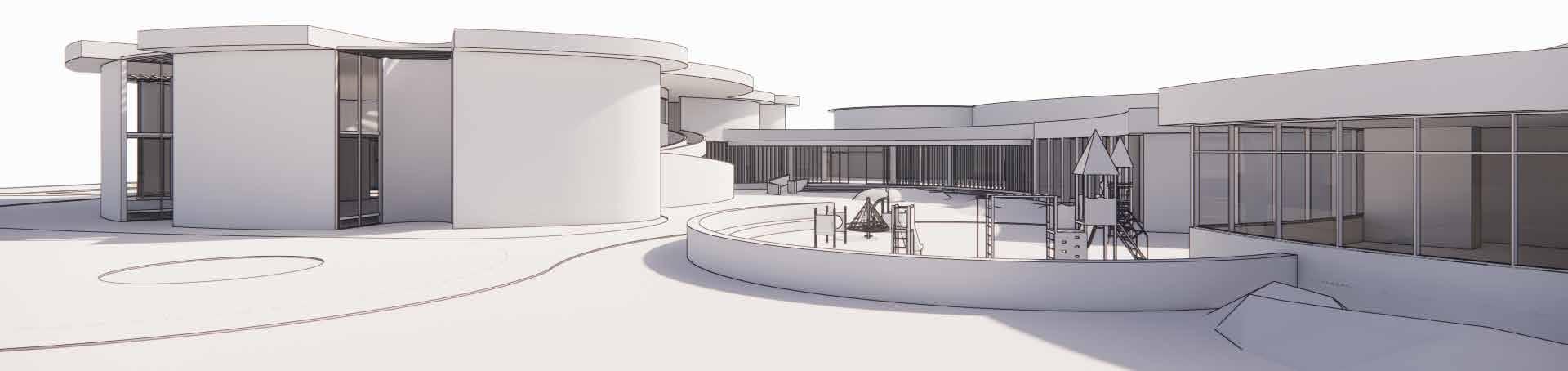

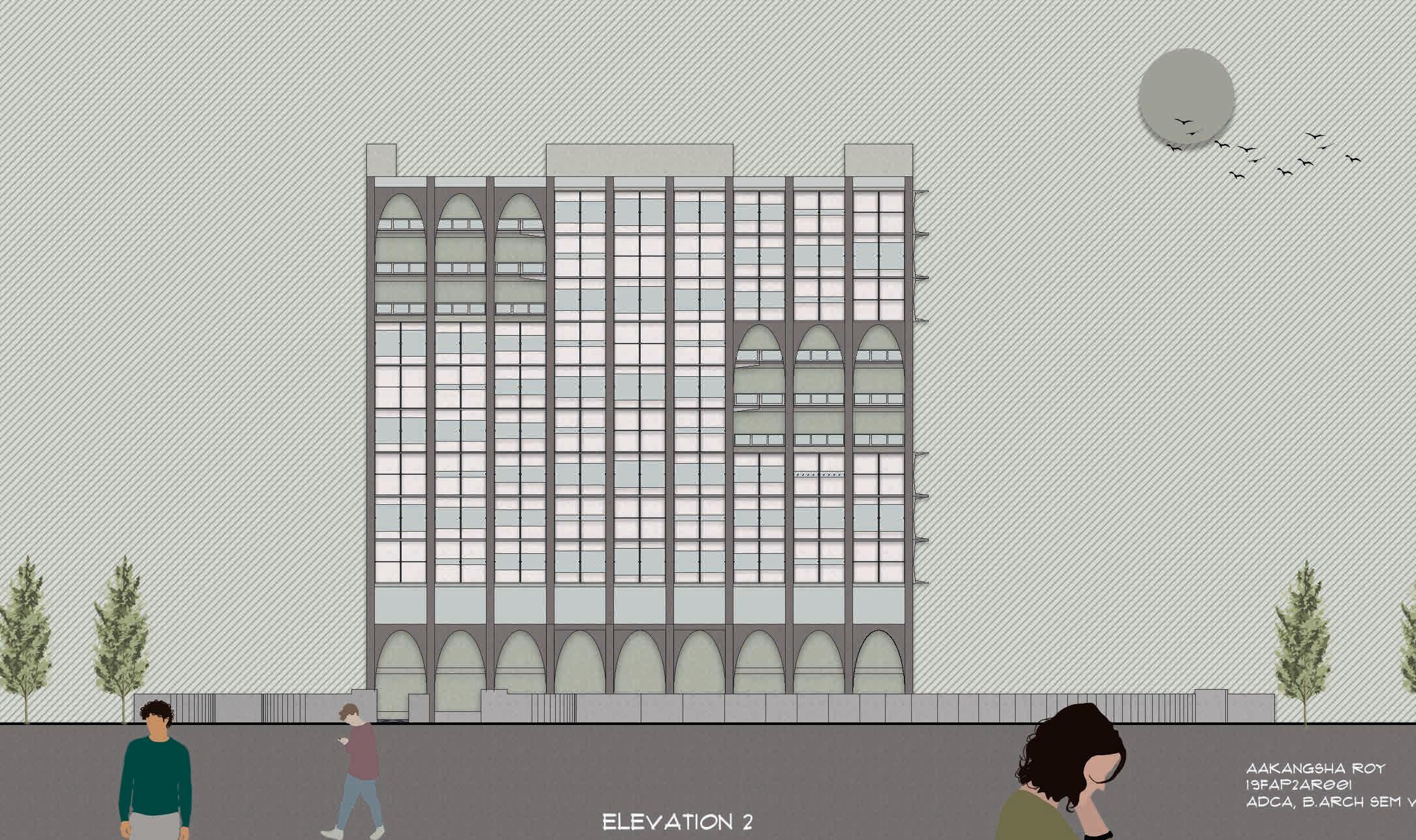

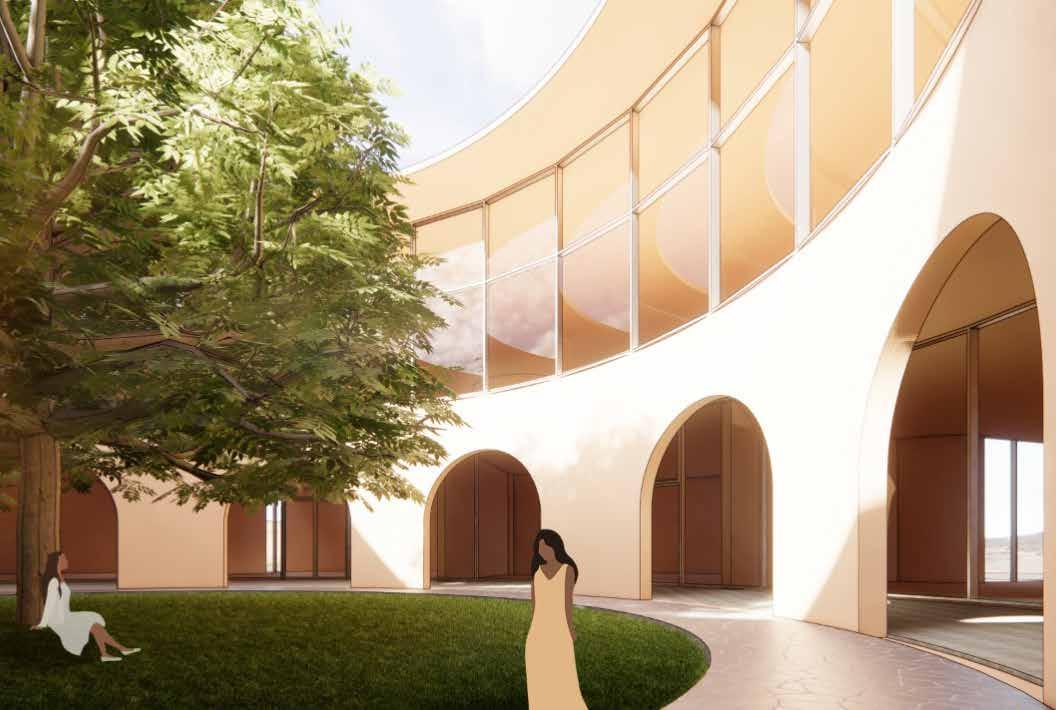

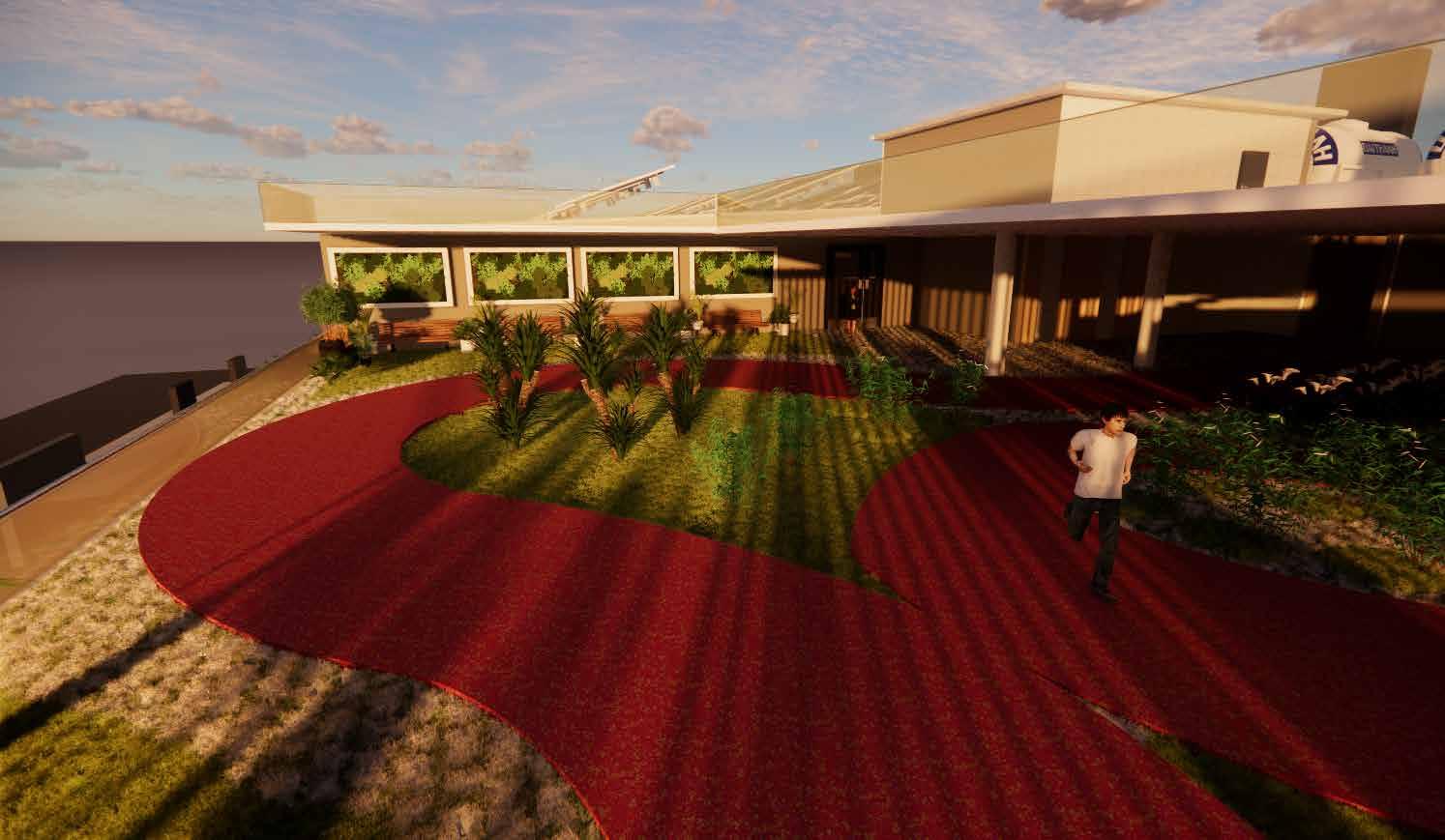

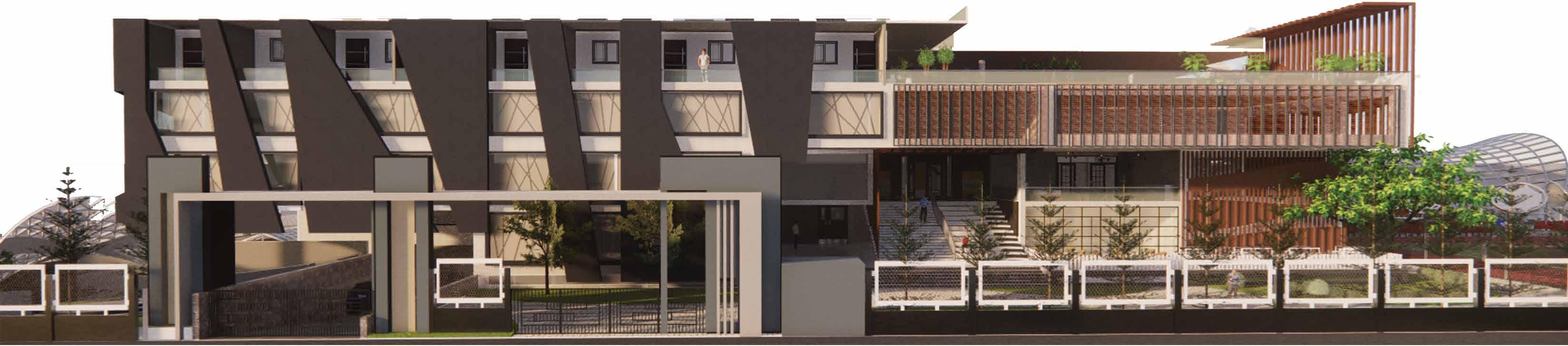

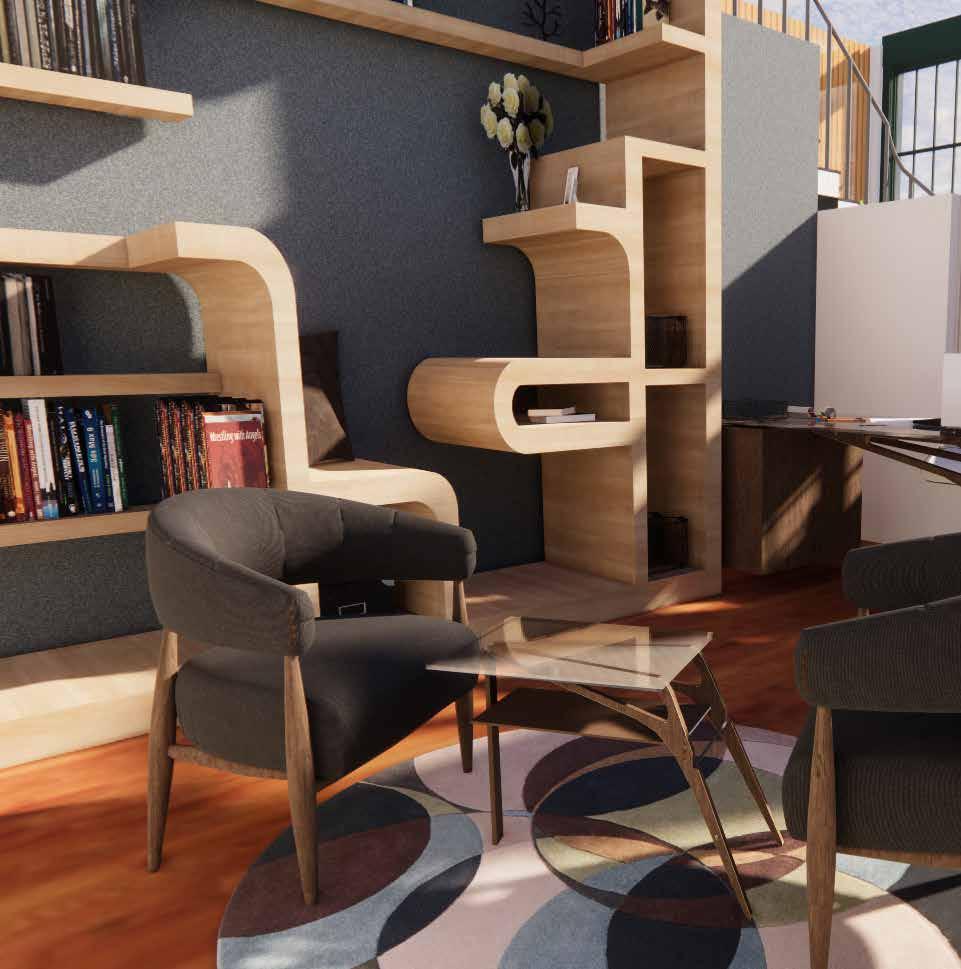

RENDERINGS
PHOTOSHOP
PHOTOSHOP RENDERS
29

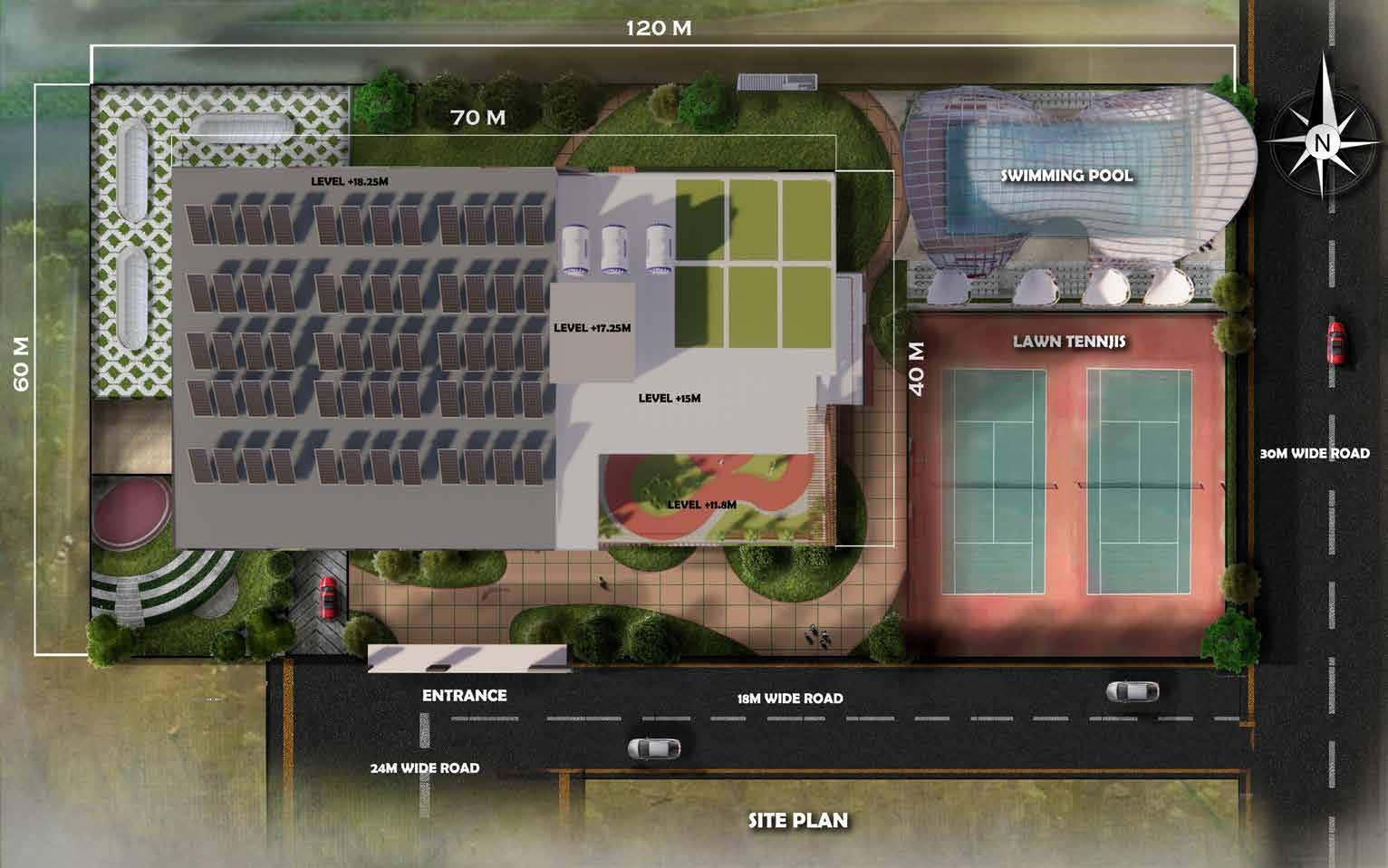

D R V E W A Y SW MMING POOL LAWN TENNJ S ENTRANCE SITE PLAN ASS GNMENT 6 ARCHITECTURAL DRAWING & COMPUTER APPL CATIONS AAKANGSHA ROY 9FAP2AR00 B.ARCH SEM I CODE VGU
ENSCAPE ENSCAPE
PHOTOSHOP
31 ENSCAPE REVIT LUMION
07

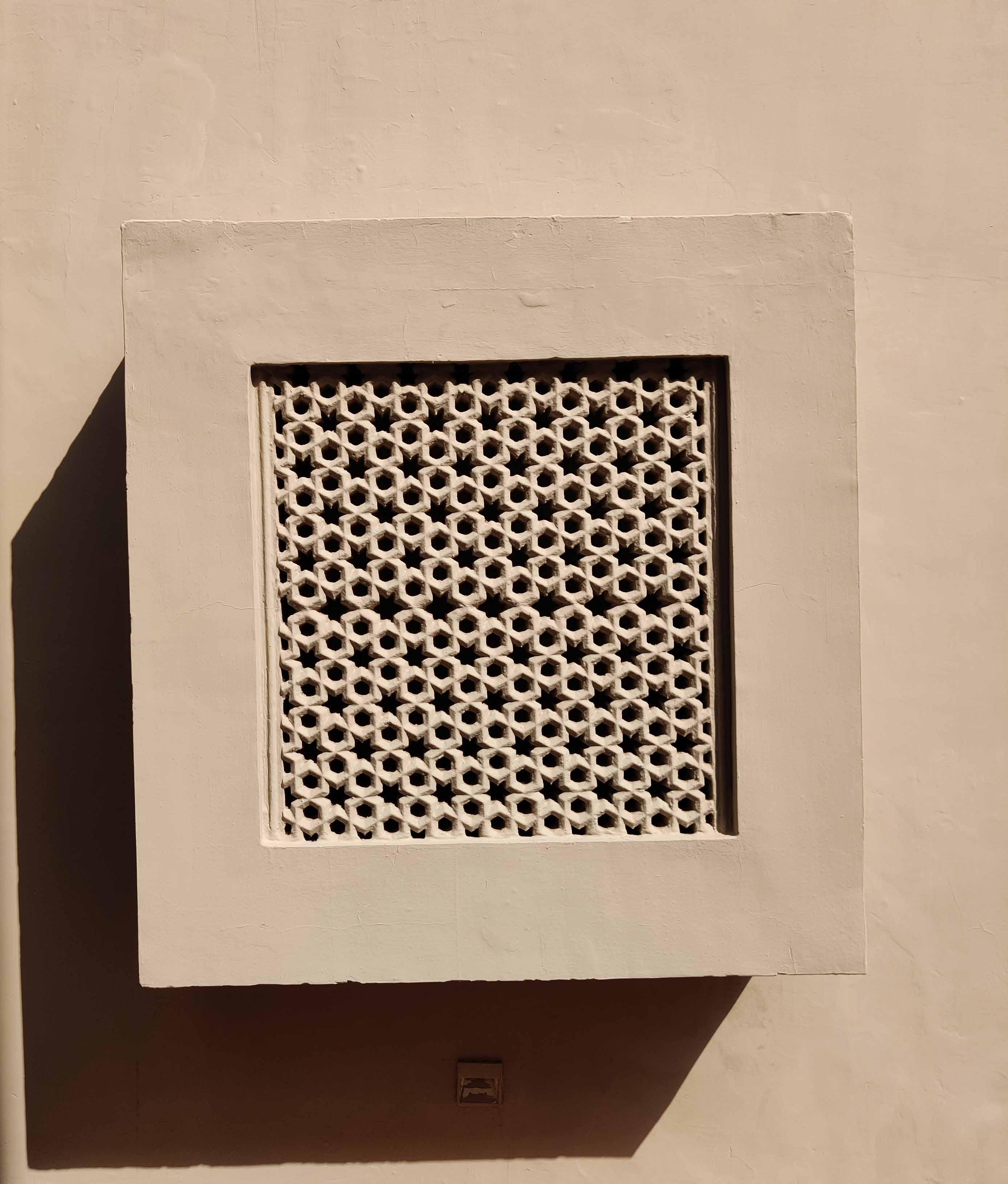

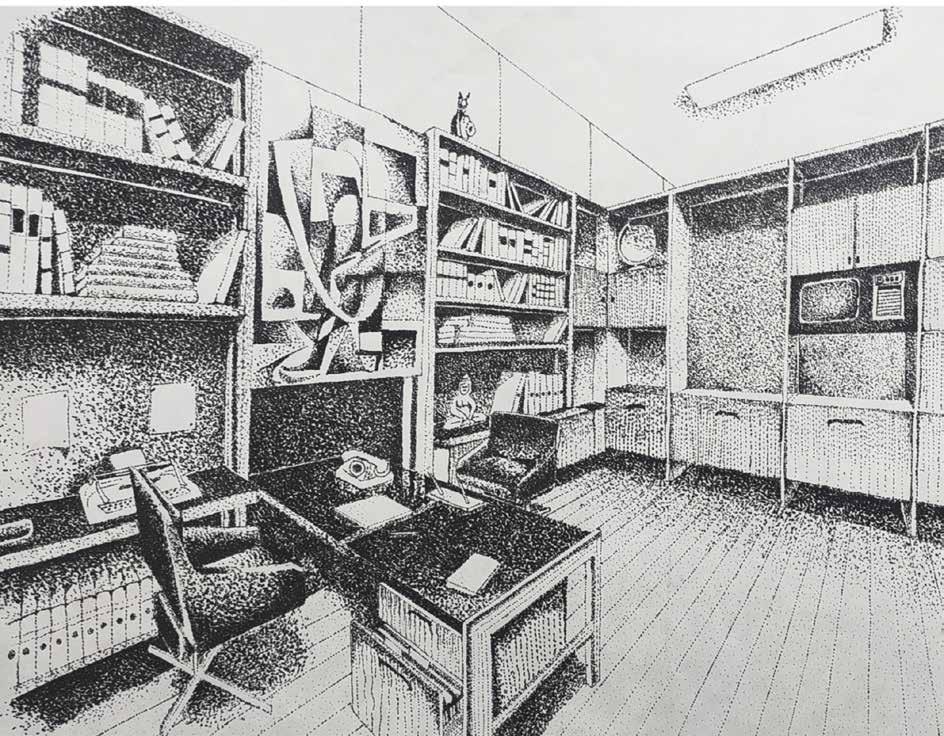

MISCELLANEOUS

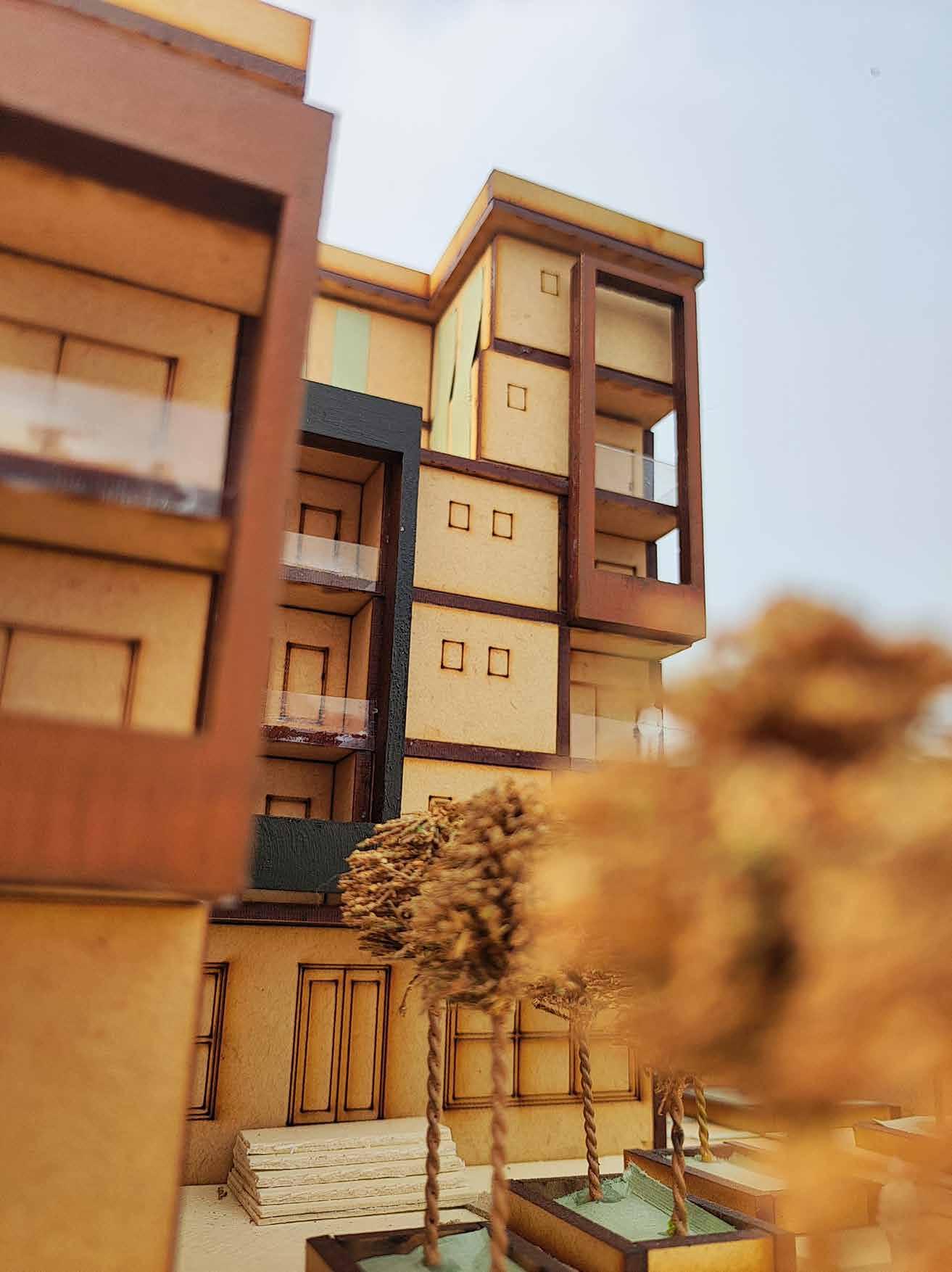

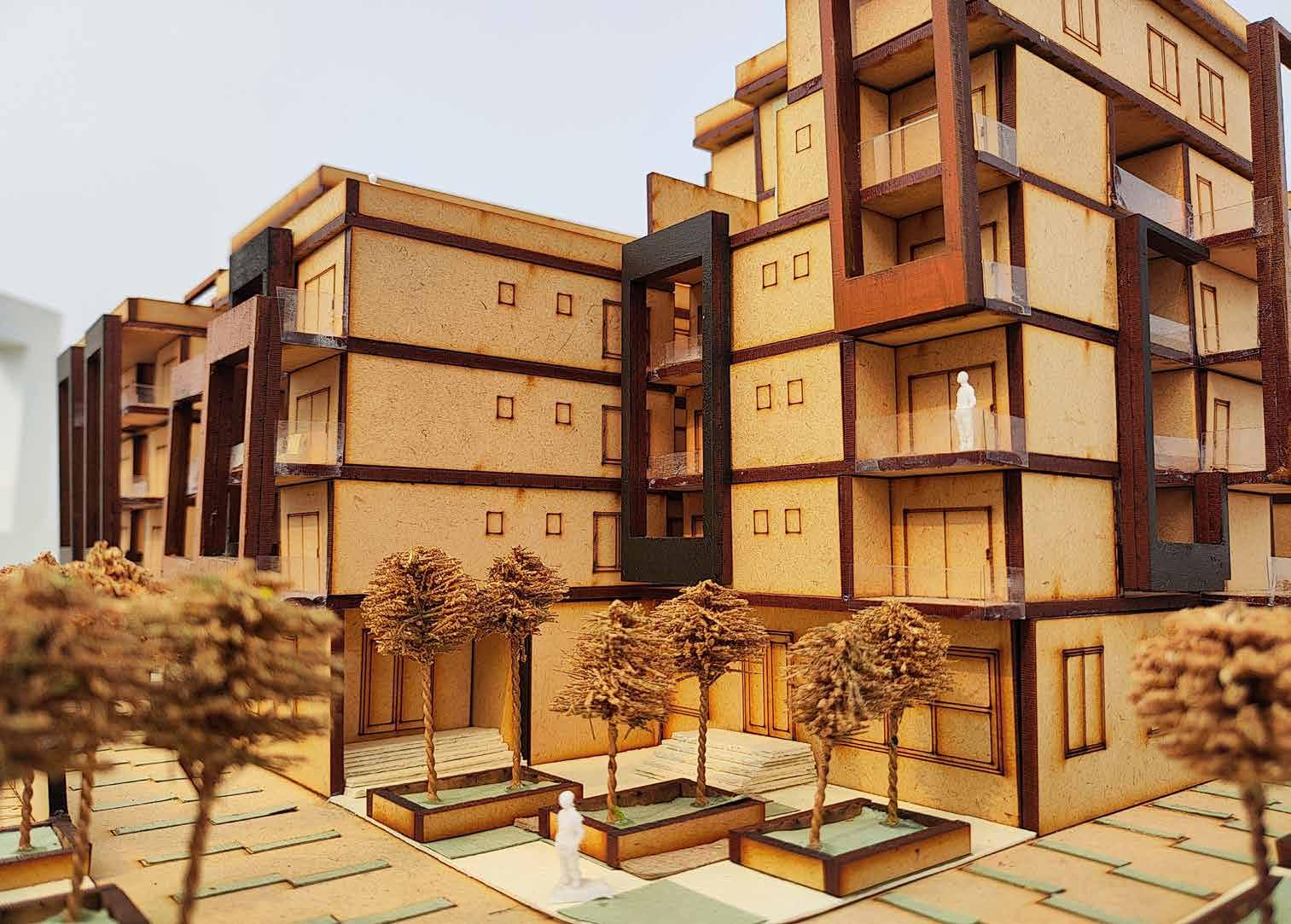

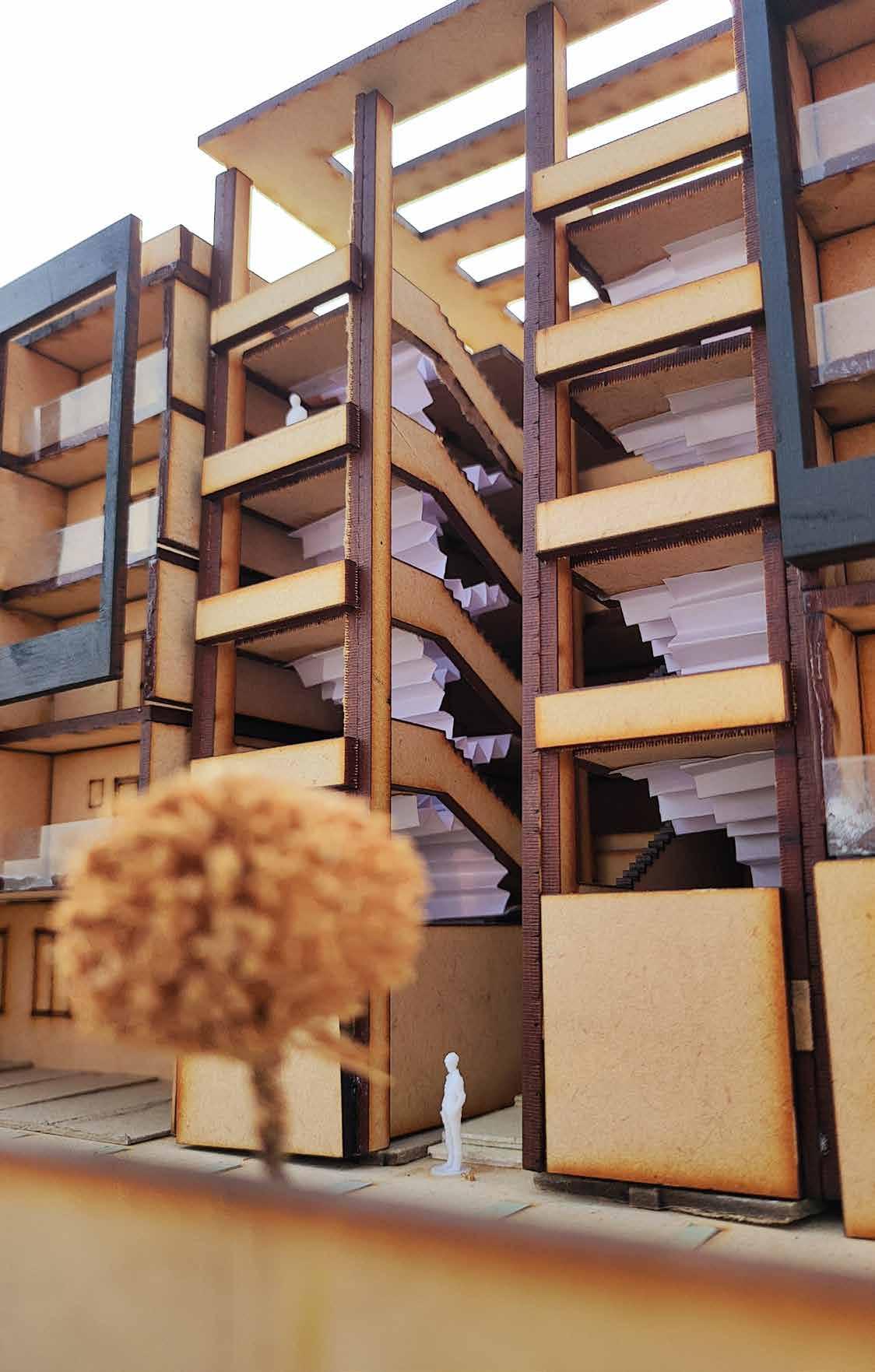

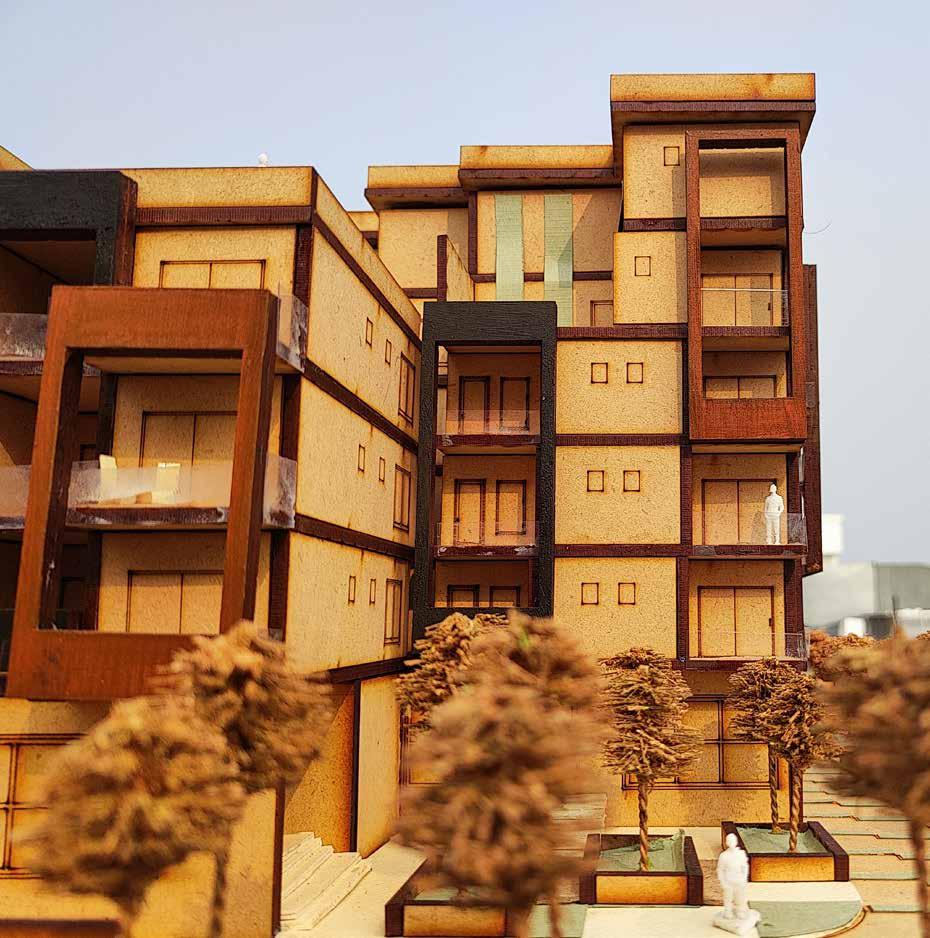

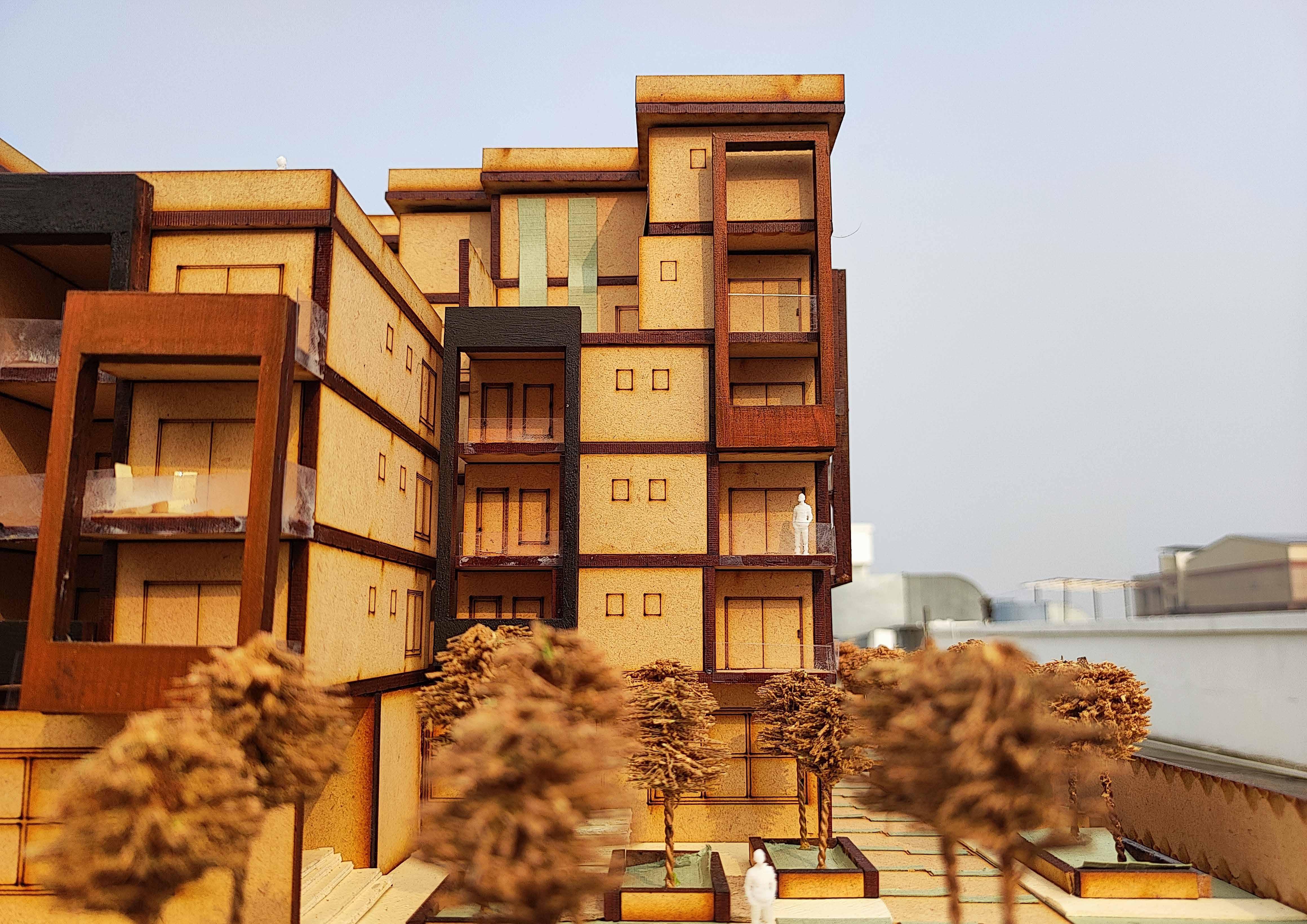

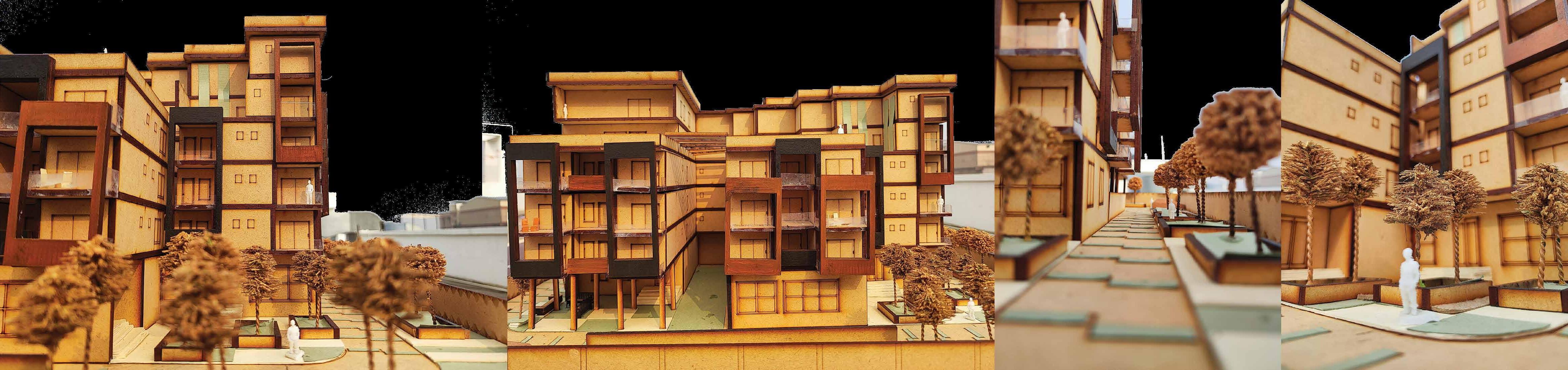

SMALL SCALE MODELS
33
