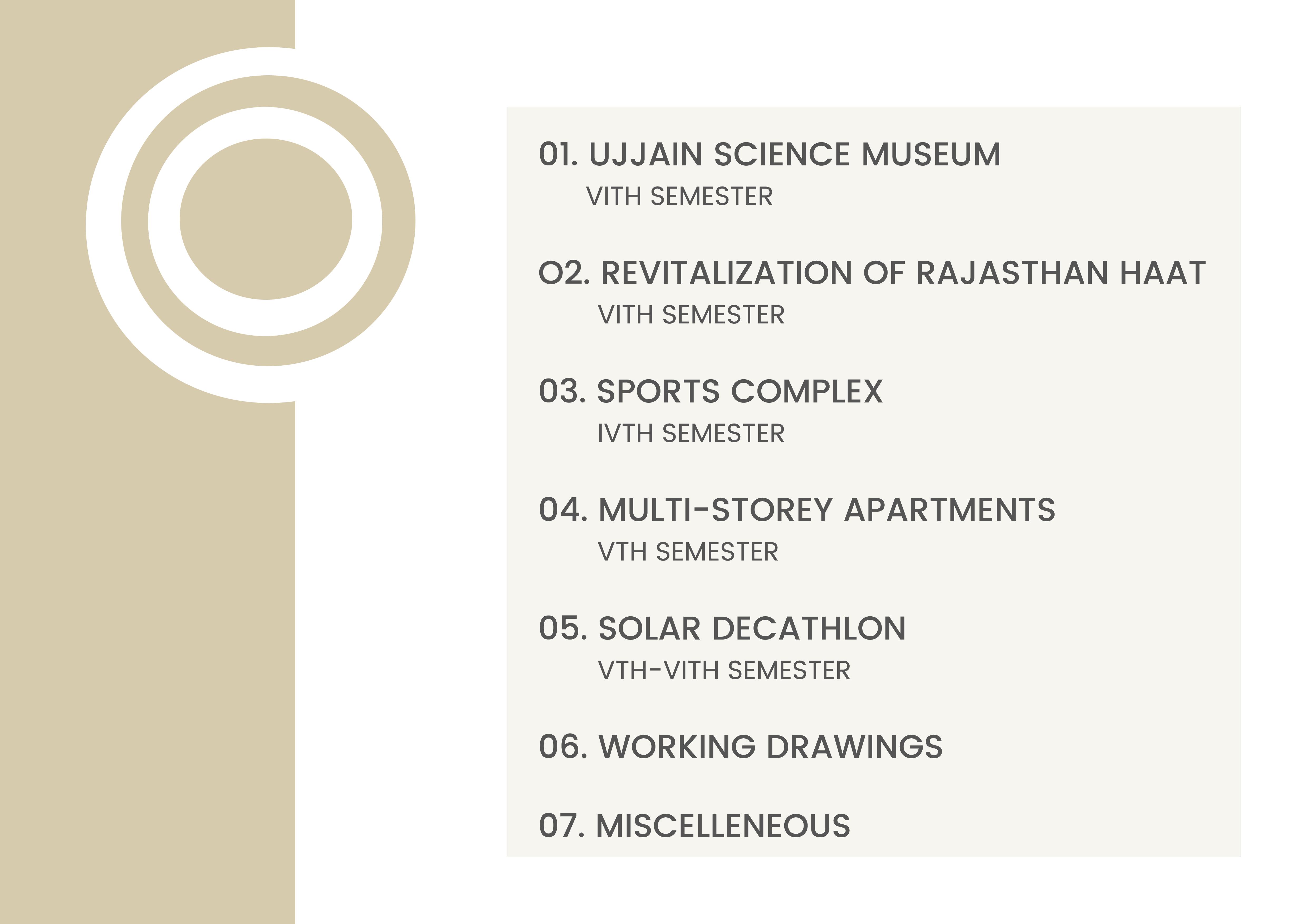

CONTENTS
PROJECT BRIEF
TYPE: ACADEMIC
YEAR: 3RD-2022
PROJECT: 6TH SEM DESIGN

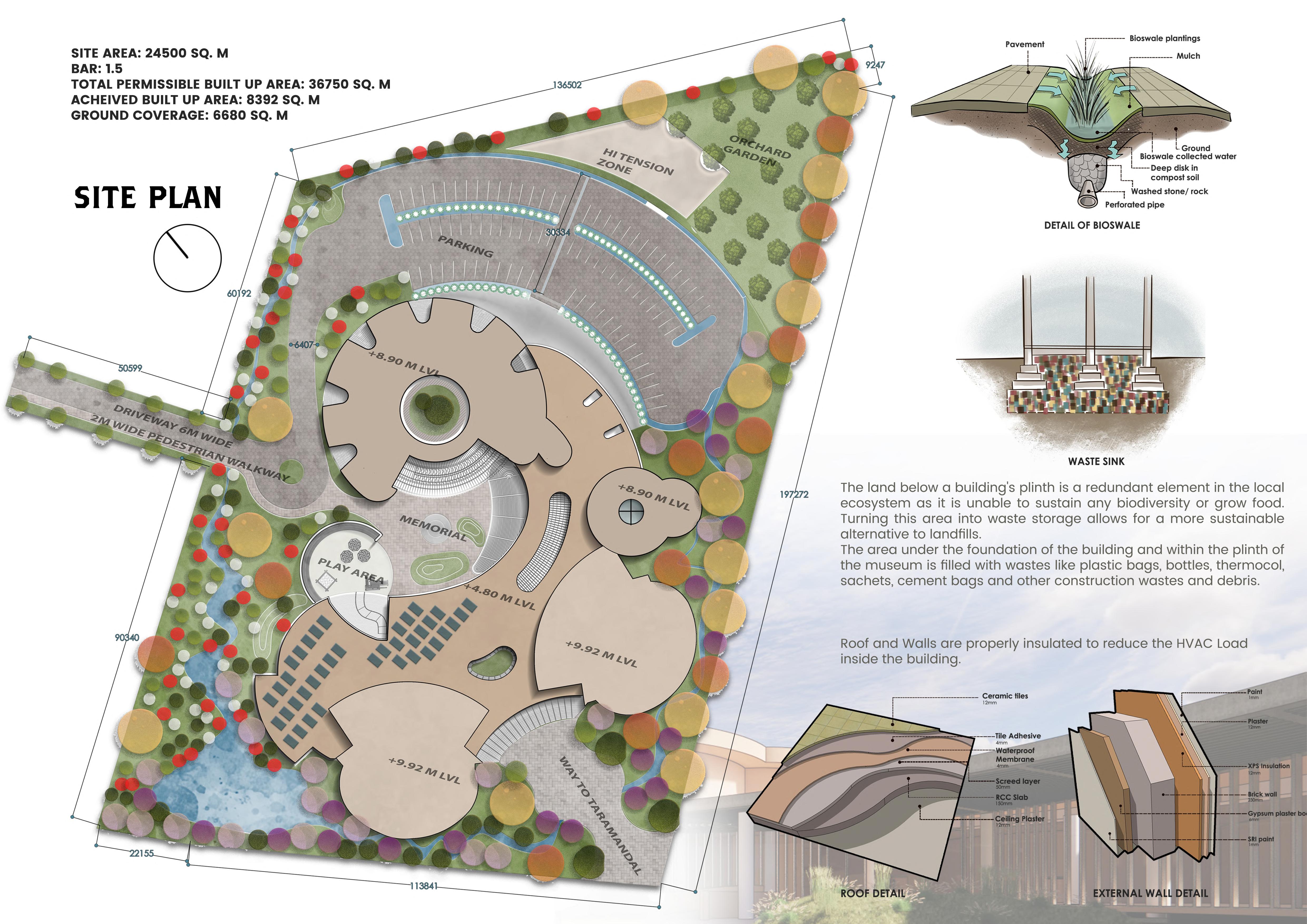

SITE: UJJAIN, MADHYA PRADESH TOTAL AREA: 24500 SQ M

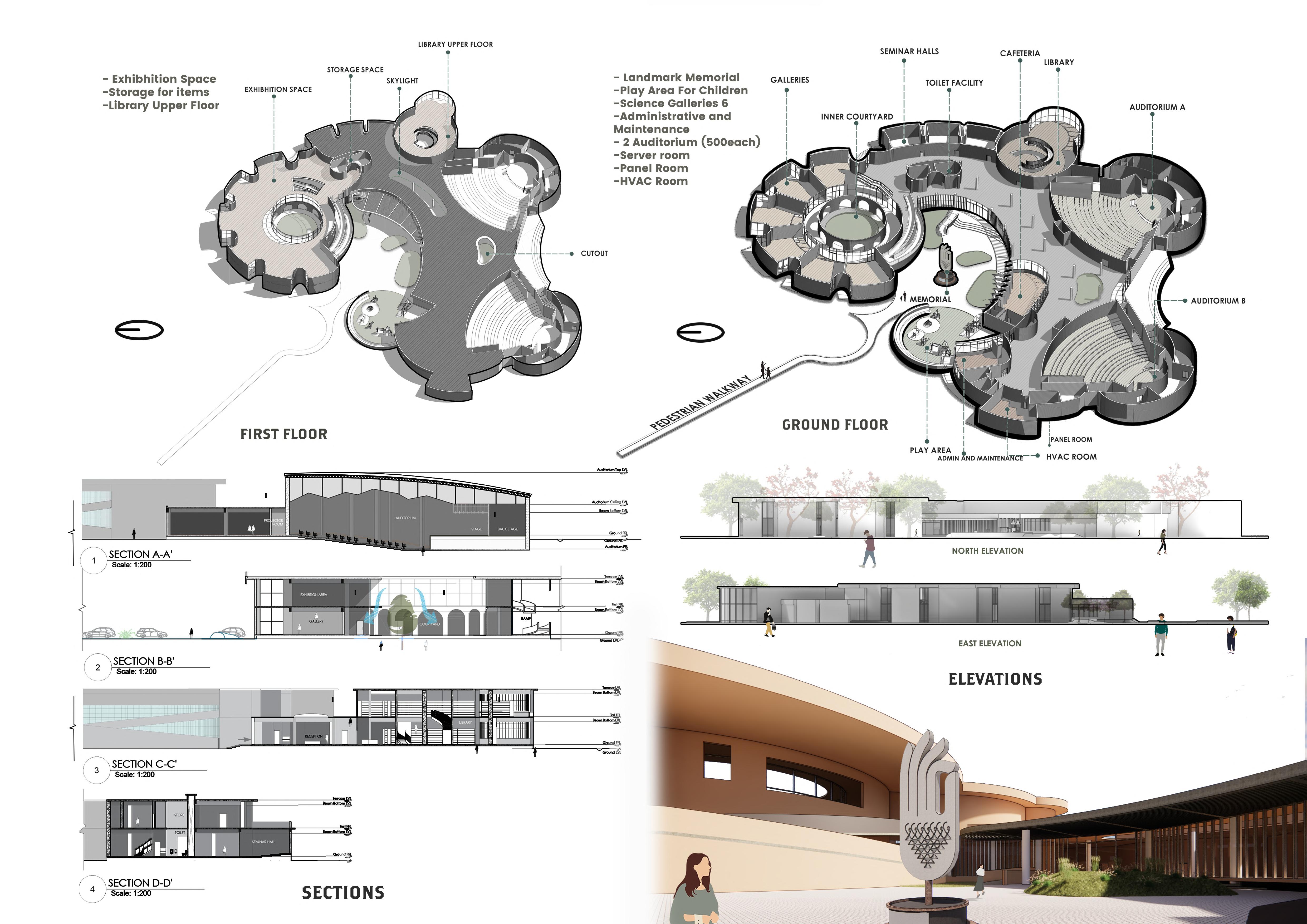

The project is in an important location within the planetarium complex. To this day, the majority of visitors are children. As a result, this project will bring many children as well as many more visitors who will learn about the struggles our brave scientists faced prior to independence.
Just how Mother earth nurtures the ground by blooming flowers and plants. How the earth’s plants and land dance to the beat of mother earth’s indication. The museum represents a foetus on the site. Water features on this property are made to flow around the site, much like a mother’s fluid nurtures her foetus while she/he is in the womb..”

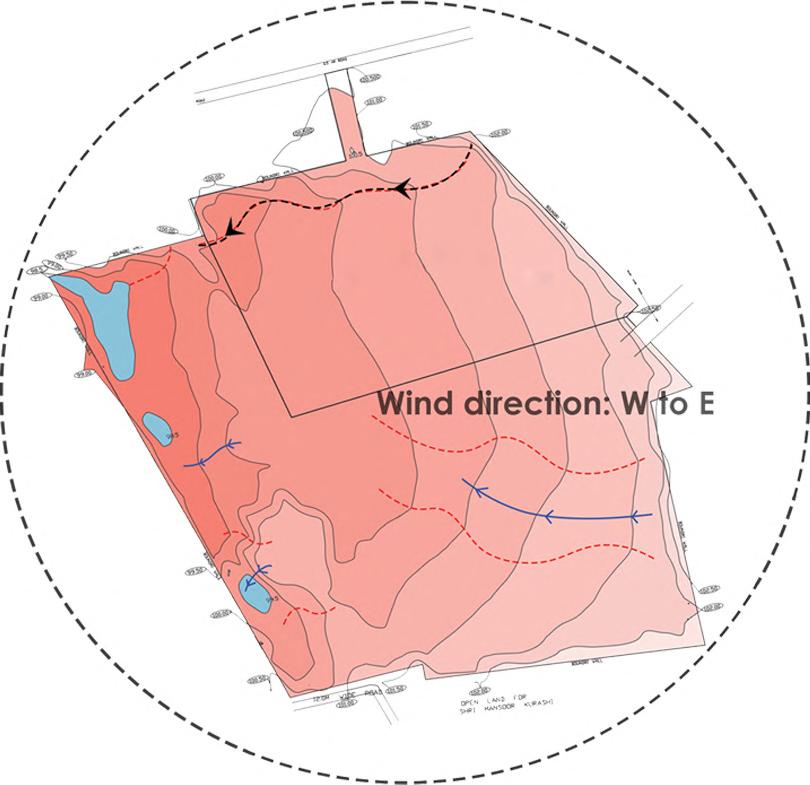

BUILDING CONCEPT: HYDROLOGY:
No drainage system provided. But ridge through contours can be used to collect and run water as marked.

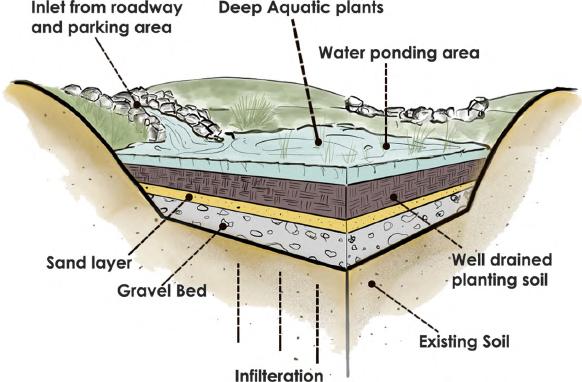

The lowest terrain can be used as an ecological pond that collects all site water.
The project consists of all the site water collected at a particular area as an eco logical pond through channels throughout the periphery of the proposed site.

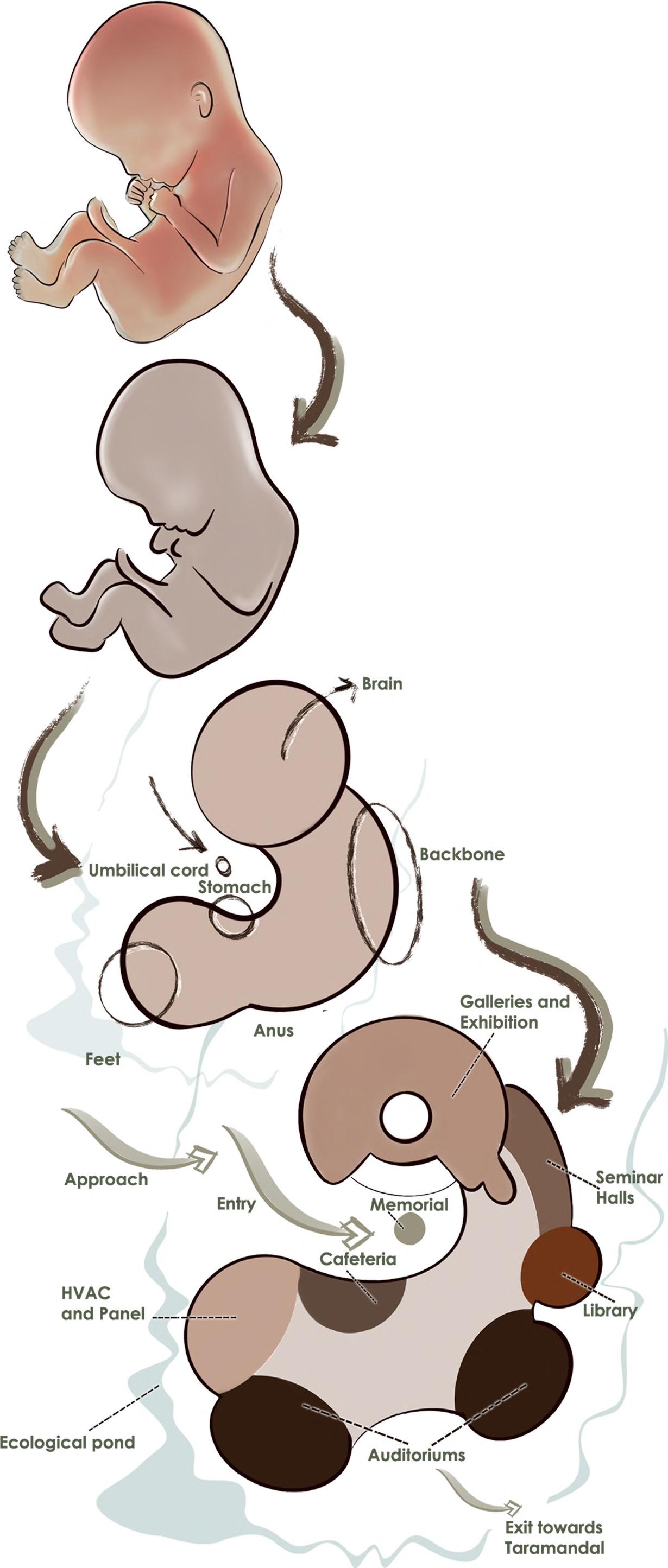

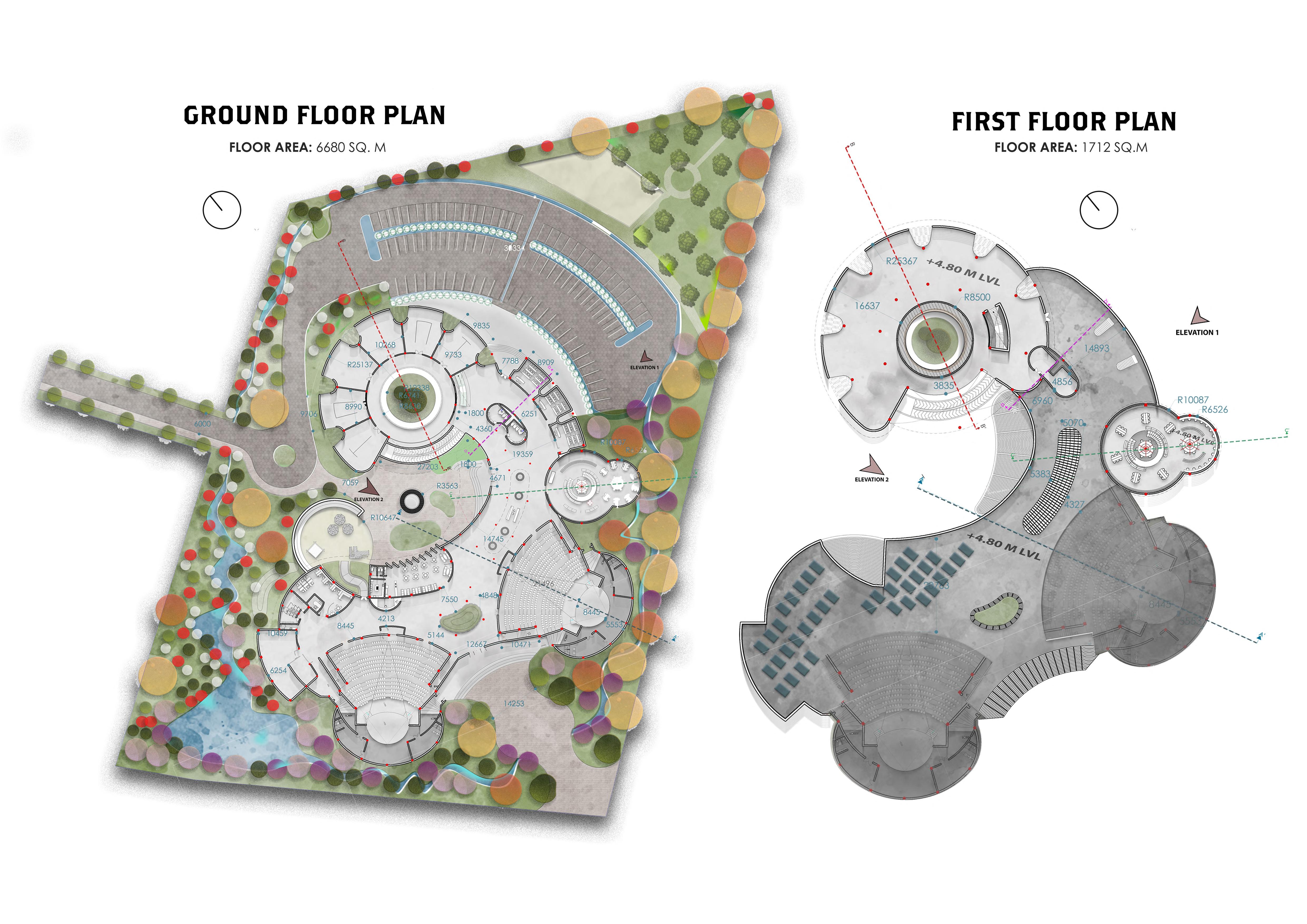

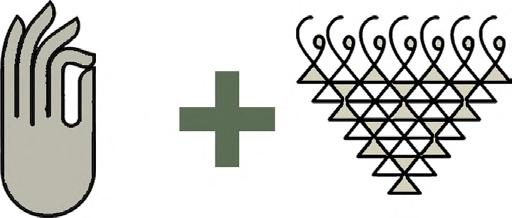

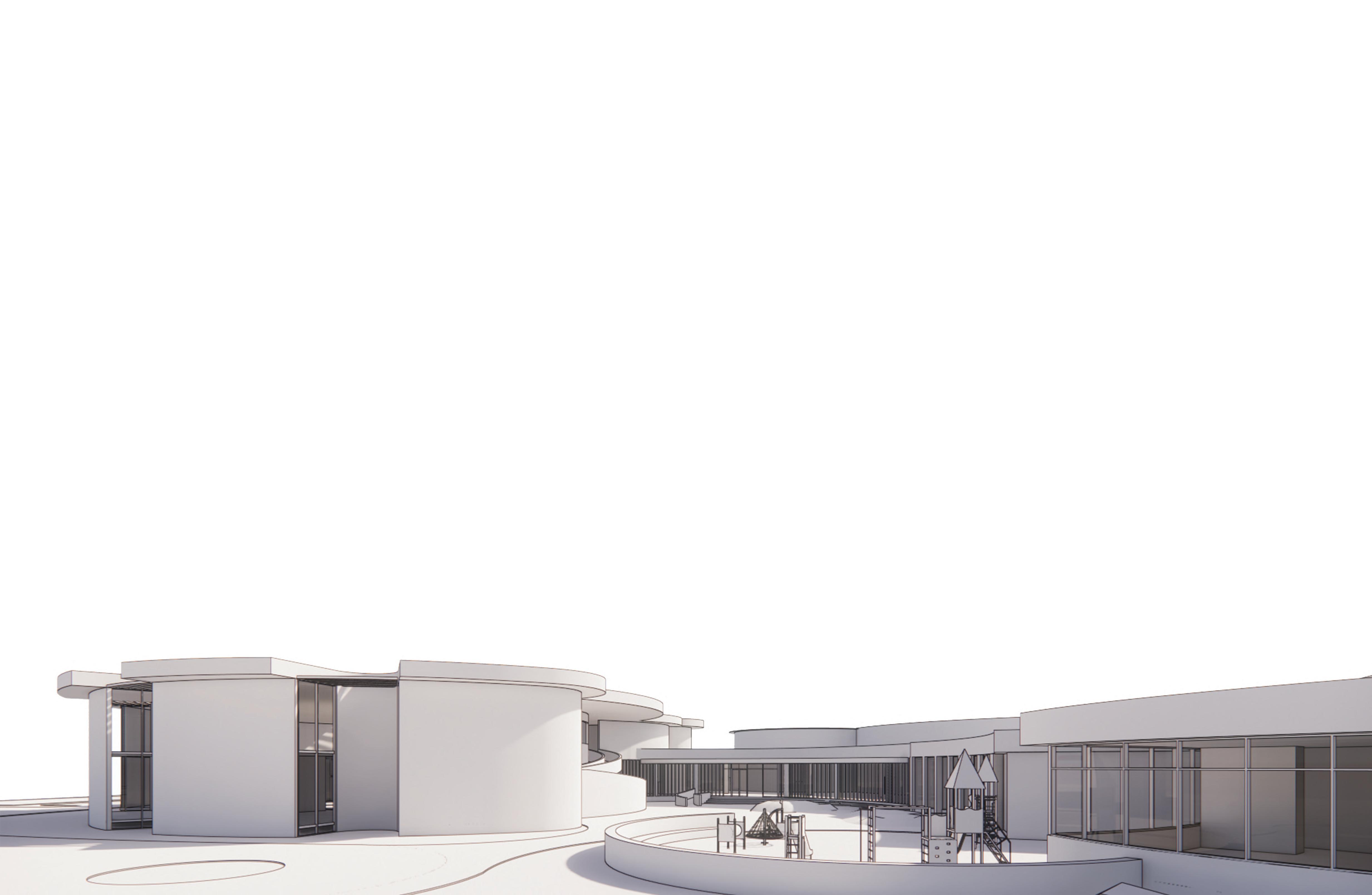

Our building form is inspired by the foetus. The design is fluid and with clear path ,will help visitors explore more without any confusion .
The form resembles the foetus as follows:
The brain - Art gallery and Exhibition
Umbilical cord - The main entrance
Backbone - Seminar Hall, Auditorium and Li brary
Stomach - Cafeteria
Anus - Exit towards the Taramandal

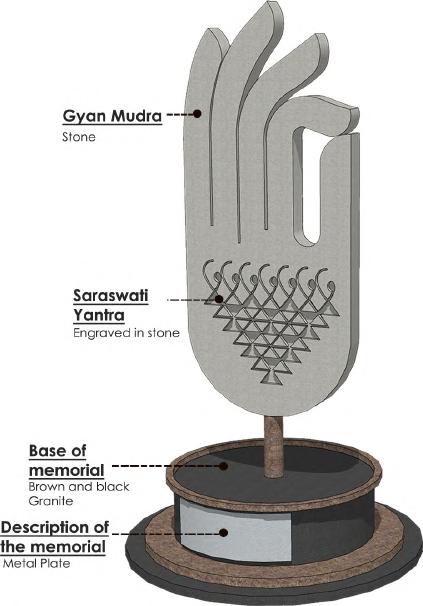

The feet releases energy so the HVAC and panel room are provided there. Hand receives energy so the memorial is placed in there.
PROJECT
BRIEF
TYPE: ACADEMIC
YEAR: 2ND-2021
PROJECT: 4TH SEM DESIGN
SITE: Behind Gargi girls hostel, Jaipur Rajasthan.
TOTAL AREA: 7200 SQ M
The aim of the project was to create on in door sports complex for the use of college students as well as sportspersors across Jai pur, it is not to be a complex only for the university
The task was to design the project to accomodate all the provided list of sports and games within the limited BAR, with comfortable and appropriate circulation. 35% of ground coverage for built up area is allowed and minimum circulation of 30% required on ground. The requirements for the sports complex included basketball court, skating rink shooting range, kabaddi court, 2 lawn tennis courts. A badminton courts, 2 squash courts, medita tion and yoga room, too kwondo, juda, karate, baxing room, 11 room chess and carom room, cafe, swim ming pool, guest houses and some other amenities.

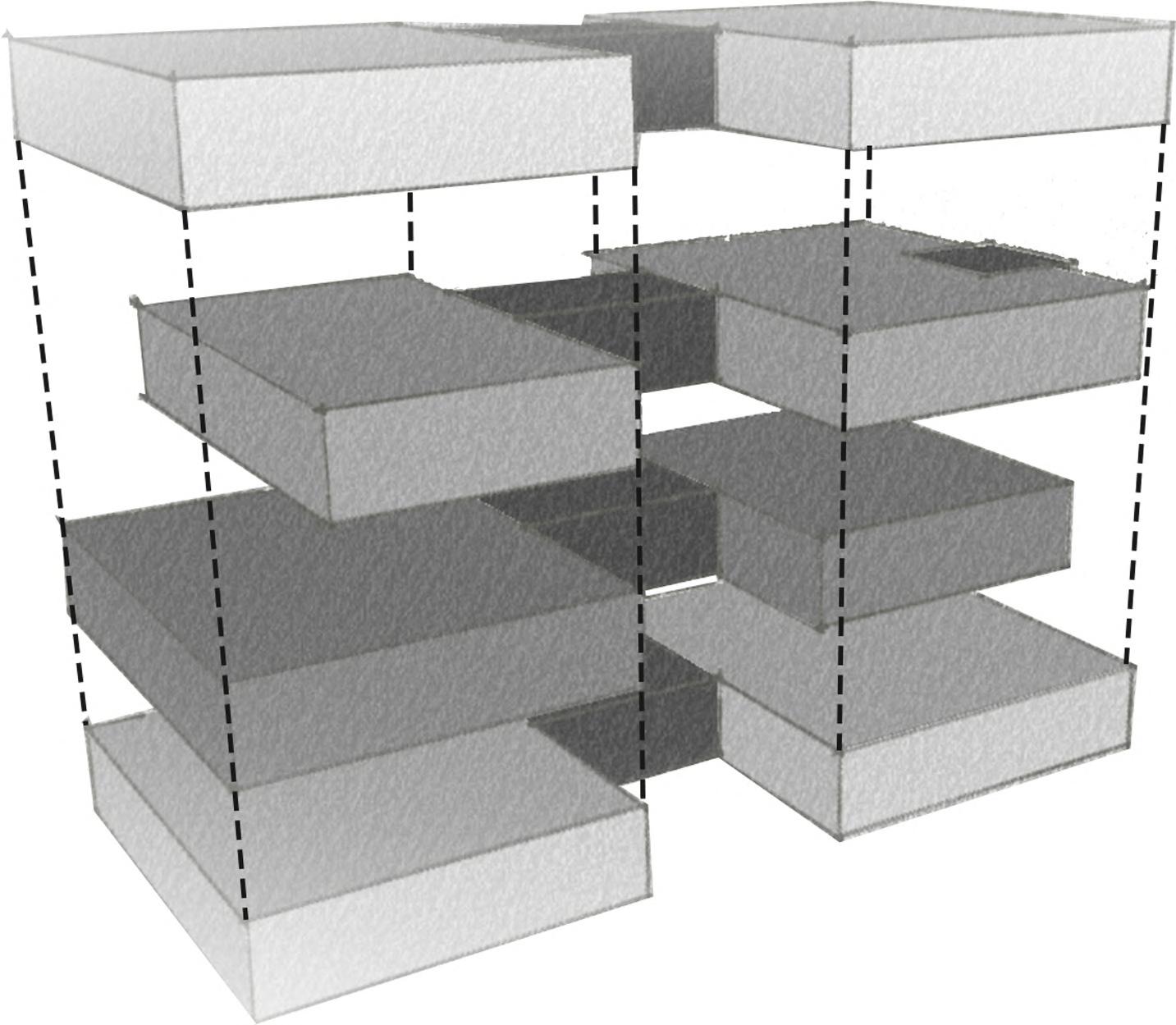

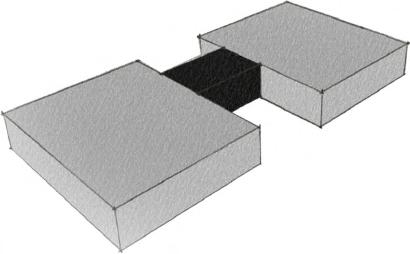

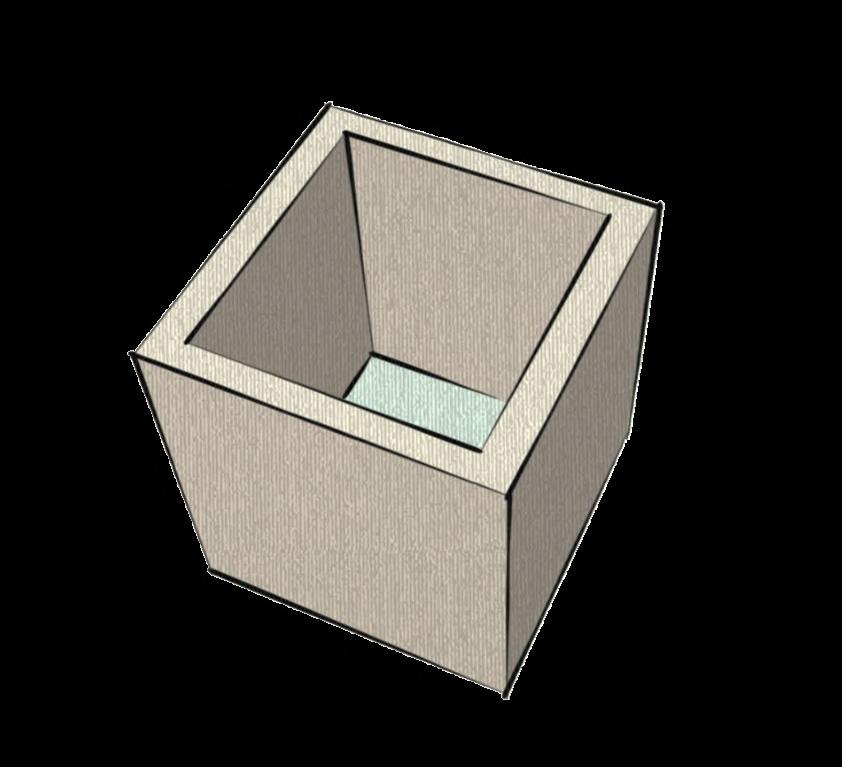

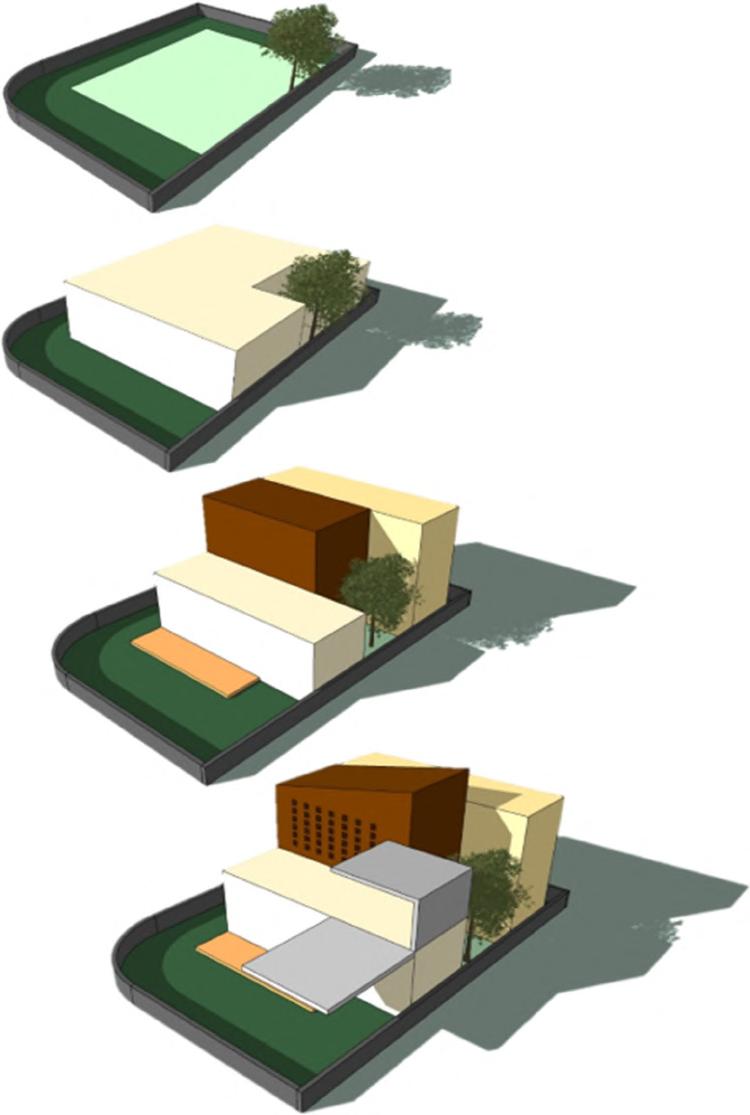

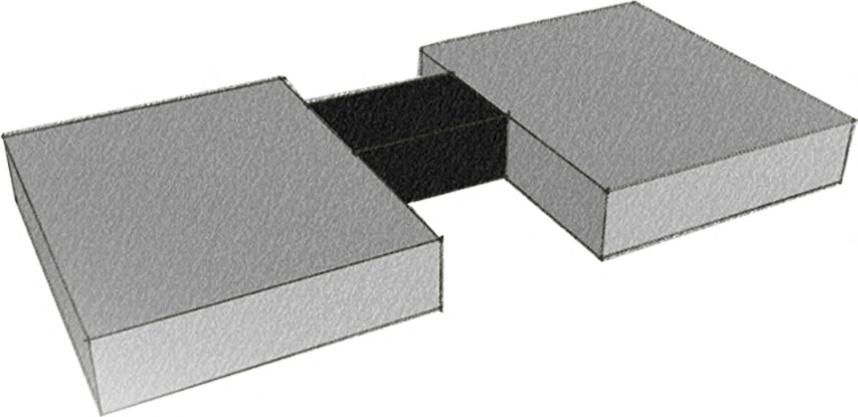

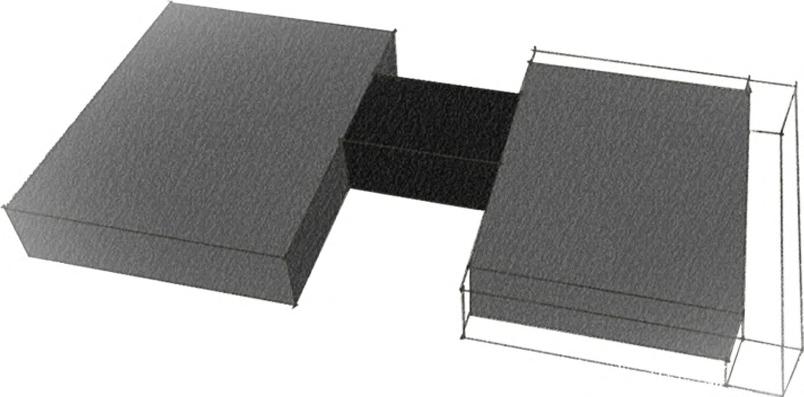

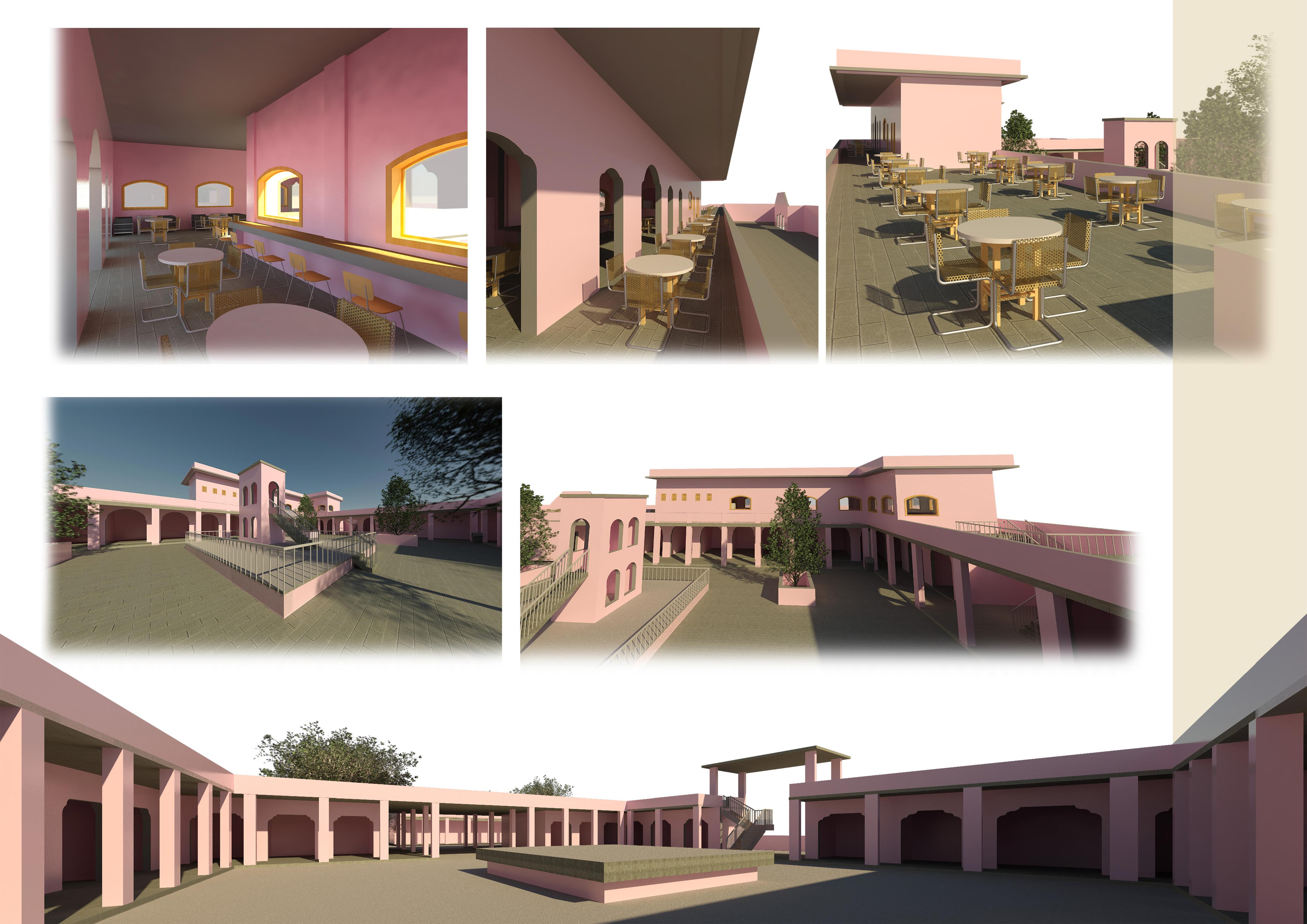

Massing of the blocks substraction and addition in blocks.

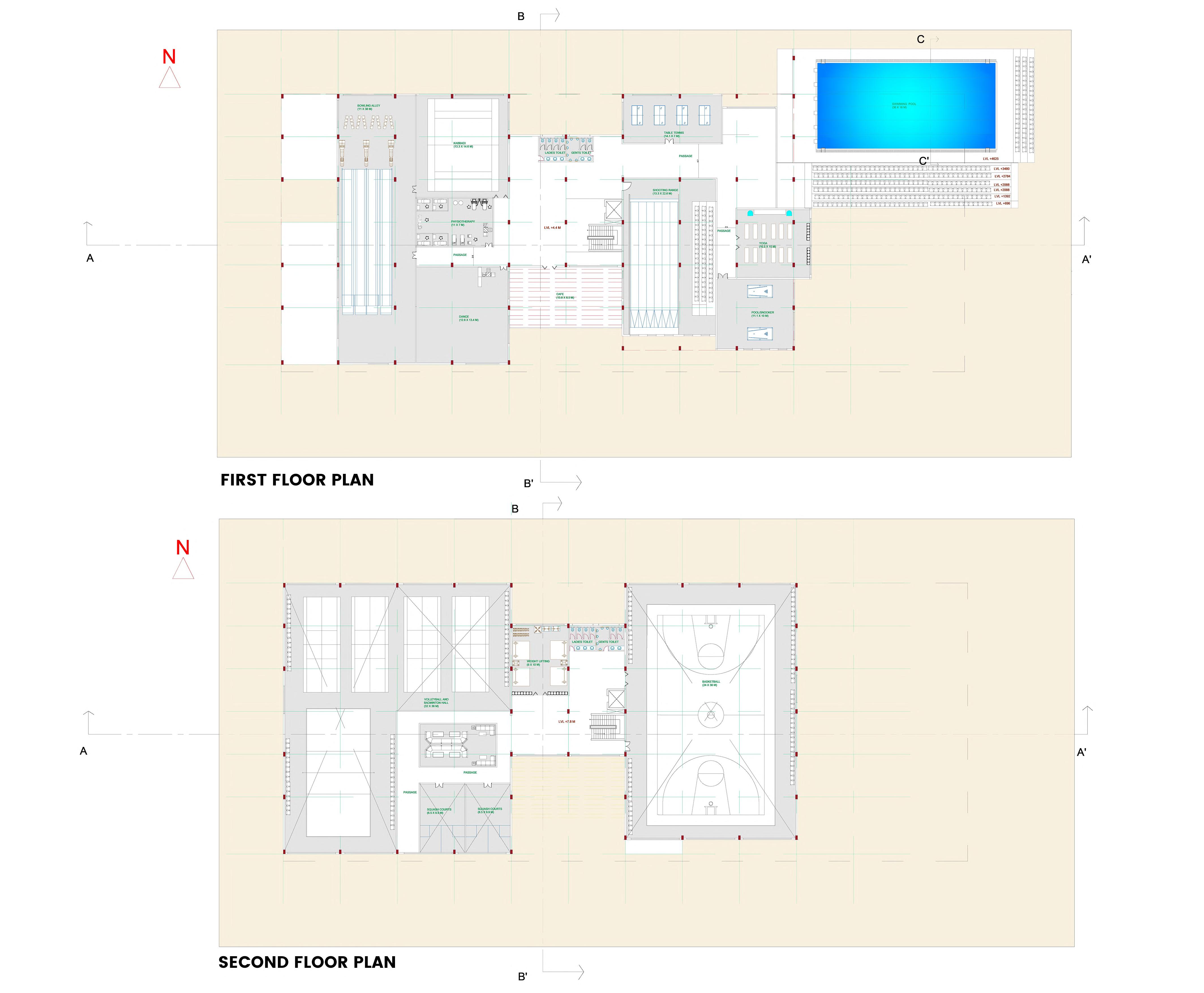

Floorwise placement
Circulation block (vertical circulation)

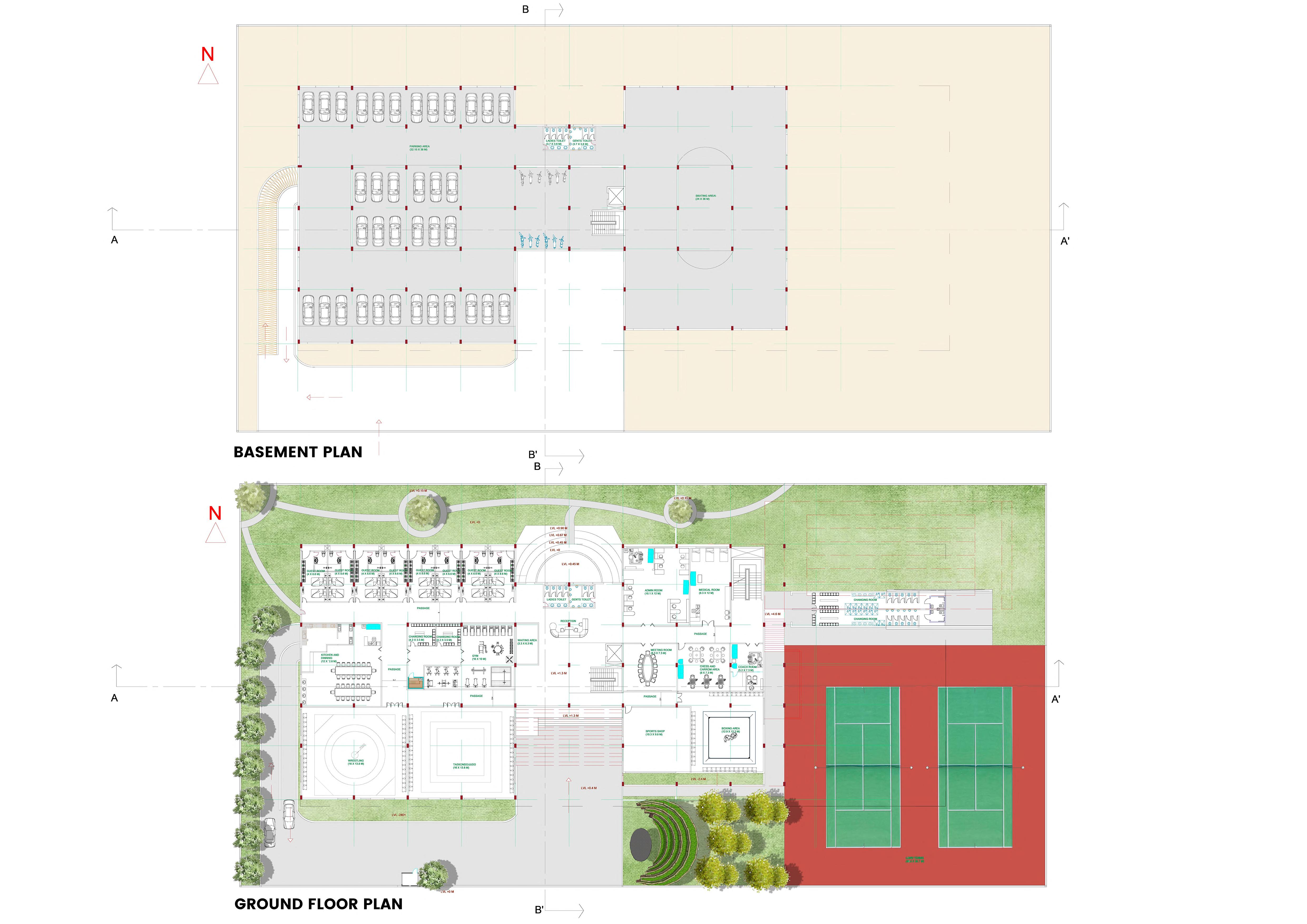

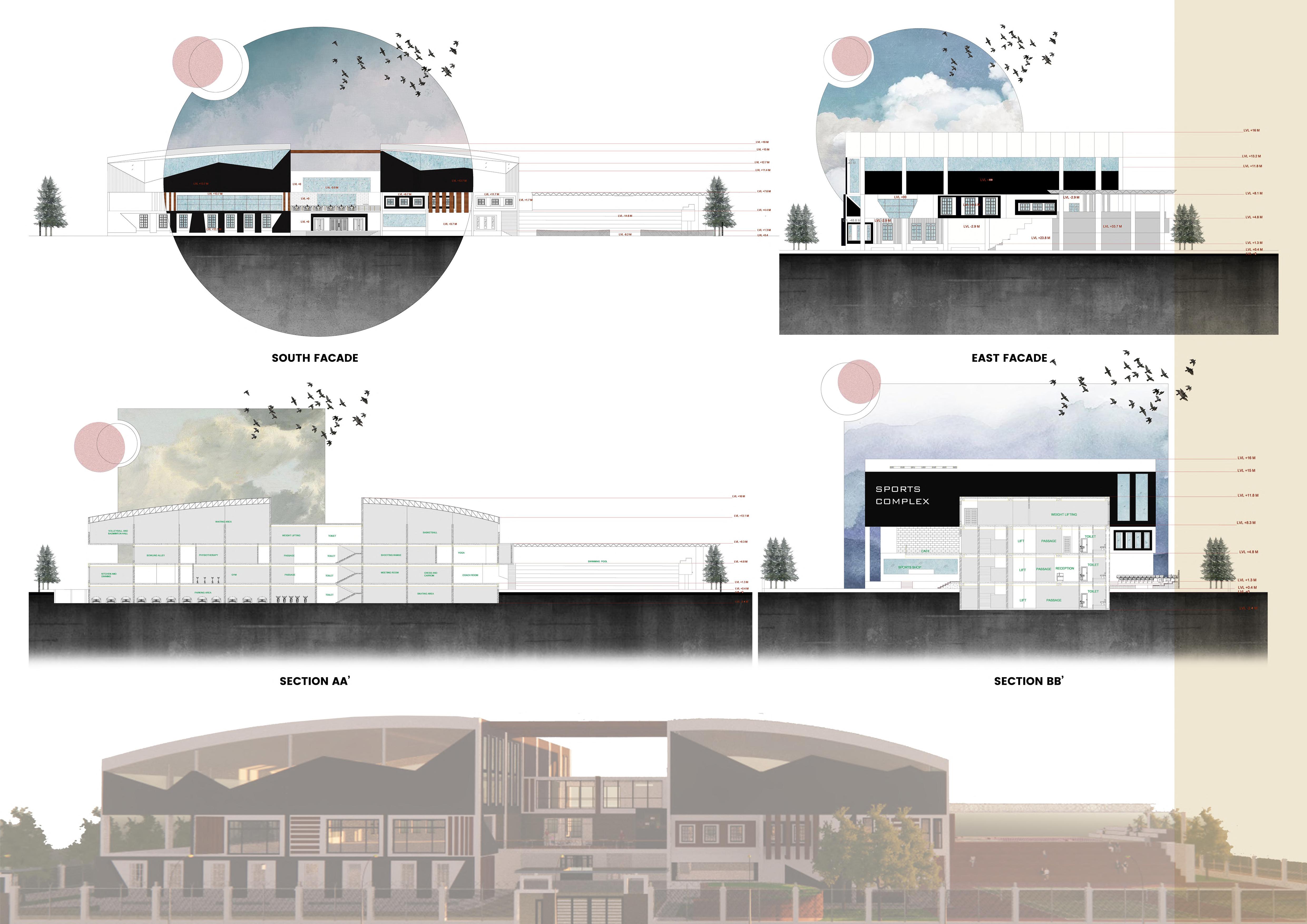

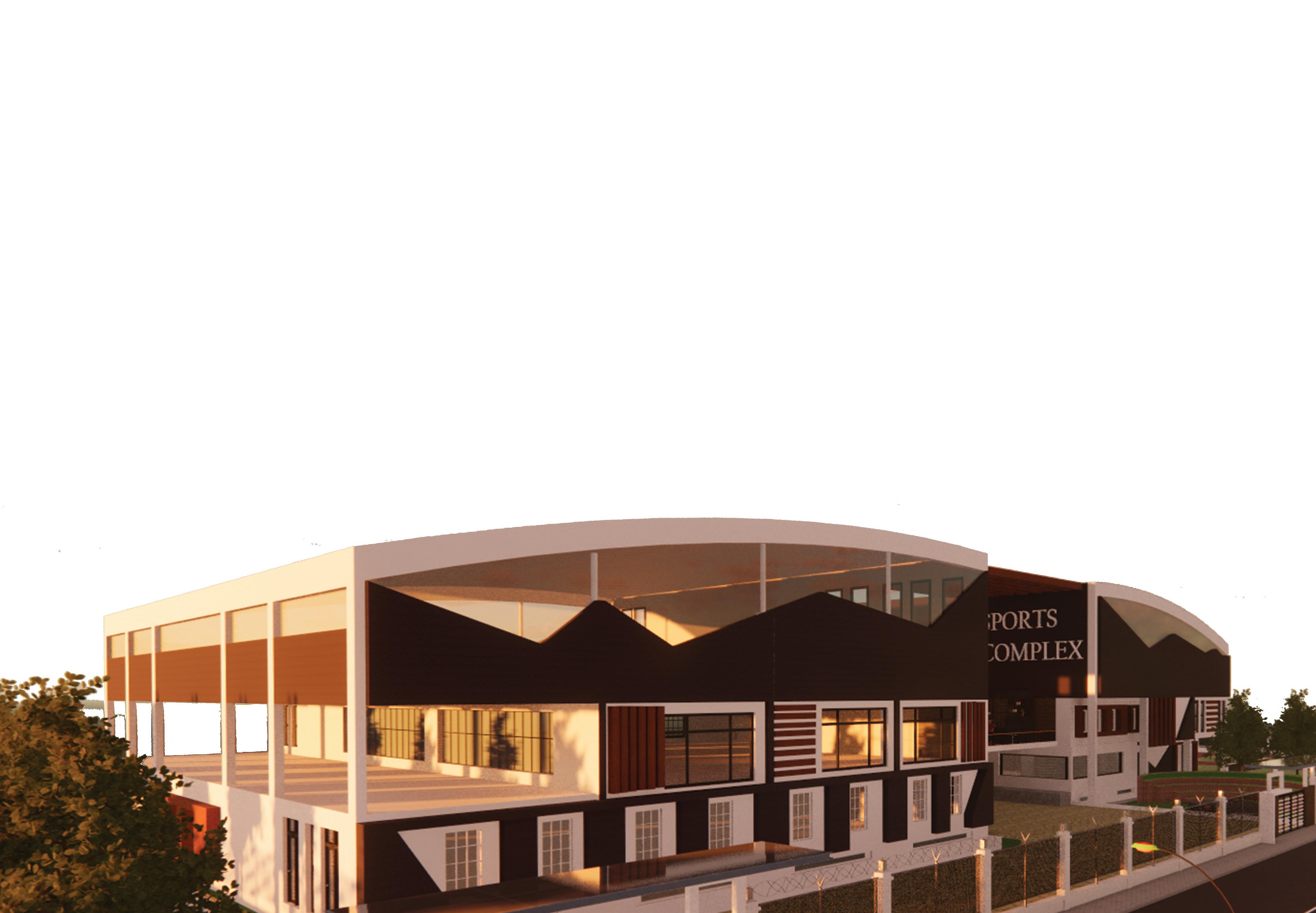

INDOOR SPORTS COMPLEX 03
PROJECT BRIEF
TYPE: ACADEMIC
YEAR: 3RD-2021
PROJECT: 5TH SEM DESIGN
SITE: JAGATPURA, JAIPUR
TOTAL AREA: 3100 SQ M

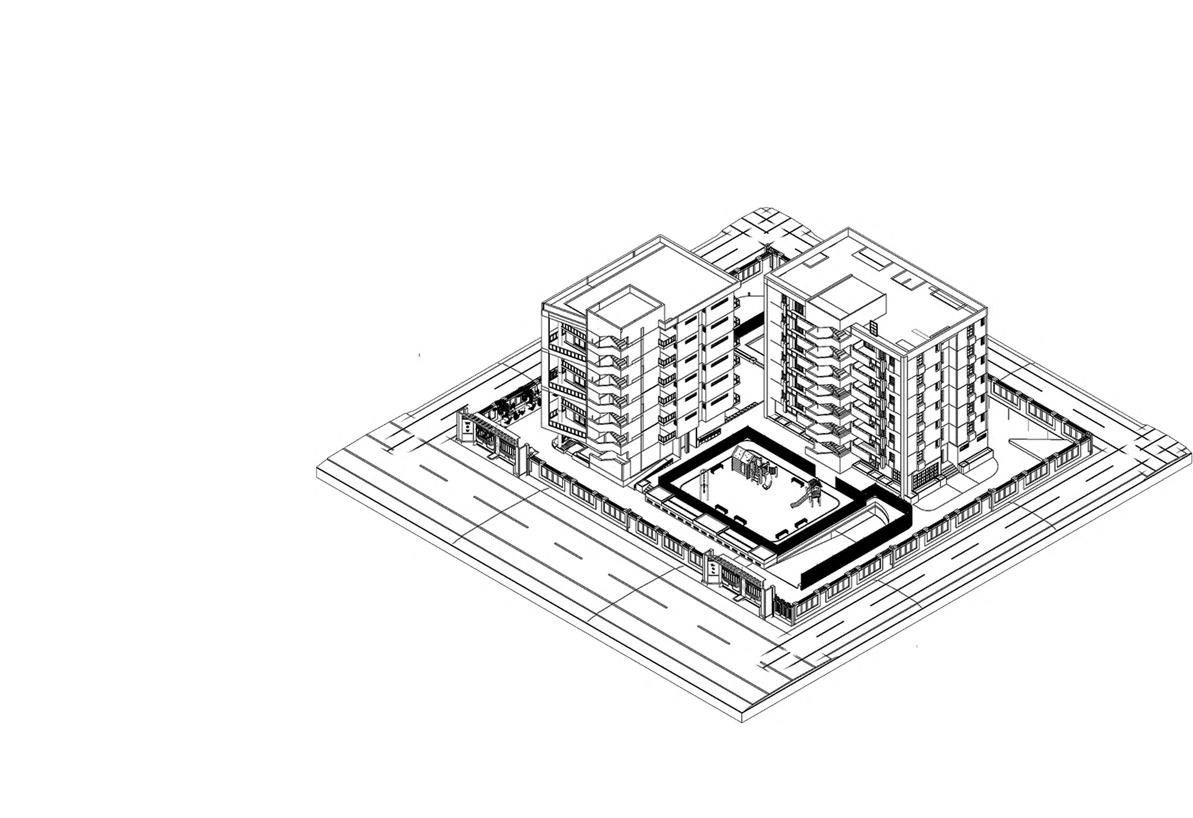

The project located in Jagatpura, demands a luxury multi family housing with all basic amenities and some common activities.
The site is near airport, so there is height re striction for the particular zone. Permisible height for the project is 24m with a BAK of 2. Maximum ground coverage aloted is 40% of the site area i.e 1240 sqm. Site circulation of 35% and landscape area of 20% is permitted.

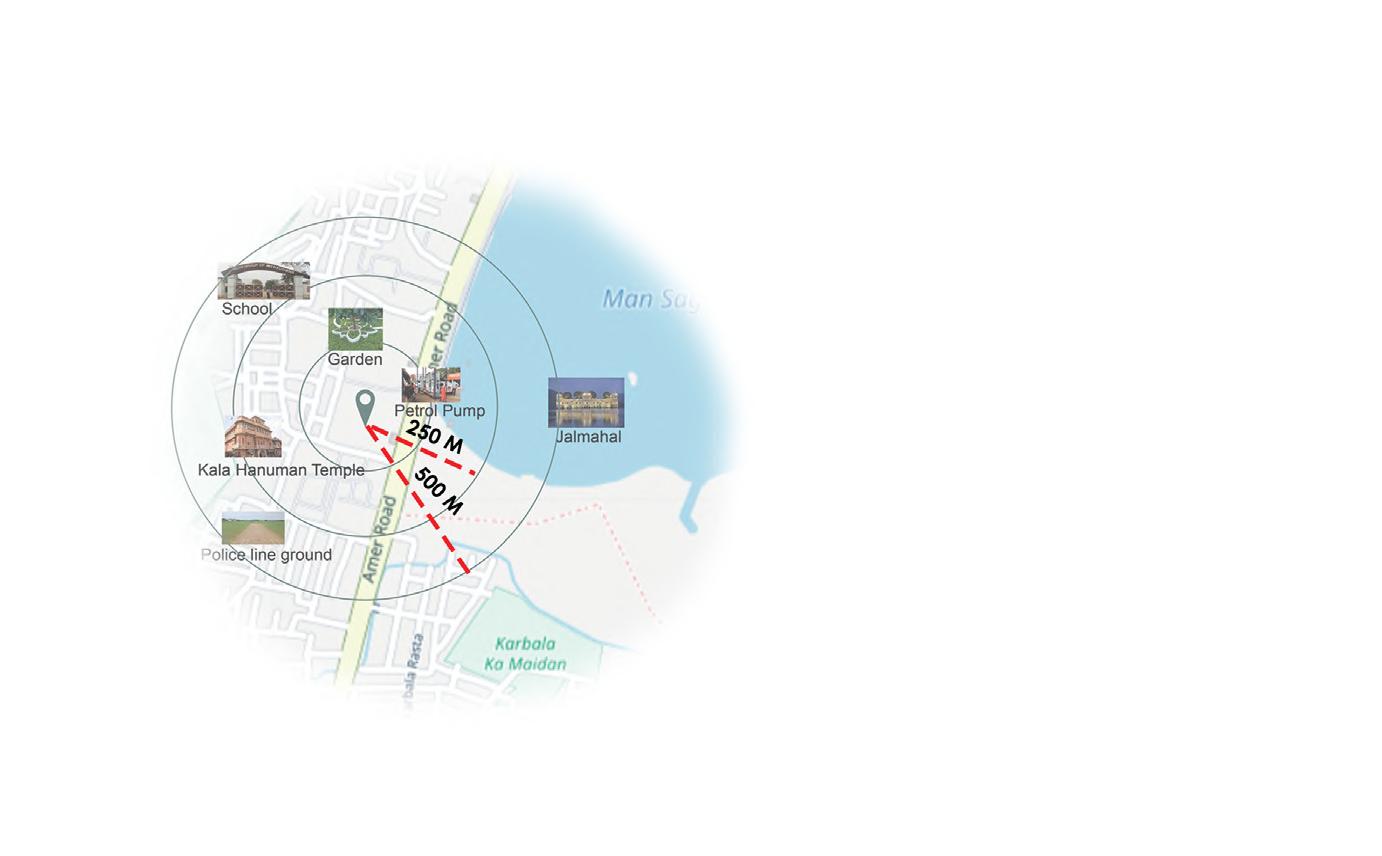

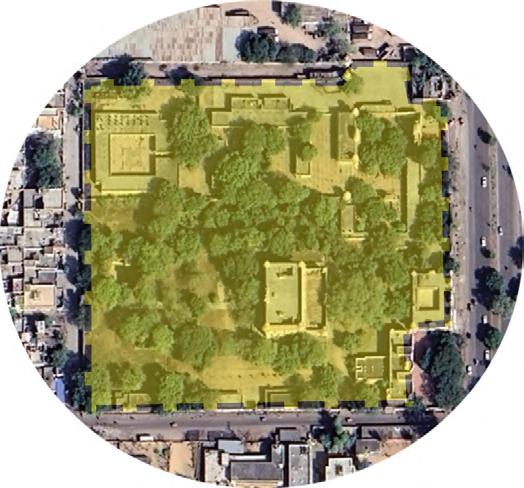

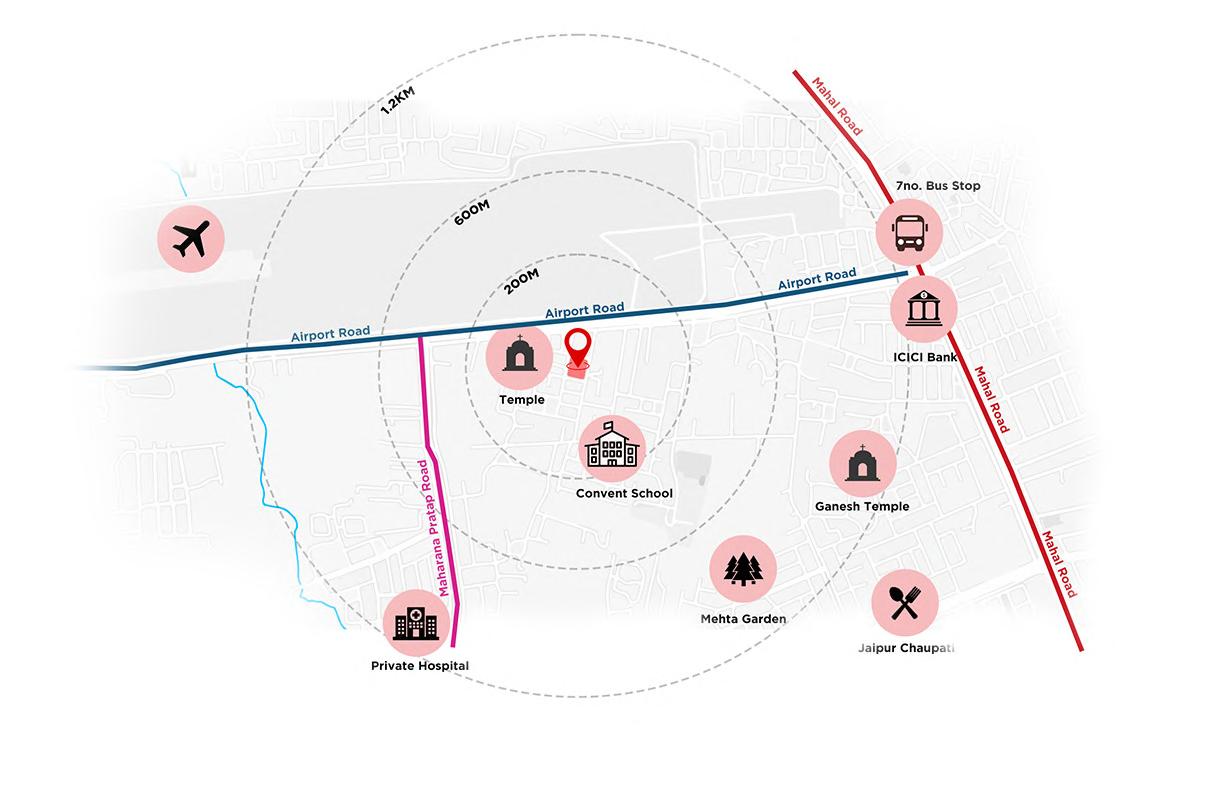

SITE AND NEIBOURHOOD ANALYSIS

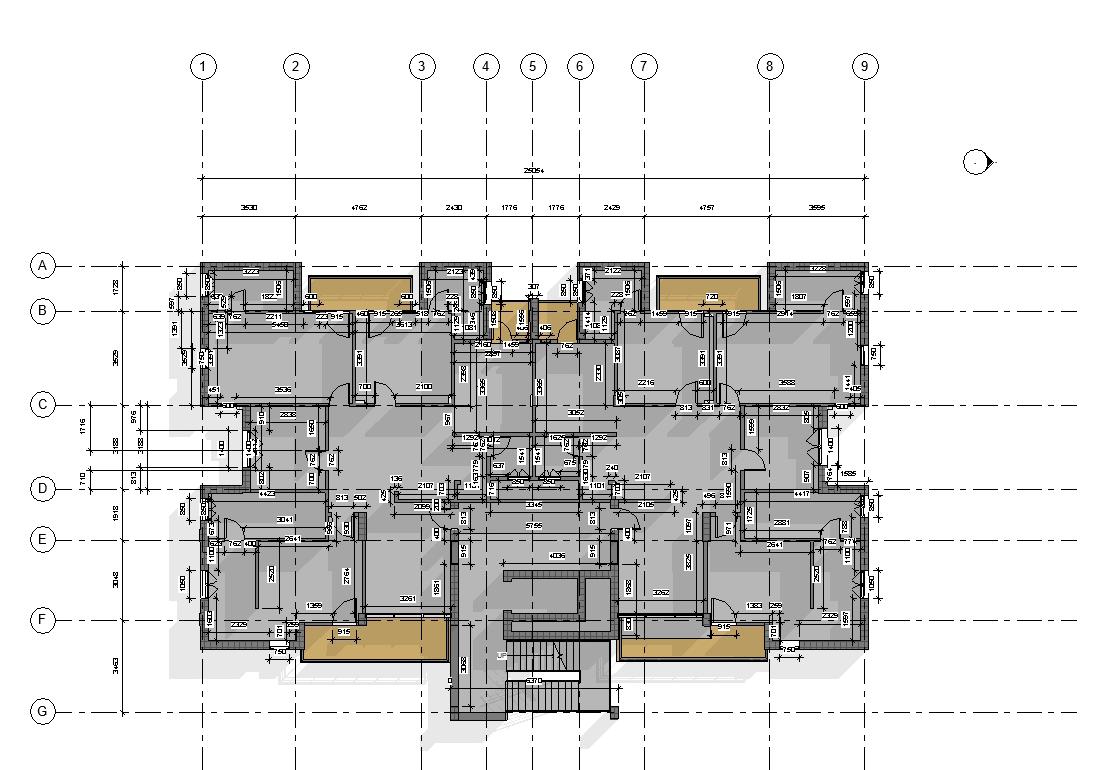

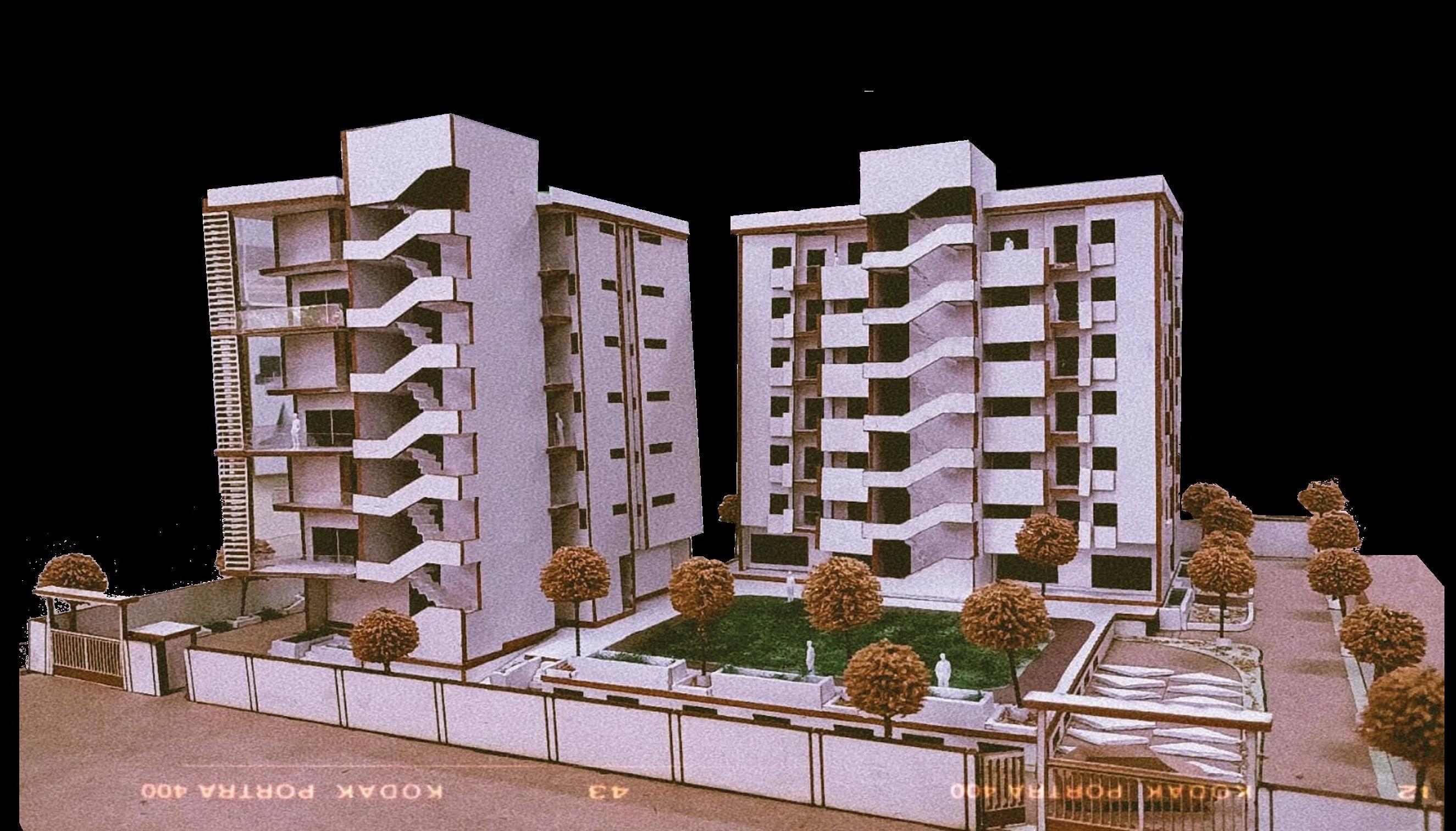

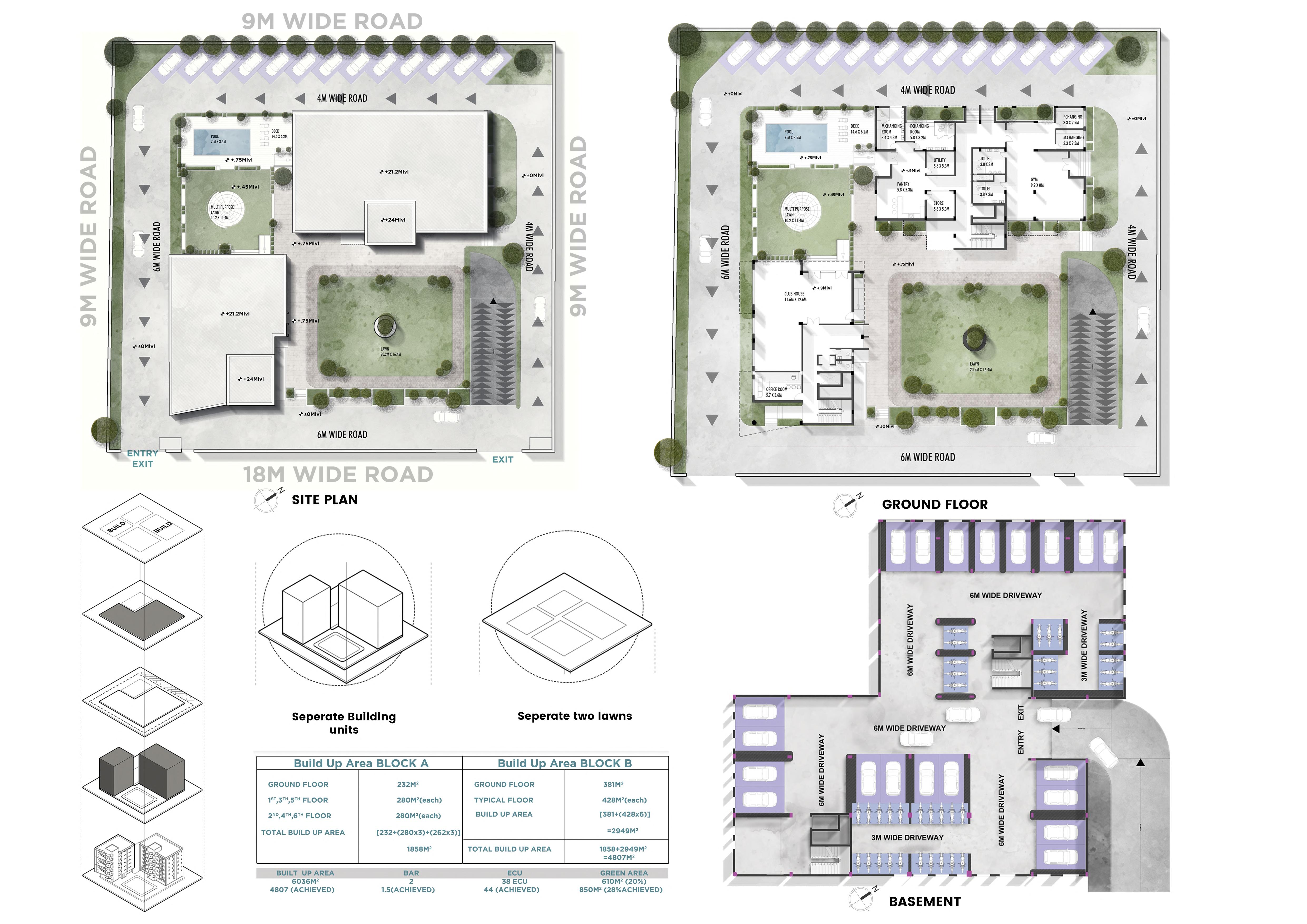

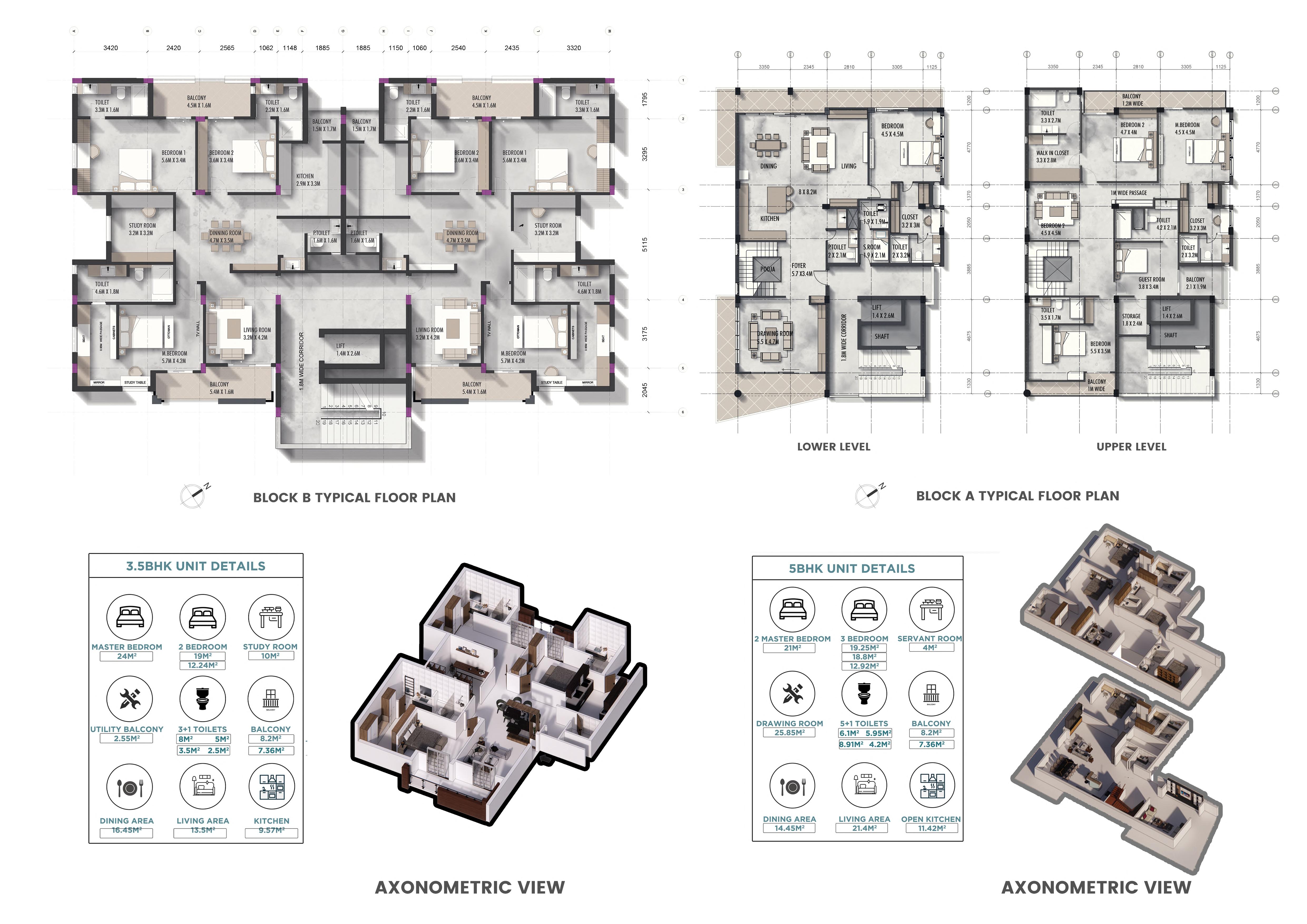

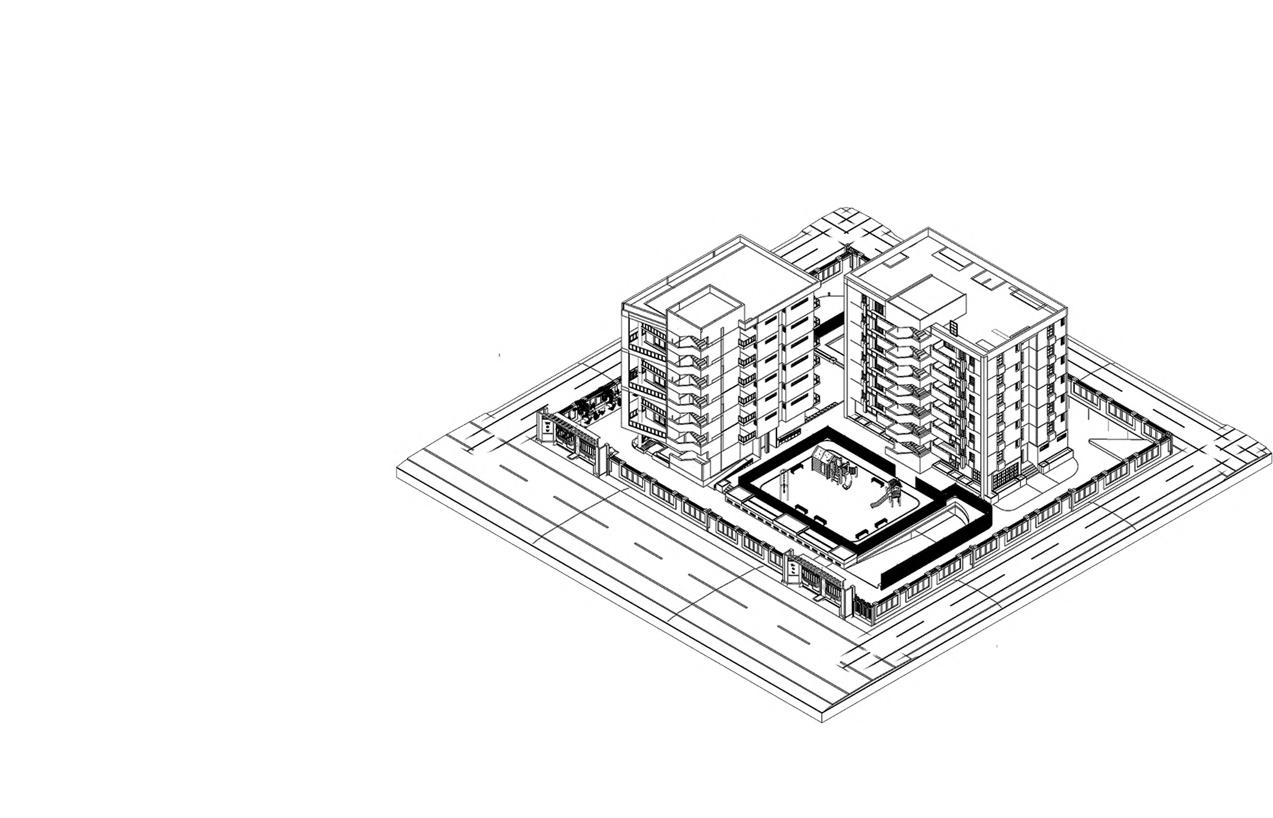

MULTI-STOREY APARTMENTS 04

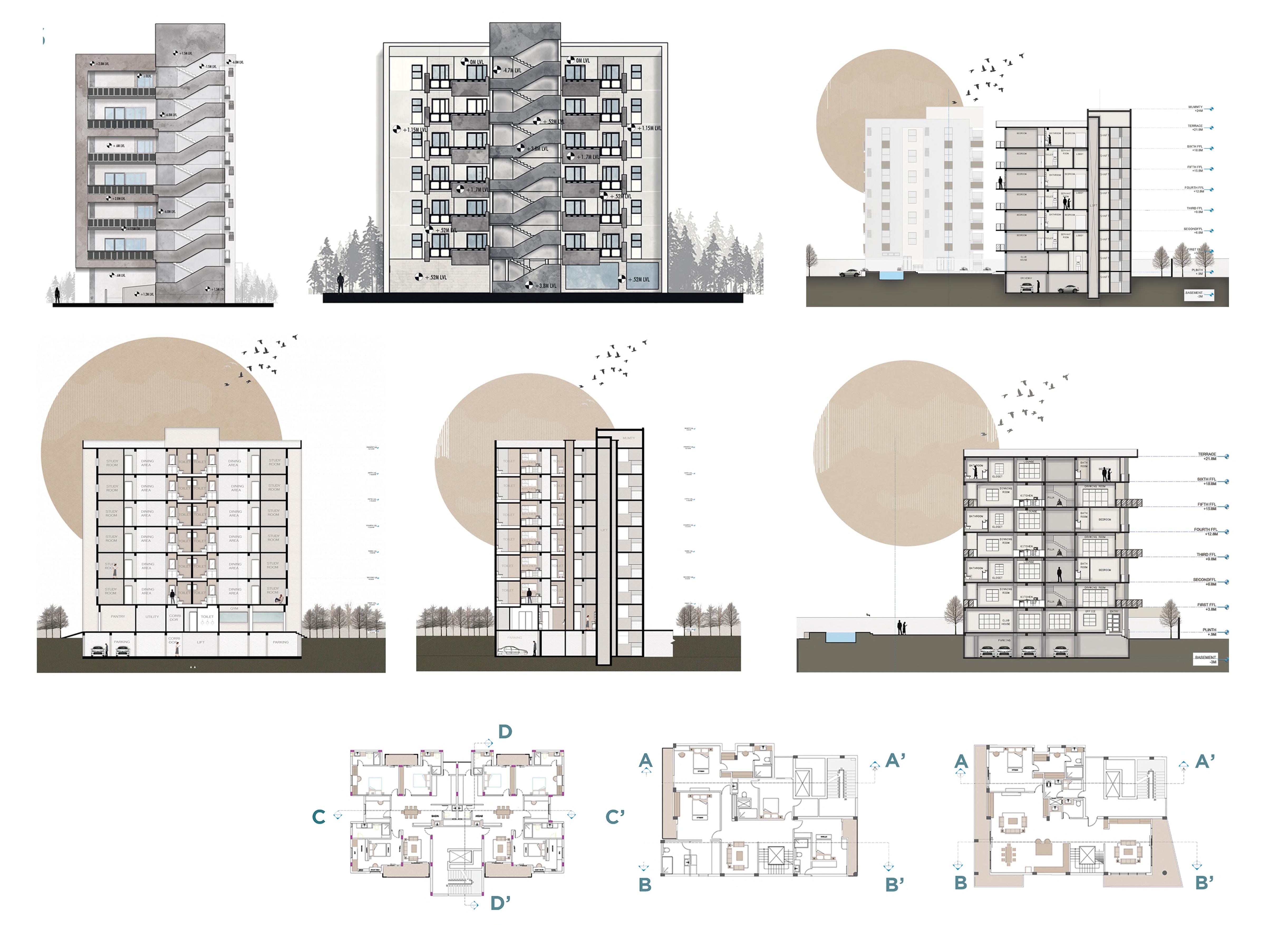

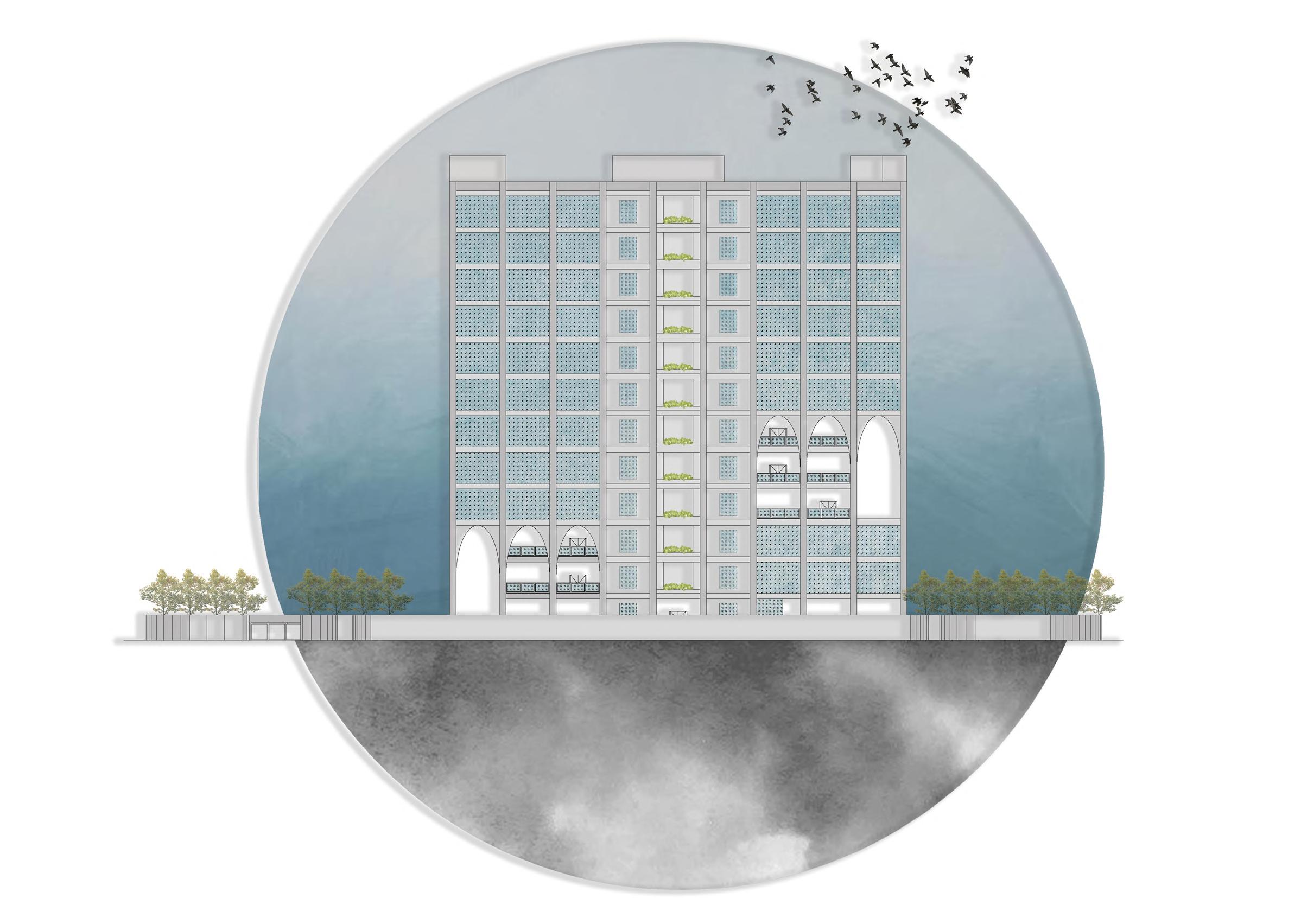

ELEVATION A BLOCK ELEVATION B BLOCK SECTION AA’ SECTION BB’ SECTION CC’ SECTION DD’ KEY PLANS:
PROJECT BRIEF
TYPE: COMPETETION YEAR: 3RD-2021
PROJECT: 5TH SEM- 6TH SEM
SITE: AKSHAT KANOTA, JAIPUR, RAJASTHAN.
TEAM MEMBERS: AVINASH KUMAR, SANSKAR CHATURVEDI, AAKANGSHA ROY, RETESH KUMAR, KAMNA MISHRA, ISHA KARODI, YASHRAJ SINGH, ANKIT VERMA

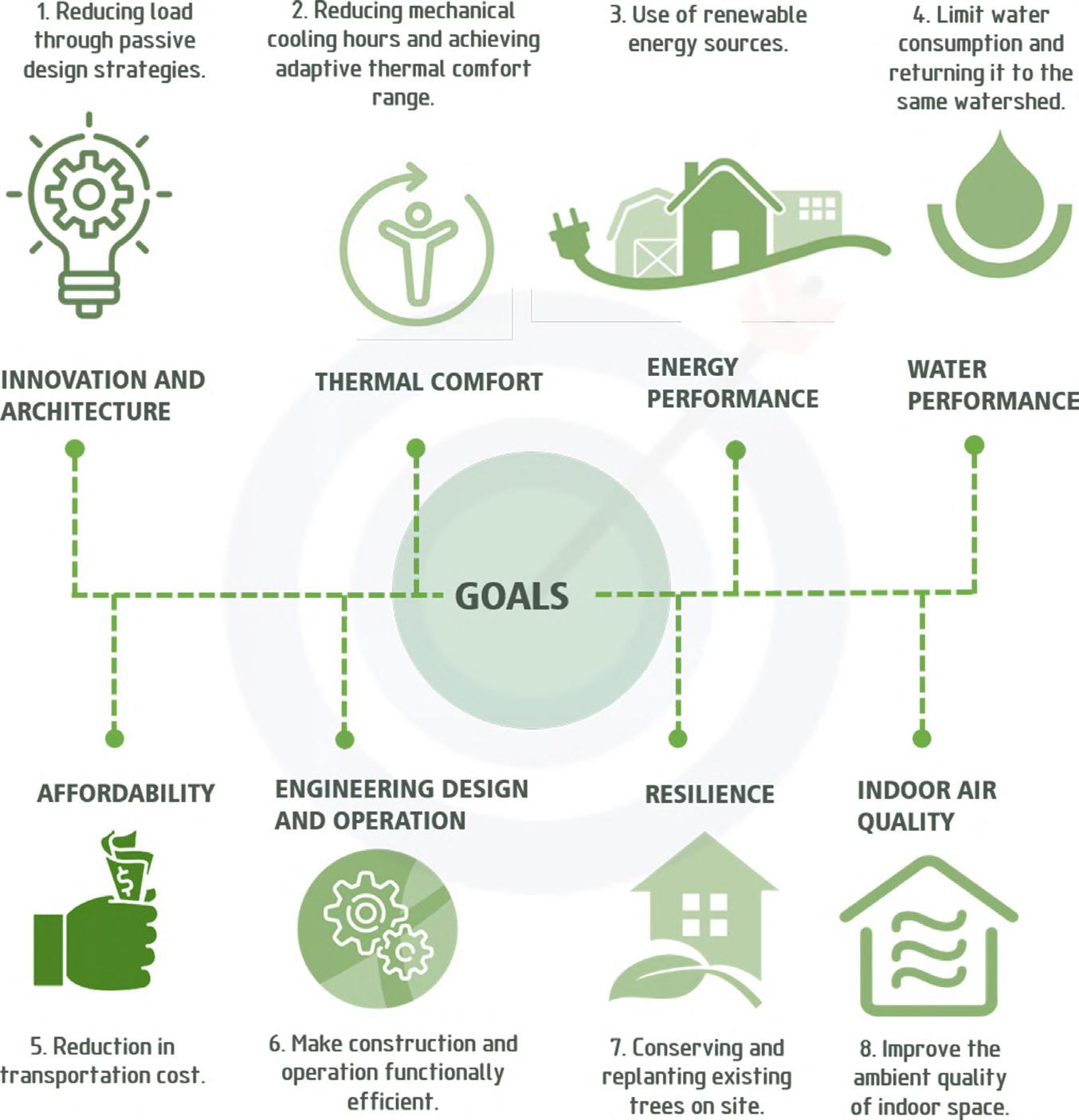

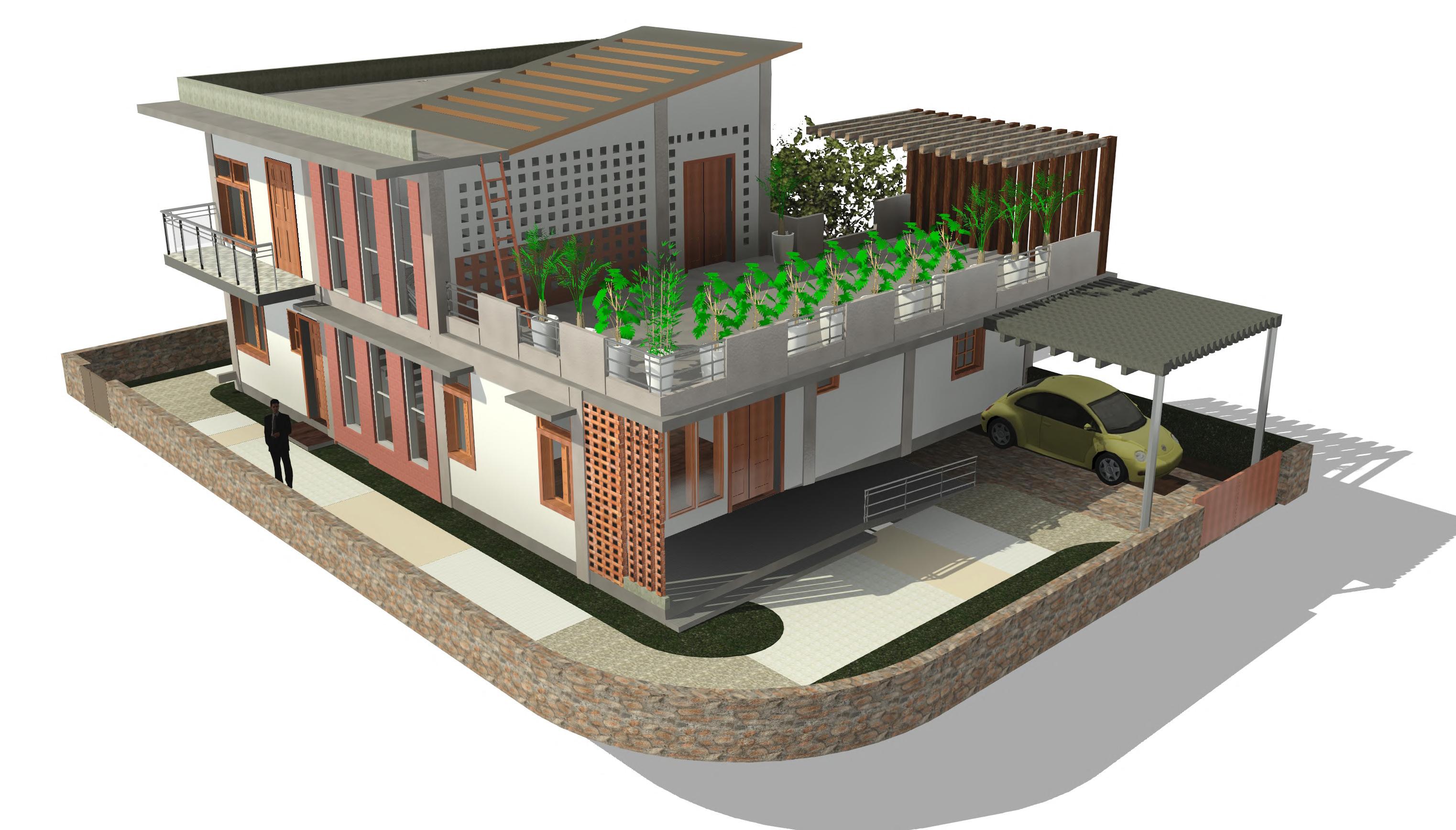

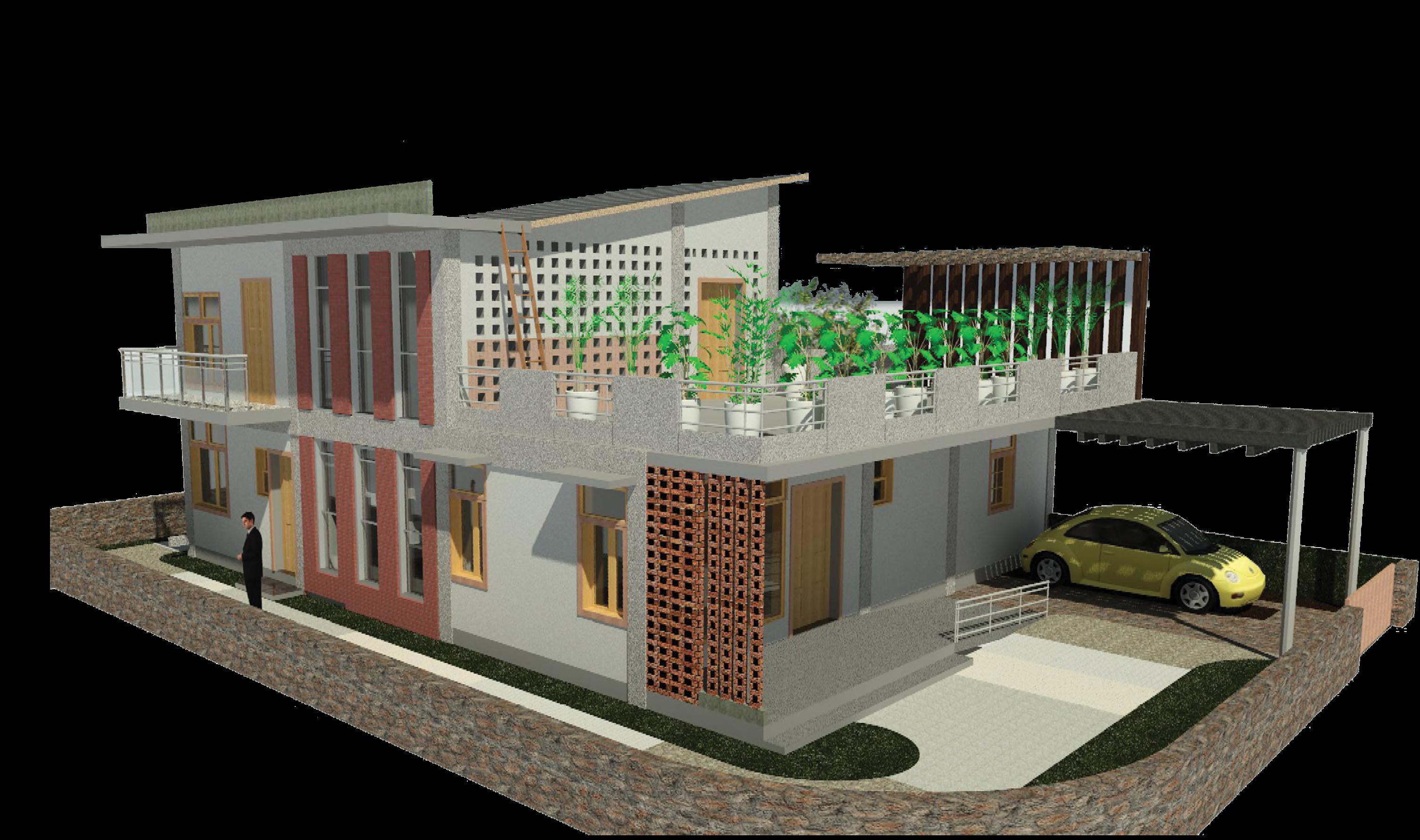

Our team Amigos from CODE, Vivekananda global university, Jaipur aims at achieving sustainable and net zero residence in Jaipur which provides comfort, consume less energy and without compromising the privacy of user. We were provided with Khejri (Prosopis cineraria) on the site. Our main focus was to build while preserving the tree. Designing duplex residential house keeping to conserve the existing vegetation, thermal comfort, daylighting and indoor air quality. The client is currently a resident at Pratap Nagar, Jaipur. The site objective of the client was to purchase a plot of either east or south facing and to conserve the existing vegetation. Their vision is to build home that are ventilated all at the same time. comfortable, with proper daylighting and connected with nature .
The client is currently a resident at Pratap Nagar, Jaipur. The site objective of the client was to purchase a plot of either east or south facing and to conserve the existing vegetation. Their vision is to build home that are ventilated all at the same time. comfortable, with proper day lighting and connected with nature .

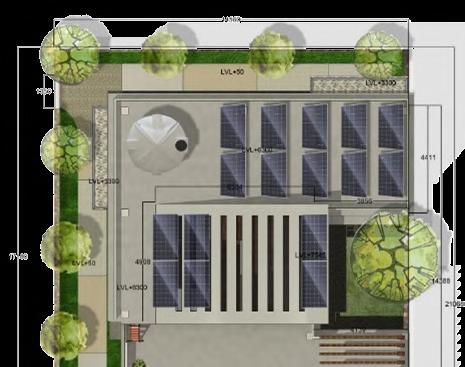

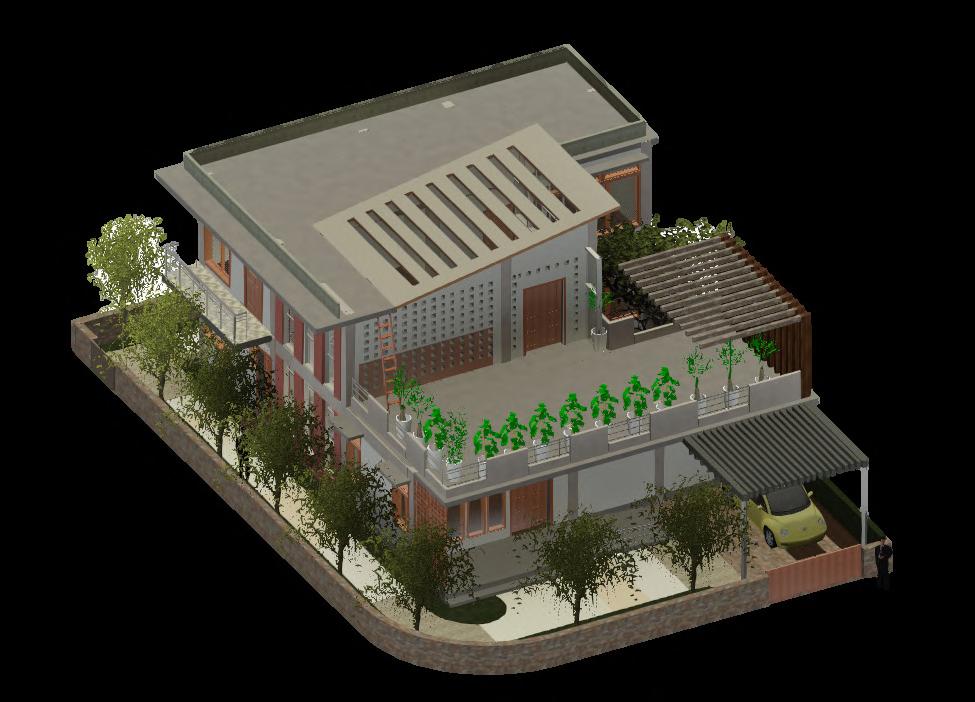

SOLAR DECATHLON 2021-2022 05

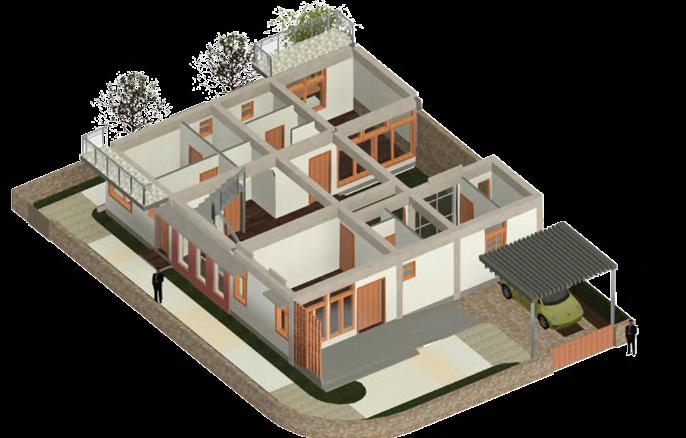

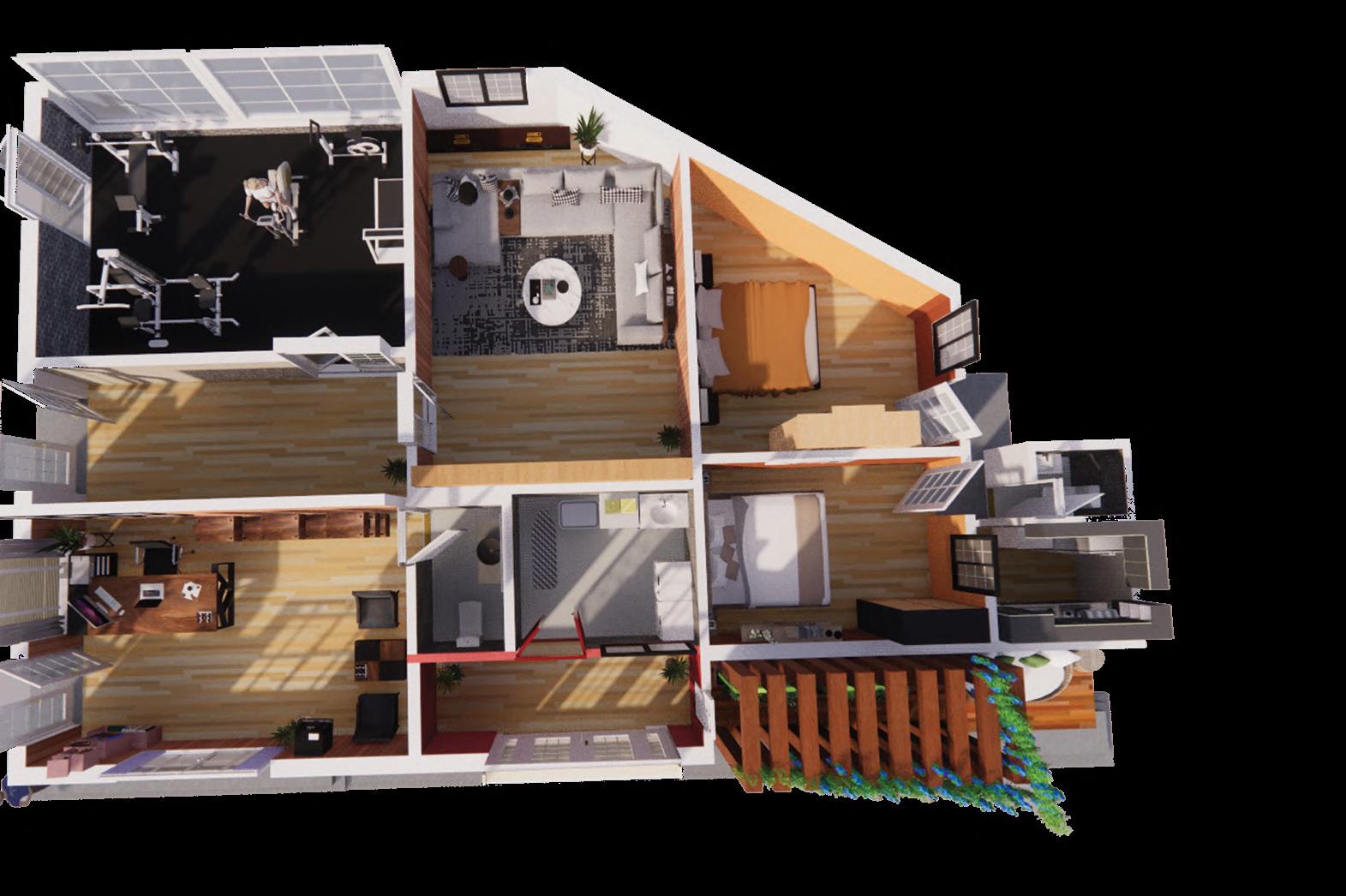

CLIENT REQUIREMENTS 1 7 2 6 3 5 4 8 Living room /dinning area Kitchen/kitchen garden Master bedroom Powder toilet Terrace garden Landscaping Element Courtyard Servant room

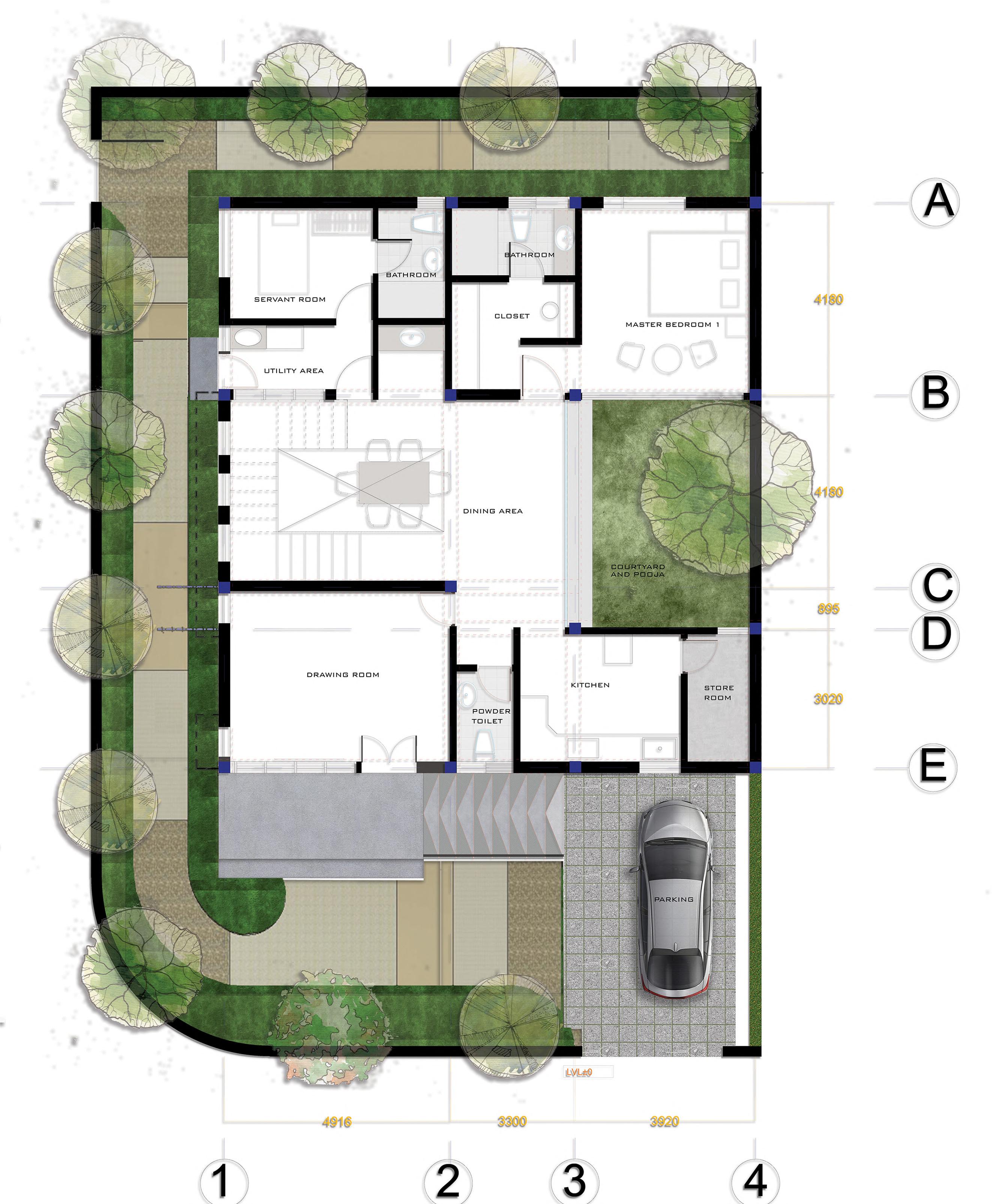

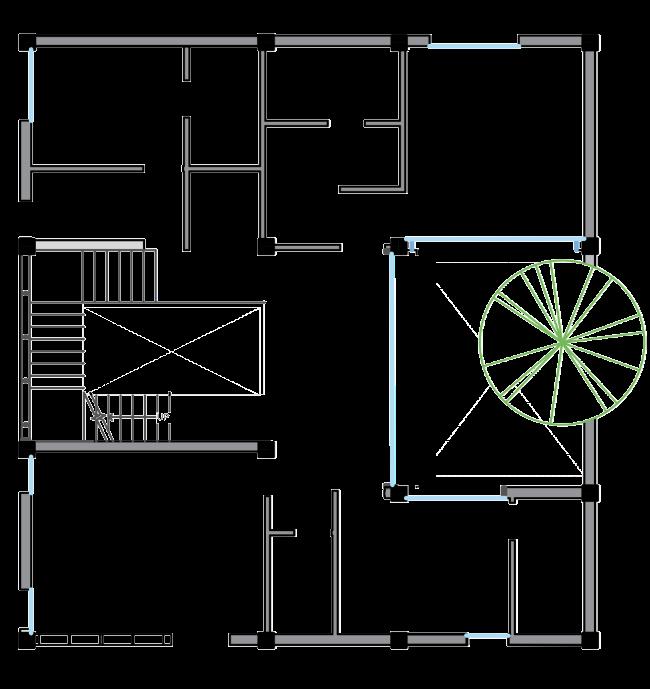

GROUND FLOOR
FLOOR
FIRST

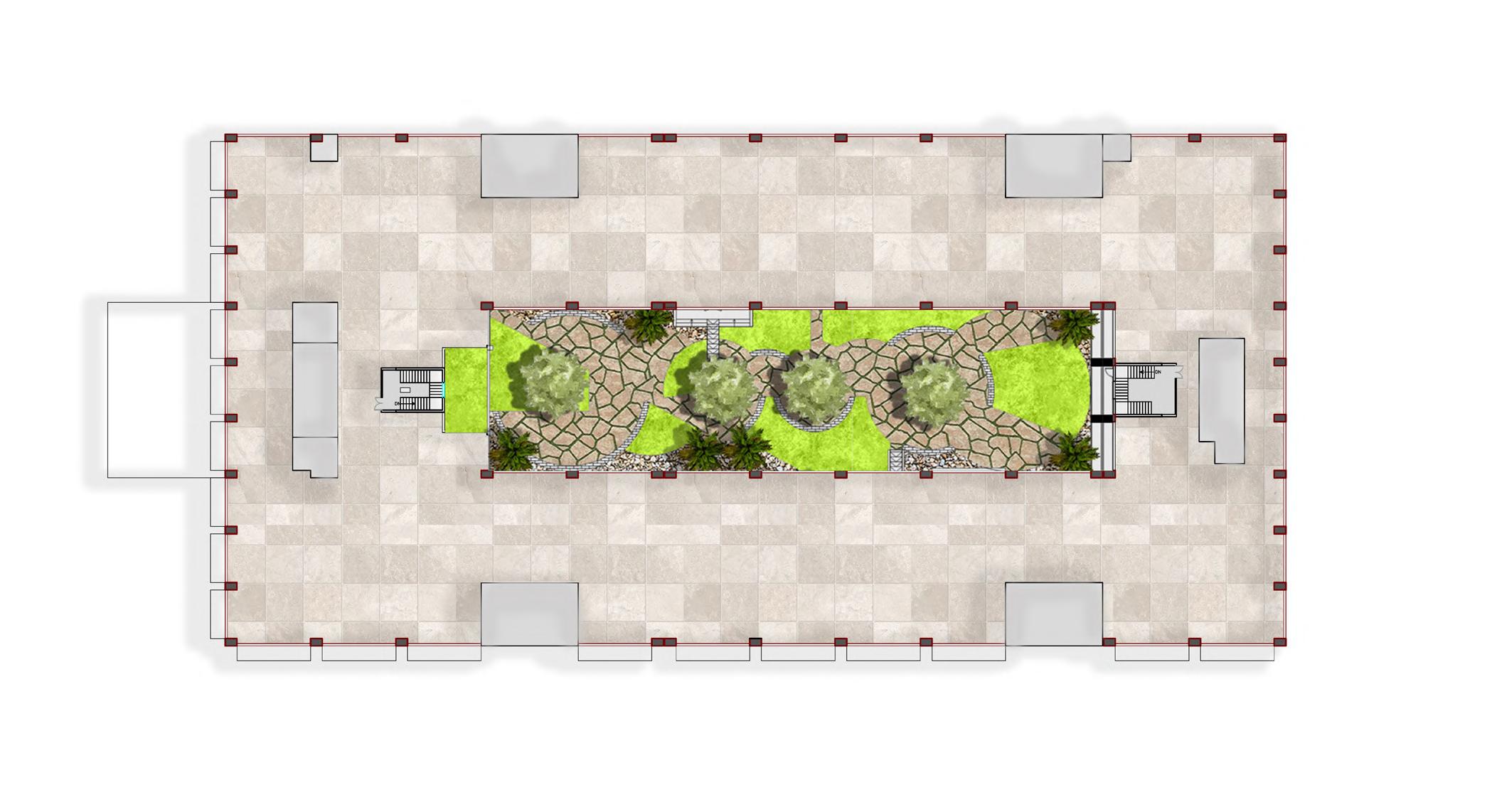

Adequate fresh air provided because of centralized courtyard.
Cross ventilation increase indoor air quality.
Courtyard is connecting indoor environment with nature. Being around plants has a calming and comfortable effect on people.
Used passive strategy to provide maximum Thermal comfort in inner spaces.
In kitchen, courtyard and north-west rooms the wind from west are helping in cross ventila tion.
The south façade allows winter sun rays in the house which provides proper heat and venti lation during winter.
Through courtyard the temperature near it cools down and the circulation of fresh air inside the house is maintained.

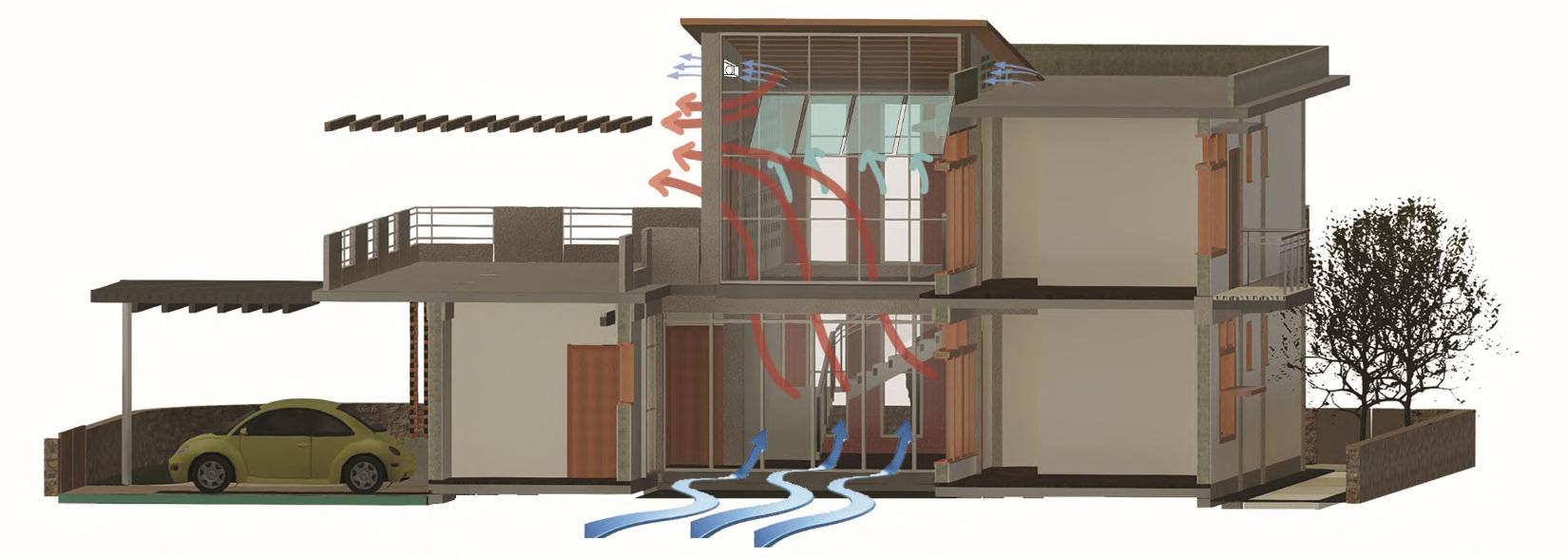

Forced ventilation Openings Fresh air intake Warm air escapes
free design consideration. Challenge 1 Challenge 2 Challenge 3 Challenge 4 Gypsum Plaster Board (6mm) Reflective coating (1mm) AAC Block (200mm) XPS Insulation 12mm) SRI Paint (1mm)
Barrier

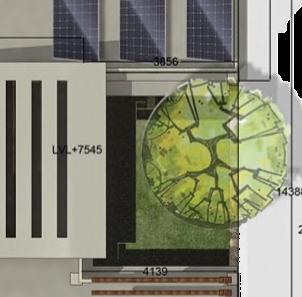

Created courtyard near dinning area to preserve the existing tree (Khejri).

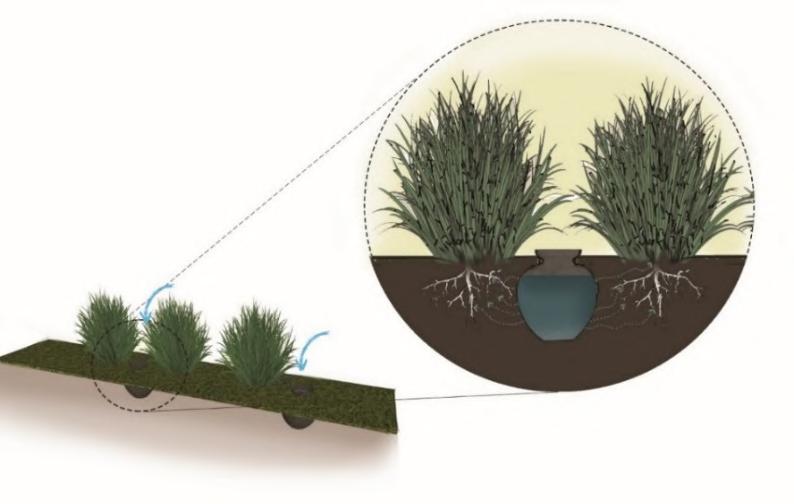

Pot irrigation is a self-watering irrigation system. Due to the porous nature of the surface of the pitcher the water inside the pitcher or mud pot will automatical ly transfer towards the nearest soil and plants takes up water only according to its need. Here we have used pitcher having a capacity of 4 liters which will last for 3-4 days.

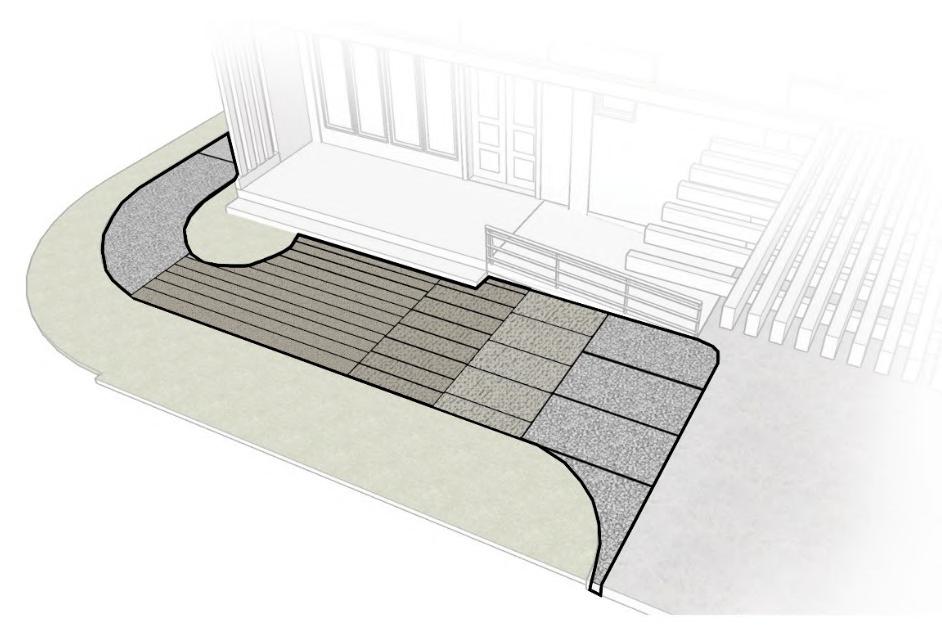

Sequence of graded pathway throughout pavement and track off before entrance used.
This promotes indoor environment quality by pro tecting the house from the dirt and moisture that can be carried by occupant footwear inside

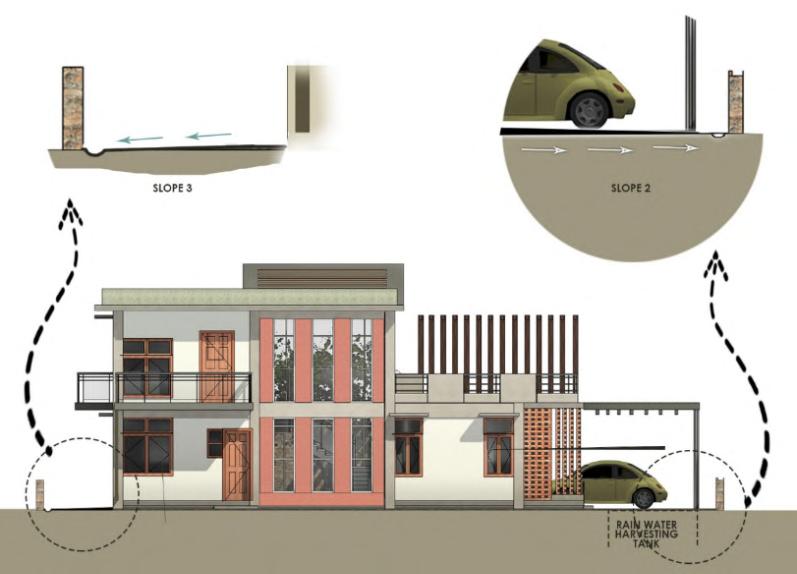

Channels are created in the periphery of the site which will collect the rain water and further store in the rain water harvesting tank.

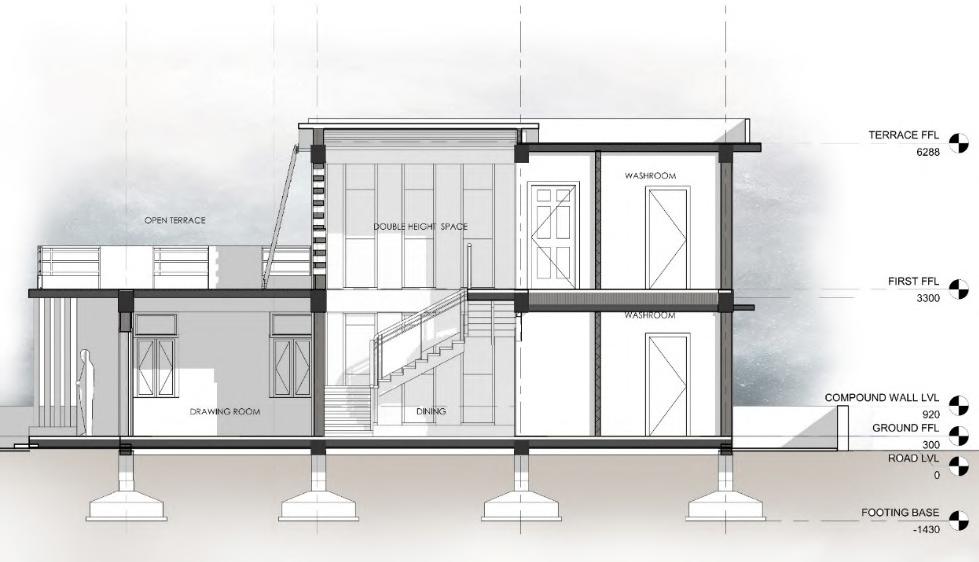

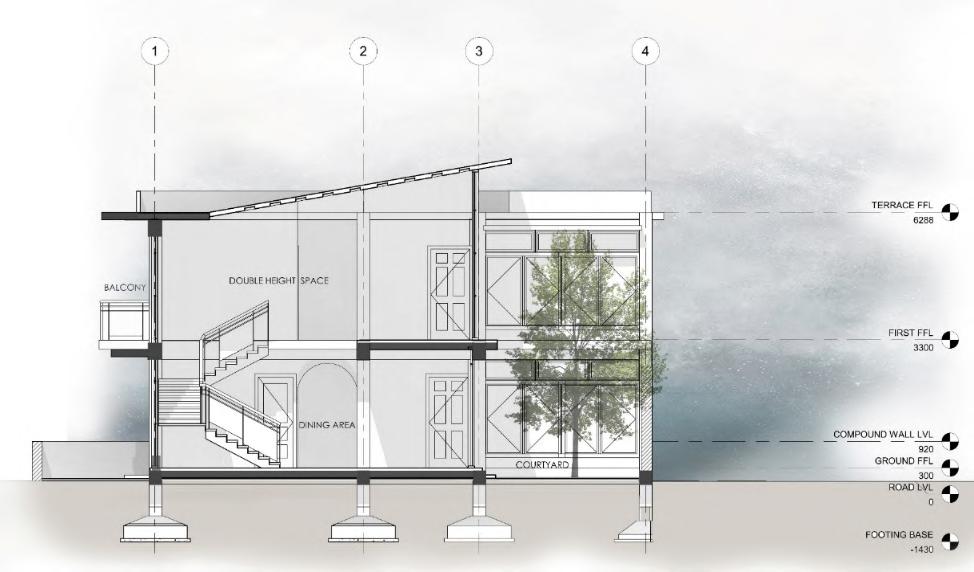

SECTION BB’
SECTION AA’

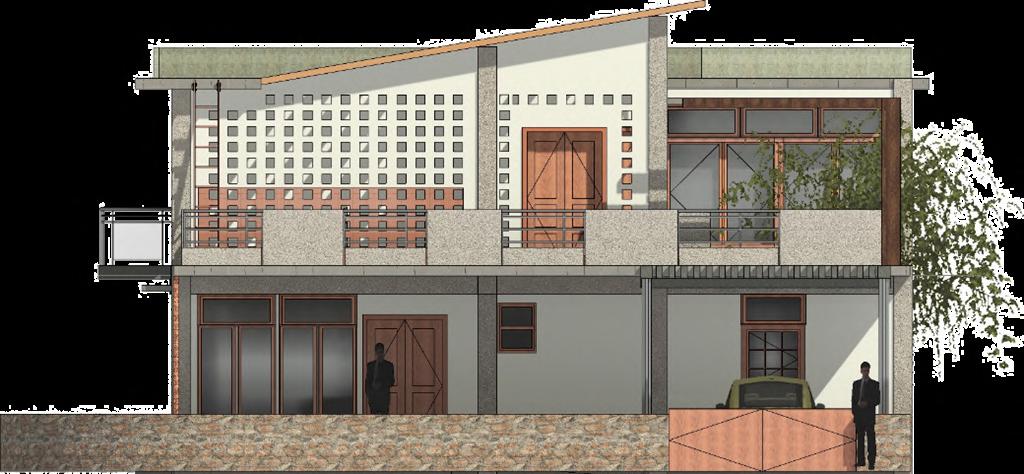

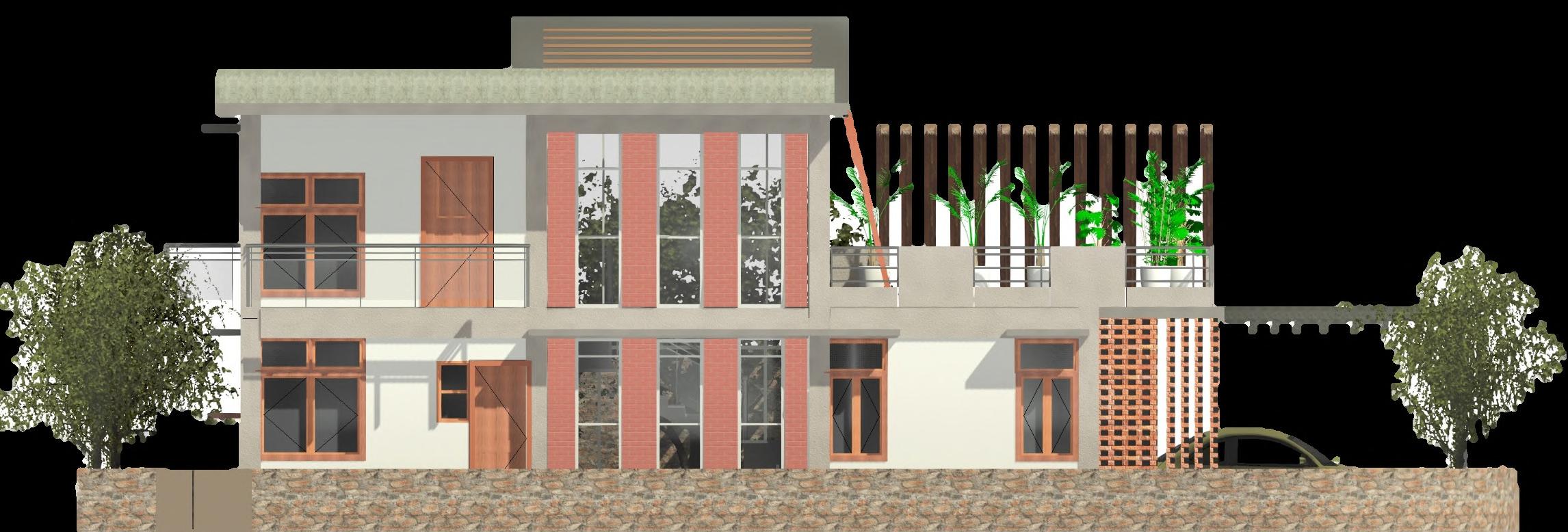

SOUTH ELEVATION
EAST ELEVATION

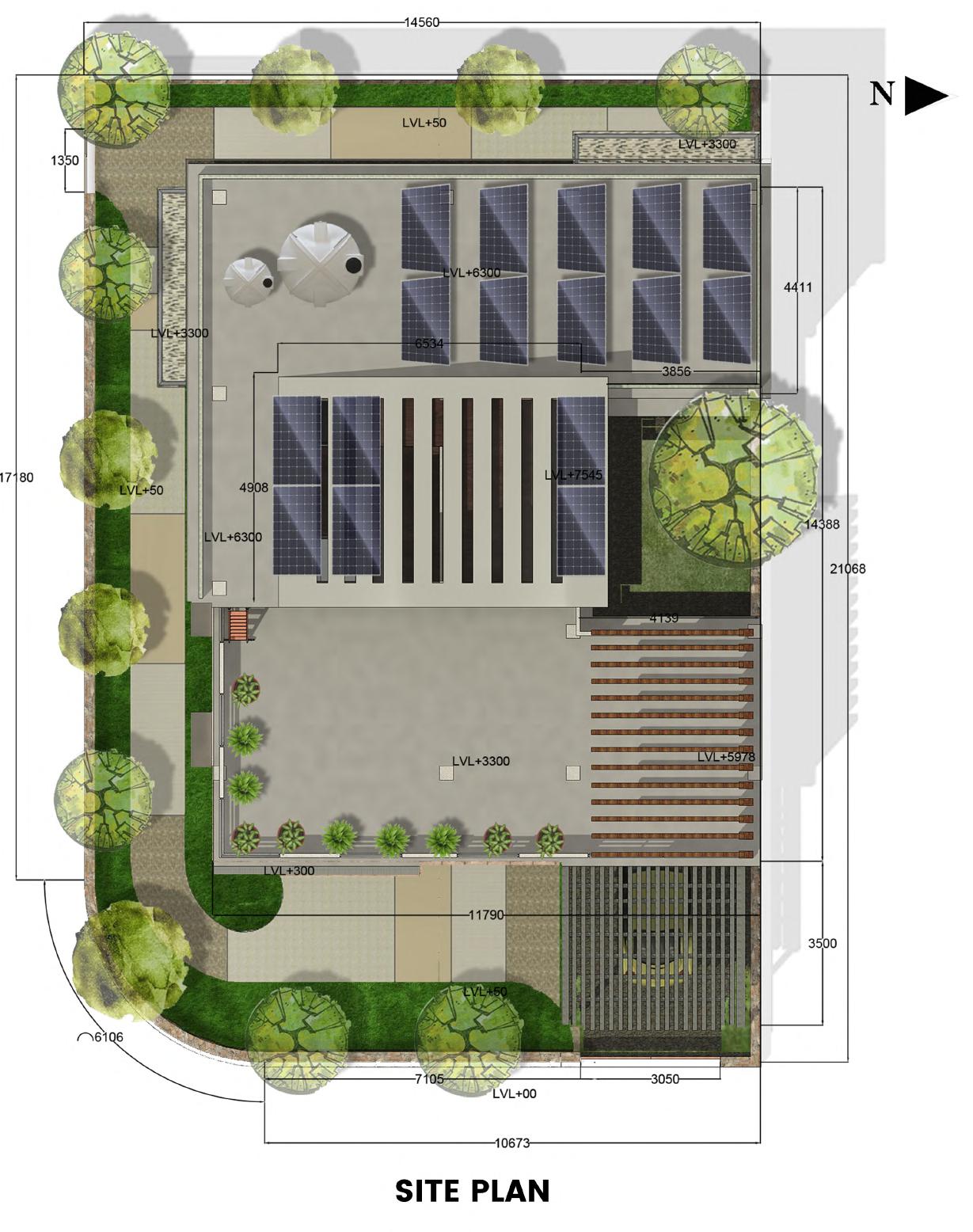

A series of iterations were performed with cost and U-value as parameters to obtain a building envelope with the desired U-val ue. Building envelopes were designed based on their use:
We are using 16 No. mod ules of 320 watt each plate which generates 7000 units per year and 19 unit per day. For effective efficiency as we analysed from climate consultant’ solar radiation guides us solar radiation hour each month overall year so we got average 9.6 hr of efficiency Generally, 1 kw solar grid generates electricity 4x of its capacity and it achieved with 10 hr of effective day lighting, so we quite near to 10 hr but our electricity con sumption is 15 unit/day and we are generating 4 unit/ day more than our con sumption.
Solar radiation control using either high-perfor mance windows with low shading coefficient (tint ed or reflective) or clear high-performance win dows.

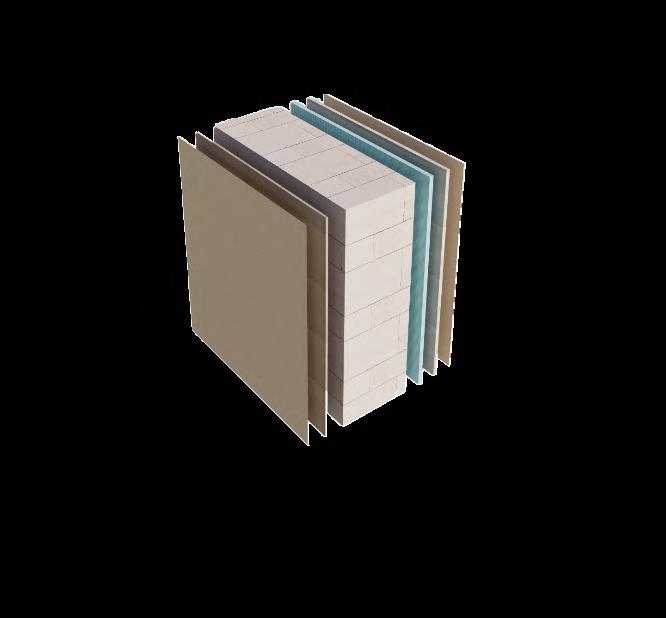

Gypsum Plaster Board (6mm) Reflective coating (1mm) AAC Block (200mm) XPS Insulation 12mm) Plaster (12mm) SRI Paint (1mm) WALL ROOF 0 0.5 1 1.5 WALL ROOF WINDOW U - VALUE 0 20 40 60 80 100 ENERGY CONSUMPTION Building Envelope Building Envelope (Using AAC) ENVELOPE SELECTION(U VALUE) ENVELOPE SELECTION(ENERGY CONSUMPTION)

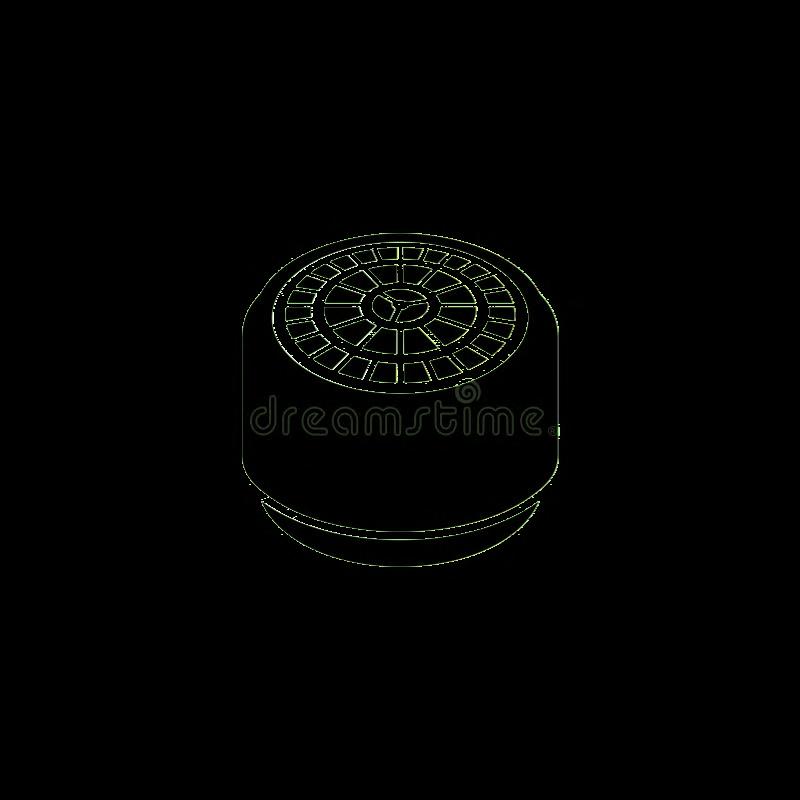

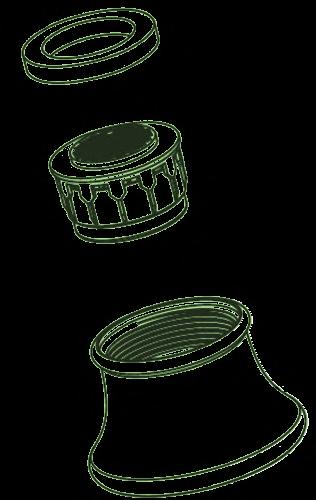

BASELINE WATER CONSUMPTION AS PER STANDARD 3% 4% 15% 15% 22% 135 L PER CAPITA PER DAY DRINKING COOKING BATHING WASHING OF CLOTHES WASHING OF UTENSILS FLUSHING 4L 55L 20L 30L 20L 6L BASELINE CONSUMPTION OF FIXTURES WC (Toilet) 6lpf* Kitchen Faucet 8.3 Lpm* Showerhead 9.5 Lpm 6% 6% 36% 14% 7% 31% 70L PER CAPITA PER DAY DRINKING COOKING BATHING WASHING OF CLOTHES WASHING OF UTENSILS FLUSHING 4L 25L 5L 22L (USAGE 5 TIMES A DAY 4L REDUCED WATER CONSUMPTION (USE OF EFFICIENT FIXTURES) STORAGE TANK PROPOSED = 25 m3 = (2.5m x 2.5m x 4m) NOTE 4m depth has been provided to settle down the silt and other particles by sedimentation and get fresh water above GRAPHICAL SECTION OF RWH TANK SHOWING CONNECTION TO RECAHRGE PIT WATER EFFICIENT FIXTURES Ultra low flow WC Dual flush WC WATER EFFICIENT FIXTURES Ultra low flow WC Dual flush WC Low flow aerators –SAVES up to 50% 0 5000 10000 15000 20000 25000 30000 35000 JAN FEB MAR APR MAY JUN JULY AUG SEPT OCT NOV DEC RAINWATER HARVESTING POTENTIAL 788 702 2883 10242 27900 31674 9870 2682 1176 602 760 516 MONTHLY RAINWATER HARVESTING POTENTIAL STORAGE TANK PROPOSED = 25 m3 = (2.5m x 2.5m x 4m) 2.5M 2.5M 4M NOTE 4m depth has been provided to settle down the silt and other particles by sedimentation and get fresh water above STORAGE TANK GROUND LVL BUILDING PLINTH LVL VALVE GIVEN TO RUNOFF THE FIRST RAIN OF SEASON ENERGY PERFORMANCE WATER PERFORMANCE SOLAR RADIATION ANALYSIS
GF
IS
FF

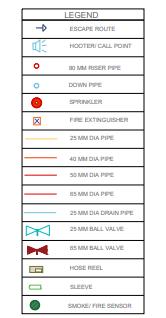

TECHNICAL DRAWING 06 EPABX ENTRANCE CONFERENCE ROOM LADIES TOILET OPEN SPACE RECEPTION AND WAITING LAN ENTRANCE PANTRY GENT'S TOILET WORK STATION SERVER ROOM CAMERA, SPEAKER, SMOKE ENTRANCE CONFERENCE ROOM LADIES TOILET OFFICE MAIN OFFICE ENTRANCE GENT'S TOILET OPEN SPACE WORK STATION RECEPTION AND WAITING GLASS BREAKER,LPG, OCCUPANCY CCTV CAMERA GLASS BREAKER SENSOR OCCUPANCY WALL MOUNTED AC EPABX LPG SENSOR SPEAKER BIOMETRIC DESCRIPTION SYM. NO. 09 12 01 05 01 09 08 06 LEGENDS SMOKE SENSOR 01 LAN 13 BASIN CABINETS SEAT STUDY TABLE TV WALL MIRROR HVAC LAYOUT LEGEND CASSETTE AC HIGH WALL AC CONCEALED AC OUT DOOR UNIT CONNECTION SUPPLY LINE RETURN LINE (12 MM DIA) 18 MM DIA) ODU @ 1050 MM ODU @ 1800 MM ODU @ 1050 MM ODU 2 @ 1800 MM ODU 3 @ 1050 MM C. AC HW AC HW AC 2 CN. AC CN. AC 2 DRAIN LINE 1439 SYMBOL DESCRIPTION UP UP KITCHEN BEDROOM DINING AND LIVING STORE 4' HIGH WALL BEDROOM DRAWING ROOM TOILET PORCH 15' WIDE LOBBY 5' WIDE MASTER BEDROOM POOJA ROOM SERVANT ROOM POLE E.M.B (ELECTRIC METER BOARD) D.B (DISTRIBUTION BOARD) FAN (4 FT.) FAN (2 FT.) DEEP JUNCTION BOX AC DOMESTIC LINE SERVICE LINE POWER LINE TOILET TOILET N SYMBOL DESCRIPTION UP UP KITCHEN BEDROOM DINING AND LIVING STORE 4' HIGH WALL BEDROOM DRAWING ROOM TOILET PORCH 15' WIDE WIDE MASTER BEDROOM POOJA ROOM SERVANT ROOM POLE E.M.B (ELECTRIC METER BOARD) D.B (DISTRIBUTION BOARD) FAN (4 FT.) FAN (2 FT.) DEEP JUNCTION BOX AC DOMESTIC LINE SERVICE LINE POWER LINE TOILET TOILET N FIRE-FIGHTING PLAN HVAC PLAN BUILDING AUTOMATION PLAN ELECTRICAL LAYOUT
WL 8
L40 L41
L1-L8
PL1
L38 WL 9 WL 10
L37
L36
WL 7
L2-L7 L3-L6 L4-L5 L27
375 ELECTRICAL
WL L28
L16-L17-L18 L31
WL 6
L9-L10 L9-L10 WL L11-L12 TB TB
L32 L33 AC
WL 12 F5
L39 WL10
L29 L30
1 WL 11 AC
L19-L20 L21-L22 L23-L24 L34 L35 2400
1350 L26
13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33
WL7 L32-L33
WL9 L36-L37-L38-L39
L40-L41
WL12
TB 2 L42 L42 TB 2 F7 TB 3
WL13 WL14
CONDUIT LAYOUT
WARDROBE CABINETS SEAT STUDY TABLE OTTOMAN TV WALL MIRROR 1060 1060 1060 760 760 1450 1450 200 365 780 780 780 515 1310 1310 1525 1605 550 1345 365 1680 1820 500 715 1650 305 320 500 800 600 1650 305 1500 310 265 1240 1170 500 395 1205 1205 965 1820 1550 1475 1550 220 345 1850 335 620 1035 1035 1035 1035 1035 1035 2075 550 1600 1095 1095 775 695 420 270 2465 2465 1830 1830 580 515 1755 1440 1560 2350 2750 1705 400 500 500 1205 1205 1830 940 1450 425 1735 1735 860 375 917 1440 800 350 440 350 635 360 480 280 1550 1620 480 2835 630 1290 600 340 646 835 605 250 560 1060 1500 1270 1605 290 ELECTRICAL LEGEND SWITCH BOARD WALL LIGHT POINT CEILING LIGHT POINT EXHAUST FAN POINT 1220 MM FAN POINT TELEPHONE POINT WITH INTERNET CABLE DISTRIBUTION BOARD GEYSER BOARD CALL BELL WL L SB F TL SWITCH BOARD LEGEND 5A SWITCH AND SOCKET 5/15A SWITCH AND SOCKET SWITCH TV CABLE CALL BELL SWITCH SWITCH BOARD DETAILED LEGEND SL NO. SWITCH BOARD NO. HEIGHT FROM FFL (MM) DESCRIPTION SB1 A SB1 B SB1 C SB2 A
SB2 D
E
1 2 3 4 5
7
12
SB2 B SB2 C
SB2
SB2 F SB2 G SB3 A SB3 B SB4 A SB4 B SB5 A SB5 B SB5 C SB6 A SB7 A SB7 B SB7 C SB8 A SB8 B SB9 A SB9 B SB9 C SB9 D SB10 A SB10 B SB11 A SB12 A SB12 B SB13 A
6
8 9 10 11
SB1 A SB1 C SB 2 A SB 2 B SB 2 C SB 2 D SB 2 E SB 2 F SB 2 G SB 3 A SB 3 B SB 4 A SB 4 B SB 5 A SB 5 B SB 5 C SB 6 A SB 7 A SB 7 B SB 7 C SB 8 A SB 8 B SB 9 A SB 9 B SB 9 C SB 9 D SB 10 A SB 10 B SB 11 A SB 12 A SB 12 B SB 13 A SB1 B L1 L2 L3 L4 L5 L6 L7 L8
L9 L10 L11 L12 L13 L14 L15 L16 L17 L18 AC
L13-L14-L15 WL 1 WL 2
TV WL5 L25 L26-L27-L28 L29-L30-L31 WL8 L34-L35 WL 3
1350 1350 1350 1350 WL WL 4
1350 600 WL L19
600 2400 1350 1300 600 L20 L21
1350 2400 600 L22 L23
1350 2400 1350 1350 L24
1350 F2 1350
600 600 1350 600 1350 2400 2400 1350 1350 1350 1350 WL 5 L25
A A' BASEMENT GROUND FLOOR 1ST, 2ND, 3RD, 4TH FLOOR 6TH AND TERRACE / LAST FLOOR 230 1500 850 300 100 2100 450 3500 3500 3000 3000 SECTION AA' 1250 1400 1650 2000 800 425 425 230 230 MACHINE ROOM PLAN LOAD LIFT SHAFT CAR INSIDE PERSON KGS WIDTH DEPTH WIDTH DEPTH 10 680 1650 2000 1250 1400 800 1500 4200 PIT OVERHEAD SUBMITTED TO: AR. GAURAV AGRAWAL ASSIGNMENT 2 BUILDING SERVICES III SUBMITTED BY: KAMNA MISHRA B.ARCH SEM VI 19FAP2AR014 CODE, VGU 230 4200 900 900 4260 2860 2100 1050 PISTON MACHINE ROOM LIFT CAR LIFT DOOR ENTRY CLEAR OPENING ENTRY A' BASEMENT GROUND FLOOR 1ST, 2ND, 3RD, 4TH FLOOR 6TH AND TERRACE LAST FLOOR 230 1500 450 3500 3500 3000 3000 SECTION AA' 1250 1400 1650 800 425 425 230 230 MACHINE ROOM PLAN LOAD LIFT SHAFT CAR INSIDE PERSON KGS WIDTH DEPTH WIDTH DEPTH 10 680 1650 2000 1250 1400 800 1500 4200 PIT OVERHEAD SUBMITTED TO: AR. GAURAV AGRAWAL ASSIGNMENT 2 BUILDING SERVICES III SUBMITTED BY: KAMNA MISHRA B.ARCH SEM VI 19FAP2AR014 CODE, VGU 230 900 2860 2100 PISTON MACHINE ROOM LIFT CAR LIFT DOOR ENTRY CLEAR OPENING ENTRY 4650 4800 4800 14900 14900 14900 14900 4659 4800 3200 3200 3200 3200 4800 3200 3200 4002 4002 4800 4800 4800 3200 600 4800 12800 2800 3200 4800 15200 3200 8898 600 4800 3200 4800 3200 4800 3200 3680 600 15200 3200 4000 4000 600 15200 3200 3200 4800 4800 4800 4800 3200 8898 4800 3698 4800 3200 600 600 3698 2802 3200 3200 4650 4800 4650 3200 4000 600 600 600 600 600 8800 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 4000 4000 600 600 600 600 600 600 600 600 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 F1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 COLUMN NO. LENGTH WIDTH 01 C1 300 600 FOOTING NO. LENGTH WIDTH 01 F1 2000 2000 C1 2000 DEPTH 3000 3200 3200 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 600 C1 PB 10 7550 7700 7700 7700 7700 7700 7700 7700 PB PB PB 10 PB PB PB PB PB PB PB PB PB PB PB PB 11 PB PB PB 15700 PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB 15700 31550 PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB PB 15550 5098 7700 5400 PB C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 C1 1 2 3 4 5 6 7 8 9 10 A B C D E
G
PB PB PB PB PB PB PB 11 8000 8000 8000 PLINTH BEAM PLAN BEAMS NO. LENGTH WIDTH 01 PB 1 11400 300 HEIGHT 450 PB 2 PB 3 PB 4 PB 5 PB 6 PB 7 PB 8 PB 9 PB 10 PB 11 02 03 04 05 06 07 08 09 10 11 5400 300 450 300 450 300 450 300 450 300 450 300 450 300 450 300 450 300 450 300 450 7550 15700 11098 23700 5098 15550 13102 7100 5102 300 450 EXCAVATION PLAN OF SPORTS COMPLEX PLINTH BEAM PLAN OF SPORTS COMPLEX WORKING DRAWING OF APARTMENT ELEVATOR TECHNICAL DETAILS
F
H
DINING
MASTER BEDROOM
UP POOJA ROOM 6' 7 1 2 " X 12' 0"
BEDROOM 13' 0" X 12' 0"
MASTER BEDROOM 17' 5" X 15' 2" DRESS 6' 0" X 7' 9"
TOILET 13' 7 1 2 " X 7' 5" TOILET 7' 3" X 7' 9" TOILET 6' 7 1 2 " X 5' 0"
SERVANT ROOM 10' 0" X 12' 0"
DINING AND LIVING 24' 5" X 14' 4 1 2 "
DRAWING ROOM 13' 7 1 2 " X 10' 7 1 2 STORE 4' 0" X 8' 7 1 2 KITCHEN 13' 0" X 9' 0"
BEDROOM 13' 7 1 2 " X 12' 0" LOBBY 5' WIDE 4' HIGH WALL SEWER
I.C
UP
UP POOJA ROOM 6' 7 1 2 " X 12' 0"
I.C I.C I.C G.T G.T I.Cr I.Cr I.Cr I.Cr RWT I.Cr G.T
ENTRANCE
I.C G.T G.T I.C
I.C
GULLY
PORCH 15' WIDE MID TERM 2
TRAP 300MM X 300MM R.W.H RAIN WATER HARVESTING TANK 1200MM X 1200MM
ENTRANCE
UP
DRESS
TOILET
7 TOILET
SERVANT ROOM 10' 0" X 12' 0" PORCH 15' WIDE BEDROOM 13' 7 1 2 " X 12' 0" LOBBY 5' WIDE 4' HIGH WALL G.T G.T I.C I.C I.C I.C I.C I.C G.T G.T I.Cr I.Cr I.Cr RWT I.Cr G.T I.C I.C.R GULLY TRAP INSPECTION CHAMBER W.W.P WASTE WATER PIPE S.W.P SOIL WATER PIPE R.W.P RAIN WATER PIPE 300MM X 300MM 600MM X 600MM INSPECTION CHAMBER (RAINWATER) 600MM X 600MM 75 MM DIAMETER 100 MM DIAMETER 75 MM DIAMETER R.W.H RAIN WATER HARVESTING TANK 1200MM X 1200MM
AR.
AND
IV B.ARCH
SEM CODE VGU SUBMITTED BY: KAMNA
SEWER 1050 543 765,40 129,50 151,35 113 1110,85 G TILE DROP 536,5 1801,2 1267 708,5 652,35 2180 378,20 459,70 365,85 75 FLOOR TRAP FLOOR TRAP TOWEL RAIL TAP CONCEALED AT THE HEIGHT OF 600mm 10 mmTHICK WALL FINISH 10mm THICK TILE WASH BASIN AT THE HEIGHT OF 800mm TAP AT 600mm DIVERTER AT 1100mm SHOWER AT 2000mm HT. GEYSER HEALTH FAUCET @ 450mm HT. TISSUE ROLL @ 600mm HT. SYMBOL DESCRIPTION 100 mm Soil Waste Water Pipe 75 mm Waste Water Pipe Floor Trap FlowDirection @ 1320mm HT. ASSIGNMENT 1 ARCHITECTURAL DRAWING AND SUBMITTED TO: AR. SNEHA ARORA SUBMITTED BY: KAMNA MISHRA ROLL NO: 19FAP2AR014 AR. ABHISHEK SHRIVASTAV CODE, VGU B.ARCH SEM IV COMPUTER APPLICATIONS IV 1050 543 765,40 129,50 151,35 113 1110,85 G TILE DROP 536,5 555 1267 708,5 652,35 2180 378,20 459,70 365,85 75 FLOOR TRAP FLOOR TRAP TOWEL RAIL @ 1320mm HT. TAP CONCEALED AT THE HEIGHT OF 600mm 10 mmTHICK WALL FINISH 10mm THICK TILE WASH BASIN AT THE HEIGHT OF 800mm TAP AT 600mm DIVERTER AT 1100mm SHOWER AT 2000mm HT. GEYSER HEALTH FAUCET @ 450mm HT. TISSUE ROLL @ 600mm HT. PLUMBING PLAN TOILET DETAIL LAYOUT
DRAWING ROOM 13' 7 1 2 " X 10' 7 1 2 STORE 4' 0" X 8' 7 1 2 KITCHEN 13' 0" X 9' 0"
AND LIVING 24' 5" X 14' 4 1 2 BEDROOM 13' 0" X 12' 0"
17' 5" X 15' 2"
6' 0" X 7' 9"
13'
7' 3" X 7' 9" TOILET 6' 7 1 2 " X 5' 0"
SUBMITTED TO:
ABHISHEK SHRIVASTAV AR. SNEHA ARORA MID TERM 2 SUBJECT: ARCHITECTURAL DRAWING
COMPUTER APPLICATIONS
IV
MISHRA

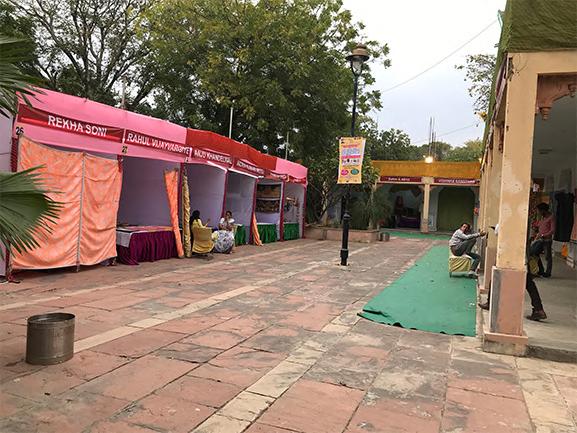

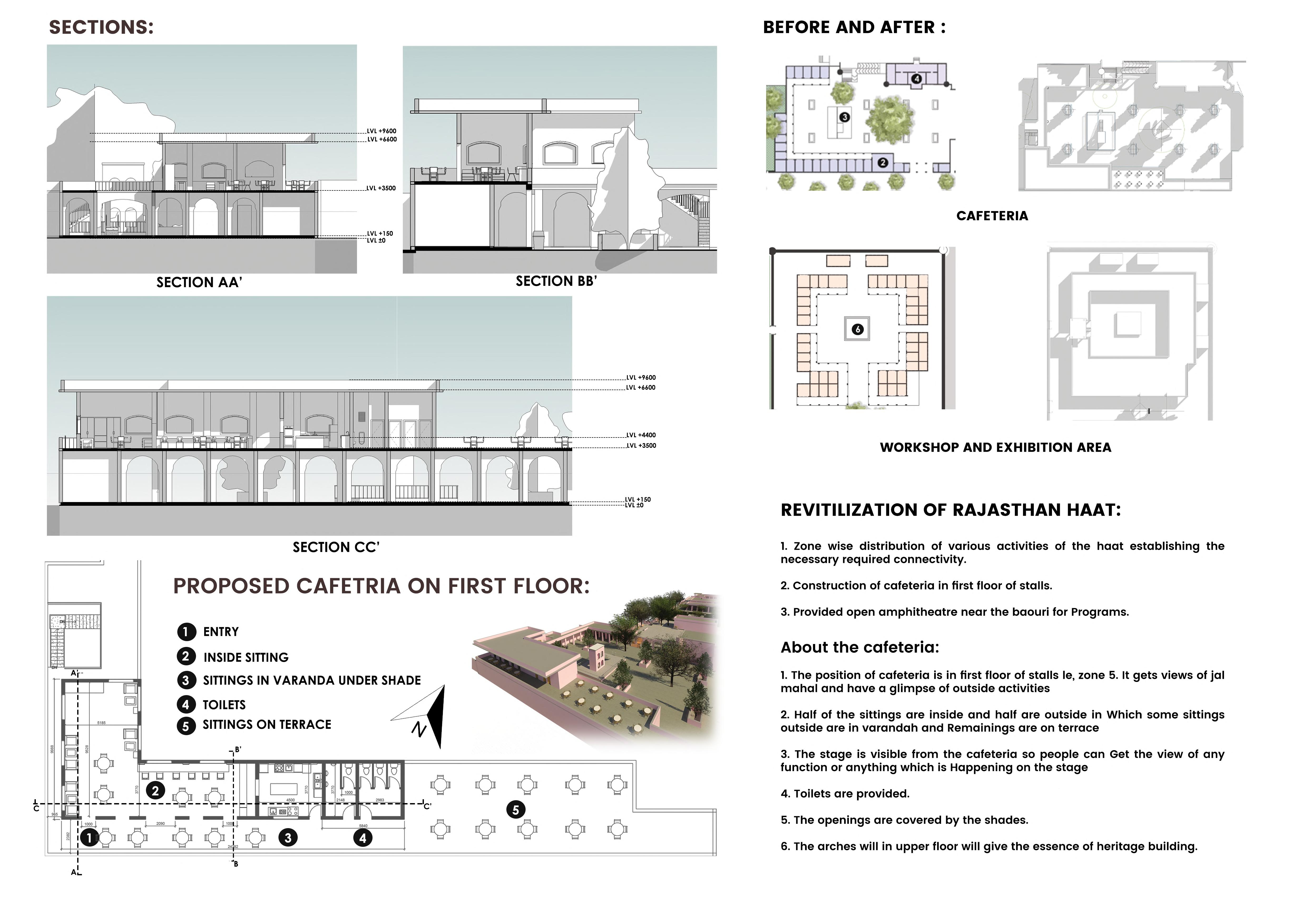

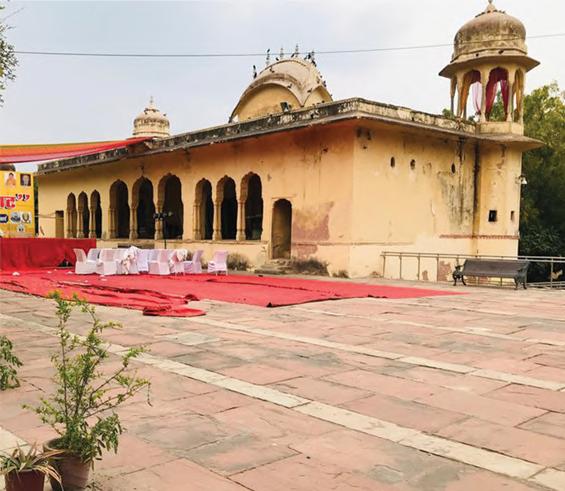

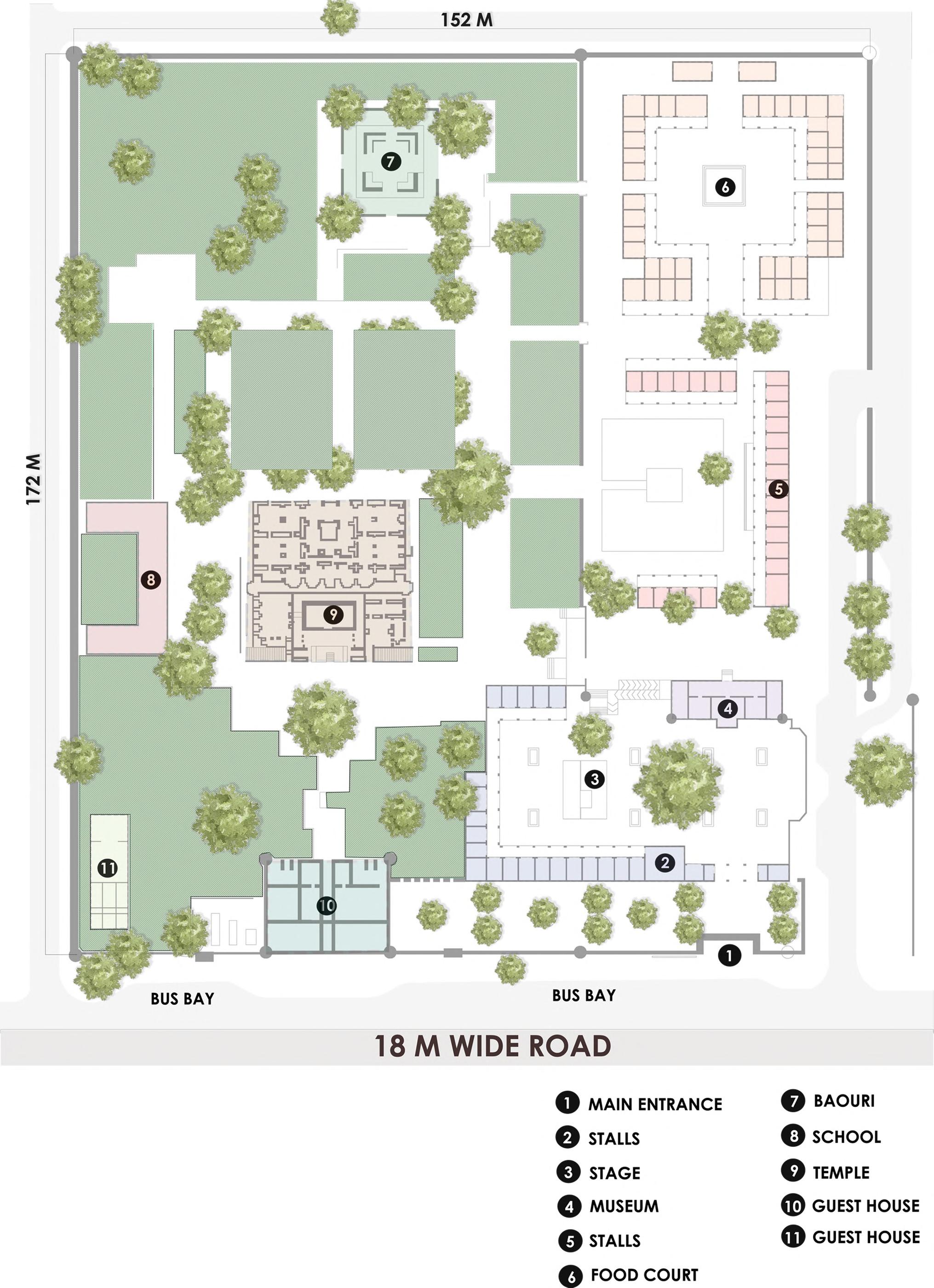

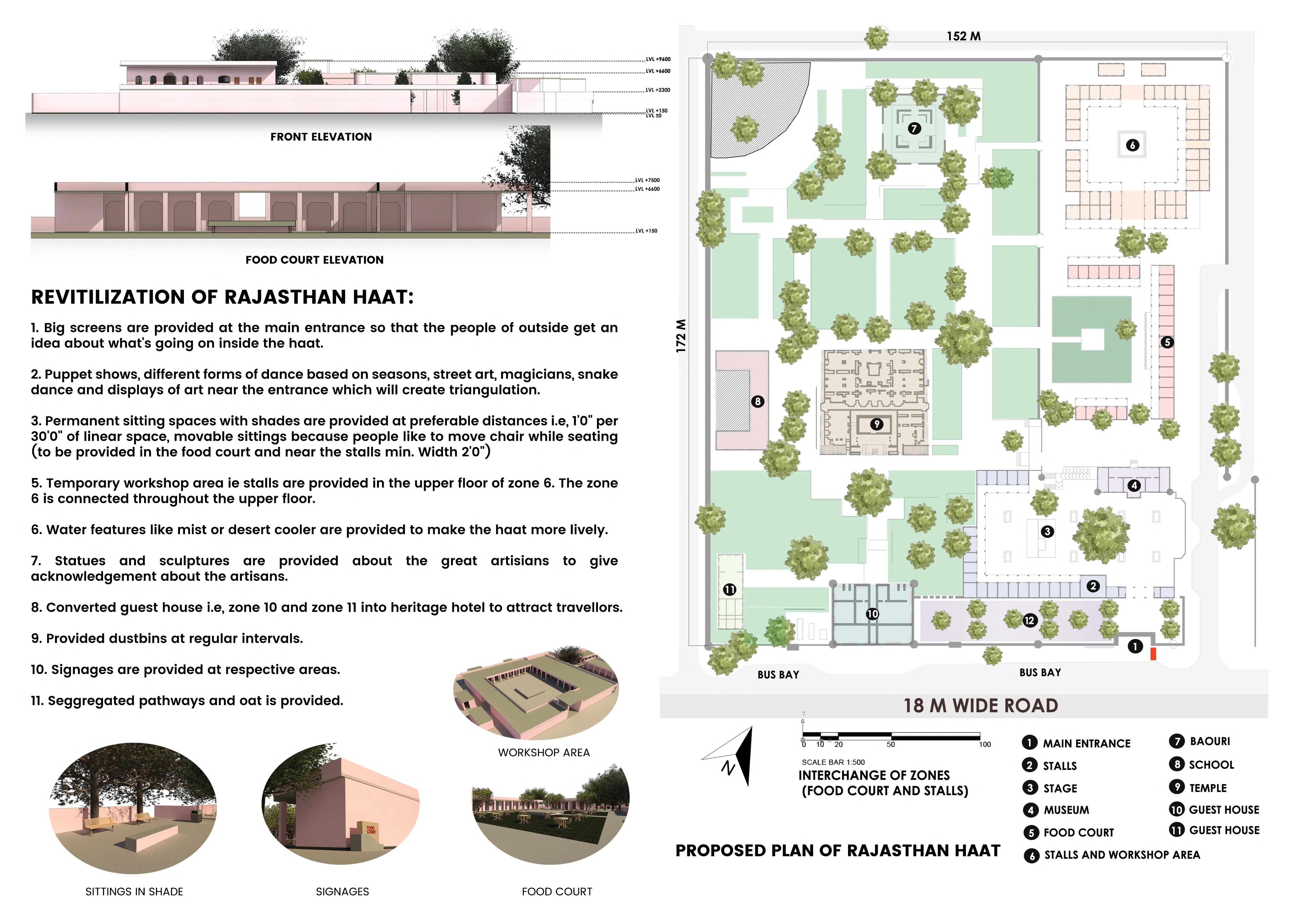

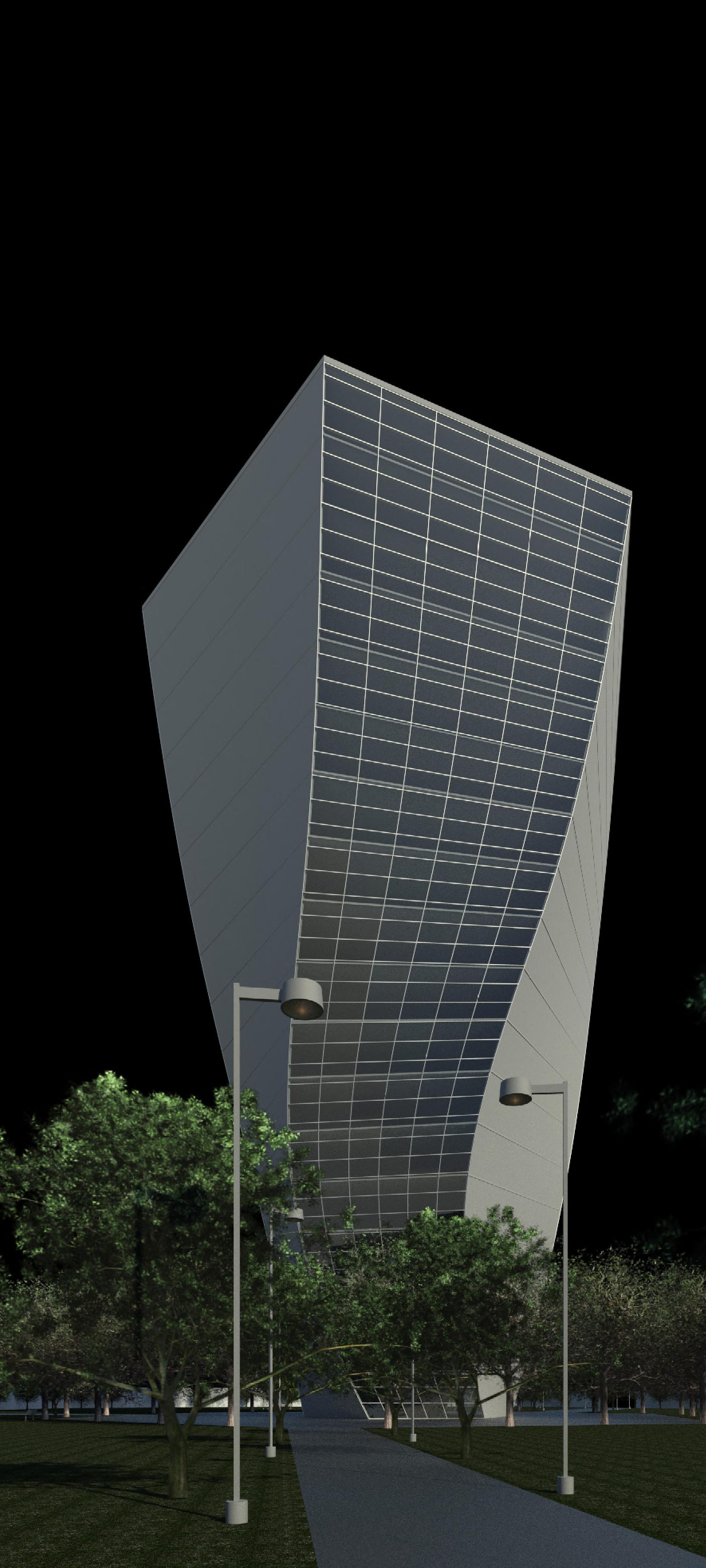

MISCELLANEOUS 07
