Mapping The Site
To begin the process of site mapping, interactive functions were mapped against non- interactive functions .These studies were done across all 3 levels that existing on the site - ground, platform & concourse. Barriers were observed with the subsequent movement (interactive) patterns at various times of the day. A place of transactions (interactive) caused people to pause in the spaces. At every turning points, the long range view was captured - how perspectives can change. the verb to interact was then explored as 5 various alternatives which embedded themselves in the previous mapping
Advertisement
TURNING POINTS
Design Matrix

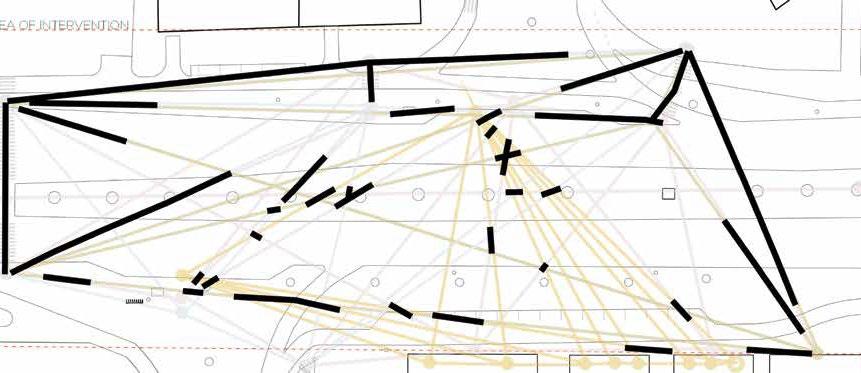

Mapping within Area of Intervention
Mapping across Means of Movement
Massing
