Selected Works in Architecture (2021-2023)

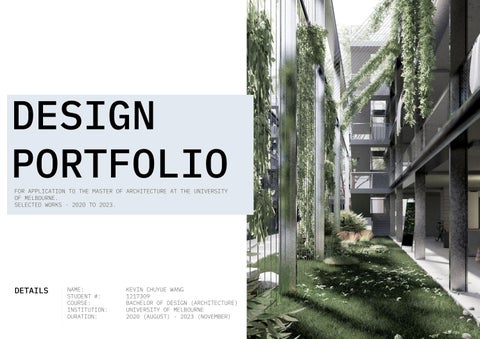

DESIGN PORTFOLIO FOR APPLICATION TO THE MASTER OF ARCHITECTURE AT THE UNIVERSITY OF MELBOURNE. SELECTED WORKS - 2020 TO 2023.

DETAILS

NAME: STUDENT #: COURSE: INSTITUTION: DURATION:

KEVIN CHUYUE WANG 1217309 BACHELOR OF DESIGN (ARCHITECTURE) UNIVERSITY OF MELBOURNE 2020 (AUGUST) - 2023 (NOVEMBER)

DETAILS

urban terrains:

PROJECT

DYSTOPIAN DREAMS

01

DYSTOPIAN DREAMS: CLANDESTINE SUBJECT ID: SUBJECT NAME: WORK TYPE: YEAR:

ARCH10003 DESIGN STUDIO ALPHA INDIVIDUAL 2021 (SEMESTER 1)

COORDINATOR: EMAIL: TUTOR: EMAIL:

KELUM PALIPANE palipane@unimelb.edu.au MAGDALENA SLIWINSKA magdalena.sliwinska@unimelb.edu.au

Set in a hypothetical dystopic Melbourne, Clandestine makes landscape and architectural modifications on the contentious Lincoln Square site to accomodate for a hidden, flourishing community. Visitors are given a social nexus to mingle and nurture, while an insular local economy is allowed to develop in an underground arcade.

Showcased at MSDx 2021 Winter.

urban terrains:

DYSTOPIAN DREAMS

urban terrains:

DYSTOPIAN DREAMS

PARTI DRAWING CONCEPT REPRESENTATIONS

Concept Diagram 3

SITE MASTERPLAN

Kevin Wang, 1217309 Magdalena Sliwinska

urban terrains:

DYSTOPIAN DREAMS

PROGRESSIVE PERSPECTIVES (GRAPHITE ON PAPER) CLANDESTINE Concept Diagrams

u r b a n ut e r br raani ntseu: rrrbaai nns :t e r r a i n s :

Concept Diagram 2

CLANDESTINE Site Plan - Scale 1:500

CLANDESTINE Progression Sketches

CLANDESTINE

Kevin Wang, 1217309 Magdalena Sliwinska

DYSTO D YP SI A TO NDPD YI A SR TN EO AD PMR IS AE N A MDSR E A M S

Concept Diagram 1

01

Kevin Wang Magdalena

3 ELEVATIONAL SECTIONS

0

5

10

15

20

25

50

01

SOCIAL NEXUS SECTION CUT

SOCIAL NEXUS PLAN

DETAIL PERSPECTIVE-SECTION (REFER TO SOCIAL NEXUS)

CLANDESTINE

01

A

B

CLANDESTINE

PHYSICAL SITE MODEL (CARDBOARD) A) PLAN-VIEW OVERALL MASTERPLAN B) UNDERPASS AND BRIDGE DETAIL C) OVERALL OBLIQUE VIEW D) SITE HEARTH (COURTYARD)

C

D

02 PROJECT

DETAILS

METROFLORA PLEASURE GARDEN SUBJECT ID: SUBJECT NAME: WORK TYPE: YEAR:

ARCH20001 DESIGN STUDIO BETA INDIVIDUAL 2021 (SEMESTER 2)

COORDINATOR: EMAIL: TUTOR: EMAIL:

DAVID MA david.mah@unimelb.edu.au PHILIP CHANG philip.chang@unimelb.edu.au

Metroflora seeks to balance urbanity with nature in its modernised rendition of a pleasure garden. A dual expression of nature and artifice coalesce in creating a space of recreation and productivity - evident in its extensive roof garden above collaborative workshops and commercial units. The project’s ground datum is used as a mediator, separating the zones with elevational change.

Showcased at MSDx 2021 Summer.

Exercise Name

Exercise Name

Studio Beta Digital Field Collage: & Earth Refinement

Studio Beta Digital Field Collage: & Earth Refinement

GEOMETRIC RULE-BASED REFINEMENT PROCESS (LEFT TO RIGHT) 4 INITIAL IDEAS

Student Name:

Coordinators Name:

Student Name:

Philip Chang

Tutor Name:

Assignment 1 - Field

Leire Asensio-Villoria and David Mah

Kevin Wang - ID 1217309

Philip Chang

S2 | 2020

Date:

Tutor Name:

Date: Assignment S2 | 2020 1 - Field

Kevin Wang - ID 1217309

Iteration 01: Amalgam 02

Drawing Title

Coordinators Name:

Leire Asensio-Villoria and David Mah

Iteration 01: Amalgam 01

Drawing Title

Comments

Comments

0m

0.5m 1m

0.5m 1m

2m

2m

3m

3m

4m

4m

02 of 04

01 of 04

Exercise Name Drawing No North

Studio Beta Digital Field01 Collage: & Earth Refinement 1 : 125@A3 (drawn in meters) 0m

Exercise Name Drawing No North

Studio Beta Digital Field02 Collage: & Earth Refinement 1 : 125@A3 (drawn in meters)

Scale

Assignment 3 - The Figures Scale

Student Name:

Philip Chang

Tutor Name:

Assignment 1 - Field

Leire Asensio-Villoria and David Mah

Philip Chang

S2 | 2020

Date:

Tutor Name:

Date: Assignment S2 | 2020 1 - Field

Kevin Wang - ID 1217309

Coordinators Name:

Student Name:

Leire Asensio-Villoria and David Mah

Iteration 04: Amalgam 02

Drawing Title

Coordinators Name:

Kevin Wang - ID 1217309

Iteration 04: Amalgam 01

Drawing Title

Comments

Comments

0m

0.5m 1m

2m

3m

4m

1 : 125@A3 (drawn in meters)

Scale

0m

0.5m 1m

2m

3m

4m

1 : 125@A3 (drawn in meters)

Scale

North

North

04 of 04

04

Drawing No

03 of 04

03

Drawing No

SELF-PERPETUATING STREAM OF CREATION GROUND DATUM CO-INTERACTION

GALLERY SPACES

STUDIO SPACES

GROUND PLANE

METROFLORA 02

PROJECT IDEOGRAM

GREENROOF SYSTEM

NATURE

PEOPLE NATURAL AFFECTORS

02

GROUND FLOOR MASTER PLAN

SECTION A (NORTH-WEST)

SECTION B (SOUTH-EAST)

METROFLORA

02

EXPLODED CIRCULATION SCHEME ISOMETRIC

COLLAGED PERSPECTIVES WITHIN COMPLEX

ROOF GARDENS

GROUND LEVEL WORKSHOPS

AMPHITHEATRE

PARK-SPACE

TEMPORAL TRYPTICH

METROFLORA

03 PROJECT

DETAILS

AIR LIBRARY SUBJECT ID: SUBJECT NAME: WORK TYPE: YEAR:

ARCH30001 DESIGN STUDIO DELTA INDIVIDUAL 2022 (SEMESTER 2)

COORDINATOR: EMAIL: TUTOR: EMAIL:

DENNIS PRIOR priord@unimelb.edu.au LILY MCBRIDE-STEPHENS l.mcbridestephens@unimelb.edu.au

The AIR Library seeks truth in reflection.

Situated Southbank’s the controversial Enterprise Park, the library uses architectural heaviness and lightness to mimic Melbourne CBD’s urban density and the Yarra’s vast openness respectively, mimicing the objective truths of both regions. AIR features 3 levels of functional library space with commercial and administrative zones distributed across and architectural density gradient.

Showcased at MSDx 2022 Summer.

03

PARTI DIAGRAM: PROJECT AIMS

AIR LIBRARY

DEVELOPMENT: STUDIES IN FORM

CBD

datum of ambiguity

KEY

KEY

A) PRIVATE STUDIES B) RESEARCH ZONES C) GENERAL ZONES D) COMMERCE (GROUND)

A) FLEXIBLE LEVEL 2 B) FLEXIBLE LEVEL 1 C) LIBRARY SPACE

KEY

KEY

A) PRIVATE STUDIES B) GENERAL ZONE C) COMMERCE (GROUND)

A) PRIVATE STUDIES B) RESEARCH ZONES C) GENERAL ZONE D) COMMERCE (GROUND)

entry

Southbank

03

GROUND FLOOR PLAN

LEVEL 2 LIBRARY PLAN

AIR LIBRARY

LEVEL 3 WORKSHOPS + ROOF PLAN

SECTION (NORTH/SOUTH)

03

AIR LIBRARY

03

A

B

AIR LIBRARY

RENDERED MOMENTS A) HEAVINESS (ENTRANCE) B) PRIVATE STUDY AREA C) LIGHTNESS (AMPHITHEATRE) D) STACKS (BOOKSHELVES)

C

D

03

A

B

C

AIR LIBRARY

PHYSICAL MODEL (CARDSTOCK) A) FACADE PERSPECTIVE AND LEVELS B) INTERIOR RHYTHM AND VOIDS C) EASTERN OBLIQUE VIEW D) SOUTHERN OBLIQUE VIEW

D

04 PROJECT

DETAILS

ECOTONE LIVING PROJECT SUBJECT ID: SUBJECT NAME: WORK TYPE: YEAR:

ARCH30003 DESIGN STUDIO DELTA INDIVIDUAL 2023 (SEMESTER 1)

COORDINATOR: EMAIL: TUTOR: EMAIL:

DJORDJE STOJANOVIC d.s@unimelb.edu.au JACQUI NGUYEN jacqui.nguyen@unimelb.edu.au

Based around the natural phenomenon of ecotones, ECOTONE is an affordable housing project in Preston. Amidst a nation-wide housing crsis, the project strives for economic and environmental sustainability, adapting ecotones to natural and spatial contexts. Resultant is a sustainable living complex for over 100 residents.

Showcased at MSDx 2023 Winter.

04

PARTI DIAGRAM: DEFINITIONS OF AN ECOTONE

PARTI DIAGRAM: SPATIAL EXTENSION OF AN ECOTONE

MASTER PLAN

ECOTONE

04

APARTMENT KIT OF PARTS

ASSEMBLED APARTMENT PLANS WITH KIT OF PARTS

ECOTONE

04 DETAIL SECTION THROUGH BUILDING B

OVERALL SECTION THROUGH MASTER PLAN

ECOTONE

04

A

B

ECOTONE

RENDERED MOMENTS A) APARTMENT B FACADE & LAKE B) TRELLIS FACADE AND GREENHOUSE C) EXTERIOR HALLWAYS D) STANDARD LIVING ROOM INTERIOR

C

D
