Taiwan is located at the junction of the Eurasian continental plate and the Philippine Sea plate. Due to the collision of the two plates, the crust was squeezed and lifted to form Taiwan Island.
Therefore, 70% of Taiwan's area is mountainous, and Taiwan is located in the subtropical region. The climate is warm and humid, so the mountains are surrounded by clouds all year round. According to the characteristics of Taiwan's climate, I will try to design a system that can collect water in the mountains to reduce the consumption of a lot of resources to erect water pipes to transport water. This system collects water from all over the mountain and supplies it to nearby buildings.
Base

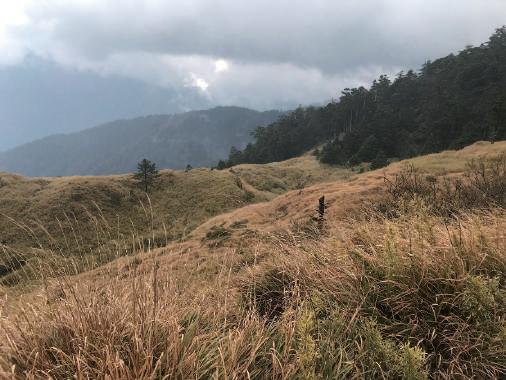

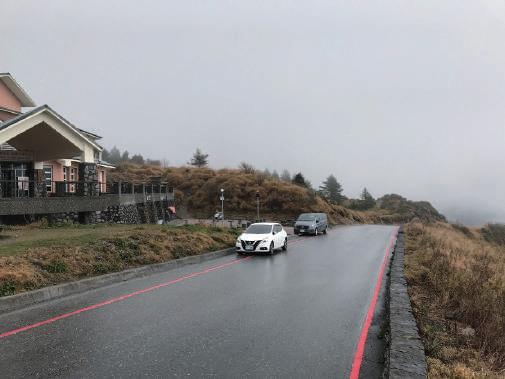

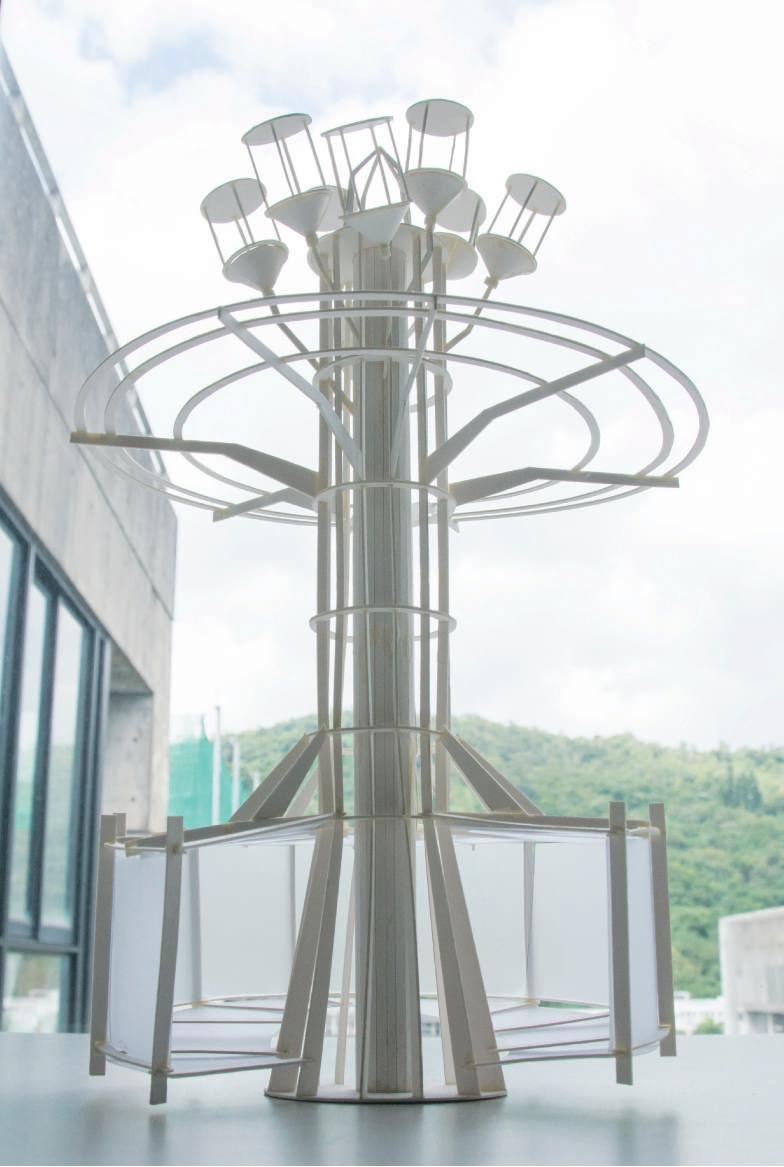

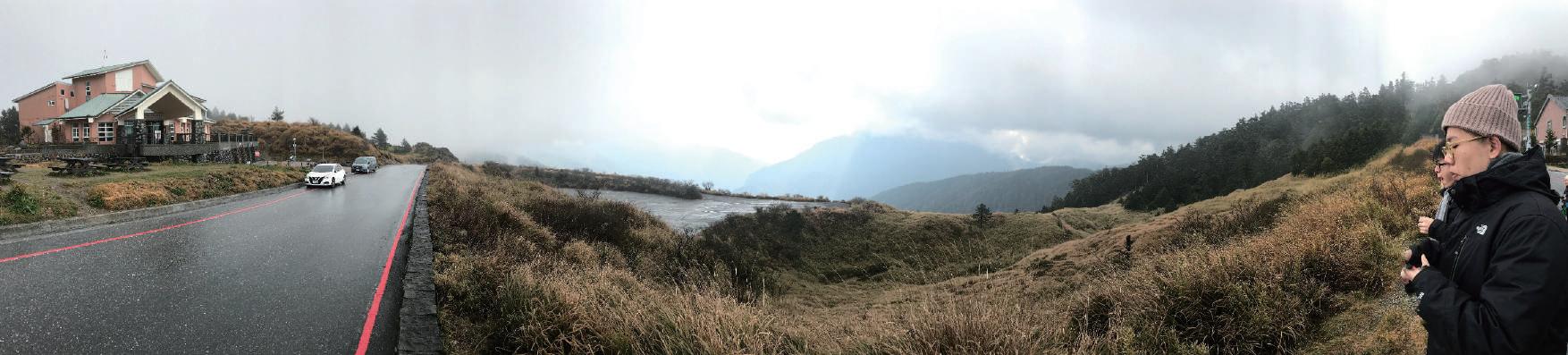

The base is located in the open space next to a rest station on Hehuan Mountain. This rest station is located at a critical relay station on the summit of the mountain. Many tourists will rest here before reaching the summit. The base is 3011 meters above sea level, where the humidity is extremely high, and it is located on a windward slope, with strong winds and highly thick fog. Therefore, the ways to obtain water resources in this environment include fog and rain. The design concept is to collect fog water and rainwater into the water tower and then provide the stored water resources to the rest station opposite the base, providing stable water resources for tourists using it.
Base

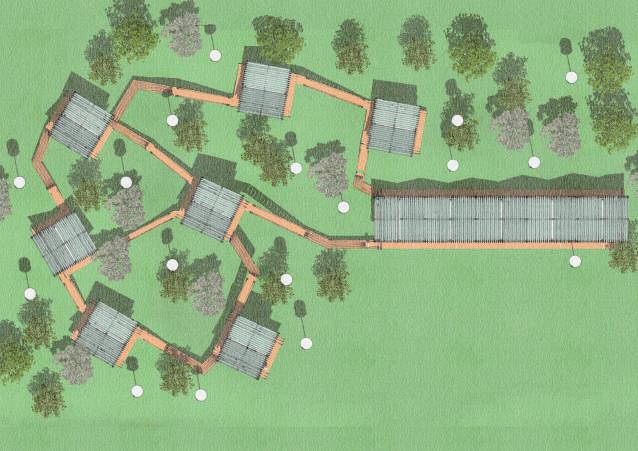

Rest Station Location Location

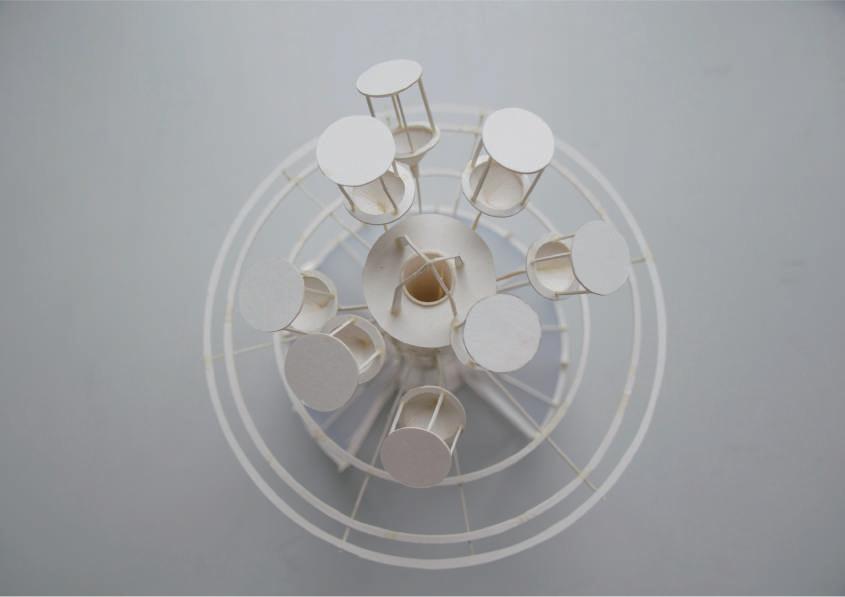

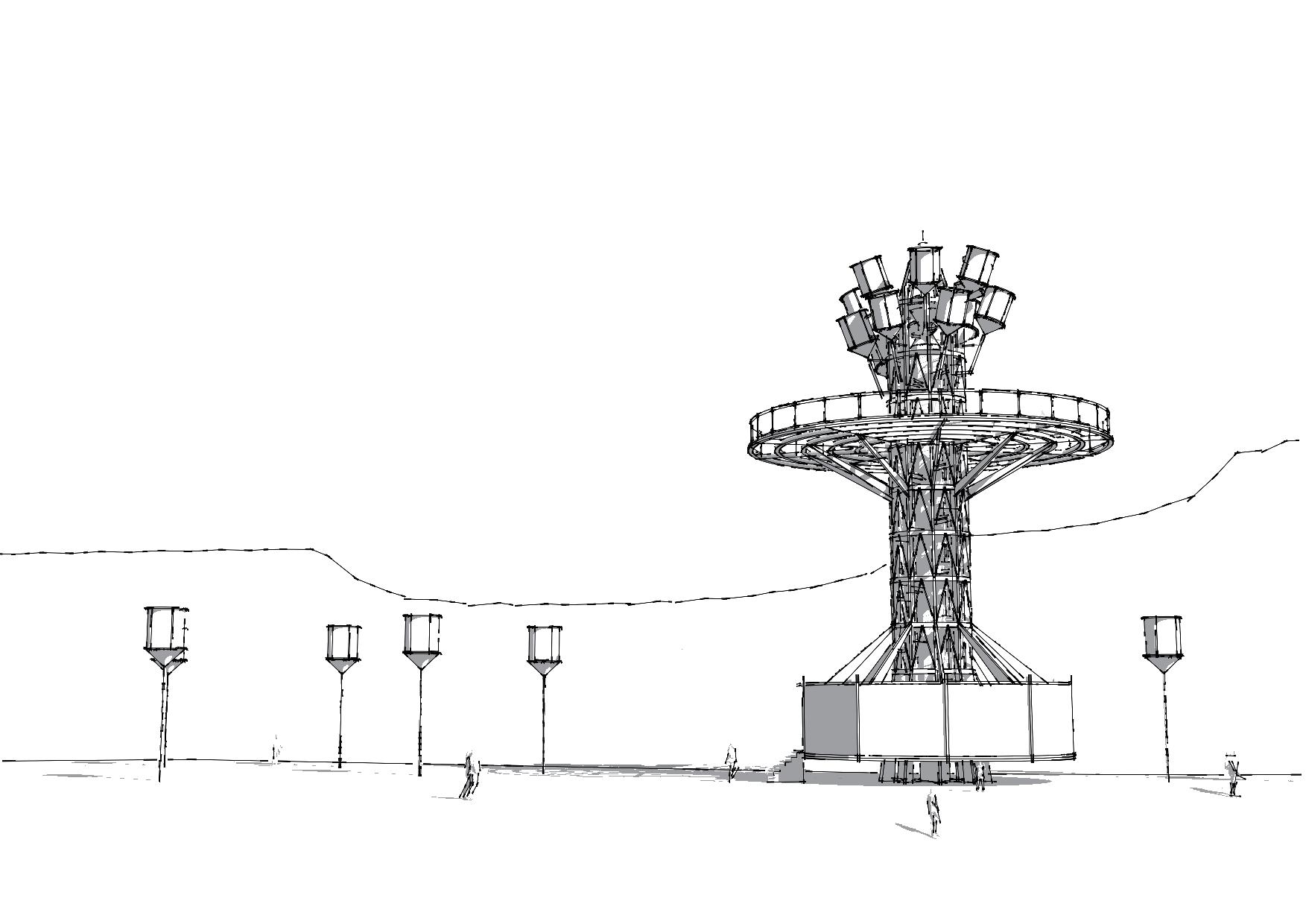

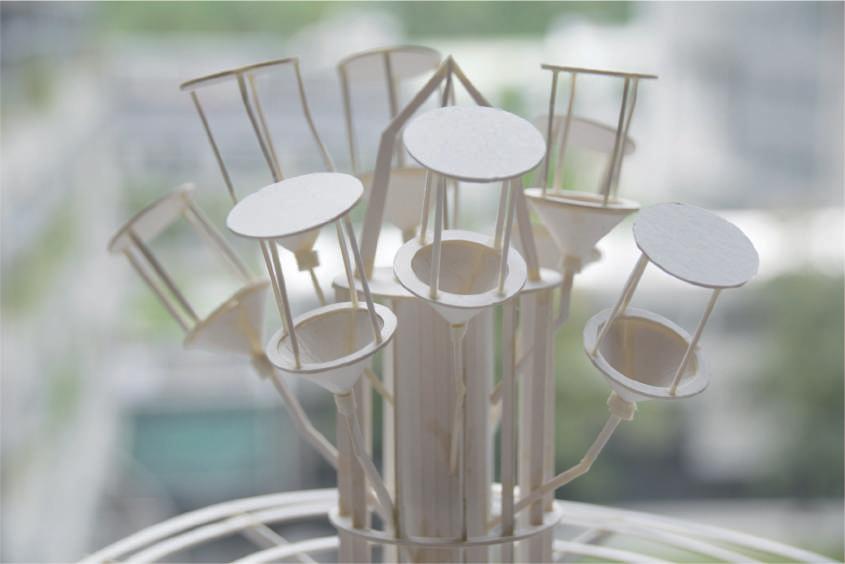

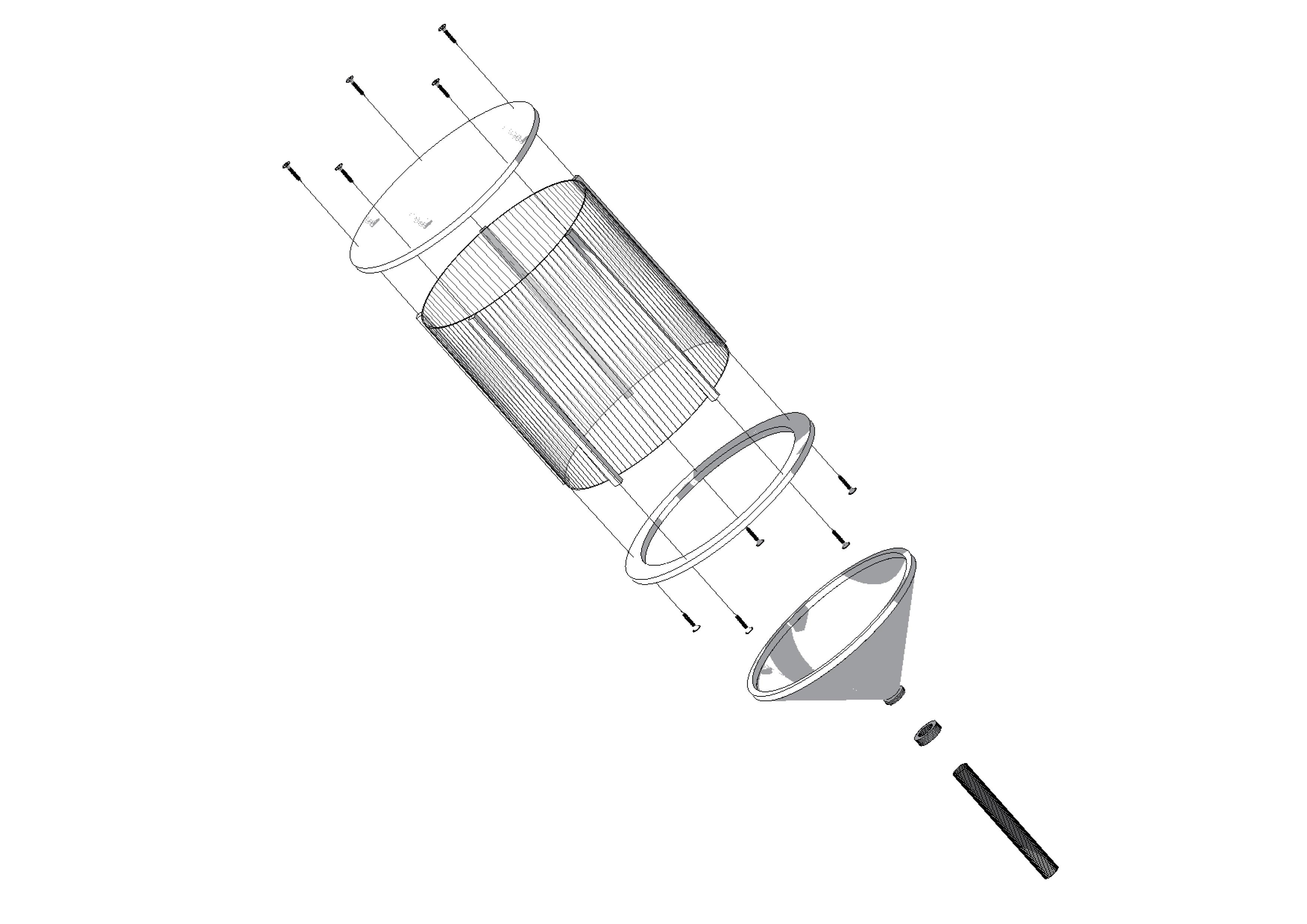

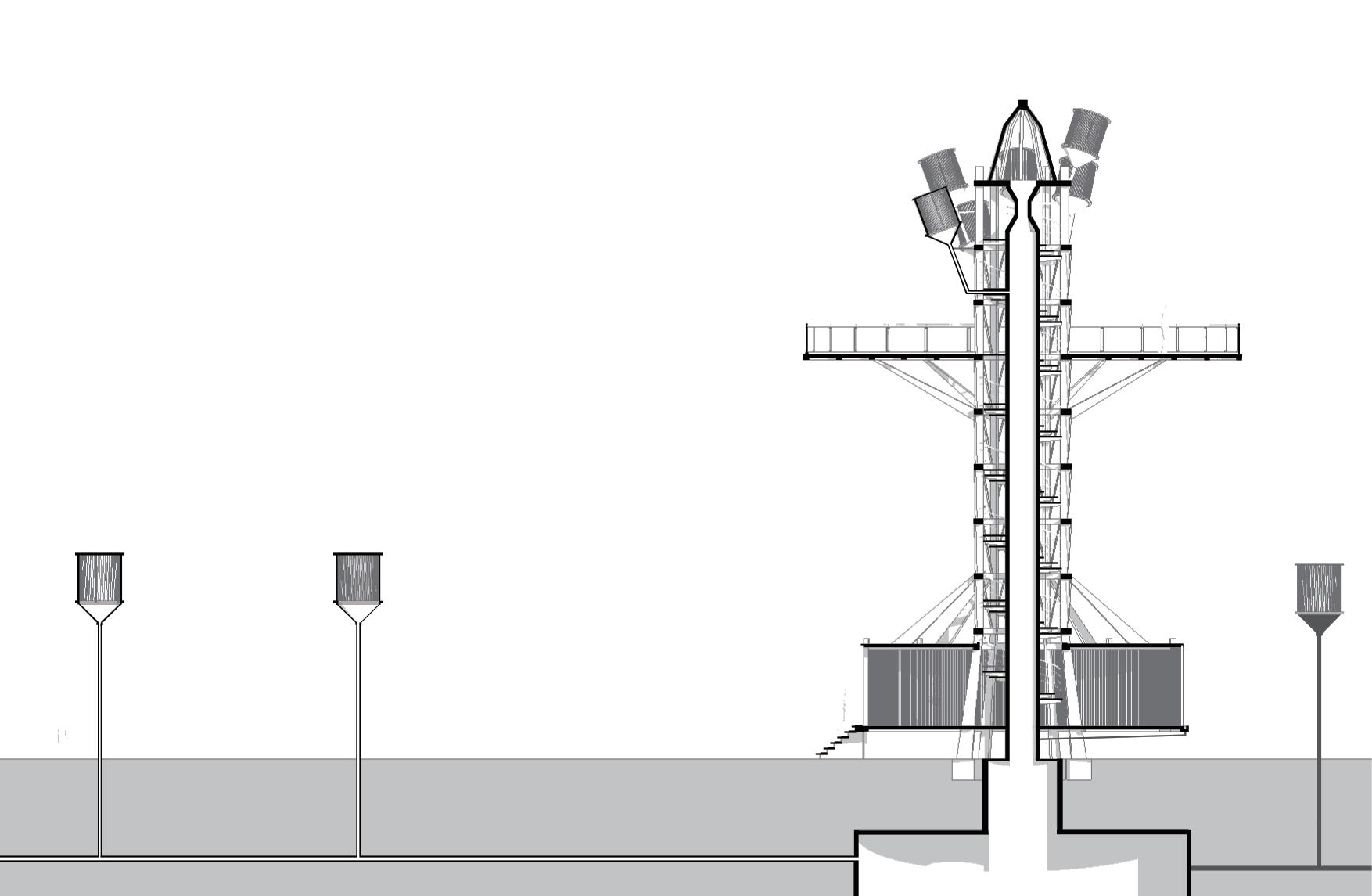

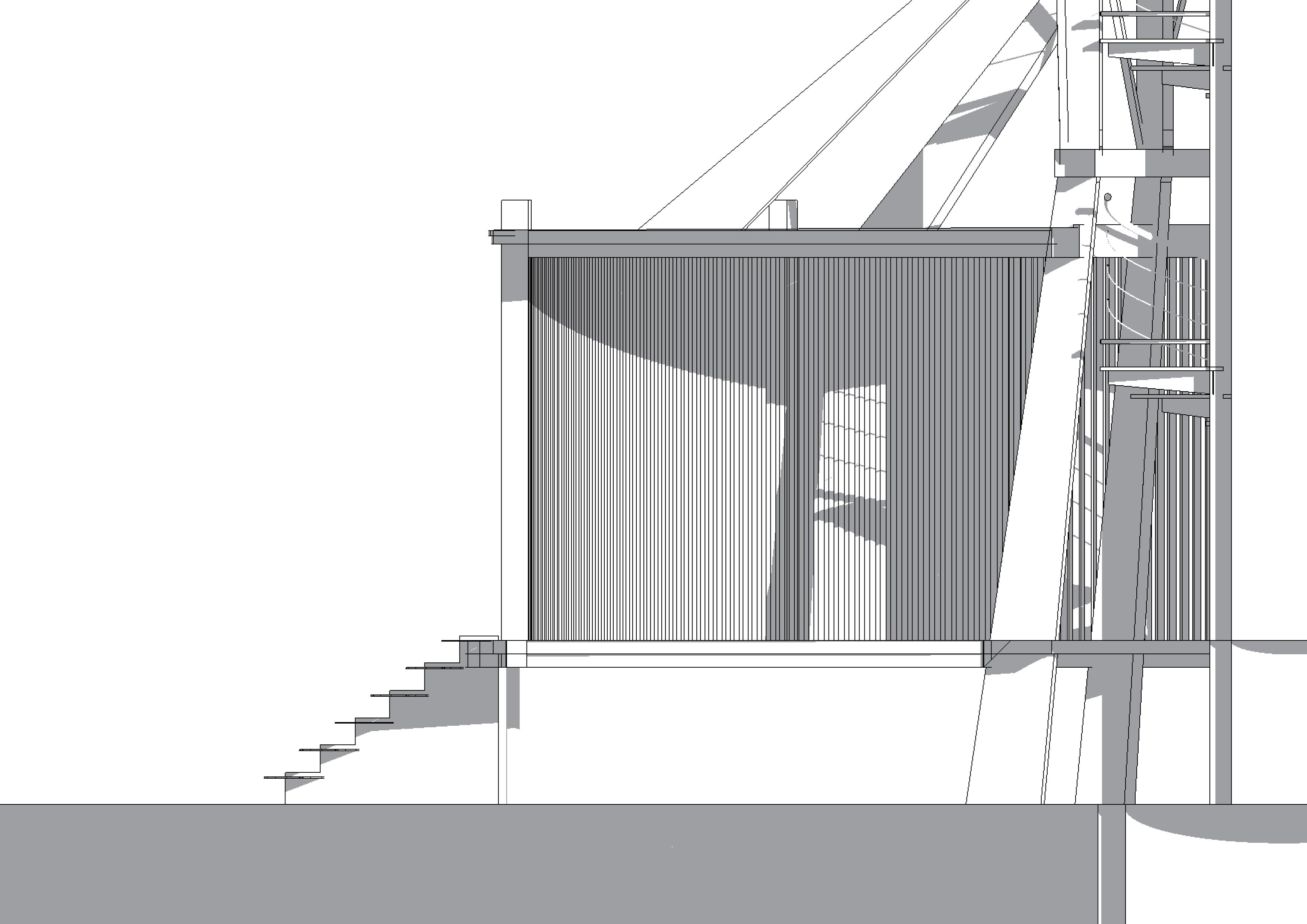

Underground water tank (To prevent water from freezing) Land fog net Water pipe Pipe to send fog water to the central water tank Central water tank Fog net Lounge room 0 1 2 3(m) Fog collecing net Water collector 4 inch non-corrosive pipe Design of the Fog net Scenic overlook Alloy Steel Screw 12*2 inch Coupling nut Top cover sheet thewaterCollectingfromgutter Referance SystemLupin flower: on the pattern of fower growing Rough version of the fog net
Continuous metal gutter Wrap flashing down into the DampproofingDampproofinggutterContinuousmetal gutter The metal gutter will connect with a pipe to send the rain water down to the central water tank 1 2 1 2Water proofing membrane 1/100 slope Wood Slab 40*80mm CLT VCL FinishingSuspended12.5mm100mm5mmMembranePlywoodboardMineralInsulationPlywoodboardceilingWoodtiles 20mm Wood flooring 40mm EPS Insulation 12.5mm Plywood board 40*120mm CLT VCL 10mmMembranePlywood board 100mm Mineral Insulation 15mm Moisture Resistant MDF 50mm Solid Wood Board Water proofing membrane

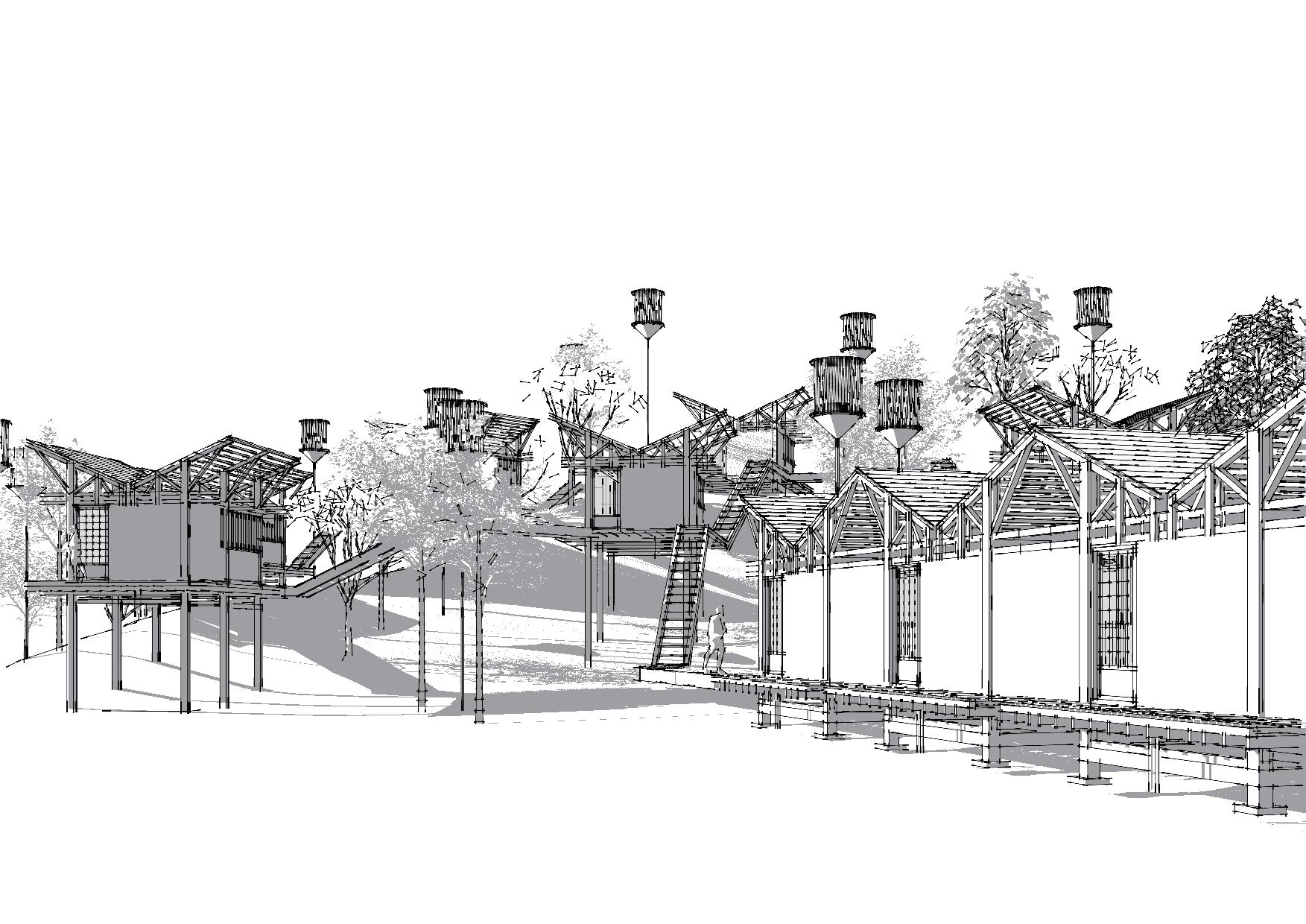

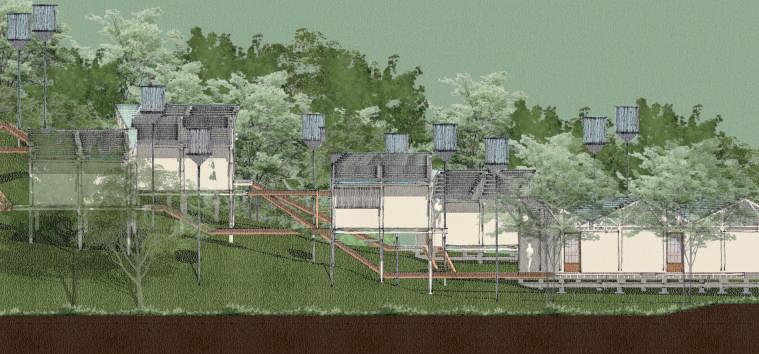

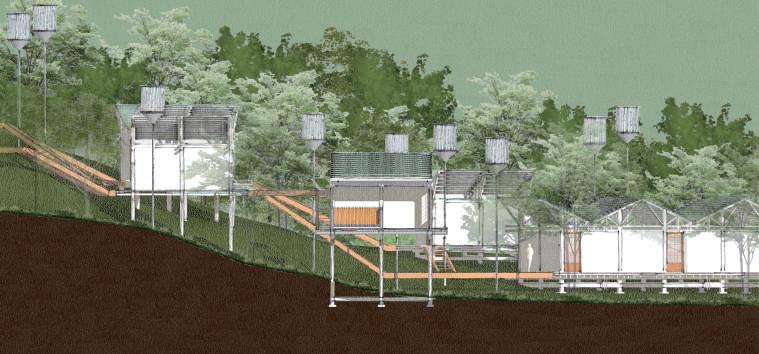

B ecause the sturcture is on build on the slope, so the water will flow from the top of the slope to the buttom. The water can be used by every restroom on the slope and the water will end flowing into the tank and stored.

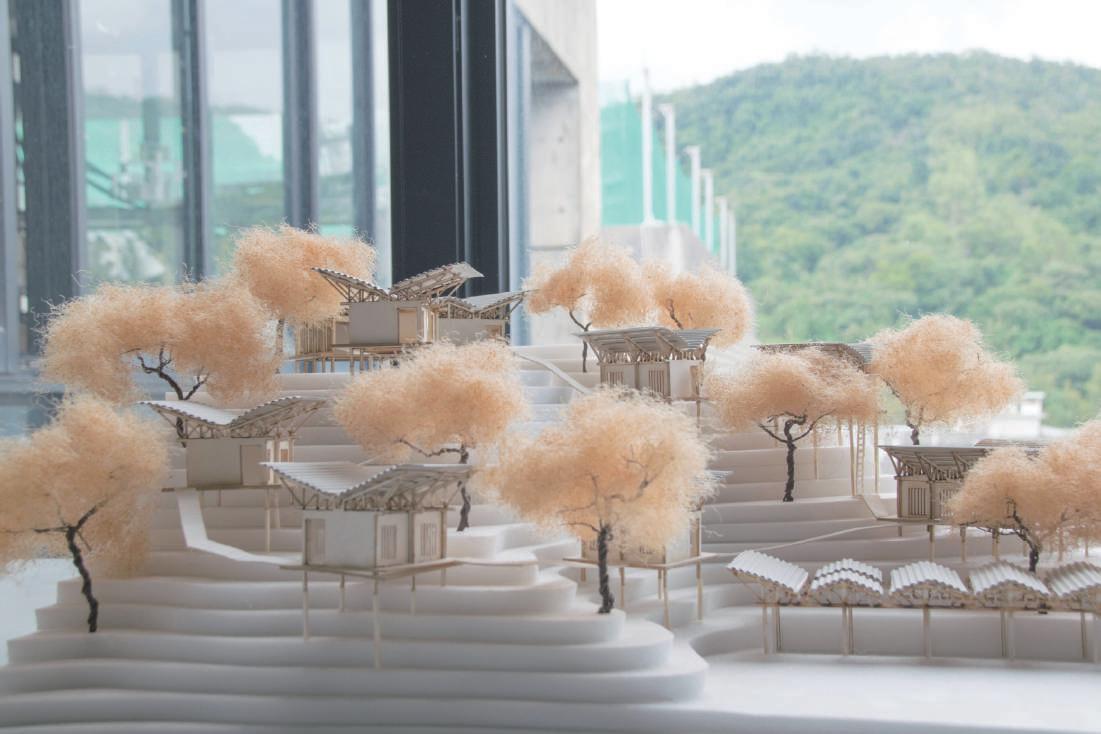

T he arrangement of the hot spring house and the restroom are the same as the lines that water flow through ,which makes it easier to collect, restore and use the water from the rain and the fog.
10mm Laminated Tempered Glass 1*4inch spruce wood 120025006501400 +4350+0+12005750 +3700+5450Detail of the wood connection 1 2 3 1 2 Seeing strip Continuious metal gutter Gutter outlet Gutter liner ClosureRainwateroutletpipeflashingDripangle Burma Teak floor 5mm Plywood board 40*80mm CLT VCL 100*200mm12.5mm50mmmembraneMineralInsulationPlywoodboardCLT Vertical wood siding 5mm Plywood board 15mm CLT VCL Water5mmmembranePlywoodboardproofingmembrane 2 Water froofing membrane 12.5 Plywood board 100*200mm CLT 15mm Plywood board Spruce wood stripe ceiling
