URBAN DESIGN PORTFOLIO | 19-20

URBAN DESIGN PORTFOLIO 19 / 20

ERIC TING EN WU

1

2

/ 01

/ 02

/ 03

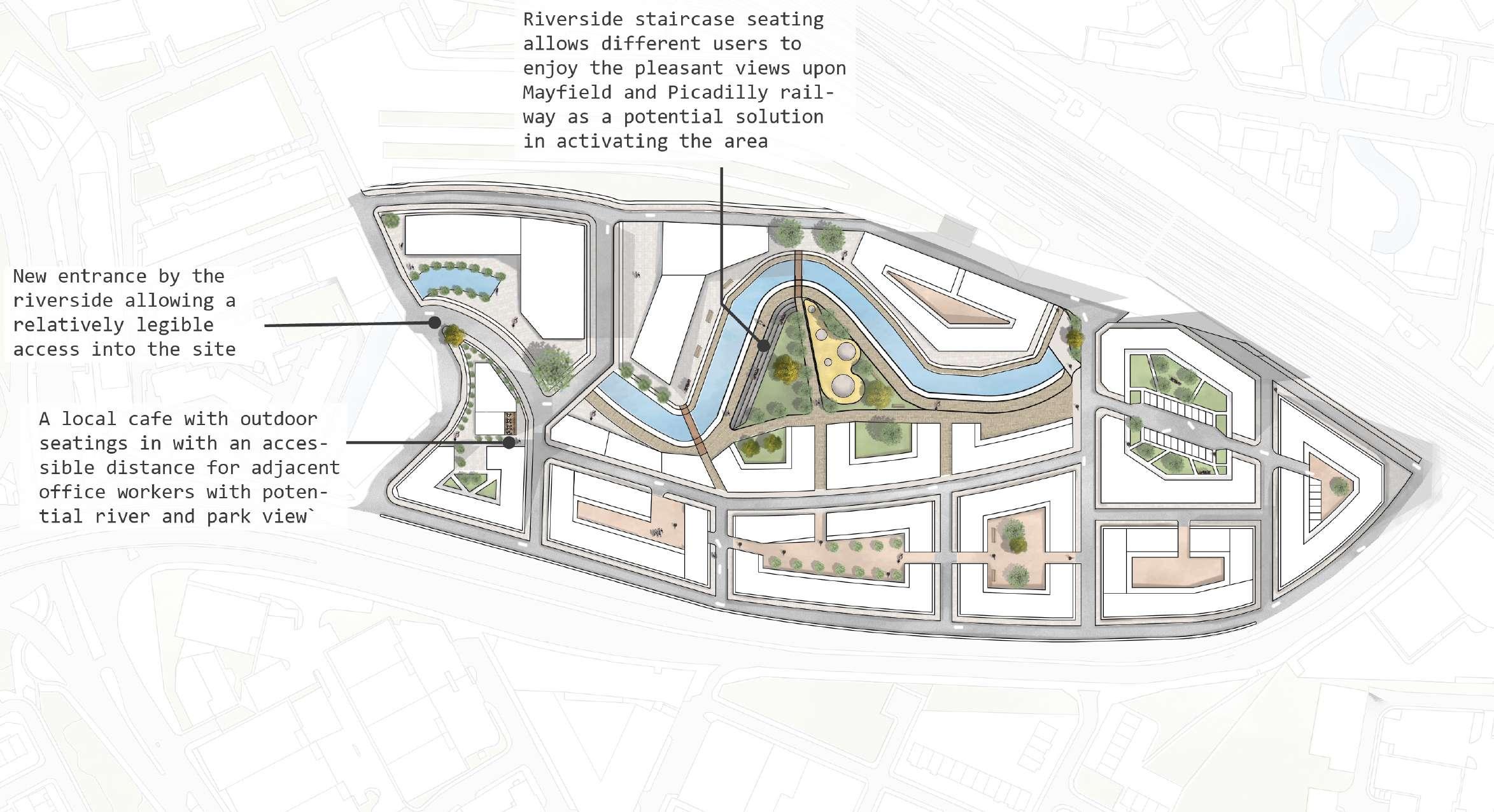

REDEFINING THE URBAN PARCEL - THE MAYFIELD REGENERATION

PORTLAND BASIN - THE HISTORIC QUARTER

THE CO-EXIST SUSTINABLE AND INCLUSIVE NEIGHBOURHOOD OUSEBURN & BYKER

Delivering a distinctive and a vibrant community with restored public realm in becoming a catalyst of mixed- used neighbourhood

Redefining the integration of historic and natural value in portland basin that delivers a mix use of community with high quality of public realm

Restructing the urban fabric and identity in realising an inclusive, vibrant and sustainble neighbourhood with urban regeneration process

3

N

1.

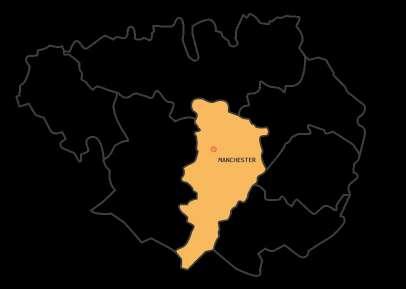

REDEFINING THE URBAN PARCEL - THE MAYFIELD REGENERATION

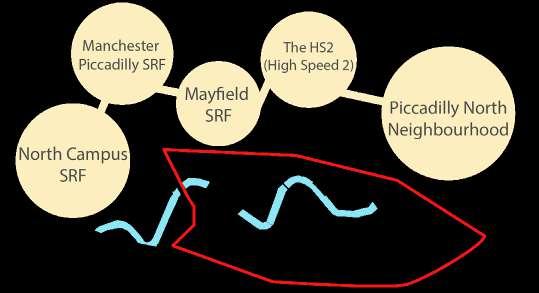

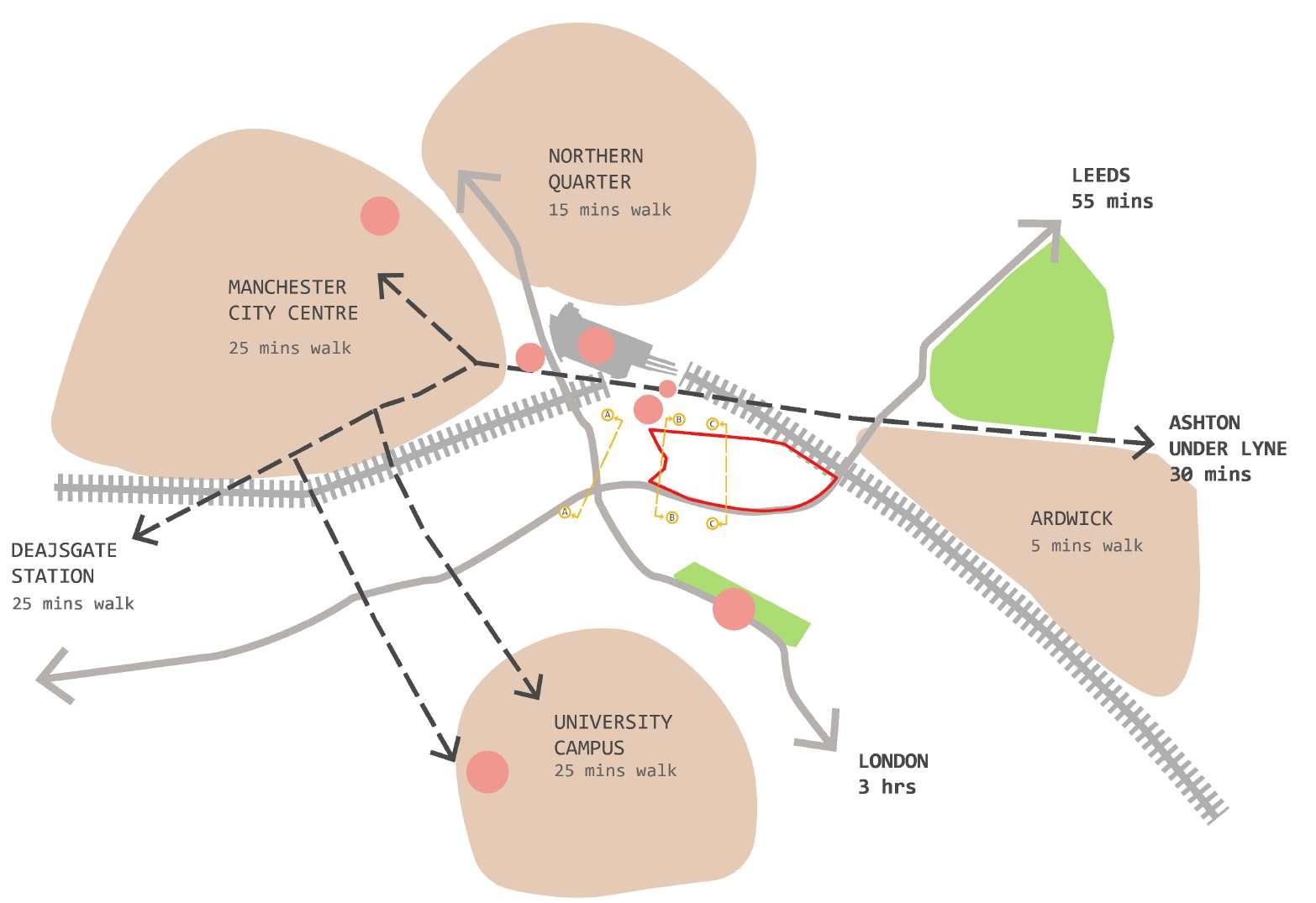

Locating in close promixity to several key districts aroud the

urban core of Manchester. North to the site is the Picadilly Station where HS2 is envisioned to help providing higher volume of traffic and ease congestion and overcrowding.

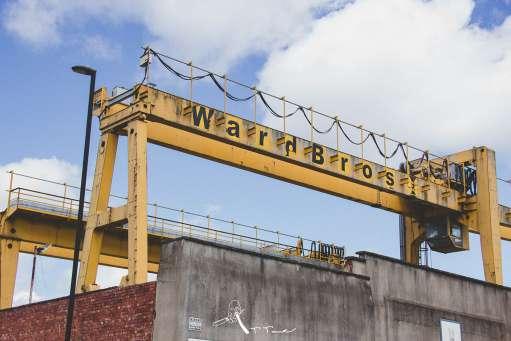

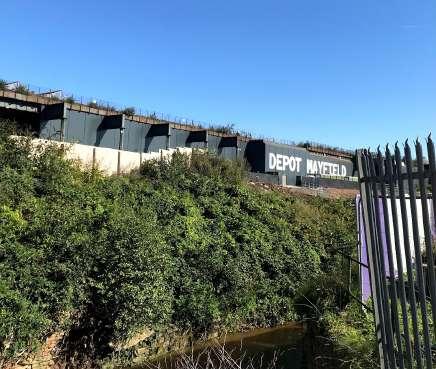

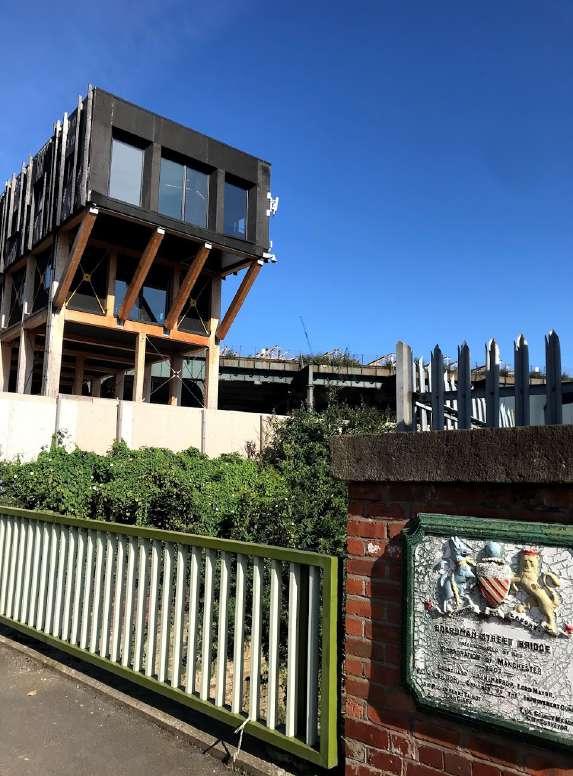

Currently a vast vacant land with existed heritages- Mayfield Depo (previously the Mayfield Station) and the Garter Bar, which are two Grade II Listed Buildings Its location provides potential establishment in close relationship to the transport corridor and urban core such as city centre, and the Northern Quarter

4

DESIGN VISION Delivering a distinctive and a vibrant community with restored public realm in becoming a catalyst of mixed- used neighbourhood

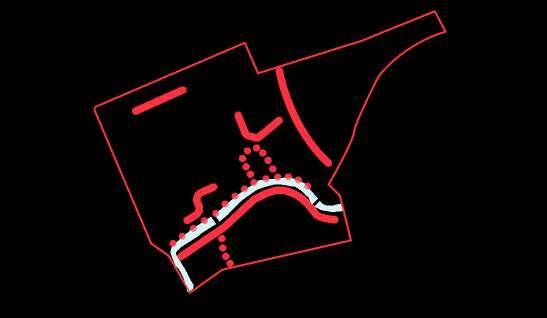

PRESERVING HERITAGE ASSETS

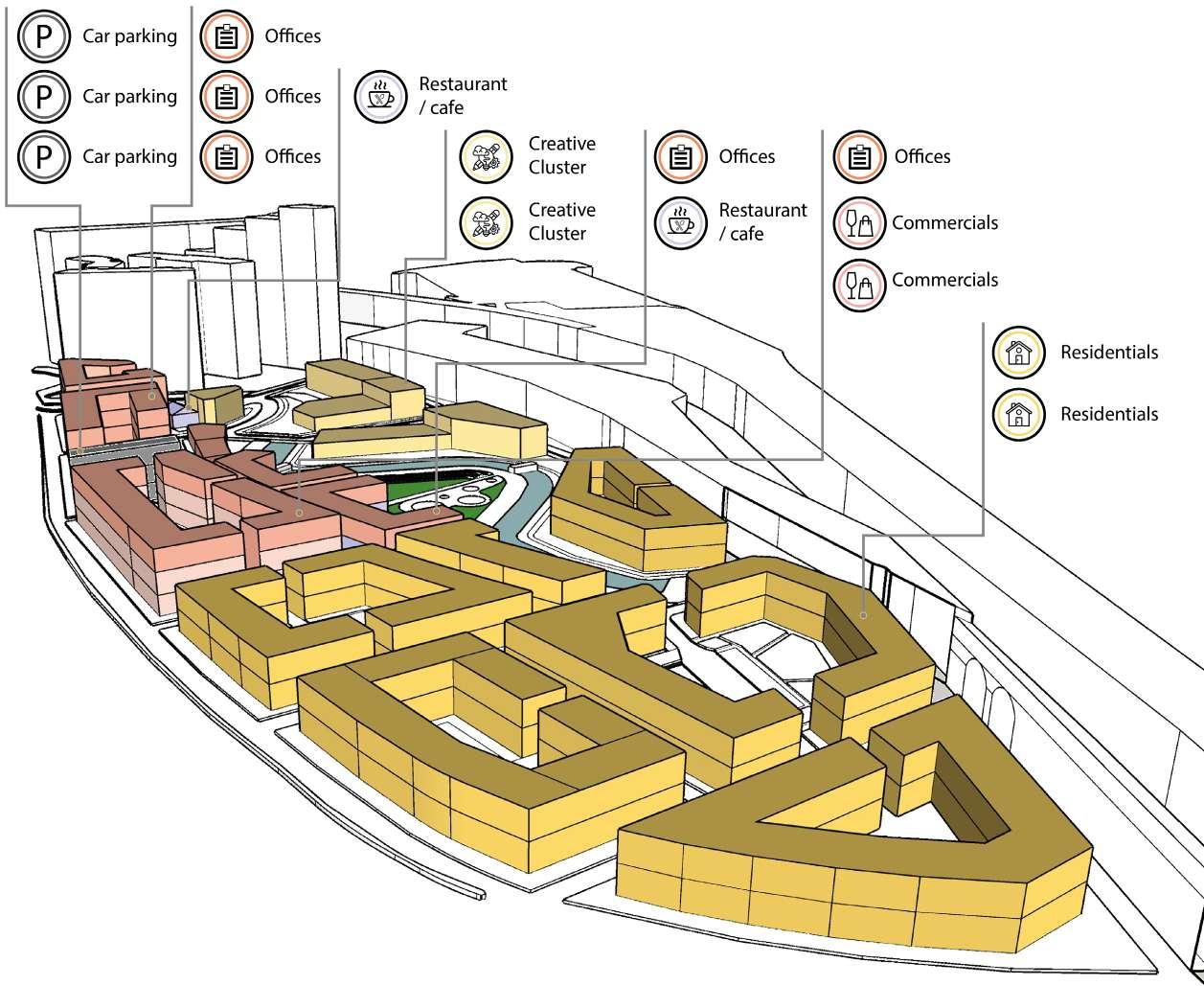

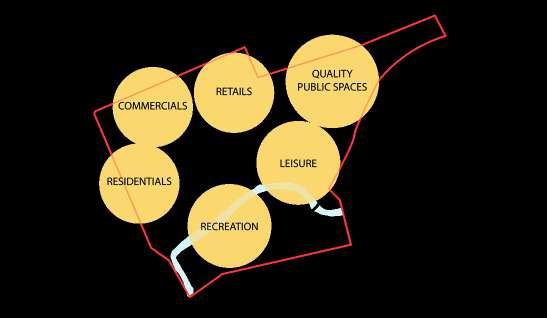

ENCOURAGE MIXED USE OF SPACES

REVITALISE PUBLIC REALM WITH EXTERNAL ROUTES

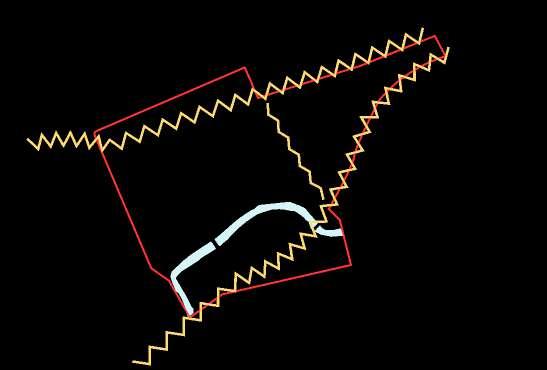

MINIMISE IMPACTS ON BARRIER AND PROVIDE POTENTIAL CONNECTION

ACTIVATIE INTERNAL SITE WITH LINKAGE OF FRONTAGES

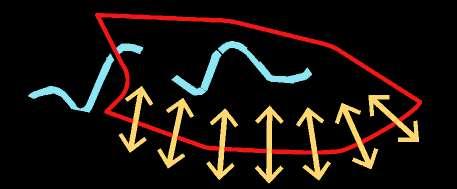

ENHENCING NORTH & SOUTH CONNECTION & ACCESSIBILITY

5

IMMEDIATE SURROUNDINGS

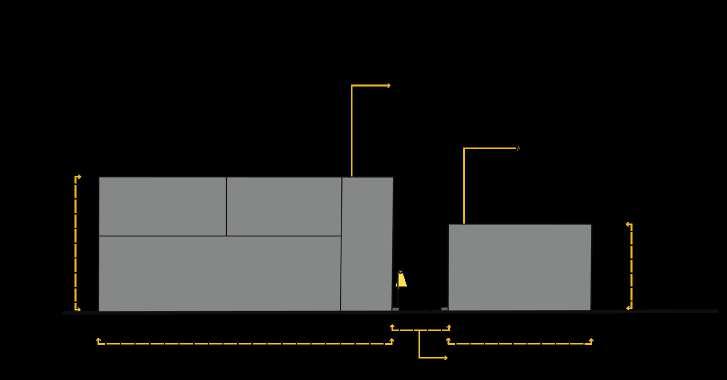

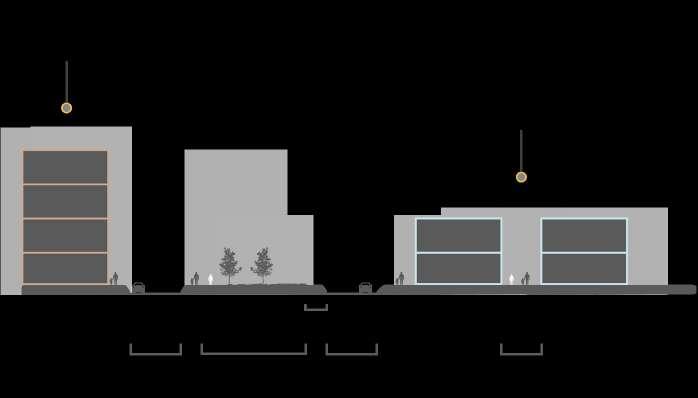

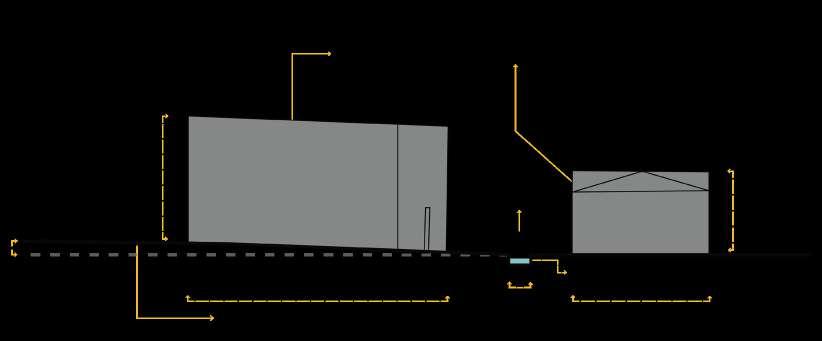

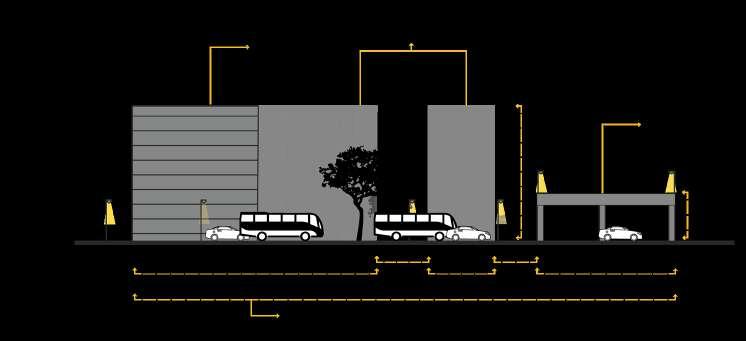

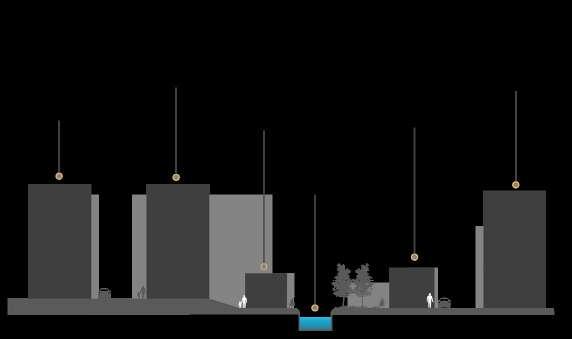

Cross- section A-A

Cross- section B-B

Cross- section C-C

6

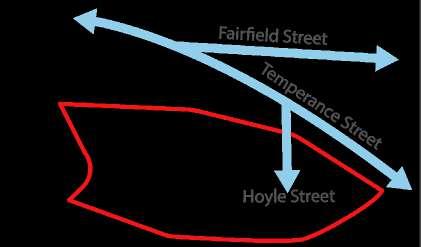

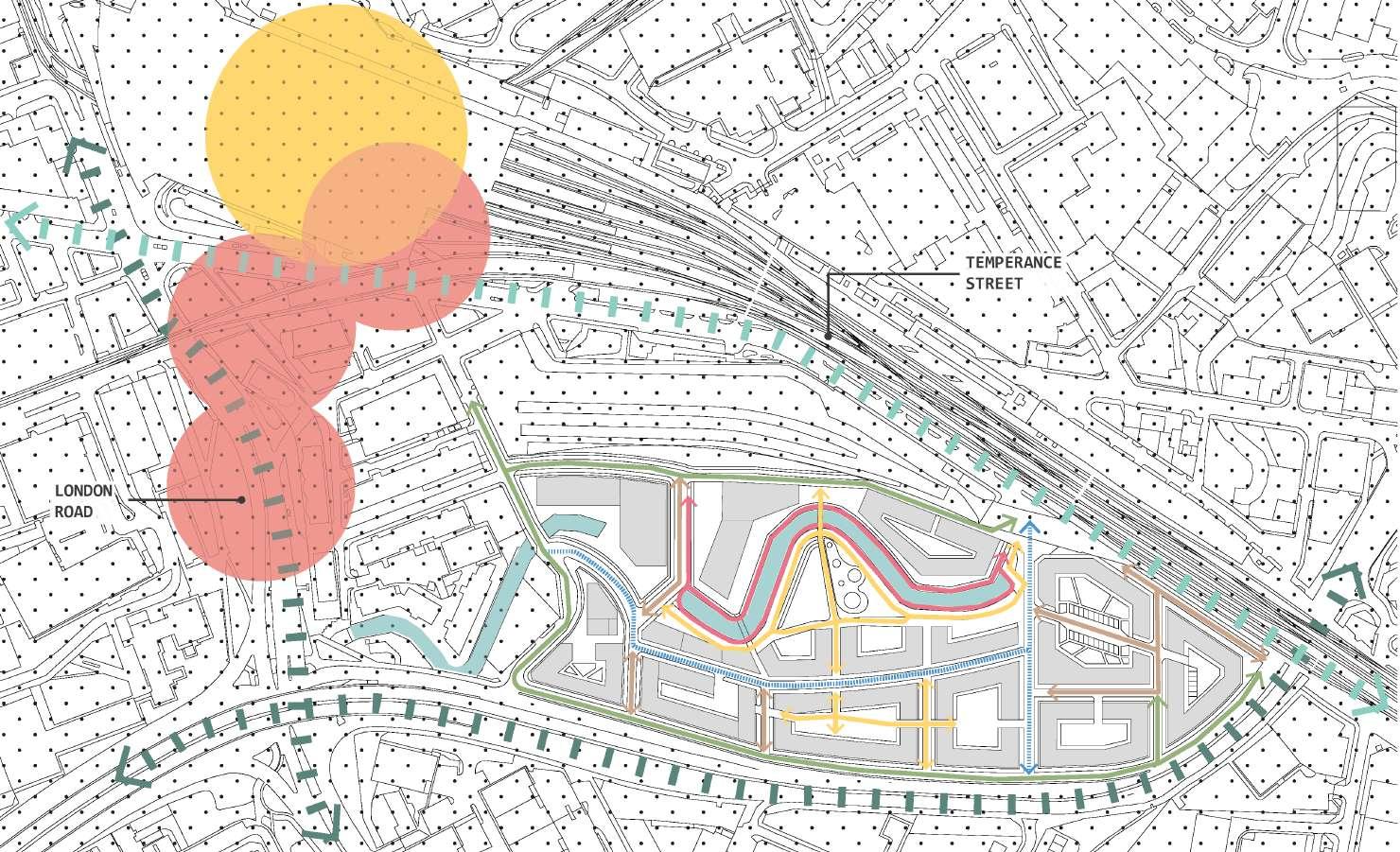

SITE PERMEABILITY

The Southern fringe of the site is set back 7 meters to cre-

ate an soft distinction between the site and the barrier (Ring Road). This street also act as a slip road that connects with majority of secondary and service routes in the site and to Ring Road The internal connection is also achieved with the interlinked streets that link up the Northern and Southern fringe of the site. Distinction of pedestrian and cycling routes around the central park also safeguard the mobility of users

MANCUNIAN WAY (RING ROAD) NETHER STREET

7 The central green accomplishes with the river to miximise as a getaway for surrounding buildings

An integration of semi-public GI in front of both offices to strengthen the connection of GI, also to crteate as a transition between two spaces

Primarily used as a service route between both sides of buildings (offices and a few restaurants and cafe)

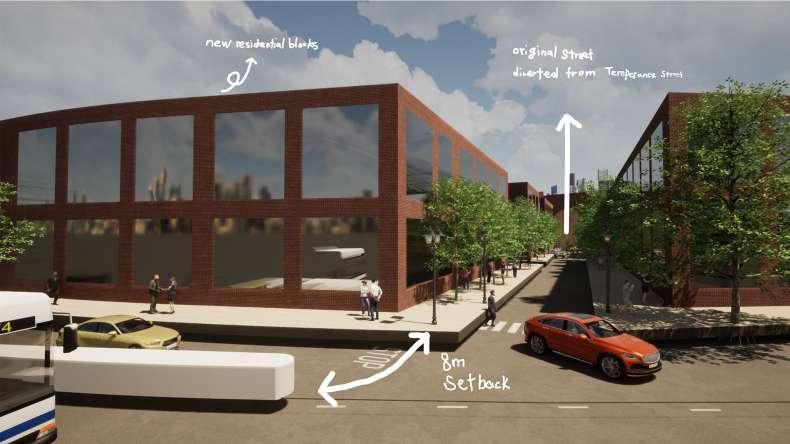

Setting 7m back to operate as primary route to connect as a slip road with Ring Road

8

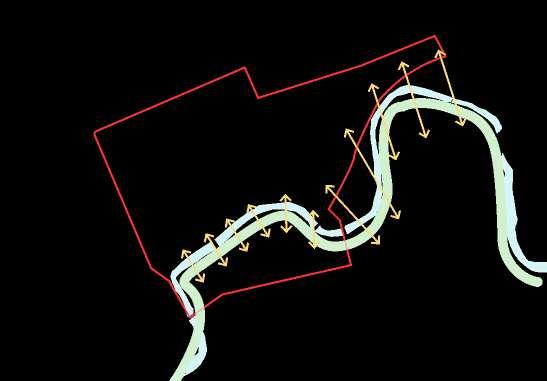

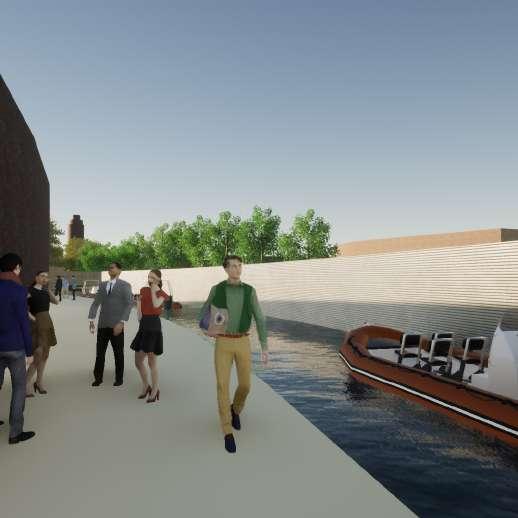

River Meldock provides key vistas and views without obstruction within the site that promote higher engagement into the public space

The diversity of building typology allows better and direct access between each building, and eventually towards the central green

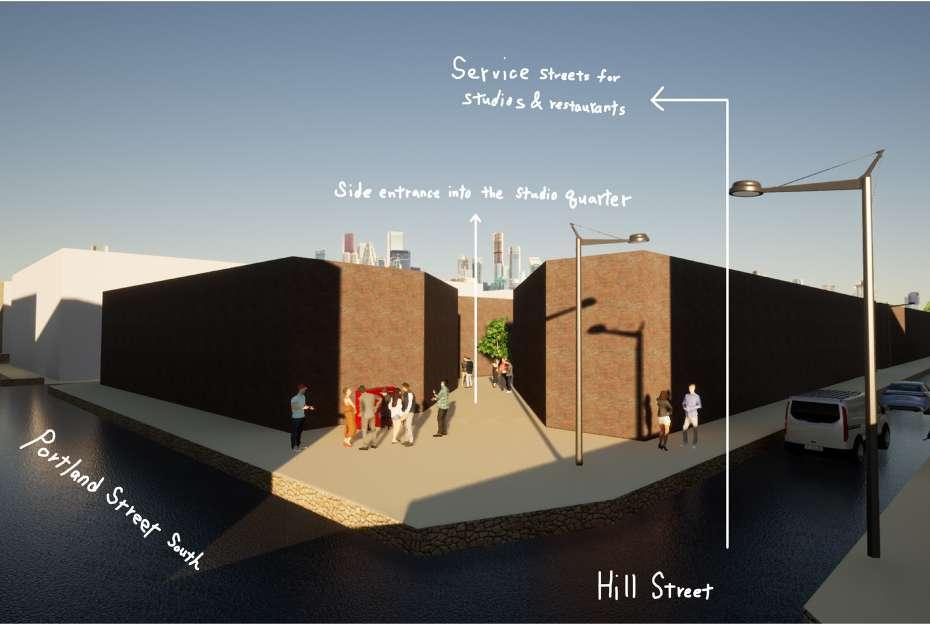

Taking the side entrance as an advantage to provide active frontage to help mitigate the noise and traffic from the barrier (Ring Road)

9

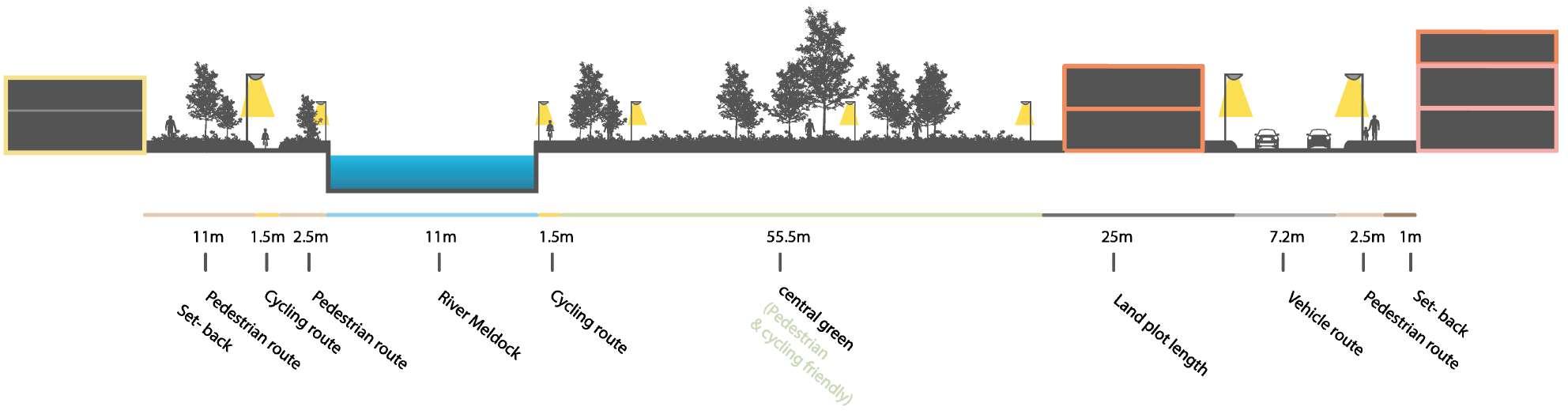

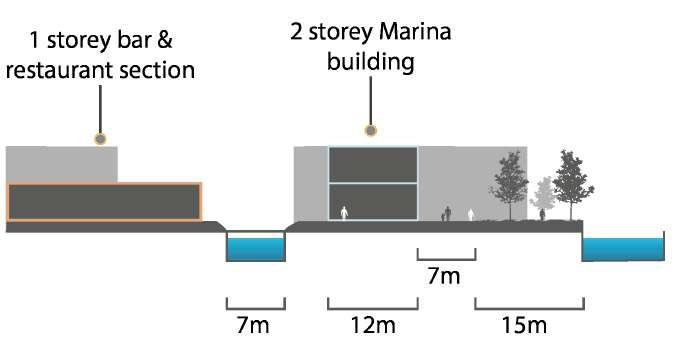

RAILWAY VIADUCT Cross section A-A

A prominent public realm is delivered

jointly with adjacent residential blocks that provide natural surveillance around railway viaducts throughout the day

Cross section B - B

Two site entrances are proposed at the Western fringe of the site. In which the route between the creative clusters and office area, is also designed for servicing use especially. However, it can also be taken as a secondary routes for drivers

Cross section- entire site

10

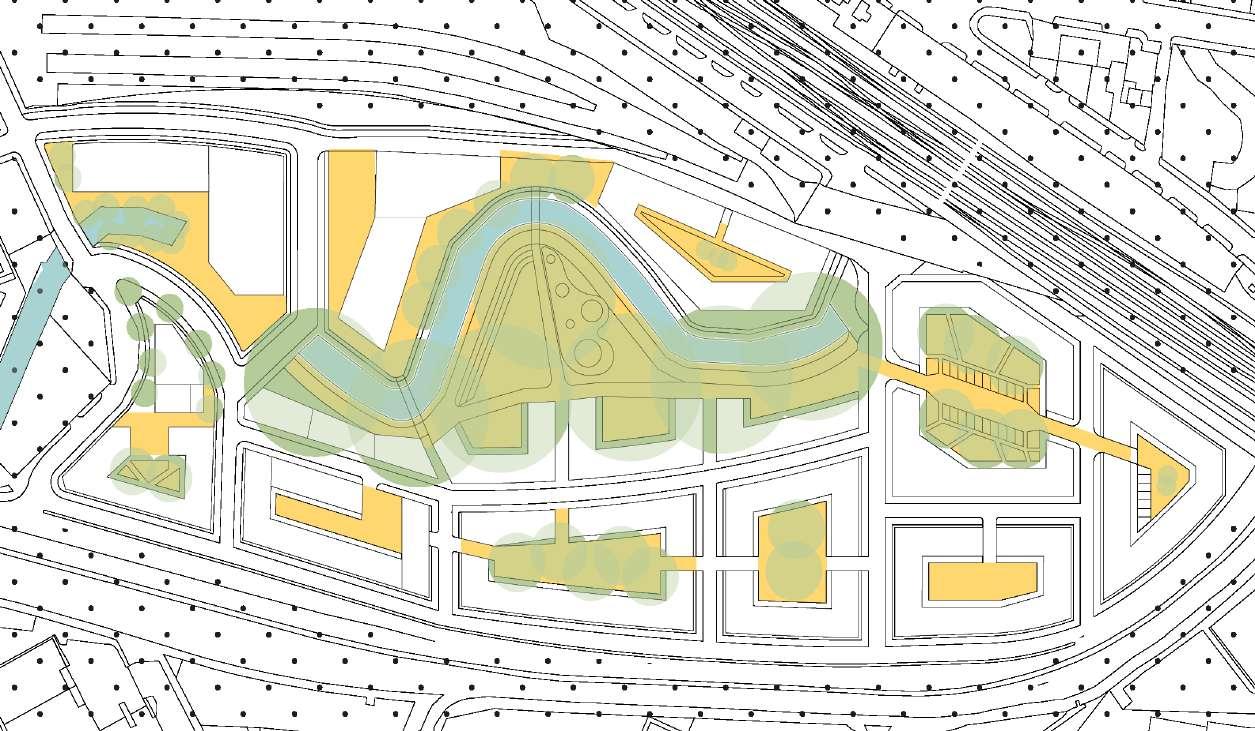

GREEN INFRASTRUCTURE NETWORK

Majority of urban blocks West to Ring Road

are of residential purpose, while the office quarters are integrated with commercial and car park with the advantage of view and vistas over the park

Cross section C - C

11 The central green is undoubtedly the major public realm linking to pedestrian routes that connect to each semi-public realm

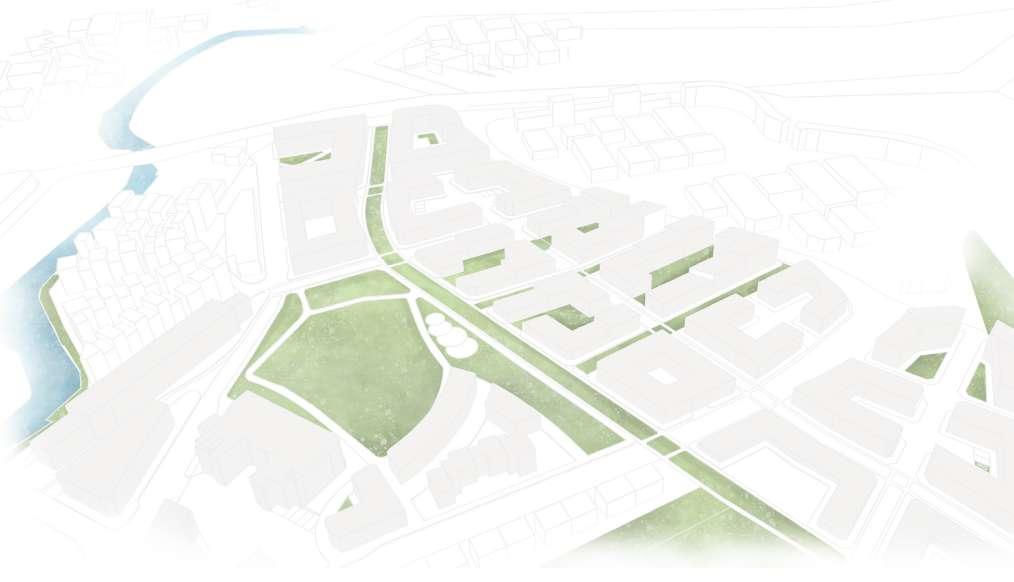

GREEN INFRASTRUCTURE NETWORK

The green corridor in this neighbourhood acts as a semiprivate walkway directing to the central green diagonally

The retention of River Meldock also compliments the surrounding GI, thus generating as a excellent outdoor space

The integration of commercial and office link up with the connection of GI. Also creates a sense of enclosure for its users inside the semi- private courtyard

Integration of central green with the River Meldock promote a relatively legible public space for its surroundings

12

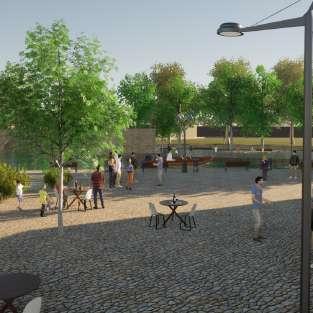

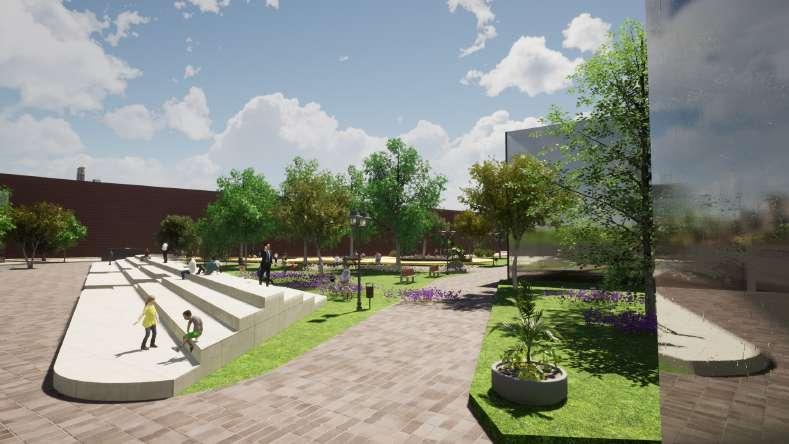

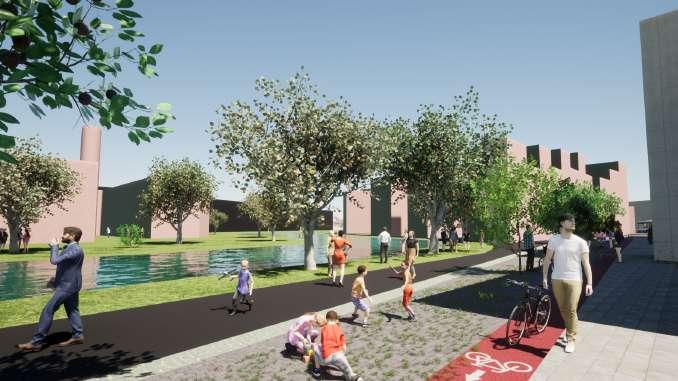

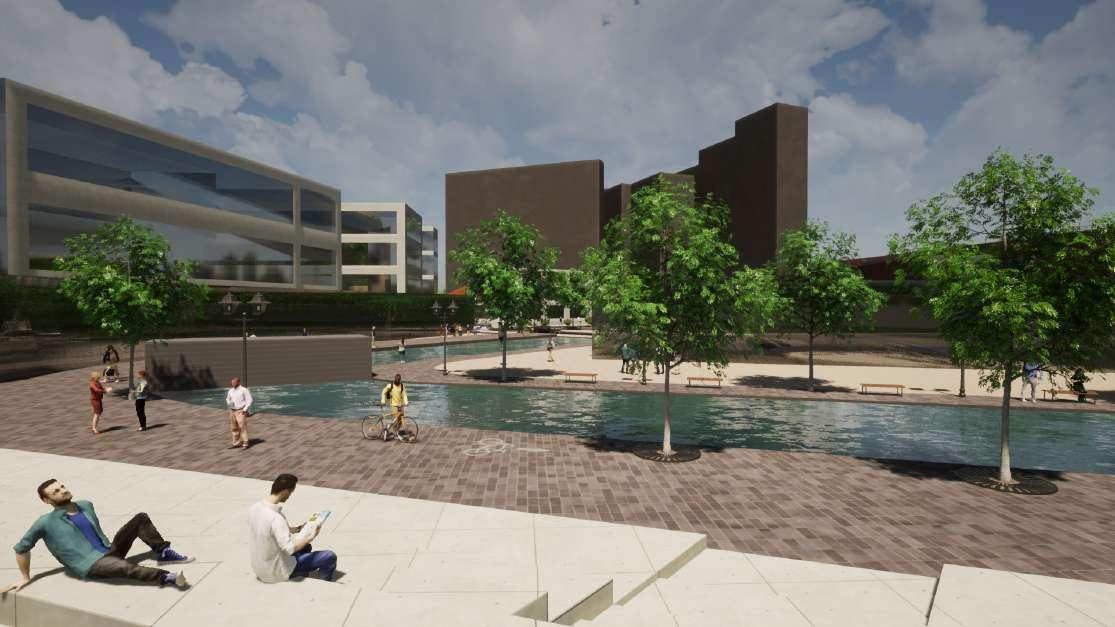

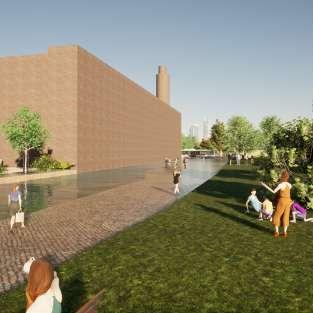

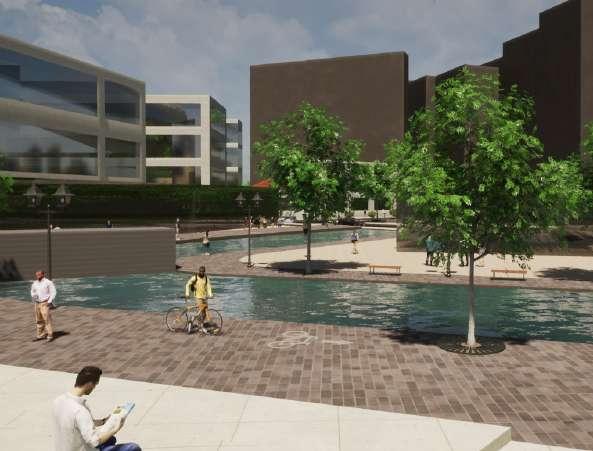

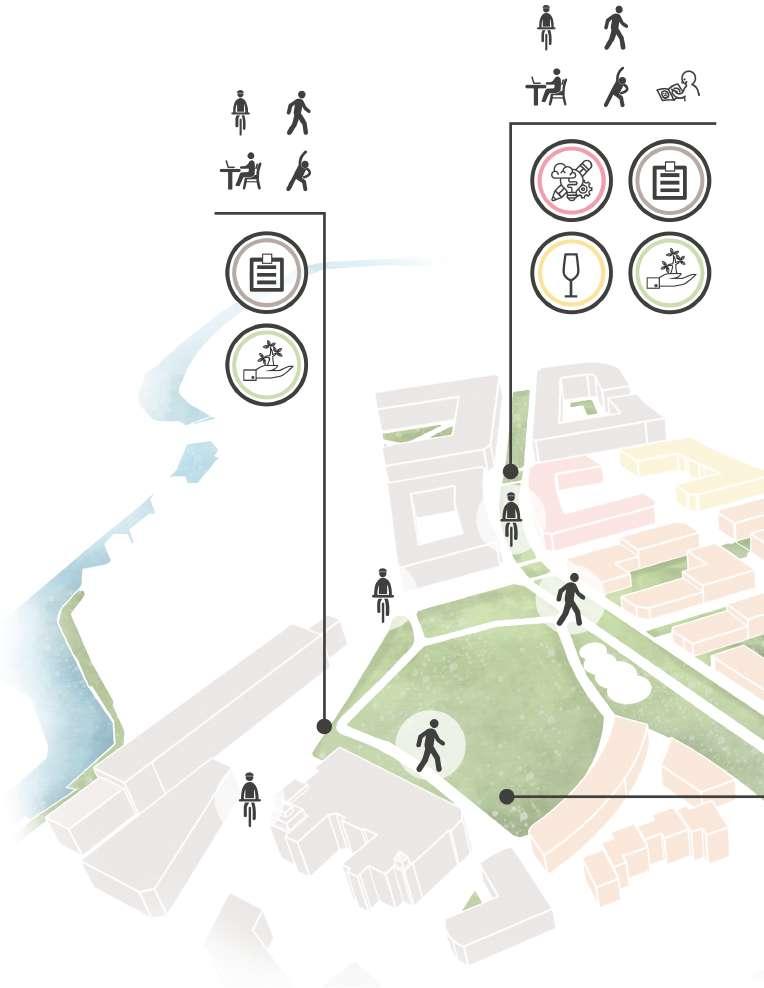

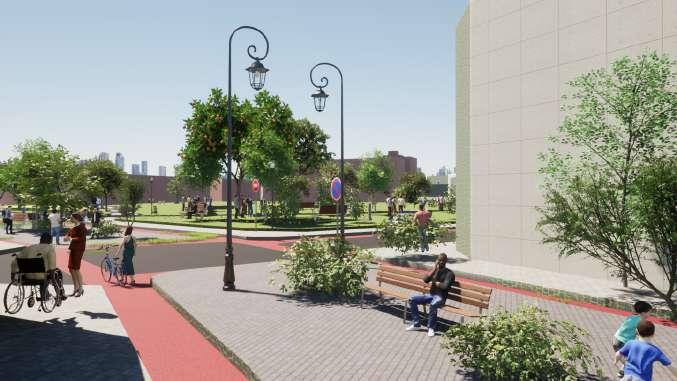

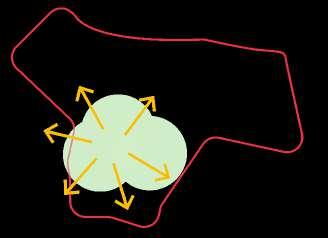

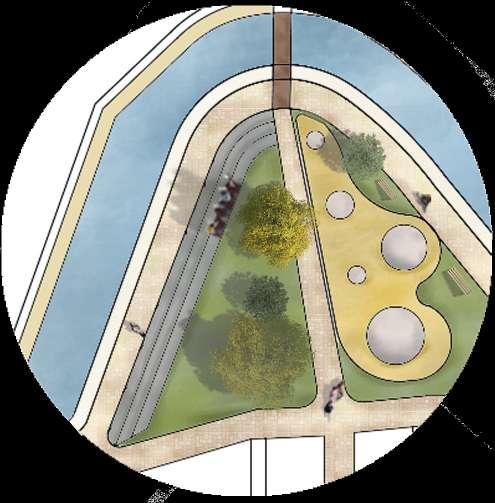

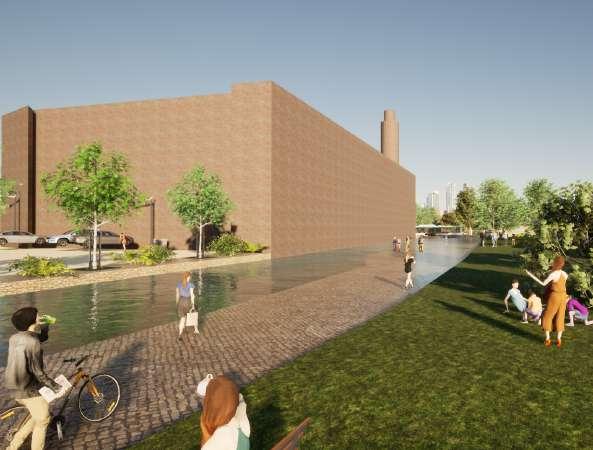

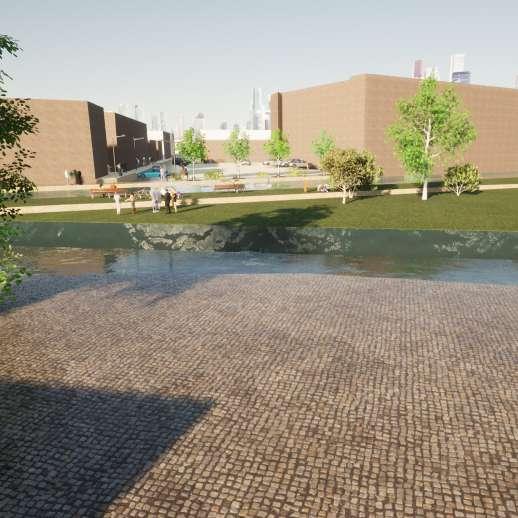

CENTRAL GREEN

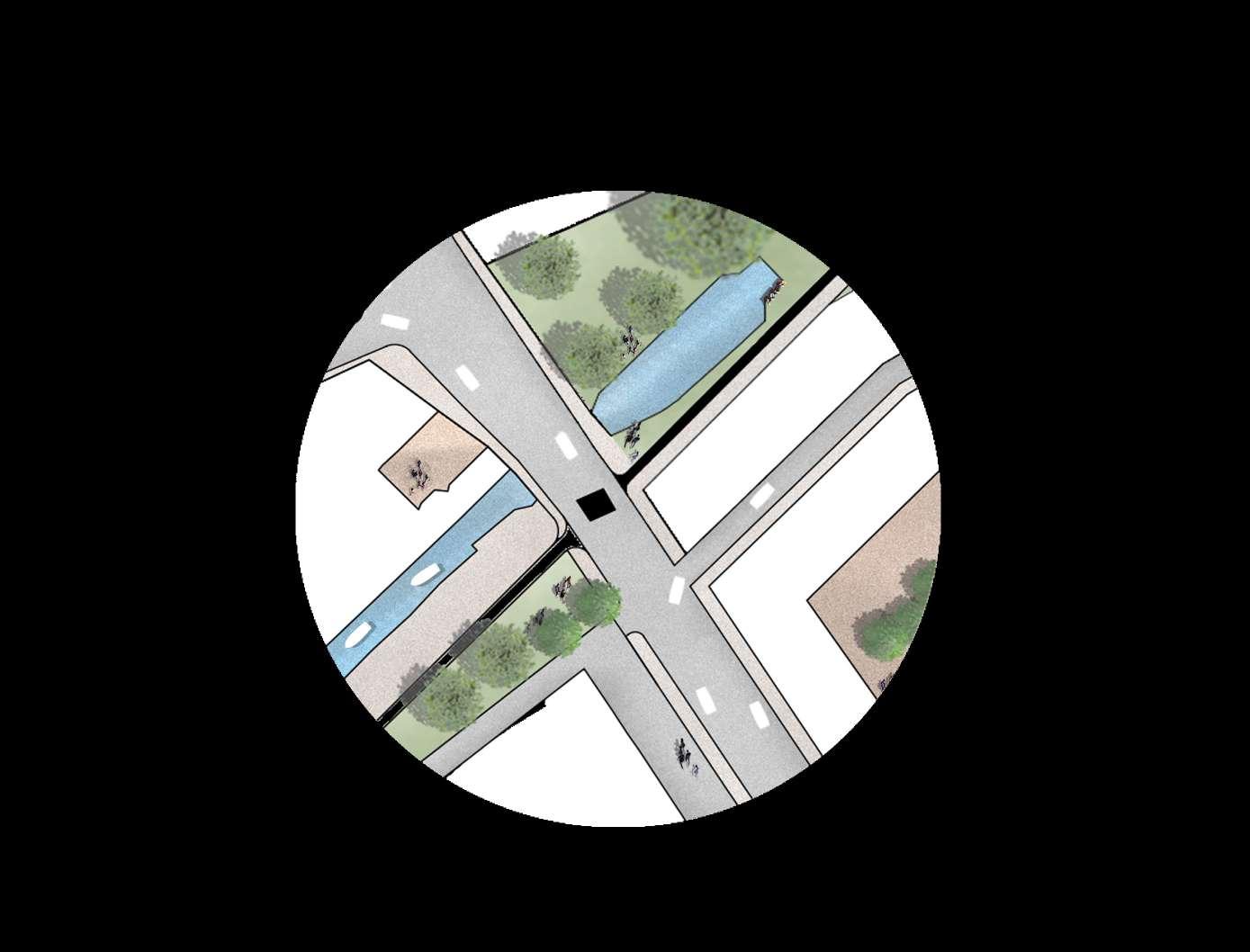

Accommodate the ground level difference as a feature to provide public seatings overlook to River Meldock

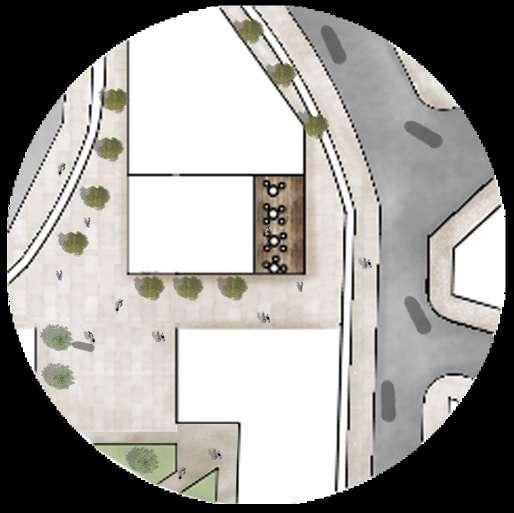

OFFICE + CAFE

pearmeable access promptly offer immediate mobility for office workers and visitors to navigate their next destination to and from Piccadilly Station

13

N

PORTLAND BASIN 2. - THE HISTORIC QUARTER

Portland Basin shares various heritage assests and among

them are 3 Grade II Listed historic significances that amplify the importance of this area Currently benefit from the incusion of Conservation Area Act from Tameside Council, safeguards the potential development and preservtaion ranges from its ecology to infrastructure development Prominent integration of green environment and historical significances potential establish the future design guideline

14

DESIGN VISION Redefining the integration of historic and natural value in portland basin that delivers a mix use of community with high quality of public realm

ENCOURAGE A MIXED-USE AND BETTER USE OF SPACES

IMPROVING FRONTAGES AND PUBLIC REALM

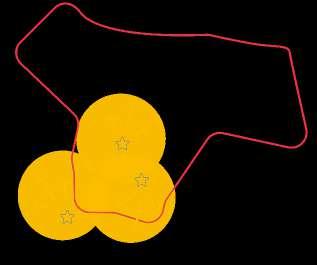

ENHENCING HERITAGE ASSETS TO ENABLE POTENTIAL VIEW POINTS

ENSURE A PERMEABLE AND LEGIBLE ACCESS INTERNALLY

OVERCOMING NEGATIVE IMPACTS FROM BARRIERS

REVITALISING GI CONNECTION INTERNALLY & EXTERNALLY

15

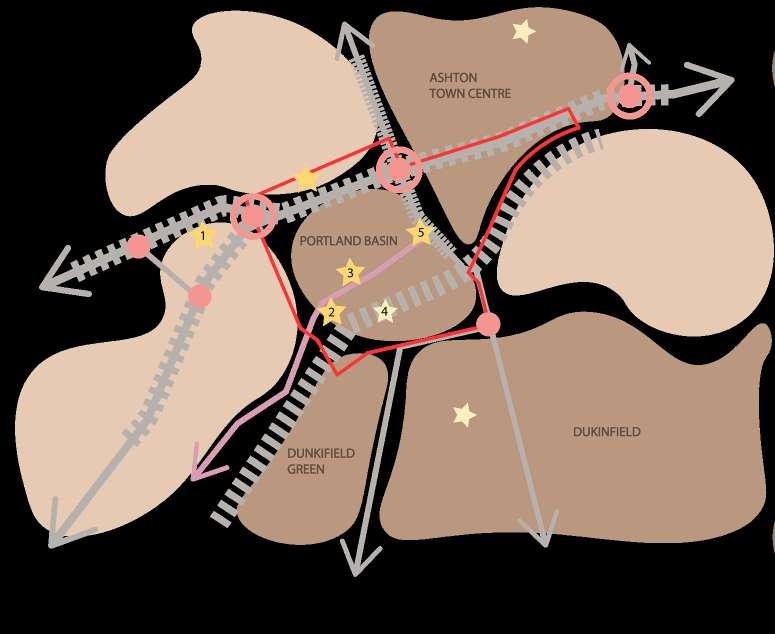

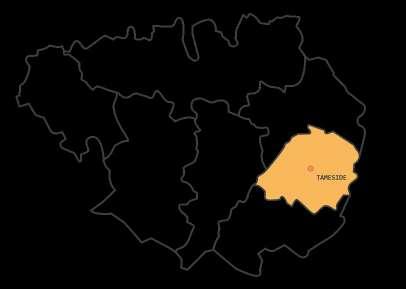

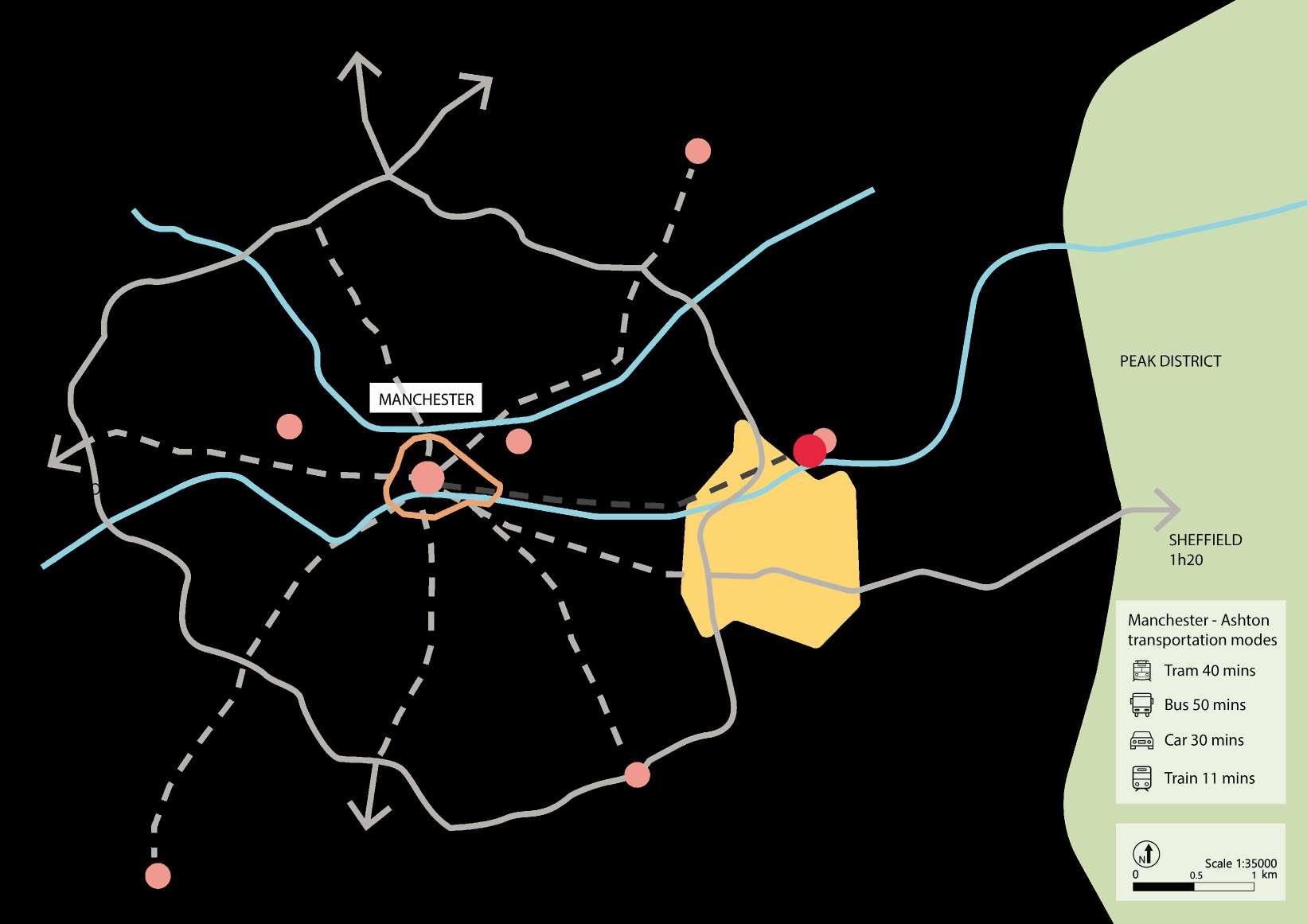

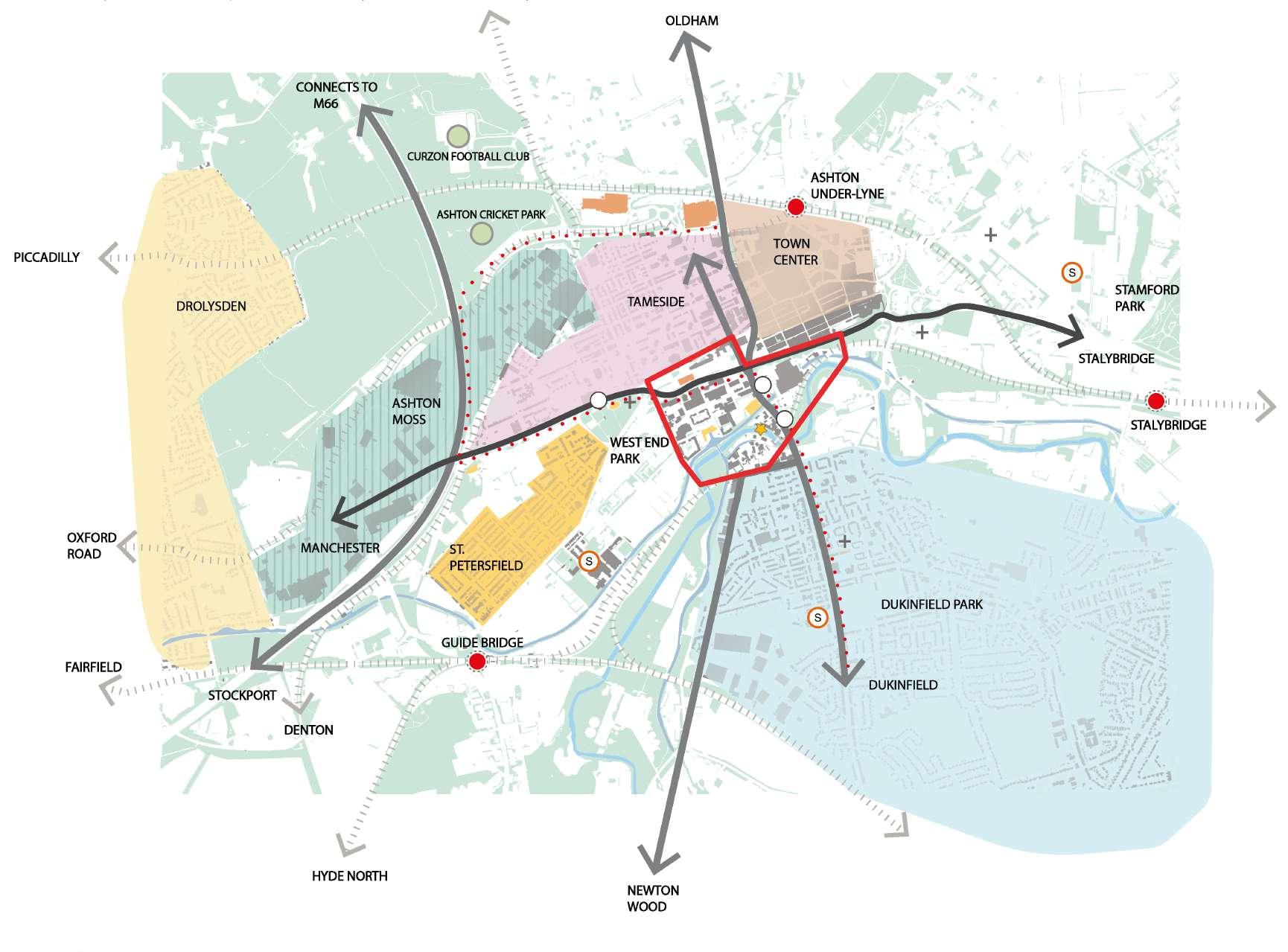

IMMEDIATE CONNECTION

100

1:10,000 200

Adjacent to the site is Ashton town

centre where a rich of retails and groceries are offered in ASDA & IKEA The transport networking is very permeable, but there’s only one active frontage on the North East node to the site

16

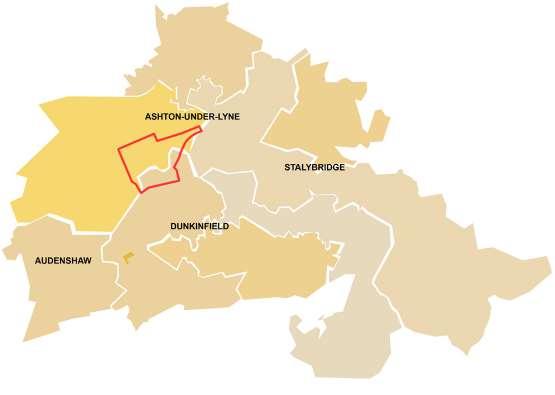

LOCAL CONTEXT & POVERTY

The site is locating at Eastern sides of Manches-

ter, where takes roughly about 40 mins on bus to reach and return Potentially has a good connection with wider regions and especially to Manchester, as it is clost to Ring Road which make its connection much more approachable, such as airport

The Northern part of the site has significant lower earning than other counterparts resulting potential crime activities

17

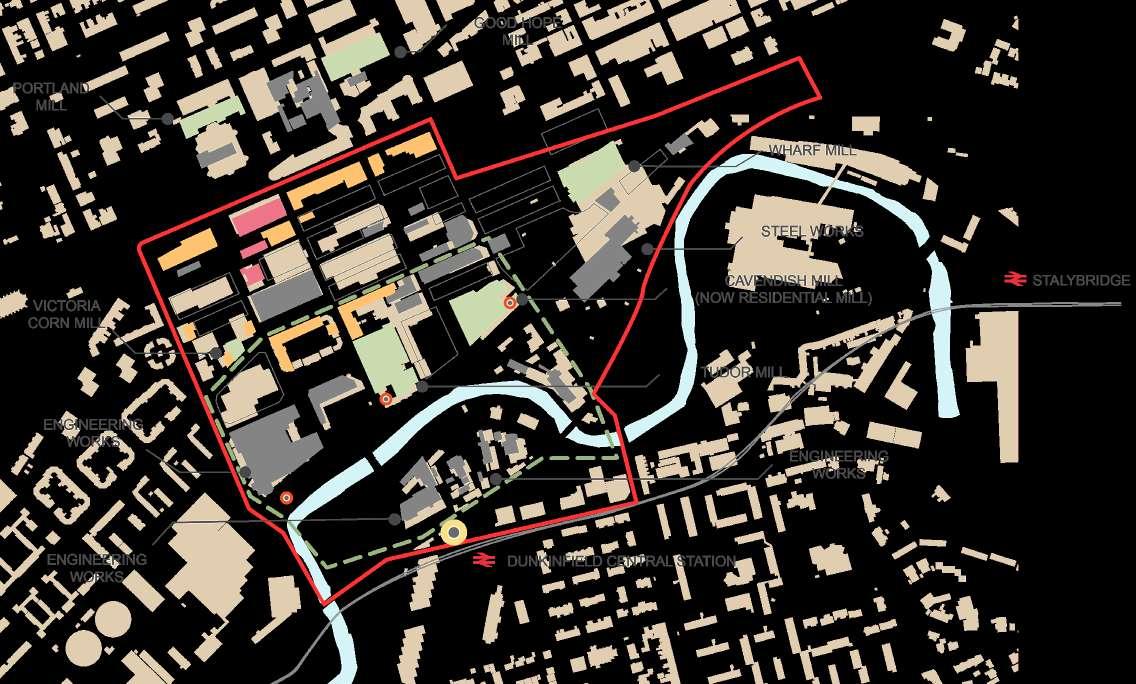

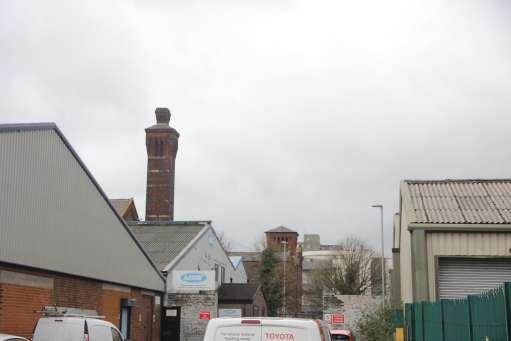

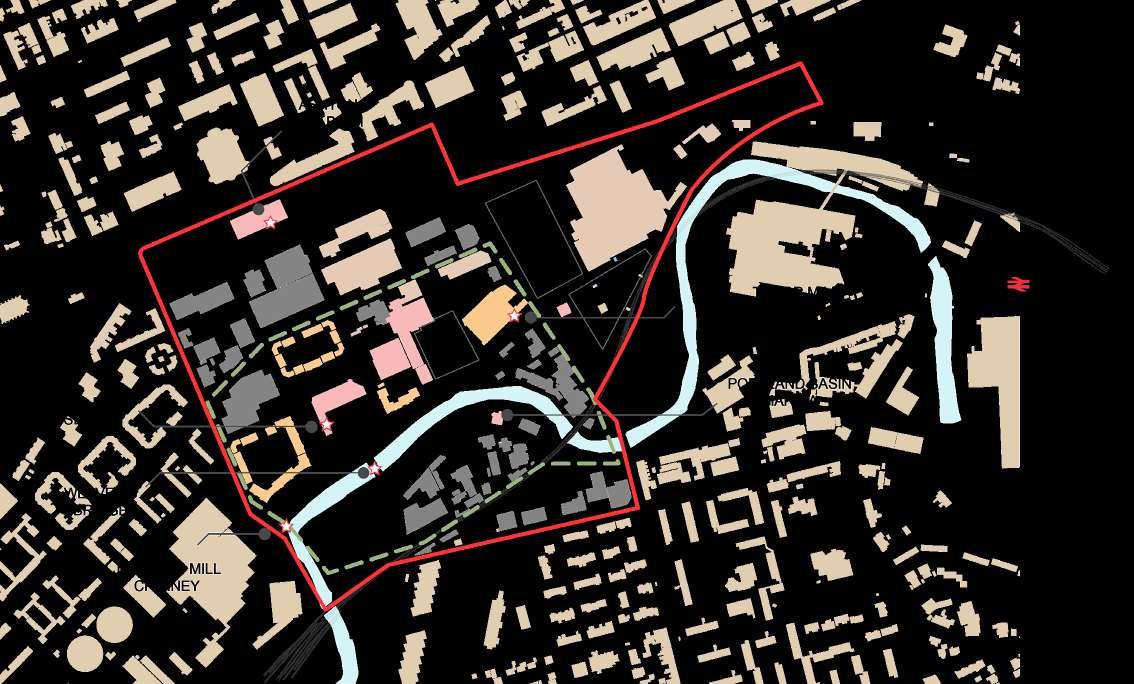

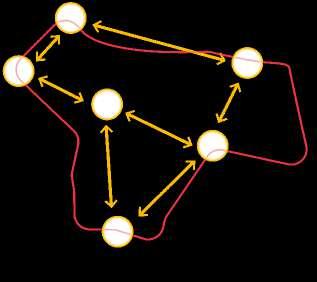

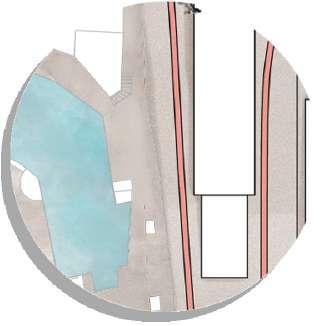

CHARACTER AREA & LEGIBILITY ANALYSIS

18

HISTORICAL CONTEXTX 1970-1980

Significant transition from heavy to light industry with car manufacturing and retail as the majority in recent days Heritages are preserved over times especially within the Conservation Area, now have become either landmakrs or listed buildings Warehouses beneath railway viaduct also indicated the of the industrial past of th site

2019-2020

The site had most of vacant lands on the Northern fringe where several warehouses for heavy industry can be found The urban morphology was in grid pattern and with a relatively narrow streets in between each urban block The canal was built in 1972 for delivering coal from Oldham, and upgraded to crusing waterway in 1983

19

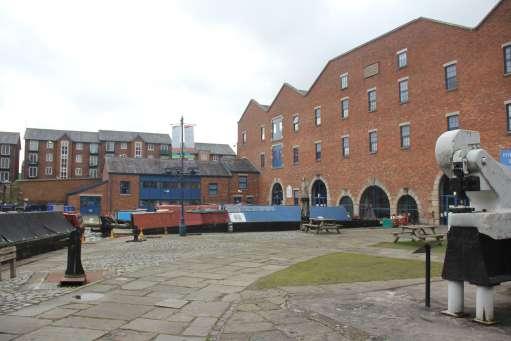

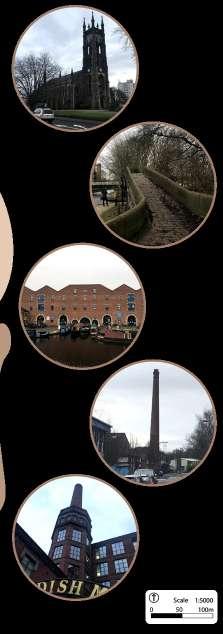

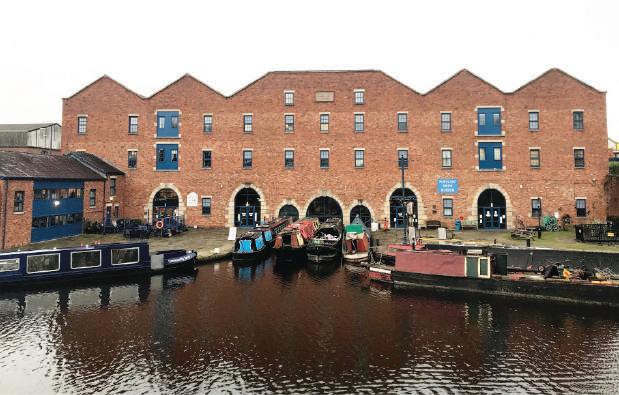

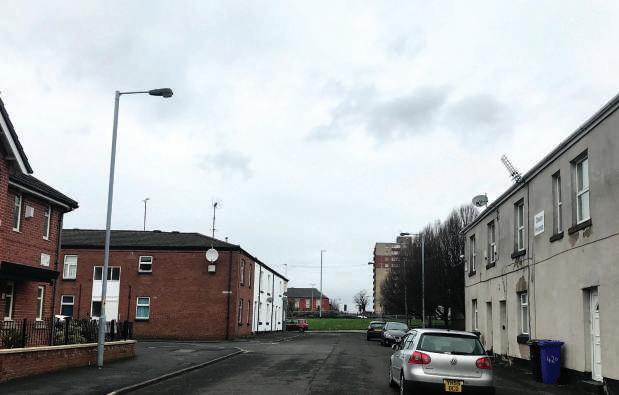

VERNACULAR FEATURES PORTLAND BASIN MUSEUM

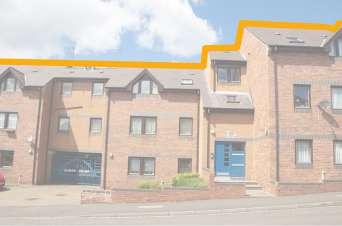

RESIDENTIAL BLOCK

Blue window frames that accompany with timber and glass as well as roofing features in polygonal shapes for aestheics

Red bricks, defined and detailed Victorian bronze bricks arcs at the doors

Glass windows with white frames, metal rail detail in high density, similar buildnig height

Triangular gable tiled roof projected vertically with overhangs Potential key view over the Junction Mill Chinmeny

RESIDENTIAL BLOCK

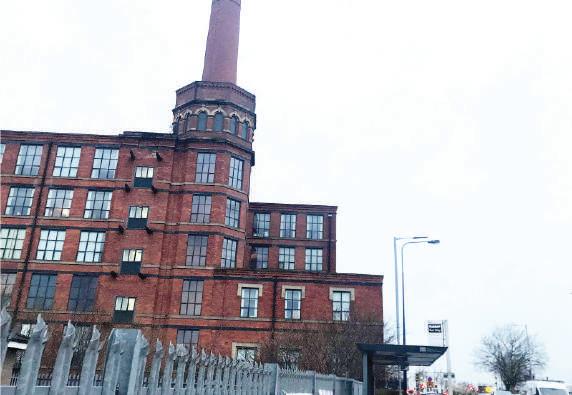

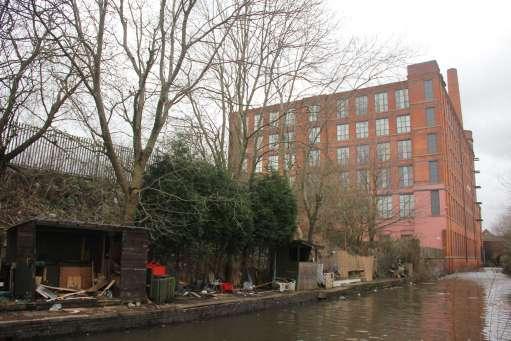

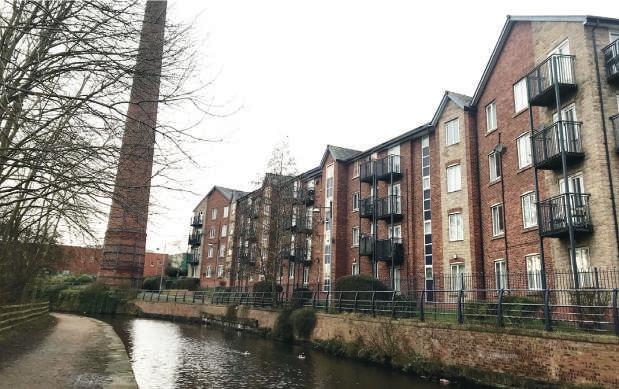

CAVENDISH MILL

Retained red bricks as the dominant material for the building

Grade II Listed former mill converted to residential flats

Similar street ratio, 2-storey max with simple brick detailing and concrete finish

20

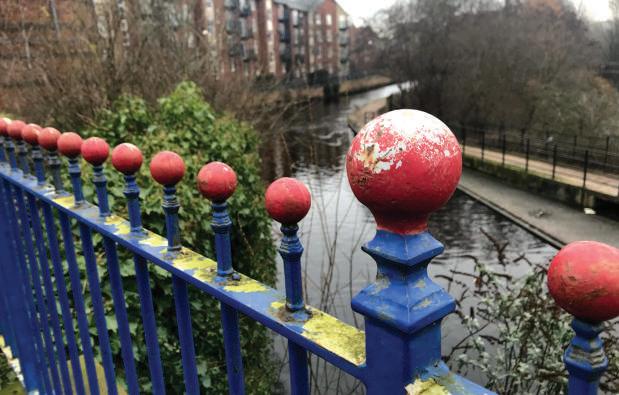

COLOURED RAILING

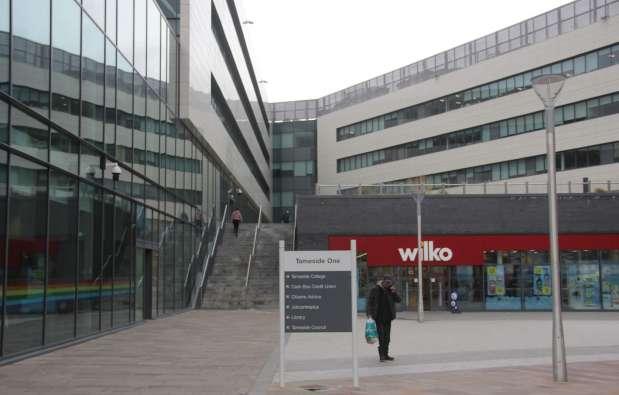

TOWN CENTRE

Old blue and red painted picket fence used as a boundry marker and safguard for the canal

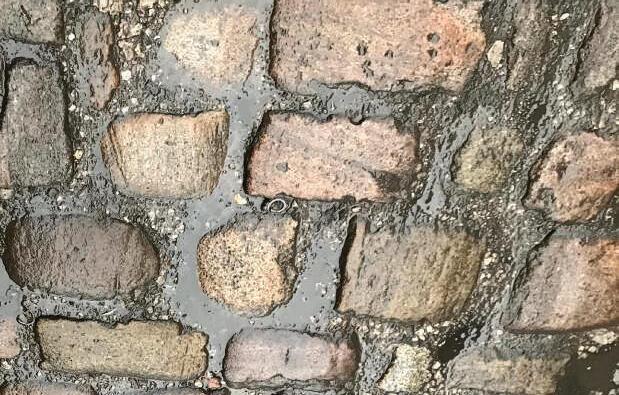

STONE PAVING FEATURE

Rather modern materials such as glass and steel could be spotted around the town centre

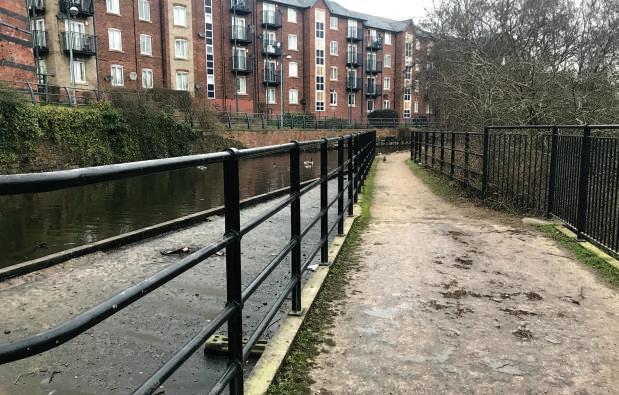

ENTRANCE FENCE

Wrought metal rail fence providing continous contour for the property boundry and acting as a barrier

Paving that could be found around surfaced carpark with cobblestones finish

21

Potentially a exit for the primary street that serves as a short cut allowing people leave the neighbourhood

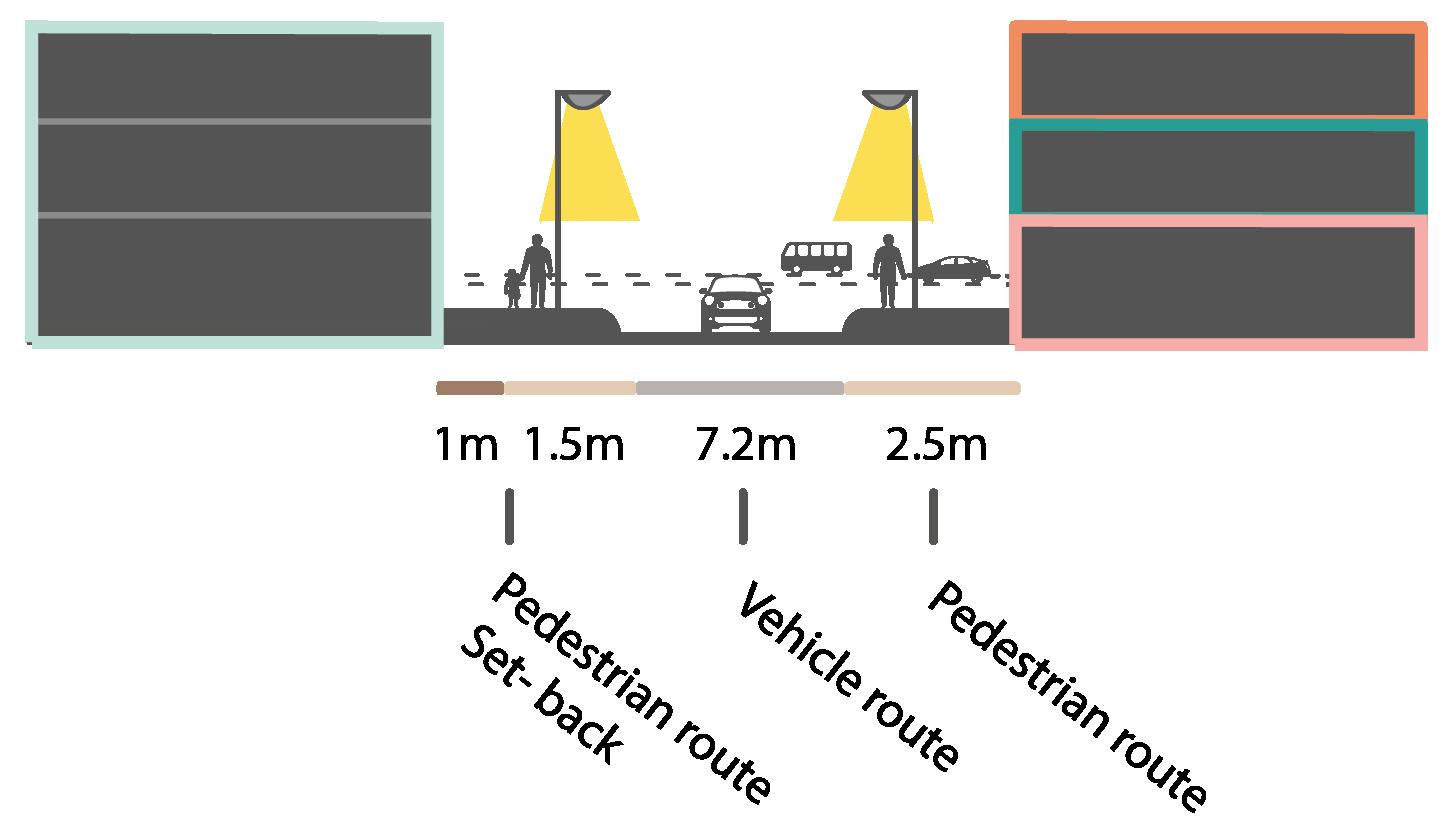

The setback street for vehicular use to ensure a stronger fontages in relation to its pedestrianised routes in the front

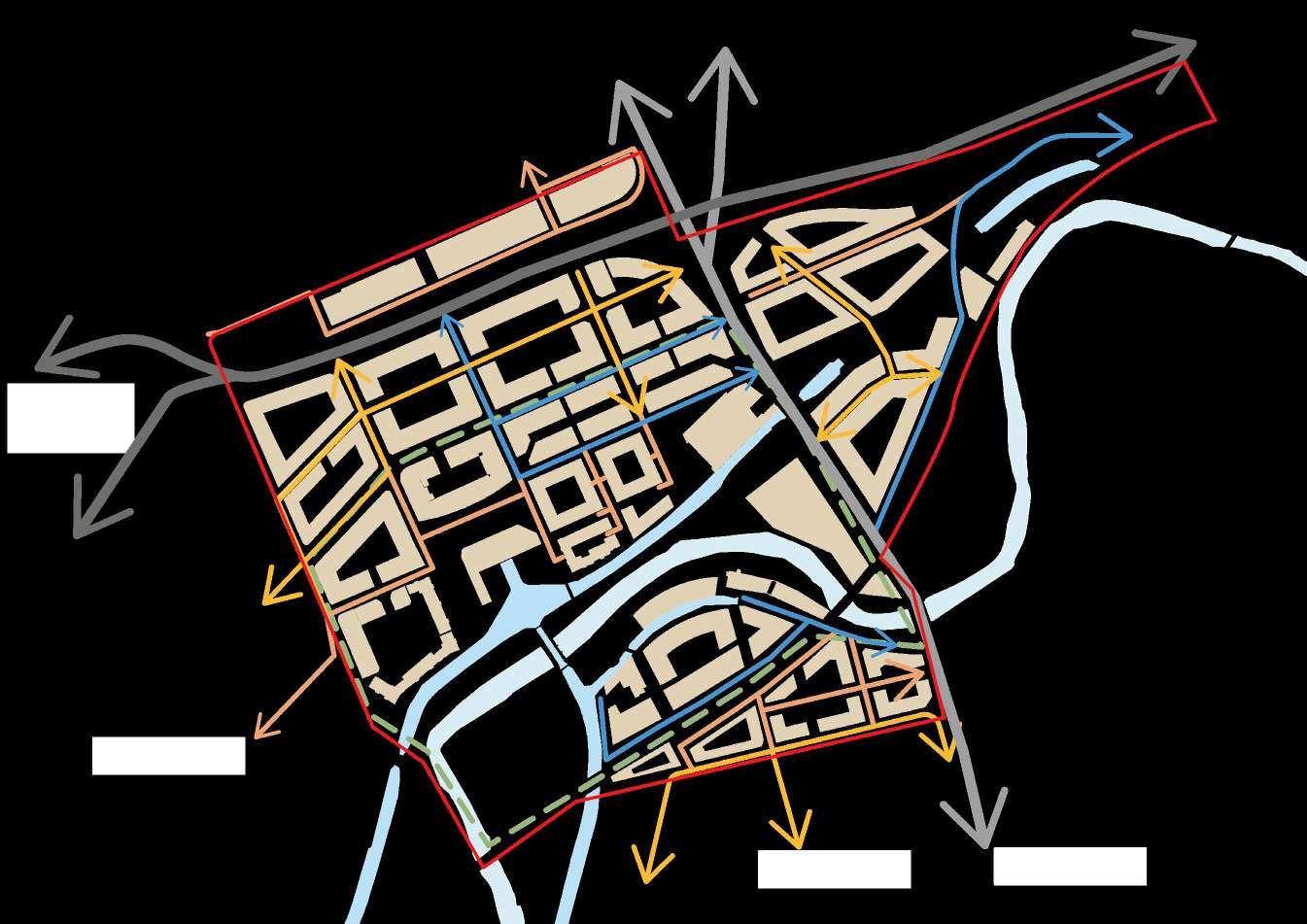

SITE PERMEABILITY

ASHTON TOWN CENTRE

MANCHESTER CITY CENTRE

VICTORIA STREET

RAILWAY STREET

DUKINFIELD

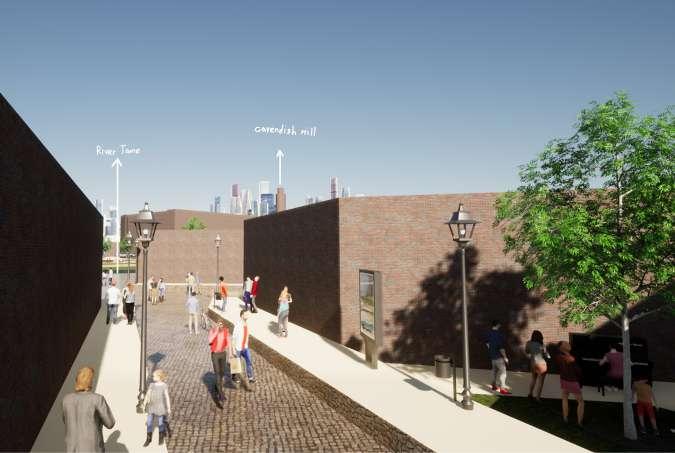

Although the vehicular routes were designed primary in accordance to the industrial use before, many are however disjointed and of illegible for achieveing better movement The primary routes for the site are designed next to the office quarter at the Northern fringe of the site, in which also actas an approach to ensure a prominent frontage with the enclosures of urban blocks

Both entrances allow users travel to the site easier from Dukinfield in junction of Wharf Street and Railway Street

Considered as the main junction of King Street and Cavendish Street to the site and town centre from Dukinfield

22

The setback street for vehicular use to ensure a stronger fontages in relation to its pedestrianised routes in the front

Multiple selections of pedestrian routes integrated with green corridor alongside Park Parade to minimise the negative impacts of noise pollution and the heavy traffic during day time

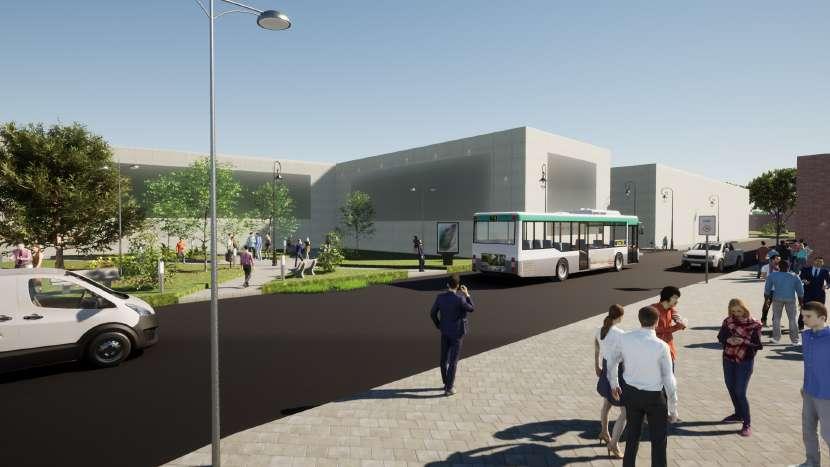

SUSTAINABLE TRAVELLING MODES

STALYBRIDGE

MANCHESTER CITY CENTRE

This bike storage offers plenty of indoor parking for cyclist and also reapiring and rental services

DUKINFIELD

Two additional bus stops are introduced alongside the street for both residential and office area to provide relatively convenient way of travelling

Fully pedestrianised stree allows users to move around the hipster Marina area without being interferred with vehicles

Pedestrian routes are permeably designed along river side and continue across Cavendish Street Safeguarding the mobility of users moving around the site

23

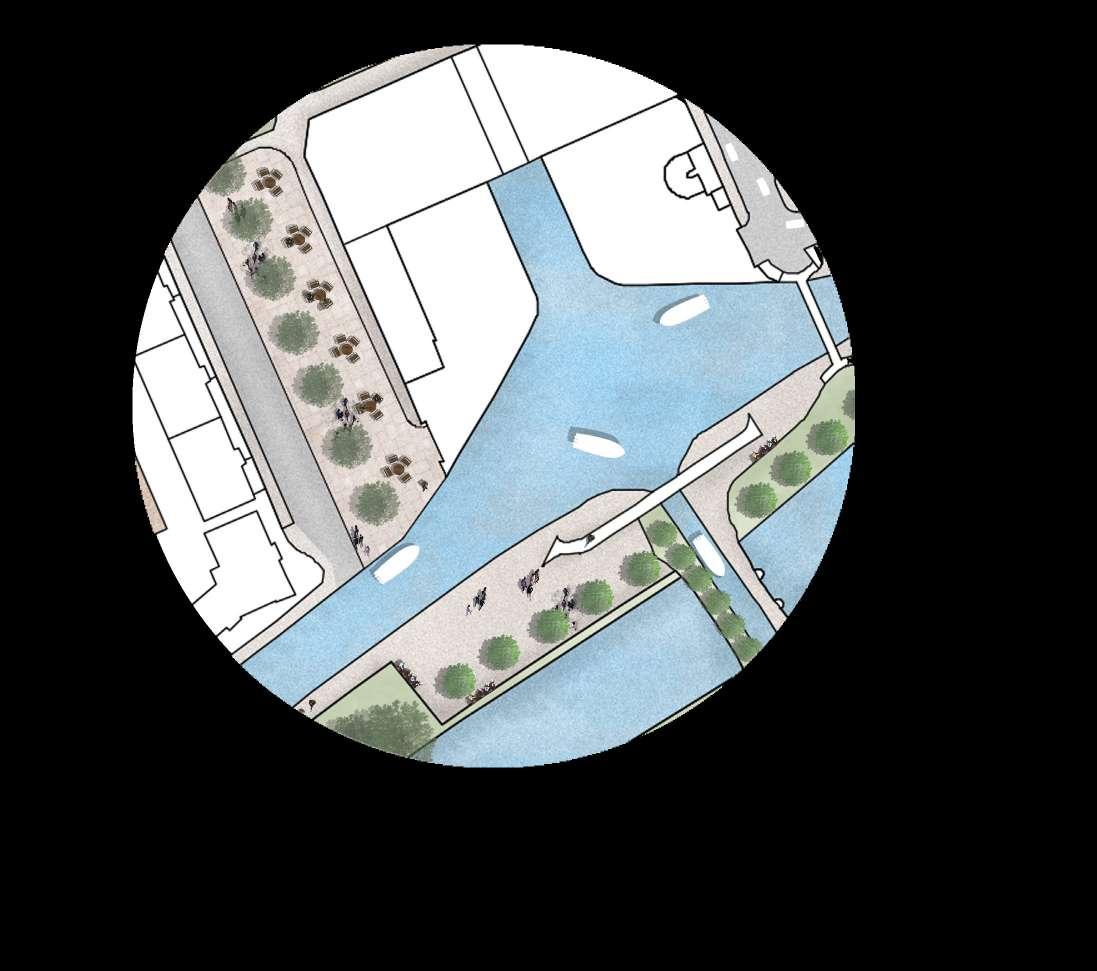

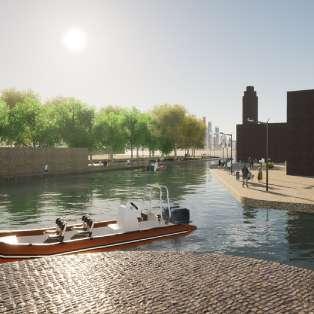

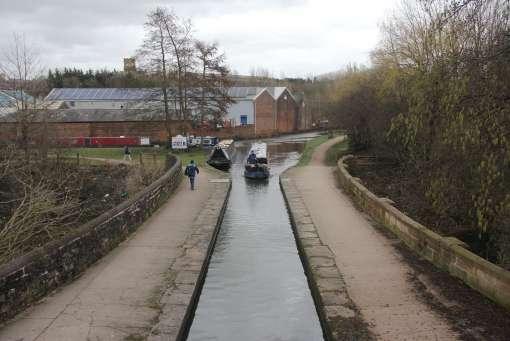

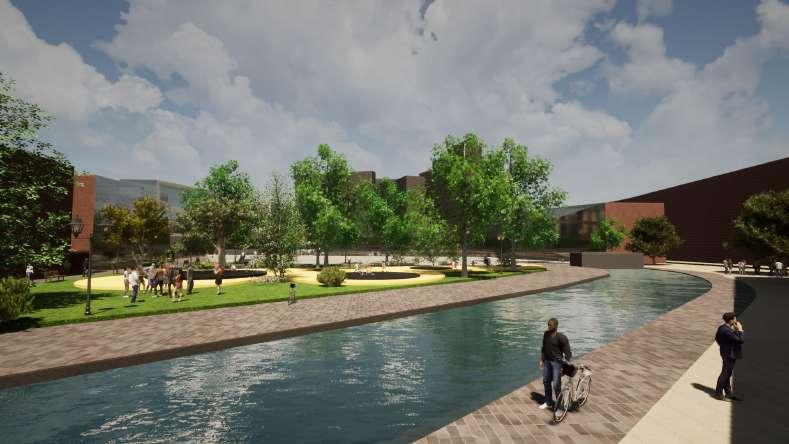

The green corridor is extended with the integration of canal tributary beside the major route, also provides with cycling, pedestrian routes as a continous path for exercise and outdoor activities

Extant surface car park beside Portland Basin Museum, is transformed into an outdoor seatings for the cafes, accompanies with the advantages of key vistas towards the canal where the enhencment of frontage is also achieved Two overhead bridges are also retained for better accessibility across River Tame

24

40

1:3000 80

25

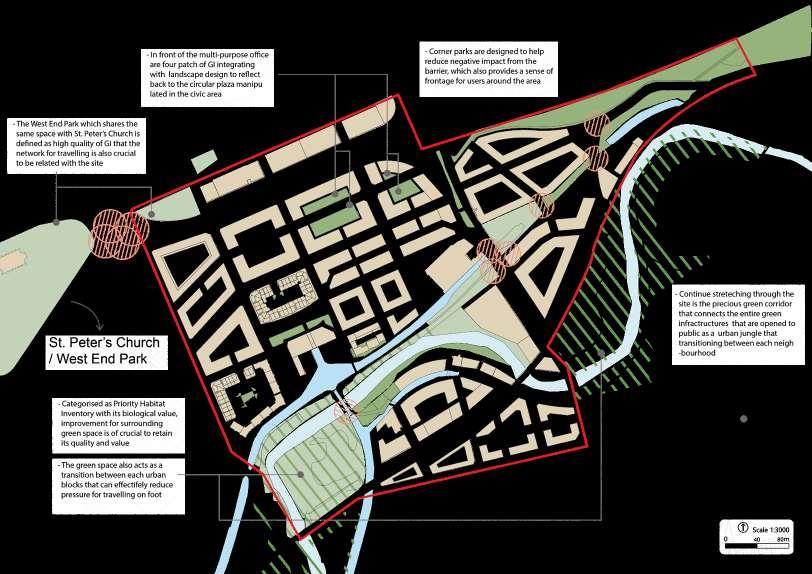

GREEN INFRASTRUCTURE NETWORK

Accompanying with the views from heritages preserved as well as scenery from River Tame, offers adequate high quality green spaces for visitors and office workers around the area

Maximising the advantage of extant green spaces around River Tame to create an interconnected green infrastructure network to promote integration of sustainable environment and to provide a pleasant walking experience within the site

26

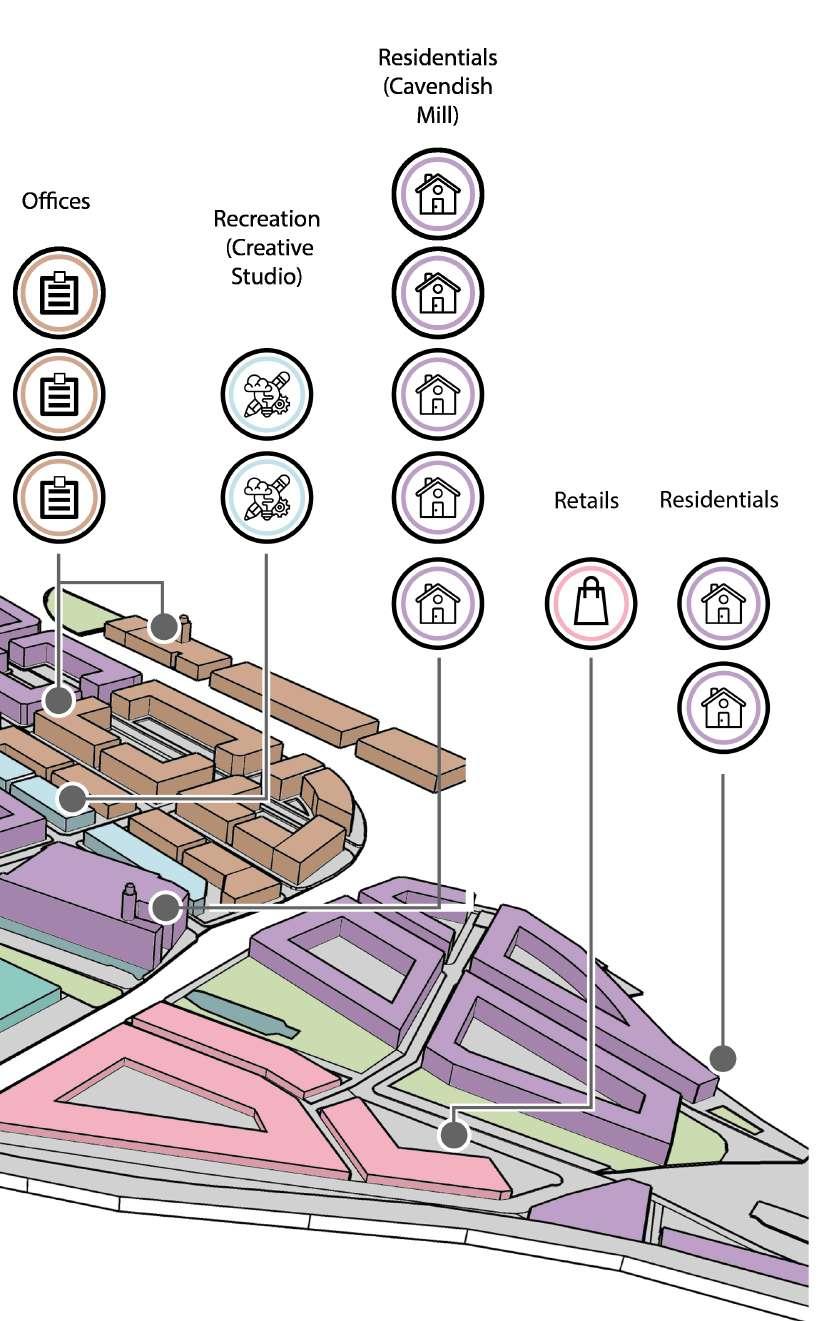

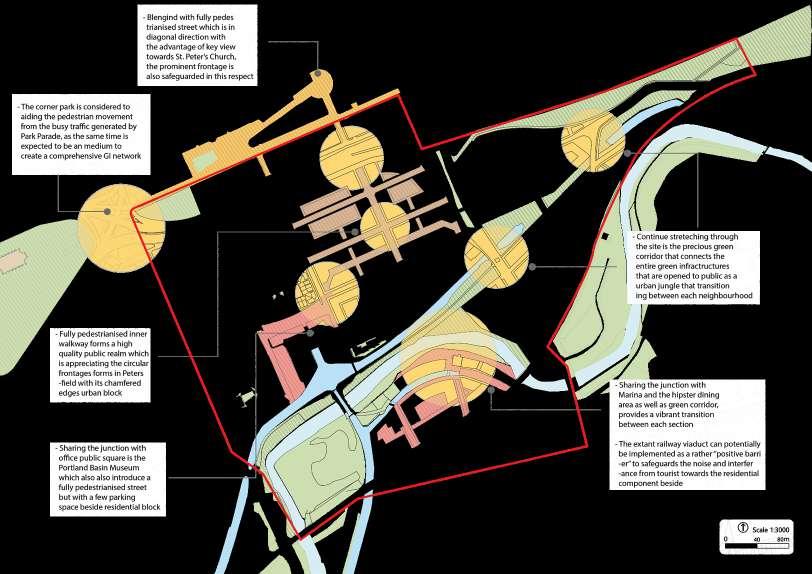

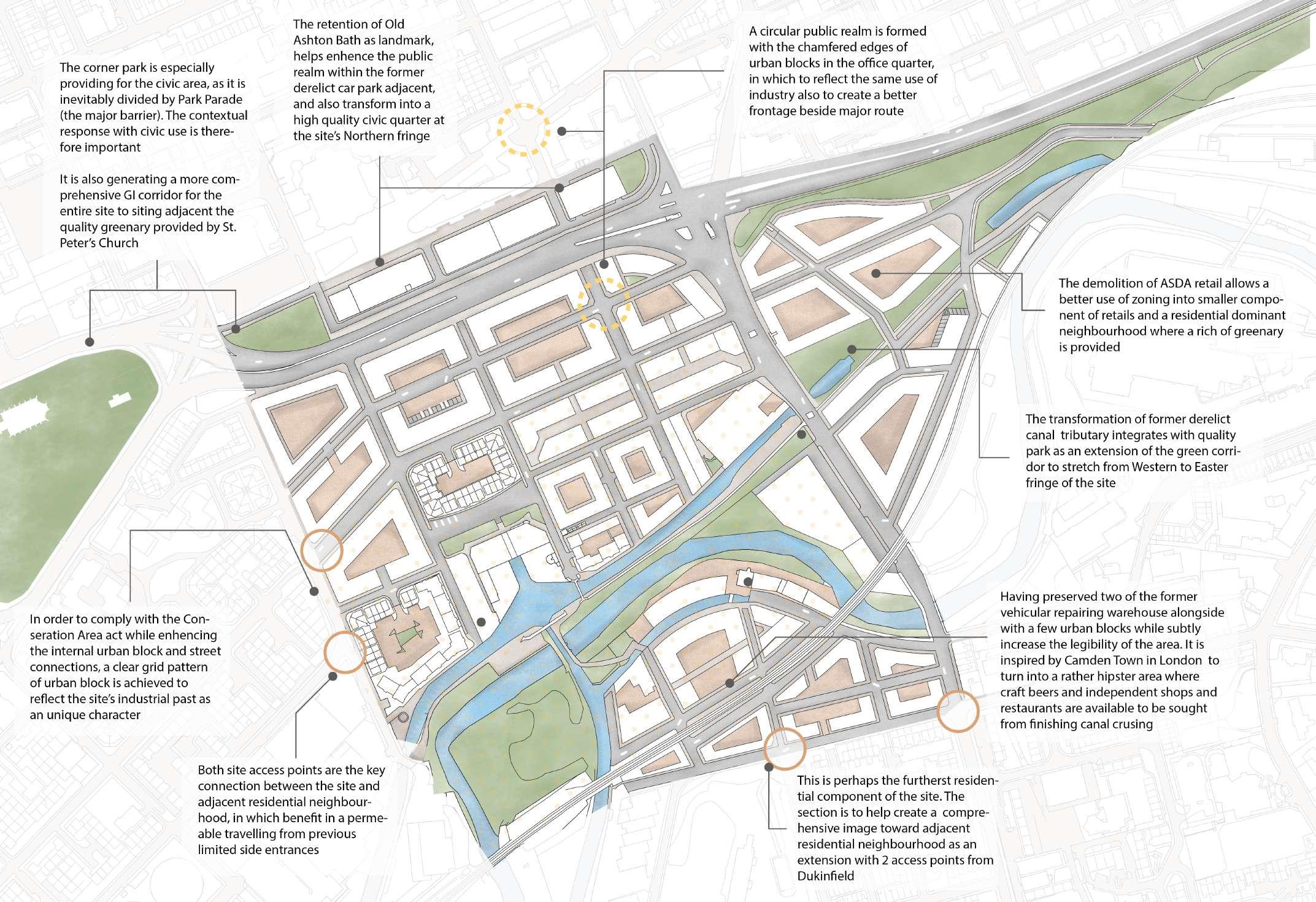

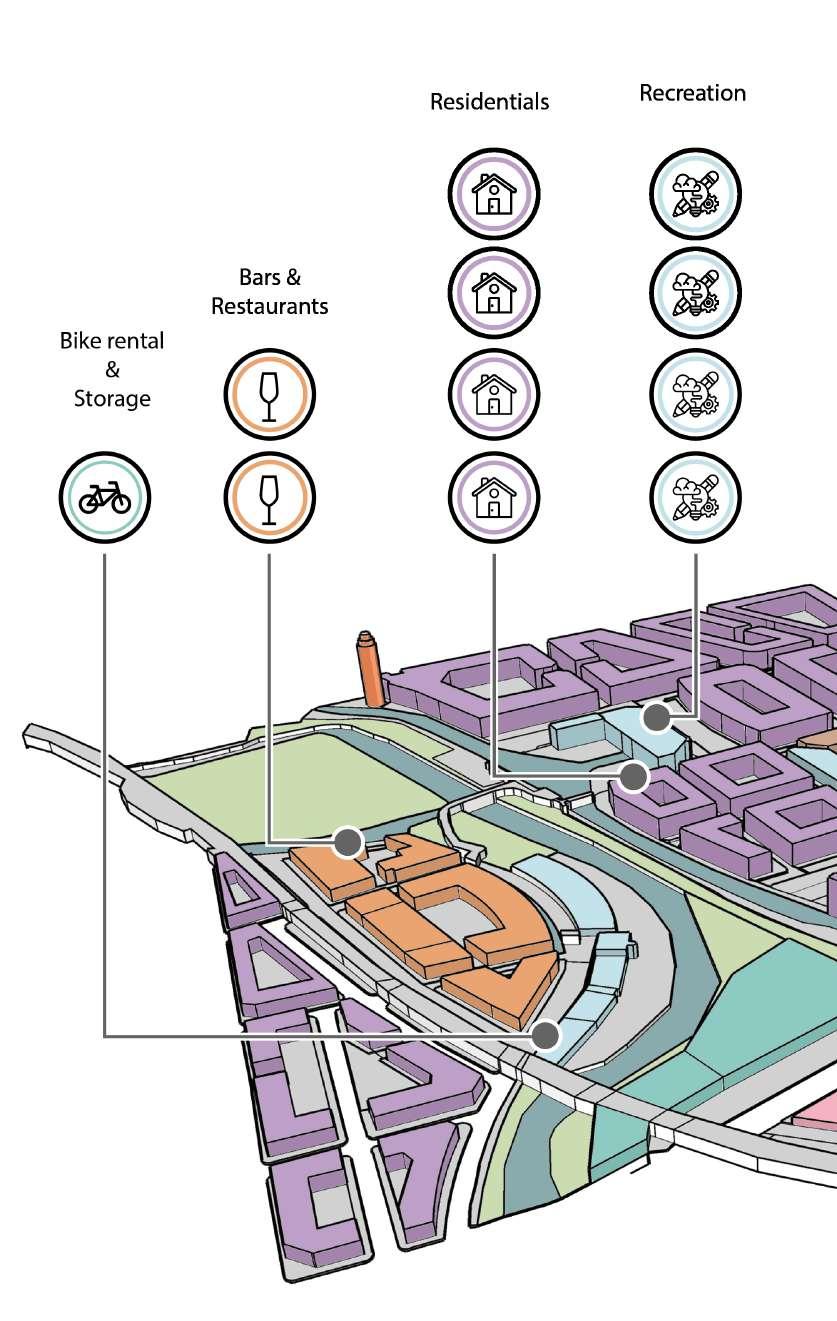

PUBLIC REALM & LAND USE DISTRIBUTION

The site delivers 4 distinct public realms among the site- Civic Core, Green Space, Office Quarter and Restaurant and Pubs Effectively help establish high quality and legible public spaces with adjacent neighbourhoods

27

N

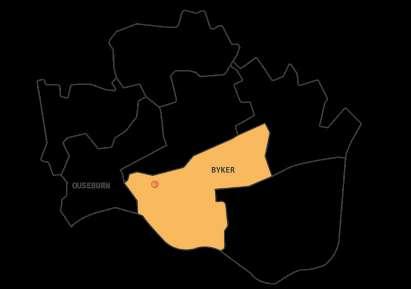

OUSEBURN & BYKER 3. - THE CO-EXIST SUSTINABLE AND INCLUSIVE NEIGHBOURHOOD

Sandwiched between Byker and Ouseburn in Newcastle Upon

Tyne (North East of England) is the site that interlinks with several transport modes such as metro and bus stops The site finds itself unfit between the newly gentrified neighbourhood (Ouseburn) and the working class neighbourhood (Byker), result it remains a vast vacant urban parcel with warehouses for industrial purposes Potential social upgrading and integration for mixed purpose of offices and residential blocks are proposed

28

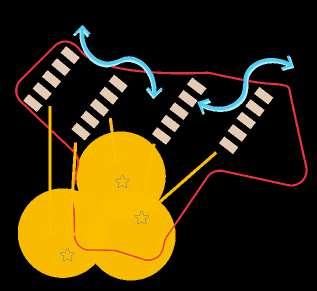

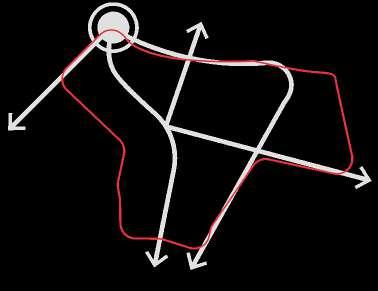

DESIGN VISION RESTRUCTURING THE URBAN FABRIC AND IDENTIY IN REALISING AN INCLUSIVE, VIBRANT AND SUSTAINABLE NEIGHBOURHOOD WITH URBAN REGENERATING PROCESS DIVERTING STREETS TO ENHANCE SITE’S INTERNAL CONNECTION

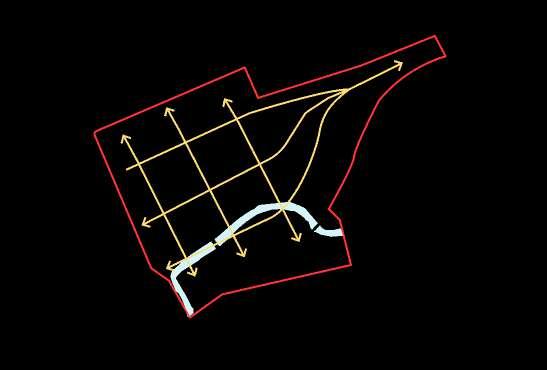

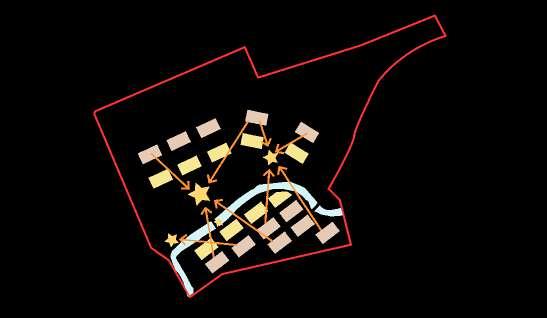

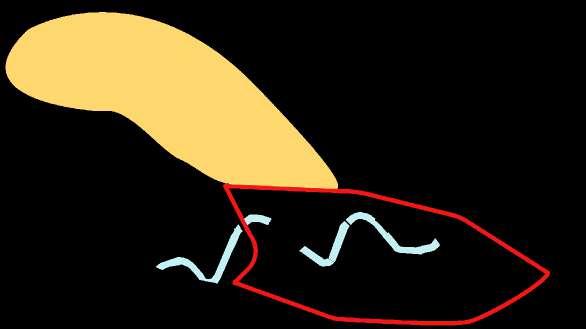

REFLECT HISTORIC SETTINGS AND ACHIVE VENTILATION WITH GRID PATTERN

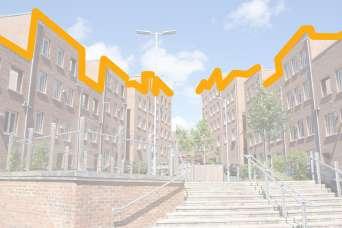

RESTRICTING BUILDING HEIGHTS FOR VIEWS AND VISTAS AND VENTILATION

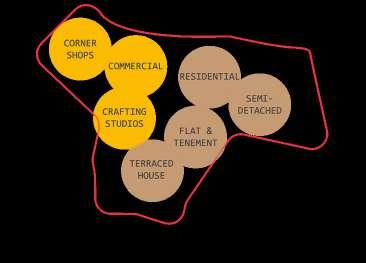

MIXED USE DEVELOPMENT AND MIXED HOUSING TYPOLOGIES

ESTABLISHING CONNECTION OF EXISTING GREEN INFRASTRUCTURE AS PUBLIC REALM

INTERLINKED PEDESTRIANISED AND CYCLIST CENTRED ROUTES

MAXIMISE LANDMARKS AND HERITAGE ASSETS TO IMPROVE SENSE OF IDENTITY

29

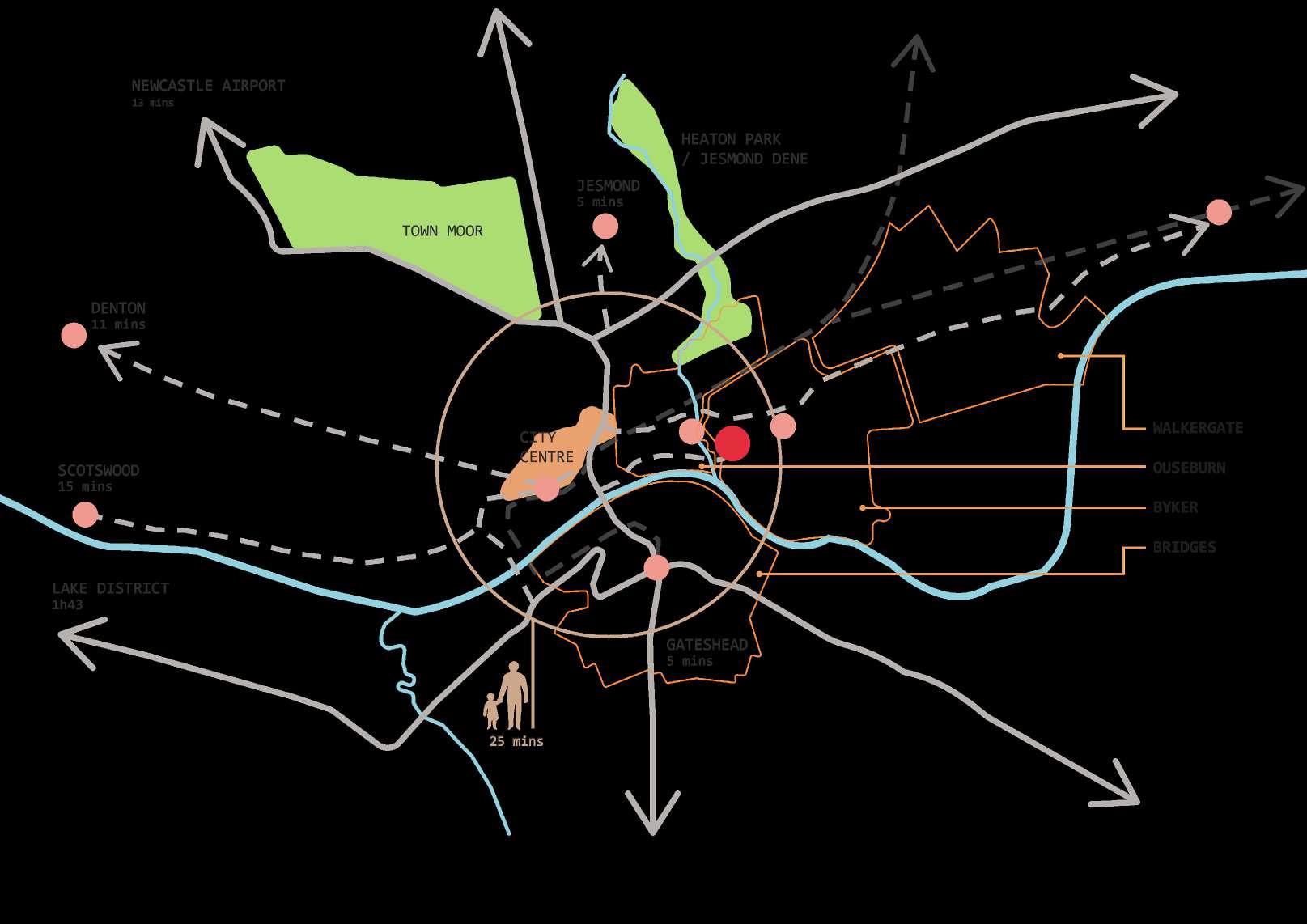

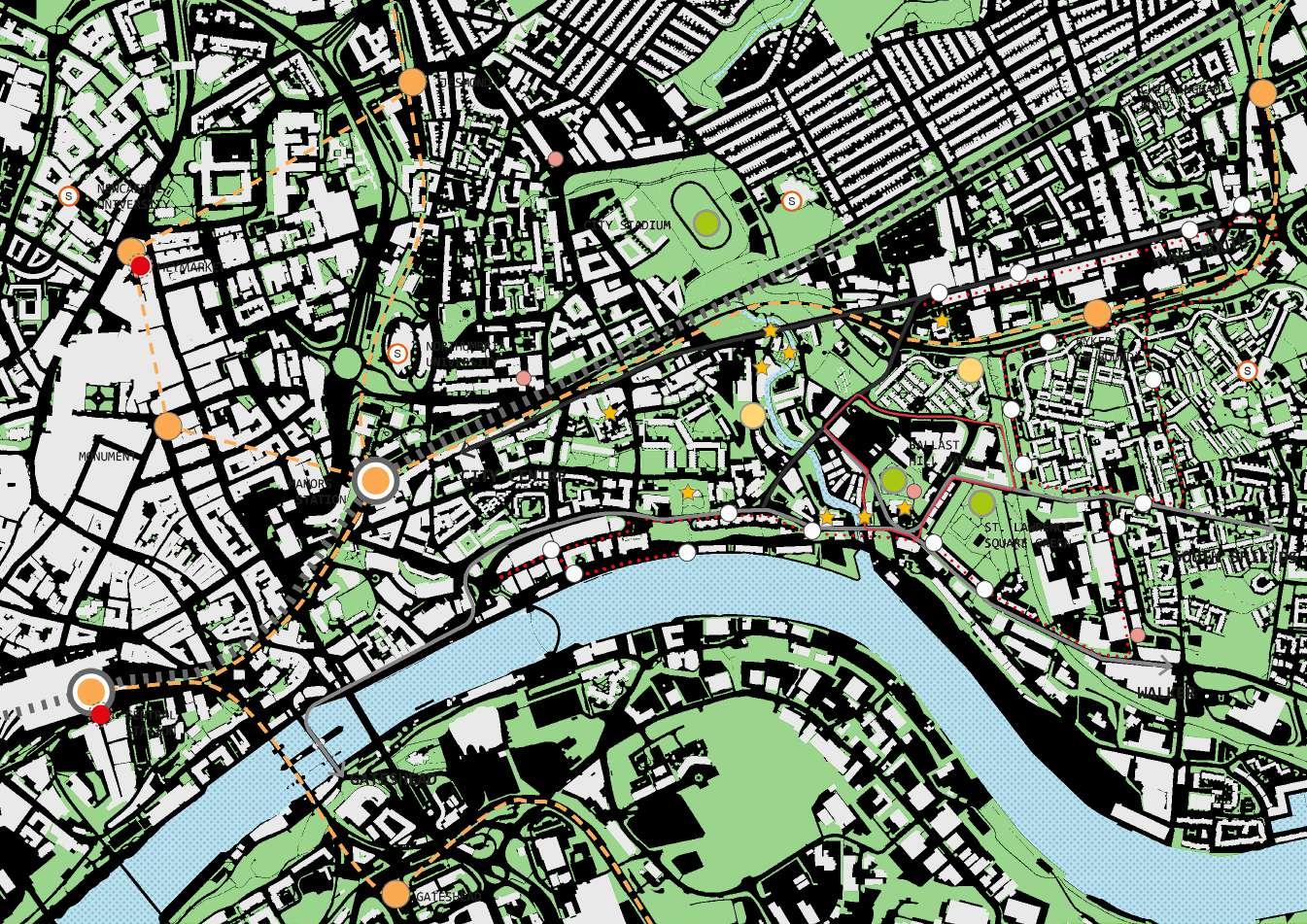

IMMEDIATE CONNECTION EDINBURGH

MORPETH

2h22

42 mins

TYNE MOUTH 17 mins

SOUTH SHIELDS 5 mins

Benefits from the relatively smaller city centre, the site requires less time communting to desired destination

However, the inaccessbility to public transport , especially bus, due to its significant steep slope across the site has reportedly resulted difficulities for those without cars or vulnerable groups of people

YORK 1h43

SUNDERLAND 28 mins

30

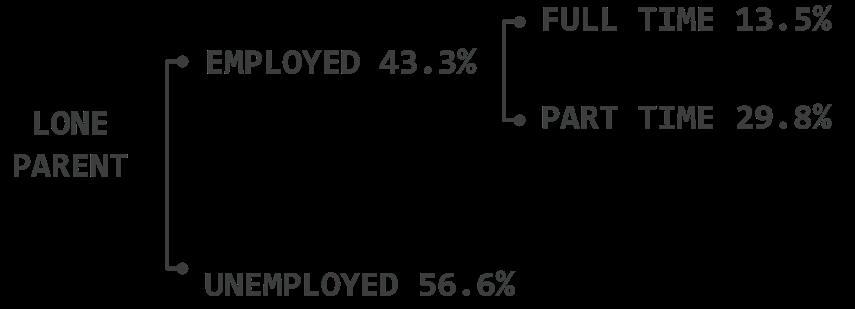

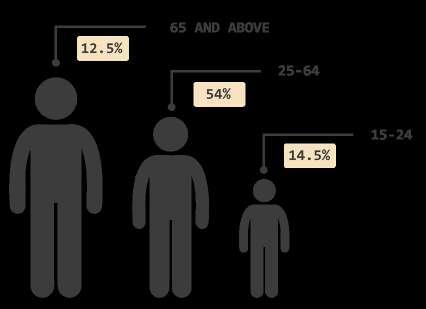

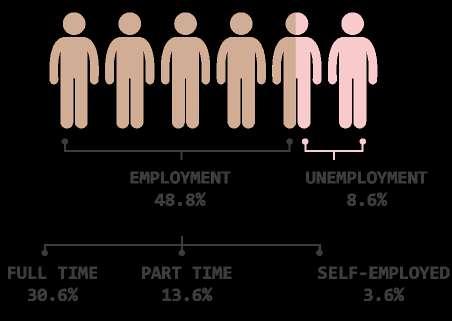

LOCAL CONTEXT & DEMOGRAPHICS

Byker is the fourth most population ward within Newcastle where the majority of population falls into the mid-age group Byker is widely recognised with its working-class dominant social group where still scroll a relatively positive rate of employment

Several transport modes such as metro, bus and train allow immediate connection and travel from and to the site Due to lack of bus stops around the site, result in poor opportunity accessing buses without crossing one of the busiest roads

31

B

A

B

A

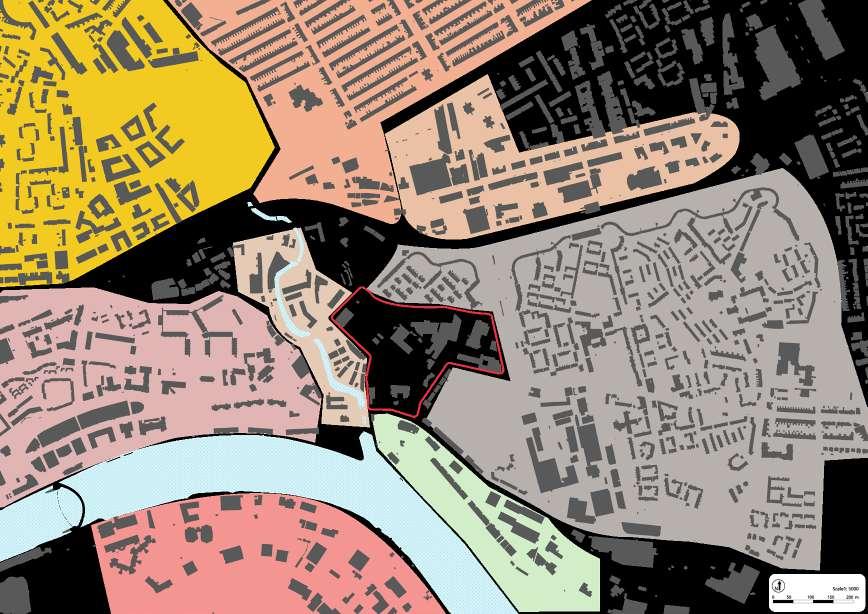

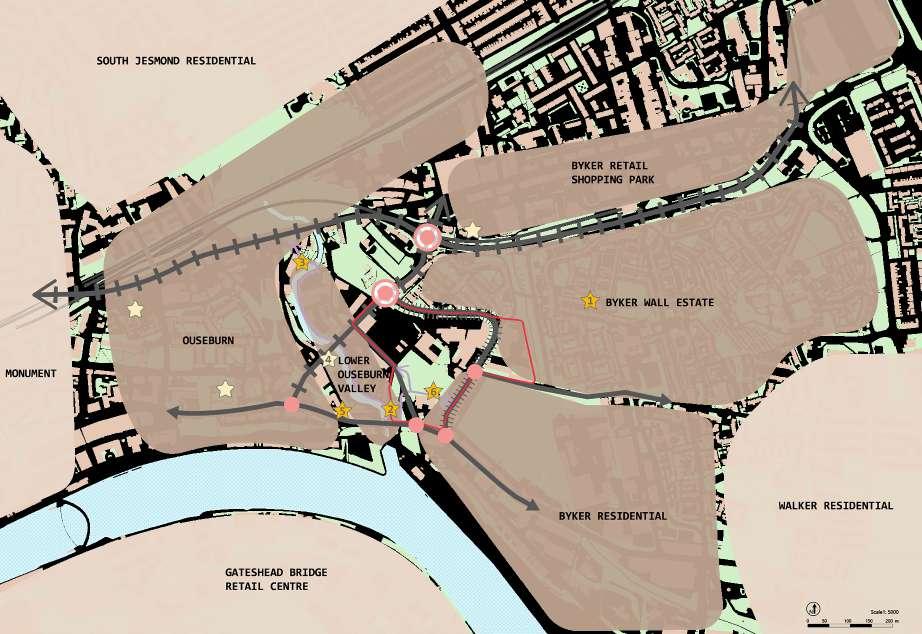

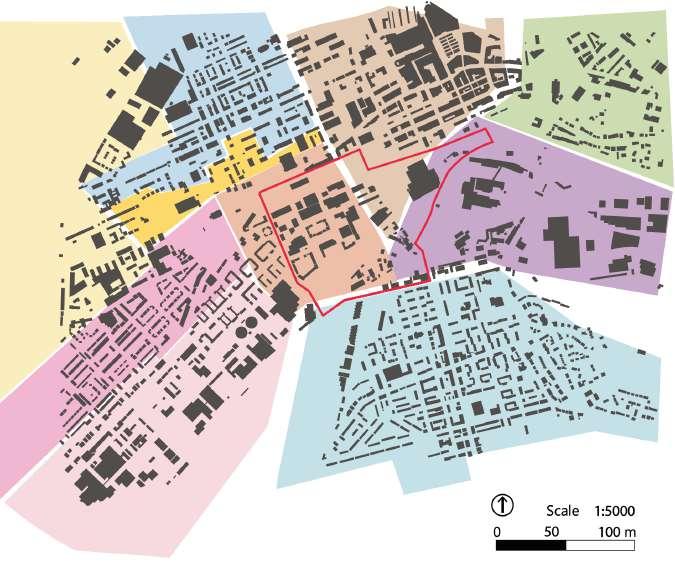

CHARACTER AREA & LEGIBILITY ANALYSIS

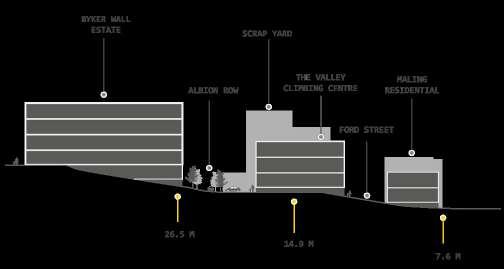

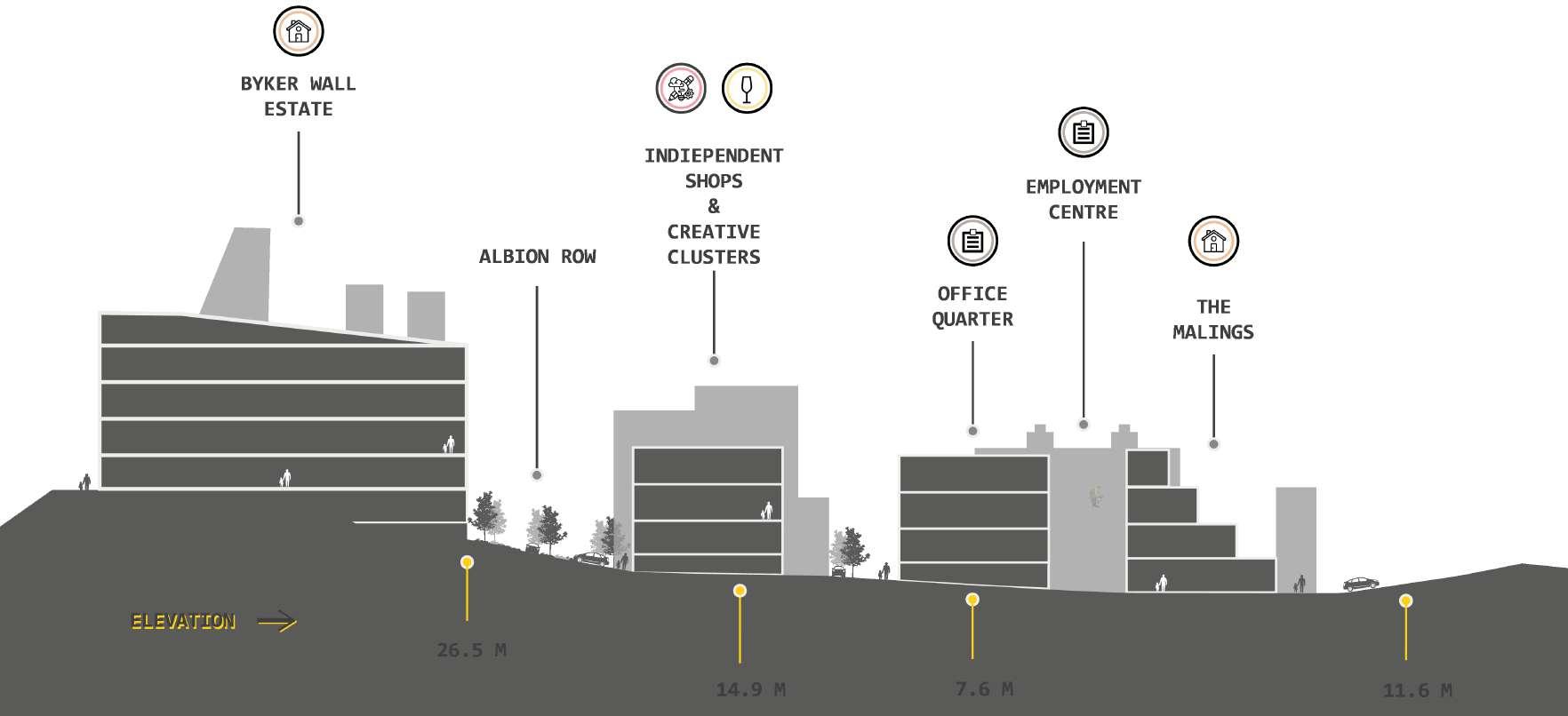

CROSS SECTION A-A

CROSS SECTION B-B

SOUTH JESMOND

Terraced houses and student accommodation dominant accommpany with some retails

SOUTH HEATON

Grid pattern of residential neighbourhood where mostly are of 3 storey max with its building heights

A significant inclined topography slope at Byker Bank looking towards part of Byker Wall

The slope at the SE side of the site sees a relatively gradual inclined slope comparing to the one at Byker Bank

LOWEROUSEBURN VALLEY

A newly developed creative cluster trans formed from warehouses dominately comprises with red bricks and steel beams

GATESHEAD SHOPPING PARK

HADRIAN’S WALL PATH

Mixture of retails, transport hub that interlinks with bus and metro stations

Comprising a tremendous size of surfaced car park beside river Warehouses and residential blocks

MONUMENT

NEWCASTLE SHOPPING PARK

Mixed use of residential and commercial at upper and lower storey respectively

Retail dominant area with larger warhouse and surfaced parking Limited accessbility for pedestrian to travel from the site

BYKER

A residential neighourhood comprises the world- known Byker Wall estate that has been recognised as Grade II Listed building

32

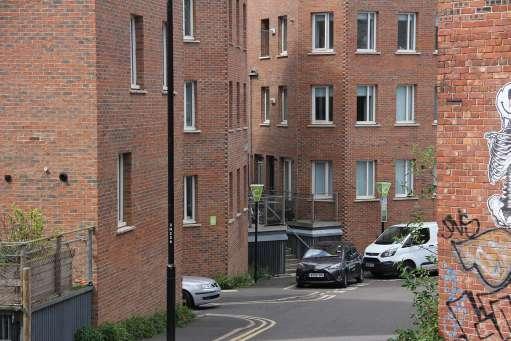

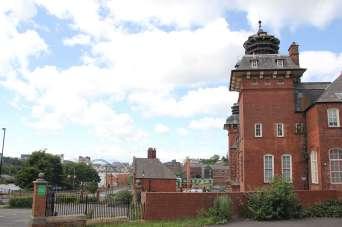

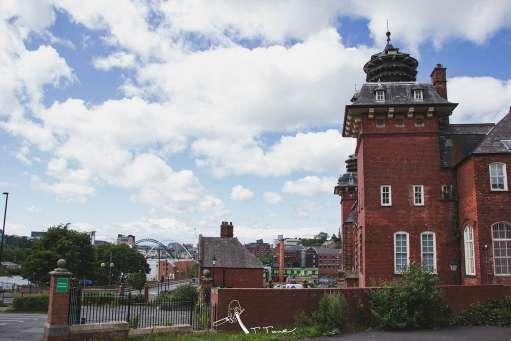

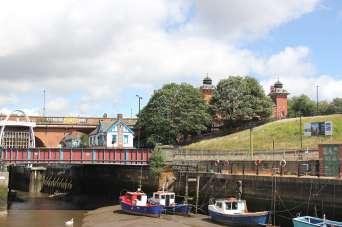

VERNACULAR FEATURES THE MALINGS RESIDENTIAL

SCRAP YARD

SEVEN STORIES & SHIP INN

40

1:3000 80

Views from Malings and Albion co-op residential showing the decending roof in response to the topographical factor around Byker Bank and Albion Row with its unique features

BYKER BANK

NEWCASTLE ENTERPRISE CENTRE

REEBOK CROSSFIT GYM

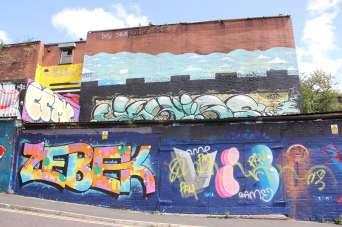

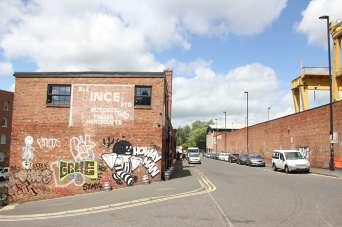

Murals on Ford Street showing the dedication from groups of artist and represent the spirit of creative and organic that majority of residents and visitors consider positive with these arts, and beside the yellow crank is where the scrap yard is

KAROL MARKETING GROUP WALKER ROAD

TOFFEE FACTORY

THE CYCLE HUB TYNE BAR

THE BALLAST PARK

THE BYKER LINK TRAIL

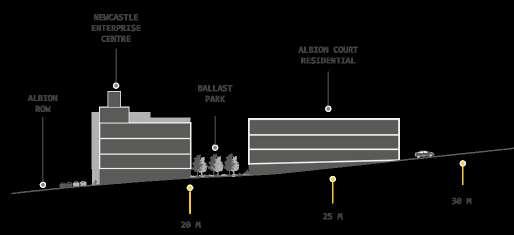

Views over the enterprise centre from Albion Row and Hadrian’s Wall Path indicates the slope that begins from Tyne Bar at the South Eastern of the site, and this also provide a certain vistas toward Tyne River when standing uphill

33

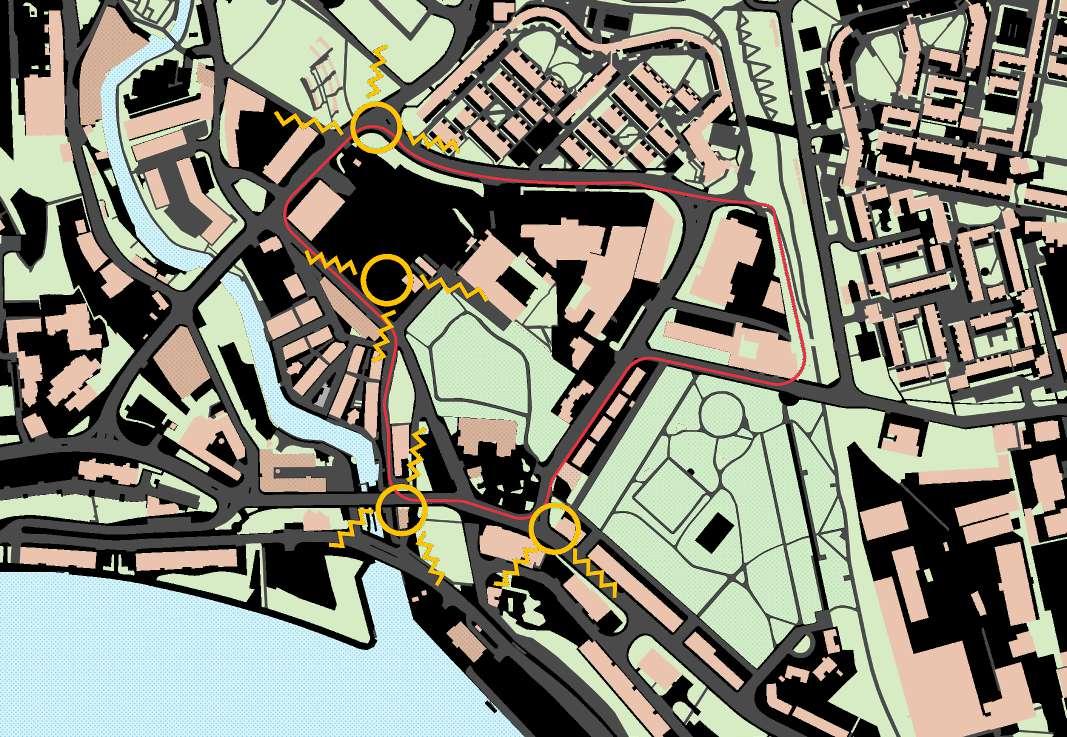

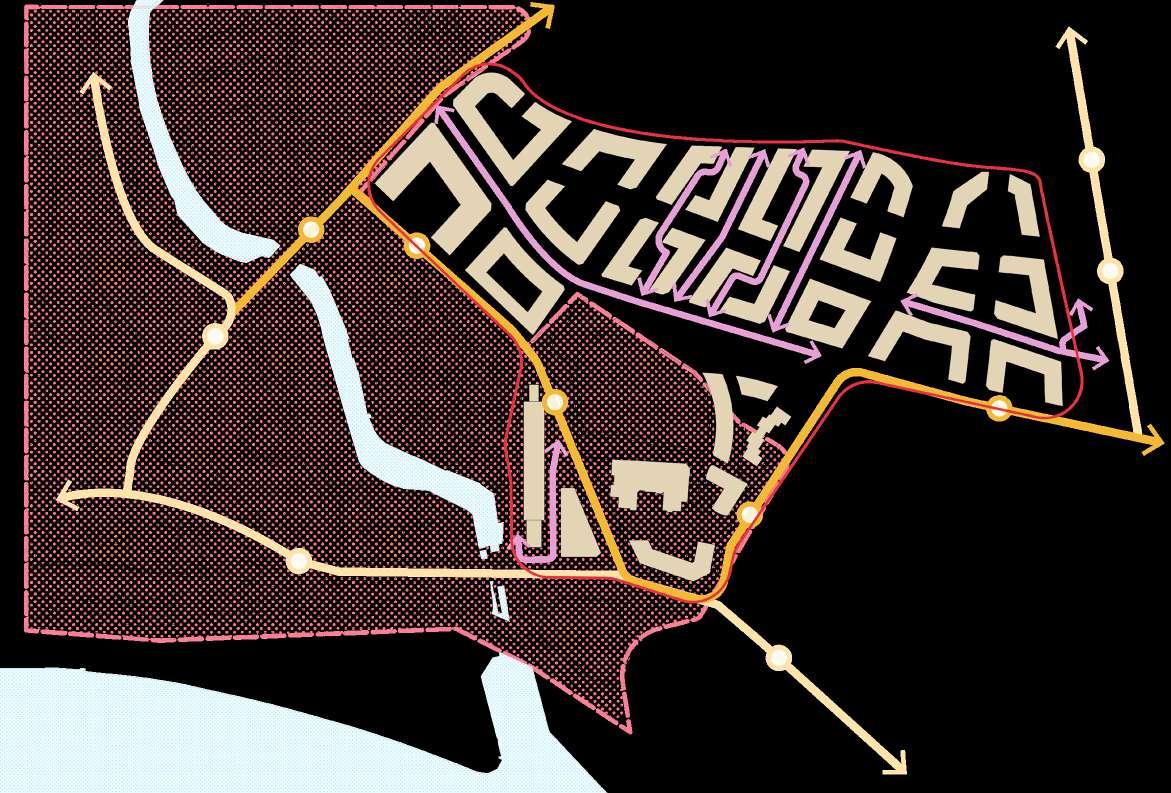

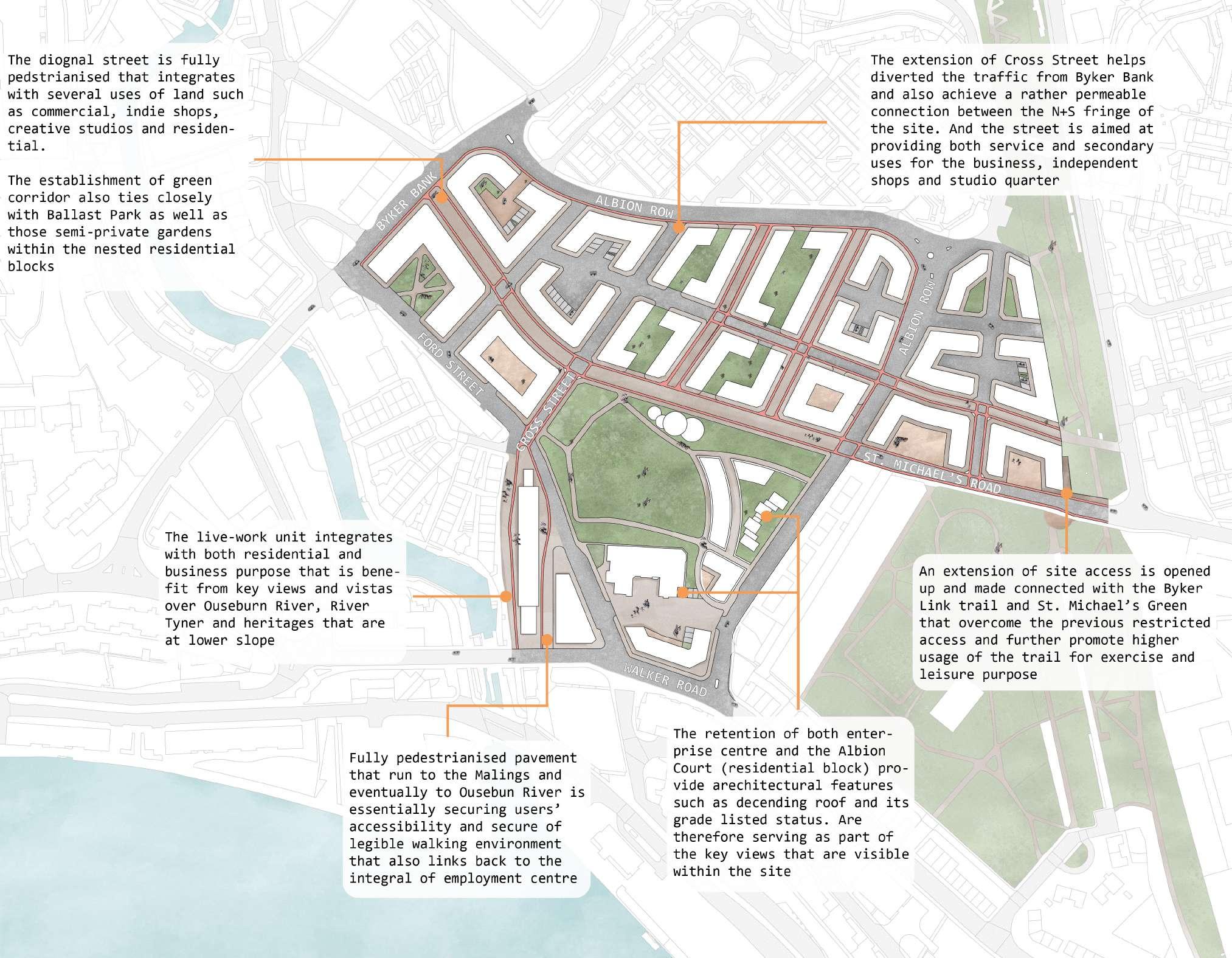

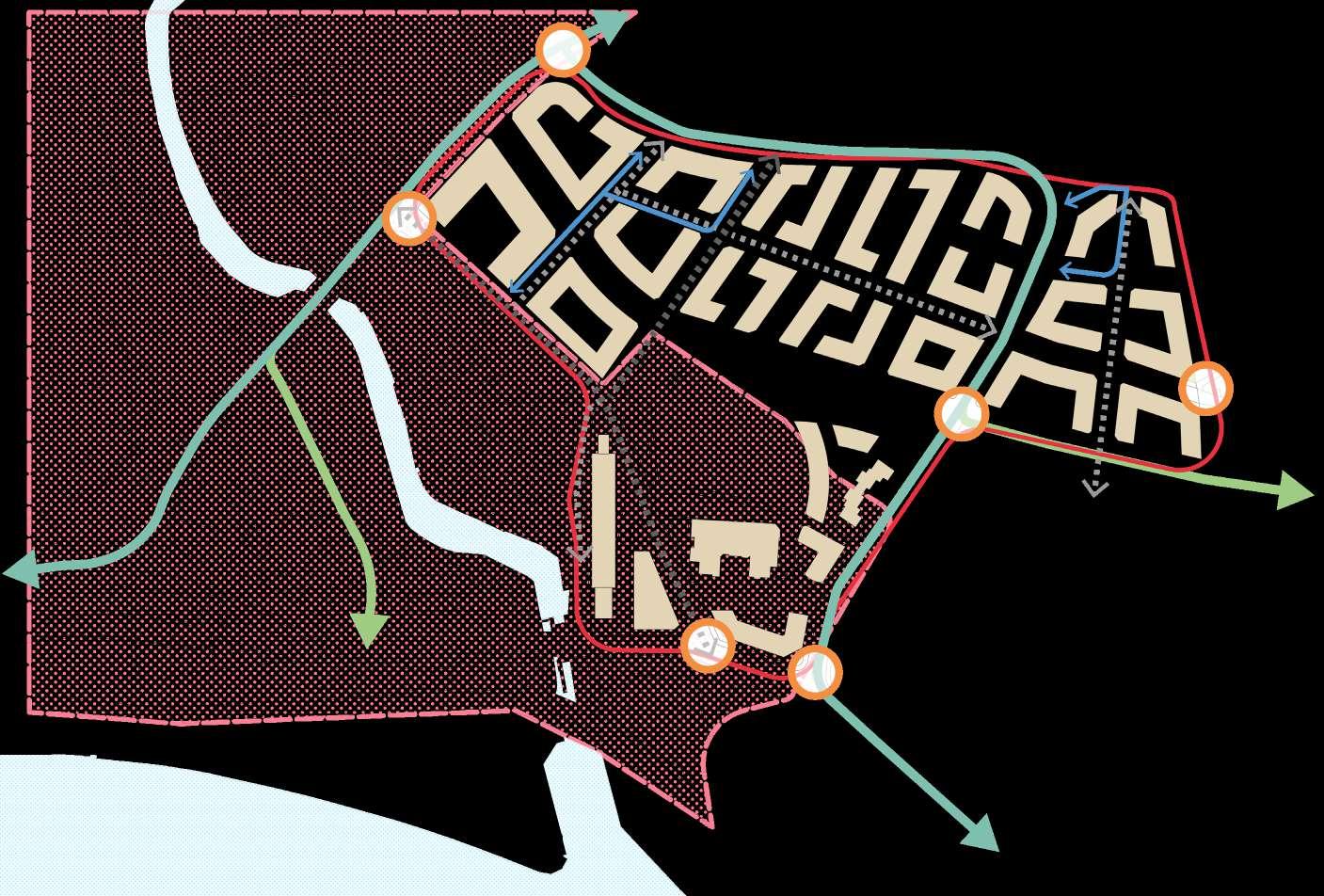

SITE PERMEABILITY This priamry route that connects with Byker Bank (Major route) is essentially to help divertify the traffic from peak hours and achieve safer accessibility for users in the neighbourhood

BYKER TOWN CENTRE

This two secondary routes connects directly with Ballast park, jointly operating with the pedestrianised route that runs underneath to provide secured walking environment for pedesrians and cyclist

SOUTH SHIELD

CITY CENTRE GATESHEAD

WALKER

Reamined from original settings with respect to the Conservation Area Appraisal, also to help reflect the site’s historic patterns to help shape more solid grid pattern in its urban morphology

This access differs from the other 5 as it is the vehicular free route that is adjoined with Byker Link pedestrian trail

Scale1: 2000 0

20

40

60

80 m

34

SUSTAINABLE TRAVELLING MODES Scale1: 2000 0

BYKER BANK

TO ENTRANCE ATE SEMI- PRIV GARDEN

AL

BIO

PE

ST

RIA

N

FO

RD

ST

RE

ET

DE

BALLAST PARK

ION

ALB

An iconic diagonal pedestrian and cycling lane that runs through the middle of the site connects with the crossing point from Byker Bank towards the end of Albion Row The diagonal street helps remove the physical barriers from vehicles and achieve a secured, walkable environment that is linking with each doorstep from residential blocks

20

RO

UT

E

ROW

N

RO

W

40

60

80 m

35

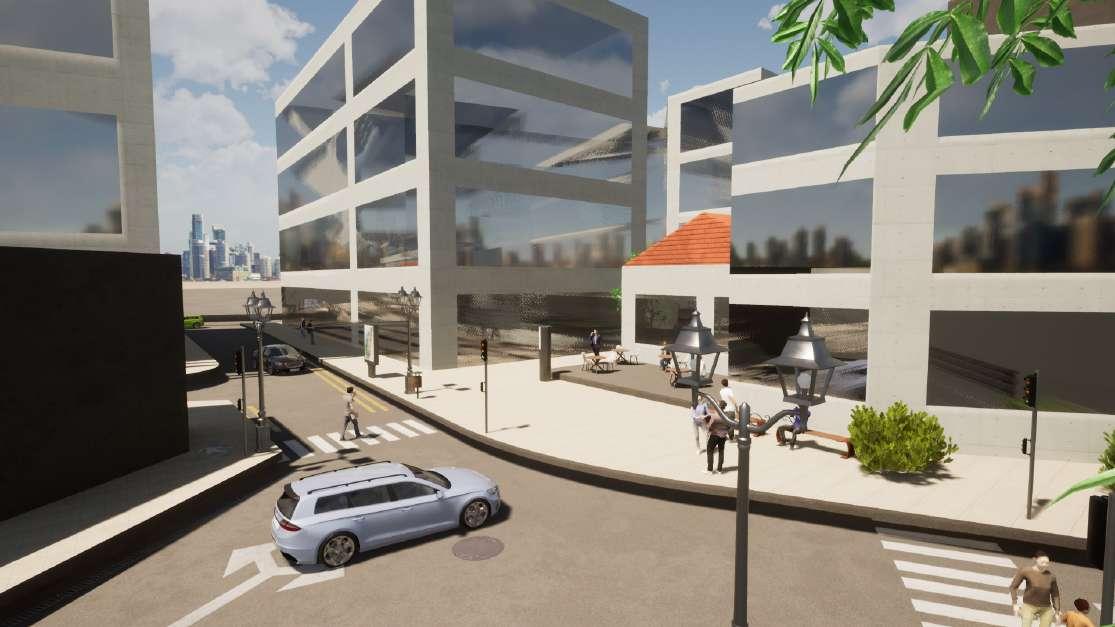

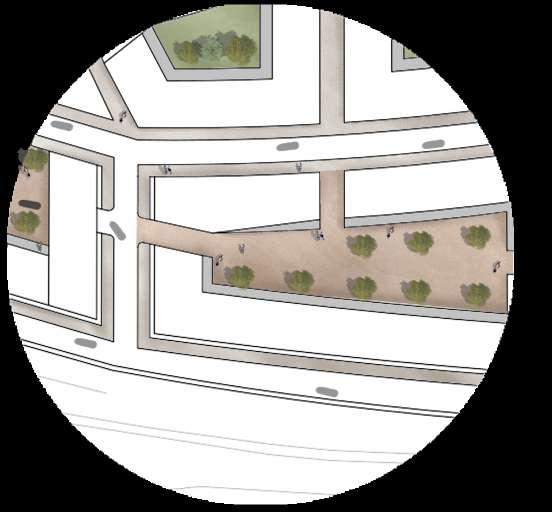

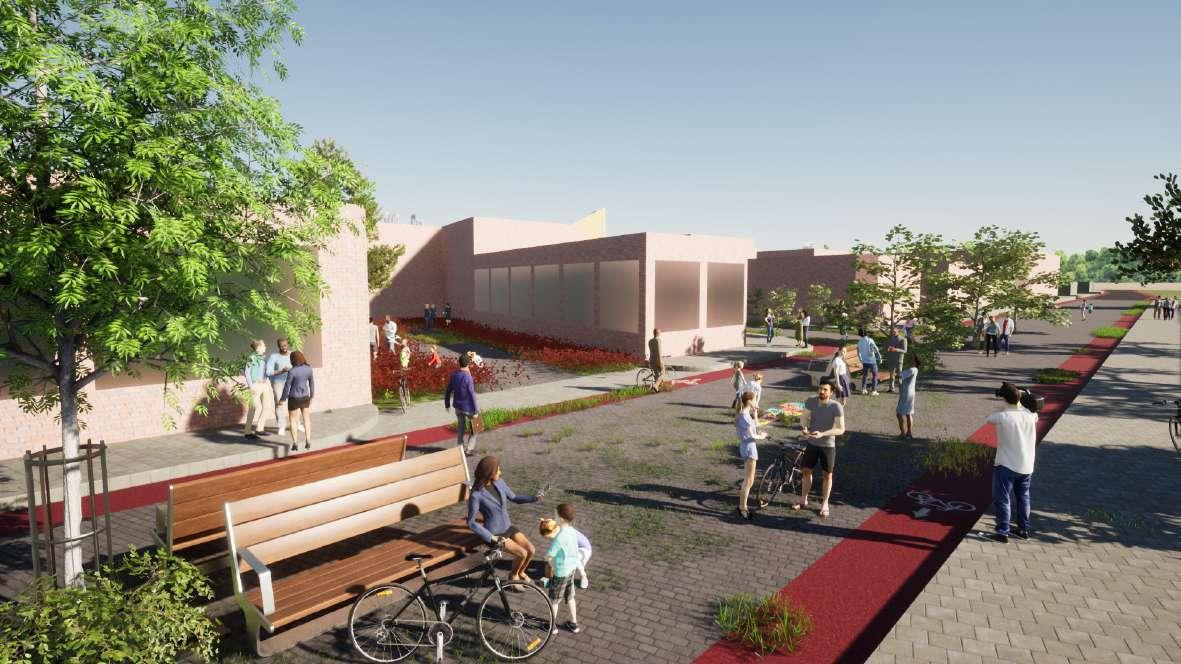

PEDESTRIANISED STREET

36

37

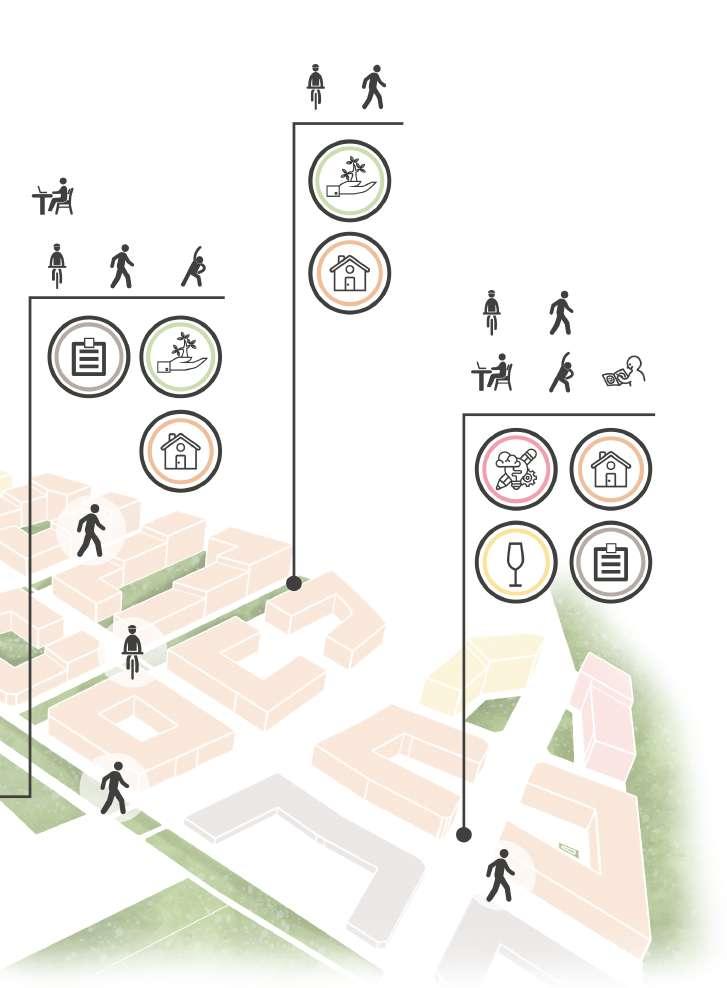

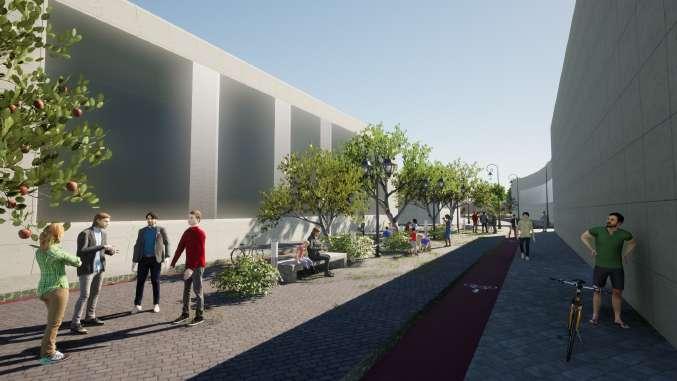

INCLUSION & ACTIVITIES

Around the site boundry is the conjunction between Ouseburn and the site itself, previous Maling Street is being pedestrianised for achieving legible pedestrian crossing and better walking environemnt

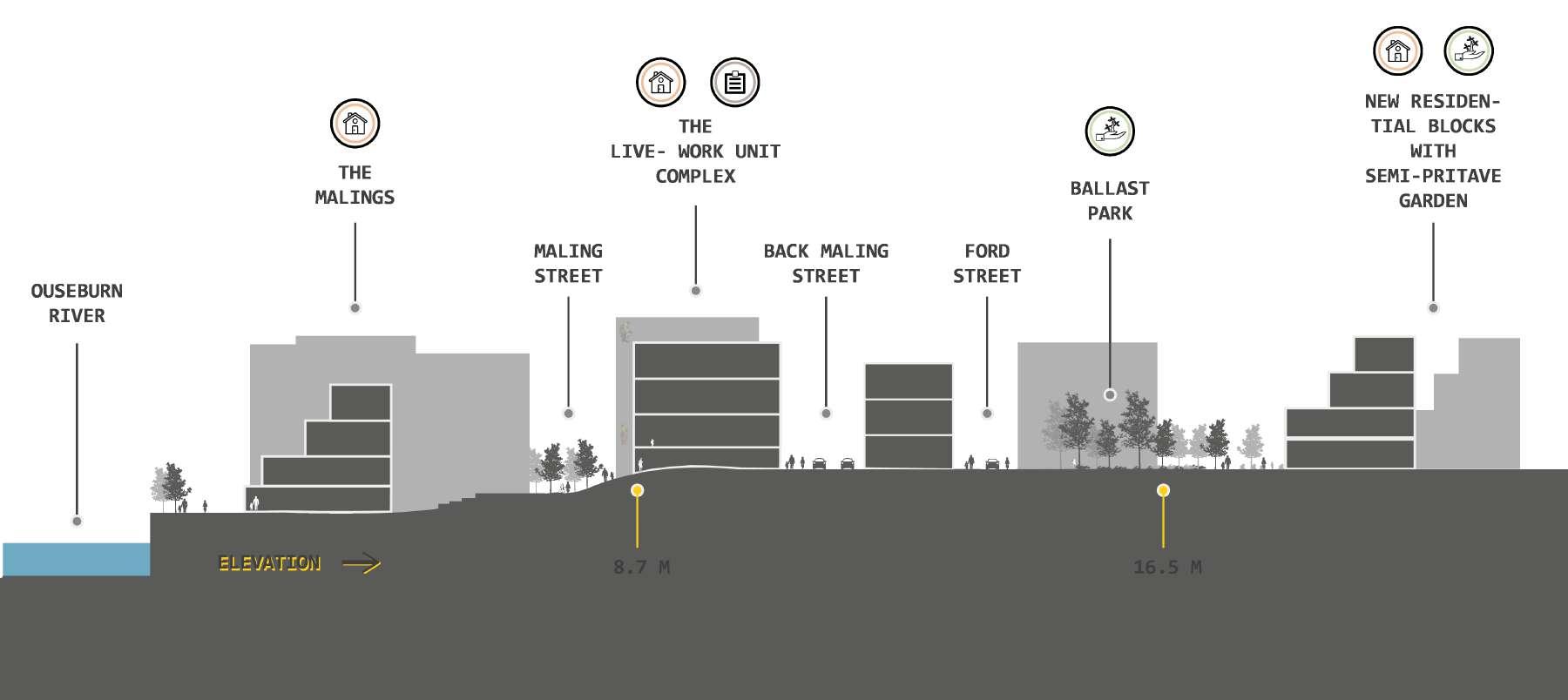

Cross section A-A

38

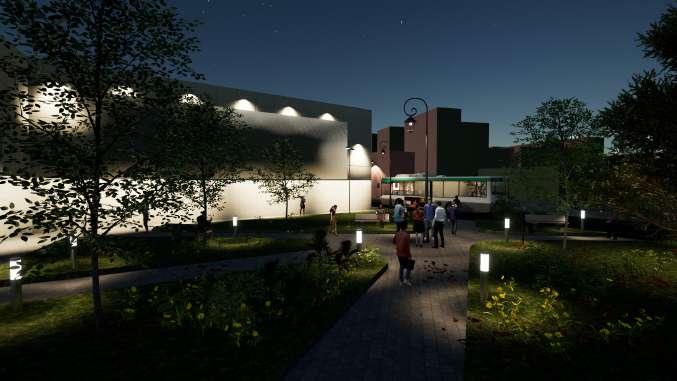

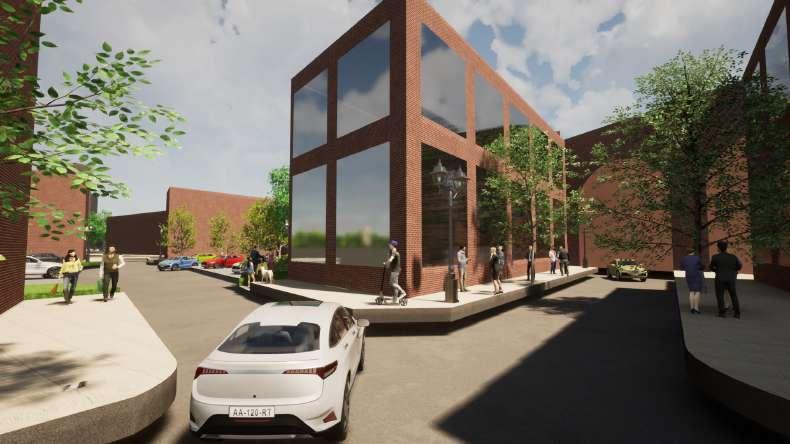

LEGIBILITY THROUGHOUT THE DAY

Locating on Ford Street are the newly organised office quarter that is jointly operated with the Employment Centre, this urban parcels were transformed from the original scrap yard providing a courtyard with leisure purpose for local business and young professions

Cross section B-B

39

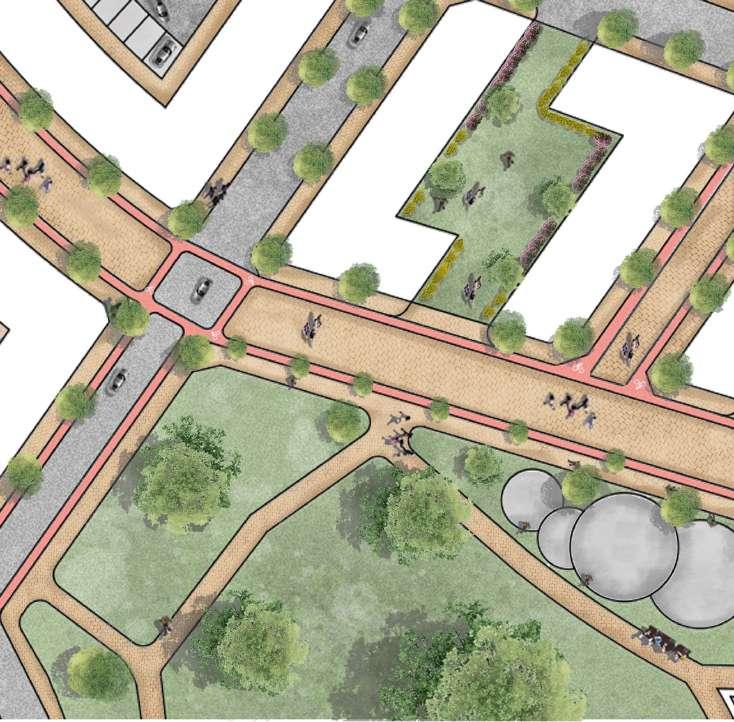

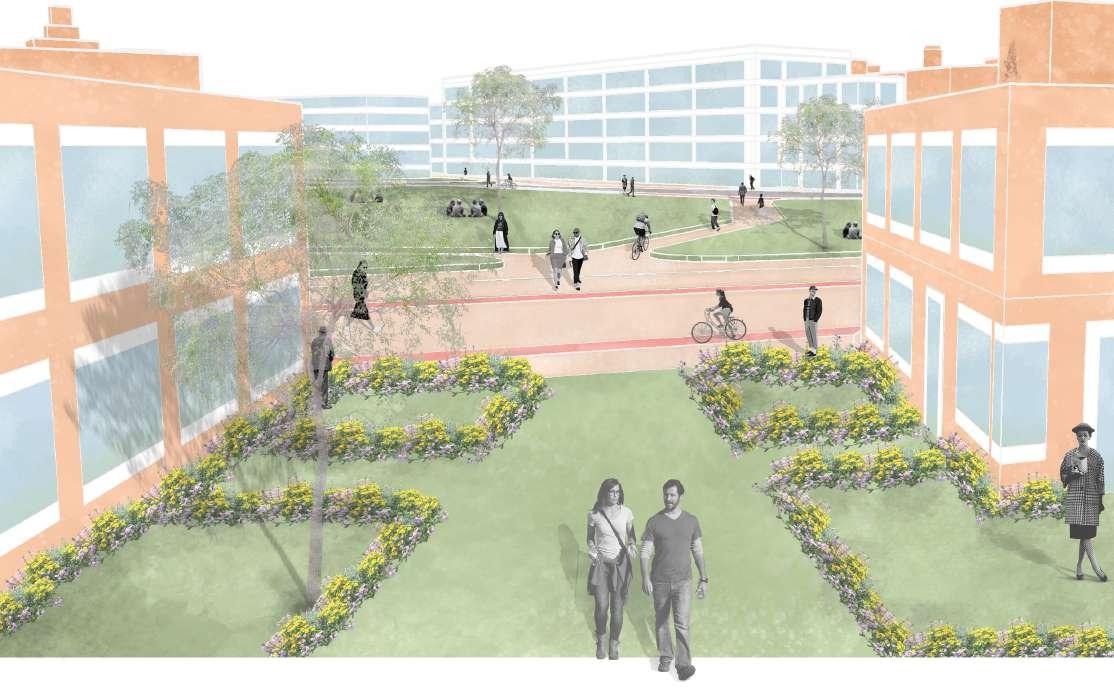

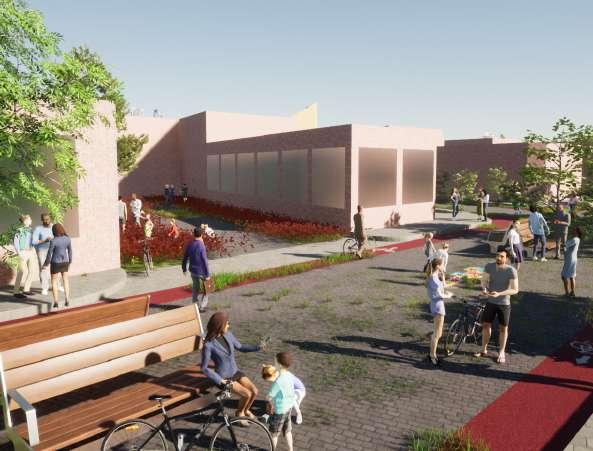

SEMI- PRIVATE GARDEN

URBAN DESIGN PORTFOLIO 19 / 20 ERIC TING EN WU
