Pang Shen Architecture Portfolio 2023

A r c h i t e c t u r e P o r t o l i o

P a n ( D e v i n ) S h e n S e l e c t e d W o r k s 2 0 1 9 - 2 3

REEHOUSE BY ENGINUITY

Net-positive affordable housin

3rd Place in Multi amily Buildin

Au ust 2021 — April 2022

Cabrini Green, Chica o, IL

Advisor: David Corr

Collaborative desi n as Lead Architectural Desi ner with major teammates includin R. Szymczyk, O. Leonardis, S. Ganti-A rawal.

A unique 10-story residential & commercial mixed-use buildin on the corner o Halsted & Division Streets near the North Branch o Chica o River and Goose Island. The desi n competition project is an award-winnin entry to the 2022 U.S.D.O.E. Solar Decathlon.

So tware: Rhino, Revit, Lumion

Square Foota e:

110,200 sq t commercial + 223,800 sq t residential = 334,000 sq t total

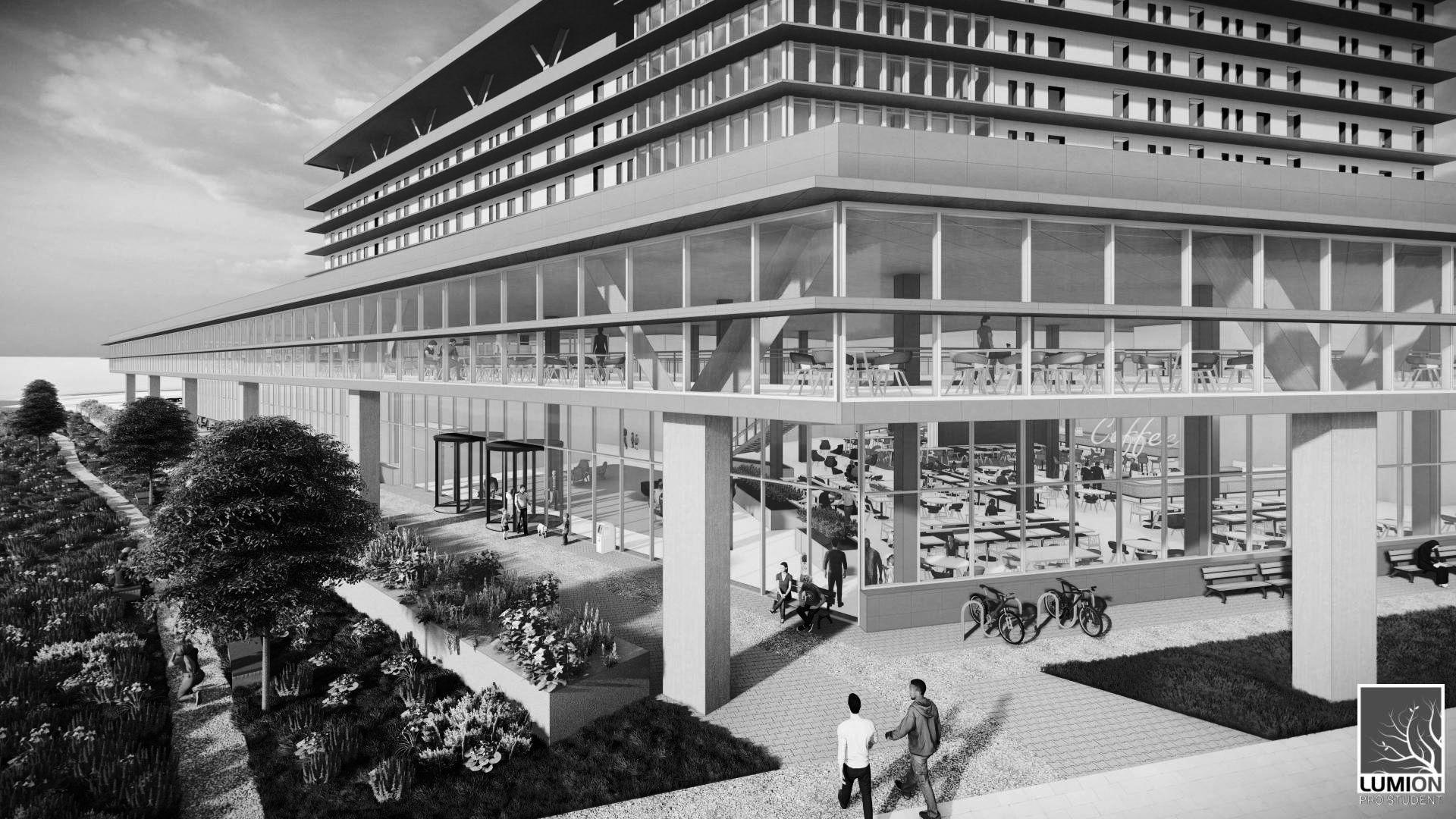

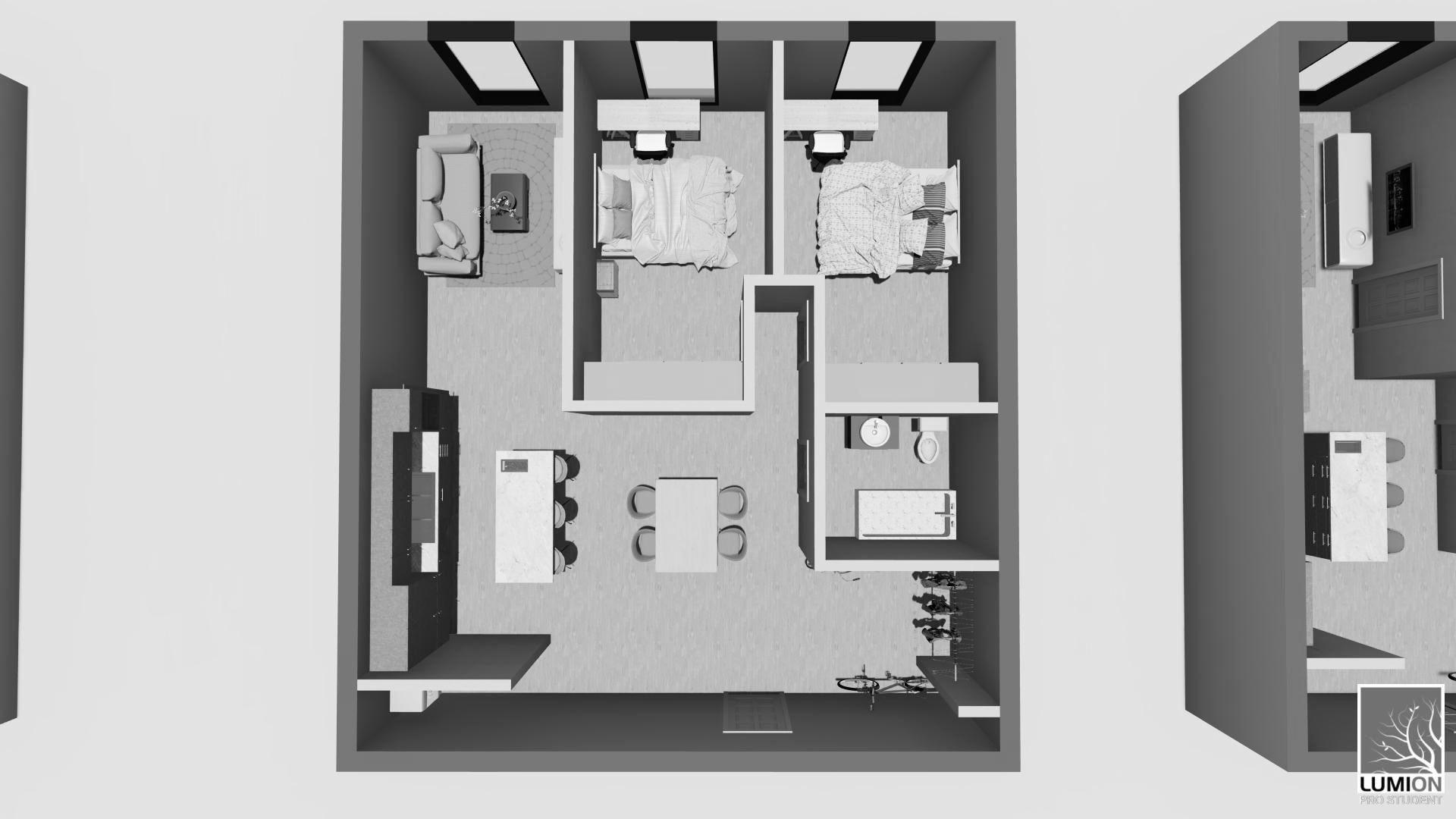

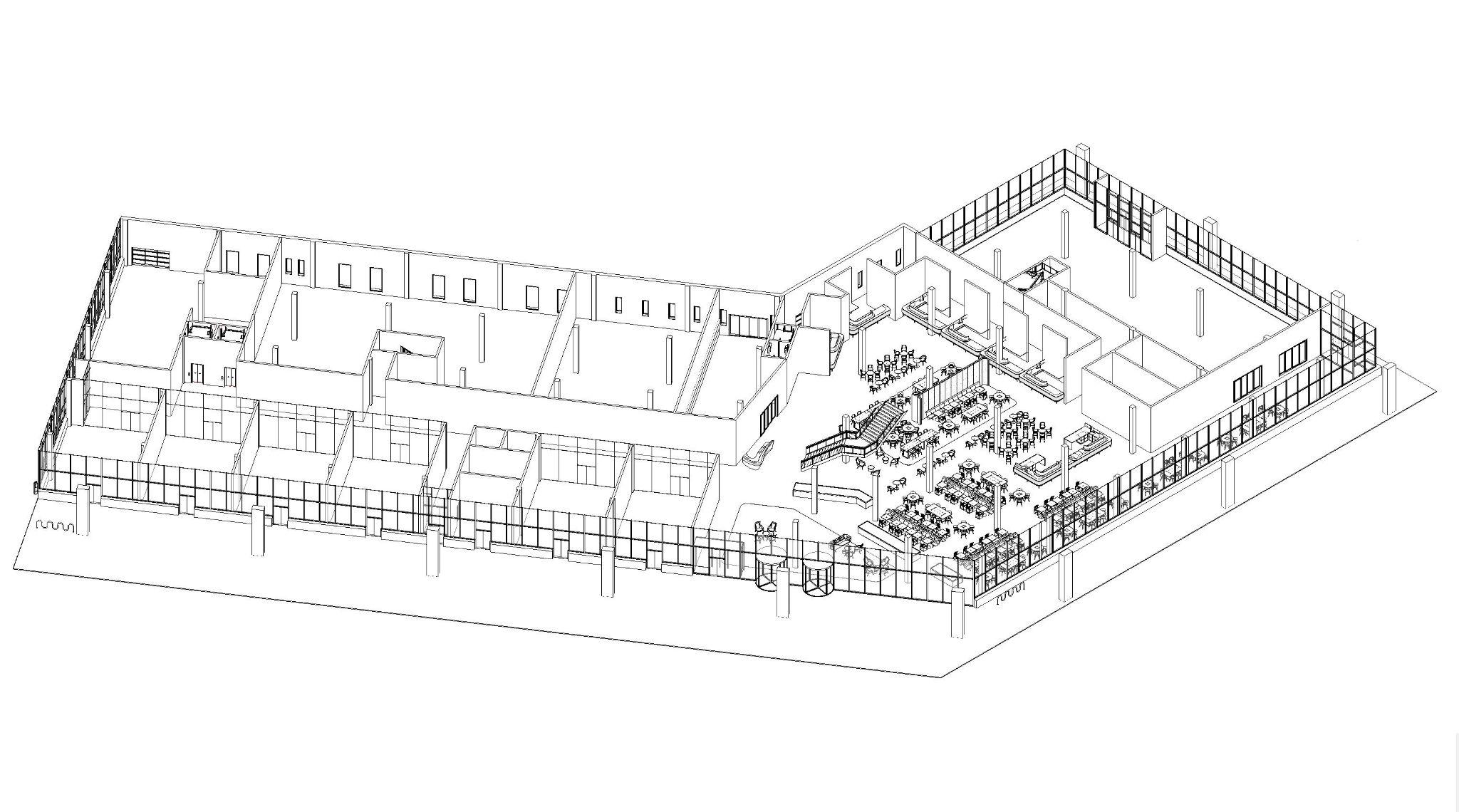

A sel -sufficient residential and commercial mixed-use o 10 stories, TreeHouse prides itsel on the use o mass-timber structural ramin and brick-like terracotta claddin . The first two levels eatures over 110,000 sq t o rocery market, child care acilities, local shops, ood court, education centers, recreation spaces, and clinics, and the upper ei ht levels include 160 units with easy access to our multi-level communal areas.

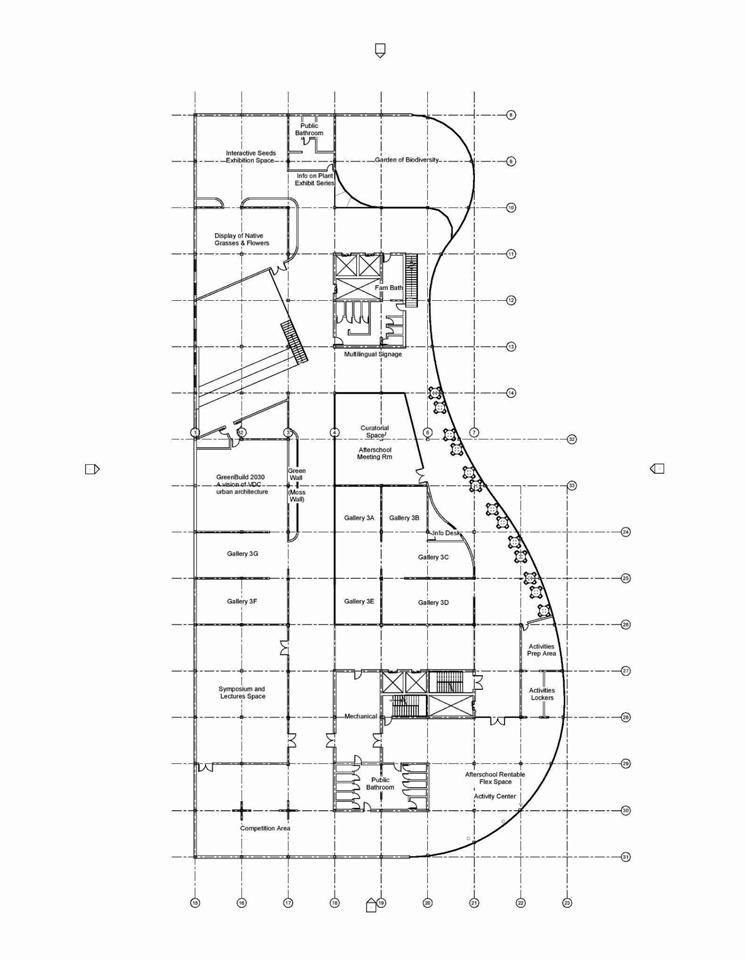

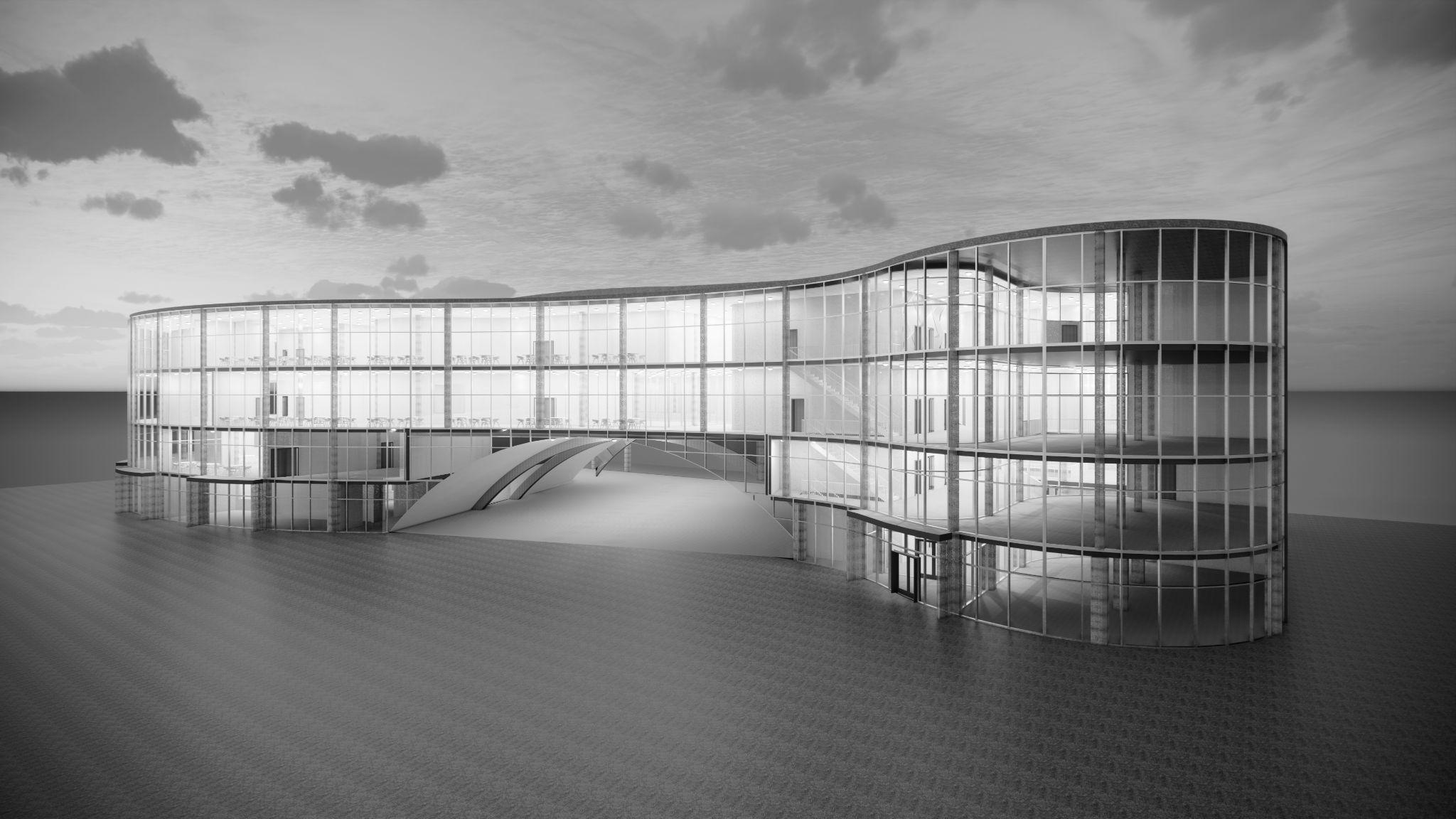

— TWO — MUSEUM OF SUSTAINABILITY AND ITS TECHNOLOGIES

4-story sustainability-themed museum

January 2022 — June 2022

Central Green, Evanston, IL

Instructor: David Corr

Collaborative project as the Architecture

Technical Desi n Lead with teammates B. Garcia, J. Ibarra, and T. de Siqueira Neto

So tware: SketchUp, Rhino, Revit, Lumion, Enscape

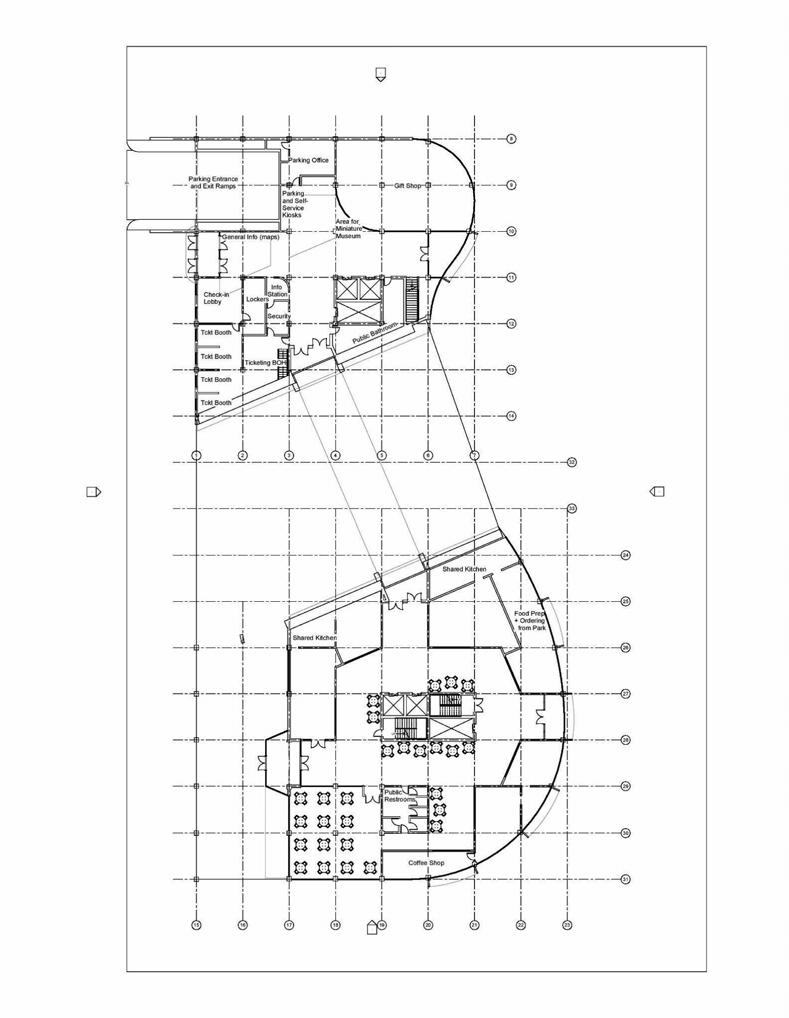

Total Square Foota e: 125,100 sq t above rade + 102,400 sq t below rade = 227,500 sq t total

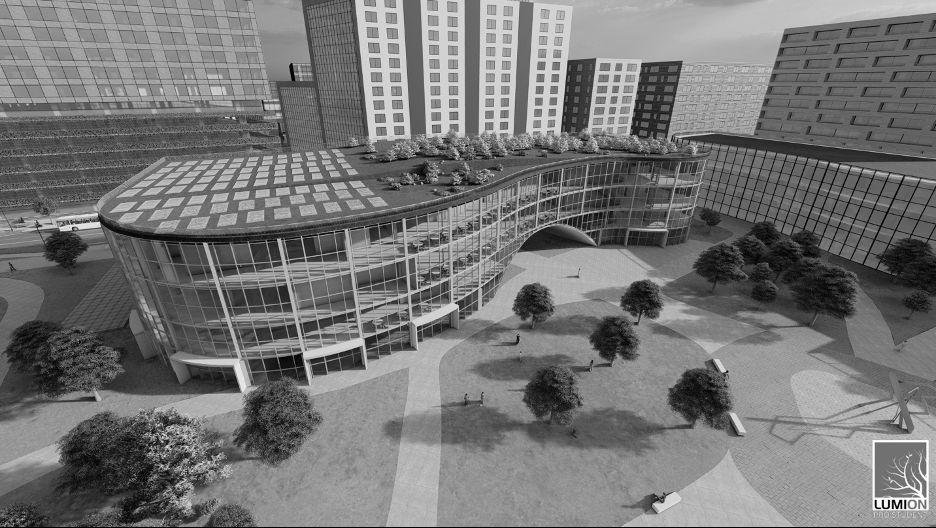

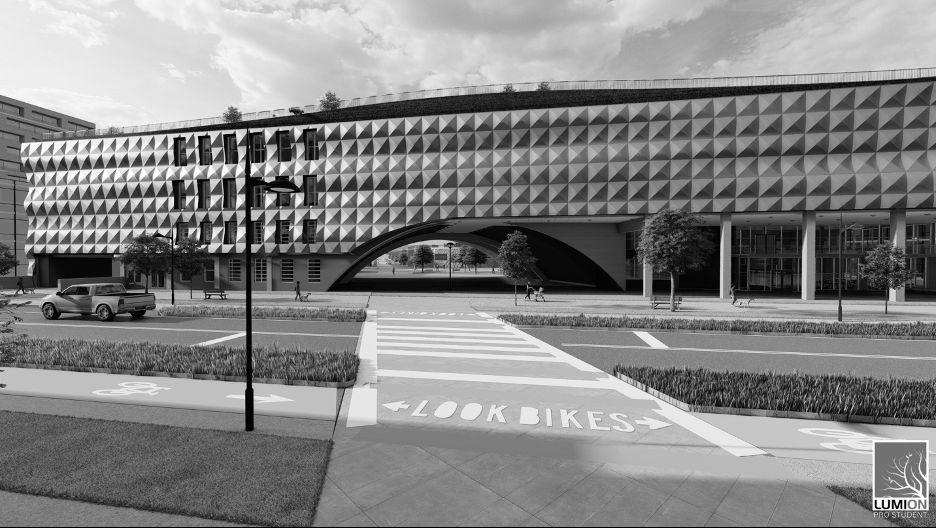

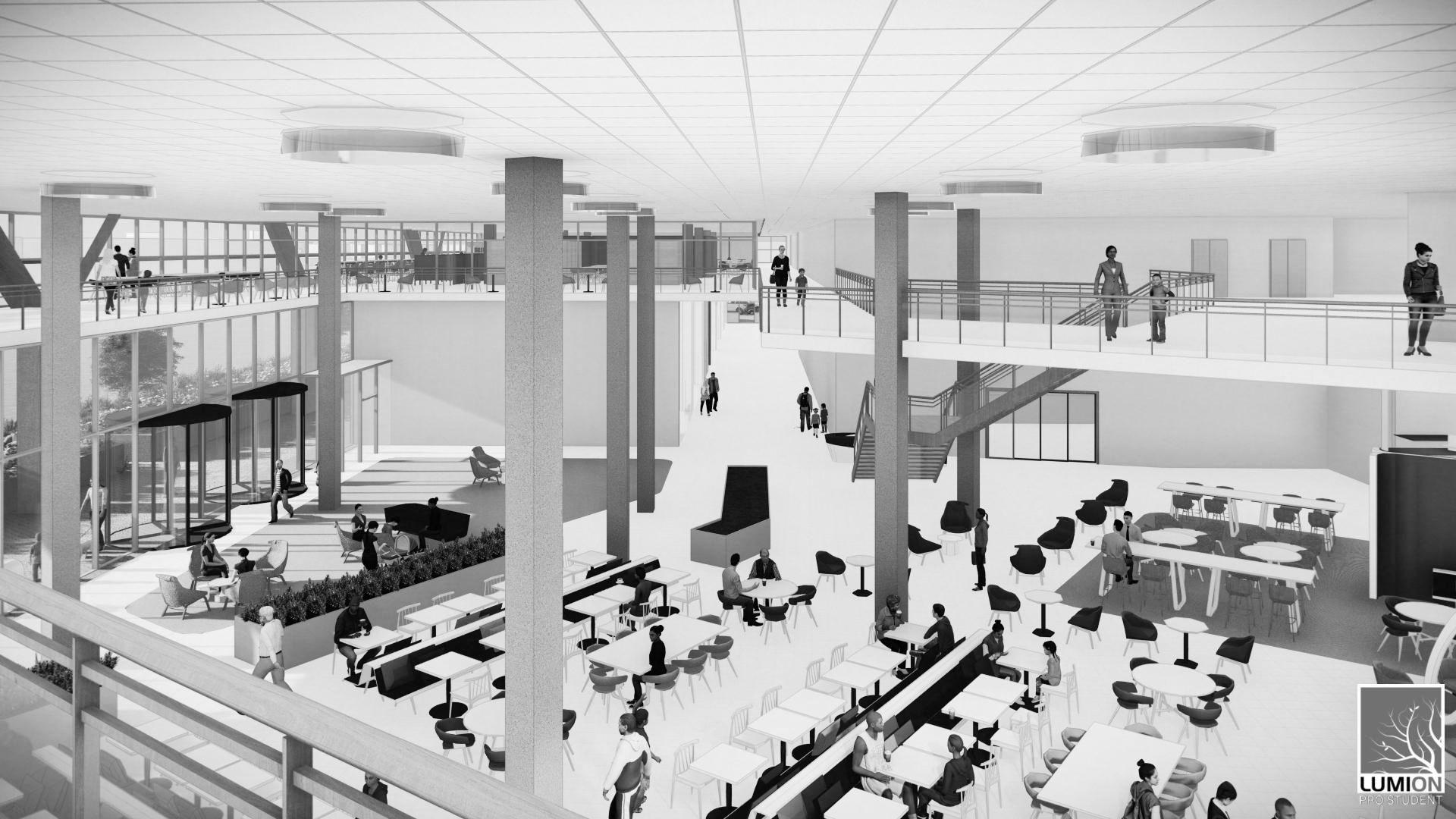

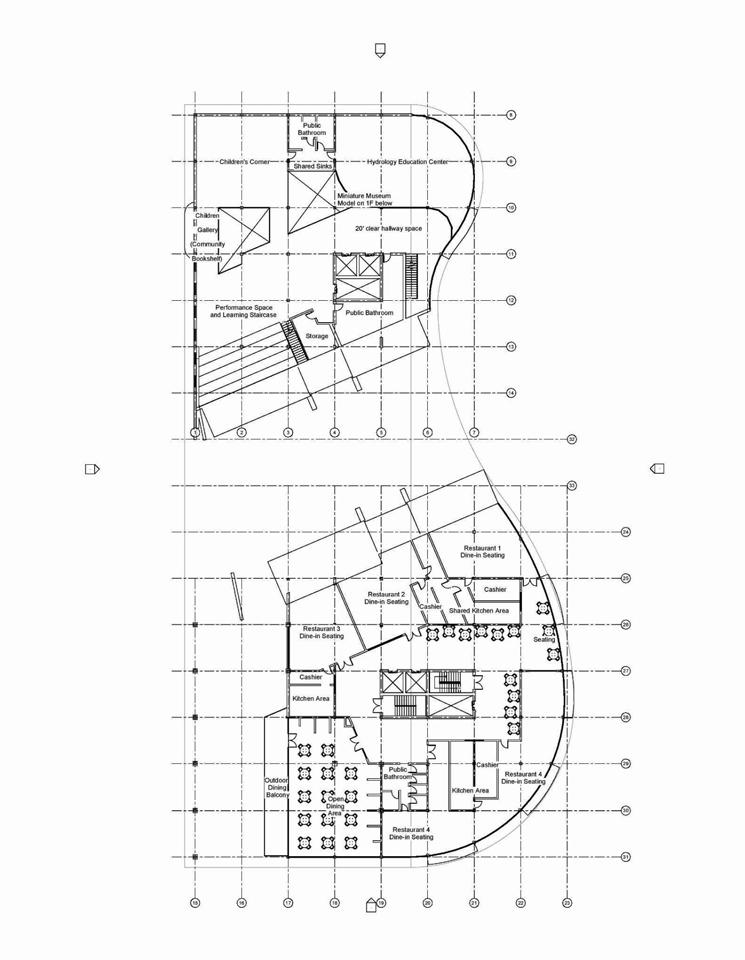

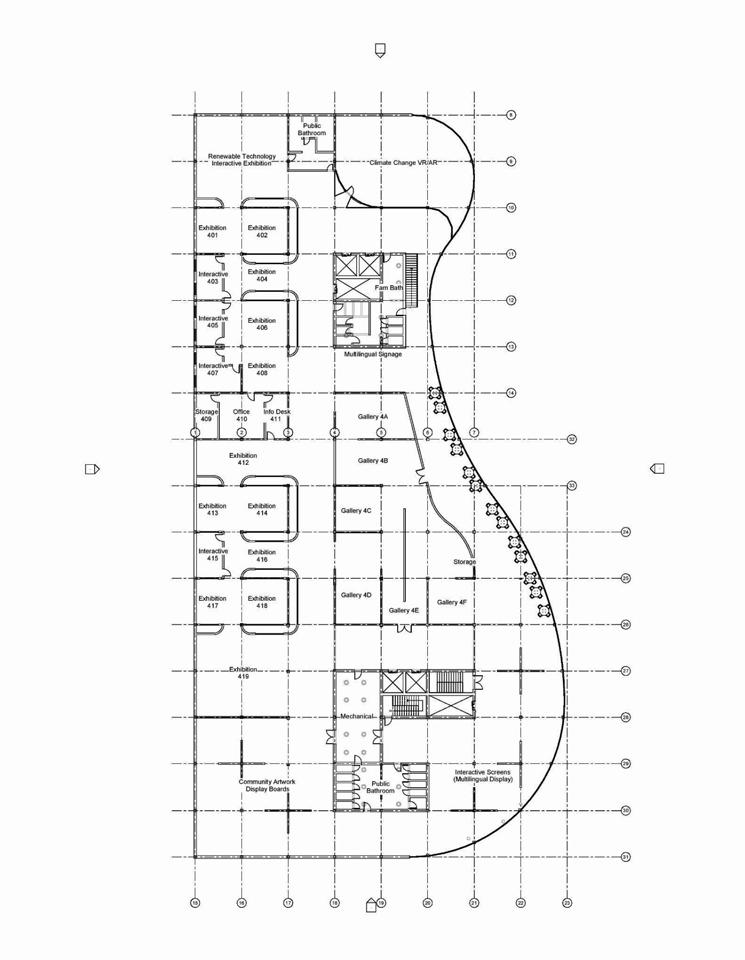

Located on the central recreation plaza o a master-planned community between the Ryan Field stadium and Evanston Hospital in Evanston, IL, the Museum o Sustainability and its Technolo ies is a our-story above rade, two-story below rade mass-timber and LEED Gold rated buildin that exemplifies the principles o sustainability throu hout its desi n. The 2 levels o ood court on the south hal o the buildin serve as a central eatery hub or residents o the new development and visitors, and the 4 levels o museum eatures themed exhibits and alleries.

QUARTYARD FOURFOLD HOUSE

Climate-adaptive multicultural redesi n

June 2021 — July 2021

Harvard GSD, Cambrid e, MA

Instructor: I. Strauss

Individual Work

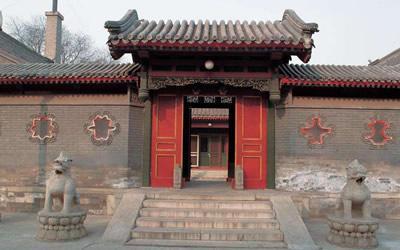

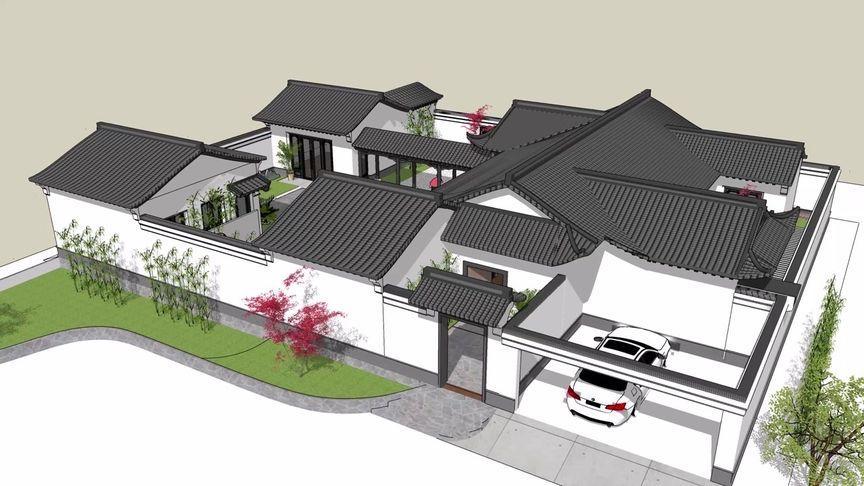

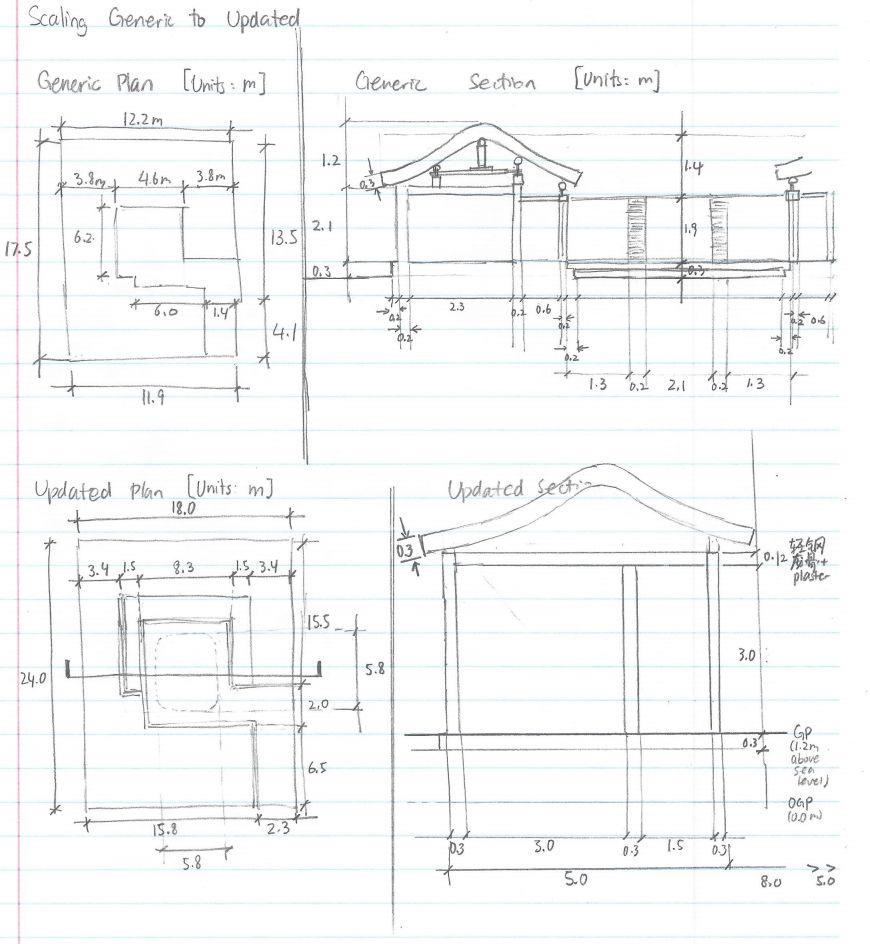

Adapted traditional Courtyard House o China in a typical suburban Los An eles residential block. Considered how the home will respond to impact o climate chan e durin its 80-year li ecycle by incorporatin cross-cultural desi n elements like interior hallway with roo overhan , courtyard or moisture control, water retention pool, and more.

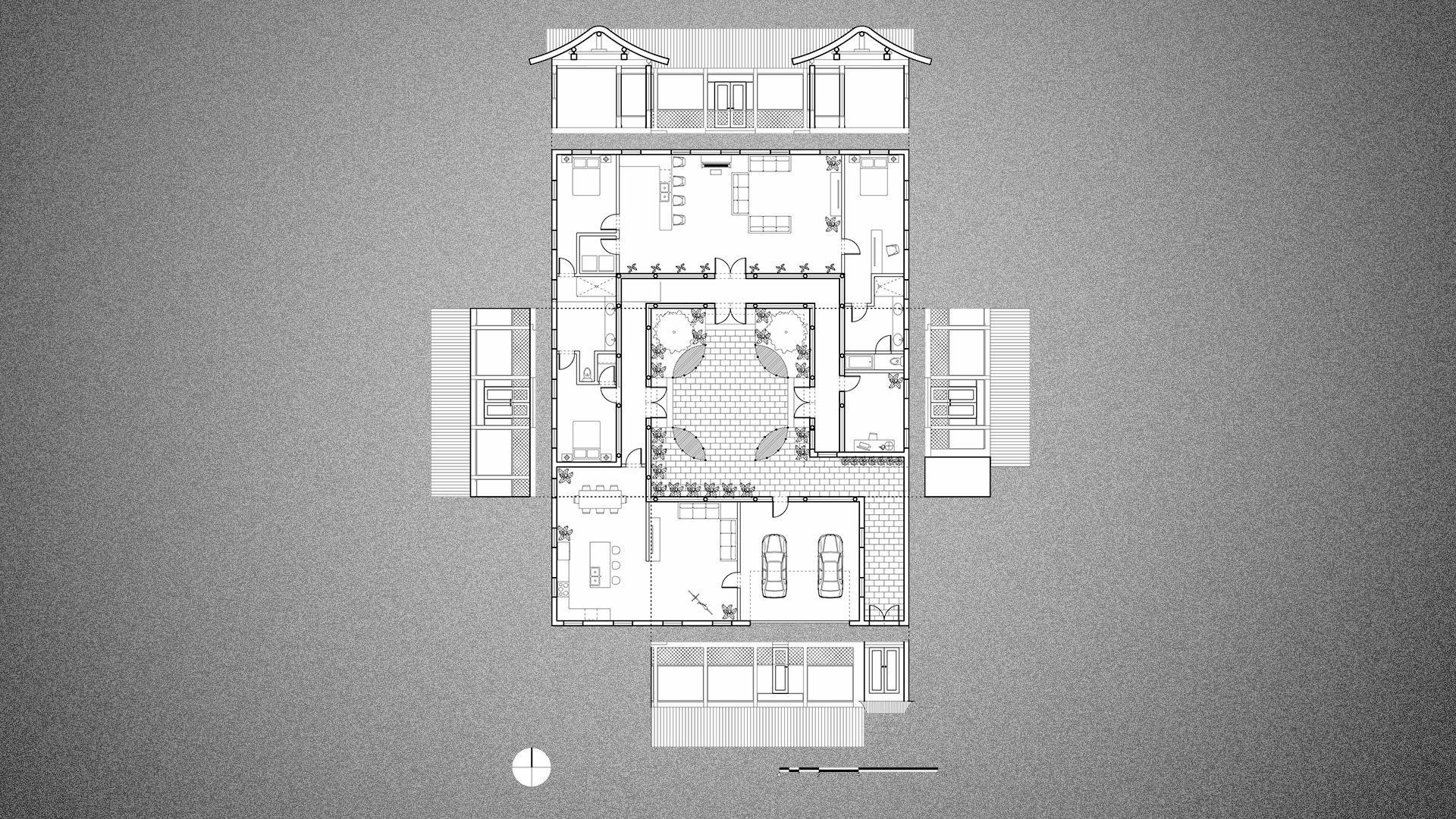

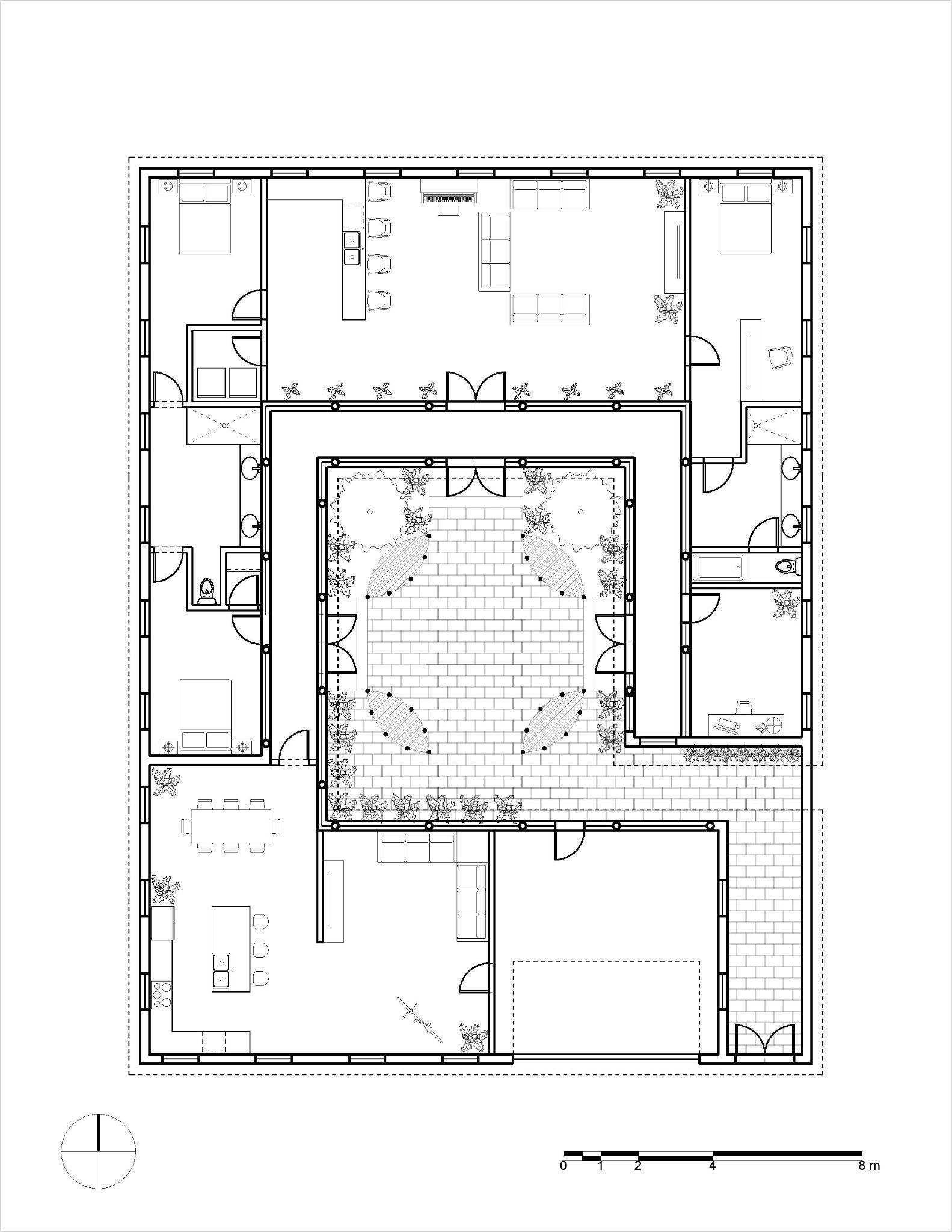

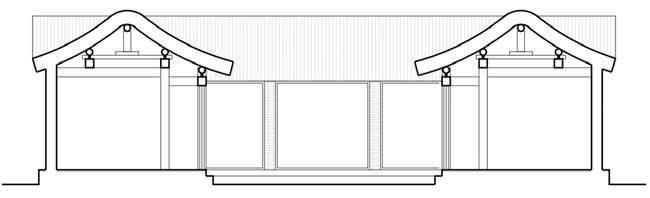

Final composite drawin o plan, interior elevation, and section in a colla e ormat

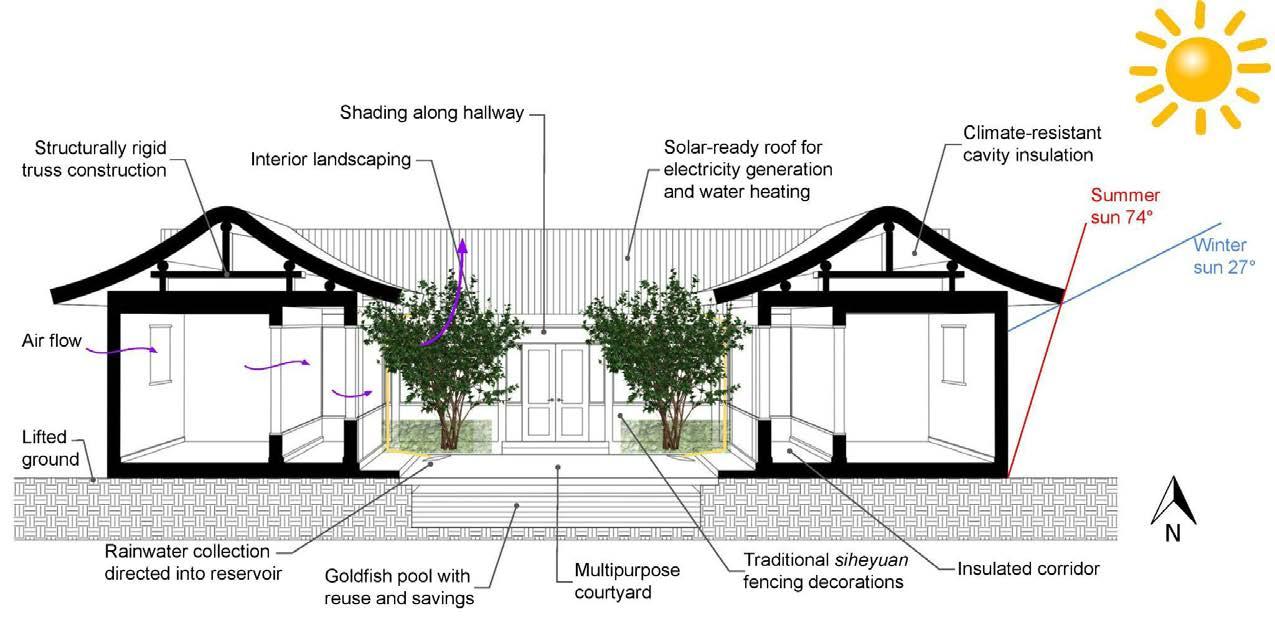

Sustainability Adaptations

Western Livin Room

Open Kitchen+Nook

Secondary Bedroom

Shared Bathroom

Laundry W/D Room

Secondary Bedroom

Kitchen / Tea Space

Eastern Livin Room

Master’s Bedroom

Master’s Bathroom

Office / Study Room

Water Retention Pool

Common Courtyard

Hallway w/ Overhan

Barbecue Corner

Landscapin Wall

— FOUR

NUHOME BY ENGINUITY

Net-zero residential competition

Residential Grand Winner and 1st Place in Urban Sin le Family

July 2020 — April 2021

Lake View, Chica o, IL

Advisor: David Corr

Collaborative desi n as Lead Architectural Desi ner with major teammates includin A. Lin, C. Banks, R. Szymczyk, S. Ganti-A rawal

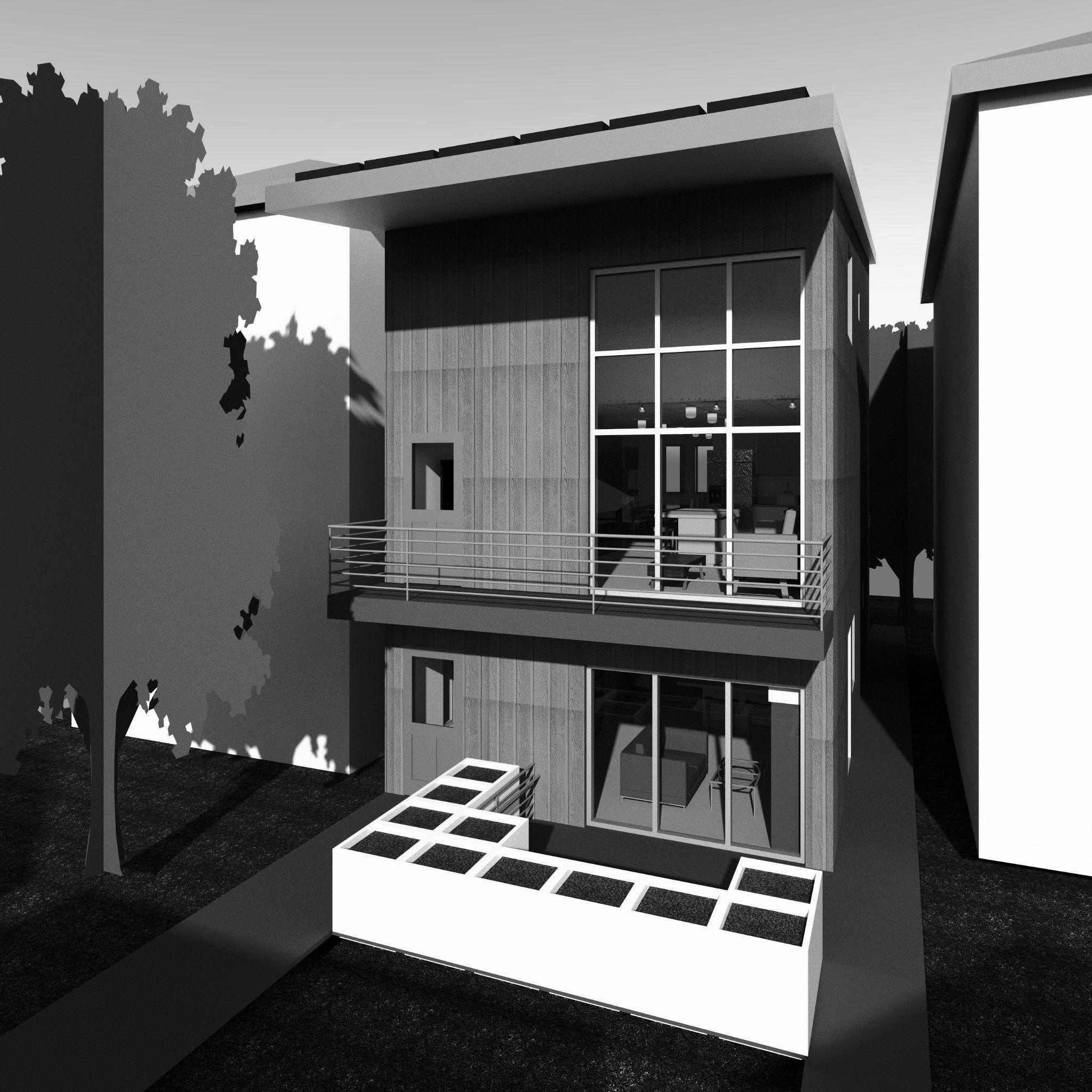

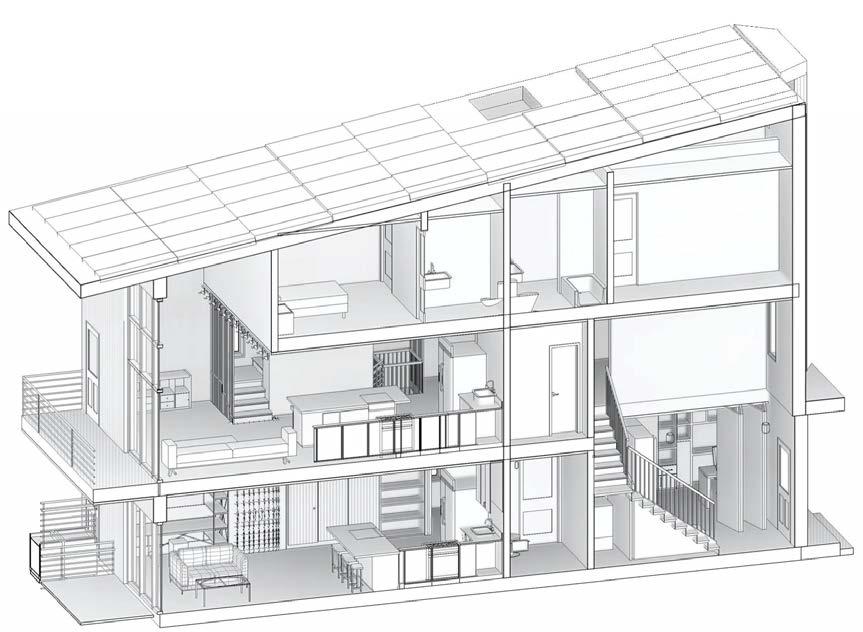

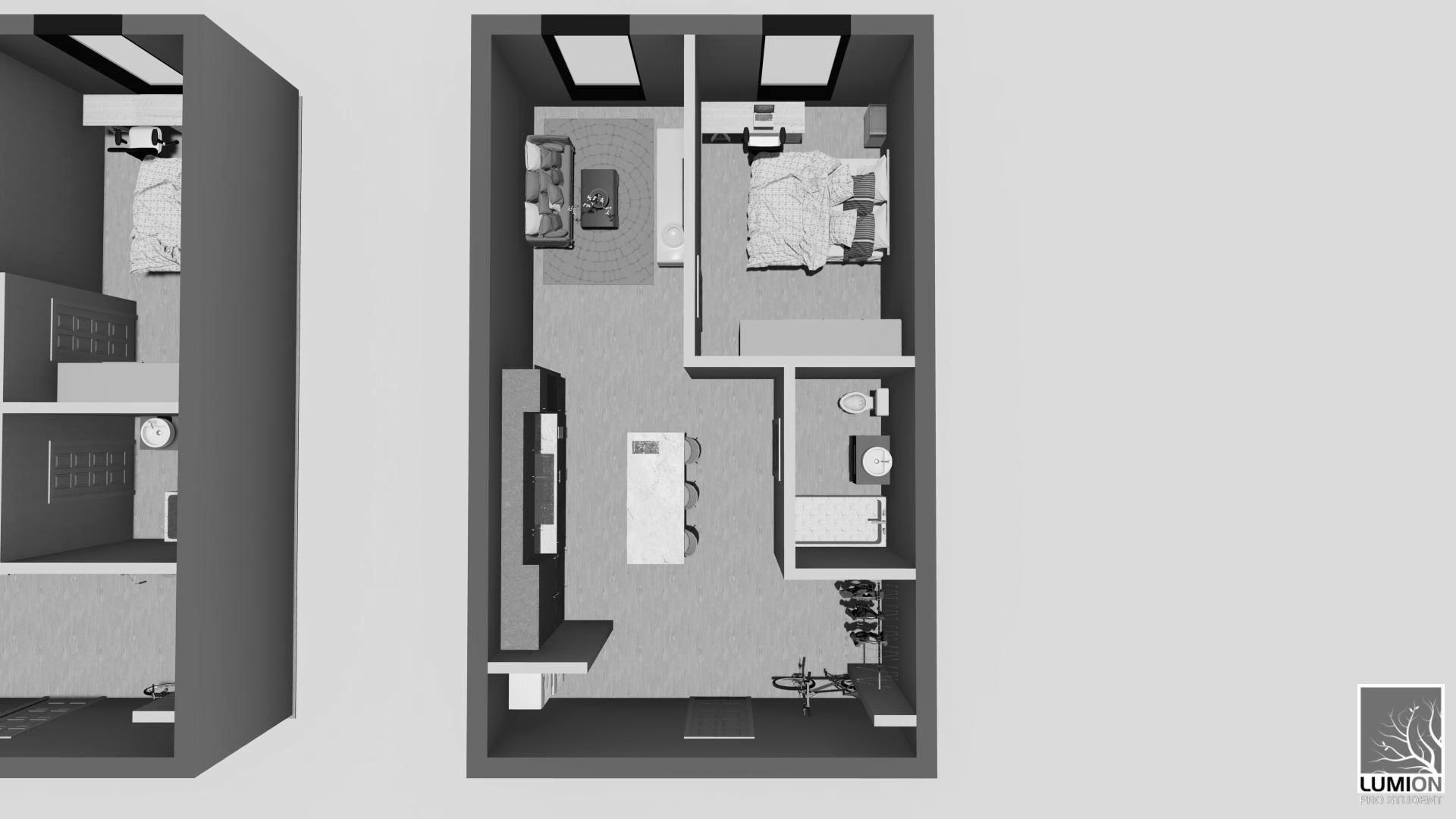

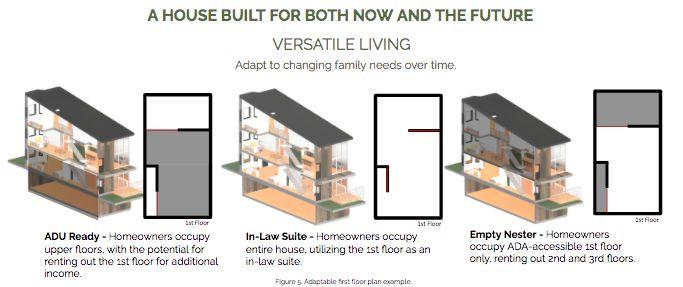

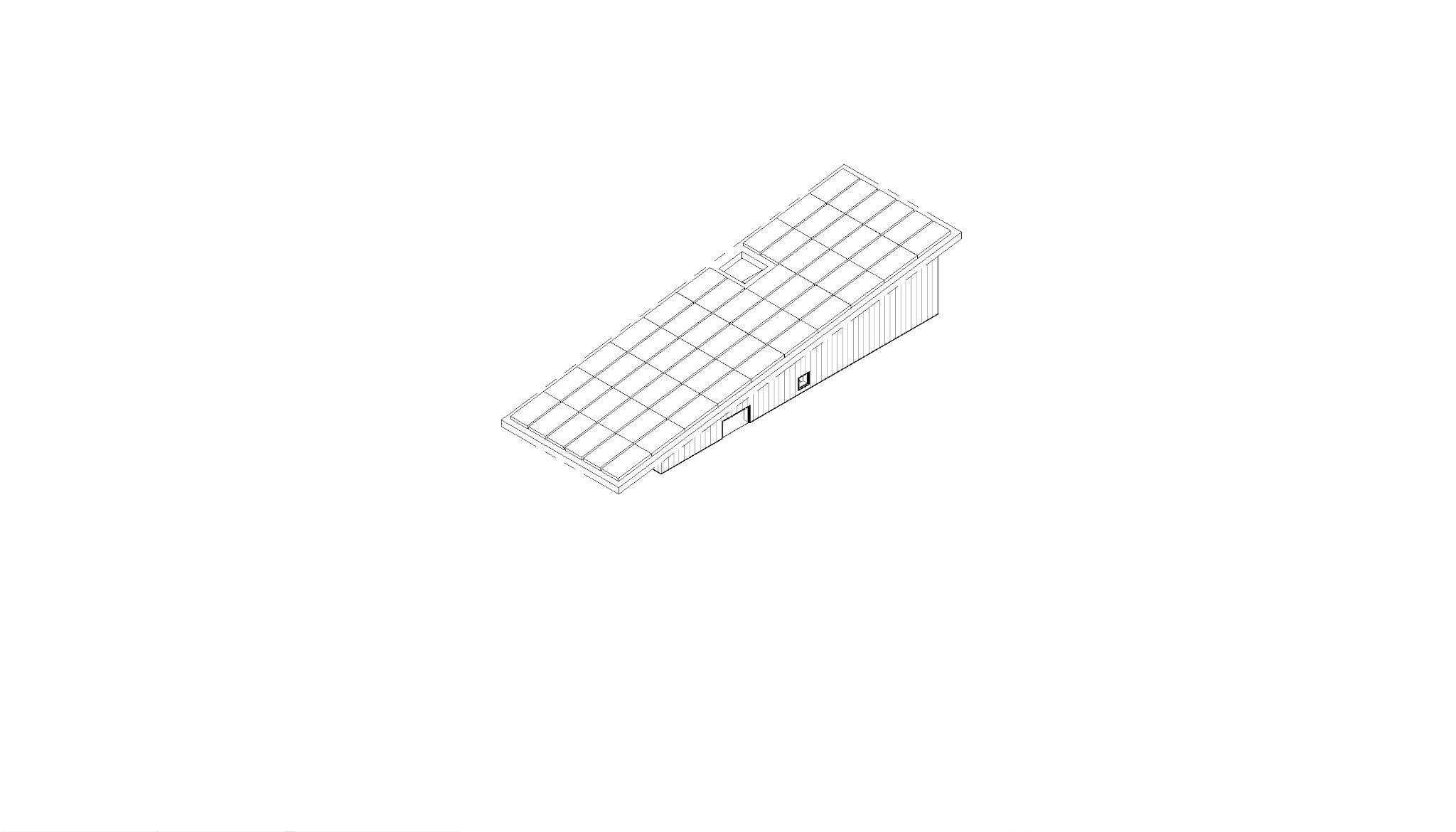

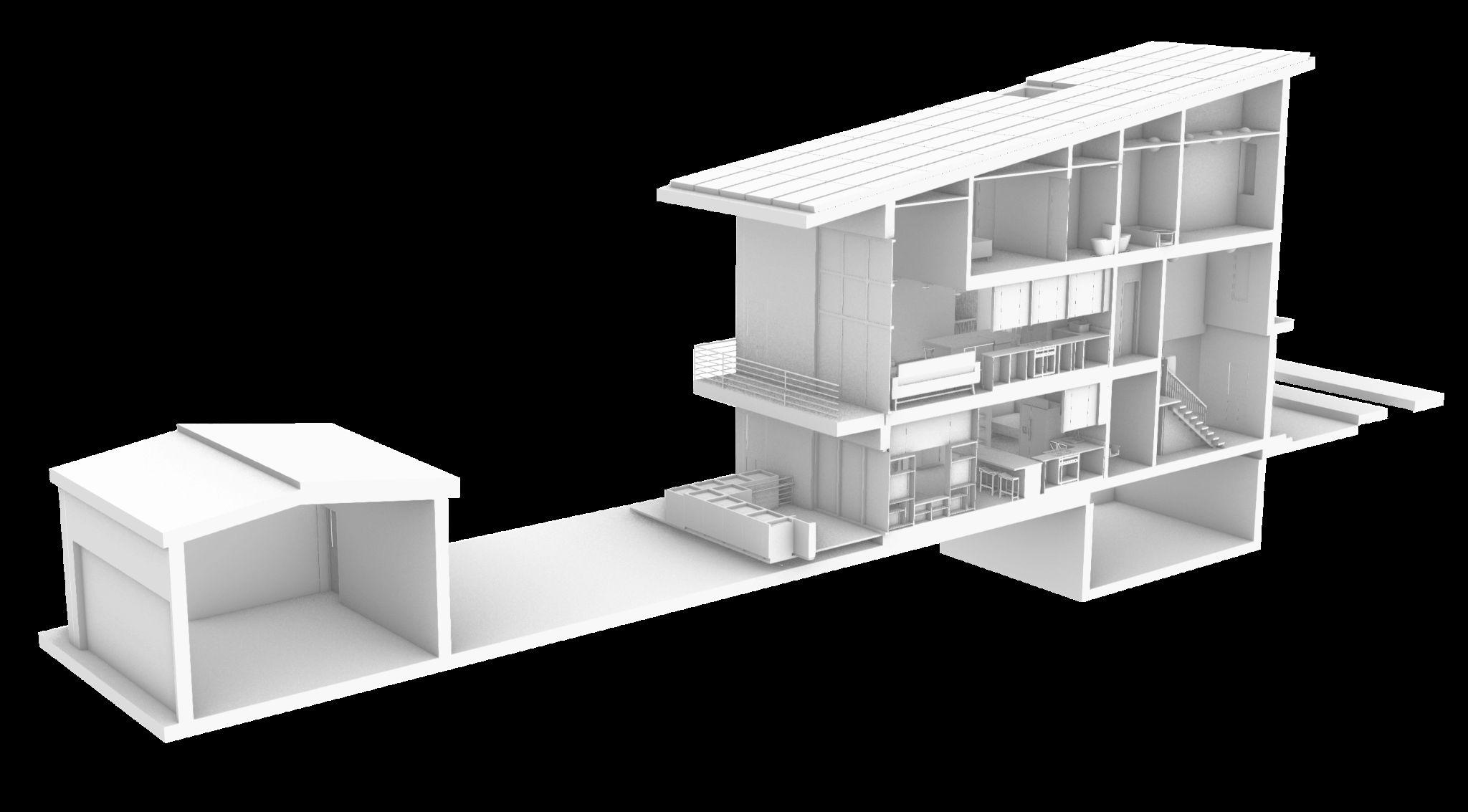

A sustainable and marketable net-zero ener y home located in the Lake View nei hborhood near Downtown Chica o, NuHome by en iNUity is a prototype o what the traditional three-flat homes o Chica o could look like. Located on a typical 25’ x 125’ lot, the home eatures a flexible Accessory Dwellin Unit in the 1st floor, a pioneer in Chica o’s residential architecture. With a south-slopin roo , interior moss wall, and concentrated plumbin core, the home is both water and ener y efficient with plenty savin s.

So tware: Rhino, Revit Architecture, Revit MEP, VRay, Photoshop, SAP2000

NUHOME BY ENGINUITY

An award-winnin entry to the 2021 Solar Decathlon Desi n Competition, this project is the end-product o nine months o remote collaboration with a roup o 12 en ineerin students. Team en iNUity represented seven different academic majors and minors, workin on the holistic and beyond-the-books endeavor with industry consultants in fields includin architecture, structure, mechanical, electrical, heatin , plumbin , ventilatin , landscapin , and li htin in the AEC industry o Chica o.

2F Livin Room

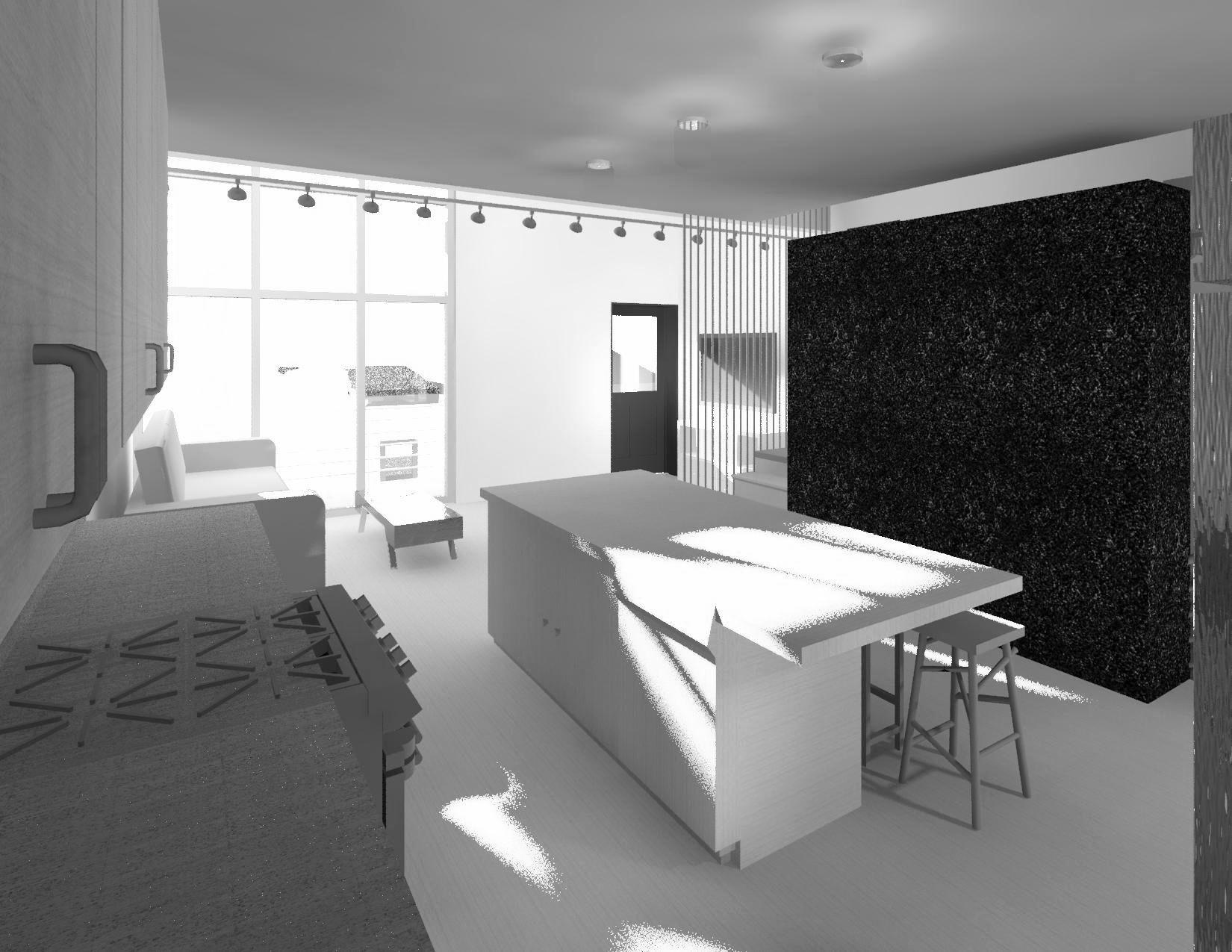

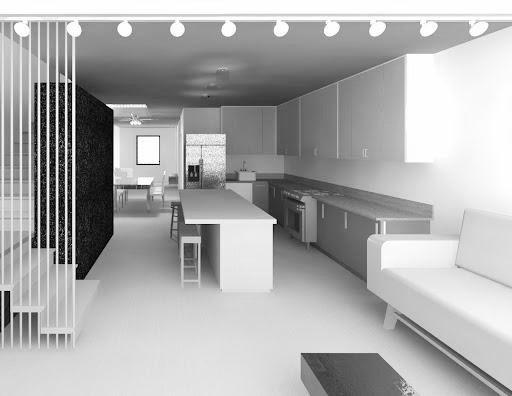

2F Kitchen

1F ADU Office

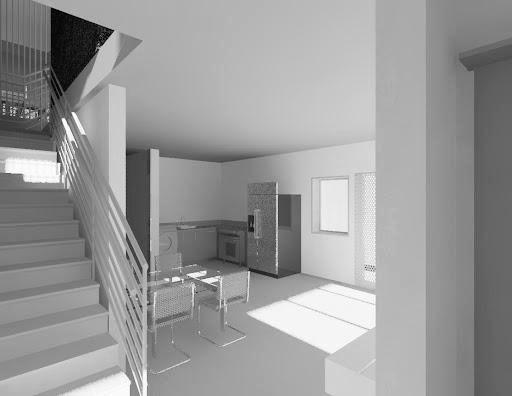

1F ADU Dinin

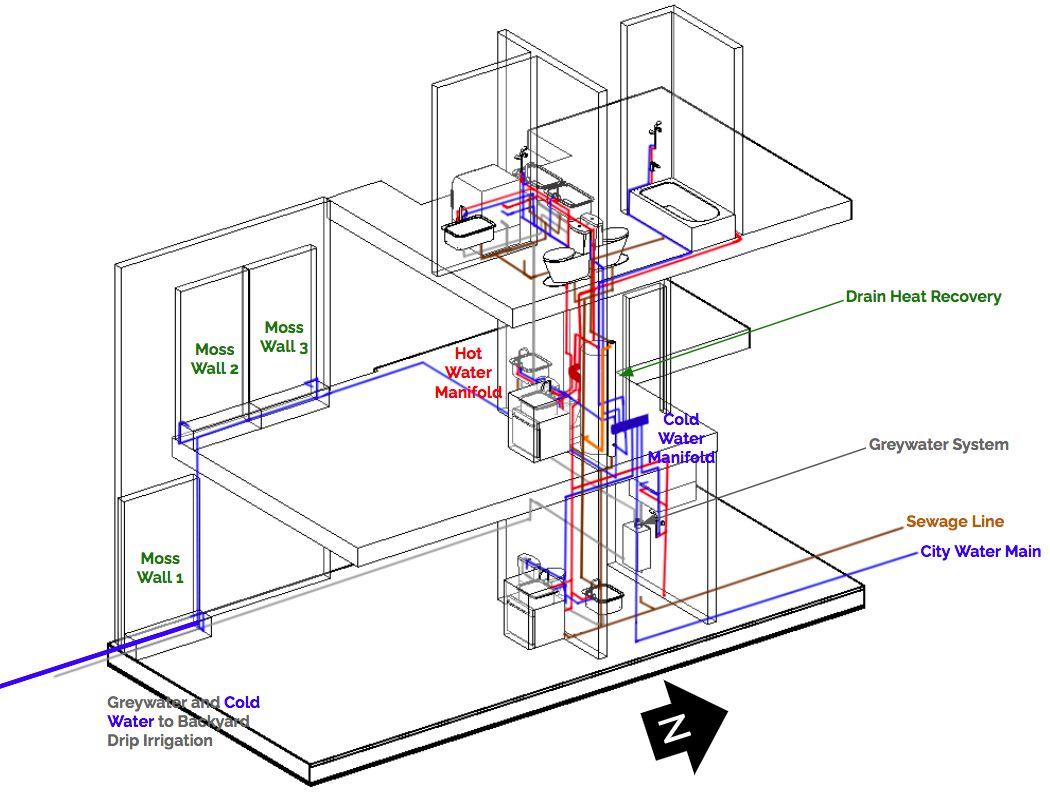

HVAC & MEP Systems

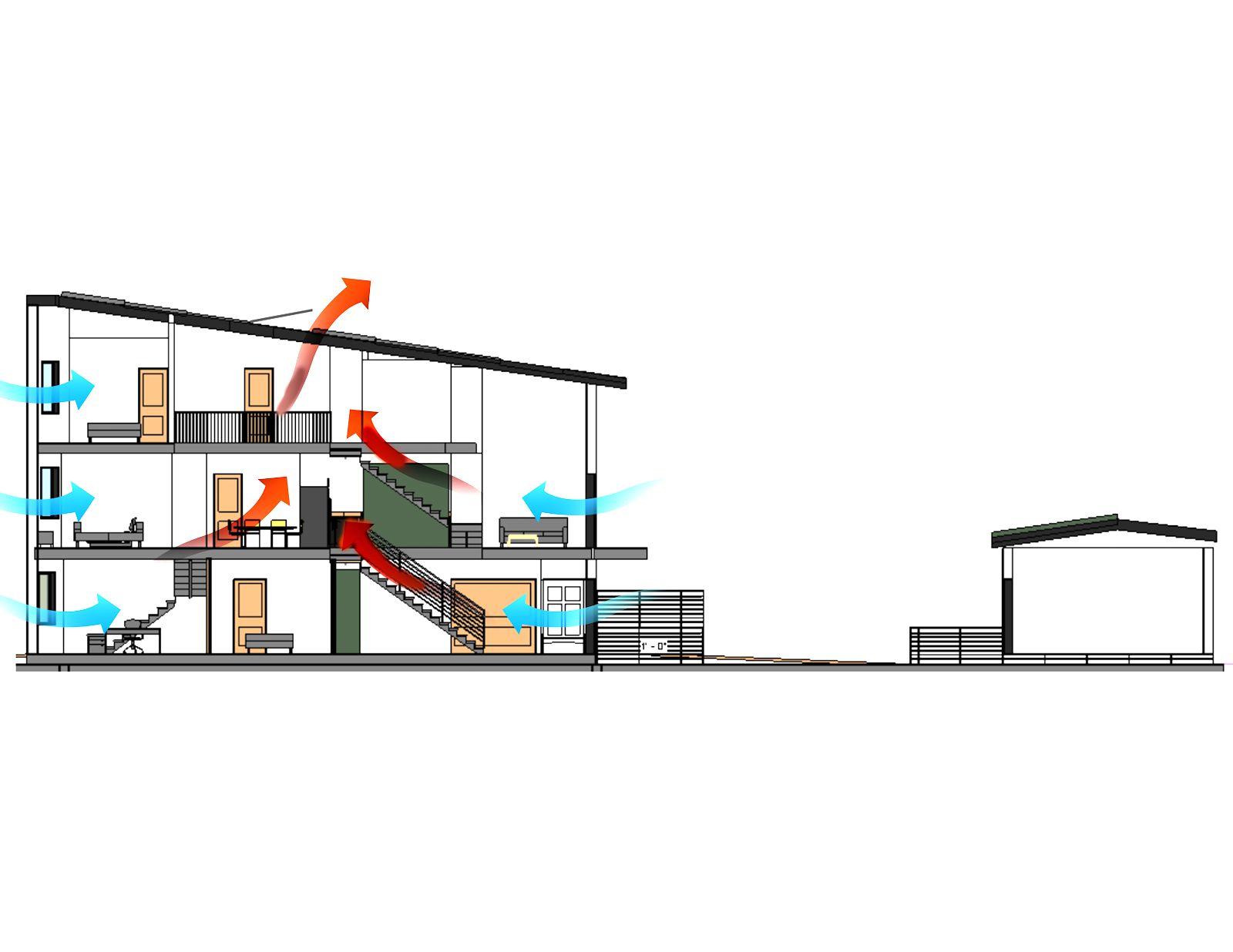

Ventilation Dia ram

TEACHAUS

Complete desi n o a home or a pro essor

September 2020 — December 2020

Evanston, IL

Instructors: L. Booth, S. Cyphers, J. Meek Individual Work

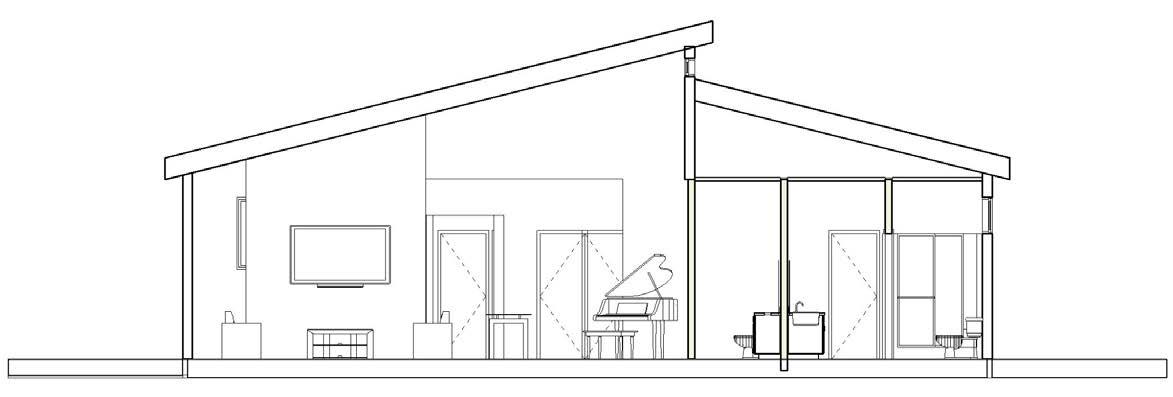

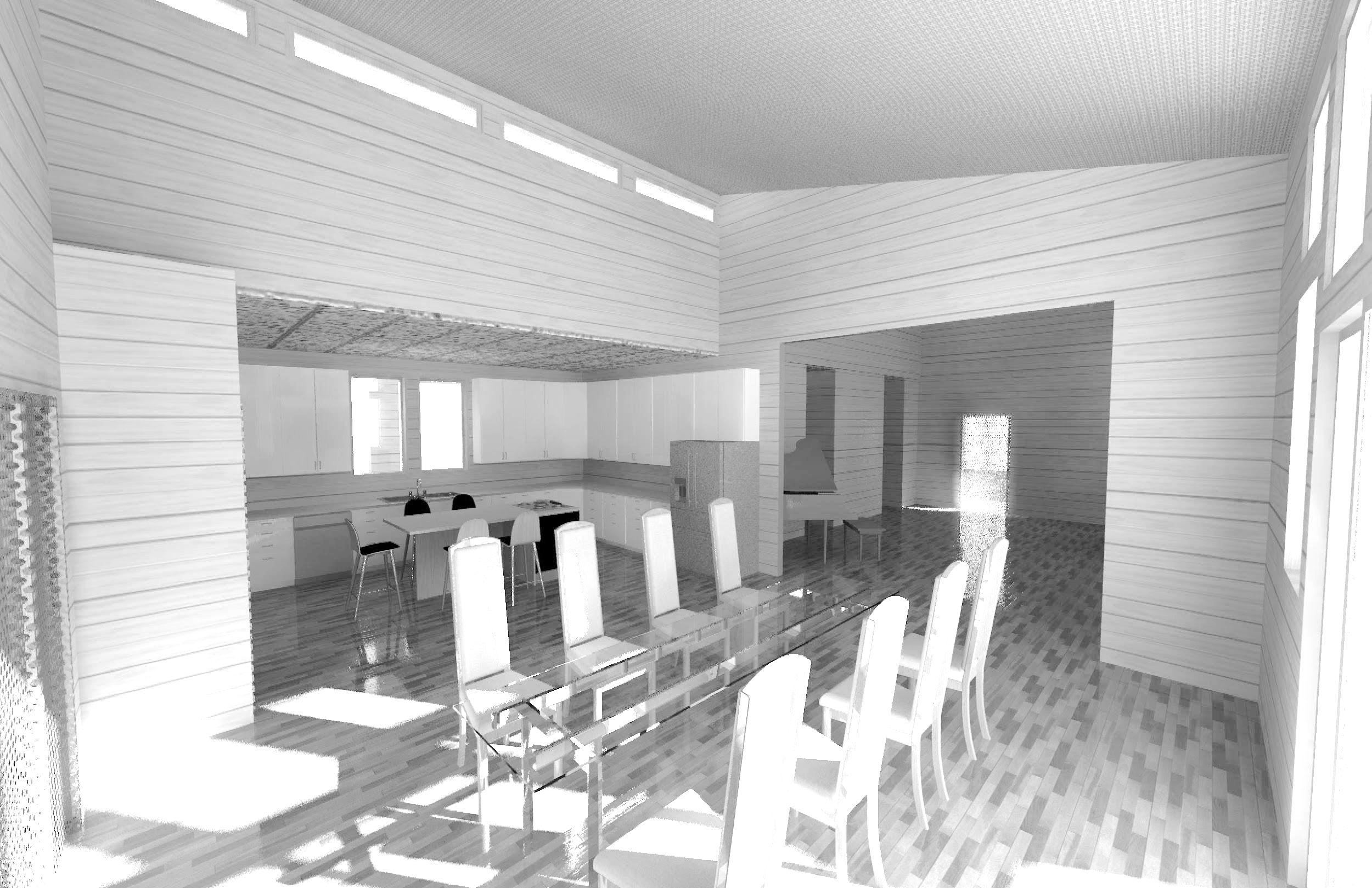

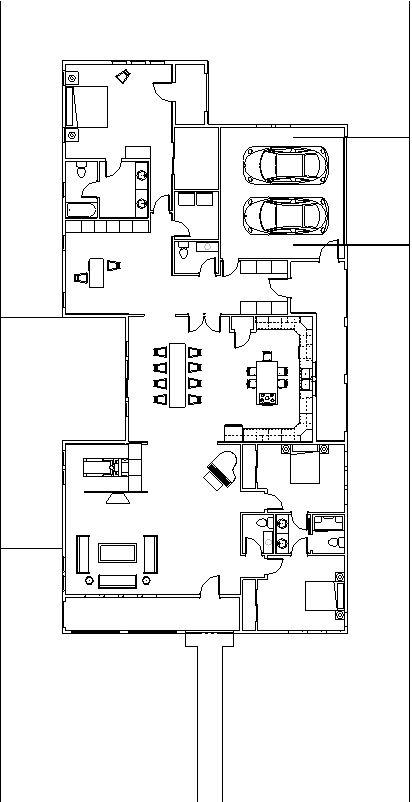

Desi ned a 2,620-sq t, 3-bedroom, 3-bath sin le story home or a Civil En ineerin pro essor and his amily o our on the site o ormer NU ROTC buildin . Located within viewin distance o the sprawlin Technolo ical Institute and the iconic Cornerstone An lican Church, With two separate entryways, TeacHaus is an invitin home or the pro essor and his students and collea ues alike.

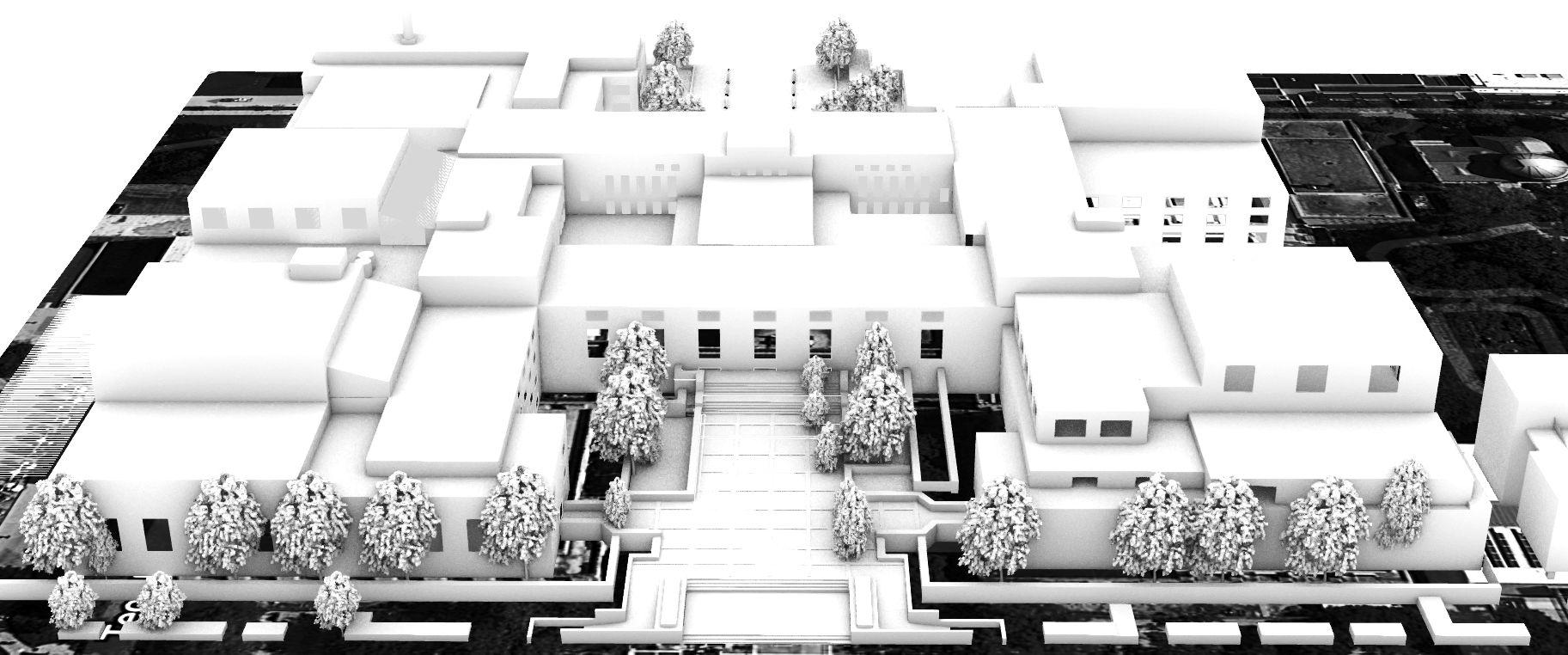

This cover ima e is a collaborative di ital model o the site by H. Chan , P. Shen, and S. McHenry.

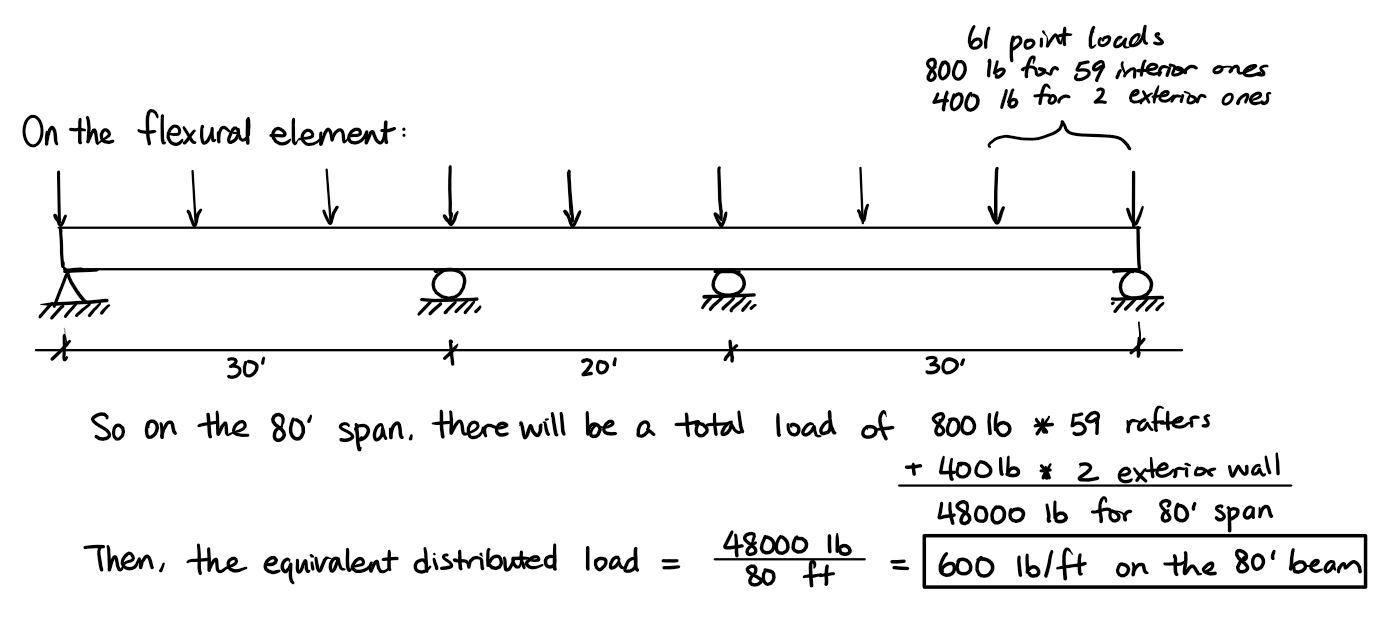

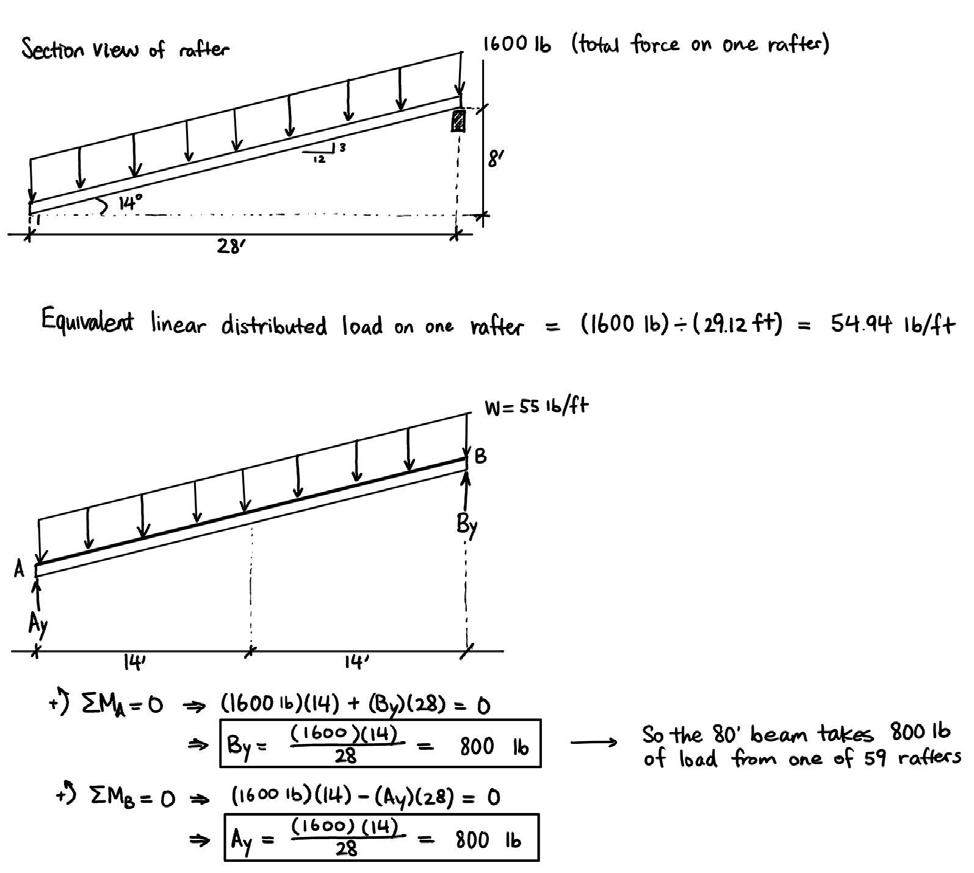

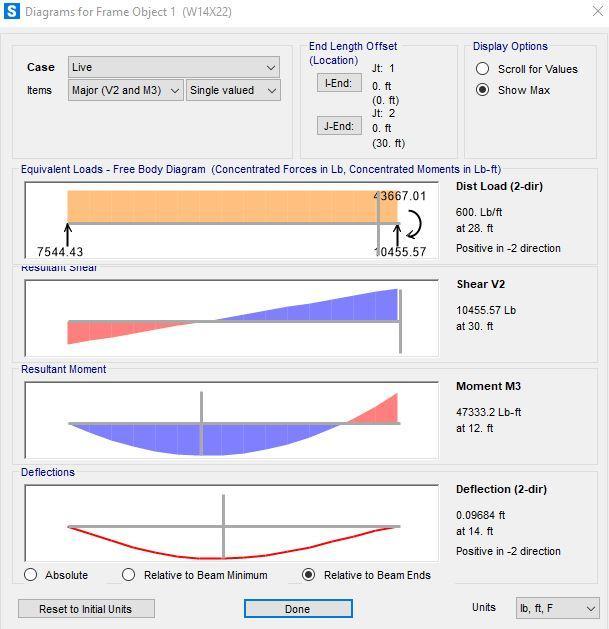

Structural Analysis

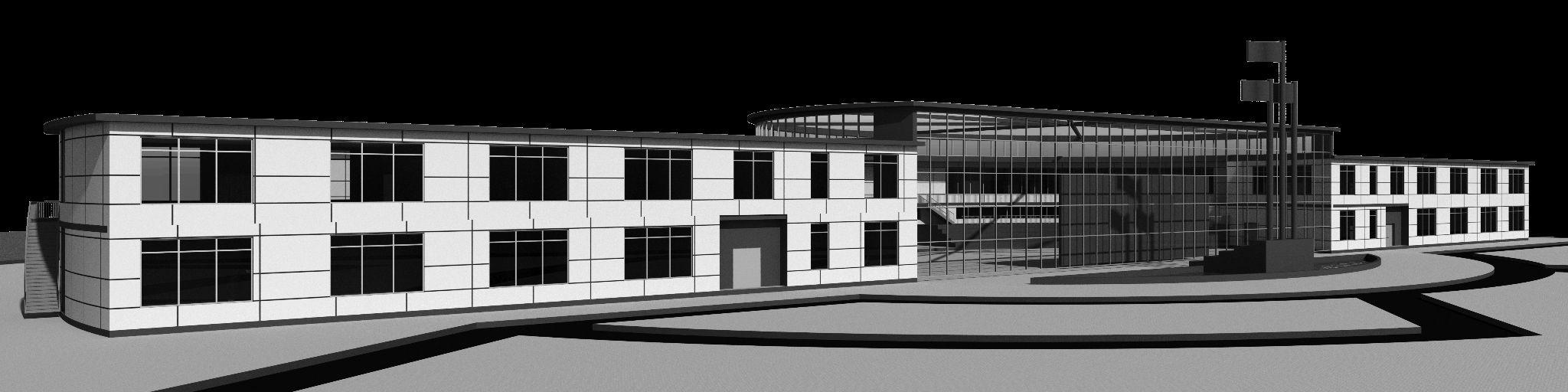

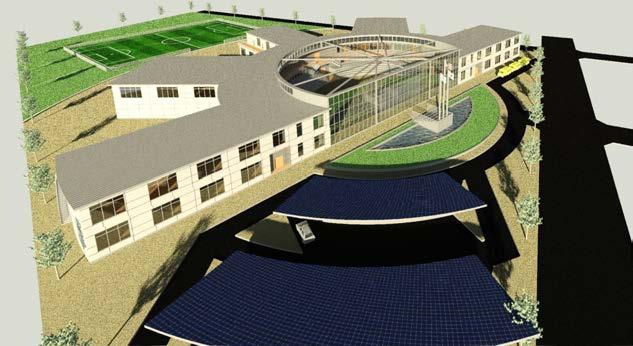

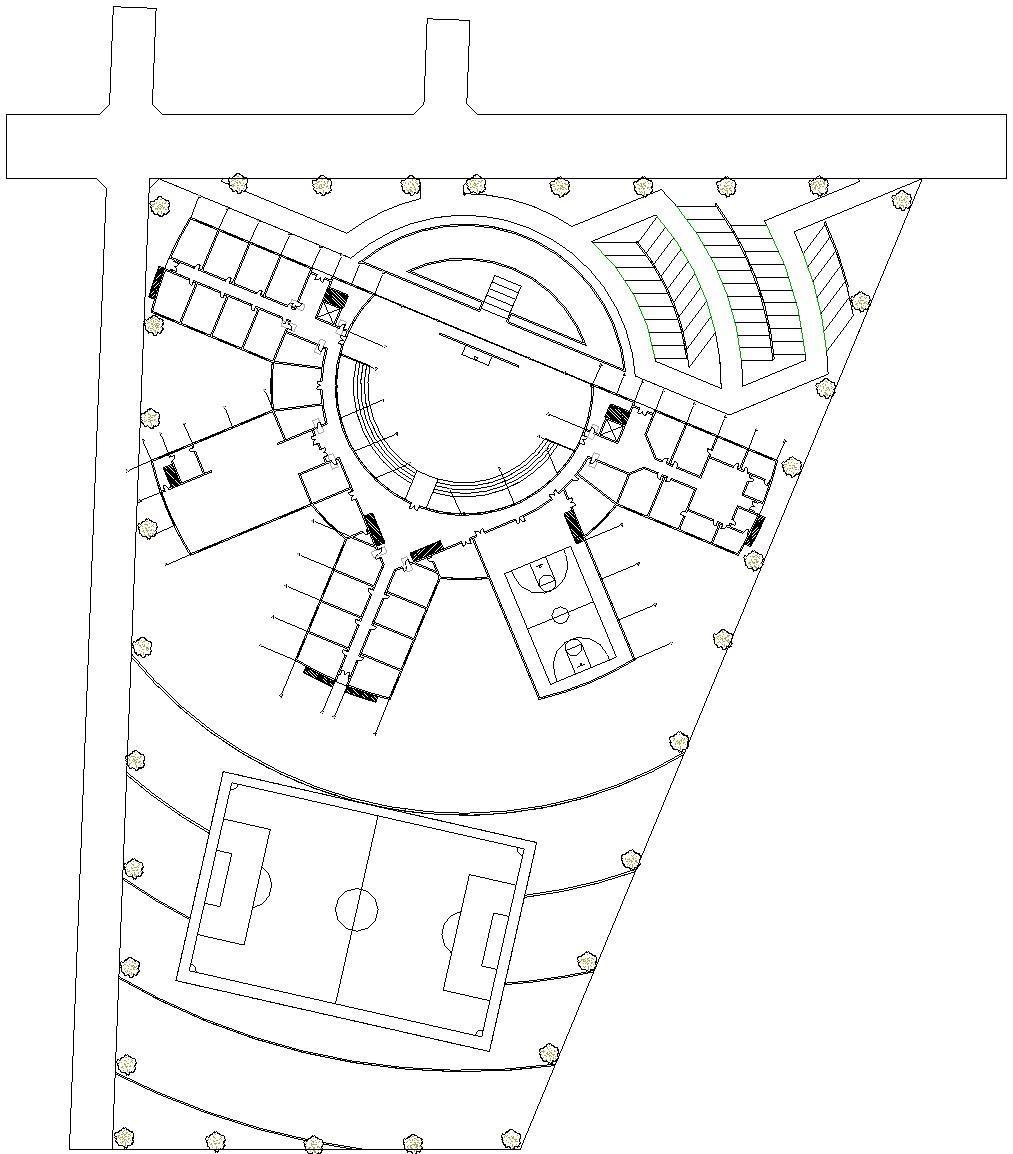

BOW-ARCH ELEMENTARY SCHOOL

Public-use educational buildin

January 2021 — March 2021

Evanston, IL

Instructors: S. Cyphers, J. L. de la Fuente, L. Collado Independent work

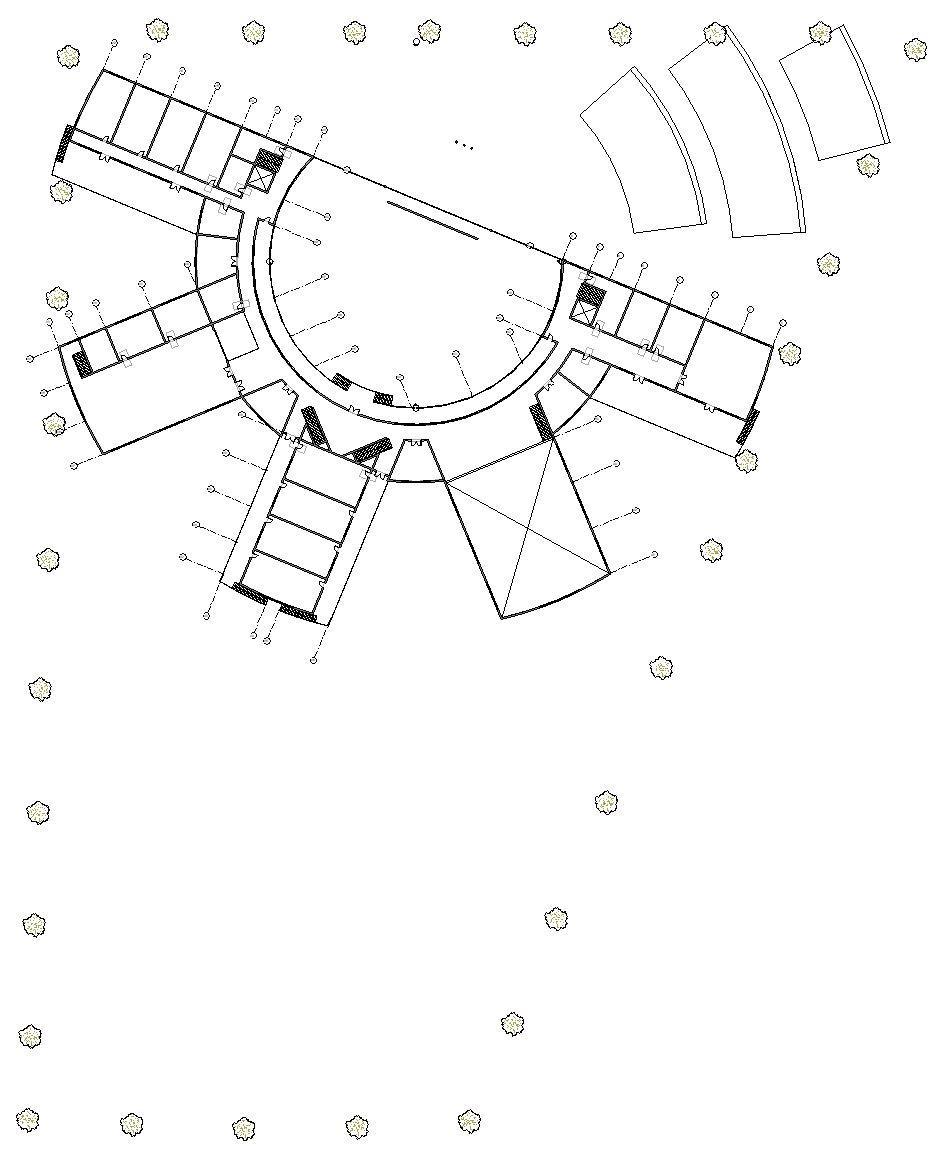

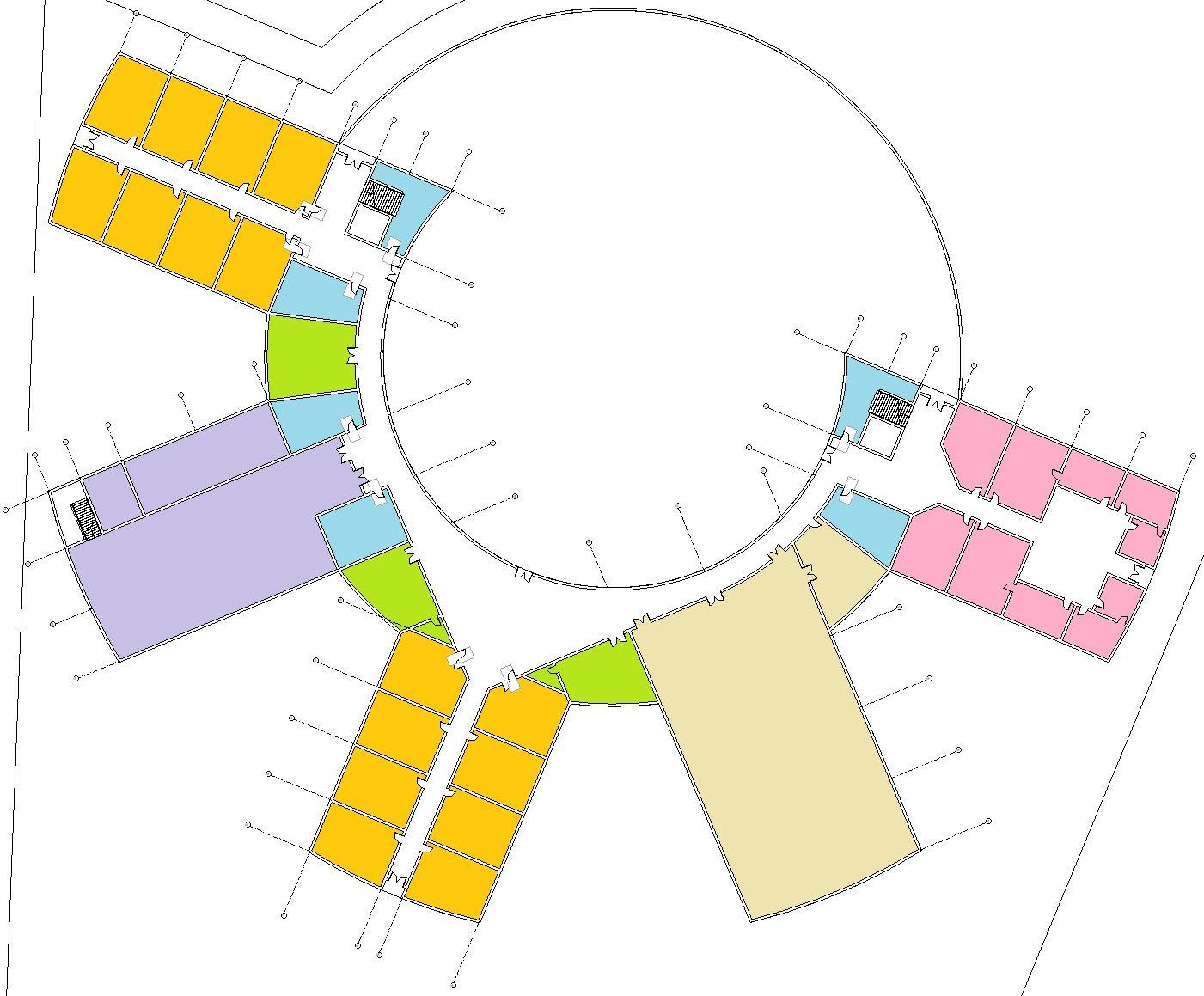

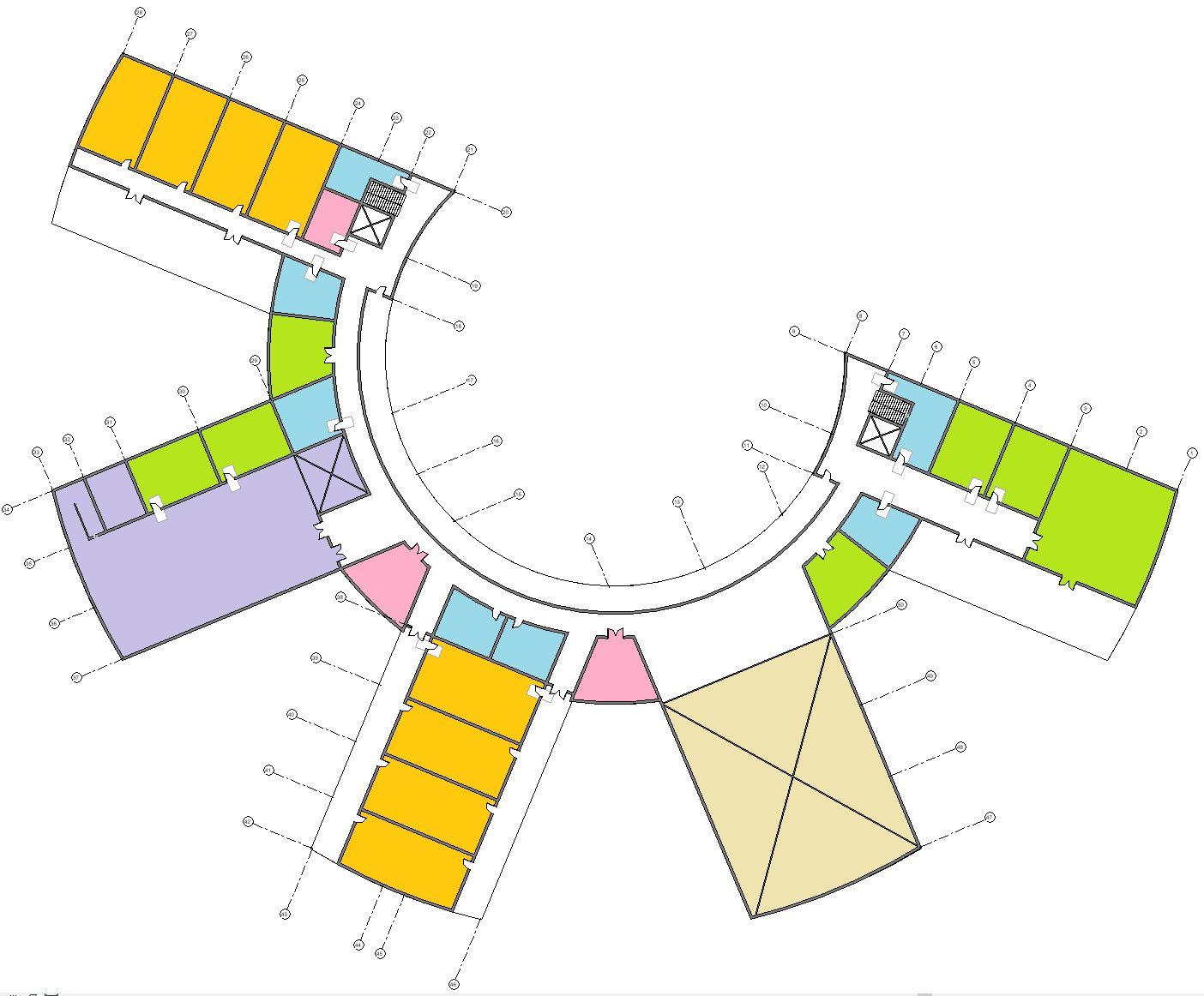

Complete desi n o a proposed plan or a two-story Pre-5th elementary school o about 400 students on a ormer rail yard in the Fi th Ward o Evanston, a predominantly low-risin residential and industrial area.

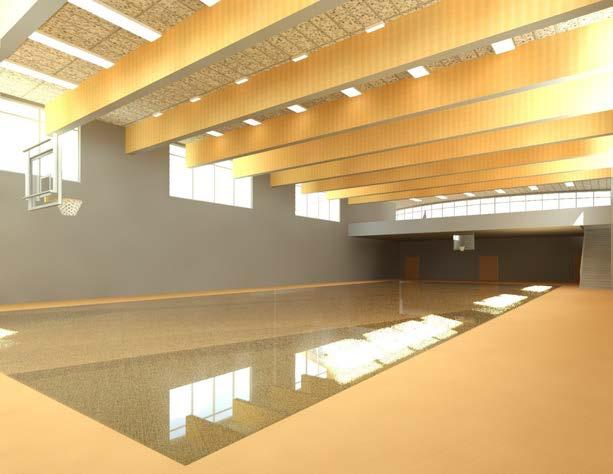

Pro rammin includes si nature semicircular auditorium covered by ETFE roofin acade, double hei ht sports area, connected ca eteria and library, a terschool arts and music rooms, all within 100,000 sq t.

So tware: Rhino, Revit, AutoCAD

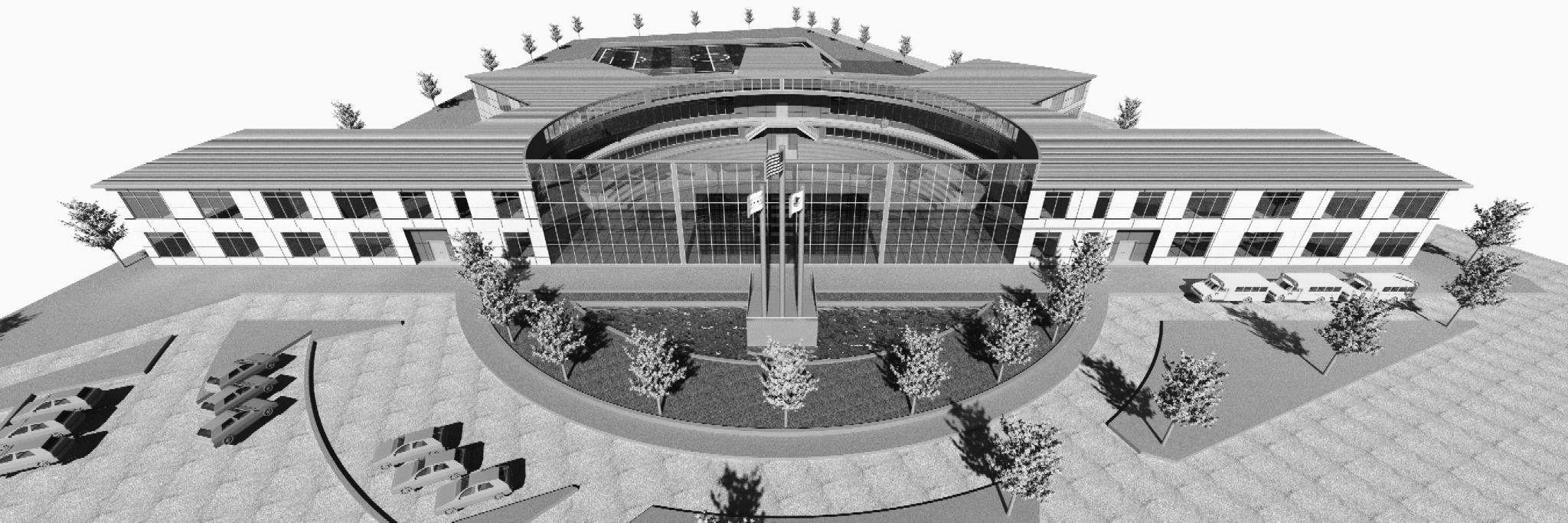

Renderin s

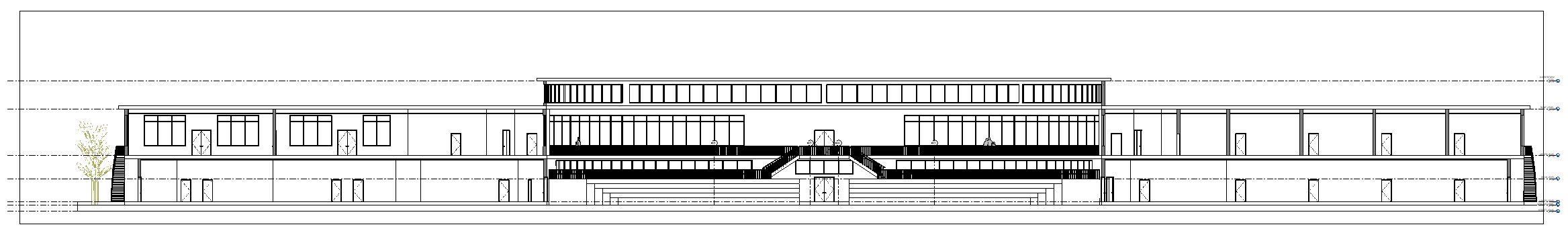

Section lookin SW

Bow-Arch School Graduation Award Ceremony 2021

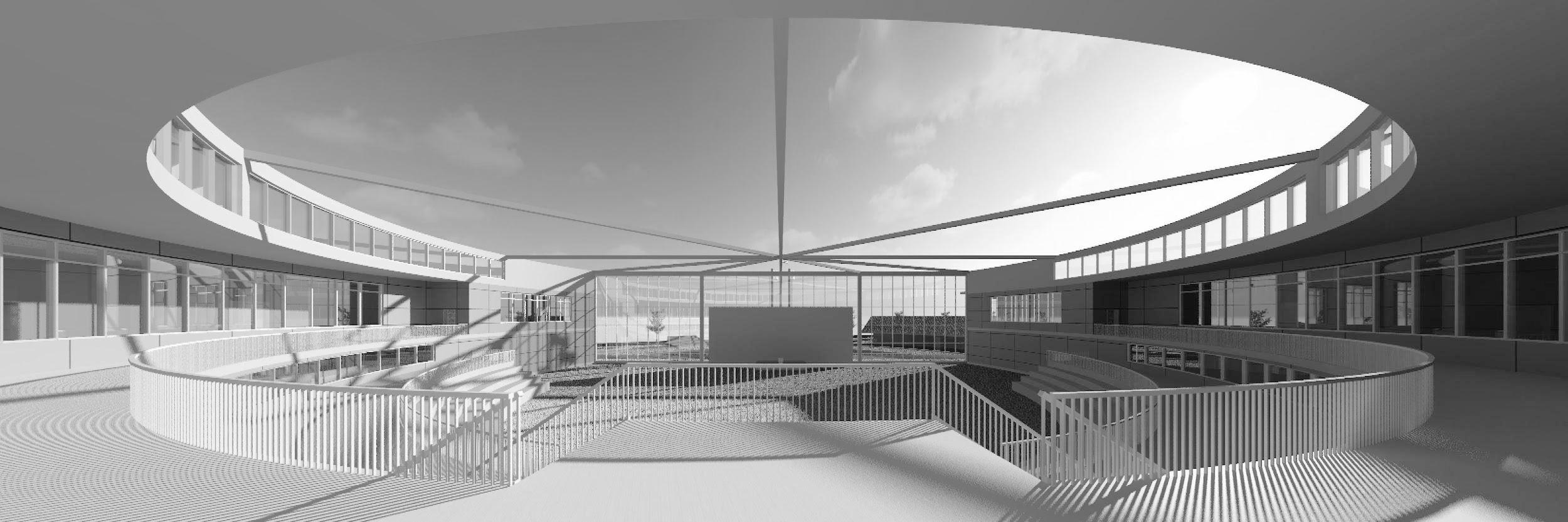

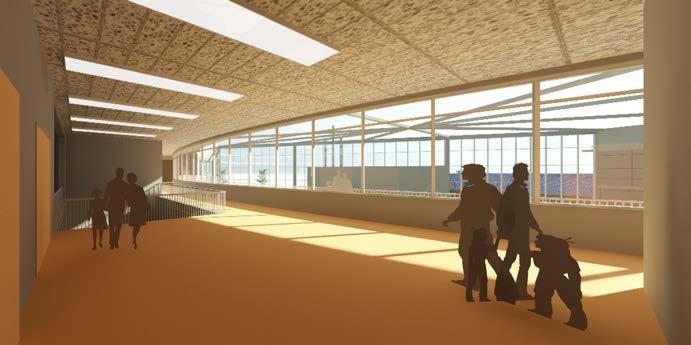

View rom the central hallway in win C2, lookin northeast onto the semicircular “outdoor” auditorium and rin -shaped corridor.

— SEVEN —

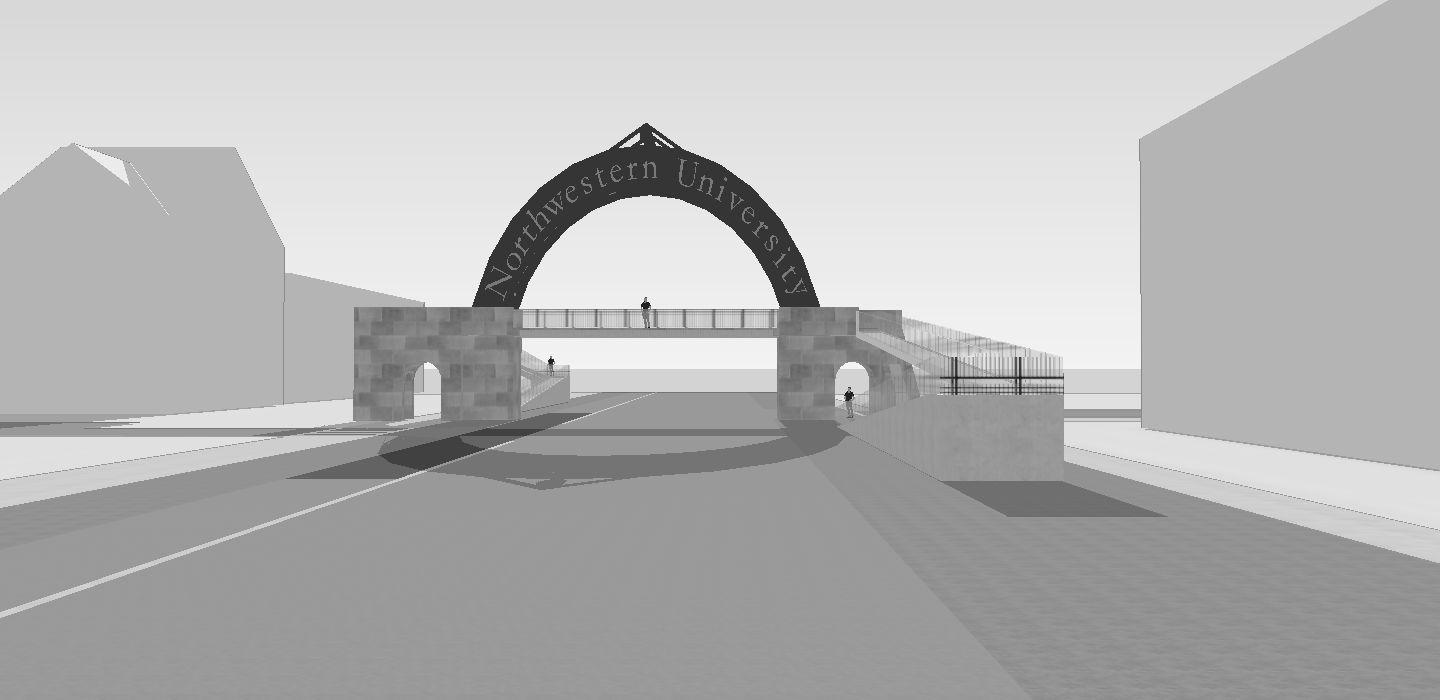

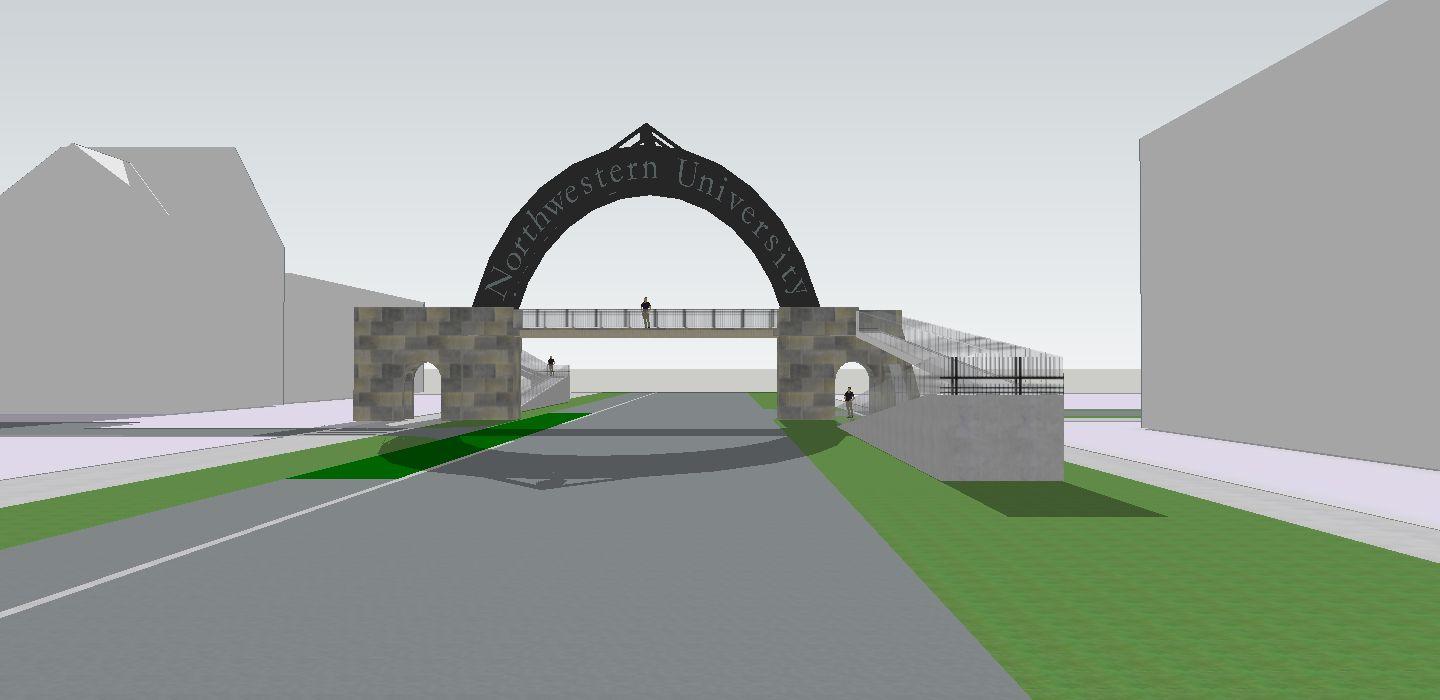

NORTHWESTERN ARCH BRIDGE

Structural desi n o pedestrian ootbrid e

October 2020 — December 2020

Evanston, IL

Instructor: D. Corr

Collaborative work with J. Ibarra and D. Hines

Proposed pedestrian brid e as a ormal northern ate as a welcomin structure or the reater Evanston community to Northwestern campus.

Served as Structural Desi n Lead, in char e o holistic exterior desi n, beam calculations, orm-makin , and material selection or a unctional and aesthetic replica o the iconic Northwestern University Weber Arch.

So tware: SAP2000, Sketchup, Microso t Excel

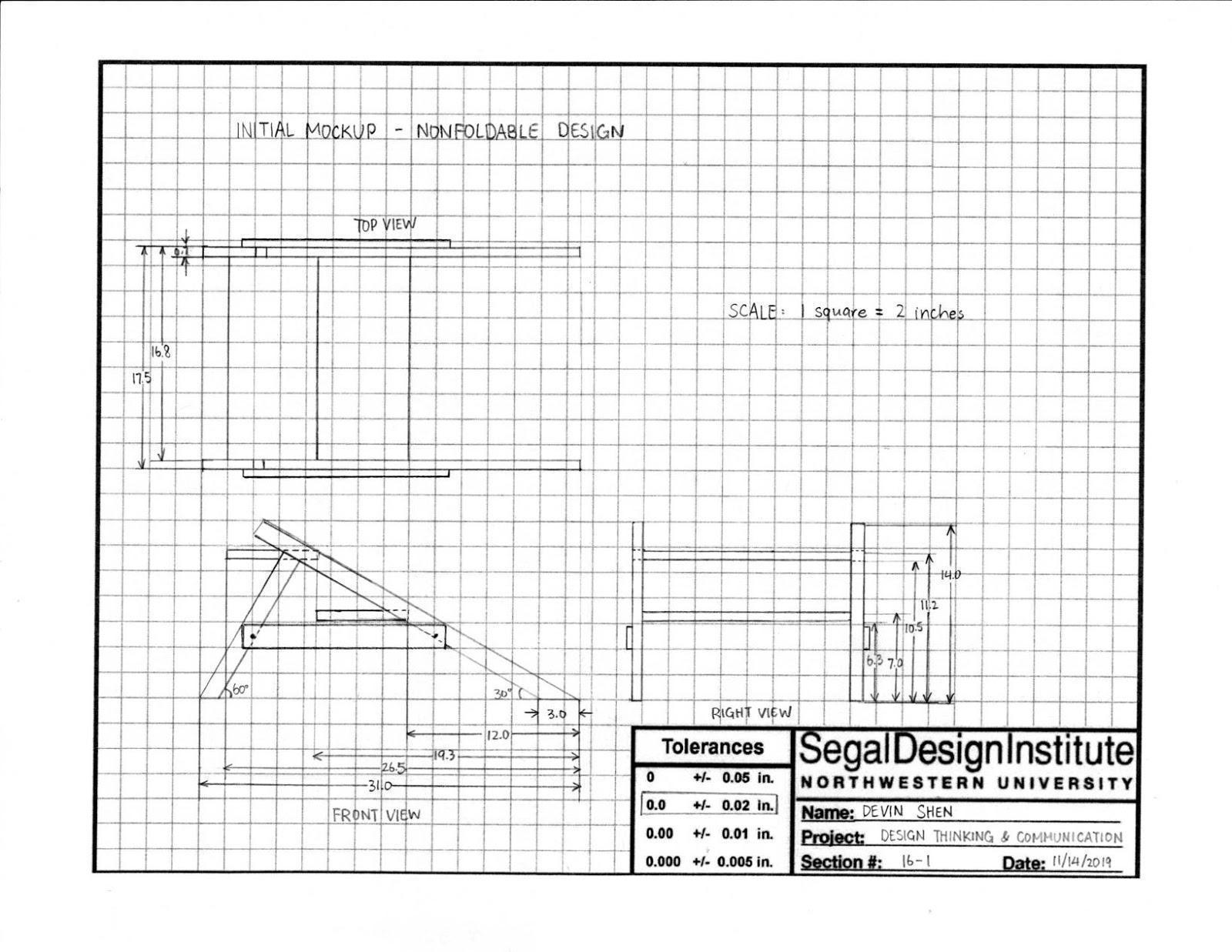

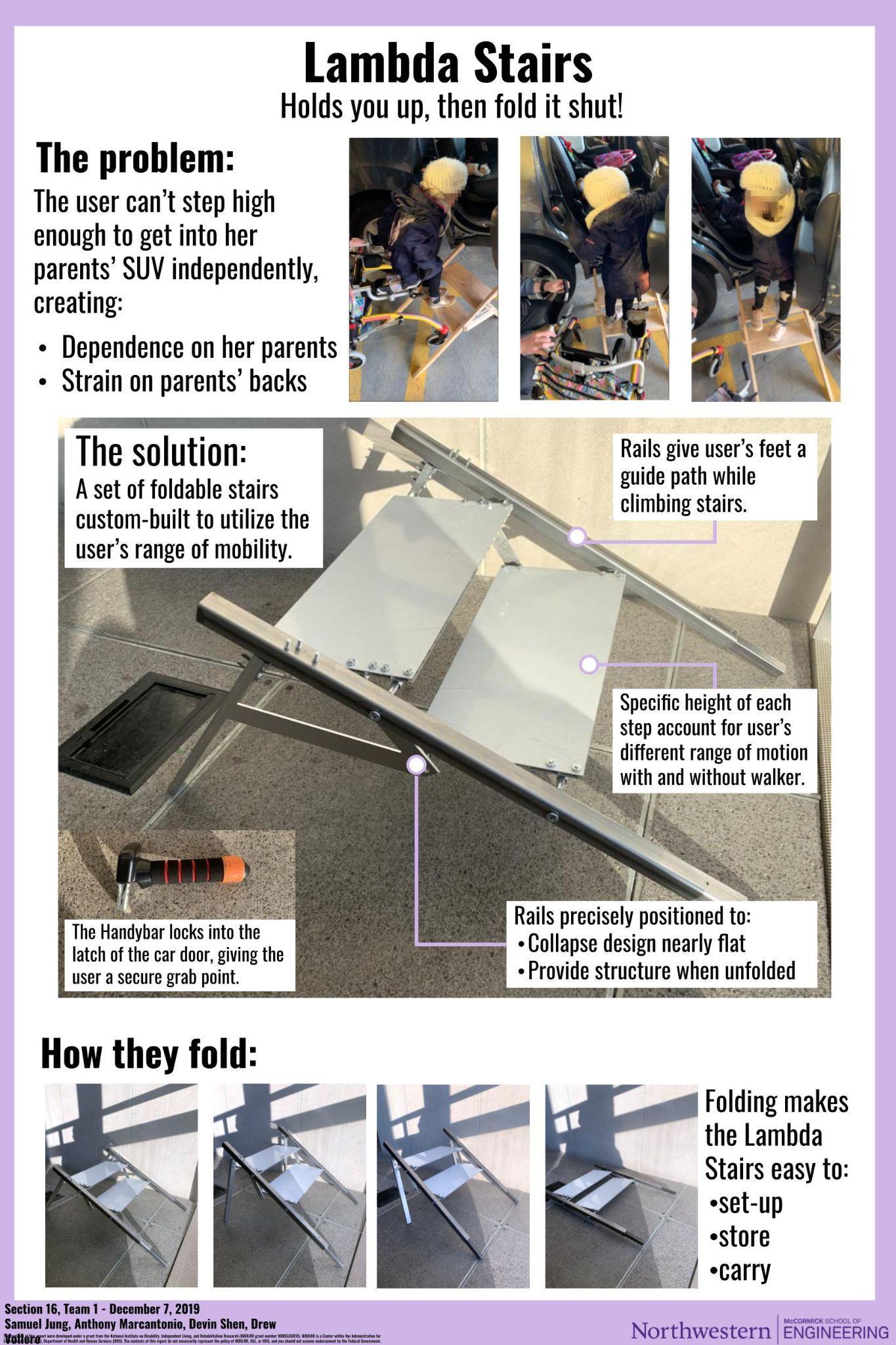

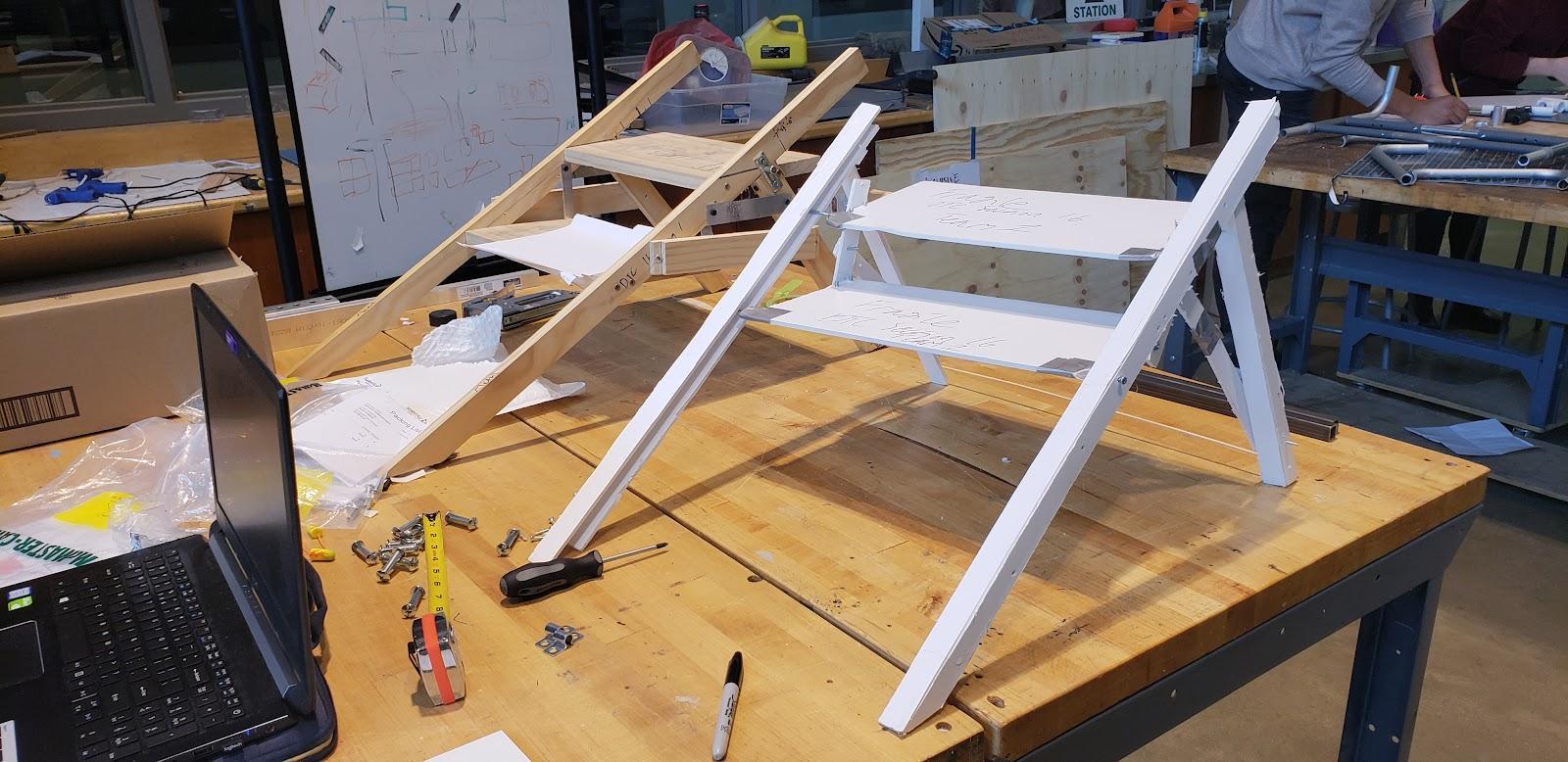

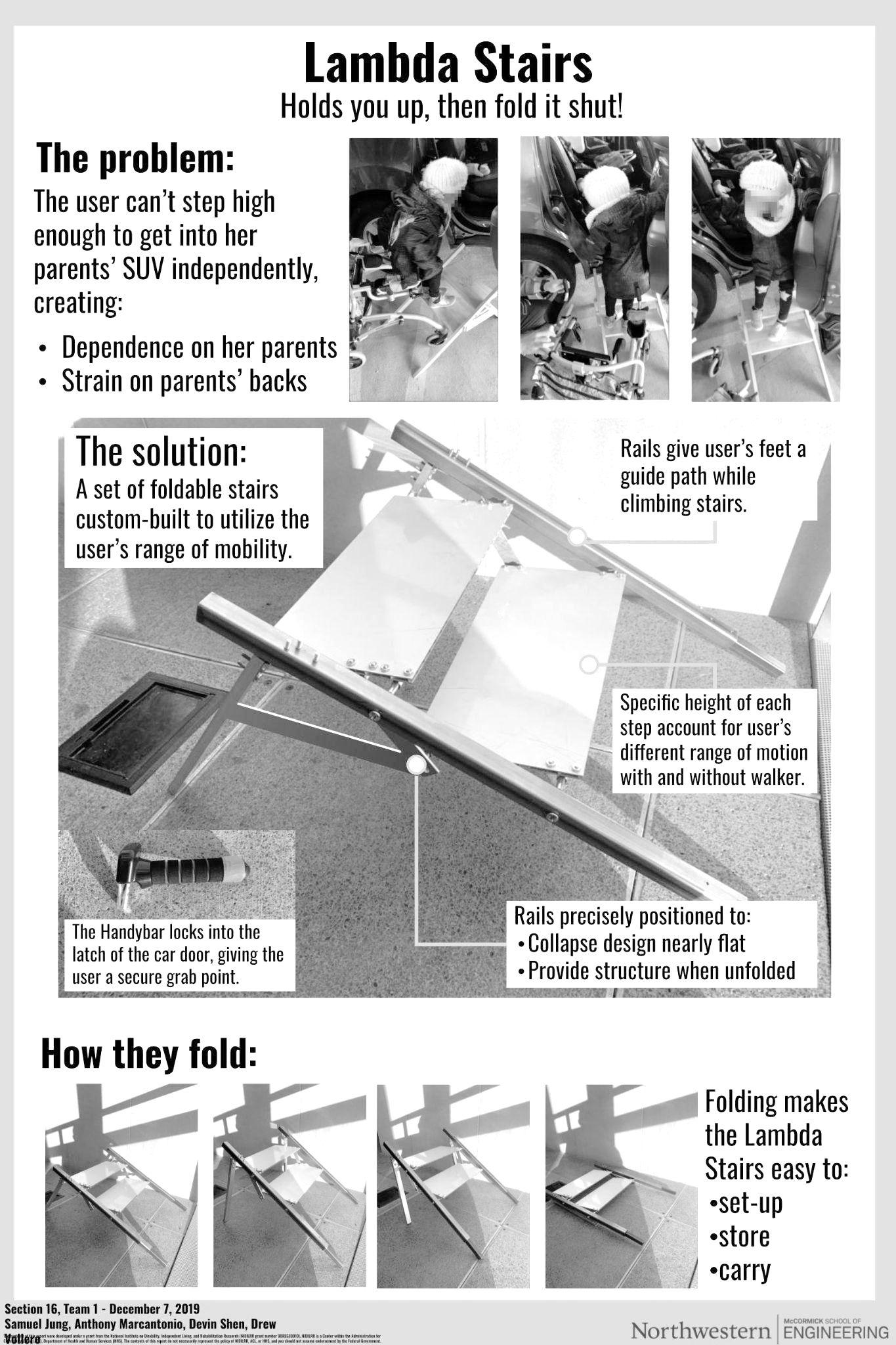

LAMBDA STAIRS

User-oriented mobility product desi n

September 2019 — December 2019

Shirley Ryan Ability Lab, Chica o, IL Collaborative abrication shop work with S. Jun , D. Vollero, and A. Marcantonio Instructors: J. Anderson and L. Marturano

For 9-year-old with emoral hypoplasia to sa ely & independently enter parents’ SUV

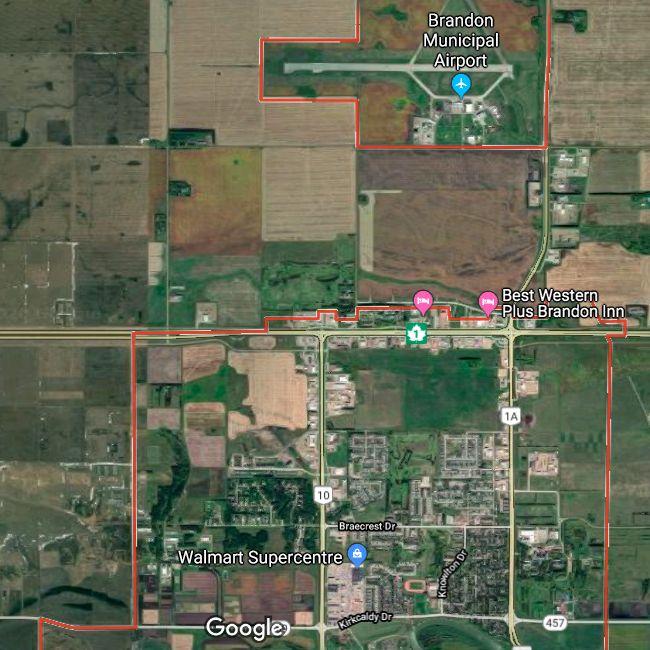

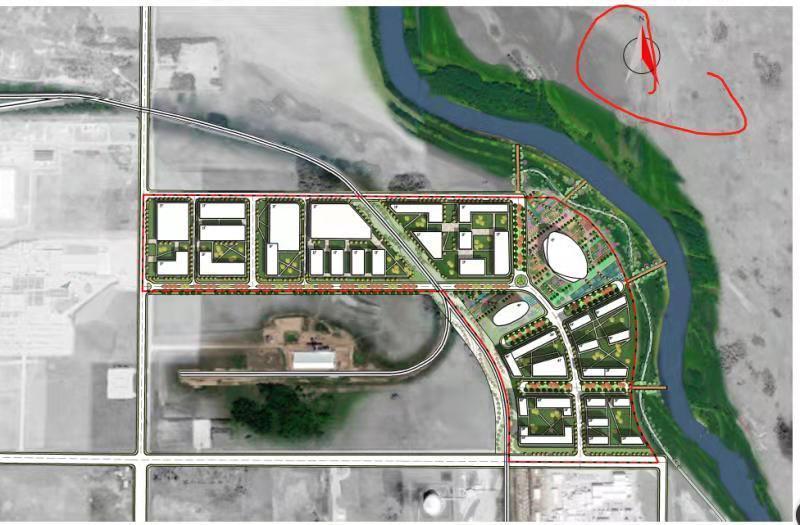

Brandon North & East Industrial

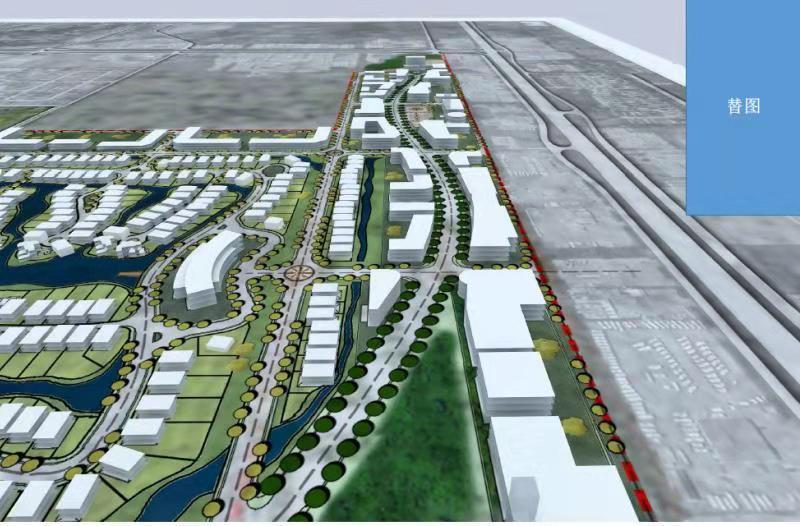

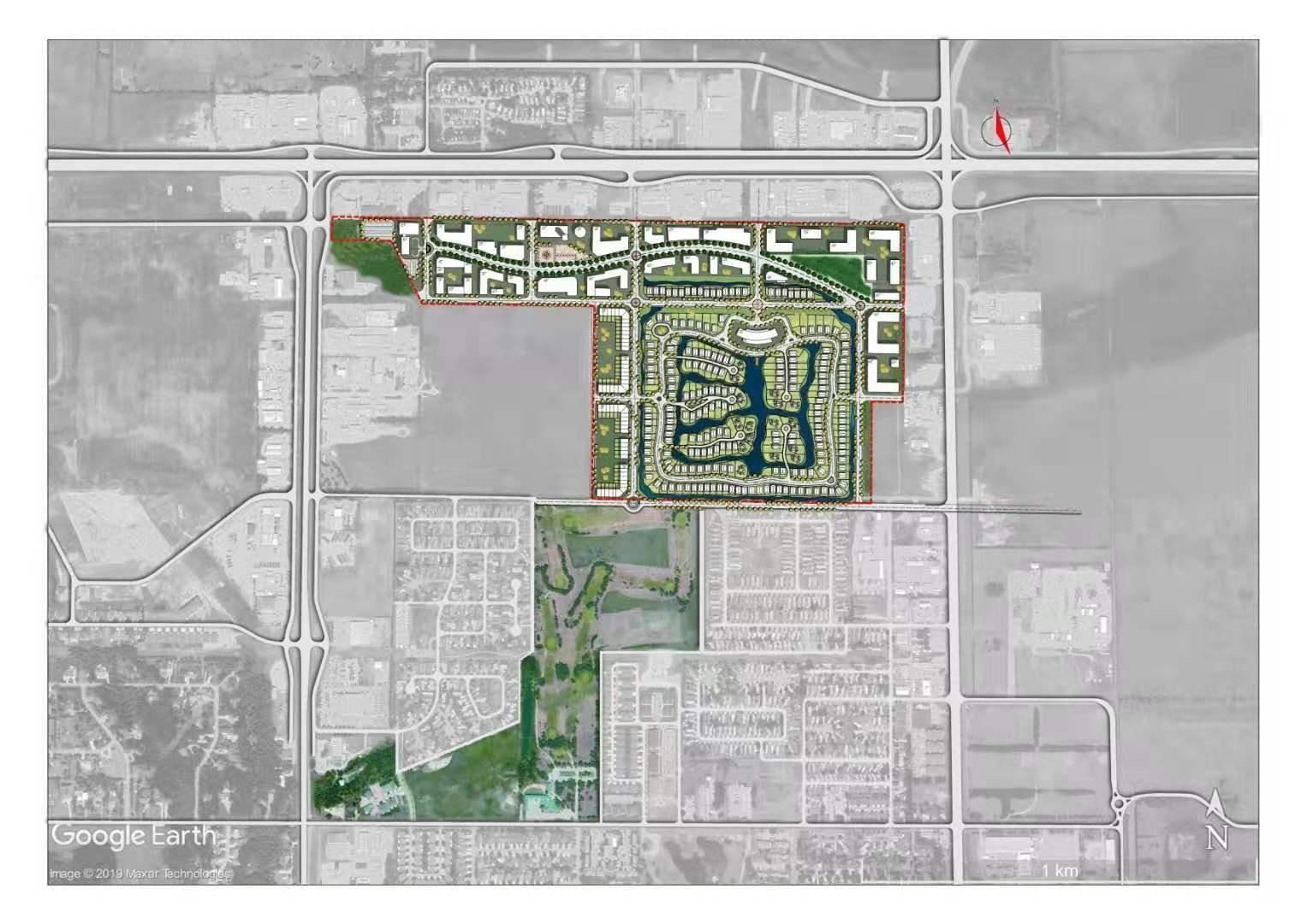

Located in Brandon, Manitoba, this project encompasses 340 acres o vacant land recently annexed into the city to provide a linka e rom the suburbs to the main portions o the city. The eastern industrial zone, near a railroad branch, includes an a ricultural exhibit hall and a plaza near Assiniboine River.

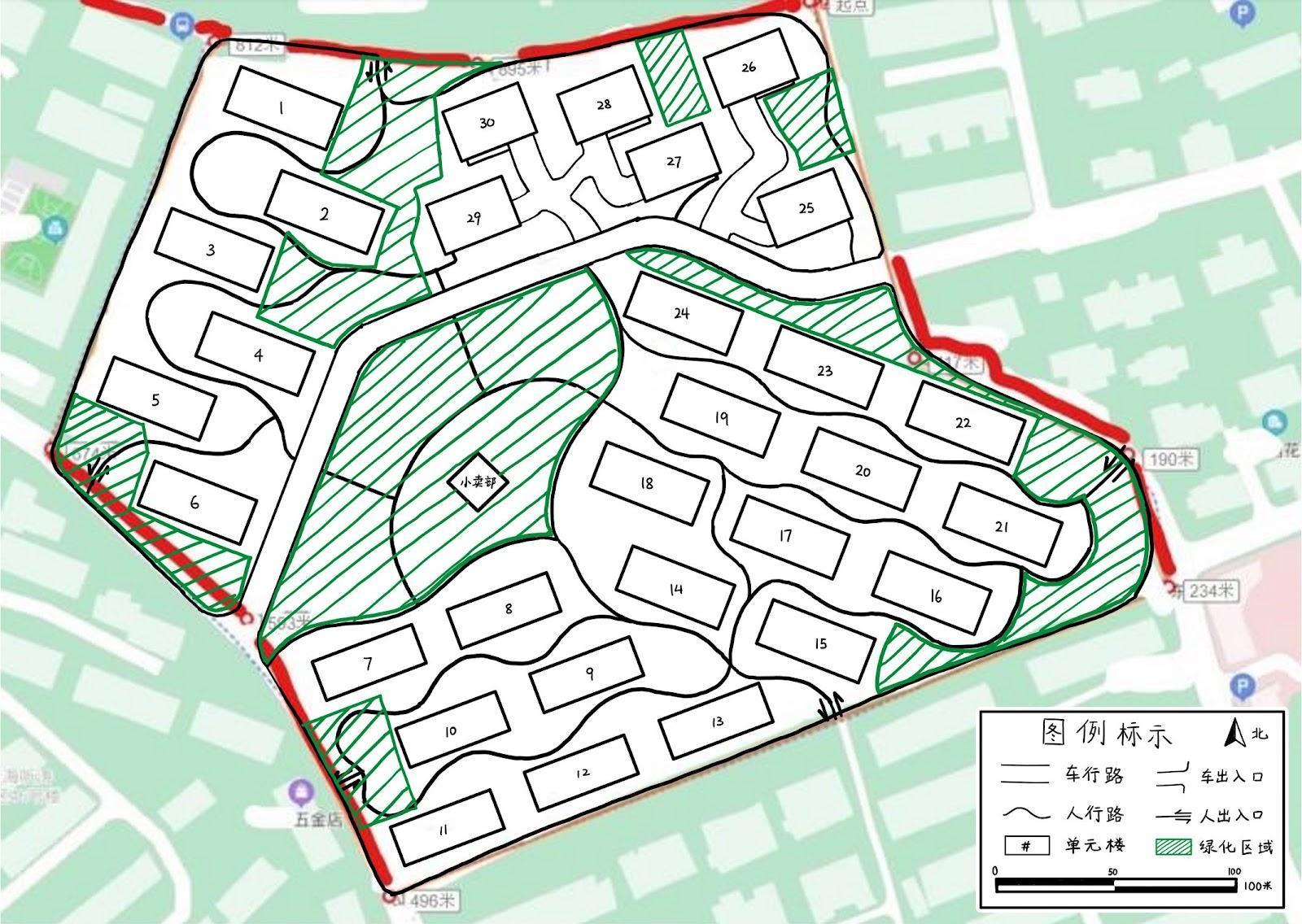

Qin dao Mineral Garden

A proposed alternative plan or a Qin dao Southtown residential development, this 13.95 acre site eatures 390 units includin lowrise apartments and sin le amily homes within viewin distance o Taipin Bay ½ miles south rom it.

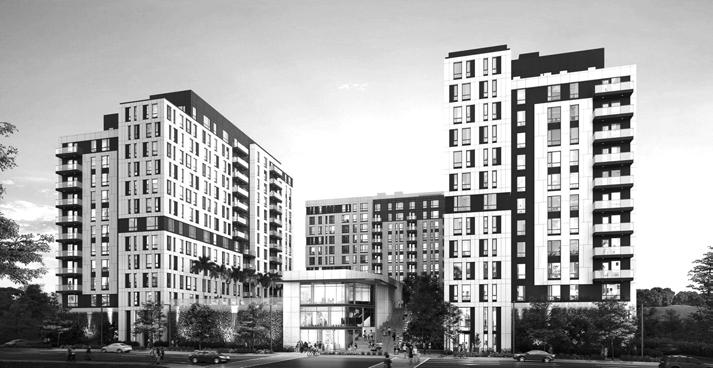

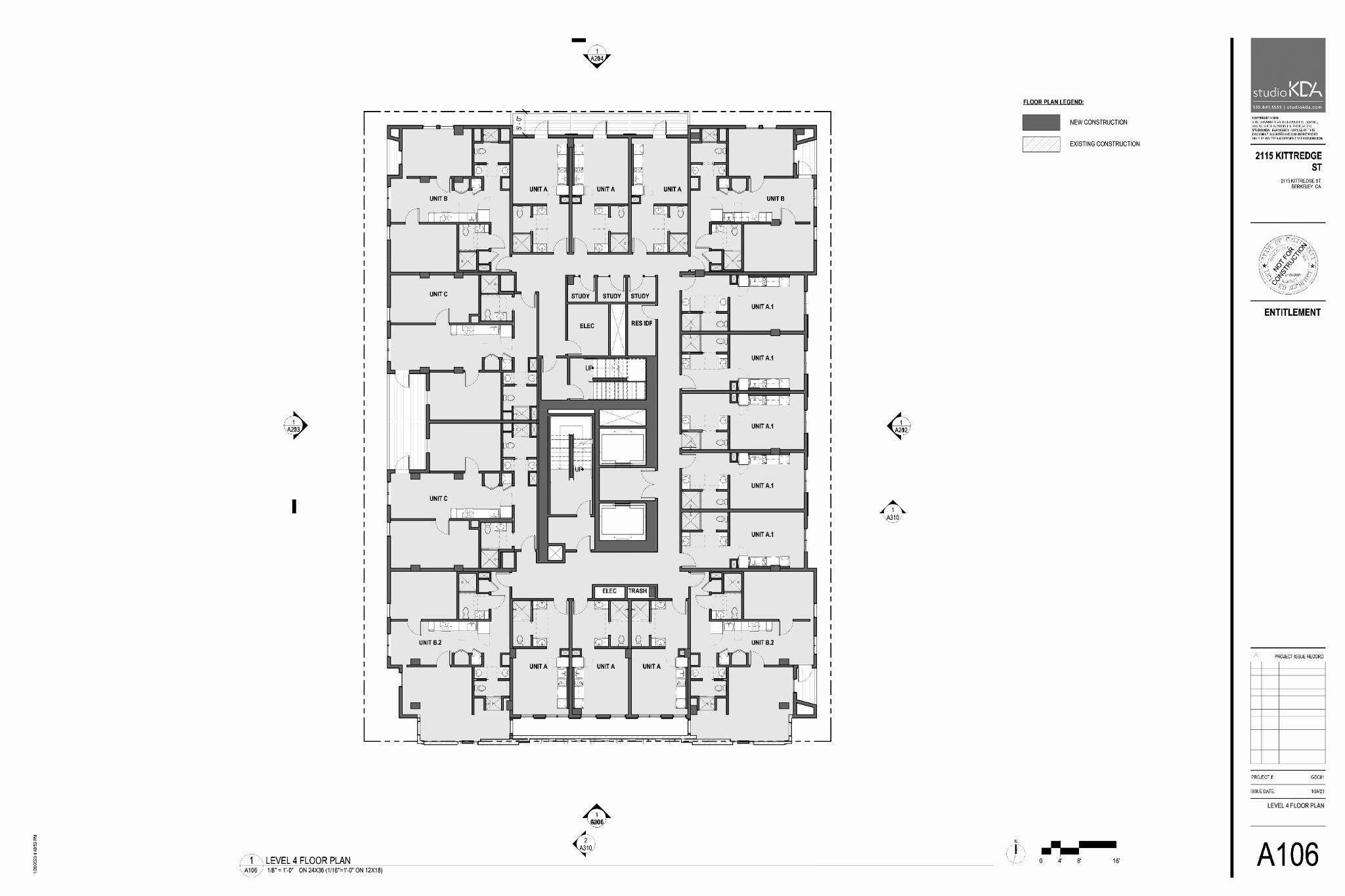

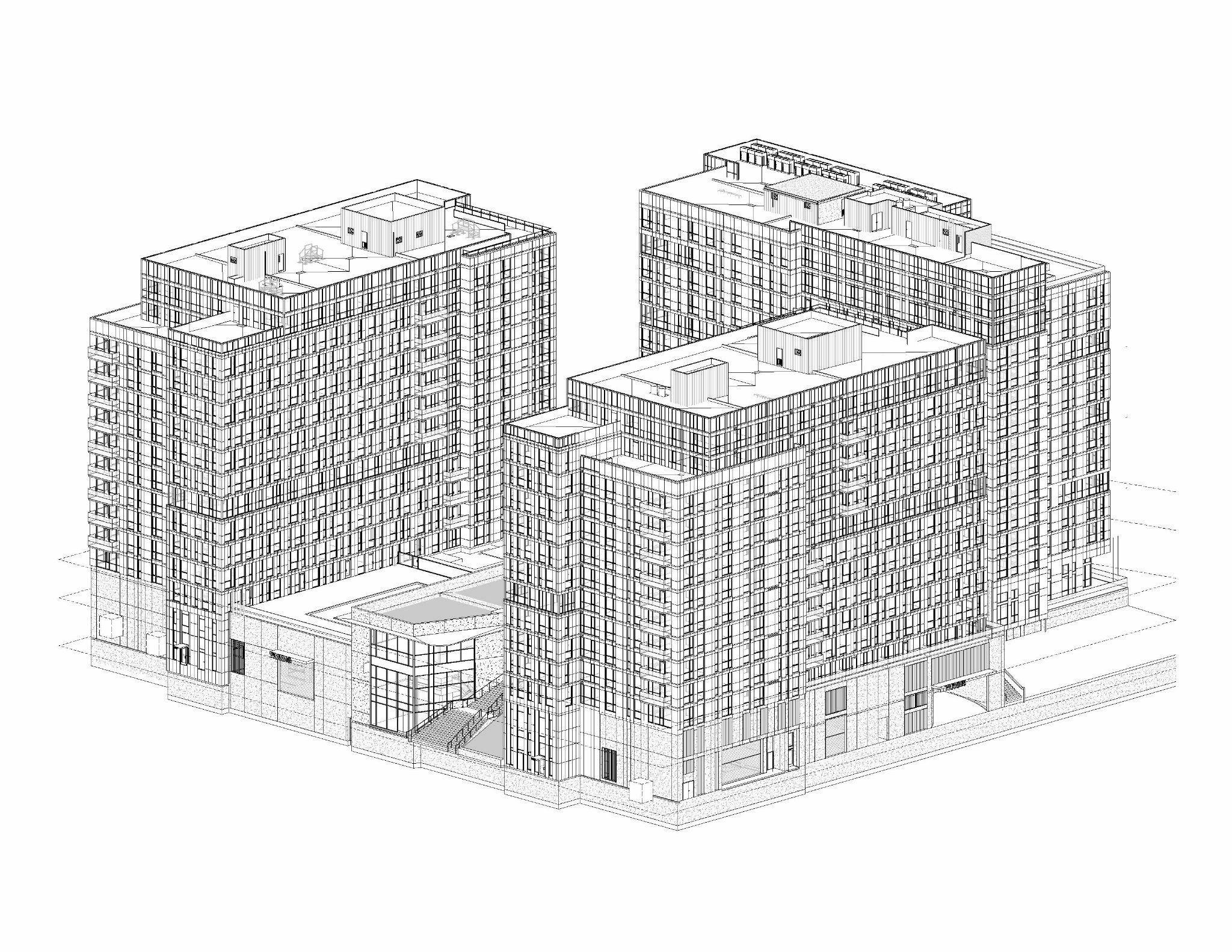

Project Architect Associate

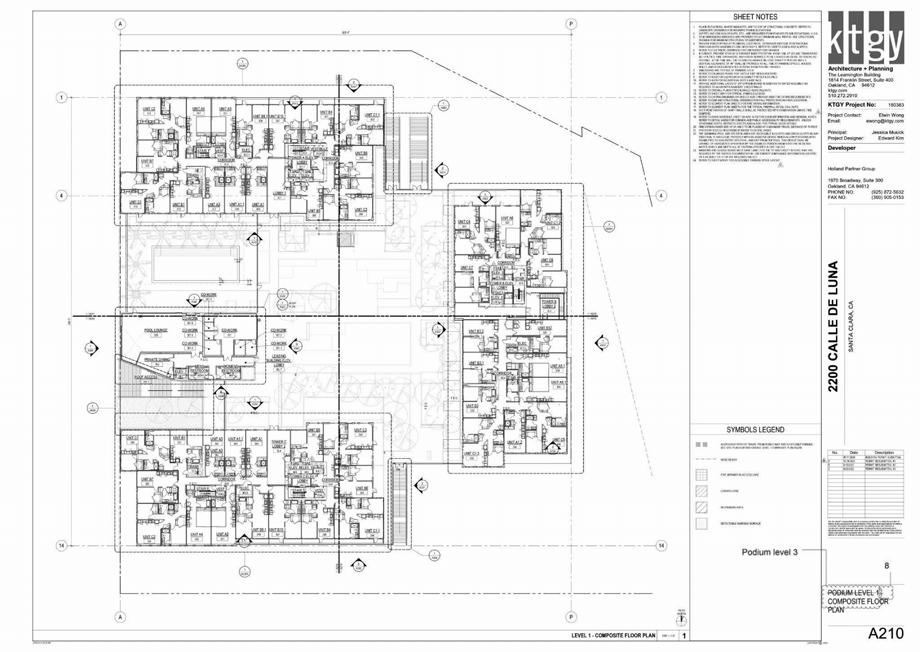

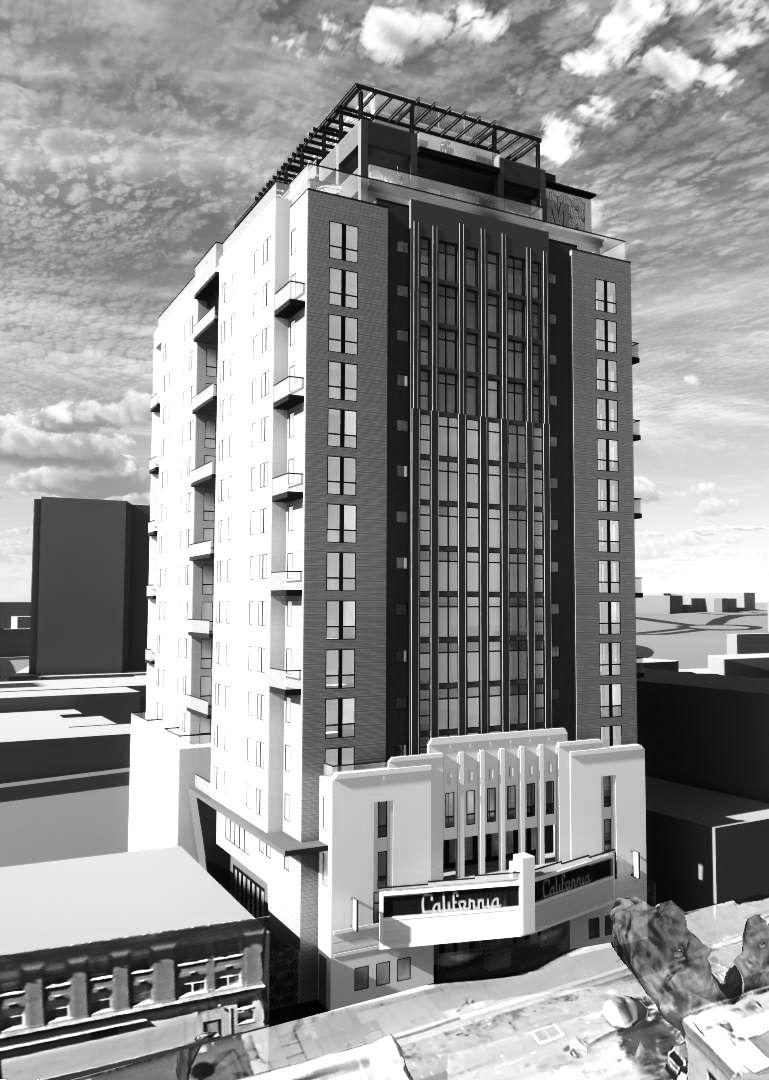

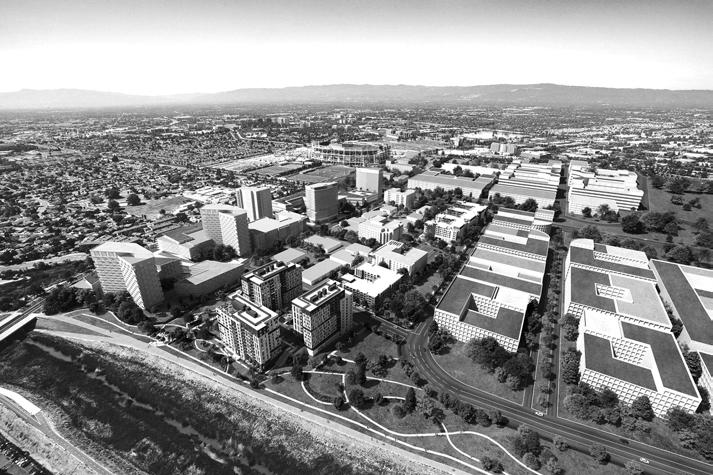

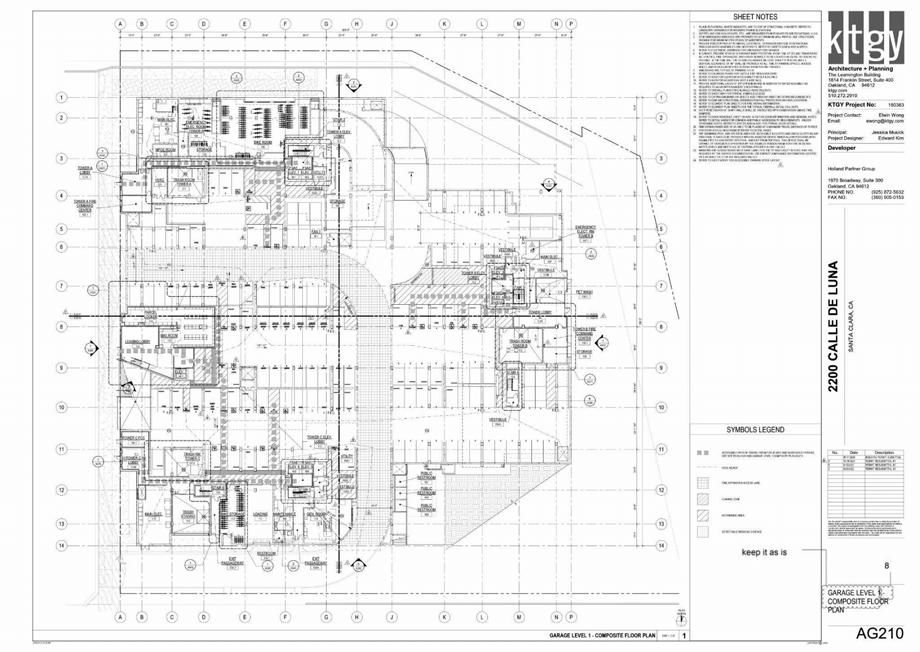

2200 Calle De Luna in Santa Clara, CA

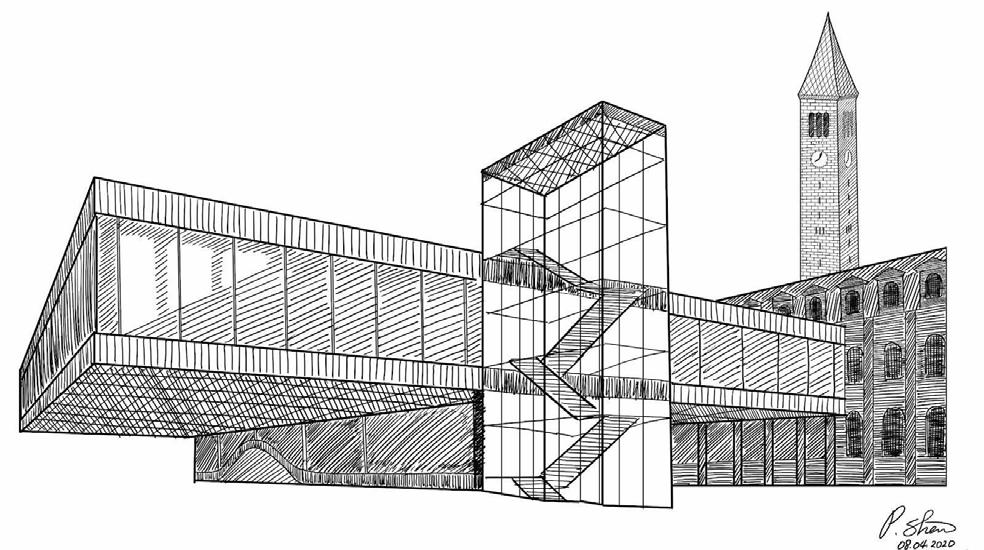

Milstein Hall, 2011, by Rem Koolhaas and Sibley Hall, 1870, by Archimedes Russell in Cornell University, Ithaca, New York

Gateway Arch, 1965, by Eero Saarinen in St. Louis, Missouri

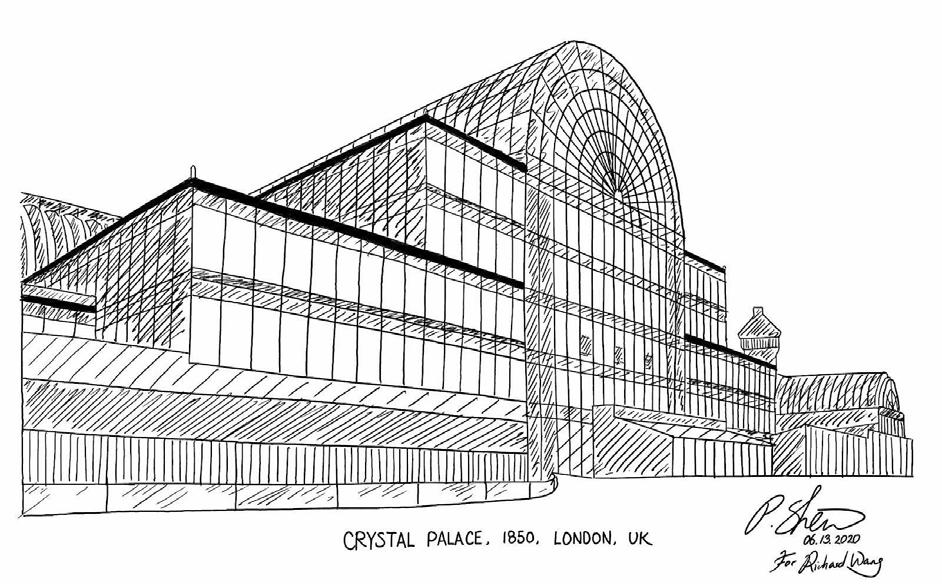

Crystal Palace, 1850, by Joseph Paxton in London, United Kin dom

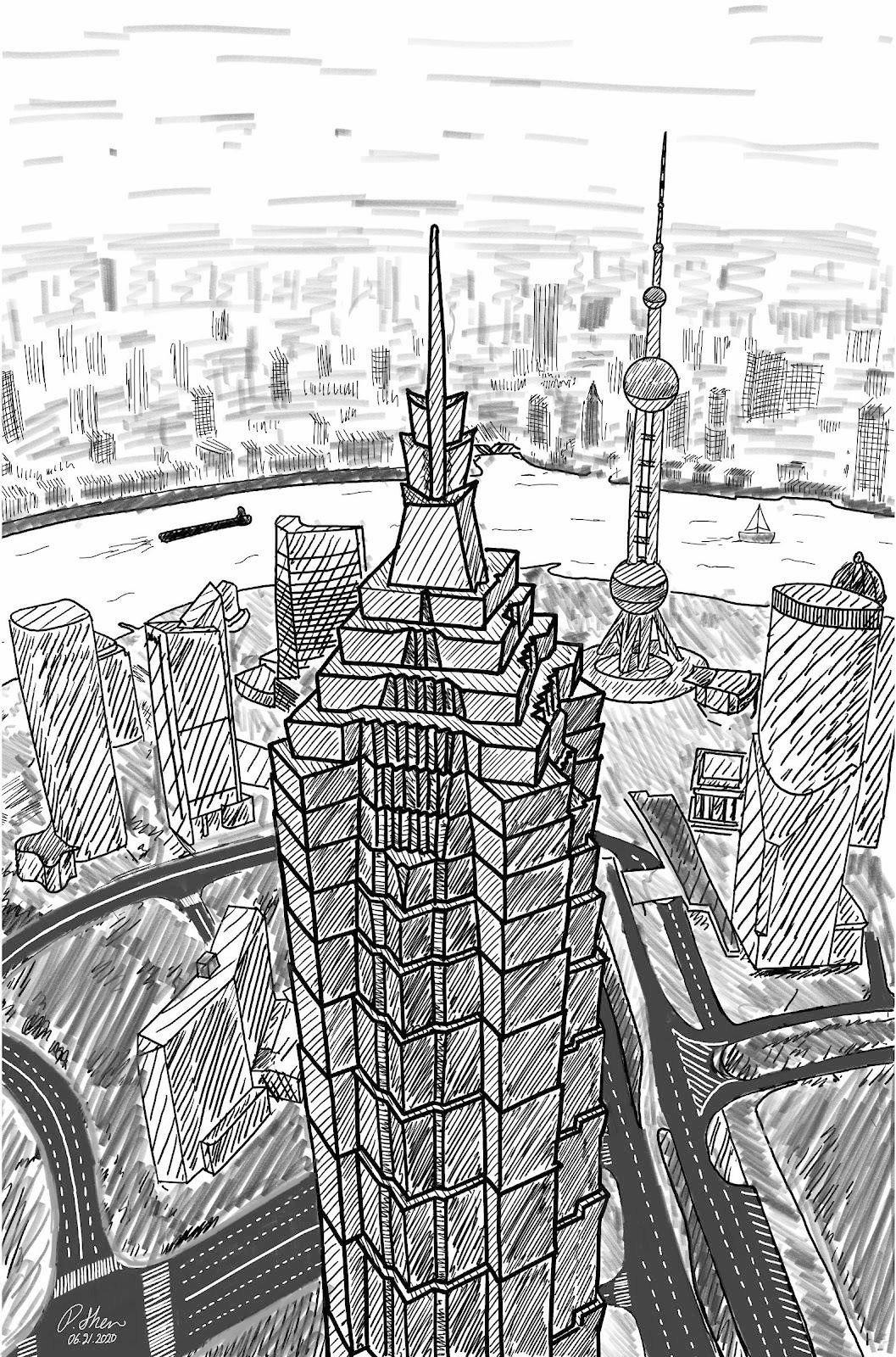

Jin Mao Tower, 1998, by SOM in Shan hai, China

T h a n k y o u o r y o u r v i e w i n !
