LIU YUE
ARCHITECTURE PORTFOLIO
EDUCATION
South China University of Technology, Guangzhou, China Bachelor of Architecture, GAP: 3.69/4.0 [09/2018-07/2023]
SCHOLARSHIP
2022 National Scholarship [2022] 2nd Prize University Scholarship award by SCUT [2020-2021] “Baiyun Chemical” Scholarship award by SCUT [2018-2019]
COMPETITIONS & RESEARCH
Environmental Design Excellence Award (Group) | Designing Resilience Global 2022 [07/2022] 2nd Prize (Group) | The 5th Beixin Housing Young Architects Competition [03/2022] 1st Prize (9 individual & 1 all-round titleS) (Group) | Solar Decathlon Middle East 2021 [10/2021] Finalist | 2021 The 15th GUYUBEI Sustainable Architecture Design Competition [10/2021] 2nd Prize (Group) | The 1 st College Students in Industrialized & Intelligent Construction [09/2021] 1st Prize (Group) | “MRD CUP” Health-Preserving Valley International Design Competition [05/2021] Excellence Prize (Group) | Guangdong-Hong Kong-Macao Greater Bay Area Bamboo Construction [12/2019] 3rd Prize (Group) | 2019 Tongji University International Construction Festival [06/2019] Patent Granted | Moveable Residential Building Structure: A modular building system that can be disassembled and moved [05/2021]
INTERNSHIP
Intern (Project Design Department) | China Railway SHIDAY Architectural Design Institute Co., Ltd. [07/2022-09/2022]
SKILLS
Software: PS, AI, ID, SketchUp, AutoCAD, ArchiCAD, SAI, Ecotect, Rhino, Enscape [Proficient] BIM, Revit, 3DMax, Grasshopper, Ladybug [Moderate] Language: Mandarin (native), English (IELTS 7.0), French (2 years), Japanese (3 months), Spanish (3 months)
OTHER INFORMATION
Interest: Drawing, Photography, Guzheng (Level 8), Fitness, Cooking Travel: England (2014, Travel), Japan (2016, Study Visit)
LIU YUE
Date of birth: 12/08/2000 Email: liuy812@outlook.com Tel: 86-19927462567
01
GREEN PULSE Resillient City
Date: May 2022
Location: Singapore
Type: Urban design Area: 129400 ㎡
Instructor: Xiao Yiqiang
Instructor's Contact: yqxiao@scut.edu.cn
Group work (Individually refined in July)
Responsibility: graphic 80% conception 50% model 50%
All things that grow live in harmony and benefit from the nourishment of nature.
--Xunzi
Industrial heritage utilization based on resilient urban background -- green pulsating vitality zone connecting the Great South Waterfront. In the city of Singapore, we aim to discuss the design of the city-region understanding that the environmental consequences and implications of rapid urbanization and climate change go beyond administrative boundaries.We are committed to restoring the resilience of the site in an all-round way from the aspects of ecology and community, and making up for the ecological and cultural deficiencies caused by land reclamation and mountain reclamation.

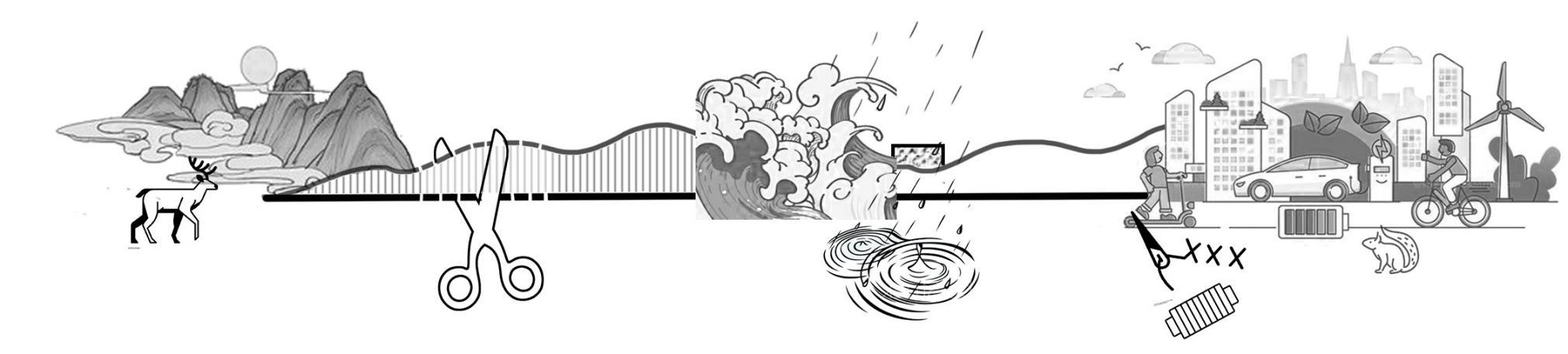

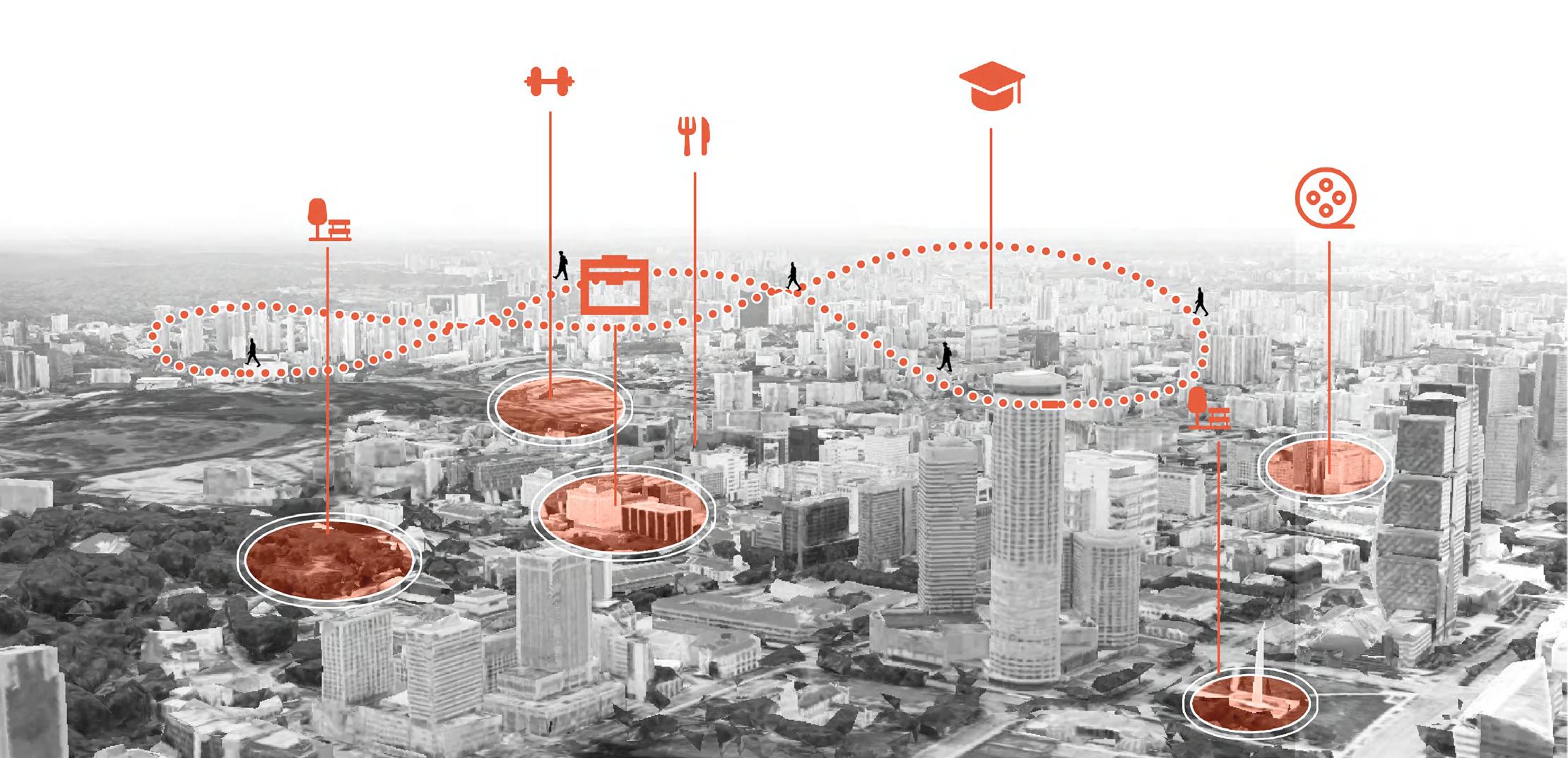

Green Pulse: connection & mending

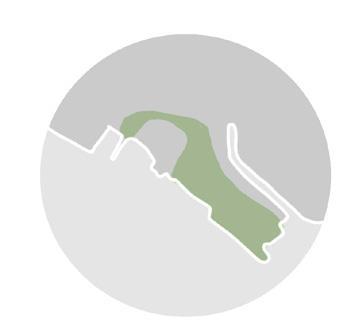

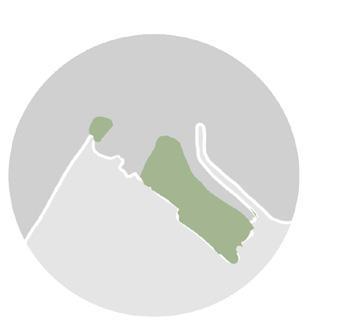

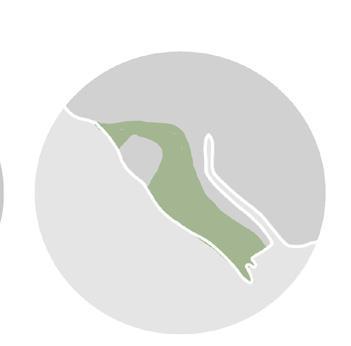

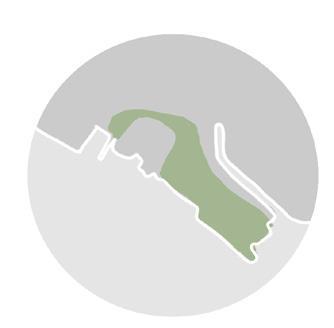

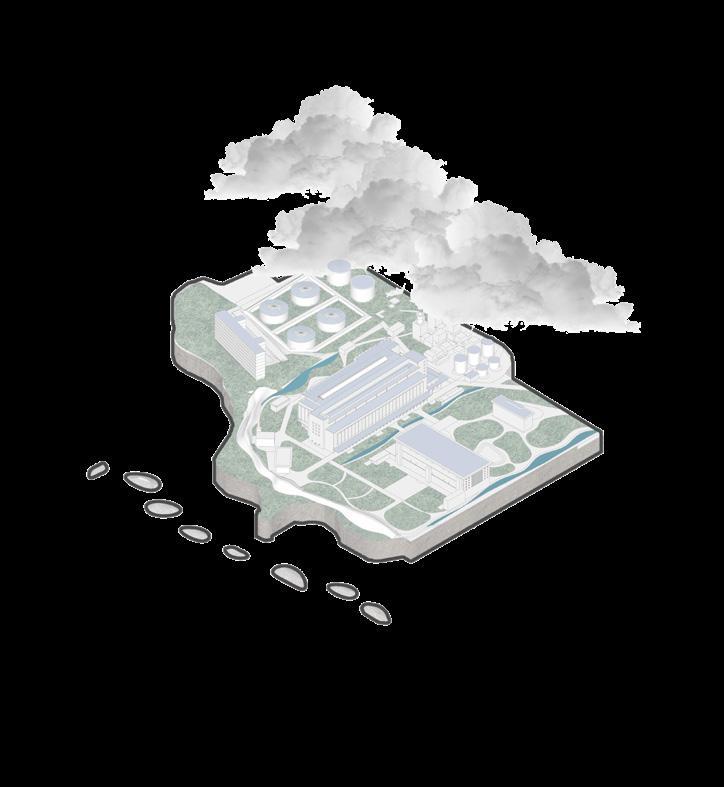

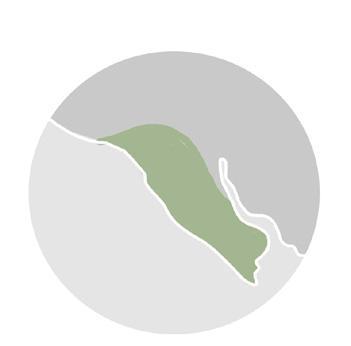

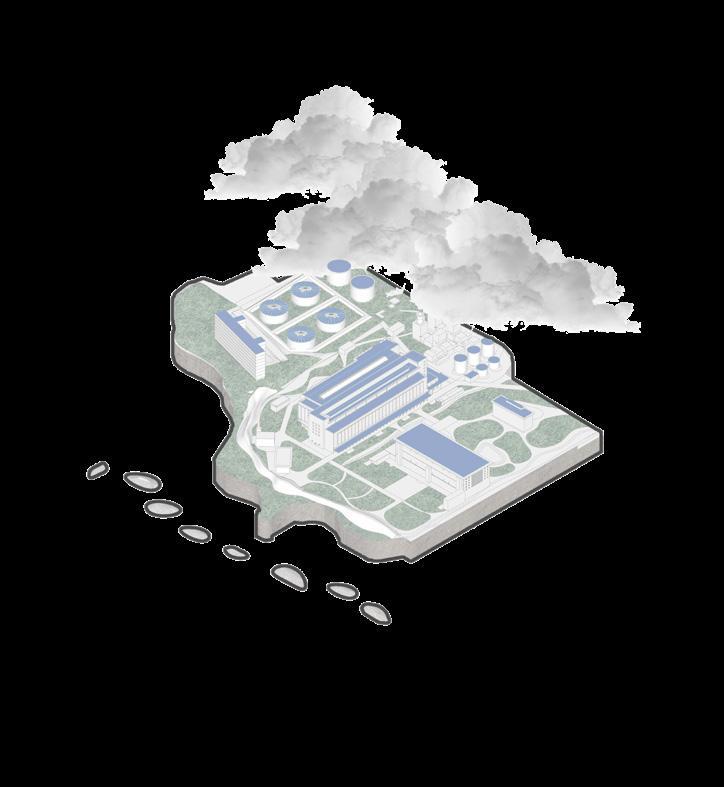

1925 1940 1960 2000 2020 SITE ANALYSIS | environment features, culture, visitors

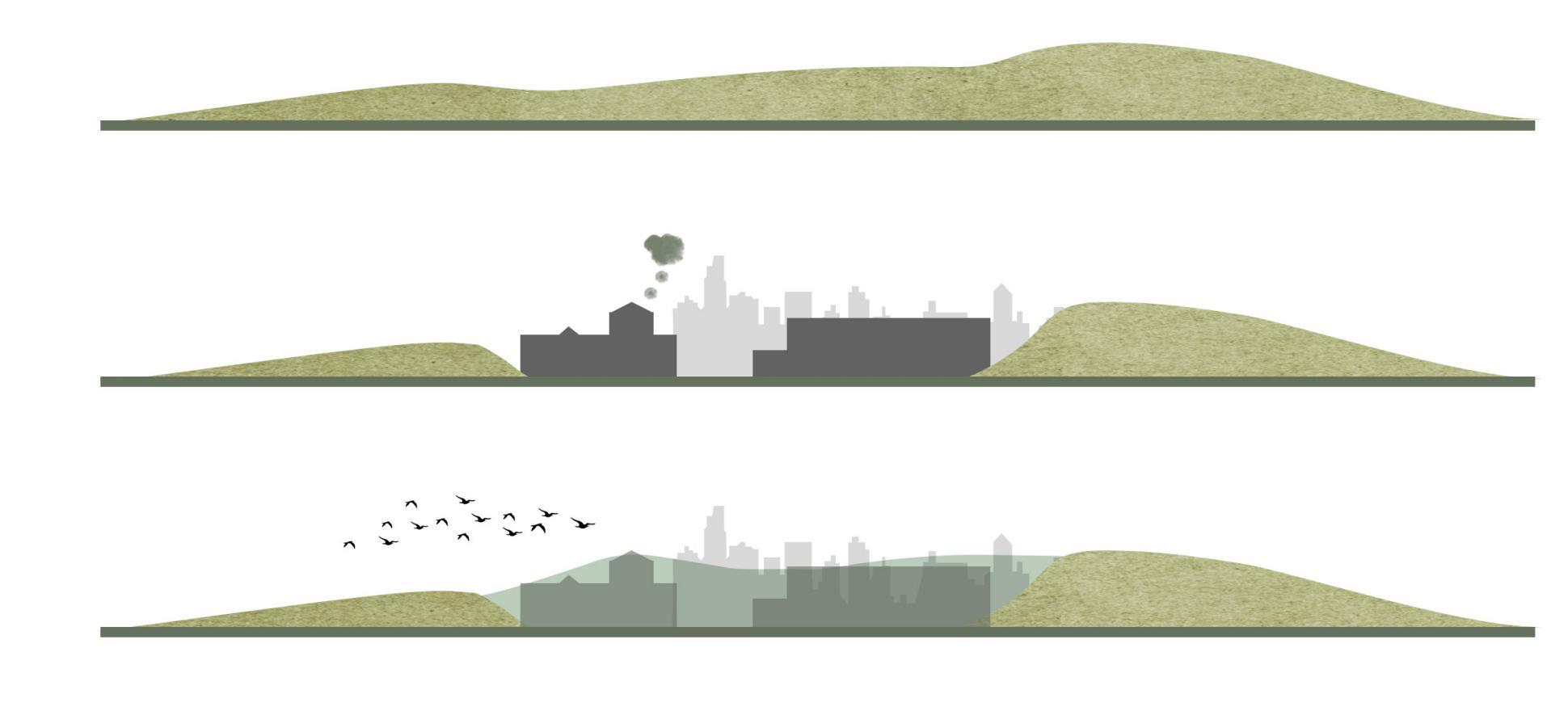

| resolve, improve, develop 1. Natural hills 2. Vitality destroyed by the industrial construction 3. Reconstruction to rescue the life 1900s Construction of power stations caused heavy pollution Main residents are workers 2000s despite the modern lifestyle rising sealevel and natural pollution has become the people's main worry 1950s Cutting down trees disappearance of foresets
of natural connection: reduction of greenland and intervetion of coastline Lack of social connection: located

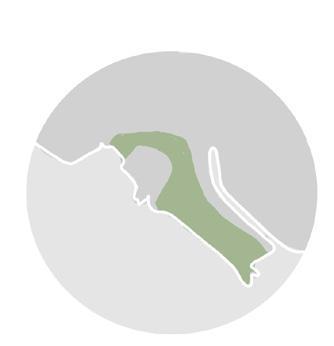

the south of GSW district GSW DISTRICT
CONCEPTION
Disappearance
in
Dwelling DISTRICT (density) Greenland Mangrove Entertainment DISTRICT Commercial DISTRICT Dwelling DISTRICT Education DISTRICT
of this site: The fragile connectivity and vitality destroying greenland threat of rising sealevel natural and social vitality?
PROBLEM
ISSUES VISION
In terms of the urban scale, we found that the site's history of man-made development has led to the fracture of the overall veranda in the southern waterfront area. We hope to restore the ecology and social vitality of the site and repair the coastal green and blue corridor. We devide this into several section, in which we apply different methods which could be combined to function as a high-efficient system and community: reconstructing oil tanks into ecological tank, reconstructing power plants into different theme according to their own features, repairing coastal line in face of rising sea level etc. We hope these changes could restore a green, sustainable and vibrant society.
STRATEGIES | reconstructed, repair and restore 01 Oil tanks：agricultural tank changeable solar panels ornamental plants 02 Power plant A : Urban farm multiple functions vertical farm 03 Power plant B : Indoor water park multi-purpose building interior water treatment 03 Costal line : Public natural space pro-biotic coast special breakwaters 01 Oil tanks 02 Power plant A 03 Power plant B 04 Coastal line SITE PLAN
RESILLIENT

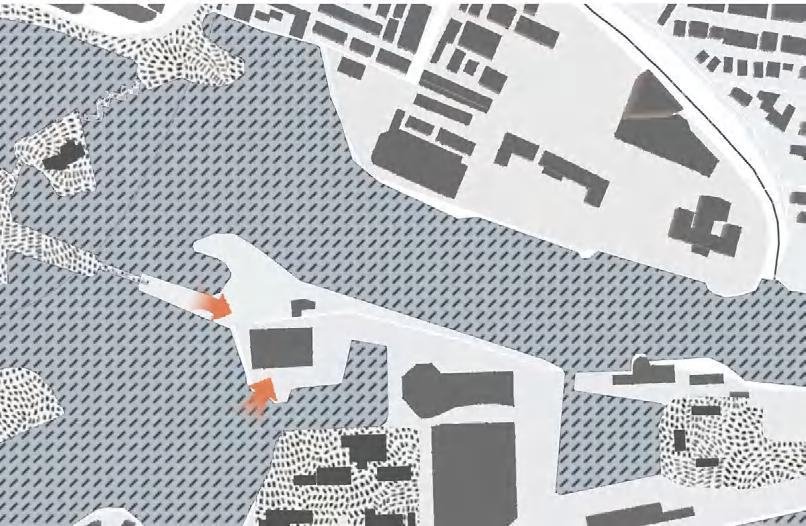

SITE ANALYSIS | environment features, culture, visitors
coastal park

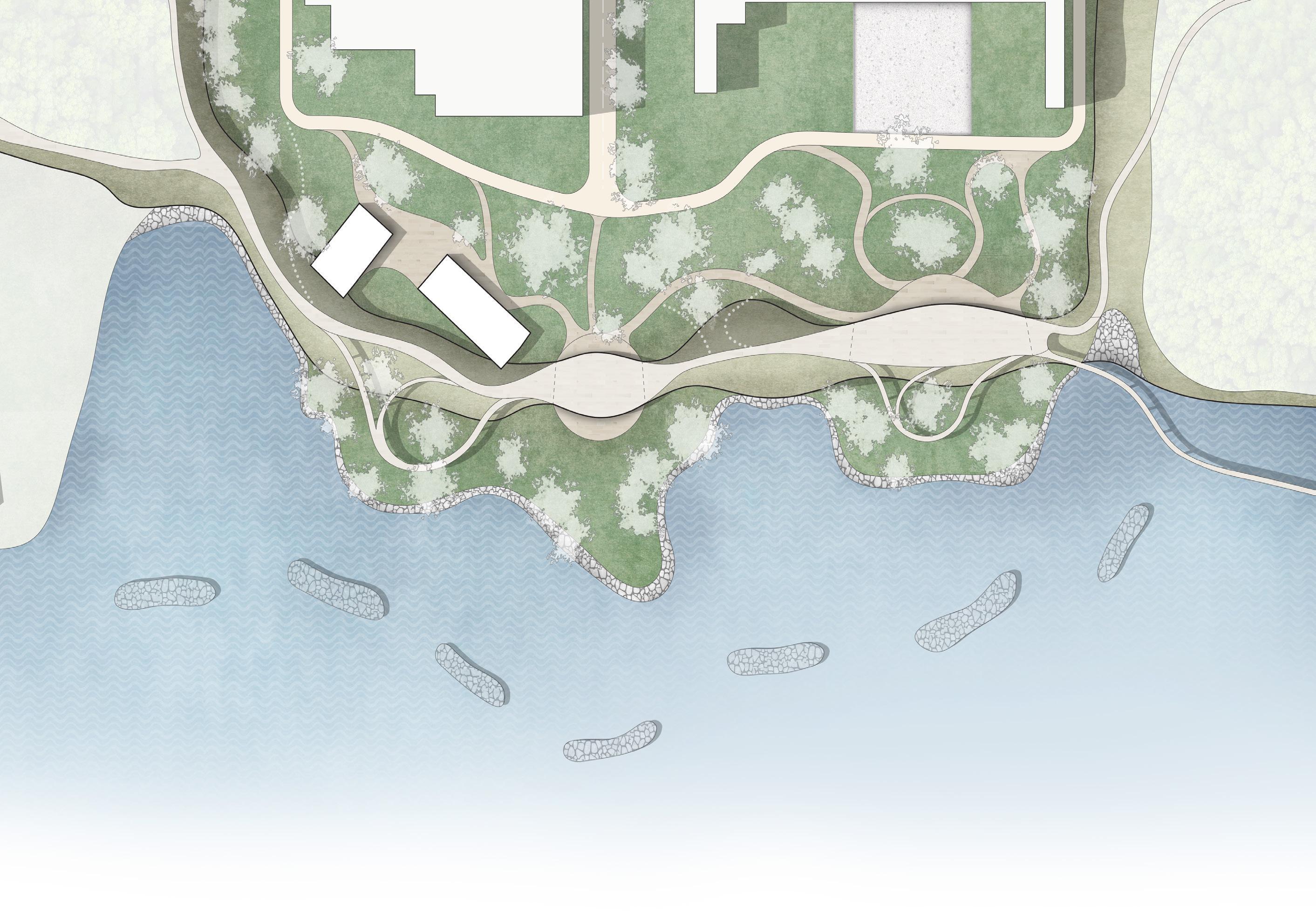

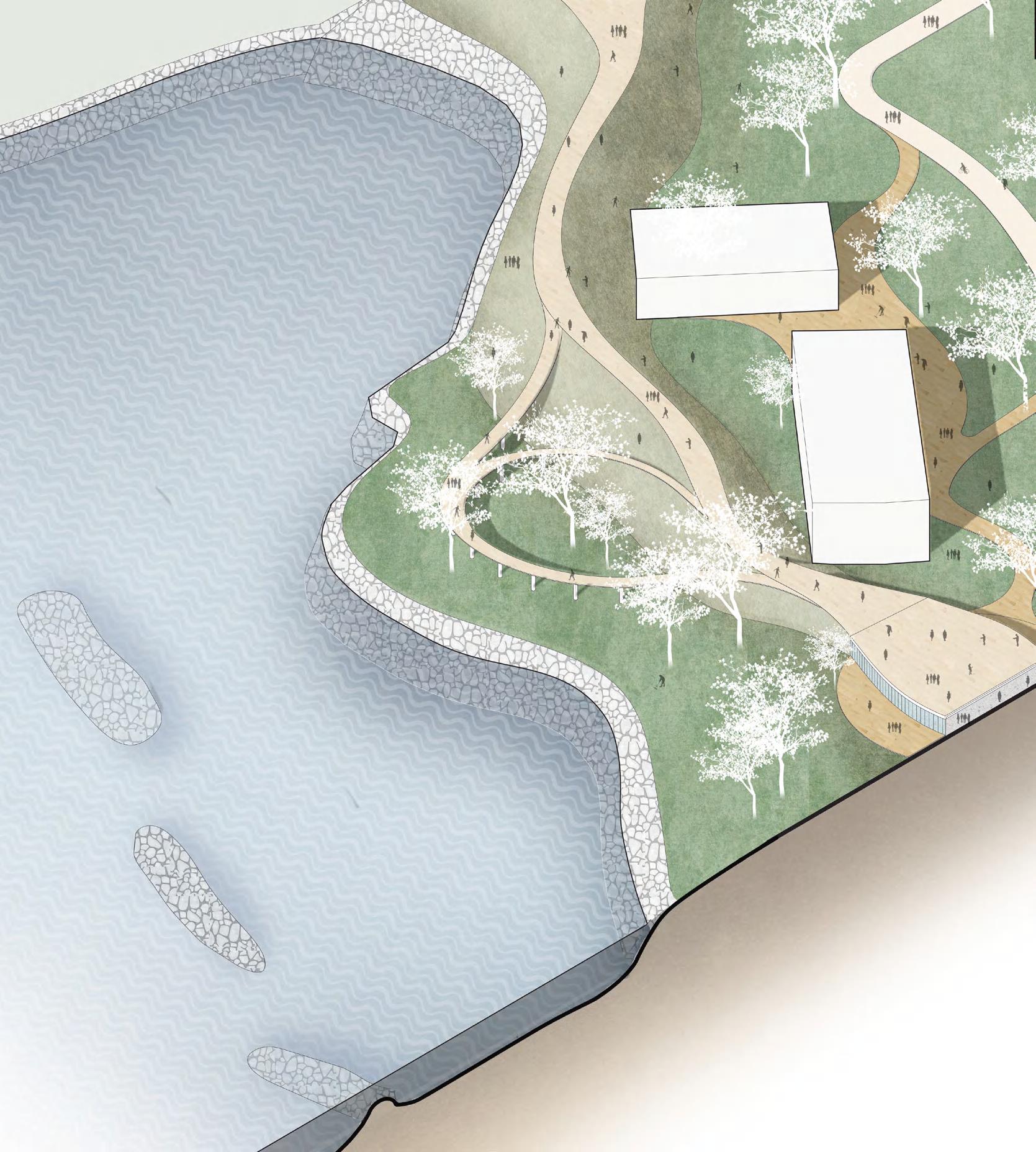

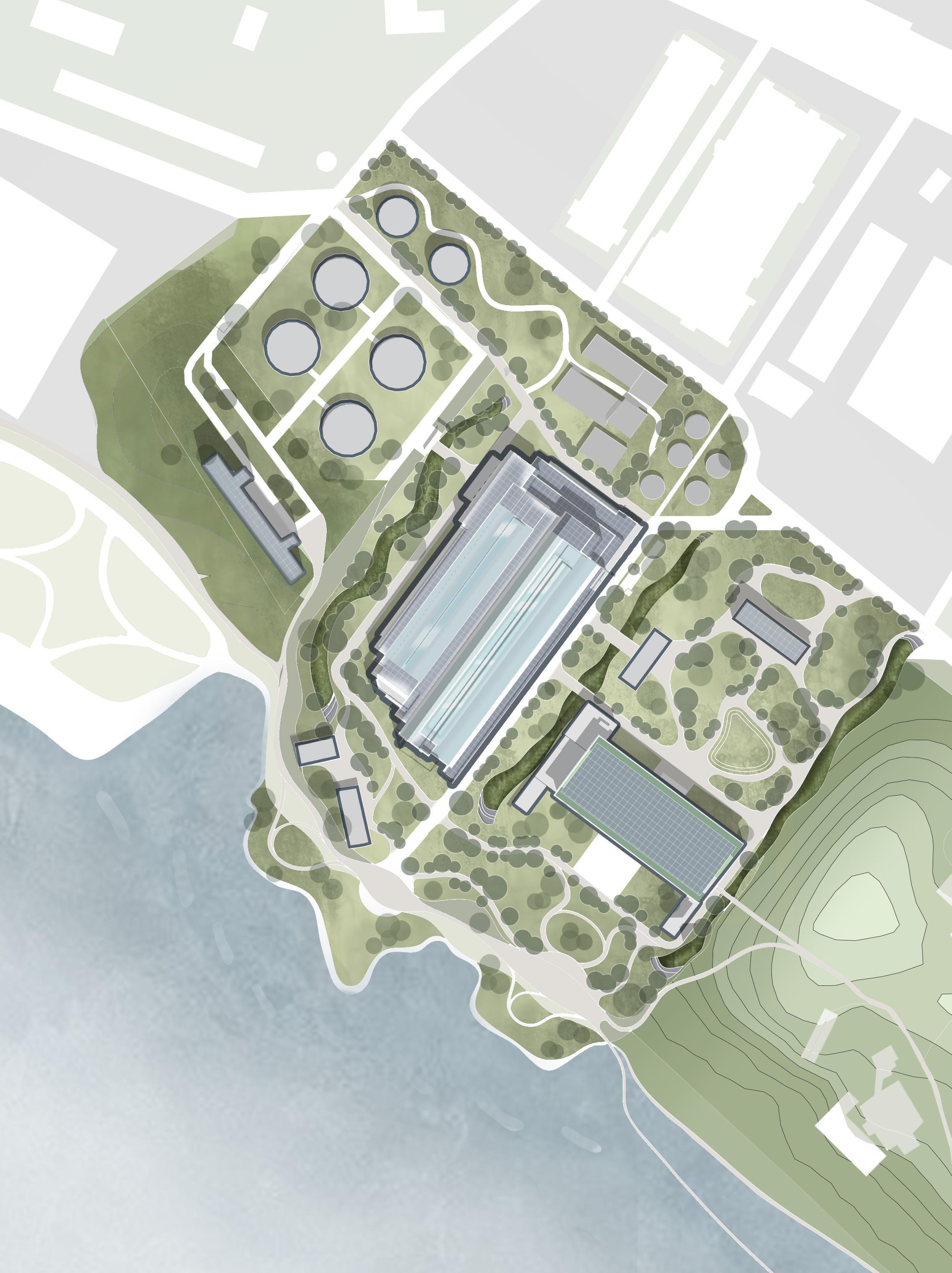

COASTAL PLAN
COASTAL SECTION
rising sea level
It is predicted that by the end of the century, the interior of the power plant will be flooded by rising sea water. Hence a new dam to connect the high hillsides on both sides of the power plant will be built to block the threat of rising sea level. On one side of the dam, a coastal park is designed mainly for human activities, and the original buildings are retained, and the functions are modified and reused. The outside of the dam will be restored as a waterfront ecological reserve based on the natural environment of decades ago.
At the present stage, the coastal site of the power plant is formed by land reclamation, the section is hard and vertical.So the new ecological concrete will be used to transform and fill it. At the same time according to the change of seafloor depth and the principle of wave reduction, appropriate ecological function breakwaters will be set up.
coastal bar coastal bar coastal bar coastal canteen urban hall urban hall ecoregion plank road ecoregion plank road ecoregion

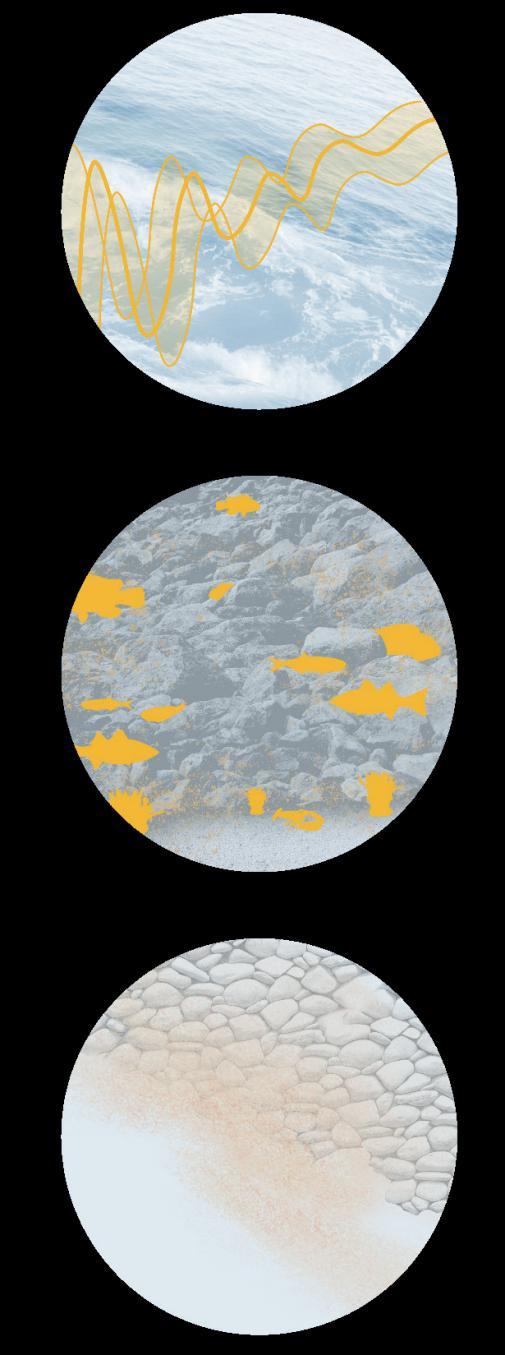

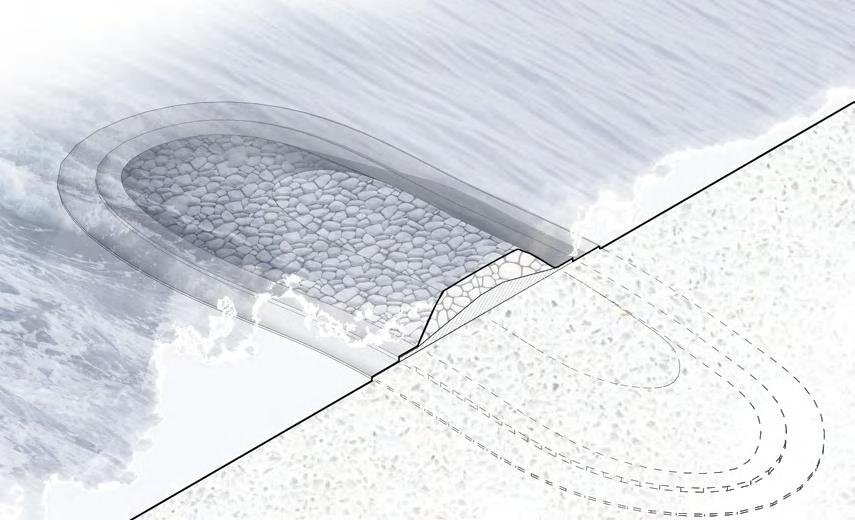

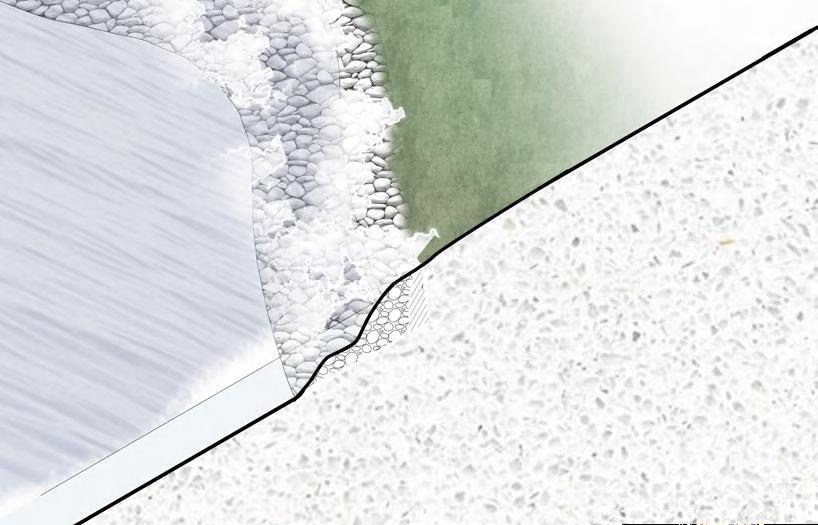

ECO-concrete original concrete and stone bank reconstructed ecoconcrete bank the aggregate of the base is made from the treated waste material wave strength reduction biological population gathering beneficial sediment deposition coastal bar

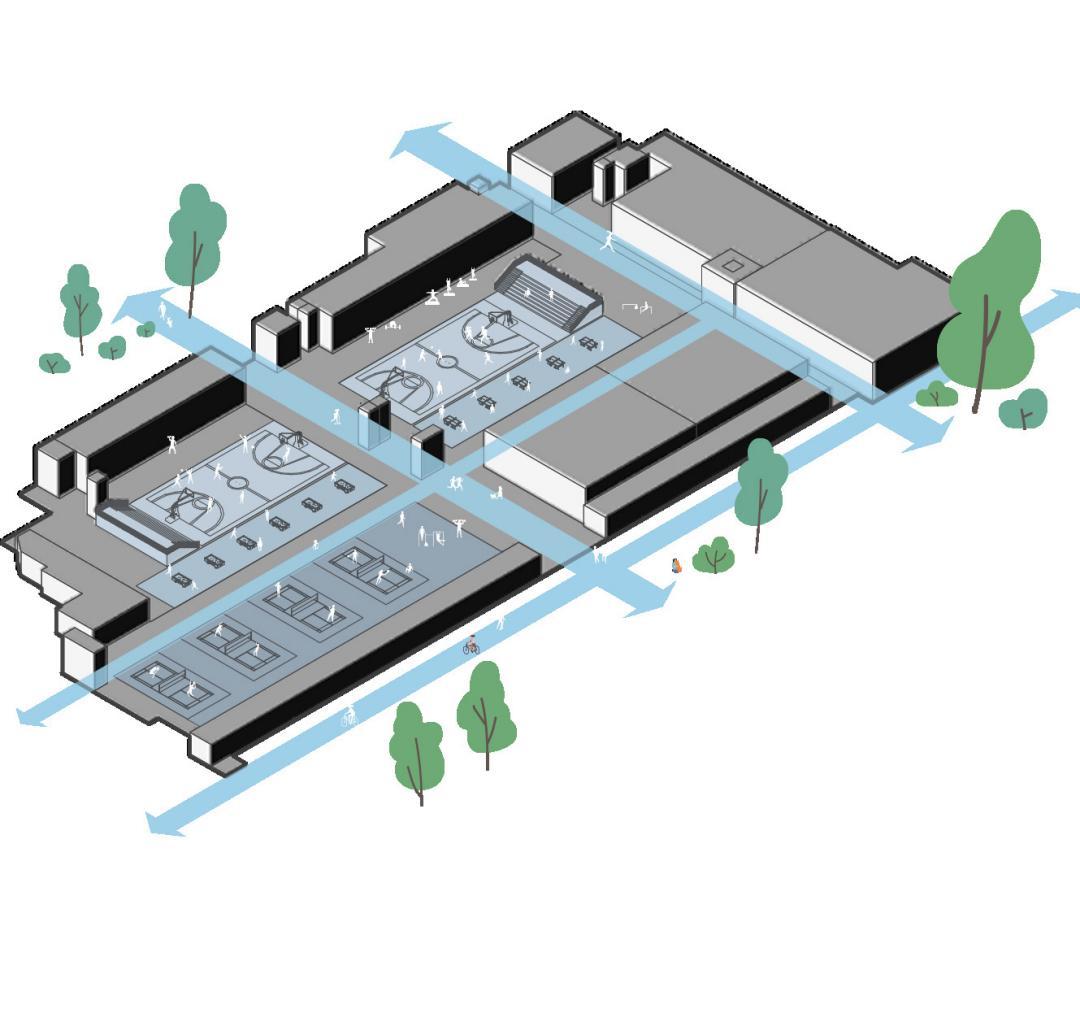

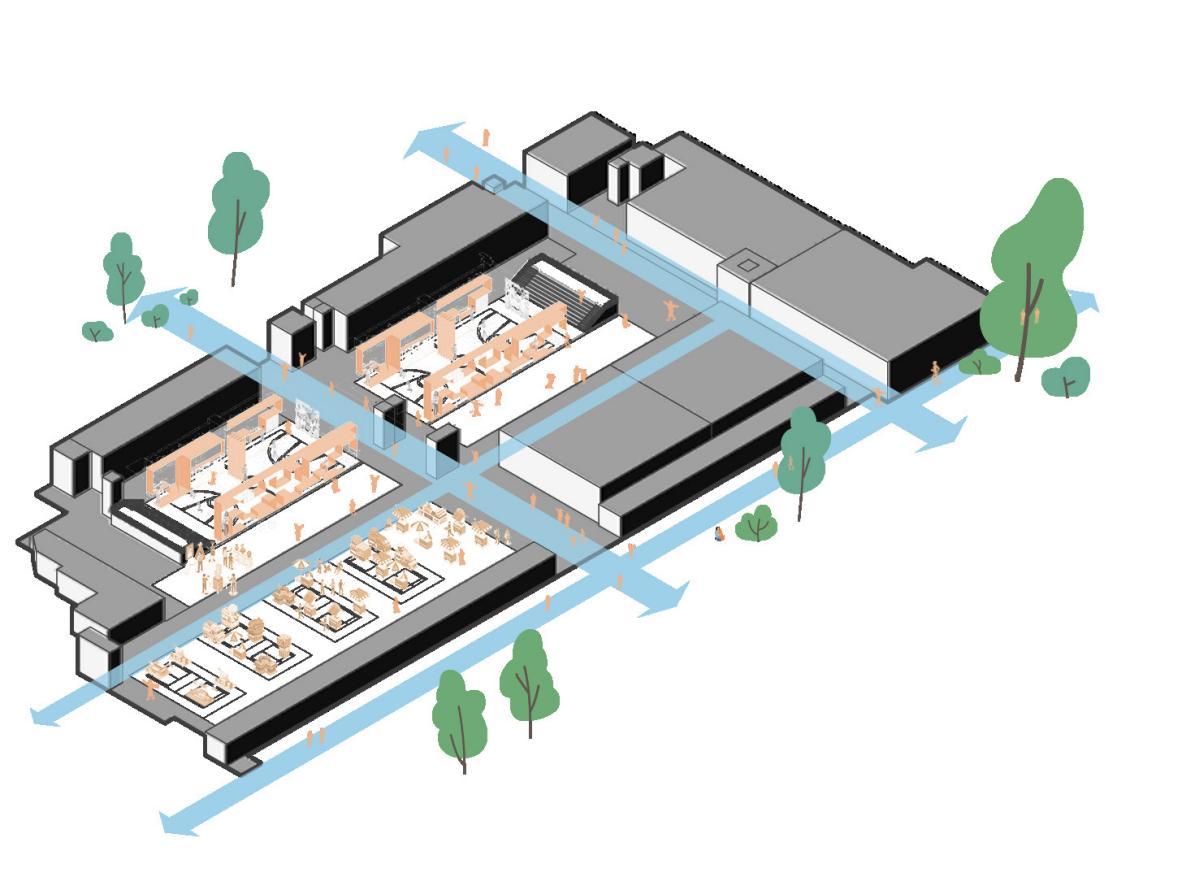

POWER PLANT A | urban agriculture complex
resiliant and vibrant function energy resilient strategy
FUNCTION 01. sports larger space
FUNCTION 02 concert larger space

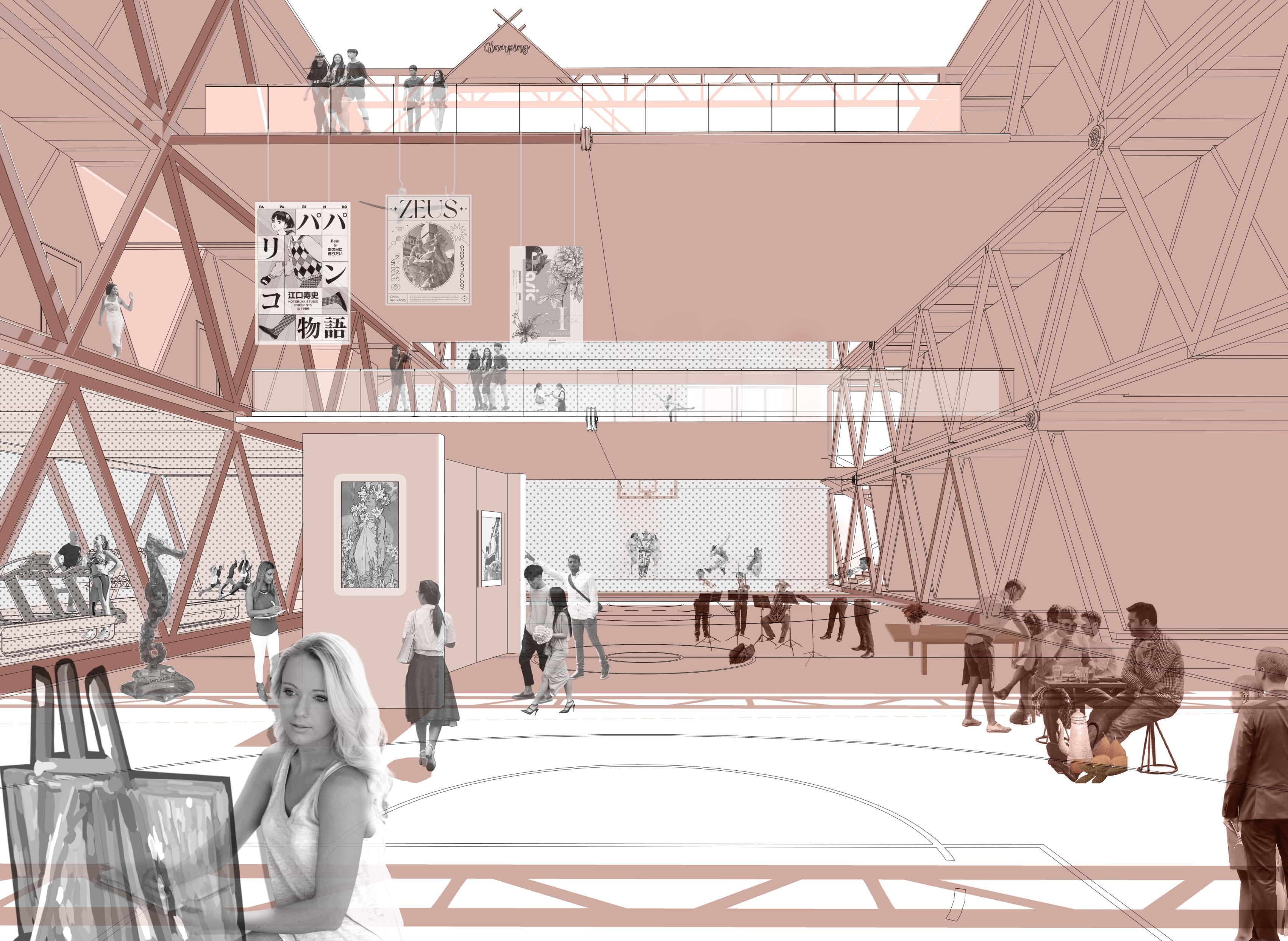

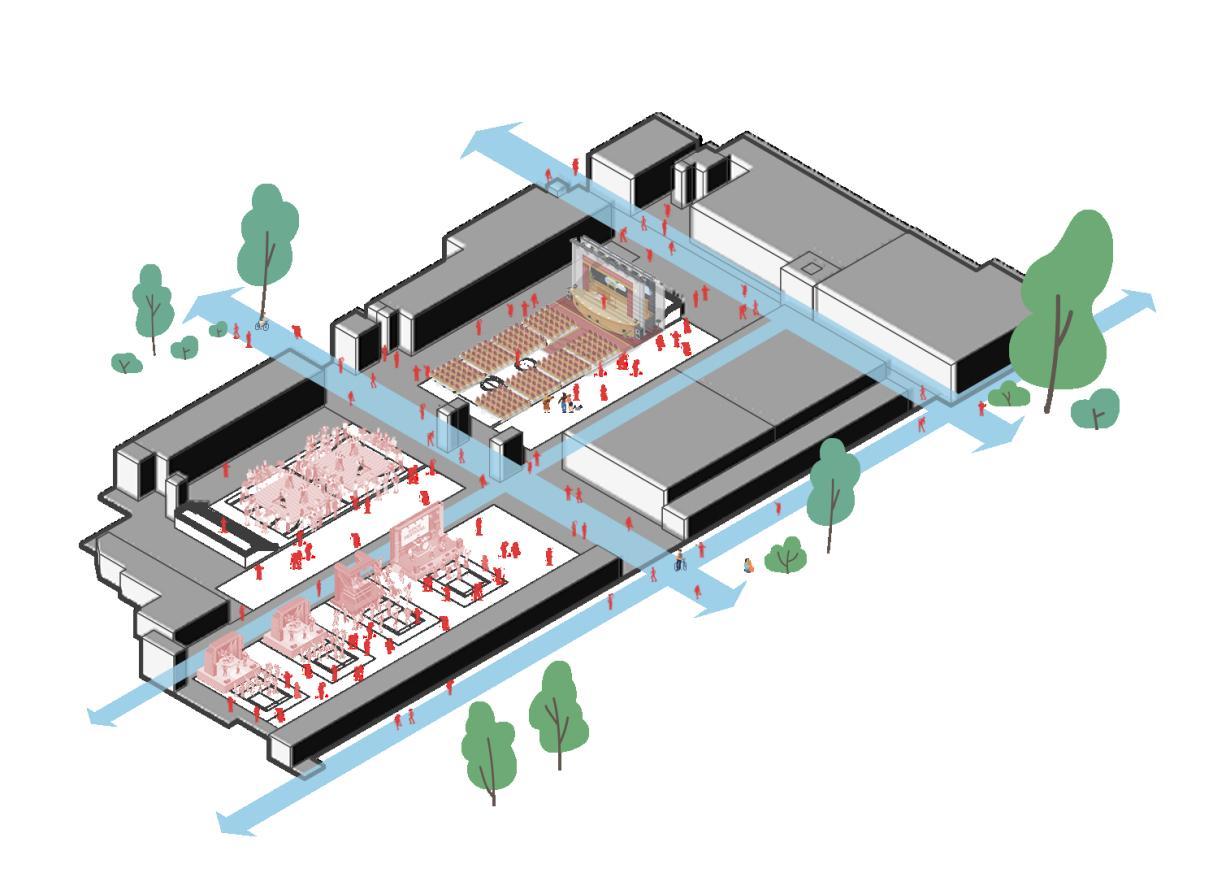

The power plant will be transformed into an urban agricultural complex, containing multi-functional flexible space of culture, sports, entertainment and art, which will provide dynamic space for the dense surrounding residents, office workers and tourists. The agricultural unit is suspended from the structure, and the main area of urban agriculture is taken as the upper air of the the top floor of the middle. Thus we could achieve self-sufficiency in agricultural products
FUNCTION 03. exhibition larger space
moveable solar panel: change with sunlight and weather-W
studio
canteen
urban farm market sports

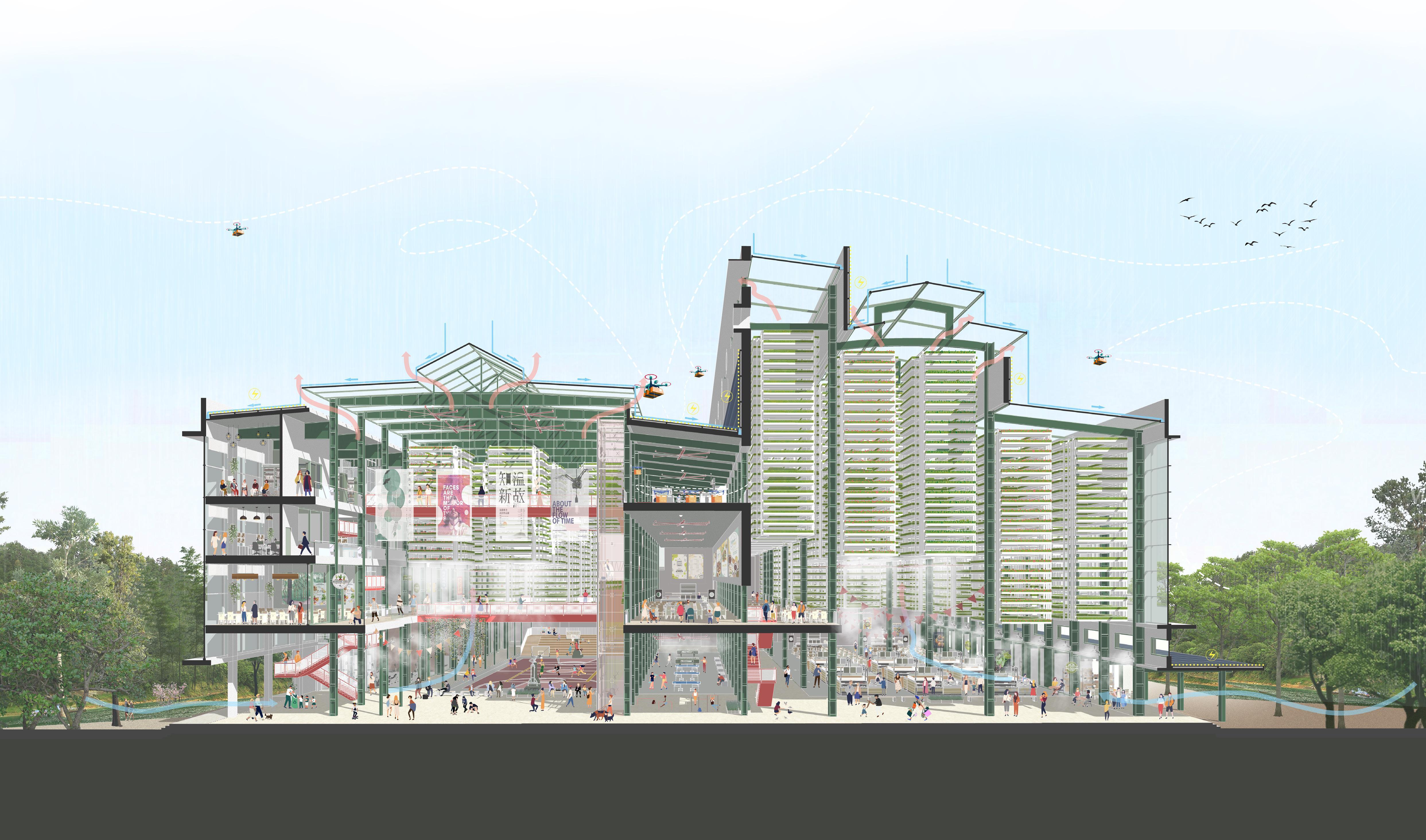

POWER PLANT A SECTION

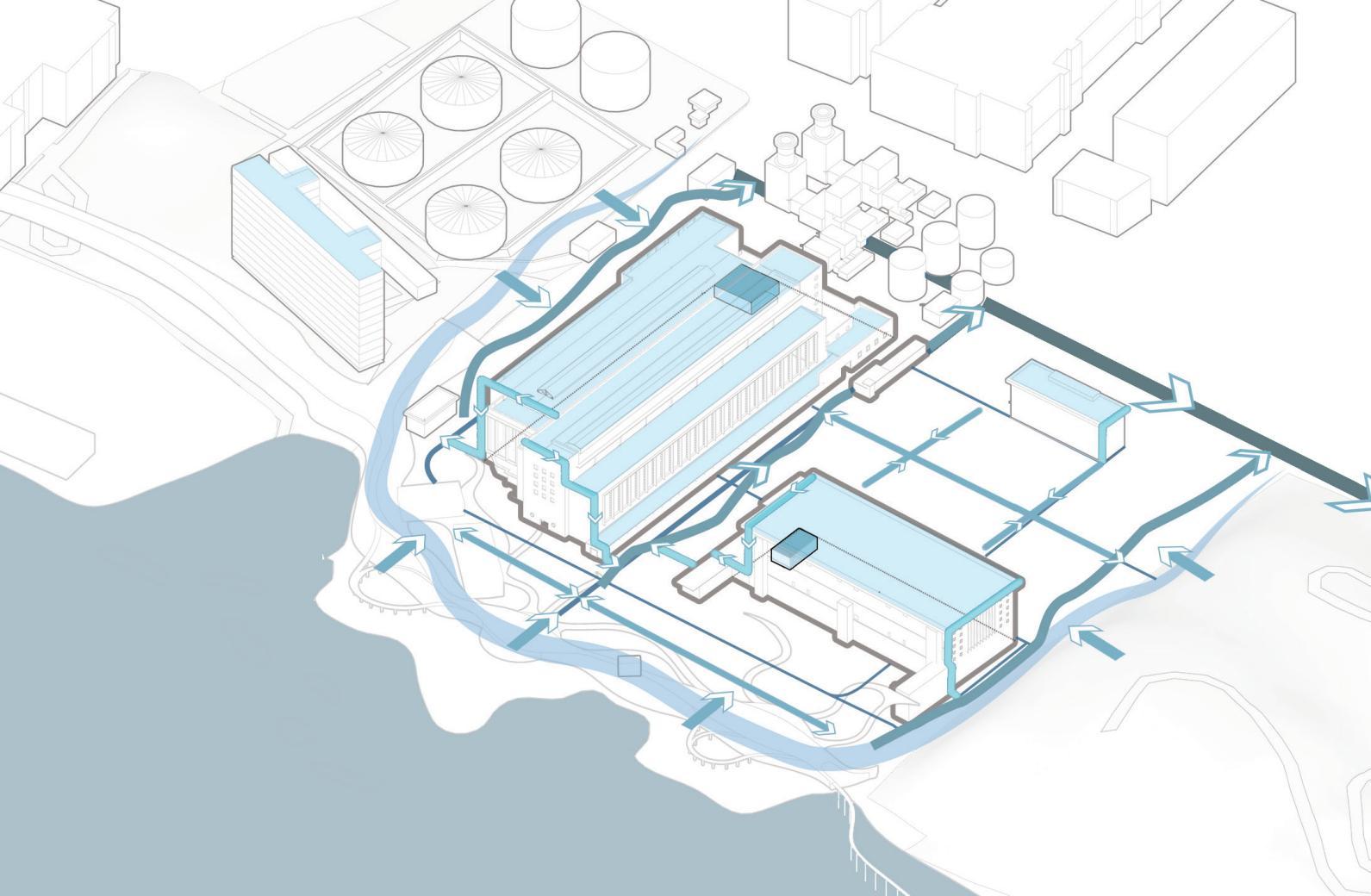

POWER PLANT B SECTION| water theme park SITE WATER SYSTEM | water treatment and discharge irrigation
The total annual rainwater collected by the site is 200000m³, among which 36800m³ can be recycled through our rainwater collection system.Obviously the rainwater collection systemcan achieve self-sufficiency of water in the site, relieve the drainage pressure of the municipal pipe network to a large extent, nourish the surrounding natural ecological environment
water delivery water park roof garden entertainment

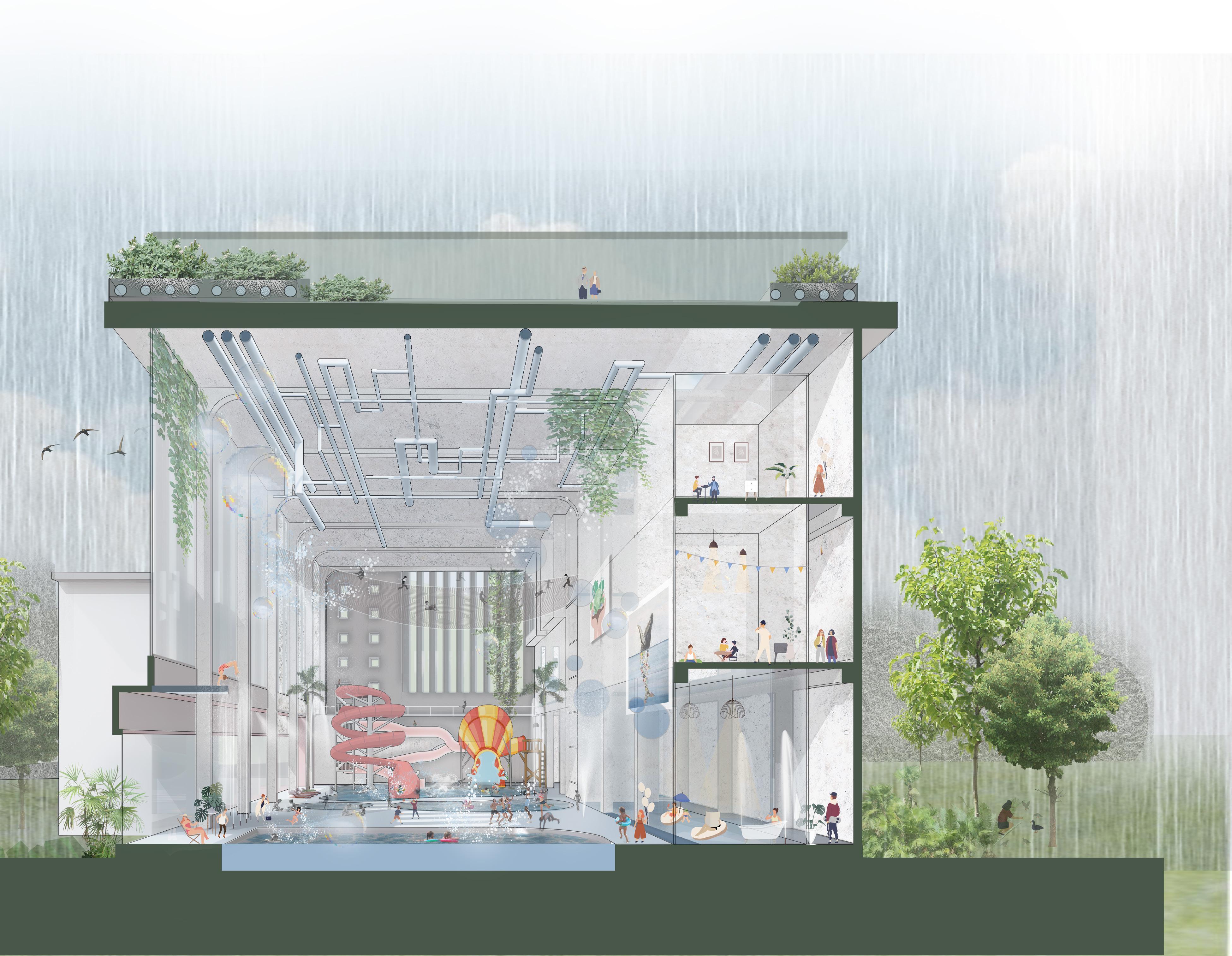

POWER PLANT B SECTION
YEARLY:
Fundamental rainwater accpetance Rainwater process 4.stored in water storage tank 6.purify 8.discharge seweage 7.recycle hillside field rainwater garden roof natural hill watersheld 1.collected from highlands 2.collected by watershelds 5.distribued by pipes 3.bio-retention
rainwater collected in the site rainwater collected by roofs international standard swimming pool water
36800 ㎡ YEARLY: 200000 ㎡
WONDERLAND
Emotional Nature Museum
Date: May 2021
Location: Guangzhou,China
Type: Public Building
Instructor: Yu Daxing
Instructor's Contact: 235631029@qq.com Individual work
Architecture is interior circulation more particularly for emotional reasons: the various aspects of the work, a symphony......which revealunexpectedspace.
--Le Corbusier
When the exhibits are displayed with the change of space in the exhibition, the change of emotion would impress people more deeply, thus strengthening the experience of the visiting and education of the tour, which is also the meaning of exhibitions. Here "Alices" will start their exploration through promenading in unkonown spaces from the perspective of psychology and emotion.
02
PROMENADE & EMOTION | innovative public exhibition spaces
Visitors could recieve and memory external information more easily with changeable emotions . In order to create spaces to transmit emotions. Elements like light surrounding and human scale in designing innovative exhibition spaces. "Promenade" is to emphasize a kind of experience when passing through buildings by awakening the viewer's senses and emotions . Combined with the elements, visual order of people in motion is established to enhance memory and impression during movement .

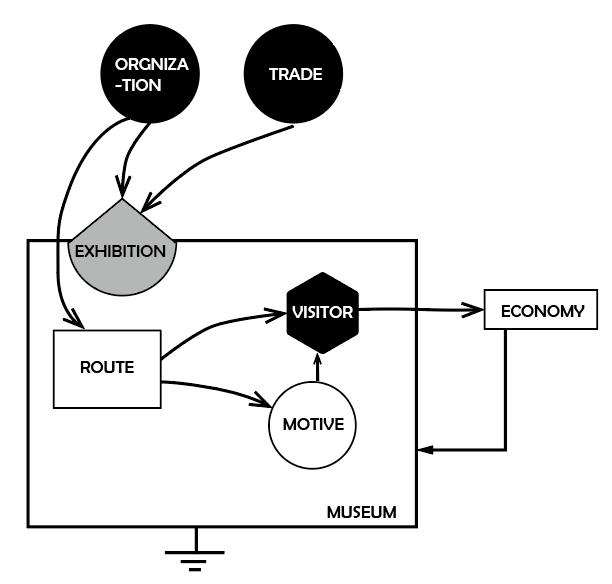

SPACE&ROUTE -- KEY FACTORS THERMODYNAMIC -- PREMISE EMOTION -- OUTCOMES TRANDITIONAL IMPROVED IMPRESSIVE UNICITY homogeneous space straight andstraight andsingle route straight space with different height varied path DIVERSITY NARRATIVITY & DIVERSITY twists and turns, high and low unpredictable space INSPIRATION What will be coming next? ALiliput!! CALM CURIOUSITY INTEREST ... 1 1 2 3 ? ? Comparison of different exhibition spaces

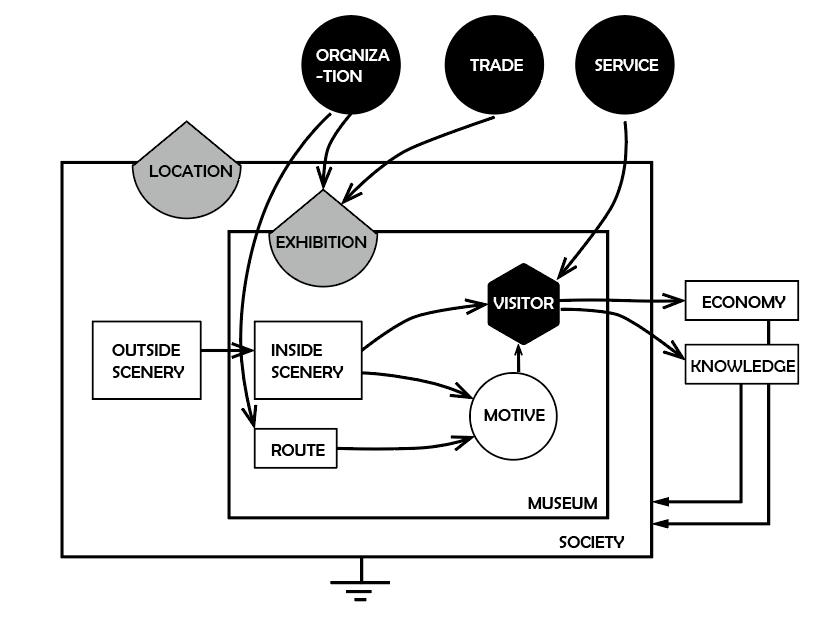

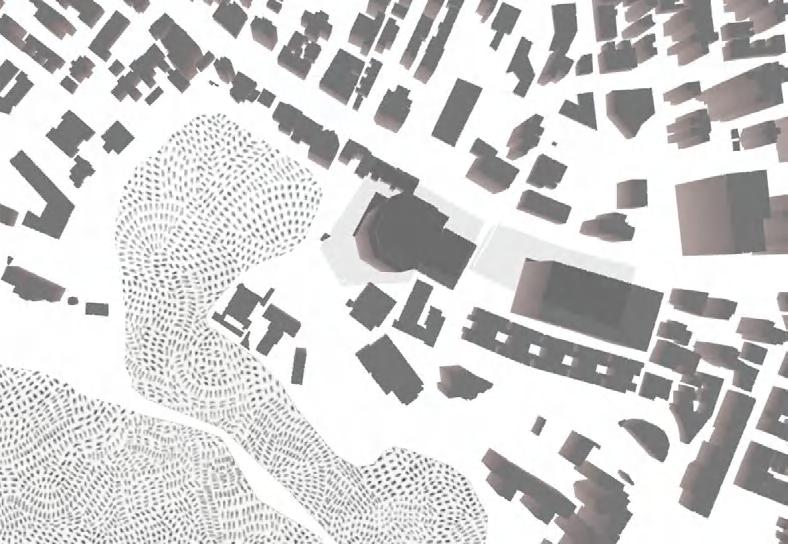

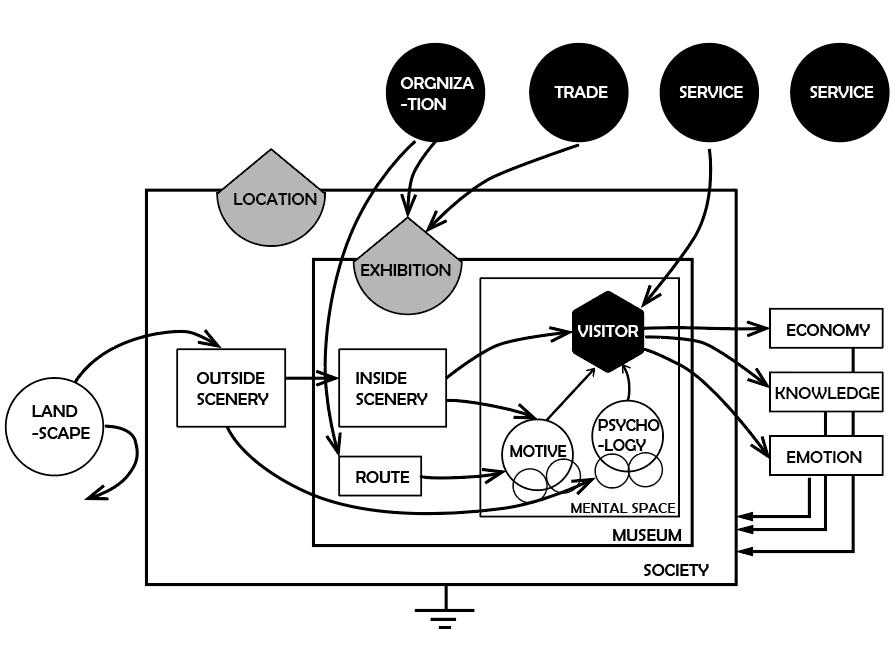

CONTEXT ELEMENTS | local features to display ELEMENTS & EMOTION CONNECTION| Interaction network The exterior facade is designed resembling texture of the local banyan trees. youth elderly child The most people who receive information from the site The big lawn Natural species Banyan trees DISPLAY Lxora chinensis Lam kapok Guangzhou Panyu Island greenland education attraction Frangipani The central lake Banyan trees Facade Construction Site EXCITEDCALMDEPRESSEDBORING NERVOUS CURIOUS INSP IRED SURPRIS ED AN X I OU S CONFUSEDUNCERTAINESAERELAXED SCENE see touch feel COMPONET LIGHT SCALE The process of emotion through different factors from the surroundings PEARLRIVER simple frame vivid frame straight curved dusky winding wide bright unchange

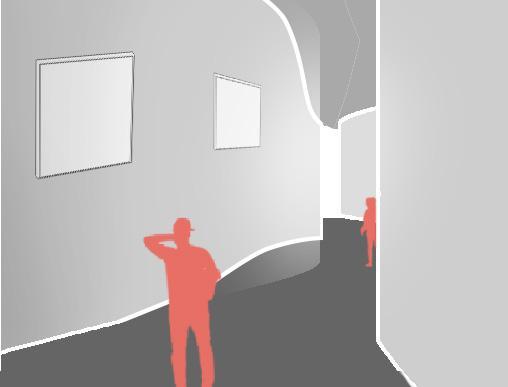

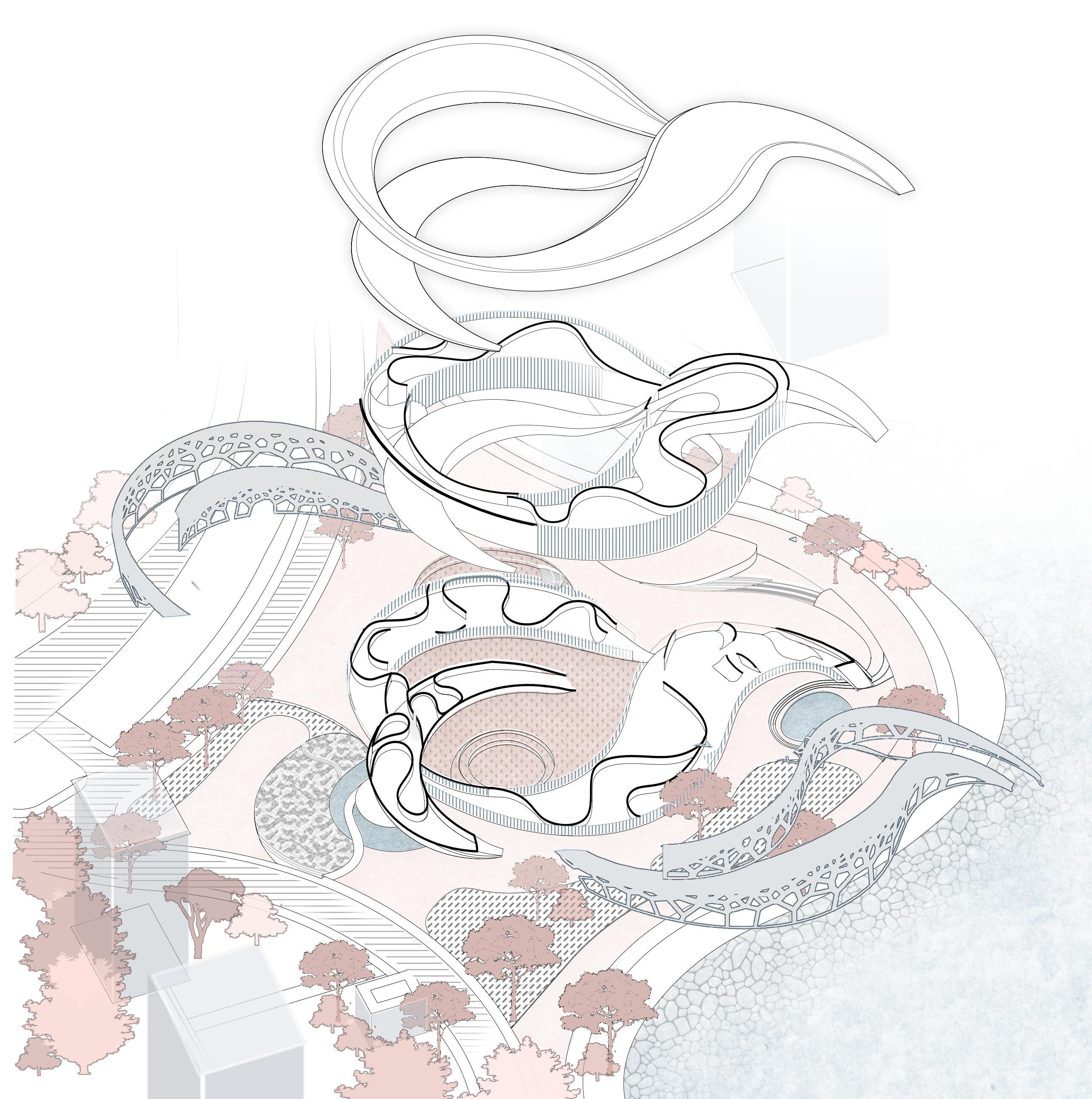

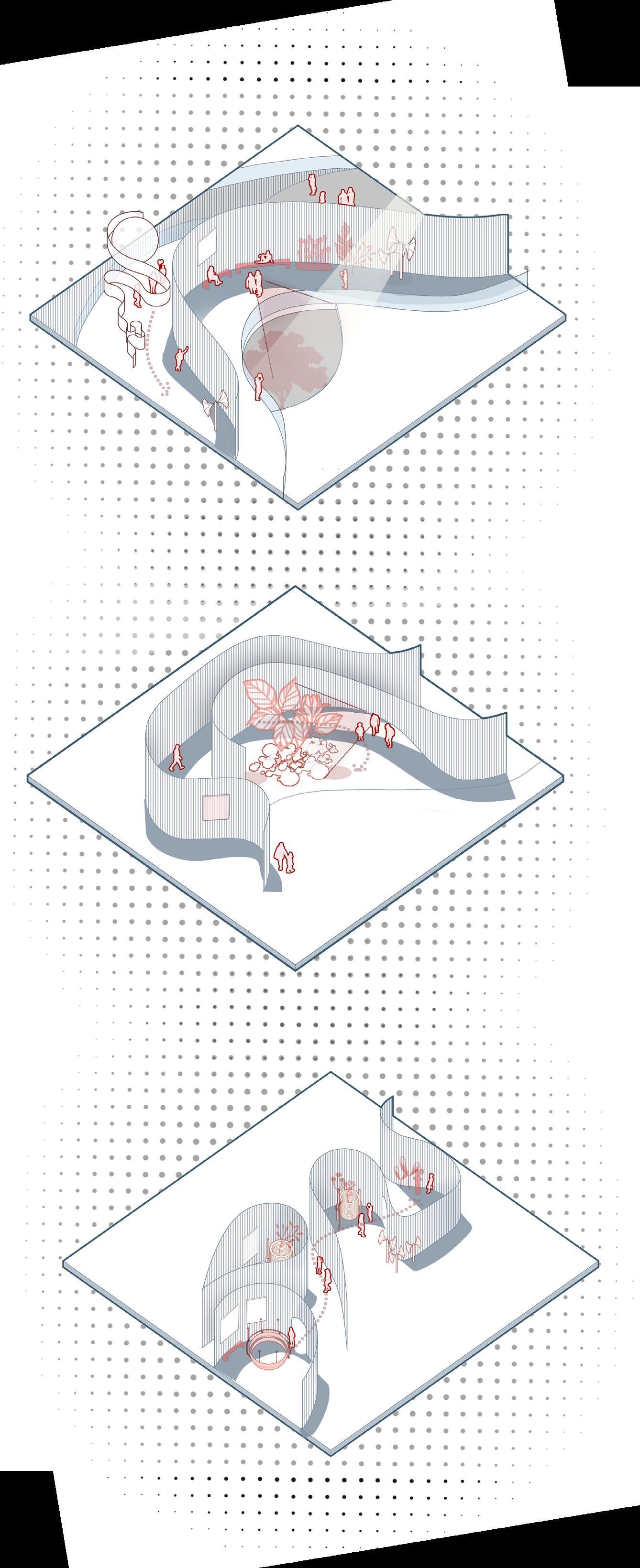

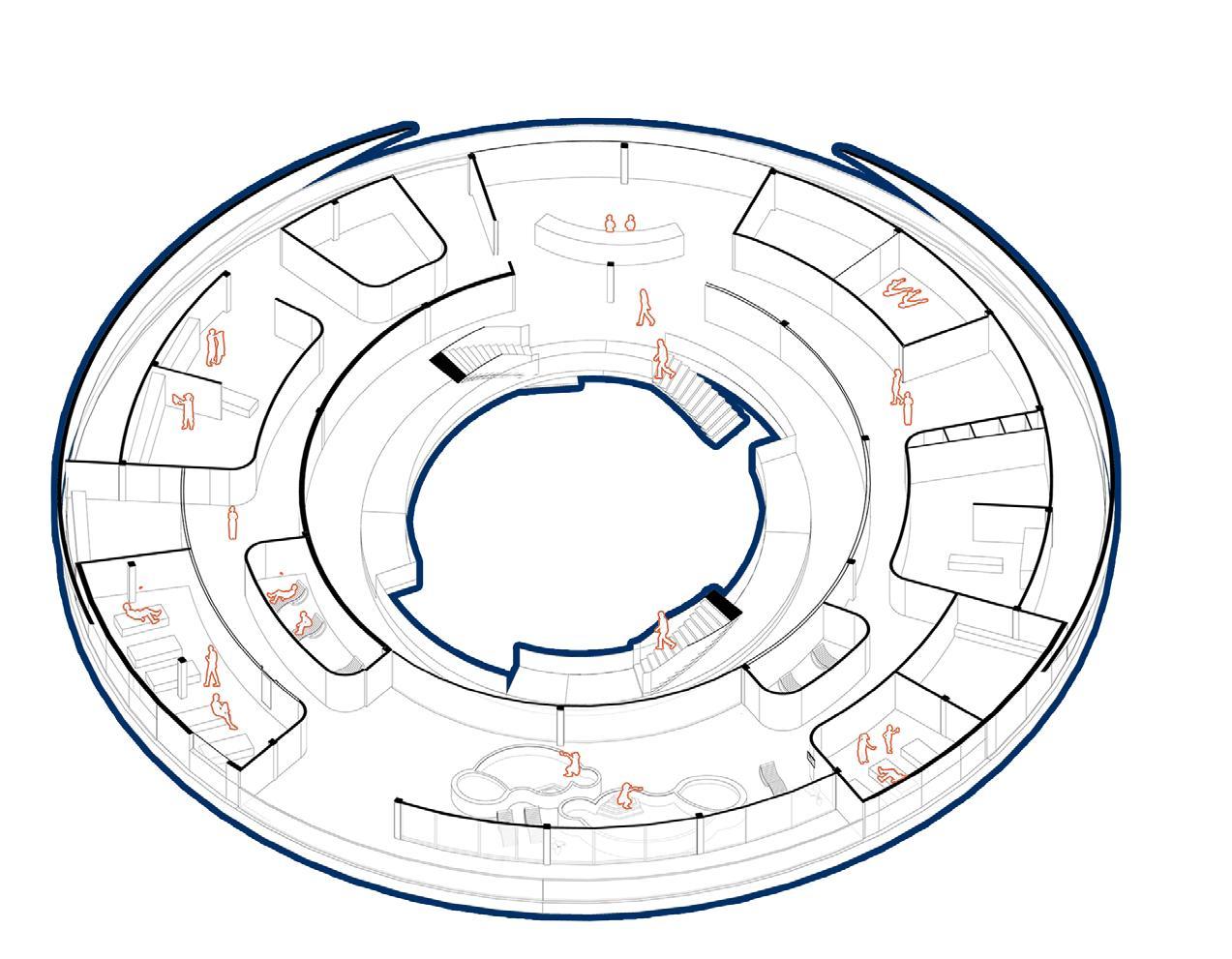

ISOMETRIC PLAN AND LOCAL PART | promenade in uncertain space 01 empty space, changeable light and route 02 blend of indoor exhibition and outdoor scenery intensive horizon dispersive horizon comprehensive horizon 03 curved wall and the inner maze

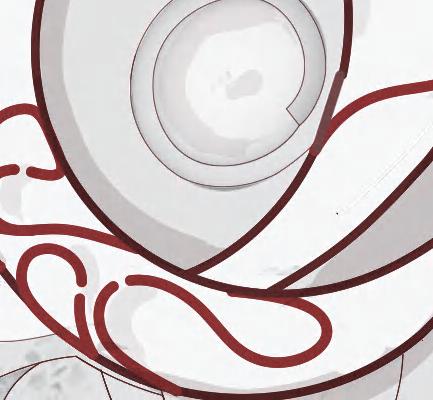

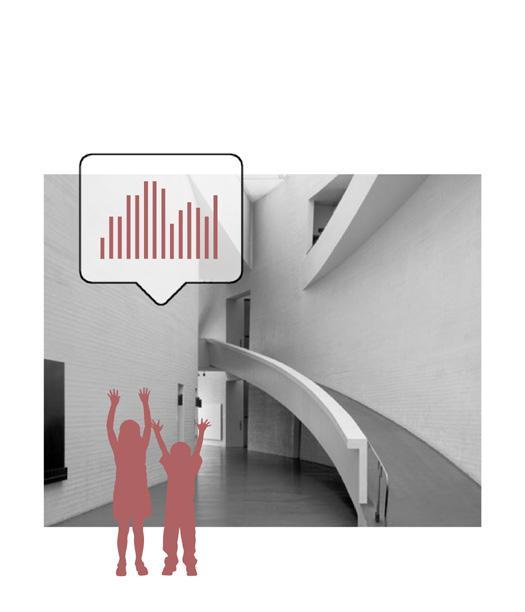

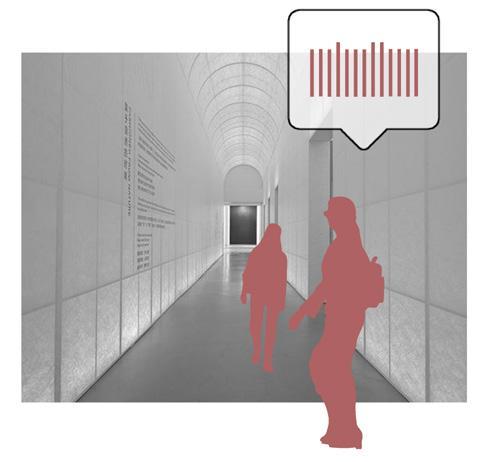

UNROLLEDE CIRCULATION ANALYSIS | Indoor and outdoor promenade and changeable emotion
When visiting and promenading with the route guided automatically by the space, visitors will experience a series of emotions affected by environmental elements.
UP DOWN
emotion during visit
corresponding position Indoor Outdoor
indoor experience
outdoor experience

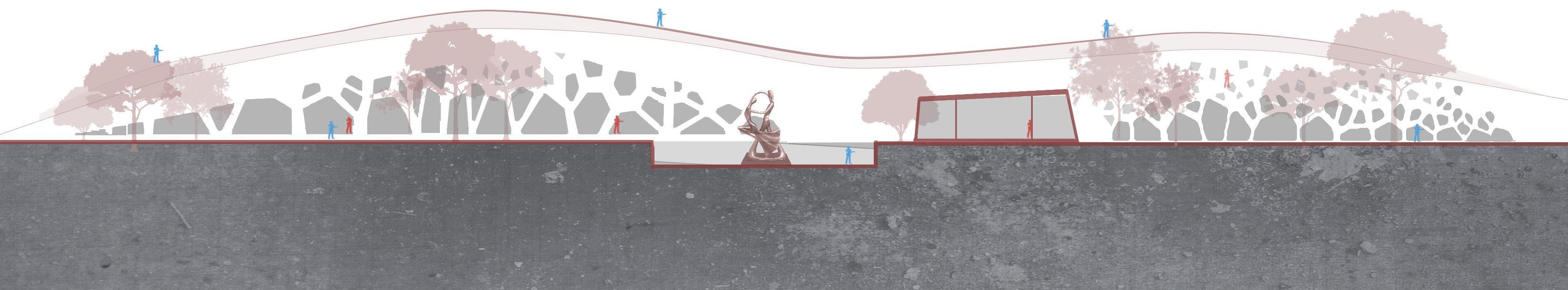

UNROLLED ELEVATION
excited surprise happy calm depressed
what areinsidethewonderland? collectionofnaturalexhibitsindifferentspaces displayoflifeofacertainplant woodenartworkandsculputure
How to explore in thewonderland museum?
What are outsidethewonderland?
outsidethemuseumarethenatural landscaperesonatewiththeexhibitioninside includingCentrallakeandinnerpondnearthemuseum as well as various naturalspecies
spacious plaza!
Just go ahead! It is by walking and moving around that we see the development of the ordinances of the architecture! amazing outdoor scenery!
lakepondandnatura
ecies
l sp

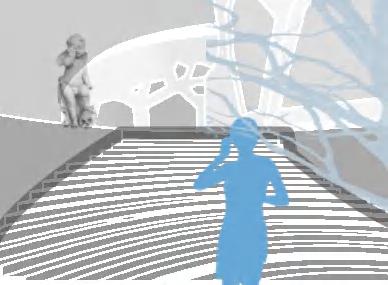

what a vivid sculpture! explore as reptiles... breath the fresh air~ marvelous pieces of art confused about the next space? throughheight space! climb the rampway

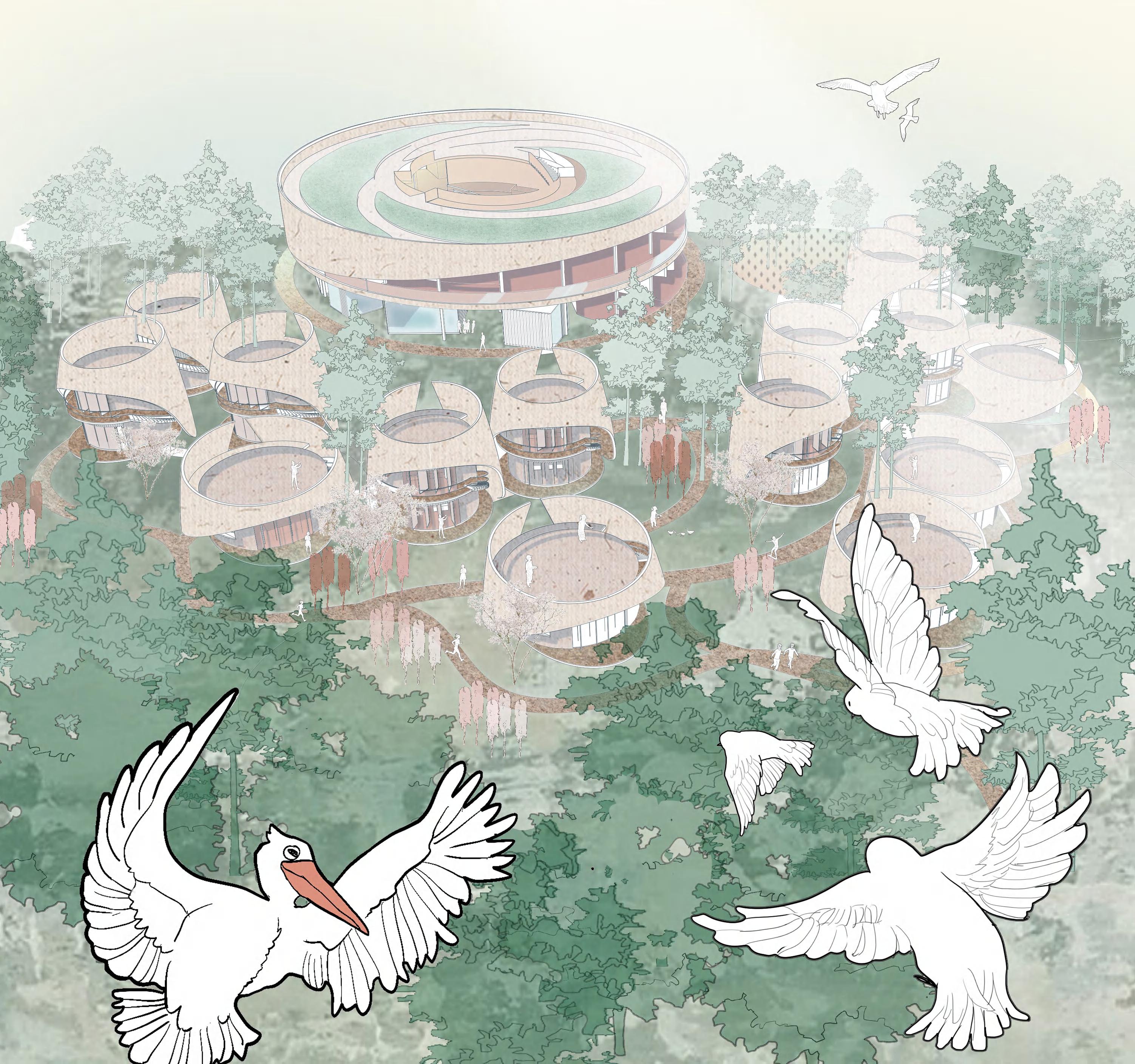

NESTING · HOMING Recreation centre
Date: Jan 2021
Location: Wuhu,China
Type: Public Building
Instructor: Lu Qi Individual work
Compared to cities, things in the countryside remains as it was peacefully created by Nature, it is seasons and hours.
--ZhouGuoping
In the surbub area, increasing number of wild animals are losing their home because of rapid ubanization, so as people migarting to urban cities. In this peaceful health valley, we sincerely hope that those who are rushing around the city can return to the nest of nature like migrating egrets, and get close to nature's physical and mental health.
03
BACKGROUND
missing original

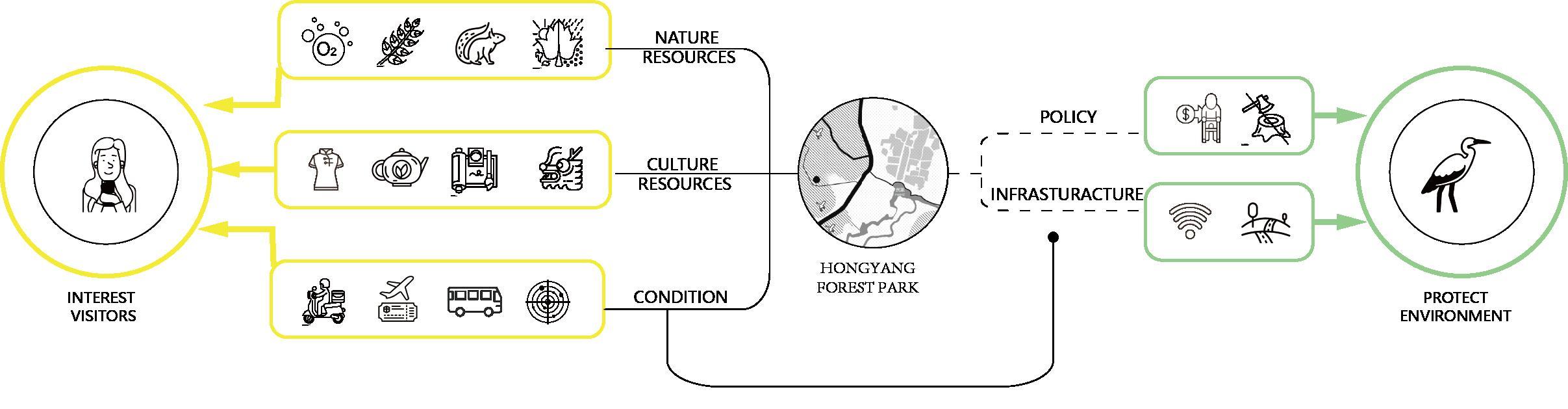

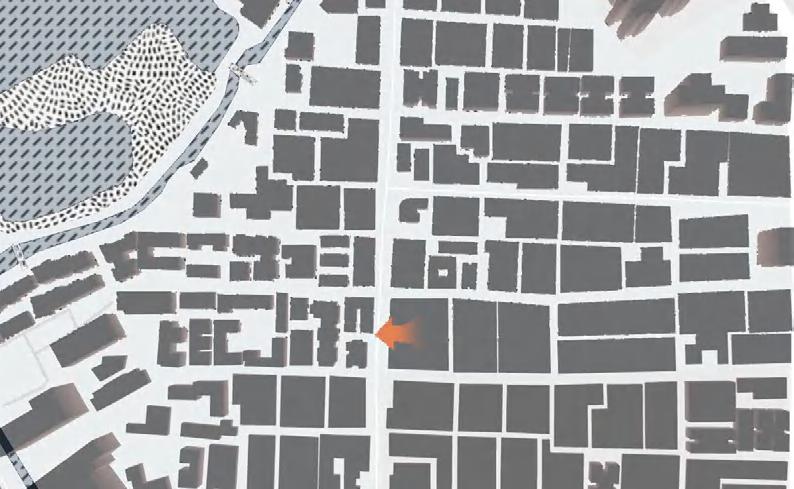

SITE ANALYSIS | environment features, culture, lifestyle
The story of people and creatures in chinese countryside We aim to create a site for recreation and rehabilitation where human and nature could live in harmony in Peace Forest Park located in hongyang town, Wuhu city, rich in forest resources and recreational resources. Site selection basis
Pollution are also threatening the health of humans and other creatures...... How to attract wild birds to perch in where humans live? Data based on previous research and personal interview to find balance *
local
their
People in modern cities are faced up with poor health due to stress and lifestyle.
URBANIZATION
Degree of preference Human--visitors (Satisfactory Degree) Local birds (Life Habits) 0.80 2.6 0.5 5m 6m Factors TYPE Suitable Choice SIZE densityofcanopy biodiversityindex eco-materialutilityrate widthofbuilding heightofshelter Numerical size
|
home BEFORE people live in harmony with nature in suburb areas AFTER Increasing number of people havemoved to urban areas ISSUE
Research: CharacteristicsofNestSitesofThreeKindsofHeronsinWuhuCity AFTER decreasing greenland means
animals are losing
home, BEFORE creatures were living peacefully in their habitat. ISSUE

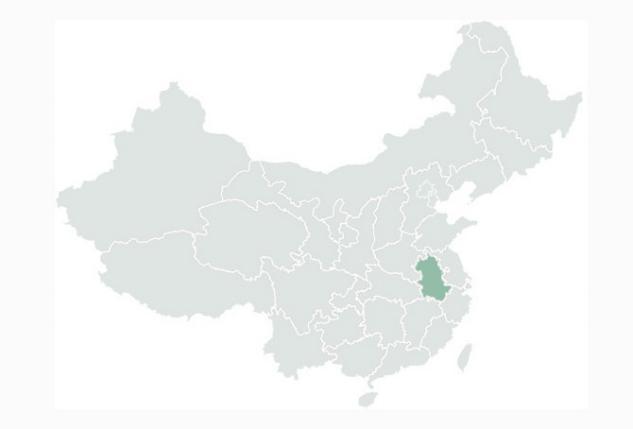

Wuhu,Auhui Province,China 113°27′E 23°13′ N PEACE FOREST PRAK High density forest westland Egrets gathering place Density of farmland (shades) N
HONGYANG Forest park Construction Site
NEST&HOME
PROJECT

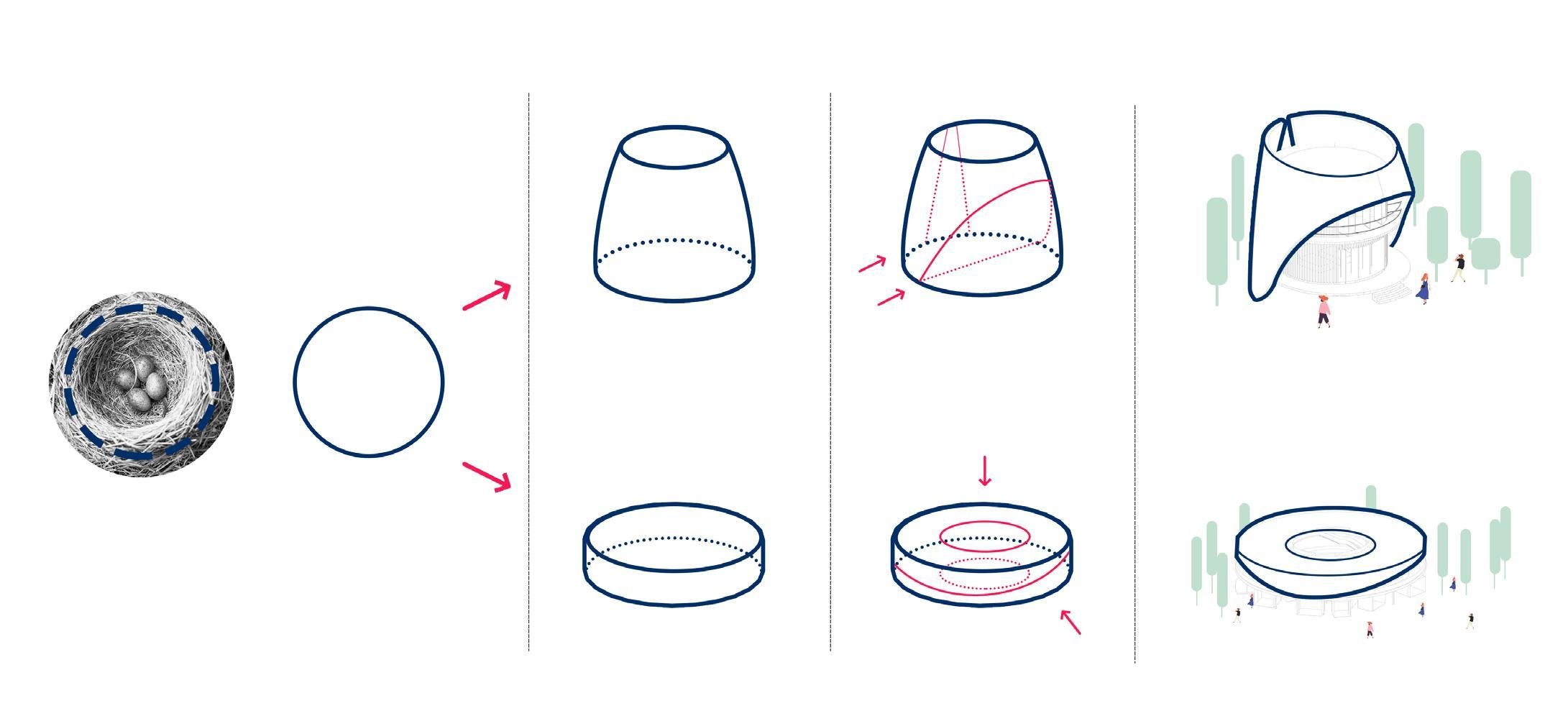

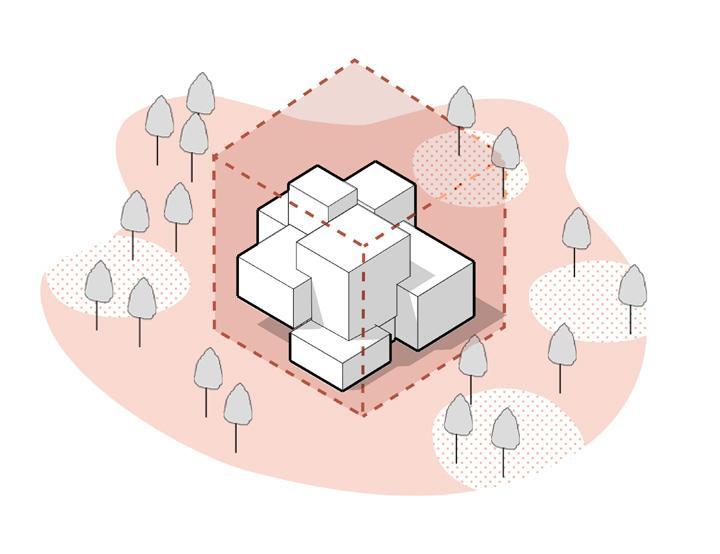

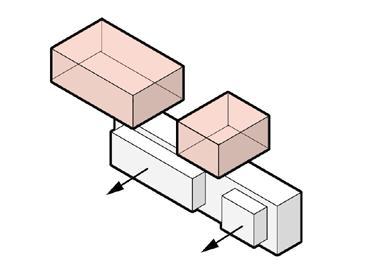

MORPHOLOGICAL DEDUCTION
Traditional layout mode Traditional space mode Immersive layout mode Harbor Heal Not only for birds Flexible space mode Multiple scope Wide-open space ·living space ·outing ·resting places ·exercising ·social sharing ·therapy ·natural sharing ... ... healthy diet Main entrance Human Disturbance decrease Recreational centre Houses Walkways Residential building 1.Parcel enclosure 2.Introducing nature 3.Function placement Health building Secondary entrance
| nostalgic healthy and harmonious harbour

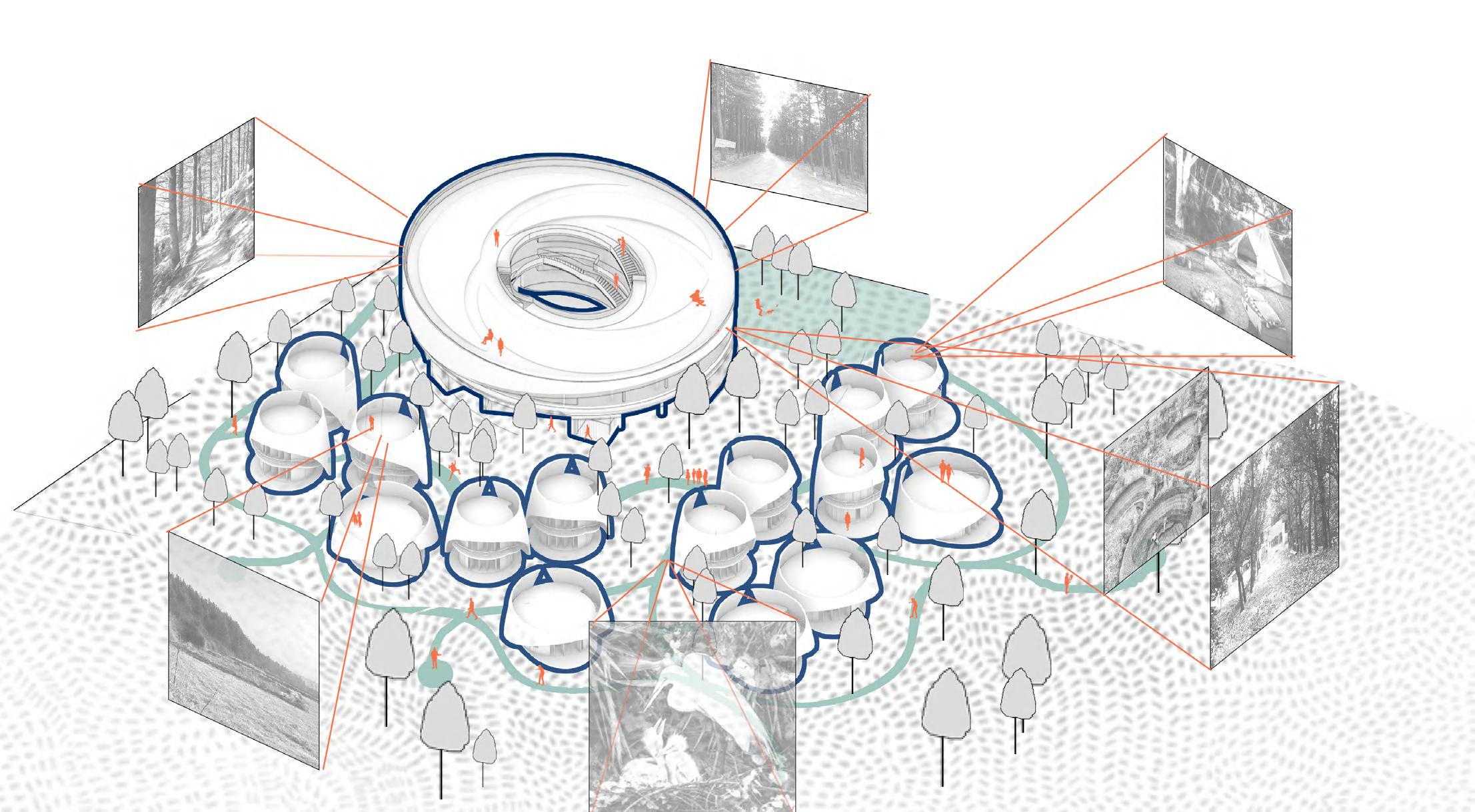

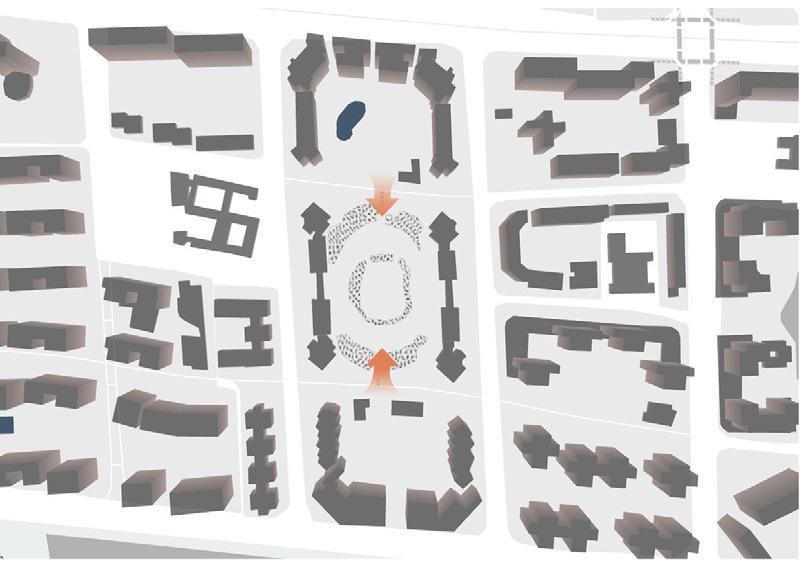

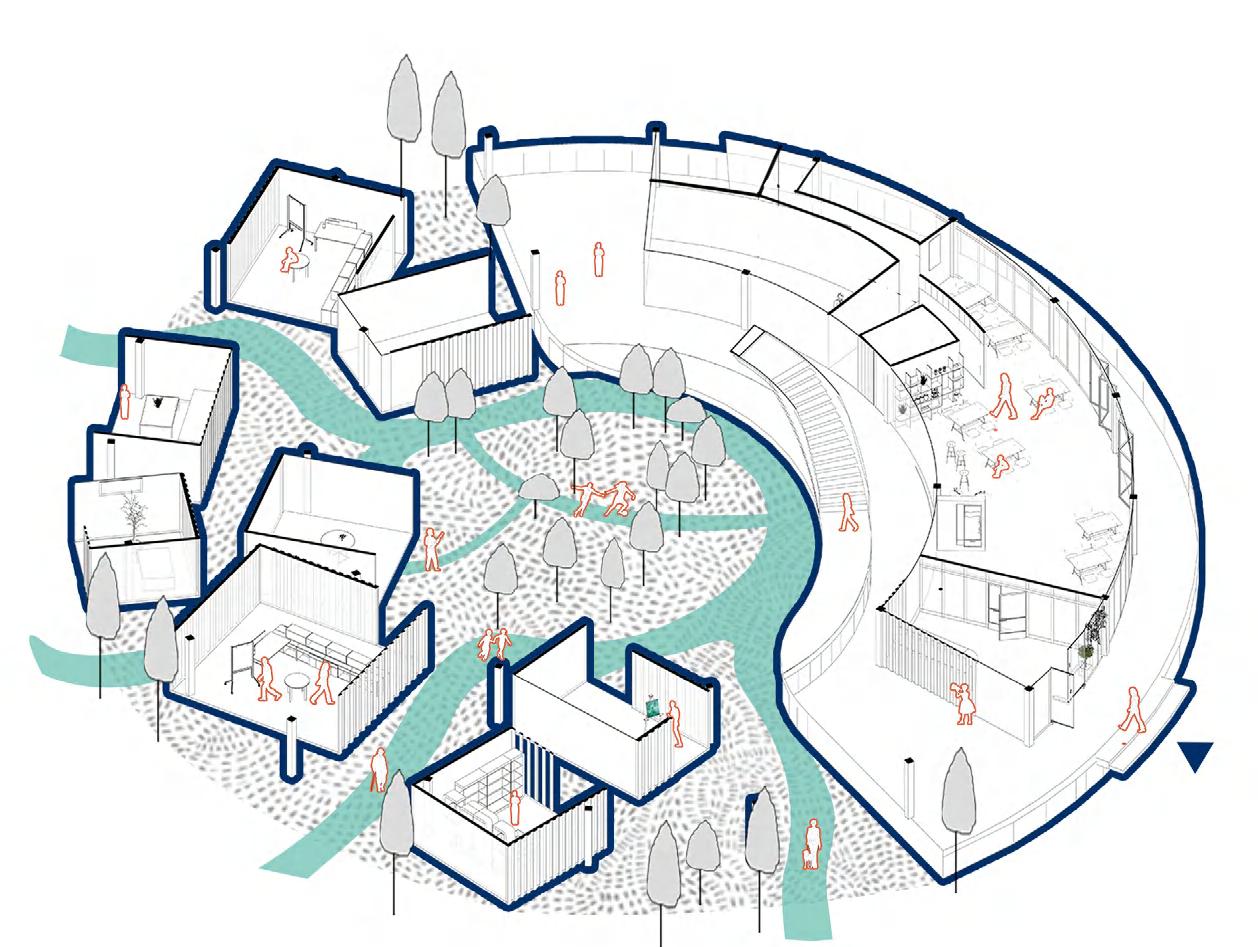

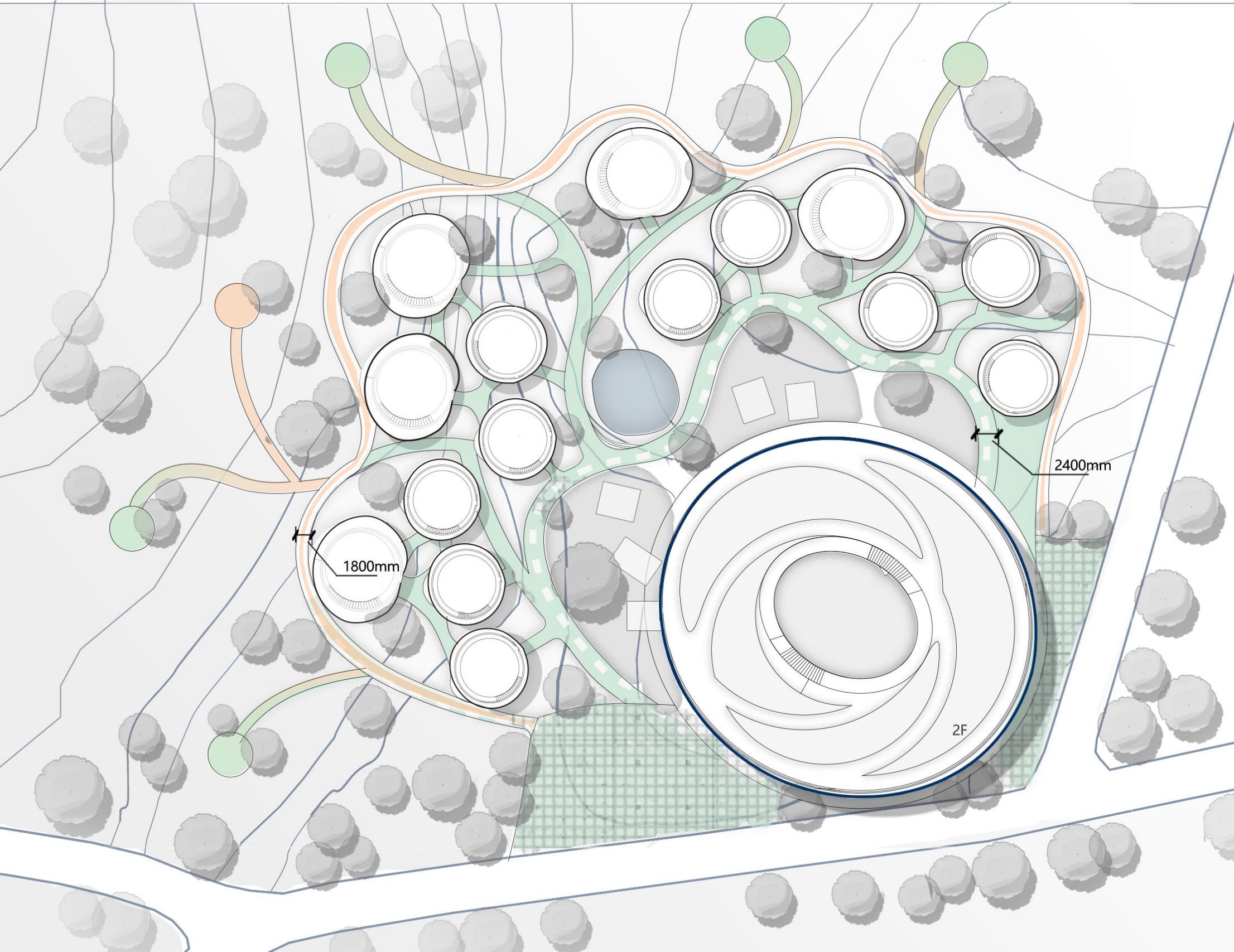

PLAN | recreational architecture, landscape and walkways
| viewing nature in different places Forest
Lawn Nature habitat Human habitat Egrets' home Faraway hills woods
FEATURES 1. Nests built by birds refer to their habitats to live and reproduce. 2. The concept of a metaphor now (the tired bird returns to the nest) Homing: Here, people who are busy in the city, such as herons, return to the nest of nature and get physical and mental healing.
THEME
SITE
SIGHT ANALYSIS
road
CONSTRUCTION DETAIL | accomodation houses
RECREATION CENTRE | flexible space for relaxation
?
Steel hangers
Gypsum board Water barrier
Sound Insulation Thermal insulation Leveling layer Concrete floor Gypsum board
Fiber cement board Thermal insulation Reinfored concrete beam Plaster Wooden hand rails
Weather resistant wood Pedestal Sloped concrete Downpipe
Glazing system: Low-E tripple glazing rubber gasket Waterproofing
Gypsum board Sound Insulation Thermal insulation Concrete floor

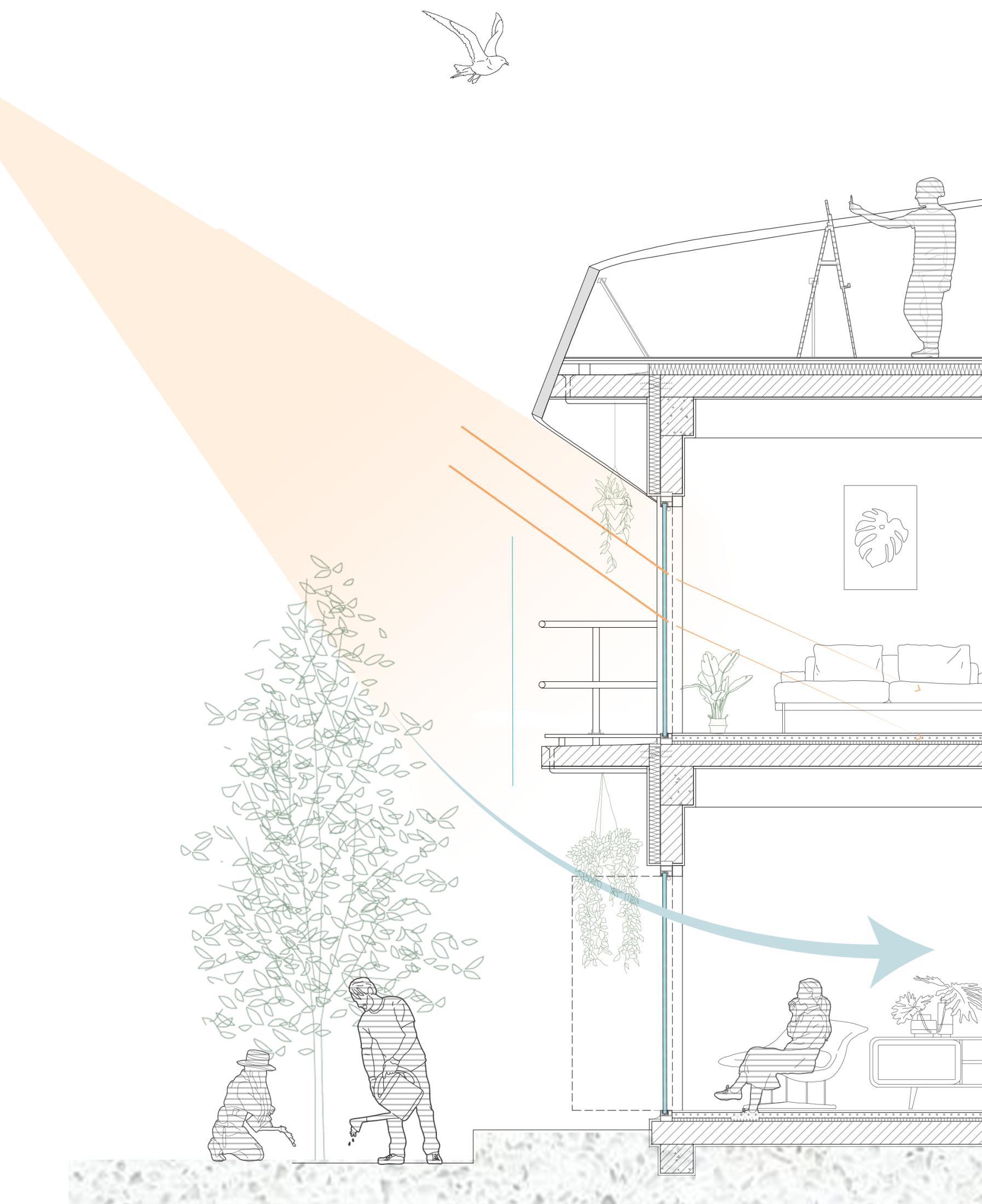

SITE SECTION | transparent view and various experience
Here I can peacefully observe the wild birds in the forest!
Breathe the fresh air, rest in my home. So comfortable!
more... tearoom restingroom shops handworkstudio
playingspace
cultureworkshop artstudio Mahjongroom
First Floor
stretching size
double size stretching size
familysparoom spasingleroom indoorhotspring private hotspring roomyoga
roomboard
Second Floor
Here can relax myself with preferred experience. Here can view the whole forest on the roof garden.
SITE SECTION
04
STROAGE BOXES
office public space
Date: Aug 2021
Type: Public building
Instructor: Axel He Individual work
Architecture is an open book; from the inside, you can see ambitions of a city..
--Eero Saarinen

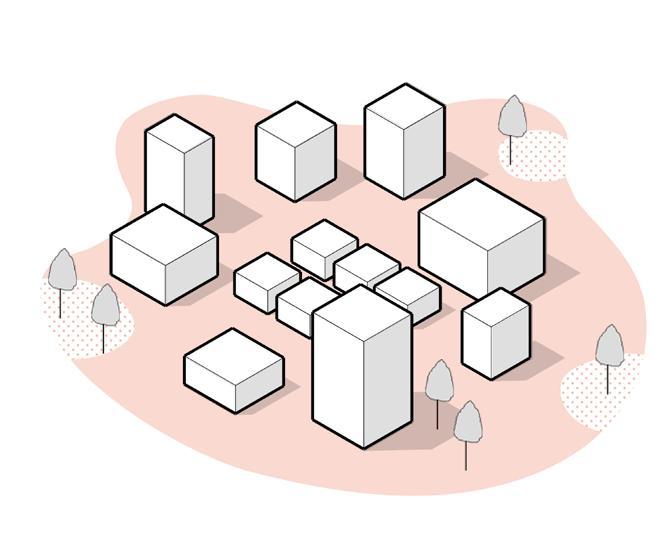

People's growing demand for public space is in conflict with land resources especially in cities. In order to build resistant architecture. Features of storage furniture is applied in the fantastic ideas This proposal is focused on function and utility over form, The triangle structure is not just for appearance but for space utility and stability. A reasonable design for nodes is introduced to realize the moving space in reality. The design makes it possible for us to imagine a uncommon landing construction and be close to a sustainable world.
VACANCY
VACANCY

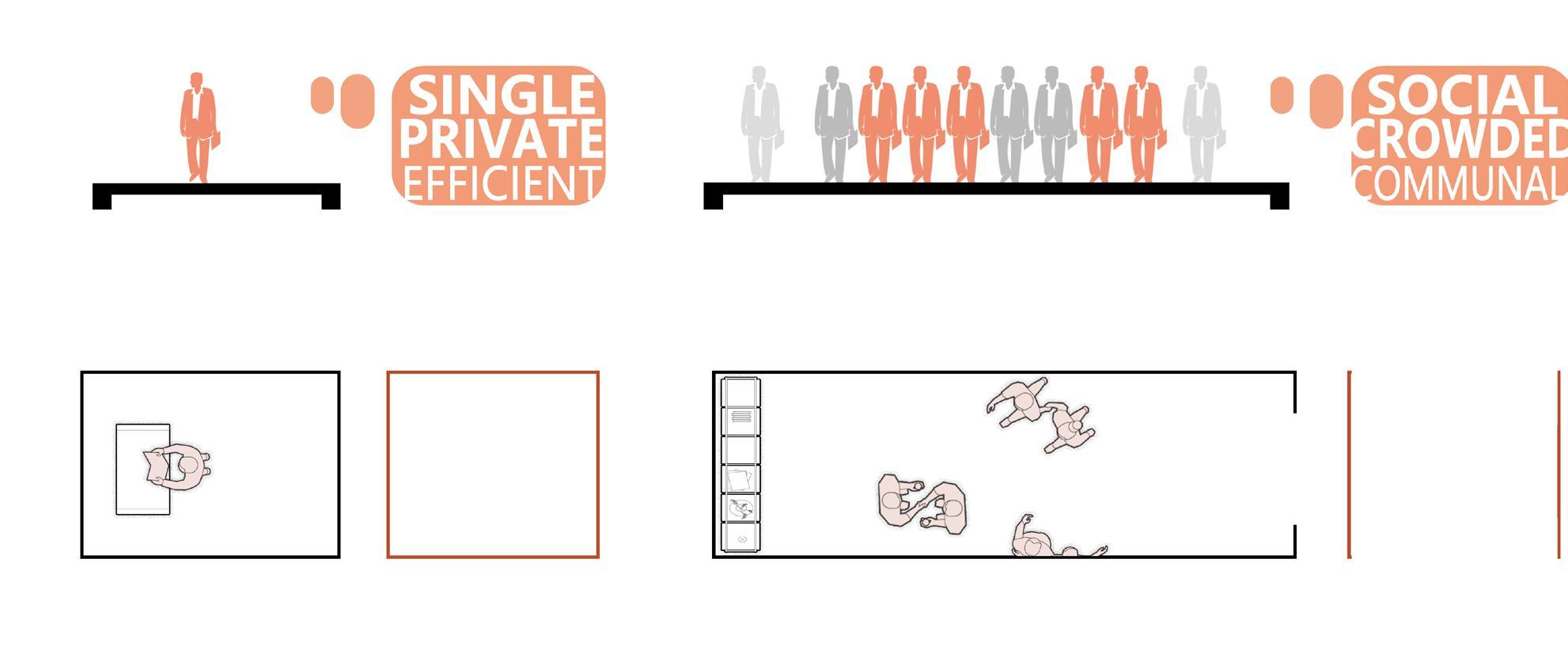

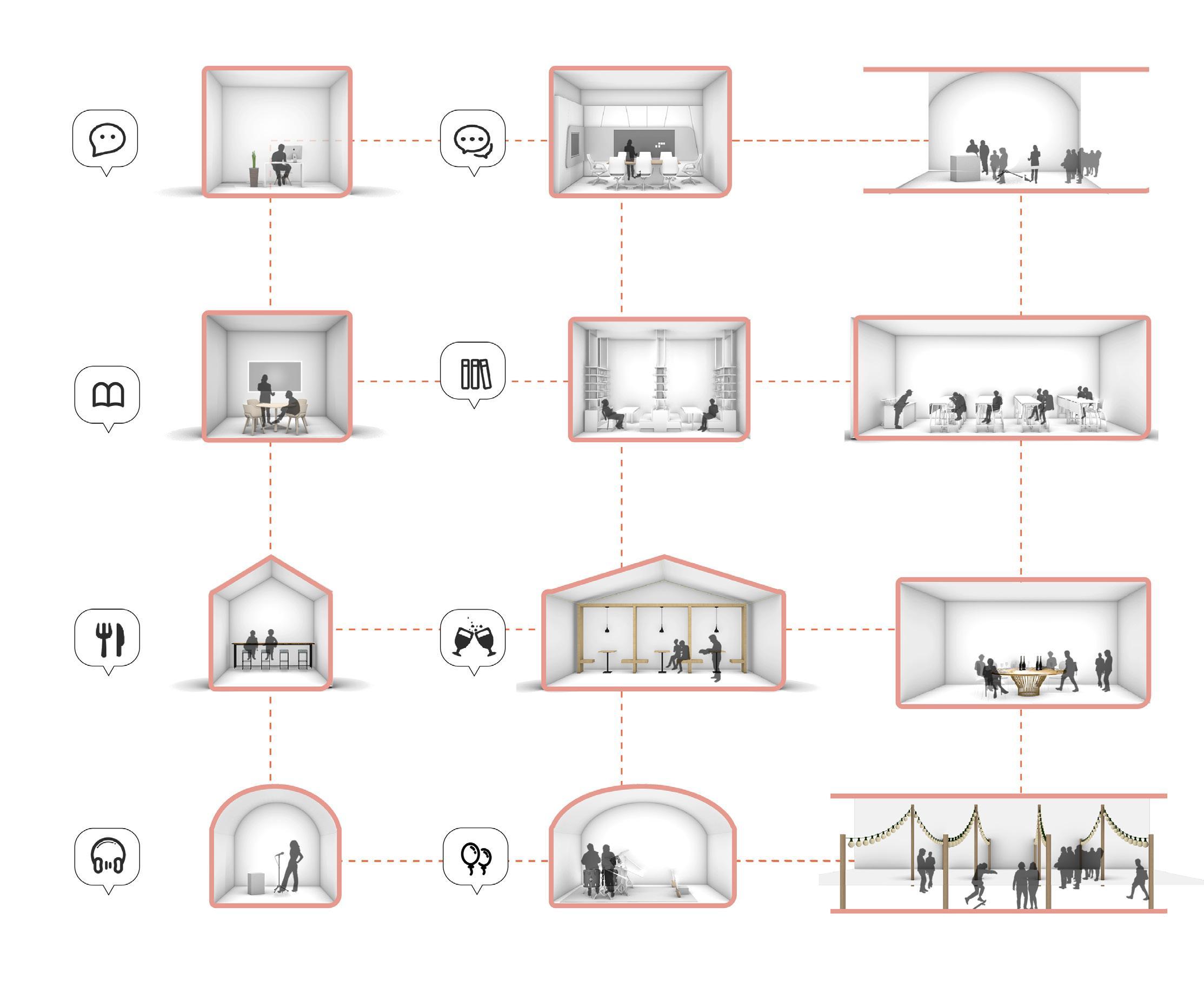

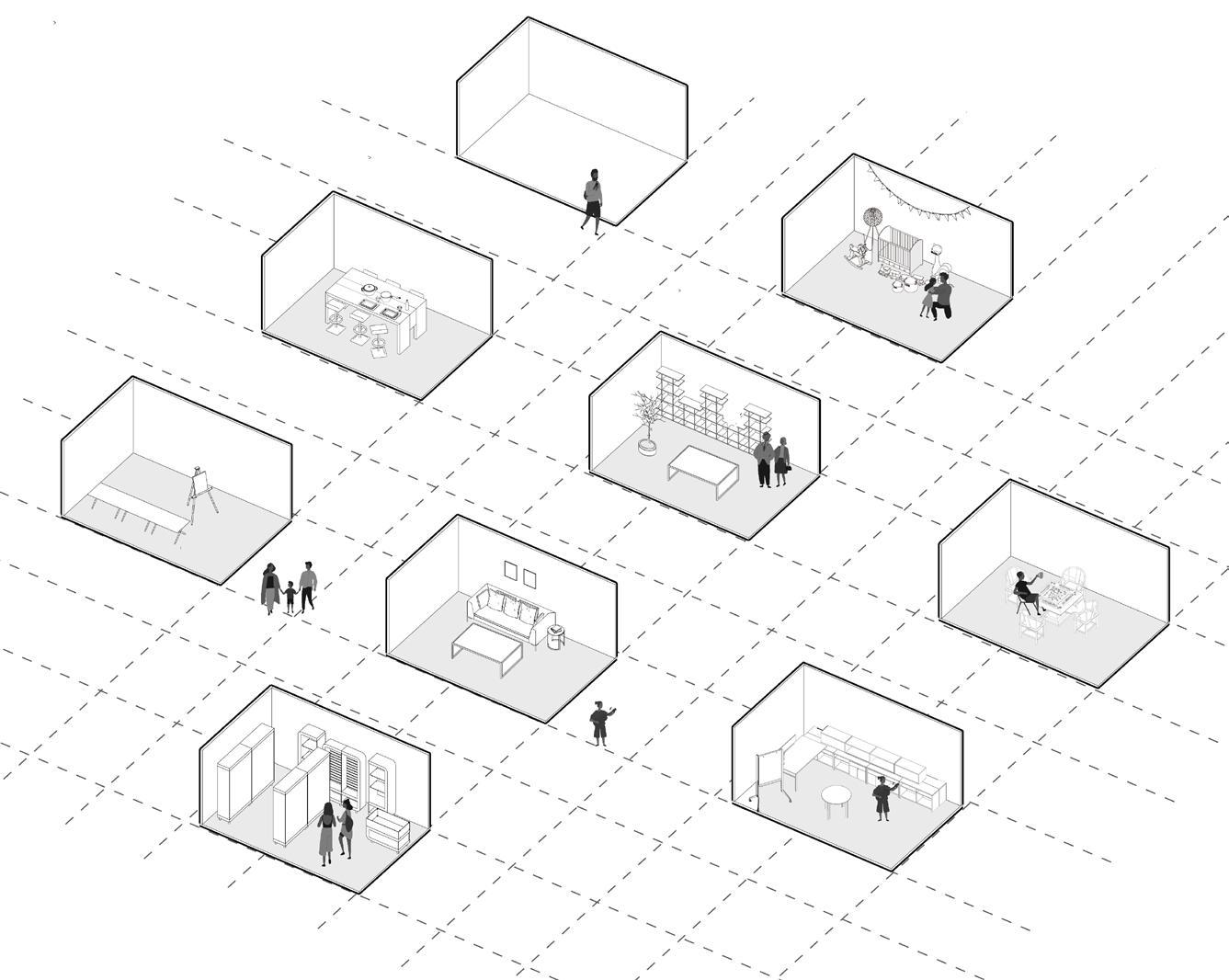

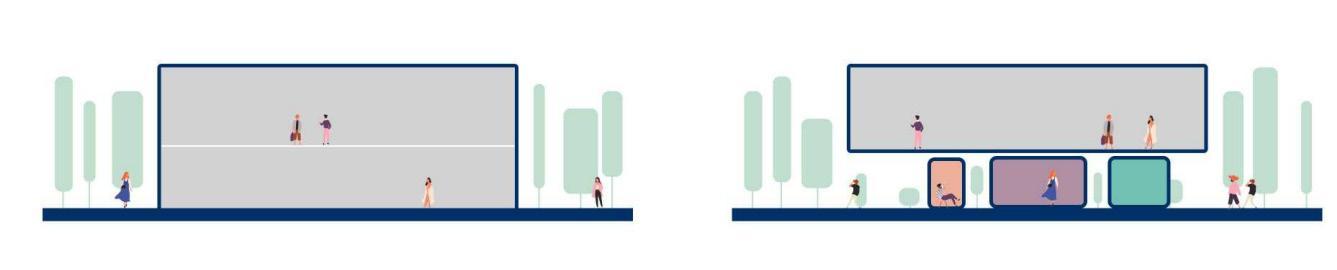

Traditional space types for daily needs For 1 people Length - Frequency (daily period) Shade - Frequency (long period)
How could we make most use of VACANCY space to create a diverse public space?
VACANCY

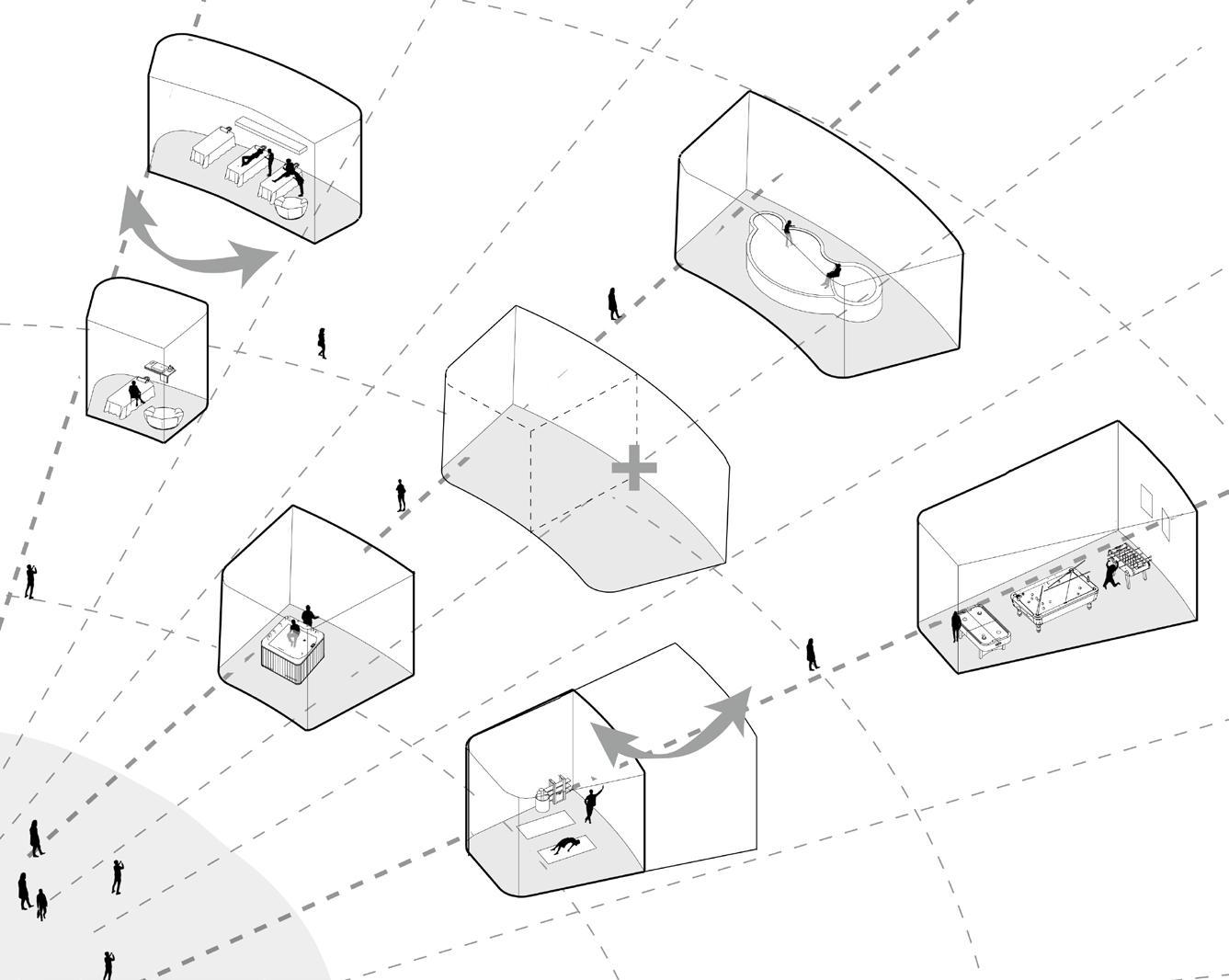

For 2-5 people For 10+ people BACKGROUND | growing demand for in certain spaces SURVEY ANALYSIS | Usage frequency for different space Commuting In Cities CONCEPTION | storage box for flexible space Reflections on current issues living private/fixed public/flexible study dining shopping sports celebration TIME/TYPE working study dining relaxation Private space Public space privacy indicates fixed and limits regular diverse needs SPACE MORE FOCUS SPACE MORE CHANGES socialization indicates flexible space and more possibilities scattered space centralized space pack up storage furniture - space fixed flexible ? CITY

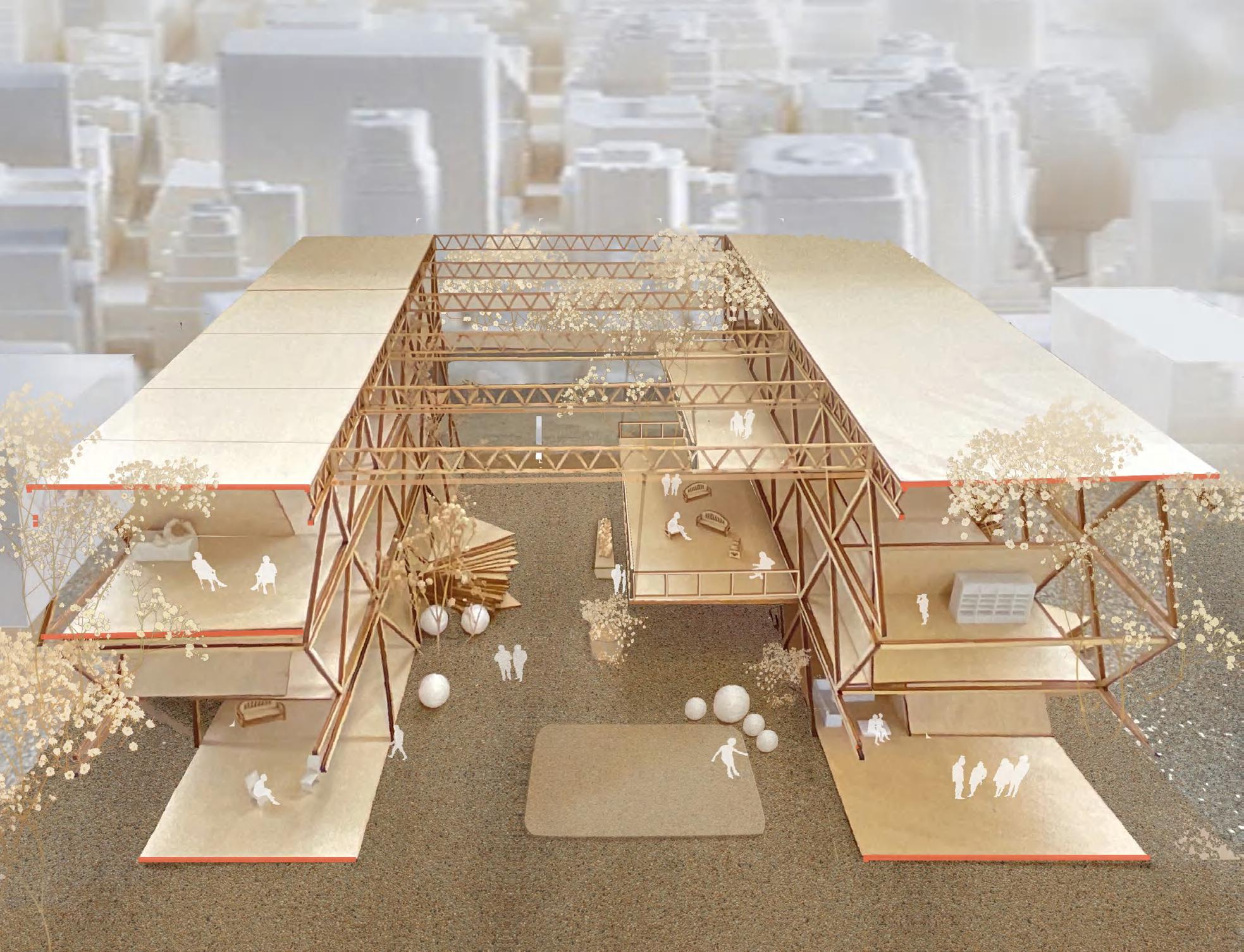

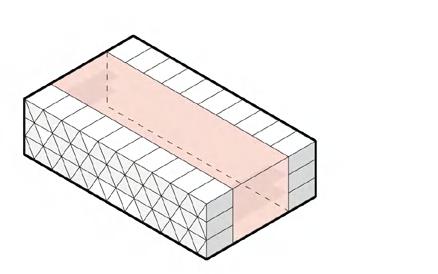

INTENSIVE OFFICE SPACE | One potential scenario
In this proposal, we exhibited one possibility for flexible intensive building: intensive office block, which features intensive triangle room and large atrium with various changes. This could also be induced for other funtions

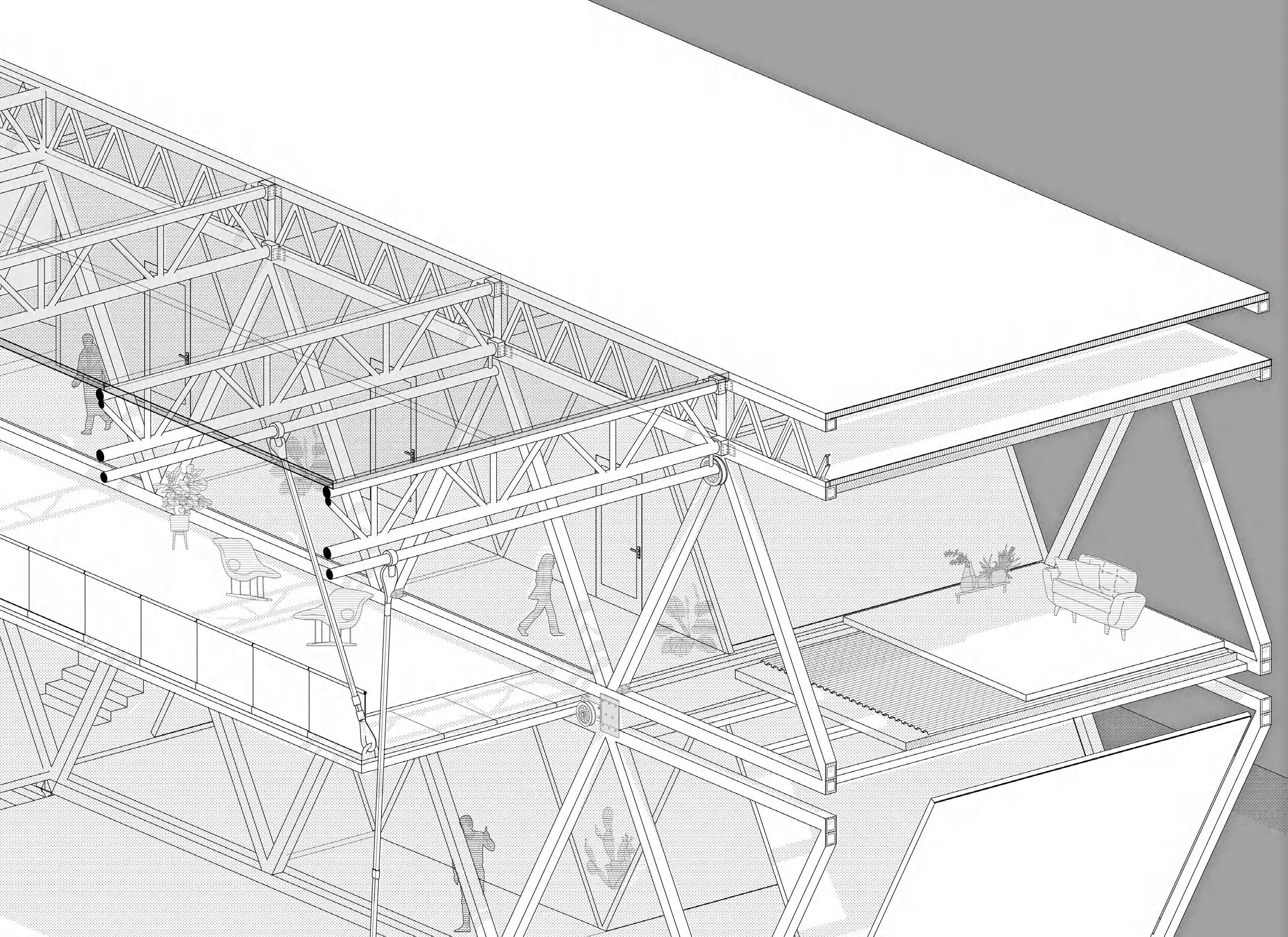

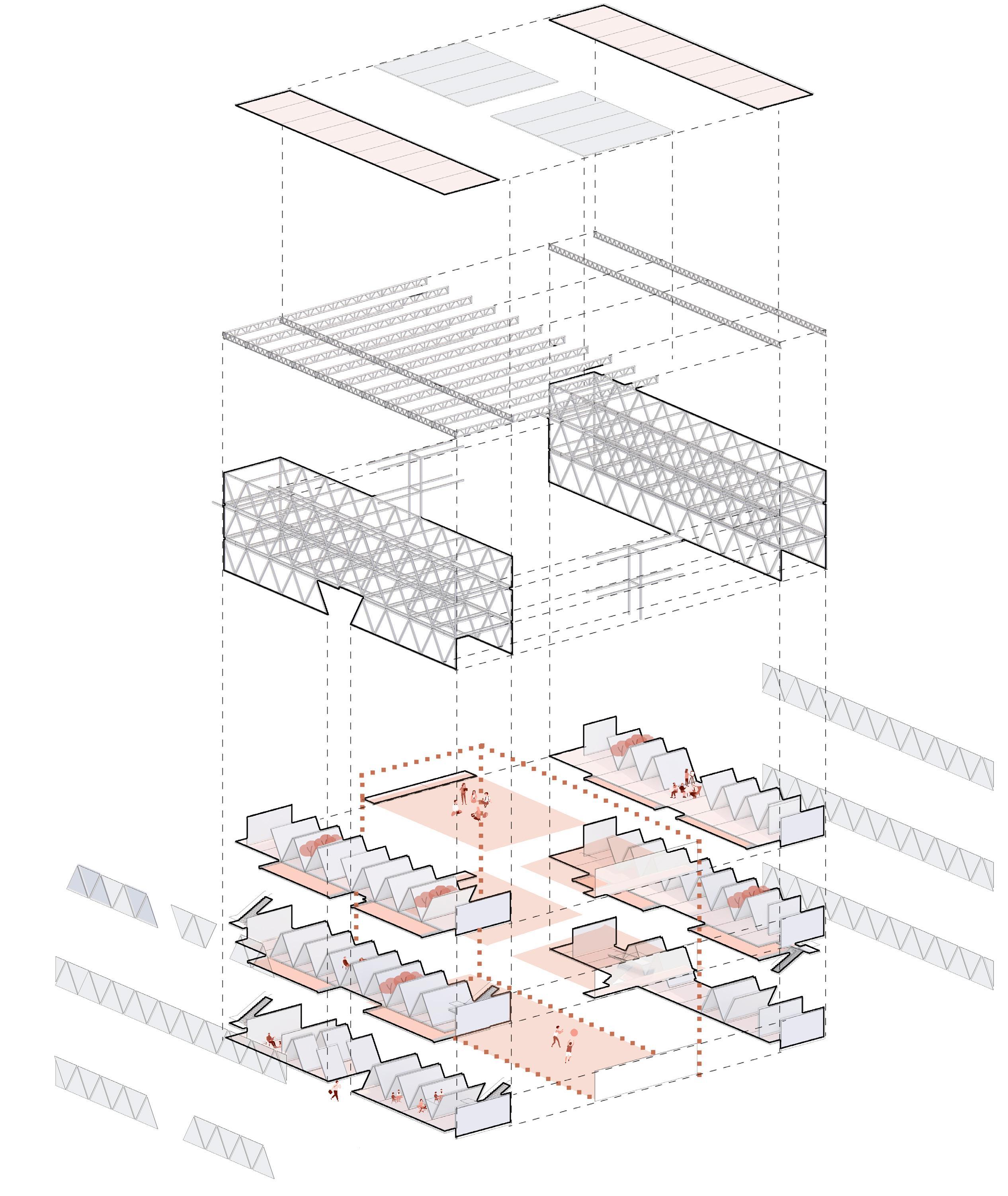

STRUCTURE ANALYSIS | high efficiency for construction and use of space
Insulating glass
Open viewing
office office office
Leisure area
Prefabricated roof floor slab
Steel Structure (uppe layer)
Leisure area
Afternoon tea area meeting room
Steel Structure TRIANGLE to enhance stability
Prefabricated wall slab
Low-E Insulating glass
indoor plants
Prefabricated floor slab
moveable floor slab
Flexible atrium space (could be diveded into smaller spaces)
Fixed main structure
Fixed office room
Fixed staircase
MODE 1.2.3.4...

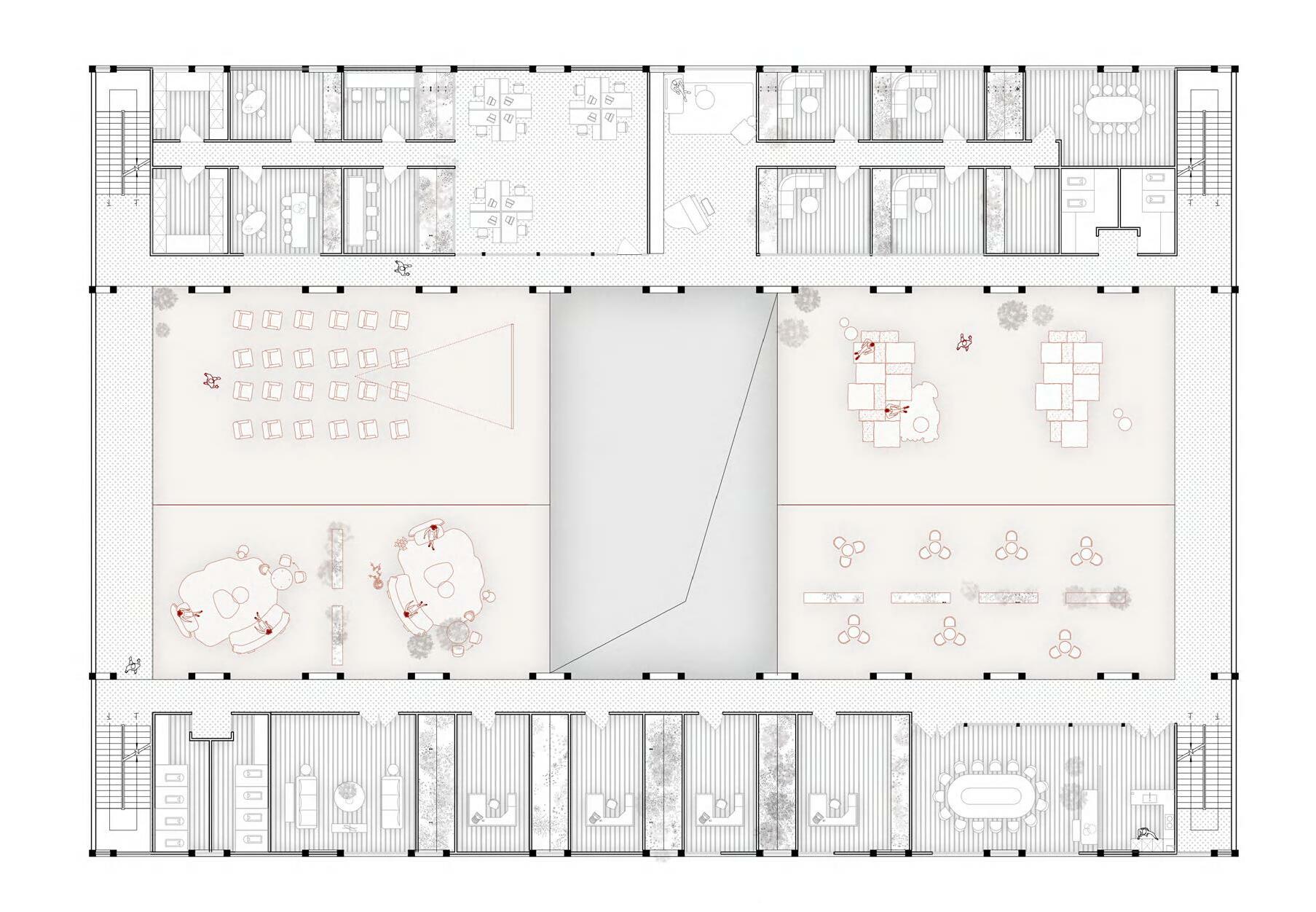

Moveable Floor PLAN MODEL SECTION

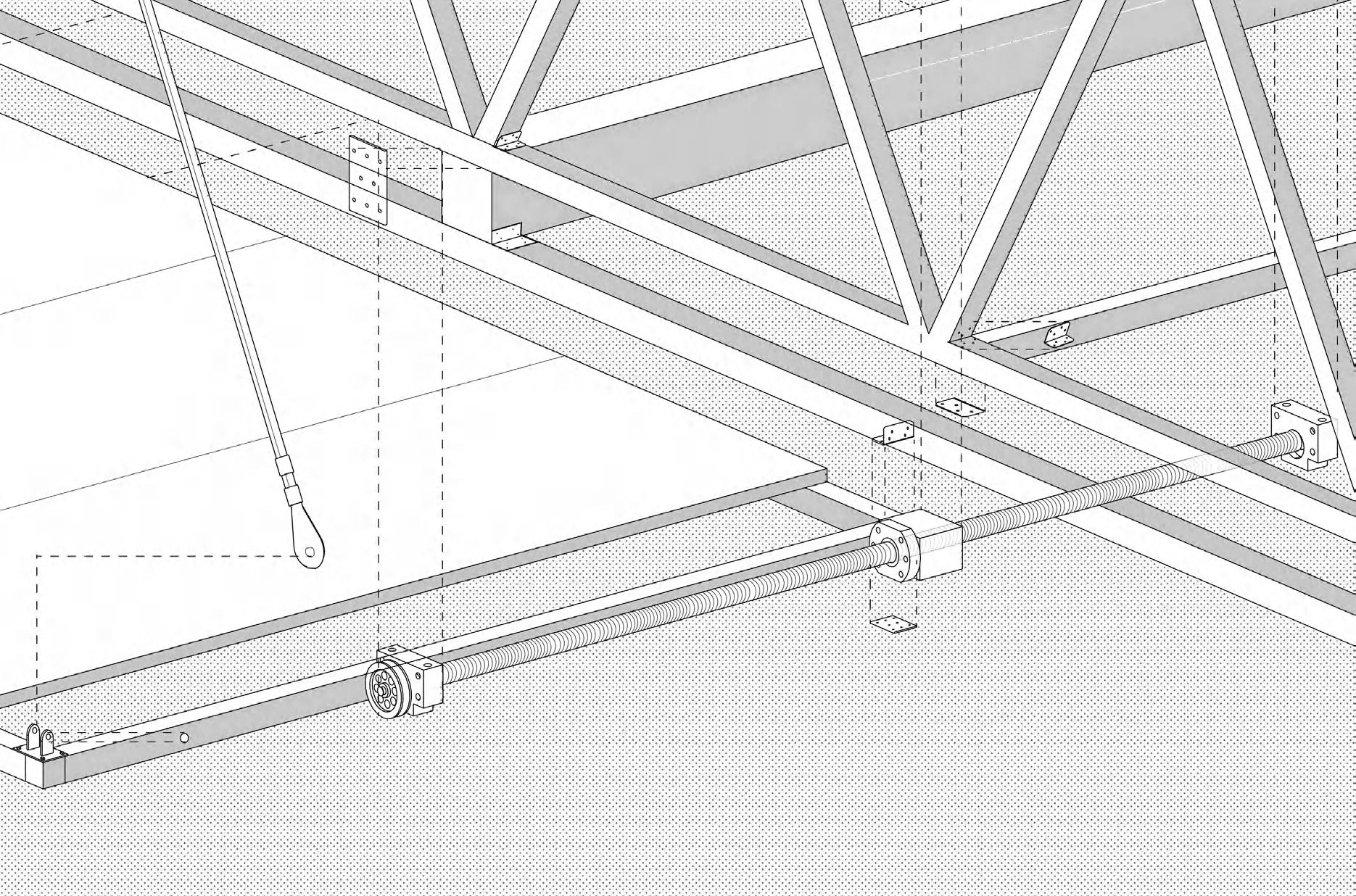

DETAILED NODE DESIGN | how to make the space moveable

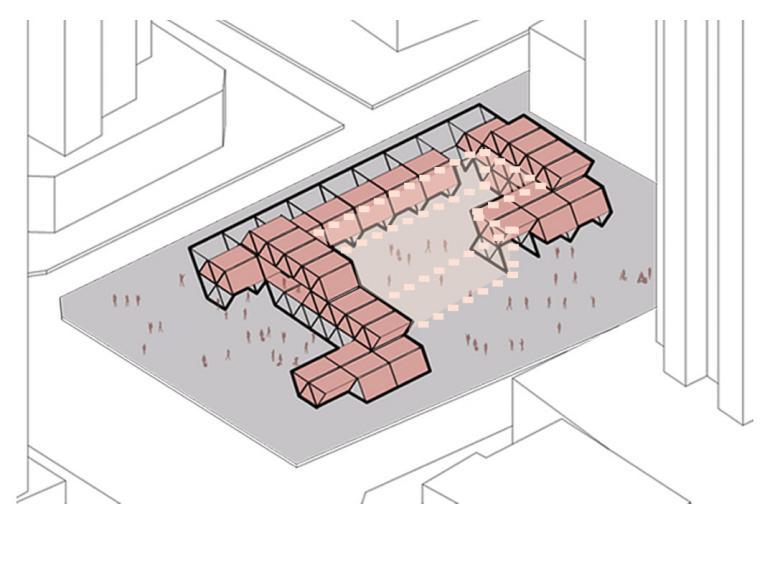

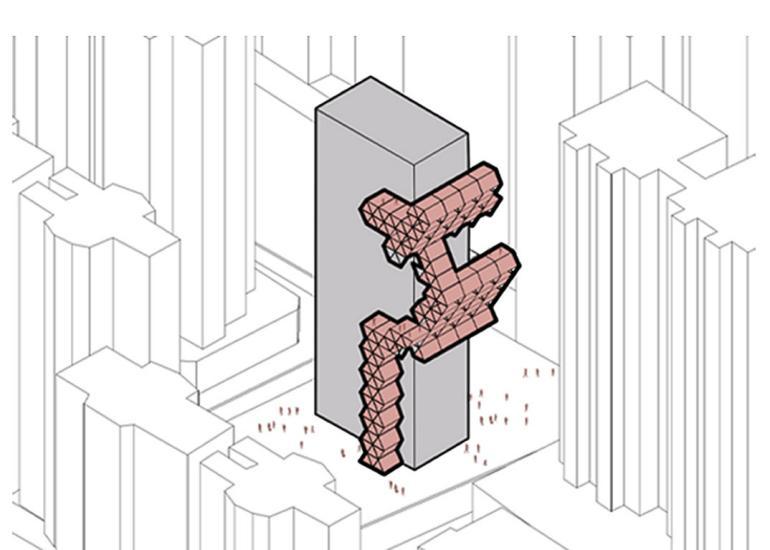

DEDUCTION | Applied for extended uses

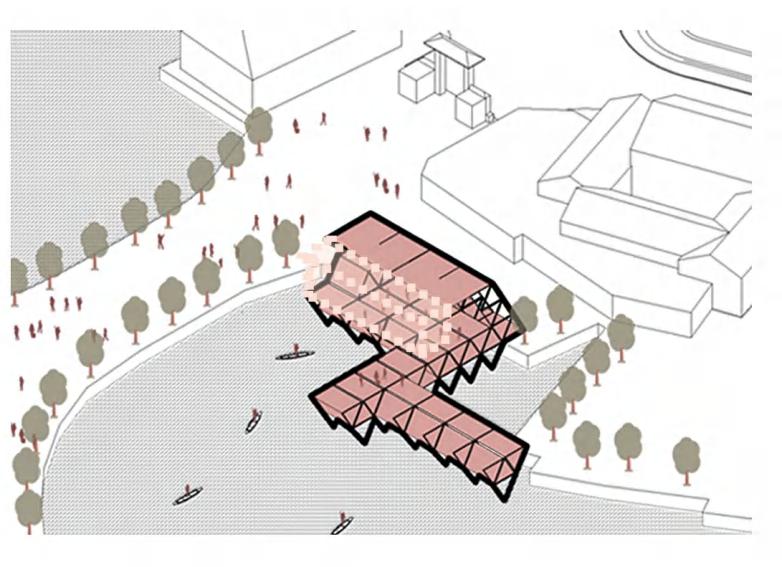

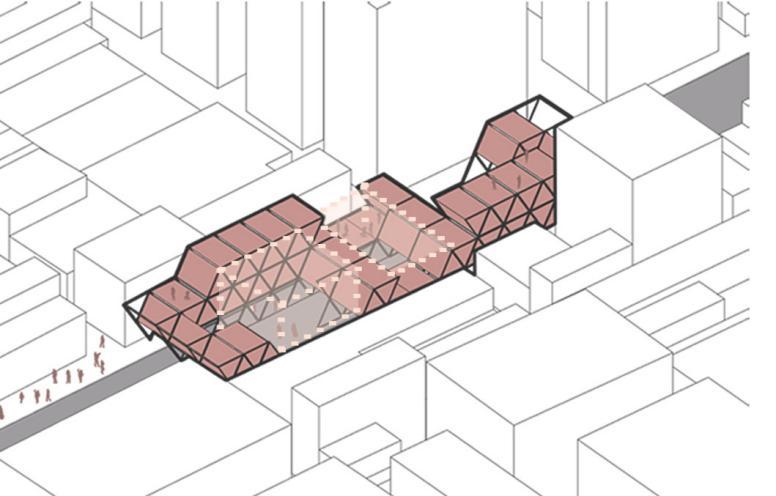

where could we put this storage building?
In a crowded city this building could be constructed and applied widely in order to save the land, time. Flexible storage building would enjoy a perspect to constructed across a region for different use, making it possible for a sustainable society with less pollution and flexible land use.
wire cable for bearing
rotating ball nut ball screw
threaded sleeve
supporting seat control knob (electric machine)
ball bearing
OPERATING PRINCIPLE

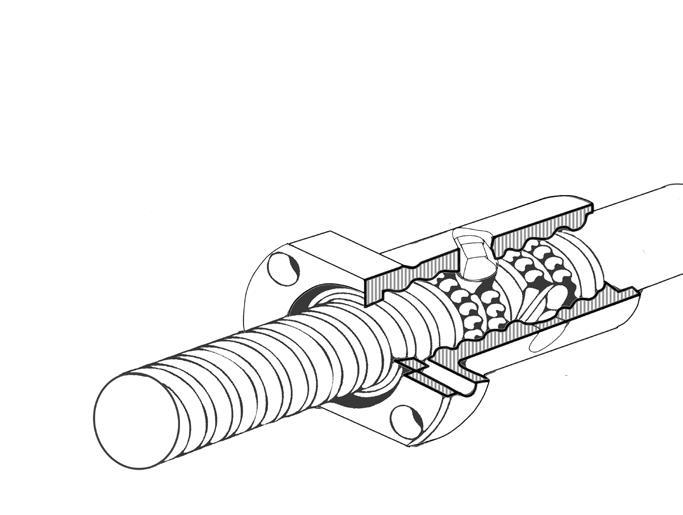

The node was adapted from thomson ball screw, which are used in industry applications that need a lot of load or life.
The ball rolls in the spiral raceway, converting rotary motion to linear motion with little friction resistance.
Then the floor could be moved from the gap.
City square Lakeside area Narrow street High-rise building
