DETAILING WORKING AND DRAWINGS | IDS 60804 | SEM4 | CHONG CHIAO YEN | 0348073

TAYLOR'S UNIVERSITY Wisdom

Integrity

Excellence

DETAILING AND WORKING DRAWINGS IDS 6 0 8 0 4

NAME:

CHONG CHIAO YEN

ID NO.:

0348073

TUTOR: SEMESTER: PROGRAMME:

MS.FATIMAH & MS. SIN AI AUGUST 2022 - DECEMBER 2022 BACHELOR OF ARTS (HONS) IN INTERIOR ARCHITECTURE

DRAWING CONVENTION: WORK SPACE (INDIVIDUAL ASSIGNEMNT)

Students are required to choose a 'work space' within their compound ie. home or study room 2D Drawings and Detailed Specifications are required to be shown using Autocad Drawings

0 1 A S S I G N E M N T

ASSIGNMENT 1 :

CHONGCHI AOYE N 0348073 MS .

T ANS I NAI AUGUS T2022

CEILING LEVEL

115MM(THK) BRICK WALL

115MM(THK) BRICK WALL

1092MM(L) X 27MM(H) STAINLESS STEEL WARDROBE RAIL TUBE COATED WITH BEAD-BLAST SURFACE FINISH

STUDY TABLE 1989MM(L) X 610MM(W) X 750MM(H) ASH WOOD COATED WITH LIGHT WOOD VARNISH FINISH

2488MM(L) X 610MM(W) X 2730MM(H) MDF BOARD COATED WITH ASH BLUE MATTE LAMINATE FINISH

PLYWOOD SPRAY WITH 1.5MM(THK) WHITE PAINT ACRYLIC LAMINATE FLOOR LEVEL

BF1 PLAN OF FULL HEIGHT CABINET PL SCALE 1:25

BF1 FRONT ELEVATION OF FULL HEIGHT CABINET EL SCALE 1:25

DRAWING TITLE:

NOTE:

CLIENT:

THIS DRAWING IS COPYRIGHT DRAWING. THE AUTHORIZED USER IS TO CHECK ALL DIMENSIONS ON THE SITE. ONLY FIGURED DIMENSION TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED IMMEDIATELY TO PARTNERSHIP BEFORE PROCESSING. © COPYRIGHT NO. 0

DESCRIPTION

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

PROJECT NAME: AS-BUILT INTERIOR WORK OF A STUDY AREA

STUDY AREA BUILT-IN FURNITURE PLAN ELEVATIOM SCALE: 1:25 CHECKED BY:

MS. TAN SIN AI

DATE: 6 SEPTEMBER 2022 DRAWN BY:

CHONG CHIAO YEN

DATE DRAWING NO.

WFH_DWD_YY_BL_PL_01

REV NO. 01

CEILING LEVEL CEILING LEVEL 71MM(L) STAINLESS STEEL WARDROBE RAIL TUBE SPRAY WITH BEAD-BLAST SURFACE FINISH

60MM(L) X 57MM(H) STAINLESS STEEL CONCEALED HINGES 1092MM(L) X 27MM(H) STAINLESS STEEL WARDROBE RAIL TUBE SPRAY WITH BEAD-BLAST SURFACE FINISH

21MM(L) X 196MM(H) METAL HANDLE WITH SILVER SPRAY PAINT

2488MM(L) X 610MM(W) X 2730MM(H) MDF BOARD SPRAY WITH ASH BLUE MATTE LAMINATE FINISH

77MM(L) X 20MM(H) WOOD PLANK 266MM(L) X 22(H) DRAWER ROLLER STEEL BAR

PLYWOOD SPRAY WITH 1.5MM(THK) WHITE PAINT ACRYLIC LAMINATE FLOOR LEVEL

PLYWOOD SPRAY WITH 1.5MM(THK) WHITE PAINT ACRYLIC LAMINATE

FLOOR LEVEL

SC SECTION OF FULL HEIGHT CABINET SCALE 1:25 A

SC SECTION OF FULL HEIGHT CABINET SCALE 1:25 A

DRAWING TITLE:

NOTE:

CLIENT:

THIS DRAWING IS COPYRIGHT DRAWING. THE AUTHORIZED USER IS TO CHECK ALL DIMENSIONS ON THE SITE. ONLY FIGURED DIMENSION TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED IMMEDIATELY TO PARTNERSHIP BEFORE PROCESSING. © COPYRIGHT NO. 0

DESCRIPTION

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

PROJECT NAME: AS-BUILT INTERIOR WORK OF A STUDY AREA

STUDY AREA BUILT-IN FURNITURE SECTION SCALE: 1:25 CHECKED BY:

MS. TAN SIN AI

DATE: 6 SEPTEMBER 2022 DRAWN BY:

CHONG CHIAO YEN

DATE DRAWING NO.

WFH_DWD_YY_BF_SC_03

REV NO. 01

GLAZING BEND

SASH

12MM(THK) INSULATING TEMPERED GLASS PANEL

ALUMINIUM FRAME HEAD PLASTIC COATED METAL HANDLE

W1 PLAN OF CASEMENT WINDOW PL SCALE 1:25

DRAWING TITLE:

NOTE:

CLIENT:

THIS DRAWING IS COPYRIGHT DRAWING. THE AUTHORIZED USER IS TO CHECK ALL DIMENSIONS ON THE SITE. ONLY FIGURED DIMENSION TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED IMMEDIATELY TO PARTNERSHIP BEFORE PROCESSING. © COPYRIGHT NO. 0

DESCRIPTION

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

PROJECT NAME: AS-BUILT INTERIOR WORK OF A STUDY AREA

STUDY AREA FURNITURE LAYOUT PLAN SCALE: 1:25 CHECKED BY:

MS. TAN SIN AI

DATE: 6 SEPTEMBER 2022 DRAWN BY:

CHONG CHIAO YEN

DATE DRAWING NO.

WFH_DWD_HY_DD_FLP_02

REV NO. 01

12MM(THK) INSULATING TEMPERED GLASS PANEL

TEMPERED GLASS

SASH

ALUMINIUM FRAME HEAD SASH PLASTIC COATED METAL HANDLE

ALUMINIUM WINDOW FRAME

DT 1

DETAIL 1 SCALE 1

DT 2

DETAIL 2 SCALE 1

DRAWING TITLE:

NOTE:

CLIENT:

THIS DRAWING IS COPYRIGHT DRAWING. THE AUTHORIZED USER IS TO CHECK ALL DIMENSIONS ON THE SITE. ONLY FIGURED DIMENSION TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED IMMEDIATELY TO PARTNERSHIP BEFORE PROCESSING. © COPYRIGHT NO. 0

DESCRIPTION

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

PROJECT NAME: AS-BUILT INTERIOR WORK OF A STUDY AREA

STUDY AREA OPENING DETAIL 1 DETAIL2 SCALE: 1:25 CHECKED BY:

MS. TAN SIN AI

DATE: 6 SEPTEMBER 2022 DRAWN BY:

CHONG CHIAO YEN

DATE DRAWING NO.

WFH_DWD_HY_DD_DT_02

REV NO. 01

FFL

W1

DOOR NO. DESCRIPTION

IRONMONGERY

TYPE

SINGLE VANT ALUMINIUM CASEMENT WINDOW

FRAME

14MM ALUMINIUM RECTANGULAR FRAME

LEAF

14MM(THK) ALUMINIUM FRAME C/W 12MM THK TEMPERED GLASS

HINGES

W1

LOCK / BOLTS

FOLDING LOCK

STOP / PULLS

PLASTIC COATED METAL HANDLE

LOCATION

MASTER BEDROOM DRAWING TITLE:

NOTE:

CLIENT:

THIS DRAWING IS COPYRIGHT DRAWING. THE AUTHORIZED USER IS TO CHECK ALL DIMENSIONS ON THE SITE. ONLY FIGURED DIMENSION TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED IMMEDIATELY TO PARTNERSHIP BEFORE PROCESSING. © COPYRIGHT NO. 0

DESCRIPTION

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

PROJECT NAME: AS-BUILT INTERIOR WORK OF MASTER BEDROOM

MASTER BEDROOM WINDOW SCHEDULE SCALE: 1:2

DATE: 6 SEPTEMBER 2022

CHECKED BY:

DRAWN BY:

MS SIN AI

CHONG CHIAO YEN

DATE DRAWING NO.

WFH_DWD_HY_FLP_01

REV NO.

SCHEDULE OF FINISHES AREA

MASTER BEDROOM

FLOOR

WALL

CEILING

WINDOW

CODE: FF

CODE: B1

CODE: P1

CODE: W1

SIZE: 15mm(THK) White Plasterboard Ceiling

SIZE: 3048mm(W)x2156mm(L) Aluminium Casement Window Frame with 12mm(THK) Tempered Glass with Plastic Coated Metal Handle

SIZE: 914.4mm(L) x 152.4mm(W) x 3mm(THK) Oak Wood Vinyl Flooring

FINISHES: 12mm Plastering Coated with Nippon Brilliant White 1001 SIZE: 115mm(THK) Brick Wall

FINISHES: Natural Varnished Finish

BRAND: KOREA WALLPAPER (KL) SDN BHD

BRAND: Floor Culture Holdings

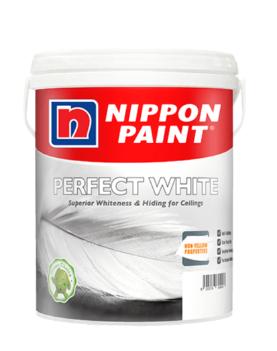

FINISHES: 15mm Plasterboard Ceiling Coated with Nippon Brilliant White 1001

BRAND: Glass Network (M) Sdn. Bhd.

BRAND: Nippon Paint Malaysia

DRAWING TITLE:

NOTE:

CLIENT:

THIS DRAWING IS COPYRIGHT DRAWING. THE AUTHORIZED USER IS TO CHECK ALL DIMENSIONS ON THE SITE. ONLY FIGURED DIMENSION TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED IMMEDIATELY TO PARTNERSHIP BEFORE PROCESSING. © COPYRIGHT NO. 0

DESCRIPTION

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

PROJECT NAME: AS-BUILT INTERIOR WORK OF MASTER BEDROOM

MASTER BEDROOM SCHEDULE OF FINISHES SCALE: 1:100

DATE: 6 SEPTEMBER 2022

CHECKED BY:

DRAWN BY:

MS SIN AI

CHONG CHIAO YEN

DATE DRAWING NO.

WFH_DWD_HY_FLP_01

REV NO.

WARDROBE F1

2488MM(L) X 610MM(W) X 2730MM(H) MDF BOARD COATED WITH ASH BLUE MATTE LAMINATED FINISH

B1

1989MM(L) X 610MM(W) X 750MM(H) ASH WOOD COATED WITH LIGHT WOOD VARNISH FINISH

STUDY AREA

F1

STUDY TABLE 676mm(L) x 1100mm(H) Black Nylon Cushion Seat with Mesh Back and Full Chrome Plated Base

CH2730

F1 115MM(THK) BRICK WALL

F1 F1

D1

SIDE TABLE

12MM PLASTERING COATED WITH NIPPON BRILLIANT WHITE 1001

914.4mm(L) x 152.4mm(W) x 3mm(THK) OAK WOOD VINYL FLOORING WITH NATURAL VARNISH FINISH

B1

F1

KING SIZED BED 914.4MM(L) X 152.4MM(W) X 3MM(THK) OAK WOOD VINYL FLOORING WITH NATURAL VARNISH FINISH

W1

3048MM(W) X 2156MM(L) ALUMINIUM CASEMENT WINDOW FRAME WITH 12MM(THK) TEMPERED GLASS WITH PLASTIC COATED METAL HANDLE

FLP FURNITURE LAYOUT PLAN OF A STUDY AREA LP SCALE 1:25

DRAWING TITLE:

NOTE:

CLIENT:

THIS DRAWING IS COPYRIGHT DRAWING. THE AUTHORIZED USER IS TO CHECK ALL DIMENSIONS ON THE SITE. ONLY FIGURED DIMENSION TO BE WORKED ON. DISCREPANCIES MUST BE REPORTED IMMEDIATELY TO PARTNERSHIP BEFORE PROCESSING. © COPYRIGHT NO. 0

DESCRIPTION

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

PROJECT NAME: AS-BUILT INTERIOR WORK OF A STUDY AREA

STUDY AREA FURNITURE LAYOUT PLAN SCALE: 1:25 CHECKED BY:

MS. TAN SIN AI

DATE: 6 SEPTEMBER 2022 DRAWN BY:

CHONG CHIAO YEN

DATE DRAWING NO.

WFH_DWD_HY_FLP_01

REV NO. 01

Project 1 started off covering Autocad 2D basics which have been taught to us during previous semesters.

Personally, I think it‘s important to constantly recap what we learnt.

Throughout this assignment, I noticed some of the so called "basics" were not as easy as i thought.

More detailed specifications and higher standard workings were to be expected from students.

This made me realise there's so much more to learn while working around basics.

0 1 A S S I G N E M N T

REFLECTION

SUSTAINABLE EDUCATION HUB (GROUP ASSIGNEMNT)

A group of students are required students to sereach and choose one precedent study related to office design /co-working space of educational hub. In this assignment, UBBL and/or fire requirements were introduced to students. Students should understand UBBL and incorporate them into the building drawings

0 2 A S S I G N E M N T

ASSIGNMENT 2 :

ASSIGNMENT 2: 'SUSTAINABLE EDUVATION HUB' PRECEDENT STUDY DETAILING WORKING DRAWING (IDS 60804)

NAME: CHONG CHIAO YEN ID: 0348073 LECTURER: MS. TAN SIN AI SEMESTER: AUGUST-DECEMBER 2022 COURSE: BACHELOR OF ARTS (HONS) IN INTERIOR ARCHITECTURE

REVISION TRACKING DRAW I NG LI ST

REV.

DATE

DESCRI PTI ON

ISSUE

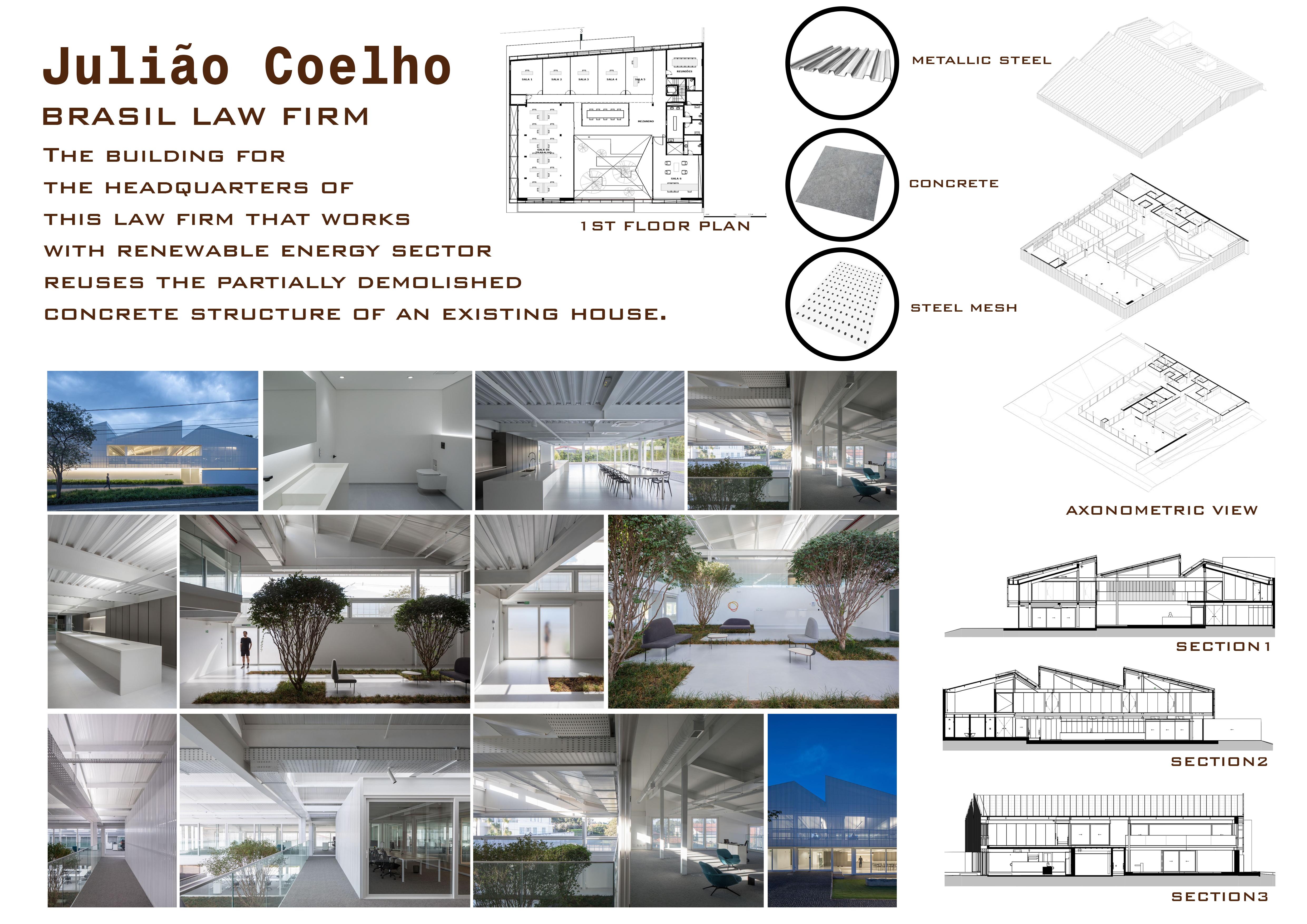

INDIVIDUAL PRECEDENT STUDIES

00

22 SEP 2022

-

APPROVED

DWD_AS_FLP_01

FURNITURE LAYOUT PLAN

02

8 OCT 2022

-

APPROVED

DWD_AS_SEC_02

SECTION PLAN

02

8 OCT 2022

-

APPROVED

DWD_AS_ELE_03

ELEVATION PLAN

03

8 OCT 2022

-

APPROVED

DWD_AS_BDD_04

BESPOKE DETAIL DRAWING 1

02

8 OCT 2022

-

APPROVED

DWD_AS_BDD_05

BESPOKE DETAIL DRAWING 2

02

10 OCT 2022

-

APPROVED

DWD_AS_SA_06

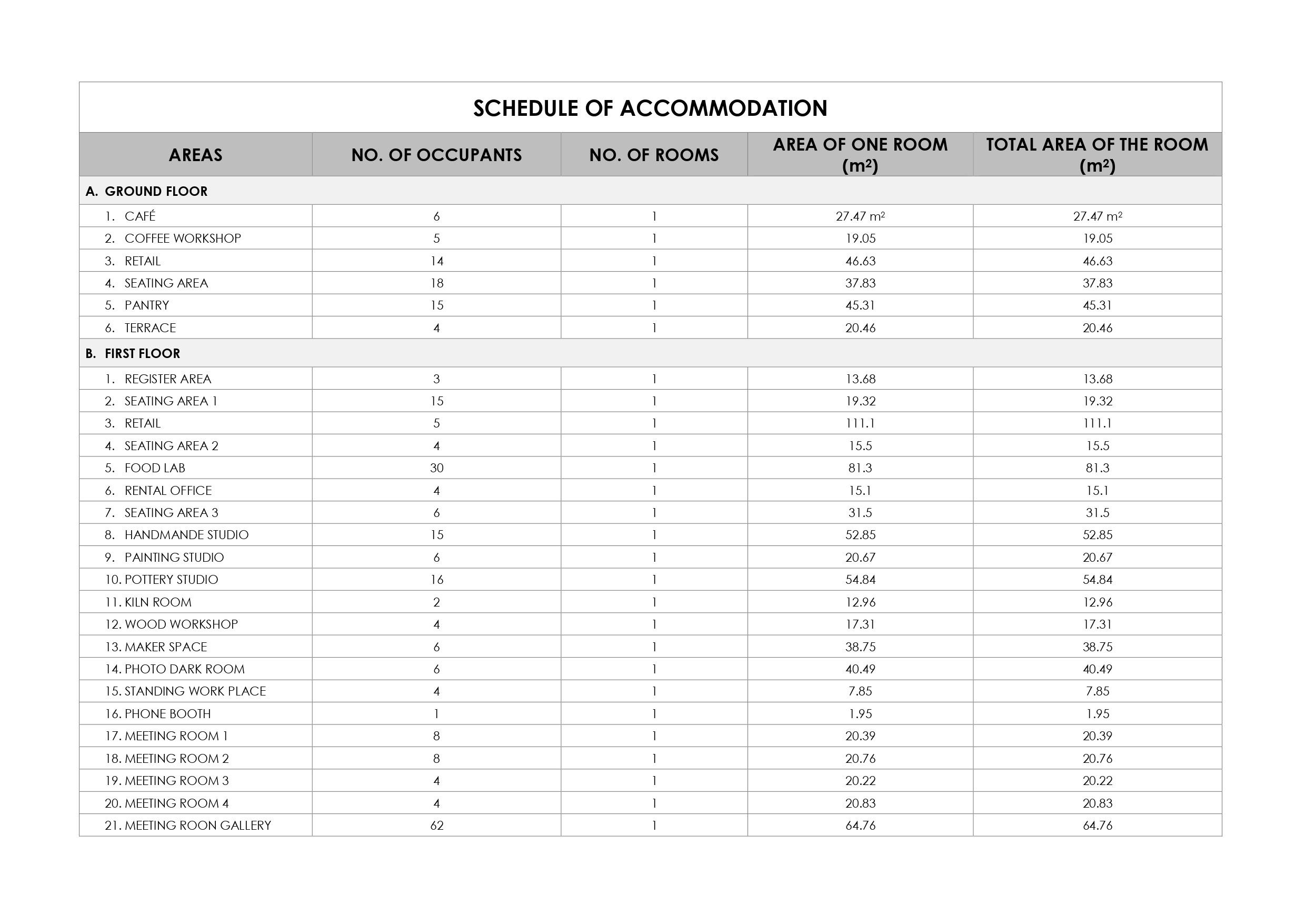

SHEDULE OF ACCOMODATION

01

10 OCT 2022

-

APPROVED

INDIVIDUAL UBBL & FIRE REQUIREMENT

01

10 OCT 2022

-

APPROVED

DWD_AS_DS_07

DOOR SCHEDULE

01

10 OCT 2022

-

APPROVED

DWD_AS_WS_08

WINDOW SCHEDULE

01

13 OCT 2022

-

APPROVED

DWD_AS_SF_09

SCHEDULE OF FINISHES

01

13 OCT 2022

-

APPROVED

-

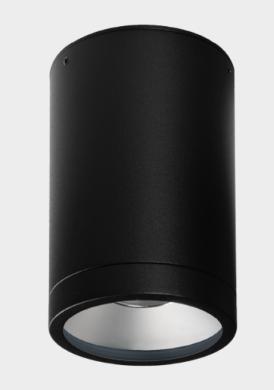

FIXTURE, LIGHTINGS & EQUIPMENT SCHEDULE

01

13 OCT 2022

-

APPROVED

-

INDIVIDUAL REFLECTION

-

17 OCT 2022

-

-

-

-

SHEET NAME

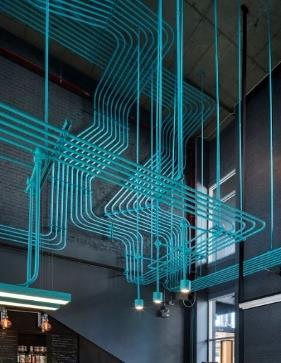

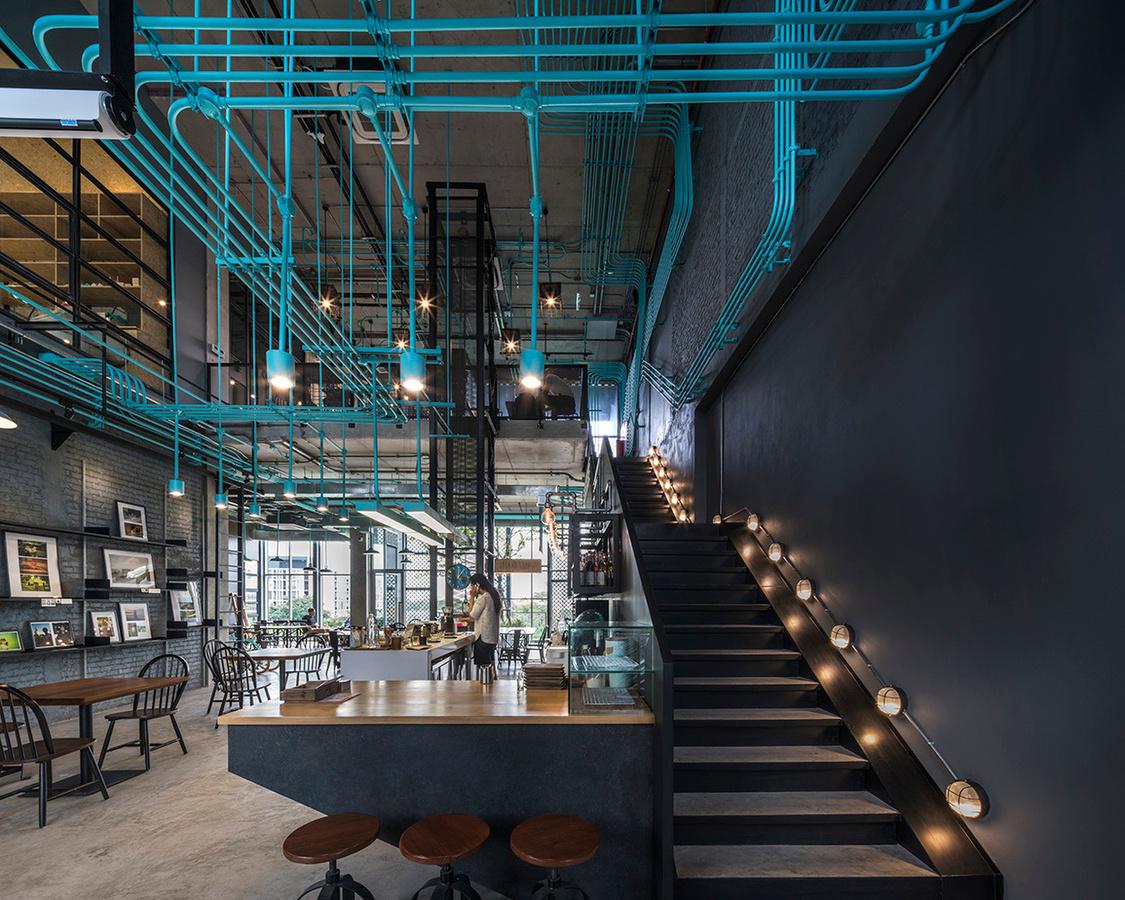

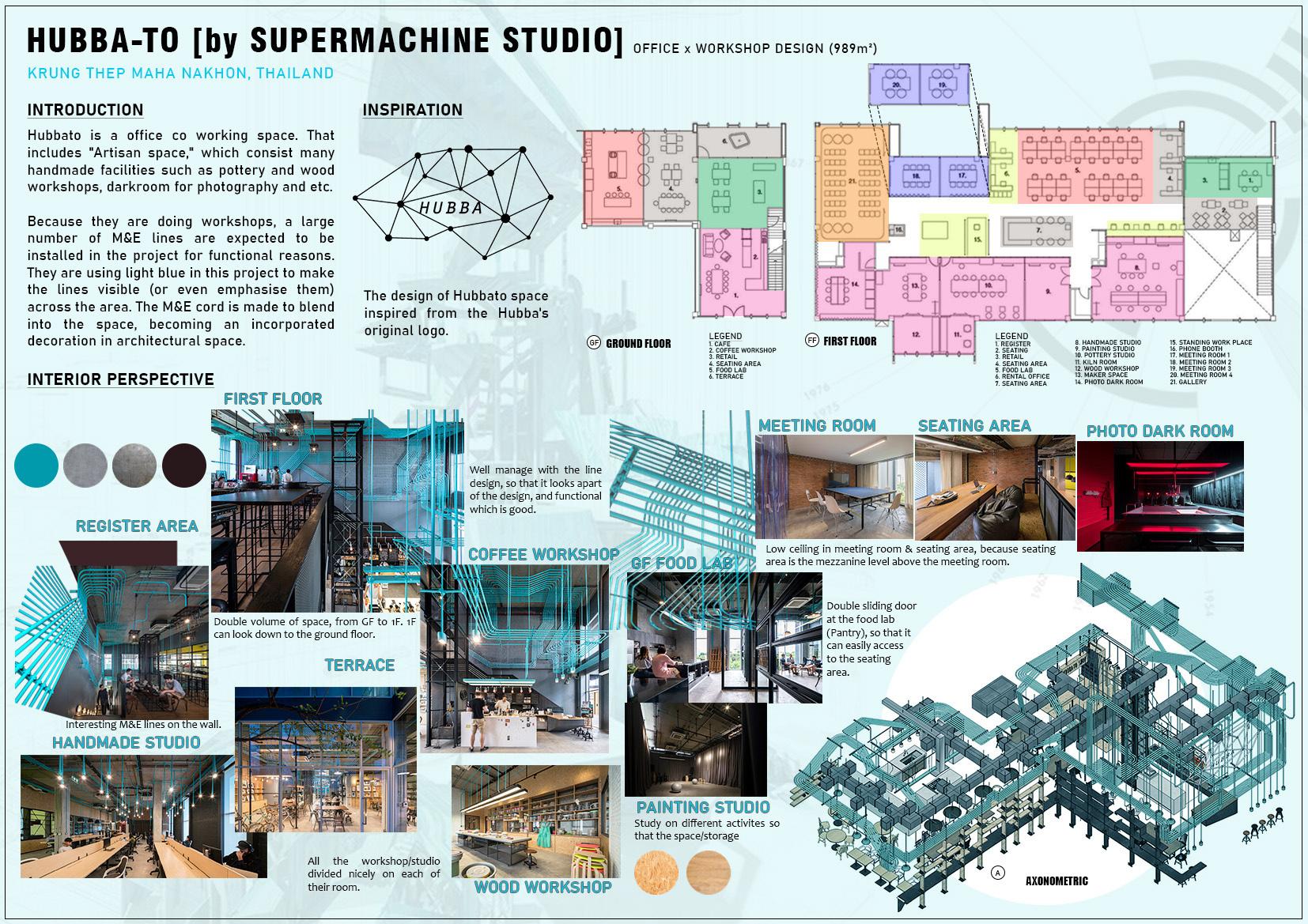

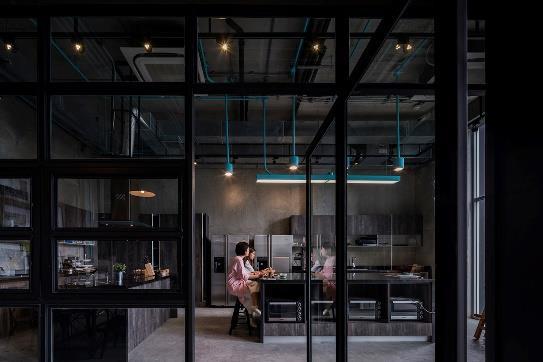

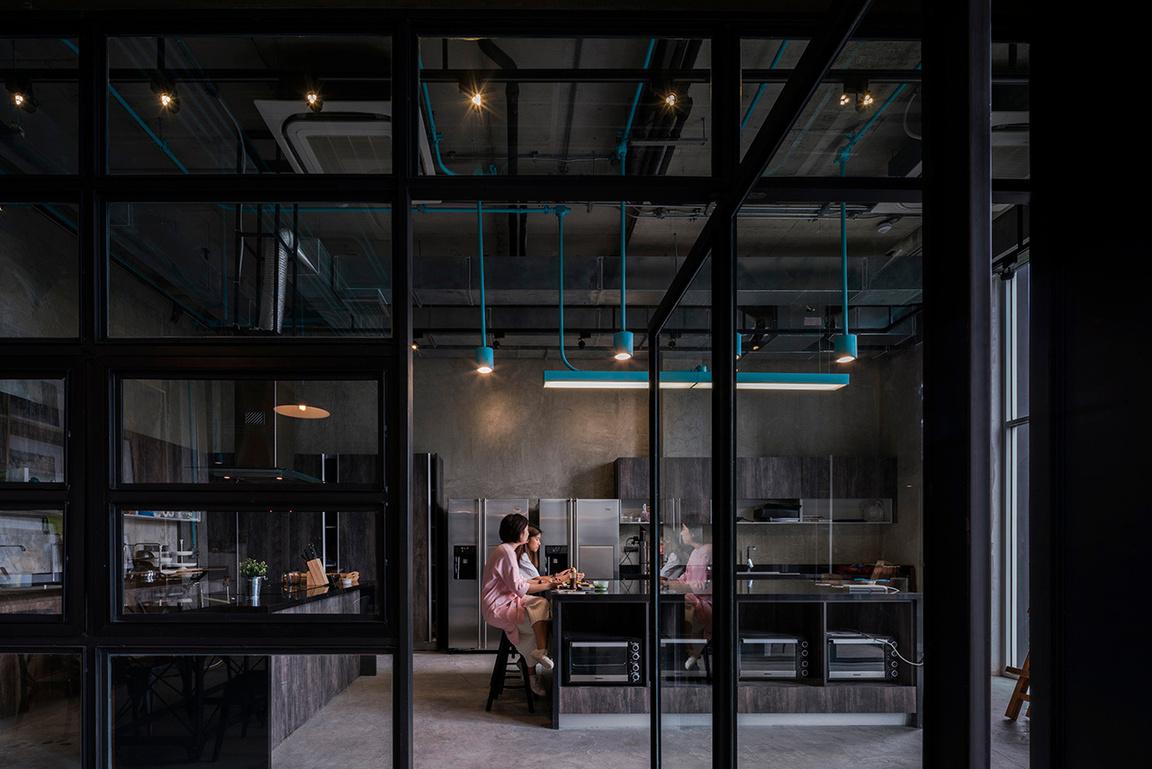

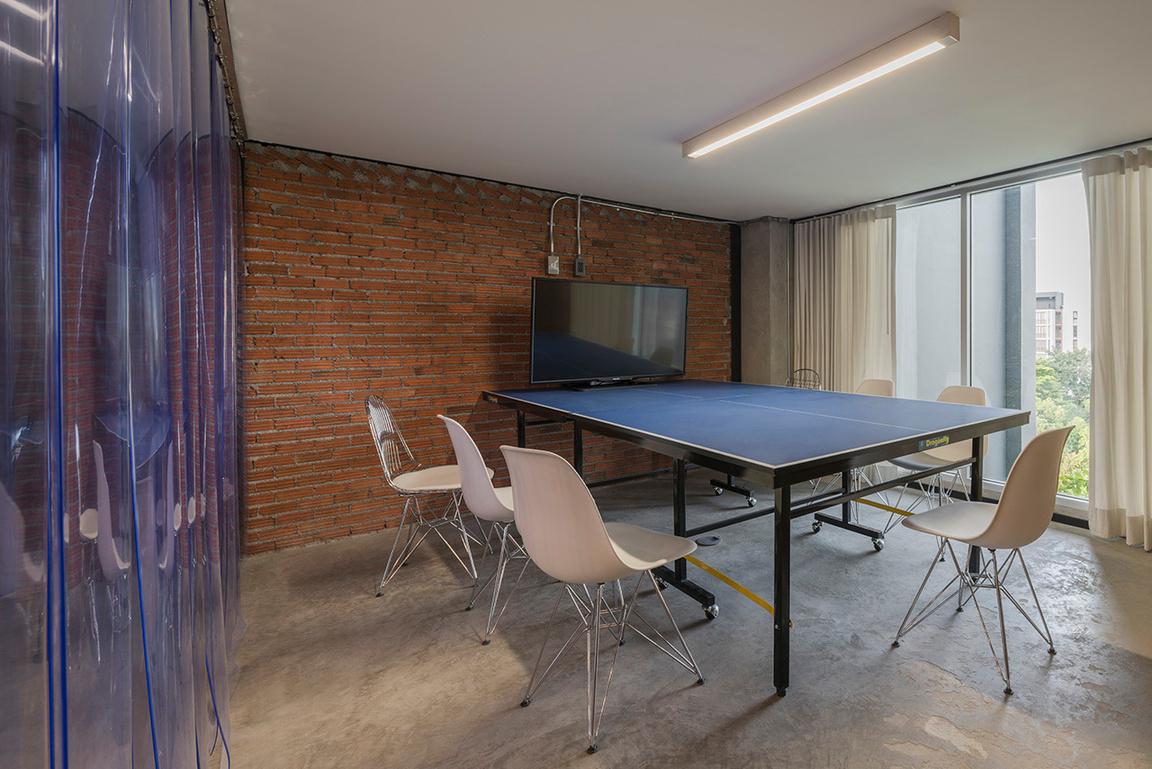

CHOOSEN BUILDING HUBBA- TO by Supermachine Studio

SEC A

A

B 6590

4256

L28

3290

L28

L28

472

W13

W9

G

6050

4040

8136

LEGEND

L28

L28

DESCRIPTION

L12

1800MM(L) x 900MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

L28

1

L13

2000MM(L) x 900MM(W) x 750MM(H) SOFA

1

L14

900MM(L) x 900MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

2

L15

900MM(L) x 900MM(W) x 750MM(H) 4 SEATER DINING TABLE

3

L16

1600MM(L) x 500MM(W) x 750MM(H) WORKING TABLE W STEEL LEG

7

L17

1200MM(L) x 900MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

30

L18

3500MM(L) x 600MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

1

L19

1800MM(L) x 1000MM(W) x 750MM(H) MARBLE TABLETOP W STEEL LEG

4

L20

1800MM(L) x 1000MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

6

L21

900MM(L) x 500MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

1

L22

400MM(L) X 400MM(W) X 400MM(H) WOODEN CHAIR

3

L23

500MM(L) X 500MM(W) X 400MM(H) WOODEN CHAIR

16

L24

520MM(L) X 520MM(W) X 400MM(H) ERGONOMIC OFFICE CHAIR

37

L25

450MM(L) X 450MM(W) X 400MM(H) ELON SERIES PLASTIC CHAIR

16

L28

W13 W13

2640

L24

L24

W8

W8

L24

L24

L16 L24

L24

L24

L17

W13

W8

L17

L16

3

L24

L16 L25

L25

L25

L25

L25

L25

L25

L24

L24

L24

L24

L24

L16

L24

L20

RENTAL OFFICE CONCRETE FLOORING 15.1 sqm

L25

L25

L25

L25

L25

L25

L25

L24

L24

MEETING ROOM 2

MEETING ROOM 1

CONCRETE FLOORING 22.47 sqm

CONCRETE FLOORING 21.34 sqm

L24

L24

CONCRETE FLOORING 13.68 sqm

L24

L24

L26

L13

L26

CONCRETE FLOORING 11.1 sqm

L12

SEATING AREA 2 CONCRETE FLOORING 15.5 sqm

L17

L17

L16

W13

W13

REGISTER AREA

RETAIL AREA

L24

L25

CONCRETE FLOORING 100.26 sqm

W13

L24

CONCRETE FLOORING 81.3 sqm

L20

W13

L16

L24

L25

FOOD LAB

MEETING ROOM GALLERY

L24

L26

L26

L16 L24

L24

L24

L24

L24

L24

SEATING AREA 1 L23

L14

L23

L23

L14

L23

CONCRETE FLOORING 19.32 sqm

L23

L23

L23

L23

L23

L15 L27

4

F16

SEATING AREA 3

L27

L27

L23

F11

L23

L23

L23

L23

L15

L23

L15

L27

L27

F12

L27

F18

L29

L29

8080

L28

700(D) BEAN BAG

8

L29

L29

500(D) WOODEN CHAIR

F9

4000MM(L) X 1000MM(W) X 750MM(H) WOODEN TABLE W STEEL LEG

1

F10

2200MM(L) X 1000MM(W) X 750MM(H) WOODEN TABLE W STEEL LEG

1

F11

2500MM(L) X 1200MM(W) X 750MM(H) WOODEN TABLE W STEEL LEG

1

F12

1400MM(L) X 900MM(W) X 500MM(H) HANGING WOODEN CUPBOARD

2

F13

1800MM(L) X 900MM(W) X 1200MM(H) WOODEN CUPBOARD

6

F14

600(D) STEEL TABLE

2

F15

2000MM(L) X 1000MM(W) X 900MM(H) WOODEN TABLE W STEEL LEG

1

F16

800MM(L) X 400MM(W) X 1200MM(H) STEEL PHONE BOOTH

1

F17

900MM(L) X 900MM(W) X 600MM(H) STEEL TABLE

4

F18

1400MM(L) X 600MM(W) X 600MM(H) WOODEN TABLE W STEEL LEG

2

F13

F13

F13

6

41

F10

REFER DETAIL F13

D4

4

600(D) STANDING STEEL ROUND CHAIR WITH BACK REST

F12

L29

F18

500(D) WOODEN CHAIR

L27 L18

CONCRETE FLOORING 31.5 sqm

F15

CONCRETE FLOORING 1.95 sqm

L26 L23

STANDING WORK PLACE CONCRETE FLOORING 7.85 sqm

PHONE BOOTH

L19

L22

L29

L21

W10 D3 L29 L29

W14

EL B

NO.

CONCRETE FLOORING 22.55 sqm

L24

EL A

SYMBOL

MEETING ROOM 3

W8

6030

H

L20

CONCRETE FLOORING 21.91 sqm

1 2

F

8136

L28

L20

MEETING ROOM 4

E

D

C

L29

L29

L29

L29

L29

L29

L29

L29

HANDMADE STUDIO CONCRETE FLOORING 52.85 sqm

L29

L19

L29

F17

L29

L19

L19

L29

L29

L29

L29

L29

PAINTING STUDIO L29

L29

Z

L29

L29

L29

L29

L29

L29

L29

L29

L29

CONCRETE FLOORING 20.67 sqm

L29

F13 L20

L29

Z

POTTERY STUDIO CONCRETE FLOORING 36.97 sqm

MAKER SPACE PHOTO DARK ROOM

L29

CONCRETE FLOORING 38.75 sqm

L29

L29

EL B

L29

CONCRETE FLOORING 40.49 sqm

5

L29

L29

L29

W15

W11

W12

W16

W13

F14 WOOD WORKSHOP

F13

CONCRETE FLOORING 17.31 sqm

F13

KILN ROOM

W7

CONCRETE FLOORING 9.68 sqm

F14

FLP

FURNITURE LAYOUT PLAN OF GROUND FLOOR

01

SCALE 1:200

NOTE:

CLIENT:

SEC A

6

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

PROJECT NAME:

DRAWING TITLE:

ASSIGNMENT 2 : SUSTAINABLE EDUCATION HUB

FURNITURE LAYOUT PLAN

SCALE: 1:200 JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

CHECK BY: MS SIN AI DRAWING NO.: DWD_AS_FLP_01

DATE: 08 OCT 2022 DRAWN BY: CHONG CHIAO YEN REV NO.:

02

G

6050

2

4040

W2

W4

8136

W3

W1

L2

2640

H

2

F

SEC

E

TERRACE

L5

CONCRETE FLOORING Area: 20.466 sqm

W5 F5 F4

3

D3

D1

L5

L5

L2

L2

W6

FRIDGE

F7

6030

L10

PANTRY

FRIDGE

RETAIL AREA

SEATING AREA

CONCRETE FLOORING Area: 45.31 sqm

CONCRETE FLOORING Area: 46.63 sqm

CONCRETE FLOORING Area: 37.83 sqm

L11

L6

L4

LEGEND

BOOKSHELVE

F3

L5

L3

L5

L2

SYMBOL

DESCRIPTION

NO.

L1

900MM(L) x 900MM(W) x 750M(H) WOODEN TABLE W STEEL LEG

2

L2

1600MM(L) x 900MM(W) x 750MM(H) 4 SEATERS DININNG TABLE

4

L3

1900MM(L) x 1000MM(W) x 750MM(H) 6 SEATERS DINING TABLE

1

L4

2200MM(L) x 1000MM(W) x 750MM(H) 10 SEATERS DINING TABLE

1

L5

450(W) x 520(L) x 450(SH) x 840(H) INDUSTRIAL DINING CHAIR

30

L6

400MM(L) X 400MM(W) X 450MM(H) LOFT BAR STOOL

10

L10

1000MM(L) X 750MM(W) X 2100MM(H) 660L SIDE

BY SIDE WITH LARGE CAPACITY (SPACEMAX)

2

L11

400MM(L) X 400MM(W) X 600MM(H) LOFT BAR STOOL

4

F1

1600MM(L) x 900MM(W) x 750MM(H) BAR TABLE C/W THE 30MM COUNTERTOP

1

F2

3779MM(L) x 900MM(W) x 750MM(H) CASHIER AND ORDER COUNTER

1

F3

2400MM(L) x 1020MM(W) x 1000MM(H) BAR TABLE SET C/W 4 BAR SEATS

1

F4

2500MM(L) x 1700MM(W) x 900MM(H) KITCHEN ISLAND C/W 50MM THK QUARTZ

1

F5

3300MM(L) x 600MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

1

F6

3090MM(L) x 600MM(W) x 2000MM(H) CABINET C/W LAMINATE FIN.

1

F7

BUILT- IN BOOKSHELF C/W CHIPBOARD STRUCTURED SHELVING AND LOW CABINET

1

F8

2OMM THK PLYWOOD STRUCTURED SHELVING C/W BLACK SPRAY PAINT

1

F6

B ELE KITCHEN CABINET BOOKSHELVE

BOOKSHELVE

4

F8

L5 COFFEE WORKSHOP

L1

F2

CONCRETE FLOORING Area: 19.05 sqm

CAFE AREA 8080

CONCRETE FLOORING Area: 27.47 sqm

L5 L1 F1

SELECTED BESPOKE

UP

D2 W3

5

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

2

NOTE:

SEC

ENTRANCE

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

PROJECT NAME:

DRAWING TITLE:

ASSIGNMENT 2: SUSTAINABLE EDUCATION HUB

FURNITURE LAYOUT PLAN SCALE: 1:100

DATE: 29/9/2022

CHECK BY: MS SIN AI

DRAWN BY: TAN YI JYNN

DRAWING NO.: DWD_A2_FLP_01

REV NO.:

03

C

B

A

D

E

20717

3235

8080

6036

2640

427

500

150

3500

F FLOOR CH

KILN ROOM CONCRETE FLOORING 9.68 sqm

POTTERY STUDIO CONCRETE FLOORING 36.97 sqm

RENTAL OFFICE CONCRETE FLOORING 15.1 sqm

500

8300

F FLOOR LEVEL

3500

G FLOOR CH

300

G FLOOR LEVEL

SEC 03

SECTION Z-Z SCALE 1:50

DWD_AS_SEC_02

A

B

E

D

C

F

H

G

40482

150

1100

1190

1093

1202

2470

2494

900

1232

1335

1335

835

835

850

905

3592

470

1090

160

2148

2249

440

2000

440

1585

1125

500

3500

F FLOOR CH

PHOTO DARK ROOM CONCRETE FLOORING 40.49 sqm

MAKER SPACE

W15

CONCRETE FLOORING 38.75 sqm

W11

W12

HANDMADE STUDIO

W13

W16

CONCRETE FLOORING 52.85 sqm

L19 F FLOOR LEVEL

L29

EL B

ELE B

ELEVATION B SCALE 1:50

DWD_AS_ELE_03

DOOR SCHEDULE

CH 3500

2040 50

970

1100 970

50

50

1000

2300

2300

DOOR HEIGHT 2300

G FLOOR LEVEL

WINDOW NO.

D3 DOUBLE SWING GLASS DOOR

TYPE FRAME

DESCRIPTION

IRONMONGERY

1100mm x 2300mm x 150mm thk ALUMINUM FRAME COATED W/ BLACK

50 mm thk PLYWOOD PANEL

50 mm thk PLYWOOD PANEL

TAKIGEN MGF HEAVY DUTY 30mm x 40mm x 1.5mm thk

TAKIGEN MGF HEAVY DUTY 30mm x 40mm x 1.5mm thk

LOCK, BOLTS

N.A

N.A

STOP, PULLS

N.A

N.A

PAINTING STUDIO

POTTERY STUDIO

LOCATION

NOTE:

SINGLE SWING PLYWOOD DOOR

2040mm x 2300mm x 150mm thk ALUMINUM FRAME COATED W/ BLACK

DOOR LEAF HINGES

D4

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

PROJECT NAME:

DRAWING TITLE:

PROPOSED INTERIOR RENOVATION WORK OF GROUND FLOOR OFFICE CAFE AREA FOR JYNN'S SDN.BHD.

DOOR SCHEDULE SCALE: 1:50 CHECK BY: MS SIN AI DRAWING NO.: DWD_AS_DS_07

DATE: 10 OCT 2022 DRAWN BY: CHONG CHIAO YEN REV NO.:

01

WINDOW SCHEDULE

1415 1335

40

1565 1485

TYPE

DESCRIPTION

FRAME DOOR LEAF

IRONMONGERY

1840

W7

W10

FULL HEIGHT DOUBLE GLAZING FIXED CASEMENT WINDOW

FULL HEIGHT DOUBLE GLAZING FIXED CASEMENT WINDOW

1335mm x 3500mm x 100mm thk ALUMINUM FRAME

1485mm x 3500mm x 100mm thk ALUMINUM FRAME

33.52mm CLEAR DOUBLE GLAZING GLASS (External:laminated;internal:laminated&tempered) 33.52mm CLEAR DOUBLE GLAZING GLASS (External:laminated;internal:laminated&tempered)

HINGES

N.A

N.A

LOCK, BOLTS

N.A

N.A

STOP, PULLS

N.A

N.A

KILN ROOM

POTTERY & CERAMIC STUDIO

LOCATION

NOTE:

40

40

WINDOW NO.

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

3500

1530 50

3500

1910

50

1460

CH 3500

F FLOOR LEVEL

40 20

40

40

JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

PROJECT NAME:

DRAWING TITLE:

PROPOSED INTERIOR RENOVATION WORK OF GROUND FLOOR OFFICE CAFE AREA FOR JYNN'S SDN.BHD.

WINDOW SCHEDULE SCALE: 1:50

DATE: 03 OCT 2022

CHECK BY: MS SIN AI

DRAWN BY: CHONG CHIAO YEN

DRAWING NO.:

REV NO.:

0

UBBL & FIRE REQUIREMENT HUBBA-TO by Supermachine Studio UBBL 196

1

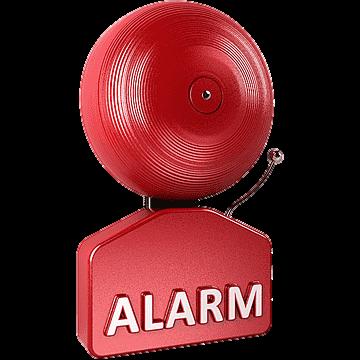

FIRE ALARM 2

(1) Fire alarms provided in accordance with Schedule(10) by laws.

(2) All premises and buildings with gross floor area excluding car park and storage areas exceeding 9290 square meters or exceeding 30.5 meters in height shall be provided with 2 stage alarm system with evacuation (continuous signal) to be given immediately in the affected section of the premises while an alert (intermittent signal) to be given in adjoining section.

(3) General evacuation systems of the premises shall be assigned to a master control.

UBBL 86

P A R T Y W A L L

3

4

OTHER UBBL REQUIREMENTS (1) All party walls shall generally be not less than 200 millimetres total thickness of solid masonry or insitu concrete which may be made up of two separate skins each not less than 100 millimetres thickness if constructed at different times

UBBL 107

S T A I R C A S E

(1) except for staircases ofless than 4 risers, all staircases shall be provided with at least one handrail (2) staircases exceeding 2225mm width shall be provided with intermediate handrail for each 2225mm of required width spaced approximately equally

2440 2440 50

532

50

346

50

115

50

1107mm(L) x 115mm(THK) HARDBOARD WOOD WITH WHITE SPRAY PAINT FLAT SURFACE FINISH

1222mm(L) x 73mm(H) ALUMINIUM WIRE MESH

385

500

1107

1107mm(L) x 115mm(THK) HARDBOARD WOOD WITH WHITE SPRAY PAINT FLAT SURFACE FINISH

1262

15mm(L) x 425mm(H) ALUMINIUM COUNTER TOP STORAGE SPACE WITH MATTE SURFACE SHINISH

50mm(L) x 396mm(H) ALUMINIUM TABLE LEG

BESPOKE COUNTER TOP LAYOUT PLAN

BLP 01

BFE

BESPOKE FRONT ELEVATION

03

SCALE 1:50

SCALE 1:50 30mm(W) x 50mm(H) WOOD BLOCK

BSD 02

BESPOKE SECTION DETAIL SCALE 1:50

1107 1107 50

433

20

453

50 433

20

453

50 1107mm(L) x 115mm(THK) HARDBOARD WOOD WITH WHITE SPRAY PAINT FLAT SURFACE FINISH

500

15mm(L) x 425mm(H) ALUMINIUM COUNTER TOP STORAGE SPACE WITH MATTE SURFACE FINISH

385

115

1107mm(L) x 115mm(THK) HARDBOARD WOOD WITH WHITE SPRAY PAINT FLAT SURFACE FINISH

385

500

115

50

15mm(L) x 425mm(H) ALUMINIUM COUNTER TOP STORAGE SPACE WITH MATTE SURFACE SHINISH

15mm(L) x 425mm(H) ALUMINIUM COUNTER TOP STORAGE SPACE WITH MATTE SURFACE FINISH

50mm(L) x 396mm(H) ALUMINIUM TABLE LEG

30mm(W) x 50mm(H) WOOD BLOCK

BSC 02

BESPOKE SECTION CUT BSD

SCALE 1:50

NOTE:

CLIENT:

03

ARCHITECT:

BESPOKE SECTION DETAIL SCALE 1:50

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

BSE

BESPOKE SIDE ELEVATION

04

SCALE 1:50

PROJECT NAME:

DRAWING TITLE:

PROPOSED INTERIOR RENOVATION WORK OF GROUND FLOOR OFFICE CAFE AREA FOR JYNN'S SDN.BHD.

BESPOKE DETAIL DRAWING SCALE: 1:50 CHECK BY: MS SIN AI

DATE: 10 OCT 2022 DRAWN BY: CHONG CHIAO YEN

DRAWING NO.: DWD_AS_BDD_04

REV NO.:

02

SCHEDULE OF FINISHES SPECIFICATION

SIZE

SUPPLIER

LOCATION

FF1

CONCRETE MATTE FINISH

152mm(thk)

JALAPRATHAN CEMENT PLC

ALL EXCEPT 2 SPACES MENTIONED BELOW

FF2

CORK FLOATING FLOOR FINISH

905mm x 295mm x 10.5mm

Global House Phra Nakhon Si Ayutthaya

SITTING AREA

FF3

OAKWOOD FLOORING

127mm x 1200mm

ARROW WOOD CO. LTD

1st FLOOR SITTING AREA

PARTICLE WOOD

12mm(thk)

JOTUN CO.

CO-WORKING, CERAMIC STUDIO

WF2

BRICK WALL

150mm(thk)

JUTON CO.

MEETING ROOM

WF3

WHITE PLASTER WALL

12.5mm(thk)

JUTON CO.

ALL EXCEPT 2 SPACES MENTIONED ABOVE

CF1

WHITE GYPSUM PLASTERBOARD

9mm(thk)

STRETCH CEILING

MEETING ROOM

CF2

SPRAY SAND CONCRETE

1220mm x 1220mm

STRETCH CEILING

ALL EXCEPT MEETING ROOM

CODE


1.1 FLOOR FINISHES

1.2 WALL FINISHES WF1

1.3 CEILING FINISHES

SCHEDULE OF FURNITURE, FIXTURES AND EQUIPMENTS SPECIFICATION

QTY

SUPPLIER

PRICE PER UNIT

TOTAL PRICE

L1

900MM(L) x 900MM(W) x 750M(H) WOODEN TABLE W STEEL LEG

2

ALIBABA

RM 500

RM 1,000

L2

1600MM(L) x 900MM(W) x 750MM(H) 4 SEATERS DININNG TABLE W STEEL LEG

4

RUMA

RM 899

RM 3,596

L3

1900MM(L) x 1000MM(W) x 750MM(H) 6 SEATERS DINING TABLE W STEEL LEG

1

RUMA

RM 1,100

RM 1,100

L4

2200MM(L) x 1000MM(W) x 750MM(H) 10 SEATERS DINING TABLE W STEEL LEG

1

RUMA

RM 1,500

RM 1,500

L5

450(W) X 520(L) X 450(SH) X 840(H) INDUSTRIAL DINING CHAIR

30

ALIBABA

RM 150

RM 4,500

L6

400MM(L) X 400MM(W) X 450MM(H) LOFT BAR STOOL

10

MIGA FURNITURE OUTLET

RM200

RM2,000

L7

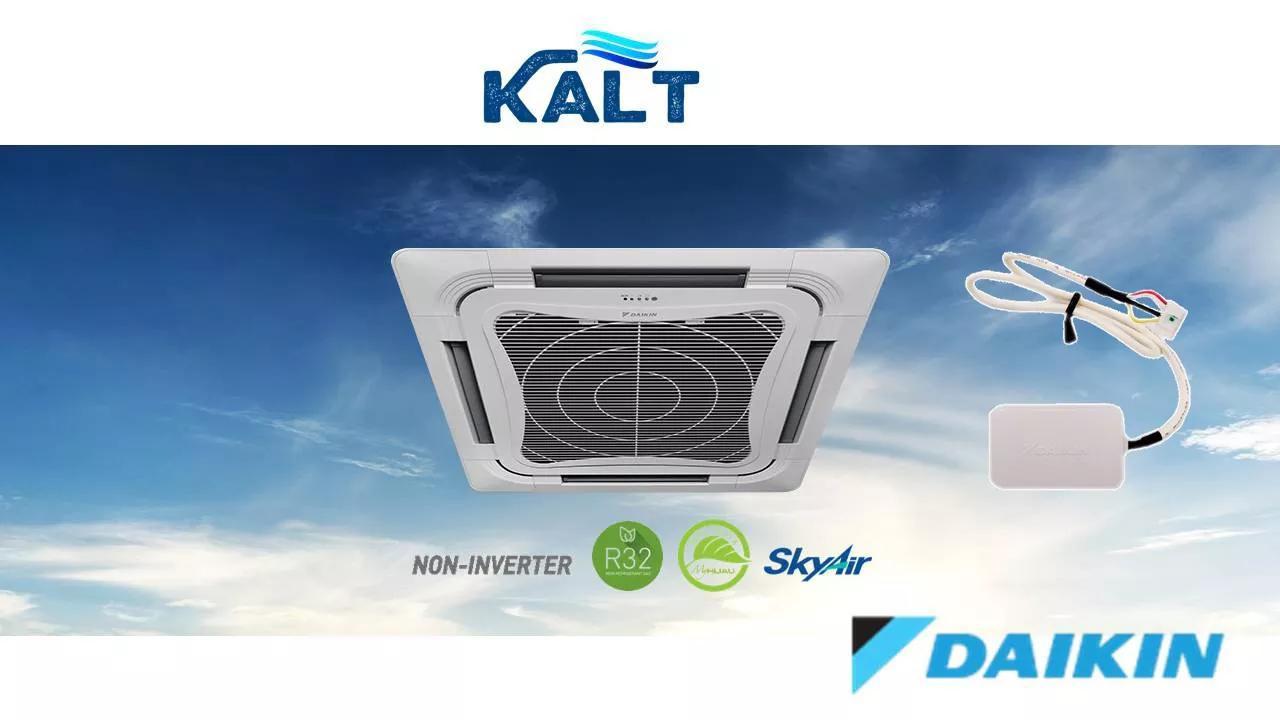

SKYAIR AIR CONDITIONER CASSETTE FCF71CVM DAIKIN

2

DAIKIN

RM 6,200

RM 12,400

L8

DIA 450MM X 1500MM(H) APLOMB METAL PENDANT LAMP

8

VAKKERLIGHT

RM200

RM1,600

L9

1180 LEGTH TRACK LIGHT WITH 5 SPOTLIGHT IN 16W IN TOTAL

4

LIGHTINGSTYLES

RM 300

RM 1,200

CODE


GROUND FLOOR SEATING AREA

PANTRY

L10

L11

1000MM(L) X 750MM(W) X 2100MM(H) 660L SIDE BY SIDE WITH LARGE CAPACITY (SPACEMAX)

400MM(L) X 400MM(W) X 600MM(H) LOFT BAR STOOL

2

SAMSUNG MALAYSIA ELECTRONICS (SME) SDN. BHD.

RM 5,899.00

RM 1,1798.00

4

MIGA FURNITURE OUTLET

RM 307

RM 1,228.00

FIRST FLOOR

L12

1800MM(L) x 900MM(W) x 750MM(H) 4 SEATER WOODEN TABLE W STEEL LEG

1

RUMA

RM 1,100

RM 1,100

L13

2000MM(L) x 900MM(W) x 750MM(H) 3 SEATER SOFA

1

RUMA

RM 1,750

RM 1,750

L1

900MM(L) x 900MM(W) x 750M(H) WOODEN TABLE W STEEL LEG

5

ALIBABA

RM 500

RM 2,500

L14

1600MM(L) x 500MM(W) x 750MM(H) WORKING TABLE W STEEL LEG

7

RUMA

RM 950

RM 6,650

L15

1200MM(L) x 900MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

30

AMAZON

RM 700

RM 21,000

L16

3500MM(L) x 600MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

1

UBUY

RM 2,000

RM 2,000

L17

1800MM(L) x 1000MM(W) x 750MM(H) MARBLE TABLETOP W STEEL LEG

4

DFW FURNITURE

RM 3,000

RM 12,000

L18

1800MM(L) x 1000MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

6

ERGOPLUS OFFICE FURNITURE

RM 2,000

RM 12,000

L19

900MM(L) x 500MM(W) x 750MM(H) WOODEN TABLE W STEEL LEG

1

RUMA

RM 550

RM 550

L20

400MM(L) X 400MM(W) X 400MM(H) WOODEN STOOL

3

PEPPERFRY

RM 50

RM 150

L21

500MM(L) X 500MM(W) X 400MM(H) WOODEN STOOL

16

PEPPERFRY

RM 60

RM 960

L22

520MM(L) X 520MM(W) X 400MM(H) ERGONOMIC OFFICE CHAIR

37

SHOPEE

RM 859.90

RM 31,816.30

L23

450MM(L) X 450MM(W) X 400MM(H) ELON SERIES PLASTIC CHAIR

16

MYSTORE

RM 150

RM 2,400

L24

500(D) WOODEN CHAIR

4

SHOPEE

RM 65

RM 260

L25

600(D) STANDING STEEL ROUND CHAIR WITH BACK REST

6

GRAINGER

RM 500

RM 3,000

L26

700(D) BEAN BAG

8

KONTO FURNITURE

RM 30

RM 240

L27

500(D) WOODEN CHAIR

41

SHOPEE

RM 65

RM 2,665

INDIVIDUAL REFLECTION Hubba-To, a co-working space operator by Supermachine Studio in Thailand also well known as the "Artisan space".

Within this building, people could have meetings and discussions in groups or even carry out their individual work.

This is a place where different artists in the world could come together and make magics. The main colour used throughout the entire building is turquoise which makes it stands out and easily visible from the space. The coloured tubes being exposed and connected throughout the entire building space allow a sense of design consistency and continuity to be seen.

Throughout the entire group project, one of the greatest take away would be understanding the importance of Uniform Building By-Law (UBBL). After being exposed to most of the UBBL and fire requirements, I realised that it is the top priority for all architects and designers to be sensitive and be aware of all safety features required such as the Fire Alarm system which was done by me where the UBBL clearly states the importance of having them in all premises especially in commercial blocks. Another UBBL that caught my attention was the measurement of staircase riser and tread. This is said to be important as people could fall easily if the tread is too short and also trip and fall if the riser is too high. These should be taken into account whenever a building is being constructed as the user’s safety should be our top priority.

Our team works together by distributing the tasks to every teammate and I’m glad that everyone is able to carry out our respective part nicely abiding all given deadlines. All members share the same dedication in completing this project which is the reason I’m able to learn and absorb a lot from them. I so cherish this opportunity working in a group and I’m grateful for having them as part of my Sem 4 journey.

The objective of this assignment has been achieved through this group assignment. UBBL is is a new topic introduced to me and my groupmates hence we have to do up some readings and in depth research in order to understand UBBL better and use more appropreciate approach towards our assignemnt.

During the process, we acknowledge the importance of each UBBL in a building or premise. Additionally, my greatest take away from this assignement is that we should be sensitive towards things related to safety issue such as UBBL. It should be placed in the most suitable location according to it's function where it is easily accessible by evey individual possible.

0 2 A S S I G N E M N T

REFLECTION

0 3 Working Drawings + System Integration [An integration of design and services]

In this final assignemnt, we are required to use the Pam building Centre design following our Semester 4 Design Studio IV drawings.

A S S I G N E M N T

FINAL ASSIGNMENT:

ASSIGNMENT 3: WORKING DRAWINGS + SYSTEM INTEGRATION DETAILING

WORKING

DRAWING

(IDS

60804)

NAME: CHONG CHIAO YEN ID: 0348073 SEMESTER: August-December 2022 TUTOR: Ms. Nur Fatimah Mohd Khairi COURSE: BACHELOR OF ARTS (HONS) IN INTERIOR ARCHITECTURE

REVISION TRACKING DRAW I NG LI ST

SHEET NAME

REV.

DATE

DESCRI PTI ON

ISSUE

CHANGES

PHASE I PAM_DWD_CY_SOA_5F_00

SCHEDULE OF ACCOMODATION

02

27 OCT 2022

-

NO

NO

PAM_DWD_CY_SOP_5F_01

SETTING OUT PLAN

02

3 NOV 2022

-

NO

NO

PAM_DWD_CY_FLP_5F_02

FURNITURE LAYOUT PLAN

02

3 NOV 2022

-

NO

NO

PAM_DWD_CY_RCP_5F_03

REFLECTED CEILING PLAN

02

10 NOV 2022

-

NO

NO

PAM_DWD_CY_LLP_5F_04

LIGHTING AND LOOPING PLAN

01

22 NOV 2022

-

NO

NO

PAM_DWD_CY_FFP_5F_05

FLOOR FINISH PLAN

01

23 NOV 2022

-

NO

NO

NO

PHASE II PAM_DWD_CY_SEC_06

SECTION PLAN

02

28 NOV 2022

-

NO

PAM_DWD_CY_BLP_07

BESPOKE LAYOUT PLAN

02

28 NOV 2022

-

NO

NO

PAM_DWD_CY_BSP_08

BESPOKE SECTION PLAN

01

29 NOV 2022

-

NO

NO

PAM_DWD_CY_BBD_09

BESPOKE BLOW-UP DETAIL

01

30 NOV 2022

-

NO

NO

PAM_DWD_CY_BQ_10

BILL OF QUANTITIES

02

30 NOV 2022

-

NO

NO

PAM_DWD_CY_SOF_5F_11

SCHEDULE OF FINISHES

01

2 DEC 2022

-

NO

NO

PAM_DWD_CY_FFE_5F_12

SCHEDULE OF FURNITURE, FIXTURE AND EQUIPMENT

01

2 DEC 2022

-

NO

NO

PHASE III

SCHEDULE OF ACCOMODATION LEVEL 5 AREAS

AREA OF ONE ROOM(m2)

TOTAL AREA OF ROOM(m2)

NO. O F OCCUP ANTS

NO. O F ROOMS

LIFT

12

2

7.6

15.2

CORRIDOR

10

1

125.3

125.3

STAIRCASE

6

2

163.6

327.2

MAIN OBJECT

4

1

58.6

58.6

OFFICE SEATING

6

6

153

918

MEETING CENTRE

6

1

92.4

92.4

SOIL LABORATORY

3

1

59.7

59.7

MALE TOILET

2

2

2.1

4.2

FEMALE TOILET

2

2

2.8

5.6

STOREROOM 1

3

1

18

18

STOREROOM 2

1

1

4.6

4.6

STOREROOM 3

1

1

5.4

5.4

STOREROOM 4

3

1

19.3

19.3

STOREROOM 5

1

1

6.5

6.5

STOREROOM 6

1

1

7.6

7.6

STOREROOM 7

2

1

10.6

10.6

PUBLIC SPACES

SEMI-PUBLIC SPACES

SEMI-PRIVATE SPACES

SERVICES

2

1

3

5

4

6

8

7

52212 3000

1203

B

W4

W4

W4

7100

W4

W4

W4

W4

W4

W4

W4

DN

WC 1

DP100

DP100

W4

W4

W4

7200

W4

W4

W4

3780

W4

D1

W4

W4

UP

WC 3

WC 2

2.2sqm

D1

6100

WC 4

2.7sqm

2.8sqm

3.8sqm

D1

1771

CP2

C

1528

D1

DP100 DP100

CORRIDOR

CP2

109sqm D4

D1

STORAGE 2 0.4sqm

CP2

D1

D5

D3 STORAGE 1

D6

D6

D1

D2

STORAGE 5

STORAGE 6

0.6sqm

0.7sqm

1.9sqm

1.8sqm

STORAGE 3 0.5sqm

D2

STORAGE 7 1sqm

9683

D

W4

W4

W4

A

18935

6098

D2

OBJECT BESPOKE

CP1 STAIRCASE UP

VOID

16.3sqm

SOIL LABORATORY

39sqm CORRIDOR

LIFT

109sqm

57sqm

MEETING CENTRE

OFFICE SEATING

FFL +00

3.3sqm

D1

D1

UP

60sqm

5180

26.9sqm

LF1

OFFICE SEATING

VOID

25sqm

SEC A

LIFT 3.3sqm

BALCONY

VOID

W1

E

W2

W2

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

SEC A

12.3sqm W3

W1

W3

W3

W3

W3

STAIRCASE 12.2sqm

DOOR LEGEND SYMBOL

SOP LEVEL 5 SETTING OUT PLAN 01

NOTE:

9

D2

600MM(W) X 2100(H) X 50MM(THK) SINGLE SWING PLYWOOD DOOR

3

D3

915MM(W) X 2100(H) X 50MM(THK) DOUBLE SWING PLYWOOD DOOR

1

W1

1600MM(W) X 3210(H) X 150MM(THK) STAINLESS STEEL COATED WITH BLACK POWDER AND LAMINATED GLASS

2

D4

800MM(W) X 2100(H) X 50MM(THK) SINGLE SWING PLYWOOD DOOR

1

W2

800MM(W) X 3210(H) X 150MM(THK) STAINLESS STEEL COATED WITH BLACK POWDER AND LAMINATED GLASS

2

W3

1400MM(W) X 3210(H) X 150MM(THK) STAINLESS STEEL COATED WITH BLACK POWDER AND LAMINATED GLASS

17

W4

600MM(W) X 1200(H) X 150MM(THK) STAINLESS STEEL COATED WITH BLACK POWDER AND LAMINATED GLASS

22

D6

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

1600MM(W) X 2100(H) X 50MM(THK) DOUBLE SWING PLYWOOD DOOR 500MM(W) X 2100(H) X 50MM(THK) SINGLE SWING PLYWOOD DOOR

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

QTY

700MM(W) X 2100(H) X 50MM(THK) SINGLE SWING PLYWOOD DOOR

D5

SCALE 1:150

DESCRIPTION

D1

DOOR LEGEND

1 2

SYMBOL

QTY

DESCRIPTION

PROJECT NAME: ASSIGNMENT 3 : WORKING DRAWINGS + SYSTEM INTEGRATION

LEGEND SYMBOL

ADD/NEW PROPOSED STRUCTURE DEMOLISHED STRUCTURE BLACK

JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

EXISTING STRUCTURE

DRAWING TITLE: SETTING OUT PLAN

SCALE: 1:150 10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

DESCRIPTION

CHECK BY: MS FATIMAH

DATE: 03 NOV 2022 DRAWN BY: CHONG CHIAO YEN

DRAWING NO.: PAM_DWD_CY_SOP_01

REV NO.:

02

2

1

3

5

4

6

8

7

52212 3000

W4

1203

A B

18935

6098

W4

W4

WC 1

W4

W4

W4

7100

W4

W4

W4

W4

W4

W4

D1

DP100

DP100

W4

W4

DN

WC 2

2.2sqm

6100

W4

W4

7200

W4

W4

W4

3780

UP WC 3

2.8sqm

D1

W4

W4

W4

WC 4

2.7sqm

3.8sqm

D1

DP100

1771

SC3

C

CORRIDOR

WF1

1528 9683

D

SOIL LABORATORY

109sqm

D4

D1

STORAGE 2 0.4sqm

STORAGE 1

STORAGE 4

1.8sqm

0.5sqm

STORAGE 6

STORAGE 5

0.7sqm

0.6sqm

STORAGE 7

D2

P1

OFFICE SEATING/ WORKING CUBICLE

D2 STAIRCASE UP

D6

D6 P1

39sqm

F2

1.9sqm

STORAGE 3

57sqm

OBJECT BESPOKE

D2 D3

D1

DP100

P1

MEETING CENTRE CORRIDOR

LIFT 3.3sqm

D1

D1

VOID

26.9sqm

16.3sqm

1sqm

F1

UP

F4

LF3

60sqm

FFL +00

OFFICE SEATING

109sqm

25sqm

P1

5180

F3

LF1

VOID

FF2 LF2

LIFT

3.3sqm

SEC A

BALCONY

VOID

12.3sqm

COFFEE BOOTH

SEC A

WF1

W1

E

W2

W2

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W1

W3

W3

W3

STAIRCASE 12.2sqm

DOOR LEGEND SYMBOL

FLP LEVEL 5 FURNITURE LAYOUT PLAN 01

NOTE:

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

7

D2

600MM(W) X 2100(H) X 50MM(THK) SINGLE SWING PLYWOOD DOOR

3

D3

915MM(W) X 2100(H) X 50MM(THK) DOUBLE SWING PLYWOOD DOOR

D4

NO.

DESCRIPTION

DATE

WINDOW LEGEND SYMBOL

DESCRIPTION

QTY BUILT- IN FURNITURE LEGEND

W1

1600MM(W) X 3210(H) X 150MM(THK) STAINLESS STEEL COATED WITH BLACK POWDER AND LAMINATED GLASS

2

1

W2

800MM(W) X 3210(H) X 150MM(THK) STAINLESS STEEL COATED WITH BLACK POWDER AND LAMINATED GLASS

2

800MM(W) X 2100(H) X 50MM(THK) SINGLE SWING PLYWOOD DOOR

1

W3

1400MM(W) X 3210(H) X 150MM(THK) STAINLESS STEEL COATED WITH BLACK POWDER AND LAMINATED GLASS

17

500MM(W) X 2100(H) X 50MM(THK) SINGLE SWING PLYWOOD DOOR

2

600MM(W) X 1200(H) X 150MM(THK) STAINLESS STEEL COATED WITH BLACK POWDER AND LAMINATED GLASS

22

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

QTY

700MM(W) X 2100(H) X 50MM(THK) SINGLE SWING PLYWOOD DOOR

D6

SCALE 1:150

DESCRIPTION

D1

W4

PROJECT NAME: ASSIGNMENT 3 : WORKING DRAWINGS + SYSTEM INTEGRATION

JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

F1

SOIL FILTRATION MACHINE MECHANISM

F2

OFFICE WORKING CUBICLE

F3

CUSTOMISED FUN SHAPE MEETING TABLE

F4

CUSTOMISED LABORATORY COUNTER TOP

DRAWING TITLE: FURNITURE LAYOUT PLAN

SCALE: 1:150 10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

DESCRIPTION

SYMBOL

CHECK BY: MS FATIMAH

DATE: 03 NOV 2022 DRAWN BY: CHONG CHIAO YEN

DRAWING NO.: PAM_DWD_CY_FLP_02

REV NO.:

02

2

1

3

5

4

6

8

7

52212 3000

W4

B

W4

W4 EL

WC 1

1203

A

18935

6098

L5

W4

W4 HD

L5

WC 2

FFL +00

W4

W4

W4 HD

EL

7100

L5

W4

W4

EL

W4

W4

W4

W4

HD

EL

L5

6100

W4

W4

FFL +00

2.2sqm

2.8sqm

DN

L1

D1

DP100

CP2 L1 D4

L3

L2

D2

L4

FFL +00 16.3sqm

SD

LIFT

L1 L4

EL

L4

9683

STAIRCASE

L2

FFL +00 3.3sqm

EQ

109sqm

EL

L1

L4

SD HD

HD

L2

L4

SEC A

FF2

L3

L1

BALCONY

VOID

12.3sqm

L1

SD

SD

W1

E

W2

WF1

W2

W3

W3

L3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W1

W3

W3

W3

L2

KELUAR

W3

STAIRCASE 12.2sqm

FIRE LEGEND

LIGHTING LEGEND SYMBOL

RCP LEVEL 5 REFLECTED CEILING PLAN 01

EL

L2

L4

L2

EL

CP1

EL

L4

SD

L2

L2

VOID

LF2

EL

DESCRIPTION

QTY

L1

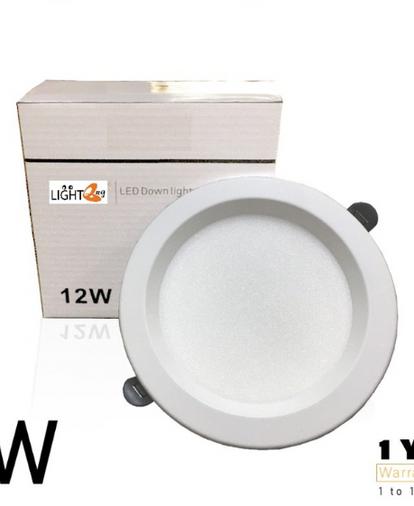

90MM(R) WARM WHITE DOWN LIGHT

18

L2

60MM(R) COOL WHITE DOWN LIGHT

21

L3

5MM(L) X 5MM(W) LED FLEXIBLE STRIP LIGHTING

24

L4

838MM(L) X 203MM(W) X 40MM(H) LED FLAT WHITE PENDANT LIGHT

8

L5

90MM(L) X 60MM(W) SINGLE WARM YELLOW CEILING SPOTLIGHT

SYMBOL

KELUAR EL

DESCRIPTION KELUAR SIGN

EMERGENCY LIGHT

CEILING LEGEND QTY

SYMBOL

DESCRIPTION

7

500MM X 500MM CEILING MOUNTED AIR DIFFUSER

26

900MM X 900MM CEILING MOUNTED CASSETTE AIR SUPPLY

QTY 7 10 AREA(sqm)

SD

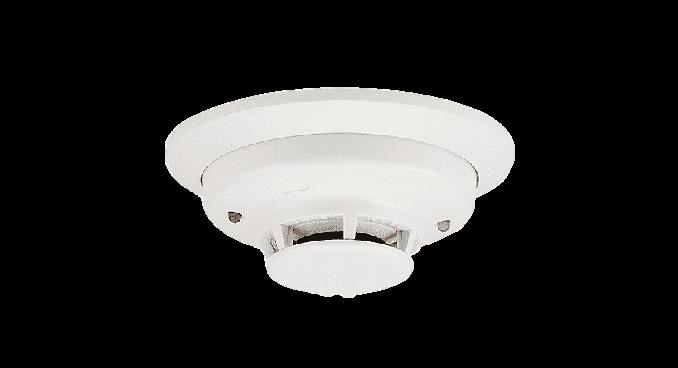

SMOKE DETECTOR

26

HD

HEAT DETECTOR

12

SPRINKLE HEAD

28

CP1

7

CP2

CURVE FIBRE MINERAL CEILING BOARD WITH MATTE WHITE FINISH EXPOSED CEILING WITH MATTE WHITE PAINT FINISH

80 233

SCALE 1:150

NOTE:

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

DESCRIPTION

P1

EL

L3

CP1

EL

3.3sqm

NO.

UP

60sqm

EQ

LIFT

SD FFL +00

L2

SD

L2

EL EL

D1

L2

HD

SEC A

KELUAR

D1

LF1

P1

F1

25sqm

F3

L2

SD

KELUAR

L3

5180

L3

26.9sqm

L4 L2

VOID

LF3

MEETING CENTRE

HD

OFFICE SEATING/ WORKING CUBICLE

L2

EL SD

EL

OFFICE SEATING

CORRIDOR FFL +00

L3

CP1

1sqm

F4

P1

HD

L3

SD

0.7sqm

STORAGE 7

39sqm

F2

HD

SD

STORAGE 6

EL

OBJECT BESPOKE

EQ

KELUAR

L2

HD

0.6sqm

FFL +00

3L

1528

L1

STORAGE 4

EL

UP

SD

STORAGE 5

1.9sqm

L2 SD

D2

D6

D6

P1

L3

SD

HD

L1

CP2

FFL +00 0.5sqm

SD

L2

L2 SD

D3

L1

SD

EL

57sqm

L3

D

EL STORAGE 3

L2

L1

D1

L2 SD

FFL +00 1.8sqm

3.8sqm

DP100

SD

EL

D2

L2 SD

STORAGE 1

WC 4 D1

DP100

L1

109sqm

L3

STORAGE 2 FFL +00 0.4sqm

WC 3

L1

KELUAR

D1

EL

SOIL LABORATORY

FFL +00

EQ

L1

L1

SD

CORRIDOR KELUAR

EQ

L5

L5

1771

L1

CP2

L3

C

4273

L1

EL

2.7sqm

SC3

WF1

W4

W4

W4

3698

L1

UP

SD

HD

W4

W4

3780

L1

D1

DP100

SD

EL

W4

4138

EL

EL

L5

7200

DATE

PROJECT NAME: ASSIGNMENT 3 : WORKING DRAWINGS + SYSTEM INTEGRATION

DRAWING TITLE: REFLECTED CEILING PLAN

SCALE: 1:150 JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

CHECK BY: MS FATIMAH

DATE: 10 NOV 2022 DRAWN BY: CHONG CHIAO YEN

DRAWING NO.: PAM_DWD_CY_RCP_03

REV NO.:

02

2

1

3

5

4

6

8

7

52212 3000

W4

A

1203

L5

WC 1

W4

W4 HD

L5

WC 2

FFL +00

W4

W4

W4 HD

EL

L5

W4

W4

EL

W4

W4

W4

W4

HD

EL

L5

6100

DN D1

DP100

L1

UP

CP2 EQ

L1

CP2

L1

L3

D4

57sqm

L1

CP2

EQ

39sqm

L2

STAIRCASE

L4

FFL +00 16.3sqm

SD

LIFT

L1 L4

EL

CP1

EQ

FFL +00

FFL +00 3.3sqm

109sqm

EL

P1

UP

HD

P1

EL

HD

VOID

L4

EQ

L4

L4

L4

E

W1

W2

W2

12.3sqm

L1

L2

SD

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W1

W3

W3

W3

KELUAR

STAIRCASE 12.2sqm

LIGHTING LEGEND

LLP LEVEL 5 LIGHTING LOOPING PLAN 01

ELECTRICAL LEGEND DESCRIPTION

QTY

L1

90MM(R) WARM WHITE DOWN LIGHT

18

DISTRIBUTION BOX

1

L2

60MM(R) COOL WHITE DOWN LIGHT

21

SINGLE GANG SWITCH

19

L3

5MM(L) X 5MM(W) LED FLEXIBLE STRIP LIGHTING

24

DOUBLE GANG SWITCH

11

L4

838MM(L) X 203MM(W) X 40MM(H) LED FLAT WHITE PENDANT LIGHT

8

TRIPLE GANG SWITCH

5

7

FLOOR SOCKET DOUBLE

13

DOUBLE SOCKET

17

SYMBOL

L5

DESCRIPTION

90MM(L) X 60MM(W) SINGLE WARM YELLOW CEILING SPOTLIGHT

QTY

SYMBOL

SCALE 1:150

NOTE:

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

DESCRIPTION

SEC A

SD

WF1

KELUAR

EL

FF2

L2

BALCONY

VOID

L1

EL

EL

CP1

EL LF2

LIFT 3.3sqm

NO.

L2

EL

SD FFL +00

L2

L2

L3

CP1

EL

HD

L2

L2

SD

LF1

L2

L2

F3 L1

SD

D1

SD

L2

EL

KELUAR

D1

L3

5180

F1

25sqm

60sqm

L4 L2

VOID

OFFICE SEATING

MEETING CENTRE

HD

SD

KELUAR

EL

LF3

OFFICE SEATING/ WORKING CUBICLE 26.9sqm

CORRIDOR

L2

EL SD

L3

SD

F2

1sqm

F4

P1

HD HD

L4

9683

EL

STORAGE 7

3L

L2

D2

KELUAR

0.7sqm

EL

OBJECT BESPOKE

L3

1528

L1

1.9sqm

SD

STORAGE 6

0.6sqm

FFL +00

L2 SD

D2

L2

HD

STORAGE 5

L3

SD

D6

D6 SD

P1

STORAGE 4

FFL +00 0.5sqm

SD

HD

L1

L2 SD

D3

L1

SD

EL L2

L3

EL STORAGE 3

L2

L1

D1

SD

L2 SD

FFL +00 1.8sqm

DP100 DP100

EL

D2

L2 SD

STORAGE 1

3.8sqm

D1

SOIL LABORATORY

109sqm

L1

STORAGE 2 FFL +00 0.4sqm

WC 4

L1

KELUAR

D1

EL

WC 3

SD

CORRIDOR KELUAR

EQ

L1

L5

2.7sqm

4273 WF1

EL

L1

SD

HD

W4

W4

W4

3698

L1

D1

DP100

W4

W4

3780

L5

1771

W4

4138

EL

SC3

EL

7200

W4

W4

EL

L5

2.8sqm

L1

UP

SEC A

7100

FFL +00

2.2sqm

SD

C D

W4

W4 EL

B

18935

6098

DATE

PROJECT NAME: ASSIGNMENT 3 : WORKING DRAWINGS + SYSTEM INTEGRATION

DRAWING TITLE: LIGHTING LOOPING PLAN

SCALE: 1:150 JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

CHECK BY: MS FATIMAH

DATE: 22 NOV 2022 DRAWN BY: CHONG CHIAO YEN

DRAWING NO.: PAM_DWD_CY_LLP_04

REV NO.:

02

2

1

3

5

4

6

8

7

52212 3000

W4

1203

A B

W4

W4

W4

W4

W4

W4

W4

W4

W4

W4

W4

WC 2

WC 1

6100

W4

W4

DN

FF1

FF1 2.2sqm

7100

18935

6098

W4

W4

7200

W4

W4

W4

3780

UP WC 3

2.8sqm

D1

DP100

DP100

W4

W4

W4

D1

WC 4

FF1

FF1

2.7sqm

D1

DP100

3.8sqm

D1

DP100

SC3

1771

FF2

C

WF1

1528

STORAGE 2 FF2

STORAGE 4

1.8sqm

OBJECT BESPOKE 39sqm

D2

0.4sqm

STORAGE 1

D3

D6

D6 P1

STORAGE 5

STORAGE 6

0.6sqm

FF2

0.7sqm

FF2

1.9sqm

FF2

FF2

STORAGE 3 0.5sqm

FF2

D2

FF2

STORAGE 7

OFFICE SEATING/ WORKING CUBICLE

FF2

9683

FF2

SOIL LABORATORY 57sqm

109sqm

D4

D1

D

FF2

CORRIDOR

FF2

D2

P1

1sqm

FF2 FF2

FF3

26.9sqm

D1

D1

STAIRCASE UP

VOID

FF3

16.3sqm

LIFT

CORRIDOR

3.3sqm

FF2

FF3

LF3

P1

UP

MEETING CENTRE

FF3

109sqm

60sqm

FFL +00

OFFICE SEATING

LF1

25sqm

P1

5180

FF2

VOID

FF2 FF3 LF2

LIFT

SEC A

FF2

3.3sqm

VOID

12.3sqm

WF1

W1

E

W2

BALCONY

W2

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

W3

COFFEE BOOTH

SEC A W3

W3

W1

W3

W3

W3

STAIRCASE 12.2sqm

FLOOR LEGEND SYMBOL

DESCRIPTION

AREA (sqm)

FF1

40MM X 80MM PORCELAIN TILE WITH MATTE WHITE FINISH

11.5

FF2

20MM(THK) CONCRETE FLOORING POLISHED FINISH

180

FF3

500MM X 500MM CARPET FINISH LAYING ON TOP OF CONCRETE FLOORING

162

FFP LEVEL 5 FLOOR FINISH PLAN 01

SCALE 1:150

NOTE:

CLIENT:

ARCHITECT:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

PROJECT NAME: ASSIGNMENT 3 :

DRAWING TITLE: FLOOR FINISH PLAN

WORKING DRAWINGS + SYSTEM INTEGRATION SCALE: 1:150

JYNN'S SDN.BHD. 10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

GW DESIGN & BUILT SDN. BHD. 2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

PATRICIA J. INTERIOR DESIGN SDN. BHD. 2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

BORCELLE Q.S COMPANY Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

DATE: 23 NOV 2022 DRAWN BY:

CHECK BY: MS FATIMAH CHONG CHIAO YEN REV NO.:

DRAWING NO.: PAM_DWD_CY_FFP_05

02

2749

5985

6600

6600

6600

6600

6600

6600

3635

ROOF LEVEL

CEILING LEVEL

ROOF TOP FLOOR LEVEL

SEVENTH FLOOR LEVEL

LOOP PRINT CARPET SIXTH FLOOR LEVEL CONCRETE FLOORING

PERFECT PAINT PLASTER CEILING FIFTH FLOOR LEVEL

WOODEN ODD SHAPE TABLE COUNTER

FORTH FLOOR LEVEL

THIRD FLOOR LEVEL

SECOND FLOOR LEVEL

FIRST FLOOR LEVEL

GROUND FLOOR LEVEL

LOWER GROUND FLOOR LEVEL

SEC LEVEL 5 SECTION A-A 01

SCALE 1:150

NOTE:

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

PROJECT NAME: ASSIGNMENT 3 : WORKING DRAWINGS + SYSTEM INTEGRATION

DRAWING TITLE: SECTION PLAN

SCALE: 1:150 JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

CHECK BY: MS FATIMAH

DATE: 28 NOV 2022 DRAWN BY: CHONG CHIAO YEN

DRAWING NO.: PAM_DWD_CY_SEC_01

REV NO.:

02

727

44

18

96

22

29

24

2178

163

8

1722

3473

26 18

13 42

99

2460 12

6 4 1

1

1354 BLP BESPOKE LAYOUT PLAN 01

NOTE:

CLIENT:

ARCHITECT:

SCALE 1:150

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

PROJECT NAME: ASSIGNMENT 3 : WORKING DRAWINGS + SYSTEM INTEGRATION

DRAWING TITLE: BESPOKE LAYOUT PLAN

SCALE: 1:150 JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

CHECK BY: MS FATIMAH

DATE: 28 NOV 2022 DRAWN BY: CHONG CHIAO YEN

DRAWING NO.: PAM_DWD_CY_BLP_01

REV NO.:

02

6419 TEMPERED GLASS CEILING LEVEL

Ø1494 7682

CERAMIC BASED

5016

Ø1140

STEEL CIRCULAR FILTER FAN

683

1091

Ø1394

RECYCLED PVC TUBE FLOOR LEVEL

BSP BESPOKE SECTION PLAN 01

NOTE:

CLIENT:

ARCHITECT:

SCALE 1:150

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

PROJECT NAME: ASSIGNMENT 3 : WORKING DRAWINGS + SYSTEM INTEGRATION

DRAWING TITLE: BESPOKE SECTION PLAN

SCALE: 1:150 JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

CHECK BY: MS FATIMAH

DATE: 29 NOV 2022 DRAWN BY: CHONG CHIAO YEN

DRAWING NO.: PAM_DWD_CY_BSP_01

REV NO.:

02

HINGES

SCREW

BBD BESPOKE BLOW-UP DETAIL 01

NOTE:

SCALE 1:150

CLIENT:

ARCHITECT:

INTERIOR DESIGN CONSULTANT:

QUANTITY SURVEYOR:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicated or represented on this drawing are owned by and are the property of GW Design and must be return upon request. No disclosure of this drawing may be made to any person, firm or company without the expressed permission in writing to GW Design.

Do not scale this drawings for construction purposes. Any discrepancies found, they are to be clarify with GW Design.

NO.

DESCRIPTION

DATE

PROJECT NAME: ASSIGNMENT 3 : WORKING DRAWINGS + SYSTEM INTEGRATION

DRAWING TITLE: BESPOKE BLOW-UP DETAIL

SCALE: 1:150 JYNN'S SDN.BHD.

GW DESIGN & BUILT SDN. BHD.

PATRICIA J. INTERIOR DESIGN SDN. BHD.

BORCELLE Q.S COMPANY

10, AARON Bukit Bintang, Usj 8/32, 4750 Kuala Lumpur, Selangor Malaysia Tel: 016-8941884 Email: aaronabc1998@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

2, Jalan PJU 7/2, Mutiara Damansara, 4780 Petaling Jaya, Selangor Tel: 012-9657388 Email: gw.design.built01@gmail.com

Lot 13600, Jalan Cempaka, Kampung Sungai Kayu Ara, 4740 Petaling Jaya, Selangor Tel: 019-8681962 Email: borchelle.qs_@gmail.com

CHECK BY: MS FATIMAH

DATE: 30 NOV 2022 DRAWN BY: CHONG CHIAO YEN

DRAWING NO.: PAM_DWD_CY_BBD_01

REV NO.:

02

GY O

SOILOGY MALAYSIA SDN. BHD

L SOI

KEY TO A BETTER LAND

BILL OF QUANTITIES

ADDRESS :

QUOTATION :

51, JLN 451 LORONG 51C, ARA DAMANSARA,

DATE :

02 DEC 2022

QUOTATION NO. :

DWD/AS/BQ/11

47301, PETALING JAYA, SELANGOR, TEL : +603-4512623

CUSTOMER ID. :

47251

ATTENTION : MAINTENANCE AND RENOVATION WORKS FOR SOILOGY

BILL OF QUANTITIES NO.

DESCRIPTION

CODE

QTY

UNIT

RATE

TOTAL

FF2

50

SQM

90

4500.00

FF3

6

ROLL

50

300.00

FF1

20

SQM

60

1200.00

WF1

1

L

100

100.00

WF2

1

L

100

100.00

SC2

1

L

100

100.00

P1

5

SQM

10

50.00

FLOOR TILING WORK 1

RECYCLED CEMENT CONCRETE FLOOR To supply material and labour to lay 600mm(W) x 600mm(L) RECYCLED CEMENT CONCRETE FLOORING

2

LOOP PRINT CARPET To supply material and labour to lay 20mm(L) x 30mm(THK) LOOP PRINT CARPET

3

RECYCLED PORCELAIN TILE To supply material and labour to lay 600mm(L) x 600mm(THK) RECYCLED PORCELAIN TILE

PAINTING WORK 4

NIPPON SPOT-LESS PLUS COAT INTERIOR To supply material and labour to lay w/ 5L NIPPON SPOTLESS PLUS COAT INTERIOR

5

NIPPON PERFECT WHITE INTERIOR SPACE PAINT To supply material and labour to lay w/ 5L NIPPON PERFECT WHITE INTERIOR SPACE PAINT

6

NIPPON LAZER PYLOX STAIRCASE SPRAY PAINT To supply material and labour to lay w/ 5L NIPPON LAZER PYLOX STAIRCASE SPRAY PAINT

PARTITION WORK 7

PVC BOARD PANEL To supply material and labour to intstall PVC BOARD PANEL @ SOILOGY

GY O

SOILOGY MALAYSIA SDN. BHD

L SOI

KEY TO A BETTER LAND

BILL OF QUANTITIES

ADDRESS :

QUOTATION :

51, JLN 451 LORONG 51C, ARA DAMANSARA,

DATE :

02 DEC 2022

QUOTATION NO. :

DWD/AS/BQ/11

47301, PETALING JAYA, SELANGOR, TEL : +603-4512623

CUSTOMER ID. :

47251

ATTENTION : MAINTENANCE AND RENOVATION WORKS FOR SOILOGY

BILL OF QUANTITIES NO.

DESCRIPTION

CODE

QTY

UNIT

RATE

TOTAL

1

NOS

90

4500.00

1

NOS

50

300.00

LF3

6

SQM

60

1200.00

L1

18

PCS

6

108.00

L3

15

ROLL

30

450.00

L5

24

PCS

LOOSE FURNITURE WORK 8

ODD SHAPE CURVY LAB COUNTER Selected ODD SHAPE CURVY LAB COUNTER w/

LF1

POLISHED CONCRETE SHINY SURFACE AND BODY 2

RECTANGULAR MINI COFFEE COUNTER Selected RECTANGULAR MINI COFFEE COUNTER w/

LF2

WHOLE SURFACE LAMINATED OLYWOOD 3

SEMI CIRCULAR PLYWOOD OFFICE DESK Selected SEMI CIRCULAR PLYWOOD OFFICE DESK w/ WHOLE SURFACE PAINTED WHITE

ELECTRICAL WORK 4

WARM WHITE DOWN LIGHT To supply material and labour to install 3000K, 4000K, 6000K WARM WHITE DOWN LIGHT

5

WARM YELLOW CEILING SPOT LIGHT To supply material and labour to install 3000K WARM YELLOW CEILING SPOT LIGHT

6

LUMINIOUS FLEXIBLE LED STRIP LIGHT To supply material and labour to install 8000K LUMINIOUS FLEXIBLE LED STRIP LIGHT

30

720.00

GY O

SOILOGY MALAYSIA SDN. BHD

L SOI

KEY TO A BETTER LAND

TERMS AND CONDITIONS

ISSUE BY

COMPANY NAME

SOILOGY MALAYSIA SDN. BHD MANAGING DIRECTOR

ACTKNOWLEDGED & AGREED BY

Signature with I.C. Number (NAME : ) (I.C. NO :

)

SCHEDULE OF FINISHES CODE


SPECI FI CATI ON

SIZE

SUPPLIER

LOCATION

1.1 FLOOR FINISHES FF1 FF2 FF3

PORCELAIN TILE

600MM (THK) X 600MM

POLISHED CONCRETE FLOORING

600MM (THK) X 600MM

Buimaco Sdn Bhd NATURAL STONE MALYSIA

LEVEL 5 TOILET LEVEL 5 CORRIDOR, STAIRCASE LEVEL 5 OFFICE, LAB

LOOP PRINT CARPET

20MM (THK) X 30MM

NIPPON PERFECT WHITE

5L

NIPPON PAINT

5L

NIPPON PAINT

1.2 WALL FINISHES WF1

LEVEL 5

1.3 CEILING FINISHES CF1 WHITE WHITE PLASTERBOARD PAINT

LEVEL 5

SCHEDULE OF SCHEDULE OF ELECTRICAL, LIGHTINGS, AND EQUIPMENTS CODE


SPECI FI CATI ON

PRICE UNIT(RM)

LOCATION

SUPPLIER

LIGHTING FIXTURES OFFICE SEATING WORK SPACE L1

L3

L5

W12 WARM WHITE DOWNLIGHT 3RD GEN

Athena G2 Series WARM YELLOW WALL LIGHT

LUMINIOUS FLEXIBLE LED STRIP LIGHT

6.00

LEVEL 5

30.00

LEVEL 5

30.00

LEVEL 5

Houses Lightings Sdn Bhd 29, 31, 33, 35, Jalan BPU 6, Bandar Puchong Utama, 47100 Puchong, Selangor, Malaysia.

Unois Shopee Malaysia

Prim Light Sdn Bhd ( LED Lighting, LED screen & Down Light Malaysia)

ELECTRICAL FIXTURES OFFICE SEATING WORK SPACE

EC1

EC2

EC3

AIR-COND COOLER

6551.00

AIR-COND COOLER

1180.00

AIR CEILING DIFUSER

350.00

LEVEL 5

DAIKIN Malaysia SDN. BHD

LEVEL 5

DAIKIN Malaysia SDN. BHD

LEVEL 5

DAIKIN Malaysia SDN. BHD

SCHEDULE OF SCHEDULE OF ELECTRICAL, LIGHTINGS, AND EQUIPMENTS CODE


SPECI FI CATI ON

PRICE UNIT(RM)

LOCATION

SUPPLIER

LIGHTING FIXTURES- LABORATORY

L1

L5

W12 WARM WHITE DOWNLIGHT 3RD GEN

LUMINIOUS FLEXIBLE LED STRIP LIGHT

6.00

30.00

LEVEL 5

LEVEL 5

Houses Lightings Sdn Bhd 29, 31, 33, 35, Jalan BPU 6, Bandar Puchong Utama, 47100 Puchong, Selangor, Malaysia.

Prim Light Sdn Bhd ( LED Lighting, LED screen & Down Light Malaysia)

ELECTRICAL FIXTURES- LABORATORY EC1

EC2

EC3

AIR-COND COOLER

6551.00

AIR-COND COOLER

1180.00

AIR CEILING DIFUSER

350.00

LEVEL 5

DAIKIN Malaysia SDN. BHD

LEVEL 5

DAIKIN Malaysia SDN. BHD

LEVEL 5

DAIKIN Malaysia SDN. BHD

SCHEDULE OF SCHEDULE OF ELECTRICAL, LIGHTINGS, AND EQUIPMENTS CODE


SPECI FI CATI ON

PRICE UNIT(RM)

LOCATION

SUPPLIER

LIGHTING FIXTURES - LIFT L6

LED FLAT WHITE PENDANT LIGHT

130.00

LEVEL 5

Alfo Lighting Sdn Bhd 161, Jln Sungai Besi, Pudu, 57100 Kuala Lumpur, Wilayah Persekutuan Kuala Lumpur

ELECTRICAL FIXTURES- LIFT

EC4

AIR-COND ELEVATOR

4650.00

LEVEL 5

GREE MALAYSIA SDN.BHD Jalan SS13/4, Subang Jaya Industrial Estate, 47500 Subang Jaya, Selangor

The greatest challenge faced throughout assignment 3 would be time shortage. Unforturnately, I did not manage to complete the latter part of this assignment this time round. I was amazed when I acknowledge the amount of details needed in a particular building and started to appreciate the great heros in this industry

0 3 A S S I G N E M N T

REFLECTION

This would be my first time really understanding the meaning of "rollercoaster". This semester has not been easy for me as just so happen that some sudden unplanned issues came during few of my important submission weeks, both personal and technical issues left me no choice but to spend more time completting my work yet i did not manage to complete my final assignment anf the feeling of submitting imcomplete work has never been worse. Although there is no doubt in me receiving plentyful new and interesting knowledge from my 2 lovely tutors, Ms. Sin Ai and Ms. Fatimah, it is not a good way to end this semester.

0 3 A S S I G N E M N T

OVERALL REFLECTION

THANK YOU.
