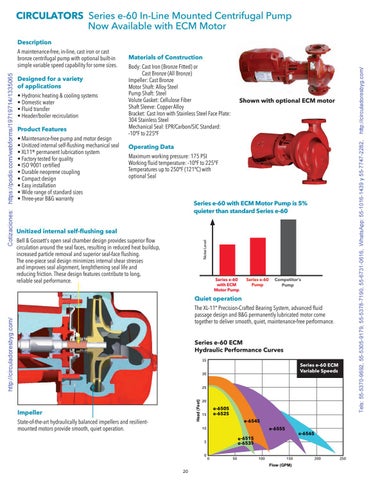

CIRCULATORS Series e-60 In-Line Mounted Centrifugal Pump Now Available with ECM Motor Description
Product Features • Maintenance-free pump and motor design • Unitized internal self-flushing mechanical seal • XL11® permanent lubrication system • Factory tested for quality • ISO 9001 certified • Durable neoprene coupling • Compact design • Easy installation • Wide range of standard sizes • Three-year B&G warranty
http://circuladoresbyg.com/
• Hydronic heating & cooling systems • Domestic water • Fluid transfer • Header/boiler recirculation
Body: Cast Iron (Bronze Fitted) or Cast Bronze (All Bronze) Impeller: Cast Bronze Motor Shaft: Alloy Steel Pump Shaft: Steel Volute Gasket: Cellulose Fiber Shaft Sleeve: Copper Alloy Bracket: Cast Iron with Stainless Steel Face Plate: 304 Stainless Steel Mechanical Seal: EPR/Carbon/SIC Standard: -10ºF to 225ºF
Shown with optional ECM motor
Tels: 55-5370-9692, 55-5305-9179, 55-5378-7190, 55-6731-0616, WhatsApp: 55-1016-1439 y 55-7747-2282,
Designed for a variety of applications
Materials of Construction
Operating Data Maximum working pressure: 175 PSI Working fluid temperature: -10ºF to 225°F Temperatures up to 250ºF (121ºC) with optional Seal
Series e-60 with ECM Motor Pump is 5% quieter than standard Series e-60
Unitized internal self-flushing seal Bell & Gossett’s open seal chamber design provides superior flow circulation around the seal faces, resulting in reduced heat buildup, increased particle removal and superior seal-face flushing. The one-piece seal design minimizes internal shear stresses and improves seal alignment, lenghthening seal life and reducing friction. These design features contribute to long, reliable seal performance.
Noise Level
Cotizaciones: https://podio.com/webforms/19719714/1335065
A maintenance-free, in-line, cast iron or cast bronze centrifugal pump with optional built-in simple variable speed capability for some sizes.
Series e-60 with ECM Motor Pump
Series e-60 Pump
Competitor’s Pump
Quiet operation
http://circuladoresbyg.com/
The XL-11® Precision-Crafted Bearing System, advanced fluid passage design and B&G permanently lubricated motor come together to deliver smooth, quiet, maintenance-free performance. Hydraulic Curve Performance Range e-60 @ 1725 RPM
Series e-60 ECM Hydraulic Performance Curves 35
Series e-60 ECM Variable Speeds
30
Head (Feet)
25
Impeller State-of-the-art hydraulically balanced impellers and resilientmounted motors provide smooth, quiet operation.
20
e-650S e-652S
15
e-654S e-655S
10
0
e-656S
e-651S e-653S
5
0
50
100
150
Flow (GPM)
20
200
250
