Lift Off

By Michael Crowley, Correspondent

ABS

If you operate a boatyard or are starting up a new one and need to replace the travel lift, International Boatlift Exchange may be a good place to start your search.

“It’s a niche market and we are one of the few in the country doing it,” said James Alfieri, owner of the Seffner, Fla.-based company.

The niche market he’s referring to is not just new travel lifts, but used travel lifts, as well. “I give you choices to find a good used travel lift and if there are none then offer up a new one,” said Alfieri, who is also the North American agent for Ascom, an Italian builder of new travel lifts. Alfieri has sold new and used travel lifts to boatyards as far away as Russia and Malaysia, since International Boatlift Exchange was founded in 1991.

In mid-November, IBE listed seven used travel lifts on its website that hadn’t been sold. Most were in the 60- to 100-ton range, which is generally suitable for most marinas. For builders and operators of boatyards that deal primary with workboats there was also a 200-ton Marine Travelift mobile boat hoist priced at $485,000 and built in 2001, and a 300-ton travel lift for $650,000 that was built in 2003.

To replace the 200-ton travel lift with a new model by the same manufacturer, Alfieri estimates would cost between $900,000 and $1 million. That points out the major benefit of buying a used travel lift — price. Alfieri allows that there are not as many used travel lifts available for the workboat industry as for the pleasure boat market, but they are available. “I have to know a lot of people and do a lot of searching to find them.”

Though just because the price is right for, say, that 200-ton used travel lift, it doesn’t mean it’s a good fit for your boatyard. For someone that hasn’t previously operated a travel lift or if the 200-ton travel lift is larger than the one currently being used, Alfieri likes to see an AutoCAD layout of the boat-

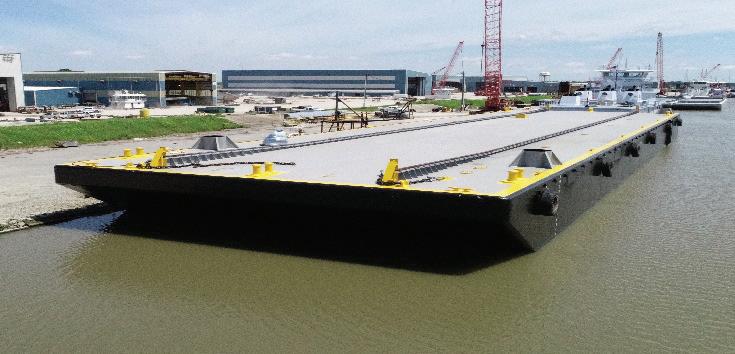

New Construction Inland Towboats • Dredges • Deck Barges • Tank Barges • Spud Barges • ABS-Classed Deck Barges • Hopper Barges • Specialized Projects

Repair Work Top-Side Repairs • Hull Damage Repairs • ISE Repairs • Hull Re-Siding • Barge Blasting & Painting • Bottom Replacement • Piping Repairs and Modifications • Barge Modifications • Cargo Tank Repairs and Modifications • Barge Coatings and Tank Liners • Specialized Projects

yard with its buildings showing where the travel lift is going to be operating.

“We’ll put our 200-ton machine on his property and it shows where he can best facilitate that property with the machine, or if he can at all.”

Being a dealer of new and used travel lifts has its advantages. IBE recently sold a new 750-ton Ascom travel lift to Fred Wahl Marine Construction in Reedsport, Ore., that replaces a 650-ton Ascom travel lift built in 2015. “He just needed to go bigger,” Alfieri explained. “I sold the 650-ton for him when we were halfway through the manufacturing process for the 750.” tries has a problem that more boatyards are now experiencing. “As time marches on, larger vessels are being constructed and shipyards don’t have sufficient water depth to launch or haul very large vessels,” said Richard Fryburg, Subsalve’s founder.

Subsalve offers a wide range of engineered inflatable underwater lift bags, including inflatables for marine construction, salvage and towing, aircraft recovery, draft reduction, and pipeline and tunnel construction.

An inflatable bag’s size and shape

While IBE has the answer for lifting a boat out of the water and bringing it on land or putting it in the water, that doesn’t work for salvage work when you have to lift a totally submerged or partially submerged boat. The boat can be in deep water or next to the dock, or when you need to reduce a boat’s draft enough that when it’s launched it has enough buoyancy that it won’t ground out. That kind of lifting requires inflatable engineering, which is what Subsalve in Kingston, R.I., has been doing for the past 45 years.

Take the case of the Ocean Tundra, a 118'×42'×22'6", twin-screw tractor tug built by Ocean Industries, Iles aux Coudres, Quebec, Canada. Ocean Indus-

The only way Ocean Tundra was able to be launched was to increase its buoyancy by encircling the hull — well below the water line — with a number of Subsalve’s IBE SP70000 salvage pontoons. These are totally enclosed cylindrical bags made of high-strength urethane-coated nylon with shackles and valves and a lift harness that maintains the bag in a horizontal position against the hull.

When inflated, a SP70000 salvage pontoon is 115" high and 207" long, has seven attachment points, and a lifting capacity of 77,000 lbs. In the case of the Ocean Tundra the IBE SP70000 salvage pontoons provided 350 tons of buoyancy, enough to launch the tug. That was in 2013 and several more launchings have taken place with the help of Subsalve. Inflatable bags are also used when a boat with too much draft has to be hauled out.

depends on the size of the vessel that needs to be raised and the depth of the water. In shallow water situations, the bag has a low-profile cylinder or pontoon shape, whereas in deep water the inflatable bag appears to be more like a parachute.

An example would be Subsalve’s professional lift bag, which varies in size from the PF-1000, with a 35” diameter and 56" length with a 1,100lb. lift capacity, to the PF 100000, with a 166" diameter and 316" length with a 107,000-lb. lift capacity. Depending on the load they will be subject to, the professional lift bay is outfitted with either nylon lift straps on the bottom of the bag or a heavy-duty nylon webbing lift harness.

“We generated enormous forces,” said Fryburg. “We make single bags that generate as much as 50 tons of positive buoyancy. The largest vessels we’ve assisted in floating entirely are about 8,000 tons.”

While Subsalve provides only the products needed to get or keep a boat afloat and not the onsite services, they will “assist with how the product is implemented,” said Fryburg. That relates to “the inflation sequence and timing of buoyancy” to control the vessel’s altitude.

On a much smaller scale, Subsalve also offers a propeller bag for when a prop needs to be removed and replaced by divers while the boat is in the water. The bag goes over the top half of the prop to provide enough buoyancy to support the prop’s weight while it’s being taken off the shaft and brought to the surface.
