Opike

Offering exceptional quality and design comes the range of sliding door systems from specialist sliding door hardware manufacturer Opike.

Opike is purpose-engineered for easy installation and premium style to suit a variety of spaces throughout the home. The Opike range features advanced product design that seamlessly blends style and function for superior performance in all requirements.

Suitable for wooden doors, the range includes top hung, inline and bi-fold sliding systems to suit varying door thickness and weights with some solutions offering soft open/soft close) for both 2 or 3 door applications. For more detailed information or to purchase the Opike range, visit our website at: www.wilbrad.com.au or call us on: 1800 633 507.

STAY ON TRACK WITH THE LATEST DESIGN TRENDS.

The Opike range builds further upon Wilson & Bradley’s renowned quality, by offering a range of innovative sliding benefits, modern aesthetics, and convenient design features.

OPIKE offers various different sliding door solutions for your home:

• Navigator - Barn door • Sailing - Bi-fold system • Coast – Top hung system • Traks – Flexible roller system • Cruze – Soft-open/soft close technology • Glide – Bi-fold System

Why choose Wilson & Bradley’s Opike sliding door systems:

• Suitable for wardrobes, laundries & other spaces throughout the home. • Easy to install. • Fitted with high quality soft-open/ soft-close technology which allows for smooth and controlled sliding of the doors. • Life cycle tested to ensure ongoing and dependable quality.

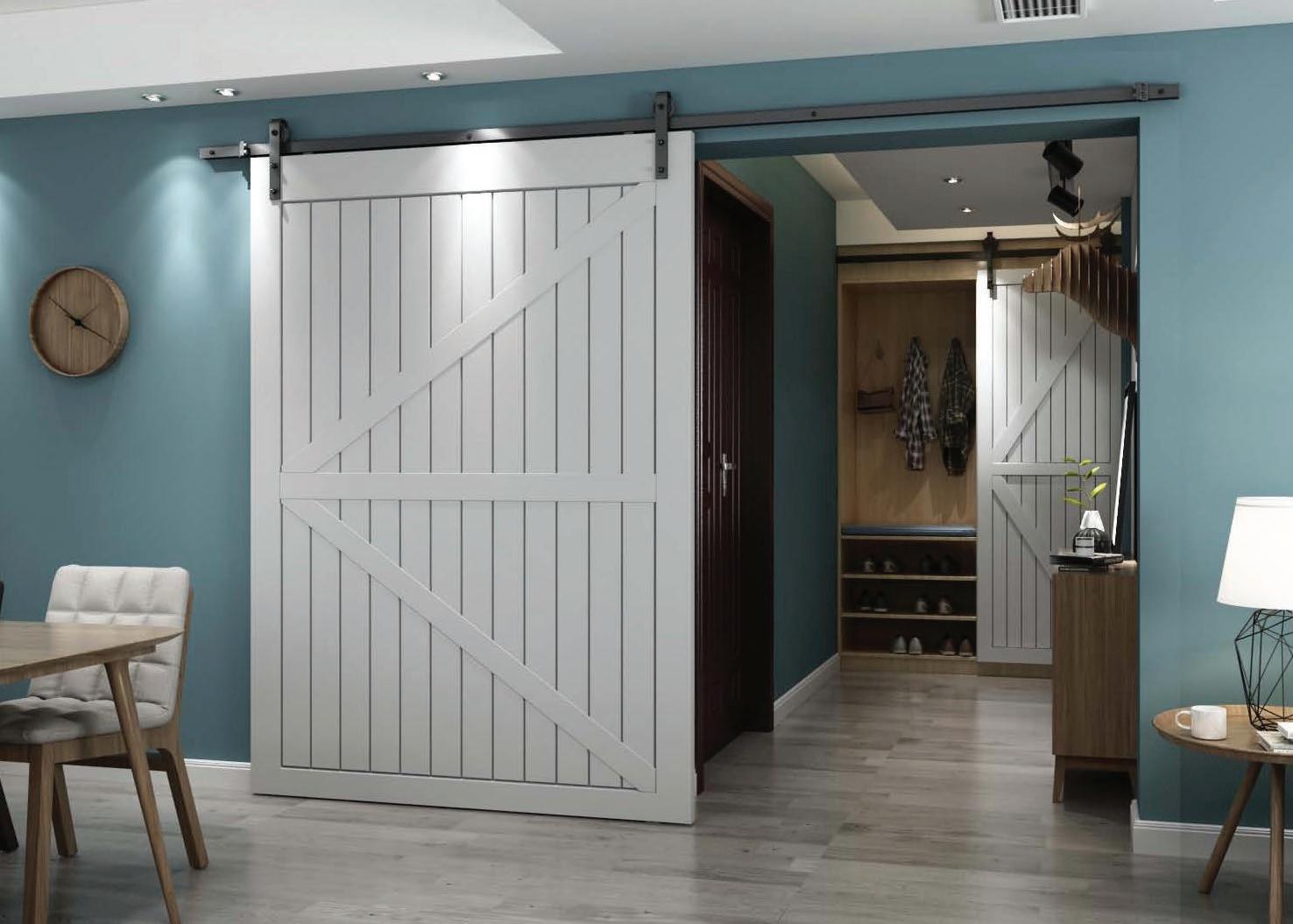

NAVIGATOR

Incorporating an industrial look and smooth functionality the Opike Navigator is a stylish barn door featuring robust steel components combined with large, high density rollers.

It is not only smooth and effortless to roll, it is extremely quiet in performance making it an ideal room divider for bathrooms, ensuites, laundries, bedrooms, hallways and other living spaces.

Key features of the Opike Navigator:

• Strong and sturdy construction • Two-way damper and anti jumping cushions • Stylish industrial design • Exposed rollers and upper track • All fixing hardware supplied • Ideal for industrial styled settings in the home • Smooth and clean operation • Matches the décor in any environment

Key technical specifications of the Navigator system:

Door height: 2600mm Door width: max 1500mm Door thickness: 35-45mm Weight capactiy: 40-80kg Damping: Both sides

Codes:

NAV34070 (Complete set) NAVLT411 (Lower track) NAVUT412 (Upper track)

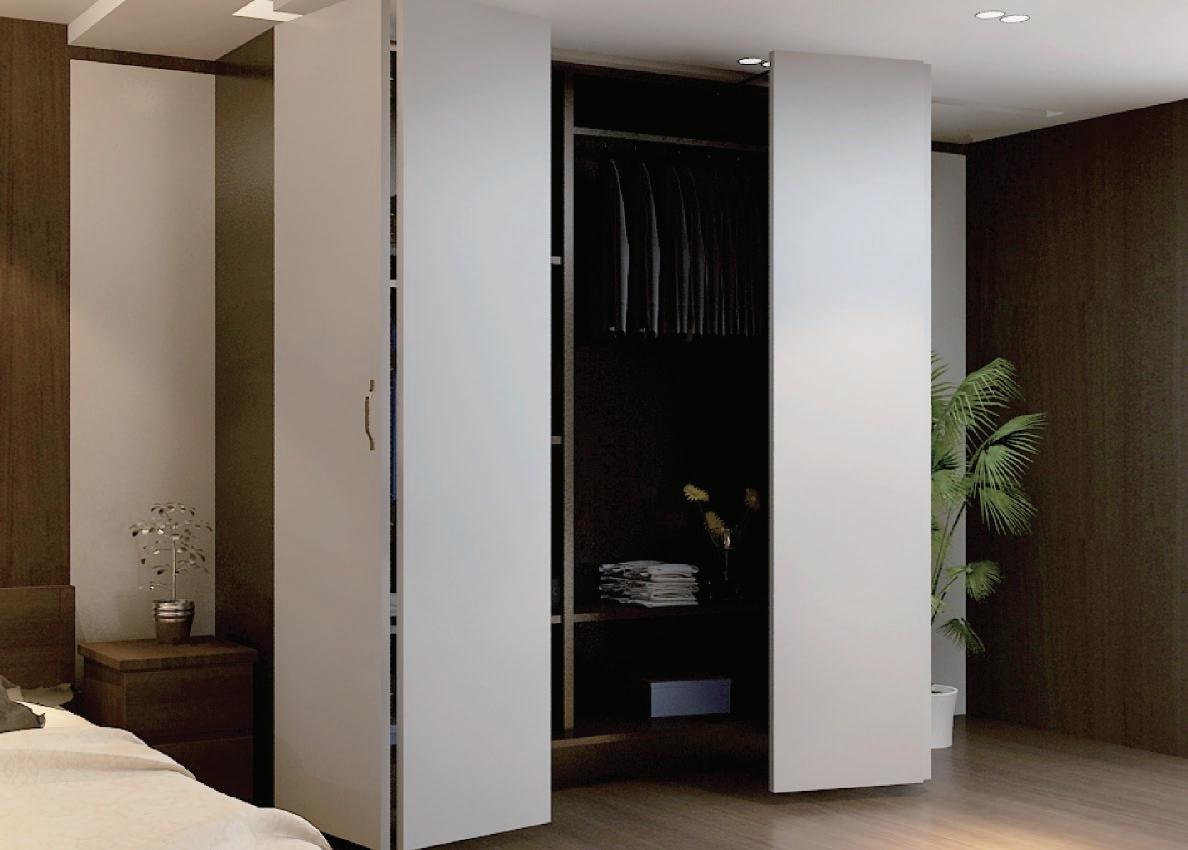

SAILING 2 BI-FOLD DOOR SYSTEM

The Opike Sailing is simple and easy to install. This versatile bi-fold door system is ideal for cabinets and wardrobes and can be configured in a variety of different combinations.

The easy guide rod adjustments ensure the perfect closing position.

Key features of the Opike Sailing 2 Bi-fold system:

• Smart trackless design • Adjustable guide rod • Can be set up in multi combinations • Comes complete with guide rod, butterfly hinges and drilling pattern • Strong and study construction • Versatile system that can be used in a variety of applications • Easy adjustment ensures the perfect closing position • Can accommodate doors up to 15kg and 300-500mm wide

Key technical specifications of the Sailing 2 system:

Door height: 2400mm Door width: max 500mm Door thickness: 16-18mm Weight capactiy: max 15kg

Code: SALFDS30

COAST

Embrace the latest innovation in top hung roller track systems.

Exclusive to Wilson & Bradley, the Opike Coast system is a top hung sliding door system that delivers a seamless smoothengineered performance, designed to suit residential spaces.

The Coast system offers the benefits of a cushioned softopen/soft-close technology with the reliability of rigorous life cycle testing to ensure ongoing high performance sliding & dependable quality. Suitable for wooden doors, the Coast system is designed to suit varying door thicknesses and weights and can be installed across 2 or 3 door applications. With a reinforced structural design, the Coast system is engineered to carry a maximum 70kg weight capacity per door. Designed with a smooth, steady and silent movement, the range represents the ultimate blend of modern style and substance. With a soft-close roller mechanism offering minimal friction, improved longevity and low maintenance upkeep, the Coast system is designed to ensure ongoing and dependable quality.

For more detailed information or to purchase the Opike range, visit our website at: www.wilbrad.com.au or call us on: 1800 633 507.

SUMMARY

The Coast range represents the ultimate blend of modern style and substance. Coast is designed with soft-open/softclose technology, offering minimal friction, improved longevity and low maintenance upkeep, ensuring ongoing and dependable quality.

Key features of the Coast system:

• Suitable for both 2 and 3 doors. • Soft-open/soft-close technology. • Designed to deliver smooth, steady and silent movement. • Easy to install. • Anti-slip mechanism to prevent door panel skipping out of the track. • Easy adjustable door height and door gap between doors. • Reinforced structural design allowing max. 70kg weight capacity per door. • Life cycle tested and proven for durability.

Key technical specifications of the Coast system:

• Max. load capacity: 70kg per door • Door thickness: 18mm – 40mm • Door width: 500mm – 1500mm • Door height: 800mm – 2400mm

Codes: 2400mm 3600mm

CST224 (2 door) CST236 (2 door) CST324 (3 door) CST336 (3 door)

TRAKS

Designed with customisable roller options, the Traks range features a refined minimalist appearance that caters to a wide range of designs, rooms and style requirements.

The Traks rollers are designed with a soft-open/soft-close mechanism that delivers minimal friction, improved longevity and low maintenance upkeep, ensuring ongoing and dependable quality.

Key features of the Traks system:

• Customisable roller options create a flexible system. • Rollers deliver a smooth, steady and silent movement. • Height adjustable rollers for easy adjustment. • Slimline minimalistic track.

Key technical specifications of the Traks system:

• Max. load capacity: 50kg per door • Door thickness: Variable • Door width: Variable • Door height: Variable The slim-fit design of the minimal clearance offers understated style, and Traks is engineered with a simple height adjustability for fast installation.

For more detailed information or to purchase the Opike range, visit our website at: www.wilbrad.com.au or call us on: 1800 633 507.

Codes:

TKSE320 (Economy) TKSL230 (Luxury) TKSP230 (Practical) TKSS230 (Standard)

CRUZE

Designed for residential spaces, the Cruze sliding system seamlessly integrates the benefits of soft-open/ soft-close technology when opening and closing doors with an anti-jump functionality device.

The Cruze design allows for the system to adjust the roller on the track which prevents the door jumping when closing, ultimately ensuring smoother sliding performance and ongoing product performance. The Cruze system is designed for proven durability and has been life cycle tested.

With minimalistic and streamlined design aesthetics, the Cruze system features low clearance functionality and a simple height adjustment function.

The Cruze systems auto-hanging hook function design components are all standardised to assist with easy installation.

Key features of the Cruze system:

• Suitable for 2 or 3 door applications. • Anti-collision and anti-jump technology prevents door jump on 3 door systems. • Max. load capacity 50kg per door. • Door thickness: up to 36mm.

Codes: 2400mm

CRZ224 (2 Door) CRZ324 (3 Door)

3600mm

CRZ236 (2 Door) CRZ336 (3 Door)

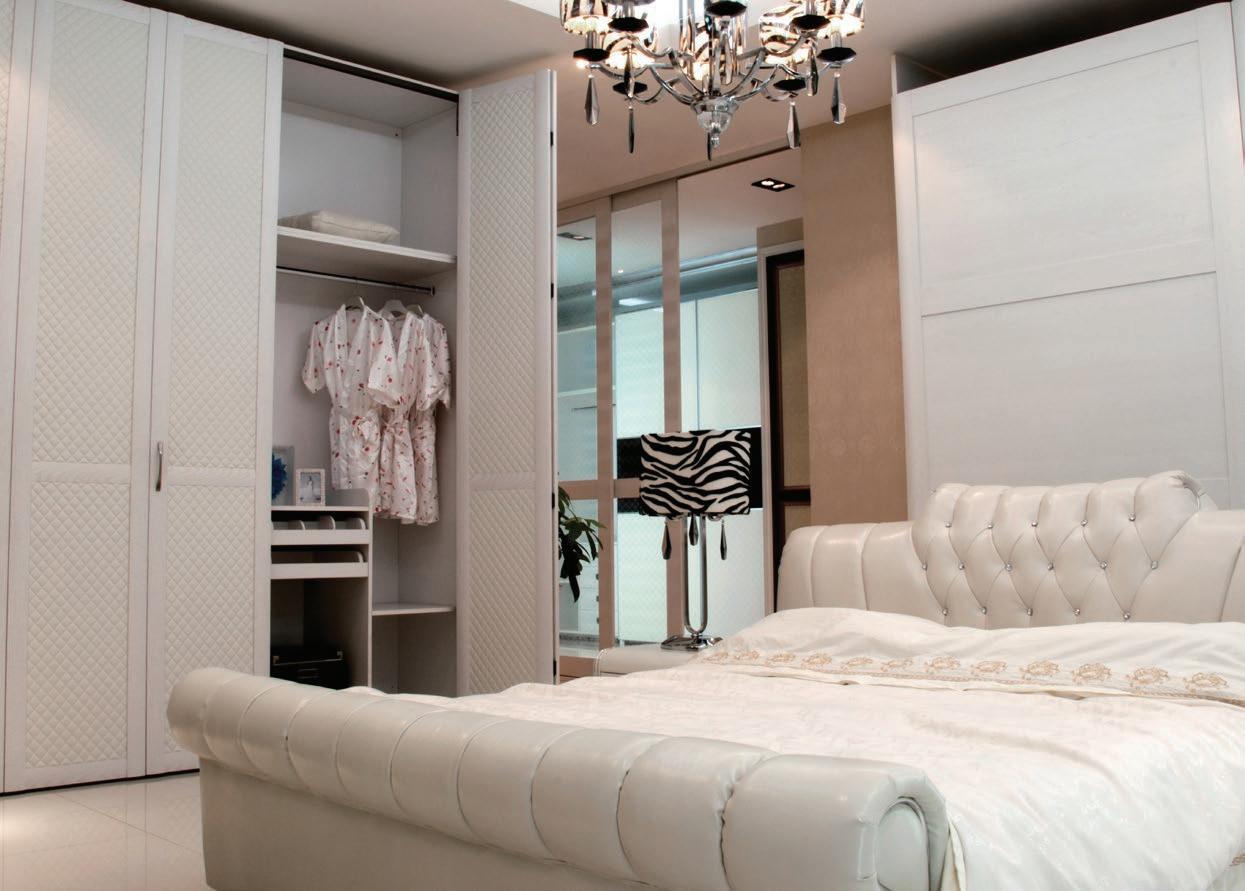

GLIDE

The Opike Glide bi-fold system offers a stable, silent and smooth-opening folding system perfectly suited to wardrobe doors.

With high quality door rollers, the Glide bi-fold system is designed for timber doors, can support a maximum door weight of 20kg per leaf and has been rigorously tested to ensure product longevity.

Key features of the Glide system:

• High quality door rollers create smooth and quiet sliding movement. • Suitable for timber doors. • Easy to install.

Key technical specifications of the Glide system:

Door width: 300-500mm Door height: 1200-2600mm Weight capacity: 20kg per leaf For more detailed information or to purchase the Opike range, visit our website at: www.wilbrad.com.au or call us on: 1800 633 507.

Codes: GLD130 GLD230

(Single bi-fold) (Double bi-fold)
