+325.0M Sky Theme Hotel Private Area : 6000 Sq. M. Public Area : 1200 Sq. M. The bollywood themed hotel at the top of the superstructure captures the undisturbed beautiful panoramic view of the maximum city. The hotel also has a casino floor at the top level as a part of recreational public area.
Ferris Wheel
Popular artefact of the city is added at top of the tower for recreational activity. It increases the public interaction at the top level with shopping markets and cafeterias.
+295.0M Trefoil Module 04: Private Area : 8000 Sq. M. Public Area : 2800 Sq. M. The fourth module has a mixed programs of public and private user groups. Major incubation offices and meeting areas for film fraternity with public shopping and gathering areas are located at this level.
Wine & Dine Club Private Area : 2000 Sq. M. Premier class wine and dine restaurant and a party pad with a capacity of 1000 pax for film stars and public equally. The deck captures the panoramic view of the city. +225.0M Central Core The core consists of 8 elevators which halt at production studio & urbanscape levels and also has secondary elevators for intermediate levels.
IMAX Dome Theater Private Area : 2800 Sq. M. The theater offers IMAX 3D experience with latest technology for public viewing of premier shows with a capacity of 500 pax.
Glass Skywalk Length of Skywalk : 35 M Located at 245M (735FT), the sky walk facilitates the space for ‘Bungee Jumping’ which becomes the second highest commercial decelerator descent facility in the world.
+245.0M
+225.0M Trefoil Module 03: Private Area : 8000 Sq. M. Public Area : 2800 Sq. M. The third module consists of major post production functions such as audio recording studios, VFX studios etc. for film editing.
+200.0M
Media Center & Library The archive consists of various multimedia collection for famous journeys of Bollywood icons and personalities through their lives. It also creates a platform for understanding Bollywood as an industry.
Stepped Urbanscape The multiple levels of urbanscape at this level creates an informal seating and play area for the public and an open air bollywood art gallery, cafeteria spaces etc.
+170.0M
Transfer Girder The intersection of girders at these levels transfers the load of the super structure evenly unto the next level.
+150.0M
Production Studio Area: Private Area : 4000 Sq. M. The shoot area consist of long time lease shooting sets such as for series etc. There are many of these sets on the large floor plate in subdivided area.
Digital Fresco Ceiling The underside of the production studio levels showcase the myths of Bollywood as a modern way of representing fresco art in a digital form of LEDs on the ceiling for the Urbanscapes.
Trefoil Module 02: Private Area : 8000 Sq. M. Public Area : 2800 Sq. M. The second module has more of the production houses and corporate offices of different film division & Censor Board.
Gantry The props and sets are transported to indoor production units & urbanscape level for outdoor shoots are pulled up by these heavy weight gantries.
City Preview Screen Public Area : 1000 Sq. M. The large screen acts as a premier screen for live broadcast of events to the city with two attached small previews screens for 100 pax each.
+95.0M
+75.0M
Production Studio Area: Private Area : 4000 Sq. M. These subdivided spaces serve as shoot areas for production houses. These indoor studios are column free large span areas.
Trefoil Module 01 Private Area : 8000 Sq. M. Public Area : 2800 Sq. M. The first module has the publicly associated functions such as Film School, Workshops, Set Designing Schools etc.
Scenic Elevators The public circulation is on the external facade which gives the users a scenic view of the maximum city as the people elevate to higher levels.
Ground Level Urbanscape Public plaza with Ferry terminal connecting major water transport hubs. +20.0M

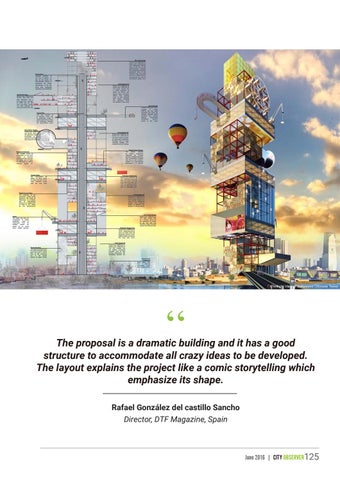

Twilight View of Bollywood Odyssey Tower
‘‘
The proposal is a dramatic building and it has a good structure to accommodate all crazy ideas to be developed. The layout explains the project like a comic storytelling which emphasize its shape. Rafael González del castillo Sancho Director, DTF Magazine, Spain
