SPECIAL FEATURE

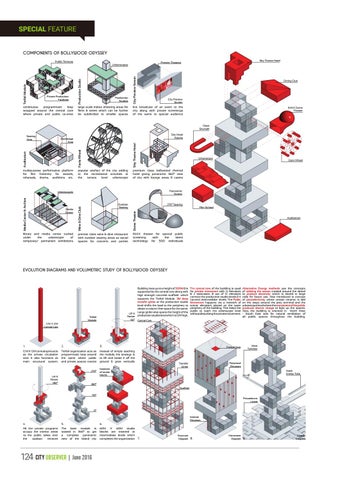

COMPONENTS OF BOLLYWOOD ODYSSEY Public Terraces
continuous programmatic loop wrapped around the central core where private and public co-exist
Production Studios
large scale indoor shooting areas for films & series which can be further be subdivided to smaller spaces
City Preview Screen
Production Studio
Trefoil Module
Private Production Facilities
Sky Theme Hotel
Premier Theaters
Urbanscapes
Dining Club
City Preview Screen
live broadcast of an event to the city along with private screenings of the same to special audience
IMAX Dome Theater
Glass Skywalk
Seating Area
Sky Hotel Rooms
Auditorium
Ferris Wheel
Sky Theme Hotel
Backstage Area
multipurpose performative platform for film fraternity for awards, reharsals, drama, auditions etc.
popular artefact of the city adding to the recreational activities at the terrace level urbanscape
premium class bollywood themed hotel giving panoramic 360° view of city with lounge areas & casino
Urbanscape
Panoramic Screen
library and media center tucked under the urbanscape of temporary/ permanent exhibitions
270° Seating
Outdoor Seating
Film School
Dome Theater
Wine & Dine Club
Media Center & Archive
Urbanscapes
Media Center
Giant Wheel
premier class wine & dine restaurant with outdoor seating areas as social spaces for concerts and parties
Auditorium
IMAX theater for special public screening with the latest technology for 500 individuals
EVOLUTION DIAGRAMS AND VOLUMETRIC STUDY OF BOLLYWOOD ODYSSEY
Building rises up to a height of 300M & is supported by the central core along with high strength concrete scaffold which supports the Trefoil Module. 3M deep transfer girder at the production studio level shifts the load to the periphery to obtain a column free space for the same. Lift & Large girder also spans the height of the Rotate production studio level which is 12M high. 90° Central Core
Trefoil Module
The central core of the building is used for private movement with 12 elevators & 2 staircases. 8 out of 12 elevators connect the production studio levels & 4 connect intermediate levels. The Public Movement happens via a network of scenic elevators placed on the outer periphery of the building. This helps the public to reach the urbanscape level without disturbing the private movement.
Alternative Energy methods use the concepts of utilizing the waves created around the island to produce electricity which is stored in large cells for future use. Also introduced is concept of piezoelectricity where certain ceramic is laid on the steps around the jetty terminal and the urbanscape level where the movement of the public produces electric charge to light up the spaces. Also, the building is oriented in North West - South East axis for natural ventilation of all public spaces throughout the building.
12M X 12M Central Core
1.
2.
12 M X 12M central spine acts as the private circulation core. It also functions as main structural system.
Trefoil organization programmatic loop the spine where and private spaces
3. acts as around public coexist 270°
Lift & Rotate 180°
Wind Turbines
Central Core
Instead of simply stacking the module, the strategy is to lift and rotate it off the ground & grow vertically
Peripheral Elevators
Transfer Girder
Insertion of studio blocks
Wave Energy Tube
180° Scaffold
90° Peizoelectric Levels
0° Internal Elevators
4.
5.
6.
All the private programs occupy the interior areas vs the public takes over the outdoor terraces
The base module is rotated in 360° to get a complete panoramic view of the island city
60M X 60M studio blocks are inserted at intermediate levels which completes the organization
124 CITY OBSERVER | June 2016
7.
Structure Diagram 8.
Movement Diagram 9.
Energy Diagram
