TROLDTEKT INSTALLATION

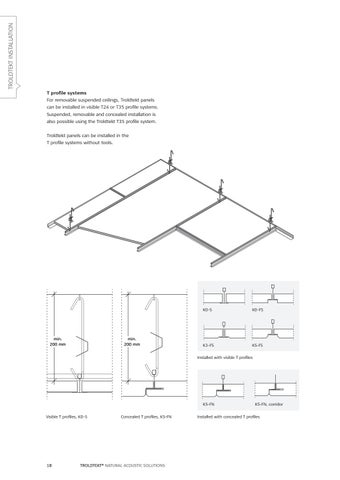

T profile systems For removable suspended ceilings, Troldtekt panels can be installed in visible T24 or T35 profile systems. Suspended, removable and concealed installation is also possible using the Troldtekt T35 profile system. Troldtekt panels can be installed in the T profile systems without tools.
min. 120 mm min. 147 mm
min. 147 mm
min. 147 mm
min. 120 mm
min. 147 mm
C60-skinneC60-skinne med Nonius med N C60-systemC60-system med stropholder med stropholder
min. 200 mm
min. 200 mm
C60/systemC60/system med Nonius med Nonius
min. 200 mm
min. 200 mm
K0-S
K0-FS
K3-FS
K5-FS
Installed with visible T profiles
T35-skinner, K0-S T35-skinner, K0-S Visible T profiles, K0-S
T35-skinner, K5-FN T35-skinner, K5-FN Concealed T profiles, K5-FN
18 TROLDTEKTÂŽ NATURAL ACOUSTIC SOLUTIONS
K5-FN
K5-FN, corridor
Installed with concealed T profiles
