Glissando Soft Closing
Glissando Soft Closing Systems for Hinges
ConfidentClose
· 1 Fast closing
· 2 Late start of deceleration action
· 3 Quiet landing with ‘SoftTouch’
Tool-less mounting
· Reduced assembly time
· Flexible usage also as a retrofit option
Consistent Performance
· Only one Glissando for two to three hinges
· Allows for consistent performance on a wide range of door dimensions and weights
One-for-all
· One item fits multiple applications
· Same item can be used on all crankings and angled hinges
Titus Damper Inside
· Titus proprietary multi-purpose damping technology
· Efficient modular design
· Relaible and consistent damping
Glissando Add-on Soft Closing Range
How to Choose the Right Glissando?

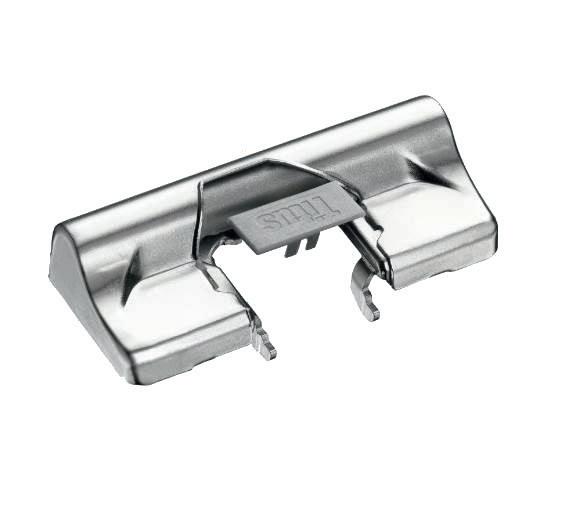

Glissando TT
Glissando TL3
Glissando TL 170
Glissando CR
Glissando AL
Titus Glissando soft closing system is available for the whole range of hinge applications. The user can choose between add-on or stand-alone solutions.

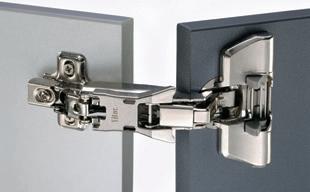

Concealed hinges
Add-on hinge soft closing solutions
Stand-alone door soft closing solution
Glissando TT Glissando TL3 Glissando TL 170 Glissando CR Glissando AL
T-type 95 X X X
T-type 110 X X X
T-type 110/45° X
T-type 110/90° X
T-type 120 X X X
T-type 170 X X X
S-type 110 X X X
S-type 110/45° X
S-type 110/90° X
S-type 170 X X X
Glissando Application
Glissando TT 'One-for-all'
T-type
One item fits multiple applications Same item can be used on all crankings and angled hinges Designed to fit the concealed hinge cup
T-type 95 0mm
T-type 110 0mm
T-type 110
5mm
T-type 110 17mm T-type 110 9mm
T-type 120 0mm
Titus Glissando soft closing devices can't be used with unsprung and reverse spring hinges.
Tool-less mounting
Suitable for different types of cabinets for kitchens, living rooms, bathrooms and other furniture
T-type 110/15° 9mm
T-type 110/30° 9mm
T-type 110/45° 9mm
T-type 110/45° 17mm
T-type 110/45° 23mm
T-type 110/90° 17mm
Glissando Application
Glissando
TL3 'One-for-all'
S-type
One item fits multiple applications
Same item can be used on all crankings and angled hinges
Adjustable damping enables perfect functioning on every door
S-type 110 0mm
S-type 110 9mm
S-type 110 15mm
S-type 110/15° 9mm
S-type 110/24° 9mm
S-type 110/30° 9mm
S-type 110/45° 9mm
S-type 110/45° 18mm
S-type 110/90° 18mm
Designed to fit the concealed hinge cup
Tool-less mounting
Suitable for different types of cabinets for kitchens, living rooms, bathrooms and other furniture
B-type 110 0mm
B-type 110 9mm
B-type 110 15mm
B-type 110/30° 9mm
B-type 110/45° 9mm
B-type 110/45° 18mm
B-type 110/90° 18mm
Glissando Number per Door and Positioning
How Many Glissandos per Door?
Add-on hinge soft closing solution
Glissando TT
Glissando TL3
Glissando TL 170
Number of Glissando per door depends on door dimensions, door weight, hinge arrangement. Trial mounting is recommended.
TT
TL3 Glissando TL170
Glissando TT
Stand-alone soft closing solution
Glissando CR
Glissando AL
Recommended number per door
TL3/ Glissando TL 170
Recommended number per door No. of hinges No. of hinges No. of hinges
Recommended number per door
No. of Glissando TT
No. of
Glissando TL3/ Glissando TL 170
No. of Glissando CR/ Glissando AL
Mount Glissando CR/AL on the hinged side of the cabinet on the top or bottom.
Glissando
Glissando
Glissando
Glissando CR/ Glissando AL
Glissando Mounting
How to Mount Glissando?
Tool-less mounting
Glissando TL3
Glissando TT
Glissando TL 170
Simple tool-less assembly: Insert Glissando into the holes on the hinge and press down with hand.
Screw-on into the cabinet corner
Glissando CR
Glissando CR is mounted into the cabinet corner by using chipboard screws 20mm long.
Glissando dampers’ discreet design enhances the look of the door and occupies minimal space in the cabinet interior.
The tool-less ‘snap on’ version for reduced assembly time and flexibility of application. Glissando TL can be mounted at any time after furniture assembly so can be offered as a retro fit option by the installer.
Screw-on onto the mounting plate
Glissando AL
Position the mounting plate below the hinge arm and fix with two screws. Use hinge mounting plate as a reference.
plate
Slide Glissando AL onto the mounting
Glissando Damping Adjustment
How to Adjust Damping?
Add-on hinge soft closing solution
Glissando TL 170
Glissando features quarter turn adjustment to provide optimal closing speed for any door dimensions and weight.
The damping function can be adjusted to fit different door weights which enables
· perfect door functioning
· use of the same type of Glissando for various doors
Adjustable damping zone
Stand-alone soft closing solution
Glissando CR
Glissando AL
Turn towards ‘+’ to increase or towards ‘-’ to decrease the damping.
Turn towards ‘+’ to increase and ‘-’ to decrease the damping
Simple mounting
· Intuitive damping adjustment
Damping adjustment
Turn towards ‘+’ to increase and ‘-’ to decrease the damping
Glissando TT Glissando TL3
Add-on Hinge Damper
Glissando TT
T-type 95
T-type 110
T-type 120
200 Pcs Made of steel and plastic Glissando TL3
S-type 110
For 95°, 110° and 120° hinges
Same item can be used on most of crankings and angled hinges
Intuitive snap-on mounting
Low protrusion in cabinet interior
Consistent performance across a broad range of furniture doors
Mounting details
Tool-less mounting
Press down
Dismounting details
Use flat screwdriver
A trial mounting is always recommended.
Recommended number of Glissandos per door
Insert Glissando TL3 into the holes on the hinge
Glissando TT
Glissando TL3/ Glissando TL 170
Glissando TL 170
Glissando
100 Pcs Made of steel, plastic and zinc
Striking plate
Gentle and reliable soft closing on doors with wider opening angle
Fits perfectly 45/9.5mm, 48/6mm and 52/5.5mm hinge cups
ConfidentClose
· Tool-less mounting
Damping adjustment
Mounting details
Tool-less mounting
Turn towards ‘+’ to increase and ‘-’ to decrease the damping
Recommended number of Glissandos per door
No. of hinges
Insert Glissando TL 170 into the holes on the hinge cup
Place the striking plate into the hole on the hinge arm
Press down
Press down
No. of Glissando TL3/ Glissando TL 170
Glissando TL3/ Glissando TL 170

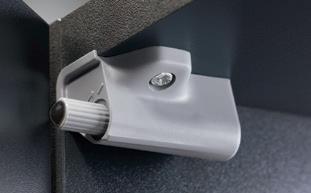

Glissando CR Stand-alone
Damper
Glissando CR for full overlay hinges
100 Pcs Made of plastic
Glissando CR for half overlay hinges
100 Pcs Made of plastic
For full overaly and half overaly concealed hinges Nominal
*Fixing screw included in a set
*Fixing screw included in a set
Intuitive ‘place and fix’ installation in the corner of the cabinet
Tool-less damping adjustment
One item for a wide range of doors
Reliable performance
· Can be paired with all self-closing hinges
Damping adjustment
Mounting details
Turn towards ‘+’ to increase and towards ‘-’ to decrease the damping
Glissando
Glissando
Mount Glissando CR on the hinged side of the cabinet
Mount Glissando CR on the hinged side of the cabinet
One screw fixing One screw fixing
No. of Glissando CR/ Glissando AL
Glissando CR/ Glissando AL
