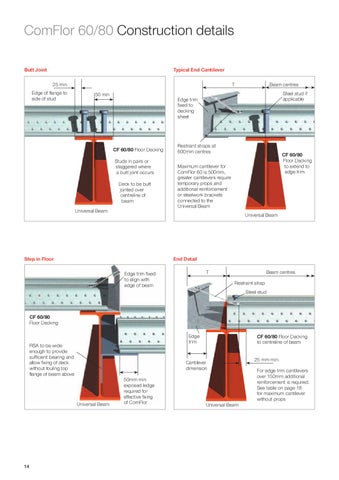

ComFlor 60/80 Construction details Butt Joint
Typical End Cantilever T
25 min Edge of flange to side of stud
Beam centres Steel stud if applicable
50 min Edge trim fixed to decking sheet
CF 60/80 Floor Decking Studs in pairs or staggered where a butt joint occurs Deck to be butt jointed over centreline of beam
Restraint straps at 600mm centres
CF 60/80 Floor Decking to extend to edge trim
Maximum cantilever for ComFlor 60 is 500mm, greater cantilevers require temporary props and additional reinforcement or steelwork brackets connected to the Universal Beam
Universal Beam
Universal Beam
Step in Floor
End Detail T
Edge trim fixed to align with edge of beam
Beam centres Restraint strap Steel stud
CF 60/80 Floor Decking Edge trim
RSA to be wide enough to provide sufficient bearing and allow fixing of deck without fouling top flange of beam above
Cantilever dimension
Universal Beam
14
CF 60/80 Floor Decking to centreline of beam
50mm min exposed ledge required for effective fixing of ComFlor
Universal Beam
25 mm min. For edge trim cantilevers over 150mm additional reinforcement is required. See table on page 18 for maximum cantilever without props
