Industrial Data Logger

4G data logger with SMS alarm for remote monitoring

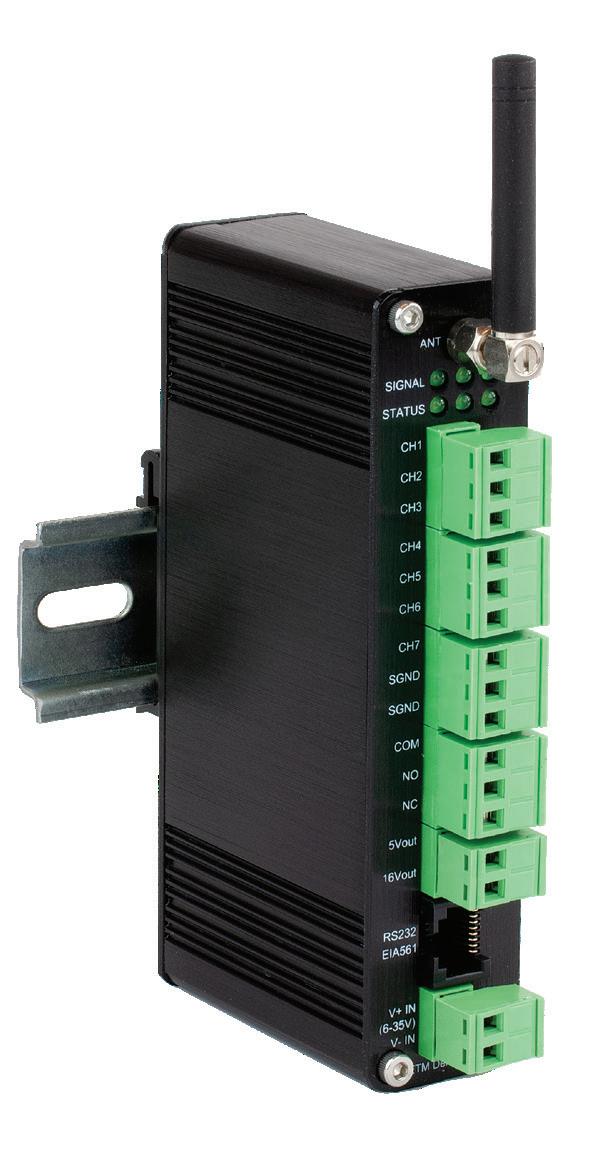

DeltaBlack is a 7-channel data logger used for remote monitoring and logging in heavy-duty industries. It has analog and digital inputs via 4G and an alarm function via SMS, so you can always stay informed and in control.

Featuring a DIN-rail mounted design with a wall mount bracket, DeltaBlack makes installations easy. The logger has an integrated 4G/3G/2G worldwide wireless modem and offers LED indication for cellular signal quality and communication status, ensuring that you are always informed of the state of your equipment. DeltaBlack is easily integrated into SCADA and telemetry systems, making it the ideal solution for all your remote monitoring and logging needs. Pre-configured for the most common sensor types, DeltaBlack is easy to set up and use. Easy access to logged measurements via our IoT Cloud Dashboard (EWO) allows you to easily monitor and analyse your data from anywhere.

Benefits

• Low cost and low maintenance

• Immediate notification via web, SMS or email when a serious event occurs

• Reduces time and minimizes damage on equipment

• No need for fixed communication

• Multiple pre-configured in/outputs for easy and fast installation

Applications

• Pump, fan, generator, and motor

• Refrigeration and freezer systems

• Metering, HVAC, indoor climate

• Tank measurements

• Fire panels and intruder alarms

• Data center monitoring

• Smart On/Off control

Technical Data

Model: DeltaBlack

Cellular: 4G, 3G and 2G

Antenna: Cellular: Stub antenna or external SM

External inputs: 7x Digital, analog and pulse

External outputs: Relay on/off

Power supply: 6-35V via terminal block <35mA (idle)

Operating temp: -30°C to +70°C

Size: 30 x 136 + 87 mm

Weight: 250 g

Casing: Aluminium

Conserving Energy

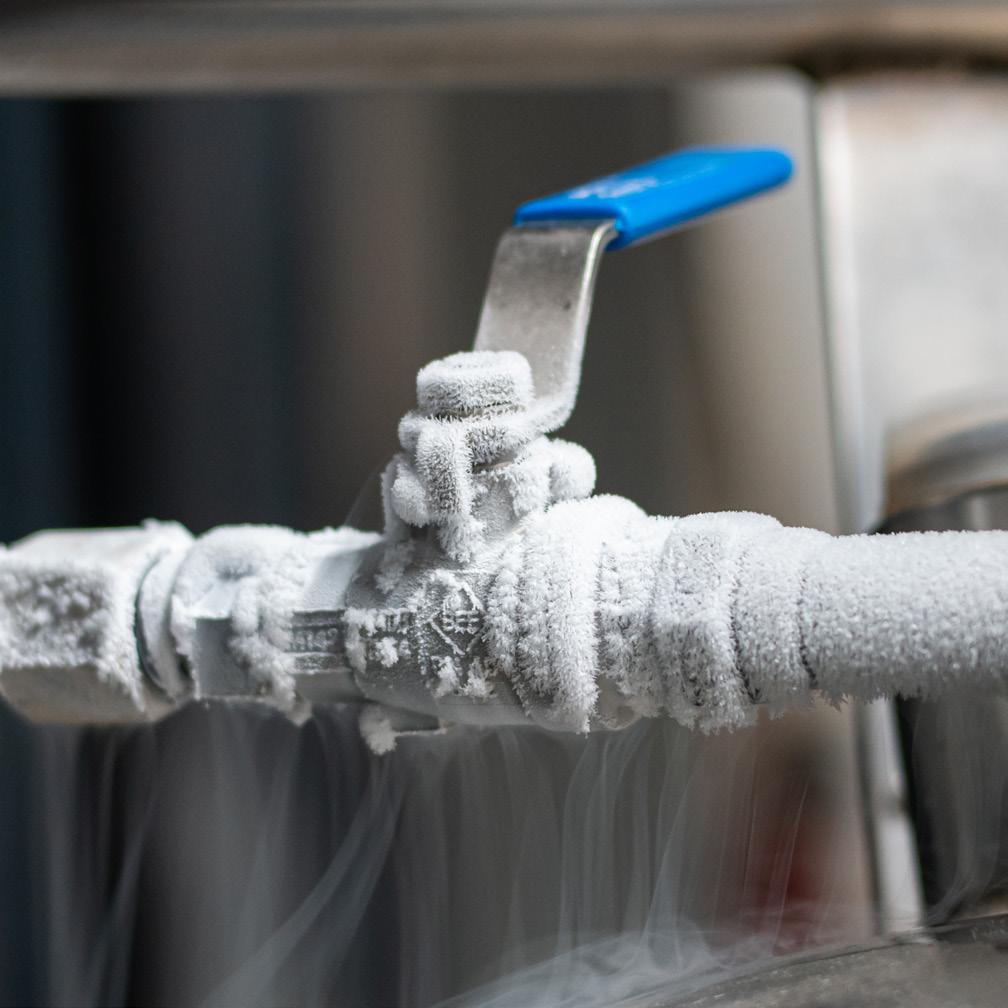

A Swedish company providing low-pressure sewer (LPS) systems required a smart IoT solution to monitor and regulate frost protection in order to avoid freezing and conserve energy.

The DeltaBlack delivered on these needs, with its event-driven capabilities that control frost protection based on temperature readings. With the implementation of DeltaBlack, the company can ensure reliable and efficient operation of their LPS systems.

Sensor Types

• Temperature and humidity

• Level E.g Water

• Flow

• Pressure

• Pulse - meters, electrical, water and gas

• Current Transducers (CT)
