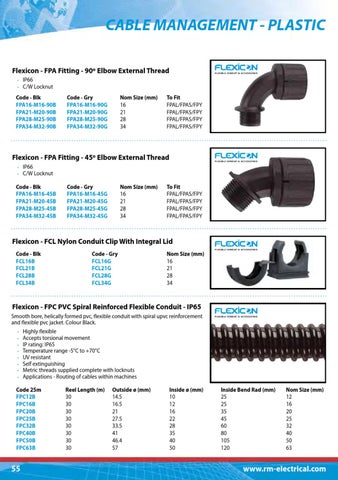

CABLE MANAGEMENT - PLASTIC Flexicon - FPA Fitting - 90º Elbow External Thread • IP66 • C/W Locknut Code - Blk FPA16-M16-90B FPA21-M20-90B FPA28-M25-90B FPA34-M32-90B
Code - Gry FPA16-M16-90G FPA21-M20-90G FPA28-M25-90G FPA34-M32-90G
Nom Size (mm) 16 21 28 34
To Fit FPAL/FPAS/FPY FPAL/FPAS/FPY FPAL/FPAS/FPY FPAL/FPAS/FPY
Flexicon - FPA Fitting - 45º Elbow External Thread • IP66 • C/W Locknut Code - Blk FPA16-M16-45B FPA21-M20-45B FPA28-M25-45B FPA34-M32-45B
Code - Gry FPA16-M16-45G FPA21-M20-45G FPA28-M25-45G FPA34-M32-45G
Nom Size (mm) 16 21 28 34
To Fit FPAL/FPAS/FPY FPAL/FPAS/FPY FPAL/FPAS/FPY FPAL/FPAS/FPY
Flexicon - FCL Nylon Conduit Clip With Integral Lid Code - Blk FCL16B FCL21B FCL28B FCL34B
Code - Gry FCL16G FCL21G FCL28G FCL34G
Nom Size (mm) 16 21 28 34
Flexicon - FPC PVC Spiral Reinforced Flexible Conduit - IP65 Smooth bore, helically formed pvc, flexible conduit with spiral upvc reinforcement and flexible pvc jacket. Colour Black.
• • • • • • • •
Highly flexible Accepts torsional movement IP rating: IP65 Temperature range -5°C to +70°C UV resistant Self extinguishing Metric threads supplied complete with locknuts Applications - Routing of cables within machines
Code 25m FPC12B FPC16B FPC20B FPC25B FPC32B FPC40B FPC50B FPC63B
55
Reel Length (m) 30 30 30 30 30 30 30 30
Outside ø (mm) 14.5 16.5 21 27.5 33.5 41 46.4 57
Inside ø (mm) 10 12 16 22 28 35 40 50
Inside Bend Rad (mm) 25 25 35 45 60 80 105 120
Nom Size (mm) 12 16 20 25 32 40 50 63
