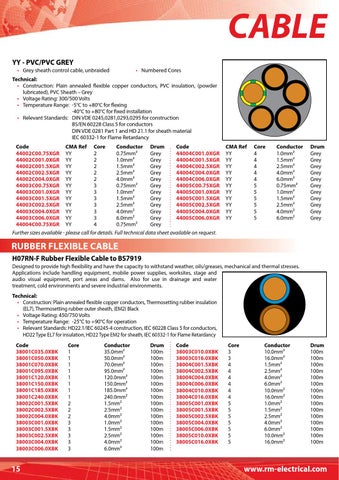

CABLE YY - PVC/PVC GREY • Grey sheath control cable, unbraided
• Numbered Cores
Technical: • Construction: Plain annealed flexible copper conductors, PVC insulation, (powder lubricated), PVC Sheath – Grey • Voltage Rating: 300/500 Volts • Temperature Range: -5°C to +80°C for flexing -40°C to +80°C for fixed installation • Relevant Standards: DIN VDE 0245,0281,0293,0295 for construction BS/EN 60228 Class 5 for conductors DIN VDE 0281 Part 1 and HD 21.1 for sheath material IEC 60332-1 for Flame Retardancy Code 44002C00.75XGR 44002C001.0XGR 44002C001.5XGR 44002C002.5XGR 44002C004.0XGR 44003C00.75XGR 44003C001.0XGR 44003C001.5XGR 44003C002.5XGR 44003C004.0XGR 44003C006.0XGR 44004C00.75XGR
CMA Ref YY YY YY YY YY YY YY YY YY YY YY YY
Core 2 2 2 2 2 3 3 3 3 3 3 4
Conductor 0.75mm² 1.0mm² 1.5mm² 2.5mm² 4.0mm² 0.75mm² 1.0mm² 1.5mm² 2.5mm² 4.0mm² 6.0mm² 0.75mm²
Drum Grey Grey Grey Grey Grey Grey Grey Grey Grey Grey Grey Grey
Code 44004C001.0XGR 44004C001.5XGR 44004C002.5XGR 44004C004.0XGR 44004C006.0XGR 44005C00.75XGR 44005C001.0XGR 44005C001.5XGR 44005C002.5XGR 44005C004.0XGR 44005C006.0XGR
CMA Ref YY YY YY YY YY YY YY YY YY YY YY
Core 4 4 4 4 4 5 5 5 5 5 5
Conductor 1.0mm² 1.5mm² 2.5mm² 4.0mm² 6.0mm² 0.75mm² 1.0mm² 1.5mm² 2.5mm² 4.0mm² 6.0mm²
Drum Grey Grey Grey Grey Grey Grey Grey Grey Grey Grey Grey
Further sizes available - please call for details. Full technical data sheet available on request.
RUBBER FLEXIBLE CABLE H07RN-F Rubber Flexible Cable to BS7919 Designed to provide high flexibility and have the capacity to withstand weather, oils/greases, mechanical and thermal stresses. Applications include handling equipment, mobile power supplies, worksites, stage and audio visual equipment, port areas and dams. Also for use in drainage and water treatment, cold environments and severe industrial environments. Technical: • Construction: Plain annealed flexible copper conductors, Thermosetting rubber insulation (EL7), Thermosetting rubber outer sheath, (EM2) Black • Voltage Rating: 450/750 Volts • Temperature Range: -25°C to +90°C for operation • Relevant Standards: HD22.1/IEC 60245-4 construction, IEC 60228 Class 5 for conductors, HD22 Type EL7 for insulation, HD22 Type EM2 for sheath, IEC 60332-1 for Flame Retardancy Code 38001C035.0XBK 38001C050.0XBK 38001C070.0XBK 38001C095.0XBK 38001C120.0XBK 38001C150.0XBK 38001C185.0XBK 38001C240.0XBK 38002C001.5XBK 38002C002.5XBK 38002C004.0XBK 38003C001.0XBK 38003C001.5XBK 38003C002.5XBK 38003C004.0XBK 38003C006.0XBK
15
Core 1 1 1 1 1 1 1 1 2 2 2 3 3 3 3 3
Conductor 35.0mm² 50.0mm² 70.0mm² 95.0mm² 120.0mm² 150.0mm² 185.0mm² 240.0mm² 1.5mm² 2.5mm² 4.0mm² 1.0mm² 1.5mm² 2.5mm² 4.0mm² 6.0mm²
Drum 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m
Code 38003C010.0XBK 38003C016.0XBK 38004C001.5XBK 38004C002.5XBK 38004C004.0XBK 38004C006.0XBK 38004C010.0XBK 38004C016.0XBK 38005C001.0XBK 38005C001.5XBK 38005C002.5XBK 38005C004.0XBK 38005C006.0XBK 38005C010.0XBK 38005C016.0XBK
Core 3 3 4 4 4 4 4 4 5 5 5 5 5 5 5
Conductor 10.0mm² 16.0mm² 1.5mm² 2.5mm² 4.0mm² 6.0mm² 10.0mm² 16.0mm² 1.0mm² 1.5mm² 2.5mm² 4.0mm² 6.0mm² 10.0mm² 16.0mm²
Drum 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m 100m
