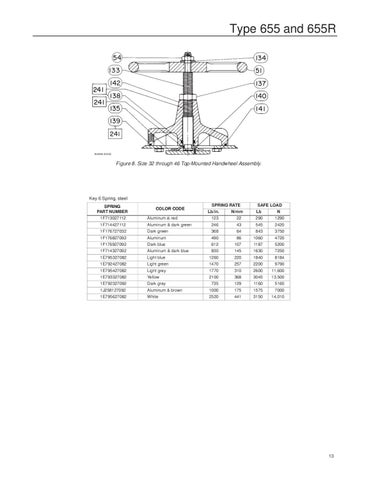

Figure 8. Size 32 through 46 Top-Mounted Handwheel Assembly.
Key 6 Spring, steel SPRING PART NUMBER
COLOR CODE
SPRING RATE Lb/in.
N/mm
SAFE LOAD Lb
N
1F713027112
Aluminum & red
123
22
290
1290
1F714427112
Aluminum & dark green
246
43
545
2420
1F176727032
Dark green
368
64
843
3750
1F176827092
Aluminum
490
86
1060
4720
1F176927092
Dark blue
612
107
1187
5200
1F714327092
Aluminum & dark blue
830
145
1630
7250
1E795327082
Light blue
1260
220
1840
8184
1E792427082
Light green
1470
257
2200
9790
1E795427082
Light grey
1770
310
2600
11,600
1E793327082
Yellow
2100
368
3045
13,500
1E792327092
Dark grey
735
129
1160
5160
1J258127092
Aluminum & brown
1000
175
1575
7000
1E795627082
White
2520
441
3150
14,010
