stick welders
Effective Date : 2nd April 2012
stick welders

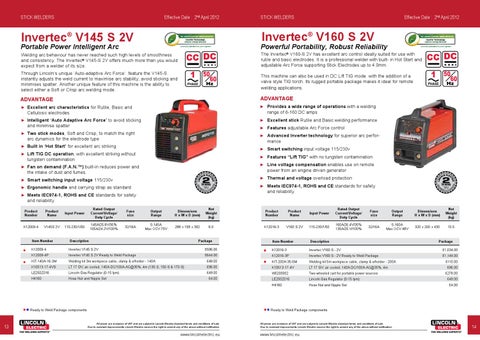

Invertec® V160 S 2V
Invertec® V145 S 2V
Portable Power Intelligent Arc
Welding arc behaviour has never reached such high levels of smoothness and consistency. The Invertec® V145-S 2V offers much more than you would expect from a welder of its size. Through Lincoln’s unique ‘Auto-adaptive Arc Force’ feature the V145-S instantly adjusts the weld current to maximise arc stability, avoid sticking and minimises spatter. Another unique feature of this machine is the ability to select either a Soft or Crisp arc welding mode.
CC DC 1 5060 Hz
PHASE
Powerful Portability, Robust Reliability
The Invertec® V160-S 2V has excellent arc control ideally suited for use with rutile and basic electrodes. It is a professional welder with built- in Hot Start and adjustable Arc Force supporting Stick Electrodes up to 4.0mm. This machine can also be used in DC Lift TIG mode with the addition of a valve style TIG torch. Its rugged portable package makes it ideal for remote welding applications.
ADVANTAGE
ADVANTAGE
► Excellent arc characteristics for Rutile, Basic and
► Provides a wide range of operations with a welding
► Intelligent ‘Auto Adaptive Arc Force’ to avoid sticking and minimise spatter
► Excellent stick Rutile and Basic welding performance
CC DC 1 5060
PHASE
Hz
range of 6-160 DC amps
Cellulosic electrodes
► Features adjustable Arc Force control
► Two stick modes, Soft and Crisp, to match the right arc dynamics for the electrode type
► Advanced Inverter technology for superior arc perfor-
mance
► Built in ‘Hot Start’ for excellent arc striking
► Smart switching input voltage 115/230v
► Lift TIG DC operation, with excellent striking without tungsten contamination
► Features “Lift TIG” with no tungsten contamination ► Line voltage compensation enables use on remote
► Fan on demand (F.A.N.™) built-in reduces power and
power from an engine driven generator
the intake of dust and fumes.
► Thermal and voltage overload protection
► Smart switching input voltage 115/230v
► Meets IEC974-1, ROHS and CE standards for safety
► Ergonomic handle and carrying strap as standard
and reliability
► Meets IEC974-1, ROHS and CE standards for safety and reliability Product Number
Product Name
Input Power
Rated Output Current/Voltage/ Duty Cycle
Fuse size
Output Range
Dimensions H x W x D (mm)
Net Weight (kg)
Product Number
Product Name
Input Power
Rated Output Current/Voltage/ Duty Cycle
Fuse size
Output Range
Dimensions H x W x D (mm)
Net Weight (kg)
K12009-4
V145S 2V
115-230/1/50
145A/25.8V/35% 105A/24.2V/100%
32/16A
5-145A Max OCV 75V
288 x 158 x 392
6.0
K12016-3
V160 S 2V
115-230/1/50
160A/26.4V/35% 130A/25.V/100%
32/16A
5-160A Max OCV 48V
320 x 200 x 430
10.5
Item Number
Description
Package
Item Number
Description
Package
K12009-4
Invertec V145 S 2V
£596.00
K12016-3
Invertec V160 S - 2V
£1,034.00
K12009-4P
Invertec V145 S 2V Ready to Weld Package
£644.00
K12016-3P
Invertec V160 S - 2V Ready to Weld Package
£1,144.00
KIT-140A-16-3M
Welding kit 3m workpiece cable, clamp & e/holder - 140A
£48.00
KIT-200A-35-5M
Welding kit 5m workpiece cable, clamp & e/holder - 200A
£110.00
K10513-17-4VS
LT 17 GV, air cooled, 140A-DC/100A-AC@35%, 4m (135-S, 150-S & 170-S)
£96.00
K10513-17-4V
LT 17 GV, air cooled, 140A-DC/100A-AC@35%, 4m
£96.00
LE250Z016
Lincoln Gas Regulator (0-15 lpm)
£49.00
W0200002
Two-wheeled cart for portable power sources
£278.00
H4160
Hose Nut and Nipple Set
£4.00
LE250Z016
Lincoln Gas Regulator (0-15 lpm)
£49.00
H4160
Hose Nut and Nipple Set
£4.00
Ready to Weld Package components
13
Effective Date : 2nd April 2012
Ready to Weld Package components
All prices are exclusive of VAT and are subject to Lincoln Electric standard terms and conditions of sale. Due to constant improvements Lincoln Electric reserve the right to amend any of the above without notification.
