POSEIDON AX MACHINE VISION POWERED IN SITU TEM
from Poseidon AX Brochure
by Protochips
What is Poseidon AX?
Poseidon AX is a revolutionary solution for in situ TEM analysis of materials typically found in liquid environment. This includes paints, cosmetics, inks, biological materials, electrocatalysts, batteries, and more. Study in a static, flowing, electrochemical, or heated liquid environments, and drive towards discovery of more robust, costeffective, and efficient materials.
What sets Poseidon AX apart?
A complete solution from sample preparation to reporting results, Poseidon AX will push performance, productivity, and discovery to exponentially high levels for your lab.
The incorporation of first-of-its-kind machine vision software technology instantly elevates the capacity and productivity of the microscopist, enables capture of high resolution and high value data with fewer iterations, and streamlines large data set processing and reporting both inside and outside of the TEM lab
LIQUID CELL TEM HOLDER
→ Self-aligning assembly
→ Static, flow, and mixing capabilities
→ Design optimized for in situ EDS
→ Pressure relief wells for TEM safety
→ Replaceable tubing without holder disassembly
AXON MACHINE VISION
SOFTWARE PLATFORM
→ Automated drift and focus correction
→ Real-time dose monitoring across the sample
→ Metadata indexing
→ Offline analysis software
QUANTITATIVE ELECTROCHEMICAL MEASUREMENTS
→ Glassy carbon working electrode option
→ Standard reference electrode for comparison to bulk-scale measurements
→ E-chips available for FIB lamella from bulk samples
→ Integration, indexing, and alignment of all electrochemical data with images
UNIFORM LIQUID HEATING
→ Patented full-cell heating design ensures temperature uniformity during flow
SAMPLE PREPARATION
→ Tools like the shadow mask, FIB stub, and inspection holder for quick, reproducible sample prep
→ Extensive E-chip catalogue: range of spacers for different samples and narrow window widths to control bulging
What makes Poseidon AX the ideal choice for so many liquid-EM applications?
→ AXON Synchronicity machine vision software allows you to focus on on the sample and not the TEM controls
→ Miniaturized standard electrochemical experiments using common materials for results that are more easily compared to bulk-scale data
→ Uniform, accurate temperature control and image stabilization, even when actively changing temperature
→ Everything you need for successful in situ TEM results from sample prep to analysis, in one, thoughtfully engineered solution
→ AXON Studio software to visualize and navigate large amounts of data and create reports quickly

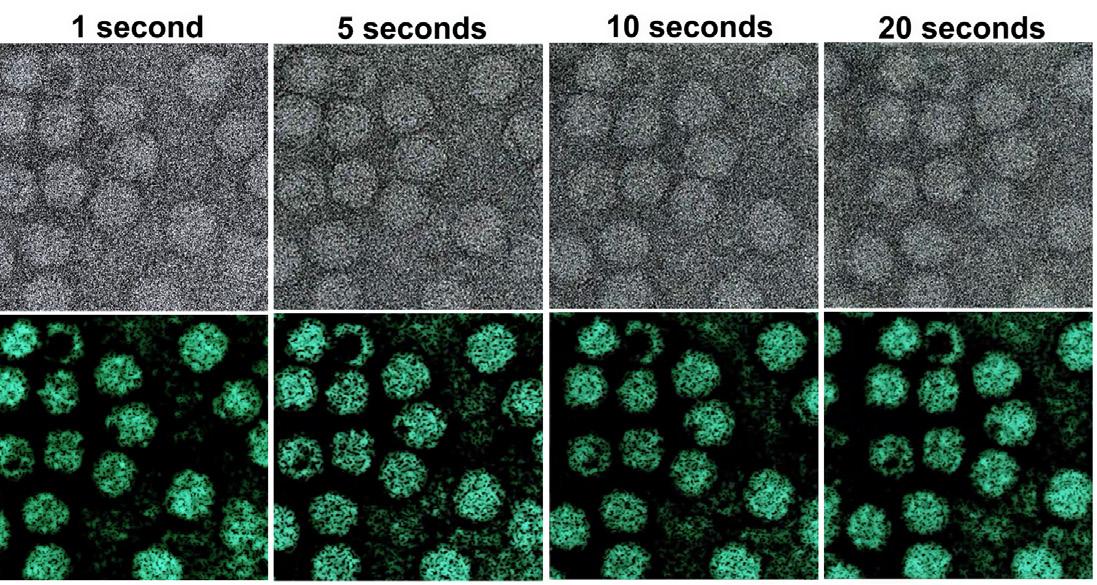

A gene-therapy candidate, Adenoassociated virus (AAV) imaged under physiologically relevant conditions using liquid-EM. These studies provide high-resolution insights into the dynamic processes that control drug and therapeutic pathways.
Adeno-associated virus (AAV) imaged under physiologically relevant conditions using liquid-EM. Scale bar is 10 Å, cumulative dose = 20 e− Å−2. Overall dimensions varied between 237 and 251 Å in diameter
