QUICK REFERENCE GUIDE

FLAT

Sheen level: 0-2%

Ideal Usage: Ceilings

MATT

Sheen level: 2-5%

Ideal Usage: Walls and ceilings

LOW SHEEN

Sheen level: 5-20%

Ideal Usage: Walls

SEMI GLOSS

Sheen level: 20-50%

Ideal Usage: Walls, doors and trims

GLOSS

Sheen level: 60-100%

Ideal Usage: Areas subject to heavy wear such as doors and trims

GOOD MATCH

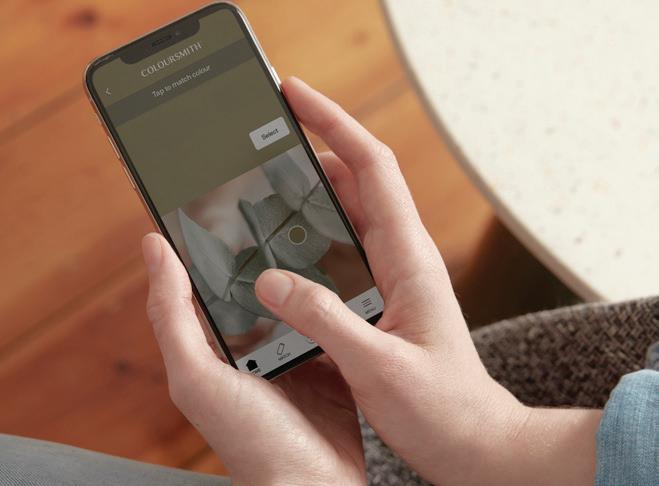

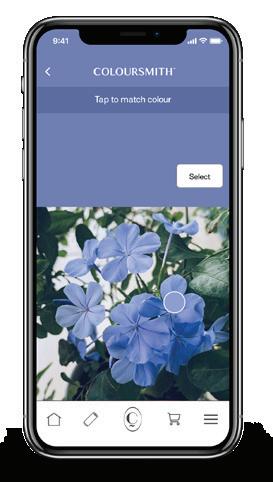

Create a colour match using the Coloursmith app. Take a photo using your smartphone camera or use an existing photo from your photo library.

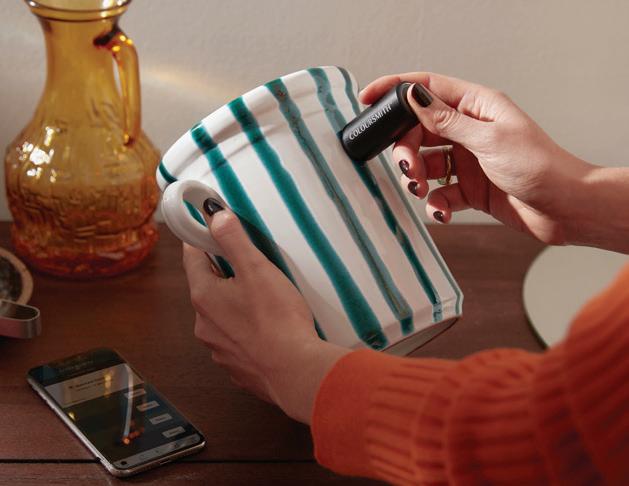

BEST MATCH

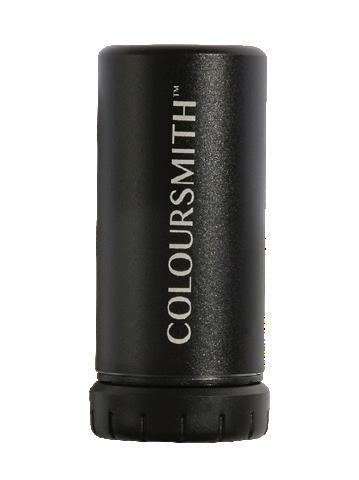

The Coloursmith Reader is not a spectro as it accurately captures colour using its own LED light source, and a tri-stimulus XYZ sensor to ensure the closest colour match.

BEST

Premium Finish

Scrub resistant

Anti-microbial

PREPTOPCOATTOPCOAT

3 in 1 Prep

Primes bare surfaces

Taubmans

Advanced Adhesion & Mould Blocker

Easycoat Sealer & Undercoat

BETTER Low VOC

Primes bare surfaces Easycoat

GOOD

PROFESSIONAL TRADE

High opacity

Primes bare surfaces

Suitable for: Interior spaces and commercial projects.

Primes

Primes

Primes

Suitable

BEST

Anti-microbial formula

PREPTOPCOATTOPCOAT

3 in 1 Prep

Primes bare surfaces

Taubmans

Advanced Adhesion & Mould Blocker

Easycoat Sealer & Undercoat

BETTER

Anti-microbial formula

Primes bare surfaces

PROFESSIONAL TRADE

Maximum hiding power

Primes

Suitable for: Interior ceilings and

Painting interior windows, doors

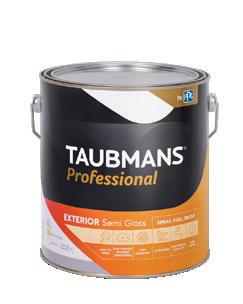

Painting exterior windows, doors & trims Water Based Enamel Option

PREPTOPCOATTOPCOAT

PROFESSIONAL TRADE

Excellent flow & levelling

Suitable for: Exterior windows, doors, trims and commercial projects.

Painting exterior windows, doors

Primes

Primes

PROFESSIONAL TRADE

BEST

Dirt shedding formula

Superior UV Barrier

PREPTOPCOATTOPCOAT

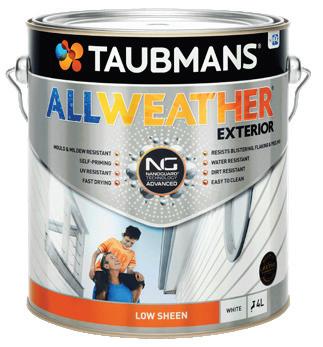

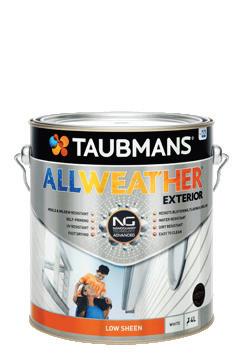

All Weather All Weather is self-priming in most cases

BETTER

Suitable for water collection

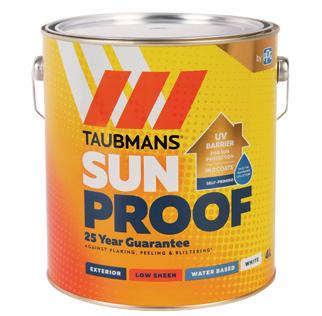

Sunproof Sunproof is self-priming in most cases

PROFESSIONAL TRADE

Easy to apply

Suitable for water collection

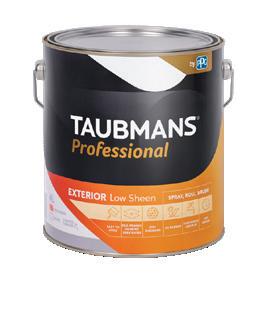

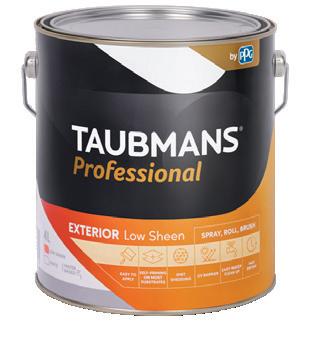

Professional Exterior is self-priming in most cases

Suitable for: Exterior weatherboard, concrete, eaves and trims

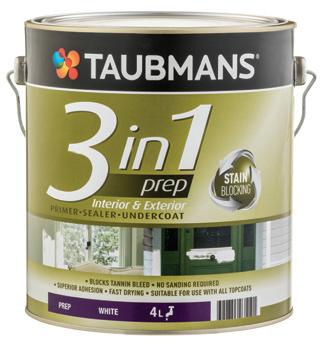

3 in1 Prep

Easycoat Acrylic Sealer & Undercoat

High performance

Primer, sealer & undercoat

Superior adhesion

Adheres to aged enamel surfaces without sanding

Suitable for interior & exterior

Stain blocking

Microban - anti microbial protection

Inhibits mould, mildew & fungus

Very low VOC

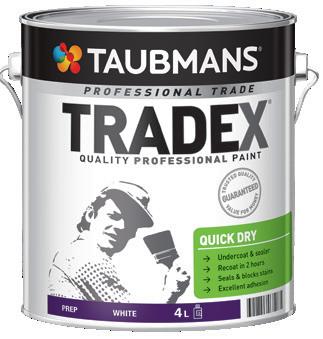

Tradex

Quick Dry Quick dry Oil based

Tradex

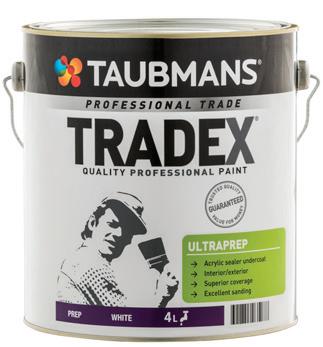

Ultra Prep

Suitable for interior and exterior

Water Based

PROFESSIONAL TRADE

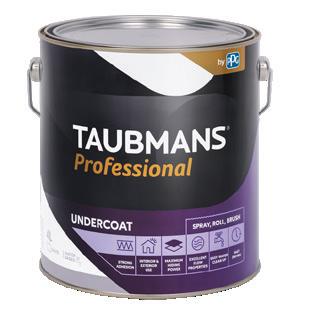

Professional Undercoat

Water Based

High density

Suitable for interior and exterior

Excellent hiding, filing & sanding properties

A primer, sealer, undercoat is a preparatory coating put on materials before painting. It seals surfaces, ensures better adhesion of paint to the surface, increases paint durability, and provides additional protection for the material being painted.

A primer/undercoat also assists with coverage and increases filling properties

High performance water based all-purpose primer, sealer, undercoat with stain blocking properties.

GUIDEUNDERCOAT FLAT

Dependent on surface 1 Additional coat if required over stained surfaces After 2 hours at 25OC Allow 4 hours in cold or humid conditions

Up to 12m2/litre

Recommended for plaster board, timber tannin blocking, weatherboards, aged enamel, galv. iron, varnish, masonry, aluminum.

Adheres to aged enamel surfaces without sanding.

SHEEN

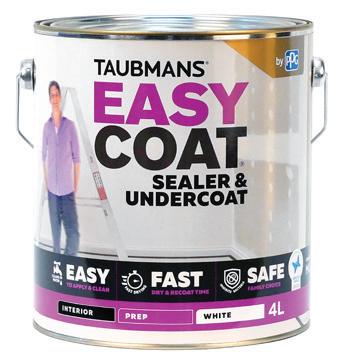

Easycoat® Sealer & Undercoat

Designed exclusively with Microban® to provide anti-microbial protection.

SHEEN GUIDEUNDERCOAT FLAT

Tradex

Professional Undercoat

Designed for the professional painter to deliver excellent coverage, and a professional finish.

SHEEN GUIDEUNDERCOAT FLAT

Substrate3 in 1 Prep

Cement render

Enamel surfaces

Varnish

Surfaces

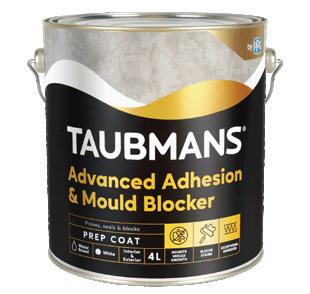

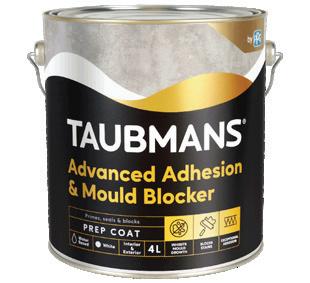

Taubmans Advanced Adhension Mould Blocker

Specialised water based prepcoat, ideal for blocking persistent oil, grease, and mould-based stains and for inhibiting future mould growth. Perfect for high humidity areas, with exceptional adhesion to a range of challenging surfaces.

GUIDEUNDERCOAT FLAT

Recommended for:

Stains: Mould, oil, and grease-based stains.

Surfaces: Tiles, laminate, glass, PVC, varnish, aged enamels, masonry, timber, MDF, plywood, paperfaced plasterboard, bricks, cement sheet, galvanised steel, aluminium and previously painted surfaces

SHEEN

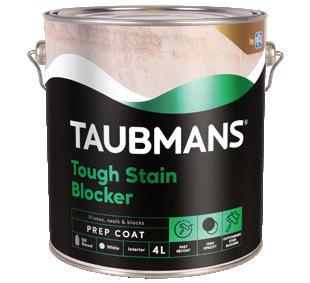

Taubmans Tough Stain Blocker

Powerful oil-based prep coat ideal for blocking a wide range of difficult stains. The fast-drying formula has high hiding power and exceptional adhesion to a variety of tough-to-paint surfaces.

GUIDEUNDERCOAT FLAT

Dependent on surface 1 Additional coat if required over stained surfaces After 2 hours at 25OC Allow 4 hours in cold or humid conditions

Up to 12m2/litre

- 35OC Mineral Turps clean up

Recommended for:

Stains: inks, markers, food, and water based stains.

Surfaces: Tiles, laminate, PVC, polypropylene, varnish, aged enamel, timber and previously painted surfaces.

Taubmans Tough Stain
SHEEN

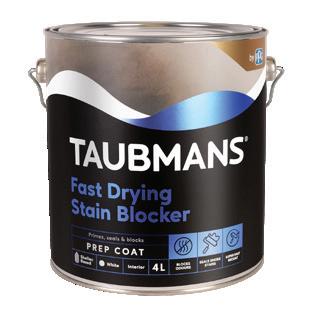

Taubmans Fast Drying Stain Blocker

Perfect for sealing persistent water based stains, smoke and blocking odours and tannin bleed.

Dependent on surface

surfaces

Recommended for:

Methylated Spirit clean up

Stains: Smoke, grease, nicotine, water-based stains & blocking Tannin bleed

Surfaces: Previously painted surfaces, tannin rich timbers, MDF, plywood, paper faced plaster board, bricks, and masonry

Taubmans Fast Drying Stain
SHEEN GUIDEUNDERCOAT FLAT

ENDURE INTERIOR WALLS

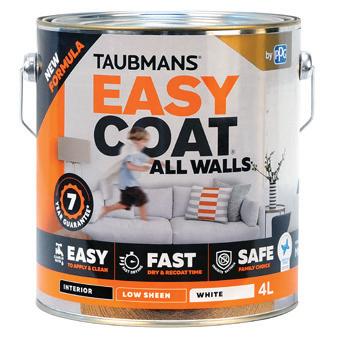

EASYCOAT ALL WALLS

1 PAINT + PRIME

Superior washability

Helps prevent the growth of mould and mildew

Stain and grease resistant

Anti-bacterial

Asthma and allergy

friendly

Nanoguard technology

Very Low VOC

Guaranteed to resist mould growth for 7 years

Asthma and allergy friendly

Sensitive Choice

Self priming

10 year guarantee

Low VOC

Scrub & stain resistant

Washable

Reliable painting solution

TRADEX WALLS

Water based

Washable

PROFESSIONAL TRADE

Water based

High opacity

PROFESSIONAL INTERIOR BROADWALL

Ideal for spray application

Washable

Made for professionals

Helps prevent the growth of mould and mild

Interior wall paint is applied for the purposes of decoration and protection. A good wall paint needs to be highly durable consider taking off the last point; the implication is that Tradex and paint & prime aren’t ‘good’ as they don’t claim to protect from bacteria, mould and mildew, and Professional doesn’t claim it protects from bacteria.

PAINTING INTERIOR WALLS

1. Surfaces must be clean and dry and free from all surface contamination.

2. Fill in the surface defects with suitable filler, putty or sealant.

3. Sand out any imperfections to obtain a smooth uniform surface.

4. Remove dust with a clean wet cloth.

5. Prime with a suitable primer (see prep section)

• Remove all loose or flaking paint.

• Treat any mould with bleach then rinse with water.

• Wash all surfaces with a sugar soap solution. Rinse with fresh water.

• Surfaces must be clean, dry and free from all surface contamination.

• Fill in the surface defects with suitable filler, putty or sealant.

• When using some bright or dark toned colours, a tinted undercoat may be required.’

PAINTING TIPS

• Start with Ceiling; then Walls and finish with Doors & Trim.

• For cleaner lines use masking tape to mask up areas.

• Cut in first using a brush. Then roll up to the edges using a good quality roller.

• Use a good quality 12mm nap roller to apply the wall paint.

• For best results sand with 240 grit sandpaper in between coats then dust off.

• Avoid exposure to steam for 48 hours.

• Avoid abrasive cleaners for 7 days.

• Wash with “Spray & Wipe” or a mild detergent solution to remove marks.

May need: drop cloth, sandpaper, paint tray, roller handle & sleeve, pole, cutting in brush and personal protective equipment including safety glasses, impervious gloves and overalls.

AFTER PAINTING CARE
NEW WORK
RE -PAINT

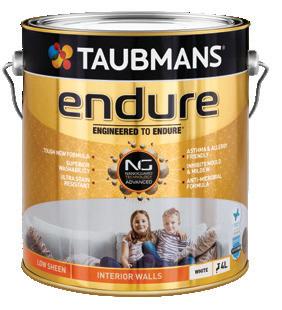

Endure Walls

Engineered with Nanoguard® to provide maximum protection and scrub resistance.

Easycoat® Walls

Designed exclusively with Microban® to provide anti-microbial protection.

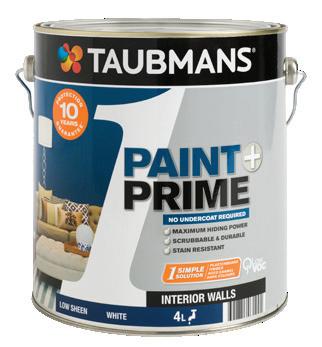

1 Paint + Prime

1-Step Paint + Prime solution with a durable finish & maximum hiding power

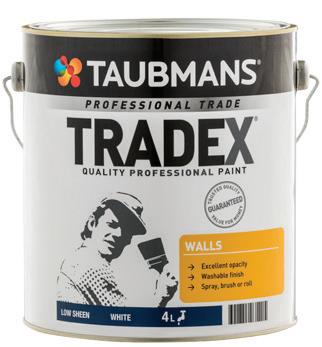

Tradex Walls

Easy to use high opacity paint for walls.

Dependent on surface 2 After 2 hours at 25OC

Specifically formulated for the trade painter in various sheen levels. They are easy to apply by spray, brush or roller, provide excellent coverage and opacity.

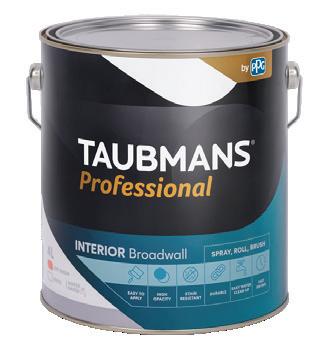

Professional Broadwall

Premium water based paint, specially designed for the professional painter to deliver excellent coverage, washability and a professional finish.

PAINTING CEILINGS

• Surfaces must be clean and dry and free from all surface contamination.

• Fill in the surface defects with suitable filler, putty or sealant.

• Sand out any imperfections to obtain a smooth uniform surface.

• Remove dust with a clean wet cloth.

• Prime with a suitable primer (see prep section)

• Treat any mould with bleach then rinse with water.

• Wash all surfaces with a sugar soap solution. Rinse with fresh water.

• Surfaces must be clean, dry and free from all surface contamination.

• Fill in the surface defects with suitable filler, putty or sealant.

• Remove all loose or flaking paint & sand glossy or enamel surfaces thoroughly

• Start with Ceiling; then Walls and finish with Doors & Trim

• For cleaner lines; use masking tape to mask up areas.

• Cut in first using a narrow brush. Then roll up to the edges using a roller.

• Use a quality 12mm nap roller to apply the paint.

• Do not paint directly overhead

AFTER PAINTING CARE

• Avoid abrasive cleaners for 7 days.

May need: Drop cloth, sandpaper, paint tray, roller handle & sleeve, pole, cutting in brush and personal protective equipment including safety glasses, impervious gloves and overalls.

NEW WORK
RE -PAINT
PAINTING TIPS

TAUBMANS

CEILING WHITE

5 year guarantee against mould

For all rooms of the house

Superior hiding power

Very low odour & VOC

EASY COAT CEILING

Anti-bacterial protection

Helps prevent the growth of mould and mildew

5 year guarantee

Sensitive Choice®

TRADEX CEILING

Water based

High Opacity

Dead flat finish

PROFESSIONAL TRADE

PROFESSIONAL CEILING

New work & repaint

1% gloss level flat finish

Minimise banding

Ceiling paint is formulated to cover and hide imperfections. Ceiling paint has to cover well, stick well and hide well.

A good ceiling paint should be able to be used on all interior ceilings

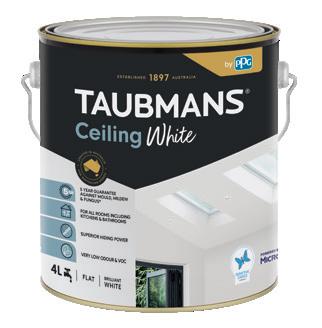

Taubmans Ceiling White

5 YEAR GUARANTEE AGAINST MOULD, MILDEW & FUNGUS* SUPERIOR HIDING

For all rooms including kitchens & bathrooms

ALL ROOMS INCLUDING KITCHENS & BATHROOMS

5 YEAR GUARANTEE AGAINST MOULD, MILDEW & FUNGUS*

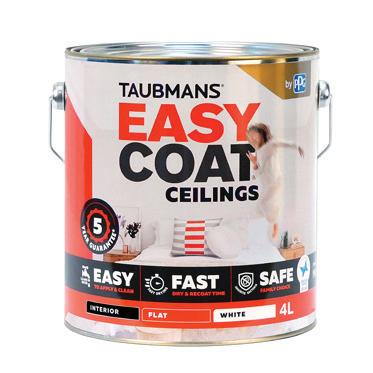

Easycoat®

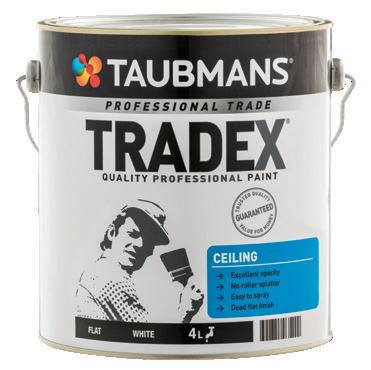

Tradex Ceiling

Tradex Ceiling is easy to apply, low roller spatter & easy to spray

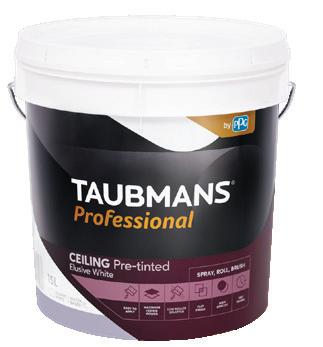

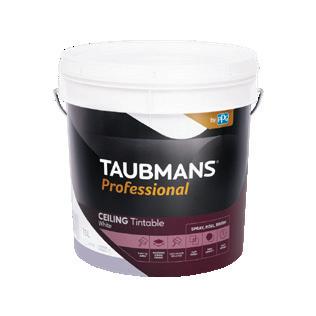

Professional Ceiling

Premium water based paint for both new and repaint work, with a dead flat finish designed to minimise banding, particularly on new plasterboard

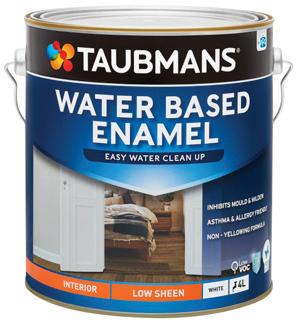

Water Based

Enamel

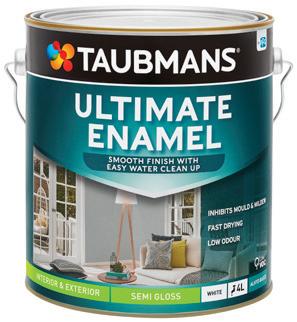

Ultimate Enamel

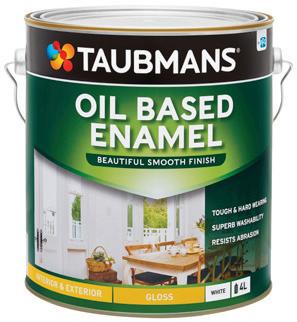

Oil Based Enamel

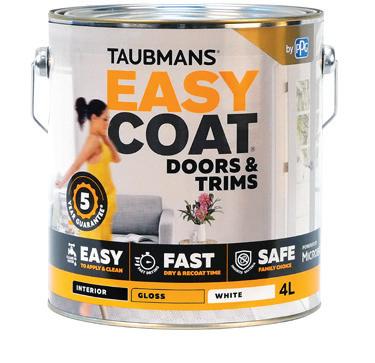

Easycoat Doors & Trim

Helps prevent the growth of mould and mildew

Asthma & allergy friendly

Non-yellowing formula

Low odour

Easy water clean up

Helps prevent the growth of mould and mildew

Low VOC

Less odour

Easy water clean up

Excellent opactity

Smooth finish

Tough & hardwearing

Superb washability

Resists abrasion

Excellent opacity

Good flow properties

Non yellowing formula

Low odour

PROFESSIONAL TRADE

High quality

Fast drying

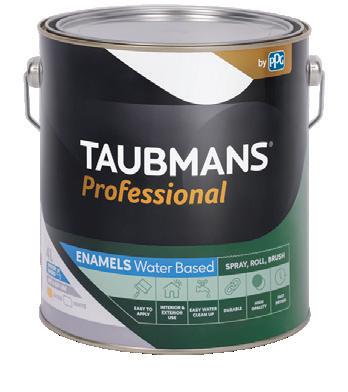

Professional

Water Based

Enamel

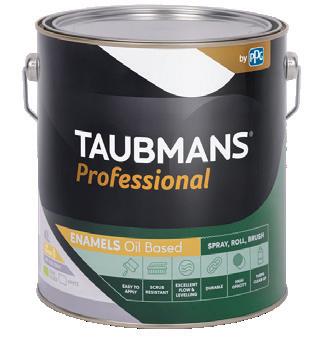

Professional Oil Based Enamel

Easy to apply

Designed for Professional Painters

Interior & exterior doors & trims

Non-yellowing

Excellent flow properties

Designed for Professional Painters

Scrub resistant finish

Enamel paint is formulated to give an especially hard, and durable finish. A good enamel is specifically designed to self-level during the drying process to enhance visual characteristics.

PAINTING WINDOWS, DOORS & TRIMS

• Surfaces must be clean and dry and free from all surface contamination.

• Fill in the surface defects with suitable filler, putty or sealant.

• Sand out any imperfections to obtain a smooth uniform surface.

• Remove dust.

• Prime with a suitable primer (see prep section)

• Remove all loose or flaking paint & sand glossy or enamel surfaces thoroughly.

• Treat any mould with bleach then rinse with water.

• Wash all surfaces with a sugar soap solution. Rinse with fresh water.

• Surfaces must be clean, dry and free from all surface contamination.

• Fill in the surface defects with suitable filler, putty or sealant.

• Prime with a suitable primer if required.

• Start with Windows; then Trim and finish with Doors

• For cleaner lines; use masking tape to mask up areas.

• Cut in first using a good quality narrow brush then roll up to the edges using a roller.

• For best results sand with 240 grit sandpaper between coats.

• Avoid exposure to steam for 48 hours.

• Avoid abrasive cleaners for 7 days.

• Wash with “Spray & Wipe” or detergent in water’. To remove marks.

May need: drop cloth, sandpaper, paint tray, roller handle & sleeve, pole, cutting in brush.

AFTER PAINTING CARE
NEW WORK
RE -PAINT
PAINTING TIPS

Taubmans Water Based Enamel

Premium non-yellowing, fast drying enamel that uses superior LTA+ TechnologyTM specially designed to protect doors, trims, skirting boards, and windows.

Semi Gloss and Gloss are recommended for all interior/exterior windows, doors & trims.

Sheen* - interior only.

Taubmans Ultimate Enamel

Premium, self leveling & fast drying enamel that uses superior alkyd technology to provide the durability and performance of a traditional oil based enamel, while also being an environmentally friendly water based enamel. SHEEN LEVELLOW SHEEN*SEMI

Taubmans Oil Based Enamel

Premium enamel that delivers on durability and performance with excellent flow and levelling which helps create a beautiful smooth gloss finish.

Gloss is recommended for all interior/exterior windows, doors and trims. Semi Gloss - interior only.

Easycoat Doors & Trim

Professional Water Based Enamel

High-quality, easy to apply and quick drying formula specifically designed for professional painters

Professional Oil Based Enamel

High-quality, high opacity, traditional oil based formula specifically designed for professional painters.

ALL WEATHER

EXTERIOR

Superior dirt shedding formula

Lifetime Guarantee

Fast drying

Self-priming on most surfaces

Nanoguard technology

Helps prevent the growth of mould and mildew

SUNPROOF

EXTERIOR

Self-priming on most surfaces

Resists against cracking 25 year guarantee

Superior UV barrier

Suitable for the collection of drinking water

PROFESSIONAL TRADE

PROFESSIONAL EXTERIOR

Dirt shedding technology

Self-priming in most cases

Resists against cracking

Superior UV barrier

Fast drying

Suitable for the collection of drinking water

A good exterior paint provides a decorative durable finish that protects from the elements and resists UV. It provides good coverage and is easy to apply.

PAINTING EXTERIOR SURFACES

• Fill surface defects with suitable filler or sealant.

• Surface must be clean, dry and free from all dirt, dust, grease, oil, rust and any other surface contamination.

• Timber: Sand weathered (greyed) timber to the original timber surface. Tannin rich timbers should be primed with Taubmans 3 in 1 Prep.

• Galvanised Iron: Degrease new surfaces, thoroughly clean weathered surfaces to ensure adhesion. For structural galvanised iron, abrade with 240 grit sandpaper to remove chemical treatments. If red rust is present, treat as for steel.

• Cement Render/Concrete: Allow concrete, cement render and mortar to cure for 28 days before painting.

• Steel: Remove rust and prime with White Knight Rust Guard Metal Primer.

• Remove loose and flaking paint and sand surface thoroughly.

• On aged enamel use Taubmans 3 in 1 Prep for inter-coat adhesion.

• Treat bare areas as for new work.

• Start with gutters, fascia, eaves, broadwall and finish with doors, windows & trim.

• For cleaner lines; use masking tape to mask up areas.

• Cut in first using a good quality narrow brush then roll up to the edges using a roller.

• Use a quality 75-100mm brush.

• For best results sand with 240 grit sandpaper in between coats.

• Avoid washing for 48 hours.

• Avoid abrasive cleaners for 7 days.

• Wash with detergent in water’. To remove dirt & grime.

NEW WORK / UNPAINTED SURFACES PREVIOUSLY

All Weather Exterior

High performance water based all purpose self-priming exterior paint

White M, LS, SG, GLLS, SG, GL M, LS, SG, GL M, LS, SG,GLM, LS, SG, GL

Accent / Neutral M, LS, SG, GLLS, SG, GL LS, GLM, LS, GL

to 16m2/litre

Dependent on surface 2 After 2 hours at 25OC Allow 4 hours in cold or humid conditions

10OC - 35OC

Matt - Ideal for exterior walls and masonry.

Low Sheen - Ideal for exterior walls, trims, outdoor furniture, pergolas and roofs.

Semi Gloss - Ideal for weatherboards, trims and roofs.

Gloss - Ideal for exterior walls and trims. BASE

Sunproof Exterior

Multi-purpose 100% acrylic exterior paint

Recommended for: weatherboards, cement render, brick, fences and pergolas. Suitable for the collection of drinking water SHEEN

White LS, GLLS, SG, GLLS, SG, GLLS, GL

Accent LS, GLLS, SG, GL LSLS

Neutral LS, GLLS, SG, GLLS, SG LS M - MATT LS-LOW SHEEN SG -SEMI GLOSS GL-GLOSS

COVERAGE COATS RECOATS APPLY TEMPERATURE RANGE WASH UP

Dependent on surface 2 After 2 hours at 25OC Allow 4 hours in cold or humid conditions

Professional Water Based Exterior

Premium water-based, self-priming exterior paint, specially developed for the professional painter to provide a luxurious application feel

Matt - Ideal for exterior walls and masonry.

Low Sheen - Ideal for exterior walls, trims, outdoor furniture, pergolas and roofs.

Semi Gloss - Ideal for weatherboards, trims and roofs.

Gloss - Ideal for exterior walls and trims.

Refer to Prep Selector on page 23 to select the correct Prep Product

Cracking

Refer to Prep Selector on page 23 to select the correct Prep Product

Drying

Drying Troubles

Flaking

• Blistering

• Bubbling

• Flakes

• Lifting

• Peeling

Mould

External walls may also be affected.

Pin Holing

Poor Coverage

• Poor opacity

• Not sufficiently mixing the paint before application

TAUBMANS TINTERS

W White

B Black

C Yellow Oxide

D Phthalo Green

E Phthalo Blue

F Red Oxide

G Medium Yellow

I Brown Oxide

J Violet

L Raw Umber

M Magenta

LF-H Light Fast Red

LF-X Light Fast Yellow

AVOIDING TINTING PROBLEMS

• Maintain your equipment

• Clean regularly

• Top up tint canisters regularly

• Stir tint machine regularly

• Check formula carefully (often there are multiples)

• Check base carefully

• Be careful with can selection

• Take care when tinting

1LT & 2LT2 Minutes 4LT 3 Minutes 10LT & 15LT6 Minutes

Tinted

Undercoat 1

Tinted

Undercoat 2

Tinted

Undercoat 3

Tinted

Undercoat 4

Tinted

Undercoat 5

Tinted undercoats are recommended when tinting some neutral base colours. Tinted undercoats use a grey colour scale that gets progressively darker.

RED PURPLE

PRIMARY

SECONDARY

ORANGE

PURPLE

GREEN

TERTIARY

YELLOW ORANGE

RED ORANGE

RED PURPLE

BLUE PURPLE

BLUE GREEN

YELLOW GREEN

Hue = Colour

Chroma = Colour intensity / purity

Value = How dark or light

MUNSELL COLOUR SYSTEM

Primary colours: red, blue, yellow

Secondary colours: purple, green, orange

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
Taubmans Quick Reference Guide by PPG Paint Academy - Issuu
