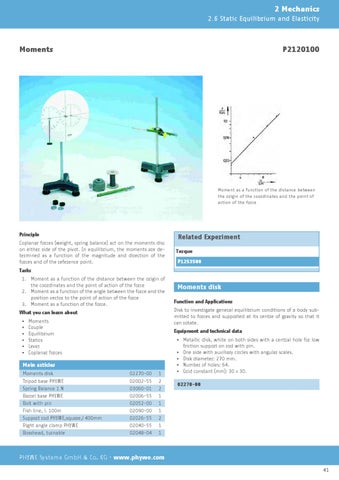

2 Mechanics 2.6 Static Equilibrium and Elasticity
Moments
P2120100
Moment as a function of the distance between the origin of the coordinates and the point of action of the force.
Principle Coplanar forces (weight, spring balance) act on the moments disc on either side of the pivot. In equilibrium, the moments are determined as a function of the magnitude and direction of the forces and of the reference point.
Related Experiment Torque P1253500
Tasks 1. Moment as a function of the distance between the origin of the coordinates and the point of action of the force 2. Moment as a function of the angle between the force and the position vector to the point of action of the force 3. Moment as a function of the force. Moments Couple Equilibrium Statics Lever Coplanar forces
Equipment and technical data
Main articles Moments disk Tripod base PHYWE Spring Balance 1 N Barrel base PHYWE Bolt with pin Fish line, l. 100m Support rod PHYWE,square,l 400mm Right angle clamp PHYWE Bosshead, turnable
Function and Applications Disk to investigate general equilibrium conditions of a body submitted to forces and supported at its centre of gravity so that it can rotate.
What you can learn about ▪ ▪ ▪ ▪ ▪ ▪
Moments disk
02270-00 02002-55 03060-01 02006-55 02052-00 02090-00 02026-55 02040-55 02048-04
1 2 2 1 1 1 2 1 1
▪ Metallic disk, white on both sides with a central hole for low friction support on rod with pin. ▪ One side with auxiliary circles with angular scales. ▪ Disk diameter: 270 mm. ▪ Number of holes: 64. ▪ Grid constant (mm): 30 x 30. 02270-00
