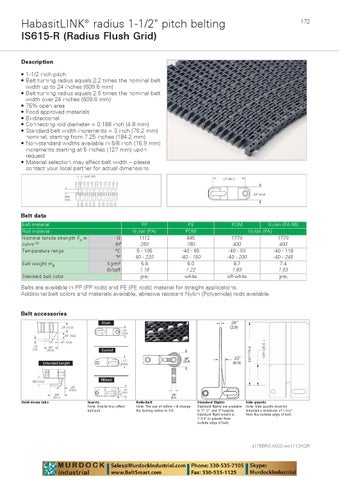

HabasitLINK® radius 1-1/2" pitch belting
172
IS615-R (Radius Flush Grid) Description • 1-1/2 inch pitch • Belt turning radius equals 2.2 times the nominal belt width up to 24 inches (609.6 mm) • Belt turning radius equals 2.5 times the nominal belt width over 24 inches (609.6 mm) • 75% open area • Food approved materials • Bi-directional • Connecting rod diameter = 0.188 inch (4.8 mm) • Standard belt width increments = 3 inch (76.2 mm) nominal, starting from 7.25 inches (184.2 mm) • Non-standard widths available in 5/8 inch (15.9 mm) increments starting at 5 inches (127 mm) upon request • Material selection may affect belt width – please contact your local partner for actual dimensions
Belt data Belt material Rod material Nominal tensile strength FN in curve (1) Temperature range Belt weight mB
N lbf °C °F kg/m² lb/sqft
Standard belt color
PP Nylon (PA) 1112 250 5 - 105 40 - 220 5.8 1.19 gray
PE POM 845 190 -40 - 65 -40 - 150 6.0 1.22 white
POM
Nylon (PA 66) Nylon (PA) 1779 1779 400 400 -40 - 93 -40 - 118 -40 - 200 -40 - 245 8.7 7.4 1.83 1.53 off-white gray
Belts are available in PP (PP rods) and PE (PE rods) material for straight applications. Additional belt colors and materials available, abrasive resistant Nylon (Polyamide) rods available. Belt accessories
Hold-down tabs
Inserts Note: Inserts may affect belt pull
Rollerbelt Note: The use of rollers will change the turning radius to 3.5
Standard flights Standard flights are available in 1", 2", and 3" heights. Standard flight indent is 1-1/4" or greater from outside edge of belt.
Side guards Note: Side guards must be indented a minimum of 1-1/4" from the outside edge of belt.
