169

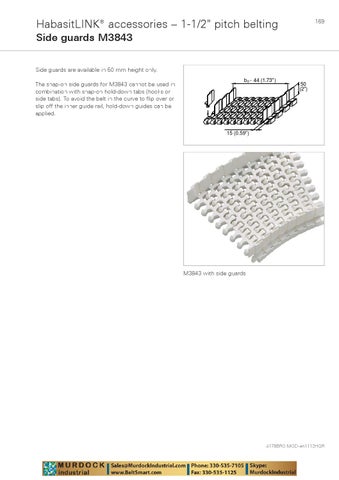

HabasitLINKŽ accessories – 1-1/2" pitch belting Side guards M3843 Side guards are available in 50 mm height only. The snap-on side guards for M3843 cannot be used in combination with snap-on hold-down tabs (hooks or side tabs). To avoid the belt in the curve to flip over or slip off the inner guide rail, hold-down guides can be applied.
b 0 - 44 (1.73" )
50 (2")
15 (0.59")
M3843 with side guards
4178BRO.MOD-en1112HQR
