GENERAL INFORMATION

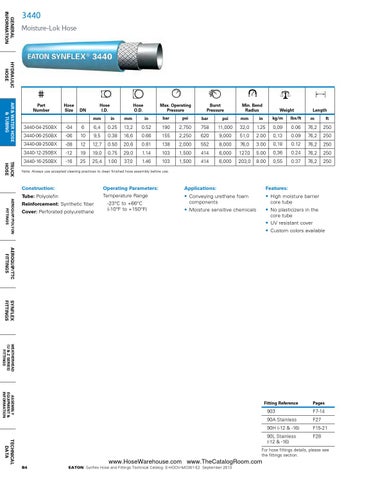

3440 Moisture-Lok Hose
HYDRAULIC HOSE r
AIR & WATER HOSE & Tubing
Part Number
Hose Size
Hose I.D.
DN
Hose O.D.
Max. Operating Pressure
Burst Pressure
Min. Bend Radius
mm
in
mm
in
bar
psi
bar
psi
mm
Weight
Length
in
kg/m
lbs/ft
m
ft
tRUCK Hose
3440-04-250BX
-04
6
6,4
0.25
13,2
0.52
190
2,750
758
11,000
32,0
1.25
0,09
0.06
76,2
250
3440-06-250BX
-06
10
9,5
0.38
16,6
0.66
155
2,250
620
9,000
51,0
2.00
0,13
0.09
76,2
250
3440-08-250BX
-08
12
12,7
0.50
20,6
0.81
138
2,000
552
8,000
76,0
3.00
0,18
0.12
76,2
250
3440-12-250BX
-12
19
19,0
0.75
29,0
1.14
103
1,500
414
6,000
127,0
5.00
0,36
0.24
76,2
250
3440-16-250BX
-16
25
25,4
1.00
37,0
1.46
103
1,500
414
6,000
203,0
8.00
0,55
0.37
76,2
250
Note: Always use accepted cleaning practices to clean finished hose assembly before use.
Construction: AEROQUIP/POLYON FITTINGS
Tube: Polyolefin Reinforcement: Synthetic fiber Cover: Perforated polyurethane
Operating Parameters: Temperature Range -23°C to +66°C (-10°F to +150°F)
Applications:
Features:
Conveying urethane foam components Moisture sensitive chemicals
High moisture barrier core tube No plasticizers in the core tube UV resistant cover Custom colors available
AEROQUIP/TTC FITTINGS
SYNFLEX Fittings WEATHERHEAD (U & Z SERIES) FITTINGS ASSEMBLY EQUIPMENT & Information
Fitting Reference
Pages
Technical data
903
F7-14
90A Stainless
F27
90H (-12 & -16)
F15-21
90L Stainless (-12 & -16)
F28
For hose fittings details, please see the fittings section.
www.HoseWarehouse.com www.TheCatalogRoom.com B4
EATON Synflex Hose and Fittings Technical Catalog E-HOOV-MC001-E2 September 2013
