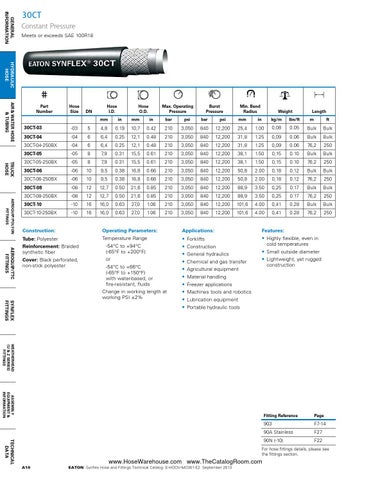

GENERAL INFORMATION
30CT Constant Pressure Meets or exceeds SAE 100R18
HYDRAULIC HOSE r
AIR & WATER HOSE & Tubing
Part Number
Hose Size
DN
Hose I.D.
Hose O.D.
Max. Operating Pressure
Burst Pressure
Min. Bend Radius
Weight
Length
mm
in
mm
in
bar
psi
bar
psi
mm
in
kg/m
lbs/ft
m
ft
tRUCK Hose AEROQUIP/POLYON FITTINGS
30CT-03
-03
5
4,8
0.19
10,7
0.42
210
3,050
840
12,200
25,4
1.00
0,08
0.05
Bulk
Bulk
30CT-04
-04
6
6,4
0.25
12,1
0.48
210
3,050
840
12,200
31,8
1.25
0,09
0.06
Bulk
Bulk
30CT-04-250BX
-04
6
6,4
0.25
12,1
0.48
210
3,050
840
12,200
31,8
1.25
0,09
0.06
76,2
250
30CT-05
-05
8
7,9
0.31
15,5
0.61
210
3,050
840
12,200
38,1
1.50
0,15
0.10
Bulk
Bulk
30CT-05-250BX
-05
8
7,9
0.31
15,5
0.61
210
3,050
840
12,200
38,1
1.50
0,15
0.10
76,2
250
30CT-06
-06
10
9,5
0.38
16,8
0.66
210
3,050
840
12,200
50,8
2.00
0,18
0.12
Bulk
Bulk
30CT-06-250BX
-06
10
9,5
0.38
16,8
0.66
210
3,050
840
12,200
50,8
2.00
0,18
0.12
76,2
250
30CT-08
-08
12
12,7
0.50
21,6
0.85
210
3,050
840
12,200
88,9
3.50
0,25
0.17
Bulk
Bulk
30CT-08-250BX
-08
12
12,7
0.50
21,6
0.85
210
3,050
840
12,200
88,9
3.50
0,25
0.17
76,2
250
30CT-10
-10
16
16,0
0.63
27,0
1.06
210
3,050
840
12,200
101,6
4.00
0,41
0.28
Bulk
Bulk
30CT-10-250BX
-10
16
16,0
0.63
27,0
1.06
210
3,050
840
12,200
101,6
4.00
0,41
0.28
76,2
250
Construction:
AEROQUIP/TTC FITTINGS
Tube: Polyester Reinforcement: Braided synthetic fiber Cover: Black perforated, non-stick polyester
SYNFLEX Fittings
Operating Parameters: Temperature Range -54°C to +94°C (-65°F to +200°F) or -54°C to +66°C (-65°F to +150°F) with water-based, or fire-resistant, fluids Change in working length at working PSI ±2%
Applications: Forklifts Construction General hydraulics Chemical and gas transfer Agricultural equipment Material handling Freezer applications Machines tools and robotics Lubrication equipment Portable hydraulic tools
Features: Highly flexible, even in cold temperatures Small outside diameter Lightweight, yet rugged construction
WEATHERHEAD (U & Z SERIES) FITTINGS ASSEMBLY EQUIPMENT & Information
Technical data
Fitting Reference
Page
903
F7-14
90A Stainless
F27
90N (-10)
F22
For hose fittings details, please see the fittings section.
www.HoseWarehouse.com www.TheCatalogRoom.com A10
EATON Synflex Hose and Fittings Technical Catalog E-HOOV-MC001-E2 September 2013
