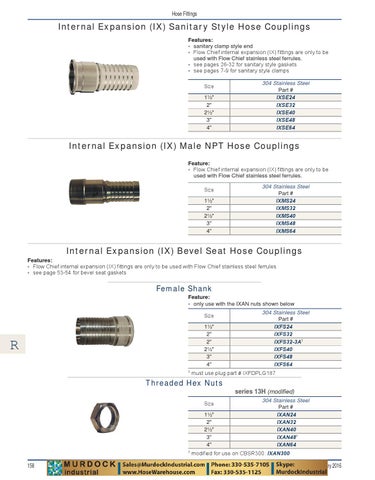

Hose Fittings
Internal Expansion (IX) Sanitary Style Hose Couplings Features: • sanitary clamp style end • Flow Chief internal expansion (IX) fittings are only to be used with Flow Chief stainless steel ferrules. • see pages 26-32 for sanitary style gaskets • see pages 7-9 for sanitary style clamps Size 1½" 2" 2½" 3" 4"
304 Stainless Steel Part # IXSE24 IXSE32 IXSE40 IXSE48 IXSE64
Internal Expansion (IX) Male NPT Hose Couplings Feature: • Flow Chief internal expansion (IX) fittings are only to be used with Flow Chief stainless steel ferrules. Size 1½" 2" 2½" 3" 4"
304 Stainless Steel Part # IXMS24 IXMS32 IXMS40 IXMS48 IXMS64
Internal Expansion (IX) Bevel Seat Hose Couplings Features: • Flow Chief internal expansion (IX) fittings are only to be used with Flow Chief stainless steel ferrules • see page 53-54 for bevel seat gaskets
Female Shank Feature: • only use with the IXAN nuts shown below Size 1½" 2" 2" 2½" 3" 4"
R 1
must use plug part # IXFDPLG187
Threaded Hex Nuts Size 1½" 2" 2½" 3" 4" 1
158
304 Stainless Steel Part # IXFS24 IXFS32 IXFS32-3A1 IXFS40 IXFS48 IXFS64
series 13H (modified) 304 Stainless Steel Part # IXAN24 IXAN32 IXAN40 IXAN481 IXAN64
modified for use on CBSR300: IXAN300
800.789.1718
Dixon Sanitary 2016
