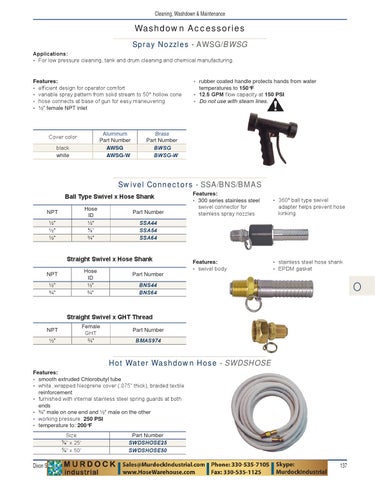

Cleaning, Washdown & Maintenance
Washdown Accessories Spray Nozzles - AWSG/BWSG Applications: • For low pressure cleaning, tank and drum cleaning and chemical manufacturing.
Features: • efficient design for operator comfort • variable spray pattern from solid stream to 50° hollow cone • hose connects at base of gun for easy maneuvering • ½" female NPT inlet
Aluminum Part Number AWSG AWSG-W
Cover color black white
• rubber coated handle protects hands from water temperatures to 150°F • 12.5 GPM flow capacity at 150 PSI • Do not use with steam lines.
Brass Part Number BWSG BWSG-W
Swivel Connectors - SSA/BNS/BMAS Ball Type Swivel x Hose Shank Hose ID ½" ⅝" ¾"
NPT ½" ½" ½"
Part Number
Hose ID ½" ¾"
½" ¾"
• 360° ball type swivel adapter helps prevent hose kinking
Features: • swivel body
• stainless steel hose shank • EPDM gasket
SSA44 SSA54 SSA64
Straight Swivel x Hose Shank NPT
Features: • 300 series stainless steel swivel connector for stainless spray nozzles
Part Number
O
BNS44 BNS64
Straight Swivel x GHT Thread Female GHT ¾"
NPT ½"
Part Number BMAS974
Hot Water Washdown Hose - SWDSHOSE Features: • smooth extruded Chlorobutyl tube • white, wrapped Neoprene cover (.075" thick), braided textile reinforcement • furnished with internal stainless steel spring guards at both ends • ¾" male on one end and ½" male on the other • working pressure: 250 PSI • temperature to: 200°F Size ⅝" x 25' ⅝" x 50'
Dixon Sanitary 2016
Part Number SWDSHOSE25 SWDSHOSE50
