Welcome to our latest catalogue...

This is our 23rd year supplying Australia and New Zealand with aftermarket performance parts and plumbing.

From rockets that have wheels to ones that go into space - our vast range means we can help you no matter what you’re doing. We only deal with the best parts manufacturers so we can guarantee you the best quality – simply speaking “NO CHINESE CRAP HERE!”

Over the last 3 years we have increased our inventory and now boast over 8,500 parts most of which is sourced from AUSTRALIA, USA and ENGLAND.

As the Australian distributor for SPEEDFLOW, BROWN & MILLER (BMRS), XRP, AEROFLEX, DJ SAFETY, TURBOSMART, SETRAB, PENNGRADE OILS and many more, we pride ourselves in being the go-to people for advice and how to use each and every product we sell.

I can assure you that we use the products we sell on our own vehicles.

Please stay safe, be kind to each other and remember... breathe!

Speedflow is excited to enter it’s 40th year of manufacturing the highest quality performance hose fittings the market has to offer. They have significantly invested in new technologies, time in research and developement and showed great committment to product testing and introducing new ranges. Within this new catalogue you will see the fruits of the dedication from their great team.

Examples of new products include the modern 480 series Automotive Air Conditioning Hose System and accessories, as well as their superior Three-Way Ball Valves.

Speedflow believes in quality and doing it right the first time. They ensure this by having full control over every aspect of the production process from concept to design, machining to polishing, anodising, assembly and packaging.

LOOK OUT FOR OUR RED PART NUMBERS!

Even though this is the Speedflow section of the catalogue we have listed items that are compatible with or compliment the Speedflow range and may be from another supplier.

HOSE OPTIONS

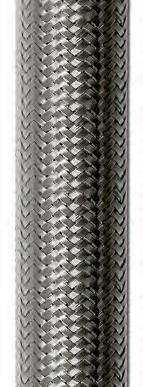

100 Series Hose

• Stainless steel braided synthetic rubber hose - Suits 100 Series Hose Ends.

page 8

• Synthetic rubber inner tube, integral Stainless braid, high tensile Stainless outer Braid.

• Temperature Range: -46°C (-50.8°F) to 150°C (302°F).

• Pressure Rating: -4 to -12 operating pressure of 1000psi with 100 series hose ends.

• Approved for Synthetic Lubricants, Oils, Air, Coolant, Methanol and Nitromethane.

• Not Recommended for Unleaded, E85 or corrosive fuels.

120 Series Start-Lite Hose

• Up to 45% lighter than 100 Series Hose - Suits 100 Series Hose Ends.

• Smooth-bore CPE liner with pre-dyed BLACK (with red trace) Nomex® cover.

• Temperature Range: -46°C (-50.8°F) to 150°C (302°F).

• Pressure Rating: Operating pressures of 350-500psi with 100 series hose ends.

• Approved for Synthetic Lubricants, Oils, Air, Coolant, Methanol and Nitromethane.

• Not Recommended for Unleaded, E85 or corrosive fuels.

200 Series Teflon ® Braided Hose

page 8

page 10

• A versatile all round hose for Performance Vehicles - Suits 200 or 520 Series Hose Ends.

• PTFE (Teflon®) inner tube with Stainless Steel braided cover. (Blackened available)

• Temperature Range: -70°C (-94°F) to 260°C (500°F).

• Outstanding operating pressures. (3380psi with -6 & 200 Series Hose Ends)

• Compatible with Brake, Clutch, Oils, Air, N2O, Coolant, Fuels, Hydraulics.

• Recommended Hose for Unleaded, E85 & corrosive fuels.

400 Series Pushlock

page 18

• 2 Brands - Gates 400 (smooth outer) & AQP A332 & A598 (rough outer) Blue or Black

• Use with our 400 Series Pushlock Hose Ends.

• Elastomer tube, Textile Braid reinforcement with a rough Elastomer outer cover.

• Temperature Range: -40°C (-40°F) to 100°C (212°F).

• Operating pressures up to 250psi

• Approved for Low Pressure Oils, Air, Coolant, & Methanol.

• Not Recommended for Unleaded, E85 or corrosive fuels.

480 Series Air Conditioning Hose

page 25

• Ideal for AC & reflect our 200 Series Hose System - Suits 480 Series AC Reusable Hose Ends.

• Nylon inner tube with Stainless Steel braided cover. (Blackened available)

• Temperature Range: -40°C (-40°F) to 121°C (250°F).

• Suitable for R134a refrigerants for superior cooling.

490 Series Powersteer Hose

page 21

• Our best option for high pressure, high pulse applications - Suits 490 Series Hose Ends.

• Elastomer tube, textile inner braid, single wire braid, black polyester braid cover.

• Temperature Range: -40°C (-40°F) to 121°C (250°F).

• For use with Power Steering, Oils, Coolant & Air.

550 Series Teflon ® Hose

page 22

• A lightweight, flexible hose for Professional Motorsport - Suits 550 Series Crimp Hose Ends.

• Carbon impregnated PTFE smooth-bore inner tube with outer annular convolutions.

• Choice of Stainless Steel or Aramid Fibre Braided cover.

• Temperature Range: -70°C (-94°F) to 180°C (356°F).

• Compatible with Oils, Air, Coolant, Fuels including Unleaded, E85 & corrosive fuels.

550-900 Series Injection Hose

• Superior option for mechanical injection lines - Suits 550-900 & 200-04 Hose.

• Synthetic Rubber liner with textile reinforcing and smooth cover.

• Temperature Range: -40°C (-40°F) to 93°C (199°F).

• Suitable for use with synthetic lubricants, oils, air and methanol.

Barricade Fuel Hose

• Designed for modern EFI fuel systems and push on hose tails.

• Can be used with our 411, 414 & 421 Series hose tails utilising a hose clamp.

• Barrier liner, thermoplastic layer, adhesion layer, textile support and smooth cover.

• Low permeation rate - SAE R14 rating / Operating Pressure of 225psi.

• Multi-fuel compatible: leaded and unleaded fuels, Diesel, E85, Methanol & Gasohol.

page 24

page 20

Hoses & Fittings

100 SERIES

Stainless Steel Braided Hose

Manufactured in the USA, Speedflow 100 Series hose is the premier stainless steel nitrile hose and has been used by motorsport professionals all over the world! Used with our 100 Series hose ends it provides essential protection and resistance to high pressure, temperature, and chafing! It is constructed of a seamless synthetic nitrile inner tube with an integral stainless steel braid and a high tensile stainless steel outer braid. It has the highest corrosion & fire resistance of any other nitrile braided hose.

• Temp. Range: -46°C to 150°C.

Start-Lite Hose

SERIES

The 120 Series hose is Lightweight, Durable and Race proven! Made from smooth-bore CPE liner with predyed BLACK (with red trace) Nomex® cover. Start-Lite® hose assemblies are lighter in weight than conventional high performance assemblies. Use 100 Series reusable Hose Ends, no crimping machines or special tools are required! Applications: Fuel*, lube, coolant, air.

• Temperature Range: -46°C to 150°C

• Note: -16 requires a special socket.

Nomex® is a registered trademark of DuPont.

Start-Lite® is a registered trademark of Eaton.

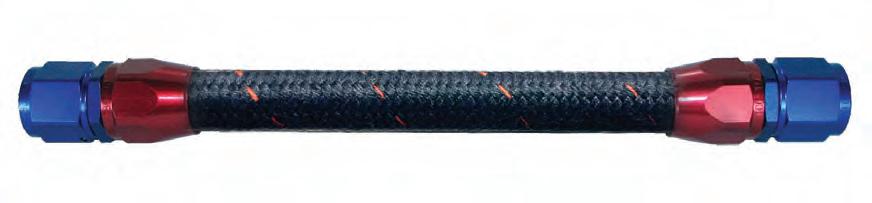

FULL RACE

115 SERIES

Hose may be provided with a red trace through it on occasion

Note: -16 requires a special socket. Please ask!

Full Race Black Nylon Hose HD

Full Race Black Nylon Hose features heavy duty side-wall for additional strength. This hose should be considered when using on dry sump “suction” applications. Vacuum not to exceed 28 ins/Hg. Full Race hose is manufactured by Parker USA.

• Temperature Range: -46°C to 150°C

• Note: -20 requires a special socket. Please ask!

Nomex® is a registered trademark of DuPont.

Start-Lite® is a registered trademark of Eaton.

100, 120 & FR115 SERIES HOSE APPLICATION NOTE

Ideal for use with Fuel, Coolant & Oil Pressure Systems.

COMPATIBILITY:

• Methanol, Water, Oil & Fuel (see restrictions).

RESTRICTIONS:

Note: -20 requires a special socket. Please ask!

FUEL ADDITIVES & THEIR EFFECT

With the use of new blends of unleaded fuels and additives from fuel manufacturers in recent years it has become increasingly difficult to assure their compatibility with hose constructions.

• Not recommended for use with unleaded fuels as it is known to allow the permeation of fuel smell through the layers as well as other possible issues.

• Not to be used with brake fluids.

• Not recommended for use around extreme heat sources

The best option is our 200 SERIES TEFLON® HOSE which can withstand all additives used in the manufacture of unleaded fuels and Ethanol blends. 200 Series -6, -8, -10 and -12 sizes are also manufactured with a carbon lining to prevent static build up and discharge from fast moving liquids.

See page 10 for details

Hoses

Hose Ends

SUITS 100, FR115 & 120 SERIES HOSES

Made from 6061 grade aluminium and utilising our unique full flow formed bend which is the strongest and most compact hose end bend in the industry! Speedflow only manufacture the cutter style which is engineered to securely fit our 100, FR115 & 120 Series hose for a perfect seal every time! All our hose ends can be rotated once assembled.

Hoses & Fittings 200 SERIES

Teflon® Stainless Steel Braided Hose

Speedflow 200 Series Teflon® Braided Hose is constructed from a PTFE (Teflon®) inner tube compatible with all brake & clutch fluids, oil & fuels. The outer stainless steel braided cover adds fire and heat resistance and gives the hose a high pressure rating. Sizes -6 and up are manufactured with an anti-static PTFE tube suitable for use as main fuel lines. 200 Series has been an industry standard since the mid 60’s when it was first used as brake lines to reduce expansion and provide a much firmer “pedal” and more consistent braking. This hose has evolved to be recommended in clutch, pressure lines, turbo lines oil, water and fuel systems!

• Temperature Range: -70°C to 260°C.

200 SERIES

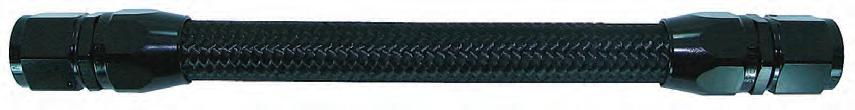

Teflon® Stainless Braided Hose - Black

We also offer their popular 200 Series hose with a BLACK STAINLESS STEEL finish, in sizes -3 to -12. Please note thet even though they are supplied by the metre - they are only available up to a maximum length of 5 metres (our -12 is only available up to max length of 3 metres).

200 SERIES

Teflon® Braided Hose with PVC Cover

Speedflow also offers their 200 Series Teflon® Braided Hose with a Gloss Black* PVC cover. This abrasion resistant cover will stop the braid rubbing against other hoses, chassis or vehicle components & makes cleaning easier. • Temperature Range: -70°C to 260°C.

-3 size is also available with a Clear cover

Hoses & Fittings

200 SERIES

Hose Ends - Aluminium

SUITS 200 SERIES HOSE

MSCN carry the biggest range of 200 Series Hose Ends anywhere... 200 Series aluminium hose ends are ideal for those who are conscious of weight. There are three colour options - standard in BLACK anodised, a BLUE/BLACK combination and introducing the “Classic” range which is available in RED/BLUE.

STRAIGHT HOSE ENDS

BLACK BLUE/ BLACK RED/ BLUE SIZE

201-03-BLK201-03-D201-03-CLASSIC -3

201-04-BLK201-04-D201-04-CLASSIC -4

201-06-BLK201-06-D201-06-CLASSIC -6

201-08-BLK201-08-D201-08-CLASSIC -8

201-10-BLK201-10-D201-10-CLASSIC -10

201-12-BLK201-12-D201-12-CLASSIC -12

60°

BLACK BLUE/ BLACK RED/ BLUE SIZE

208-04-BLK208-04-D208-04-CLASSIC -4

208-06-BLK208-06-D208-06-CLASSIC -6

208-08-BLK208-08-D208-08-CLASSIC

Withstands additives used in the manufacture of unleaded fuels & E85 Ethanol blends. -6, -8, 10 & -12 sizes are manufactured with a carbon lining to prevent static build up & discharge from fast moving liquids

Ideal for Brake Lines (off road use only), Clutch Lines, Fuel Systems (-6, -8, -10 & -12 with antistatic carbon lining), Turbo oil feed Hose, Coolant Systems, Oil Pressure Systems, Gauge lines & Power Steering.

COMPATIBILITY:

• Brake Fluids, Unleaded Petrol, Methanol, Water & Oil

• Ideal for use with Unleaded fuel

HOSE ENDS

Hoses & Fittings

200 SERIES

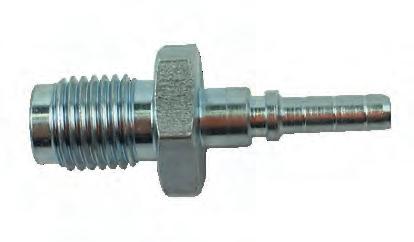

Hose Ends - Steel

Hose Ends - Swivel Crimp Aluminium

Expanded range to suit Speedflows 200 series hose. We now have double swivel hose ends from -3 to -12 which allow for fully adjustable 360° orientation after crimping! Limited stocks on the solid hose ends as these are discontinued.

FEMALE - CONCAVE SEAT

Accepts 3/8” Bleed Nipple for remote bleeding of Clutch or Brake systems.

Hoses & Fittings

Hose Ends - Adaptor Type

SUITS 200 SERIES HOSE

Brake, clutch & special purpose hose ends in both Metric & Imperial to suit American, European, Japanese & Asian vehicles!

FEMALE - INVERTED SEAT With C-Clip Groove.

FEMALE SWIVEL - FLAT SEAT Red & Black anodised Aluminium

Suits Smith gauges

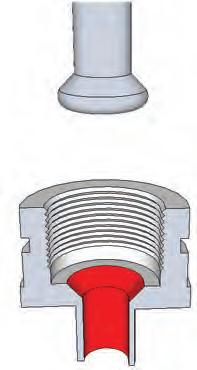

FEMALE - CONCAVE SEAT

Accepts 3/8” Bleed Nipple for remote bleeding of Clutch or Brake systems

FEMALE SWIVEL- INVERTED

is Black anodised Aluminium.

is Red & Black anodised Aluminium.

FEMALE NPT HOSE END Available in Steel or Black anodised Aluminium

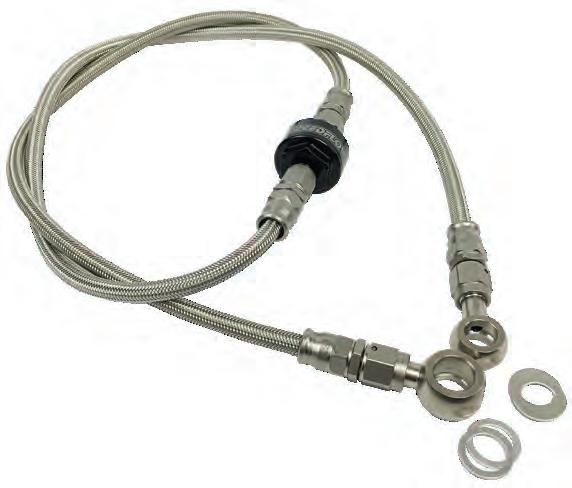

Hose Ends - Banjos

Hoses & Fittings

SUITS 200 SERIES HOSE

SERIES

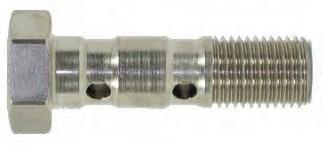

Banjo Bolts

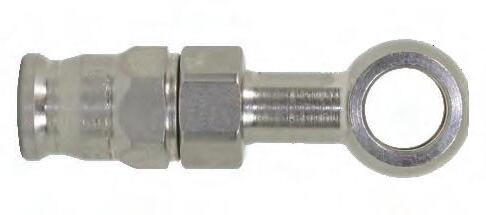

Banjo to Male Flare

Hoses & Fittings

These slide onto a -3 hose during assembly and suit a variety of standard OEM mounting options including bolt on styles and C-clip versions.

200 SERIES

To replace standard clip style fittings.

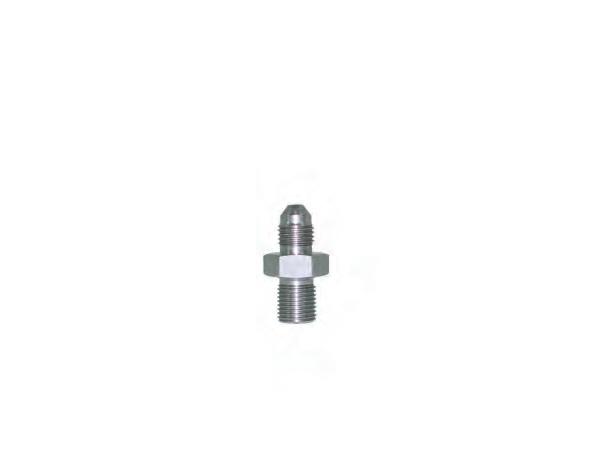

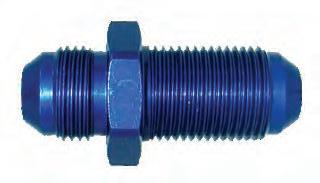

Male Flare Adapters

Ideal for adapting a gauge, a calliper, clutch or brake master cylinder or any -3 & 4 application.

RED

NOTE: Dual Seal Adapter, Washer Seal or Inverted Seat

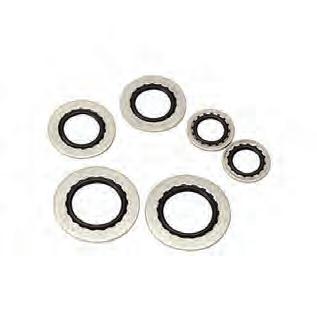

WASHER SEAL - IMPERIAL

MALE WASHER SEAL - ALLOY

Multi Seal Adapter, Washer Seal or Dual Seat. These are machined with a Convex and Inverted seat on the sealing surface.

Flow Flow

Hoses & Fittings

200 SERIES

Male Flare Adapters (continued)

If you need to adapt a gauge, a calliper, clutch or brake master cylinder or any -3 & 4 application - we have what you need!

Hoses & Fittings

Male Flare Adapters (continued)

Hoses & Fittings

400 SERIES

Pushlock Hose

Our 400 series hose is manufactured by Gates and designed specifically for 400 series pushlock style fittings. This hose has an elastomer tube with a smooth outer cover. This is not recommended for use with unleaded fuels or use in high pressure applications or suction systems. This hose suitable for use with synthetic lubricants, oils, air, coolant and methanol.

Temperature Range: -46°C (-50.8°F) to 100°C (212°F)

332 SERIES 598 SERIES

AEROQUIP AQP® Socketless Hose

We have added the popular AQP® Socketless™ hose to our range. This hose has an elastomer tube, textile braid reinforcement with a rough elastomer outer cover. We do not recommend this hose for use with unleaded fuels or use in high pressure applications or suction systems.

This hose suitable for use with synthetic lubricants, oils, air, coolant and methanol. 332 has a BLUE outer cover and the 598 is BLACK.

Temperature Range: -40°C (-40°F) to 100°C (212°F)

400 / 332 / 598 SERIES HOSE APPLICATION NOTE

Ideal for Fuel Lines (methanol only), Low Pressure/ Temperature Oil Systems & Coolant Systems.

COMPATIBILITY:

• Methanol, Water, Oil & Fuel

RESTRICTIONS:

• Not recommended for use with unleaded fuels & ethanol blends as it is known to allow the permeation of fuel smell through the layers as well as excessively reducing the life of the rubber compound.

• Not to be used with brake fluids.

• Not recommended for use around extreme heat sources such as turbochargers.

FUEL ADDITIVES & THEIR EFFECT

With the use of new blends of unleaded fuels and additives from fuel manufacturers in recent years it has become increasingly difficult to assure their compatibility with hose constructions. The best option is our 200 SERIES TEFLON® HOSE which can withstand all additives used in the manufacture of unleaded fuels and Ethanol blends. 200 Series -6, -8, -10 and -12 sizes are also manufactured with a carbon lining to prevent static build up and discharge from fast moving liquids.

See page 11 for details

and Socketless™ are registered trademarks of Eaton.

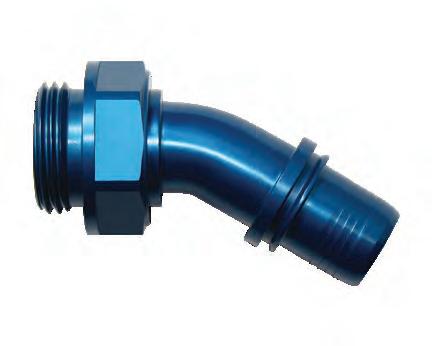

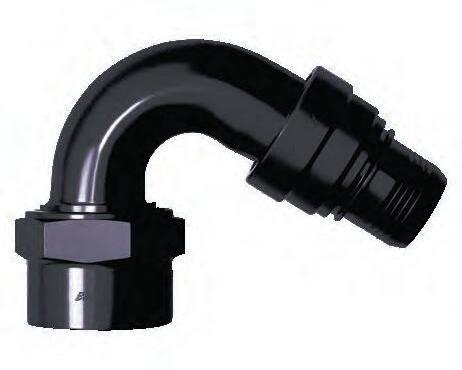

Hose Ends

Hoses & Fittings 400 SERIES

SUITS 400, 332 & 598 SERIES

Speedflow makes a complete range of 400 series hose ends to suit our 400, 332 & 598 Series hose. Made in Australia from 6061-T6 grade aluminium and utilising our unique full flow formed bend which is the strongest and most compact hose end bend in the industry! All our hose ends are beautifully finished in a hard coat anodise with a decorative colour, either in standard red and blue or black. We can custom anodise to your specification in a range of colours.

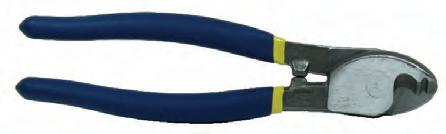

Pushlock Clamps & Pliers

Pushlock clamps are a self tensioning self retaining clamp specifically sized for our hose. A must for high heat and oil line applications to ensure a secure seal without damaging the construction or integrity of the hose. Installation is easy using these Pliers!

Barricade Premium Fuel Hose

Hoses & Fittings

MODERN FUELS REQUIRE MODERN FUEL HOSES

We now stock the Gates premium range of Barricade fuel injection hose. EFI fuel hose to meet the demands of modern fuel blends.

Installing Barricade protects the system against the aggressive fuel mixtures of today’s modern fuels, which can degrade basic rubber hose and result in leaks and failure. Plus with Barricade, you can be assured that you are complying with permeation laws, and providing you with the best hose - all while being environmentally-friendly.

• BEST-IN-CLASS working psi of 225 (for fuel injection)

• Lowest permeation rate on the market 1 gr/m2/day

• Multi-fuel compatible: Approved for use with leaded and unleaded Gasoline, Diesel, Biodiesel†, E-85, 100% Methanol, ETHANOL and gasohol fuels

• SAE R14 rating

Barricade Fuel Injection Hose

• Fuel injection engines, fuel lines, EEC/EGR, cars and light duty trucks

• Air pump, PCV valve compatible with Gas/ Diesel and Ethanol

• Pressure rating: 225 psi (best-in-class)

• Temperature: -40°F to 257°F (-40°C to 135°C) continuous, up to 302°F (150°C) intermittent

NOTE: DO NOT SUBMERSE IN FUEL

411 SERIES

New sizes available

Hose Ends

*Barricade Fuel Injection has a best-in-class working pressure of 225 psi † Biodiesel fuel must meet the ASTM D6751 specification for biodiesel fuel and be produced, marketed and distributed by BQ9000 accredited facilities.

SIZE PART NO. INSIDE DIAMETER OUTSIDE DIAMETER OPERATING PRESSURE BURST PRESSURE INCHMM MM PSI PSI -4 485-04 1/4”6.3 12.7 225 900 -5 485-05 5/16”8.0 14.3 225 900 -6 485-06 3/8”9.5 15.9 225 900 -8 485-08 1/2”12.719.8 225 900

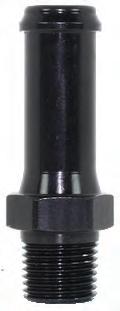

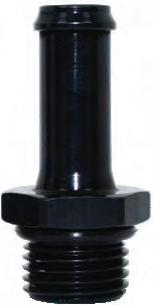

411 Series Hose Ends are a push on hose end for use with standard style hose and a hose clamp for securing. As an example, these are great for adapting aftermarket pumps and fuel rails to standard fuel hose.

412-06412-06-BLK -63/8”

412-08412-08-BLK -81/2”

100 & 400 Series Hose End Replacement Parts

100 SERIES REDBLACKSIZE C1000-04C1000-04-BLK -4 C1000-06C1000-06-BLK -6 C1000-08C1000-08-BLK -8 C1000-10C1000-10-BLK -10 HOSE SOCKETS REDBLACKSIZE C1000-12C1000-12-BLK -12 C1000-16C1000-16-BLK -16 C1000-20C1000-20-BLK -20 400 SERIES HOSE COLLARS RED BLACK SIZE C4000-04C4000-04-BLK -4 C4000-06C4000-06-BLK -6 C4000-08C4000-08-BLK -8 C4000-10C4000-10-BLK -10 C4000-12C4000-12-BLK -12

Hose Ends Tails Hoses & Fittings

411 SERIES

SUITS 485 & 444 SERIES HOSE

490 SERIES

Powersteer Hose

Designed for high pressure power steering applications using our 490 Series fittings. The hose is constructed from a synthetic rubber tube with a textile inner braid, a single wire braid reinforcement and a rubber impregnated textile braid cover that is black in colour.

Temperature Range: -40°C (-40°F) to 121°C (250°F)

490 SERIES

Hose Ends

SUITS 490 SERIES HOSE

Made from 6061 grade aluminium and hard anodised black for a tough finish as required with power steering applications. A non swivel tapered design hose end specially designed to suit our hose and tested to bursting pressures ideal for power steering applications.

SF-LITE HOSE SYSTEM - 550 SERIES

SF-Lite is the newest addition to the Speedflow range & is the most technologically advanced hose system available! The hose has a carbon impregnated anti-static PTFE inner tube that is manufactured with a smooth-bore and convolutions on the outside which allows for improved flexibility. Being a smooth-bore hose, there are no voids that can create turbulence or trap debris as commonly found with a fully convoluted hose.

SF-Lite is available in six sizes from -4 to -16, all with a large bore size allowing greater volume to be carried at higher flow rates.

It comes in a choice of two braid options, Aramid Fibre or Stainless Steel braid.

Aramid fibre braid is a strong, flexible and lightweight cover that has well-known characteristics of durability and extraordinary tensile strength along with a high temperature rating.

550 SERIES

Hoses & Fittings

Stainless Steel braid is made from 304 stainless steel and offers a much tighter bend radius along with full vacuum rating below 130°C and protects the PTFE liner against internal pressure and mechanical abuse.

SF-Lite has an even higher resistance to permeation than a standard smooth-bore PTFE hose thanks to the unique manufacturing process which highly compresses the PTFE matrix ensuring a nonporous structure. This makes SF-Lite compatible with all automotive fluids including fuels such as E85 along with refrigeration gases making it perfect for AC lines.

SF-Lite utilises Speedflows new crimp system, and lightweight hose end series. The majority of the angled hose ends are made from our unique one piece formed bends that offer the most compact hose ends on the market with exceptional strength and allow us to achieve very light weight systems.

Teflon® Aramid Braided Hose

Speedflow’s light weight system starts with a black antistatic smooth bore PTFE (Teflon®) liner tube manufactured with convolutions on the outside which makes for high flow with the flexibility of a tighter bend radius than our standard 200 Series hose. We offer our light weight hose with an Aramid Fibre Braid which is light weight, abrasion and heat resistant. The working pressure rating will reduce by 1% per 1°C at temps above 130°C up to a maximum of 180°. The manufacturer does not specify this as a Vacuum rated hose. For vacuum applications use the below Stainless Steel Braided version.

• Temperature Range: -70°C (-94°F) to 180°C (356°F).

550 SERIES

Teflon® Stainless Steel Braided Hose

• Temperature Range: -70°C (-94°F) to 180°C (356°F).

The Stainless Steel braided version is made from the same liner as above, utilising a 304 Stainless Steel braid which provides more rigidity and flexibility, which is important when working in tight situations. The working pressure rating will reduce by 1% per 1°C at temps above 160°C up to a maximum of 260°. This hose is vacuum resistant up to 130° (266°F).

Teflon® is a registered trademark of DuPont.

Hoses & Fittings

550 SERIES

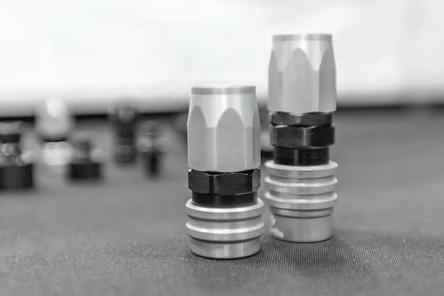

Hose Ends

SUITS 550 SERIES HOSE

Our 550 Series hose ends are now available in a double swivel option for a full 360° adjustment. This allows the hose to be rotated after crimping making alignment for installation a breeze. Made from 6061-T6 grade aluminium utilising our unique full flow formed bend* which is the strongest and most compact hose end bend in the industry! All hose ends come complete with a Natural crimp collar and are hard coat anodised in Black. Black crimp collars are sold separately.

550 SERIES

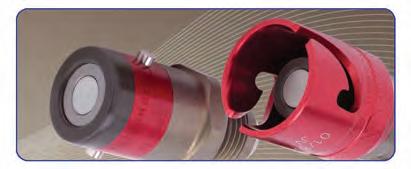

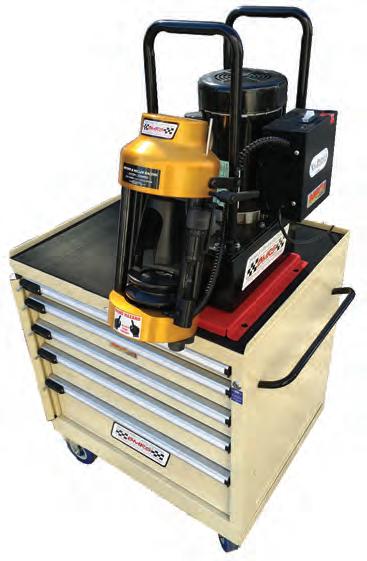

Crimping Machine

To assemble our 550 Series hose ends, the assembly needs to be crimped to our sized specification. We offer an in house crimping service via our distributor network or you can purchase a crimping machine and corresponding dies to suit each size.

This “go anywhere” crimping machine has the power and portability to quickly crimp our Speedflow 550 Series assemblies.

The micrometer style adjustment allows the hose and fitting combinations to be crimped to exact specifications without the need for special shims or spacers. The Stand Alone Hose Crimper utilises a separate pneumatic pump which requires a constant supply of 80psi.

• Dies to suit hose sizes are sold separately so that you can purchase the ones you require.

Hoses & Fittings

550 SERIES

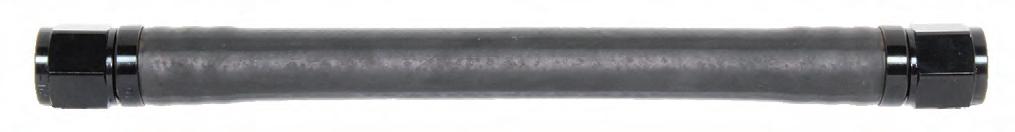

Mechanical Fuel Injection Hose

Meets SAE 30R3 specification. This hose has a smooth outer cover with a fabric braided inner for strength and flexibility and a inner tube designed to withstand fuels. This hose suitable for use with synthetic lubricants, oils, air and methanol. • Temp Range: -40°C to 93°C.

550 SERIES

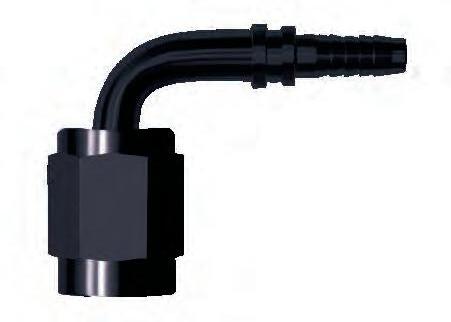

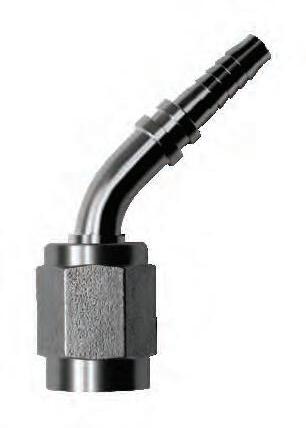

Hose Ends

SUITS 550

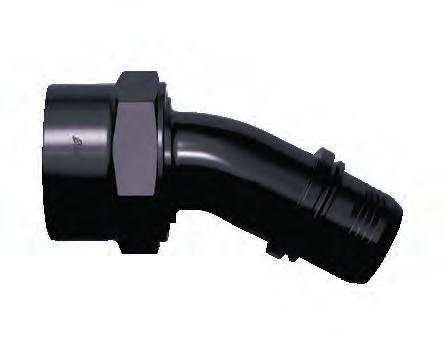

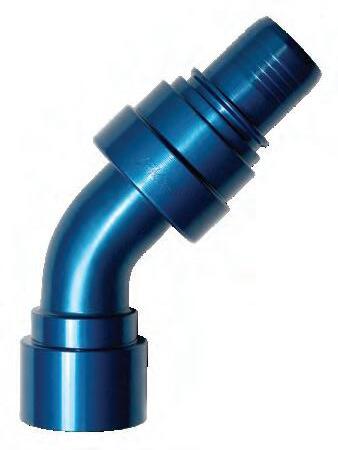

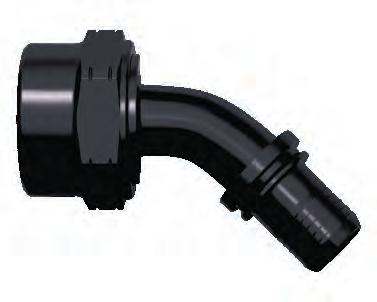

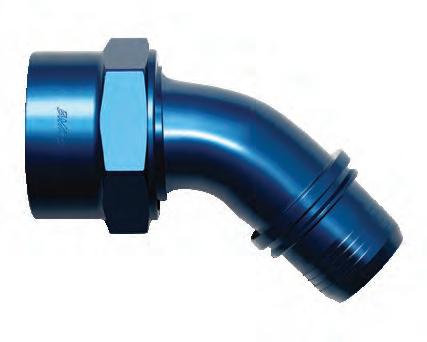

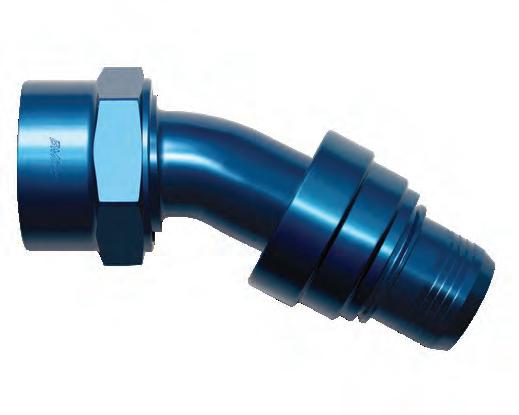

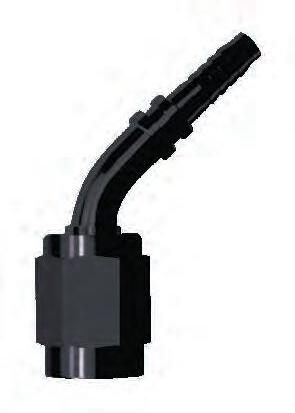

Lightweight, strong and high flowing! The 45° & 90° hose ends are a true flowed one piece formed bend. We have male threaded hose ends also available in 3/8” -24 O-ring Port and NPT to give the option of screwing directly into the distribution blocks. The crimp collars are made from 6061-T6 aluminium and require a crimp machine to crimp.

PL SERIES Clear Reinforced Hose

Transparent, plasticised PVC hose that is reinforced by a steel spiral helix which prevents the hose from collapsing. Great for overflow and breather lines. Not for use with Gasoline!

• Temperature:-10ºC to +60ºC.

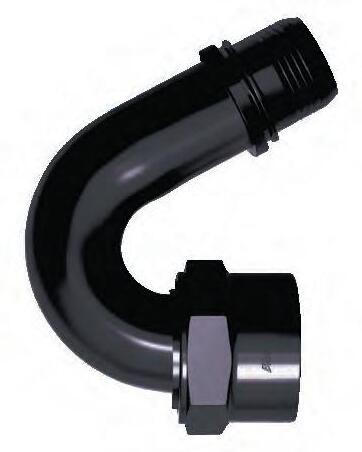

Large Push on Hose Ends

Ideal for larger hoses for use with breather lines and intercooler hoses. Use with standard style hose and a hose clamp for securing.

SERIES HOSE RED

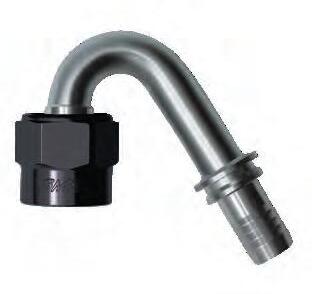

Air Conditioning Hose & Fittings

480 SERIES

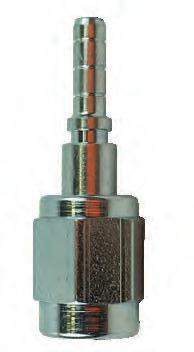

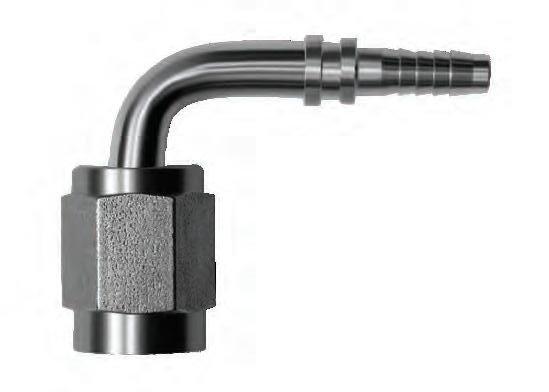

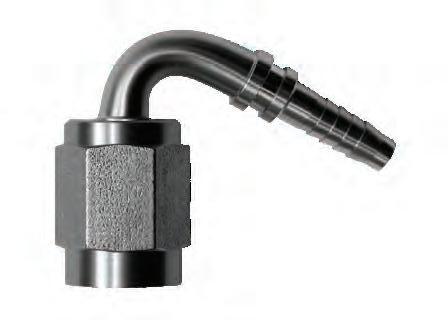

Nylon AC Braided Air Conditioning Hose

Speedflow now have Air Conditioning hose and fittings available to match our series of hose ends allowing you to have

Speedflow now offer this dedicated Air Conditioning hose that reflects the style of our range of braided stainless hoses so that you can keep the same look in your engine bay. This is made with a Nylon inner tube and stainless steel outer braid in either standard Stainless or Blackened lengths for superior refrigerant performance in keeping you cool! We have two braid options, Stainless Steel which is sold per metre or our Blackened version which is sold in 5m lengths. 5m is the longest length we can process to a blackened finish. This hose suits our range of 480 Series aluminium hose ends below which are designed specifically for this hose and include charge port adapters.

Stainless Steel Braided Cover

This is the best quality Stainless Steel Braided Cover available on the market! It is strong, hard wearing and the close weave will not allow the hose to show through the braid unlike cheap covers. If you are after show quality looks for your Hot Rod, Street Machine, Custom Bike or for your daily drive, this is an economical and versatile option for fuel lines, radiator and heater hoses, power steering and AC lines. Available in several different sizes!

Hose Cover Clamps

The perfect way to finish off the end of a hose to give it the look and feel of a competition hose! Manufactured from quality aluminium and beautifully anodised! Smaller sizes are machined from hex bar, with larger sizes from -16 and up machined round. Each fitting includes a stainless steel worm drive clamp to give a maximum working pressure of 50 psi.

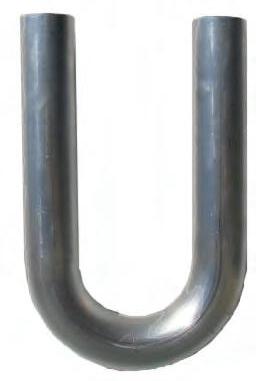

Aluminium Tubing

Aluminium Tube

This tube is available in four sizes in three different lengths, it is easy to bend and flare and when used in conjunction with 818 & 819 tube nuts and sleeves, a totally leak free seal is achieved! Supplied coiled it can be straightened and routed with ease. Commonly used for fuel, and on board fire extinguisher lines.

Stainless Steel Hardline

We have sourced this annealed seamless stainless steel tubing for almost any use. It has a thin wall to make bending and flaring easier and it can be polished to a high lustre show car shine if desired. It is supplied in straight lengths in the dimensions shown below. For shipping a maximum length will be enforced, so we can either cut or coil to suit your order. All stainless hardline is sold by the metre.

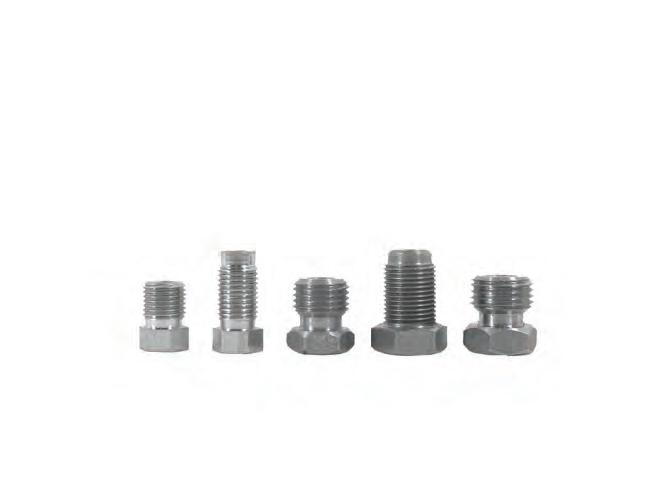

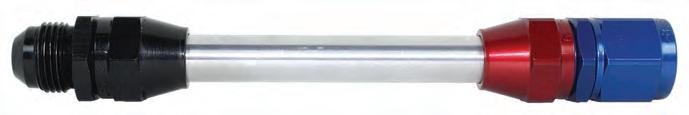

Tube Adapters, Nuts & Sleeves

Compression style tube adapters along with tube nuts & sleeves to convert standard steel or aluminium tube to AN fittings. The tube adapters use a compression olive to seal, whereas the tube nut & sleeve requires the tube to be flared using a 37° flaring tool.

618-06-05618-06-05-BLK

618-06-06618-06-06-BLK -63/8”

618-08-08618-08-08-BLK -81/2”

618-10-10618-10-10-BLK -105/8”

618-10-12618-10-12-BLK -103/4”

618-12-12618-12-12-BLK -123/4”

Tube Nuts, Adapters & Sleeves (continued)

Use with a 37° (Single) Flare on Steel, Alloy or Stainless Tube. These can also be purchased in Alloy. We recommend the use of steel nuts and sleeves with brake line applications.

STEEL TUBE SLEEVES PART NO. SIZE

819-03-STEEL -3 Sleeve

819-04-STEEL -4 Sleeve

Use with a 37° (Single) Flare on Steel, Alloy or Stainless Tube. These can also be purchased in Alloy. We recommend the use of steel nuts and sleeves with brake line applications.

RED PART NUMBERS

Denote they are not Speedflow products but are compatible with or compliment the range.

Pill Holder

RED PART NUMBERS

Denote they are not Speedflow products but are compatible with or compliment the range.

DESCRIPTION

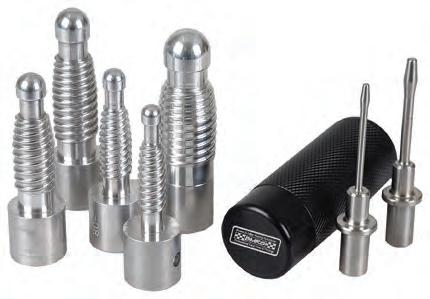

Hand Held Tube Bender 1/8” to 3/16”

This tube bending tool is designed for tight radius bends and will simplify tube bending with very professional results. Excellent for use on brake lines, nitrous & fuel lines with 1/8’’ or 3/16’’ tubing.

Swivel Adapters

Common uses for these are joining fuel pumps to tanks or filters, scavenge filters to sumps.

Swivel Adapters, Y Blocks & Tees

Still one of the most popular billet fittings in our range! These handy Y blocks and tees are great for many fuel system applications.

Adapters

Fuel Pump, Power Steer & Oil Flare Adapters

FUEL LINES BLUEBLACKSIZETHREAD 702-06702-06-BLK -67/16” -24 Inverted

POWER STEER LINES

BLUEBLACKSIZETHREAD 705-06705-06-BLK

BLUE

-61/4” NPS

TRANSMISSION

POWER STEER, FUEL & OIL LINES

BLUEBLACKSIZETHREAD

-61/2” -20 Inverted

-81/2” -20 Inverted

CARBURETTOR

90° TRANSMISSION ADAPTER

BLACKSIZESUIT

922-6R-08-BLK -86R Transmission

922-ZF-08-BLK -8ZF Transmission

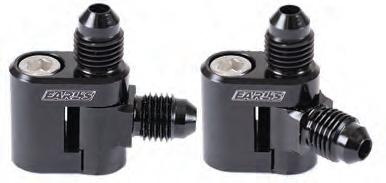

CHRYSLER OIL ADAPTER

-18 Inv

For use of the standard sender and aftermarket gauges. Three outlets with two plugs supplied. M12, M14 & M16!

BLACKPORTTHREAD 810-M12-02-BLK 1/8” NPTM12 x 1.5

810-M14-02-BLK

1/8” NPTM14 x 1.5

1/8” NPTM16 x 1.5

VALVE COVER ADAPTER - SUIT NISSAN Screw in adapter to suit Nissan valve covers with a threaded hole. Will also fit some SR20.

-10RB30 Screw In

BLACKSIZESTYLE

708-10-01-BLK -10RB20/25 Press Fit

-103/4” -18 Inverted

New sizes available New size available

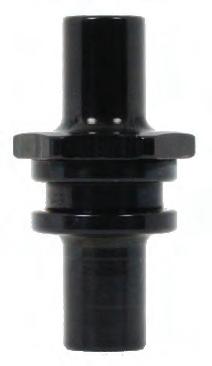

Press fit adapter for valve covers with 1” (25.4mm) ID rubber grommets. BLACKSIZESTYLE

708-10-50-BLK

708-12-50-BLK -121” Press Fit

TRANSMISSIONTHREAD PART NO (Add BLK to denote black)

JATCO 3 SpeedM12 x 1.5731-06

JATCO 4 SpeedM14 x 1.5732-06

POWERGLIDE – REID1/4” NPT816-06

POWERGLIDE – OEM1/8” NPT816-06-02

TH250, TH350, TH4001/4” NPS816-06-NPS

TORQUEFLITE – ALL1/8” NPT816-06-02

708-10-02-BLK

-10SR20 Press Fit 708-10-03-BLK -10RB26 Press Fit 708-12-03-BLK -12RB26 Press Fit

TRIMATIC1/8” NPT816-06-02

C4** 1/8” NPS816-06-02-NPS

FORD ZFO-Ring922-ZF-08-BLK

**C4 some cases manufactured with 1/4” NPT please check your case to identify.

708-08-01-BLK -8RB20/25 Press Fit

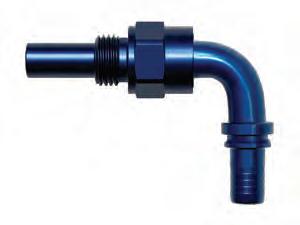

EFI Adapters

A full range of EFI fittings to convert standard OEM fuel rails, tanks or fuel lines to a AN/JIC adapter.

Banjo’s & Bolts

-4 REGULATOR ADAPTERS

816-04-01816-04-01-BLK -41/16” NPT

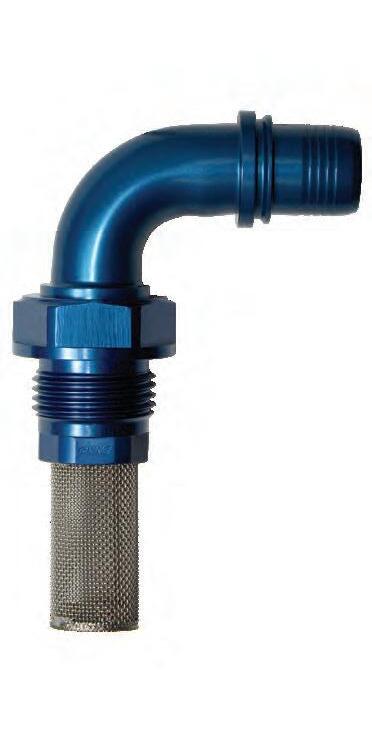

FUEL PUMP BARB ADAPTERS BLACK SIZEBARB

618-T05-06-BLK -65/16” 618-T06-06-BLK -63/8”

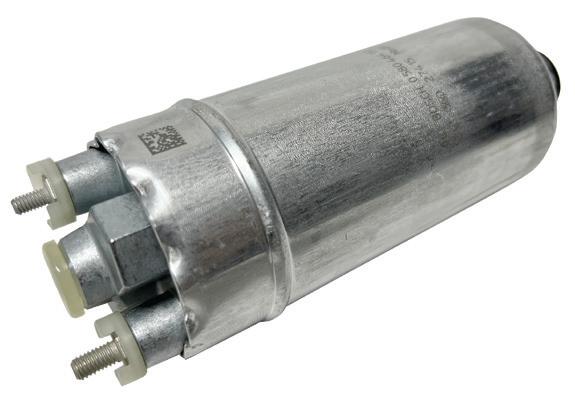

-6 male adaptor for in-tank fuel pumps with a hose tail. Compresses a Viton O-ring to the hose tail creating a strong leak free seal.

Suit our 14.5mm eye and new 16 & 18mm Banjo’s. Common uses include oil lines, fuel pumps, filters and carburettors, EFI & power steering.

METRIC BOLTS BLACKTHREADSUITS

723-06-BLK M12 x 1.25Dellorto

724-06-BLK M12 x 1.5Weber, Bosch

725-05-BLK M14 x 1.25Pumps, Filters

725-06-BLK M14 x 1.5Bosch, Turbo

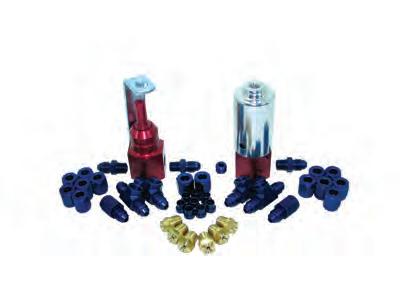

Line Kits

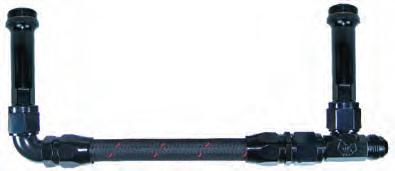

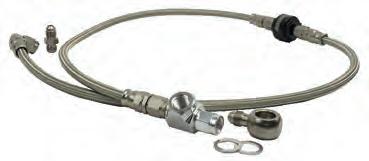

Carburettor Fuel Line Kits

We can make a fuel line kit to suit any fuel system, and carry on the shelf kits for the popular Holley & Demon carburettors. We have several combinations depending on your application or call us if you require a custom made kit, or custom colour anodising!

New size available New size available

RED PART NUMBERS

Denote they are not Speedflow products but are compatible with or compliment the range.

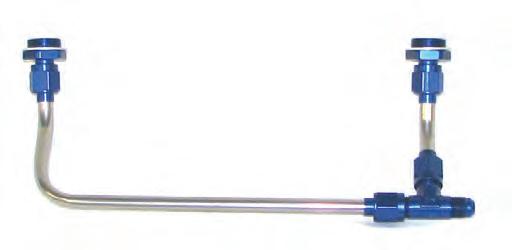

STAINLESS TUBE DUAL FEED KITS

SIZE

Holley-6 w/Gauge Port3/8” S/S Tube

Demon-63/8” S/S Tube

160-06-A160-06-A-BLK

160-06-T160-06-T-BLK

RED PART NUMBERS

Denote they are not Speedflow products but are compatible with or compliment the range.

INLET

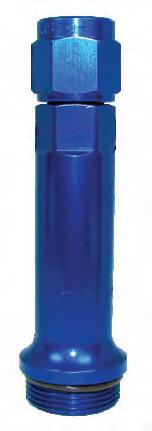

160-06-EXT

160-08160-08-BLK

160-08-A160-08-A-BLK Holley-8120 Series - Rubber

160-08-T160-08-T-BLK Holley-8 200 Series - Teflon®

160-HP-06160-HP-06-BLK HP & QFT-6100 Series - Rubber

160-HP-06-A160-HP-06-A-BLK HP & QFT-6120 Series - Rubber

160-HP-06-T160-HP-06-T-BLK HP & QFT-6 200 Series - Teflon®

160-HP-08160-HP-08-BLK HP & QFT-8100 Series - Rubber

160-HP-08-A160-HP-08-A-BLK HP & QFT-8120 Series - Rubber

160-HP-08-T160-HP-08-T-BLK HP & QFT-8 200 Series - Teflon®

161-06161-06-BLK

161-06-A161-06-A-BLK

161-06-T161-06-T-BLK

161-08161-08-BLK

161-08-A161-08-A-BLK

161-08-T161-08-T-BLK

162-06162-06-BLK

162-08162-08-BLK

162-08-A162-08-A-BLK

Demon-6100 Series - Rubber

Demon-6100 Series - Rubber

Demon-6 200 Series - Teflon®

Demon-8100 Series - Rubber

Demon-8120 Series - Rubber

Demon-8 200 Series - Teflon®

Series - Rubber

Series - Rubber

Series - Rubber

200 Series - Teflon®

Adapters

Carburettor Adapters

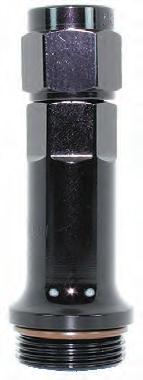

We have redesigned these adapters to suit a wider variety of carburettors including Holley, Demon, Quick Fuel Technology plus others. The new Speedflow design will eliminate clearance issues that some carburettors encounter with certain styles of adapters!

BSPP Adapters

New sizes available

British Standard Pipe Parallel (BSPP) is commonly found in older English vehicles in Engine Blocks, Oil Pumps, Fuel and Oil Filters.

New sizes available

MALE BSPP ADAPTER REDBLACKSIZEBSPP

750-06750-06-BLK -61/4”BSPP

750-08750-08-BLK -81/4”BSPP

751-06751-06-BLK -63/8”BSPP

751-08751-08-BLK -83/8”BSPP

751-10751-10-BLK -103/8”BSPP

752-06752-06-BLK -61/2”BSPP

752-08752-08-BLK -81/2”BSPP

752-10752-10-BLK -101/2”BSPP

752-12752-12-BLK -121/2”BSPP

753-10753-10-BLK -105/8”BSPP

753-12753-12-BLK -125/8”BSPP

754-10754-10-BLK -103/4”BSPP

754-12754-12-BLK -123/4”BSPP

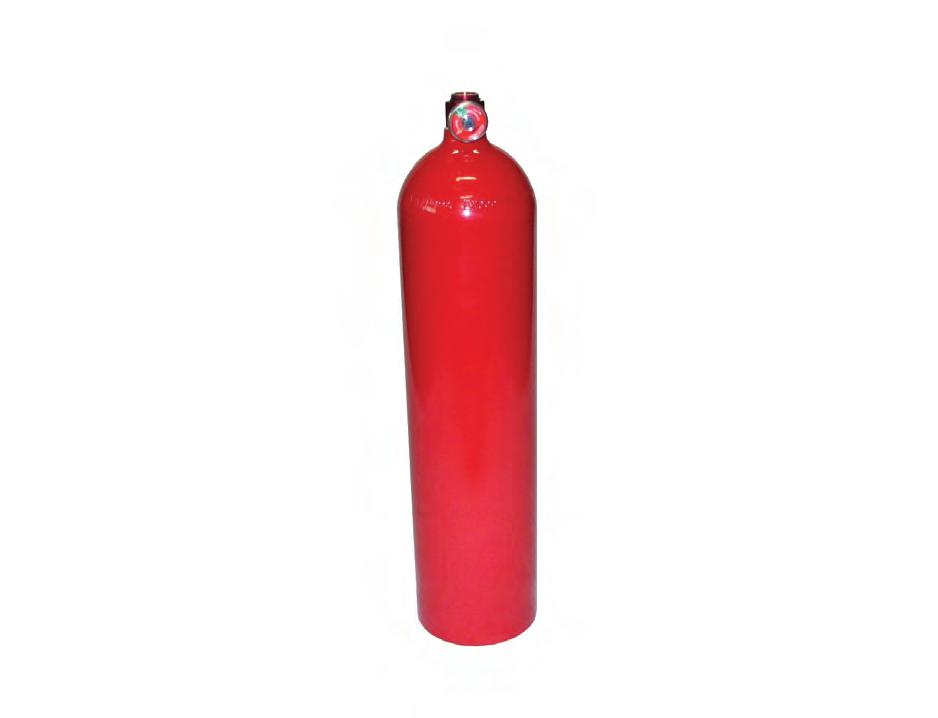

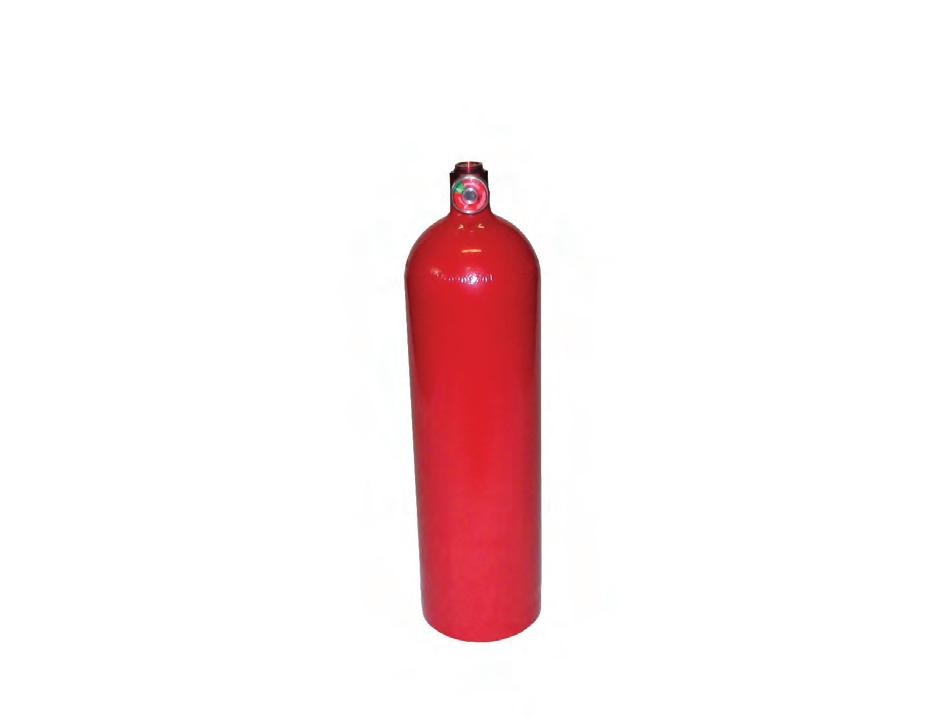

NITROUS BOTTLE ADAPTER PART NO. SIZE

NOS16220 -4

Converts bottle to a -4 hose as commonly used in Nitrous systems.

BSP TAPERED ADAPTERS

Al range of BSP Tapered adapters to suit the increasing variety of parts that are supplied with this thread form. Our BSPT adapters are machined with a notch in the hex to make it easier to identify between NPT & BSPT.

BLUEBLACKSIZEBSPT

817-06-02817-06-02-BLK -61/8”

817-06-04817-06-04-BLK -61/4”

817-06-06817-06-06-BLK -63/8”

817-08-06817-08-06-BLK -83/8”

817-08-08817-08-08-BLK -81/2”

817-10-06817-10-06-BLK -103/8”

817-10-08817-10-08-BLK -101/2”

817-10-12817-10-12-BLK -103/4”

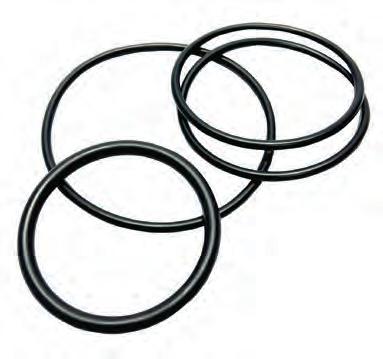

NITROUS BOTTLE O-RING PART NO. SIZE

NOS16200 20mm OD11.2mm ID

Nitrous bottle O-Ring to suit 5lb & larger bottle.

Shown with 759-08-02-BLK

Adapters

Metric adapters are some of the most common in todays modern performance hose & fitting industry. We have the largest range and are always expanding to incorporate new fittings for new technology.

MALE

VALVE COVER ADAPTER

Suits Nissan valve covers with a threaded hole. BLACKSIZESTYLE

-10

tee with an M10 x 1.0 thread and concave seat to accept Bosch senders or other M10 fittings. Sender not included. BLACKSIZESTYLE 140-03-M10-S -3Steel 140-06-M10-BLK -6Aluminium

Check out our range of aluminium crush washers on page 48

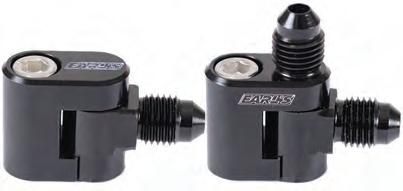

METRIC OIL SENDER ADAPTER

For use of the standard sender and aftermarket gauges. Three outlets with two plugs supplied.

M14 & M16!

Male AN/JIC Adapters & Bulkhead Fittings

MALE FLARE REDUCERS

YES, OUR ENTIRE RANGE IS AVAILABLE IN BLACK. TO ORDER ADD -BLK TO PART NO.

to the end of the flare

Adapters

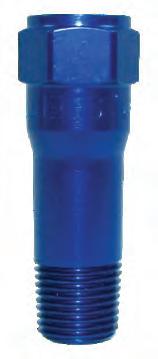

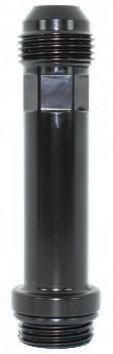

Reducers, Expanders, Extensions, Plugs & Caps

A comprehensive range of flare reducers, expanders and extensions. We are also extending our range of plugs and caps to include metric to complement our popular imperial sizes.

950-08-04950-08-04-BLK -8-4

950-08-06950-08-06-BLK -8-6

950-10-06950-10-06-BLK -10-6

950-10-08950-10-08-BLK -10-8

950-12-08950-12-08-BLK -12-8

950-12-10950-12-10-BLK -12-10

950-16-10 - -16-10

950-16-12950-16-12-BLK

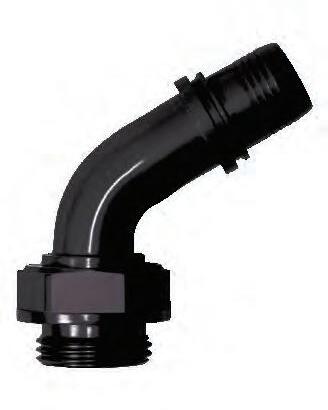

O-Ring Port Adapters

Adapters

NPT Adapters

We have a large selection of NPT to male flare adapters in Straight, 45° and 90°. Speedflow fittings are beautifully made in a high flow billet one piece design.

-31/4”

-41/8”

-61/8”

-61/4” 823-06-06823-06-06-BLK -63/8” 823-06-08823-06-08-BLK

816-10-06816-10-06-BLK816-10-06-SS

816-10816-10-BLK816-10-SS

816-10-12816-10-12-BLK-

816-12-08816-12-08-BLK-

816-12816-12-BLK816-12-SS

816-12-16816-12-16-BLK-

816-16-12816-16-12-BLK-

816-16816-16-BLK-

816-20816-20-BLK-

816-20-16816-20-16-BLK-

90° NPT - FLARE SWIVEL PART NO. SIZENPT XR900810 -10 1/2”

Some sizes in Stainless Steel

RED PART NUMBERS Denote they are not Speedflow products but are compatible with or compliment the range.

NPT Adapters (continued)

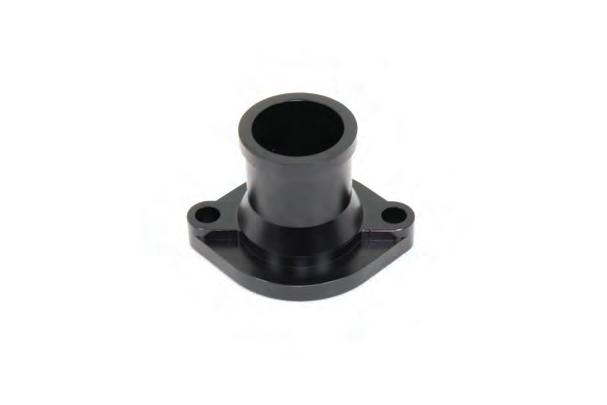

Weld-Ons

Weld-On Fittings, Male, Female & Special Purpose

We have assembled a huge range of weld on fittings to make the job of fabricating a tank, radiator or your speciality job a breeze. When you are fabricating you don’t have the time to search for the right part, that is why we have this complete range available right off the shelf!

These are machined with a profiled radius on the inside to increase flow. Standard weld on’s are drilled straight through and parted off.

These are manufactured with a hex and an internal boss to accept the approriate sized tube.

Weld on Necks & Caps

We have manufactured more weld necks in steel and stainless to suit our aluminium caps. If you are fabricating a tank, we have a cap to suit! Caps are supplied as Raw, add colour behind part number if you require an anodised version.

Filler Caps - AN Thread

Speedflow now manufacture these male threaded filler caps, featuring male AN threads in either -12, -16 or -20. They have finger grips for easy turn operation and a O-ring for a positive seal. They can be used in any AN Port threaded hole, or used our 990 series weld bungs to fabricate tanks, valve covers and other accessories.

WELD ON NECKS WITH ALUMINIUM CAPS

WELD NECKRAW CAPBLUE CAPBLACK CAPRED CAP

Aluminium

Aluminium

Aluminium

460-16460-16-BLUE460-16-BLACK460-16-RED

460-24460-24-BLUE460-24-BLACK460-24-RED

460-32460-32-BLUE460-32-BLACK460-32-RED

Steel 460-16-S460-16-S-BLUE460-16-S-BLACK460-16-S-RED

Steel 460-24-S460-24-S-BLUE460-24-S-BLACK460-24-S-RED

Steel -460-32-S-BLUE460-32-S-BLACK460-32-S-RED

Stainless Steel

Stainless Steel

Stainless Steel

460-16-SS460-16-SS-BLUE460-16-SS-BLACK460-16-SS-RED

460-24-SS460-24-SS-BLUE460-24-SS-BLACK460-24-SS-RED

460-32-SS460-32-SS-BLUE460-32-SS-BLACK460-32-SS-RED

SPECIFICATIONS

NECK & CAP WITH ROLL OVER VALVE

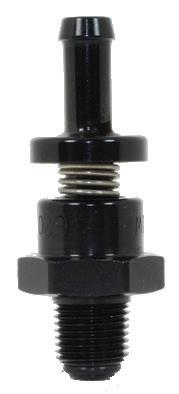

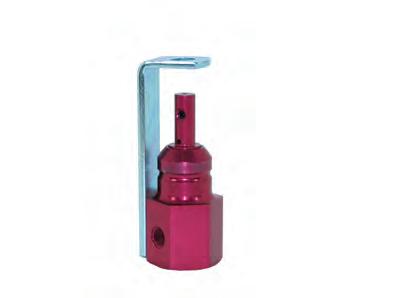

460 Series cap with 613-06 vent valve / roll over valve installed.

PART NO. WELD NECK / COLOR

460-32-RV Aluminium/Raw

460-32-RV-BLK Aluminium/Black

REPLACEMENT WELD NECKS

ALUMINIUMSTEELSTAINLESS STEEL

C460-16-DC460-16-SC460-16-SS

C460-24-DC460-24-SC460-24-SS

C460-32-DC460-32-SC460-32-SS

Note; 990 Weld Bung sold separately

Filters

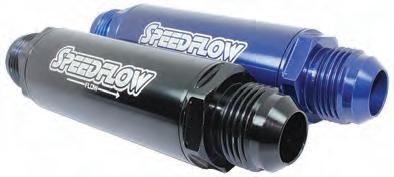

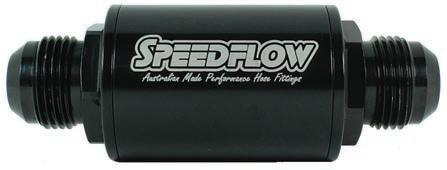

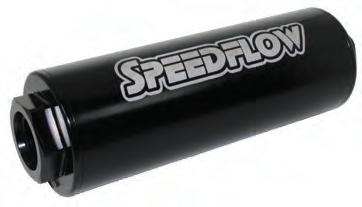

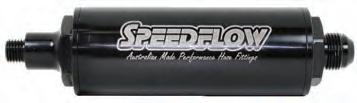

INLINE FILTERS

Speedflow are proud to introduce their latest range of performance inline filters. They have invested countless hours in designing, machining and testing to ensure the best filtration available for the performance market. Results from flow and pressure testing on our 601 & 602 series filters surpassed our expectations, flowing well in excess of 15gpm (53lpm) with minimal pressure loss using a -10 unit! these units are usable for applications over 3000hp!

600 Micro Series

These are the smallest filter in our range, the body length measures 28mm (1.10”) making this perfect to place inline where space is limited or only a small filter is required. The body is machined from 6061-T6 aluminium with a hard anodised finish and fitted with a 44 or 74 micron pleated disc screen.

MICRO SERIES BLACK SIZE

600-03-BLK -3 Male

600-04-BLK -4 Male

600-06-BLK -6 Male

600-08-BLK -8 Male

601 Short Series

MICRO SERIES - HOSE TAIL BLACK SIZE

600-505-BLK 5/16” Tail

600-506-BLK 5/16” Tail - 40 Micron

The 601 Short Series is a solution for applications that are tight on space, but still requiring high flow with a serviceable stainless element. This compact size measures 1.75” OD (45mm) with a body length of 3.825” (97mm) plus the fitting length. Machined from quality 6061-T6 aluminium and hard anodised for maximum protection and laser engraved with the Speedflow logo! The element has a 21.31 sq inch area available in 6 micron sizes.

All mesh elements are stainless steel except the 12 micron versions which are microglass...

601 Metric & Check Valve Series

The 601 Short Series are also available with M12 inlet or M18 outlet ends making it suitable for applications such as aftermarket fuel pumps. We have also integrated our check valves into the inlet side of our filter range to make this a multi purpose unit to save space and fittings. Available in -6, -8 and M12 x 1.5 metric to suit aftermarket fuel pumps. Add your required micron size to the part number, filters come complete ready to run!

602 Long Series

Measures 1.75” OD (45mm) with a body length of 5.725” (145mm) plus the fitting length. These have an element area of 44.7 square inches (288.4cm²) with a choice of 6 micron sizes.

602 Metric Series

Micron

602-040-10-BLK -10 / 40 Micron

602-065-10-BLK -10 / 65 Micron

602-100-10-BLK -10 / 100 Micron

-10 / 150 Micron

The 602 Long Series are also available with M12 inlet or M18 outlet ends along with our check valve series making it suitable for applications such as aftermarket fuel pumps. A great space saver for those tight situations. Add your required micron size to the part number, filters come complete ready to run!

603 Mega Series

Measures 2.48” OD (63mm) with a body length of 6.95” (177mm) plus the fitting length. These have an element area of 100.6 square inches (649cm²) with a choice of 3 micron sizes. Our unique end cap design locates the filter element without the need for a spring to hold it in place. Machined from 6061-T6 aluminium and hard anodised. Designed to be used for inline Fuel and Oil applications.

This filter has -12 female O-Ring ports which allows our 920 Series adapters to be used to adapt to -6, -8, -10, -12 or -16.

-12

MEGA SERIES -12 FEMALE PORT

MEGA SERIES - MALE BLACK SIZEMICRONELEMENT

603 MEGA SERIES - M12 SENSOR PORT M12 sensor port is located on the inlet end cap of the filter. Can be plugged off using 814-M12 or adapted to 1/8” NPT with 912-M12-02.

Filters

Individual Filter Components

We now offer all of our filter components as separate part numbers. This is perfect for resellers as you do not have to carry all the part numbers of filters, so you can reduce your stock holdings and build filters as you require them, so you never miss out on that sale.

Inline Filters - Scavenge Filters

Designed to be placed on scavenge lines to protect the dry sump pump from debris.

OTHER OPTIONS...

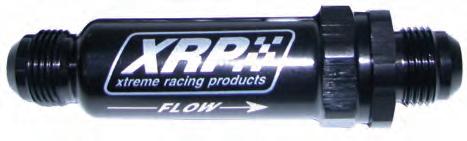

We also do an XRP Scavenge Filter that you should check out. It’s in our Oil Systems section on page 159

90° SCAVENGE FILTER BLUE BLACKSIZE 609-90-12609-90-12-BLK -12

-16

FILTERED SUMP ADAPTERS BLUE BLACKSIZEPORT

920-10-12-FS920-10-12-FS-BLK -10-12 920-12-FS920-12-FS-BLK -12-12 920-16-12-FS920-16-12-FS-BLK -16-12

Valves

Check Valves & Blower Relief

Speedflow has been manufacturing quality valves for over 25 years which have evolved into the quality parts we now have available. Our redesigned one way poppet valves have been proven to be very popular in every aspect of the performance industry!

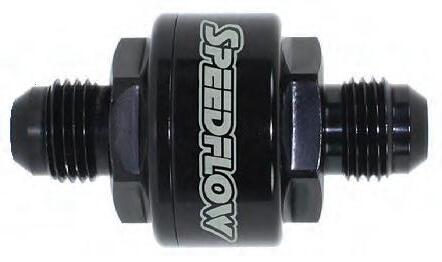

NON-RETURN VALVE - INLINE

Unique one-way valves were designed with high performance vehicles in mind. They have a spring loaded high flow poppet valve that seals securely to positively stop fluid from returning!

BLUE BLACKSIZE

610-03610-03-BLK -3

610-04610-04-BLK -4

610-06610-06-BLK -6

610-08610-08-BLK -8

610-10610-10-BLK -10

610-12610-12-BLK -12

New

available

ROLL OVER VALVE

Universal roll over valve that utilises a -12

Male thread with a -8 female thread and a stainless steel ball. Can be used with our 99012 weld on or a 924-12 bulkhead nut with a choice of outlet from our 920 series adapters.

BLUE BLACKSIZE

613-12613-12-BLK -12

FUEL PUMP NON-RETURN VALVE

BLUE/BLACKBLACKINLETOUTLET

612-06612-06-BLK M12 x 1.5-6

612-08612-08-BLK M12 x 1.5-8

-C6000-08-BLK End Cap

M12 PUMP ADAPTER

BLOWER RELIEF VALVES

These can be screwed into a Supercharger gear case or other applications that require pressure to be released.

We also off the 620-504 with a 1/4” tail that is perfect for Fuel Sampling.

RED/BLUEBLACKTHREAD

620-02620-02-BLK 1/8” NPT

620-04620-04-BLK 7/16” -20

620-504620-504-BLK 1/8” NPT

TANK VENT / ROLL OVER VALVE

3/8” In-tank vent / roll over vlave has a spring-

BRAKE BOOSTER VALVE

These Billet Brake Booster Valves are machined from billet aluminium, and feature a -6 male adapter. They are supplied with a rubber grommet to fit most factory and aftermarket boosters. They have a polished aluminium finish.

TEMPERATURE PROBE ADAPTERS

Range of adapters to suit a variety of threads to adapt mechanical temperature probes to your application.

Screw directly into Fuel Pumps with a M12 x 1.5 thread to hold line pressure and make starting easier!

Valves

Aluminium Ball Valves

These are lightweight, beautifully machined and anodised. Available in 3 body sizes to suit fuel, oil water and air applications.

Quality 6061-T6 aluminium & hard anodised in black, with the spool and hardware all made from stainless steel. A 12 point locating drive for multiple handle orientation designed to eliminate movement under vibration and tyre shake. Encapsulated o-rings greatly reduce the possibilities of leaks common with other three way valves.

Turbo Block Adapters, Flanges, Shims & Gaskets

Washers, O’Rings & Clamps

Washers, O-Rings, Clamps & Seals

Ideal for use with adapters, always replace sealing washers when servicing fittings. We have replacement Nitrile (NBR) O-Rings to suit our O-Ring Port Adapters, Plugs and other AN sized fittings.

Teflon® is a registered trademark of DuPont.

• Nitrile - Use for Methanol

• Viton - Unleaded Fuels &

Permanent repair for a damaged flare of a hose end or adapter nipple. A must to have track side in your tool box. Simply insert over the flare of the adapter and refit the hose end to repair the damaged seat.

MSCN is proud to be the Australian distributor for Brown & Miller Racing Solutions (BMRS) products. BMRS have over 40 years experience in the aerospace and motorsport industries. Their light-weight range of hose satisfies virtually every racing application and their fittings are designed for safety, reliability and optimum weight saving.

We carry two ranges of BMRS products

PROGold Hose Systems

Stainless Steel Braid

Features:

• Lightweight & Ultimate Flexibility

• Compatible with Virtually All Fluids

• Use with PROGold series fittings

Specifications:

• Innercore: Convoluted PTFE with Integral Glass Fibre reinforcement and Static Dissipating Liner*

• Braid: 304 Series Stainless Steel

• Operating Temp: -54°C to +204°C (-67°F to +400°F)

Applications:

• Fuel, Oil, Water and Air Systems

• High Vacuum Engine Oil Scavenge

• High Temperature Applications

• Fuel - Including Internal Fuel Cell Lines

NOTE: Sizes -24, -28 and -32 do not have a static dissipating liner. Call for details on fitting options.

Sizes -24, -28 & -32 are special order.

High Temperature Polymer Braid - Black

Features:

• Ultimate Lightweight & Flexibility

• Compatible with Virtually All Fluids

• Use with PROGold series fittings

Specifications:

• Innercore: Convoluted PTFE with Integral Glass Fibre reinforcement and Static Dissipating Liner*

• Braid: High Temperature Polymer Mono Filament

• Operating Temperature: -54°C to +200°C (-67°F to +392°F) at Full Pressure and Specified Vacuum

Applications:

• Fuel, Oil, Water and Air Systems

• Fuel - Including Internal Fuel Cell Lines

• Breather and Vent Lines

*NOTE: Size -24 does not have a static dissipating liner. Call for details on fitting options.

Sizes -24, -28 & -32 are special order.

IMPORTANT PTFE

Why is PTFE is short for Polytetrafluoroethylene - is also known by the trademarked name TEFLON ® . Here are some reasons that it is better than rubber!

• PTFE lined hose has excellent chemical resistance properties and supports most automotive fluids that regular rubber just can’t. The most common of which is blended gasoline containing ethanol. Regular rubber hoses break down from exposure to this gasoline & eventually degrade to the point where they may begin to leak or spray fuel.

PROGold Hose Systems (continued)

Aramid Braid - Black

Features:

• Very Lightweight & Ultimate Flexibility

• Compatible with Virtually All Fluids

• Use with PROGold series fittings

PTFE INNER CORE

• Innercore: Convoluted PTFE with Static Dissipating Liner

• Braid: Para Aramid

•

-54°C to

(-67°F to +302°F)

Applications:

• Fuel, Oil, Water and Air Systems

• Fuel - Including Internal Fuel Cell Lines

• Applications requiring lightweight, durability and high temperature

• Harsh and Agressive Environments

NOTE: Sizes -24, -28 and -32 do not have a static dissipating liner. Call for details on fitting options.

Sizes -24, -28 & -32 are special order.

Clear Convoluted - PTFE

• Very Flexible & Lightweight

• Compatible with Virtually All Fluids

• Use with PROGold AC Fittings Only Specifications:

• Innercore: Convoluted Clear PTFE

• Braid: None

Applications:

• Low Pressure Systems

• Fuel Systems - Ideal for Internal Fuel Cell applications below 30PSI

• Breather and Vent Lines

• Reservoir and Drain Lines

• Operating Temperature: -54°C to +200°C (-67°F to +392°F)

All* ProGold convoluted hose comes with a static dissipating liner as standard and is available in sizes -6 to -20. Applications include fuel, oil, water & air systems.

*Sizes -24, -28 & -32 do not have a static dissipating liner

PTFE INNER CORE

• PTFE hose acts as a vapor barrier and prevents gasoline odors from seeping out.

• With PTFE lined hose you should use the same manufacturers appropriate fittings to ensure that perfect seal. They are created with a special fitting ferrule to suit the hose size rather than an insert as is sometimes used on rubber hose.

• It is worth noting that the bend radius on some PTFE hoses must not be exceeded as they will kink more easily if you go past the recommended specifications.

PROGold Hose Ends - AN Female

Straight

PROGold Hose Ends - AN Female (continued)

90° Block Elbow

PROGold Hose Ends - AN Male Straight

90° Block - Male Orb

PROGold Hose Ends - AN Female Double Swivel 30°

45°

The more popular sizes are also available in either STAINLESS or STAINLESS WITH ALUMINIUM NUT Stainless Steel Stainless Insert with Aluminum Nut

-12 BM-AC-16-P3-DSBMB-AC-16-P4-DS -16

Stainless Elbow with Aluminum Nut & Insert

PROGold Hose Ends - AN Female Double Swivel (continued)

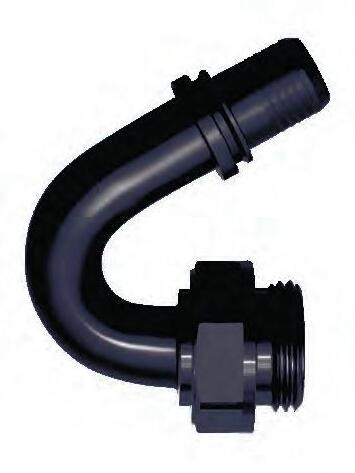

180°

Pin Wire

4 section

LOOKING FOR OUR RANGE OF TUBE CONNECTOR CLAMPS?

See

section on page 73...

DON’T SEE WHAT YOU NEED? PLEASE CALL AS THIS RANGE IS EVER EXPANDING.

Wiggins Hose Ends - Male Straight

Wiggins Hose Ends - Female Straight

Single & Double ‘O’ Rings

Single 'O' Ring

Double 'O' Ring

BM-AC-08-45-WFBM-AC-08-45-WFFDBMB-AC-08-45-WF-4BMB-AC-08-45-WFFD-4

BM-AC-10-45-WFBM-AC-10-45-WFFDBMB-AC-10-45-WF-4BMB-AC-10-45-WFFD-4

BM-AC-12-45-WFBM-AC-12-45-WFFDBMB-AC-12-45-WF-4BMB-AC-12-45-WFFD-4 -12-12

BM-AC-16-45-WFBM-AC-16-45-WFFDBMB-AC-16-45-WF-4BMB-AC-16-45-WFFD-4 -16-16

BM-AC-20-45-WFBM-AC-20-45-WFFDBMB-AC-20-45-WF-4BMB-AC-20-45-WFFD-4

PROGold Series

Wiggins Hose Ends - Female (continued)

BM-AC-12-60-WFBM-AC-12-60-WFFDBMB-AC-12-60-WF-4BMB-AC-12-60-WFFD-4

BM-AC-16-60-WFBM-AC-16-60-WFFDBMB-AC-16-60-WF-4BMB-AC-16-60-WFFD-4

BM-AC-06-08-90-WFBM-AC-06-08-90-WFFDBMB-AC-06-08-90-WF-4BMB-AC-06-08-90-WFFD-4

BM-AC-08-90-WFBM-AC-08-90-WFFDBMB-AC-08-90-WF-4BMB-AC-08-90-WFFD-4

BM-AC-10-90-WFBM-AC-10-90-WFFDBMB-AC-10-90-WF-4BMB-AC-10-90-WFFD-4

BM-AC-12-90-WFBM-AC-12-90-WFFDBMB-AC-12-90-WF-4BMB-AC-12-90-WFFD-4

BM-AC-16-90-WFBM-AC-16-90-WFFDBMB-AC-16-90-WF-4BMB-AC-16-90-WFFD-4

BM-AC-20-90-WFBM-AC-20-90-WFFDBMB-AC-20-90-WF-4BMB-AC-20-90-WFFD-4

Wiggins Hose Ends - Female Double Swivel

BM-AC-20-90-WF-DSBM-AC-20-90-WFFDDSBMB-AC-20-90-WF-DS-4BMB-AC-20-90-WFFDDS-4

Reducer Fittings

PROGold Series

Port Thread Hose Ends - Male Swivel

Straight

MIX or MATCH

All BMRS Hose Ends are supplied with collars

Port Thread Hose Ends - Male Swivel (continued)

Port Thread Hose Ends - Joiners & Adaptors

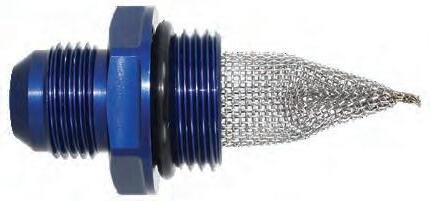

Port Thread Hose Ends - Male Swivel - Optional Filter Screen

30°

Crimp Collars

NOTE:

Screen supplied separately.

60°

NOTE:

Screen supplied separately.

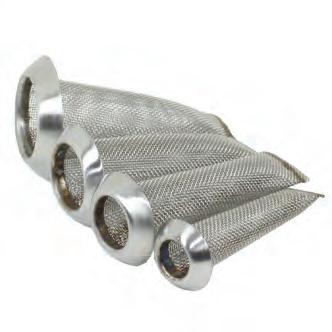

Filter Screens

Metric

Female Hose Ends Straight

These Hose Ends use an INVERTED SEAT. Common uses include industrial applications and in many European cars etc...

Spigot Hose Ends

For use with a machined spigot or beaded tube as shown and are designed for low pressure applications such as fuel, water and oil that operate at less than 100 p.s.i.

Straight

'A' diameter should be matched to the nominal tube or spigot size. 'B' diameter should be matched as tightly as possible.

NOTE: DO NOT use with a plain tube.

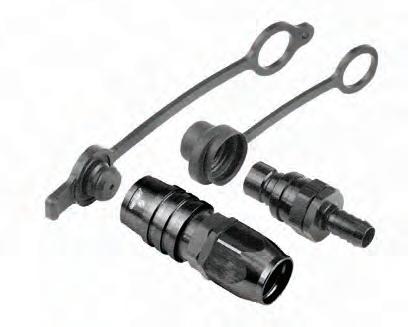

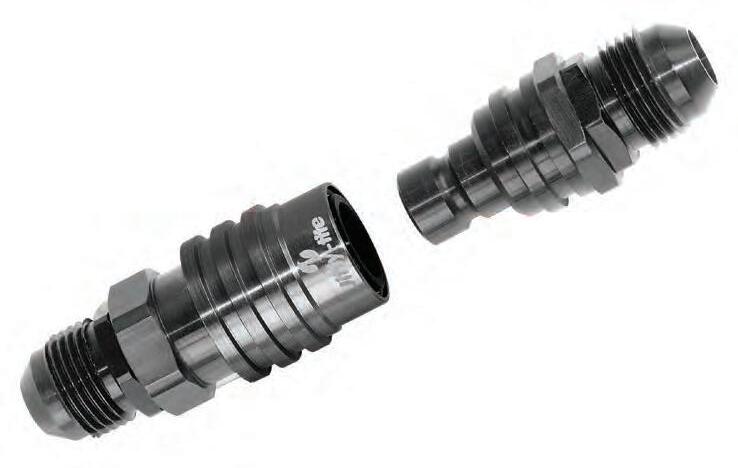

Quick Connect Hose Ends

Male - Straight

Male - Straight

Female - Straight

Female - 90°

Male to Male ORB

Bulkhead Male to AN Male

Male Extended to Male ORB

Male to Swivel Port Thread - 90°

Protective Caps & Plugs

Bulkhead Female to AN Male

Adaptors, Tee & Special Fittings

Bulkhead Hose Ends

Bulkhead JIC Male to Wiggins Male

'T' Piece - AN to Crimp Tee & ORB

“T” Piece Carb Kits & Adapters

90° Breather Rear Vent Fitting

90° Carb Adapter

Adaptors, Tee & Special Fittings (continued)

4 Bolt - Flanged - 90°

Straight Plug-In Crimp Fitting

45° Oil Pump Fitting

90° Oil Pump Fitting

Banjo Bolt

ORB Male to Wiggins Male

Double Banjo Bolt

Banjo Bolt with Wire Locking Holes

Smooth Bore Series

Smooth Bore Stainless Steel Braid Hose Systems

Stainless Steel Braid

Features:

• Long wearing attractive Stainless Steel braid

Specifications:

• Innercore: Smooth Bore Extruded PTFE with Static Dissipating Liner Option

• Braid: 304 Series Stainless Steel

• Operating Temperature: -54°C to 232°C at Full Pressure and Full Vacuum

Applications:

• Brakes

• Hydraulics Systems (Clutch, Gearbox,Power Steering, etc.)

• All Air and Gas Applications

• Gauge, Instrumentation and Sensor Lines

Stainless Steel Braid - Black PVC Sheath

Features:

• Long wearing Stainless Steel braid with protective Black PVC Sheath

Specifications:

• Innercore: Smooth Bore Extruded PTFE with Static Dissipating Liner

• Braid: 304 Series Stainless Steel with Black PVC Sheath

• Operating Temperature: -25°C to 85°C at Full Pressure & Full Vacuum

Applications:

• Brakes

• Hydraulics Systems (Clutch, Gearbox,Power Steering, etc.)

• All Air and Gas Applications

• Gauge, Instrumentation and Sensor Lines

Stainless Steel Braid Hose - Black TPE Sheath

Features:

• Long wearing Stainless Steel braid with protective Robust & Hytrel TPE Sheath

Specifications:

• Innercore: Smooth Bore Extruded PTFE with Static Dissipating Liner Option

• Braid: 304 Series Stainless Steel with Black TPE

Thermoplastic Elastomer sheath

• Operating Temperature: -65°C to 150°C at Full Pressure and Full Vacuum

Applications:

• Brakes

• Hydraulics Systems (Clutch, Gearbox,Power Steering, etc.)

• All Air and Gas Applications

• Gauge, Instrumentation & Sensor Lines

SMOOTH BORE STAINLESS STEEL BRAID HOSE - TPE SHEATH

Stainless Steel Braid Series

HOSES

• Designed for pressure systems such as brake, clutch, power steering, gearbox and suspension hydraulicsprovides a more positive brake pedal with less travel

• Able to operate at High Pressure and High Temperature

• Compatible with virtually ALL fluids

• Use with any of our crimp fittings on the following pages

Smooth Bore Series

Smooth Bore Hose Systems

Polyester Braid - Black

Features:

• Designed for Low Pressure Light Duty Applications

• Extremely Lightweight

• Durable Polyester Non-Metallic Braid

• Use with our crimp fittings on the following pages

Specifications:

PTFE INNER

• Innercore: Smooth Bore Extruded PTFE with Static Dissipating Liner Option

• Braid: Black Polyester

Applications:

• Instrumentation, Sensor & Gauge Lines

• Air and Water Bleed Systems

• Water Injection Systems

• Master Cylinder Reservoir

• Operating Temp: -54°C to 125°C (-67°F to 257°F) at Full Pressure and Full vacuum

Impregnated Glass Fibre Braid - Black

Features:

• Excellent for Low Pressure Hydraulics

• High Temperature

• PTFE Impregnated Braid serves as a Heat Shield

• Use with our crimp fittings on the following pages

Specifications:

• Innercore: Smooth Bore Extruded PTFE with Static Dissipating Liner

• Braid: PTFE Impregnated Glass Fibre

• Operating Temperature: -54°C to 260°C (-67°F to 500°F)

Translucent Tube

Features:

• Translucent Smooth Bore PTFE tube

• High Temperature

• Compatible with Virtually All Fluids

Specifications:

• Innercore: Smooth Bore Extruded Translucent PTFE Tube

• Braid: None

• Operating Temperature: -54°C to 260°C (-67°F to 500°F)

Applications:

• Air Jack Systems

• Bio Fuel & Alternative Fuels (CNG, LPG etc.)

• Fuel

• Turbo Feed/Drain

Applications:

• Bleed

• Sight Tube

• Overflows

AN Hose Ends - Females

Straight

Smooth Bore Series

120°

Smooth Bore Series

AN Hose Ends - Females (continued)

AN Hose End Adaptors

Female Block Elbows

90° ORB Swivel Male Block Elbow

'T' Piece to ORB Swivel Male to AN Male

'T' Piece to 3 Tails

Female Injectors (SAE 45° Seat)

Hose End Adaptors

Straight NPT Male Fixed

Straight NPT Female Fixed

AP Master Cylinders

Straight / 45° JIC Male Fixed

Port Thread Hose Ends - Male Swivel

Smooth Bore Series

Banjos Straight

Banjo Double Swivel to Male External Drive

90° - Side Bend

Swivel - Internal Drive

These are great for sprint car Sweet Wing Rams.

NOTE:

Assembly Gear

Fully Adjustable Crimping Machine

The 1HP - 15A ValPower pump makes fast crimps anywhere in your shop or race hauler.

It has a small footprint - only 11” wide, 14” long base and 19” high, which allows it to be placed anywhere on your bench. The fully adjustable direct reading micrometer style crimp adjustment accommodates a wide range of hose and fittings or cables for precise crimp diameters.

• Automatic low voltage shut-off assures precise crimps time after time

• Easily removable pusher and split dies make bent tube and special fittings easy to get into the crimper

• A pneumatic remote switch can be operated by hand or foot with no electrical wires

• 35 ton maximum cylinder force, 125 lb. Machine weight, 1 HP pump

• 240 Volt ready for Australia & New Zealand.

Assembly Equipment

BM-100724-14-BM Crimp Die 14mm -6

BM-100724-16-BM Crimp Die 16mm-8 -8

BM-100724-19-BM Crimp Die 19mm-10

BM-100724-22-BM Crimp Die 22mm-12

BM-100724-29-BM Crimp Die 29mm-16

BM-100724-34-BM Crimp Die 34mm-20

BM-D105/KIT-3-16 Die Kit -3 to -16 dies

Assembly Tools

A full range of tooling and fixtures are available for the quick and reliable manufacture of complete hose assemblies.

BM-24-0003-06 -6

BM-24-0003-08 -8

BM-24-0003-10 -10

BM-24-0003-12 -12

BM-24-0003-16 -16

BM-24-0003-20 20

BM-24-0006 Handle

PART

BM-24-0315-03 -3

BM-24-0315-04 -4

BM-24-0315-06 -6

NOTE: TOOL BOX NOT INCLUDED

DON’T FORGET TO CHECK OUT OUR GREAT RANGE OF TOOLS

See page 191...

-6 crimp die

Adel Wiggins clamshell clamps are used in combination with weld ferrules or BMRS purpose hose ends. Each clamp offers a secure, flexible connection and is used as an alternative to standard hose clamps or AN hose ends. Adel Wiggins are qualified to the military and aerospace requirements of Mil-C-22263 and have over 30 years of proven reliability within the motorsport industry.

Wiggins Clamps

The W900 series of Adel Wiggins Tube Connectors are qualified to the Military and Aerospace requirements of Mil-C-22263, plus over 30 years of proven reliability within the Motorsports industry.

• Operating Pressure:125 p.s.i.

• Proof Pressure: 250 p.s.i.

• Burst Pressure: 375 p.s.i.

A MUST HAVE WHEN RUNNING OVER 40 PSI BOOST

•

Type: For Methanol applications

• Viton Type - Brown in colour: For tools & oils

CLAMP WITH SLEEVE Used when clamping directly on to hardline hose / tubing

Looking for WIGGINS

HOSE ENDS

See page 55

CLAMP WITHOUT SLEEVE Used when clamping on to hose ends or fittings

Rigid Tube Fittings

Tube Fittings, Caps & Plugs

Used in combination with weld ferrules or BMRS purpose hose ends. Each clamp offers a secure, flexible connection (+/-4° misalignment) and used as an alternative to standard hose clamps or AN hose ends.

• The locking latch eliminates troublesome installation of safety-wire and one-hand installation and removal.

• Burst Pressure 375psi.

MALE SOCKET WELD - SINGLE O RING

Looking for our Wiggins Hose Ends?

See pages 55 to 58

They are listed them with all the other PROGold Series Hose Ends...

Caps & Plugs

All these Tube Fittings are also available in Stainless Steel. They are a special order item so check for delivery times.

BM-VC-1062-16 -123/4"

BM-VC-1312-16 -161"

BM-VC-1593-16 -201-1/4"

BM-VC-1875-16 -241-1/2"

BM-VC-2125-16 -281-3/4"

XRP has a top quality range of hoses, adapters and fittings and are the choice of racing’s premier pro teams, and sportsman racers. They are used in competition, off-road automotive, motorcycle and marine applications. XRP is known to be an “Xtremely” well-engineered line of products, able to withstand the demands of modern racing engines for a variety of motorsports across the globe. Their roots and expertise reach into nearly every major sanctioning body worldwide.

HS-79 Series Hoses

Ultra-Lite

HS-79 ultra lightweight, flexible, smooth-bore Teflon® hose has a 4-ply composite construction: a Teflon® inner liner, Silicone outer liner, high tensile stainless reinforcing braid and outer braid of Nomex® with Kevlar® traces.

• Temperature rating: -65°C to 204°C

Hypalon Hose

HS-79 hose is available with a Hypalon® outer covering as a fifth layer for added resistance against abrasion and ease of cleaning.

As used by NHRA, NASCAR and other Top Professional Teams!

• Temperature rating: -65°C to 204°C

Hoses & Fittings

HS-79 Series Hoses

ProPlus Hose - Aramid Fibre

XRP ProPLUS Xtreme Race and ProPlus Race Hoses are revolutionary Hose product lines that sets a new level of fluid transfer technology in race hose systems today. They are a lightweight race hose specifically designed to address the increasing vacuum collapse problems that are becoming more and more common in suction hoses used in dry sump racing engines today without having to resort to running an internal support coil that can impede flow.

A high tensile, 316 stainless steel wire provides increased radial support (hoop strength) to the tube wall keeping the tube round in shape under vacuum conditions and resists collapse and kinking when the hose is tightly bent or flexed.

ProPLUS Xtreme provides a higher vacuum and tighter bend radius capability normally found in heavier, full stainless steel braided versions of Race Hose. The helical wound wire is on the outside of the tube, not the inside, so there is no interference to the fluid flow through the inside of the hose tube.

Ideal for Dry Sump Suction...

HS-79 Series Hose Ends

-8

ANTI-STATIC PTFE TUBE

A high flowing, smooth bore, PTFE tube with external convolutions for flexibility. No internal convolutions that can cause flow restrictions

XH224510-ORB

Hoses & Fittings

Hose Ends

HS-79 Series Collars

XRP Pressure Tester Manifold Crimping Machine & Dies

XRP’s hose pressure testing manifold allows testing of hose sizes from -3 AN to -20 AN.

It is made from high quality aluminium and anodised black. Use with the Test Fitting Kit which features -8 AN adapters quick disconnections.

Inline Filters

-12 AN Inline Filter

These cleverly-engineered assemblies allow you to uncouple the filter bodies in the snap of a finger to service the mesh filter inside.

Crimping Dies are available individually for each size and style of hose.

Call us for more information!

Crimping Machines are available by special order only.

HP 45MC Element

High pressure Core Screen

Pleated stainless steel element, available with anti-seize relief valve with 15 psi pressure differential, to ensure oil flow if filter clogs.

We offer a comprehensive range of Stäubli quick release couplings. Applications include - shock absorbers, brake and hydraulic lines, quick-release couplings for fuel, lubrication and coolant lines. They are available in aluminium and titanium, are extremely lightweight and designed for safety. Both SPH and SPT couplings are non-drip and the clean break feature guarantees a secure connection and the integrity of fluids. FIA approved.

True Dry Break Couplings - SPH Series

True Dry Break Couplings for: Shock Absorbers, Brakes, Hydraulic Lines, Lubrication and Coolants.

The flush face design ensures no air inclusion into the system when connecting as well as no leakage when disconnecting. This eliminates the need to purge the system and permits the use of pre-filled hose.

SPH 03 Series

SOCKET - JIC MALE THREAD - ALUMINIUM PART NUMBERSIZESEALOZLCOLOUR

BM-SPH 03.1652/KRJE

BM-SPH 03.1653/KRJE

SEAL TYPES

it is important you pick the right kind Staubli SPH series is colour coded to help

SOCKET - PANEL MOUNT - JIC MALE THREAD - ALUMINIUM

03.2652/KRJE

BM-SPH 03.2652/KJJV

- JIC MALE THREAD - ALUMINIUM

Quick Release Couplings

True Dry Break Couplings (continued)

SPH 05 Series

SPH 08 Series

Quick Release / Breakaway Couplings - SPT Series

SPT 05 Series

Jiffy-Tite’s Quick Connect Fluid Fittings are for use in all fuel, oil, and water systems in any high performance race or street application.

Available in a variety of thread styles including AN, NPT pipe thread, reusable hose ends and hose barb type. They will replace any fitting in any location. Jiffy-tite reusable hose ends and hose barb applications must be used with steel braided rubber hose.

Jiffy-tite's revolutionary Quick Connect Fluid Fittings provide unsurpassed performance under extreme racing conditions. Made of lightweight, 6061-T6 aluminium, brass valves, and stainless steel ball bearings, they are corrosion resistant for extra long life. They are safer than traditional threaded fittings where there is always the risk that gas can leak or prompt a tragic spin-out or crash. Jiffy-tite’s unique, high-flow valve technology automatically interrupts the flow of fluid when disconnected to protect against hazardous gas leaks or potential hot oil spills. They have been tested and proven to have a 100% leak proof seal, even at 200 psi.

Jiffy-tite is the only Quick-Connect fitting on the market today approved for use in all categories of NHRA and IHRA. They are also accepted for use in SCCA for virtually ALL fuel, water, and oil systems. Fittings are currently available for all forms of high performance race and street applications.

∙ Lightweight, Compact

∙ Connects by Hand in Seconds

∙ 100% Leak Tested

∙ Ribbed Collar Provides Slip Proof Use

∙ Available for ALL Fuel, Oil, and Water Applications

∙ Shut-off Features Available for Safety

∙ NHRA and IHRA Approved, SCCA Accepted

∙ Black Anodized

∙ 360° Swivel

∙ 6061-T6 Aluminium and Brass Valve Construction

SEAL REFERENCE CHART

2000 Series Q/C Fittings

Quick Connect Fittings

Available in -3AN to -6AN in numerous adapter styles. 1/8" and 1/4" NPT are available in male and female. Parts come standard with valved FKM (Fluorocarbon, Viton, FPM) seals. 2000 Series are also available in EPDM (Ethylene Propylene, EPR) seals, which are recommended for Brake, clycol and methanol applications..

AN FEMALE - STRAIGHT SOCKET

NO. EPDM

AN JT21303JJT21303FJ

AN JT21304JJT21304FJ

AN JT21306JJT21306FJ 37° AN MALE - STRAIGHT SOCKET

NO. EPDM

JT21404JJT21404FJ

-6 AN JT21406JJT21406FJ

HOSE BARB - STRAIGHT SOCKET SIZEFKM NO. EPDM

JT21504JJT21504FJ

JT21505JJT21505FJ

JT21506JJT21506FJ

REUSABLE HOSE END - STR SOCKET SIZEFKM NO. EPDM

JT21606JJT21606FJ

37° AN FEMALE - STRAIGHT PLUG

SIZEFKM NO. EPDM

-3 AN JT22303JT22303F

-4 AN JT22304JT22304F

-6 AN JT22306JT22306F

37° AN MALE - STRAIGHT PLUG

SIZEFKM NO. EPDM

-3 AN JT22403JT22403F

-4 AN JT22404JT22404F

-6 AN JT22406JT22406F

HOSE BARB - STRAIGHT PLUG SIZEFKM NO. EPDM

1/4” JT22504JT22504F

5/16” JT22505JT22505F

3/8” JT22506JT22506F

REUSABLE HOSE END - STRAIGHT PLUG

SIZEFKM NO. EPDM -4 JT22604JT22604F -6 JT22606JT22606F NPT FEMALE - STRAIGHT PLUG SIZEFKM NO. EPDM 1/8” NPT JT22702JT22702F

JT22704JT22704F

MALE O-RING BOSS ADAPTER PLUG

SIZETHREADFKM NO. EPDM

-47/16” -20 JT22104JJT22104FJ

-69/16” -18 JT22106JJT22106FJ

Seal Compatibility Chart

Quick Connect Fittings

3000 Series Quick Connect Fittings

Available in -6AN to -8AN in numerous adapter styles. 1/4” and 3/8” NPT are available in male and female. Parts come standard with valved FKM (Flurocarbon, Viton, FPM) seals.

3000 Series are also available in EPDM (Ethylene Propylene, EPR) seals, which are recommended for clycol and methanol applications.

37° AN FEMALE - STRAIGHT SOCKET SIZEFKM NO. EPDM

Jiffy-tite’s Quick Connect Fluid Fittings provide minimal flow restriction for virtually any fuel, water or oil system on the market today.

37° AN MALE - STRAIGHT SOCKET

SIZEFKM NO. EPDM

-6 AN JT31406JJT31406FJ

-8 AN JT31408J JT31408FJ

HOSE BARB - STRAIGHT SOCKET

SIZEFKM NO. EPDM

3/8” JT31506JJT31506FJ

1/2” JT31508JJT31508FJ

REUSABLE HOSE END - STR SOCKET

SIZEFKM NO. EPDM

-6 JT31606JJT31606FJ

-8 JT31608JT31608FJ

CARBURETTOR ADAPTER PLUGS

CARBTHREADFKM NO. EPDM

Holley7/8” -20

Demon9/16” -24

Carter/Edelbrock5/8” -20

JT320C1JJT320C1FJ

JT320C4JJT320C4FJ

JT320C7JJT320C7FJ

37° AN MALE - STRAIGHT PLUG

SIZEFKM NO. EPDM

-6 AN JT32406JT32406F

-8 AN JT32408JT32408F

HOSE BARB - STRAIGHT PLUG

SIZEFKM NO. EPDM

3/8” JT32506JT32506F

1/2” JT32508JT32508F

REUSABLE HOSE END - STRAIGHT PLUG

SIZEFKM NO. EPDM

-6 JT32606JT32606F

-8 JT32608JT32608F

NPT MALE - STRAIGHT PLUG

SIZEFKM NO. EPDM

1/4” NPT JT32804JT32804F

3/8” NPT JT32806JT32806F

Seal Compatibility Chart

Automatic Trans Fluid FKM, Flurocarbon, Viton, FPM

Brake Fluid EPDM, Ethylene Propylene, EPR

Engine Oil FKM, Flurocarbon, Viton, FPM

Glycol EPDM, Ethylene Propylene, EPR

Methanol EPDM, Ethylene Propylene, EPR

Water FKM, Flurocarbon, Viton, FPM

Unleaded Fuel FKM, Flurocarbon, Viton, FPM

E85 Fuel FKM, Flurocarbon, Viton, FPM

Nitromethane EPDM, Ethylene Propylene, EPR

Diesel FKM, Flurocarbon, Viton, FPM

5000 Series Quick Connect

Available in -8AN to -12AN in numerous adapter styles. 3/8”, 1/2” & 3/4” NPT are available in male and female. Parts come standard with valved FKM (Flurocarbon, Viton, FPM) seals.

5000 Series are also available in EPDM (Ethylene Propylene, EPR) seals, which are recommended for clycol and methanol applications.

Quick Connect Fittings

Seal Compatibility Chart

Epik Industries supply a range of economically priced products to help with your plumbing build.

Billet Thermostat Housings

Epik Industries thermostat housings are machined from billet aluminium and then anodised in a variety of common colours and supplied with sealing o-rings and stainless steel bolts. Our Epik logo is then laser engraved on the hose tail so it is hidden away once the hose is installed so that your engine bay is not covered in company logos.

SB CHEV, BB CHEV, CHRYSLER PART NO.COLOUR

EP20-1000-1

EP20-1000-2 Black

EP20-1000-3 Red

EP20-1000-4 Blue

FORD CLEVELAND PART NO.COLOUR

EP20-1015-1 Silver

EP20-1015-2 Black

EP20-1015-3 Red

EP20-1015-4 Blue

FORD CLEVELAND 90°

NO.COLOUR EP20-1016-1 Silver

EP20-1016-2 Black EP20-1016-3 Red

Blue

SB FORD (WINDSOR) PART NO.COLOUR

EP20-1010-1 Silver

EP20-1010-2 Black

EP20-1010-3 Red

EP20-1010-4 Blue

Billet P-Clips & Hose Separators

Billet P-Clips & Hose Separators

BILLET P-CLIPS

(7.9mm) EP15-1030-1 EP15-1030-2EP15-1030-3EP15-1030-4 3/8” (9.5mm) EP15-1040-1EP15-1040-2EP15-1040-3EP15-1040-4

(11.1mm) EP15-1050-1EP15-1050-2EP15-1050-3EP15-1050-4

Pump Block Offs, Clamps & Filters

Billet

Fuel Pump Block Off

Epik Industries’ fuel pump block off plates are machined from billet aluminium and anodised in a variety of common colours and supplied with stainless steel bolts. Our Epik logo is laser engraved on the back side so it is hidden away after installation to give your engine a clean look.

Distributor Clamps

AN Flare Filters

Epik Industries’ AN Flare Filters feature a Stainless Steel cone seat welded to a 250 micron mesh filter that simply inserts into a AN style, 37° flare fitting to filter debris larger than 250 micron that may be present in your plumbing system.

Brackets & Adjustable Spanners

Billet Throttle Brackets

Epik Industries’ billet throttle plates are made from aluminium and anodised in a variety of common colours and supplied with spacers, accessories, stainless steel bolts and twin return springs. The 4150 Series brackets include standard throttle and kick-down accessories plus one to suit morse style cables. The 4500 Series does not include a kick-down bracket.

Tools

Adjustable Spanners

Machined from billet aluminium, black anodised and laser engraved with our logo on the handle. These suit -3 to -12 sized fittings or anywhere else an adjustable spanner may come in handy. Not recommended for use when torque is required to tighten or loosen as it will stretch the aluminium and cause the spanner to become inoperable.

Tube Bender

Billet aluminium tube benders designed for 1/16”, 3/16” & 1/4” Tube.

The handle is made from billet aluminium with finger grips for a comfortable grip, with two bending dies and multiple positions to adjust the radius of the bend.

• Aluminium construction.

• 200mm OAL

• Suit 1/16”, 3/16” & 1/4” tube

Look

Fuel Pump Brackets

Epik Industries’ fuel pump brackets are made from extruded aluminium, anodised and laser engraved with our logo underneath so it is hidden once installed. Two rubber inserts are included with each bracket to suit both 52mm and 60mm OD pumps, filters or any other parts that may fit.

This high quality 4 & 5 ply silicone has been tested and used in the industry for years and is commonly used on intercooler and intake piping, radiators, methanol fuel hose, turbo, transport and industrial applications.

Aeroflex Performance Silicone Hose

SMS S275 2.75” (70mm)5.3mm39” (1m)

SMS S300 3.00” (76mm)5.3mm39” (1m)

SMS S325 3.25” (82mm)5.3mm39” (1m)

SMS S350 3.50” (88mm)5.3mm39” (1m)

SMS S375 3.75” (95mm)5.3mm39” (1m)

SMS S400 4.00” (102mm)5.3mm39”

Aeroflex Performance Silicone Hose

SMS 60175

SMS 60200

BLK BL

BLACKBLUE

SMS 60300

1.50” (38mm)4.5mm140mm

(45mm)4.5mm140mm

(51mm)5.3mm140mm

(57mm)5.3mm140mm

(63mm)5.3mm140mm

(70mm)5.3mm140mm

(76mm)5.3mm140mm

SMS 60325 3.25” (82mm)5.3mm140mm

SMS 60350 3.50” (89mm)5.3mm140mm

SMS 60375 3.75” (95mm)5.3mm140mm

SMS 60400 4.00” (102mm)5.3mm140mm

PART NO.BORE (I.D.)WALLLENGTH

SMS HH150 1.50” (38mm)4.5mm100mm

SMS HH200 2.00” (51mm)5.3mm100mm

SMS HH225 2.25” (57mm)5.3mm100mm

SMS HH250 2.50” (63mm)5.3mm100mm

SMS HH275 2.75” (70mm)5.3mm100mm

SMS HH300 3.00” (76mm)5.3mm100mm

SMS HH325 3.25” (82mm)5.3mm100mm

SMS HH350 3.50” (88mm)5.3mm100mm

SMS HH375 3.75” (95mm)5.3mm100mm

SMS HH400 4.00” (102mm)5.3mm100mm

VACUUM HOSE

Extruded silicone rubber tubing is ideal for use as:

Vacuum lines, Washer Tubing, Coolant Overflow, Emission Control, Wire Insulation etc.

Temperature Range: 200°C ( 392°F ) Not designed for pressurised installations

PART NO.BORE (I.D.)WALL

SH2013 3mm - 1/8”2.5mm

SH2014 4mm - 5/32”2.5mm

PART NO.BORE (I.D.)WALLLEG

SMS 135100 1.00” (25mm)4.5mm100mm

SMS 135150 1.50” (38mm)4.5mm80mm

SMS 135175 1.75” (45mm)4.5mm80mm

SMS 135200 2.00” (51mm)5.3mm80mm

SMS 135250 2.50” (63mm)5.3mm80mm

SMS 135300 3.00” (76mm)5.3mm80mm

SMS 135400 4.00” (102mm)5.3mm80mm

SMS 135 EX400 4.00” (102mm)5.3mm80mm

180° ELBOW

PART NO.BORE (I.D.)WALLCENTRES

SMS 180100 1.00” (25mm)4.5mm105mm

SMS 180125 1.25” (32mm)4.5mm115mm

SMS 180150 1.50” (38mm)4.5mm115mm

SMS 180175 1.75” (45mm)4.5mm115mm

SMS 180200 2.00” (51mm)5.3mm110mm

SMS 180250 2.50” (63mm)5.3mm110mm

SMS 180300 3.00” (76mm)5.3mm110mm

BLK BL

BLACKBLUE

135° ELBOW

BLK BL BLACK BLUE

BLK

Silicone Hose

Silicone Reducer Hoses

STRAIGHT REDUCERS

PART NO.BORE (I.D.)LENGTH

SMS SR16-13 16-13mm / 0.70-0.50”127mm

SMS SR19-13 19-13mm / 0.75-0.50”127mm

SMS SR19-16 19-16mm / 0.75-0.70”127mm

SMS SR22-16 22-16mm / 0.85-0.70”127mm

SMS SR22-19 22-19mm / 0.85-0.75”127mm

SMS SR25-16 25-16mm / 1.00-0.70”127mm

SMS SR25-19 25-19mm / 1.00-0.75”127mm

SMS SR28-22 28-22mm / 1.125-0.85”127mm

SMS SR28-25 28-25mm / 1.125-1.00”127mm

SMS SR32-25 32-25mm / 1.25-1.00”127mm

SMS SR32-28 32-28mm / 1.25-1.125”127mm

SMS SR35-25 35-25mm / 1.375-1.00”127mm

SMS SR35-28 35-28mm / 1.375-1.125”127mm

SMS SR35-32 35-32mm / 1.375-1.25”127mm

SMS SR38-22 38-22mm / 1.50-0.85”127mm

SMS SR38-25 38-25mm / 1.50-1.00”127mm

SMS SR38-28 38-28mm / 1.50-1.125”127mm

SMS SR38-32 38-32mm / 1.50-1.25”127mm

SMS SR38-35 38-35mm / 1.50-1.375”127mm

STRAIGHT REDUCERS

PART NO.BORE (I.D.)LENGTH

SMS SR40-35 40-35mm / 1.625-1.375”127mm

SMS SR45-32 45-32mm / 1.75-1.25”127mm

SMS SR45-38 45-38mm / 1.75-1.50”127mm

SMS SR51-38 51-38mm / 2.00-1.50”127mm

SMS SR51-45 51-45mm / 2.00-1.75”127mm

SMS SR51-48 51-48mm / 2.00-1.875”127mm

SMS SR54-51 54-51mm / 2.125-2.00”127mm

SMS SR57-45 57-45mm / 2.25-1.75”127mm

SMS SR57-51 57-51mm / 2.25-2.00”127mm

SMS SR60-51 60-51mm / 2.36-2.00”127mm

SMS SR63-51 63-51mm / 2.50-2.00”127mm

SMS SR63-57 63-57mm / 2.50-2.25”127mm

SMS SR70-51 70-51mm / 2.75-2.00”127mm

SMS

45° REDUCERS

PART NO. BORE (I.D.)LEG

SMS 45R150-100 38-25mm / 1.50-1.00”140mm

SMS 45R150-125 38-32mm / 1.50-1.25”140mm

SMS 45R175-150 45-38mm / 1.75-1.50”140mm

SMS 45R200-175 51-45mm / 2.00-1.75”140mm

SMS 45R225-200 57-51mm / 2.25-2.00”140mm

SMS 45R250-200 63-51mm / 2.50-2.00”140mm

SMS 45R250-225 63-57mm / 2.50-2.25”140mm

SMS 45R275-250 70-63mm / 2.75-2.50”140mm

SMS 45R300-200 76-51mm / 3.00-2.00”140mm

SMS 45R300-225 76-57mm / 3.00-2.25”140mm

SMS 45R300-250 76-63mm / 3.00-2.50”140mm

SMS 45R300-275 76-70mm / 3.00-2.75”140mm

SMS 45R350-250 89-63mm / 3.50-2.50”140mm

SMS 45R350-300 89-76mm / 3.50-3.00”140mm

SMS 45R400-300 102-76mm / 4.00-3.00”140mm

SMS 45R400-350 102-89mm / 4.00-3.50”140mm

90° REDUCERS PART NO.BORE (I.D.)LEG

SMS 90R075-063 19-16mm / 0.75-0.50”100mm

SMS 90R100-075 25-19mm / 1.00-0.75”100mm

SMS 90R125-100 32-25mm / 1.25-1.00”100mm

SMS 90R150-100 38-25mm / 1.50-1.00”100mm

SMS 90R150-125 38-32mm / 1.50-1.25”100mm

SMS 90R175-150 45-38mm / 1.75-1.50”100mm

SMS 90R200-150 51-38mm / 2.00-1.50”100mm

SMS 90R200-175 51-45mm / 2.00-1.75”90mm

SMS 90R225-200 57-51mm / 2.25-2.00”90mm

SMS 90R250-200 63-51mm / 2.50-2.00”90mm

SMS 90R250-225 63-57mm / 2.50-2.25”90mm

90° REDUCERS

PART NO.BORE (I.D.)LEG

SMS 90R275-225 70-57mm / 2.75-2.25”80mm

SMS

4.00-3.50”80mm

Rubber & Silicone Hose

Fuel Filler Hose

Lightweight, flexible and smooth hose made from a liner of nitrile sheet rubber, with a high tensile spring steel helix covered with nitrile coated nylon fabric, and having an outer cord of neoprene-coated polyester. This hose is able to bend 180° with no kinking!

Applications: Engine and automotive industry. Can be used with all motor fuels and most lubricating oils.

Special properties: Light, flexible and resistant to constant vibration; good abrasion levels and suitable for very damp media; good resistance to condensates due to the enclosed helix Applications: Suitable for connecting the fuel filler to the fuel tank. Can be used with all motor fuels and most lubricating oils.

• Sold by the INCH or LENGTH

• Standard length: 1000 mm: (can be purchased in short lengths)

• Available in 32mm, 38mm, 45mm, 51mm, 57mm & 63mm I.D.

FILLER HOSES

Wrapped Type Filler Hose in Nitrile - These filler hoses are made from fuel resistant rubber. Owing to the method of construction the wrapped hoses do not bend easily. Straights and elbows should be used as required.

High Temperature Hose Block Off Caps

AEROFLEX silicone high temperature hose can be used in almost any application and genre. Please note not suitable for petrol / brake fluid applications. FLEXIBLE

Silicone Hose - Lined

SMS Fluoro Lined Silicone Hose

Aeroflex Fluoro lined Silicone Hoses not only withstand extreme temperatures, generally from –50°C to +250°C, but also is quite compatible with hydrocarbon liquids, such as petrol, diesel and oil.

It’s often used as turbocharger drain hoses and is now available in a wide range of sizes and bends.

• Working temperature: –50°C to 250°C

• Fluoro lined for contacting with oils

• Polyester fibre reinforced 4 to 5 plies

• Especially used in turbocharger and intercooler hoses

• Low permeation.

• Colours: Black.

DRAIN HOSE TURBO

39” LONG STRAIGHT (SOLD PER INCH) PART NO.BORE (I.D.)WALLLENGTH

SMS FLS038 0.38” (9mm)4.5mm39” (1m)

SMS FLS050 0.50” (13mm)4.5mm39” (1m)

SMS FLS063 0.63” (16mm)4.5mm39” (1m)

SMS FLS075 0.75” (19mm)4.5mm39” (1m)

SMS FLS085 0.85” (22mm)4.5mm39” (1m)

Flexible Heater Hose

45° ELBOW PART NO.BORE (I.D.)WALLLEG

SMS FL45050 0.50” (13mm)4.5mm140mm

SMS FL45063 0.70” (16mm)4.5mm140mm

SMS FL45075 0.75” (19mm)4.5mm140mm

SMS FL45085 0.85” (22mm)4.5mm140mm

All available in Black or Blue Please add -BLK for black -BLUE for blue

90° ELBOW

PART NO.BORE (I.D.)WALLLEG

SMS FL90050 0.50” (13mm)4.5mm120mm

SMS FL90063 0.63” (16mm)4.5mm120mm

SMS FL90075 0.75” (19mm)4.5mm120mm

SMS FL90085 0.85” (22mm)4.5mm120mm

Ideal for extremely high temperature applications in radiator, heater and other coolant transfer. Constructed with silicone rubber.

• Reinforced with tough, high temperature resistant polyester textile cords

• Exceptionally flexible

• Highly resistant to weathering, coolant deterioration, ozone & temperature extremes

• Can be used for heater hose applications

• Temperature rating: –70°F to +350°F (–57°C to +177°C)

• Sold by the metre.

• Caution: Do not use for fuel or oil transfer applications.

FLEXIBLE HEATER HOSE (PER METRE)

PART NO. BORE (I.D.)

SMS FH050 0.50” (13mm) Flex Silicone

SMS FH063 0.63” (16mm) Flex Silicone

SMS FH075 0.75” (19mm) Flex Silicone

SMS FH100 1.00” (25mm) Flex Silicone

BLK BL BLACKBLUE

BLK BLACK

BLK BLACK

BLK BLACK

BLK BL BLACKBLUE

SMS Ducting

Ducting Hose & Clamps

AEROSPACE “SCAT” STYLE

• Brake ducting

• Hi-Carbon steel wire

• Single wall

BLK

• Rated up to 550°F 11ft / 3.35m lengths - Sold in Half or Full lengths.

SMS Hose Clamps

SHU32 2.00”40-64mm

SHU36 2.25”46-70mm

SHU40 2.50”52-76mm

SHU48 3.00”65-89mm

SHU56 3.50”78-102mm

SHU64 4.00”91-114mm

SHU80 5.00”116-140mm

CHASSIS T-BOLT CLAMPS

Small diameter T-bolt clamps made with a hockey stick (bent bolt).

Aluminium Tube

Aluminium Tube & Mandrel Bends

Made in Australia!

Aluminium Mandrel Bends

Aluminium Tube

Reducers & Donuts

Alloy Tube

Aluminium tube for all sorts of purposes, from fuel lines to on-board fire extinguisher lines. It is extremely light weight, easy to flare, bend and it looks great too! When used and flared with the 818 and 819 tube nuts & sleeves, it creates a perfect seal and the ability to adapt to aluminium hose ends.

Only available in a natural aluminium finish.

Turbosmart is a world leading manufacturer in performance accessories including the highest quality blowoff valves, wastegates, boost controllers, gauges, pressure regulators, and hoses for both the track and the street.

now have a new range of GEN-V products so if you’re looking for External Wastegates and/or Blow-Off Valves look for the logo. The GEN-V range of products have won a total of ten SEMA global media awards between them. GEN-V

Boost Control

e-Boost 2

e-Boost2 is the ultimate boost controller, designed with high performance and racing in mind, it is perfect for the tough conditions of track use, and absolutely untouchable in a street application. e-Boost2 is available in two sizes (60mm and 66mm). With an e-Boost2 you can:

• Control six levels of boost, with a maximum boost of 60PSI

• Enjoy faster boost response, thanks to Turbosmart’s unique Gate Pressure function, and longer boost duration at high RPM via RPM correction factor

• Use Boost on Demand for instant overtaking power

• Set a different boost level for each gear, or if you prefer, program boost against time orRPM

• Control water spray, methanol, nitrous injection, or just about anything else with e-Boost2’s handy auxiliary outputs

• Monitor your boost and RPM with Peak Hold/Max Boost recall

• Protect your motor with Overboost Shutdown safety feature

e-Boost Street - 40psi

Racing technology for the street E-Boost STREET is an electronic boost controller aimed at the street performance market. It features many boost control capabilities found on its big brother the e-Boost2, continuing the e-Boost tradition of providing classleading boost control, value for money and no nonsense features. New features include 40psi max boost operating pressure and an auxiliary output.

Mechanical Boost Gauges

A Turbosmart mechanical boost pressure gauge is the perfect accompaniment to a Turbosmart manual boost controller. Available in both PSI and bar, Turbosmart’s mechanical boost gauges are a simple and reliable way to monitor boost pressure.

PART NO.

TS-0301-1002

TS-0301-1003

TS-0301-1011

eBoost 2 60mm Boost Controller Black/Silver

eBoost 2 60psi 60mm Sleeper

eBoost 2 60psi 66mm Sleeper

TS-0301-1013 eBoost 2 60psi 66mm Boost Controller Black/Silver

TS-0301-1103

eBoost 2 60psi 60mm Sleeper 4 Port

TS-0301-2001 eBoost 2 60mm Dash Mounting System

TS-0301-2002 eBoost 2 Roll Cage Mount

TS-0301-2003 eBoost 2 4 Port Solenoid

TS-0301-2013

TS-0301-3003

eBoost2 66mm Dash Mounting System

eBoost 2 Solenoid System

PART NO.

DESCRIPTION TS-0302-1002 e-Boost Street

Boost Control & Blow-Off Valves

Boost Control

Electronic Gauges

Our new range of electronic stepper motor-controlled gauges for turbo diesel vehicle includes Exhaust Gas Temperature (EGT), transmission temperature and electronic boost gauges. These gauges are a complete standalone solution, with everything you need to obtain this information from your vehicle - including thermo couplers for EGT and transmission temperature gauges, and electronic boost gauges.

Manual Boost Controllers

Turbosmart’s manual boost controllers are easy to fit, simple in operation, and require little maintenance – making them one of the best “bang for buck” performance mods on the market.

• A simple, cost effective solution to boost control

• A small, elegant design

• An easy to use detent adjustment system

• Robust engineering with the one piece body and solid needle valve

• Our exclusive gate feature which brings boost on earlier

• Easy mounting with the supplied bracket

- Boost Tee - The perfect “set it and forget it” boost controller

- In-Cabin - Adjust the boost from the driver’s seat

TS-0701-1011 30PSI Boost Only Gauge

TS-0701-2011 Exhaust Gas Temperature Gauge - Fahrenheit

TS-0701-3011 Transmission Temperature Gauge - Fahrenheit

Boost Reference Adapters

Many popular modern turbocharged vehicles are incompatible with traditional vacuum-operated accessories, due to the lack of an accessible vacuum source to tap into. Turbosmart’s BRA kit gives the vehicle a boost reference source, and is a must for anyone planning to add a Blow-Off Valve, mechanical boost gauge or other vacuumoperated accessories to such a vehicle.

Turbosmart’s Boost Reference Adapter kits include everything you need to reliably obtain a boost reference from a wide range of vehicles. For vehicle specific applications, please refer to fitment guide.

Diesel 2.2/L3.2L

TS-0720-1008 Nissan TD42T/ZD30DDTi Engine

Blow-Off Valves

Plumb Back

HIGH PERFORMANCE / CUSTOM BUILDS (UP TO 600 HP)

Turbosmart’s Plumb Back BOV operates quietly, just like a standard diverter valve, so it does not draw unwanted attraction. The Plumb Back offers all the performance and durability benefits of a Turbosmart BOV, but with quiet operation that keeps you under the radar.

• A full time recirculating BOV, with one plumb back port

• Quiet operation

TS-0106-1001 BLUE

TS-0106-1002 BLACK

Supersonic

HIGH PERFORMANCE / CUSTOM BUILDS (UP TO 600 HP)

The quintessential Turbosmart BOV, with that classic Blow-Off Valve noise. The Supersonic vents completely to atmosphere for big sound and big performance. The Supersonic is the BOV for the driver who wants the show along with the go.

• A full-time vent to atmosphere BOV, featuring a single trumpet provides the characteristic Turbosmart Blow-Off valve noise we know and love.

TS-0720-1001 TS-0720-1008

Blow-Off Valves

Blow-Off Valves (continued)

Vee-Port Pro

POWERSPORTS / HIGH PERFORMANCE - BUILDS (UP TO 600 HP)

Originally designed for the Powersports market, the Vee-Port PRO is an ideal Blow-Off Valve for anyone who is short on space, or looking for a low-weight BOV solution.

• A full-time vent to atmosphere Blow-Off Valve

• A very compact design, perfect for tight to fit places

• A hard anodized aluminium piston for lightness

• Very high flow ability with a 38mm/1.5in piston

• Precision machining and assembly – the piston and valve body are measured to mere fractions of a millimetre, and perfectly matched

• Quick release V-band clamp for ease of fabrication and installation

Smart Port Technology

HIGH PERFORMANCE/ OEM UPGRADE (UP TO 600 HP)

The Smart Port is a revolutionary Blow-Off Valve design, combining precision construction with state of the art materials to give unrivalled valve performance. The Smart Port’s unique piston is made from an aerospace alloy with a military-spec coating, ensuring its weight and friction are as low as possible, resulting in quicker valve response, better sealing and superior durability.

• Drive-by-wire friendly staging technology, eliminating compressor surge at both low and high RPM while integrating smoothly with the car’s factory engine mapping

• A hard-anodised, lightweight, aluminium piston providing better valve response and prolonged piston life

• New Smart Port trumpet design which allows the use of a softer spring in the body of the BOV to aid valve response to the plumb back port, while still retaining the ability to vent to atmosphere

• The Smart Port is currently available on Type 5 BOVs to suit a wide range of vehicles.

TS-0205-1130

TS-0205-1131

Big Bubba

Vee-Port PRO Universal - Blue

Vee-Port PRO Universal - Black

Sometimes bigger is just better. Designed for large capacity supercharged and turbocharged engines, including turbo-diesel engines, the Big Bubba is our largest piston style Blow-Off Valve.

• Huge 50.8mm/2” inlet and outlet

• Hard anodised aluminium piston for light weight

• Strong V-band mounting interchangeable with the Race Port BOV

Available in two different styles:

- Big Bubba - Full time recirculating

- Bubba Sonic - Full time vent to atmosphere

TS-0204-1202

TS-0204-1302

PART NO.

TS-0215-1018

Power Port

DESCRIPTION

Dual Port Subaru WRX 2015-current - Black

HIGH LEVEL DRAG RACING FOR TURBO / SUPERCHARGED APPLICATIONS (UP TO 3000+ HP)

Turbosmart’s largest and highest flowing Blow-Off Valve ever. The massive 2.5” inlet, unprecedented valve lift, supersized ports and carefully designed CFD flow-paths mean it has more than enough breathing room for even the most powerful turbocharged drag racing engines. Its cutting edge dual-chamber design means it can be held open with the use of a solenoid to aid turbo response and control during staging to give the best possible launch. Also available with a sensor cap, which can be used to log valve position. Supplied With: 1/4” -4AN Nipple, 1/8” NPT Blank, 1/8” NPT Nipple, Profiled Inlet Weld-On Flange (Alloy) and Collar Tool.

• Billet 6000 series aluminium, MILSPEC hard anodized valve

• Quick release V-band collar for ease of installation and removal

• 2.5” Inlet flows over 600 CFM

• Twin 1/8”NPT port lower chamber for advanced control strategies

• -4 AN Upper port

• Collar secured cap for quick spring changes

PART NO.

DESCRIPTION

TS-0204-1202 Big Bubba Plumb Back - Black/Silver

TS-0204-1302 Bubba Sonic BOV - Black/Silver

TS-0204-1203 Big Bubba BPV Sleeper

TS-0204-2006 V Band Blanking Plate Race Port & Big Bubba

TS-0204-2204 21” HG Spring

TS-0204-3001 Alloy Weld Flange

TS-0204-3004 V Band

TS-0204-3005 Flange O Ring

TS-0207-1001 BLUE Blue

TS-0207-1002 BLACK Black

Blow-Off Valves (continued)

Race Port GEN-V SERIES

ULTRA HIGH PERFORMANCE (UP TO 2,500 HP)

Amazingly small and light BOV for forced induction competition level engines. Featuring our unique collar design, twin 1/8” NPT pressure ports and internal flow structures, it is 50% lighter and 25% smaller than the competition, while flowing 330 CFM - making it the highest flowing BOV of it’s type on the market. Available with a sensor cap. Supplied With: Vacuum fittings, profiled alloy weld flange, V-band assembly, and Blue Spring, Rated -18 to -14 InHg (installed)

• Twin 1/8” NPT pressure ports for convenient positioning

• Billet 6000 series aluminium construction

• Quick release v-band collar for ease of installation and removal

• Female Flange version available to suit other 50mm flanges

• 2.0” Inlet flows over 330 CFM

• MILSPEC hard anodized valve guide and stem

• Hi Temp Silicon Nomex diaphragm

• Collar secured cap for quick spring changes

• 4”Hg to 26inHg activation range with spring kit (TS-0204-2104)

• Hall Effect, Non-Contact Valve Position Sensor option available

Dual Port

HIGH PERFORMANCE / CUSTOM BUILDS (UP TO 600 HP)

The Dual Port is a 50-50 recirculating and vent to atmosphere BOV. Offers quiet operation on low boost, avoiding unwanted attention, but vents to atmosphere on high boost for that sought-after sound.

• Quiet operation on low boost, classic Turbosmart BOV noise and full performance on high boost

• Features one plumb-back port to route to the vehicle’s intake, and one vent to atmosphere trumpet

• Modular design, supplied with an additional trumpet and blanking plug to allow the valve to be easily transformed into a Supersonic, Plumb Back, or Megasonic

Kompact - Heavy Duty Upgrade

Turbosmart’s billet construction Kompact range has been designed as a bulletproof replacement for OEM parts. They will not leak or burst under increased pressure. Each Kompact Blow-Off Valve features a tolerance-matched piston and body, which ensures a precise fit between the moving parts, eliminating the need for a body to piston o-ring seal.

Blow-Off Valves

PART NO.

TS-0203-1009

TS-0203-1010

DESCRIPTION

Kompact Dual Port Mazda

Kompact Dual Port Nissan Juke Pulsar SSS / Subaru WRX MY08+

TS-0203-1015 Kompact Dual Port Subaru

TS-0203-1023

Kompact Dual Port 34mm

TS-0203-1026 Kompact Dual Port Nissan

TS-0203-1041

Kompact VAG 2.0T Dual Port

TS-0203-1061 Kompact Shortie Dual Port

TS-0203-1066

Kompact Shortie Dual Port Ford Fiesta ST 1.6L Ecoboost

TS-0203-1209 Kompact Plumb Back Mazda/Subaru

PART NO.

TS-0205-1026

TS-0205-1072

Dual Port Uni 38mm Black

PART NO.

TS-0203-1215

DESCRIPTION

Kompact Plumb Back Subaru

TS-0203-1222 Kompact Plumb Back 25mm

TS-0203-1223

Kompact Plumb Back 34mm

TS-0203-1226 Kompact Plumb Back Nissan

TS-0203-1241

TS-0203-1261

TS-0203-1263

TS-0203-1266

TS-0203-2002

Kompact VAG 2.0T Plumb Back

Kompact Shortie Plumb Back

Kompact Shortie Plumb Back VW Golf MK7 GTI/R

Kompact Shortie Plumb Back Ford

Fiesta 1.6L Ecoboost

Kompact Block Off Borg Warner KKK

Blow-Off Valves

Blow-Off Valves

25mm Kompact Dual Port

Dual outlet-type BOV. Dual Port vents both to the atmosphere and back into the air intake. Ports with sequential timing allow quieter operation during normal driving, while getting all the benefits of a vent-to-atmosphere BOV under race conditions. Easily converted to a full atmospheric or full bypass unit by using supplied port blanking plug.

Please note; that for twin-turbo applications, such as the Audi S4 2.7L (B5) 97-01, this will require two valves.

Kompact Dual Port/Plumb Back Parts

Suits both the Kompact Dual Port and Plumb back BOV’s.

TS-0203-3008 Kompact Blow-Off Valve Fitting - 20mm

TS-0203-3009 Kompact Blow-Off Valve Fitting - 50mm

TS-0203-3010 Kompact Blow-Off Valve Fitting - 34mm

BOV V-Band Clamp Assembly

Suits Turbosmart Plumb Back, Dual Port, Supersonic and Vee Port Pro BOVs

TS-0205-3009 BOV V-Band Clamp Assembly

BOV O-Ring Kit

O-Ring Service Kit for Turbosmart Plumb Back, Dual Port, VeePort Pro, and Supersonic BOVs

20mm Kompact Plumb Back

Full recirculating BOV. The Plumb Back system recirculates all excess pressure back into the intake system. Great for enthusiasts not wanting to be noticed but wanting the performance and reliability benefits of a quality BOV.

APPLICATION: Fits most cars using the factory BOSCH or DENSO bypass valves.

Dual Port Uni 38mm - Blue

Four BOVs in one. The Dual Port can be configured as a Supersonic, Megasonic, Plumb Back or Dual Port! Features sequential ports for quiet operation on mild boost and full performance at full boost. With a Quick release V-Band clamp, tool-free adjustment and all the parts needed for conversions included it is Turbosmart’s most versatile BOV.

FPR / OPR Mounting Bracket / Clip

Mounting Bracket to Suit all Turbosmart FPRs and OPRs

TS-0205-3010 BOV O-Ring Kit

TS-0401-3006 Mounting Bracket / Clip

Turbosmarts GEN-V product range have won a total of ten SEMA global media awards between them.

Fuel Management

Fuel Pressure Regulators

Turbosmart’s newest range of High-performance EFI fuel pressure regulators are smaller, lighter and better! They feature two 1/8” inlet ports, one return port and one 1/8” gauge port, premium diaphragm and stainless steel valves/seat and allow for ANY fuel type including E85. Non-directional bias to regulation, so no matter where the fuel comes in they will regulate the same.

With Mounting bracket, retaining clip, vacuum fitting and gauge port blank.

• 1:1 manifold pressure ratio with no load losses

• 30-90psi base pressure adjustment

• Operational between -35ºC to +200ºC

• MILSPEC diaphragm

• Bracket and retaining clip supplied

• Pressure port 1/16” NPT with nipple supplied

Fuel Management

TS-0401-1104

1200 - Black

TS-0401-1109 FPR 1200 - Purple

Fuel Cut Defender

A fuel cut defender raises the fuel cut-out level, allowing youthrough the use of a Turbosmart boost controller - to increase boost pressure without the ECU triggering the fuel injector shutdown.

PNEUMATIC

• Suits most cars using a manifold absolute pressure (MAP) sensor

• Allows an accurate increase in the factory fuel cut-out level

• No need to cut/splice wires

• Does not affect off-boost conditions

• Can be locked to prevent tampering

ELECTRONIC

• Suits most cars using an Air Flow Meter (AFM)

• Allows an accurate increase in the factory fuel cut-out level

• Features LED indicators for easy set-up

• Adjustable release feature ensures you set your own fuel cut-out level to protect your engine from over-boosting

Fuel Rail Adaptors

Adapt fuel pressure regulators to the following OEM fuel rails:

Mazda 13BREW = FD3S RX7 Series 6

Nissan RB26DETT = BNR32, 33, 34 GTR

Nissan RB25DET = HCR32, ECR33, ER34 Skyline

Nissan SR20DET = S13, S14, S15 SILVIA

Nissan CA18DET = S13, 180SX

Subaru EJ20 = GC8 WRX before Bug Eye

Subaru EJ25 = WRX 08 - CURRENT, Forester 08 - CURRENT, Liberty 05 - 18

PART NO. SUITS

TS-0402-1001 Nissan/Subaru/Mazda

Mitsubishi 4G63 = Evo 4, 5, 6, 7, 8

Mitsubishi 6A12 Mivec = FTO

PART NO.SUITS

TS-0402-1005

Mitsubishi

Subaru EJ20 = GDA WRX Bug Eye

onwards

Toyota 2JZGTE = JZ80 SUPRA, JZS147 ARISTO

Toyota 4EFTE = EP STARLET

Toyota 4AGZE Toyota 4AGE

PART NO.SUITS

TS-0402-1002 Toyota / Subaru

Mazda 13B = RX7 Series 4

Toyota 3SGTE = MR2, CELICA GT4

Toyota 1UZ-FE Lexus/Soarer V8

Toyota 1JZGTE = SUPRA, CRESTA, CHASER, MARK II

PART NO.SUITS

TS-0402-1003 Toyota / Mazda

Honda B16A = EG6 CIVIC SIR, EK4 CIVIC, CRX DEL SOL

Honda B16B = EK9 CIVIC TYPE R

PART NO.SUITS

TS-0402-1004 Honda

Ford BA, BF, FG XR6 Turbo & Territory Turbo, Audi/VW 1.8L Turbo

PART NO. SUITS

TS-0402-1006

Ford / Audi / VW

Subaru WRX STI 08 onwards (includes 90° fitting)

TS-0402-1013 Subaru (STi 08)

Mitsubishi 4B11T = EVO X (10) onwards (includes 90° fitting)

TS-0402-1014 Mitsubishi (EVO X)

FPR 800 SERIES SHOWN

Wastegates

Wastegates

Ultra-Gate38

• Interchangeable with all other 2 bolt wastegates

• 38mm valve size

• High temp spring combinations from 3 - 26psi supplied in the box

• 1/8”NPT ports

• Popular 2-bolt flange fitting to suit 1-5/8” OD pipe

• Locking collar for compact size and easy spring changes

• Hall Effect, Non-Contact Position Sensor Option Available

Supplied with: Springs, valve seat, gaskets, 2 x 1/8” NPT hose fittings, 2 x blanking plugs, collar tool and bolts to fit wastegate.

Hyper-Gate45

• Direct swap for Turbosmart Gen-4 HyperGate45 and other 44mm V-band wastegates

• 45mm valve size

• High temp spring combinations from 3 - 26psi supplied in the box

• 1/8” NPT ports

• V-band clamp mounting system to suit 1-7/8” OD pipe

• Locking collar for compact size and easy spring changes

• Available in Motorsport and Compressed Gas versions

• Hall Effect, Non-Contact Position Sensor Option Available

Supplied with: Springs, Inlet, outlet weld flanges, V-band clamps, valve seat, 2 x 1/8” NPT hose fittings, blanking plugs & collar tool

Comp-Gate40

• Direct swap for Turbosmart Gen-4

Comp-Gate 40, inlet the same as other 38/40mm V-band wastegates

• 40mm valve size & 1/8” NPT ports

• High temp spring combinations f 3 - 26psi supplied in the box

• V-band clamp mounting system to suit 1-3/4” OD pipe

• Available in Motorsport and Compressed Gas versions

• Hall Effect, Non-Contact Position Sensor Option Available

Supplied with: Springs, Inlet, outlet weld flanges, V-band clamps, valve seat, 2 x 1/8” NPT fittings, blanking plugs, and collar tool.

Pro-Gate50 GEN-V SERIES

ect swap for Turbosmart Gen4

Pro-Gate50

• 50mm valve size & 1/8” NPT ports

High temp spring combinations rom 3 - 26psi supplied in the box

-band clamp mounting system to suit 2” OD pipe vailable in Compressed Gas

l Effect, Non-Contact Position

Sensor Option Available

Supplied with: Springs, Inlet, outlet weld flanges, V-band clamps, valve seat, 2 x 1/8” NPT fittings, blanking plugs, and collar tool.

Power-Gate60 GEN-V SERIES

• Direct swap for Turbosmart Gen 4

Power-Gate60 wastegates.

• 60mm valve size

• High temp spring combinations from 3 - 26 PSI supplied in the box

• 1/8” NPT ports

• V-band clamp mounting system to suit 2-1/2” OD pipe

• Available in Compressed Gas version

• Hall Effect, Non-Contact Position Sensor Option Available

Supplied with: Springs, Inlet and outlet weld flanges, V-band clamps, valve seat, 2 x 1/8” NPT hose fittings, blanking plugs, and collar tool

TS-0555-1001

TS-0555-1012

TS-0555-1202

-

GenV High Pressure 35psi External Wastegate GEN-V SERIES

The GenV HyperGate45 HP external wastegate is a Motorsport proven, cost effective external wastegate with base spring pressure options of up to 50psi! Add to that some reference signal manipulation and you have some serious boost! The GenV provides extensive user configurability, world leading extended thermal performance, fatigue resistance and best in class flow performance for optimum control and longevity.

Wastegates (continued)

Internal Actuator (IWG-75)

On an internally wastegated turbo, the wastegate valve is built into the turbine housing. The wastegate valve is controlled by an internal wastegate actuator. As boost rises the actuator controls the position of the wastegate valve, which in turn controls the exhaust gas flow to the turbine. Like all Turbosmart parts, billet construction means they are stronger and more durable than a stock actuator, while Turbosmart’s focus on performance means boost comes on faster and holds on longer, putting you in control!

• Base spring pressure available from 3PSI to 26PSI

• Stable boost control and improved boost response

• Flatter boost curve in the top end

TS-0681-5142 Universal 150mm Actuator - 14 PSI

TS-0625-1072 Garrett GT2860RS (Disco Potato) - 7 PSI

TS-0620-1142 Borg Warner EFR B1 Single Scroll - 14 PSI

TS-0620-3142 Borg Warner EFR B2 Single/Twin Scroll - 14 PSI

Wastegate Actuator Suit Mitsubishi EVO

IWG75 Wastegate Actuator Suit

Mitsubishi EVO 4-8 22 PSI Black. Turbosmart Upgraded Wastegate Actuators have been developed to provide maximum possible boost response for your factory frame turbocharger. The Turbosmart IWG75 Series of upgraded Actuators benefit from an increased ‘Working Ratio’ over the factory equipment resulting in improved boost response, throughout the RPM range.

Coupling, Springs & Clamps

V-Band Coupling Kits

Premium Quick Release V-Band Coupling Kits made of 304 stainless steel.

• Cad Plated, Aerospace Grade Hi-Temp Locking Nut

• Triple Welded 304 Stainless Clamp

Wastegates

Twin Port Actuator

The Twin Port IWG-75 uses the airpressure differential between two sealed chambers to create a dynamic force which overcomes the mechanical spring force in the actuator.

• More precise boost curve and wider range between minimum and maximum boost compared to conventional single-port actuators

• Ideal for traction-limited applications where precise control is important, such as frontwheel-drive or drag racing vehicles

• Billet construction for greater durability and strength than a stock wastegate actuator

• Improved response means boost comes on faster and holds longer, with less drop off at high RPM

• Interchangeable springs for a huge range of boost levels

Oil Pressure Regulators

Turbo Oil Pressure Regulators (OPR)

Turbosmart’s new patent pending OPR T40 is an oil pressure regulation system for your turbocharger. The oil pressure regulator ensures the oil pressure going to the turbocharger never exceeds the maximum pressure turbocharger manufacturers specify for oil supply, regardless of engine oil pressure. The result is an oil delivery system that is more reliable and easier to setup than a standard restrictor system.

Constant Tension Clamps

Turbosmart stocks and recommends Murray Corporation Turbo Seal Series Stainless Steel Specialty Worm Drive Clamps.

• Two per pack

GenV HP Spring 40psi

Suit GenV HP External Wastegates. Allows ‘Up to’ 50 psi base pressure, when installed with 10psi Inner Spring.

Limited stock available for BOSCH parts as they are often discontinued without notice!

In-tank Fuel Pump

In-line Fuel Pump

/ HOUR @ 5 BAR

Known as the “NEW 044” this genuine pump is supplied direct from Bosch. Supercedes the 0 580 254 044

• Supercedes the 0 580 254 979

• M14x1.5 inlet fitting

• M10x1 outlet fitting

• M4 and M5 +/- screw terminals

• No non-return check valve

• Includes Pressure relief valve

• 60mm diameter body

As used in V8 Supercars

FPx-HF In-tank Fuel Pump (BR540)

390

PER

@ 5 BAR

Highest flowing Bosch in-tank fuel pump available!

• Up to 540 LPH @ open flow

• Up to 460 LPH @ 40 psi (2.75 bar)

• Up to 380 LPH @ 80 psi (5.5 bar)

• An amazing 270 LPH @ 145 psi (10.0 bar)

• High flow all the way up to the 190 psi (13.0 bar) pressure relief valve setting

• 9.0mm (nom.) barbed outlet fitting suits rubber or nylon hose

• Lightweight (550g) and compact 46mm body size

• Includes electrical connector with wires

• Includes high flow filter / inlet strainer

• Draws ~16A @ 40 psi (2.75 bar), ~19A @ 80 psi (5.5 bar)

NOTE: This pump needs to be securely installed inside the fuel tank via hanger or similar. Care should be taken to prevent separation of the filter from the pump.

• Flows ~10% higher than 044 / Weighs 15% less than 044 at 860g

• Current draw similar to 044

• M14 x 1.5 inlet & M10 x 1 outlet fitting

• External non return valve

• Pressure relief valve 8-10bar

• Not suitable for voltage regulation

• Compatible with Petrol E85 and Diesel

• Ideal for Generic & Custom applications

Fuel Filter

• Fuel filter, metal body

• M14 x 1.5 inlet port

• M16 x 1.5 outlet port

• Screw fittings suit high pressure applications

• Used in V8 Supercars

Adaptors to Suit

* May Require Custom Fittings & Adaptors

Sensors

Temperature Sensor 130° FOR LIQUID

Pressure Sensor

FOR

Pressure/Temperature Combined Sensor

FOR

- 10

•

•

•

•

•

Electronic Throttle

Electronic Throttle Body

•

•

•

•

Body Adaptors & Wiggins Clamps

Limited stock available for BOSCH parts as they are often discontinued without notice!

Exhaust Wrap

Tan or Black

Wrapping headers and down pipes is an important first step in controlling unwanted under hood radiant heat. Keeping exhaust gases hotter within the exhaust system helps in decreasing exhaust density and increases exhaust flow. This improves exhaust scavenging resulting in cooler air intake temperatures for an improvement in performance and a gain in horsepower. DEI’s Stainless Steel Locking Ties are the perfect way to fasten exhaust wrap for a easy, clean and professional installation.

• Reduces under hood temperatures a realistic 50%

• Improves horsepower

• Withstands 1,200°F direct/2,000°F radiant

• Only exhaust wrap with installation guide lines

• Added durability and heat retention

Titanium exhaust wrap, with LR Technology, is made from pulverized lava rock and stranded into a fiber material and is engineered to be stronger than typical wraps. It has the ability to handle higher heat for improved performance and durability!

• Withstands 1,800˚F direct/2,500˚F radiant heat

• High resistance to chemical, oil spills and abrasions

• Extremely pliable for easy install - will not shrink

• No need to “wet” wrap to install

NOTE: Our HT Silicone Coating spray shown on the next page is highly recommended for exhaust wrap to penetrate, seal, protect and prolong the life span.

Exhaust Wrap & Accessories

Thermal Protection

Exhaust Wrap Silicon Coating

EXO Series exhaust wrap is designed for extreme environment use. Traditional exhaust wraps have not been able to withstand the extreme use that off-road, dirt track, desert and other forms of driving have with exposure to water and dirt. The EXO Series (TM) is a dual-layer design using a combination of hi-temp glass fibre covered with a 304 grade stainless steel exoskeleton. This unique construction maintains high heat protection while offering superior abrasion and impact protection. The unique Air Gap Technology keeps direct contact of the glass fibre wrap off the hot surface, creating an insulating air barrier. It is easy to install on any type of header, exhaust pipe or exhaust system. It is ideal for high impact spot protection and in addition the stainless steel exoskeleton locks together when overlapped, keeping the wrap tight and making installation easy.

• Available in Black in either 10ft or 20ft rolls.

Pipe Wrap Speed Sleeves

HT SILICONE COATING

The High Temperature (HT) Silicone Coating provides lasting protection for any hot surface up to 1500°F. Seals exhaust wrap providing protection from oil, dirt and road grime. Don’t limit the use to exhaust header wrap, this products works well on headers, blocks, starters and even on your grill at home. PART NO.SIZECOLOUR

DEI010301 12oz Can Black

DEI010302 12oz Can Aluminium

DEI010303 12oz Can White

tail pipe to reduce heat Motorcycle pipes to prevent leg burns.

Lock Ties

Speed Sleeves provide everything needed to cover and protect primary exhaust header pipes. An alternative to wrapping complete headers and ideal for spot protection from heat generating pipes and manifolds. Serves as an insulator and radiant heat barrier. Quick and simple installation! Includes 8” wide exhaust wrap, lock fasteners and locking ties.

• Supplied wrap covers pipes to 2-1/2” diameter.

STAINLESS STEEL LOCKING TIES

These locking ties were designed to secure DEI’s exhaust wrap but the uses are endless. Made of high grade stainless steel they will withstand temperatures in excess of 2500°F and have a tensile strength over 100lbs. They will provide a finished look to any job quickly and easily.

PART NO.QTYLENGTH

DEI010201 8 Pack 8”

DEI010202 4 Pack 14”

DEI010203 10 Pack 20”

STAINLESS STEEL POSITIVE LOCK TIES

Designed to secure DEI’s exhaust wrap but the uses are endless. Made of high grade stainless steel they will withstand temps in excess of 2500°F and have a tensile strength over 100lb. They will provide a finished look to any application quickly and easily.

STAINLESS STEEL POSITIVE LOCK TIES

Saves time and hassle while providing a professional looking result. Simply slide the tool on the end of any ¼” nut driver, engage the tie, and twist. This gets the tie nice and secure. This Locking Tie Tool will fit on the end of any standard ¼” drive extension so working in tight spaces is not a problem. This specialty tool works with all popular styles of stainless ties - up to ½” wide.

Made from hardened tool steel and black oxide coated for years of trouble free use this is one specialty tool no tool box should be without.

Thermal Protection

Heat Protection

Cool Tape

Cool-Tape offers a flexible, easy to apply and ultra light weight solution to reflect heat and ideal for wrapping wiring, cables, hoses, fuel lines and covering seams. Made of one mil aluminised material bonded to woven fiberglass, Cool-Tape has a super strong selfadhesive backing capable of protecting up to 2000°F radiant heat and available in two different widths and three different lengths.

• Flexible and easy to apply

• Strong self-adhesive backing

• Withstands 2000°F radiant heat

• Secure & seal panels, seal air boxes & more

DEI010408 1-1/2”15 foot (4.55m)

DEI010416 1-1/2” 30 foot (9.1m)

DEI010413 2”60 foot (18.2m)

DEI010468 2” 30 foot (9.1m)

Reflect A Gold

We also have a huge range of Tapes and Adhesives worth checking out in our Tool section on page 194

A high performance reflector born in the aerospace industry for use in extreme temperature swing environments, this state-of-the-art polymer is extremely light weight and capable of handling continual operating temperatures up to 850 F.

Highly effective material for firewalls, fuel cells, engine covers, under hoods, engine compartment, bulk heads, seat bottoms - or any area that needs protection from heat.

• Reflects up to 80% of radiant heat

• Virtually NO clearance needed

• Fire resistant adhesive side rated up to 325˚F

• Self-adhesive backing for easy install and removal

Heat Screen

Heat Screen offers an excellent way to reflect radiant heat away from a vehicle‘s interior and because of its flexibility, can be trimmed-to-size to protect against excessive heat sources. Constructed of a high temperature resistant fiberglass material, and with a thickness of only .060”, Heat Screen features a thermal barrier on one side made of a superior reflective aluminised mylar surface capable of withstanding direct heat up to 1200°F.

Heat Screen can be used to protect areas where excessive heat can blister paint, where exhaust pipes run close to the fuel tank, and has many other applications including floorboards, body panels and under carpeting.

A high temperature adhesive such as DEI’s Hi-Temp Spray Adhesive or Heat Resistant Sealant/ Adhesive can be applied to secure Heat Screen or screws or rivets can be used. DEI’s Cool Tape is ideal for sealing and covering seams.

• Aluminised surface reflects up to 2000°F radiant or 1200°F direct /continuous heat

• Multitude of uses around race cars, boats, RV’s & trucks

• Great protection for painted surfaces

• Used in aviation and aerospace industry

• 36”x 40” Aluminised Mylar Radiant Matting

40” x 36” Aluminised Mylar Matting

Thermal Protection

Heat Protection

Floor & Tunnel Shield

Floor and Tunnel Shield was designed to withstand direct temperatures up to 1750°F. Because of its unique material, it is capable of insulating against unwanted road noise up to 50%. Constructed utilizing an embossed 10 mil aluminium face bonded to a 1/8” composite fiberglass insulation, Floor and Tunnel Shield is backed with an aggressive adhesive that holds past 450°F. Only 3/16” thickness it requires minimal clearance and can be shaped and trimmed for a custom fit.

Floor and Tunnel Shield provides the optimal way to reflect heat away from vehicle components and perfect for protecting under hoods, firewalls, fuel cells, exterior areas such as transmission tunnel, floor pans and other under-vehicle locations.

• Excellent heat and sound barrier

• Withstands 1750°F direct continuous heat

• Self adhesive backing for easy installation

• Unique material works in harsh environments

• Can be trimmed to fit any shape

Heat Shroud

FLOOR & TUNNEL SHIELD

1 BEST SELLER #

Reflect A Cool

Reflect-A-Cool, constructed of fiberglass material backed with a layer of aluminised reflective foil to handle direct continuous temperature of 400°F has many uses such as covering firewalls, marine engine compartments, RVs, in the tub of a racecar where typical mechanical fasteners cannot be used and has many industrial uses.

Reflect-A-Cool can be trimmed to fit just about any shape. Just measure, trim, face reflective side towards source of radiant heat and remove self-adhesive backing. It’s that easy.

• Withstands 2000°F of radiant heat

• Self adhesive for easy installation

• Can be easily trimmed to size

• Virtually NO clearance needed

Heat Shroud is made from a high temperature rated glass fiber fabric with an aluminized outer facing. Same as Heat Sheath but with the added convenience of hook & loop closure design along the open edges. Without the need of removing one end of connected wires, cables and hoses, simply wrap Heat Shroud around whatever needs protection and close edges.

• Convenient hook & loop designed edges

• Withstands 500°F direct continuous/2000°F radiant heat

• No need to remove wires and hoses

• Easily trimmed to length

• Fireproof

• 1/2” to 1-1/4” diameters x 3 foot length

HEAT SHROUD

PART NO. DESCRIPTION

DEI010405 1/2” to 1-1/4” ID x 3ft

Fire Wrap 3000

• Withstands direct heat up to 500°F

• Protects against oil, dirt, road grime and other contaminants

• Pliable enough to shape & fit tightest bends

Constructed from the same material as Fire Sleeve but with the convenience of a hook & loop edge closure design. Simply wrap Fire Wrap 3000 around wires, cables or hoses without the need of disconnecting.

Thermal Protection

Heat Barrier

Heat Sheath - Aluminized Sleeving

Designed to slide over wires, cables and hoses, Heat Sheath provides the ultimate protection from extreme heat as well as chemical and oil spills, dirt, grease and road grime. Constructed from a high temperature fabric and bonded to an aluminized material to reflect heat. Heat Sheath is fireproof and withstands direct heat up to 500°F.

• Pliable for tight bends

• Withstands 500°F direct / 2000°F radiant heat

• Five popular diameters to choose

• Trim to desired length

Ultra Sheath MA

Designed to be the ultimate protectection for your cables, lines, wire or hoses Ultra Sheath MA has a higher sustained heat capability up to 1100°F and is more flexible than standard foil or bonded aluminium products. Constructed from a process that impregnates molten aluminium to the core fabric, giving it higher heat reflective properties. It’s the perfect choice for tight high heat applications.

• Can be trimmed to length

• Direct heat up to 1100°F

• Easy to cut and trim.

Aluminized Plug Wire Sheath

Aluminized Plug Wire Sheaths are constructed from high-temperature rated glass fiber material bonded to a heat reflective aluminized material. Plug Wire Sheaths are an inexpensive alternative for protecting specific areas on both ignition wire and boot locations from damaging heat generating sources.

• Capable of withstanding 2000°F radiant heat

• Inexpensive alternative for protecting ignition wires and boots

• Ideal for protecting electrical wiring, harnesses, hoses, cables & more

• 3/4" diameter x 6" long

• 4 to a pack

ALUMINIZED PLUG WIRE SHEATH

MSCN recommends using Protect-AWire kits for ignition leads to prevent possible crossfire situations

Thermal Protection

Heat Barrier

Protect-A-Boots

Made from a high temperature resistant glass fiber material and treated with a proprietary coating, Protect-A-Boots provide spark plug boot and wire protection from extreme under hood heat.

• Double-wall construction for added durability

• Helps prevent burn-through, hardening and cracking of boots

•

in seconds

• Universal-fits most straight or angled boots

•

1200°F direct continuous heat

•

& protects against chemicals & resists water

•

length 6” / XL Length 8”

Protect-A-Wire

Protect expensive spark plug wire sets from potential burning, cracking, and hardening typically caused by severe under hood heat. Easily installs on wire by removing distributor boot and sliding Protect-A-Wire over spark plug wire.

• Constructed from high temp resistant glass fiber material

• Withstands 500°F continuous 1200°F radiant heat

• Four vivid colors; Silver, Black, Red & Blue

• Available in 2 and 8 cylinder kits

• Protects electrical wiring, speedometer cable, hoses & more up to 10mm diameter

• Includes DEI Hi-Temp Shrink Tubes

PROTECT-A-WIRE

Titanium Protect-A-Sleeve

DEI have taken their Titanium LR Technology ™ and made it into the best protection sleeve on the market. Capable of withstanding temperatures up to 1800°F (982°C) of direct heat and 2500°F (1371°C) of radiant heat, it can protect your wires, lines and cables from damage.

Available in 4’ lengths and includes high temp heat shrink ends. The 1/2” ID will fit larger spark plug wires and protect them from hot exhaust manifolds and headers.

PROTECT - A -SLEEVE

Thermal Protection

Heat Shield

Shrink Tube

Perfect for sealing spark plug wires to boots at each end forming a water-tight, weather proof seal. With a 3 to 1 shrink ratio, Shrink Tubes can be used to bundle wires as an alternative to tape or plastic ties.

• 3:1 shrink ratio

• Easy to install using a heat gun

• Clean and professional look

• 25 tubes to a pack

• Two sizes / Four colours

12mm

Grey DEI010811 Black DEI010821 Red

Blue

18mm SHRINK TUBE

Grey

Black

Red

Blue

Titanium Pipe Shield

Extreme heat can rob power and potentially damage engines, transmissions, hoses, and sensitive electrical components. DEI’s Titanium Pipe Shield combines the high heat tolerance of DEI’s proprietary LR fiber technology with a unique rivet-based clamp shield design to improve heat dissipation and cooling. DEI’s Titanium Pipe Shield provides heat protection up to 1350°F.

The unique shield standoff bracket design provides an air gap between the shield and pipe that together provides the maximum potential for cooling and heat dissipation.

With the strategic placement of DEI’s Titanium Pipe Shield near transmissions, brake lines, floorboards, body panels, diesel exhaust stacks or motorcycle pipes, radiant heat can be controlled for maximum protection and performance.

• Capable of handling high temperature exposure up to 1350° F

• Protects heat sensitive components, hoses, lines and wiring

• Easy to install with unique rivet-based pipe standoff brackets and pipe clamps

• Reduces heat from entering vehicle when placed on exhaust pipes

Form A Barrier

DEI010496

Black Onyx Pipe Shield 4”x8”

DEI Form-A-Barrier is designed to provide the best heat protection where high temperatures are problematic. It limits heat transfer on components that aren’t the easiest shape for a wrap or heat screen. Light weight, formable rigid shield provides excellent thermal protection up to 1300 degrees with a minimal gap of 1 inch to heat source. The barrier can be formed or bent by hand to conform to odd shapes. Resistent to most automotive chemicals, the Form-A-Barrier can be used in multiple locations including firewalls, interiors, engines and other areas.

• Protection up to 1300 degrees

• Light Weight

• Both Sides Have Reflective Material

• Easily Formable

ONYX PIPE SHIELD

Looking for DEI’s range of Radiator Relief products - check out our Race Car Maintenance section on page 182

Component Specific Products

Versa-Shield

Constructed using an aluminised reflective material along with a high temperature rated glass fiber insulation barrier, Versa-Shield™ is capable of reflecting up to 2000˚F of radiant heat.

Versa-Shield is ideal for protecting starters and solenoids from potential failure caused by extreme heat and has multiple uses such as protecting master cylinders, cool cans, distributors, fuel pumps, electrical boxes to name a few.

Simply wrap desired component with Versa-Shield and trim excess material. Edges attach to itself using a hook & loop edge closure design. In most cases there is no need to remove component when installing Versa-Shield.

• Withstands 500˚F of direct heat/2000˚ radiant

• Protective heat source barrier to prevent heat soak conditions

• Easy install-trim to size with scissors

• Can easily be removed for shows

• Starter / Universal Heat Shield

• 7” wide x 24” long

Ultra 47 Starter Shield

Designed for severe duty use, our new Ultra 47™ offers the highest level of protection. Constructed of two layers of material, a highly reflective outer layer combined with a high heat inner layer. Able to withstand direct heat of up to 1350°F, Ultra 47™ is the perfect choice for EXTREME high heat applications where engine heat soak is a problem.

• 24”L x 7”W size

• Hook & loop fastening system

• Length can be trimmed to size

• Protect against heat soak

• Prolong life of components by reflecting damaging heat

Cell Saver - Battery Insulation Kit

Batteries are very susceptible to heat and vibration that could cause premature failure and hazardous leaks. Cell Saver is very capable of damping vibration and will absorb and neutralize any damaging leaky battery acids. Cell Saver is easy to install and excess material can be trimmed to accommodate batteries of most sizes and shapes.

• Protects batteries from harmful radiant heat

• Material withstands up to 2000°F radiant heat

• Traps and neutralizes harmful battery acid

• Protects environment and your vehicle

• Completely safe to handle before and during installation

• Provides clean finished look with easy installation

Kit Includes:

• 40” long x 7” insulation material

• 12” x 7” treated base mat

• Edge sealing tape

Muffler Shield

The Best muffler shield/wrap on the market. Based off our proven Floor and Tunnel II heat shield, our new Muffler Shield is designed to wrap around just about any size muffler. Includes our tough Stainless Steel positive locking ties for a tight secure installation. Made from 10mil dimpled aluminum with a 1/8” needle glass insulator it can be easily trimmed to fit most mufflers. Greatly reduces radiant heat coming off your muffler resulting in a cooler interior and protection from damaging heat.

• Greatly reduce radiant heat from muffler

• Cooler interior

Firesleeve

Firesleeve

MSCN offers several brands of FIRESLEEVE to protect engine hoses and wires in high temperature applications. Sized for stainless steel braided hose. Use I.D. dimensions for other hoses or cables.

Firesleeve - Light Weight

Lightweight firesleeve is a very effective insulator. This silicone covered fiberglass sleeve is designed to protect hose assemblies in areas of high radiant heat its braided construction maintains excellent flexibility over its temperature range of -40°C to +220°C (-40°F to +428°F).

The sleeve is self extinguishing and has excellent fluid resistance. This sleeve can also be used to protect wire harnesses, sensor wires and, due to its elastic structure, small electrical components.

• Ligtweight - thin wall

• Black in colour

Firesleeve

Manufactured from high bulk braided fibreglass sleeving and coated with a custom compounded black silicone rubber to protect and extend the life of hoses, cables and wires.

• Continuous Operating Temperature: 260°C / 500°F

• Max short term exposure: 1300°C / 2370°F

• Outstanding Flexibility & Durability, Expandable for installation

• Colour: Shiny Black, Speedflow Size Identification

MSCN Firesleeve

This is a smooth silver silicone coated glass sleeving, engineered to withstand continuous temps to 500°F. It can provide short term direct flame protection and is expandable for easy installation over completed hose assemblies. It is sized to provide a tight fit on our braided hose.

An extensive range of FIRESLEEVE to protect engine hoses and electrical wiring.

Helps prevent potential burning, cracking and hardening typically caused by severe under hood engine bay heat!

Sized for stainless steel braided hose. Use I.D. dimensions for other hoses or cables.

Firefoil

Fire Foil Lite

An ultra-lightweight fiberglass laminated sleeve with a mylarized aluminium surface for radiant heat protection to 800°F, using an internal seam for a smooth exterior with no visible stitching. Repels brake fluid.

Accoustic Products

Fire Foil II

Fire Foil II is a very lightweight fiberglass sleeving laminated with a mylarized aluminium surface that provides radiant heat protection to 800°F. The mylar surface resists abrasion and brake fluid.

DEI Boom Mat

Boom Mat Spray-On

Both these products are NOT expandable, the sleeving should be slipped over the hose BEFORE assembly.

Boom Mat Spray-On sound deadening is perfect for reducing unwanted road noise and deadening vibrations in those hard to reach places such as trunk interiors, fender wells, undercarriage, body panels, rear quarters and inside door panels to name a few. Boom Mat Spray-On also serves as a thermal barrier insulating against unwanted heat.

Boom Mat Spray-On can be applied in multiple layers for even more sound deadening while handling temperatures up to 300 degrees F.

• Reduce unwanted road noise and vibration

• Won’t crack or chip

• Helps prevent rust

• Paintable in 6 hours

• Single can will cover approximately 20 sq. ft.

BOOM MAT SPRAY-ON

DEI050220 Boom Mat Spray-On 18 oz Can

Accoustic Products

DEI Boom Mat

Boom Mat

Boom Mat is a high quality simple and effective solution in eliminating the low frequency noise problems found in structure-borne vibrations caused by typical automotive noise sources. Simply trim to desired size, peel backing and apply to a clean surface.

Boom Mat is constructed of a viscoelastic polymer layer protected by a durable aluminum wear surface and it’s strong adhesive backing is unaffected by extreme hot and cold temperatures and can be applied to horizontal, vertical and inverted areas on metal, plastic, fiberglass and most other automotive surfaces. Available in a variety of sizes for a cost effective installation.

Use as a first layer for areas with contours and bends for vibration damping needs. High performance adhesive maintains adhesion throughout temperature extremes. Eliminates low frequency noise problems. Non-hazardous material. Flexible – can be applied to irregular surfaces, easily trimmed to size with Boom Mat Blade Lock Knife. User friendly peel and stick installation. Multiple uses including automotive, commercial and industrial applications, Durable weatherproof construction is also corrosion resistant & Flamability Rated. The industry standard in vibrational damping technology.

BOOM MAT

PART NO. DESCRIPTION

DEI050200 Boom Mat PA 12” x 12.5” (2 Sheets)

DEI050202 Boom Mat PA 12” x 12.5” (4 Sheets)

DEI050206 Boom Mat PA 12.5” x 24” (6 Sheets)

DEI050210 Boom Mat PA 12.5 x 24” (10 Sheets)

Applications

2 Pack - Speaker

4 Pack - 4 Speakers / Dash

6 Pack - Hatchback

8 Pack - Door / Ceiling

10 Pack - Trunk

20 Pack - Complete Interior

30 Pack - Complete Interior SUVs etc.

What’s in it for you...

• Enhances stereo performance

• Gives you a quiet and comfortable interior

• Minimal prep and install time

• Performs in extreme temperatures

• Saves you time and money by requiring only 25-50% coverage for optimal performance

Where to use: Floors, Door Skins, Trunks, Roofs, Any vertical or horizontal interior surface

Thick HD Damping

If vibration damping is the goal, then this is the product. Boom Mat Heavy Duty Damping Material is a flexible extensional viscoelastic damping material designed to provide maximum damping efficiency in the most demanding applications. Designed for use on large flat metal areas with minimal contours. Perfect for exposed areas where a paintable textured finish is desired. Currently available in 24” x 54” (.070” thick)

Use as a first layer instead of Boom Mat Damping Material for larger flat metal areas without complex contours.

A measured density of 111 lb/ft3 and a surface density of .65 lb/ft2. Provides the widest temperature range of active damping, essential in automotive applications.

Superior transmission loss performance of up to 3 db(A)

Supplied with a 96/lb bleached craft release liner, the thickest in the industry, for quick and easy installation over a variety of common and irregular surfaces

Excellent thermal properties and anti-corrosion protection

Flammability rating of UL 94V-0

Temperature range -20°F to 175°F

Black wrinkle finish wear surface gives a finished look

24” x 54” (.070” thick)

What’s in it for you...

• Best vibration damping in the market... PERIOD!

• Enhances stereo performance and sound

• Gives you a more quiet and comfortable ride

• Minimal prep and install time

• Performs in extreme temperatures

• Saves money by giving a finished look, no need to cover with a finishing layer

Where to use:

Large flat surfaces of sheet metal where the most demanding vibration damping is needed such as the Sides & Floors of: Vans, Trailers, Trunks - Wherever a finished look is needed

Accoustic Products

Under Carpet - Sound Deadening Insulation Material

Sound Deadening / Insulation Mat

Boom Mat Undercarpet™ (UC™) is a second layer sound deadening and insulation mat that will help you maintain a quality ride experience by preventing unwanted noise from being transferred into the vehicle’s interior. In addition to its sound deadening properties, this two layer acoustic material provides superior insulation keeping vehicles cool in the heat of summer, and warmer in cold temperature climates.

UC is made up of a top layer of flexible, one pound per square foot mass loaded barrier material, and a bottom layer of high quality industrial acoustical marine grade foam. These offer the most ideal way to maintain a “new car” driving experience by eliminating squeaks, rattles, vibration and unwanted engine noise and heat.

UC can be added under carpet, on fire walls, or anywhere in the interior of a vehicle where additional sound deadening or insulation is needed. For the ultimate experience in a quiet ride and interior comfort, Boom Mat recommends using UC over Boom Mat vibration dampening material.

UC can be mechanically fastened or tacked in place with Boom Mat Hi-Temp Spray Adhesive (# 010490) including vertical and overhead surfaces. UC is 3/8” thick and available in three sizes: 24” X 54” (9 sq. ft.), 48” X 54” (18 sq. ft.), and a Bulk 1’ X 54” W; part numbers: 050100, 050101 and 050102 respectively.

For the quietest ride possible, use Under Carpet as a second layer over Boom Mat Damping Material.

Features & Benefits

• 5.6 db(A) reduction... a 25% noise reduction over competitors product

• Perfect to use over Boom Mat

• Insulate from heat and cold

• Sound deadening 3/8” thick

What’s in it for you...

• Maximum noise control

• Enhances stereo performance & sound

• A quiet and comfortable interior

• No mould or mildew issues

• Combination of noise & vibration control

Where to use: Firewalls, Floor boards, Transmission tunnels, Behind rear seats, Inner wheel wells, Trunk floors, Rear qtr panels.

Under Carpet Sound Deadening - Lite

Under Carpet Lite is a superior sound decoupling material for those hard to cover areas like door liners, rear decks, headliners and more. Under Carpet Lite™, (UC Lite™) is a ½” thick multi-layer, high tech composite material designed to be extremely flexible and easy to install. UC Lite offers maximum thermal insulation in a lightweight padding that provides less heat transfer in the summer while protecting against the transfer of cold air in the winter.

UC Lite is also equally effective as a sound deadener that prevents the transfer of noise, including rattles and squeaks to ensure a “like new” driving experience and add longstanding value to your investment. The multilayer polyester/fiberglass composite material offers unmatched thermal and acoustic protection in an extremely flexible light weight package

UC Lite is recommended for use either alone, or as an added sound decoupler with Boom Mat vibration dampening material. It can be installed under carpet, behind door panels, under headliners, on fire walls, or any interior location. To install, simply fasten mechanically to the area, or tack in place with Boom Mat’s Hi-Temp Spray Adhesive (# 010490). Hi-Temp Spray Adhesive works well on both vertical and overhead surfaces.

Use as a second layer over Boom Mat Damping Material for superior light-weight thermal insulation.

Where to use: Floor pans, Fire walls, Transmission tunnels, Behind back seats, Inner fender wells, Trunk floors, Rear quarter panels, Under headliners, Kick panels.

Accoustic Products

Sound Barrier

Moldable Noise Barrier

Boom Mat Moldable Barrier is a highly flexible .5lb/ft2 sound & moisture barrier designed for those applications where Under Carpet space is limited, and the need to have an acoustical noise barrier is desired.

Conforms to the shape of your chassis, or for more intricate areas, can be molded with a heat gun. Even becomes quite flexible by simply warming the BM-MD outside on a sunny day.

Can be installed as is, or used with a decoupler such as the Boom Mat Lite for increased acoustical efficiency, an important consideration especially in the firewall area, or to control exhaust noise in the cabin. Blocks unwanted Road Noise when used over the entire surface area. Not a permanent installation, easily removable for service when required

• Moldable, conforms to shape of your floor pan

• Highly effective low cost alternative to using damping products only

• 1/16” thick

What’s in it for you...

• Easy installation

• Cost effective sound and moisture barrier

• Custom molded fit with heat application

• Easy removal for repairs or service

• Great vapor and sound barrier for door panels

Where to use: Behind door panels, Floor pans, Fire walls, Transmission tunnels, Behind back seat, Inner fender wells, Rear quarter panels, Trunk floors.

Leather Look Sound Barrier

The new Leather Look Sound Barrier is an ideal way to reduce noise and have a premium leather appearance. Available in a moisture resistant, black leather embossed wear surface features a 1 lb./ft. 2 loaded barrier and is designed for insulating trunks, door panels, floors, speaker boxes and package shelves – any interior area of a vehicle where a leather appearance would provide a finishing touch. Can be permanently installed with Boom Mat Hi-Temp Spray Adhesive or used as temporary protection in trunk and floor areas.

Function is equally important and the new Leather Look Sound Barrier is proven to significantly reduce incoming sounds caused by outside noise, troublesome rattles or squeaks, while providing a level of thermal insulation that lessens transfer of heat and cold in any climate.

Available in three sizes: 24” x 48” (8 sq. ft.), 48” x 48” (16 sq. ft.) and 48” widths sold by the linear foot.

Use as a second layer over Boom Mat Damping Material for the quietest ride possible with a finished embossed leather look.

Features & Benefits

• Embossed leather grain

• Finishing touch for your interior

• Insulate interior from unwanted heat & vibration

• Moisture resistant

• Heat resistant to 210°F

• 5/16” thick

What’s in it for you...

Stylish finished appearance

• Enhances stereo performance and sound

• Maximum noise control

• A quiet and comfortable interior

• No mould or mildew issues

Where to use: Headliner, Rear decks, Door skins, Trunk floors, Floor boards, Speaker boxes, Engine cover (dog house)

Sound Barrier

Speaker Baffles

Boom Mat speaker baffles maximize speaker performance by isolating the correct frequency responses while damping reverberation in the sheet metal and panel to frame resonance. Also forms a water tight protective shell to prevent moisture intrusion.

Closed cell polyethylene enhances frequency response for improved sound clarity. Isolates frequency responses and prevents sound from migrating to unfavorable areas in the vehicle such as door panels.

Available in different sizes covering the most popular speaker sizes. Closed-cell polyethylene enhances frequency response for improved sound clarity.

Thin material design offers less bulk for a clean and tight installation for professional finished appearance. Isolates frequency responses and prevents sound from migrating to unfavorable areas in the vehicle such as door panels. Serves as a protective barrier for speaker cone and voice coil against dirt and dust. Damping properties help reduce distortion for enhanced acoustical response.

Closed-cell material forms a cushioned seal between speaker and mounting surface to isolate speakers from vehicle. Acts as a protective guard for exposed speakers (example: speaker components visible in trunk area). Extends speaker lifespan and protects owner’s speaker investment.

• All sold in pairs

Accoustic Products

PART NO.

DEI050310

DEI050320

DEI SPEAKER BAFFLES

DESCRIPTION

Speaker Baffles - 4” Round (6” x 6” x 3.5”)

Speaker Baffles - 5.25” Round (6.5” x 6.5” x 4”)

DEI050330 Speaker Baffles - 6.5” Round (7” x 7” x 3.5”)

DEI050340

Speaker Baffles - 6.75”

DEI050380 Speaker Baffles - 6 x 9” Oval

Floor & Tunnel Shield II

Designed to provide the best possible heat protection in areas where high temperatures are always present and problematic. It limits heat transfer on fire walls, transmission tunnels, floor boards, fuel cells and other areas where heat is an issue. It also provides excellent light weight thermal protection, acts as a guard against track and road debris, and provides sound deadening as well. Constructed with an embossed 10 mil aluminum face bonded to 1/8” composite glass-fiber core and backed with a high temp super strong pressure sensitive backing, withstands up to 1750°F of direct continuous heat. The adhesive side holds past 450°F. It’s improved multifaceted modern aluminum surface offers improved reflectivity & rigidity and allows for ease of installation. At only 3/16” thick, this product can be shaped and trimmed for a custom fit and is ideal for minimal clearance areas. With a unique and patented finely woven glass-fibre backing it is the easiest, most cost effective way to control thermal transfer while protecting expensive components & occupants from extreme heat situations and sound.

Floor & Tunnel Shield II can be used on any number of surfaces including, metal, aluminum, carbon fibre, plastic, and more. Multiple uses include: fire walls, under hoods, transmission tunnels, floor pans, fuel cells, and exterior under vehicle locations – anywhere to reflect damaging heat.

• Blocks radiant heat from entering driver compartment

• Withstands direct high heat temperatures up to 1750°

• Serves as a barrier to unwanted road, tire, & engine noise

• Easy to form to shapes and contours

• Excellent heat & sound barrier

• Wind and water will not affect adhesive

• Minimum clearance required, only 3/16” thick

• Just trim, peel & stick

• Aggressive self-adhesive backing holds past 450°F

• Withstands 1750°F direct continuous heat

• Adheres to almost any surface or material including to fibreglass

FLOOR

DEI050509

Where to use: Fire walls, Transmission tunnels, On floor boards above header collectors, Catalytic converters, Mufflers and exhaust pipes, Fuel cells, Motorcycle fairings, Engine covers (dog house), Marine & RV compartments, Reflect turbo heat

Our safety gear is one of the most important sections of our catalogue. We put uncountable hours, days and weeks of effort into our Safety products. Not only do we have the best brands but we make sure they meet Australian safey standards required to keep our family of sports men and women safe.

Helmets

Pro Air Flow - Full Face

Pro Sport - Full Face Duck Bill

Available in White, Black or Flat Black

The Pro Air Flow helmets are unmatched by the competition. They come with with a unique six pad interior system which allows for resizing the helmet for a perfect fit along with corrugated ridges which allow for better heat transfer. The interior foced air channels were redesigned and improved upon, by incorporating additional ventilation ports strategically placed to provide optimal cooling throughout.

• stainless steel hardware and a kevlar chinstrap

• new head liner air channel design for better adjustability, added comfort and improved air flow

• removable pad headliner and cheek pad system for cleaning

• 0.125” Polycarbonate shield with tear off post

• compatible with Racing Optics or Ultra Shield tear offs

• large eye port offers greater visibility with rubber eye port seal

• M6 inserted for head-neck restraint devices

• fire retardant Nomex interior

These Pro Sport composite helmets have been designed for increased safety, comfort and unmatched quality at an affordable price. A unique six pad interior system allows resizing the interior for a perfect fit and is vacuum bagged and autoclave cured for superior helmet strength and durability. The duckbill style improves aerodynamics and reduces neck strain of drivers who race open wheel cars by increasing downforce in the front. Ventilation ports in the front and top rear help air circulation.

• Stainless steel hardware and a Kevlar chinstrap

• Interchangeable 6 pad headliner & cheek pad system

• Front/rear top venting

• 0.125’ Polycarbonate shield with tear off posts

• Compatible with Racing Optics or Ultra Shield tear offs

• M6 inserted for head-neck restraint devices

• Fire retardant Nomex interior

PART

PT800 SERIES - WHITE - SA2020 XXS, XS, Small, Medium, Large, XL, 2XL, 3XL

PT801 SERIES - BLACK - SA2020

Pro Air Flow - Full Face - Carbon Pro Sport - Full Face Duck Bill - Carbon

A light weight version of the Pro Air Flow shown above, but made from lightweight Carbon Fibre to help minimize the acceleration of the head during an impact due to increased g-forces. This has the same impressive features as the Pro Air Flow helmet shown above!

A light weight version of the Pro Sport shown above, but made from lightweight Carbon fibre to help minimise the acceleration of the head during an impact due to increased g-forces. This has the same impressive features as the Pro Sport helmet shown above.

Helmets

Helmets

Pro Airflow - Full Face Duck Bill

Pro Sport - Side Forced Air Full Face Duck Bill

Pyrotect’s patented SA2020 Pro Airflow carbon helmets are unmatched by the competition. They come with a unique six pad interior system which allows for resizing the helmet for a perfect fit along with corrugated ridges which allows for better heat transfer to keep you cooler and reduce fogging.

• 100% carbon weave vacuum bagged and autoclave cured light weight shell for maximum durability

• Stainless steel hardware and a Kevlar chinstrap

• New head liner air channel design for better adjustability, added comfort and improved air flow

• Removable six pad headliner and cheek pad system for cleaning and easy resizing for a perfect fit

• 0.125” polycarbonate shield with tear off post

• Rubber eye port seal

• Compatible with Racing Optics or Ultra Shield tear offs

• Large eye port offers great visibility

• M6 inserted for head neck restraint devices

• Great aerodynamics

• Fire retardant Nomex interior

• Snell SA2020 rated

• Sizes M, L, XL & 2XL only

Helmet Shields & Stickers

Pyrotect’s SA2020 Tri-Weave Composite helmets are designed for increased safety, comfort and unmatched quality at an affordable price. They come with the same features as the other helmets in the range, but these feature the Side Forced Air vents for use with ventilation system. The helmet is designed with a duckbill and built in airfoil on the back to reduce neck strain and wind drag.

• Composite Tri-Weave vacuum bagged and autoclave cured lightweight shell for maximum durability

• Stainless steel hardware and a Kevlar chinstrap

• Interchangeable six pad headliner and cheek pad system for better adjustability, added comfort and cleaning

• 0.125” Polycarbonate shield with tear off posts

• Compatible with Racing Optics and Ultra Shield tear offs

• Large eye port offers great visibility

• Great aerodynamics due to the duckbill design

• Available in White and Black

• Available in M, L, XL, 2XL & 3XL only.

Helmet Cheek Pads

“The real innovation of the PYROTECT Helmets is the convenient, easily removable/replaceable cheek pads.”

Available in four sizes and all sold as a pair.

Helmet Accessories

Helmets - Accessories

Helmet Strap

Attach to a D-ring on your helmet and insert into the harness to reduce the movement of the helmet under acceleration. Fully adjustable length and includes a D-ring.

• Colour: Black

Helmet Skirt

Designed to fit to the bottom of your helmet to help keep the air inside your helmet clean while adding protection against fire & smoke. Includes self adhesive Velcro for installation.

• Meets SFI 3.3/5 specifications.

• Colours available: Black / Blue / Red

Helmet Support

Made from high density foam to help support the helmet and restrict movement. Size - adult 16” circumference. Meets SFI 3.3.

• Colours: Black / Blue / Red

HANS Posts

DOES NOT include threaded backing plate.

• Suits 2015/20 models with backing plate pre fixed to helmet.

Balaclavas

Lid Lifter Balaclava

The retrieval of a driver from a crashed car is an extremely delicate operation to be performed solely by professionals. Removal of the helmet is the one of the first steps of extracation and first aid. To minimise the risk of damage to the cerebral vertebrae Stand 21 have introduced this new device. Developed with medical motor racing personalities it is made of an exclusive airy fabric offering comfort, protection and also helps with perspiration.

Meets FIA and SFI 3.3 specfications. Available in black only.

Helmet Sizing Chart

Be sure to measure around your head just above the ears.. Refer to the chart below for your correct helmets size. Helmet must fit properly for optimum performance.

Don’t guess your size. Your helmet must be securely and snugly fastened before engaging in any activity.

Black Top Fit Balaclava

Massive research and development was performed to refine both sides of the assembly seams of this balaclava to best fit all heads while eliminating any hindrances that would have caused even minor discomfort.

• Meets FIA and SFI specifications.

• Black with grey overstitching.

• Get both a small or larger opening from the same balaclava

• Drink straw hole.

Two sizes available: Small: 54-57, Large: 57+

Safety Underwear

Fire Resistant Underwear - PXP Range

Long Sleeve Undershirt

Wicks sweat away from your Racing Suit keeping it much fresher - perfect for those race meets that last for several days between washes

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI 3.3 certification tag sewn on)

• Non fade - Black

Balaclavas

Balaclava with large single eye port. Choose from the Single layer option or for an even safer option choose the Double Layer version.

• Non fade - Black

• Wicks sweat away from your Helmet

• All PXP underwear is also machine washable

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI 3.3 certification tag sewn on)

Long Pants

Don’t forget to see our NEW Stand21 range on page 130

PXP’s long pants or bottoms - the latest technology in fabrics to keep you safe and comfortable.

• Non fade - Black

• Wicks sweat away from your Racing Suit keeping it much fresher.

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI 3.3 certification tag sewn on)

PXP Professional racewear with fire resistant fabric - racing’s most comfortable underwear. The latest technology in fabrics to keep you safe and comfortable.

Racing Socks

Very comfy racing socksexceeds SFI 3.3.

• Non fade - Black

• Wicks sweat away from your Racing Shoes or Boots

• Exceeds SFI 3.3 and is legal in all racing sanctioning bodies requiring SFI testing (SFI 3.3 certification tag sewn on)

• Solution-dyed - so the colour won’t wash out or fade and is machine washable

• Retains its shape so your underwear won’t stretch out and look sloppy

• Quality sewing and construction

Fire Resistant Socks

Socks - FIA

FIA8856-2000 homologated. These socks come with reinforced heels and keep your feet comfortable and dry.

MSCN TURBO ALTERED - DRIVER CHRIS MANKS

-5 SERIES Driving Suits - Fire Safety 3-2A/5

1 2 PIECE & DRIVING SUITS

Driving Suits

Meet the SFI 3-2A/5 standard required in many forms of motorsports. Choose from either a 1 or 2 piece suit

• 2 layers of fire retardant

Proban

• White Piping Trim

Box Quilt

Wrap Around Collar

360° Sleeve Gusset

Contoured Epaulet

Knit Cuffs on wrist and ankle with Straight Boot Cut.

SFI 3-2A/5 approved with ag sewn into left arm.

SUIT OPTIONS

• Sewn in arm restraints

• Custom sizing

• Custom embroidery

1 Piece 3-2A/5 Suit

PART NO.STYLESIZE

DJ012100 1 PieceS-XXXL

2 Piece 3-2A/5 Suit

PART NO.STYLESIZE

DJ012200 JacketS-XXXL

DJ012300 PantsS-XXXL

FEATURES YOU WON’T FIND ANYWHERE ELSE!

Suit Sizes

SIZEHEIGHTWEIGHTCHESTWAISTINSEAMSLEEVE

Small5’6”-5’9”55-70kg36-39”28-29”27-29”30-32” Medium5’9”-6’70-80kg40-43”30-34”30-31”31-32” Large5’9”-6’1”80-90kg44-48”35-39”31-32”32-33” XL5’11”-6’2”90-100kg49-52”40-44”31-32”33-34” XXL6’-6’3”100-110kg56-56”45-49”32-34”33-34” XXXL6’3”115kg +56”51”34”34”

Driving Suits

-5 SERIES Driving Suits - Fire Safety 3-2A/5

We have assembled a variety of suit packages to cater for a wide array of motorsports - the most economical way to buy your gear! See the 3-2A/20 packages on the following pages if you need higher spec.

“Entry Level” Packages

Kit includes:

• One piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Suit colour - black

2 PIECE SUIT

1 PIECE SUIT

Kit includes:

• Two piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Suit colour - black

“Race Ready” One Piece Package

Kit includes:

• One piece 3-2A/5 suit

• SFI 3.3/5 gloves & shoes

• Helmet.

• Suit colour - black

STAY SAFE ON THE TRACK

“Race Ready” Two Piece Package

Kit includes:

• Two piece 3-2A/5 suit

1 PIECE SUIT

• SFI 3.3/5 gloves & shoes

• Helmet.

• Suit colour - black

Driving Suits / Arm Restraints

-20 SERIES Driving Suits - Fire Safety 3-2A/20

DJ Safety manufactures their SFI 3-2A/20 suits from the best quality materials to meet and easily exceed the SFI 3-2A/20 standard required for professional Drag Racing classes.

Features include: 4 layer light weight construction, Box Quilt, Wrap Around Collar, Knit Cuffs on wrist and ankle. Choose from either a 1 or 2 piece suit in a standard range of colours and sizes.

SFI 3-2A/20 approved with tag sewn into left arm. For the best protection and comfort - choose DJ Safety Inc!

1 & 2 Piece Firesuits 3-2A/20

Arm Restraints

Arm Restraints - SFI 3.3

Our Arm Restraints have a 2” wide arm band with a fully adjustable Velcro system. 1” wide individual straps are fully adjustable from 4-15” with a steel buckle clip to attach to the harness.

• Meets SFI 3.3 specification.

• Colours: Black / Blue / Red / Grey / Purple

•

•

•

Approved for all types of racing where arm restraints are required. Suits both Latch and Cam Lock Harnesses.

Boots & Gloves

Gloves, Shoes & Boots

Sportsman Glove

Ensures a fire resistant coverage of your hand with a high grade leather palm and finger surface with a padded leather grip and knuckle guard. This is a mid length glove with an elastic wrist.

• Meets SFI 3.3/5 specification.

• Colours: Black or Blue only

Pro Series 3.3/15

Made from several layers of fire resistant material. High grade leather palm and finger strips and a leather encased Velcro adjusting strap. Full length gloves to give maximum protection to your hands and wrist joints.

• Meets SFI 3.3/15 specification.

• Colour: Black with Tan inserts

• Available in sizes Small to Extra Large

Glove Sizing Chart

NOTE ON GLOVES &

Style to change without notice. Please call or view our website for current styles.

Sportsman SS Shoe

The Sportsman Shoe (SS) is a high top design made from a satin suede leather with toe, lace and heel guard reinforcements. Interior is a fire resistant fleece for comfort using a padded sole insert with lace up and twin straps to secure your foot.

• Meets SFI 3.3/5 specification.

• Colours: Black only

-20 Shoe

To suit Top Fuel, Alcohol & Doorslammer, this shoe is designed to meet this tough environment without the use of an over boot. This makes a much more comfortable feel without sacrificing safety. Made from multiple layers of fire resistant materials to meet the SFI 3.3/20 specification.

• Colours: Black only

Funny Car Over Boot

To suit Top Fuel, Alcohol & Doorslammer or where an over boot is required. Made from multiple layers of fire resistant materials with a suede leather sole and heel guard with full length Velcro side flaps for easy entry along with a fully adjustable instep strap.

• Meets SFI 3.3/20 specification.

• Colours: Black only

• Use with -5 shoe

Shoe Sizing Chart

Stand 21 Boots & Gloves

Ultimate Racing Gloves SFI 3.3/20

These are extremely lightweight - each glove weighs 125 grams. They provide exceptional fire protection

• SFI Rated 3.3/20

• Colour is black & tan

• All sizes available

Boots & Gloves

Ultimate Racing Boots SFI 3.3/20

If you require exceptional fire protection and the lightest boots around - these are the boots to get. SFI 3.3/20 certified

• These weigh in at an incredibly light 340 grams (each boot).

• Suitable for Pro Slammer, Supercharged Outlaws and Top Fuel

• Fully lined in grey aramid

• Padded ankle

• Ultra low back

• Curved sole around the heel with shock-absorbing heel

• Two ankle Velcro-fastening straps

• Contoured and padded tongue

• Color: black with red sole

• All sizes available

Note: you are not required to wear overboots over these boots.

Fire Resistant Underwear Stand 21 Hans Device

Topfit Pants

FIA 8856-2000 Homologated.

An exclusive lighter fabric offering comfort, protection, softness and helping perspiration.

• Available in black or white.

• Available in Medium, Large and Extra Large

Topfit EVO Top

An exclusive lighter fabric offering comfort, protection, softness and helping perspiration.

• 200 gr/m² emerized fabric (meta-aramid)

• Turtleneck

• FIA 8856-2018 homologated

• Available in black or white.

• Available in Medium, Large and Extra Large

Featherlite Series

This Featherlite is a true technological achievement in the FHR family, managing to provide the highest level of safety at the incredible low weight of 310 grams (12 ounces - not including accessories).

The use of ultra-high-strength carbon composites combined with a new and more ergonomic leg design make this FHR model the lightest such device ever created.

A revolutionary new belt loop allows for perfect integration within the cockpit thanks to a unique shape reducing the interference between the helmet and the seat’s headrest. It has quickly reached the world’s top racing class’ drivers and permeated in the professional racing classes and among the more demanding drivers in terms of performance.

Don’t forget to see our other Safety Gear Underwear on page 125

Stand 21 Hans Device

Club Series

The 20° Club Series has been developed to offer a more economical HANS for the clubman competitor in rallying and saloon car racing. While more economical it offers all the safety standards of the far more expensive versions but at a more affordable price.

The Club Series device is manufactured from plastic in an injection moulded construction, but unlike other plastic Sport Devices (1160 grams) and Defnder(1200 grams) it weighs in at a much lighter 950 grams, some 30% lighter, and is only 100gm’s heavier than the Carbon Racing Series.

The Club Series is FIA homologated and uses the same evolution design as incorporated on the Racing Series, making it far more comfortable to wear, and easier to use in the car due to its wider seat belt slots.

Available in a two sizes that fits almost most medium to large drivers. Supplied with sliding tethers for full head rotation when connected to a helmet.

Hi Tec Carbon Series

The Stand 21 Hi-Tec HANS device is made from high strength carbon fibre and complies with FIA 88582002, a standard which established the criteria for optimal resistance to the forces applied to a driver’s head and neck in the sudden deceleration experienced in an impact.

The Hi-Tec HANS weighs 610 grams and comes fitted with sliding tethers for ease of movement.

This 20° HANS device comes in either a or Medium/Large size to suit many drivers. The Club Series 3 is very lightweight - weighing in at ony 640 grams (for the main part).

It is made from a Thermoplastic injected resin reinforced with carbon fibre and is handmade in France.

It is supplied with black paddings, sliding tether and protective bag. It comes as standard with a sliding tether offering the driver more head rotation but still giving protection against whiplash injury in an accident.

• FIA 8858-2010 certified

• High end ergonomics and comfort

Club Series 3 Ultimate Series

Exceptional ergonomics, geometrics and light weight. The Ultimate device is the world’s most evolved device to date. The all-carbon monolithic technology allows a new design for the device arms - their thickness is greatly reduced from 14mm down to 4mm which also improves the fit between the driver and the device.

The arched top has been reengineered and re-designed offering a reduction of the physical thickness to below 2mm which in turn allows a reduction of helmet-to-seat / headrest space to improve safety. FIA 88582010 certified and supplied with sliding tethers allowing greater head motion.

HANS POSTS Find them in our HELMETS at the beginning of this sectionsee page 122-123.

TOP SELLER

Sportsman Chute Sportsman 250 Chute

DJ Safety manufactures these parachutes with the sportsman racer in mind. They are made from a very strong long lasting material that can take the beating of going round after round as common within the sportsman ranks.

The chutes are a 12ft crossform design with eight canopy lines. Designed to be used for vehicles reaching up to 200mph. Parachutes come ready for racing, complete with Pilot Chute, a choice of either Black or Silver (at an extra cost) chute pack and Safety flag/pin.

• 9” x 9” x 5” tall

• Available in black, blue, red or purple.

Replacement Chute Packs

Custom sizes, colours & styles can be made to order to your specifications - call today for more information!

Manual Launcher Upgrade

An alternative to using a pilot chute, these launcher systems include a new pack and associated parts to convert your vehicle to a launcher system.

A newly designed chute for sportsman style Sedans or Altereds running 180-260mph (Must use x 2 over 200mph). This chute is modelled from our popular Sportsman 12’ chute but made from heavy duty Twill Material and heavier canopy lines to endure the stresses of high MPH vehicles. Parachutes come ready for racing, complete with Pilot Chute, Black chute pack and Safety flag/pin.

• 9” x 9” x 5” tall

• Available in black, blue, red or purple.

• Not recommended for cars over 2500lb.

Pilot Chute, Spares & Cable

Pilot Loop Straps attach to the small end of the pilot to connect the pilot chute to the bridle line. The bridle line connects the pilot chute and canopy.

PART NO. STYLE SIZE

DJ852200 Release Cable & Handle 13ft Long

DJ852809 Pilot Chute - suit all DJ Chutes8” Dia x 17” Long

DJ852809-SIMP Pilot Chute - Simpson Replacement8”

DJ852809-1 Pilot Loop Straps6” Long x 5/8” Wide

DJ852003 Bridle Line - 3 foot 5/8” Wide

DJ852005 Bridle Line - 5 foot 5/8” Wide

DJ852006 Bridle Line - 6 foot 5/8” Wide

C72-200 Parachute Mount Kit - Chromemoly7-1/4” x 7-1/4”

Parachutes

Parachutes

12’ Comp Series Chute

Suits vehicles running between 180-220mph, making it suitable for many classes of cars, from Sedans to Funny Cars and Dragsters. They are made from a very strong twill nylon material, the same as used in our Pro Series Chutes to deliver fantastic stopping power for your vehicle! They are designed to be used for vehicles reaching up to 220mph. When running over 200mph you require 2 parachutes for your car!

Parachutes come ready for racing, complete with Pilot Chute,

• 9” x 9” x 7” tall

• Black nylon chute pack and Safety flag/pin.

• Available in black, blue, red or purple.

12’ Pro Series Chute

These parachutes suit Pro Class cars that can reach speeds of 330mph. Suitable for Top Fuel, Top Alcohol & Top Doorslammer. They are made from a very strong twill nylon material that can take the severe strain of being deployed at high speeds. The chutes are a 12ft crossform design with eight canopy lines. Parachutes come ready for racing, complete with Pilot Chute,

• 9” x 9” x 7” tall

• Silver chute pack and Safety flag/pin.

• Available in black, blue, red or purple.

12’ Sportsman Chute

Suits: Sedans, Altereds & Dragsters up to 180mph

• 7” x 7” x 5” tall

DJ Safety offers a full custom chute service. If you need a parachute for a Boat, Land Speed / Salt Car, Top Fuel Motorbike or any other application, DJ Safety & MSCN can handle your enquiry. Custom Lettering is also available on all chutescontact us for more info. PART

Jim Deist is credited with developing the sport’s first drag chutes back in the late 50’s. It has maintained a position of leadership to this day. Deist Chutes have always employed the latest state-of-theart materials and technology. We are also able to custom build chutes to order and can supply chutes for Salt racing, Boat racing, or any other custom parachute.

Safety Flag

DJ Safety / Motorsport Connections safety flag secures your parachute from accidental deployment in the pits, staging lanes or during transport. It can also be used for any safety pin, such as fire bottles, throttle stop etc. The long bright yellow tag with DJ and MSCN logo won’t let you forget that the locking pin is in place.

PART

Engine Diapers

Ballistic Nylon Diaper

These will fit standard style stepped sumps and aftermarket accessories. If you have clearance issues or need to clear a cross member or dry sump pump, the special series will solve your problems. They are light weight and fit perfectly, and will contain oil & parts without leakage as common with universal diapers! SFI 7.2 Spec.

Ballistic Nylon Diaper - Flat Pan

These Ballistic Nylon Diapers carry an SFI 7.2 Spec and are designed for Sportsman vehicles (Sedans, Dragsters, Altereds) that use a flat style pan or have no issue with space or cross members. They are light weight and fit perfectly, and will contain oil & parts without leakage as common with universal diapers! Available with Quick Disconnect adjustable Bolt-On or Frame Rail Straps.

Top Fuel Soft Kevlar Diaper Carbon Fibre Bucket Diaper

Soft Kevlar Diapers are the next step from the Ballistic Nylon - the Kevlar version is stronger and fire resistant. These meet the higher SFI 7.1 Specification as required in Top Fuel!

Custom made diapers are available - please contact us for more info.

Complete with Quick Release Adjustable Kevlar Straps & Absorbent Pads.

Diaper Straps & Spares

The top of the line, easy to take on & off the car, strong & light. These are the choice of professional teams worldwide! These meet the higher SFI 7.1 Specification as required in Top Fuel! Custom made diapers are available - contact us for more info. Complete with Kevlar Liner, Quick Release Kevlar Straps & Absorbent Pads.

Diaper Absorbent Pads

We carry replacement pads to suit the DJ Diapers. We also have the Diaper Tube that is inserted in the diaper around the pan for added absorption.

Engine Protection

Blower Restraints

Universal Blower Restraints Blower Restraints - SFI 14.1

These universal blower restraints have a aluminium top plate with a small opening to suit most blower openings. The straps are fully adjustable from 6” to 28”. Paddles and hardware included. *Extra holes may need to be drilled.

PSI Restraint - SFI 14.21

DJ Safety make Screw-Type Supercharger Restraint Devices & Bags to suit Top Alcohol & Top Doorslammer when you are running a PSI or Whipple style superchargers. Please contact us for an information/order sheet to determine the correct restraint.

We carry a large range of SFI 14.1 blower restraints on the shelf to suit different blower openings and engine combinations. Simply measure from the top of the supercharger to the top of the cylinder head to determine your strap length. Made from an aluminium top plate and non adjustable Kevlar straps with silver fire resistant cover and include all hardware to install.

Custom length straps are available by special order along with a huge range of top plates to suit a variety of superchargers and inlets!

Blower Restraint - SFI 14.2

We have custom made Alcohol Supercharger Restraints & Bags to suit Top Alcohol & Top Doorslammer when you are running a roots style supercharger. Contact us for an information/order sheet to determine the correct restraint.

/ Doorslammer - PSI Supercharger

Blower Restraint - SFI 14.3

Designed to suit the explosive nature of Top Fuel, the 14.3 spec restraint is available by custom order only to suit your combination. Please contact us to fill out an information/order sheet to determine the exact restraint & bag. From nostalgia to modern fuel cars - DJ has the right equipment!

Blower Restraint - Spares

MSCN carries replacement hardware in stock, call for more info. If you have a damaged restraint or bag, need to make your straps shorter or longer, we can help. DJ has the ability to fully service any restraint and can recertify to the latest SFI spec and date in the process.

Roots Blower Top Fuel Superchargers

Transmission

Blankets / Tow Straps

Auto Lenco Other Transmissions

Made from Ballistic Nylon, these trans blankets simply wrap around the case of the transmission and are held in place with buckles and forward mounting straps. Designed to contain parts within the blanket if a failure occurs. Custom blankets are made to order. Meets SFI 4.1 specification.

Blankets can be made to suit almost any transmission, other styles are availablecall with your enquiry.

Tie Downs & Tow Straps

Tiedowns

Made from 2” webbing with a heavy duty ratchet in two standard lengths of 8 and 12 foot.

Standard colour is black, custom colours and lengths are available by special order. Call for details.

Available to suit with or without reverser. All styles are available in CS1, CS2 and CS3 cases.

Attachment Straps Slings, Straps & Hardware

Made from 2” webbing in two different styles. The Hook & Loop system are adjustable while the D ring style are a set length.

Standard colour is black, call for custom colours.

Harness Systems

Motorsport Harness Systems

DJ Safety Motorsport Harness Systems are proudly made in the USA at our factory located in Los Angeles California. Made by craftsmen using quality hardware to stringent quality control so that you can feel 100% confident in securing yourself into your vehicle. All restraint devices made by DJ Safety carry the SFI 16.1 specification with current dates as required by many sanctioning bodies around the world. Our huge inventory will be able to suit any vehicle, with several options available to make your installation easy and hassle free. Custom systems are available by special order with a wide variety of colours to choose from along with new style adjusters and helmet restraint harness systems. Talk to one of our sales team for more information.

Integral Latch Cam Lock

Optional Sewn in shoulder Pads available Bolt In

Pull Up Adjuster or Pull Down Adjuster

Optional 2” Webbing Helmet Support Shoulder Restraint

Optional Loop Shoulder Harness (Shown with Fireproof Cover)

Cam

Dragster

Sedan

Junior Dragster

Fire Suppression

Coldfire - Fire Suppression Car & Marine Kits

Starter Kits - SFI 17.1

1 x 10lb Coldfire Bottle - Choice of 3, 6 or 9ft Cable

1 x Bottle Injector Head, 3 x DJ Nozzles - 3 x Nozzle Tees

12.5ft Roll Aluminium Tube, Tube Nuts, Sleeves and Adapters, Instructions & Stickers

* Please specify cable length required.

See our Technical pages at the end of the catalogue for more info...

Funny Car Kits

2 x 10lb Coldfire Bottles - Choice of 3, 6 or 9ft Cable

1 x Standard Injector Head - 1 x Pneumatic Injector Head

6 x DJ Nozzles - 4 x Nozzle Tees - 2 x Nozzle Ends

25ft Roll Aluminium Tube, Tube Nuts, Sleeves and Adapters, Instructions & Stickers

* Please specify cable length required.

DEAD HEAD SYSTEM

Marine Kits - SFI 17.1

Both kits come complete with 3, 6 or 9ft Cable,

1 x Standard Injector Head

8 metres of Teflon Braided Hose, Instructions & Stickers

Single Bottle Kits also come with 1 x 10lb Coldfire Bottle,

3 x DJ Nozzles, 2 x Nozzle Tees & 1 x Nozzle End.

Twin Bottle Kits also have 2 x 10lb Coldfire Bottles, 1 x Pneumatic Injector Head, 6 x DJ Nozzles, 6 x Nozzle Tees & 1 x Nozzle End

* Please speci length required.

Doorslammer Kits

2 x 10lb Coldfire Bottles - Choice of 3, 6 or 9ft Cable

1 x Standard Injector Head - 1 x Pneumatic Injector Head

6 x DJ Nozzles - 6 x Nozzle Tees, 25ft Roll Aluminium Tube Tube Nuts, Sleeves and Adapters, Instructions & Stickers

* Please specify cable length required.

SFI 17.1

LOOPED SYSTEM

Fire Suppression

Coldfire - Fire Suppression Systems

Injector Heads Replacements

Cable Assemblies

Spares

Coldfire Recertification

Servicing

MSCN is an Authorised Agent for DJ Safety to service and recertify Coldfire Fire Suppression Systems to ANDRA Specification and SFI 17.1. The process includes: We only service DOT 3AL stamped bottles.

• Clean, Check Bottle Integrity & Gauge Accuracy

• Refill Bottle with Coldfire Agent mix & Replace burst disc & O-rings

• Pressurise Bottle to Recommended Spec. & Apply new Date Tag The bottles are left to settle

3-5 days before returning to you.

Bottle Brackets

Coldfire - Fire Suppression Systems

Coldfire is an environmentally friendly fire extinguishing agent that is leading the way in fire fighting technology and revolutionizing the way firefighters combat fires. Coldfire works to remove heat and the hydrocarbon fuel sources from the fire triangle. The suppressants in Coldfire use water as a catalyst to remove the heat as well as encapsulate and breakdown the hydrocarbons in the fuel source to extinguish the fire more rapidly. Coldfire extinguisher kits are now available for Motorsport and Marine applications. MSCN can also custom kits for industrial and other applications.

• Every second counts

• Super effective on A,B and D type fires

• Leaves surfaces cool to touch

• Trusted and used by professionals for years

• Completely environmentally friendly

• Refilling available from any MSCN store

• No Damage to paint

• Will not harm driver

Fire Systems

A,B

FIA 2.25L Electrical Fire System

This FireSense slim-line electrical fire system has been created for use in competition vehicles and offers the latest in on-board fire suppression technology.

SFI 17.1 Novec 5lb Mechanical Fire System

This certified fire suppression system uses Novec 1230 Fire Protection Fluid which is an ozone friendly, next generation, halon replacement gas that has excellent fire suppression properties. It is safe for the driver, nonconductive so it’s safe on delicate electronics and won’t leave residue as it evaporates and therefore requires no clean up.

The systems comes with:

• 1 x bottle filled and pressurized with activation type of your choice

• 2 x nozzles

• 1 x bulkhead fitting

aluminium tubing

• 1 x standard bottle mount

• 1 x tee fitting

• 10ft

Uses Aqueuous Film Forming Foam (AFFF) which is alcohol resistant, non-toxic and ozone friendly.

& D Class Fires

THE FIRE TRIANGLE

Without sufficient heat, a fire cannot begin. Without fuel, a fire will stop.Without sufficientoxygen, a fire cannot begin.

See our Technical pages at the end of the catalogue for more

info...

FireSense® Suppression Systems

Steel Mechanical Kit - 4.0L

New and improved for 2018 onwards, improved flow rate and nozzle atomisation. This FIA approved system comes as a complete kit ready to install. Tested by the British standard institute on behalf of the FIA. FIA Homologation No. - EX.045.17

• FIA approved/homologated system

KIT INCLUDES;

• 4 x AFFF Nozzles - 2 for engine, 2 for cockpit

• 4.5 meters 8mm tubing / 0.5 metre 10mm tubing

• Bulkhead connectors and T-Pieces

• Mounting brackets & Anti-torpedo tabs

• Mechanical Pull cables - 6ft interior & 12ft exterior

Alloy Electrical with Auto Activation

Fitted with an automatic activation in the event temperatures rise too high within the cockpit area. Comes as a complete kit ready to install. Tested by the British standard institute. FIA Homologation No. - EX.045.17

KIT INCLUDES;

• Power Pack control box

• 2 x Hirschman Leads

• 2 x Activation Buttons - Internal & External waterproof

• 4 x AFFF Nozzles - 2 for engine, 2 for cockpit

• 4.5 metres 8mm tubing

• 0.5 metre 10mm tubing

• Bulkhead connectors and T-Pieces

• Mounting brackets & Anti-torpedo tabs

• 2 x E stickers - Small for interior & Large for exterior

400S Extinguisher System - Steel Mechanical

Extreme® Suppression Systems

SPA Extreme Fire System 3.0Kg Electrical

The SPA extreme system using 3M’S Novec 1230 Fire Protection Fluid. Carrying the latest FIA homologation EX.029.09. Environmentally friendly, non-toxic, nonconductive, non-corrosive, alcohol-resistant (effective on methanol fires), and ozone-friendly. It is stored as a liquid that releases as a gas and leaves no residue - zero clean-up afterwards, and has no effect on delicate electronics. Specifically designed for use in closed cockpit cars, rally, saloon and sports cars. Utilizing multi-directional nozzles, it gives impressive results in fire knockdown and fire out properties in record times. Compact and easy to fit system, recommended for Bio fuel, petrol and diesel applications. All Cars competing in International Rally events from 2013 require a minimum 3.0kg system.

• FIA approved homologation number EX.029.09

KIT INCLUDES;

• Power Pack control box

• 2 x Hirschman Leads

• 2 x Activation Button - Internal with Shroud & External waterproof

• 4 x Multi-Directional Nozzles2 for engine, 2 for cockpit

• 4.5 metres 6mm tubing

• 2.5 metres 8mm tubing

• 1.0 metres 10mm tubing

• 0.5 metre 12mm tubing

• Bulkhead connectors and T-Pieces

• Mounting brackets & Anti-torpedo tabs

• 2 x E stickers - Small for interior & Large for exterior

Hand Held Fire Extinguishers

Hand Held - 2.4L

2.4 Litre hand held extinguisher that utilizes an alcohol resistant, freeze-protected AFFF (Aqueous Film Forming Foam) agent.

• Complete with strap and mounting bracket

Hand Held - 2.0Kg

The SPA Extreme line of products uses 3M Novec 1230 Fire Protection Fluid.

• Complete with strap and mounting bracket

Roll Bar Padding

Roll Bar Padding - SFI

Our Urethane Science padding is available in a variety of sizes and is endorsed by ANDRA and CAMS vehicles running in National events. One advantage of USI SFI padding is that it is not hard like a rock, but it is firm with a cushion feel! This also makes it flexible and easier to install than other brands. The padding is available in a variety of sizes. Also available is the SFI 45.2 Side impact / Helmet Padding this is available in Flat Sheets. Our testing has provided proof that the padding can be soft and absorb high "G" forces, accomplished only with our formulated Urethane compounds.

• Best impact absorbing padding made

• Soft feel than other pads

• Easy to bend and shape

• Shaped for better visibility

• SFI 45.1 licensed approved

• SFI 45.2 licensed approved

• All pads made in USA

• Colour: Black

Small SFI

SFI 45.1

3ft (900mm) Long, Meets SFI 45.1 Spec. Colour: Black only

SFI 45.1 - Large

3ft (900mm) Long • Meets SFI 45.1 Spec. • Colour: Black only

45.1

3ft (900mm) Long, Meets SFI 45.1 Spec. Colour: Black only

SFI 45.2 Side Impact Pads

Designed specifically as a cut to shape Helmet Support Pad. Used by many Top Teams. Fabrication is required to mount to your vehicle. Meets SFI 45.2 Specification. Colour: Black

Extract from CAMS Manual:

11.

PROTECTIVE

PADDING

11.1 Helmet and Head Protection:

(a) For vehicles subject of a safety cage structure as per Article

3: Application: where the helmet of an occupant could come into contact with the safety cage structure, protective padding shall be fitted to that area, which complies with:

(i) International Competition and below, FIA standard 88572001, type A (see FIA Technical List No 23 “Roll Cage Padding Homologated by the FIA”); or

(ii) For National Competitions and lower, SFI specification 45.1. For each 1st Category vehicle, the use of SFI specification 45.2 for the head rest is permitted. Where it could be demonstrated that the fitment of protective padding unduly hampers the occupants’ ability to operate the vehicle in a safe manner, the requirement for padding will be negated in the immediate area of concern at the discretion of the Chief Scrutineer.

11.2 Body Protection:

Where the body of an occupant could come into contact with the safety cage, it is recommended that flame retardant padding be fitted. FIA standard 8857-2001 or SFI specification 45.1 padding.

Extract from ANDRA Rulebook:

Section 4 Head Protector and Roll Bar Padding. Where the driver’s helmet can make contact with roll bars or cages, padding meeting SFI 45.1 or FIA 8857-2001 must be fitted. All areas where the helmet may contact roll bars must be protected with padding and suitably fastened to the tubing to prevent it from slipping or detaching. If cable ties are used they must be regularly checked to ensure they have not deteriorated and remain fit for purpose.

Additional padding mounted on flat stock and fastened to the rollcage on both sides of the drivers helmet is mandatory in all cars faster than 225mph. Padding must be securely mounted and include flame retardent covering. Padding meeting SFI 45.2 recommended. Vehicles with FIA or SFI rated seats with built in “halo” are exempt from this regulation.

TECHNICAL INFORMATION

Heating the padding above 80°C in hot water will allow the padding to be bent at sharper or odd angles reducing the risk of breaking the USI roll bar padding!

Our gun supplier for Racing Seats and Steering wheels. VELO also produces a nice range of FIA harnesses and accessories that should be checked out as well.

Velo Racing Seats

NOTE ON VELO SEATS

We stock a huge range of Velo Gear - but the seats are quite large. Please call for availability and shipping options. Go to www.mscn.com.au for Velo Seat Sizes

The GP-90 is a seat which again offers excellent support however, it is equipped with removable and adjustable leg, base and back cushions.

It is also ADR approved making it equally at home on the track or the road.

It is a side mounted seat equipped with 5 harness holes to allow any configuration of racing harness to be used.

It is available in standard, XL & XXL. Black is standard colour. Other colours available as a custom order with a long lead time.

This is the FIA evolution of the popular GP-90 seat.

Its enhancements include more support in the rib area and far greater rigidity utilizing a new sandwich construction technique. It features removable seat cushions and side mounting and comes in XL size only. Black is standard colour. Other colours available as custom order with a long lead time.

This is our entry level FIA approved seat, however it retains its ADR certification and therefore is equally suited for road use.

This is the FIA evolution of the popular GP-90 seat.

Its enhancements include more support in the rib area and far greater rigidity utilizing a new sandwich construction technique. It features removable seat cushions and side mounting and comes in standard size only. Black is standard colour. Other colours available as custom order with a long lead time.

This is our entry level FIA approved seat, however it retains its ADR certification and therefore is equally suited for road use.

GPT-3

GPT-1 GP90 GPT-2

This is the FIA evolution of the popular GP-90 seat.

Its enhancements include more support in the rib area and far greater rigidity utilizing a new sandwich construction technique. It features removable seat cushions and side mounting and comes in a XXL size only. Black is standard colour. Other colours available as custom order with a long lead time

This is our entry level FIA approved seat, however it retains its ADR certification and therefore is equally suited for road use.

Viper

The Viper Seat is designed for competition use and features ultra deep sides and an integral head restraint. It is available in glassfibre construction and is non FIA approved.

The Viper XL/XXL cater for the larger/taller framed driver/ navigator, being wider and 50mm taller than the standard Viper.

The seat is HANS compatible and offers excellent value for money, and has become particularly popular for use in targa events.

Seats & Steering Wheels

Podium II

The all new VELO Podium II has been developed following the feedback received from the very popular original Podium. Its deep sided construction featuring extra high bolsters ensures maximum support.

It has also gained in rigidity through the utilisation of new sandwich construction techniques. This seat is able to accommodate a wide range of driver and co-driver sizing and is also equipped with removable insert cushions and adjustable padding.

The VEL Podium II has 5 harness holes and is available in a range of colours.

Also available in Carbon Fibre.

This is the ultimate in competition seating and is designed for dedicated racing applications. The fibreglass shell features ultra deep sides, close fitting lateral head support and has the rigidity required to satisfy the most demanding driver.

This seat is FIA homologated and our integral lateral head support is compatible with the HANS device.

The seat also features removable back, base and front cushions and is slightly heavier than its Carbon fibre twin.

APEX

- Standard & XL

VEL APEX CARBON Made to Order Carbon Fibre Version

Velo Steering Wheels

350mm dia, 65mm dish wheel. Yellow stripe on top for reference.

• Includes horn button.

• Lifeline Boss/Hub kits

• Suede leather

350mm dia, 28mm dish (Flat). Yellow stripe on top for reference.

• Includes horn button.

• Fits all MOMO, Sparco, SAAS, Lifeline Boss/Hub kits.

• Suede leather

• Italian made.

350mm dia, 90mm dish wheel. Yellow stripe on top for reference.

• Includes horn button.

• Fits all MOMO, Sparco, SAAS, Lifeline Boss/Hub kits.

• Suede leather

• Italian made

NOTE ON VELO SEATS

We stock a huge range of Velo Gear - but the seats are quite large. Please call for availability and shipping options.

380mm dia, 65mm dish wheel. Yellow stripe on top for reference.

• Includes horn button.

• Fits all MOMO, Sparco, SAAS, Lifeline Boss/Hub kits.

• Suede leather

28MM DISH PART NO.DESCRIPTION VEL R28 350mm Diameter

90MM DISH PART NO.DESCRIPTION VEL R90 350mm Diameter

VEL R380 380MM PART NO.DESCRIPTION VEL R380 380MM 380mm Dia

Seats, Harnesses & Tow Straps

Velo Seat Brackets

The universal Seat track can bolt directly to the bottom mount seats, or can also be used on side mounts if desired. Requires custom brackets to mount the seat sliders to floor of car.

mounting brackets to suit Side mount seats. Powdercoated black.

long x 135mm high

BILLET ALLOY CURVED BRACKETS

BILLET ALLOY LONG TALL BRACKETS

Alloy mounting brackets to suit side mount seats. Undrilled base

Alloy Seat mounting brackets, extra length and height to suit larger cabins, and a much greater range of seat position adjustment. 395mm long x 125mm high Weight approx 500g a pair.

FIA Harnesses & Tow Straps

Alloy Seat mounting brackets, extra length and height to suit larger cabins, and a much greater range of seat position adjustment. 485mm long x 125mm high Weight approx 500g a pair.

All Velo Belts are made in the UK so you can be sure of great quality. FIA Approved. Now available in Black, Blue & Red.

All Velo Belts are made in the UK so you can be sure of great quality.

FIA Approved. Available in Black, Blue or Red

Partial Synthetic Multi Grade High Performance Motor Oils

0W-30

A high-performance, lighter viscosity oil specifically designed to maximize horsepower while protecting critical engine parts. Penn-Grade™ base oils provide superior film strength while synthetic stocks enhance performance throughout a wide range of operating temperatures and conditions including gasoline and methanol powered vehicles. Also a great option for Jr Dragsters.

10W-30

A truly versatile High Performance Oil suitable for engines used both on the street and/or the track using gasoline or methanol.

The multi-viscosity grade and synthetic components facilitate cold starting and quicker engine warm-up while ensuring adequate engine protection during competition.

5W-30

PENNGRADE® Partial Synthetic SAE 5W-30 is ideally suited in today’s street/racing market ‘crate engines’ that require this viscosity.

It contains strong detergent, dispersant and ZDDP anti-wear additives to help protect critical engine parts.

PACKAGING

PART NO.

PACKAGING

B109-7150 Bottle - 1 quart (0.946 litres)

B009-7150 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7150 Drum - 55 gallons (208 litres)

15W-40

A multi-viscosity option for engines exposed to higher temps and mixed ambient conditions. The Brad Penn® PENNGRADE® Partial Synthetic SAE 15W-40 High Performance Oil possesses excellent film strength and proven additive chemistry to provide required performance in a wide range of operating situations for gasoline and methanol fuelled engines.

PART NO. PACKAGING

B109-7158 Bottle - 1 quart (0.946 litres)

B009-7158 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7158 Drum - 55 gallons (208 litres)

B109-7109

Bottle - 1 quart (0.946 litres)

B009-7109 Case - 12 bottles - 12 quarts (11.35 litres)

10W-40

Designed to meet the lubrication demands of traditional classic and muscle car engines as well as high-performance competition engines using gasoline or methanol. The SAE 10W-40 High Performance Oil offers the multi-viscosity advantages of faster oil flow and engine warmup as well as excellent film strength and engine component anti-wear protection.

PART NO.

B109-7144

PACKAGING

Bottle - 1 quart (0.946 litres)

B009-7144 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7144 Drum - 55 gallons (208 litres)

20W-50

Designed to offer higher performance engines running on either gasoline or methanol the cold temperature operational benefits of an SAE ‘20W’ engine oil while providing the desired film strength; sealing abilities; bearing, crankshaft, piston ring and valve train component anti-wear protection of an SAE 50 weight oil at normal engine operating temperatures.

PART NO.

B109-7119

PACKAGING

Bottle - 1 quart (0.946 litres)

B009-7119 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7119 Drum - 55 gallons (208 litres)

PART NO.

High Performance Oil

Mineral Mono Grade High Performance Motor Oils

SAE 30

A lighter straight-grade viscosity oil characterized by its proven protection and performance. Along with its Penn-Grade 1® straight-grade counterparts, the Brad Penn® PENNGRADE® SAE 30 High Performance Oil offers excellent film strength and an effective detergency package and is a good choice for the legacy muscle car/ street rod. Excellent oil for vintage and air-cooled applications requiring a straight grade oil. Great for gasoline and methanol.

PACKAGING

SAE 40

Formulated with the unique cut from our PennGrade™ stocks, this straight-grade oil is designed to provide excellent protection for street and competition engines using gasoline or methanol. It’s superior film strength, highly effective detergency package and foam inhibitors make it an optimal lubrication choice for muscle cars & hot rods. The increased ZDDP provides outstanding anti-wear/anti-scuffing protection for older style push rods and flat tappet cams. Excellent option for vintage car and air-cooled applications where a mono-grade viscosity is preferred.

B109-7139

B009-7139

Bottle - 1 quart (0.946 litres)

Case - 12 bottles - 12 quarts (11.35 litres)

SAE 50

Heavy viscosity, straight-grade motor oil designed to provide superior lubrication to high-performance competition engines fueled by gasoline, methanol or nitromethane. Used extensively in high horsepower normally aspirated and supercharged engines all over Australia!

PART NO.

B109-7115

B009-7115

PACKAGING

Bottle - 1 quart (0.946 litres)

Case - 12 bottles - 12 quarts (11.35 litres)

B601-7115 Drum - 55 gallons (208 litres)

Nitro 70

Is specifically formulated for gasoline, alcohol and nitro-methane fueled racing engines that experience extreme load, torque and high temperature conditions.

The high viscosity and exceptional film strength of the oil allows for excessive dumping of blow-by fuel into the engine oil while maintaining critical lubricating protection for expensive parts of high performance racing engines.

B109-7117 Bottle - 1 quart (0.946 litres)

B009-7117 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7117 Drum - 55 gallons (208 litres)

Engine Builder Products

Engine Assembly Lubricant

This engine assembly lubricant is a premium high viscosity lubricant specifically designed to offer additional protection for new moving surfaces in engine assembly applications. The Pennsylvania Grade base oil provides higher load carrying ability and excellent surface film protection to prevent wear in highly stressed internal components.

It will not drip or run from treated parts due to it’s tacky/stringy nature and is perfect as a pre-lube for valve train components including cam lobes, lifters, wrist pins, rod and main bearings, plus other applications!

PART NO. PACKAGING

B1572-7105 Bottle - (177ml - 6FL. OZ)

B0572-7105 Case - 12 bottles (12 x 177ml - 6FL. OZ)

PART NO.

B109-7140

PACKAGING

Bottle - 1 quart (0.946 litres)

B009-7140 Case - 12 bottles - 12 quarts (11.35 litres)

SAE 60

PENNGRADE® SAE 60 Heavy viscosity, straightgrade motor oil is designed to provide superior lubrication to high-performance competition engines fuelled by gasoline, methanol or nitromethane. Superior alcohol separation assures continual lubricant protection to the engine under the harshest conditions.

SAE 60 is a great choice for Blown alcohol engines that require a little thicker oil than SAE 50.

B109-7116 Bottle - 1 quart (0.946 litres)

B009-7116 Case - 12 bottles - 12 quarts (11.35 litres)

B601-7116 Drum - 55 gallons (208 litres)

WHY ARE PENNGRADE OILS GOOD?

PennGrade® brand products are proudly “MADE IN THE U.S.A” in Bradford, PA. The former Kendall® refinery is the home of “The Green Oil”® that racers, engine builders & enthusiasts alike have all come to know and love!

The unique green colour and outstanding performance of PENNGRADE® High Performance Oils set them apart.

Break-In Oil SAE 30

SAE 30 mono-grade oil formulated specifically to meet the critical lubrication needs of new engines during break-in while allowing proper seating of rings and component ‘run-in’.

Enhanced levels of “zinc” (zinc dialkyldithiophosphate a.k.a. ZDDP) and superior oil film strength from Penn-Grade™ base oils offer protection for even the most demanding of applications such as those presented by break-in of engines with ‘flat tappet’ cams.

Bottle - 1 quart (0.946 litres)

B009-7120 Case - 12 bottles - 12 quarts (11.35 litres)

PART NO.

High Performance Oil

High Performance Wet Clutch 4 Stroke

10W-40 Motorcycle Oil

Blended with Pennsylvania Grade base oil, select synthetic components and superior additive chemistry, this high performance SAE 10W-40 Motorcycle Oil offers the ultimate in quality, performance and protection for motorcycles. Meets JASO MA-2 performance requirements for use in wet clutches. Suitable for use in Honda® , Kawasaki®, Suzuki®, Yamaha® and other 4-stroke motorcycles where an API SJ, SH or SG quality oil is specified. May also be used in ATV’s, golf carts, 4-wheelers and other 4-stroke engine applications.

Motorcycle Oils

20W-50 Motorcycle Oil

Specifically designed with twin V domestic and imported motorcycle engine technology/lubrication needs in mind. A good multi-viscosity choice for use in V twin engines such as those found in HarleyDavidson® motorcycles where a 20W-50 API SJ, CF, CG-4 or CH-4 quality oil is specified. Also suitable for use in S&S®, RevTech®, Triumph®, Ducati®, BMW®, Victory®, and other domestic and imported motorcycles where an SAE 20W-50 viscosity, API SJ, SH, SG, CH-4, CG-4, or CF oil is specified.

PART NO.

B109-7156

PACKAGING

Bottle - 1 quart (0.946 litres)

B009-7156 Case - 12 bottles - 12 quarts (11.35 litres)

Gear Oils

Full Synthetic SAE 75W-90

For the ultimate in protection for supercharger, blower and hypoid gear applications. The Full Synthetic Hypoid Gear/Blower High Performance Lubricant is a specially formulated 100% synthetic, SAE 75W-90 oil designed for use with selfcontained systems where SAE 75W, SAE 80W-90 or SAE 90 grade gear oils are recommended. It is suitable for use in Roots and Lysholm Screw type superchargers and may be used in manual transmissions and hypoid differentials where high shock loading is a concern.

B109-7766 Bottle - 1 quart (0.946 litres)

B009-7766 Case - 12 bottles - 12 quarts (11.35 litres)

Limited Slip SAE 80W-90

This Limited Slip GL-5 80W-90 Gear Oil has been specifically developed to serve as a friction modified lubricant for clutch-type, limited slip differentials, reducing slick-slip “chatter” in low speed high torque operations. It is formulated with PennGrade base stocks, as well as a skillfully tailored additive system. It is recommended when an SAE 80W, 90 or 80W-90 viscosity is required.

PART NO.

B109-7157

PACKAGING

Bottle - 1 quart (0.946 litres)

B009-7157 Case - 12 bottles - 12 quarts (11.35 litres)

Classic SAE 80W-90

The SAE 80W-90 is specially blended using high quality PennGrade mineral base stocks and select additive technologies. It is designed to be used with “yellow” metallurgy (brass, bronze, copper) and with “soft” metals used in synchronizers, bushings, thrust washers and other components typically found in classic manual transmissions and transaxles. In applications specifying API GL-4 lubricants, the use of API GL-5 lubricants can damage these “soft” metal components.

PART NO.

B123-7729

PACKAGING

Bottle - 1 quart (0.946 litres)

B023-7729 Case - 12 bottles - 12 quarts (11.35 litres)

Multi Purpose SAE 85W-140

This 85W-140 Limited Slip is formulated with high quality paraffinic base oils and a premium additive system to provide smooth, quiet performance with maximum protection against wear in gear applications. It provides superior thermal stability and maximizes oxidative sludge and varnish formations in the most severe operating conditions. Sold in a 35 Pound Tub only

PART NO.

B123-7732

PACKAGING

Bottle - 1 quart (0.946 litres)

B023-7732 Case - 12 bottles - 12 quarts (11.35 litres)

Grease

High Temp EP No2 Blue Grease

The High Temperature EP 2 Blue Grease is a multi-purpose, NLGI #2 GC-LB lithium complex grease designed for a wide range of industrial and automotive applications.

It combines strong high temperature performance with excellent extreme pressure (EP) properties. It also provides good water resistance, excellent oxidation stability, exceptional rust protection, and resistance to chemical breakdown.

PART NO.

PACKAGING

B567-7867 Tube - 14oz

PART NO.

PACKAGING

B551-7735 Drum - 35 Pound

WHY ARE PENNGRADE OILS GOOD?

PennGrade® brand products are proudly “MADE IN THE U.S.A” in Bradford, PA. The former Kendall® refinery is the home of “The Green Oil”® that racers, engine builders & enthusiasts alike have all come to know and love!

The unique green colour and outstanding performance of PENNGRADE® High Performance Oils set them apart.

Racing Oil Coolers

Coolers

Don't let their small stature fool you, their small footprint and low-profile suit tight spots where access to direct airflow isn’t always possible. They are the choice of racers and performance street machines - ideal for the following applications:

• Engine oil cooler

• Differential oil cooler

• Power-steering oil cooler

• ATV/motorcycle oil cooler

• Transmission oil cooler

• Fuel cooler

Extra wide and have twin fan packs for the following applications:

• Engine oil coolers

• Transmission oil coolers

• Fuel coolers

• Differential oil coolers

• Power steering oil coolers

Setrab Coolers & Accessories

Setrab is the number one supplier of high-performance racing oil coolers to many of the winning teams all around the world. The track proven rugged coolers are the ideal addition to racing cars, motor-cycles, street tuners, and also to motor homes and towing vehicles.

Technical Specifications

• Maximum working pressure is 10 bar. Approved testing at a dynamic working pressure of 0–10 bar, 200,000 fluctuations in load, 1 Hz.

• Corrosion protection: Nocolok brazing process and epoxy-coated.

• Connections: M22 Female Thread, Adapters available to suit various applications

• Use in hydraulic systems, engines, transmissions, transformers, fuel coolers, etc.

Modular construction

• Unique modular system for the STD Oil Cooler suits most applications.

Racing Oil Coolers

Setrab Coolers & Accessories

Transmission Coolers

B&M Hi-Tek Transmission Coolers

Keeping fluid temperatures down is a really great way to minimize wear and tear, and to prolong the life of expensive powertrain components. One of the best ways to give your engine and transmission that protection is with B&M's fan-equipped Hi-Tek Super Coolers. These efficient coolers are built with B&M's favoured fin-and-plate construction to handle tough cooling jobs, and they have built-in mounting brackets to make installation easier. On top of that, they're fitted with high-quality, 12 V, high-flow fans that are controlled by a thermal switch, which activates them automatically when fluid temperatures reach specified levels. These rugged coolers are pressure-tested to 200 psi and can be used on RVs, race cars, and high performance street vehicles.

FEATURES

· Ideal for the toughest cooling applications

· All aluminum construction

· Oven brazed construction

· Fin & Plate design

BENEFITS

· Creates own airflow to improve efficiency

· Strong, durable cooler core

FITTINGS

· 1/2”NPT Fittings easily adaptable

· Includes 12 volt, high flow fan

· 175° Thermal switch included

· Small & efficient design

· Permanently bonds all mating surfaces

· Lightweight cooler core

HI-TEK TRANS COOLER SYSTEMS

Speedflow -6 Straight 816-06-08

Speedflow -8 Straight 816-08-08

10” x 7-1/2” x 4” 7”

B&M70297 13-1/2” x 9” x 3-1/2”9-1/2”

PWR Transmission Coolers

Lightweight transmission coolers to suit Street, Off Road and Race applications

• Australian made

Power Steering Reservoir

MSCN universal power steering reservoirs are made in Australia from quality aluminium and polished to a high shine.

As with all our tanks we even put a couple of mounting lugs on the back so fitting to a bracket or panel is easy!

Filters & Breather Tanks

Wix Racing Filters & Oil Accessories

The WIX line of racing oil filters features a heavy duty can and cover which provides up to 500 psi burst pressure protection for high performance racing engines. You won't collapse this filter as it features a Steel Fully Perforated Spiral Centre Tube that has the highest collapse strength in the industry. Filter flow rates from 28 to 30 GPM provides plenty of flow for wide bearing clearances found in racing engines. Recommended and used by BK Race Engines.

Racing performance parts are sold “as is” without any warranty. NO IMPLIED WARRANTY for fitness or merchantability is included. The buyer assumes all risks related to the use of this product. New vehicle and equipment warranties are voided when this product is used in competitive racing or on modified high performance engines.

Advanced Performance Oil Filters use a media (T-10) that is rated at a Frazier air flow of approximately 267 CFM and is wire-backed. The unique wire-backing provides a very stable base for a media blend of fiberglass, polyester and cellulose. This media is resistant to high temperatures and water levels in the oil that can plug standard media types. Our Advanced Performance media (T-10) is designed to provide a high positive oil flow with low restriction.

High Efficiency Endurance Oil Filters use a media (T-71) rated at a Fraizer air flow of approximately 75 CFM. This media contains a higher resin content than our Advanced Performance Filters to trap and hold smaller contaminants and provide higher efficiency.

A great way to take off pressure lines for gauges or turbo feed lines while still retaining the original sender. Made from brass these tees are strong and suit a huge range of vehicles.

These pressure switches are designed to activate a light when pressure drops below the closed pressure range as above. Light remains off at open pressures.

Perfect for adapting an aftermarket gauge to a standard sender location or for running a turbo feed line. This has 3 x 1/8”NPT holes for multiple uses from the same outlet!

Breather Tanks

-6 BREATHER TANK

Use as a remote Air/Oil Separator.

• -6AN Drain, 1-1/2” breather tube and 6mm

• Mounting Spuds.

• Size: 80mm dia. 155mm high

• Capacity: 400ml

-6 & -8 BREATHER TANK

Use as a remote Air/Oil Separator.

• -6AN Drain, 1-1/2” breather tube and 6mm

• Mounting Spuds.

• Size: 80mm dia. 155mm high

• Capacity: 400ml

-8 BREATHER TANK

Use as a remote Air/Oil Separator.

• -6AN Drain, 1-1/2” breather tube and 6mm

• Mounting Spuds.

• Size: 80mm dia. 155mm high.

• Capacity: 400ml

Breather Tanks & Filters

Use as a remote Air/Oil Separator.

Breather Tanks

Fabricated in Australia!

-10 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 80mm dia. 155mm high.

• Capacity: 400ml

-10 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 80mm dia. 155mm high

•

400ml

-12 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 80mm dia. 155mm high.

• Capacity: 400ml

-12 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

•

80mm dia. 155mm high.

•

400ml

BREATHER FILTERS

NO.STYLE I.D.

Clamp On 1-1/2”

-16 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 80mm dia. 155mm high.

• Capacity: 400ml

-10 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml

-12 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml

SHIELD TYPE FILTERS

Clamp On 1-1/2”

-12 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml

-16 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml

-16 BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 155mm high

• Capacity: 650ml

CAMS 2L BREATHER TANK

• -6AN Drain, 1-1/2” breather tube and 6mm Mounting Spuds.

• Size: 100mm dia. 260mm high.

• Capacity: 2 litres

Fittings & Valves

Moroso Accumulators, Fittings & Valves

These provide an instantaneous supply of oil when pressure falls below a safe level. Our professional series are available in 1.5 or 3.0 quart versions. The 1.5 quart version is perfect for Sport Compacts and other vehicles with 4 and 6 cylinder engines. Ideal for street performance and mild off-road applications.

All Accumulators store oil under pressure and automatically release that oil to the main galleries when oil pressure drops. Moroso Accumulators can also be used to manually pre-lube engines before starting to prevent cold-start scuffing and premature bearing wear.

• Accumulators Protect Against Oil Pressure Loss!

• Automatic Operation!

REPLACEMENT GAUGE

Replacement Gauge for Moroso and other brand accumulators

TECH TIP:

Once you have installed your New Moroso Accumulator put 6psi of air pressure into the cylinder by using the air valve and reading the gauge provided on the unit. Once engine is running you will notice a pressure increase on the gauge. The system is now primed and ready to go.

ACCUMULATOR MALE FITTINGS

We have a full range of fittings available, these are the most commonly used for an accumulator set-up. BLUEBLACKDESCRIPTION

MOTUL

ACCUMULATOR MOUNTING KIT

Provides a safe, sure mount for Moroso Accumulators. Easily fastened to any flat surface and secured with T-Bolt type clamps.

PART

Mount for No. 23900, 23901

12 VOLT SOLENOID VALVE

Allows remote control of fluid flow via 12v switch. Each side of the solenoid valve contains a 1/2” NPT female port. Solenoid Valve is open when toggle switch is on, when switched off remains closed regardless of ignition switch position. Use the toggle switch and 16 gauge wire included in the kit to wire the valve. A 20-amp fuse must be used between the power source and the switch. Use a power source that is active (i.e., “hot”) only when the ignition switch is in the “on” position.

CAUTION!: Do not use with any fuels.

PART NO. DESCRIPTION

MOR23905 Solenoid Valve, 1/2” NPT Ports

Technosynthese® lubricant for a better resistance at high temperature and longer life time. All mechanical transmission, synchronised or not synchronised gearboxes, gearbox/differential, transfer gearbox and hypoid differentials without limited slip system operating under shocks, heavy loads and low revolution speed or moderate loads and high revolution speed. Very high lubricating power decreases friction and wear. SAE 90 grade at hot temperature to provide outstanding oil film resistance at hot temperature and/or to reduce transmission noise. Fluid at low temperature to allow easier gear shifting when the gearbox is cold. Less effort required on the gear lever to shift the gears.

MOTUL MOTYLGEAR

MOT MG75W90 75W 90

Earls Oil Accessories

¾” -16 OIL FILTER (FITS FRAM PH8A OR HP1 OIL FILTERS)

Allows you to move your oil filter to an easy to reach location.

• -10 AN O-Ring ports and a 1/8” NPT port

• 1/8” NPT port

• 2 bolt mounting with 2.0” C/L to C/L

• Dual inlets/outlets for easy plumbing from either side

• Kit includes filter mount, plugs and hardware

• Lightweight aluminium black anodized finish

PART NO.

DESCRIPTION

EAR2077 -16 OIL FILTER

OIL

Allows easy installation of -6 AN hoses and oil cooler on late model GM 6 & 8 speed automatic transmissions - fits 6L80E, 6L90E and 8L90E transmissions. Replaces the factory thermostat.

• Billet aluminium construction, black anodized finish

• -6 AN male flares - use with AN plumbing

• Bolts to transmission & features O-Ring seals

• Low profile - for extra tunnel clearance and easier routing of hoses

PART NO.

DESCRIPTION

EAR1128 Oil Cooler Transmission Adapter

OIL FILTER ADAPTER FOR 2011 ONWARDS FORD 5.0L COYOTE ENGINE

• Billet construction, black anodized finish

• Replaces existing OEM oil filter housing

• Includes stainless steel hardware

• -10 AN O-Ring Ports

• Must be used with Remote Filter Housing - EAR2077 is recommended

• O-Ring seals – no gasket required

• Fits 2011 and up 5.0L Coyote Engine

• 2 x ¼” NPT Ports – ideal for temperature sensor, pressure sensor or turbo oiling (eliminates need for T junction

• Special sculpting of the adapter allows extra clearance

PART NO.

DESCRIPTION

EAR1125 Oil Filter Adapter

OIL FILL CAP WITH PCV VENT

These late model valve cover fill caps screw into the valve cover like an ordinary cap. It is an easy way to add a catch tank to a racing engine without modifying the valve cover.

• -10 AN ORB (7/8” -14 straight thread) O-Ring Boss Port for use with AN hose to the catch tank or PCV

• Use with O-Ring Port hose end or O-Ring Adapter

• Internal baffle inside cap – helps to reduce transfer of oil to catch tank

• Billet aluminium, black anodized

• Fits factory GM LS, GM Gen-V LT and Ford Coyote valve covers PART NO.

DESCRIPTION

EAR3434122 Oil Fill Cap

Tilton Continuous Oil Pump

Ideal for pumping oil through transmission and differential coolers. Features an internal bypass valve and is self-priming up to eight feet (2.5 metres) above the source. Designed for applications where the pump needs to operate continuously for longer than two hours at a time.

Oil Cooler Delete & “O” Rings

OEM OIL COOLER DELETE

This stainless steel oil cooler delete allows you to remove the OEM oil cooler and either mount your oil filter or aftermarket oil plate directly to the block.

Inline Filters - Scavenge Filters

These coarse screen filters are designed to be placed on scavenge lines to protect the dry sump pump from debris during a major engine failure.

Mocal Oil Components

SANDWICH BLOCK

Made from Die-Cast aluminium, these sandwich blocks are to suit spin-on filters, with a remote oil cooler. They are not supplied with a centre extension bolt.

PART NO.SEAL I.D. SEAL O.D.OIL PORT

MO-SP1 55mm74mm 1/2” BSPP

OILSTAT SANDWICH BLOCK

Made from Die-Cast aluminium, these sandwich blocks have a built-in thermostat set to divert oil to the cooler once the oil is at a temperature of 80°C.

PART NO.SEAL I.D. SEAL O.D.OIL PORT

MO-OTSP1 55mm74mm 1/2” BSPP

See page 152 - 153 for other Sandwich Blocks / Inline Oilstats

Components

INLINE OILSTAT

Made from Die-Cast aluminium, these are set to divert oil to the cooler once the oil is at a temperature of 80°C. This is a positive control for engine oil in conjunction with all types of coolers.

BLANKING PLATE

The blanking plate is designed to fit the SP1 & OTSP1 sandwich blocks to convert them to a low profile (63mm Clearance) remote adapter. It can be turned to face any direction and tightened.

PART NO.SEAL I.D. SEAL O.D.THREAD

REMOTE FILTER BRACKET

Made from Die-Cast aluminium, suits most filters with a 3/4”-16 thread and features a right to left flow direction with a 3/8” NPT port in the front for temp or pressure senders. • Secures with 2 x 5/16” mounting holes.

REPLACEMENT O-RING / SEAL

Replacement O-Ring to suit all Mocal sandwich blocks

MOCAL BANJO FITTINGS

The -10 banjo bolt (MO-BANJO-10) suits Mocal sandwich plates PART NO. DESCRIPTION

MO-BANJO-8 -8 AN to 1/2” BSPP MO-BANJO-10 -10 AN to 1/2” BSPP

MOCAL BANJO BOLT

Designed to be used with the Mocal banjo bolts and screw directly into Mocal oil adapters. PART NO. DESCRIPTION

MO-BOLT 1/2” BSPP Bolt to suit Oil Adapters

BMW COOLER TAKE OFF E30, E46 M3

Enables replacement of an OEM filter housing cap with a billet aluminium one, allowing sensors to be fitted.

PART NO. PORTS.

MO-OCTBMW2 M22 x 1.5 ports

OIL STAT LM LS ENGINES

Prolonged use of a car engine in conditions where the oil cannot reach its correct working temperature will cause sludge formation and crankcase oil dilution, leading to excessive wear especially in the cylinder bores.

• Temperature is controlled by a wax filled element that diverts oil to the cooler at 80°C.

• Supplied with -12 JIC fitting

PART NO. DESCRIPTION

MO-OTGM7 Oil Stat LM LS Engines

for more details on our Scavenge Filters - see page 45 in the Speedflow section.

Adapters & Mounts

Remote Adapters & Filter Mounts

CAST DUAL FILTER BRACKET

CAST FILTER BRACKET - SIDE ENTRY

CAST FILTER BRACKET - SIDE ENTRY PART NO.FILTERFLOWOIL PORT

TD1701 3/4”-16LEFT1/2”NPT TD1711 3/4”-16RIGHT1/2”NPT

CHEVROLET SANDWICH BLOCK - CAST

Trans-Dapt Performance Products sandwich adapters mount to the stock oil filter location on your engine block, and allow for the installation of an engine oil cooler, without relocating the oil filter. Simply match your vehicle’s oil filter nipple size with the thread & o-ring diameter.

SANDWICH BLOCK - CAST

SANDWICH BLOCK - BILLET

* Denotes supplied as Black

Ryco Oil Filters

Aeroflex Fuel Filler Hose

Lightweight, flexible and smooth hose made from a liner of nitrile sheet rubber, with a high tensile spring steel helix covered with nitrile coated nylon fabric, and having an outer cord of neoprene-coated polyester. This hose is able to bend 180° with no kinking!

Applications: Engine and automotive industry. Can be used with all motor fuels and most lubricating oils.

Special properties: Light, flexible and resistant to constant vibration and suitable for very damp media; good resistance to condensates due to the enclosed helix Applications: Suitable for connecting the fuel filler to the fuel tank. Can be used with all motor fuels & most lubricating oils.

• Sold by the INCH or LENGTH

• Standard length: 1000 mm: (can be purchased in short lengths)

• Available in 32mm, 38mm, 45mm, 51mm, 57mm & 63mm I.D.

Aeroflex Heavy Duty Filler Hose

Wrapped Type Filler Hose in Nitrile - These filler hoses are made from fuel resistant rubber. Owing to the method of construction the wrapped hoses do not bend easily. Straights and elbows should be used as required.

Fuel Caps

In what is probably the world's largest range of tank caps will be found a product suitable for the smallest or largest vehicles - and all those in between! Aero filler caps are suitable for fuel, oil, water and any other liquid you care to mention. The Aeros can be supplied with an assortment of flanges, flange necks and weld-on-necks. The flange/neck type is designed to connect with a suitable hose to a remote tank. All Aero filler caps are shut by means of a lever and every flanged filler cap has available a fixing ring that can be employed should access to the rear of the panel or inside the tank be restricted. The operation of Aero filler caps follows best aircraft practice. To release the filler cap the lever is lifted and turned. To replace and secure the filler cap return the lever to the closed position and snap shut. Aero filler caps fitted with the locks can be left unlocked if required. All locking products are supplied with the two matching keys. We can supply spare keys for all Aero filler caps that have the lock number stamped on the lock.

Fuel Caps

300 SERIES REMOTE MOUNT

• 6 Bolt Flange, Non-Locking Cap.

• Stepped Neck for 2” & 2-1/4” Filler Hose.

• Application: Fuel, Oil & Water Tanks. • Aluminium Alloy 6082/T6 Clear Anodised

232.5g

400 SERIES REMOTE MOUNT

• 8 Bolt Flange, Locking Cap.

• Neck for 2” Filler Hose.

• Application: Fuel, Oil & Water Tanks.

• Aluminium Alloy 6082/T6 Clear Anodised

• Weight: 359.5g

300 SERIES REMOTE MOUNT

• 6 Bolt Flange, Locking Cap.

• Stepped Neck for 2” & 2-1/4” Filler Hose.

• Application: Fuel, Oil & Water Tanks.

• Aluminium Alloy 6082/T6 Clear Anodised

• Weight: 251.5g

ULP comes with Unleaded Flap.

Fuel Caps

Fuel Caps & Parts

REPLACEMENT

Lost or damaged your cap? At MSCN we have replacement centre caps to suit all AERO series Newton Fuel Caps.

PART NO. SUIT

AERO3LCAP Locking Cap for AERO300

AERO3SCAP Non-Locking Cap for AERO300

AERO4LCAP Locking Cap for AERO400

AERO4SCAP Non-Locking Cap for AERO400

UNLEADED FUEL FLAP

If you need your AERO remote mount to suit unleaded fuel regulations, simply insert this ULP Fuel Flap into your remote mount neck and retain with the supplied wire clip.

WARNING - COPIES!

A number of people like our Newton Equipment Aero cap design so much that they have copied it. There are several copied versions on the market and they are not made from the same quality materials and are not subjected to the same level of safety and quality checks that original Newton Equipment Aero caps must comply to.

ROLL OVER

Designed primarily for car fuel tanks in motorsport applications, where they will be subjected to violent movement. Access to inside of tank is not required for installation. A 9/16” UNF nut can be brazed or welded to the tank and mounting hole made in the tank from the outside. Red anodised 6082 Aluminium.

HOLLEY REMOTE VENT VALVE

Remote Mount Vent Valve for EFI Fuel Tanks. Barb size is 5/16”.

• Suits Holley Sniper EFI.

PART NO.

HO19 - 174

DESCRIPTION

Remote Mount Vent Valve

FUNNEL FOR AERO400 L & S CONVERSION TO TANK MOUNT

SUITS 57MM / 2.25” HOSE.

• Funnel and gasket with 8 hole x 4”

• pcd for 57mm / 2.25” hose.

PART NO.

DESCRIPTION

AERO57FUN Funnel & Gasket

RETENTION RINGS

This ring is inserted into the tank to allow the cap to be secured without the risk of dropping the nuts into the tank

PART NO. SUIT

AERO200-RETRING 200 Series Ring

AERO300-RETRING 300 Series Ring

WELD ON RINGS

Can be welded to an alloy tank to allow caps to be bolted directly to a tank.

PART NO. SUIT

AERO300-WELDRING 300 Series Weld-on Mount

Inline Filters

We are proud to stock Speedflows latest range of performance inline filters. They ensure the best filtration available for the performance market. Flow and pressure testing on our 601 & 602 series filters surpassed our expectations, flowing well in excess of 15gpm (53lpm) with minimal pressure loss using a -10 unit! These units are usable for applications over 3,000hp!

Inline Filters - 600 Micro Series

These are the smallest filter in our range, the body length measures 28mm (1.10”) making this perfect to place inline where space is limited or only a small filter is required. The body is machined from 6061-T6 aluminium with a hard anodised finish and fitted with a 44 or 74 micron pleated disc screen.

Inline Filters - 601 Short Series

NEED SPEEDFLOWS FULL RANGE

If you need more information about these products see the Speedflow section of the catalogue for the full range

The 601 Short Series is a solution for applications that are tight on space, but still requiring high flow with a serviceable stainless element. This compact size measures 1.75” OD (45mm) with a body length of 3.825” (97mm) plus the fitting length. Machined from quality 6061-T6 aluminium and hard anodised for maximum protection and laser engraved with the Speedflow logo! The element has a 21.31 sq inch area available in 4 micron sizes.

Inline Filters - 601 Metric & Check Valve Series

The 601 Short Series are also available with M12 inlet or M18 outlet ends making it suitable for applications such as aftermarket fuel pumps. We have also integrated our check valves into the inlet side of our filter range to make this a multi purpose unit to save space and fittings. Available in -6, -8 and M12 x 1.5 metric to suit aftermarket fuel pumps. Add your required

size to the part number, filters come complete ready to run!

appear.

Inline Filters

Inline Filters - 602 Long Series

The 602 Long Series is the big brother of our 601 Series, measuring 1.75” OD (45mm) with a body length of 5.725” (145mm) plus the fitting length.

These have an element area of 44.7 square inches (288.4cm²) with a choice of 4 micron sizes. Machined from quality 6061-T6 aluminium and hard anodised for maximum protection and laser engraved with the Speedflow logo!

-6 / 10 Micron

-6 / 40 Micron

-6 / 65 Micron

-6

Inline Filters - 602 Metric Series

The 602 Long Series are also available with M12 inlet or M18 outlet ends along with our check valve series making it suitable for applications such as aftermarket fuel pumps. A great space saver for those tight situations. Add your required micron size to the part number, filters come complete ready to run!

***Add the required micron size to the part number.

Inline Filters - 603 Mega Series

The 603 Mega Series is the newest addition to our filter range, measuring 2.48” OD (63mm) with a body length of 6.95” (177mm) plus the fitting length. These have an element area of 100.6 square inches (649cm²) with a choice of 2 micron sizes.

The new unique end cap design locates the filter element without the need for a spring to hold it in place. Machined from quality 6061-T6 aluminium and hard anodised for maximum protection and laser engraved with the Speedflow logo! Designed to be used for inline Fuel and Oil applications.

MEGA SERIES - M12 SENSOR PORT M12 sensor port on the inlet end cap. Can be plugged off using 814-M12 or adapted to 1/8” NPT with 912-M12-02.

Individual Filter Components

We offer filter components as separate part numbers. This is perfect for resellers as you do not have to carry all the part numbers of filters, so you can reduce your stock holdings and build filters as you require them, so you never miss out on that sale.

Valves

Check Valves, Blower Relief & Turbo Adapters

Speedflow has been manufacturing quality valves for over 25 years which have evolved into the quality parts we now have available. Our redesigned one way poppet valves have been proven to be very popular in every aspect of the performance industry!

BLOWER RELIEF VALVES

These can be screwed into a Supercharger gear case or other applications that require pressure to be released.

RED/BLUEBLACKTHREAD

620-02620-02-BLK 1/8” NPT

620-04620-04-BLK 7/16”-20

620-504620-504-BLK 1/8” NPT with 1/4” Barb

NON-RETURN VALVE - INLINE

Speedflow’s unique one-way valves were designed with a high performance vehicles in mind. They have a spring loaded high flow poppet valve that seals securely to positively stop fluid from returning!

BLUEBLACK SIZE

-610-03-BLK -3

-610-04-BLK -4 610-06610-06-BLK -6

FUEL PUMP NON-RETURN VALVE

Screw directly into Fuel Pumps with a M12 x 1.5 thread to hold line pressure and make starting easier!

BLUE/BLACKBLACKINLET OUTLET

612-06612-06-BLK M12 x 1.5-6 612-08612-08-BLK M12 x 1.5-8

-C6000-08-BLK End Cap 612-012-BALL612-12-BALL-BLK

ROLL OVER VALVE

We have manufactured a universal roll over valve that utilises a -12 Male thread with a -8 female thread and a stainless steel ball. This can be used with our 990-12 weld on or a 92412 bulkhead nut with a choice of outlet from our 920 series adapters.

BLUE BLACKSIZE

613-12613-12-BLK -12

613-12-BALL613-12-BALL-BLK

-8

-10

TANK VENT / ROLL OVER VALVE

-12 TURBOCHARGER ADAPTERS

3/8” In-tank vent / roll over valve has a springloaded ball to prevent overflow on filling. The spring can be removed if you prefer the ball to act purely as a free flow roll over valve. The top can be replaced with a 920 Series adapter if a hose is required to be used from the valve.

BLUE BLACK SIZE

613-06613-06-BLK -6

Aluminium Ball Valves

Hard anodised & includes a silicone sealing O-ring.

These are lightweight, beautifully machined and anodised. Available in three body sizes to suit many applications including fuel, oil water and air.

XS BODY BALL VALVES

SMALL BODY BALL VALVES

BLUEBLACKSIZEBALL ID

LARGE BODY BALL VALVES

REPLACEMENT VALVE LEVER FOR SMALL & LARGE BODY BALL VALVES BLACK SUITS

The Speedflow ball valves are now available and incorporate a panel mount option as standard with the ability to connect a cable to the handle. Constructed from 6061 aluminium body, handle, adapters and ball with a stainless steel drive spindle and machined Teflon® seals. The XS Body ball valves utilize a stainless ball suitable for all automotive fluids. These compact, high quality units that will perform in a high performance environment as expected from all Speedflow Products!

Surge Tanks

Nuke Performance

We believe in performance and motorsport

To us, passion is defined by true belief in performance. Nuke Performance is the by-product of a lot of sweat and tears that has shaped our knowledge and experience. Our commitment to develop the best of performance products comes from our history, our real world experiences and our passion.

Made in Sweden, it makes the biggest difference

We proudly announce that this product is designed, manufactured and assembled by our own team of mechanics in Sweden. That´s how we´ve been doing it all along since we started back in 2004, and that´s how we plan to keep on doing it. We don’t take any shortcuts, this is to ensure that we deliver the best possible quality, function and finish every day, year after year for all of our customers worldwide. We take big pride in our work and our engagement. We control every bit of the process from start to finish!

Developed in close association with professional racers

Since 2004, Nuke Performance has designed and manufactured premium, long-lasting, durable, high-performance fuel accessories and other high end products for the serious racer. Nuke products continue to be developed in close association with professional racers worldwide. This way our products connect directly to what motorsport demand and its unique requirements of both function, design and quality.

MADE IN SWEDEN

The Nuke Performance Vacuum Station / Vacuum Manifold is the easiest way to get rid of too many vacuum hoses in the engine bay. Combine all your parts with need for vacuum connection into one connected to the manifold.

The body is CNC-machined from aluminium alloy 6082, anodized and laser engraved for long-lasting appearance and function. Often used when using many parts that all need to be connected to the manifold, perfect for connection of fuel pressure regulator, blow off valve, fuel pressure gauge, fuel pulse dampers etc.

• For use on turbo- super-charged engines

• Delivered with 1x 1/4 BSPP inlet fitting and 1x 1/4 BSPP Plug.

• Additional fittings are sold separately.

• Thread size for the output ports are 1/8 BSPP and are sold separately due to the wide variety of different needs.

PART NO.

DESCRIPTION NK-600 Vacuum Station 5 Port

Competition Fuel Cell Unit, with integrated fuel surge tank and fuel pump hanger. Fits the most common fuel cells for your every need.

The next-gen is the perfect solution for a modern, lightweight, safe, and functional fuel setup for serious builds. Be it, track days, time attack, drifting, or any other type of motorsport. • Eliminate fuel starvation.

• Can be made to fit all aftermarket Fuel Cell

• Lowest weight “drop-in surge tank” available

• Integrated 2 litre Fuel Surge Tank function

• Single AN-10 (7/8 UNF) outlet fitting (fittings included for both the outlet and return)

• Made in Sweden

• 100% proof for E85, methanol, and petrol

The Nuke Performance CFC Unit eliminates the need for an external surge tank which is often needed when running a fuel cell. It is perfect for fuelinjected systems. Combine the CFC Unit with staged pumps to prevent emerging heat.

This is the best way to eliminate fuel starvation that may occur in motorsports. And with the use of the standardized 6x10” 24-bolt fill plate pattern, it fits most fuel cells on the market.

PART NO.

NK-CFC-01

DESCRIPTION

CFC Unit

FUEL

SURGE TANK

2nd generation Fuel Surge Tank from Nuke Performance, with everything you need to mount the popular Ti Automotive GST400 / GST460 / GST525/ GST550 high-pressure fuel pumps. This new updated version is the first of its kind specially developed and designed to mount up to three Ti Automotive / Walbro GST400, GST460, GST525 AND GST550 motorsport fuel pumps into one AN-10 (7/8 UNF) outlet (that outperform all current in-tank fuel pumps in its price range). It is able to deliver steady fuel flow even over 1500hp. This setup is everything you need to be combined into a space-efficient and power-efficient solution and design.

• Lightweight motorsport surge tank

• Combined into a single AN-10 outlet

• 100% Safe for all type of fuels

PART NO.

NK-FST-01

• Fits a single, dual or triple high-pressure fuel pumps

• 3.0 litre surge tank capacity (empty)

• Delivered with AN-10 and AN-8 fittings

DESCRIPTION

Fuel Surge Tank

• Made in Sweden

The Remote Fill Neck for the Nuke Performance

Competition Fuel Cell Unit (CFC Unit), threaded on one side and with a flange on the other side that makes a fixed fit for a 51mm / 2” fuel hose mounted with a hose clamp. This setup is installed by being screwed down into the existing fill neck after the fill cap has been removed and is sealed with an ethanol proof Viton O-ring. It utilizes existing rollover protection.

• For 51mm fuel hose.

• O-ring for use with alcoholic fuels included.

• No fuel hose or hose clamp is included.

• 1 pc with O-ring included

PART NO.

NK-FF51

DESCRIPTION

Fuel Filler Adapter 51mm

VACUUM STATION 5 PORT

COMPETITION FUEL CELL UNIT

FUEL FILLER ADAPTER 51MM

Shut Off Valves

Electric Fuel Pumps

Shut Off Valves, Fuel Pumps LOOKING FOR

Pumps, Regulators & Gauges

Bosch Electric Fuel Pumps

BOSCH IN-TANK PUMP - 200 LITRES PER HOUR @ 5 BAR

• >200l/h @ 5bar

• M14x1.5 inlet fitting

• M4 & M5 +/- screw terminals

• Includes Pressure relief valve

As used in V8 Supercars

PART NO.

• Supercedes the BOS 580 254 979

• M10x1 outlet fitting

• No non-return check valve

• 60mm diameter body

DESCRIPTION

BOS-580 464 201 In-tank Fuel Pump - 60mm diameter body

Intank Pumps

BOSCH FPX-HF IN-TANK FUEL PUMP (BR540) 390 LITRES PER HOUR @ 5 BAR

The highest flowing Bosch in-tank fuel pump available!

• Up to 540 LPH @ open flow

• Up to 460 LPH @ 40 psi (2.75 bar)

• Up to 380 LPH @ 80 psi (5.5 bar)

• An amazing 270 LPH @ 145 psi (10.0 bar)

• High flow up to the 190 psi (13.0 bar) pressure relief valve setting

• 9.0mm (nom.) barbed outlet fitting suits rubber or nylon hose

• Lightweight (550g) and compact 46mm body size

• Includes electrical connector with wires

• Includes high flow filter / inlet strainer

• Draws ~16A @ 40 psi (2.75 bar), ~19A @ 80 psi (5.5 bar)

In-tank Fuel Pump

PIERBURG INTANK FUEL PUMP 220 Liters Per Hour

FP-810 Pierburg Intank Fuel Pump

Check out the YouTube video to see how well these work!

HO16-103 shown

HOLLEY HYDRAMAT

Perfect for vehicles experiencing fuel starvation during hard cornering, acceleration, stopping, inclines, and low fuel conditions

Surface tension and fluid wicking allow the HydraMat to continue to draw fuel from the tank or cell even when part of the mat uncovered

Cross offset Out 3/8”

HO16-103 8 x 8 - Cross offset Out 3/8”

HO16-108

HO16-116

HO16-124

HO16-125

Also See the Bosch Motorsports Section See page 105

BOSCH PUMP - 275 LITRES PER HOUR @ 5 BAR

Known as the “NEW 044” this genuine pump is supplied direct from Bosch

• M14 x 1.5 inlet • M10 x 1.0 outlet • Flows ~10% higher than 044

• Weighs 15% less than 044 at 860g • Current draw similar to 044

• Pressure relief valve 8-10bar • External non return valve

• Not suitable for voltage regulation • Compatible with Petrol E85 & Diesel

FUEL PUMPS

Note: Wiring kit not included with any pump.

WALBRO INTANK PUMP - 465L/H E85

• Outlet diameter 10mm

• Wiring connector included

• Upper body diameter 39mm

• Lower body diameter 50mm

• Larger pressure relief valve than the 450L/H pump

• Suitable for all performance and high pressure applications

x 8 - Rectangular Centre Out 3/8”

x 8 – Walbro Angle Out 11mm

x 8 – Walbro Centre Out 11mm

x 8 – Walbro Offset Out 11mm

Regulators, Rail Extension, Gauges

Carburettor Fuel Pressure Regulators

Fuel Rail Extrusion

Popular Speedflow Adaptors

FUEL RAIL EXTRUSION

• Ideal for manufacturing fuel rails.

• Excellent machining and welding properties.

• Made from 6061-T6.

• Use with Speedflow 989-99-D injector boss.

Pressure Gauges

A non liquid filled gauge that has self calibrating true zero technology and no effect from vibration. Features an 1-1/2” Diameter White Face, chrome bezel and 1/8” NPT Thread on the back.

TS-0402-2023 1-1/2”0-100psi1/8”

A liquid (glycerin) filled gauge to help resist vibrations. Reads in 1/2lb increments from 0-15psi. Features a 1-1/2” Diameter White Face, chrome bezel and 1/8” NPT Thread on the back. Small enough to fit almost anywhere.

XR710015 1-1/2”0-15psi1/8”

Hose Ends

NB6103-03-ST -3Stainless

NB6103-04 -4 Nut to -3Steel

MALE

NB6104-03-ST 3/8”-24Stainless

NB6104-31 M10 x 1.0Steel

NB6104-31-ST M10 x 1.0Stainless

NB6104-32 M10 x 1.25Steel

NB6104-32-ST M10 x 1.25Stainless

MALE

NB6154-31 M10x1Steel

MALE - SOLID INVERTED PART NO.SIZETYPE

NB6123-31 M10 x 1.0Steel

NB6123-31-ST M10 x 1.0Stainless

NB6123-32 M10 x 1.25Steel

NB6123-32-ST M10 x 1.25Stainless

ENDS PART NO.SIZETYPE

NB6191-03 -3Steel NB6191-03-ST -3Stainless

INVERTED

NB6105-2003 M8 x 0.75Steel

NB6105-31 M10 x 1.0Steel

NB6194-03-ST 3/8”-24Stainless NB6194-03 3/8”-24Steel NB6194-31 M10x1Steel NB6194-31-ST M10x1Stainless COLLAR & WHIP GUARD PART NO.SIZETYPE NB6100 -3Plastic NB6100-03 -3Steel NB6100-03-ST -3Stainless

MALE - SOLID INVERTED PART NO.SIZETYPE

M12

MALE - SOLID CONVEX

PART NO.SIZETYPE

- SWIVEL INVERTED PART NO.SIZETYPE NB6193-03-ST 3/8”-24Stainless NB6193-03 3/8”-24Steel

PART NO.SIZETYPE

Hose Ends

PART NO.SIZETYPE

NB6143-31 M10 x 1.0Steel

Brake Line Hose Ends

FEMALE - SOLID CONCAVE PART NO.SIZETYPE

NB6101-31

- SWIVEL CONCAVE

- SWIVEL INVERTED

CUSTOM BUILT STREET LEGAL BRAKE LINES

FEMALE - SWIVEL CONCAVE PART NO. SIZE TYPE

NB6141-03 3/8”-24Steel

NB6141-03-ST 3/8”-24Stainless

NB6141-07 7/16”-24Steel

NB6141-31 M10 x 1.0Steel

NB6141-31-ST M10 x 1.0Stainless

NB6141-31-P M10 x 1.0 PorscheSteel

NB6141-31-RH M10 x 1.0 Round HeadSteel

NB6141-31-T M10 x 1.0 Flat HeadSteel

NB6141-31-Z M10 x 1.0 Large HexSteel

NB6141-41 M12 x 1.0Steel

NB6141-31-03A M10 x 1.0 suit AudiSteel

FEMALE - SWIVEL INVERTED

NO. SIZE TYPE

3/8”-24 Steel

NB6142-03-ST 3/8”-24Stainless

NB6142-07 7/16”-24Steel

NB6142-17 7/16”-20Steel

NB6142-31 M10 x 1.0Steel

NB6142-31-ST M10 x 1.0Stainless

NB6142-31-RH M10 x 1.0 Round HeadSteel

NB6142-31-T M10 x 1.0 Flat HeadSteel

NB6142-31-Z M10 x 1.0 Large HexSteel

NB6142-32 M10 x 1.25Steel

NB6142-32-ST M10 x 1.25Stainless

NB6142-41 M12 x 1.0Steel

Our Street Legal Brake Lines are Fully Australian Standards compliant

Brake Line Hose Ends & Supports

Banjo Hose Ends & Bolts

A huge range of banjos are available to suit almost any application in any angle. The handy banjo bolt with switch is also available.

BANJO

Hose Supports

BANJO - 70°

PART NO.SIZETYPE

NB6170-10 M10 3/8”Steel

NB6170-10-ST M10 3/8”Stainless

We carry a range of hose supports that slide onto a -3 hose during assembly that suit a variety of standard OEM mounting options including bolt on styles and C-clip versions. These allow you to follow the original orientation of your hose or to make sure you can mount your hose away from the strut, wheels and tyres.

-3 HOSE SUPPORT

This hose support is made from Steel and is designed to slide over -3 hose with a cover to replace standard clip style fittings.

PART NO.HOSE SIZE

NBBLT4 -3 200 Series

-3 HOSE SUPPORT

This hose support is made from Steel and is designed to slide over -3 hose with a cover to replace standard clip style fittings.

PART NO.HOSE SIZE

NBBLT3 -3 200 Series

-3 HOSE SUPPORT

This hose support is made from Steel and is designed to slide over -3 hose with a cover to replace standard clip style fittings. Suit

Nissan & others

PART NO.HOSE SIZE

NBBLT1 -3 200 Series

C-CLIP FOR BULKHEAD

This is a standard replacement C-Clip that fits over the female bulkhead groove to secure the fitting to a strut or bracket. Stamped from steel and nickle plated, these are a must if installing a new set of brake lines!

Fits 230 & 240 Series fittings that utilise a C-Clip

PART NO. 230-00

-3 HOSE SUPPORT

This hose support is made from plastic and is designed to slide over -3 hose with a cover to replace standard clip style fittings. Suit

Honda & others

PART NO.HOSE SIZE

NBBLT301NY -3 200 Series

-3 HOSE SUPPORT

This hose support is made from plastic and is designed to slide over -3 hose with a cover to replace standard clip style fittings. Suit

Honda & others

PART NO.HOSE SIZE

NBBLT302NY -3 200 Series

-3

This hose support is made from Steel and is designed to slide over -3 hose with a cover to replace standard clip style fittings. Suit Commodore.

PART NO.HOSE SIZE

NBBLT9 -3 200 Series

Our Street Legal Brake Lines are Fully Australian Standards compliant

HOSE SUPPORT

Brake Tubing

Brake Tubing, Tube Nuts & Bleeders

Speed Bleeders

BRAKE TUBING - STAINLESS STEEL

Our Seamless 3/16” Stainless Steel tube is perfect and legal for brakes lines for all cars and applications. This tube is thin wall annealed pipe is user friendly when using our bending tool.

• 3/16” Diameter • Thin wall for easy bending

BRAKE TUBING - SILVER

Mild steel zinc plated brake tube is easy to bend and flare. Supplied in coils. Stainless Steel can be polished to a mirror finish.

Makes bleeding brakes a one person task.

• Fit virtually any hydraulic brake or clutch system.

• Dust protection caps

• Permanently replace original bleeder screw • Sold as a pair.

Russel Proportioning Valve

Adjustable up to a 60% pressure reduction. Valves include 3/8”- 24 inverted flare hard line adapter and anticorrosive brass components.

Tilton Proportioning Valve

Tilton’s screw-type proportioning valve allows for fine adjustments for brake pressure reduction:

• Fine adjustment set at any point

• Metric or Standard inlet port (either 10mm

TILTON PROPORTIONING VALVE

All tube nuts & adaptors must use the standard 45° flare as made by our Flaring Tool BP190 on page 193

Fluid, Ducting & Launch Control

Brake Fluid

100% synthetic brake fluid on polyglycol basis for all types of hydraulic actuated brake and clutch systems

• 0.5 litre bottles

• Application: Brake fluids

• Product Range: Car, Motorcycle

Ducting

•

Launch Control

Easily installs into your existing brake system. This solenoid provides the brake holding capacity you are looking for. Ideal for racing or for street applications if you need a hill holder while stopped on an uphill grade. Can be used on either the front or rear brakes of your vehicle and can handle pressure spikes up to 1500 psi or maintain constant pressure of up to 400psi. Includes: in-dash line fuse assembly, indicator light, aluminium switch mount,and button switch. Works with 12 and 16 volt systems. Also can be used as a brake locking device for drag racing.

• Brake ducting

• Hi-Carbon steel wire

• Single wall

• Rated up to 550°F

• 11ft / 3.35m lengths

• Sold in Half or Full lengths. 550°F

•

•

•

See page 94...

These keep your manual or auto car out of the staging lights until you’re ready to launch. Controlled by a solenoid valve attached to a switch on your shifter, roll controls keep you from rolling by locking your front or rear brakes. When you hit the switch, your brakes are unlocked and you’re ready to hit the throttle. Rigorous testing has proved a 1/100,000th of a second release time, and vibration tests have surpassed 30 Gs without mechanical failure. Each roll control comes with a rebuildable stainless steel solenoid valve, indicator light, inline fuse holder, and complete instructions.

Brake Accessories

Valves, Cylinders & Accessories

WILWOOD PROPORTIONING VALVE

Valves weigh only 5.2oz and have two 1/4” side mounting holes. Standard in and out ports are 1/8”NPT. Adaptor fittings included.

PART NO. DESCRIPTION

WIL260-8419 Proportioning Valve, Knob Style.

WILWOOD RESIDUAL VALVE - 10LB

Retain a minimum brake line pressure to help eliminate excessive pedal travel in drum brake systems. Made from billet aluminium and colour coded. 1/8” NPT Female threads.

PART NO. DESCRIPTION

WIL260-13707 10lb Residual - Red w/o Fittings

WILWOOD MASTER CYLINDERS

All three sizes have a 3/8”-24 outlet thread with a 7/16”-20 reservoir thread.

WIL260-6087 5/8” (0.625) Bore Master Cylinder WIL260-6088 0.700 Bore Master Cylinder WIL260-6089 3/4” (0.750) Bore Master Cylinder

BALANCE BAR & BIAS ADJUSTER

The Standard Model features a plastic adjustment knob and a single detent design. Fits balance bars with 3/8”-24 and 7/16”-20 threaded shafts.

Remote Bias Adjuster - Standard

WILWOOD RESIDUAL VALVE - 2LB

Retain a minimum brake line pressure to help eliminate excessive pedal travel in both disc and drum brake systems. The minimal two pound residual pressure prevents fluid from flowing back without causing the brakes to drag. Residual Pressure Valves are made from billet aluminium and are colour coded. 1/8” NPT Female threads.

PART NO. DESCRIPTION

WIL260-13706 2lb Residual - Blue w/o Fittings

BLEED SCREW ASSEMBLY

For use in repair and maintenance of your Wilwood callipers or as a remote bleed screw as used in clutch applications. Contact us to make a remote mount line kit. PART NO. DESCRIPTION

WIL220-0627 Bleed Screw Assembly - 1/8” NPT

Durable, high-strength plastic with a 7/16”-20 thread to screw directly into the master cylinder or remotely mount with adapters.

80mm high, 60mm in dia.

Anodised aluminium fittings designed to screw directly into a master cylinder for a remote reservoir to accept a 5/16” reservoir hose. Available in black or blue.

BRAKE LIGHT SWITCH

Hydraulic Brake Light Pressure Switches to hook up your brake lights without having to wire a new switch in to the brake pedal assembly. Complete w/plug-in pigtail. 1/8” pipe thread. (Activates at approx 25lbs.)

Looking

for TOOLS?

See page 191

Alky Race Products

ALKY MAINTENANCE PLAN

Need further information on the best way to maintain your alcohol fuel system - check out our Youtube channel ... search MSCN.TV

For many years we have all believed penetrating oil was the best lubricant to use after racing to protect and preserve alcohol fuel systems - but we now know penetrating oil of any kind is bad news in an alky motor. Firstly if penetrating oil is sprayed in the cylinders it will break down any good lubrication already there and allow fuels to attack the cylinder walls. Secondly penetrating oil does not dissolve in methanol or nitromethane. It will separate and sit in your tank, fuel system or intake. Race fuels are very corrosive when left to dry out in your fuel system and supercharger. When you first crank the engine there is no lubrication in the fuel system and supercharger - this is when damage can occur.

Fuel Flush

Fuel Flush is the best after treatment for your methanol/nitro fuelled engine between races, race seasons or long term storage.

Fuel Flush absorbs residual methanol/nitro and leaves a lubricating film to protect against fuel gelling damage and corrosion. It also lubricates superchargers, valve guides, fuel pumps, barrel valves, solenoids and other fuel components to provide fuel system protection in storage and initial fire up. When starting your engine Fuel Flush will readily dissolve in methanol/nitro fuels and burn up in combustion.

Fuel Lube

Fuel Lube has been specially formulated for use in methanol/nitro fuels without affecting fuel specific gravity. Fuel Lube adds lubrication to fuel while helping to reduce wear on engine components.

Fuel Lube will not settle at the bottom of fuel tanks.

• Mix Ratio is 50ml to 20 litres

• 150ml to an average 60 litre tank

• 500ml bottle will treat up to 200 litres

CLEAN LUBRICATE PROTECT

Suitable for all Superchargers to help prevent dry start by lubricating rotors. New blended viscosity designed to be used before, during and after racing.

Pump Lube has been specially formulated as an after treatment for use in methanol/ nitro fuel pumps. It is a thick viscous fluid that adheres to fuel pump gears, absorbing residual methanol/nitro to leave a lubricating film protecting against pump gear galling and corrosion. When starting your engine Pump Lube will readily dissolve in methanol/nitro fuels and burn up in combustion.

Pump Lube can be used as an assembly lube for all fuel system related components.

E85 Fuel Lube

E85 Fuel Lube has been specially formulated for use in E85 fuels without affecting fuel quality. It adds lubrication to fuel while helping to reduce wear on engine components. Adding lubrication and protection to electric fuel pumps and injectors, E85 Fuel lube will leave a protective lubricating film behind when the fuel has evaporated and then dissolve in the presence of new fuel. E85 Fuel Lube will not settle at the bottom of fuel tanks.

• Mix Ratio is 50ml to 20 litres

• 150ml to an average 60 litre tank

• 500ml bottle will treat up to 200 litres

Pump Lube

Blower Lube

Radiator Relief Products

Radiator Relief

• Reduces engine temperature up to 30˚F

• Includes anti-foaming agent

• Formulated with a corrosion inhibitor

• Reduces pre-existing scale build-up

• Safe with all alloys

• 100% Biodegradable and Non-Corrosive

• For use in all water cooled engines

• Contains No Glycol

Radiator Relief Flush

Effectively removes rust and mineral deposits left behind in the radiator core and hose lines. Also dissolves oily residue build-up left behind in old anti-freeze and coolant mixtures.

• Removes rust deposits & dissolves oily residue

• Restores cooling system efficiency

• 100% biodegradable

• Contains No Glycol

Radiator Relief & Hose Kits

Radiator Relief Diesel

Formulated with a corrosion inhibitor that reduces mineral deposits and maintains pH levels that otherwise fluctuate over time resulting in core damage.

• Decrease coolant temperature up to 30°F

• Concentrated for larger systems

• Helps reduce engine wear

• Contains No Glycol

Chill Charger

Protects water-to-air intercoolers while also protecting core corrosion, electrolysis & harmful mineral build up.

events core corrosion and electrolysis

• Prevents mineral build up

Maximizes thermal transfer to reduce temps

• Simply add to intercooler water

• Non-toxic and environmentally friendly

• Contains No Glycol

OEM Hose Kits by Motorsport Connections

Replace your factory turbo feed, water and drain hoses with MSCN braided hose kits. Designed to bolt straight into the application listed.

Radiator & Cooling

Radiator Accessories

Fabricated in Australia!

RADIATOR OVERFLOW TANK Features: 1” Filler Cap.

Inlet, Overflow & Drain.

75mm dia. 230mm high.

Radiator Cover Braid

Got a late model car and want to “HOT ROD” the engine bay? Perhaps you have a Rod and really want to show off your Hoses, Now you can with MSCN stainless cover braid.

We are so confident on the quality we offer a 10 year guarantee that the braid won’t fade or become ugly like most other brands after installation. To achieve this process simply supply us your factory hoses or purchase new replacements.

We will cover and return to you within the week.

MSCN only uses Speedflow Econo Clamps so you can be sure of a great looking job.

LS Steam Vent Adaptors

UNF Bolts & Nuts - Specialty Fasteners

Bolts & Nuts

High Tensile 12 Point Bolts are great for fixing hardware on race cars and engine accessories. 12 Point bolts offer the same bearing surface as a hexagon head cap screw or socket head screw of comparable size and will save on weight. The 12 Point Bolts comes in Coarse Thread (UNC) or Fine Thread (UNF).

Burst Panels

UNF 12 POINT BOLTS

Bolts & Nuts

UNC Bolts & Nuts

12 POINT BOLTS

Metric Bolts

DZUS Fasteners

How to Measure your DZUS Fasteners

Button length is easily calculated by adding the total material thickness plus the spring height, as shown in the diagram to the right.

Measure from the bottom of the head to the bottom of spring locking area.

A. Material Thickness B. Spring Height with Deflection C. Total Button Length

DZUS Fasteners

DZUS Accessories & Tools

WELD PLATE - 1” SPRING 5/16” bore to suit 1” spring lightweight

PART NO.DESCRIPTION

DZUS-WP-100L Weld Plate L/Weight

WELD PLATE - 1” SPRING 5/16” bore to suit 1” spring

PART NO.DESCRIPTION

DZUS-WP-100F 5/16” Weld Plate

WELD PLATE - 1-3/8” SPRING 7/16” bore to suit 1-3/8” spring. Weighs 20 grams.

PART NO.DESCRIPTION

DZUS-WP-138F 7/16” Weld Plate

WELD PLATE - 1-3/8” SPRING 7/16” bore to suit 1-3/8” spring lightweight. Weighs 16 grams.

PART NO.DESCRIPTION

DZUS-WP-138R Weld Plate L/Weight

PANEL DOUBLER - ROUND

These panel doubler plates are great for fibreglass and carbon panels where a little more strength is required. PART NO.DESCRIPTION

Panel Doubler Round S6

PANEL DOUBLER - SQUARE

These panel doubler plates are great for fibreglass and carbon panels where a little more strength is required.

PART NO.DESCRIPTION

DZUS-8101 Panel Doubler Square S6

Bring it with you to the track! If a body section takes a beating and DZUS springs get bent use this tool to massage them back into shape.

CLECOS PLIERS CLECOS FASTENERS

These are used for securing steel sheets/panels together to ensure exact panel lay-up before tack welding, riveting or fixing together. These are reusable and are a great tool to have in the tool box.

PART NO.DESCRIPTION

Clecos - 1/8”

PART NO.DESCRIPTION

DZUS-8440 Clecos Pliers

SPRING ADJUSTING TOOL

This tool makes it easy to change the height of your spring to fit your installation.

ADJUST Adjusting Tool

DZUS TOOL

Large handle that gives you plenty of torque and the blade has a radius end to fit fastener slots better than a standard screwdriver. Heat treated steel with zinc plating.

PART NO.DESCRIPTION

DZUS-Z-TOOL Moroso DZUS Tool

Hose & Wire Separators

Precision moulded from 6-6 Dupont Zytel nylon, with an UNCONDITIONAL guarantee (under normal operating conditions)

• Will not melt, fade, stain, corrode or discolour

• Will not crack or break from heat or cold.

• Unaffected by any automobile fluids, including brake, fuel, oil, coolant, or solvents.

• Non-conductive.

Engineered to "pre-load", working as their own lock washer, our T-Clamps hold tubing, hoses, and wire away from the application, thereby eliminating vibration and paint chaffing. 10/32 or 1/4-20 stainless steel mounting hardware is included for a professional finish.

Separate, organize, and support all types of hose, tubing, and wire. Economical, lightweight alternatives to expensive aluminium and metal products. Available to secure single lines or hoses (Single Place T-Clamp) or if you have two lines or hoses running next to each other, the Double Place T-Clamp is the perfect option to separate your hoses.

BLACK

-12

Colours Available -11 -13

BLUE RED

When ordering please add the colour prefix behind the part number. Black, Blue & Red are available.

UNIVERSAL IGNITION LEAD SEPARATOR KITS

These are made from the same 6-6 Zytel Nylon material as the T-Clamps and utilise stainless steel hardware to attach components together. Simple to install, they work with virtually any engine and are Non-conductive which eliminates crossfire & increases performance.

PART NO.

MY50-156 7 & 8mm Leads - can easily drill to 10mm

MY50-210 10.5mm Sport Compact Kit

MY50-710 Vertical Wire Loom Kit 10.5mm

Tow

Hooks,

Decals, Batteries

Tow Hooks & Straps

Handy straps to have stowed. Adjustable or fixed versions available.

CAMS STICKER KIT

Forget the blue electrical tape to make that triangle on race day! Get this complete MS CAM’s approved sticker kit and do it properly! Contains everything you will need apart from your race numbers.

Kit

Fullriver 12V High Cranking Batteries

Our HC (High Cranking) series is especially used for engine starting, which requires superior cranking performance at lower temperatures for a high current discharge. They use Absorbent Glass Mat (AGM) technology. Suited for repeated discharges such as running your vehicle with winches or other electrical accessories

• 12V battery VRLA

• Can be mounted in any orientation except inverted.

• Operation temperature: -15° to 50°C

HC20

• PHCA: 680A at 27°C for 5 secs

• PCCA: 230A at -18°C

• CCA: 310A at -18ºC

• CA/MCA: 410A at 0ºC

• HCA: 300A at 27ºC

• Reserve capacity: 28 minutes

• Short circuit current: 800A

• Length: 181mm

• Height: 167mm

HC35

• Width: 77mm

• Weight: 7kg

• PHCA: 975A at 27°C for 5 secs

• CCA: 438A at -18ºC

• CA/MCA: 525A at 0ºC

• HCA: 605A at 27ºC

• Reserve capacity: 50 minutes

• Short circuit current: 2000A

• Length: 196mm

• Height:167mm

• Width: 131mm

• Weight: 12kg

Battery Accessories

• Sealed Construction (Non-spillable Battery)

• Can be fitted with TP brass automotive adaptor

• Shipped fully charged - just install and go!

HC30

• PHCA: 950A at 27°C for 5 secs

• CCA: 450A at -18ºC

• CA/MCA: 550A at 0ºC

• HCA: 635A at 27ºC

• Reserve capacity: 60 minutes

• Short circuit current: 1550A

• Length: 250mm • Width: mm

• Height: 142mm • Weight: 10kg

HC40

• PHCA: 1100A at 27°C for 5 secs

• CCA: 500A at -18ºC

• CA/MCA: 600A at 0ºC

• HCA: 700A at 27ºC

• Reserve capacity: 70 minutes

• Short circuit current: 2182A

• Length: 250mm

• Width: 97mm

• Height: 192mm • Weight: 15kg

The 2 pin battery isolation switch is a minimum requirement for most Australian racing events. Comes with key and ability to attach a remote pull cable if required.

This 6 pin battery isolation switch is an excellent way to ensure your car will be completely shut off when you flick the switch.

This kit includes both the Remote Pull Cable, a 6pin battery isolation switch with a Battery Switch Triangle Sticker.

K&N Filters

Air Filters

We carry a complete range of sizes for various applications including diff breather, engine breather, and air intake filters. We have listed just a small range kept on the shelf. If you don’t see what you looking for please call us with your part number or requirements.

Spanners

Aluminium Spanners

These are made from 6061 grade aluminium giving them strength, with a shorter handle that makes the spanner more usable in tight spaces and does not allow for over tightening of the fitting.

They have radiused edges for comfort and are available in hard anodised Red, Blue, Black, Clear, Purple, Green or Gold.

Alloy spanners should only to use for installation of hose ends to nipples. They should never be used in the assembly process.

We recommend only using high quality polished steel spanners for all Speedflow 100 & 200 series assemblies. Trying to assemble hose ends using cheap spanners with casting floors will risk marking your Speedflow fittings during assembly.

Aluminium Adjustable Spanners

Machined from billet aluminium, black anodised and laser engraved. These suit -3 to -12 sized fittings. Not recommended for use when torque is required to tighten or loosen as it will stretch the aluminium and may damage the spanner.

Vice Jaws & Cutters

Vice Jaws

These aluminium vice jaws are made in Australia from 6061 grade aluminium with rare earth magnets pressed in to back.

Flat

Hose Cutters

200 Series

The 200 Series cutter is a hand sized cutter that is designed to cut through -3 & -4 hose. Measures 8.25” (210mm) long with plastic grips.

400 Series

This cutter is a ratcheting action that slices straight through any rubber hose and leaves a square end, perfect for 400 Series Hose Ends!

Heavy Duty Cutters

MSCN carries the new style Speedflow hose cutters. This new design has a larger cutting area, longer aluminium handles with rubber grips. They are 32” (810mm) long and make cutting braided hose a breeze. Does not leave residue in the hose as found when cutting with a cut off blade or hacksaw.

Rivnuts, Tools & Vibration Mounts

Flaring, Benders & Lock Wire

Tube Benders & Flaring Tools

Tube Bender 1/8” & 3/16”

Designed for tight radius bends.

Excellent for use on brake lines, nitrous & fuel lines with 1/8’’ or 3/16’’ tubing.

Tube Bender 1/16” to 1/4”

Designed for 1/16”, 3/16” & 1/4” Tube. Two bending dies and multiple positions to adjust the radius of the bend.

• Aluminium construction.

• 200mm OAL

37° Flaring Tool

Heavy duty Parker flaring tool makes perfect 37° single flares for most tubing.

Suits 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8”, 3/4”

It can be hand held or secured in a vice.

Brake Line Flaring Tool Kit

Lets you create three kinds of precision flares in any of five sizes of tubing.

• Create 45-degree single, double and bubble brake flares in seconds

• Brake-flaring tool works with stainless steel, steel, and soft metal tubing

• Use for brake lines, transmission cooler lines and fuel lines

Includes Pro forming tool; 3/16”, 1/4”, 5/16”, 3/8” and 4.75mm tube-retaining dies; handle; instructions and case

Lock / Tie Wire & Bar Ends

Lock / Tie Wire Pliers

These top quality twisting lock pliers with automatic return are extremely durable. Features a sharp cutting edge and will twist up to .060” diameter safety wire. Simply attach the ends of your lockwire in the jaws of the pliers, lock in the handle and pull the twisting knob to produce tightly wound wire.

• Fast, easy, professional!

• Plier length: 6 inch

Flaring Tool

Lock / Tie Wire

Stainless steel wire is used for securing bolts and other fasteners in critical situations where hardware can not come loose. Lock wire is an important safety feature made from a soft yet durable wire that easily bends.

• Available in 1lb spools.

Aluminium Bar Ends

We sell round off cuts of 6061 grade aluminium in a variety of sizes and lengths.

Sold by the kilo, these pieces are great for making spacers, washers, or fittings, come to think of it - almost anything!

Round Only

Tapes, Adhesives & Sealants

Speed Tape

Tears straight and easy every time

• Eight colors as well as the popular checkered.

• All rolls are 2” wide x 90 feet (27.4m) long except for the Chequered which is 40 feet (12.2m) long

DEI060101 Black

DEI060102 White

DEI060103 Red

DEI060104 Blue

DEI060105 Yellow

Quick Fix Tape

DEI060106 Purple

DEI060107 Green

DEI060108 Orange

DEI060202 Chequered

High performance Quick Fix Tape bonds to itself and is self-curing, forming a waterproof permanent seal. It’s ideal for emergency hose repair, non-slip grip surface for tools, electrical splices and connections, serves as a temporary leak sealer & does not leave a sticky residue after removal. It has insulating capabilities up to 8,000 volts and stretches to three times its length for a simple stretch-and-wrap application. The triangular profile of the tape (the center is thicker than the edges) provides a smooth edge when over lapping tape.

• 1 in. wide x 12 ft. rolls

• Withstands temperatures from -54°C to 260°C

• Seal ends of hoses, wrap wires, weatherproof connections etc.

• Suits wet surfaces also air / liquid tight seal

• Resists solvents, oils, fuel, acids & chemical spills

PART NO.

COLOUR

DEI010491 Black

Threebond High Temperature Black Silicone

Speedflow Assembly Lube

Speedflow’s Assembly Lube is a specifically formulated oil to lubricate aluminium and steel threads during the assembly of hose ends to performance hose.

• 125ml Bottle.

PART NO.

DESCRIPTION

SF-LUBE Assembly Lubricant

High Temperature Spray Adhesive

Provides a high strength adhesion and bonds a wide variety of materials including trims, foams, fabrics and more. A specially designed three-way adjustable valve allows the user to select the spray pattern that best suits the application. Dries quickly and clear

• Forms a water-resistant bond

• High temperature resistant up to 160°F (71°C)

• High bonding strength for many materials.

• Ideal for adhering DEI Heat Screen and various Boom Mat under carpet products.

PART NO.

DEI010490

DESCRIPTION

Hi-Temp Spray Adhesive

Heat Resistant Sealant

For extreme-duty applications, Heat Resistant Sealand bonds to almost all surfaces and is an ideal method of encapsulating and protecting applications where parts must perform at high temperatures. Unlike other sealants, Heat Resistant Sealant will not sag or run on overhead or on sidewall applications. For use with fibreglass, metal, wood, rubber, plastic and more.

• Withstands continuous temps up to 260°C / 316°C intermittent.

• Made from 100% silicone and remains flexible.

• Peel strength of 20lbs.

• Comes in a 3oz tube with applicator nozzle.

PART NO.

DEI010410

Liquid gasket sealants create a more efficient seal between two surfaces due to the additional factor of a bond in conjunction with a seal and high chemical resistance. RTV silicone liquid gasket designed to be a diverse gasketing solution for engines and gearboxes.

• High resistance to temperature, oils ,fuel and coolants.

• Oxygen Sensor Safe • Non Corrosive • 320ºC

• LLC Resistance, Oil & Fluid Resistant.

• Applications: Exhaust manifolds, Flanges on turbo & manifold, Metal clad oil seals.

PART NO.

COLOUR / SIZE

TB1207B Black Silicone Tube - 100g

DESCRIPTION

Heat Resistant Sealant

Molytec Thread Sealant

Molytec 1110B is an anaerobic liquid gasket that is developed for use with metal surfaces. Penetrates into narrow gaps of metal structures and cures in the absence of air. Suitable for sealing screws and threads because it has moderate thixotropy and lubrication. Applications: Taper or parallel threads, flange surface.

PART NO.

TB1110B

DESCRIPTION

Thread Sealant - 60g tube

With our very own SPRINT CAR TEAM on the premises - we know what’s needed to keep you and your team up and running. We deal with the safety and maintenance issues on a day to day, week to week basis - just like you do!

Sprint Car Safety Gear

Sprint Car Harnesses Sprint Car Seat Crash Pad

Designed and used by Motorsport Connections specifically for our Sprint Car Team. Our Ratchet Harnesses are USA made and come supplied with the latest SFI 16.1 spec and manufacturer labels.

Belts are available with either steel adjusters or black and come standard with Black webbing.

Not supplied with Ratchet handle.

OPTIONS:

• 2” shoulder

• 3” shoulder straps

• Non-ratchet side

• Ratchet

HARNESSES

Make sure you also check out our SAFETY SECTION on pages 138. We have all the parts needed to sort out your Sprint Car Harnessing system.

FIRE SUPPRESSION

And while your there dont forget to have a look at our Coldfire Fire Systems on page 143. They are a must have for your Sprint car.

SCCA APPROVED...

We now have available sheets of 45.2 spec padding designed for use in the manufacture of Seat Base support, rollcage helmet support and rollcage interior protection. This padding can be cut to shape and layered to give the desired thickness simply by using glue to adhere together and to fasten to an alloy or steel plate attached to your seat base.

If you look at the professional race teams, they will use a SFI 45.2 seat crash pad/ helmet support. You can recreate this in your vehicle.

• 1” thickness, 24” x 12”

• Colour: Black

• Best impact absorbing padding made (from public records)

• Softer feel than other pads available and easy to form into curves

• SFI 45.2 licensed approved

• All pads made in USA

So it’s safe to trust us with our experience and knowledge...

Specialist Sprint Car Hose Kits

BMRS Soft Brake Lines

Brake Line & Hose Kits

Our BMRS Soft Brake Lines are available in two sizes! Choose from -2 or -3 hose depending on your application.

They can be supplied in four different lengths with -3AN STRAIGHT hose ends crimped on both ends ready to be installed in your sprint car.

Please note we can supply 45° or 90° hose ends if preferred.

NOTE:

BMRS -2 brake lines build higher pressure at your calipers for more stopping power. Using -2 hose in your sprint car also eliminates the need for a brake residual valve.

ALL HOSES HAVE -3 FEMALE HOSE ENDS

Sprint Car Brake Line Kit

This is a -2 brake kit (Front / Back) Sprint Car Kit modelled kit to fit a 87/40 Maxim chassis. Motorsport Connections make this in-house so we are able to modify for you and tweak the lengths if you require it to fit something else.

By using a BMRS -02 hose kit you will not need to run a residual valve, simply strap to your chassis and bolt to your master cylinder.

Wing Ram Kit

This kit is designed to fit a 87/40 Maxim chassis using a SWEET Ram and Valve. The hose length has been set with the Valve positioned just above the steering bar mount.

Motorsport Connections make this hose kit in-house so if your valve is mounted lower or your using KSC gear we can modify for you to suit.

Power Steering Hose Kit

BMRS Hose Kit to connect your SWEET Valve to pump and steering box.

MSCN can custom make to your requirements - please phone us for details.

Kit does not include Valve or Ram

Firewall Quick Disconnect Kit

Pimp out your firewall with this quick release fuel hose kit from BMRS. This 9 piece kit comes complete with all hardware to install hoses inline from firewall to motor as well as a Black Firewall Dash Plate

Note: not supplied with hose or hose ends onto bulkhead. To fit this kit send us your hoses so we can splice in the hardware. We can also build complete hose from firewall forward as well for additional cost. If you already have a BMRS crimper please just call us and ask for the “Pimped Sprint Car Fire Wall Kit” and we will send it to you.

Part Number Index

EveryEasyto find... part number we sell...

600-04-BLK 43, 166 600-06-BLK 43, 166

43, 166

43, 166

43, 166

601-***-61006-BLK 43, 166

601-***-61008-BLK 43, 166

601-***-61206-BLK 43, 166

601-***-61208-BLK 43, 166

601-***-M1206-BLK 43, 166

601-***-M1208-BLK 43, 166

601-***-M1210-BLK 43, 166

601-***-M1212-BLK 43, 166

601-***-M1806-BLK 43, 166

601-***-M1808-BLK 43, 166

601-***-M1810-BLK 43, 166

601-***-M1812-BLK 43, 166

601-010 45, 168

601-010-06-BLK 43, 166

601-010-08-BLK 43, 166

601-010-10-BLK 43, 166

601-010-12-BLK 43, 166

601-040 45, 168

601-040-06-BLK 43, 166

601-040-08-BLK 43, 166

601-040-10-BLK 43, 166

601-040-12-BLK 43, 166

601-065 45, 168

601-065-06-BLK 43, 166

601-065-08-BLK 43, 166

601-065-10-BLK 43, 166

601-065-12-BLK 43, 166

Part Number Index

53

BM-AC-06-R7-3-DS 55

BM-AC-06-S3-DS 55

BM-AC-06-ST-M14-3 62

BM-AC-06-ST-M16-3 62

BM-AC-08-0012-3 64

BM-AC-08-0015 64

BM-AC-08-0017-3 64

BM-AC-08-0027-3 64

BM-AC-08-0028 64

BM-AC-08-0030-00-V 63

BM-AC-08-0034-00 63, 65

BM-AC-08-0039 64

BM-AC-08-06-F3 52

BM-AC-08-06-G3-DS 54

BM-AC-08-06-H3-DS 54

BM-AC-08-06-M3-00 59

BM-AC-08-06-M3-90 60

BM-AC-08-10-M3-00 59

BM-AC-08-10-M3-45 59

BM-AC-08-10-M3-90 60

BM-AC-08-10-ST-WF 56

BM-AC-08-12-90-WF 57

BM-AC-08-120-WF 57

BM-AC-08-120-WFFD 57

BM-AC-08-30JIC-3 52

BM-AC-08-30JICDS-3 54

BM-AC-08-45-M18-3 62

BM-AC-08-45-WF 56

BM-AC-08-45-WF-DS 58

BM-AC-08-45-WFFD 56

BM-AC-08-60JIC-3 52

BM-AC-08-60JICDS-3

BM-AC-08-G3-DS 54

BM-AC-08-G7 52

BM-AC-08-G7-3 52

BM-AC-08-G7-3-DS 54

BM-AC-08-H3 52

BM-AC-08-H3-DS 54

BM-AC-08-H7 52

BM-AC-08-H7-3 52

BM-AC-08-H7-3-DS 54

BM-AC-08-J3 53

BM-AC-08-M3-00 59

BM-AC-08-M3-120

Part Number Index

BM-AC-12-10-M3-45 59

BM-AC-12-10-M3-60 59

BM-AC-12-10-M3-90 60

BM-AC-12-10-P3-DS 54

BM-AC-12-10-R3-DS 55

BM-AC-12-120-WF 57

BM-AC-12-120-WFFD 57

BM-AC-12-16-30-WF-DS 58

BM-AC-12-16-45-WFDS 58

BM-AC-12-16-90WFDS 58

BM-AC-12-16-M3-90 60

BM-AC-12-16-ST-WF 56

BM-AC-12-180-WF-DS 58

BM-AC-12-28-90-WF 57

BM-AC-12-30-WF 56

BM-AC-12-30-WFFD 56

BM-AC-12-30JIC-3 52

BM-AC-12-30JICDS-3 54

BM-AC-12-45-WF 56

BM-AC-12-45-WF-DS 58

BM-AC-12-45-WFFD 56

BM-AC-12-45-WFFDDS 58

BM-AC-12-60-WF 57

BM-AC-12-60-WFFD 57

BM-AC-12-60JIC-3 52

BM-AC-12-60JICDS-3 54

BM-AC-12-90-M30-3 62

BM-AC-12-90-WF 57

BM-AC-12-90-WF-DS 58

BM-AC-12-90-WFFD 57

BM-AC-12-90-WFFDDS 58

BM-AC-12-F3

BM-AC-16-30JICDS-3

BM-AC-16-45-WF

BM-AC-16-45-WF-DS

BM-AC-16-45-WFFD

BM-AC-16-45-WFFDDS

BM-AC-16-60-WF

BM-AC-16-60-WFFD

BM-AC-16-60JIC-3

BM-AC-16-60JICDS-3

BM-AC-16-90-WF

BM-AC-16-90-WF-DS

BM-AC-16-90-WFFD

BM-AC-16-90-WFFDDS

BM-AC-16-F3

BM-AC-16-G3

BM-AC-16-120-WFFD 57

BM-AC-16-20-45-WFDS 58

BM-AC-16-30-WF

BM-AC-16-30-WF-DS

BM-AC-16-30-WFFD

BM-AC-16-30-WFFDDS

BM-AC-16-30JIC-3 52

60

BMB-AC-10-08-M4-45 59

BMB-AC-10-08-M4-60 59

BMB-AC-10-08-M4-90 60

BMB-AC-10-12-F4 52

BMB-AC-10-12-M4-00 59

BMB-AC-10-12-M4-45 59

BMB-AC-10-12-M4-60 59

BMB-AC-10-12-M4-90 60

BMB-AC-10-120-WFFD-4

60

59

59

59

60

53

54

53 BMB-AC-10-R4-DS 55 BMB-AC-10-S4-DS 55

BMB-AC-10-ST-M22-4 62

BMB-AC-10-ST-WF-4 56

BMB-AC-10-ST-WFFD-4 56

BMB-AC-10-ST-WM-4 55

BMB-AC-12-0002-45-4 65

BMB-AC-12-0002-90-4 65

BMB-AC-12-0003-00-4 61

BMB-AC-12-0003-30-4 61

BMB-AC-12-0003-45-4 61

BMB-AC-12-0003-60-4

Part Number Index

186

DZUS-OH-6600 186

DZUS-OH-6650 186

DZUS-OH-6750 186

DZUS-OHA-5500 186, 187

DZUS-OHA-6500 186, 187

DZUS-OHA-6550 186

DZUS-OHA-6600 186, 187

DZUS-S-5325 186

DZUS-S-6425 186

DZUS-SE-5500 186, 187

DZUS-SE-5550 186

DZUS-SE-5600 186

DZUS-SE-5650 186

DZUS-SE-6550 186, 187

DZUS-SE-6650 186

Part Number Index

EP15-2160-4 86

EP15-2170-1 86

EP15-2170-2 86

EP15-2170-3 86

EP15-2170-4 86

EP15-2180-1 86

EP15-2180-2 86

EP15-2180-3 86

EP15-2180-4 86

EP15-2355-1 86

EP15-2355-2 86

EP15-2355-3 86

EP15-2355-4 86

EP15-2375-1 86

EP15-2375-2 86

EP15-2375-3 86

EP15-2375-4 86

EP15-2385-1 86

EP15-2385-2 86

EP15-2385-3 86

EP15-2385-4 86

EP15-9006-2 87

EP15-9008-2 87

EP15-9010-2 87

EP15-9012-2 87

EP20-1000-1 85

EP20-1000-2 85

EP20-1000-3 85

EP20-1000-4 85

EP20-1010-1 85

EP20-1010-2 85

EP20-1010-3 85

EP20-1010-4 85

EP20-1015-1 85

EP20-1015-2 85

EP20-1015-3 85

EP20-1015-4 85

EP20-1016-1 85

EP20-1016-2 85

EP20-1016-3 85

EP20-1016-4 85

EP20-1020-1 85

EP20-1020-2 85

EP20-1020-3 85

EP20-1020-4 85

EP20-1022-1 85

EP20-1022-2 85

EP20-1022-3 85

EP20-1022-4 85

EP20-1030-1 85

EP20-1030-2 85

EP20-1030-3 85

EP20-1030-4 85

EP20-1031-1 85

EP20-1031-2 85

EP20-1031-3 85

EP20-1031-4 85

Part Number Index

Part Number Index

Speedflow AN/JIC Fitting Identification Chart

Speedflow’s hose and fittings sizes are primarily based on the AN/JIC imperial system. Dash sizes relate to hose or tube sizes in 1/16” increments. The drawings below depict actual sizes of our AN/JIC thread sizes shown in the appropriate dash number.

Listed are all the relevant data relating to AN/JIC threads and diagrams for the B-Nut or Wire Nut sizes.

Male AN/JIC Thread Diagrams

B-Nut Size Diagrams

Common Speedflow Nipples that share this thread are 920, 921, 922, 923 990. Use 814 series to plug Female port. Referred to as O.R.B.

Speedflow NPT & BSP Fitting Identification Chart

NPT & BSP sizes do not measure their given size. Use the diagrams below to determine the correct size. The chart below displays all information in regards to NPT, BSP & BSPP thread pitches and diameters.

Understanding Brake Flares:

Most cars/bikes use a double brake flare. The “Flare” refers to the size of the opening width as it expands from the brake line tubing. The end of the tubing is flared or opened to 45° degree angle. Then the flare is folded above itself, creating a double and secure flare.

Please note that AN (Army/Navy) system uses a 37° angle which is sometimes misused as a brake flare. Whilst 37° flares will stand up to the pressure of brake line applications it is recommended to flare to the standard 45° seat as used and recommended by ADR42. All (Non Registered) vehicles can enjoy the simplistic installation of 37° hose and fittings for all brake lines without worry. Please view these on pages 10-18. The 200 Series Speedflow fitting (37° flare) are perfect for all racing applications including Drag, Circuit, Drift, Speedway and Bike racing. additional benefits include being able to service at the track with no special tool.

Motorsport Connections (MSCN) can help you fix and make show quality brake lines and hoses to ADR Standards. We can supply these to you in kit form or completely prefab the job for you, so you simply bolt them in.

Return Style Carb Schematic

Coldfire - Fire Suppression Systems

Coldfire is an environmentally friendly fire extinguishing agent that is leading the way in fire fighting technology and revolutionizing the way firefighters combat fires. Coldfire works to remove heat and the hydrocarbon fuel sources from the fire triangle. The suppressants in Coldfire use water as a catalyst to remove the heat as well as encapsulate and breakdown the hydrocarbons in the fuel source to extinguish the fire more rapidly. Coldfire extinguisher kits are now available for Motorsport and Marine applications. MSCN can also custom kits for industrial and other applications.

• Every second counts

• Super effective on A,B and D type fires

• Leaves surfaces cool to touch

• Trusted and used by professionals for years

THE FIRE TRIANGLE Without sufficient heat, a fire cannot begin. Without fuel, a fire will stop. Without sufficient oxygen, a fire cannot begin.

A,B & D Class Fires

• Completely environmentally friendly

• Refilling available from any MSCN store

• No Damage to paint

• Will not harm driver

Extract: ANDRA Rulebook

ANDRA will allow manufacturers to appoint Australian agents for inspection and certification purposes. Any enclosed vehicle faster than 8.00 seconds (1/4 mile), from 01 JAN 2013, must have a serviceable fire suppression system of a minimum 5lb capacity (10lb recommended) installed unless specified otherwise by class regulations. On all fire suppression systems, dispersion of contents should be divided as per manufacturer’s recommendation.
