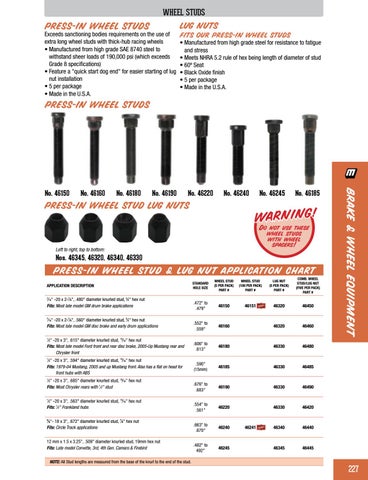

WHEEL STUDS PRESS-IN WHEEL STUDS
LUG NUTS
Exceeds sanctioning bodies requirements on the use of extra long wheel studs with thick-hub racing wheels • Manufactured from high grade SAE 8740 steel to withstand sheer loads of 190,000 psi (which exceeds Grade 8 specifications) • Feature a "quick start dog end" for easier starting of lug nut installation • 5 per package • Made in the U.S.A.
FITS OUR PRESS-IN WHEEL STUDS
•M anufactured from high grade steel for resistance to fatigue and stress •M eets NHRA 5.2 rule of hex being length of diameter of stud • 6 0º Seat •B lack Oxide finish • 5 per package •M ade in the U.S.A.
PRESS-IN WHEEL STUDS
No. 46160
No. 46180
No. 46190
No. 46220
No. 46240
PRESS-IN WHEEL STUD LUG NUTS
No. 46245
No. 46185
WARNING! Do not use these wheel studs with wheel spacers!
Left to right, top to bottom:
Nos. 46345, 46320, 46340, 46330
PRESS-IN WHEEL STUD & LUG NU T APPLICATI ON CHART STANDARD HOLE SIZE
WHEEL STUD (5 PER PACK) PART #
WHEEL STUD (100 PER PACK) PART #
LUG NUT (5 PER PACK) PART #
COMB. WHEEL STUD/LUG NUT (FIVE PER PACK) PART #
.472" to .479"
46150
46151
46320
46450
.552" to .559"
46160
46320
46460
1 ⁄2" -20 x 3", .615" diameter knurled stud, 13⁄16" hex nut Fits: Most late model Ford front and rear disc brake, 2005-Up Mustang rear and Chrysler front
.606" to .613"
46180
46330
46480
1 ⁄2" -20 x 3", .594" diameter knurled stud, 13⁄16" hex nut Fits: 1979-04 Mustang, 2005 and up Mustang front. Also has a flat on head for front hubs with ABS
.590" (15mm)
46185
46330
46485
.676" to .683"
46190
46330
46490
.554" to .561"
46220
46330
46420
.663" to .670"
46240
46340
46440
.482" to 492"
46245
46345
46445
APPLICATION DESCRIPTION 7 ⁄16" -20 x 2-7⁄8", .480" diameter knurled stud, 3⁄4" hex nut Fits: Most late model GM drum brake applications
⁄16" -20 x 2-7⁄8", .560" diameter knurled stud, 3⁄4" hex nut Fits: Most late model GM disc brake and early drum applications 7
1 ⁄2" -20 x 3", .685" diameter knurled stud, 13⁄16" hex nut Fits: Most Chrysler rears with 1⁄2" stud
1 ⁄2" -20 x 3", .563" diameter knurled stud, 13⁄16" hex nut Fits: 1⁄2" Frankland hubs
⁄8"- 18 x 3", .672" diameter knurled stud, 7⁄8" hex nut Fits: Circle Track applications
BRAKE & WHEEL EQUIPMENT
No. 46150
5
12 mm x 1.5 x 3.25", .509" diameter knurled stud, 19mm hex nut Fits: Late model Corvette, 3rd, 4th Gen. Camaro & Firebird NOTE: All Stud lengths are measured from the base of the knurl to the end of the stud.
46241
227
