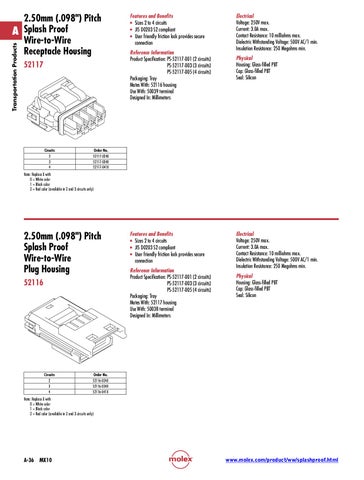

Transportation Products
2.50mm (.098") Pitch A Splash Proof Wire-to-Wire Receptacle Housing 52117
Circuits 2 3 4
Features and Benefits • Sizes 2 to 4 circuits • JIS D0203 S2 compliant • User friendly friction lock provides secure connection Reference Information Product Specification: P S-52117-001 (2 circuits) PS-52117-003 (3 circuits) PS-52117-005 (4 circuits) Packaging: Tray Mates With: 52116 housing Use With: 50039 terminal Designed In: Millimeters
Electrical Voltage: 250V max. Current: 3.0A max. Contact Resistance: 10 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 250 Megohms min. Physical Housing: Glass-filled PBT Cap: Glass-filled PBT Seal: Silicon
Order No. 52117-024X 52117-034X 52117-041X
Note: Replace X with 0 = White color 1 = Black color 2 = Red color (available in 2 and 3 circuits only)
2.50mm (.098") Pitch Splash Proof Wire-to-Wire Plug Housing 52116
Circuits 2 3 4
Features and Benefits • Sizes 2 to 4 circuits • JIS D0203 S2 compliant • User friendly friction lock provides secure connection Reference Information Product Specification: P S-52117-001 (2 circuits) PS-52117-003 (3 circuits) PS-52117-005 (4 circuits) Packaging: Tray Mates With: 52117 housing Use With: 50038 terminal Designed In: Millimeters
Electrical Voltage: 250V max. Current: 3.0A max. Contact Resistance: 10 milliohms max. Dielectric Withstanding Voltage: 500V AC/1 min. Insulation Resistance: 250 Megohms min. Physical Housing: Glass-filled PBT Cap: Glass-filled PBT Seal: Silicon
Order No. 52116-024X 52116-034X 52116-041X
Note: Replace X with 0 = White color 1 = Black color 2 = Red color (available in 2 and 3 circuits only)
A-36
MX10
www.molex.com/product/ww/splashproof.html
