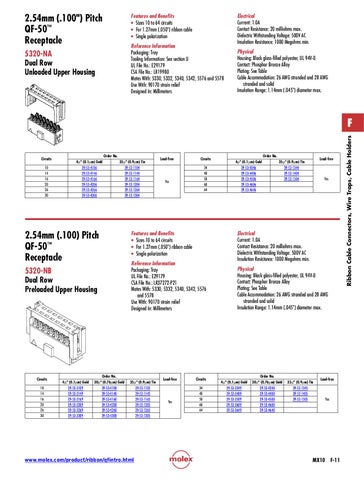

2.54mm (.100") Pitch QF-50™ Receptacle
Features and Benefits • Sizes 10 to 64 circuits • For 1.27mm (.050") ribbon cable • Single polarization Reference Information Packaging: Tray Tooling Information: See section U UL File No.: E29179 CSA File No.: LR19980 Mates With: 5330, 5332, 5340, 5342, 5576 and 5578 Use With: 90170 strain relief Designed In: Millimeters
5320-NA Dual Row Unloaded Upper Housing
Electrical Current: 1.0A Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC Insulation Resistance: 1000 Megohms min. Physical Housing: Black glass-filled polyester, UL 94V-0 Contact: Phosphor Bronze Alloy Plating: See Table Cable Accommodation: 26 AWG stranded and 28 AWG stranded and solid Insulation Range: 1.14mm (.045") diameter max.
Circuits 10 14 16 20 26 30
Order No. 4m" (0.1mm) Gold 39-53-4106 39-53-4146 39-53-4166 39-53-4206 39-53-4266 39-53-4306
35m" (0.9mm) Tin 39-52-1104 39-52-1144 39-52-1164 39-52-1204 39-52-1264 39-52-1304
2.54mm (.100) Pitch QF-50™ Receptacle
10 14 16 20 26 30
34 40 50 60 64
Yes
Reference Information Packaging: Tray UL File No.: E29179 CSA File No.: LR37272-P21 Mates With: 5330, 5332, 5340, 5342, 5576 and 5578 Use With: 90170 strain relief Designed In: Millimeters
Order No. 4m" (0.1mm) Gold 39-53-3109 39-53-3149 39-53-3169 39-53-3209 39-53-3269 39-53-3309
Circuits
Features and Benefits • Sizes 10 to 64 circuits • For 1.27mm (.050") ribbon cable • Single polarization
5320-NB Dual Row Preloaded Upper Housing
Circuits
Lead-free
30m" (0.76mm) Gold 39-53-4100 39-53-4140 39-53-4160 39-53-4200 39-53-4260 39-53-4300
35m" (0.9mm) Tin 39-52-1105 39-52-1145 39-52-1165 39-52-1205 39-52-1265 39-52-1305
www.molex.com/product/ribbon/qfintro.html
Lead-free
Yes
Circuits 34 40 50 60 64
Order No. 4m" (0.1mm) Gold 39-53-4346 39-53-4406 39-53-4506 39-53-4606 39-53-4646
Lead-free
35m" (0.9mm) Tin 39-52-1344 39-52-1404 39-52-1504
Yes
Electrical Current: 1.0A Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 500V AC Insulation Resistance: 1000 Megohms min. Physical Housing: Black glass-filled polyester, UL 94V-0 Contact: Phosphor Bronze Alloy Plating: See Table Cable Accommodation: 26 AWG stranded and 28 AWG stranded and solid Insulation Range: 1.14mm (.045") diameter max.
Order No. 4m" (0.1mm) Gold 39-53-3349 39-53-3409 39-53-3509 39-53-3609 39-53-3649
30m" (0.76mm) Gold 39-53-4340 39-53-4400 39-53-4500 39-53-4600 39-53-4640
35m" (0.9mm) Tin 39-52-1345 39-52-1405 39-52-1505
Lead-free
MX10
Yes
F-11
Ribbon Cable Connectors, Wire Traps, Cable Holders
F
