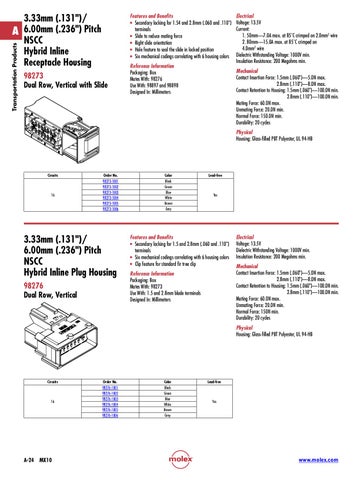

Transportation Products
3.33mm (.131")/ A 6.00mm (.236") Pitch NSCC Hybrid Inline Receptacle Housing
Features and Benefits • Secondary locking for 1.54 and 2.8mm (.060 and .110") terminals • Slide to reduce mating force • Right slide orientation • Hole feature to seal the slide in locked position • Six mechanical codings correlating with 6 housing colors
98273 Dual Row, Vertical with Slide
Reference Information Packaging: Box Mates With: 98276 Use With: 98897 and 98898 Designed In: Millimeters
Electrical Voltage: 13.5V Current: 1. 50mm—7.0A max. at 85˚C crimped on 2.0mm2 wire 2. 80mm—15.0A max. at 85˚C crimped on 4.0mm2 wire Dielectric Withstanding Voltage: 1000V min. Insulation Resistance: 200 Megohms min. Mechanical Contact Insertion Force: 1 .5mm (.060")—5.0N max. 2.8mm (.110")—8.0N max. Contact Retention to Housing: 1 .5mm (.060")—100.0N min. 2.8mm (.110")—100.0N min. Mating Force: 60.0N max. Unmating Force: 20.0N min. Normal Force: 150.0N min. Durability: 20 cycles Physical Housing: Glass-filled PBT Polyester, UL 94-HB
Circuits
16
Order No. 98273-1001 98273-1002 98273-1003 98273-1004 98273-1005 98273-1006
3.33mm (.131")/ 6.00mm (.236") Pitch NSCC Hybrid Inline Plug Housing 98276 Dual Row, Vertical
Color Black Green Blue White Brown Gray
Lead-free
Yes
Features and Benefits • Secondary locking for 1.5 and 2.8mm (.060 and .110") terminals • Six mechanical codings correlating with 6 housing colors • Clip feature for standard fir tree clip Reference Information Packaging: Box Mates With: 98273 Use With: 1.5 and 2.8mm blade terminals Designed In: Millimeters
Electrical Voltage: 13.5V Dielectric Withstanding Voltage: 1000V min. Insulation Resistance: 200 Megohms min. Mechanical Contact Insertion Force: 1 .5mm (.060")—5.0N max. 2.8mm (.110")—8.0N max. Contact Retention to Housing: 1 .5mm (.060")—100.0N min. 2.8mm (.110")—100.0N min. Mating Force: 60.0N max. Unmating Force: 20.0N min. Normal Force: 150N min. Durability: 20 cycles Physical Housing: Glass-filled PBT Polyester, UL 94-HB
Circuits
16
A-24
MX10
Order No. 98276-1001 98276-1002 98276-1003 98276-1004 98276-1005 98276-1006
Color Black Green Blue White Brown Gray
Lead-free
Yes
www.molex.com
