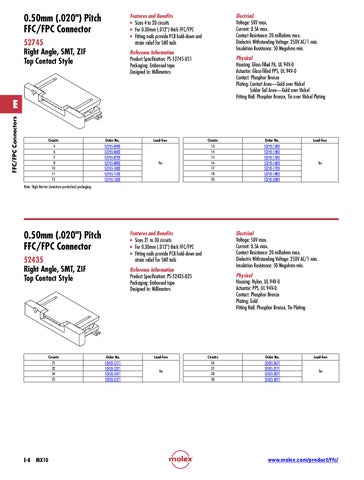

0.50mm (.020") Pitch FFC/FPC Connector
Features and Benefits • Sizes 4 to 20 circuits • For 0.30mm (.012") thick FFC/FPC • Fitting nails provide PCB hold-down and strain relief for SMT tails
52745 Right Angle, SMT, ZIF Top Contact Style
Electrical Voltage: 50V max. Current: 0.5A max. Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 250V AC/1 min. Insulation Resistance: 50 Megohms min.
Reference Information Product Specification: P S-52745-051 Packaging: Embossed tape Designed In: Millimeters
Physical Housing: Glass-filled PA, UL 94V-0 Actuator: Glass-filled PPS, UL 94V-0 Contact: Phosphor Bronze Plating: C ontact Area—Gold over Nickel Solder Tail Area—Gold over Nickel Fitting Nail: Phosphor Bronze, Tin over Nickel Plating
FFC/FPC Connectors
E Circuits 4 6 7 8 10 11 12
Order No. 52745-0483 52745-0683 52745-0783 52745-0883 52745-1083 52745-1183 52745-1283
Lead-free
Yes
Circuits 13 14 15 16 17 18 20
Order No. 52745-1383 52745-1483 52745-1583 52745-1683 52745-1783 52745-1883 52745-2083
Lead-free
Yes
Note: High-Barrier (moisture protection) packaging
0.50mm (.020") Pitch FFC/FPC Connector
Features and Benefits • Sizes 21 to 30 circuits • For 0.30mm (.012") thick FFC/FPC • Fitting nails provide PCB hold-down and strain relief for SMT tails
52435 Right Angle, SMT, ZIF Top Contact Style
Circuits 21 22 24 25
E-8
MX10
Electrical Voltage: 50V max. Current: 0.5A max. Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 250V AC/1 min. Insulation Resistance: 50 Megohms min.
Reference Information Product Specification: P S-52435-025 Packaging: Embossed tape Designed In: Millimeters
Order No. 52435-2171 52435-2271 52435-2471 52435-2571
Lead-free Yes
Physical Housing: Nylon, UL 94V-0 Actuator: PPS, UL 94V-0 Contact: Phosphor Bronze Plating: Gold Fitting Nail: Phosphor Bronze, Tin Plating
Circuits 26 27 28 30
Order No. 52435-2671 52435-2771 52435-2871 52435-3071
Lead-free Yes
www.molex.com/product/ffc/
