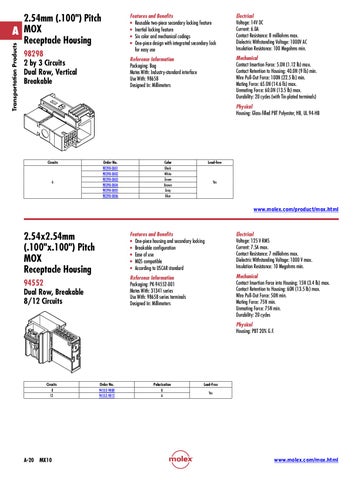

Transportation Products
2.54mm (.100") Pitch A MOX Receptacle Housing 98298 2 by 3 Circuits Dual Row, Vertical Breakable
Features and Benefits • Reusable two-piece secondary locking feature • Inertial locking feature • Six color and mechanical codings • One-piece design with integrated secondary lock for easy use
Electrical Voltage: 14V DC Current: 6.0A Contact Resistance: 8 milliohms max. Dielectric Withstanding Voltage: 1000V AC Insulation Resistance: 100 Megohms min.
Reference Information Packaging: Bag Mates With: Industry-standard interface Use With: 98658 Designed In: Millimeters
Mechanical Contact Insertion Force: 5.0N (1.12 lb) max. Contact Retention to Housing: 40.0N (9 lb) min. Wire Pull-Out Force: 100N (22.5 lb) min. Mating Force: 65.0N (14.6 lb) max. Unmating Force: 60.0N (13.5 lb) max. Durability: 20 cycles (with Tin-plated terminals) Physical Housing: Glass-filled PBT Polyester, HB, UL 94-HB
Circuits
6
Order No. 98298-0001 98298-0002 98298-0003 98298-0004 98298-0005 98298-0006
Color Black White Green Brown Gray Blue
Lead-free
Yes
www.molex.com/product/mox.html
2.54x2.54mm (.100"x.100") Pitch MOX Receptacle Housing 94552 Dual Row, Breakable 8/12 Circuits
Features and Benefits • One-piece housing and secondary locking • Breakable configuration • Ease of use • MQS compatible • According to USCAR standard
Electrical Voltage: 125 V RMS Current: 7.5A max. Contact Resistance: 7 milliohms max. Dielectric Withstanding Voltage: 1000 V max. Insulation Resistance: 10 Megohms min.
Reference Information Packaging: PK-94552-001 Mates With: 31341 series Use With: 98658 series terminals Designed In: Millimeters
Mechanical Contact Insertion Force into Housing: 15N (3.4 lb) max. Contact Retention to Housing: 60N (13.5 lb) max. Wire Pull-Out Force: 50N min. Mating Force: 75N min. Unmating Force: 75N min. Durability: 20 cycles Physical Housing: PBT 20% G.F.
Circuits 8 12
A-20
MX10
Order No. 94552-9008 94552-9012
Polarization B A
Lead-Free Yes
www.molex.com/mox.html
