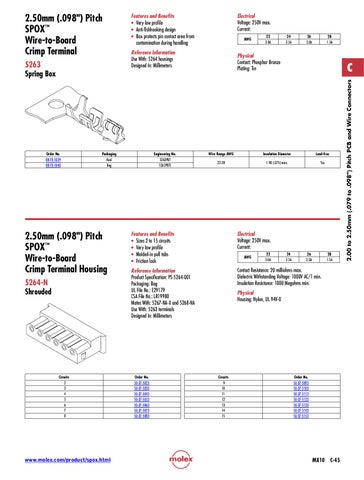

5263 Spring Box
Order No. 08-70-1039 08-70-1040
Features and Benefits • Very low profile • Anti-fishhooking design • Box protects pin contact area from contamination during handling
5264-N Shrouded
Circuits 2 3 4 5 6 7 8
www.molex.com/product/spox.html
AWG
Reference Information Use With: 5264 housings Designed In: Millimeters
Packaging Reel Bag
2.50mm (.098") Pitch SPOX™ Wire-to-Board Crimp Terminal Housing
Electrical Voltage: 250V max. Current:
Engineering No. 5263PBT 5263PBTL
22 3.0A
24 2.5A
26 2.0A
28 1.5A
Physical Contact: Phosphor Bronze Plating: Tin
C
Wire Range AWG
Insulation Diameter
Lead-free
22-28
1.90 (.075) max.
Yes
Features and Benefits • Sizes 2 to 15 circuits • Very low profile • Molded-in pull tabs • Friction lock
Electrical Voltage: 250V max. Current:
Reference Information Product Specification: P S-5264-001 Packaging: Bag UL File No.: E29179 CSA File No.: LR19980 Mates With: 5267-NA-X and 5268-NA Use With: 5263 terminals Designed In: Millimeters
Contact Resistance: 20 milliohms max. Dielectric Withstanding Voltage: 1000V AC/1 min. Insulation Resistance: 1000 Megohms min.
Order No. 50-37-5023 50-37-5033 50-37-5043 50-37-5053 50-37-5063 50-37-5073 50-37-5083
AWG
22 3.0A
24 2.5A
26 2.0A
28 1.5A
Physical Housing: Nylon, UL 94V-0
Circuits 9 10 11 12 13 14 15
Order No. 50-37-5093 50-37-5103 50-37-5113 50-37-5123 50-37-5133 50-37-5143 50-37-5153
MX10
C-45
2.00 to 2.50mm (.079 to .098") Pitch PCB and Wire Connectors
2.50mm (.098") Pitch SPOX™ Wire-to-Board Crimp Terminal
