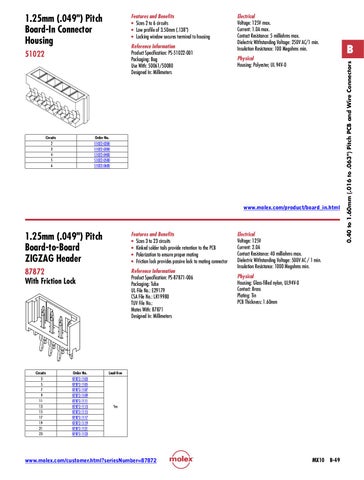

Features and Benefits • Sizes 2 to 6 circuits • Low profile of 3.50mm (.138") • Locking window secures terminal to housing Reference Information Product Specification: PS-51022-001 Packaging: Bag Use With: 50061/50080 Designed In: Millimeters
51022
Circuits 2 3 4 5 6
Electrical Voltage: 125V max. Current: 1.0A max. Contact Resistance: 5 milliohms max. Dielectric Withstanding Voltage: 250V AC/1 min. Insulation Resistance: 100 Megohms min.
B
Physical Housing: Polyester, UL 94V-0
Order No. 51022-0200 51022-0300 51022-0400 51022-0500 51022-0600
www.molex.com/product/board_in.html
1.25mm (.049") Pitch Board-to-Board ZIGZAG Header
Features and Benefits • Sizes 3 to 23 circuits • Kinked solder tails provide retention to the PCB • Polarization to ensure proper mating • Friction lock provides passive lock to mating connector
87872 With Friction Lock
Reference Information Product Specification: PS-87871-006 Packaging: Tube UL File No.: E29179 CSA File No.: LR19980 TUV File No.: Mates With: 87871 Designed In: Millimeters
Circuits 3 5 7 9 11 13 15 17 19 21 23
Order No. 87872-1103 87872-1105 87872-1107 87872-1109 87872-1111 87872-1113 87872-1115 87872-1117 87872-1119 87872-1121 87872-1123
Electrical Voltage: 125V Current: 2.0A Contact Resistance: 40 milliohms max. Dielectric Withstanding Voltage: 500V AC / 1 min. Insulation Resistance: 1000 Megohms min. Physical Housing: Glass-filled nylon, UL94V-0 Contact: Brass Plating: Tin PCB Thickness: 1.60mm
Lead-free
Yes
www.molex.com/customer.html?seriesNumber=87872
MX10
B-49
0.40 to 1.60mm (.016 to .063") Pitch PCB and Wire Connectors
1.25mm (.049") Pitch Board-In Connector Housing
