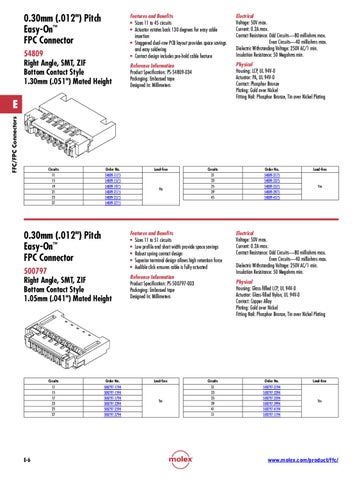

0.30mm (.012") Pitch Easy-On™ FPC Connector 54809 Right Angle, SMT, ZIF Bottom Contact Style 1.30mm (.051") Mated Height
Features and Benefits • Sizes 11 to 45 circuits • Actuator rotates back 130 degrees for easy cable insertion • Staggered dual-row PCB layout provides space savings and easy soldering • Contact design includes pre-hold cable feature
Electrical Voltage: 50V max. Current: 0.2A max. Contact Resistance: Odd Circuits—80 milliohms max. Even Circuits—40 milliohms max. Dielectric Withstanding Voltage: 250V AC/1 min. Insulation Resistance: 50 Megohms min.
Reference Information Product Specification: PS-54809-034 Packaging: Embossed tape Designed In: Millimeters
Physical Housing: LCP, UL 94V-0 Actuator: PA, UL 94V-0 Contact: Phosphor Bronze Plating: Gold over Nickel Fitting Nail: Phosphor Bronze, Tin over Nickel Plating
FFC/FPC Connectors
E
Circuits 11 15 19 21 25 27
Order No. 54809-1175 54809-1575 54809-1975 54809-2175 54809-2575 54809-2775
0.30mm (.012") Pitch Easy-On™ FPC Connector 500797 Right Angle, SMT, ZIF Bottom Contact Style 1.05mm (.041") Mated Height
Circuits 11 15 17 23 25 27
E-6
Order No. 500797-1194 500797-1594 500797-1794 500797-2394 500797-2594 500797-2794
Lead-free
Yes
Circuits 31 33 35 39 45
Features and Benefits • Sizes 11 to 51 circuits • Low profile and short width provide space savings • Robust spring contact design • Superior terminal design allows high retention force • Audible click ensures cable is fully actuated Reference Information Product Specification: PS-500797-003 Packaging: Embossed tape Designed In: Millimeters
Lead-free
Yes
Order No. 54809-3175 54809-3375 54809-3575 54809-3975 54809-4575
Lead-free
Yes
Electrical Voltage: 50V max. Current: 0.2A max. Contact Resistance: Odd Circuits—80 milliohms max. Even Circuits—40 milliohms max. Dielectric Withstanding Voltage: 250V AC/1 min. Insulation Resistance: 50 Megohms min. Physical Housing: Glass-fillled LCP, UL 94V-0 Actuator: Glass-filled Nylon, UL 94V-0 Contact: Copper Alloy Plating: Gold over Nickel Fitting Nail: Phosphor Bronze, Tin over Nickel Plating
Circuits 31 33 35 39 41 51
Order No. 500797-3194 500797-3394 500797-3594 500797-3994 500797-4194 500797-5194
Lead-free
Yes
www.molex.com/product/ffc/
